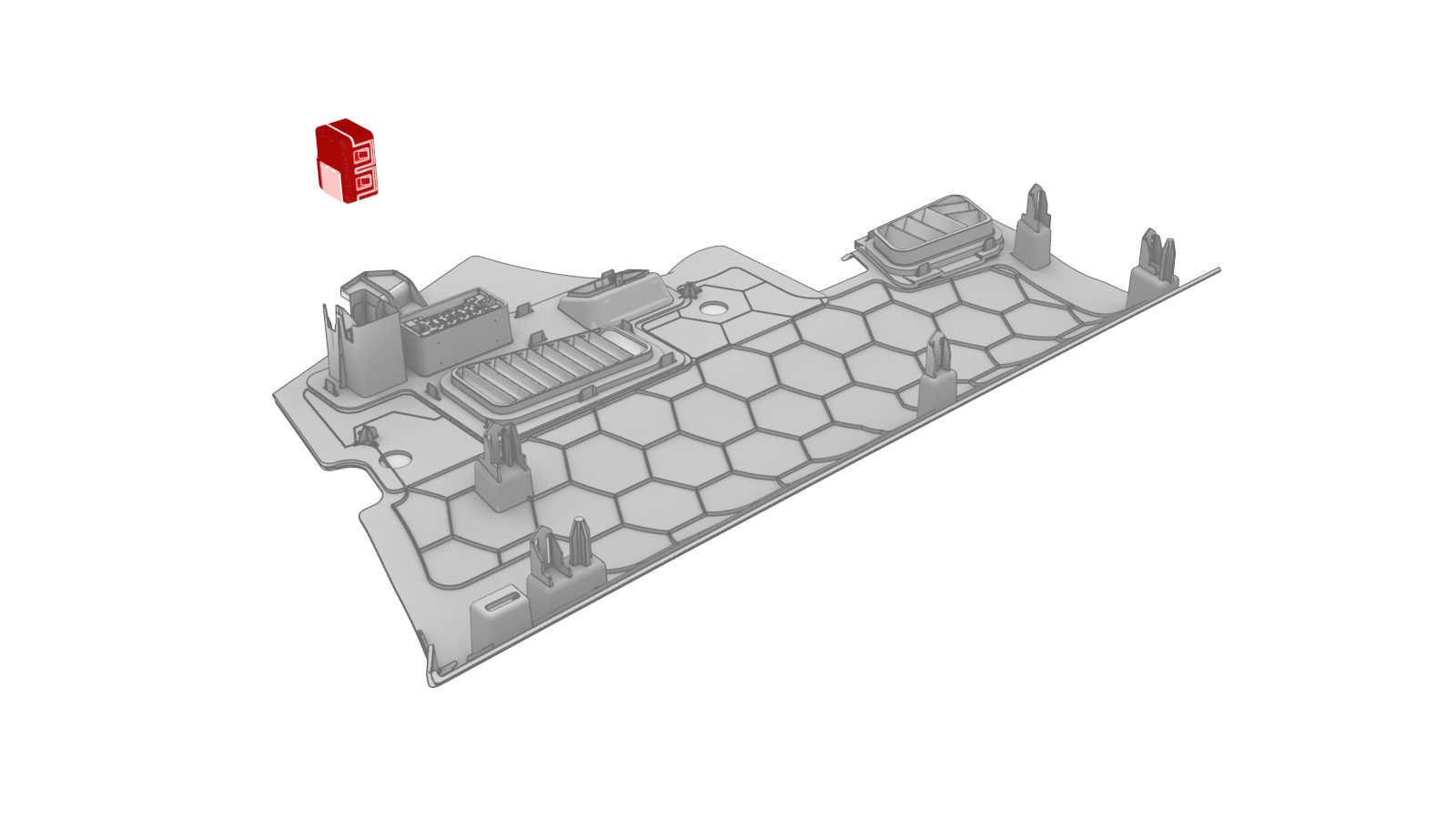

Cover - Footwell - Driver (Remove and Replace)
Correction code
1405010052
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
- 2024-07-25: Added steps for NA vehicles.
Remove
- Open the LH front door and lower the LH front window.
- Move the LH front seat backward.
-
Release the driver footwell cover from the vehicle.

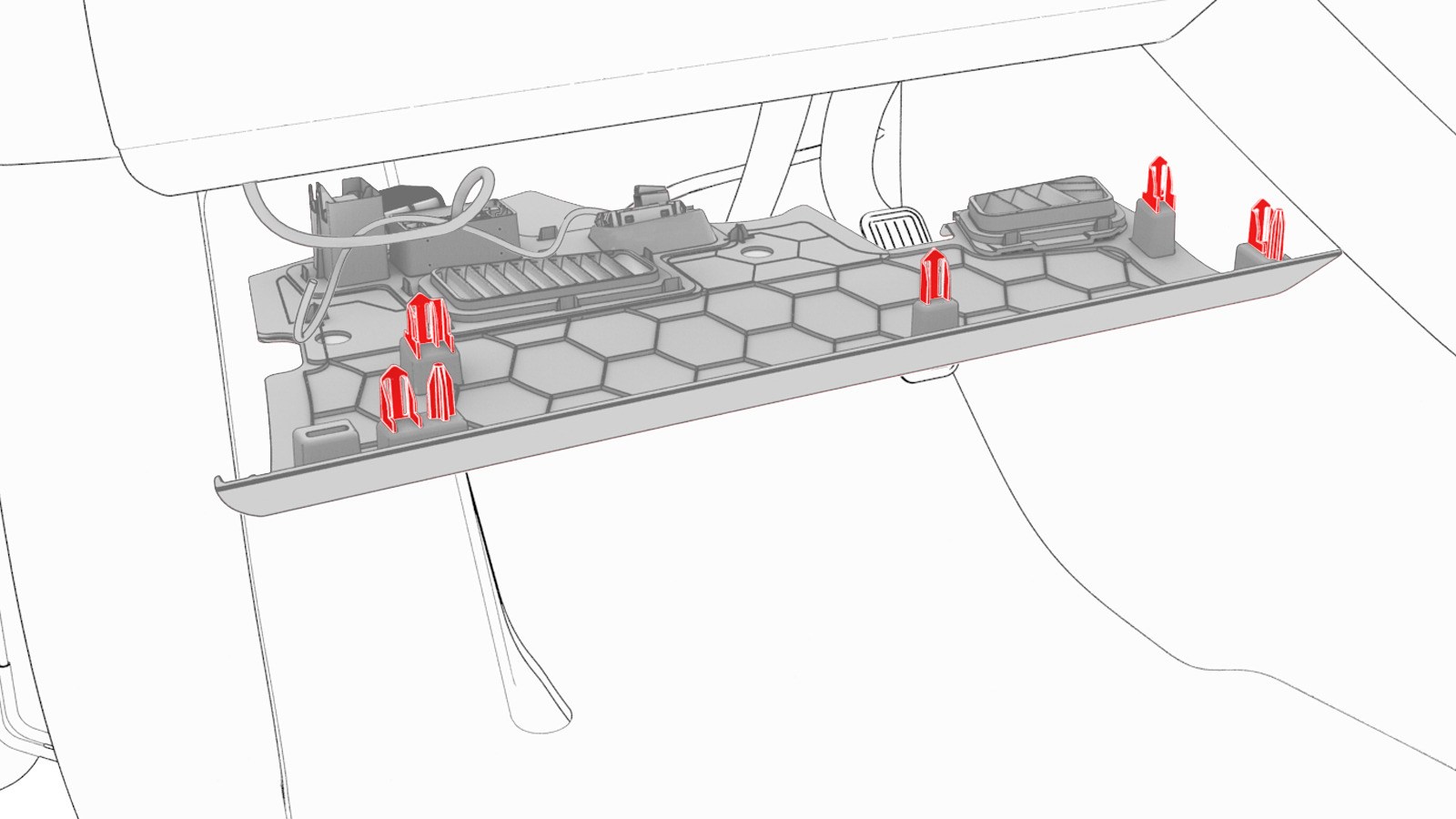

- For APAC and EMEA vehicles: Release the clips that attach the driver footwell cover to the vehicle.

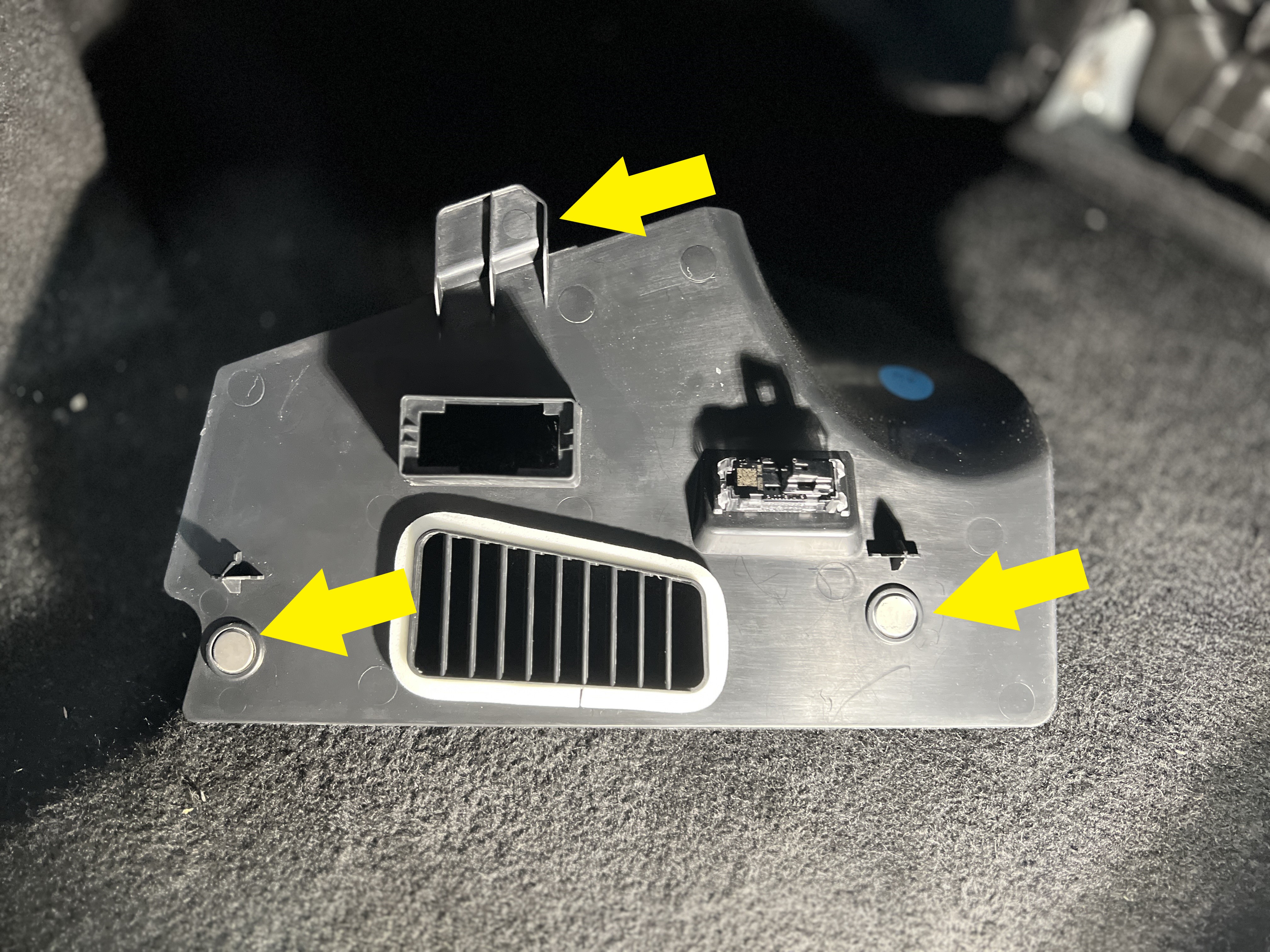

- For NA vehicles: Release the magnets (x2) that attach the driver footwell cover to the vehicle.
Figure 1. Driver Footwell Cover on APAC and EMEA Vehicles Figure 2. Driver Footwell Cover on NA Vehicles -

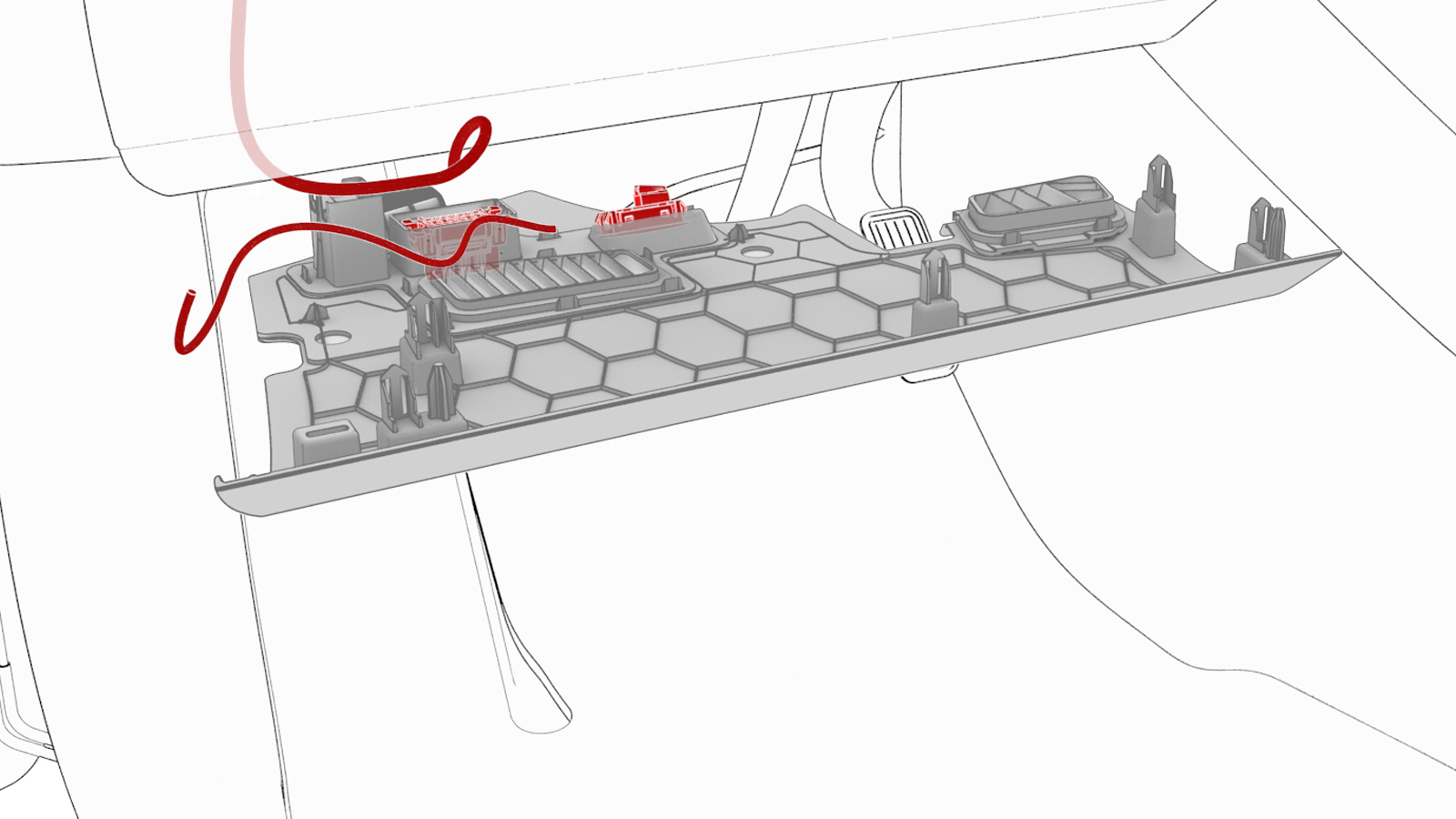

Disconnect the electrical
connector from the puddle light, and then disconnect the diagnostic cable
from the driver footwell cover.
-
APAC vehicles only: Remove
Ethernet connector from the driver footwell cover.
Install
-
APAC vehicles only: Install
Ethernet connector to the driver footwell cover.
-
Connect the electrical connector to the puddle light, and then connect the
diagnostic cable to the driver footwell cover.
-
Install the driver footwell cover to the vehicle.
- For APAC and EMEA vehicles: Secure the clips that attach the driver footwell cover to the vehicle.
- For NA vehicles: Secure the magnets (x2) that attach the driver footwell cover to the vehicle.
Figure 3. Driver Footwell Cover on APAC and EMEA Vehicles Figure 4. Driver Footwell Cover on NA Vehicles - Move the LH front seat to original position.
- Raise the LH front window and close the LH front door.
