PE Foam - B-Pillar - Middle - LH (Remove and Replace)

Correction code 1518010132 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  2. Remove the 2nd row lower seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
  3. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  4. Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  5. Remove the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace).
  6. Remove the LH middle B-pillar trim. See Trim - B-Pillar - Middle - LH (Remove and Replace).

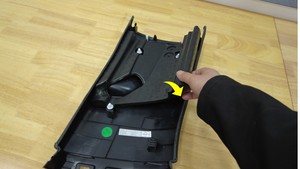

  7. Remove the foam from the LH middle B-pillar trim.

Install

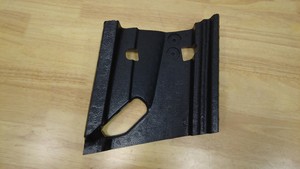

  1. Install the foam to the LH middle B-pillar trim.
  2. Install the LH middle B-pillar trim. See Trim - B-Pillar - Middle - LH (Remove and Replace).
  3. Install the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace).
  4. Install the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  5. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  6. Install the 2nd row lower seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
  7. Install the 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
