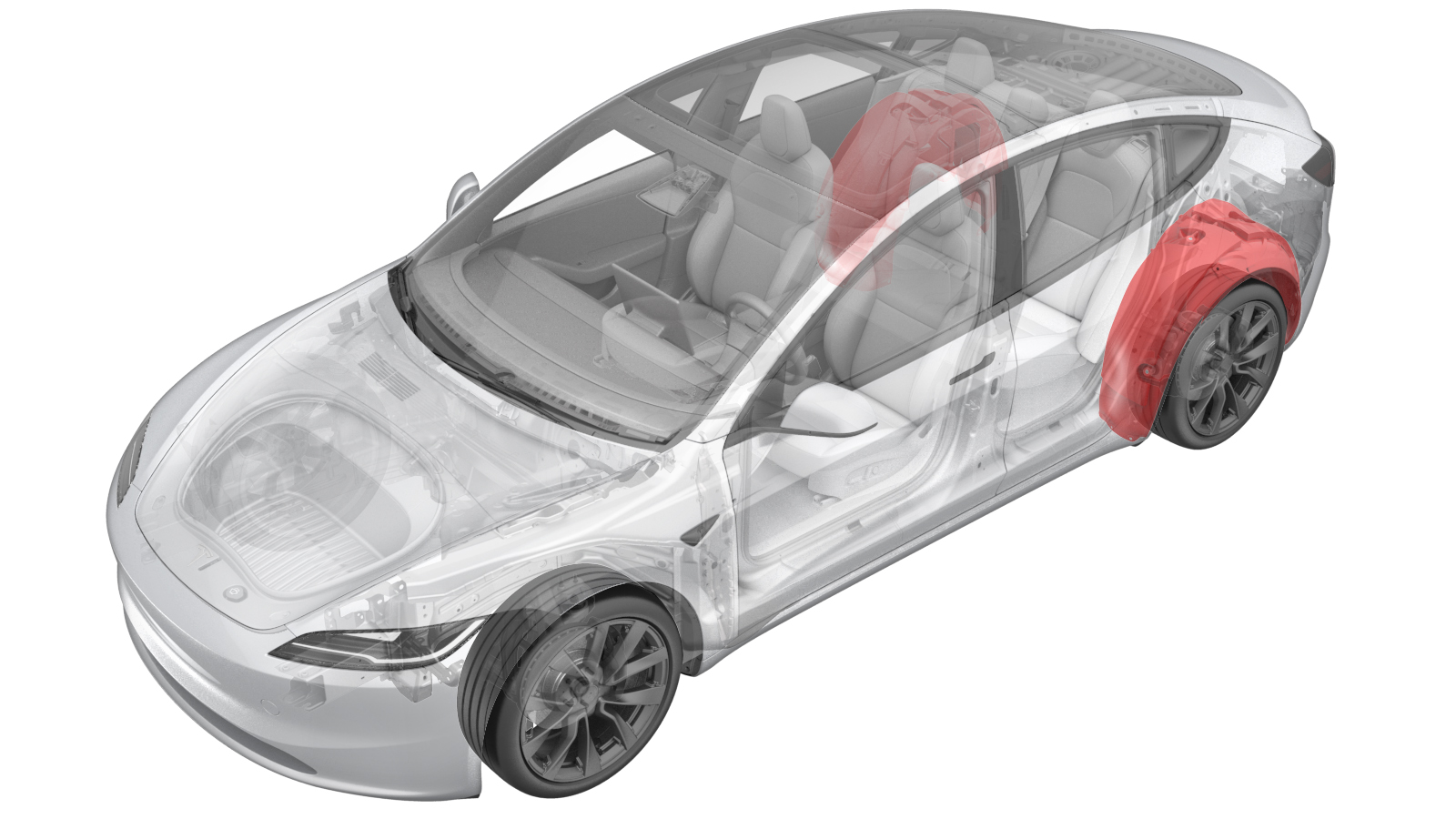

Wheel Arch Liner - Rear - LH (Remove and Replace)
Correction code
1201020032
FRT
0.24
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
- Remove the LH rear wheel. See Wheel Assembly (Remove and Install).
-

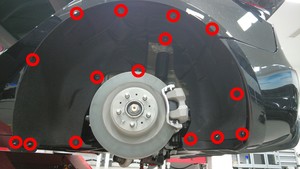

Release the push clips (x8)
and fan clips (x7) that attach the LH rear wheel arch liner to the vehicle,

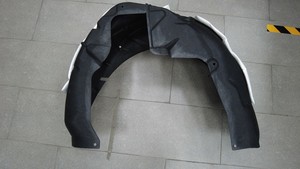

and remove the liner from the vehicle.
Install
-

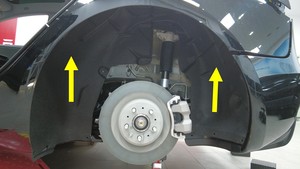

Position the LH rear wheel
arch liner into the vehicle.
-
Install the push clips (x8)
and fan clips (x7) that attach the LH rear wheel arch liner to the
vehicle.
- Install the LH rear wheel. See Wheel Assembly (Remove and Install).
- Remove the vehicle from the lift.
