Coat Hook - LH (Remove and Replace)

Correction code 1520010042 FRT 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Lower the rear headliner. See Headliner (Remove and Replace).

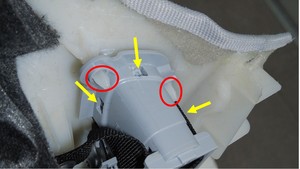

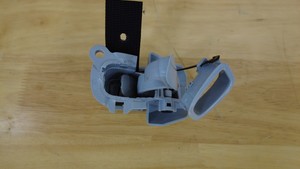

  2. Release the clips that attach the bezel to the LH rear coat hook, and then remove the coat hook from the headliner.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Install

  1. Install the clips that attach the bezel to the LH rear coat hook, and then install the coat hook to the headliner.
  2. Install the rear headliner. See Headliner (Remove and Replace).
