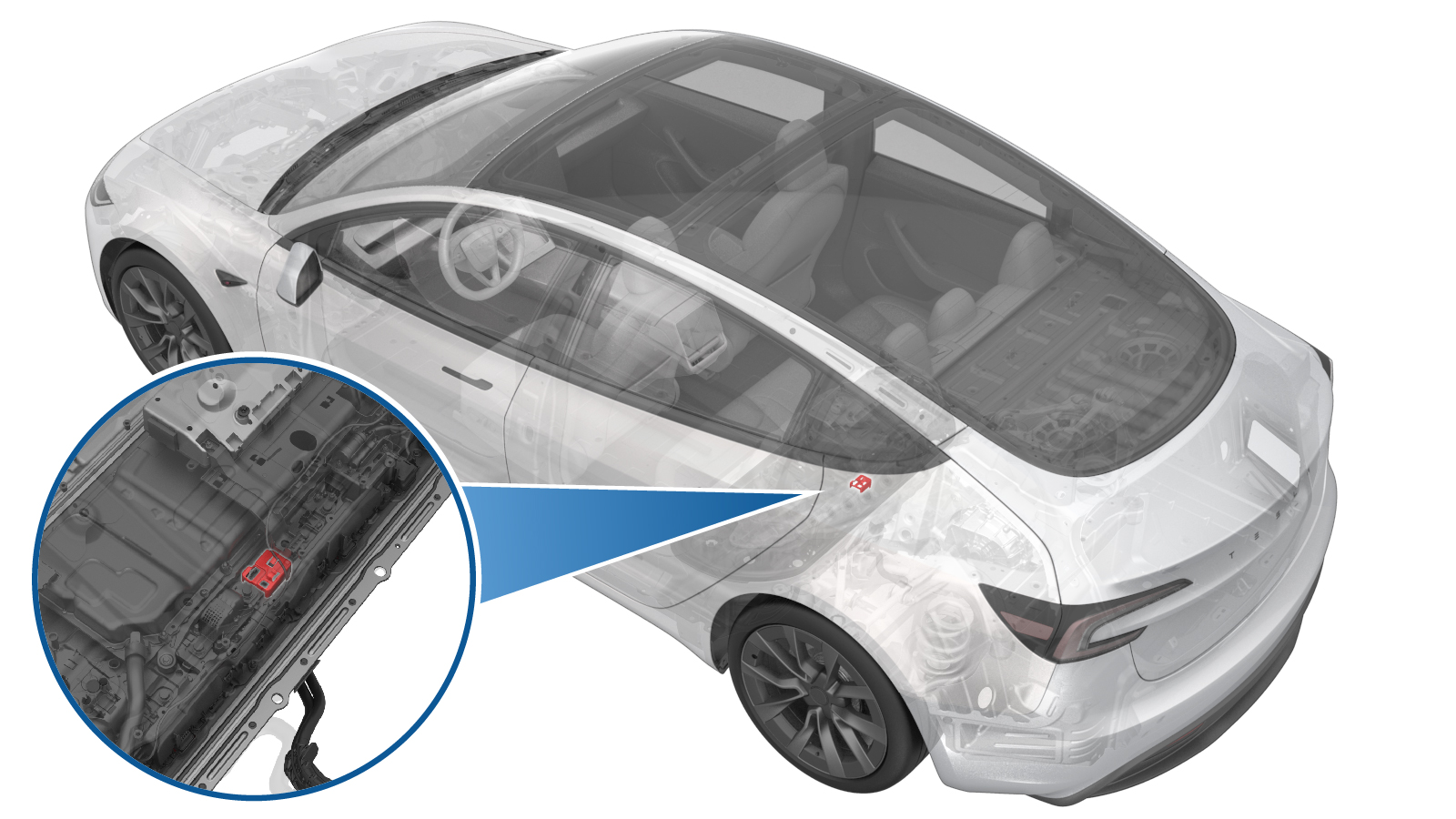

Insulator - Access - Shunt (Remove and Replace)
Correction code
1630010092
FRT
0.90
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the pyrotechnic disconnect. See Pyro Disconnect - HV Battery (Remove and Replace).
-

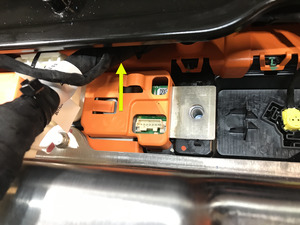

Disconnect the HV battery shunt
harness connector and release the harness from the shunt insulator.
-

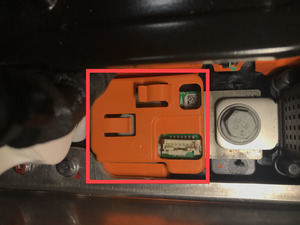

Remove the HV battery shunt insulator from the HV battery shunt assembly.
Install
-

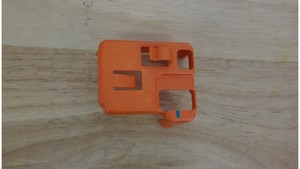

Position the HV battery shunt
insulator onto the HV battery shunt assembly.
-

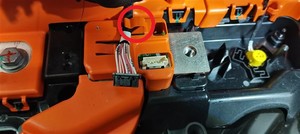

Install the HV battery shunt harness into the shunt insulator clip to secure it, and
then connect the HV battery shunt harness connector.
- Install the pyrotechnic disconnect. See Pyro Disconnect - HV Battery (Remove and Replace).
- Connect LV power. See LV Power (Disconnect and Connect).
