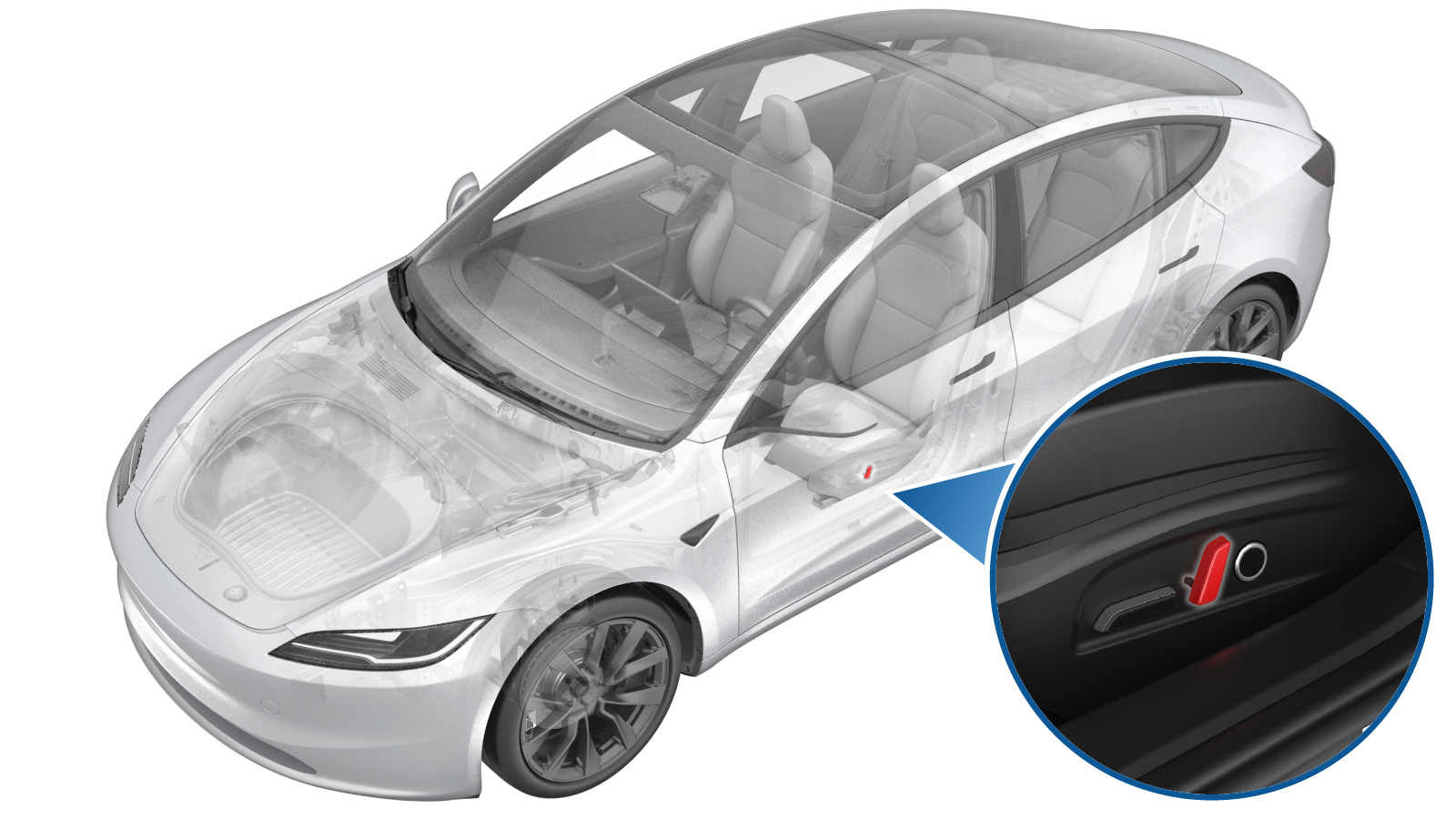

Button - Recliner - Driver Seat (Remove and Install)

Correction code 1301010021 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open LH front door.
  2. Lower LH front window.

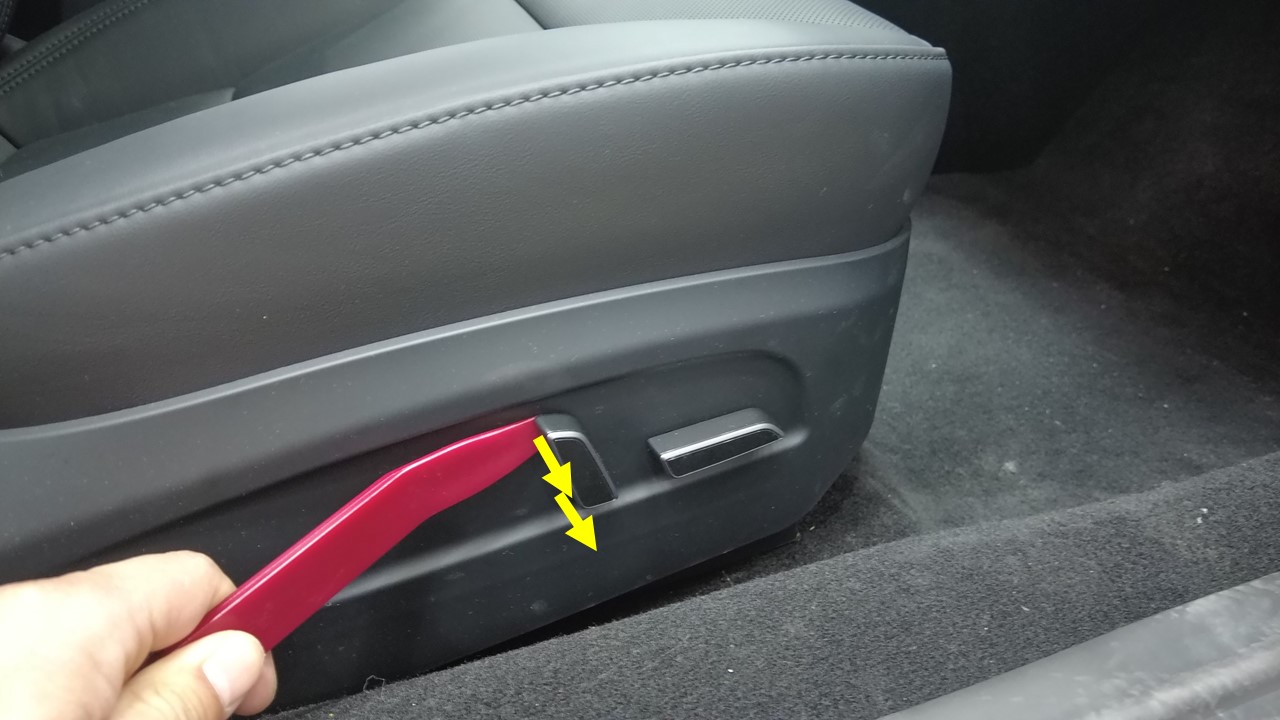

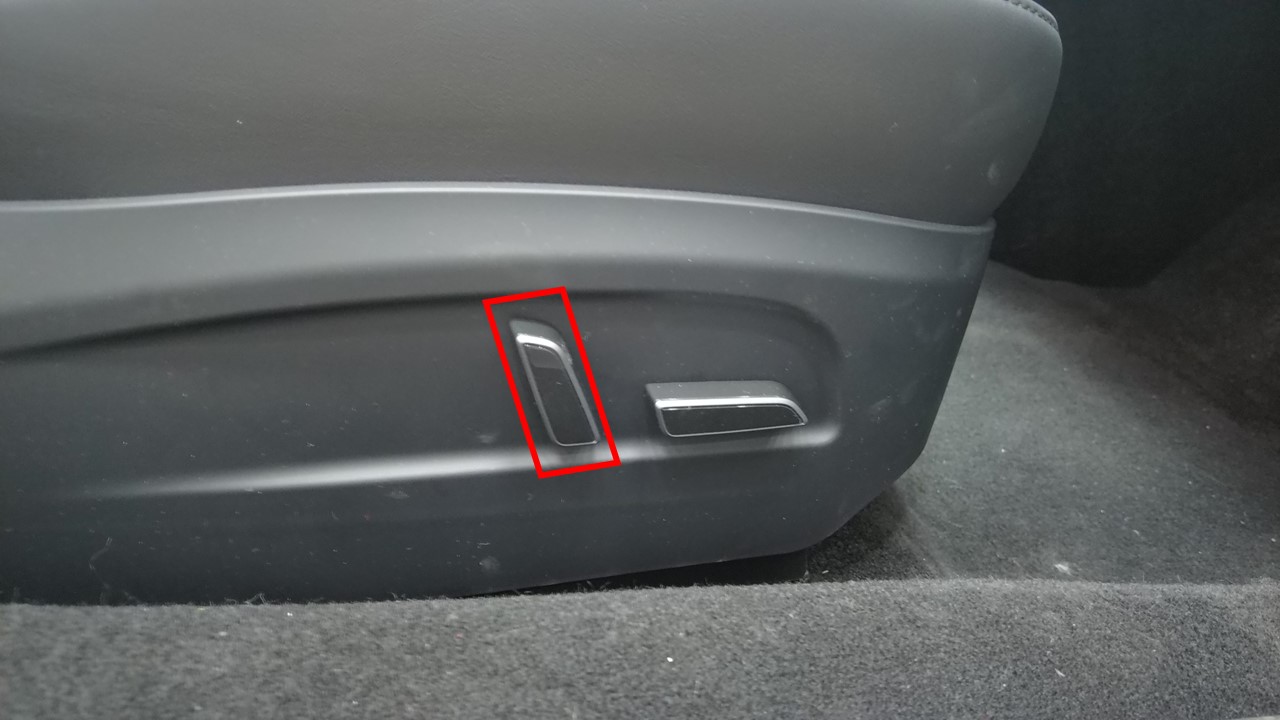

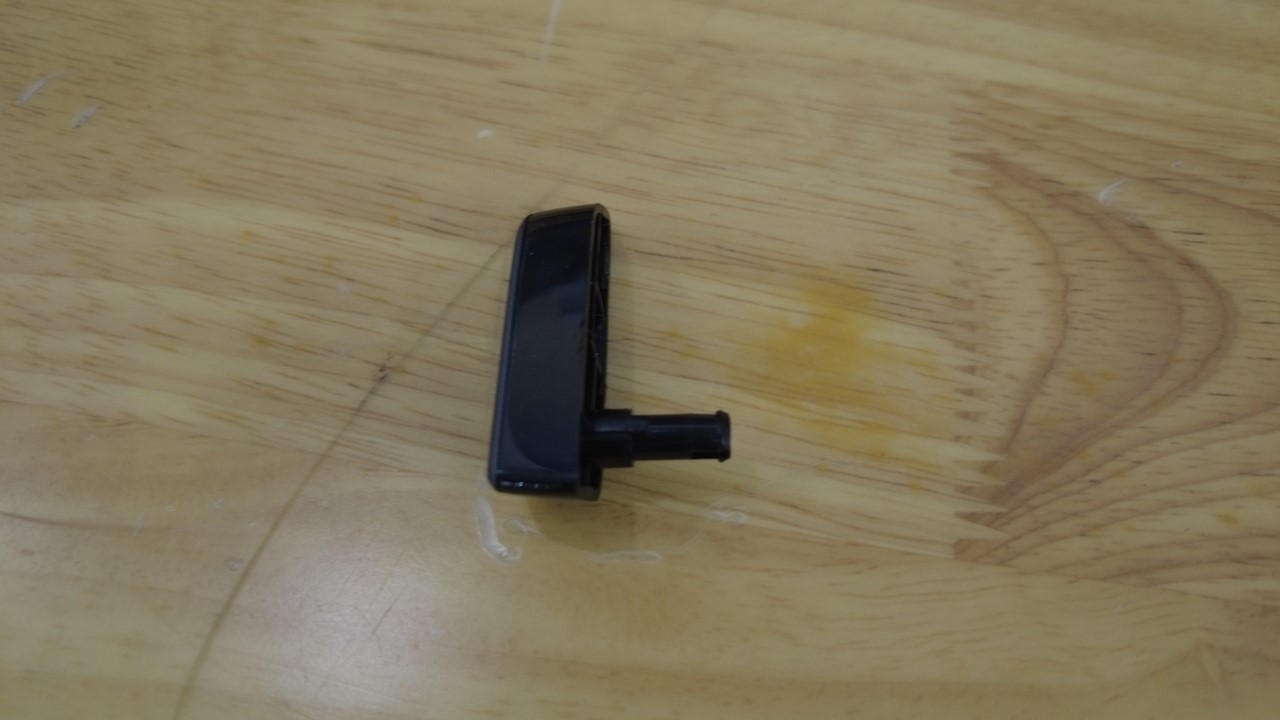

  3. Use a clip tool to remove the button switch from outer side cover.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the trim and the switch are not damaged during removal.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Install

  1. Install the button switch to the outer side cover.
  2. Raise the LH front window.
  3. Close the LH front door.
