Bushing - Rear Drive Unit - RH (3DU) (Remove and Replace)

Correction code 4001020082 FRT 3.96 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the rear drive unit. See Drive Unit - Rear (3DU) (Remove and Replace)
  2. Position the rear drive unit above an empty rear drive unit crate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a pallet if no crate is available.

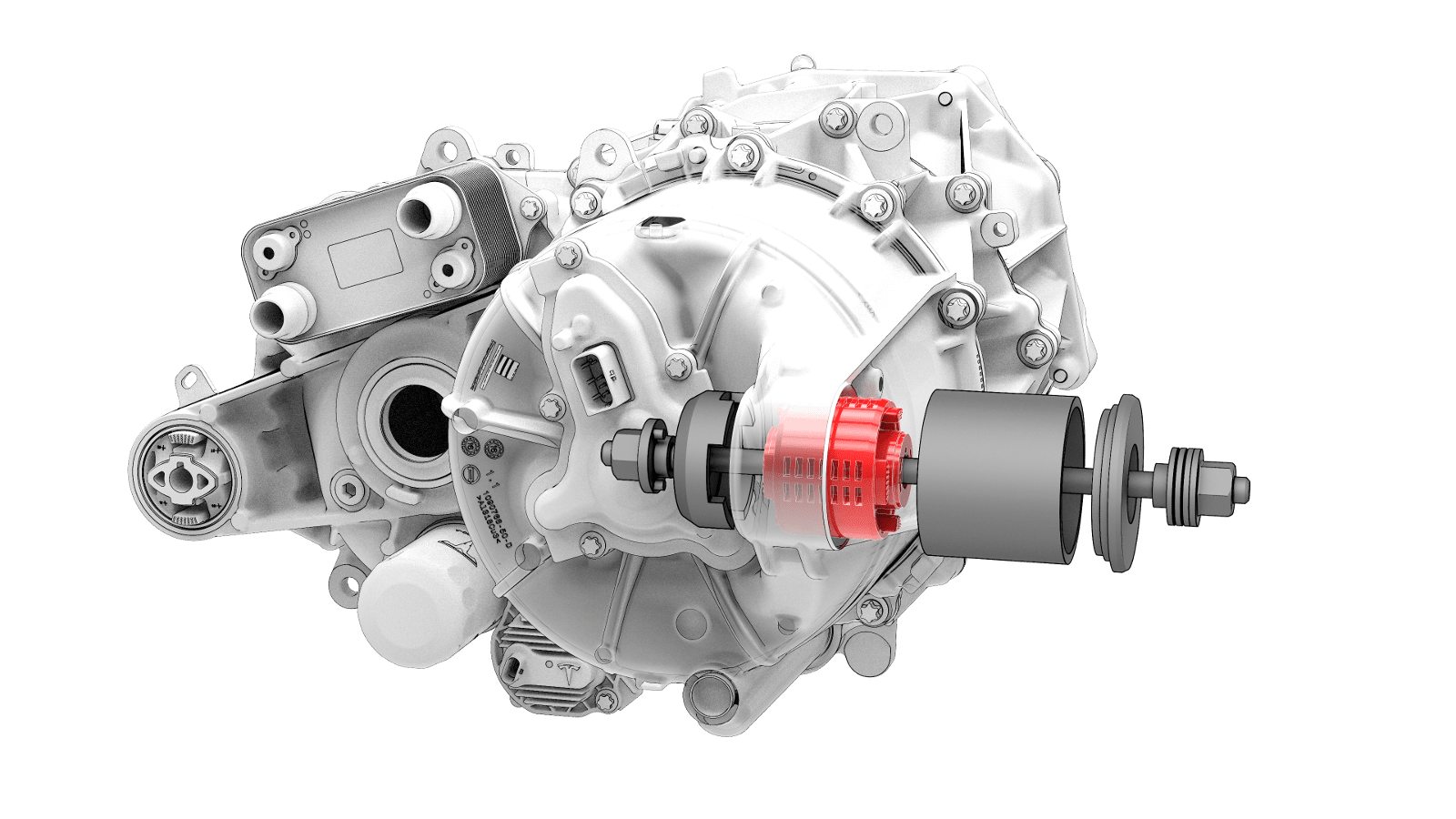

  3. Install the bushing removal tool on the RH bushing.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use cups "A", "C", and "D" when assembling the special tool, as shown.
  4. Turn the bearing-side bushing removal tool nut with a wrench while holding the other nut in place.
  5. When the bushing has been pushed out of the drive unit, separate the bushing removal tool, and then remove it from the drive unit.

Install

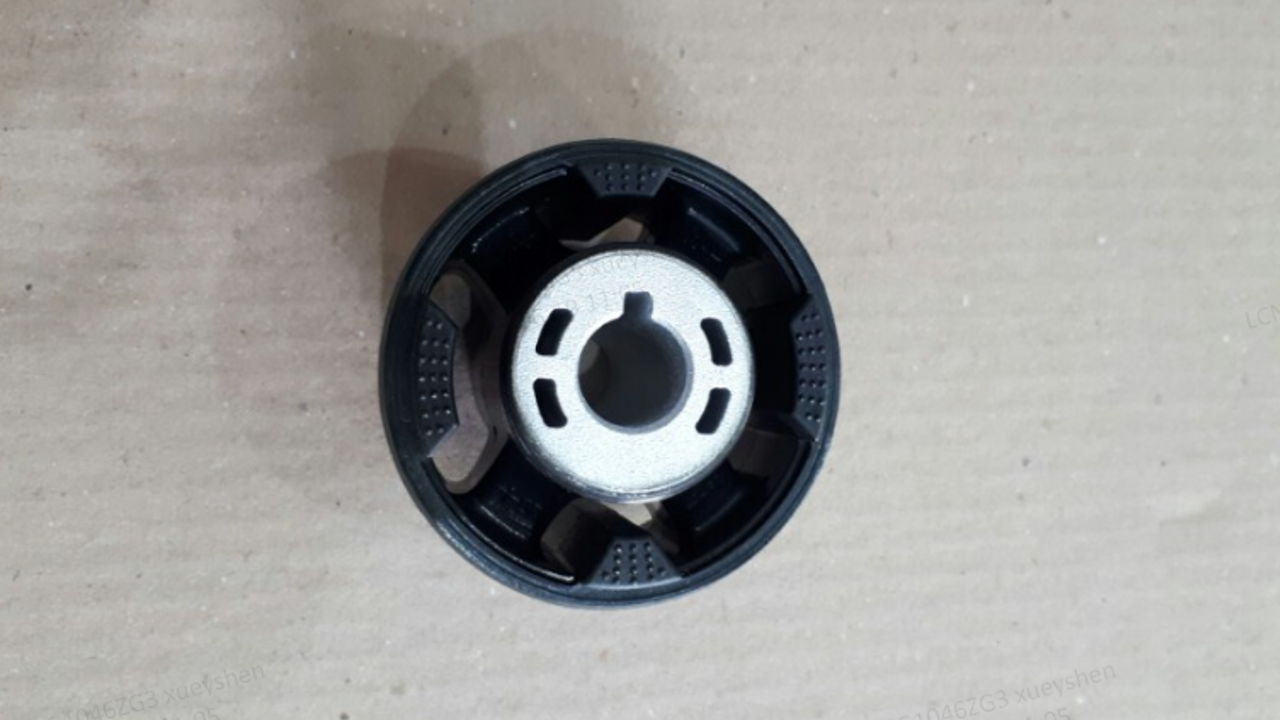

  1. Set up the bushing tool to press in the new bushing.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

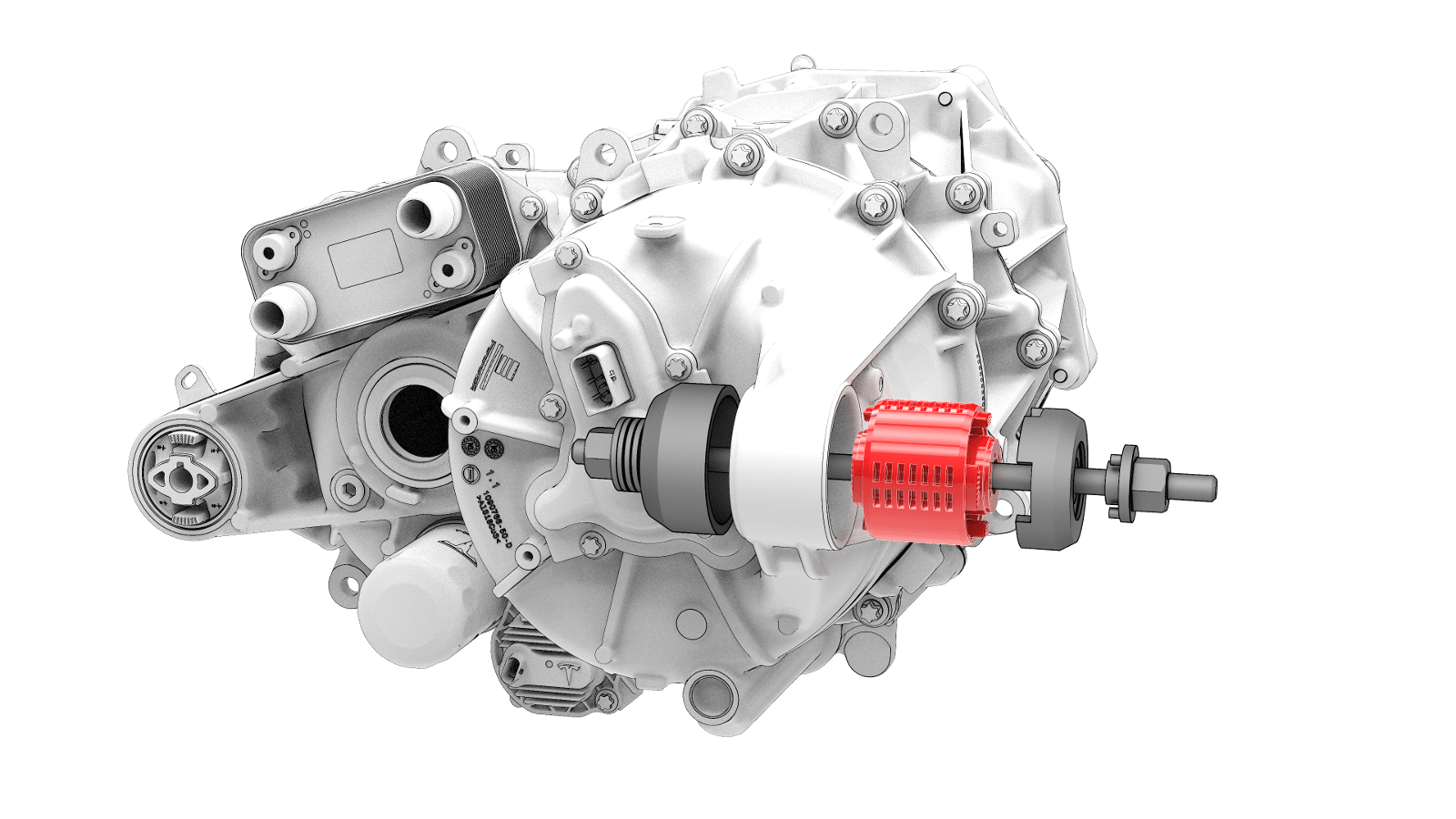

  2. Turn the nut on the thrust washer to press the new bushing into the drive unit.
  3. Separate the bushing tool, and then remove it from the drive unit.
  4. Install the rear drive unit. See Drive Unit - Rear (3DU) (Remove and Replace)
