Decor Panel - 1st Row Seat - LH (Sport Seat) (Remove and Replace)
Correction code
1307021802
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Open the LH front door and lower the LH front window.
-

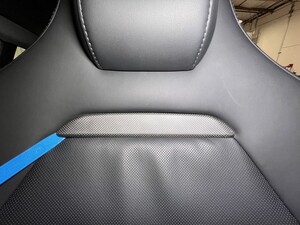

Insert a pry tool beneath the clips on the applique, one on each side of the décor
panel, and then remove the LH front décor assembly from the LH front seat.
Install
-

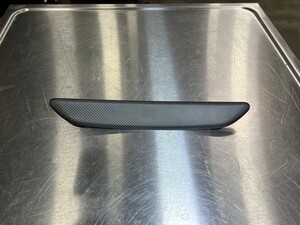

Install the LH front décor assembly into the LH front seat.

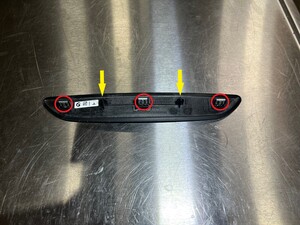

NoteReplace any damage clips.
- Raise the LH front window and close the LH front door.
