Sun Visor Assembly, LH (Remove and Replace)

Correction code 1505020012 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-02-02: Added note to prevent harness damage.

Torque Specifications

Table 1. Torque Specifications: Sun Visor Assembly, LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screw that attaches the sun visor to the vehicle
3.5 Nm (2.6 lbs-ft)
  • Torx T25 socket
  • Torque Wrench Hexagon - 1060071-00-A (for installation only)
 Reuse

Remove

  1. Open the LH front door and lower the LH front window.
  2. Release the clips (x4) that attach the sun visor bracket cover to the vehicle.

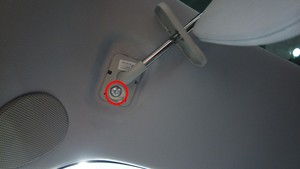

  3. Remove the screw that attaches the sun visor to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
    • Torque Wrench Hexagon - 1060071-00-A (for installation only)
  4. Remove the LH sun visor from the left side from the headliner area.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

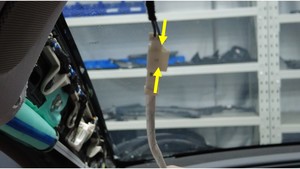

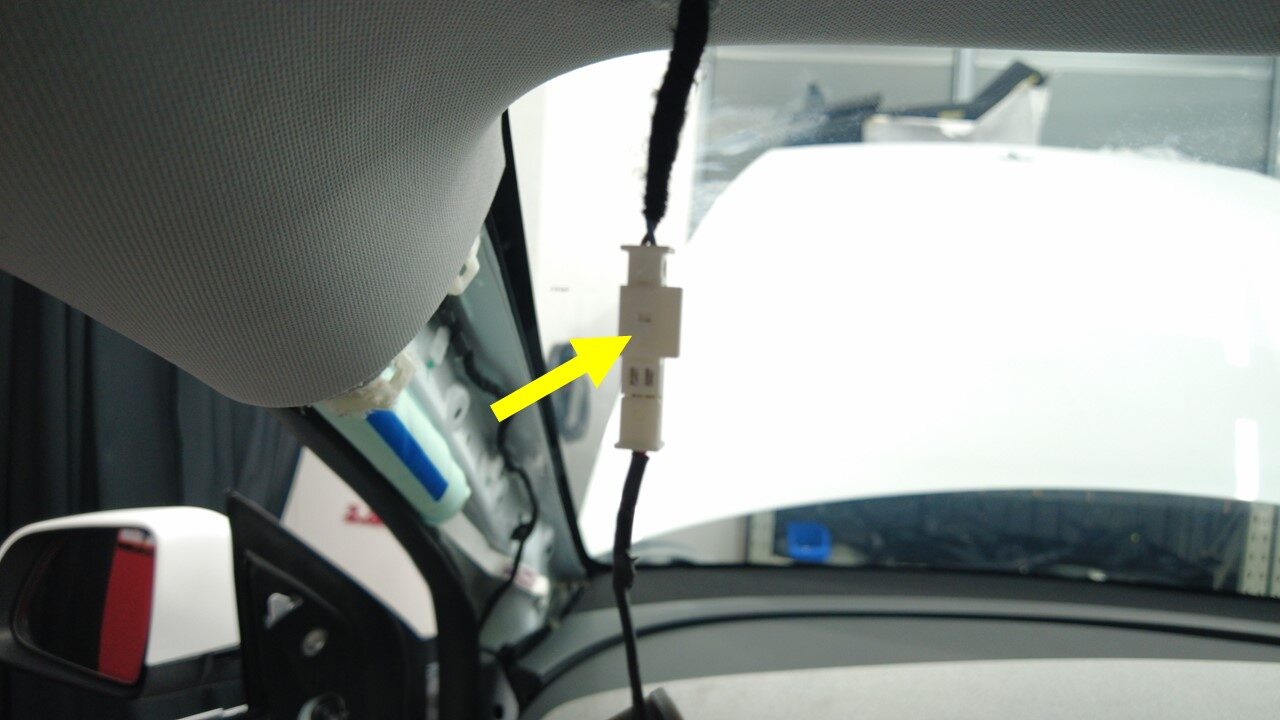

  5. Disconnect the electrical connector from the sun visor.

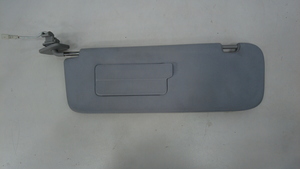

  6. Remove the sun visor from the vehicle.

Install

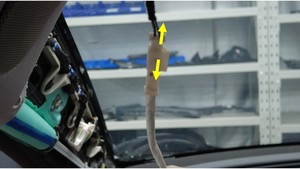

  1. Connect the electrical connector to the sun visor.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure the sun visor electrical harness is routed so that it isn't damaged during installation.

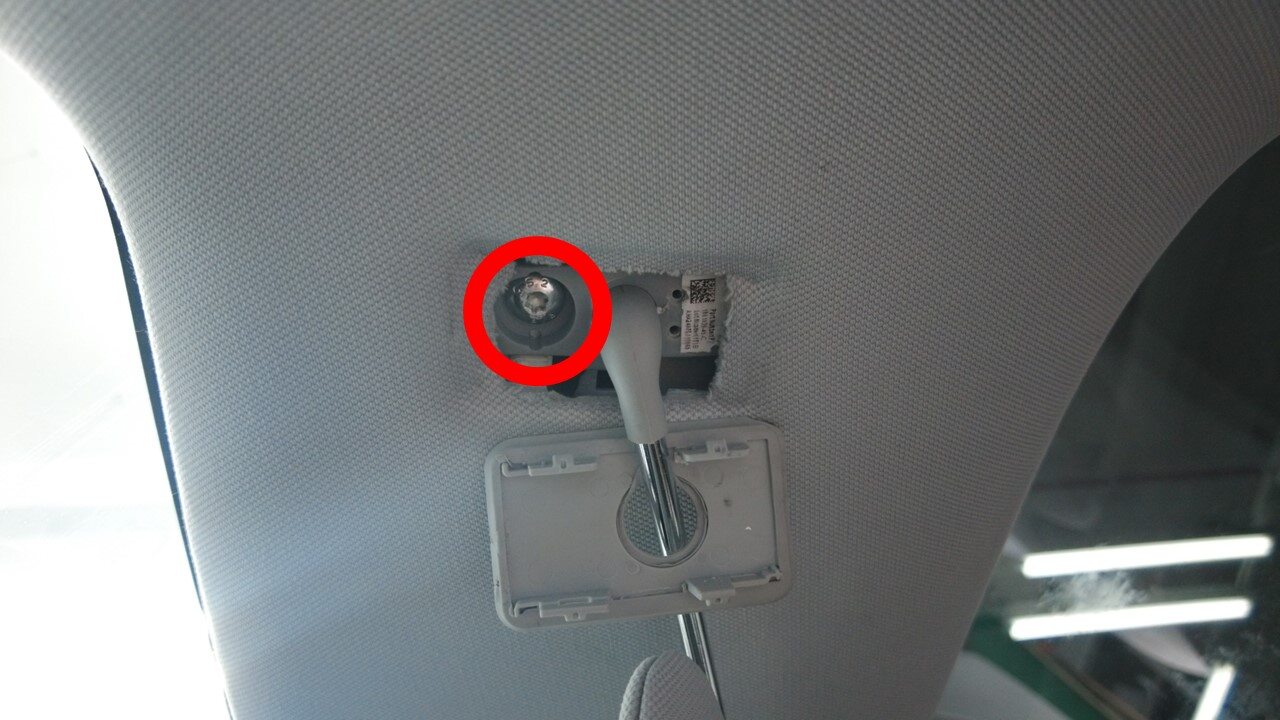

  2. Install the screw that attaches the sun visor to the vehicle.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 socket
    • Torque Wrench Hexagon - 1060071-00-A (for installation only)

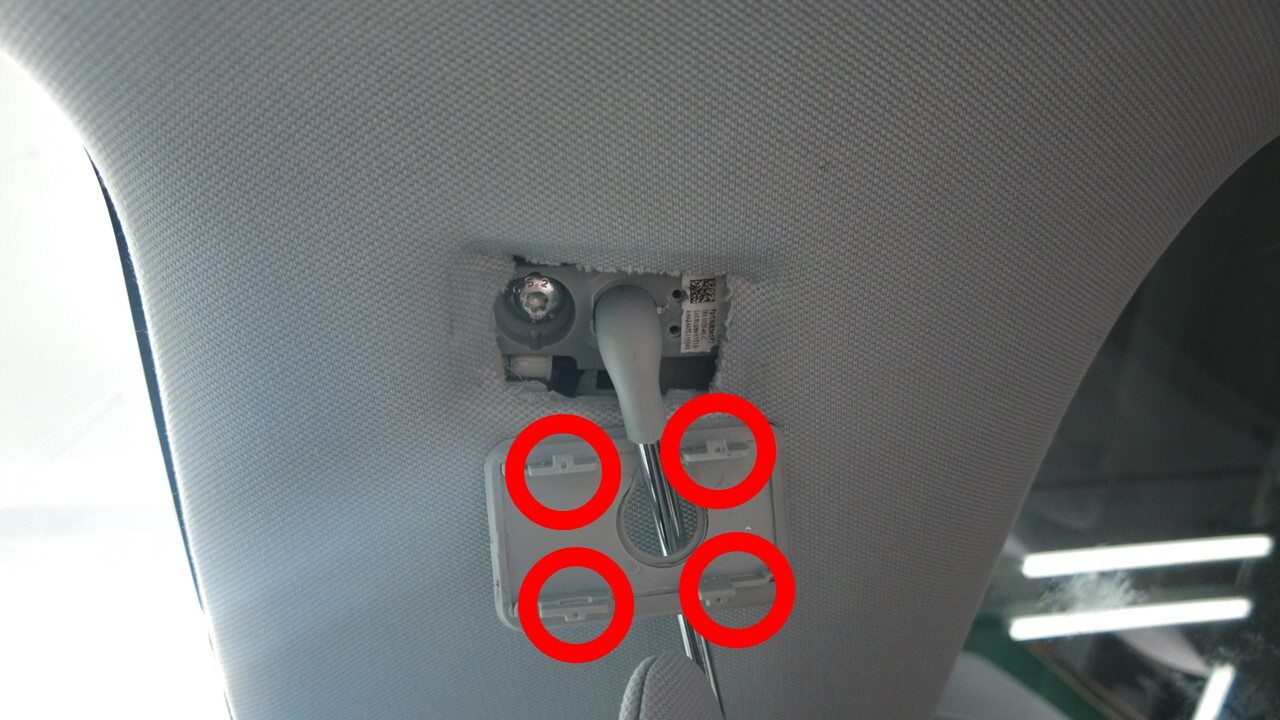

  3. Install the clips (x4) that attach the sun visor bracket cover to the vehicle.
