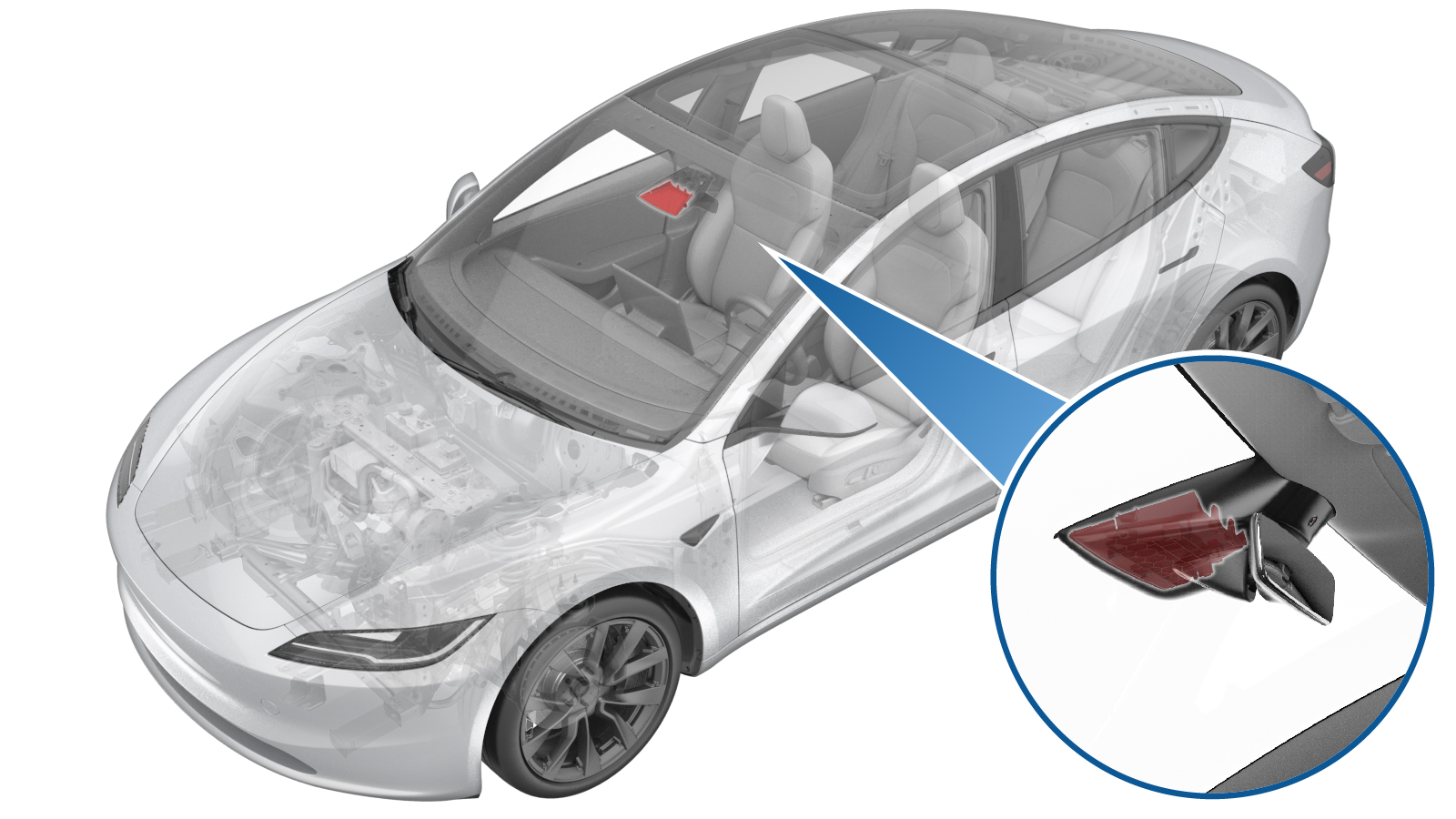

Glare Shield - Front Camera (Remove and Replace)

Correction code 1505010042 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the lower camera cover. See Camera Cover - Lower (Remove and Replace).
  2. Remove the rear view mirror. See Mirror - Rear View (Remove and Replace).
  3. Remove the upper camera cover. See Camera Cover - Upper (Remove and Replace).

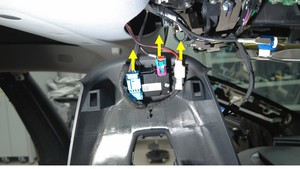

  4. Disconnect the electrical connectors (x3) from the interior camera.

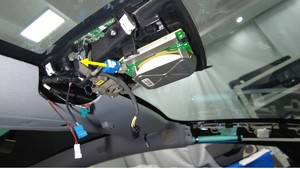

  5. Disconnect the GPS/GNSS antenna connector.

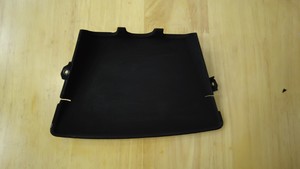

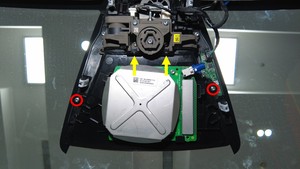

  6. Remove the bolts (x2) that attach the glare shield to the windshield bracket.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless hex driver
    • Torx T10 bit

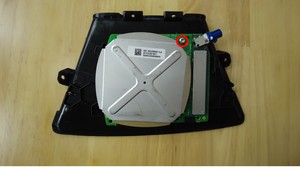

  7. Remove the bolt that attach GPS/GNSS antenna to the glare shield.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless hex driver
    • Torx T10 bit

Install

  1. Install the bolt that attach GPS/GNSS antenna to the glare shield.
    0.8 Nm (7 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • Torx T10 bit
    • Wiha Torque 0.8 Nm - 5 Nm screwdriver
  2. Install the bolts (x2) that attach the glare shield to the windshield bracket.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless hex driver
    • Torx T10 bit
    • Wiha Torque 0.8 Nm - 5 Nm screwdriver
  3. Connect the GPS/GNSS antenna connector.
  4. Connect the electrical connectors (x3) to the interior camera.
  5. Install the upper camera cover. See Camera Cover - Upper (Remove and Replace).
  6. Install the rear view mirror. See Mirror - Rear View (Remove and Replace).
  7. Install the lower camera cover. See Camera Cover - Lower (Remove and Replace).
