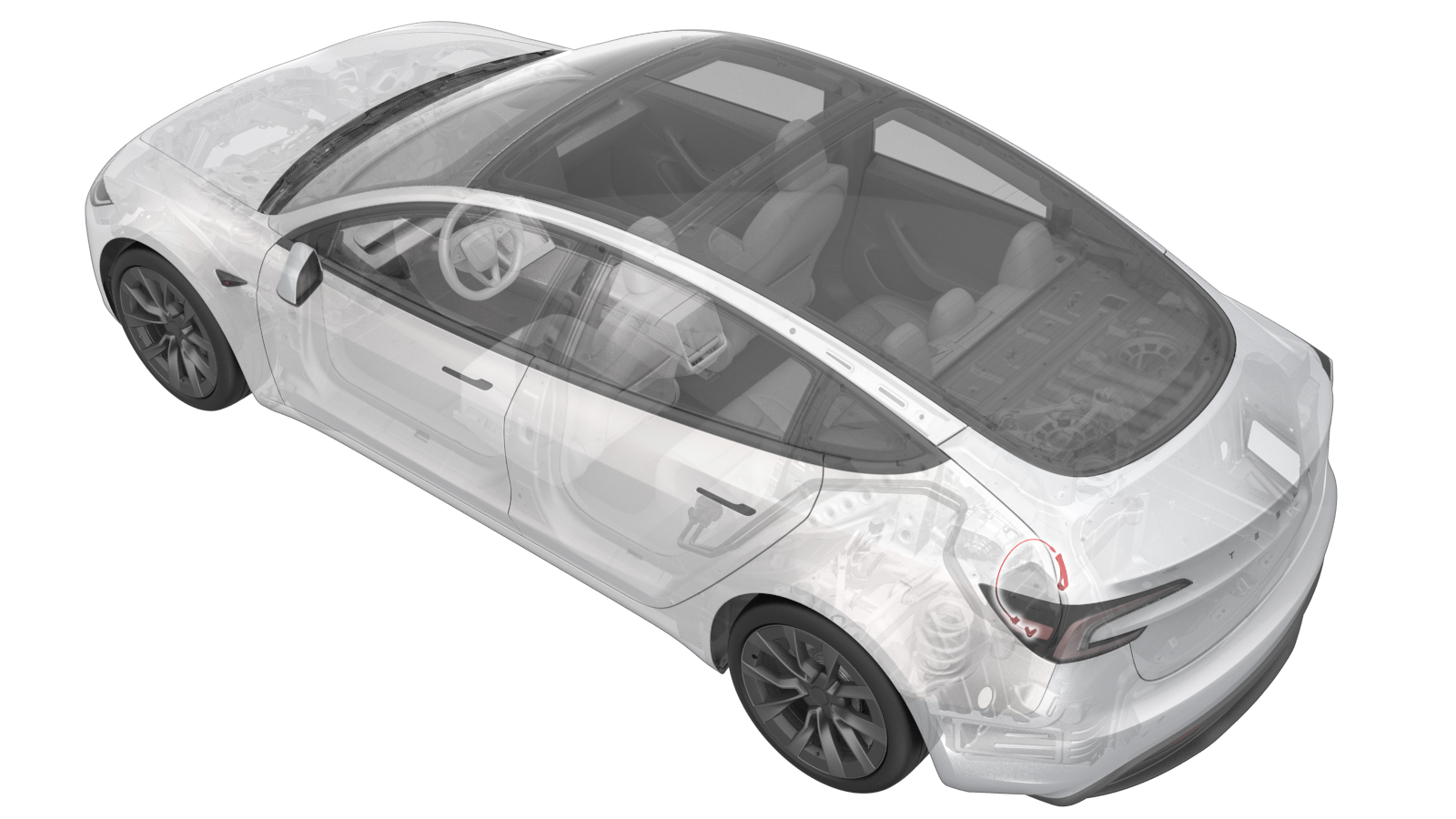

Charge Port - Manual Release of Cable

Correction code 44013205 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Ensure the vehicle is not actively charging.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Do not perform this procedure while the vehicle is charging.
  2. Open the rear trunk.

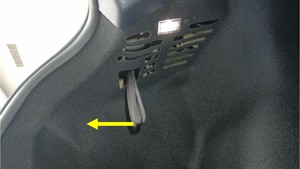

  3. Pull the tag down through the LH trunk wall opening to release the charging cable from the charge port.
  4. Remove the charging cable from the charge port.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Do not attempt to remove the charge cable while simultaneously pulling the release cable. Always pull the release cable before attempting to remove the charge cable from the charge port.
  5. Close the rear trunk.
