Seal - Axle - Output - Front Drive Unit (3DU) (Remove and Replace)
Correction code
3901010082
FRT
0.66
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Equipment:
- 1498673-00-A KIT, CABLE AXLE REMOVER, MS/MX/M3
- 1096075-00-A Tool, Hub Puller, Hydraulic
- 1131206-00-A Install Tool, Output Seal, Model 3
- 1454928-00-A TOOL, SEAL PULLER, ADJUSTABLE, MS/MX/M3
Remove
- Remove the LH front drive unit halfshaft. See Halfshaft - Front Drive Unit - LH (Remove and Replace).
-

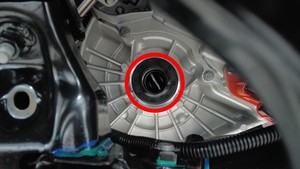

Use an adjustable seal puller tool to remove the LH front drive unit
differential-halfshaft assembly oil seal.
Install
-

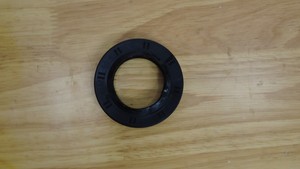

Use an output seal install tool and a dead blow hammer to install the new
LH front drive unit differential-halfshaft assembly oil seal. Make sure the
seal is flush with the front drive unit.
- Install the LH front drive unit halfshaft. See Halfshaft - Front Drive Unit - LH (Remove and Replace).
