Duct - Footwell - LH (Remove and Replace)
Correction code
1405030072
FRT
0.24
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
- 2024-09-05: Added knee airbag steps for NA vehicles.
Remove
- Disconnect the LV battery power. See LV Power (Disconnect and Connect).
- Remove the LH footwell cover. See Cover - Footwell - Driver (Remove and Replace).
- For NA vehicles only: Remove the LH knee airbag. See Airbag - Knee - LH (Remove and Replace).
-

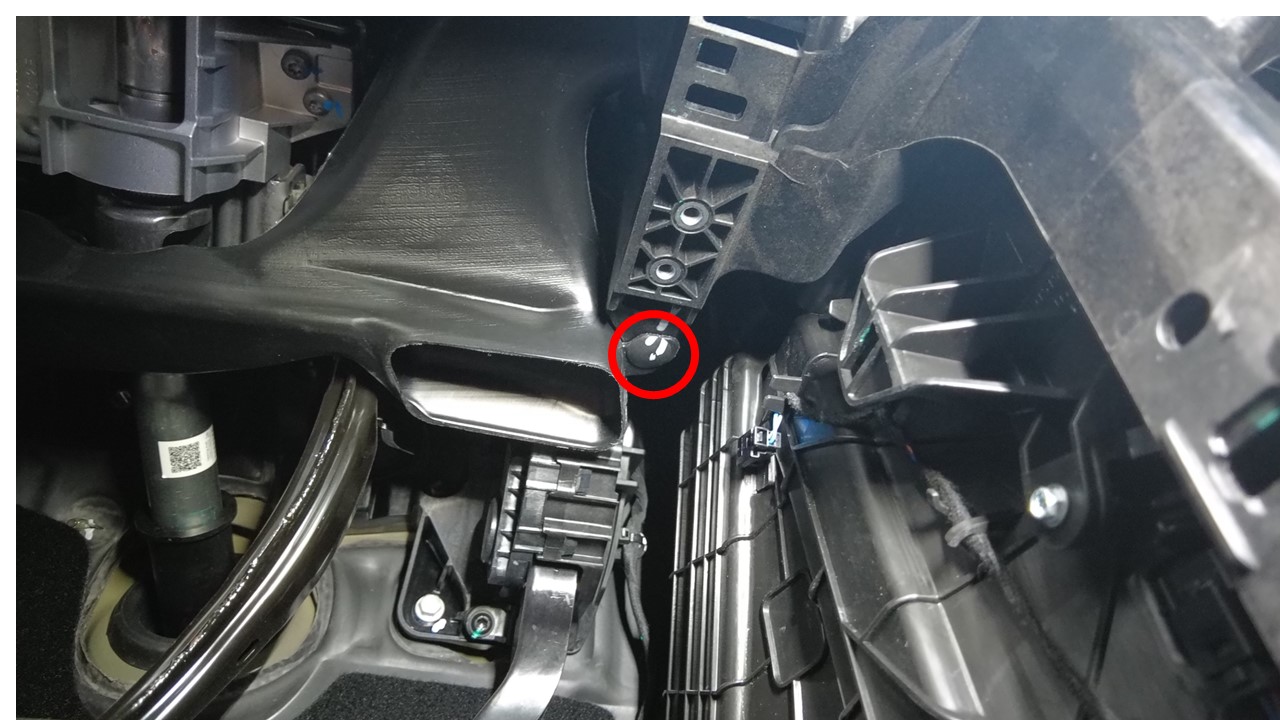

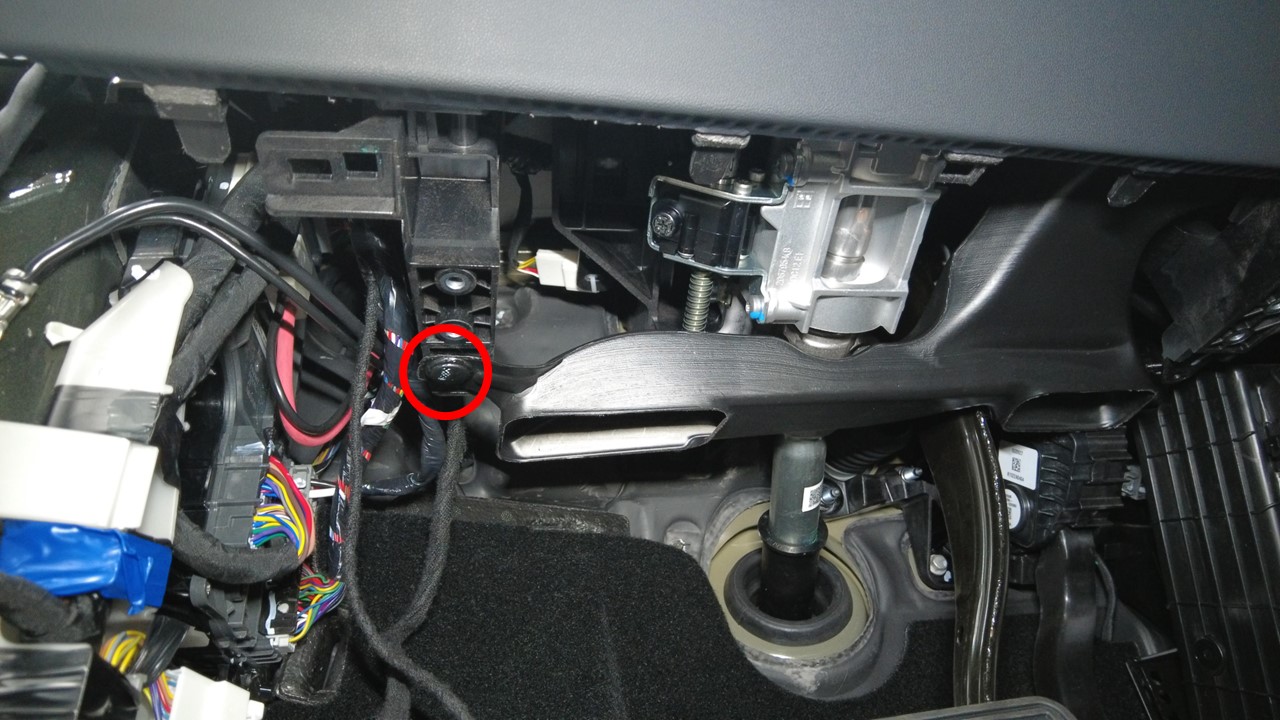

Release the clips (x2) that
attach the LH footwell duct to the HVAC module.
-

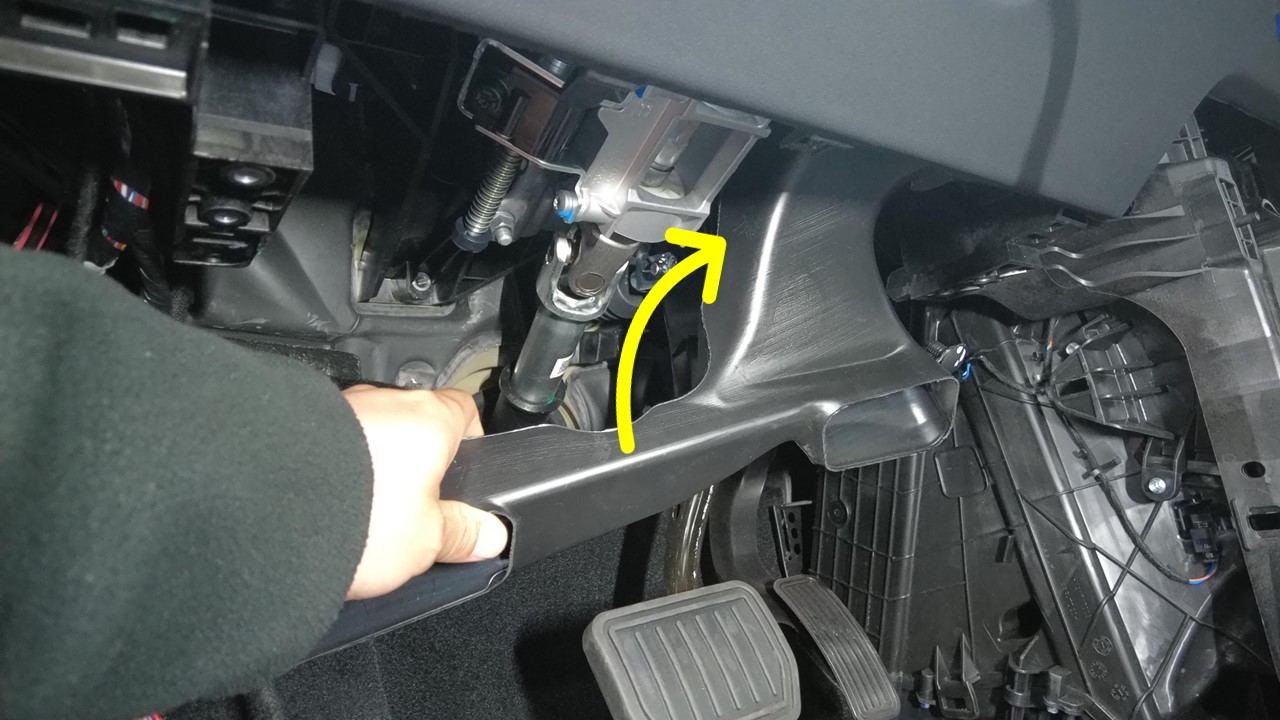

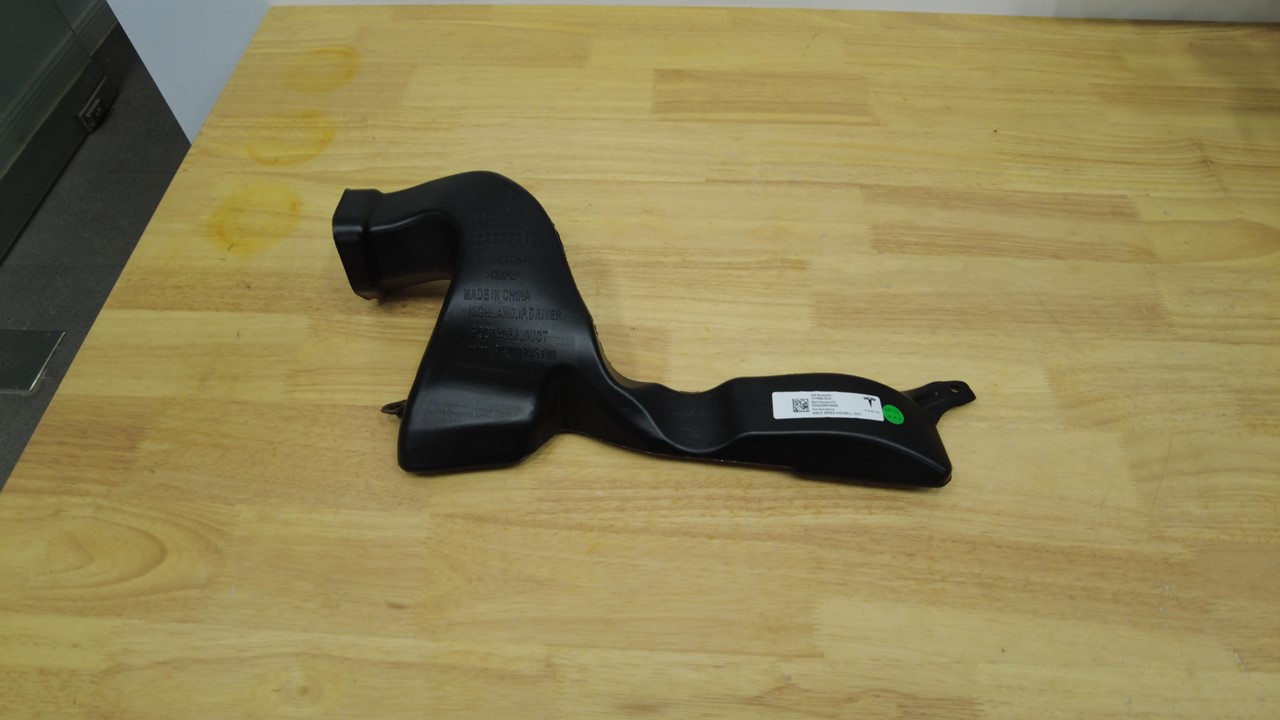

Remove the LH footwell
duct.
Install
-

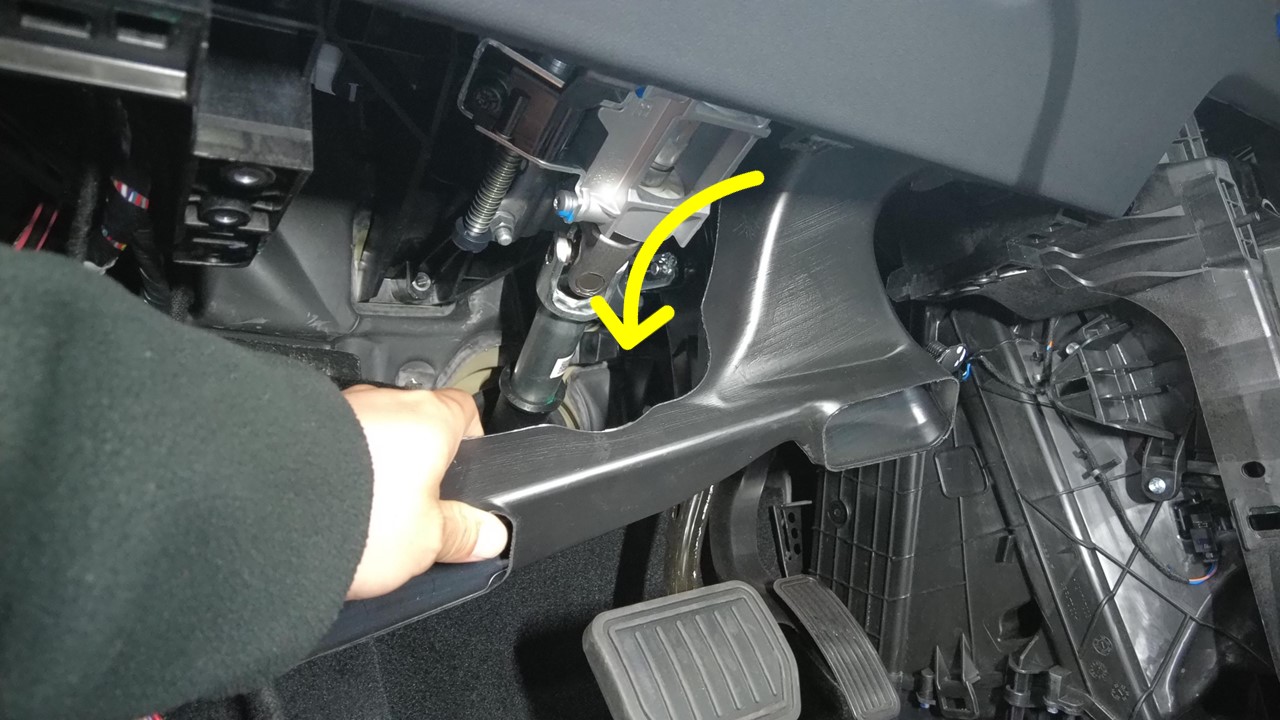

Install the LH footwell
duct.
-
Install the clips (x2) that
attach the LH footwell duct to the HVAC module.
- For NA vehicles only: Install the LH knee airbag. See Airbag - Knee - LH (Remove and Replace).
- Install the LH footwell cover. See Cover - Footwell - Driver (Remove and Replace).
- Connect the LV battery power. See LV Power (Disconnect and Connect).
