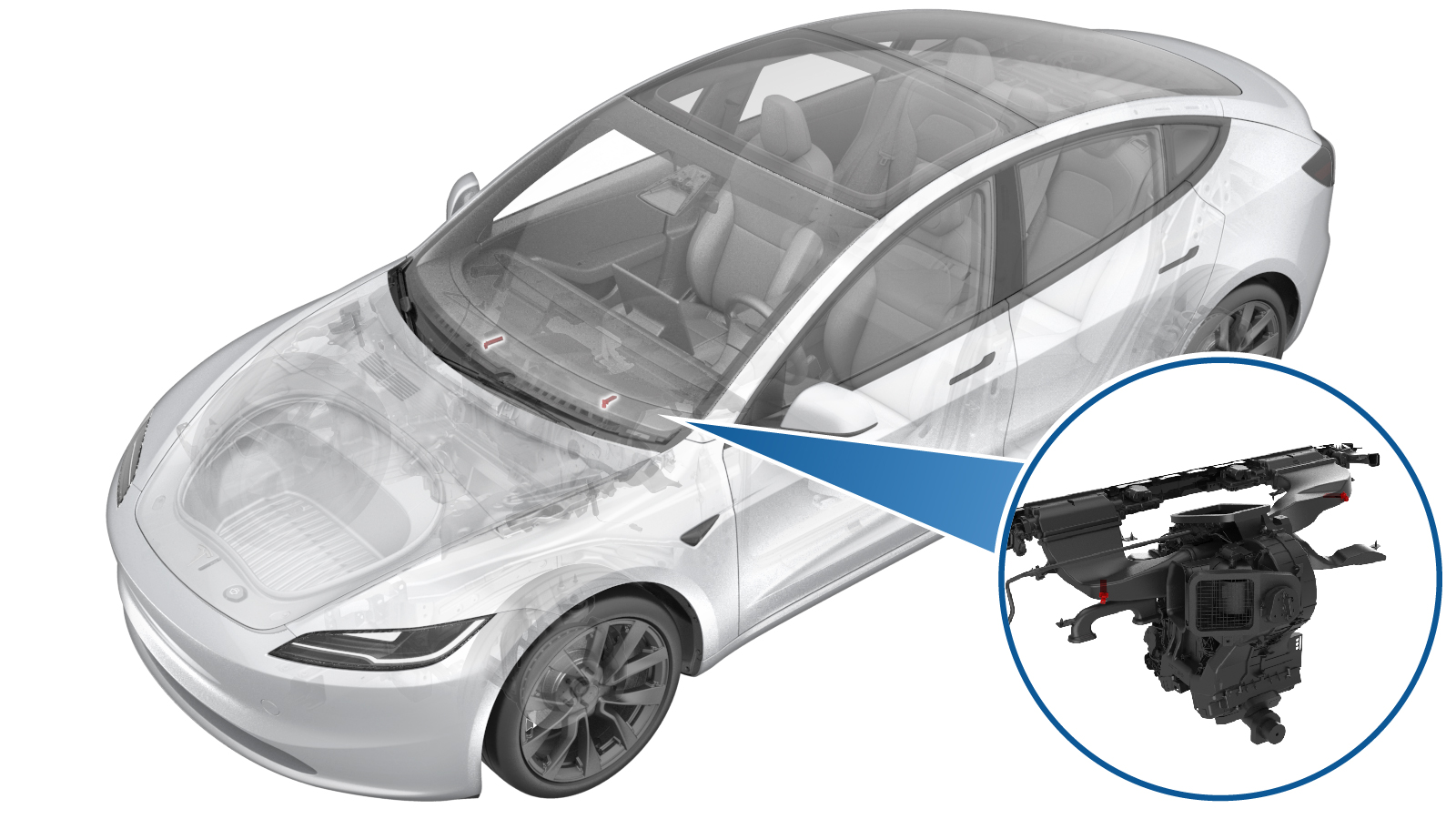

Thermistor Duct - HVAC (Remove and Replace)

Correction code 1810010092 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the passenger footwell cover. See Cover - Footwell - Front Passenger (Remove and Replace).

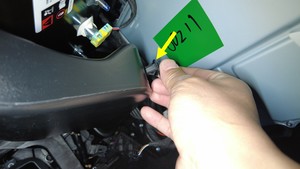

  2. Disconnect the RH airwave duct thermistor connector.

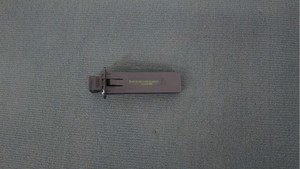

  3. Release the tabs (x2) that attach the RH airwave duct thermistor to the duct assembly, and then remove the thermistor from the assembly.

Install

  1. Install the RH airwave duct thermistor into the duct assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure both tabs are fully engaged.
  2. Connect the RH airwave duct thermistor connector.
  3. Install the passenger footwell cover. See Cover - Footwell - Front Passenger (Remove and Replace).
