Trim - Lid - Trunk (Remove and Replace)

Correction code 1511010012 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-11-09: Updated the trunk lid trim images and adjusted the step order.
  • 2025-12-22: Added the trunk latch cover steps.

Remove

  1. Open the trunk lid.

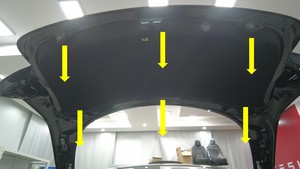

  2. Release the clips from the left side of the latch, then work around the trim to release the clips that attach the trunk trim to the trunk lid.
    CAUTION
    Support the trim while disconnecting as the harness is still connected.
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

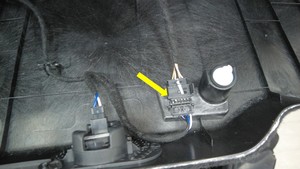

  3. Disconnect the electrical harness from the trunk switch on the trunk trim.
  4. Remove the trunk latch cover. See Cover - Latch - Trunk (Remove and Replace).

Install

  1. Install the trunk latch cover. See Cover - Latch - Trunk (Remove and Replace).

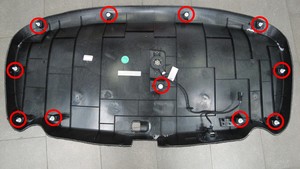

  2. Install new clips (x11) onto the trim.
  3. Connect the electrical harness to the trunk switch, align the trunk lid trim tabs with the slots on the trunk lid, and then press the clips into the trunk lid.
    Note
    Make sure all clips are fully seated.
  4. Close the trunk lid.
