Filter - HEPA (Remove and Replace)

Correction Code 18105502

Removal

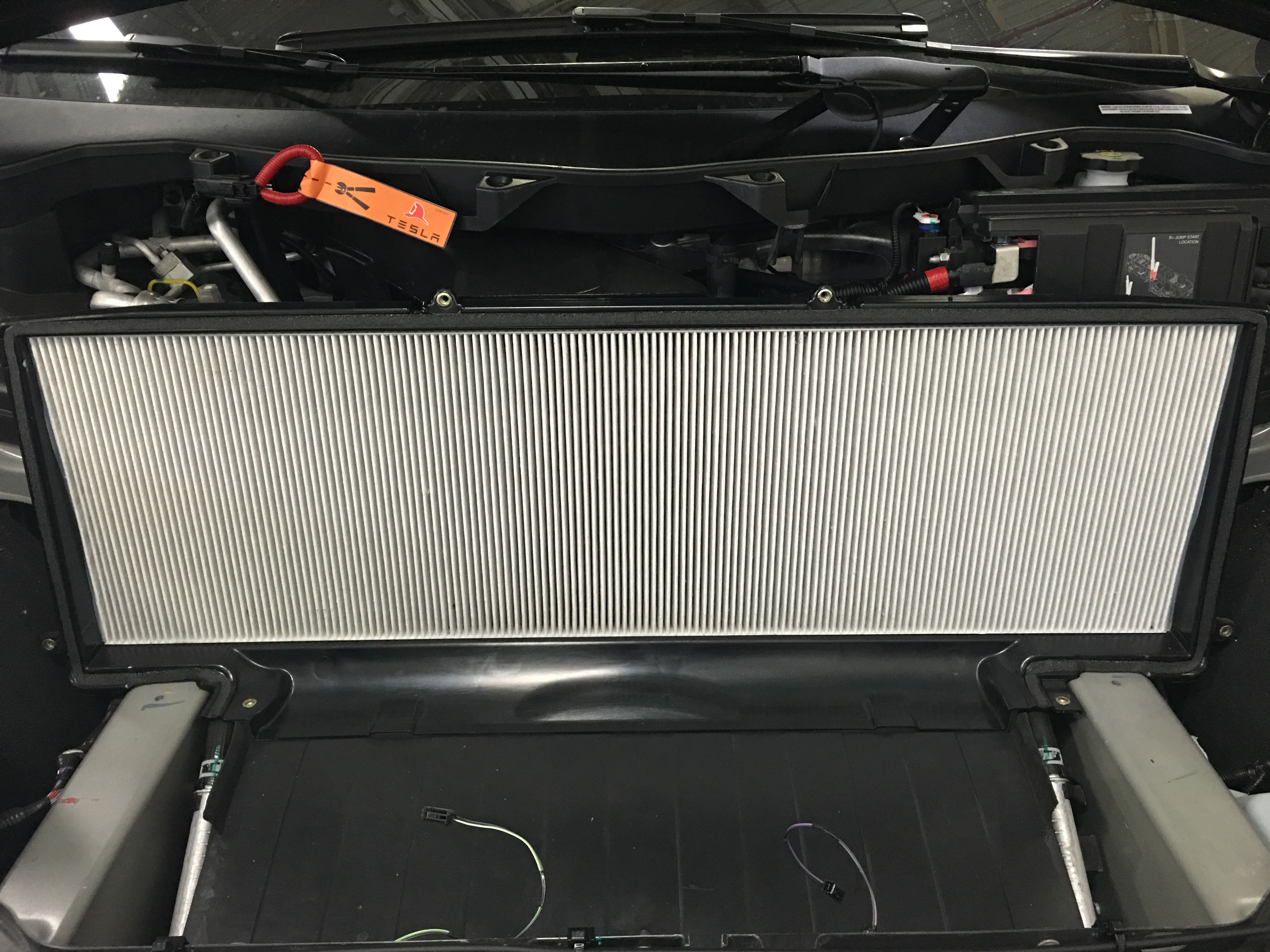

  1. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Install).
    Figure 1. Animated demonstration

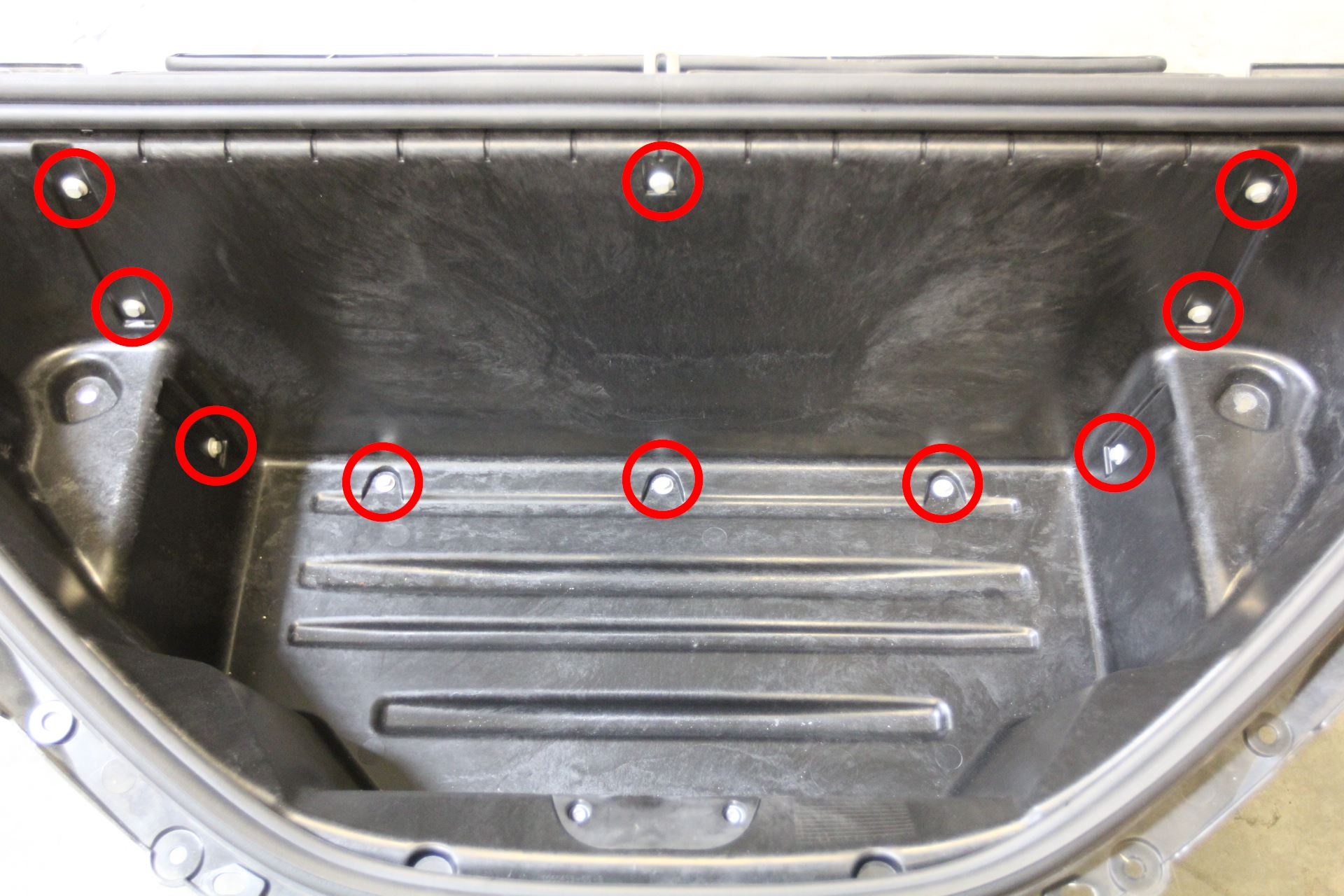

  2. Release the bolts (x10) that secure the HEPA filter to the underhood storage unit.
    3.5 Nm (2.6 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket
  3. Carefully remove the HEPA filter from the underhood storage unit.
    CAUTION
    Set the filter with the plastic trim side facing down. Do not damage the filter.
    Note
    Lift up from bottom and then pull out.

Installation

Installation procedure is the reverse of removal.
