Assembly - Cover - Footwell - Passenger's (Remove and Replace)

Correction Code 14055402

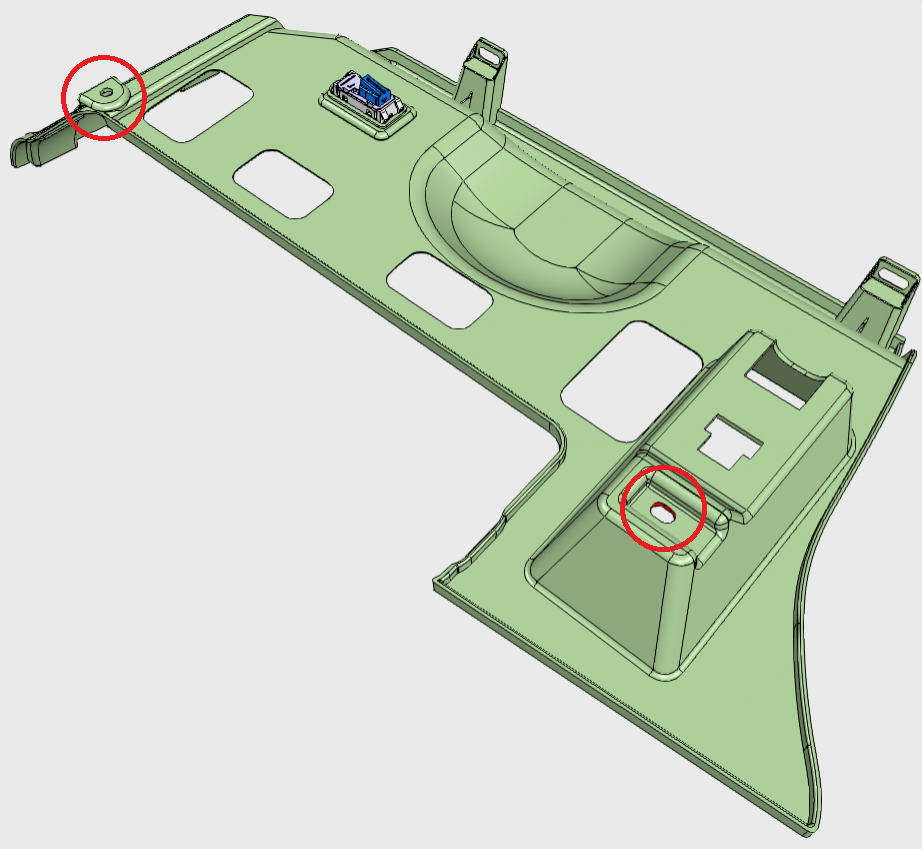

  • 2025-10-07: Added image of passenger footwell cover fastener holes for clarity.

Removal

  1. Fully open the front passenger door.
  2. Release the screws that secure the passenger-side footwell cover to the instrument panel (torque 2 Nm).
  3. Release the puddle lamp electrical connector from the footwell cover.
  4. Remove the footwell cover.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pressing the lower part of the A-pillar makes it easier to move the cover past the pillar.

Installation

Installation procedure is the reverse of removal, except for the following:
  • Transfer the puddle lamp to the new footwell cover.
