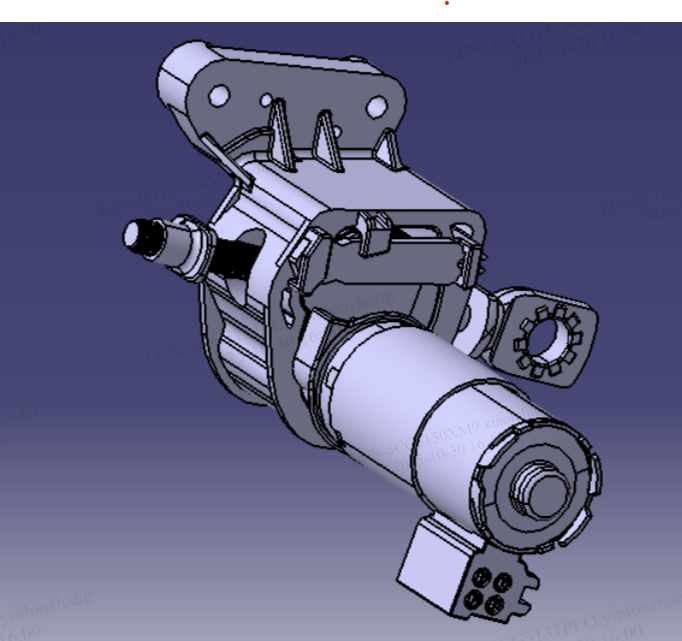

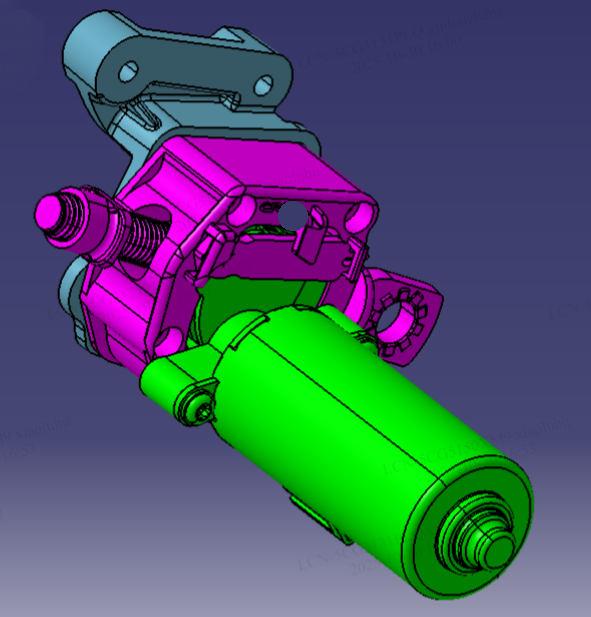

Seat Assembly - 1st Row - RH (Remove and Replace)

Correction Code 13040202

Removal

  1. Remove the 1st row RH seat assembly (refer to procedure).
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    If discarding the entire seat, Service Centers must remove the seat-mounted airbag and pre-tensioner (if present) before discarding the seat. Follow local Environmental Health and Safety (EH&S) best practices to dispose of the airbag and pre-tensioner (for example, place the airbag and pre-tensioner into the appropriate hazardous waste receptacles located in the Service Center). Refer to Remove the Front Seat Airbag and Discard for instructions, and use Correction Code 20010707 to document the labor; the labor time for destructively removing and disposing of the front seat airbag (and pre-tensioner, if equipped) is not reflected in the front seat removal and replacement labor time.

Installation

  1. Install the 1st row RH seat assembly (refer to procedure).
  2. Restore the seating profile.
  3. Reinstall the vehicle firmware. See Firmware Reinstall - Touchscreen.
  4. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect).
  5. Unlock the vehicle gateway. See Gateway Unlock.
  6. For NA only: In Toolbox 3, click the Actions tab, type "Sensor-Rezero" into the search field, click PROC_OCS_FRONT-PAS_SENSOR-REZEROSearch for routine in Toolbox, click Run, and allow the routine to complete.
  7. To calibrate the front passenger seat, in Toolbox 3, click the Actions tab, type "PROC_MSMP" into the search field, click PROC_MSMP_VCSEATP-FRONT-PAS_CALIBRATE-MEMORY-SEATSearch for routine in ToolboxLow Voltage / Seats - Calibrate Passenger Seat, click Run, and allow the routine to complete.
  8. Disconnect the laptop with Toolbox 3 from the vehicle. See Toolbox 3 (Connect and Disconnect).
