Subwoofer Assembly (Remove and Replace)

Correction Code 21212002

  • 2026-08-13: Added step to remove the RH trunk bracket.

Removal

  1. Remove RH side trunk trim. See Trim - Rear Trunk - Side - RH (Remove and Replace).

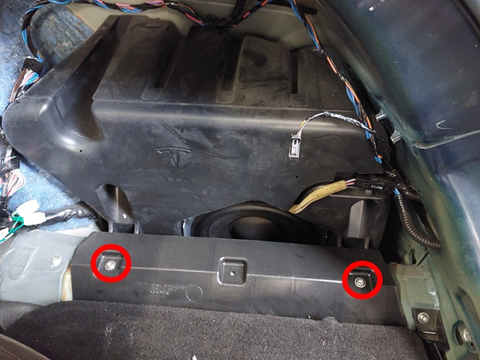

  2. Remove the screws (x2) that attach the RH trunk bracket to the vehicle (torque 2 Nm).

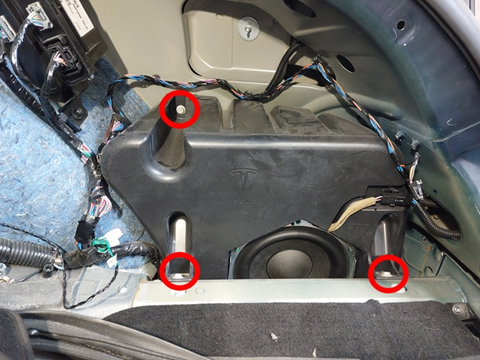

  3. Remove the bolts (x3) that attach the subwoofer enclosure to the body (torque 5 Nm).
  4. Disconnect the subwoofer harness connection.
  5. Remove the subwoofer from the vehicle.

Installation

  1. Installation procedure is the reverse of removal.
