Lights - Fog - Front (Adjust)

Correction Code 17404000

  • 2023-12-11: Added photo for fog light adjustment.

Model S and Model X fog lights source luminous flux is less than 2000 lumens. For this reason the aim must be -1% (-0.57 degrees) or less. Use the Headlight Tester, Beissbarth, Model 815 (1133367-00-A) or a wall or aim board following these guidelines:

  • Upper spec: -0.60 deg (-100 mm @ 10 m)
  • Lower spec: -0.85 deg (-150 mm @ 10 m)
  1. Position the vehicle for adjusting the fog lights:
    • In a darkened area.
    • On a level surface.
    • Perpendicular to a headlight aim board or a wall that has a matte white surface. The wall must be at least 3.7 m (12 ft) wide and 1.87 m (6 ft) high.
    • 10 m (32.8 ft) away from the wall.
  2. Ensure that all 4 tires are inflated to their recommended settings. Refer to Tire Pressures.
  3. Perform a ride height adjustment so that the vehicle suspension is reset to Standard. See Ride Height - Adjust.
    Informational PurposesAn informational icon, calling your attention
    Note
    The remainder of this procedure must be performed with someone in the driver seat who weighs at least 75 kg (166 lbs).
  4. Record the height between the ground and the center of the projector lenses on the LH and RH fog lights.
  5. Measure a straight line between each of the projector lenses and the wall. At the point where each line meets the wall, mark two horizontal lines 100 mm (upper aim limit) and 150 mm (lower aim limit) lower than what was recorded in the previous step. For example, if the height of the projector lenses is 283 mm, mark the horizontal lines 183 mm and 133 mm from the ground respectively.
    Figure 1. Model S Shown (Model X Similar)
  6. Turn on the fog lights.
  7. Cover both headlights and the RH fog light.
  8. Insert an 8 mm socket wrench or Philips socket bit (as necessary) in the hole in the lower valance below the LH fog light.
  9. Adjust the fog light vertically so that the top beam cut off is aligned between the horizontal lines marked on the wall. For best performance the cutoff should be aligned close to the upper aim limit.
    1 Dark area of the wall
    2 Horizontal line marked on the wall
    3 Illuminated area of the wall
  10. Repeat step 8 through step 10 to adjust the RH fog light.

Adjust Fog Lights Using a Headlight Tester

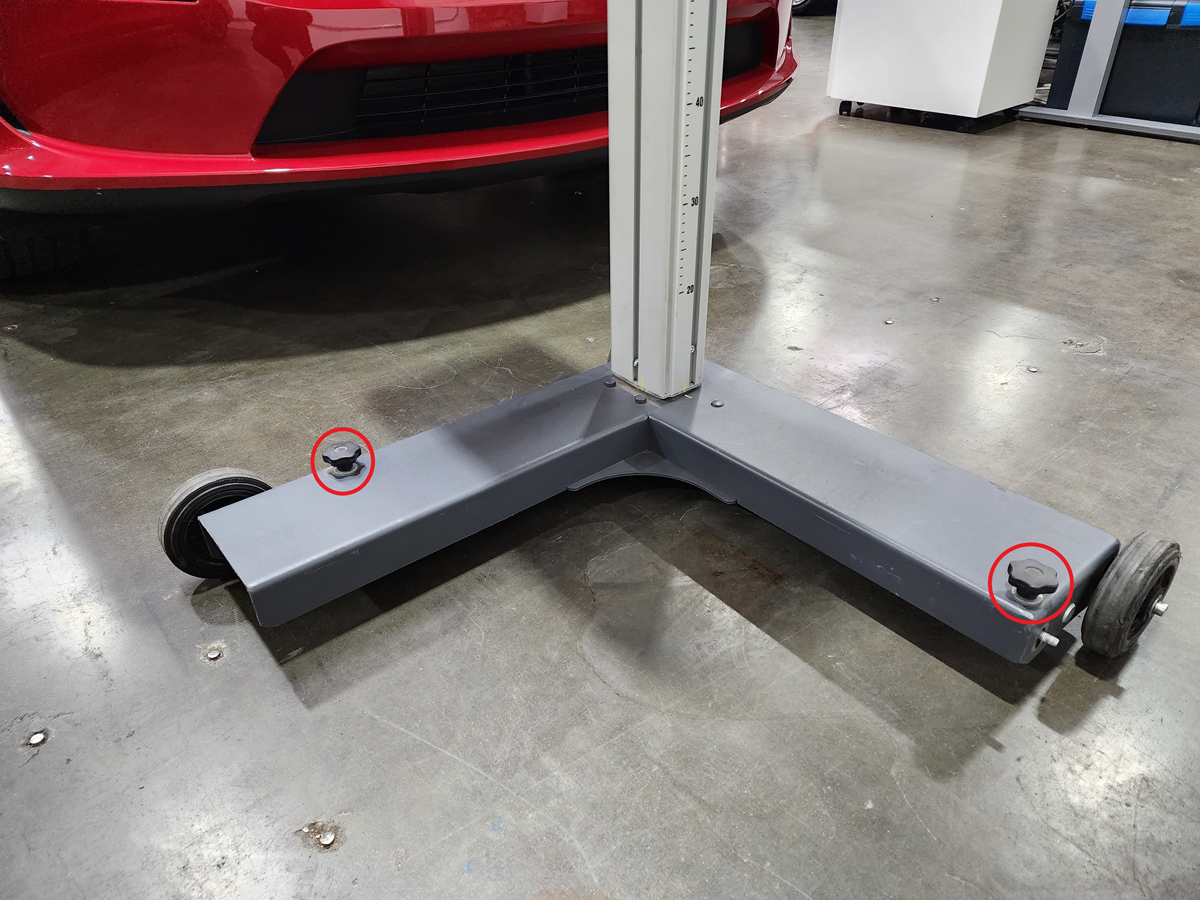

1133367-00-A Headlight Tester, Beissbarth, Model 815
Fog lights can be tested and adjusted during the headlight adjustment procedure using the headlight tester tool. Refer to the headlight adjustment procedure for the vehicle.

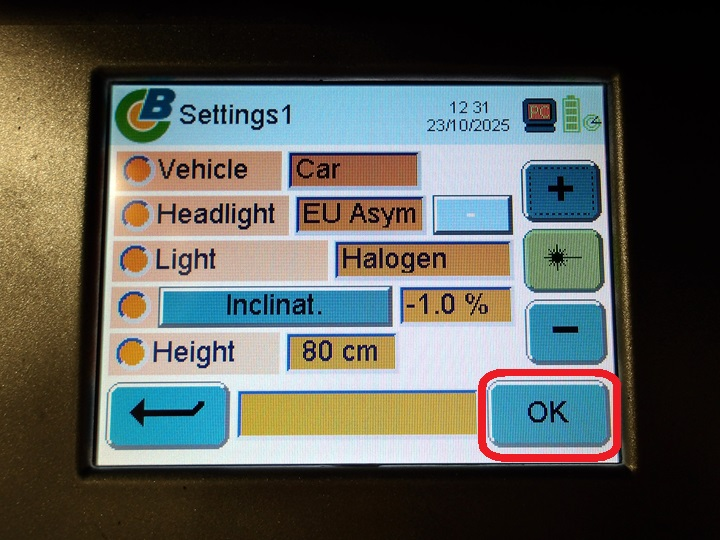

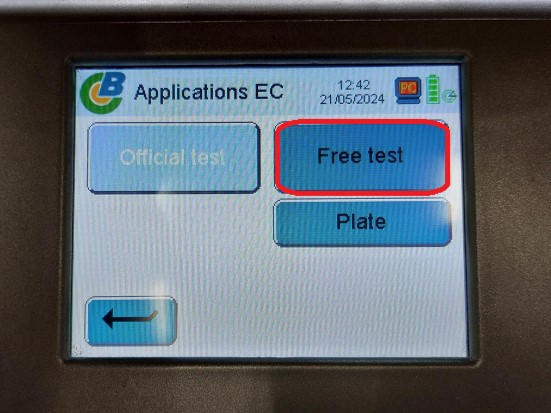

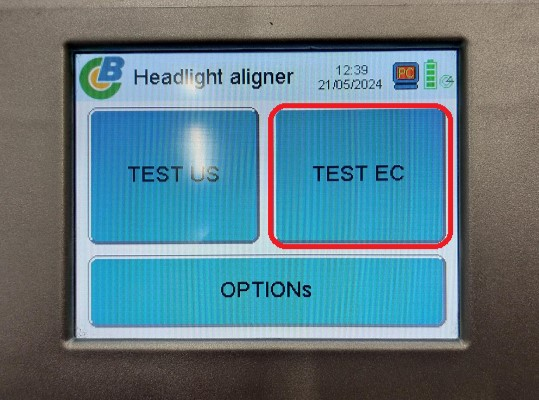

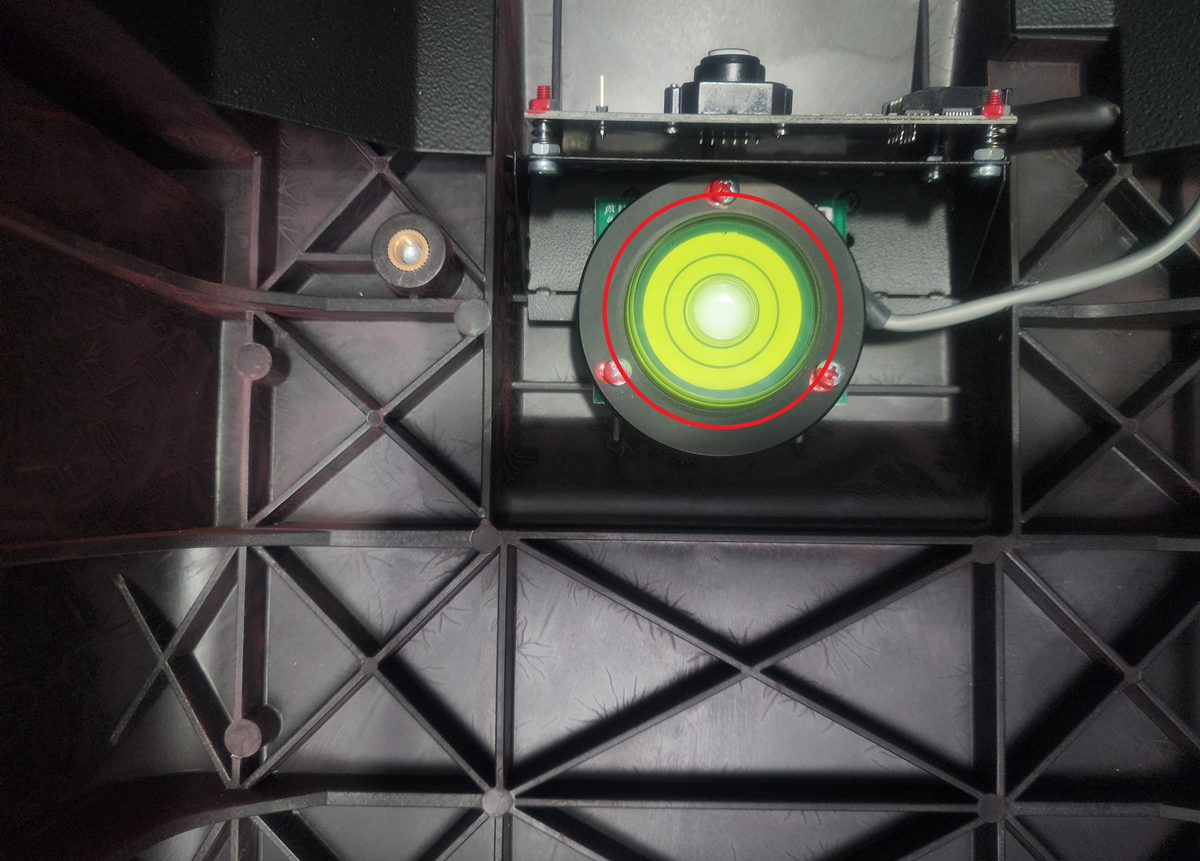

  1. Set up the Headlight Tester, Beissbarth, Model 815 (1133367-00-A), and then choose basic headlight test settings on the headlight tester tool touchscreen according to the headlight adjustment procedure for the vehicle:
    • Headlights (Adjust) - North America (Correction code: 17409000)
    • Headlights (Adjust) - Europe (Correction code: 17409100)

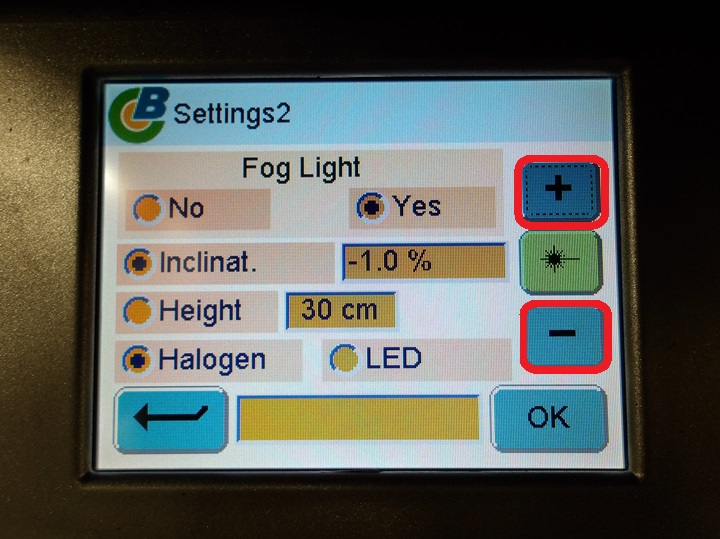

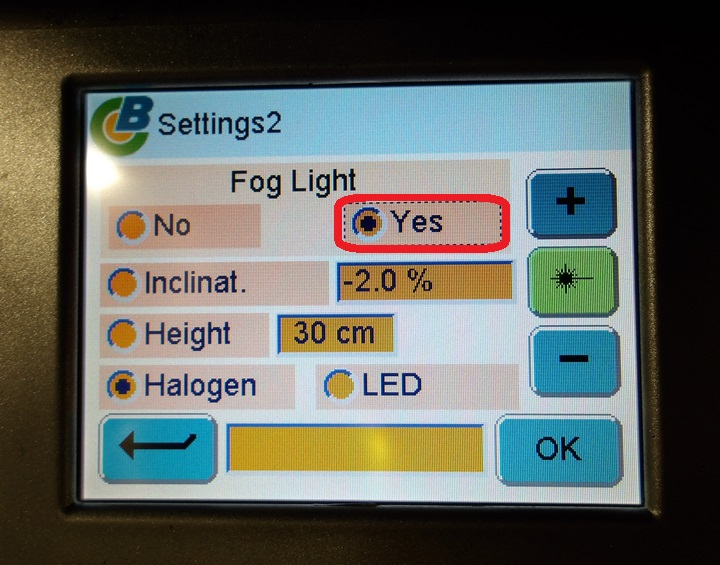

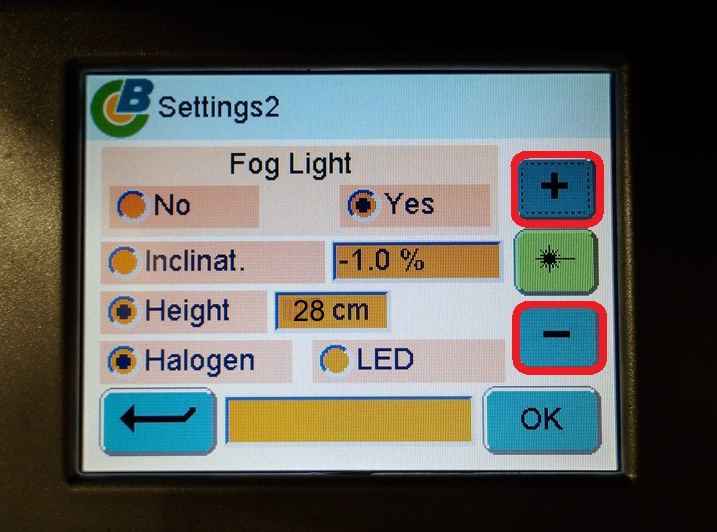

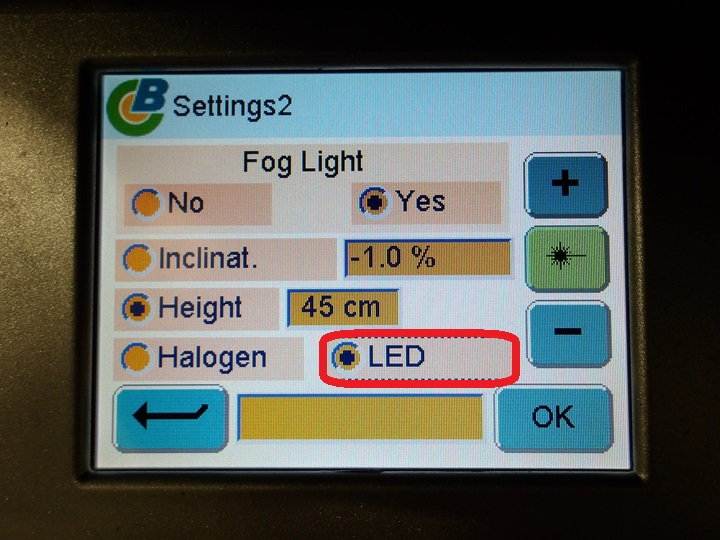

  2. On the headlight tester tool Settings2 Fog Light screen, select Yes to set up the fog light test, and then use the + or - buttons to choose settings.

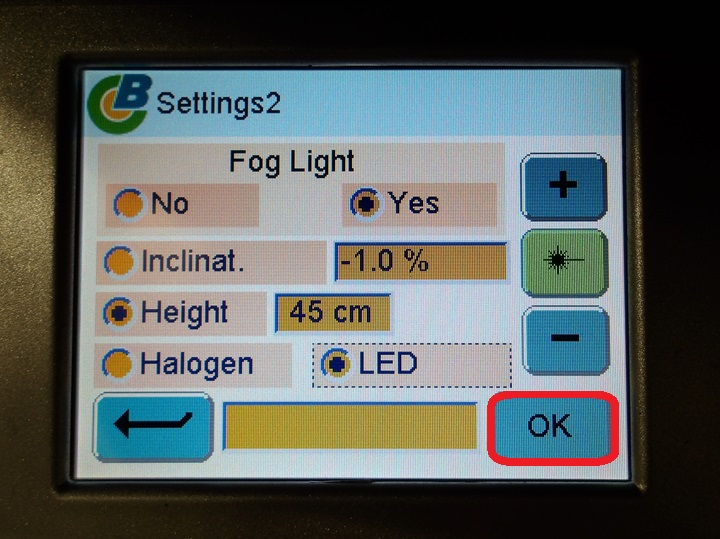

  3. Click OK.
  4. Perform the headlight test, if necessary.
  5. On the headlight tester tool, select Fog Light, and then click OK.

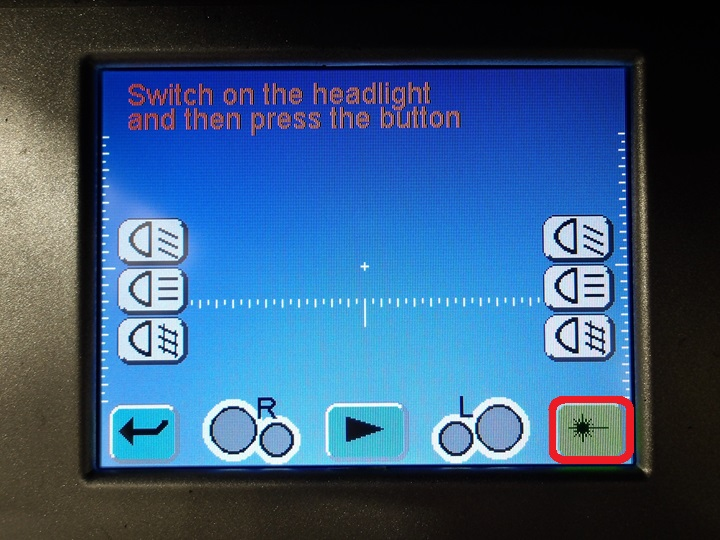

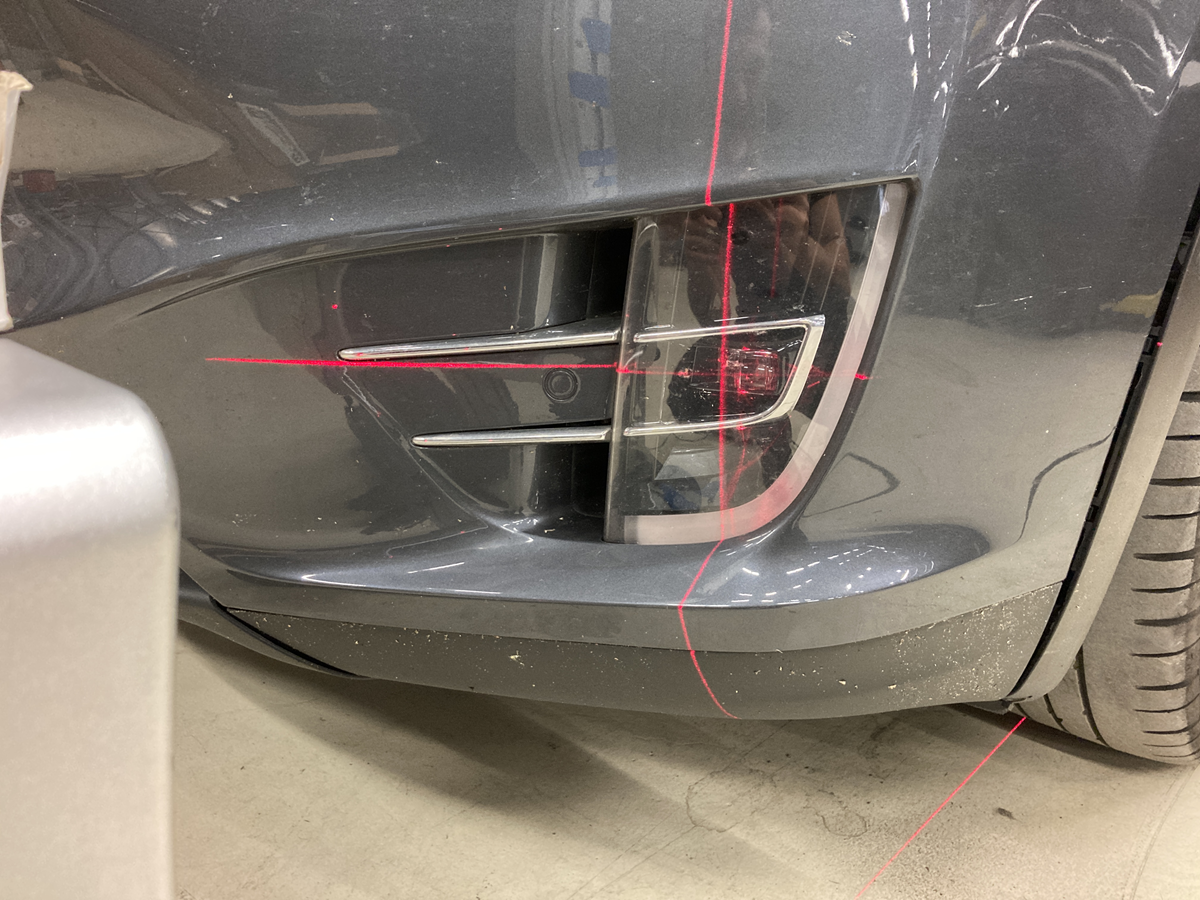

  6. On the headlight tester tool, select Laser, and then lower the tool on the column to place the headlight laser guide crosshair over the brightest spot on the LH fog light.
    Figure 2. Model S Fog Light
    Figure 3. Model X Fog Light
  7. Turn off the laser guide.

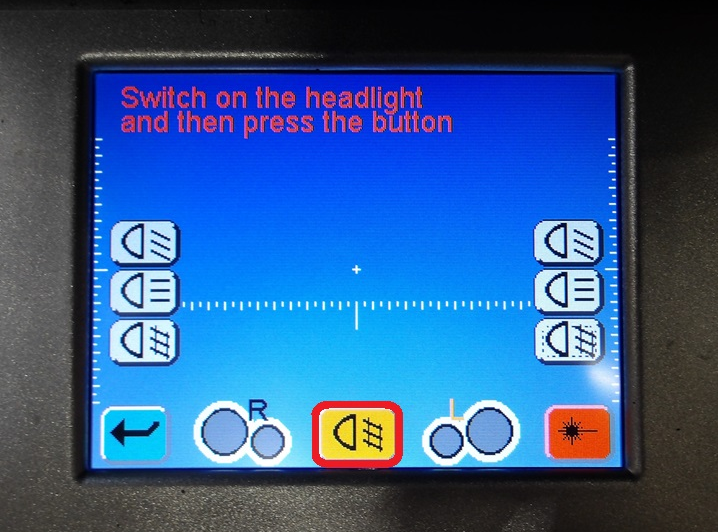

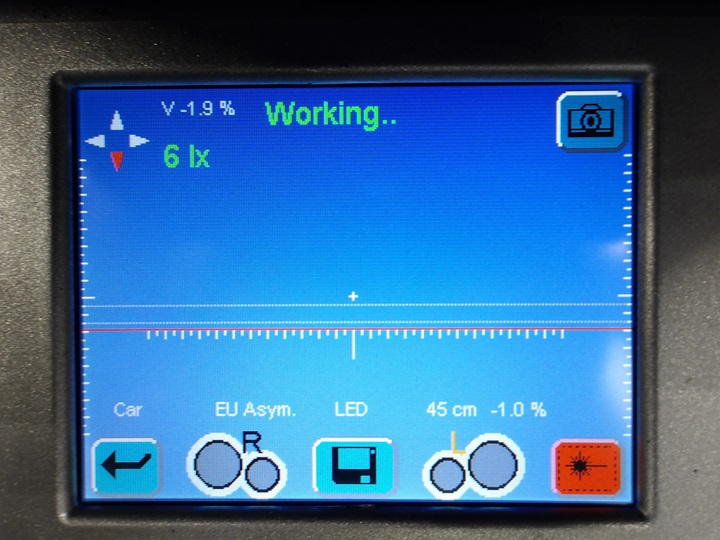

  8. To begin the fog light test, select the LH fog light icon on the headlight tester tool touchscreen, and then select the fog light button at the bottom of the screen.
  9. Insert an 8 mm socket wrench or Philips socket bit (as necessary) in the hole in the lower valance below the LH fog light, and then adjust the fog light vertically to specification.

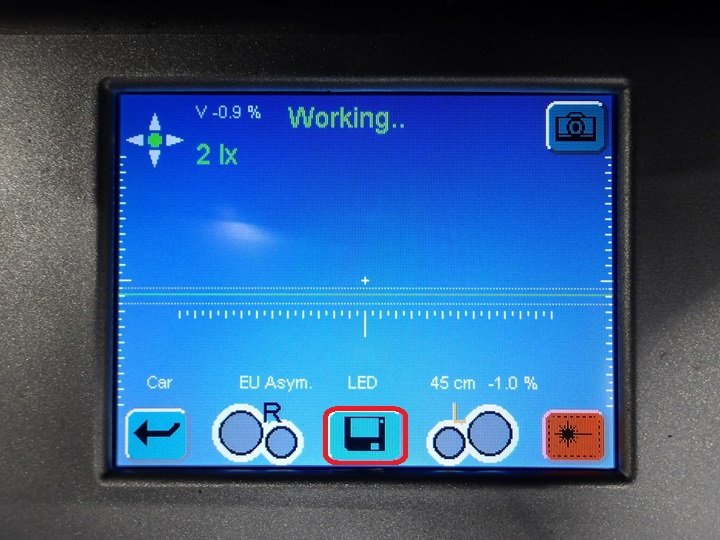

  10. On the headlight tester tool, select Save to record the results.
  11. Roll the headlight tester tool to the RH fog light and repeat step 5 through step 9.
  12. When both fog lights have been tested, on the headlight tester tool select the Save icon again to view the test results.
