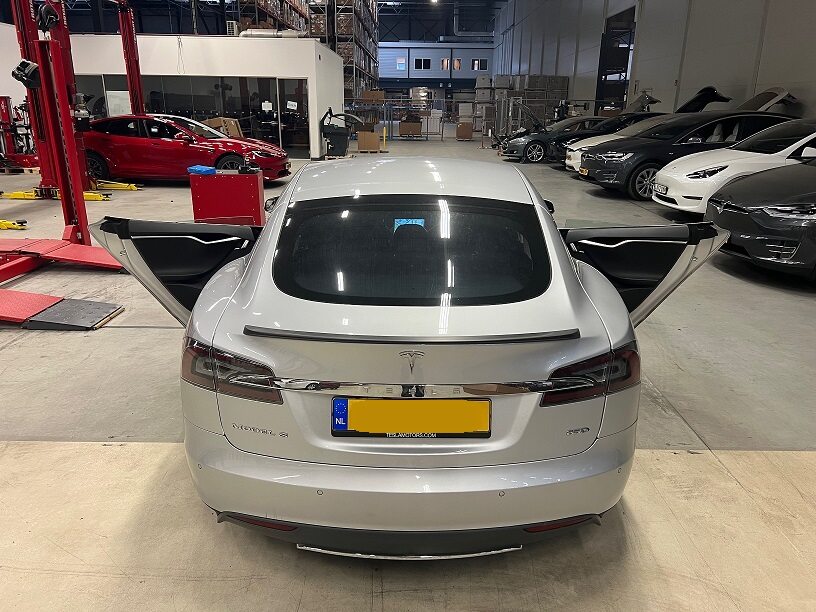

1. Open both rear doors

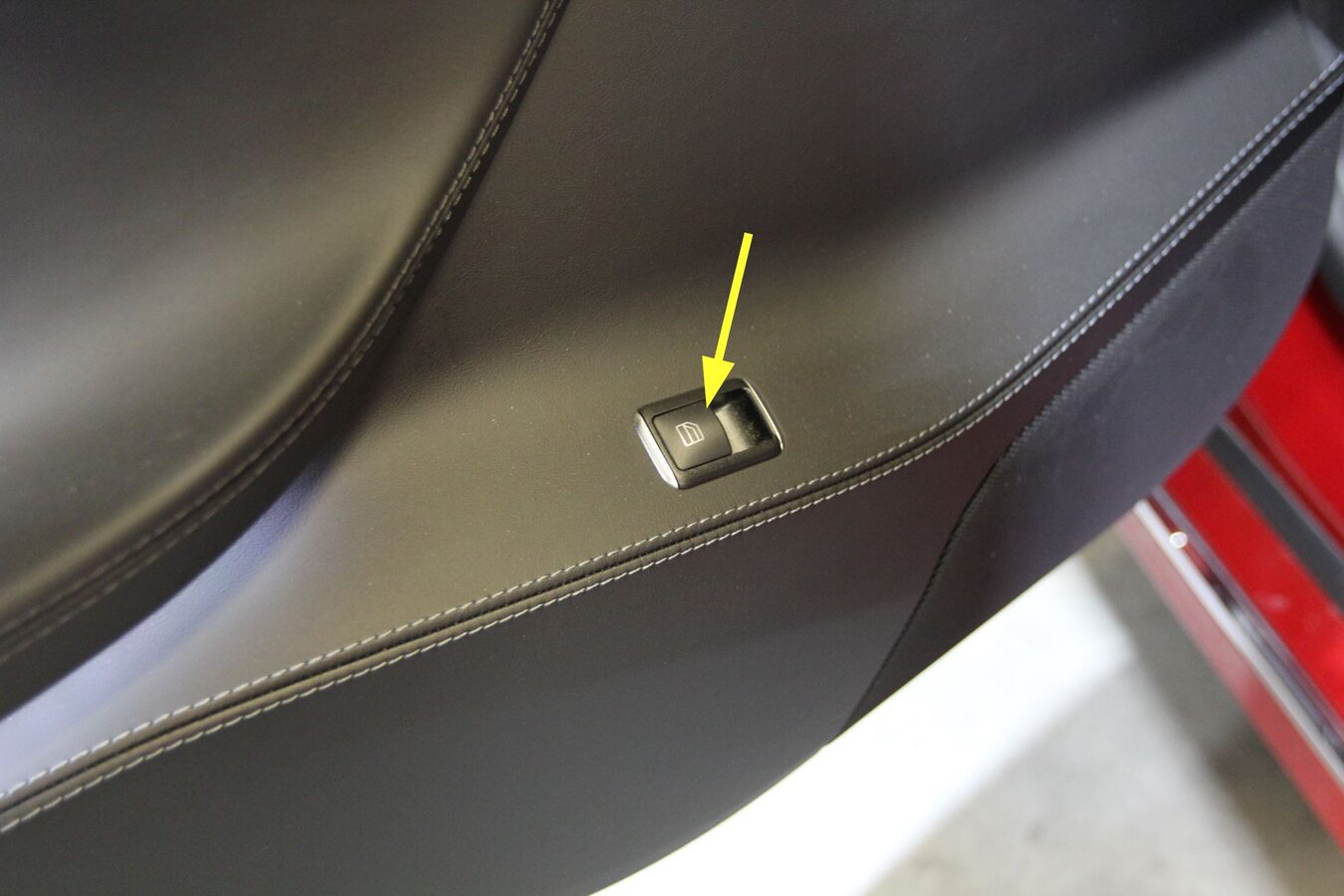

2. Lower LH rear window

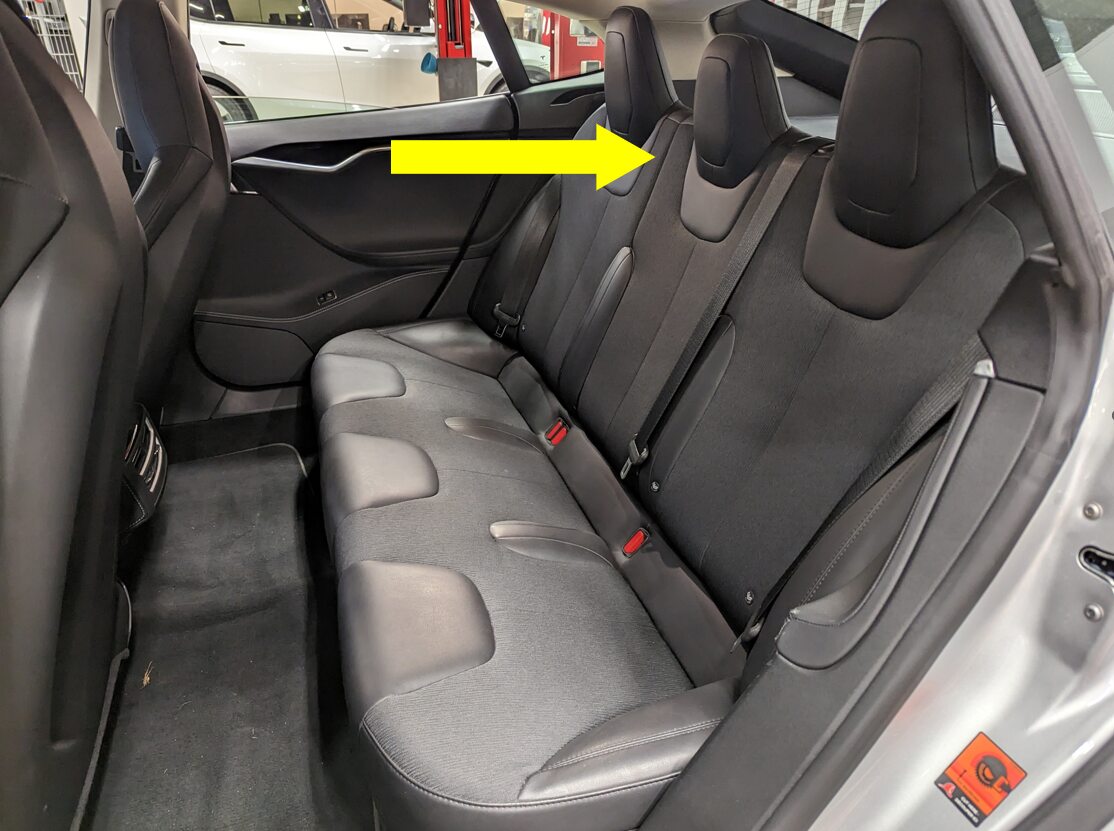

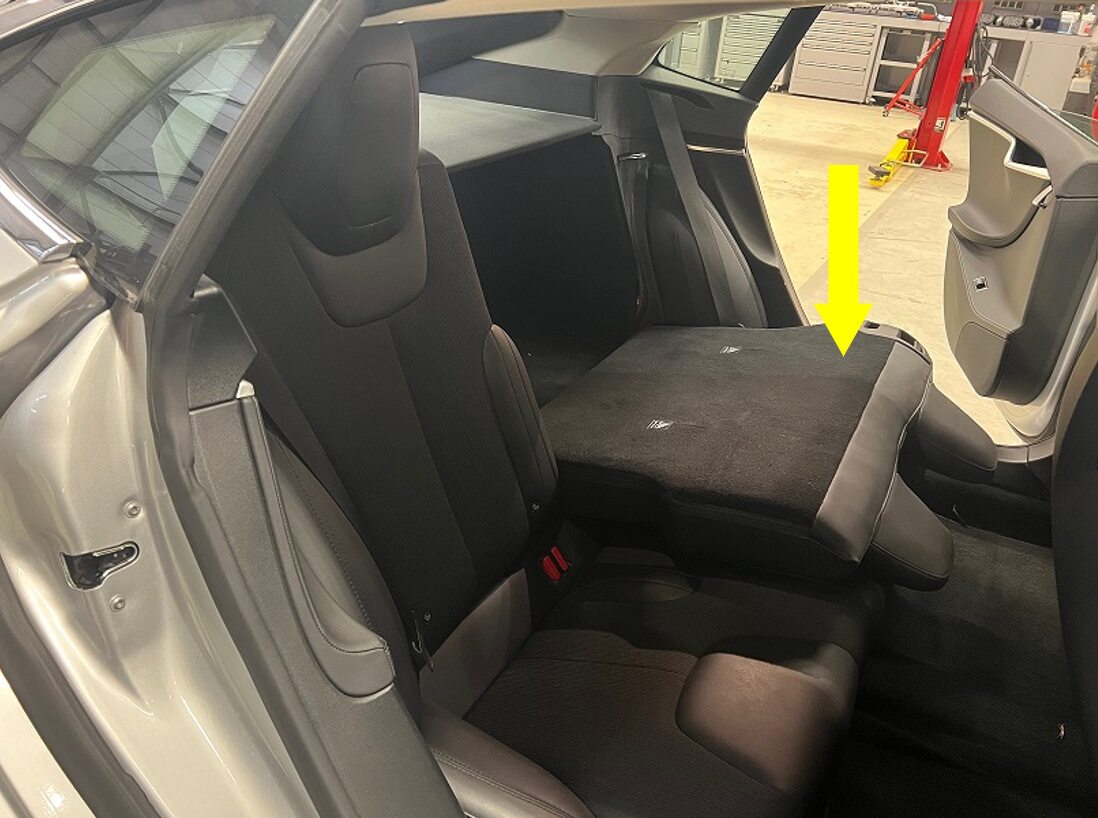

3. Fold 60 seatback into down position

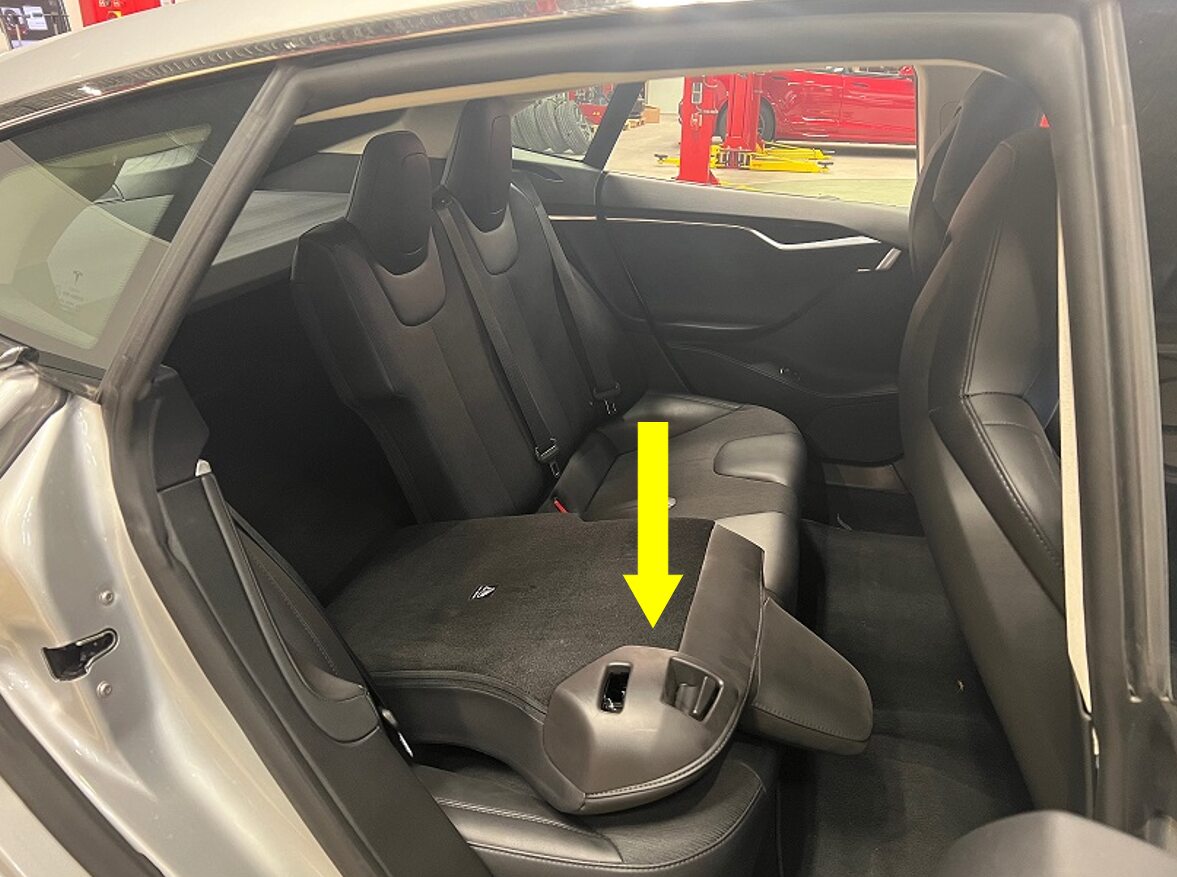

4. Fold 40 seatback into down position

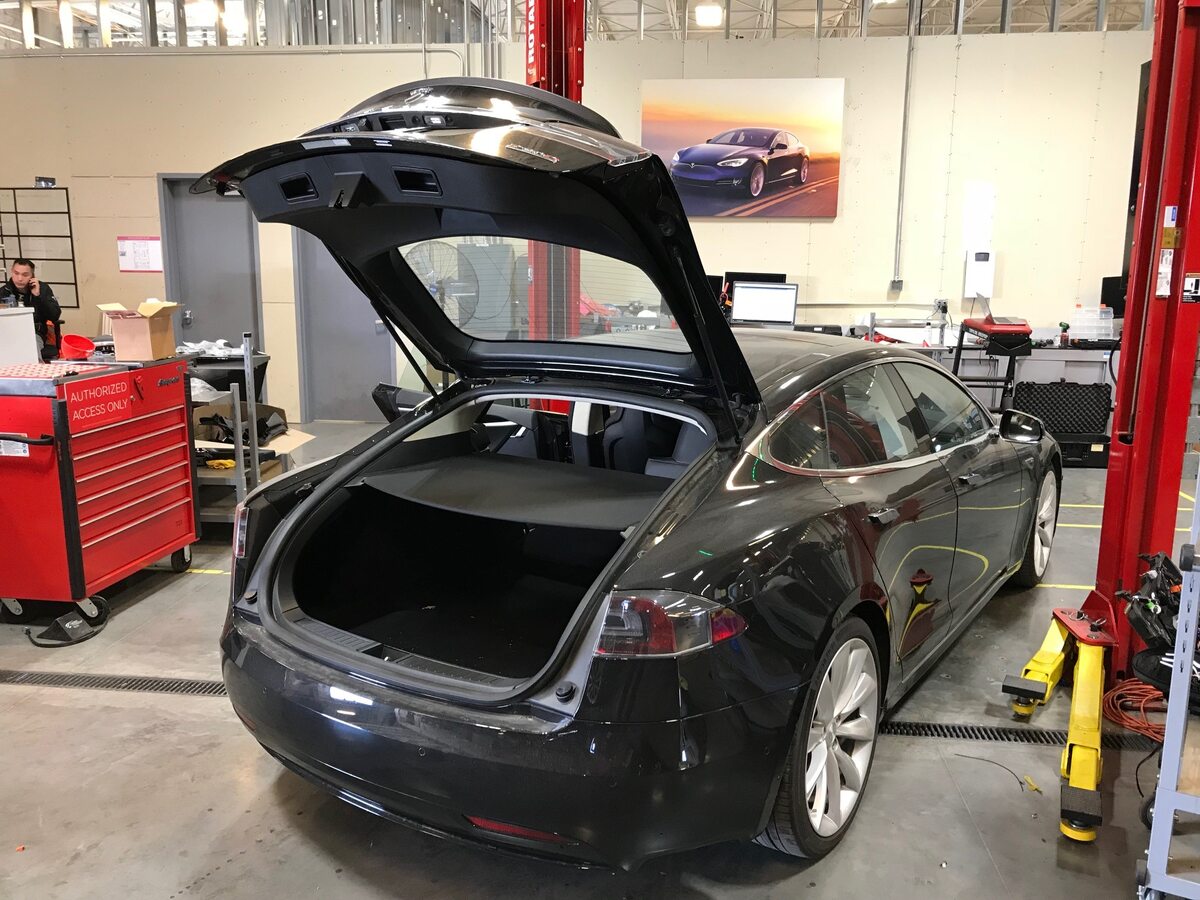

5. Open liftgate

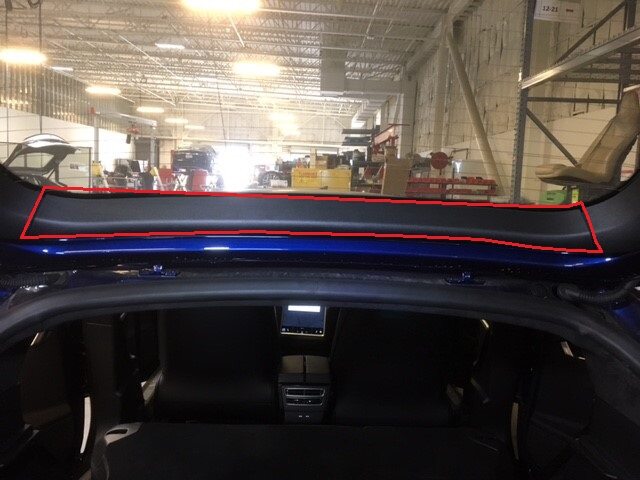

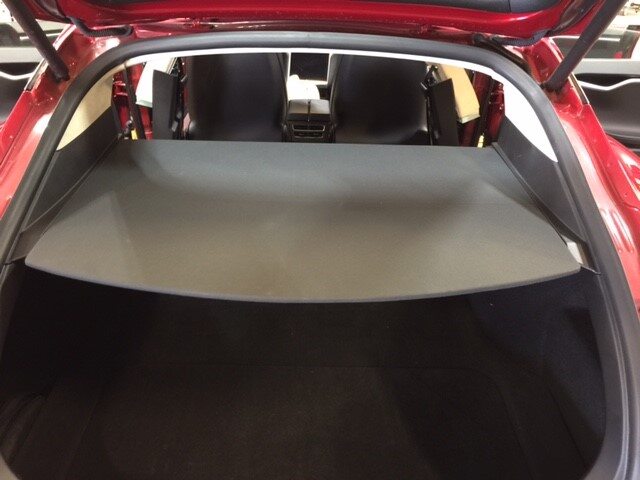

6. Remove parcel shelf

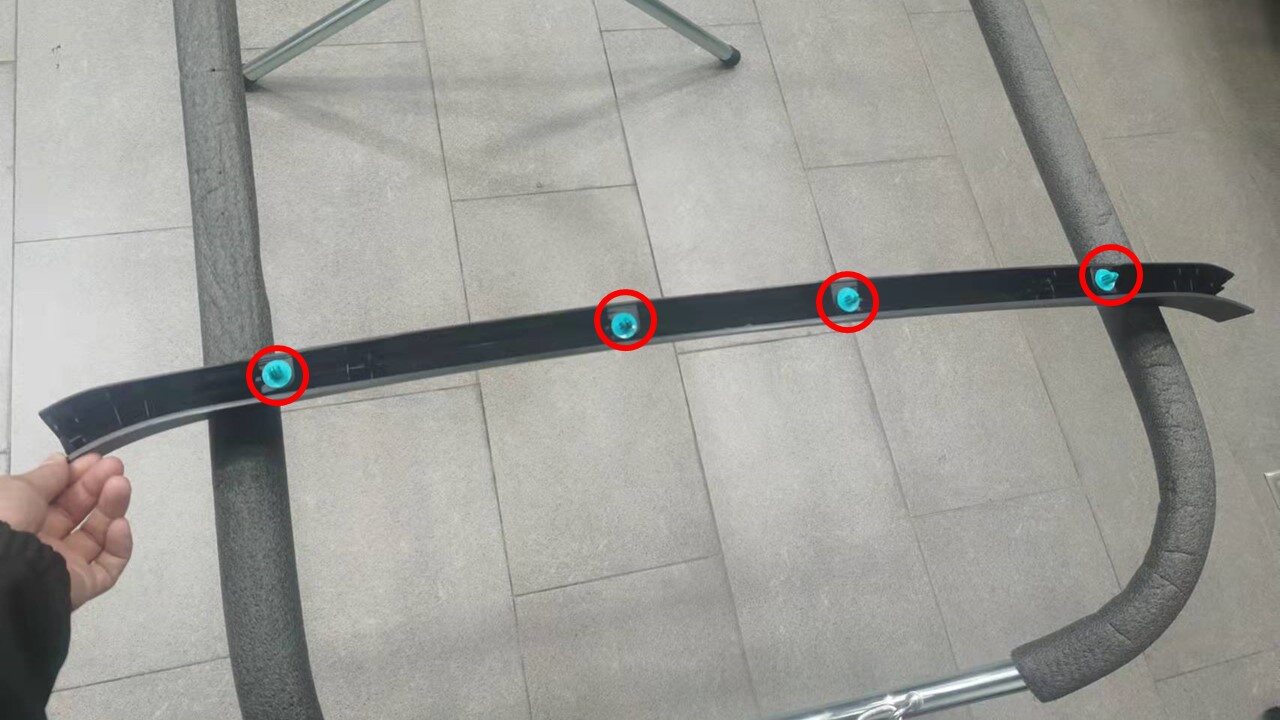

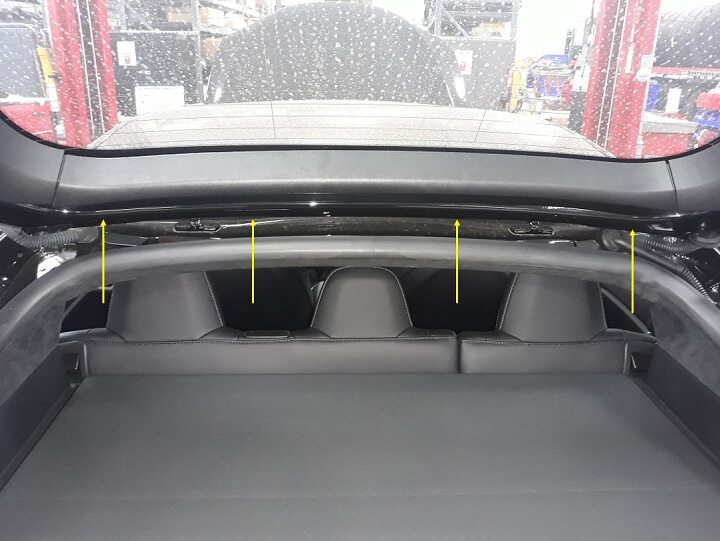

7. Remove upper liftgate trim
   Note

   4x clips, Replace any damaged clips





8. Remove liftgate LH side trim panel
   Note

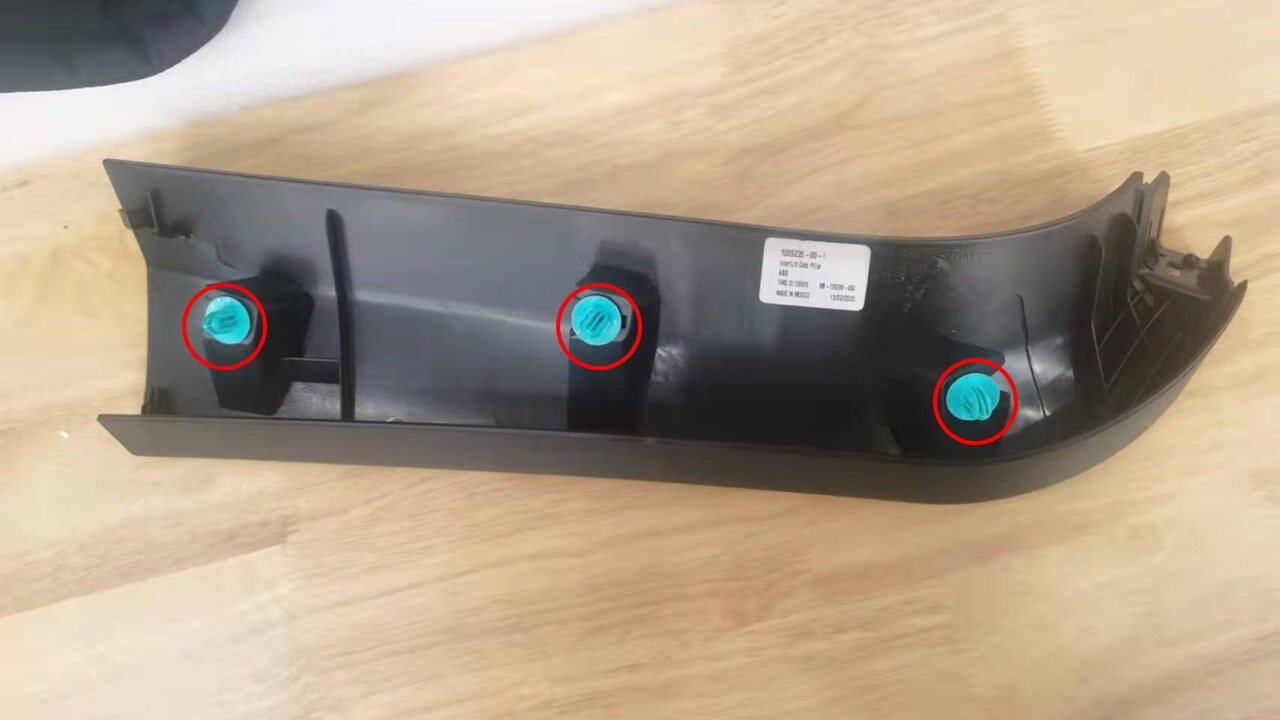

   3x clips, Replace any damaged clips





9. Remove liftgate RH side trim panel
   Note

   3x clips, Replace any damaged clips

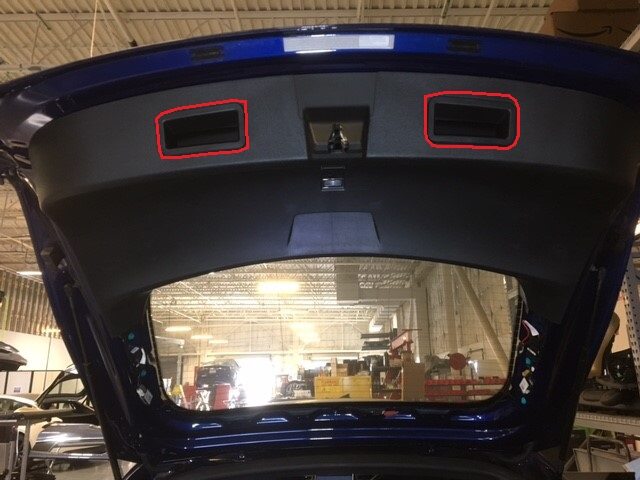

10. Remove pull cups from lower liftgate trim assembly
    Note

    1x connector, If equipped with power liftgate

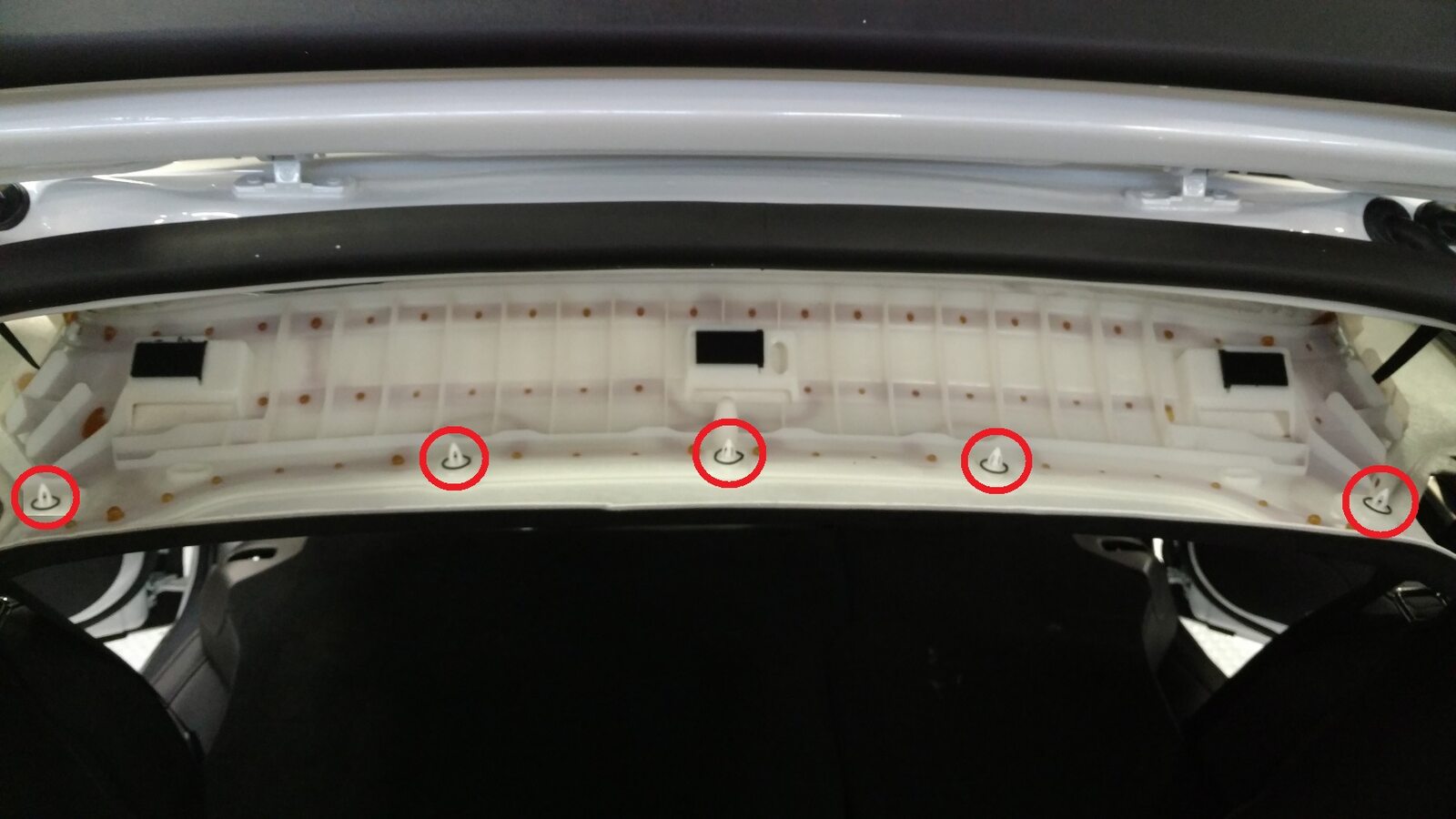

11. Remove screws securing lower liftgate trim to body
    Note

    2x screws, T20, 3 Nm

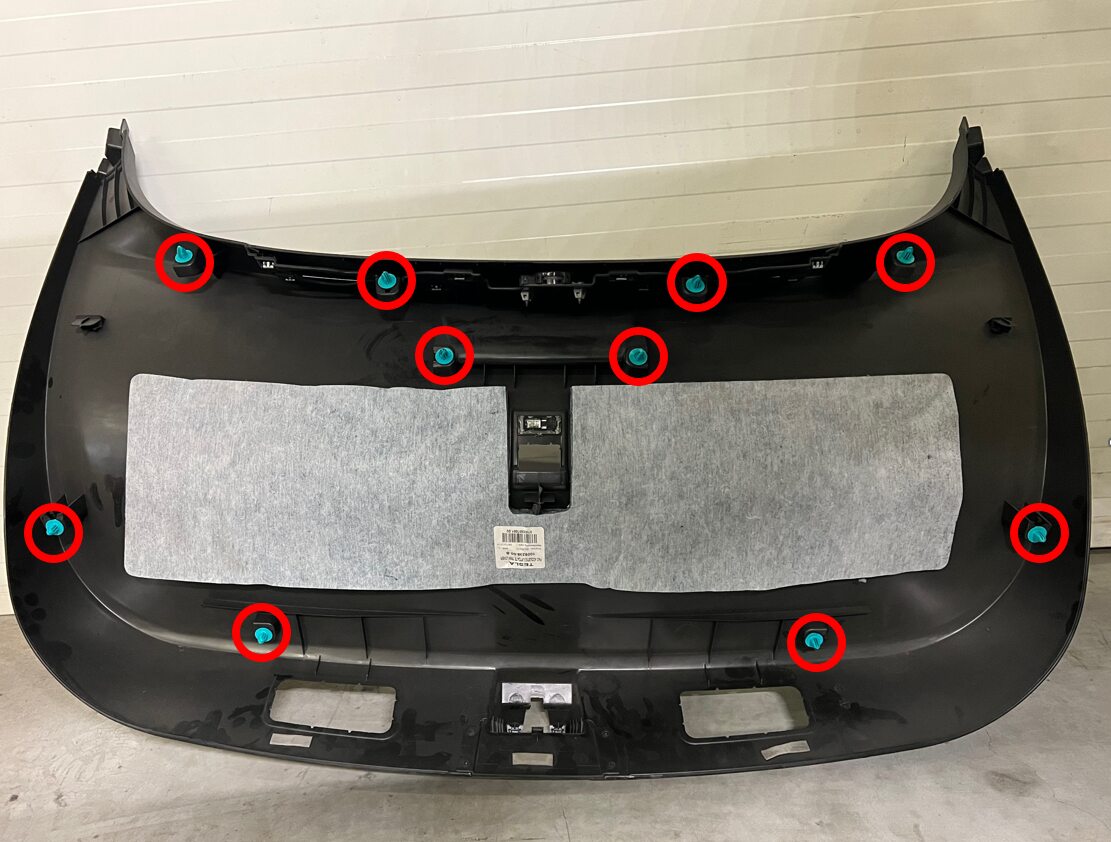

12. Remove lower liftgate trim
    Note

    10x clips, 4x connectors, Number of connections may vary, Take care not to damage connectors when releasing trim

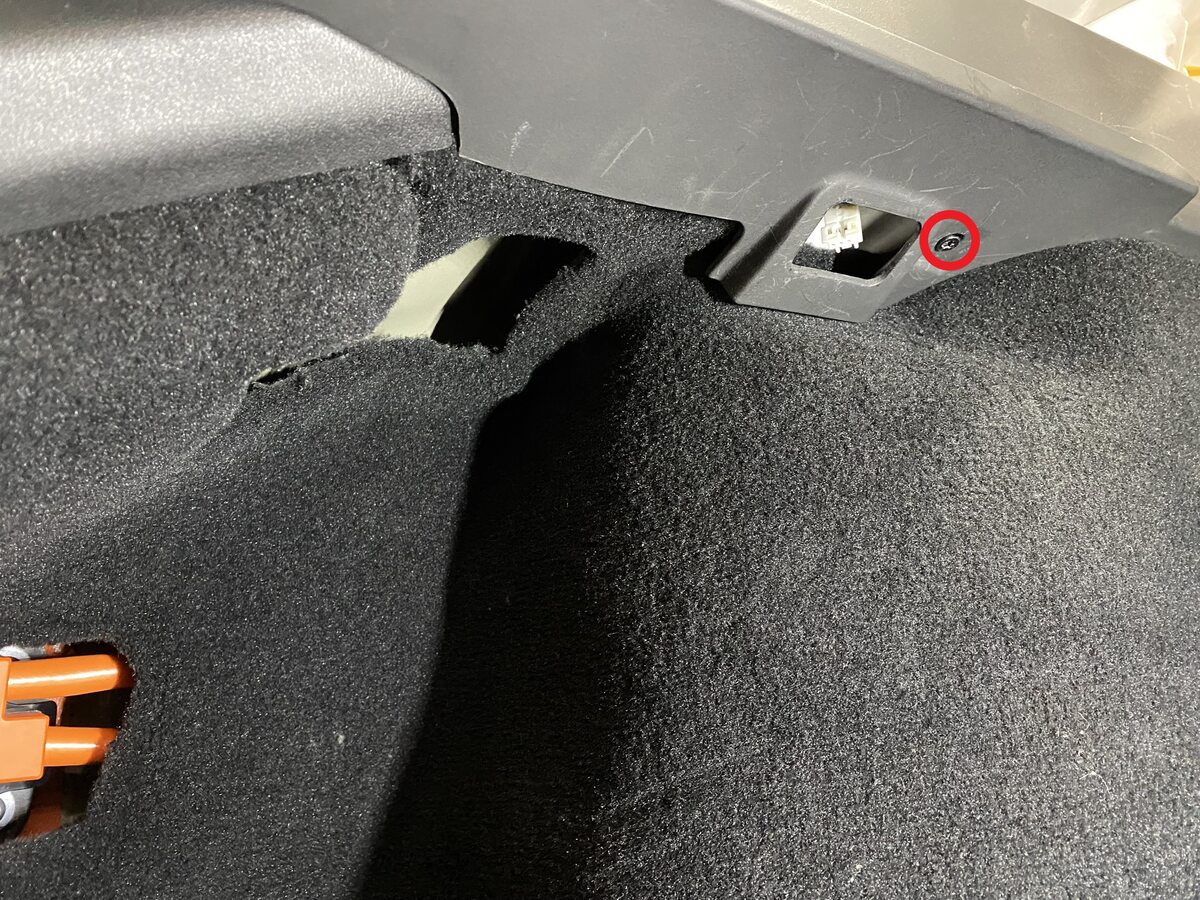

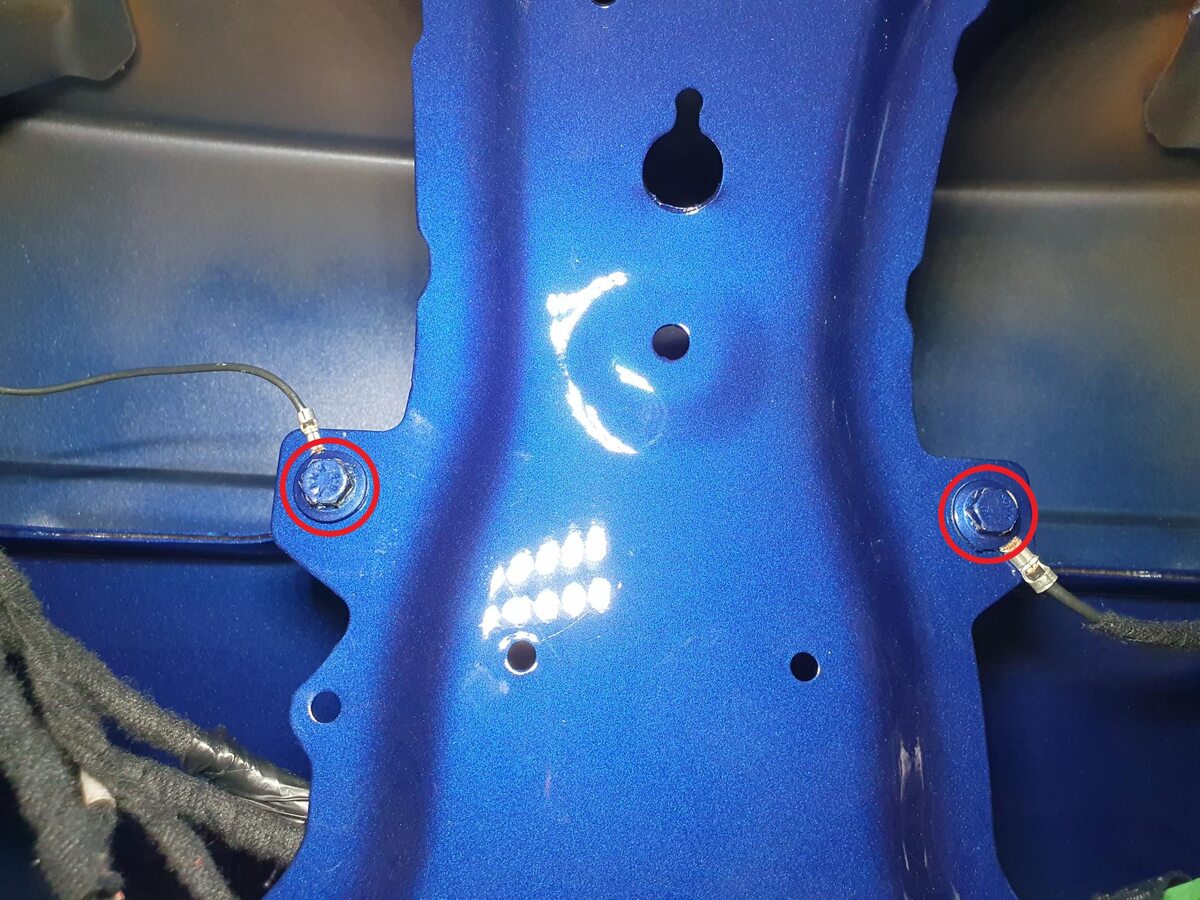

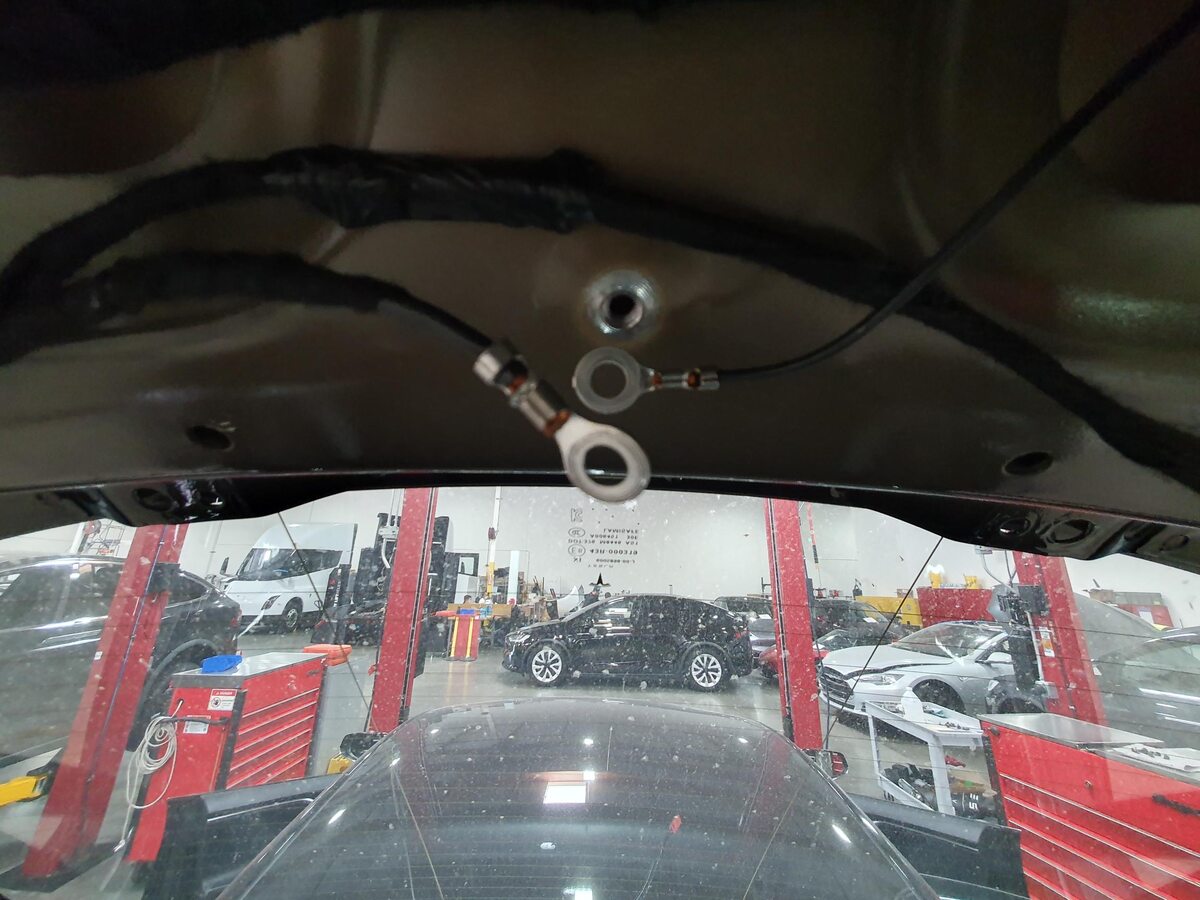

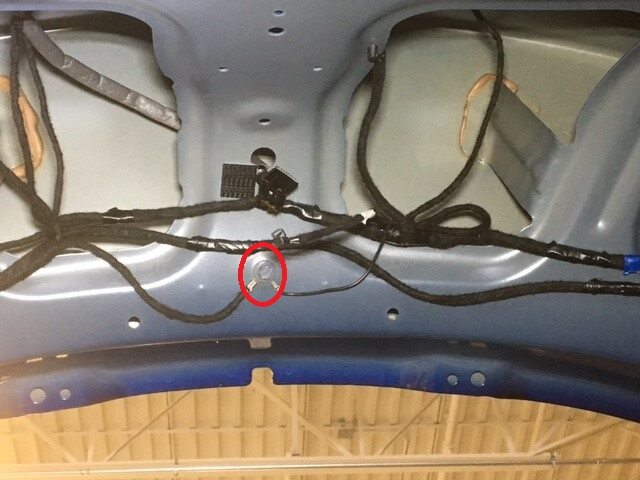

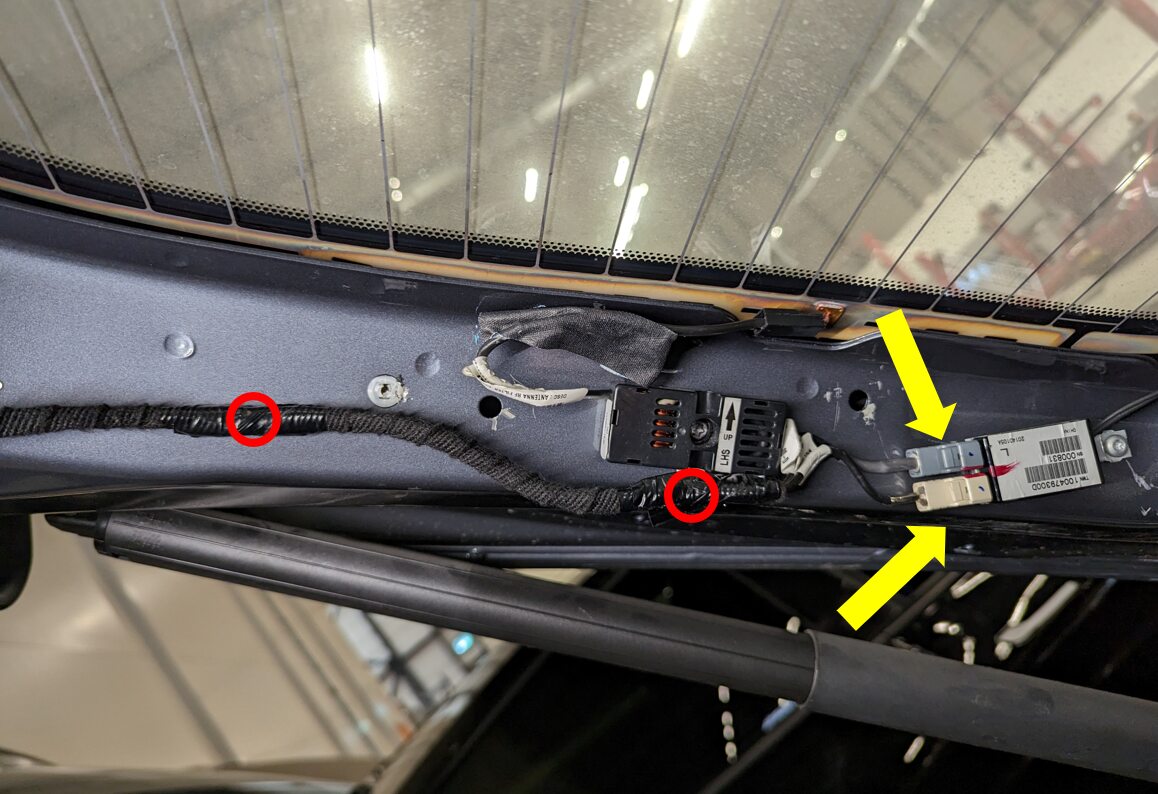

13. Remove bolt securing liftgate grounding terminals
    Note

    1x bolt, 10mm, 9 Nm, 2x ground terminals

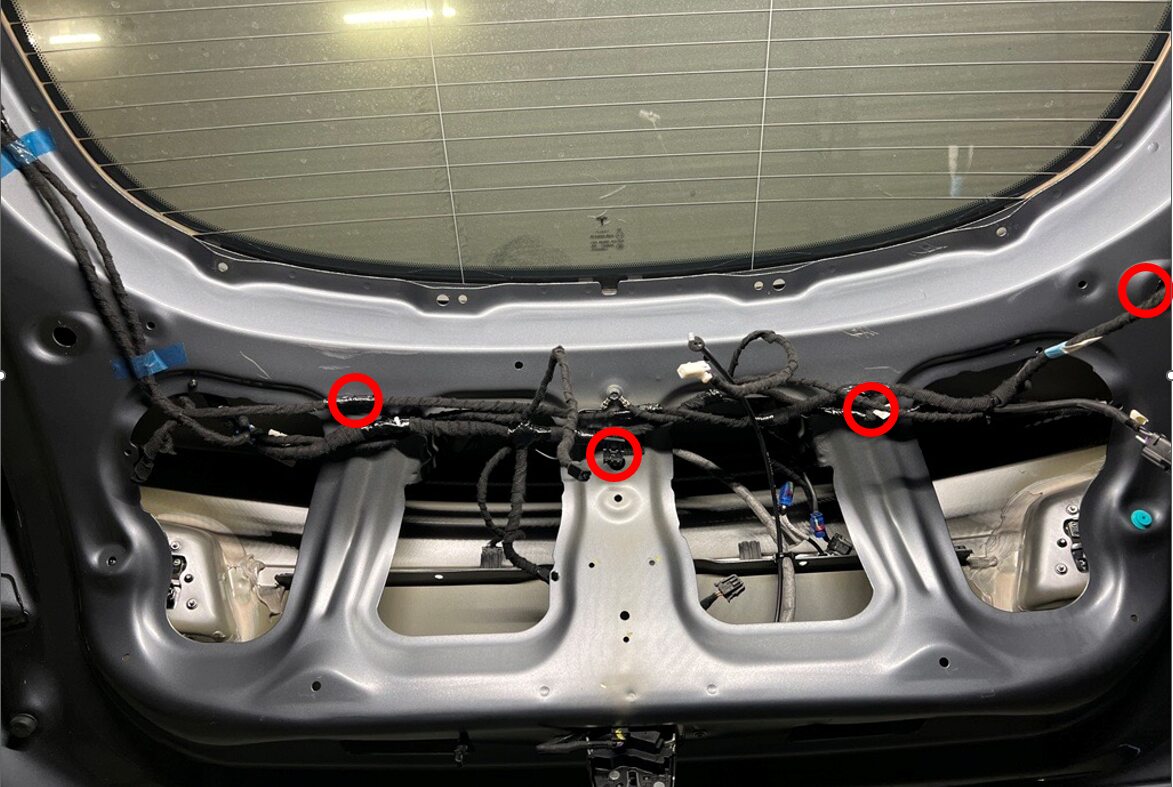

14. Remove clips securing LH liftgate harness to body
    Note

    4x clips

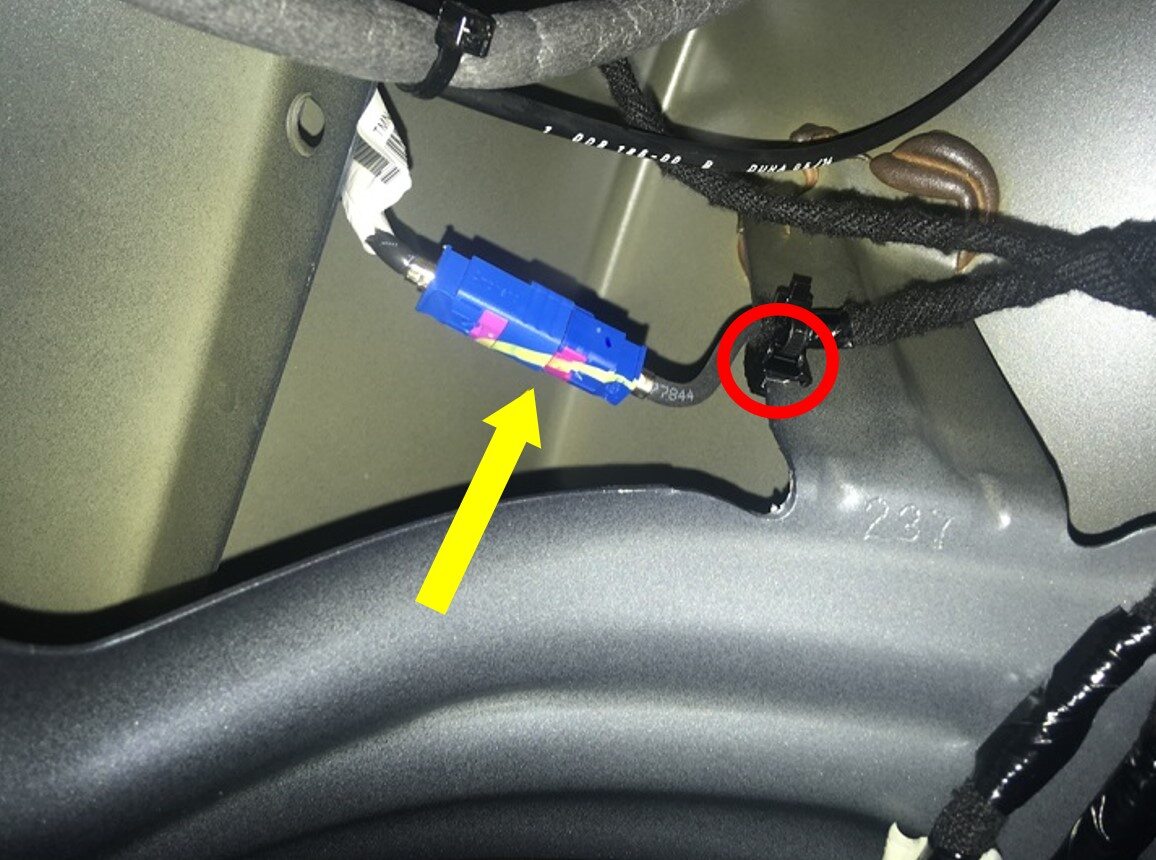

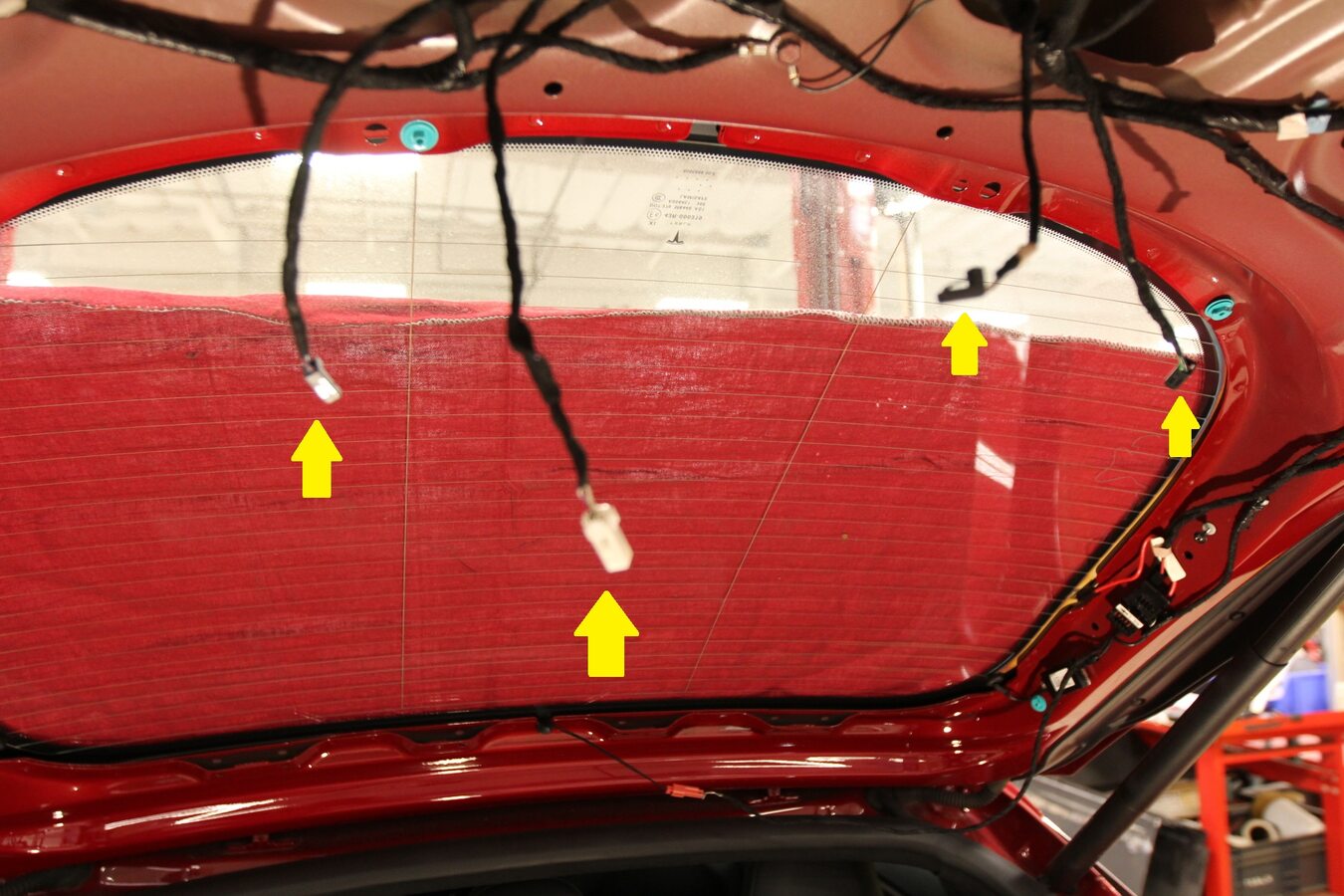

15. Disconnect rear view camera
    Note

    1x connector, 1x clip

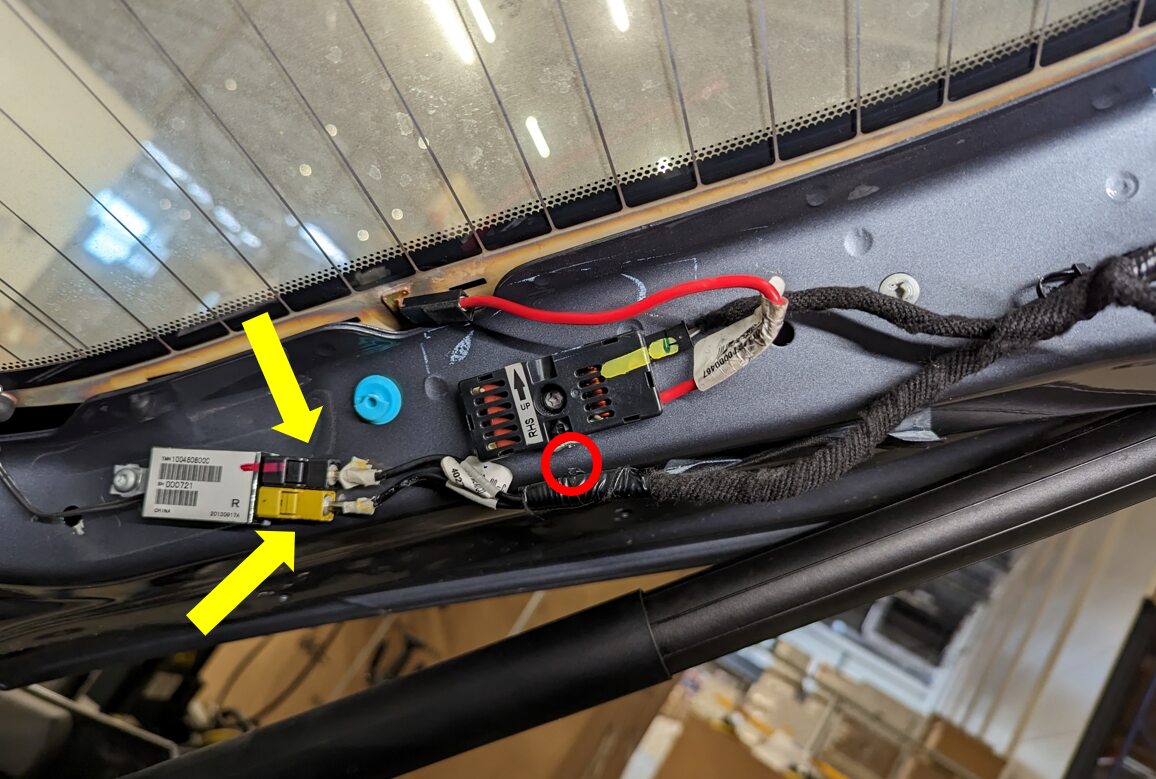

16. Disconnect FM/DAB amplifier
    Note

    2x connectors, 1x clip



17. Disconnect AM/FM/RKE amplifier
    Note

    2x connectors, 2x clips

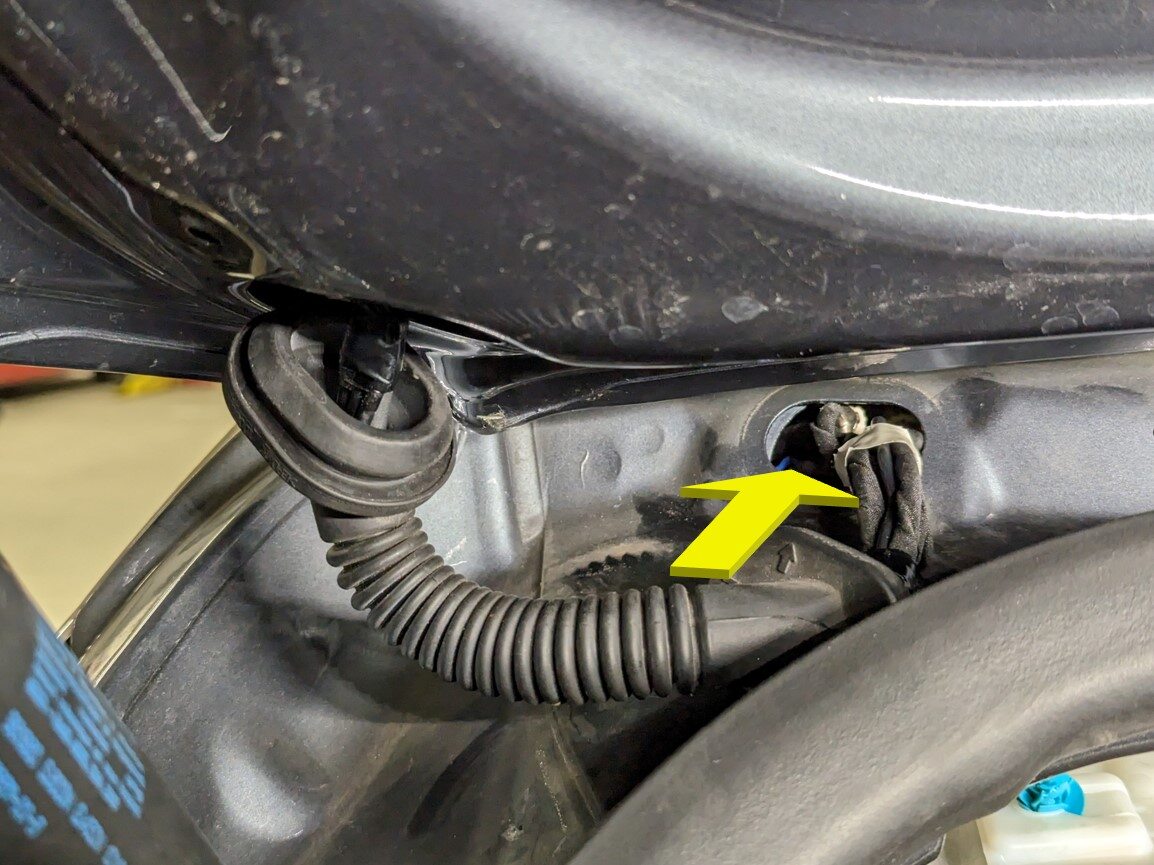

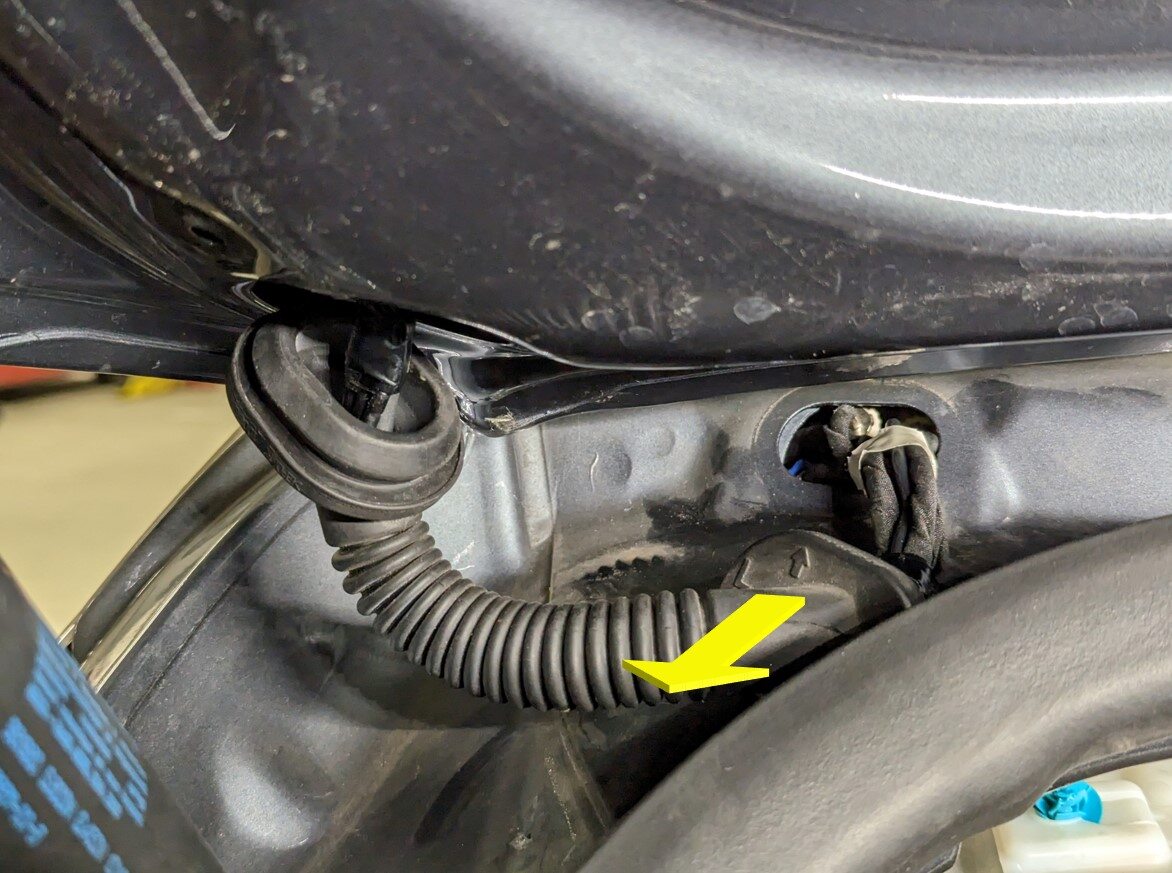

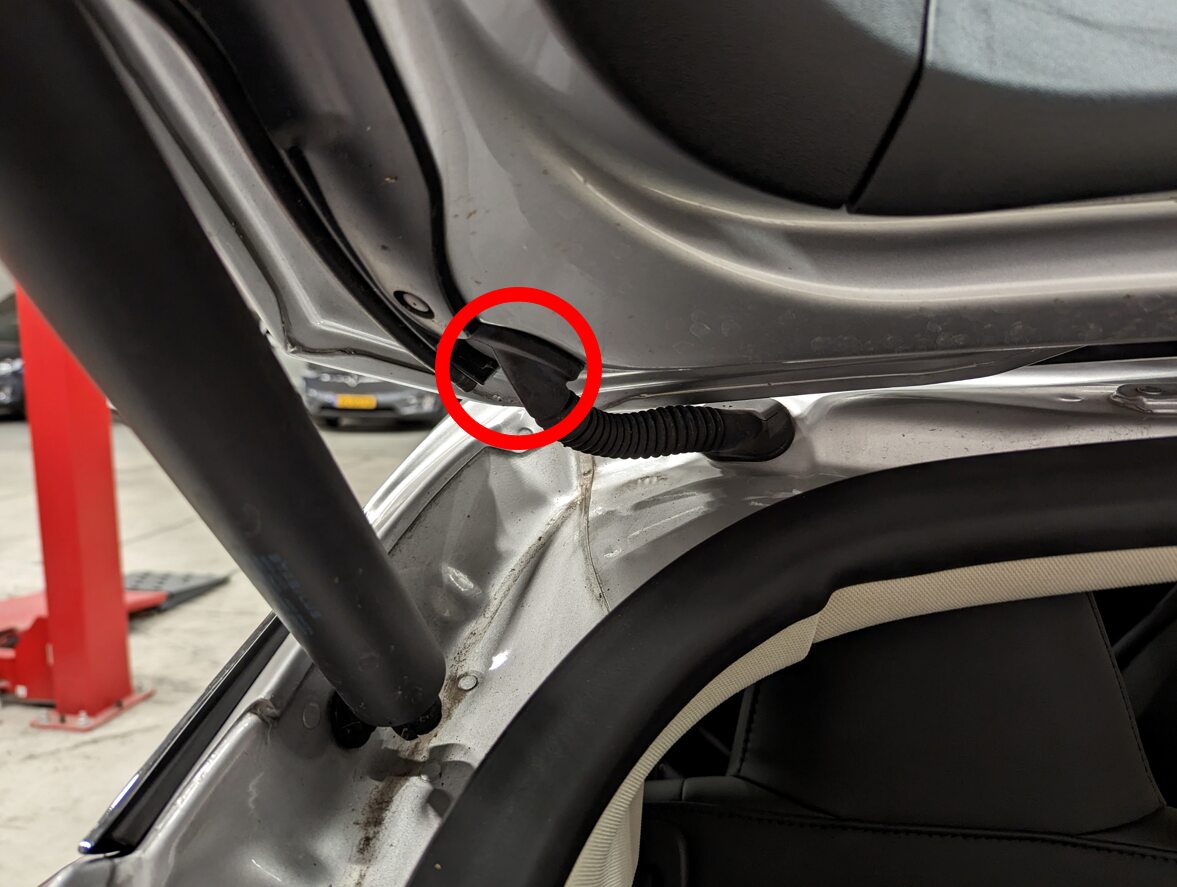

18. Release LH liftgate harness grommet from body
    Note

    1x grommet

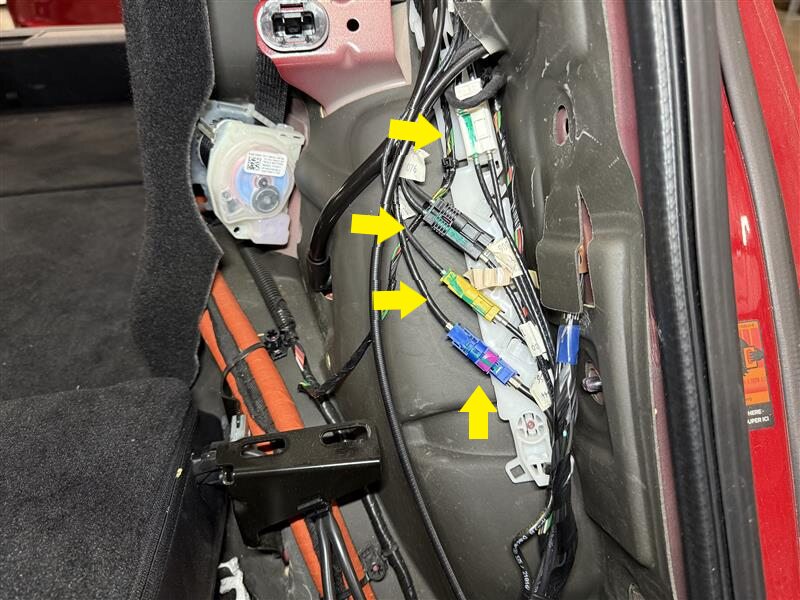

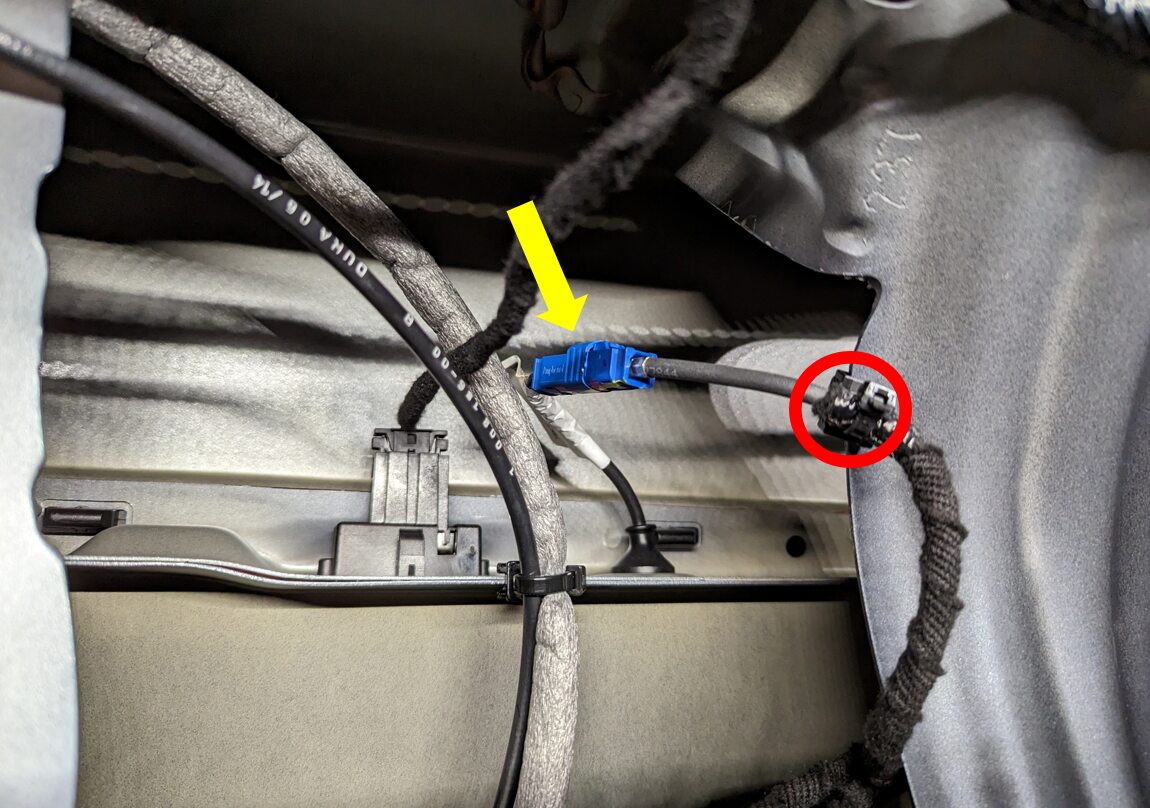

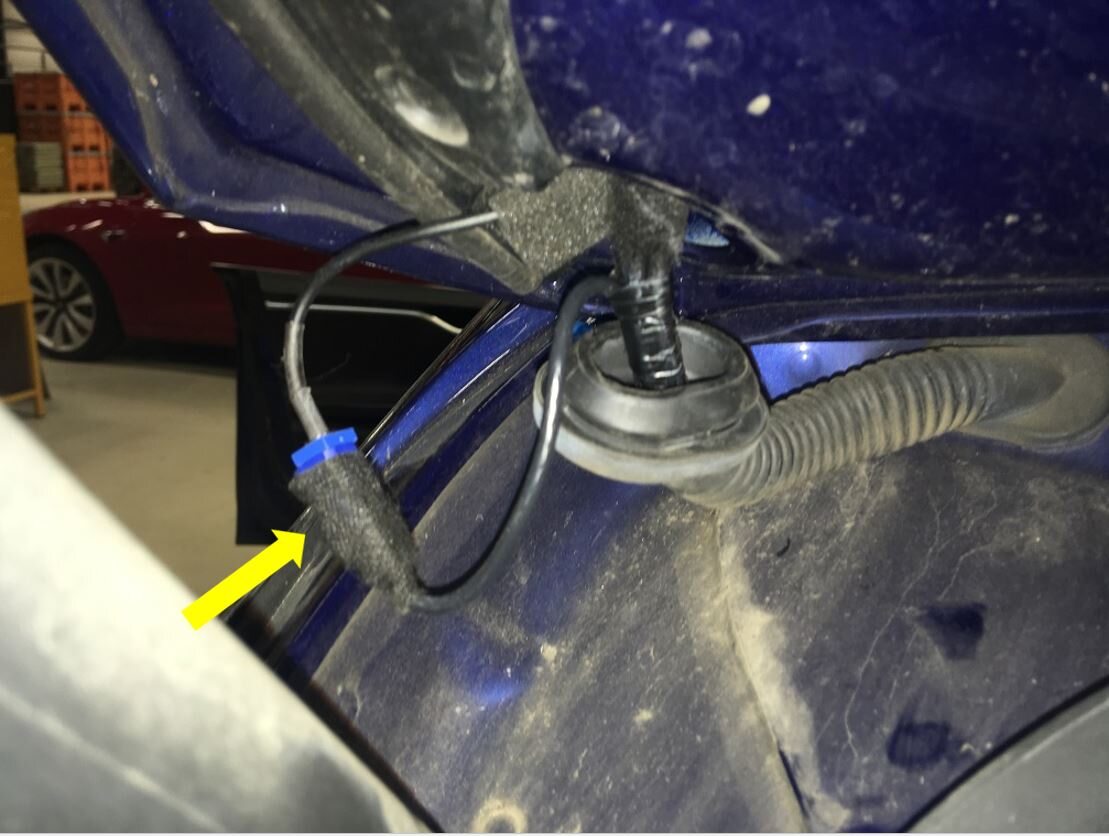

19. Disconnect GPS antenna from LH liftgate harness
    Note

    Remove tape as needed

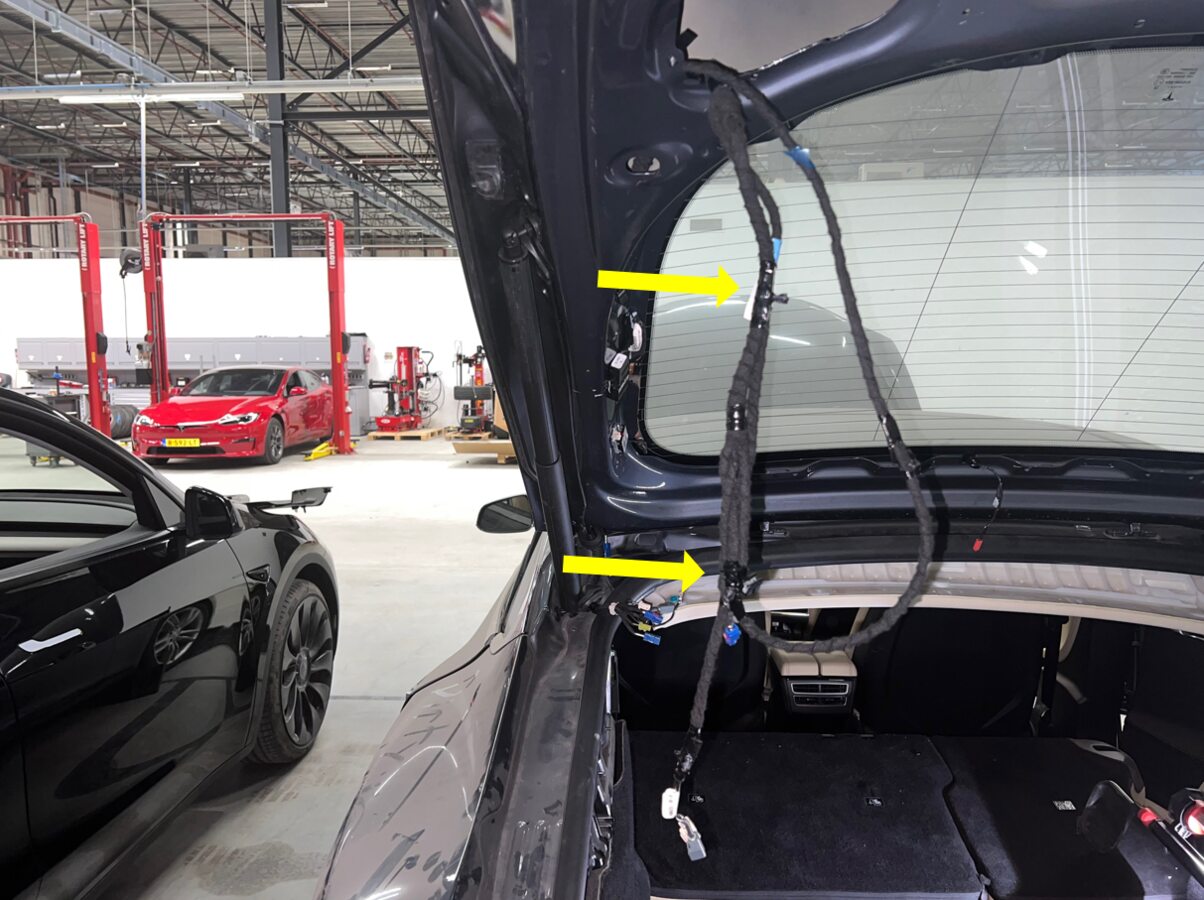

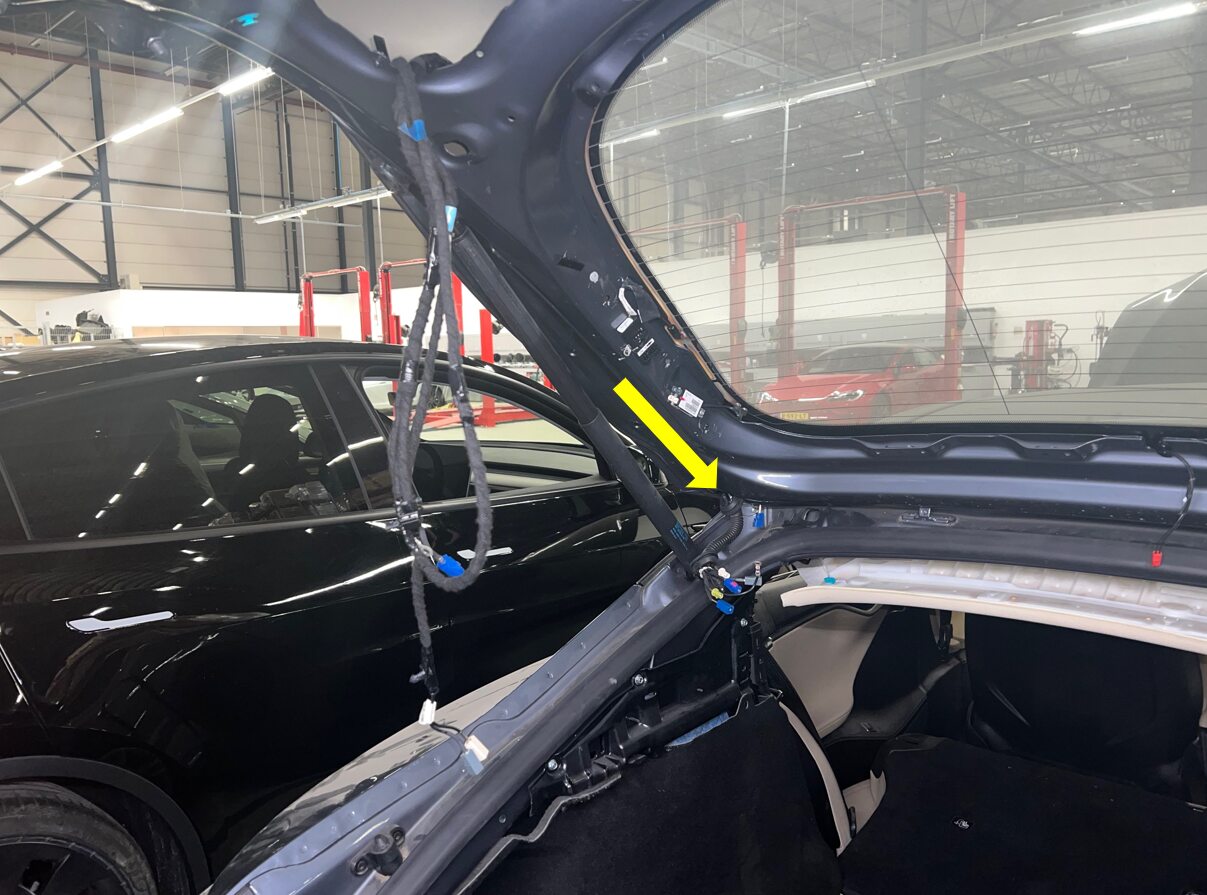

20. Route LH liftgate harness through grommet hole

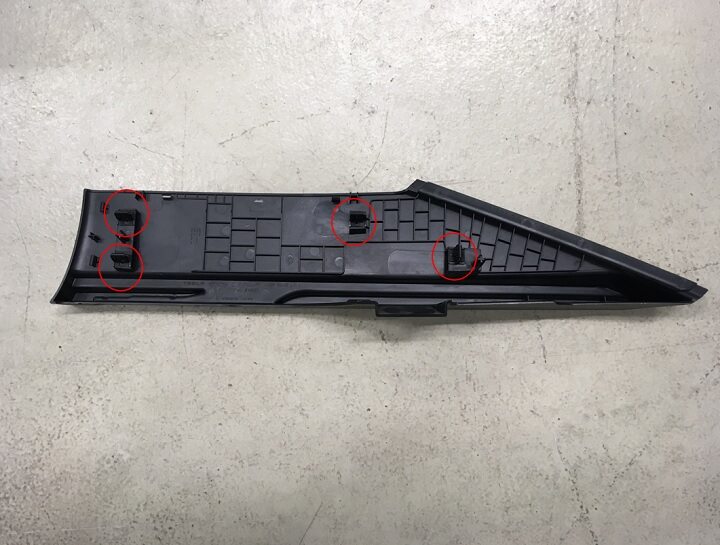

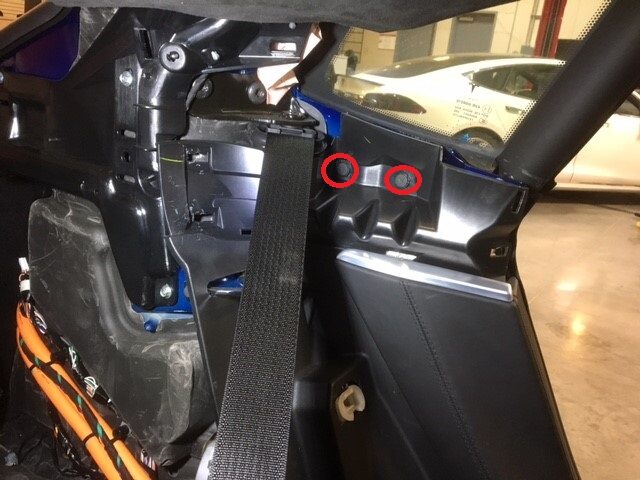

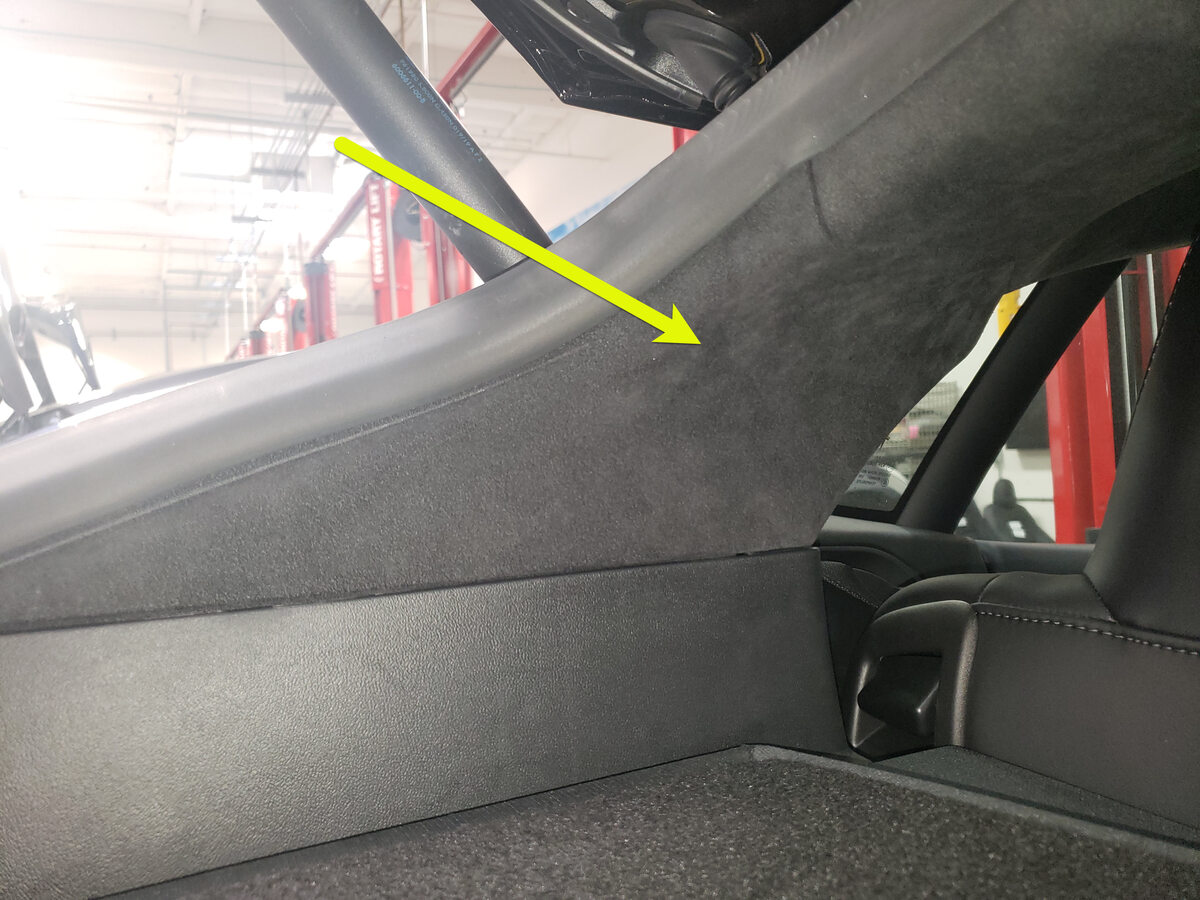

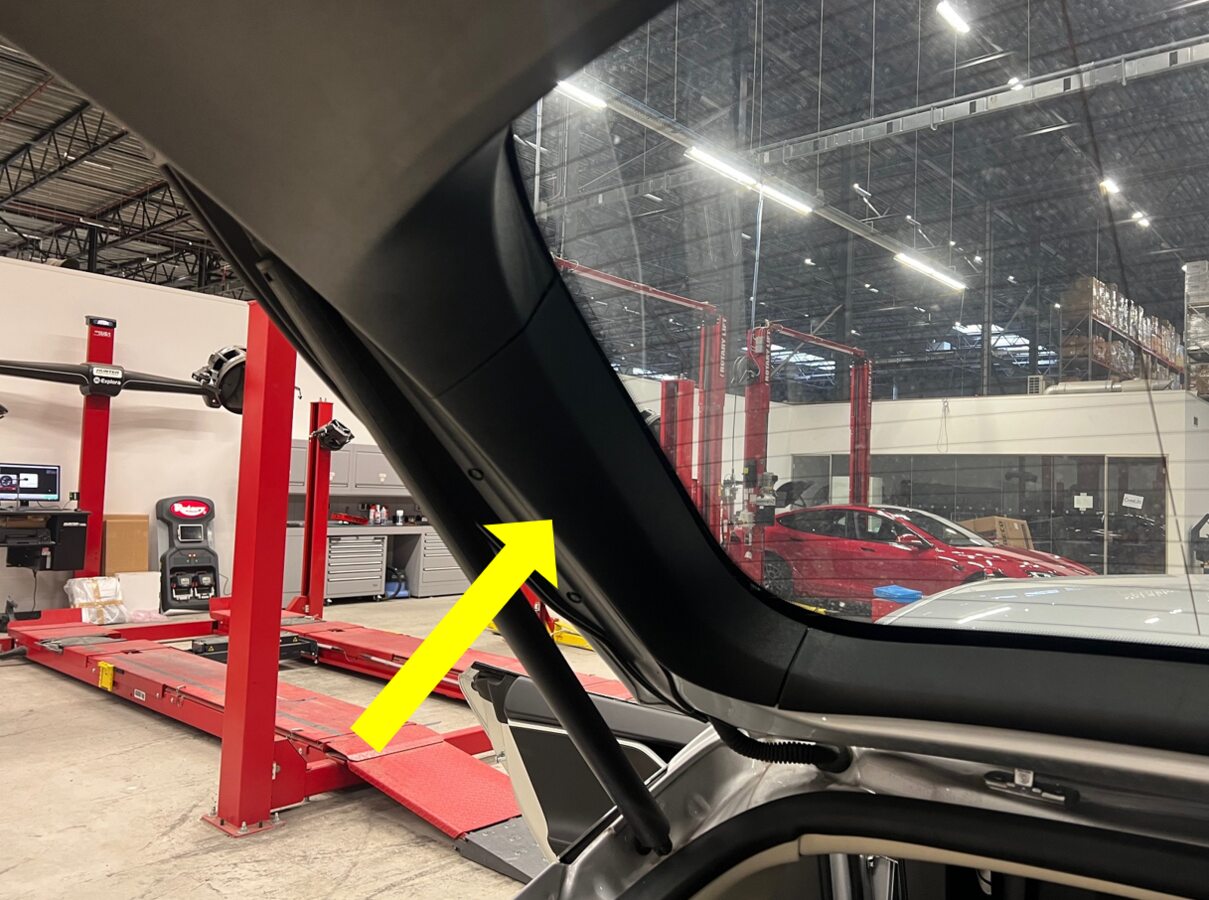

21. Remove LH rear C-pillar trim
    Note

    1x screw, T25, 3 Nm, 4x clips

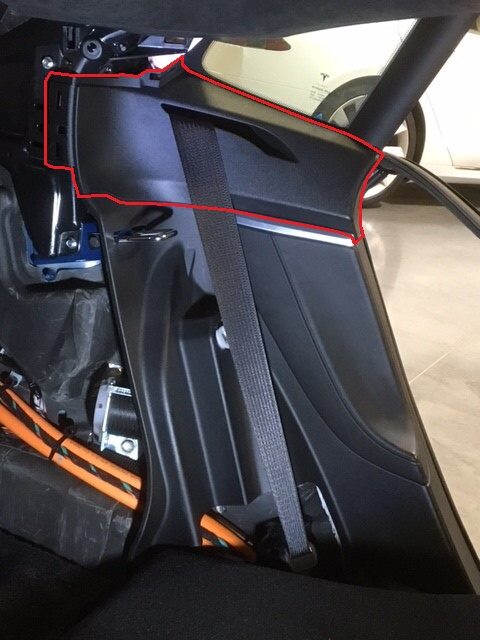

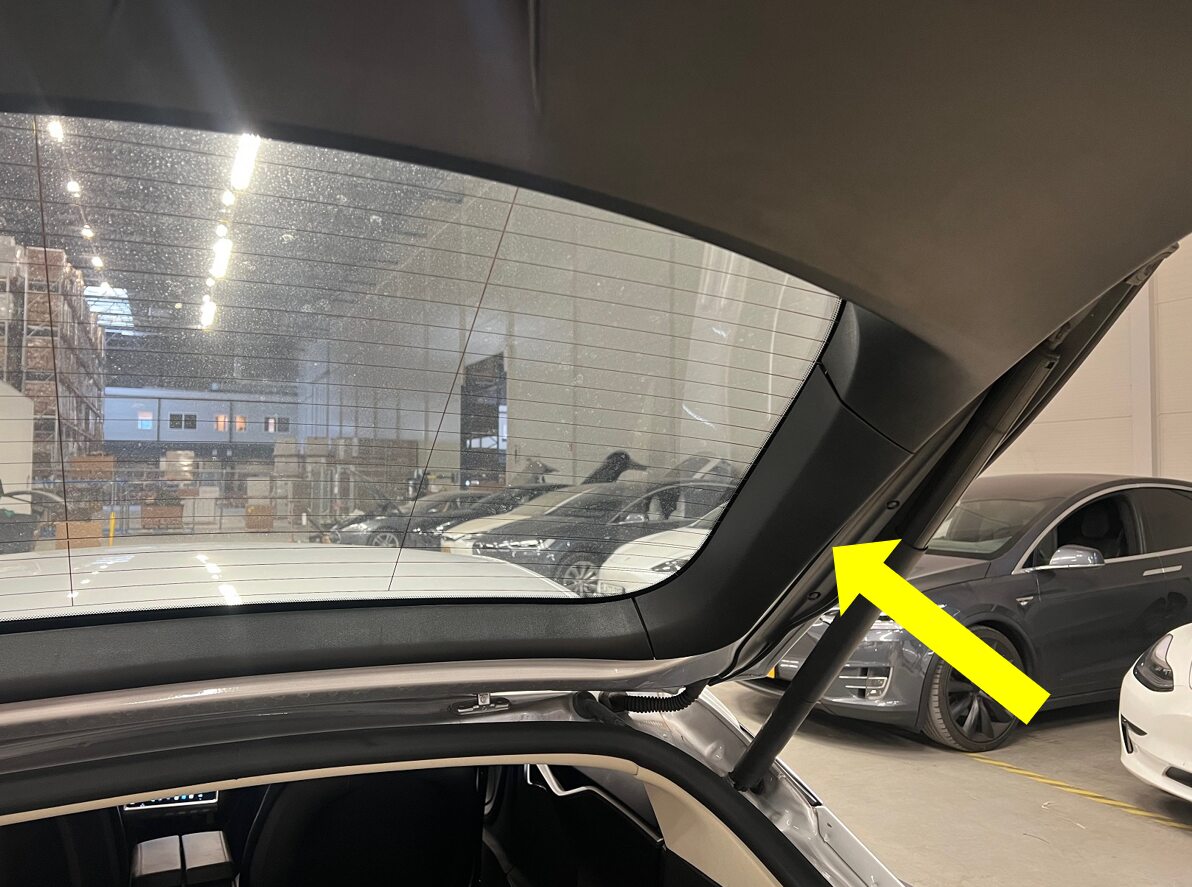

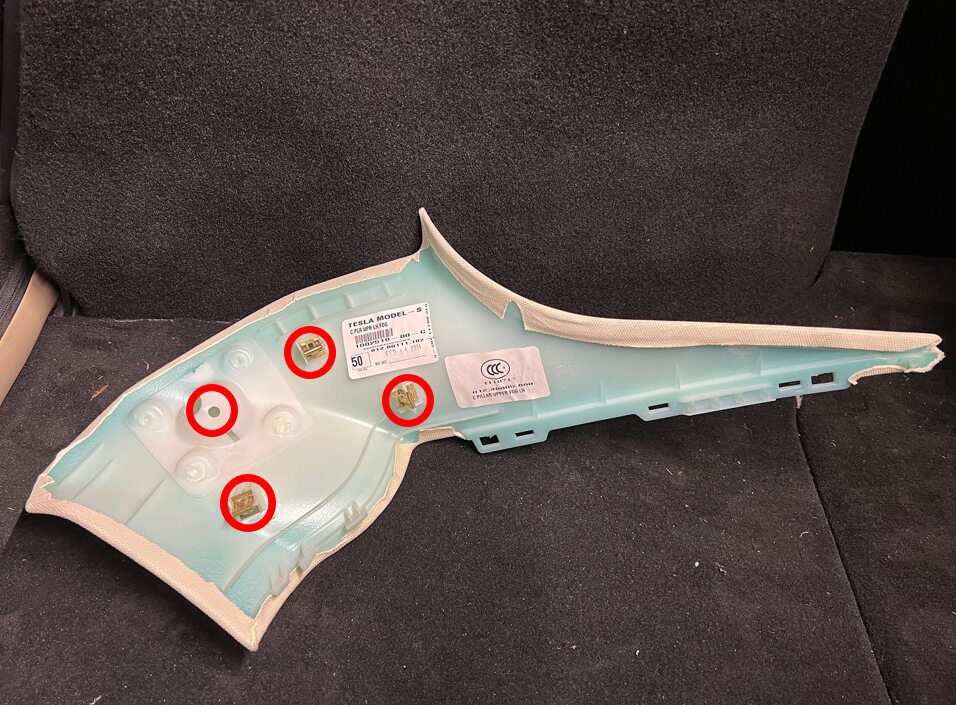

22. Remove LH C-pillar upper trim
    Note

    4x clips





23. Release rear of headliner and lower
    Note

    5x clips, 3x Velcro strips

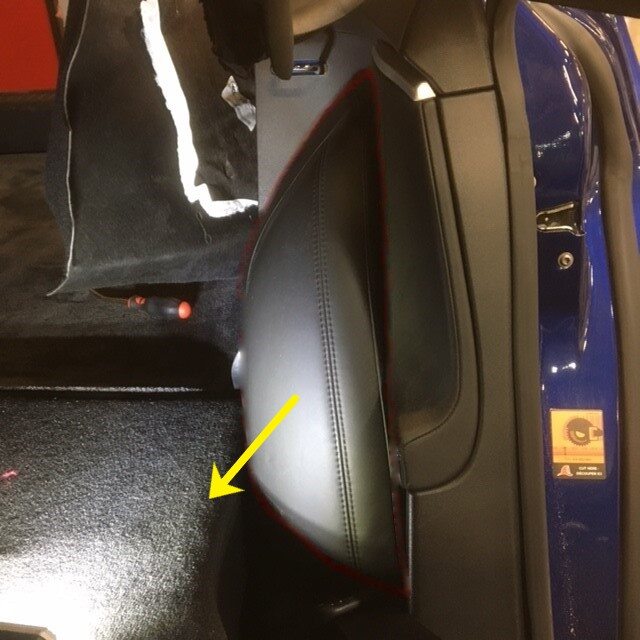

24. Remove the LH side rear seat bolster from the vehicle
    Note

    1x clip, Release clip from the rear, Do not pull the bolster because of risk of bending



25. Separate the upper section of the LH C-Pillar from the lower C-Pillar
    Note

    4x clips



26. Release clips securing the LH lower C-Pillar
    Note

    2x clips

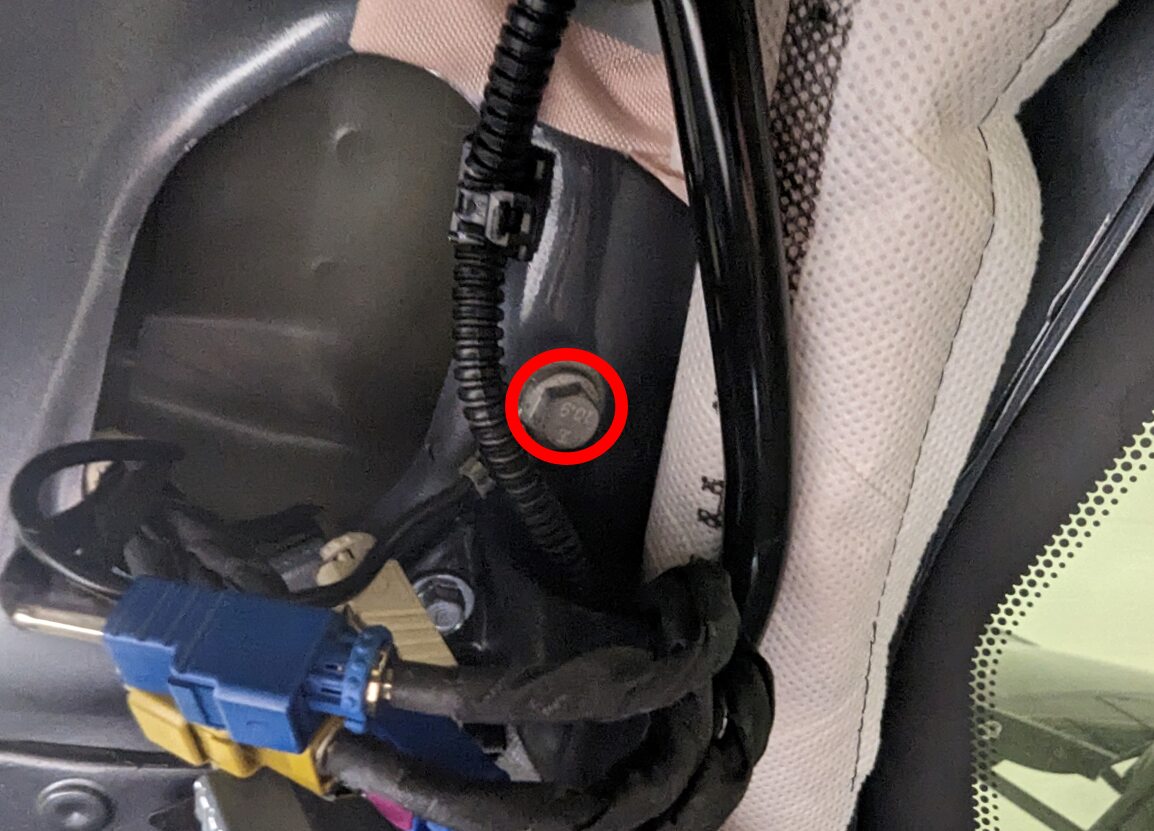

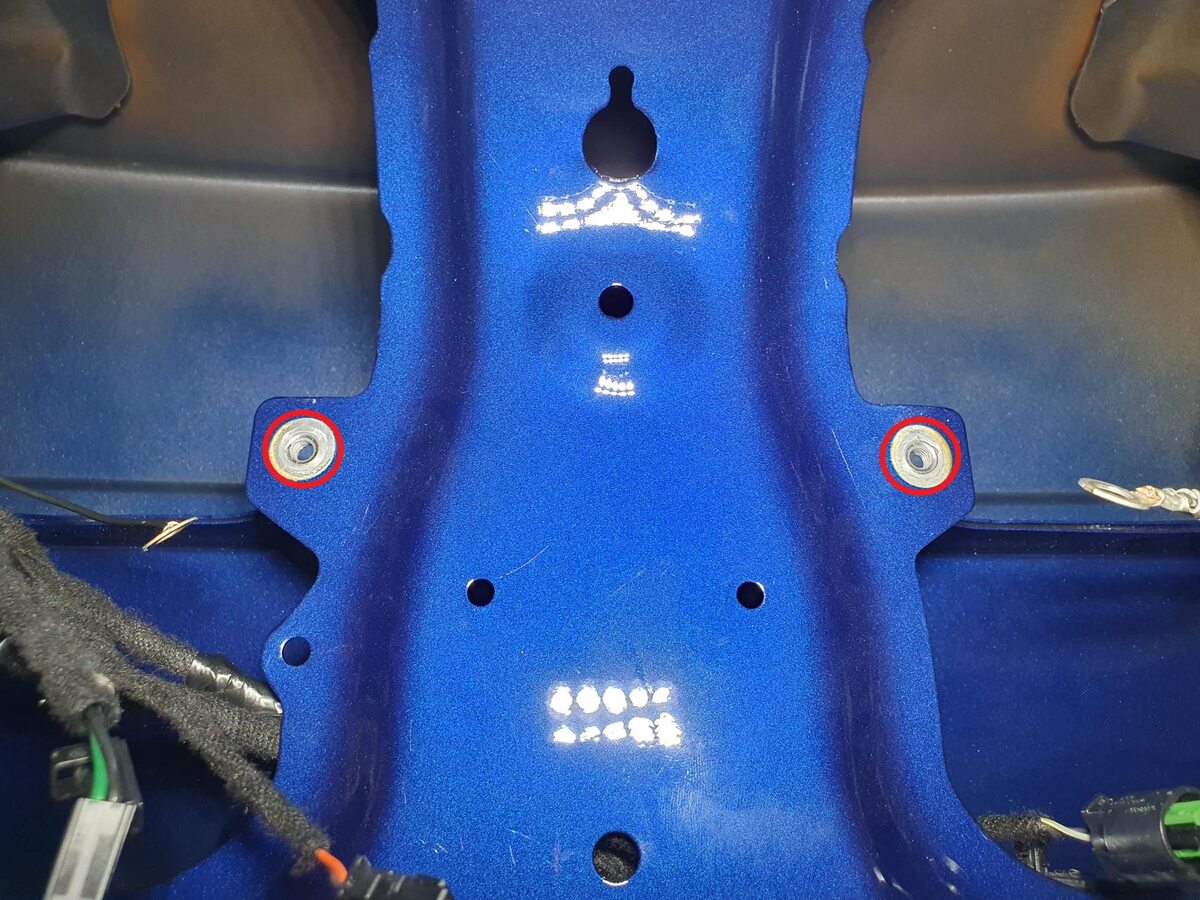

27. Remove bolt securing liftgate grounding terminal
    Note

    1x bolt, 10mm, 9 Nm, 1x ground terminal



28. Disconnect LH liftgate harness connectors
    Note

    5x connectors, 2x cable ties

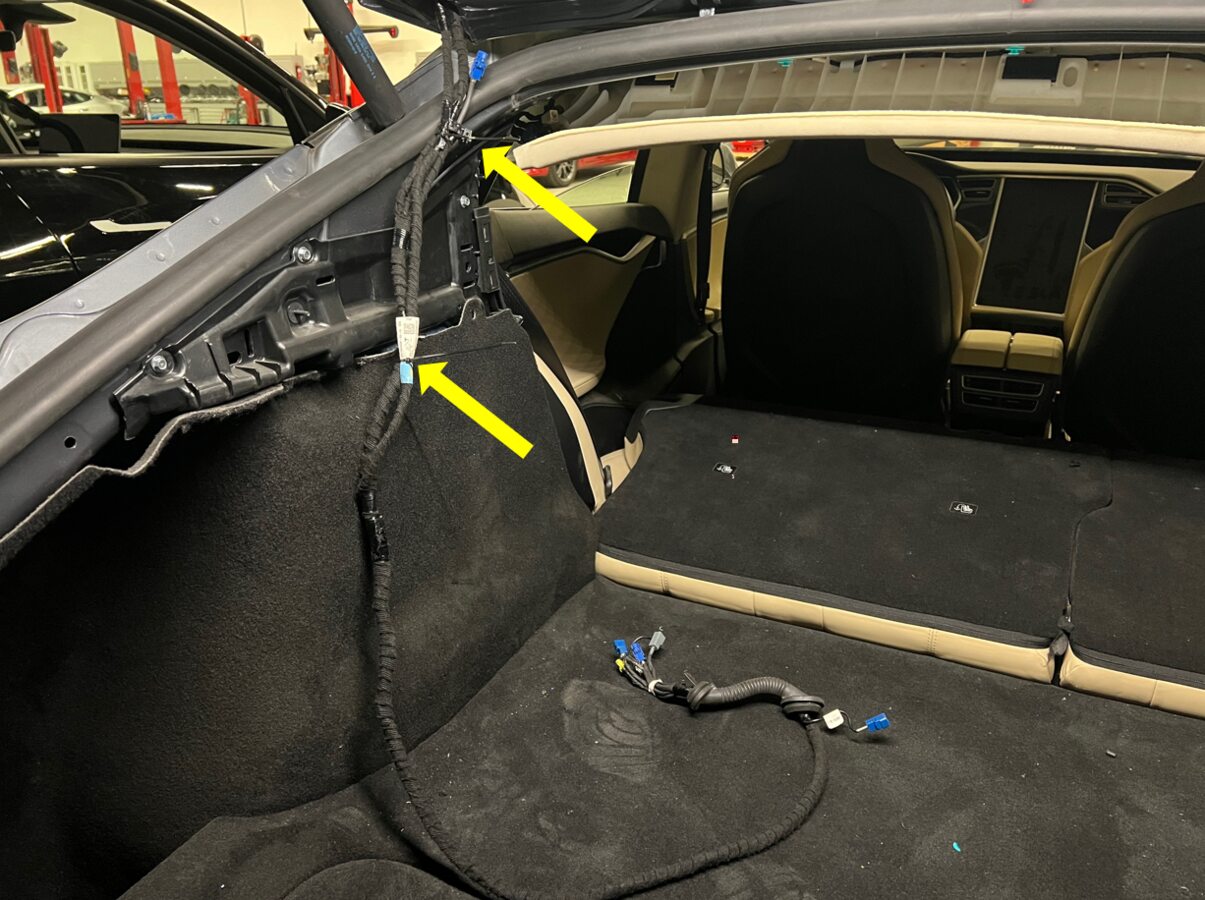

29. Release zip ties from LH liftgate harness

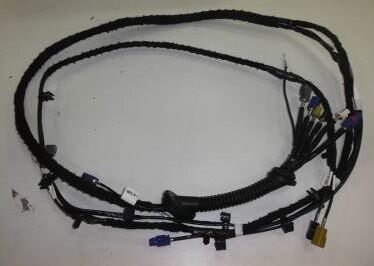

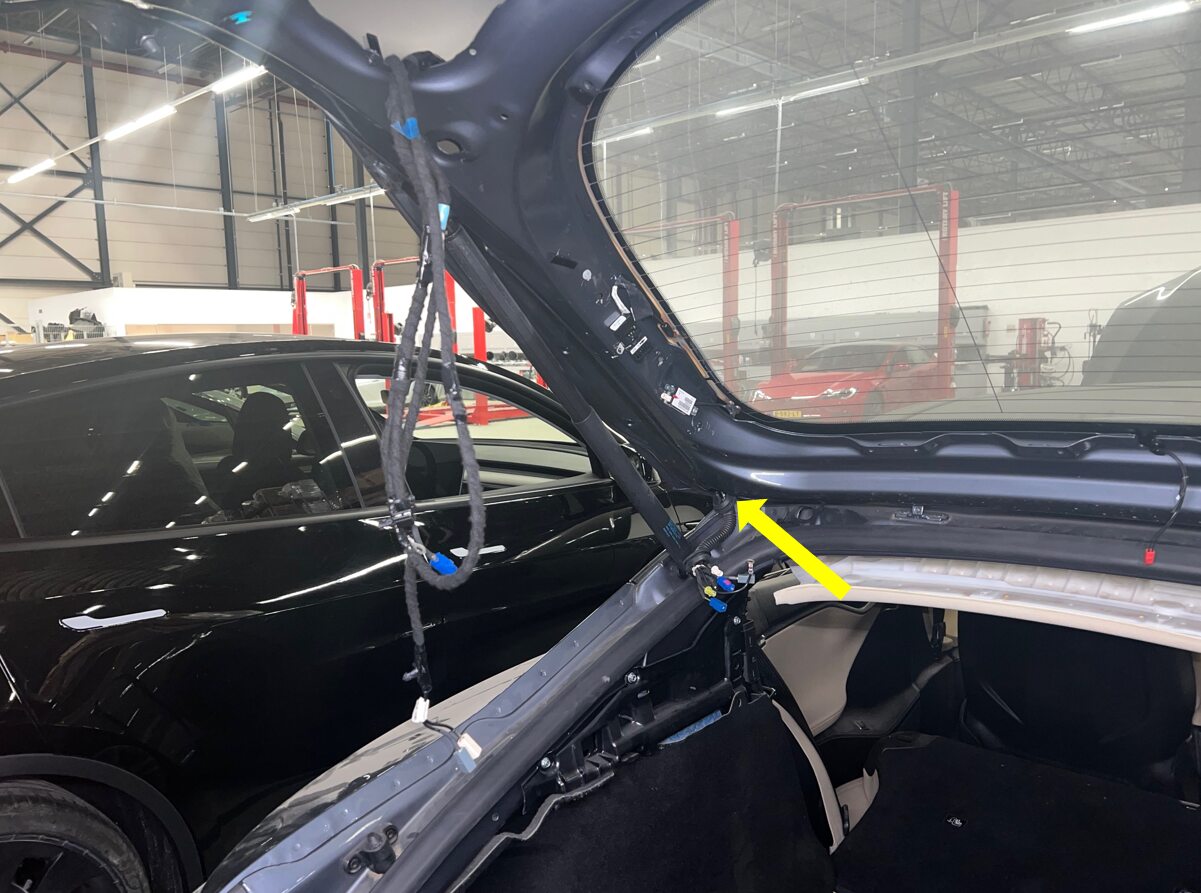

30. Remove LH liftgate harness
    Note

    1x grommet, Release body grommet then route harness through body hole





31. Install LH body wire harness grommet
    Note

    1x grommet, Route harness through body hole then secure body grommet





32. Secure zip ties onto LH liftgate harness
    Note

    Hold the harness branches together for easier installation



33. Route LH liftgate harness through grommet hole
    Note

    Use zip ties as needed



34. Connect GPS antenna onto LH liftgate harness
    Note

    1x connector, apply tape as needed



35. Secure LH liftgate harness grommet onto body
    Note

    1x grommet, Apply P-80 onto grommet for easier fit, Make sure its fully installed



36. Install clips securing LH liftgate harness to body
    Note

    4x clips



37. Connect rear view camera
    Note

    1x connector 1x clip



38. Install liftgate grounding terminals
    Note

    2x bolt, 10mm, 9 Nm, 2x ground terminals





39. Connect FM/DAB amplifier
    Note

    2x connectors, 1x clip



40. Connect AM/FM/RKE amplifier
    Note

    2x connectors, 2x clips



41. Connect lift gate harness connector
    Note

    4x connectors , 2x connector



42. Install body ground terminal
    Note

    1x bolt, 10mm, 9 Nm, 1x ground terminal



43. Install rear portion of headliner into position and clip into place
    Note

    5x clips, 3x Velcro strips, Replace any damaged or missing clips



44. Install LH C-pillar upper trim
    Note

    4x clips





45. Install LH rear C-pillar trim
    Note

    1x screw, T25, 3 Nm, 4x clips





46. Install lower liftgate trim
    Note

    10x clips, 4x connectors, Number of connections may vary, Replace any damaged clips





47. Install RH side liftgate trim
    Note

    3x clips, Replace any damaged clips



48. Install LH side liftgate trim
    Note

    3x clips, Replace any damaged clips



49. Install upper liftgate trim
    Note

    4x clips, Replace any damaged clips



50. Install liftgate pull cups into rear liftgate
    Note

    1x connector, If equipped with power liftgate





51. Install parcel shelf



52. Close liftgate



53. Fold 40 seatback into vertical position



54. Fold 60 seatback into vertical position



55. Raise LH rear window



56. Close both rear doors
