Wheel Sensor - TPMS (Remove and Replace)

Correction Code 34040202

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
If the vehicle has air suspension, activate "Jack" mode on the touchscreen before raising and supporting the vehicle.
  • 2026-01-23: Updated the steps from loosening the upper bead of the tire to removing the tire.

Removal

  1. Remove the wheel. See Wheel Assembly (Remove and Install).
  2. Use a valve core tool to remove the valve core, and allow the tire to deflate.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The tire will rapidly deflate. Wear proper PPE, such as safety glasses and gloves.
  3. Place the wheel on the tire machine, with the front of the wheel facing up.
  4. Position the center clamp in the wheel.
  5. Position the wheel cone on the center clamp and wheel, and then tighten the cone on the center clamp.
  6. Position the upper bead roller at the edge of the upper rim, and then positon the lower bead roller at the edge of the lower rim.
  7. Rotate the wheel to loosen the upper and lower tire beads. Lubricate the beads as the wheel rotates.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    The TPMS sensor is near the rim. Do not damage the TPMS sensor when loosening the upper bead.
  8. Position the tire machine arm at the edge of the rim, and then use a bead lever to hook the arm on the upper tire bead.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Position the TPMS sensor ahead of the tire machine arm so that when the wheel rotates, the arm does not damage the TPMS sensor.
  9. Rotate the wheel to pull the upper tire bead above the rim. Lubricate the bead as the wheel rotates.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure the tire machine arm does not contact the TPMS sensor.
  10. Lift the tire and repeat the 2 previous steps on the lower tire bead, and then remove the tire from the wheel.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure the tire machine arm does not contact the TPMS sensor.
  11. Remove the nut that attaches the TPMS sensor to the wheel, and then remove the TPMS sensor.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm deep socket
    • Ratchet/torque wrench

Installation

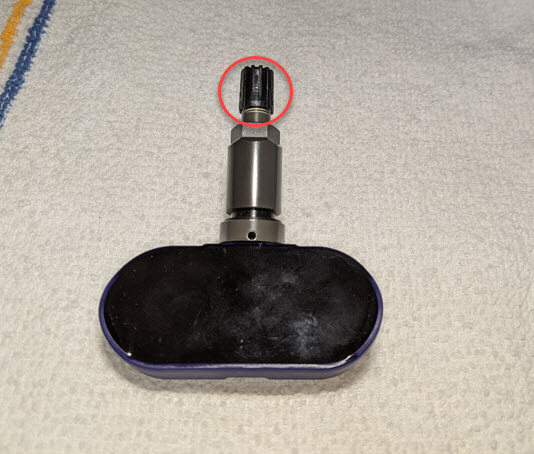

  1. Remove the valve stem cap from the new TPMS sensor.
  2. Holding the sensor firmly against the inside of the wheel, tighten the valve retaining nut.
    • Baolong TPMS: Torque 5 Nm.
    • Continental TPMS: Torque 8 Nm.
    Informational PurposesAn informational icon, calling your attention
    Note
    Before the full torque is reached, an internal break off ring will "give". Continue to tighten the nut until the full torque is achieved.
  3. Lubricate both tire beads.
  4. Inspect both sides of the tire sidewall to determine proper tire orientation in relation to the wheel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Look for an arrow that indicates rotation direction, or words such as "outside" or "side facing outwards".
  5. Position the tire on top of the wheel, and then move the tire machine arm into position to install the lower tire bead.
  6. Rotate the wheel to install the lower tire bead.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure the tire machine arm does not contact the TPMS sensor.
  7. Move the tire machine arm into position to install the upper tire bead.
  8. Rotate the wheel to install the upper tire bead.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure the tire machine arm does not contact the TPMS sensor.
  9. Carefully inflate the tire to specification. The tire beads will seat against the wheel.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Do not exceed the air pressure indicated on the tire sidewall.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Wear proper PPE, such as safety glasses and gloves.
  10. Use a valve core tool to install the valve core.
  11. Remove the cone and center clamp from the wheel, and then remove the wheel from the tire machine.
  12. Balance the wheel and tire. See Tire - Front - LH (Balance).
  13. Install the wheel. See Wheel Assembly (Remove and Install).
  14. Perform the wheel sensor TPMS ID learn procedure.
  15. Drive the vehicle for approximately one minute at a speed exceeding 20 mph (32 km/h) until the ID learn process is completed.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the vehicle has no TPMS alerts before you return the vehicle to the customer.
