Latch - Door - Rear - LH (Remove and Replace)

Correction Code 11351502

Removal

  1. Remove the rear seat cushion frame (refer to procedure).
  2. Remove the rear sill trim panel (refer to procedure).
  3. Release the carpet and sound insulation from the rear seat mounting cross member to gain access to the latch manual release lever and cable.
  4. Release the clip from the cross member and feed the cable through the opening.
  5. Remove the screws (x2) that secure the latch to the C-Pillar (torque 10 Nm).

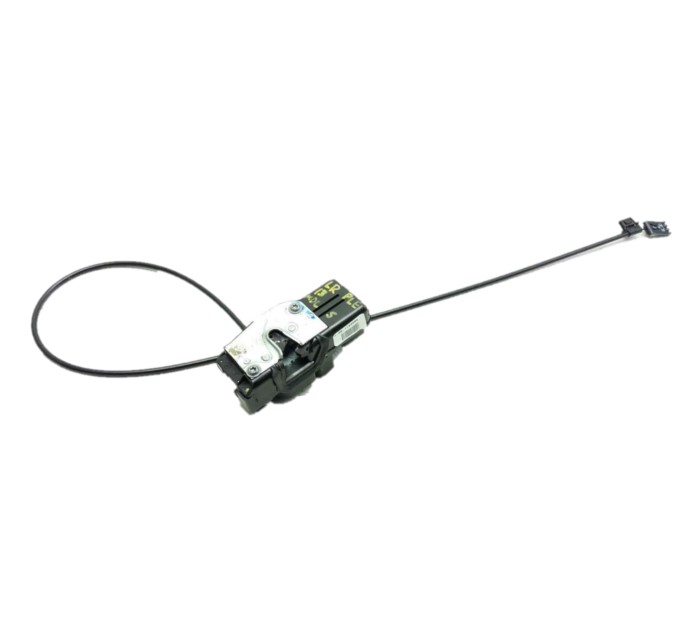

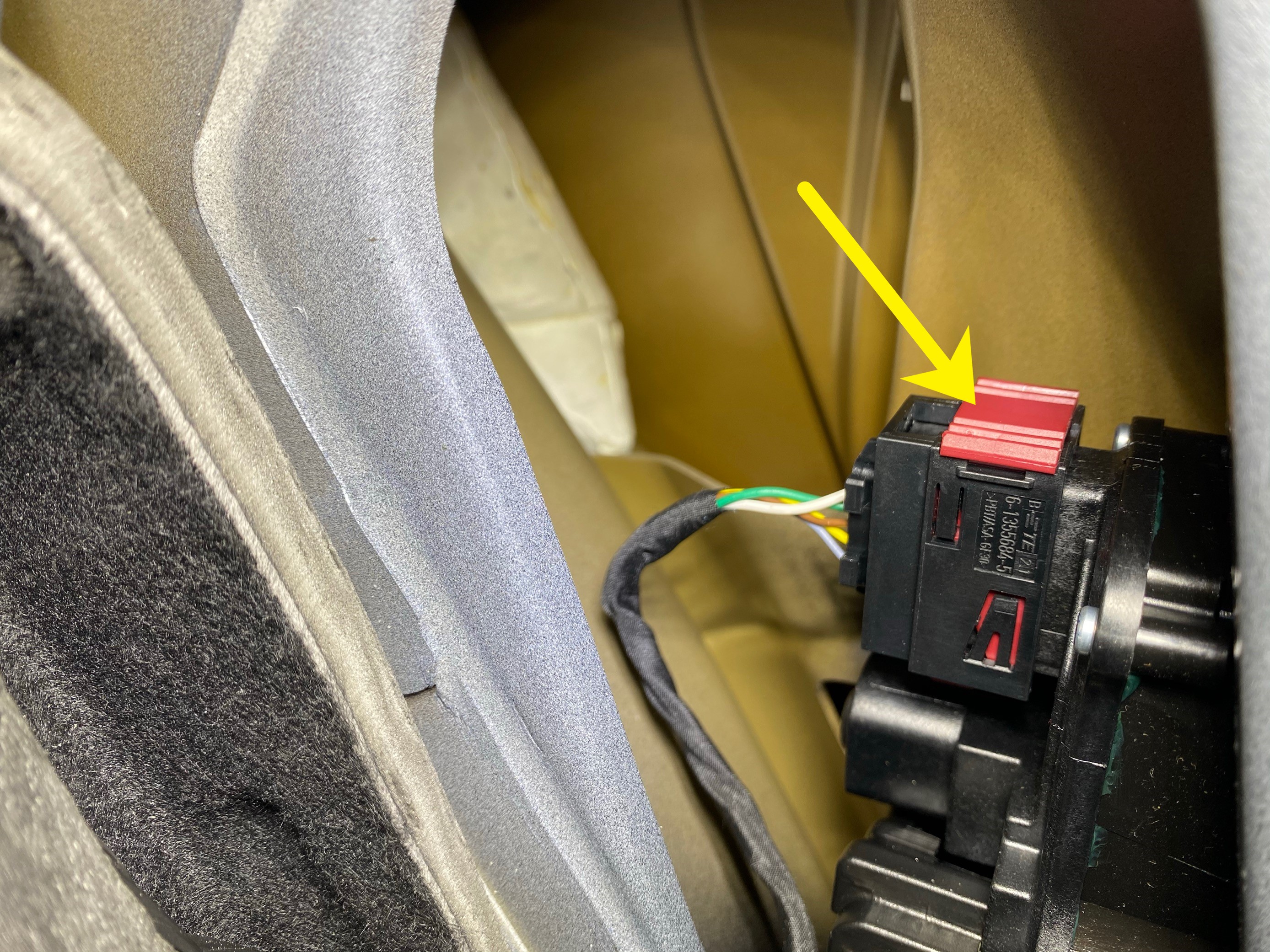

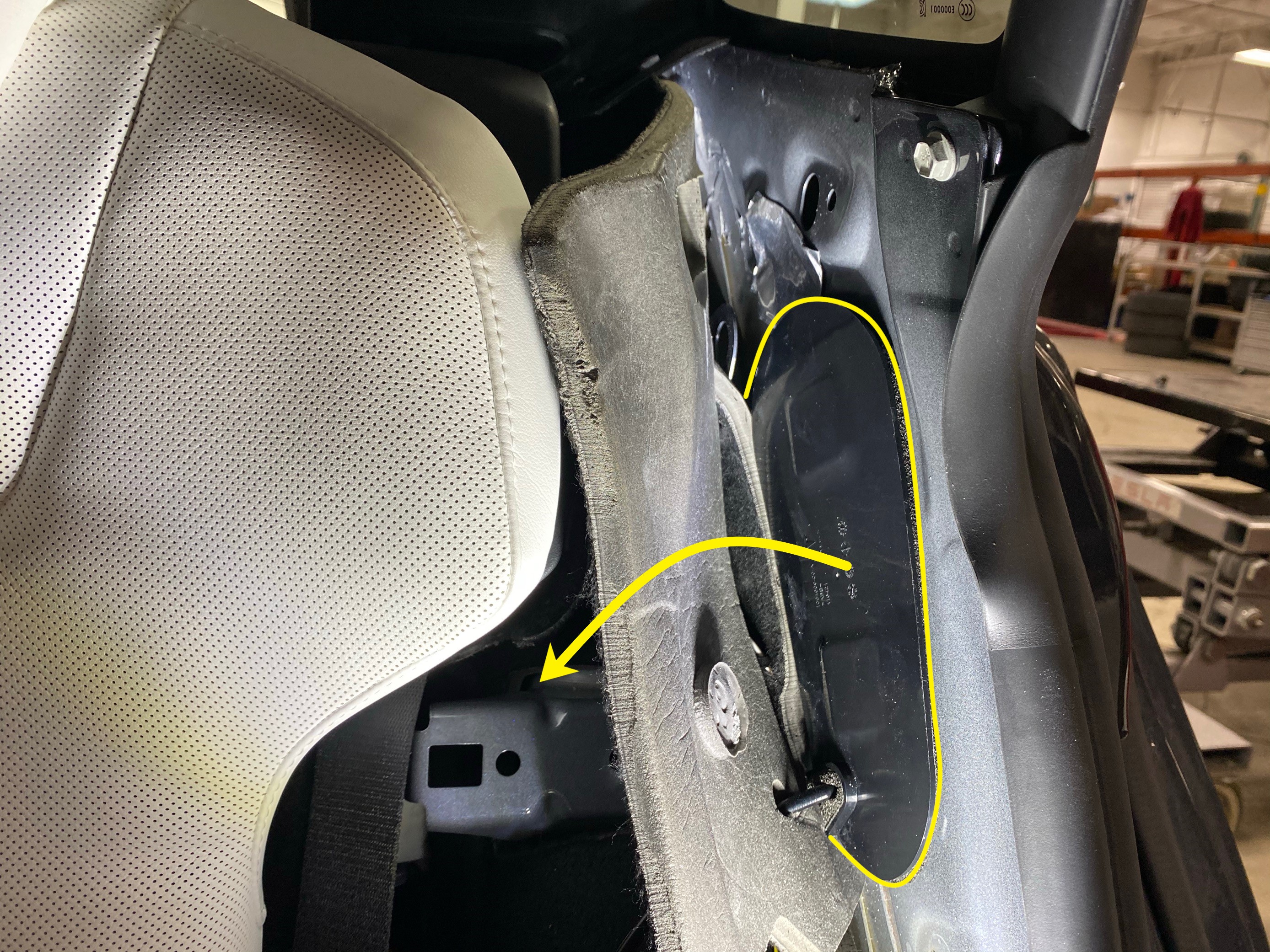

  6. From inside the vehicle, disconnect the latch wiring, release the latch from the C-Pillar, then remove it from the opening.

Installation

  1. Installation procedure is the reverse of removal.
