Panel - Door Trim - Front - LH (Remove and Install)

Correction Code 15130201

  • 2025-05-07: Updated all steps to latest available validation.

Removal

  1. Open LH front door
  2. Lower LH front window

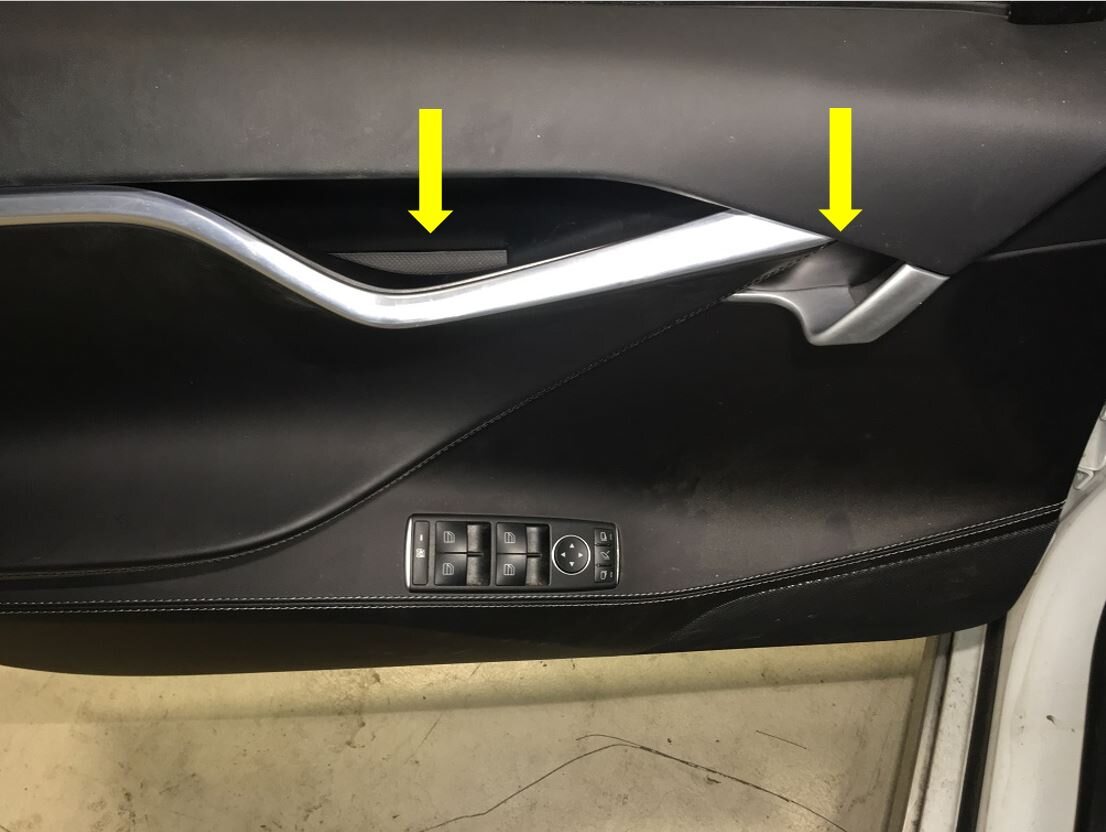

  3. Remove LH front door handle insert and door trim pull cup insert
    Informational PurposesAn informational icon, calling your attention
    Note
    2x trim inserts

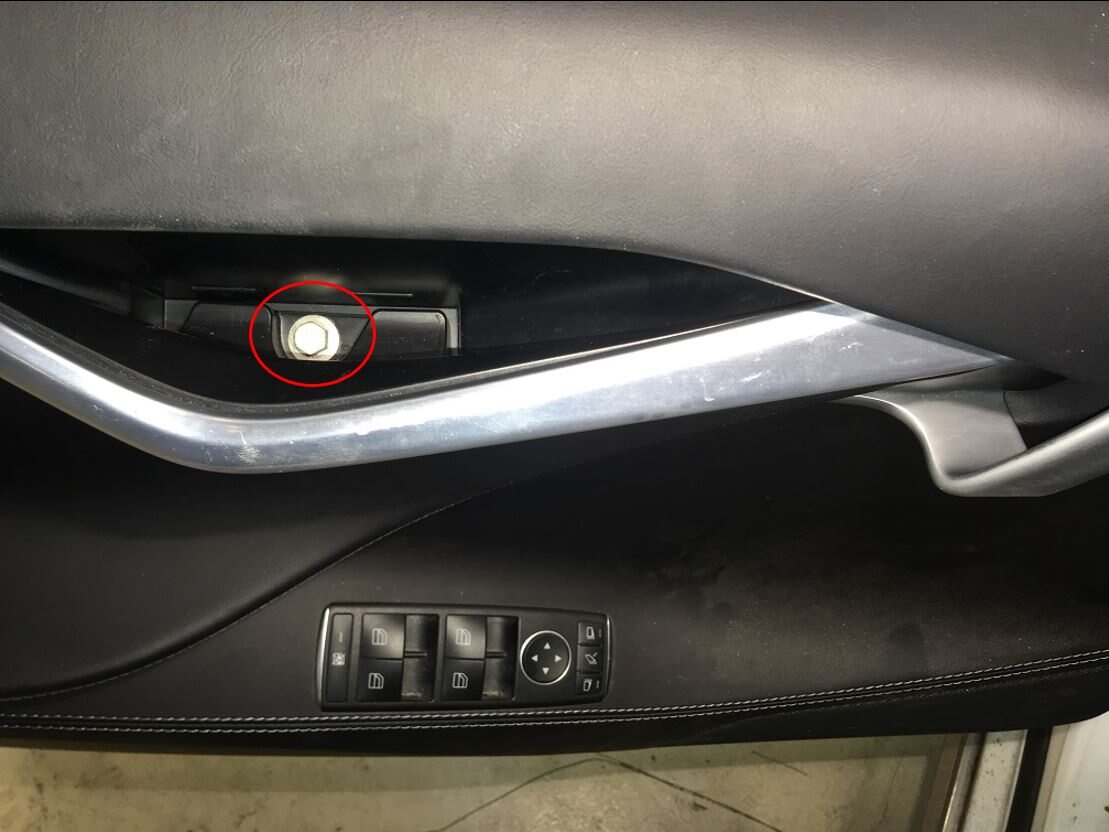

  4. Remove bolt securing LH front door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 10mm, 6 Nm

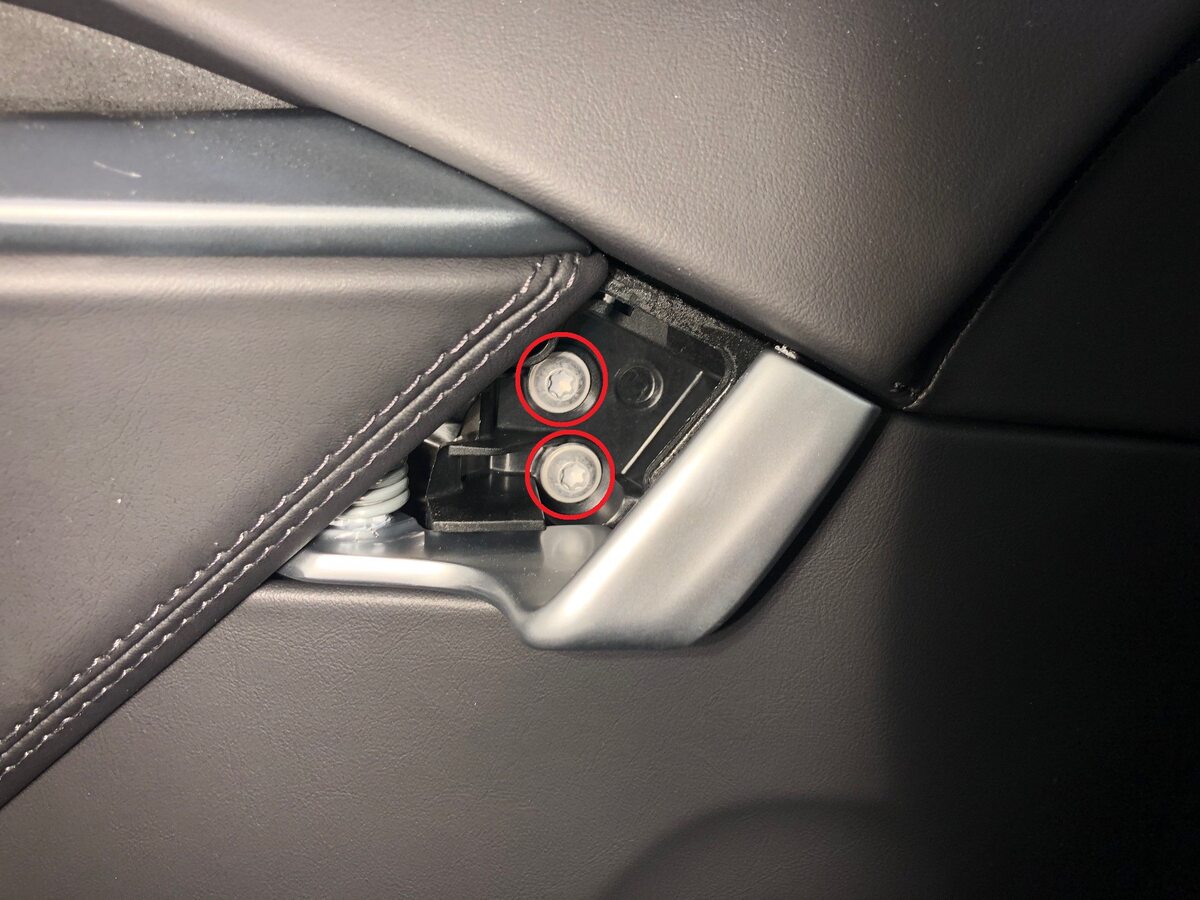

  5. Remove screws securing LH front door panel to door
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T30, 3 Nm

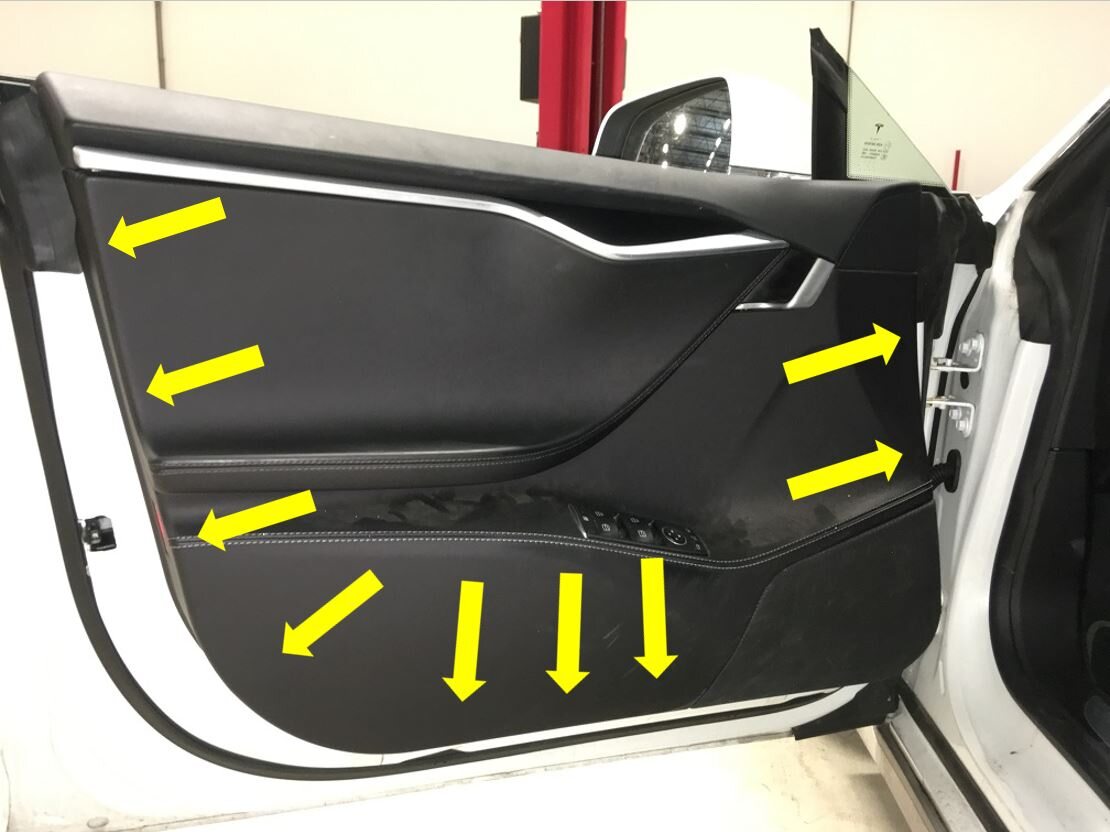

  6. Remove LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note

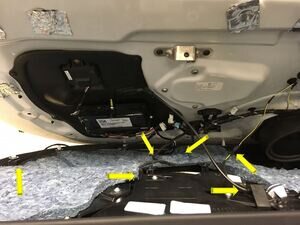

    1x handle cable, 5x connectors, 9x clips, Carefully pry open the LH front door panel to access and remove connectors and release cable before setting the door panel aside, If equipped with tether strap, support door panel

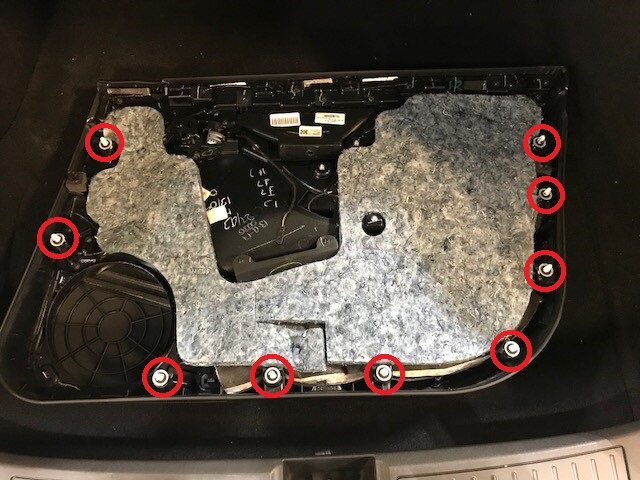

  7. Remove original clips securing LH front door panel
    Informational PurposesAn informational icon, calling your attention
    Note
    9x clips, Discard after removal

Installation

Installation procedure is the reverse of removal, except for the following:

  • Replace plastic heart flex clips after each use.
  • Reuse metal clips unless they are damaged.

If the vehicle has next generation seats, install a new retention strap:

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Failure to install a retention strap could result in injury or death in case of air bag deployment.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Do not reuse the retention strap. It is one-time use only.
  1. Fold the retention strap in half lengthwise. Feed the side of the strap with the 2 holes in between the inner and outer trim panels.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not damage the weave on the strap.
  2. Pull the bottom part of the strap through the hole, and then route it through the slit in the upper part of the strap.
  3. Fold the free end of the retention strap back onto itself so that the 2 holes align.
  4. Align the holes in the strap with the hole in the upper rear section of the door frame, and then loosely install a new rivet.
  5. Use a rivet tool to attach the strap to the door panel.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure that the rivet tool is perpendicular to the door panel to install the rivet correctly.
