Foam and Trim Assembly - Driver's Seat (1st Generation) (Remove and Install)

Correction Code 13070101

Removal

  1. Remove the driver's seat from the vehicle (refer to procedure).
  2. Place the seat on a clean work surface.

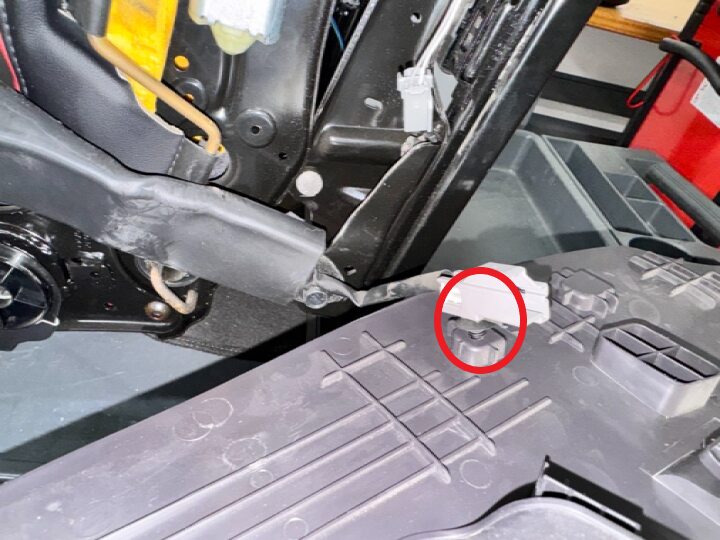

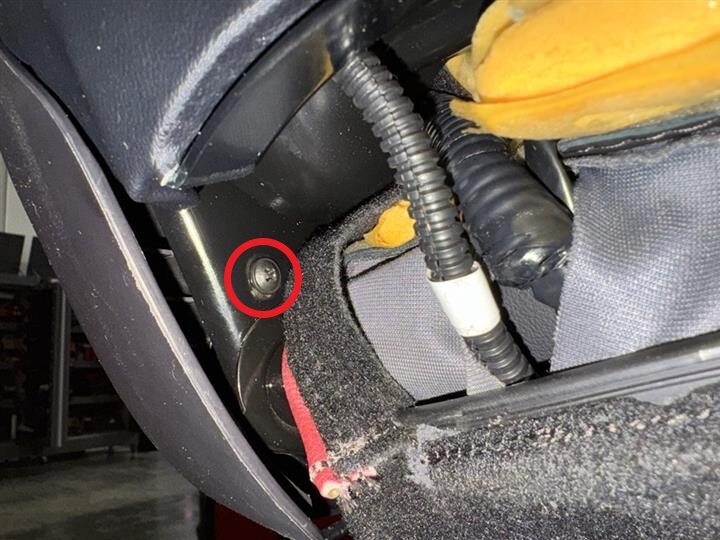

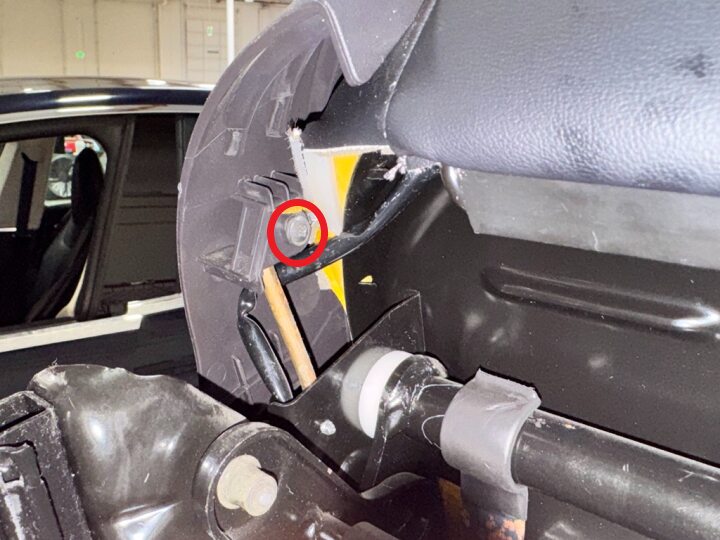

  3. Remove the screw that secures the outer side cover to the seat (torque 1 Nm).

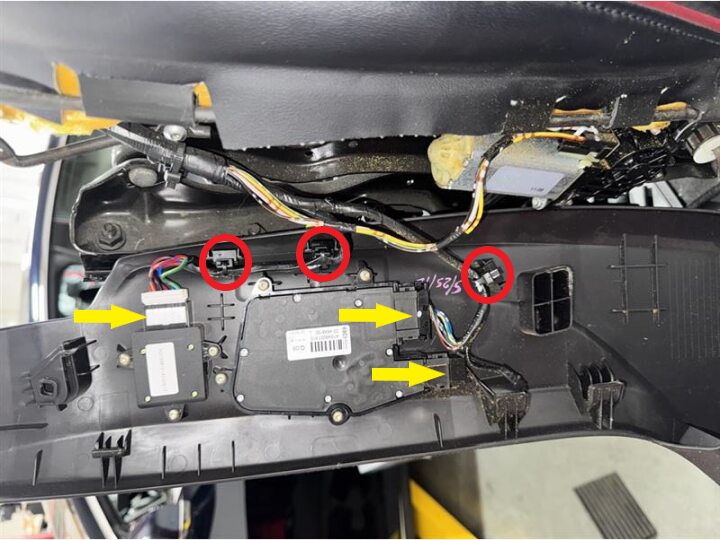

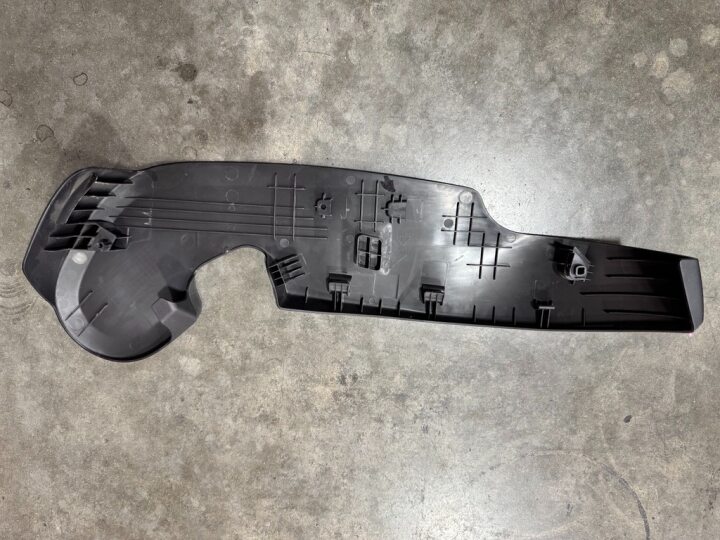

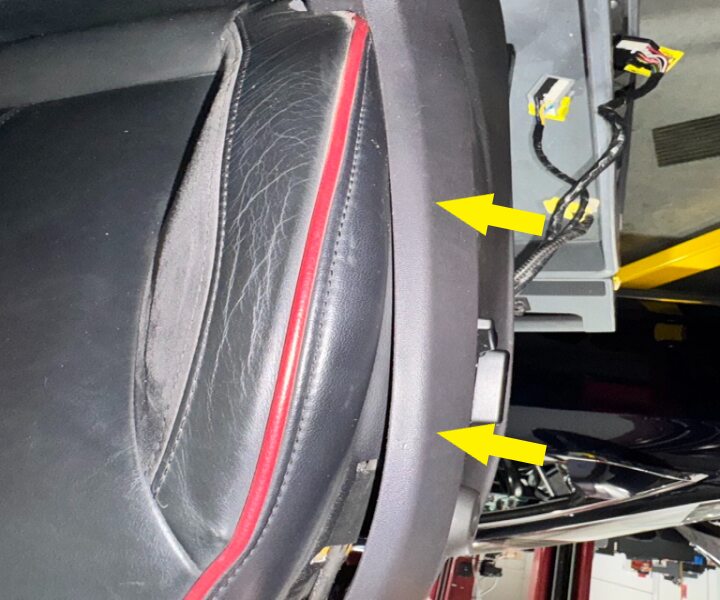

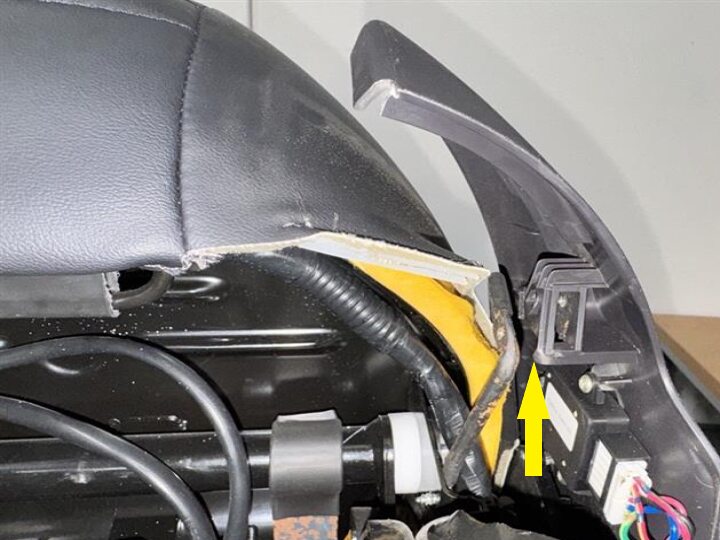

  4. Carefully release the outer side cover from the retaining bracket and lay it aside with the harnesses still connected.
  5. Remove the outer side cover assembly.

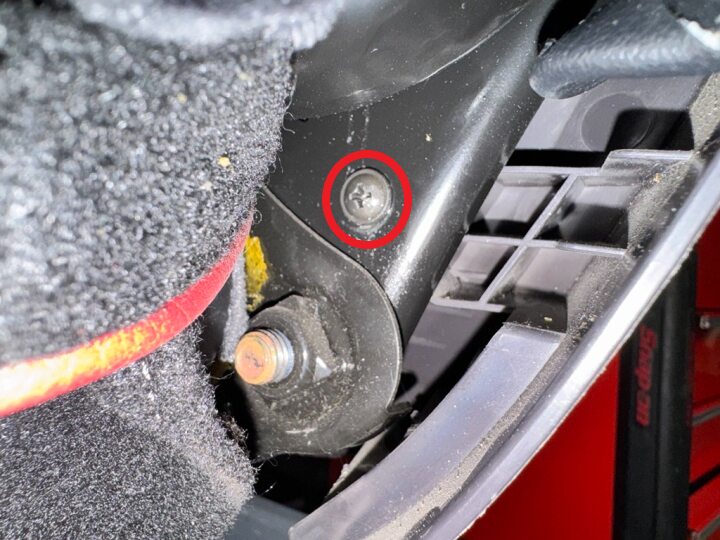

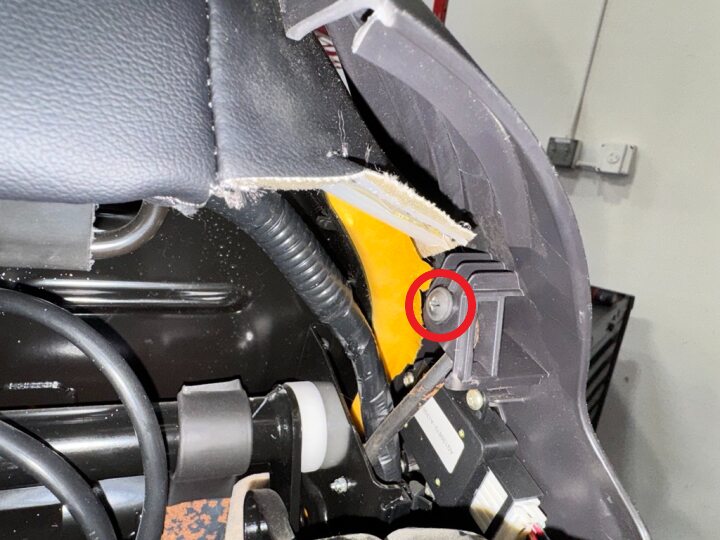

  6. Remove the screw that secures the inner side cover to the seat (torque 1 Nm).

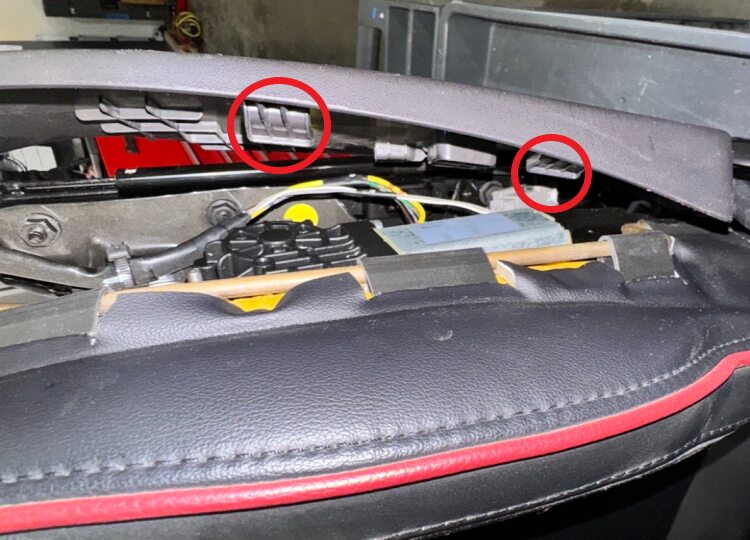

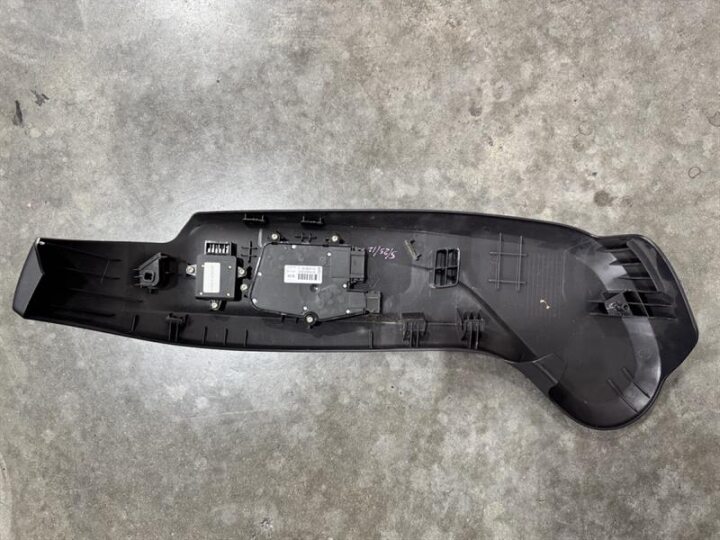

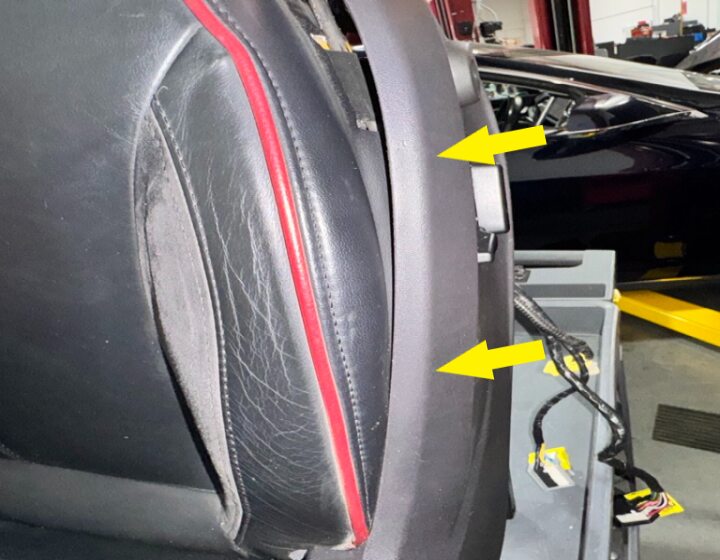

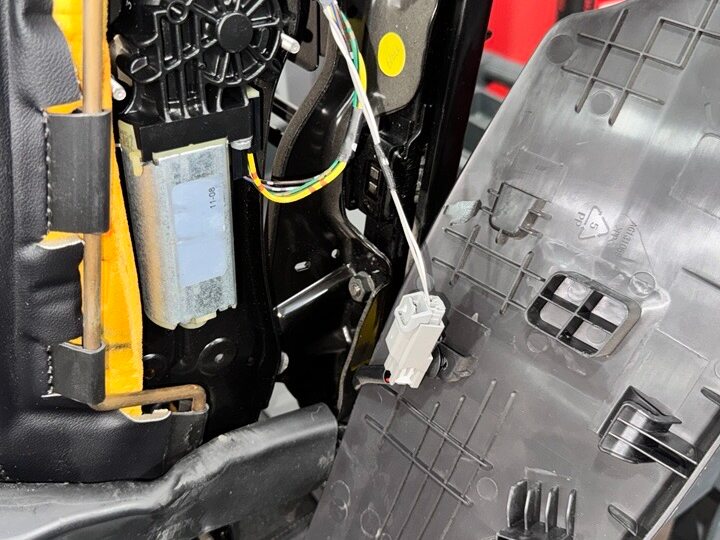

  7. Carefully release the inner side cover from the retaining bracket.

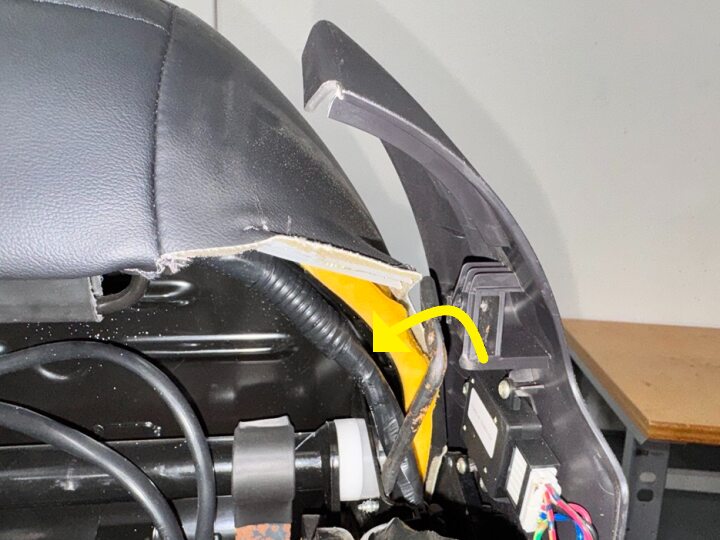

  8. Release the clip that secures the seat harness to the cover.
  9. Remove the inner side cover.

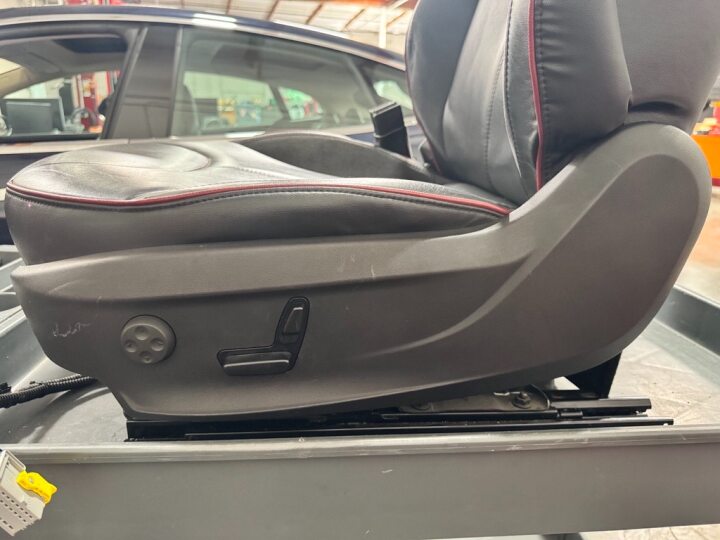

  10. Reposition the seat.

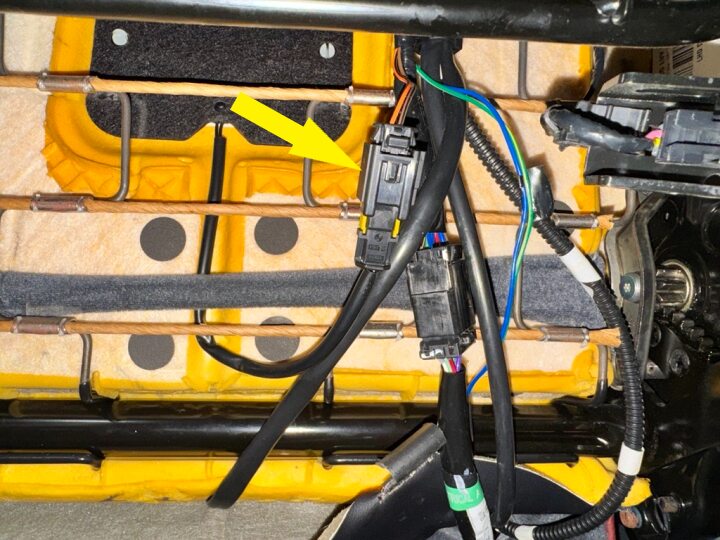

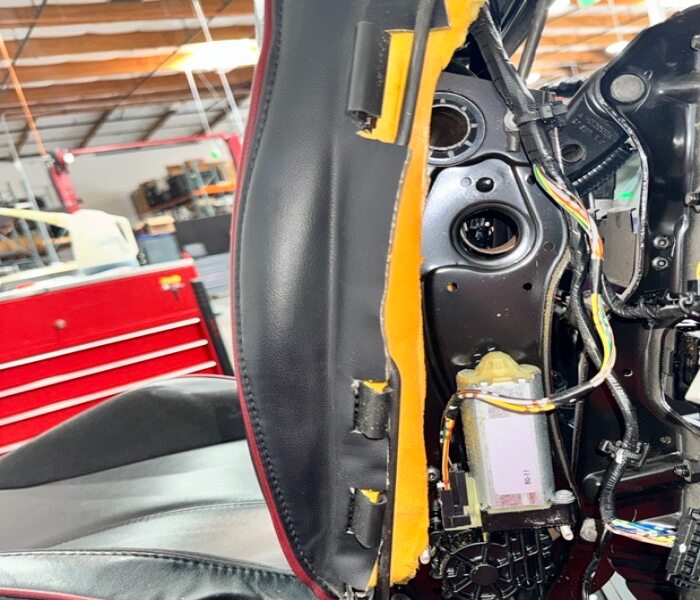

  11. Disconnect the seat heater element connector and harness.

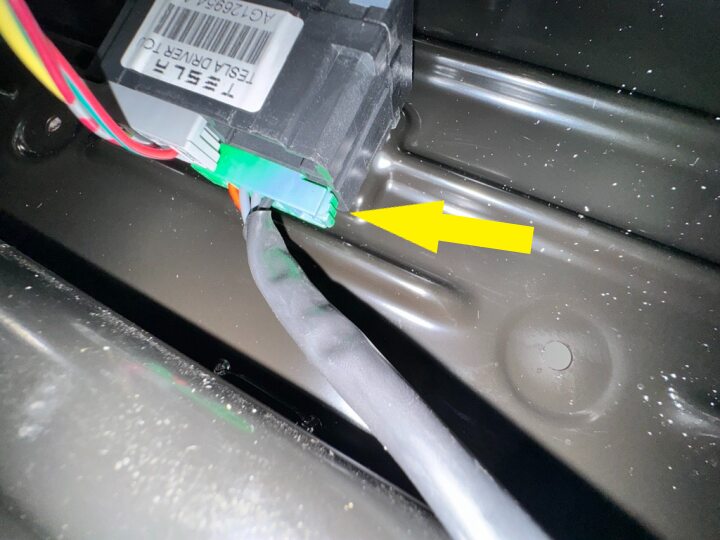

  12. Disconnect the seat belt reminder unit connector and harness.

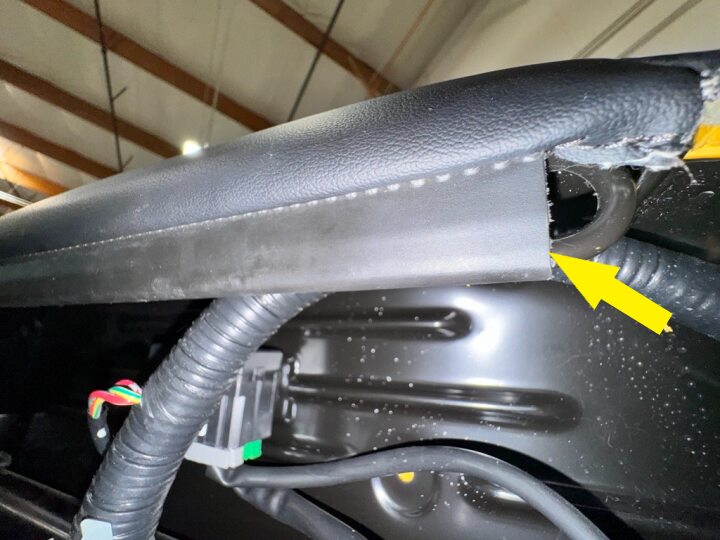

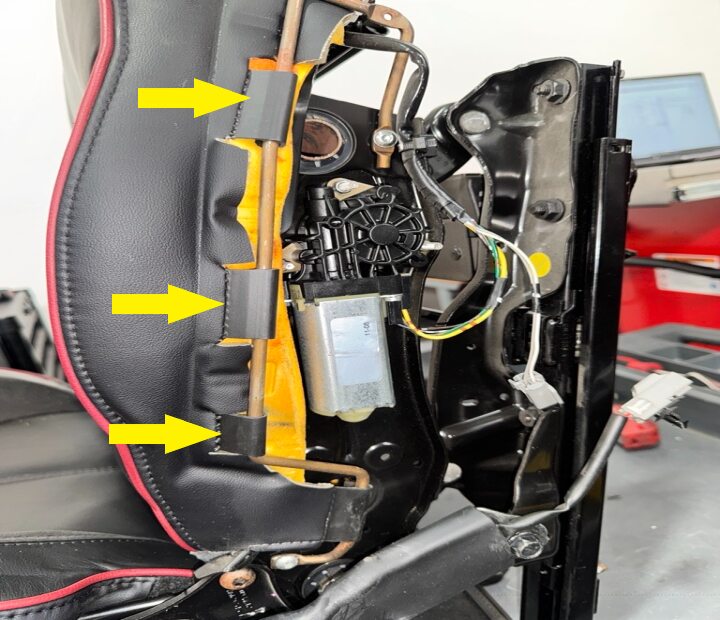

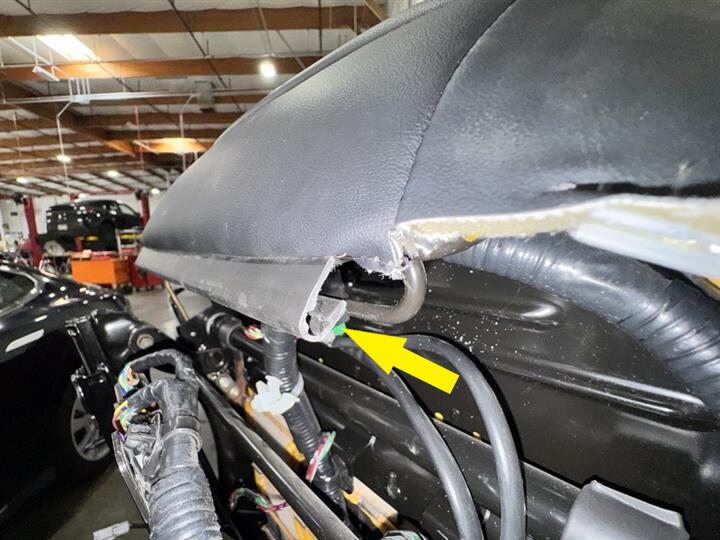

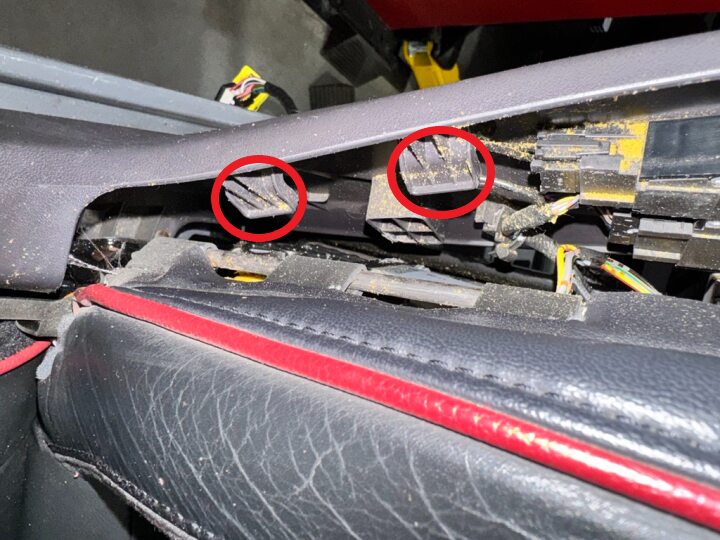

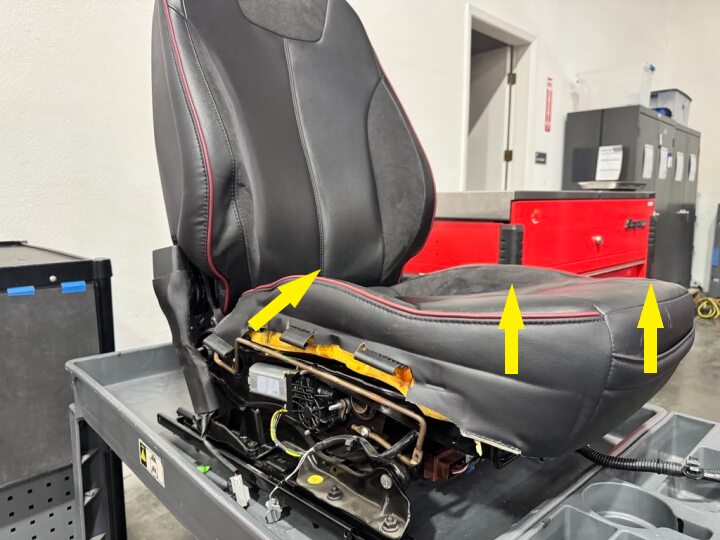

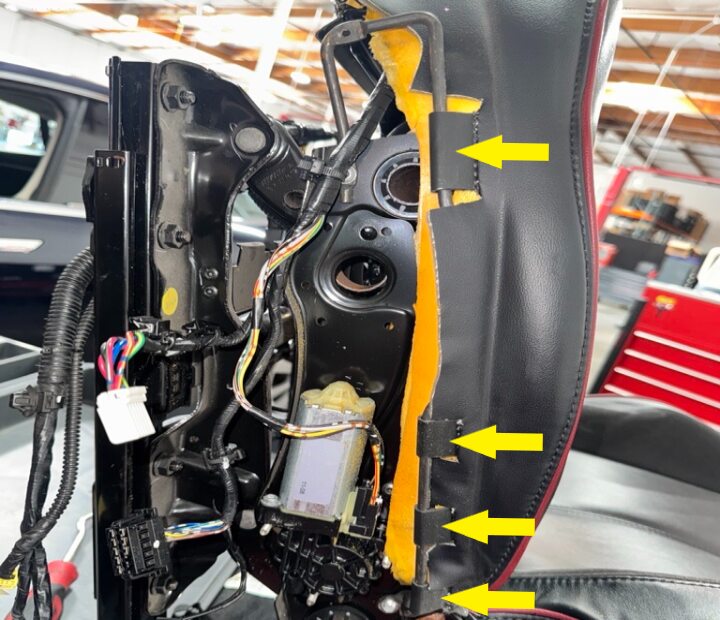

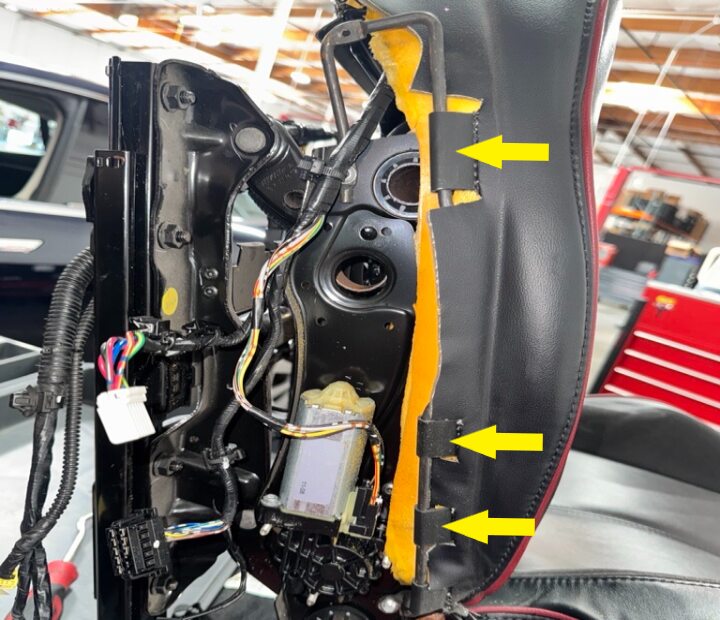

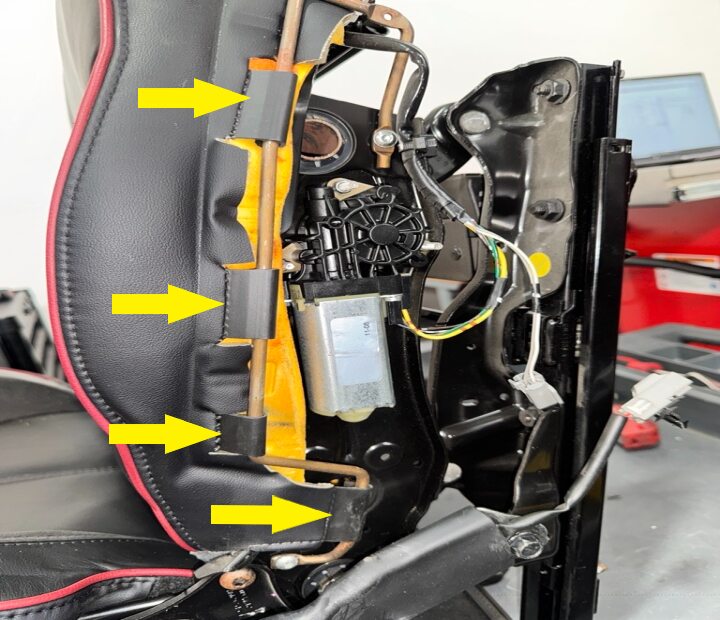

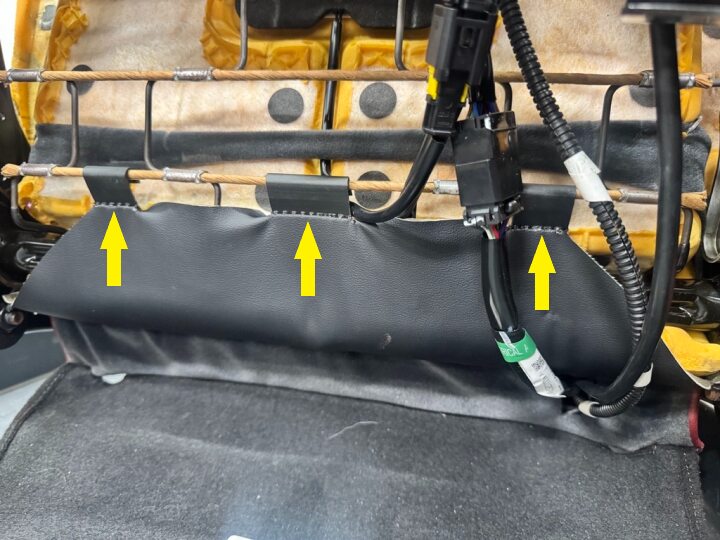

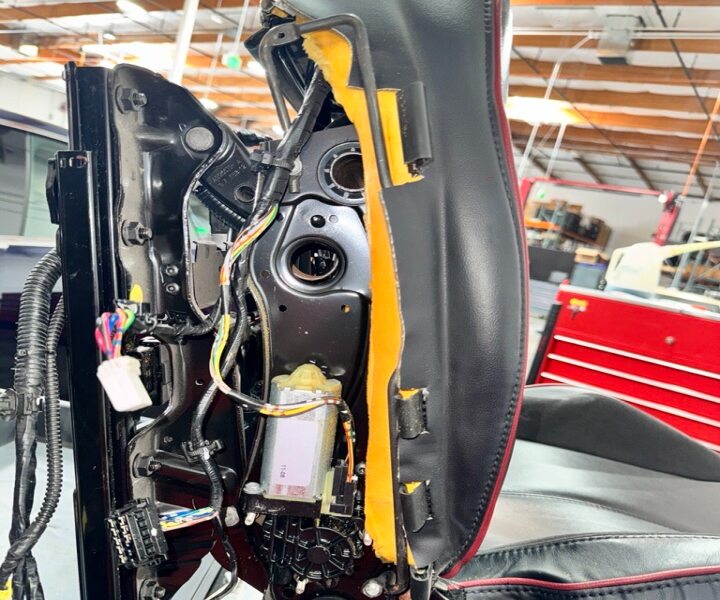

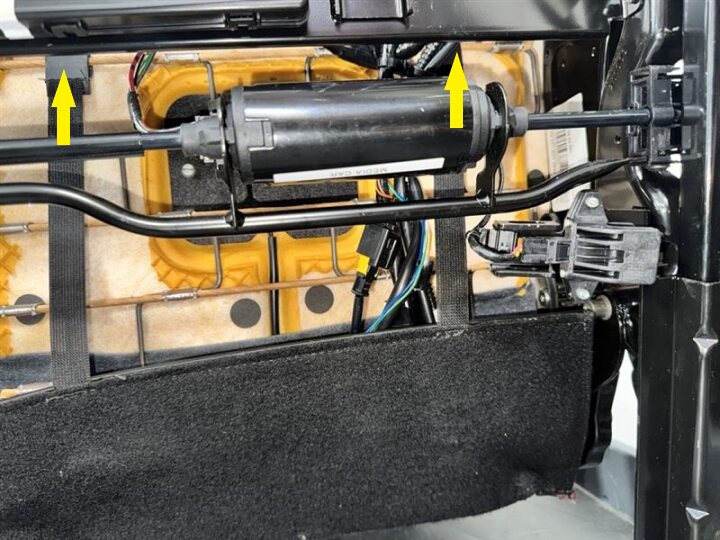

  13. Carefully release the clips that secure the seat cushion trim to seat base.

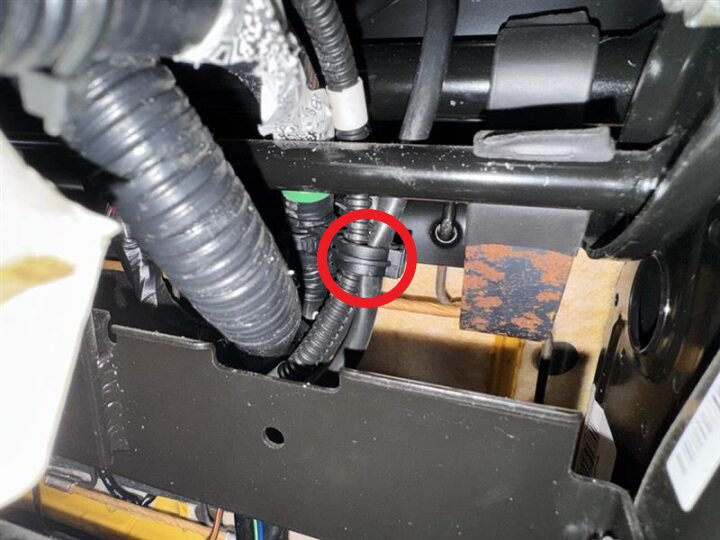

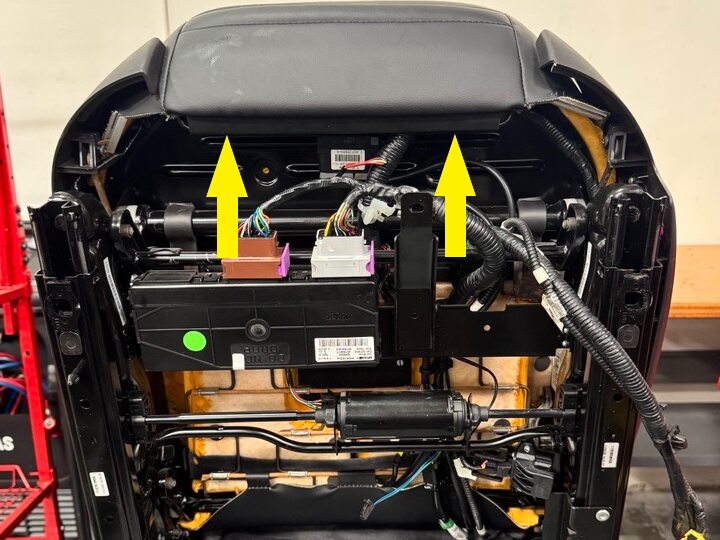

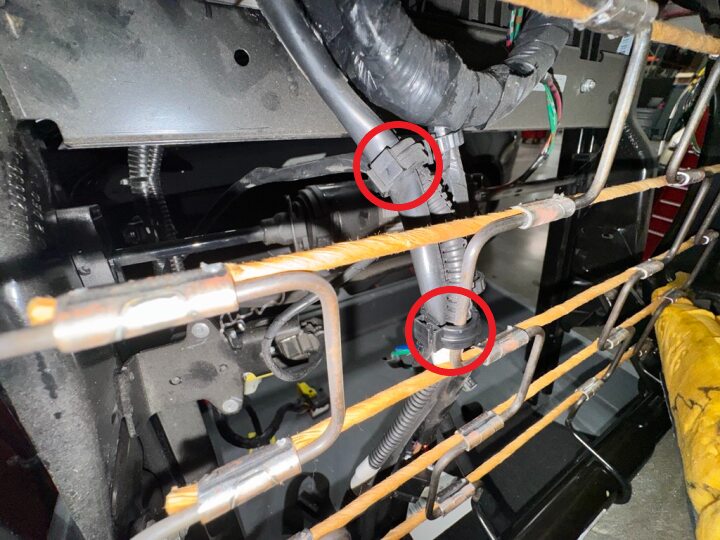

  14. Reposition the wiring harnesses through the seat base frame.

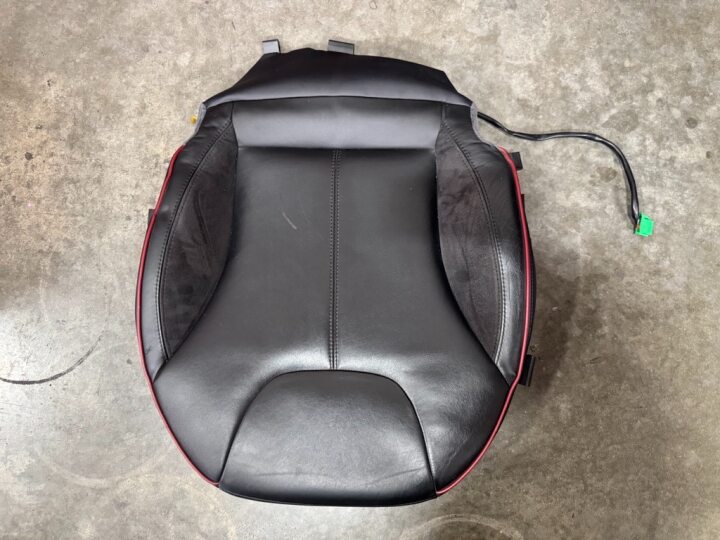

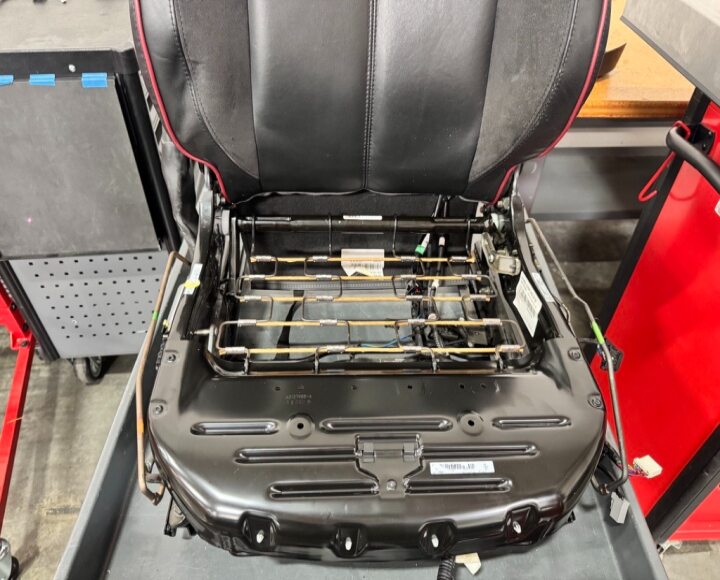

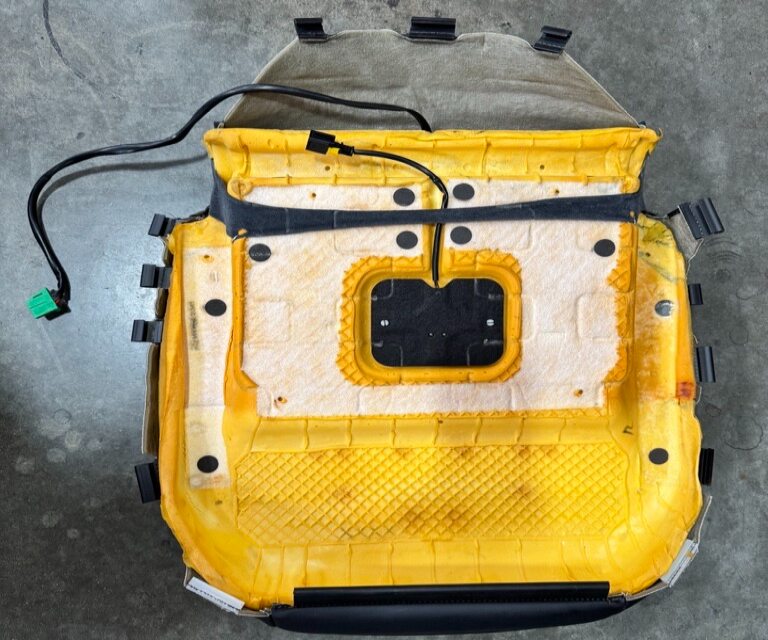

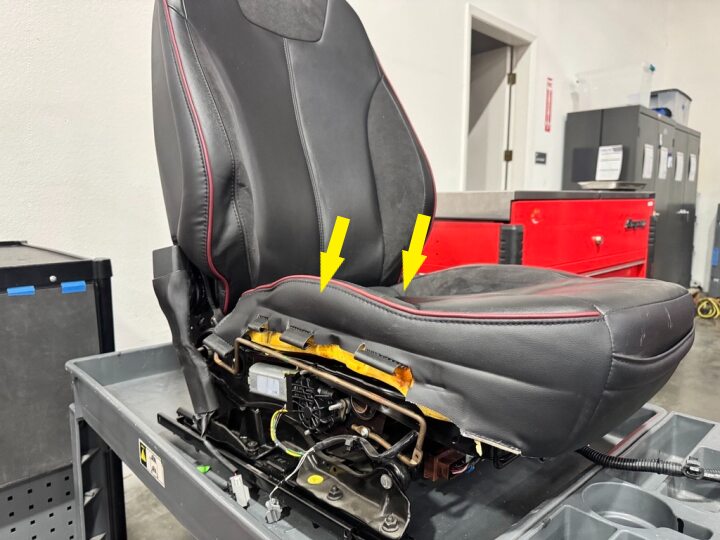

  15. Remove the seat cushion trim and foam assembly from the seat base assembly.

Installation

  1. Installation procedure is the reverse of removal.
    Informational PurposesAn informational icon, calling your attention
    Note
    Clean the affected areas before installation.
