Drive Cable - Panoramic Roof - 1st Generation - LH (Remove and Replace)

Correction Code 24104012

  • 2025-12-18: Updated entire procedure to latest validation and revised the title to "Drive Cable - Panoramic Roof - 1st Generation - LH".

Removal

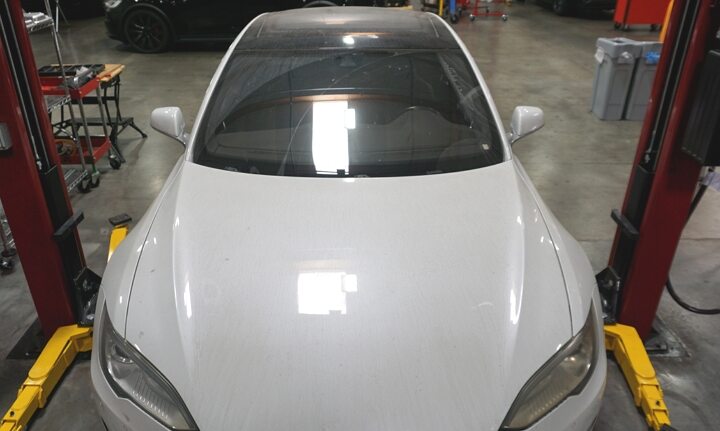

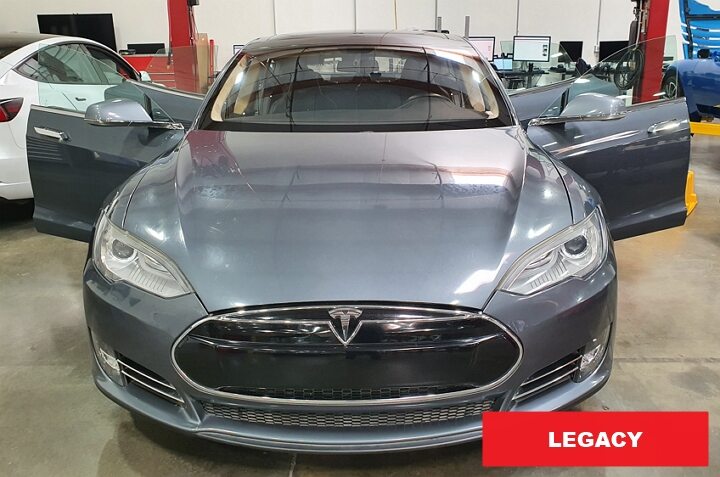

  1. Open all four doors
  2. Lower all four windows

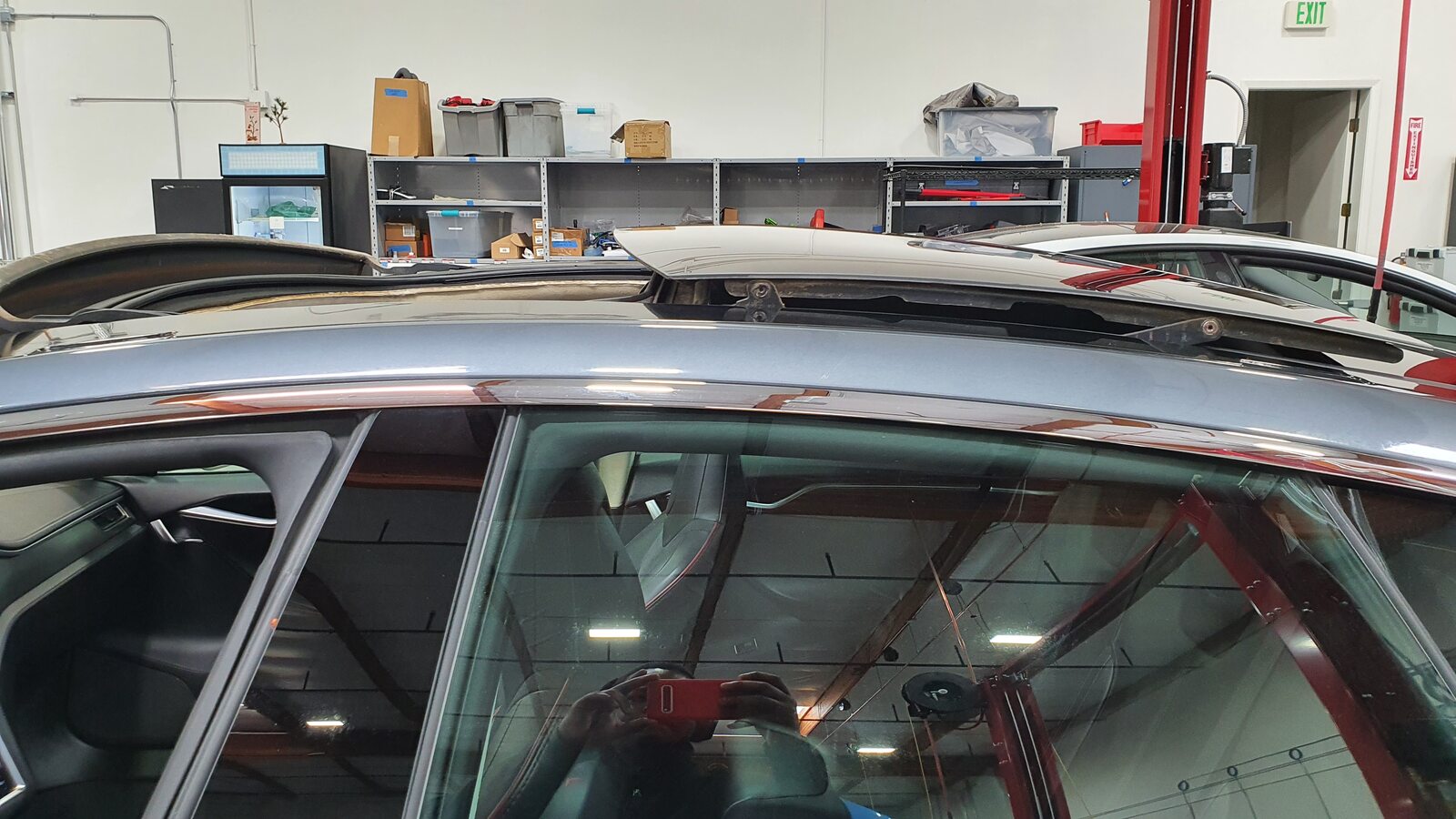

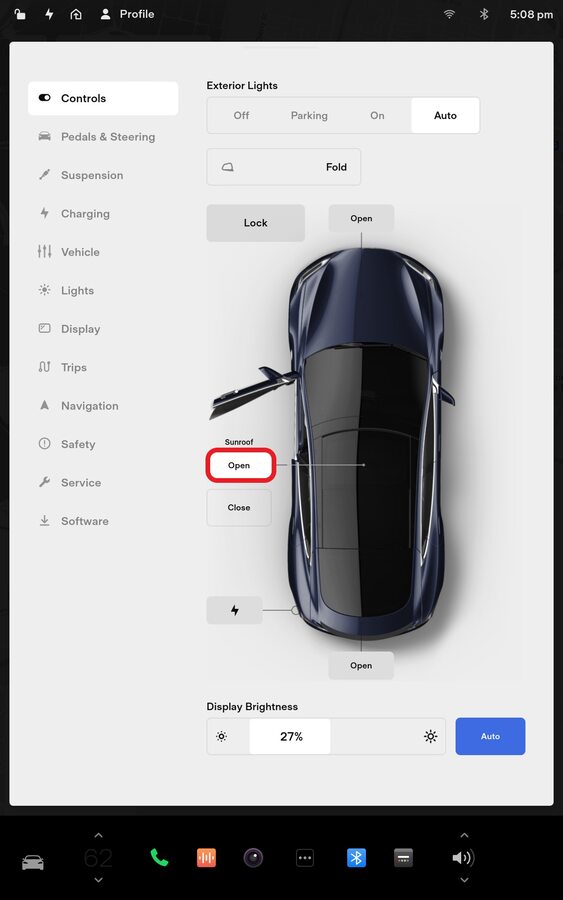

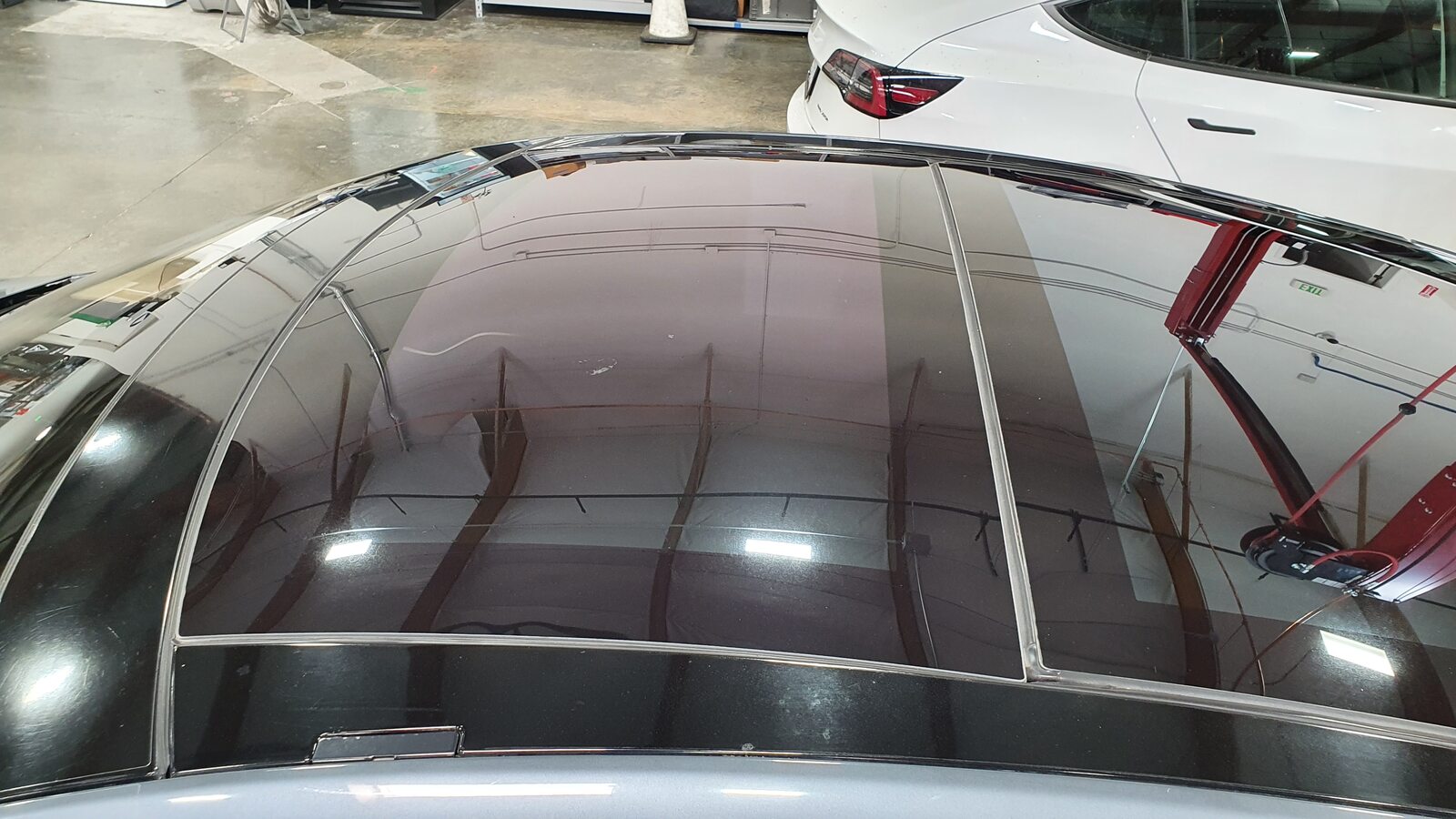

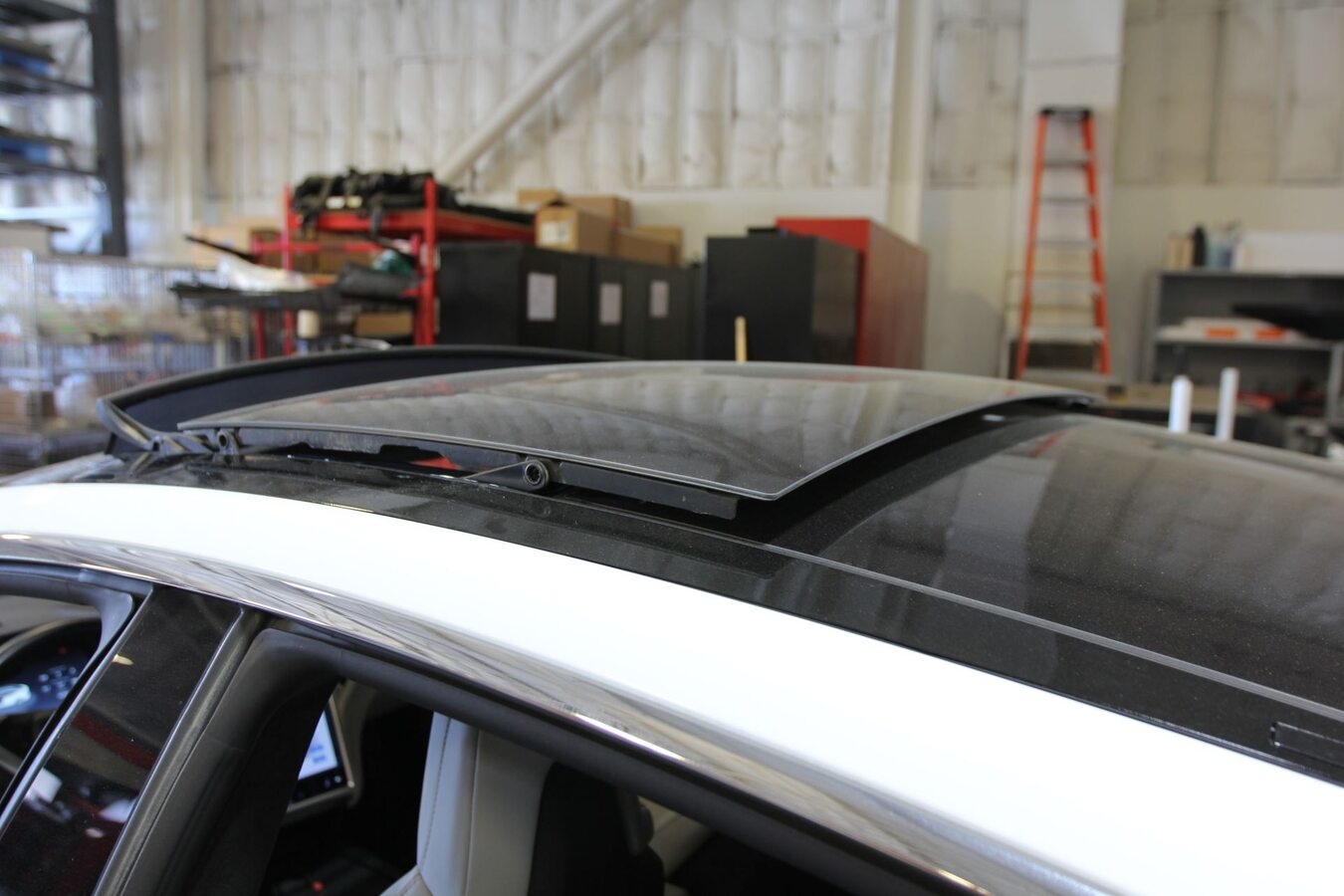

  3. Fully open sunroof using UI

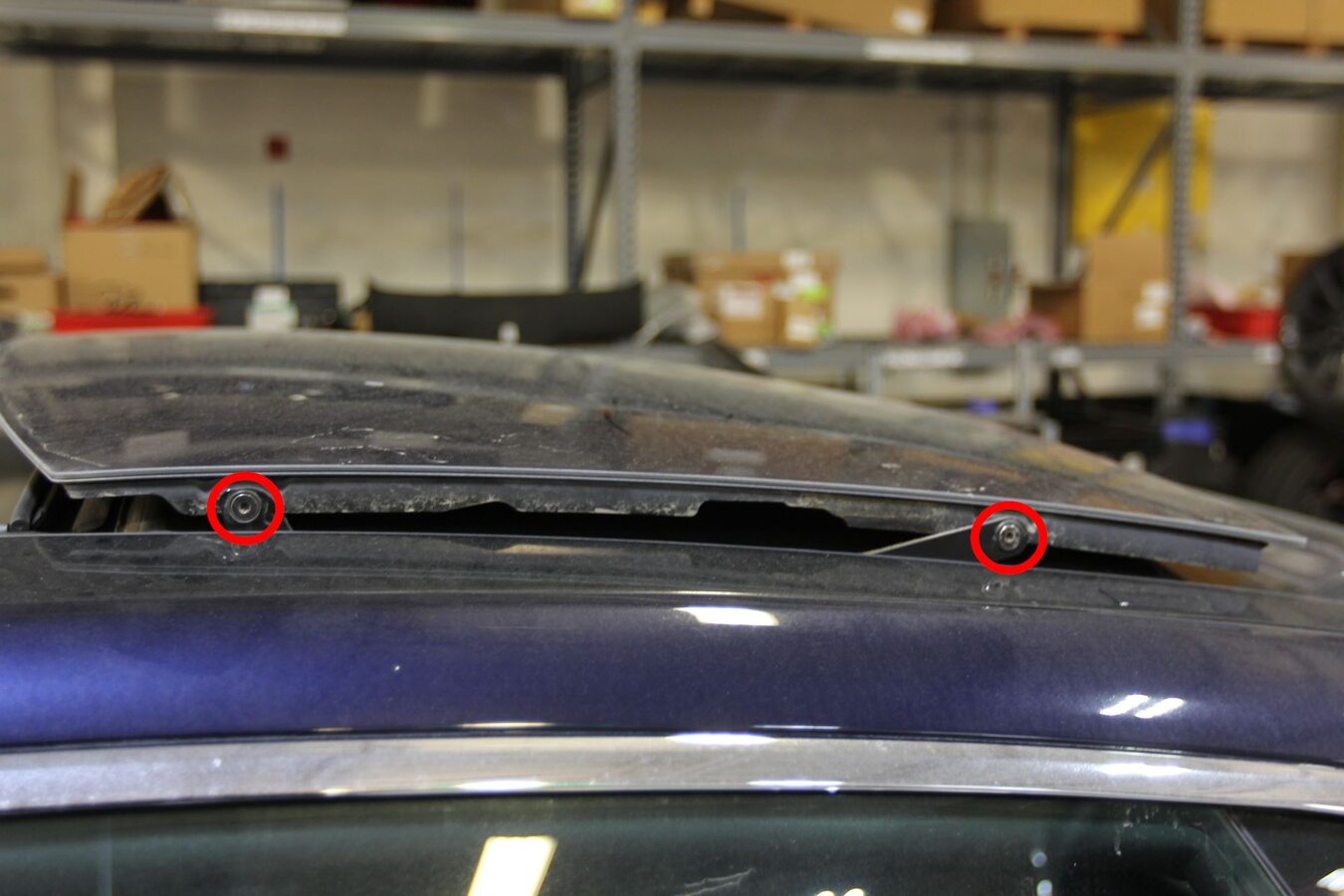

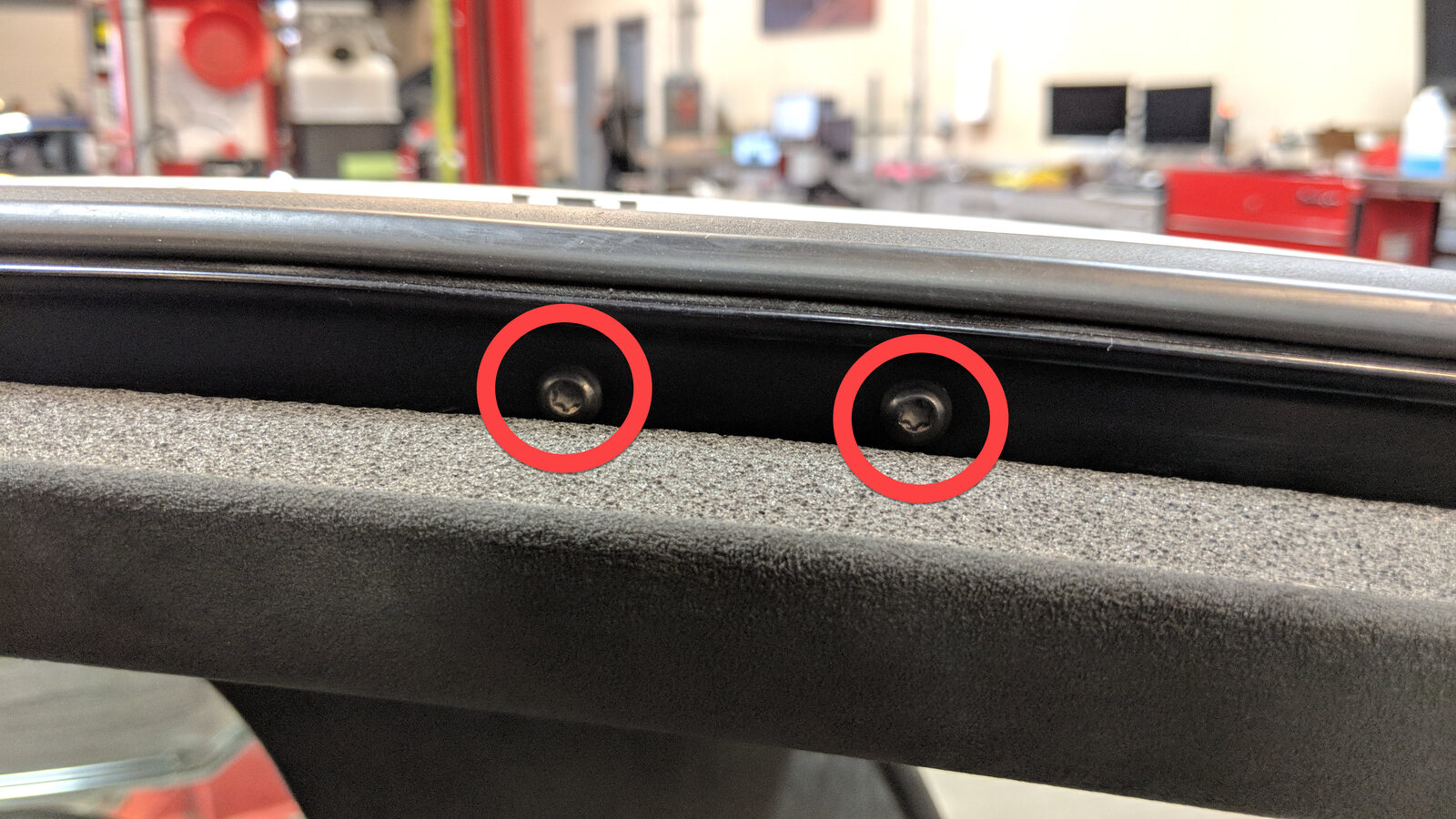

  4. Remove bolts securing sliding glass to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, T25, 5 Nm, Discard patch bolts

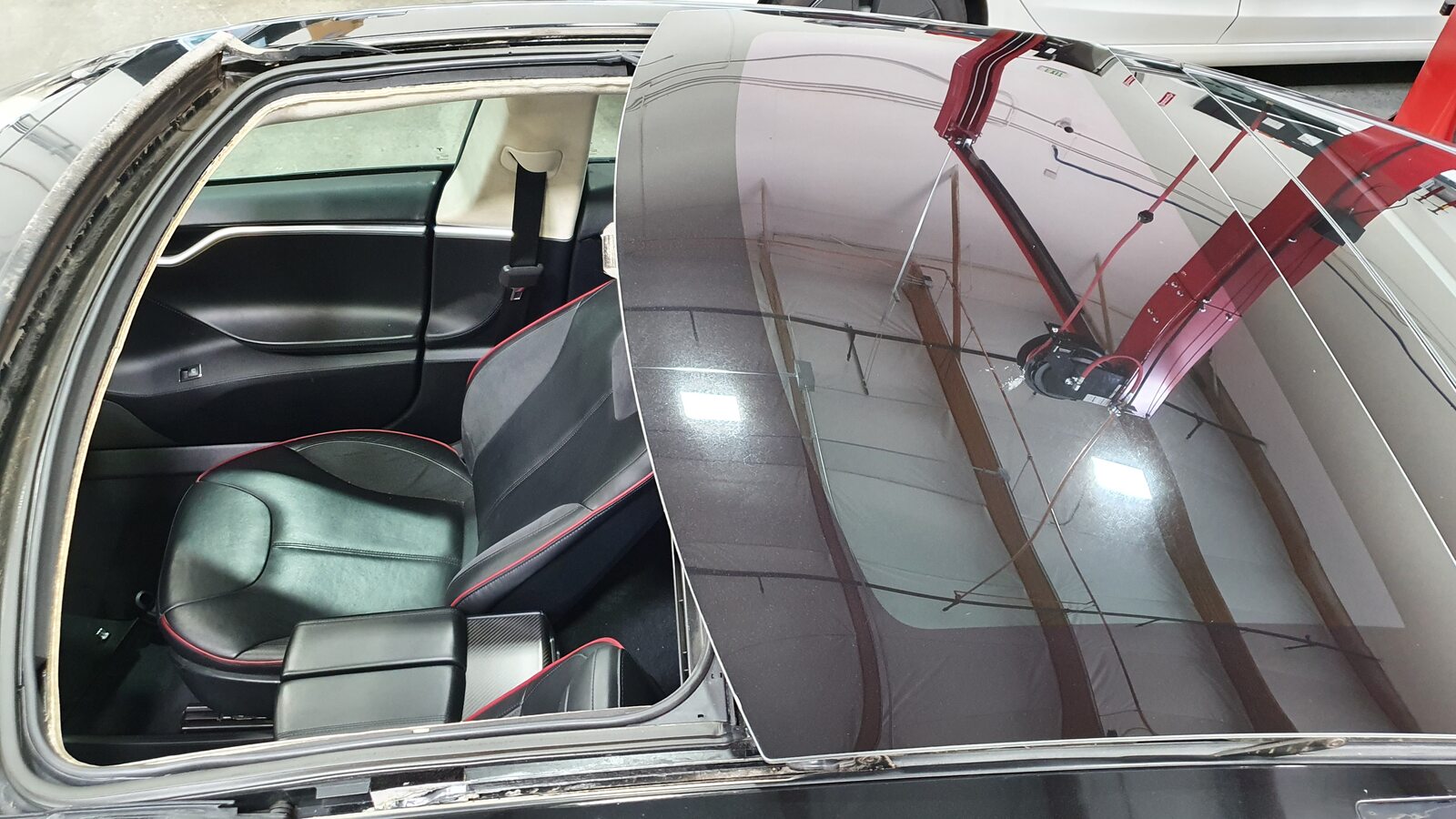

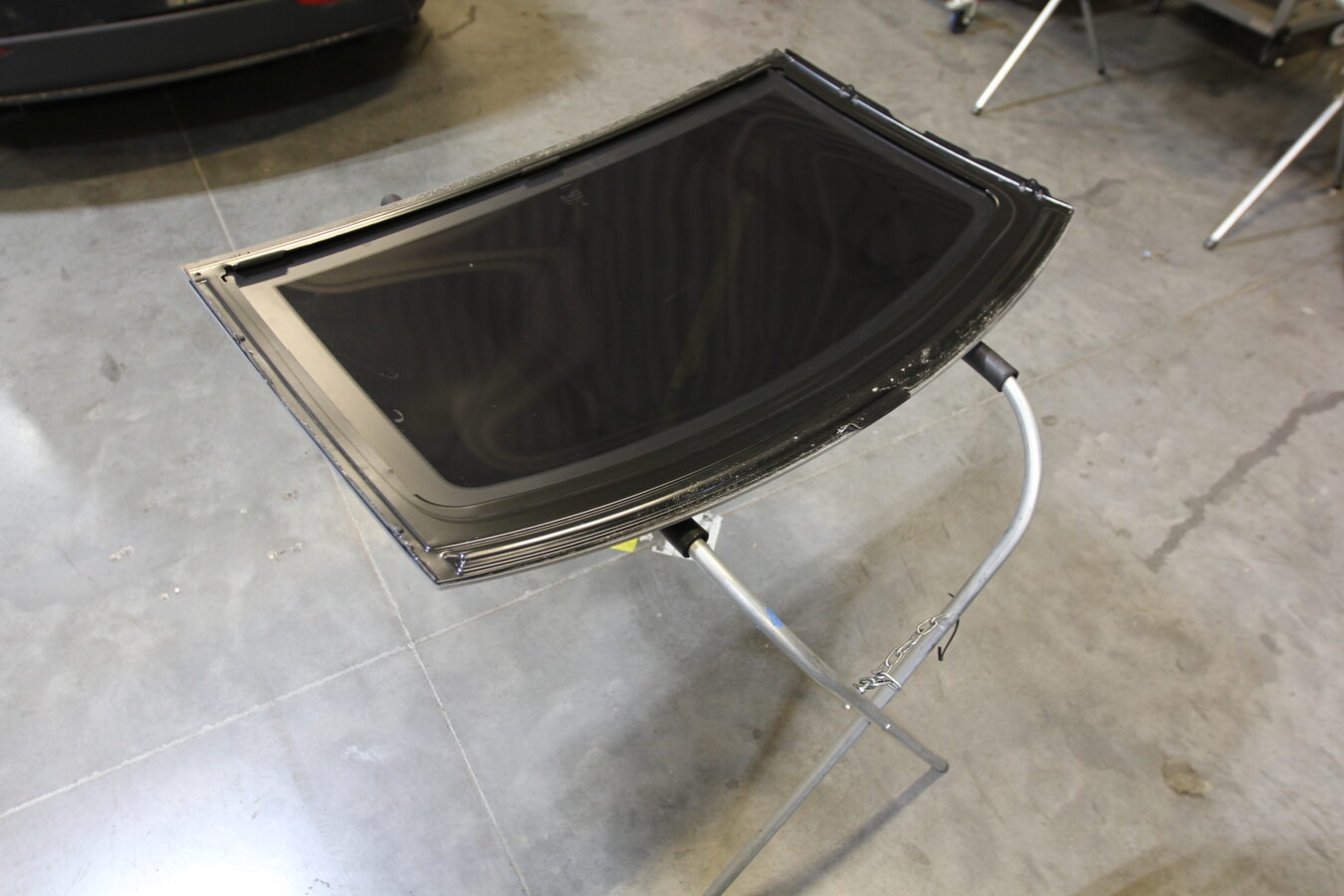

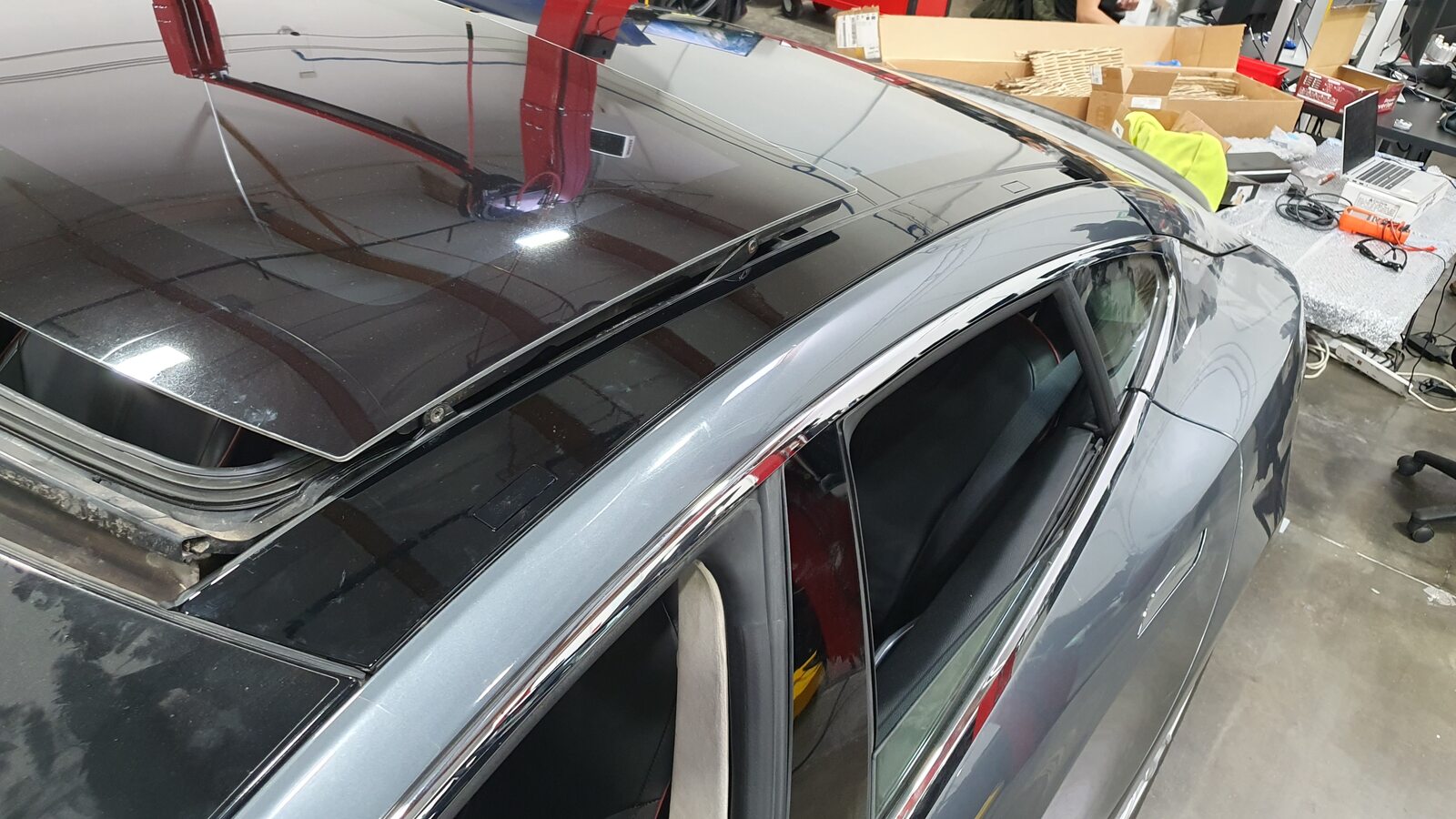

  5. Remove sliding glass from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance

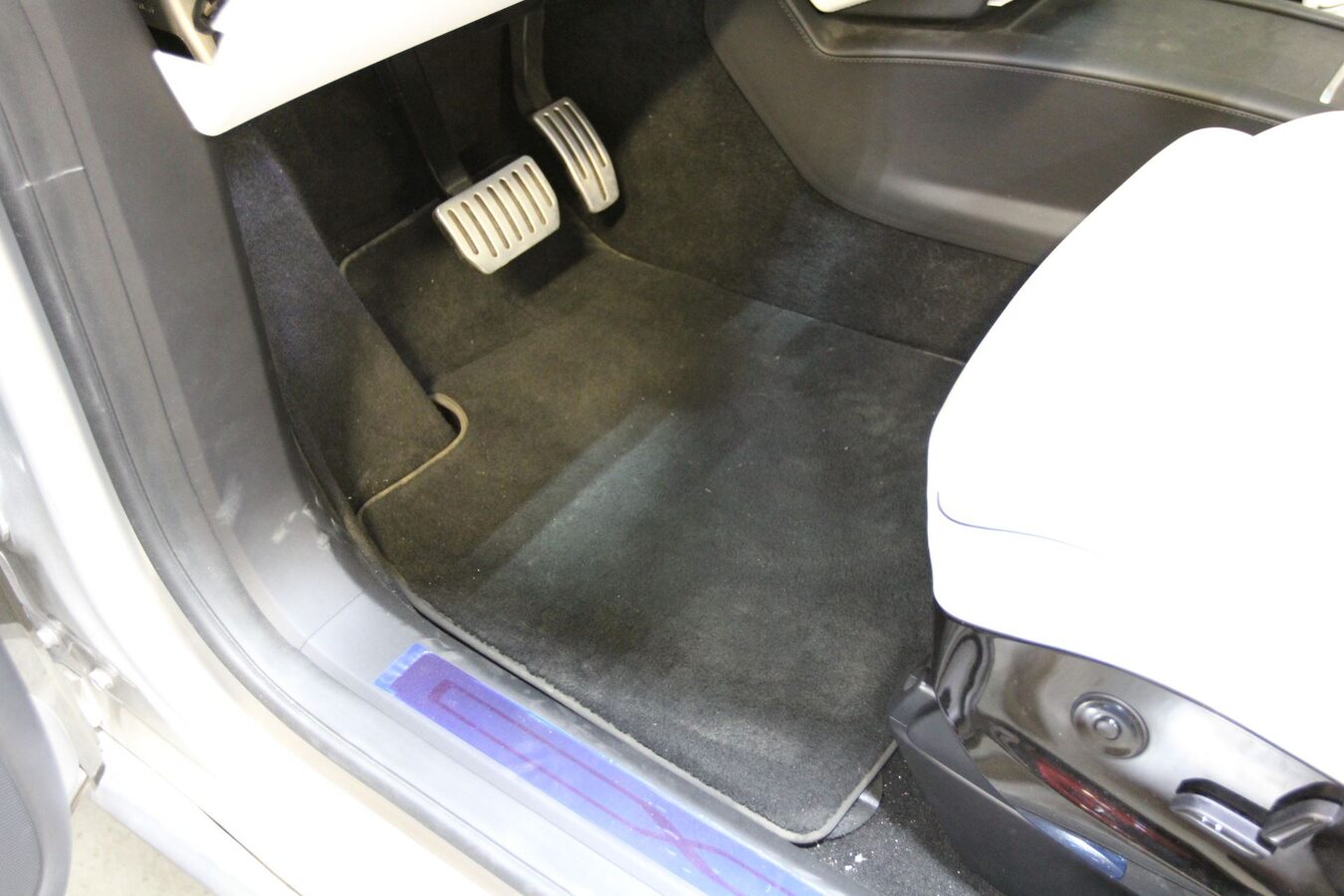

  6. Remove LH front floor mat
    Informational PurposesAn informational icon, calling your attention
    Note
    Release 4x velcro pads
  7. Remove LH IP side cover
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 1x connector

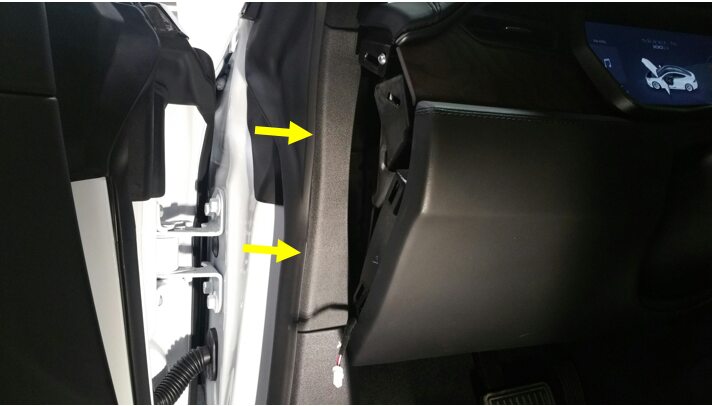

  8. Remove LH middle A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips

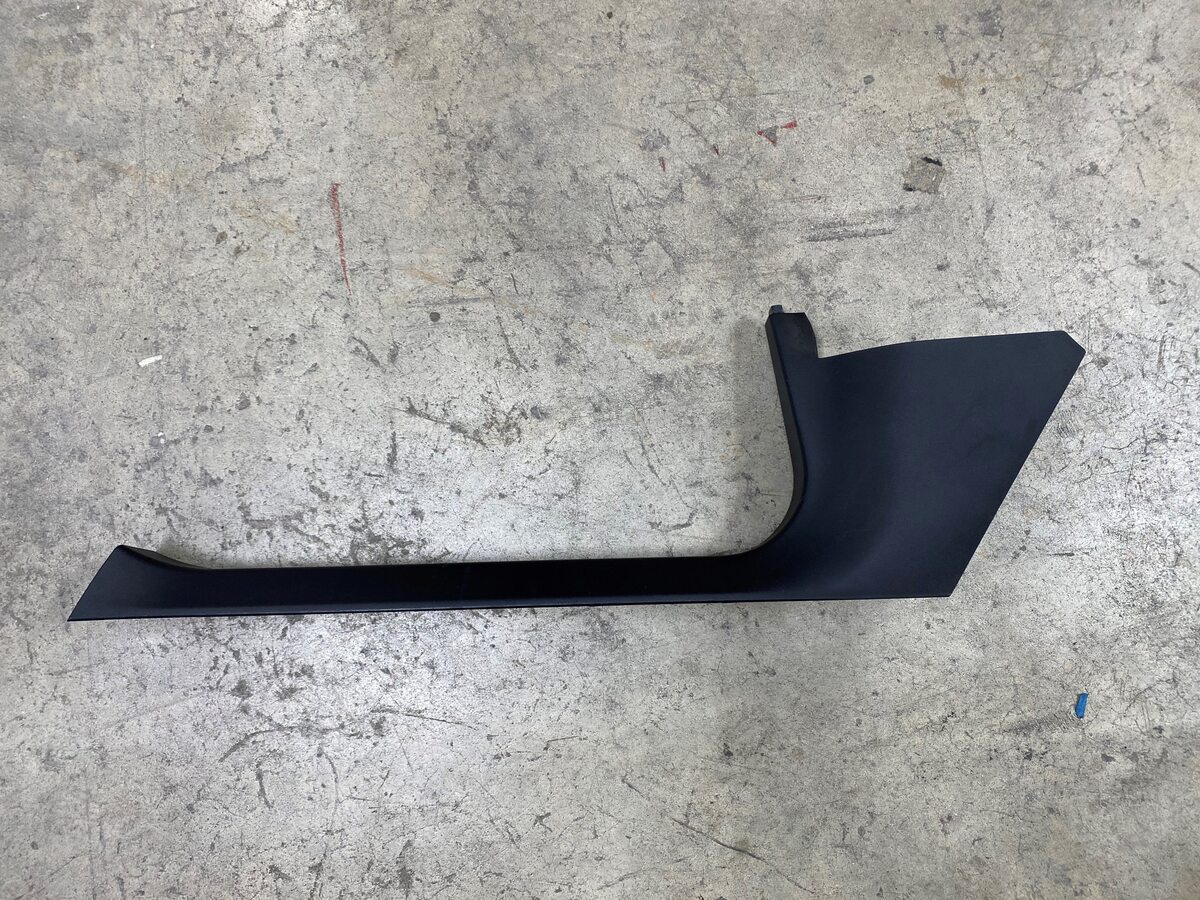

  9. Remove LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, Number of clips securing trim may vary depending on vehicle production date, Replace any damaged or missing clips prior to re-installing sill trim

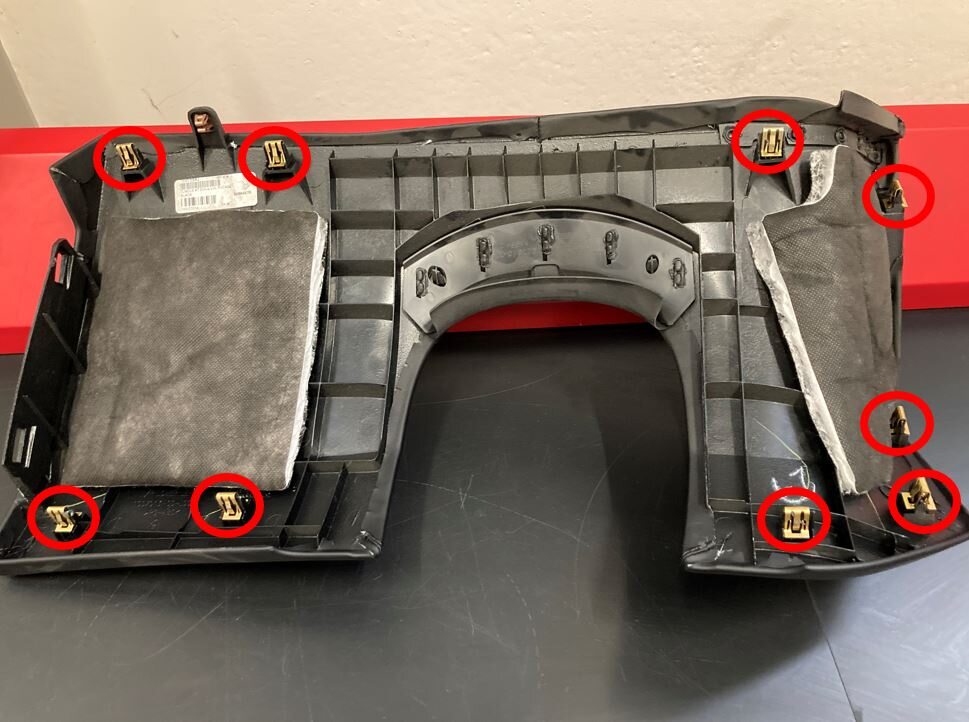

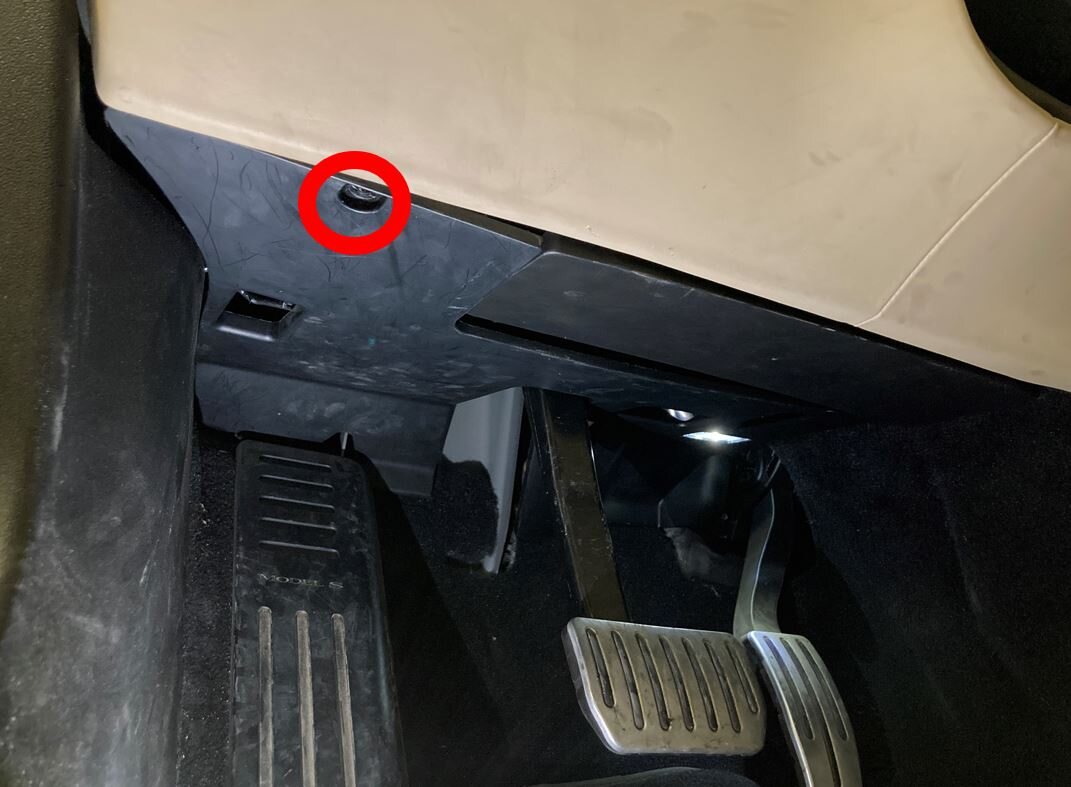

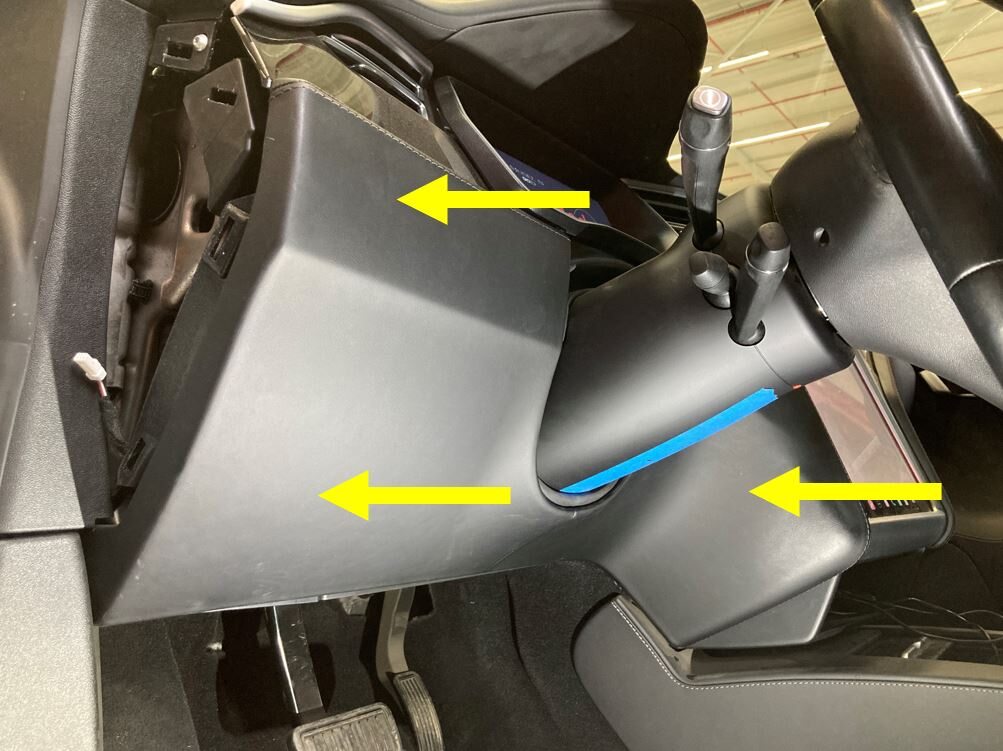

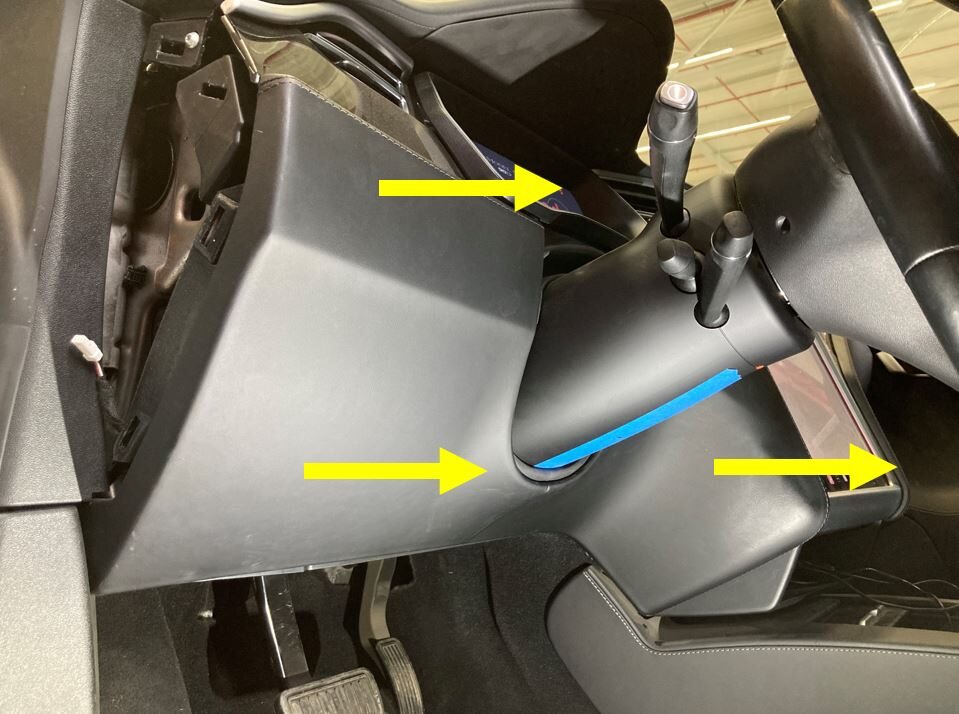

  10. Remove LH lower IP trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2 Nm, 9x clips

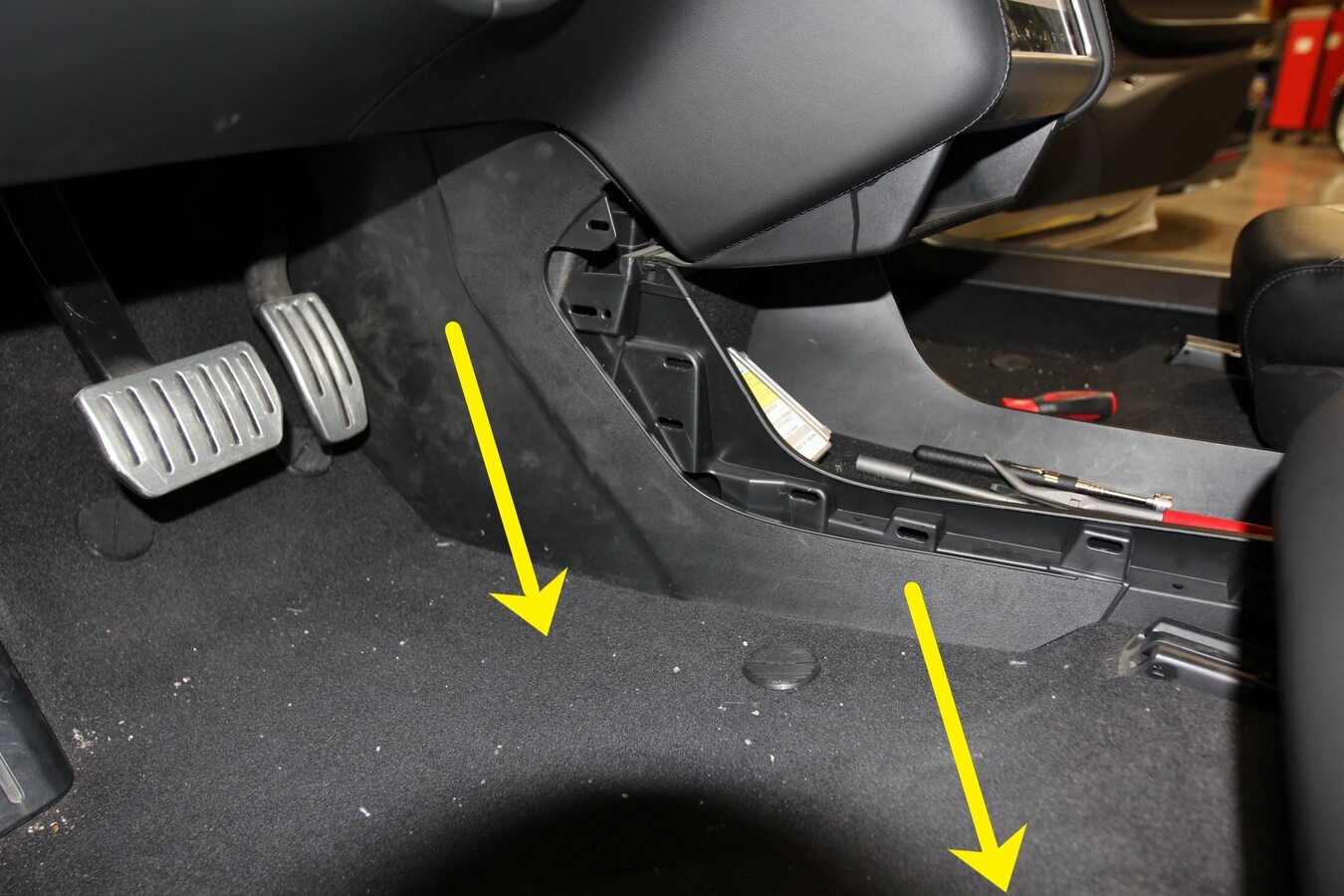

  11. Release LH front console side panel clips
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips

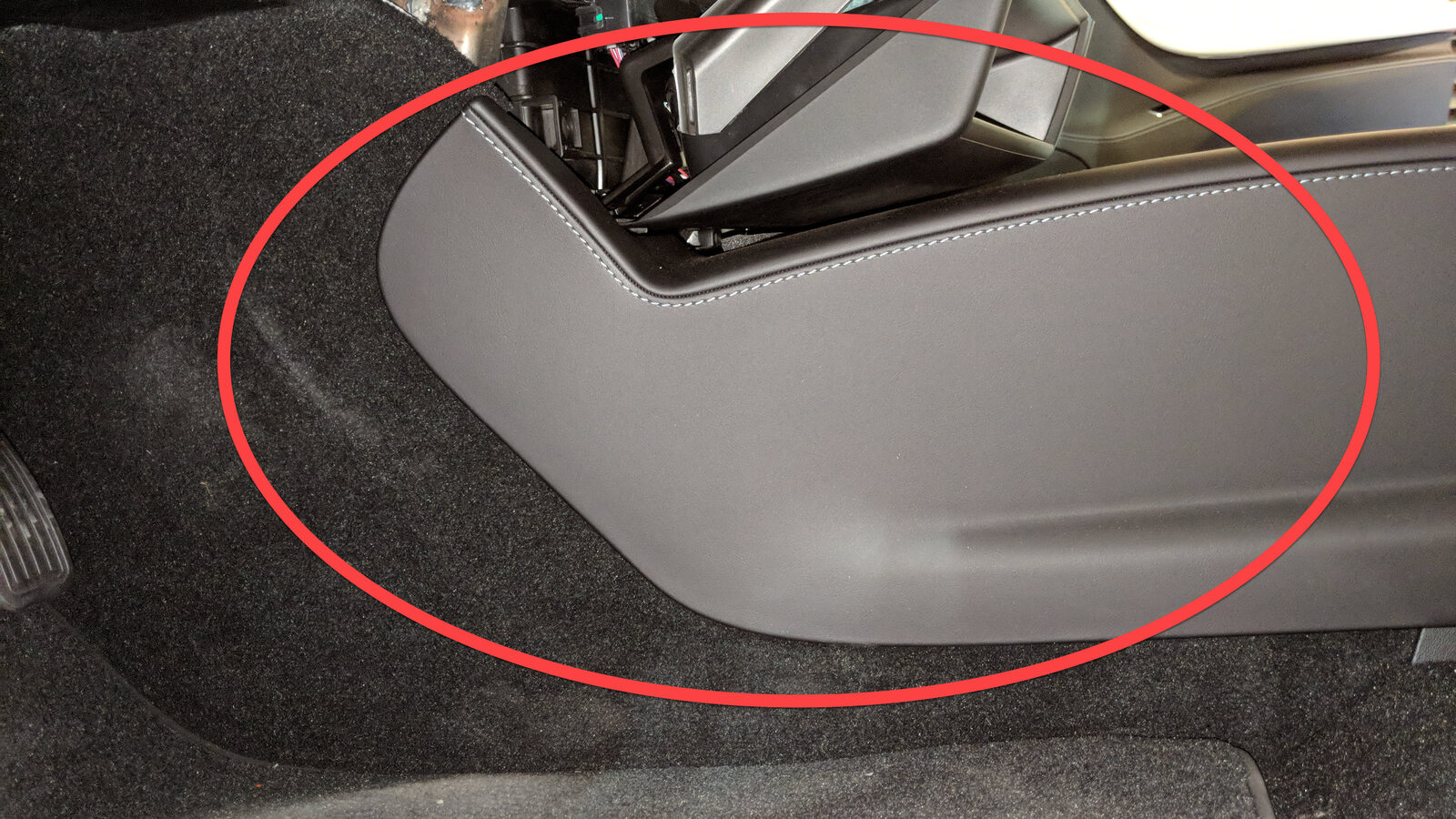

  12. Remove LH console closeout extension
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, May vary depending on build date

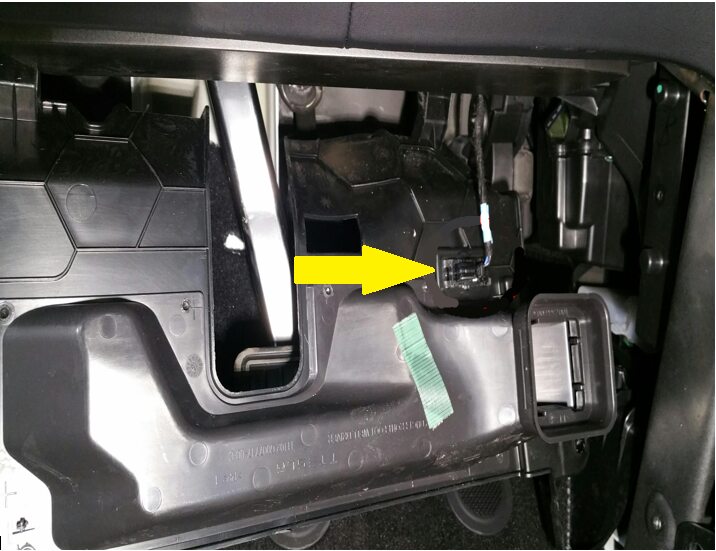

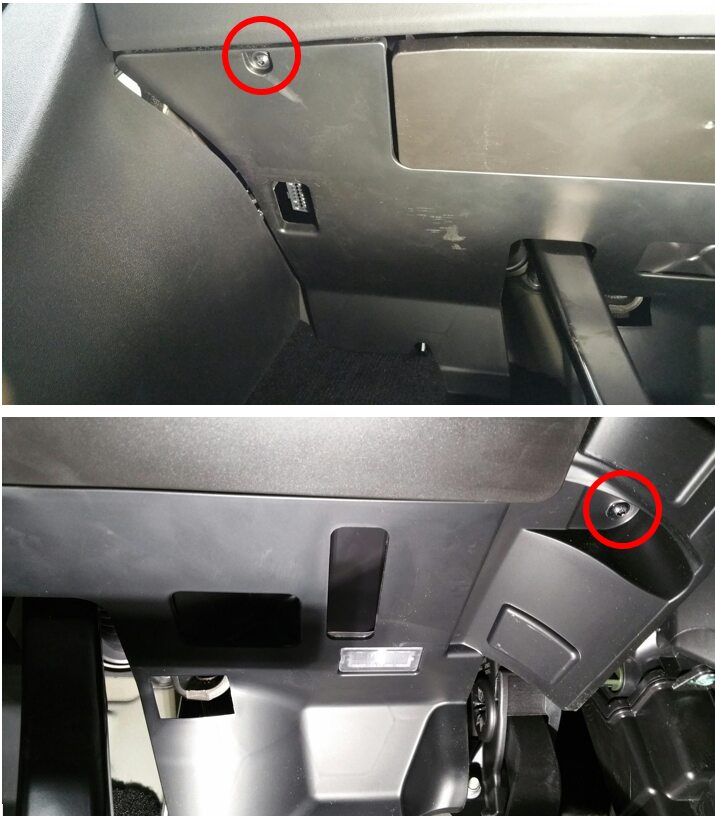

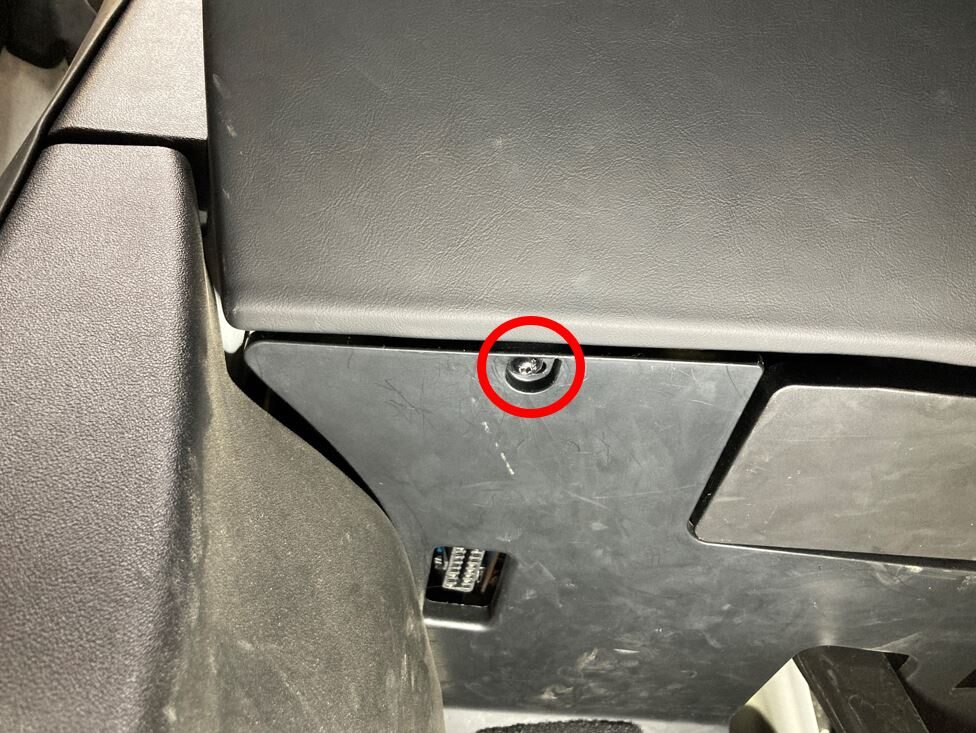

  13. Remove LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2 Nm, 1x connector

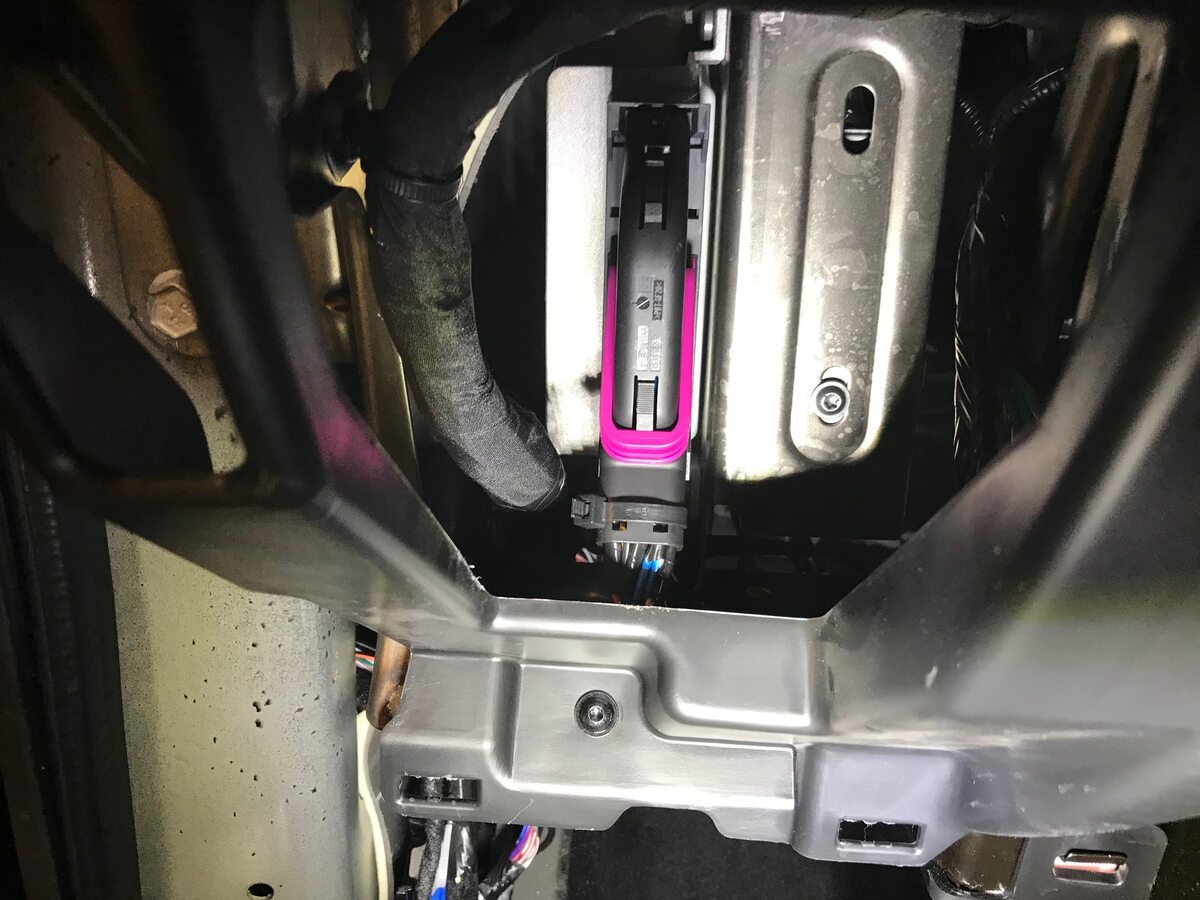

  14. Disconnect premium amplifier if equipped
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Applies only to vehicle equipped with premium audio

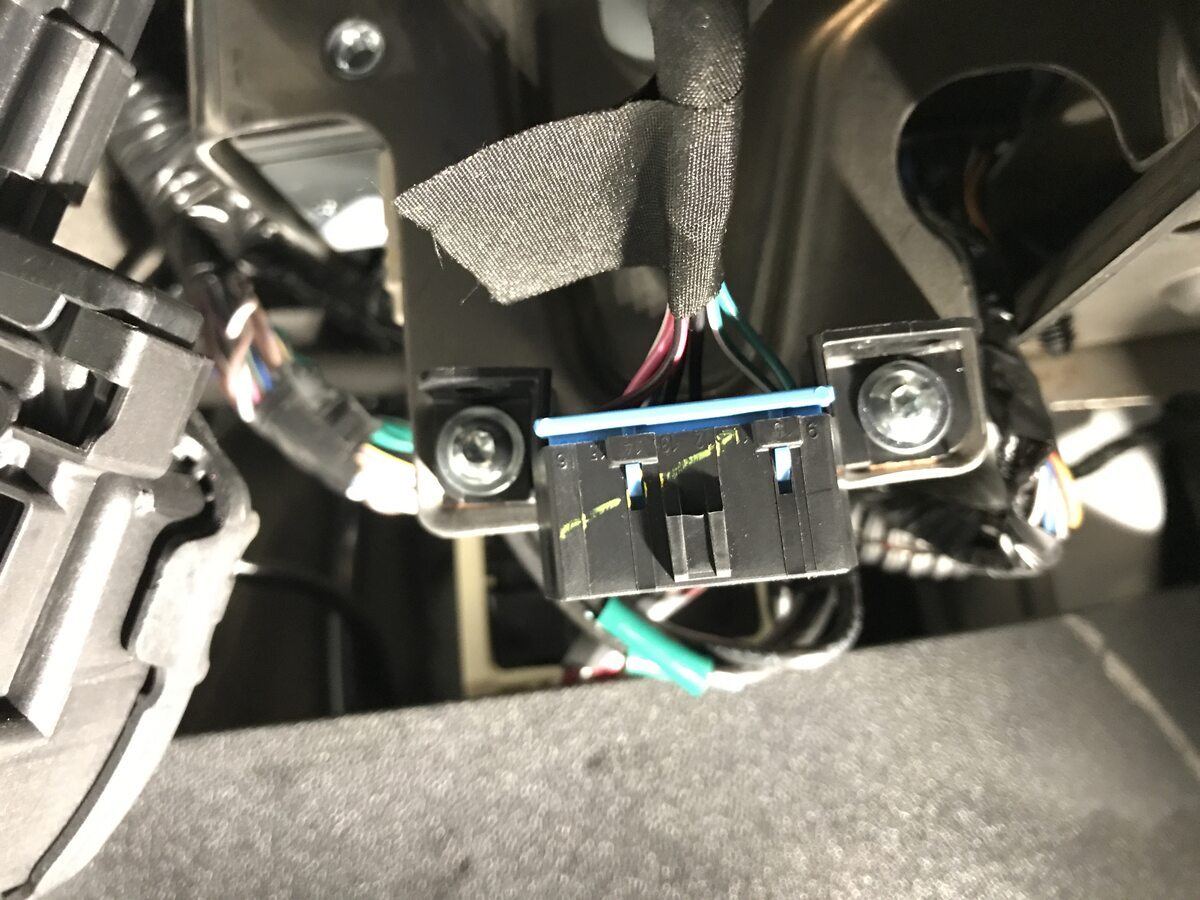

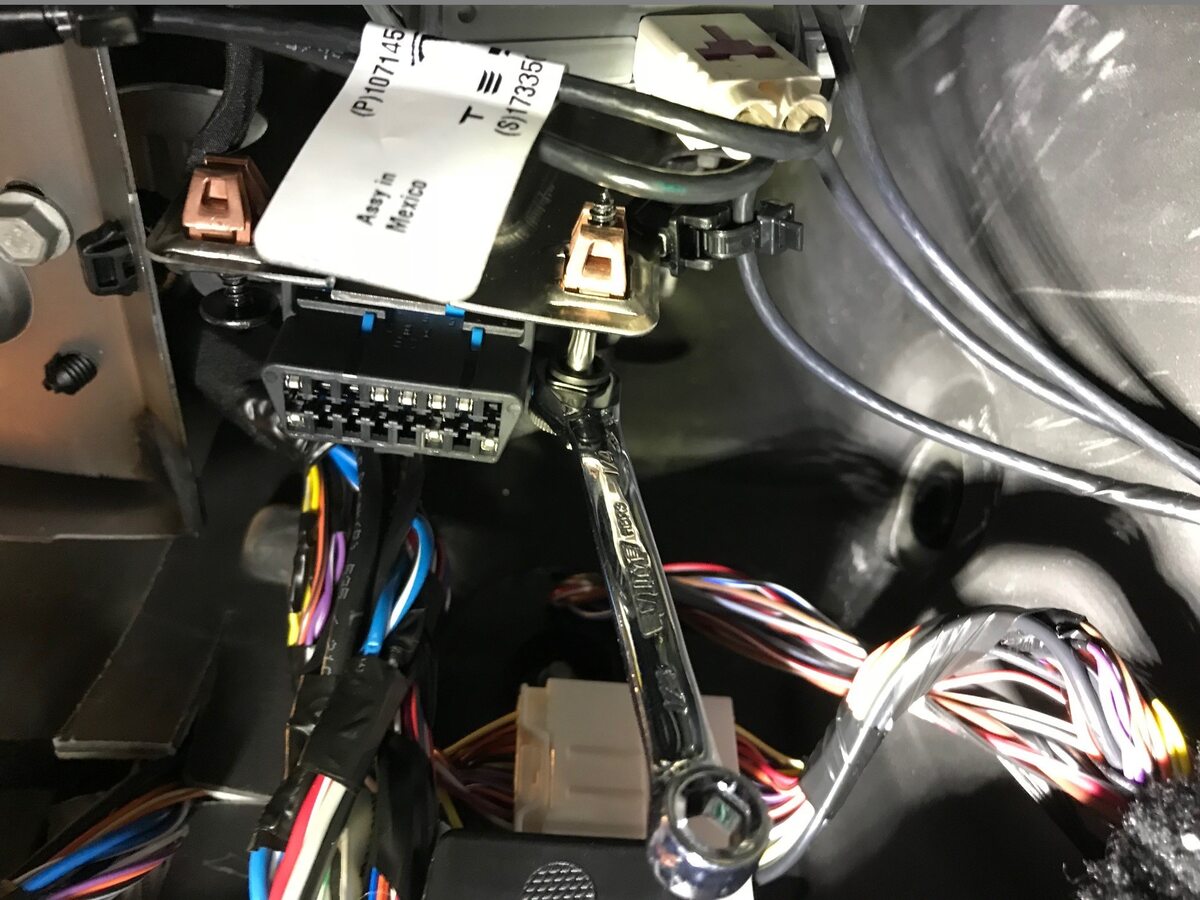

  15. Remove OBD II connector from tuner bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm

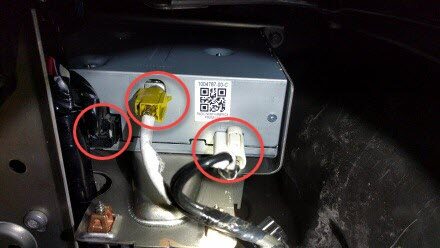

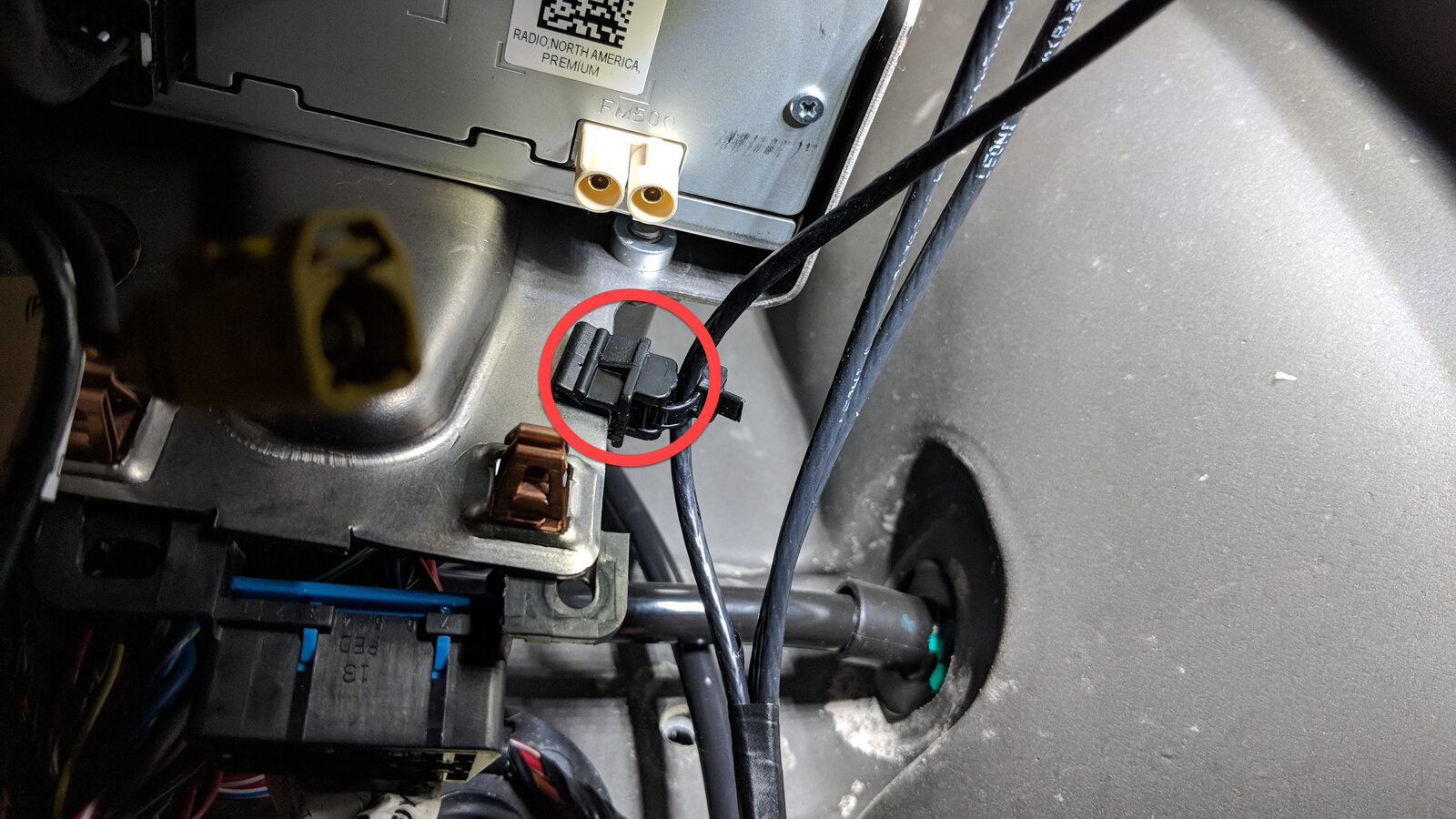

  16. Disconnect tuner and move harness for clearance
    Informational PurposesAn informational icon, calling your attention
    Note
    3x connectors, 1x edge clip

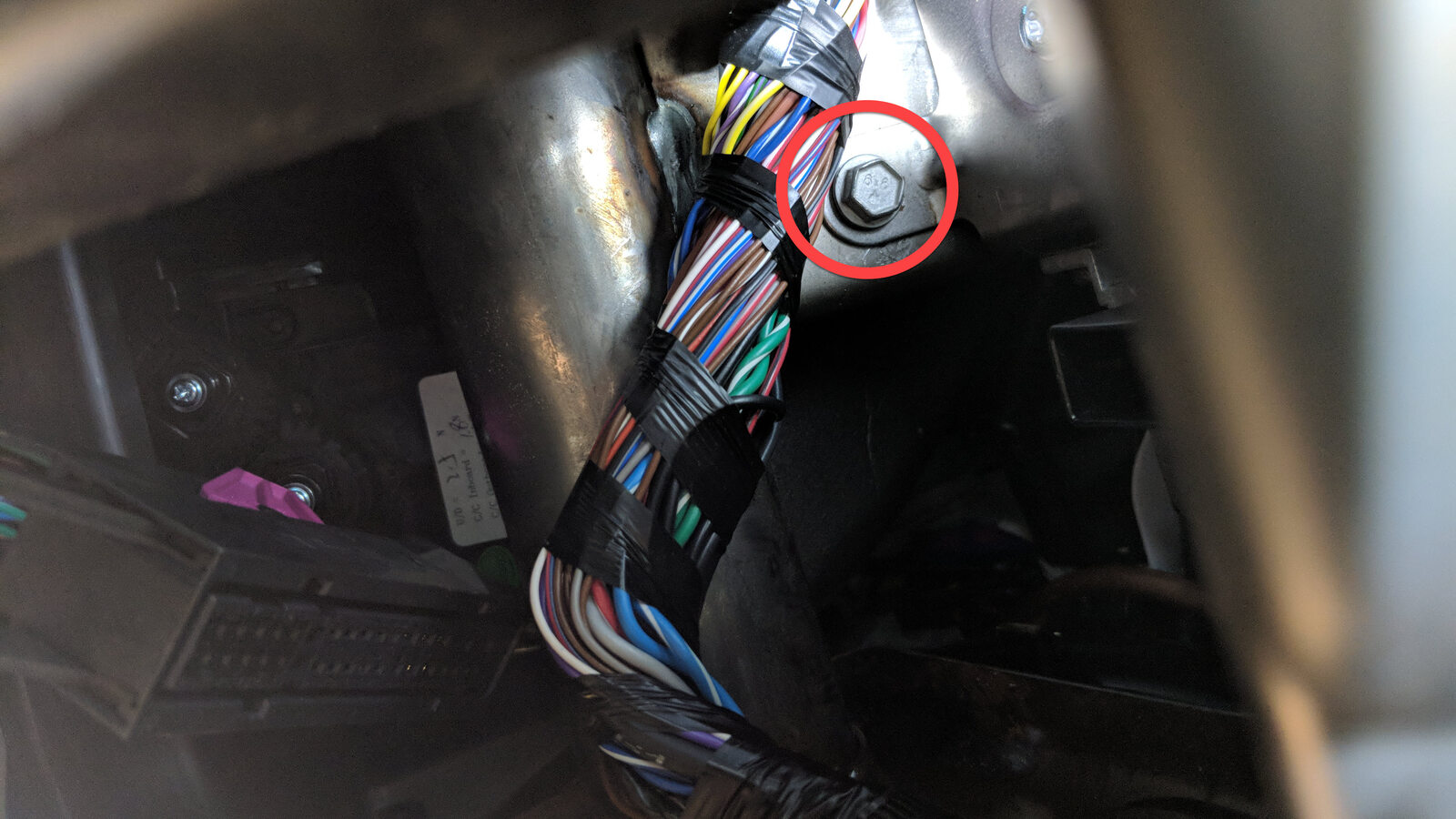

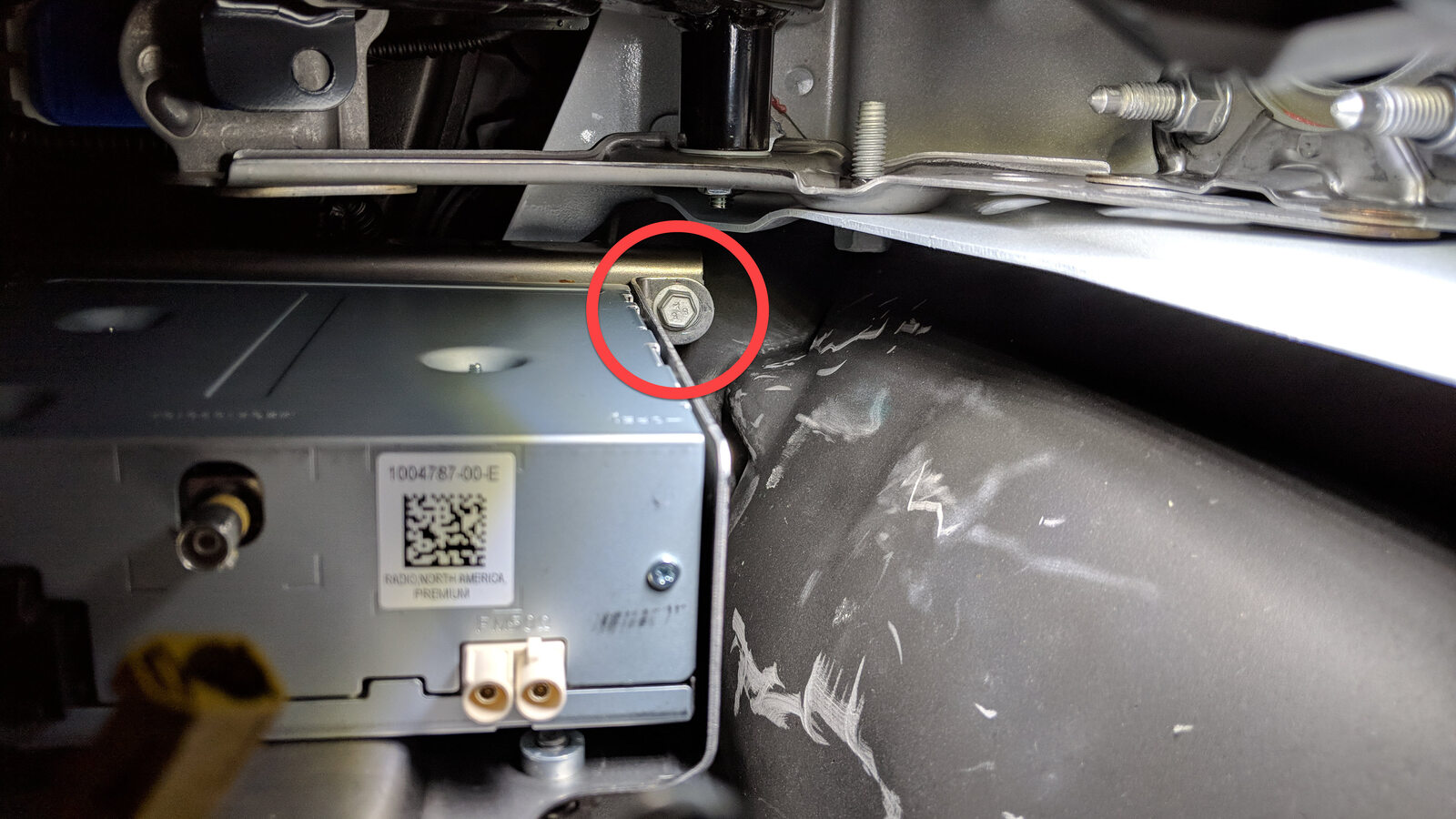

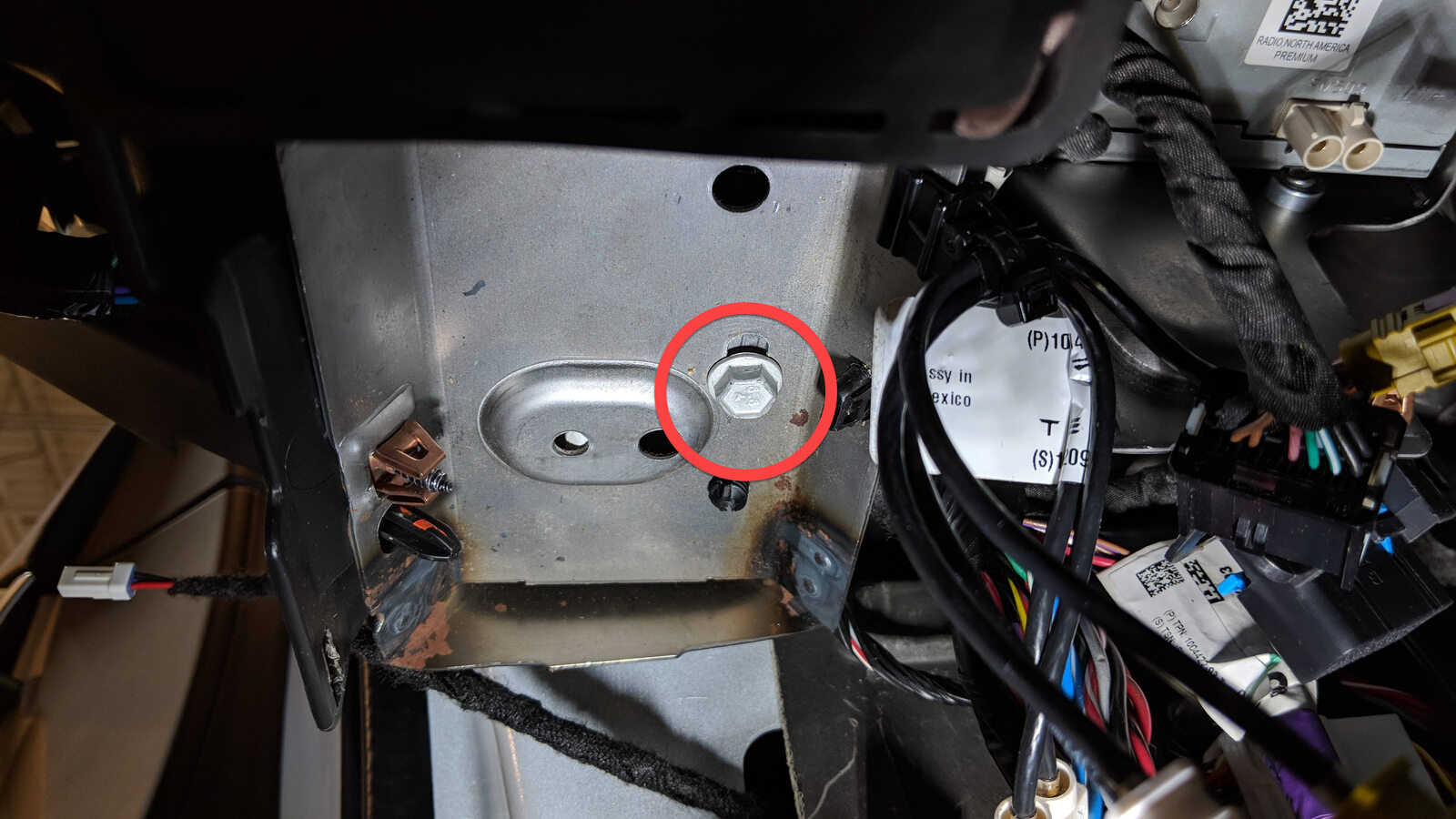

  17. Remove bolts securing tuner bracket to IP
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 6 Nm, 2 are accessible from bottom, 1 is accessible from front

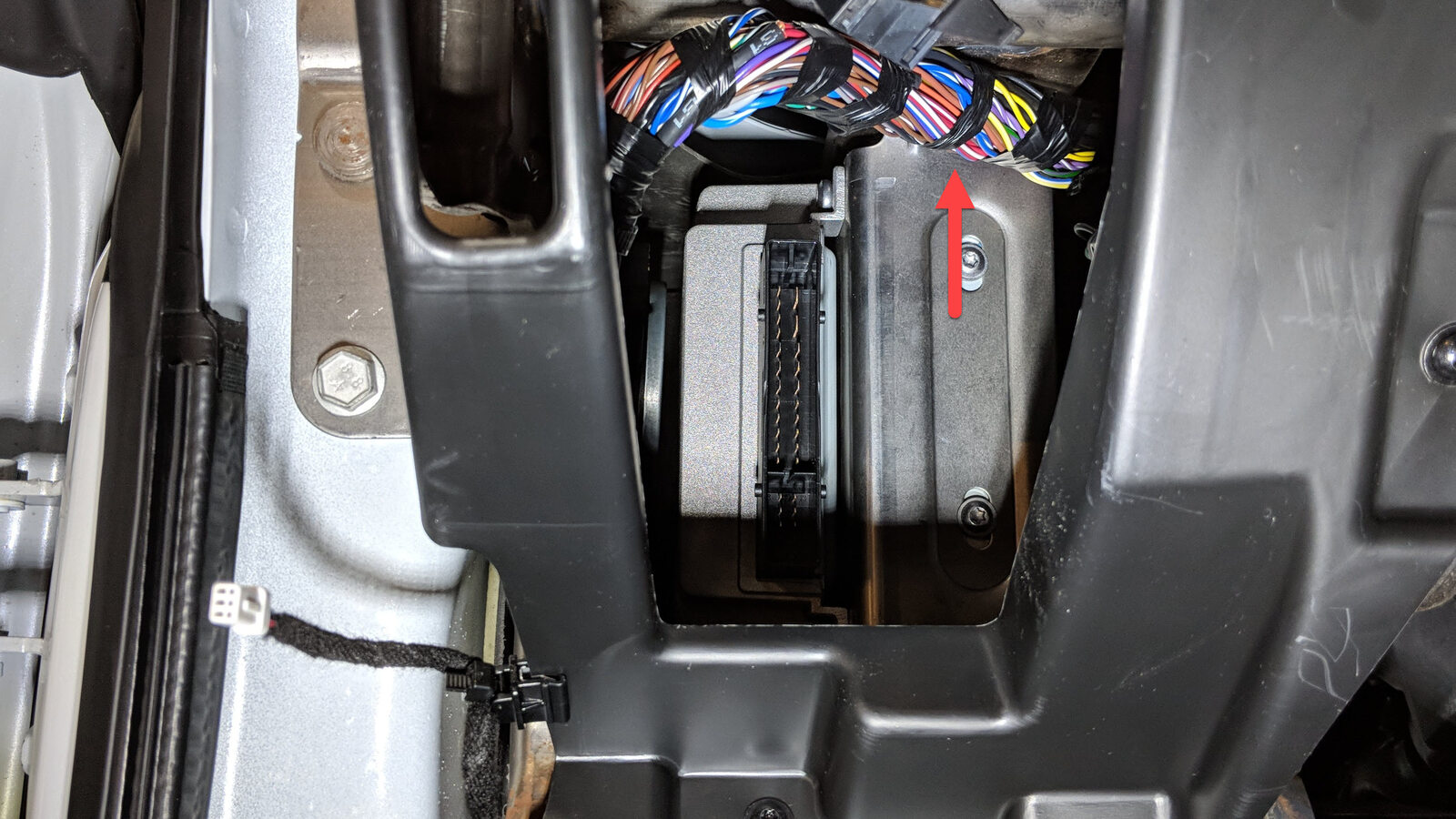

  18. Remove amp/tuner bracket assembly out through bottom of IP carrier
    Informational PurposesAn informational icon, calling your attention
    Note

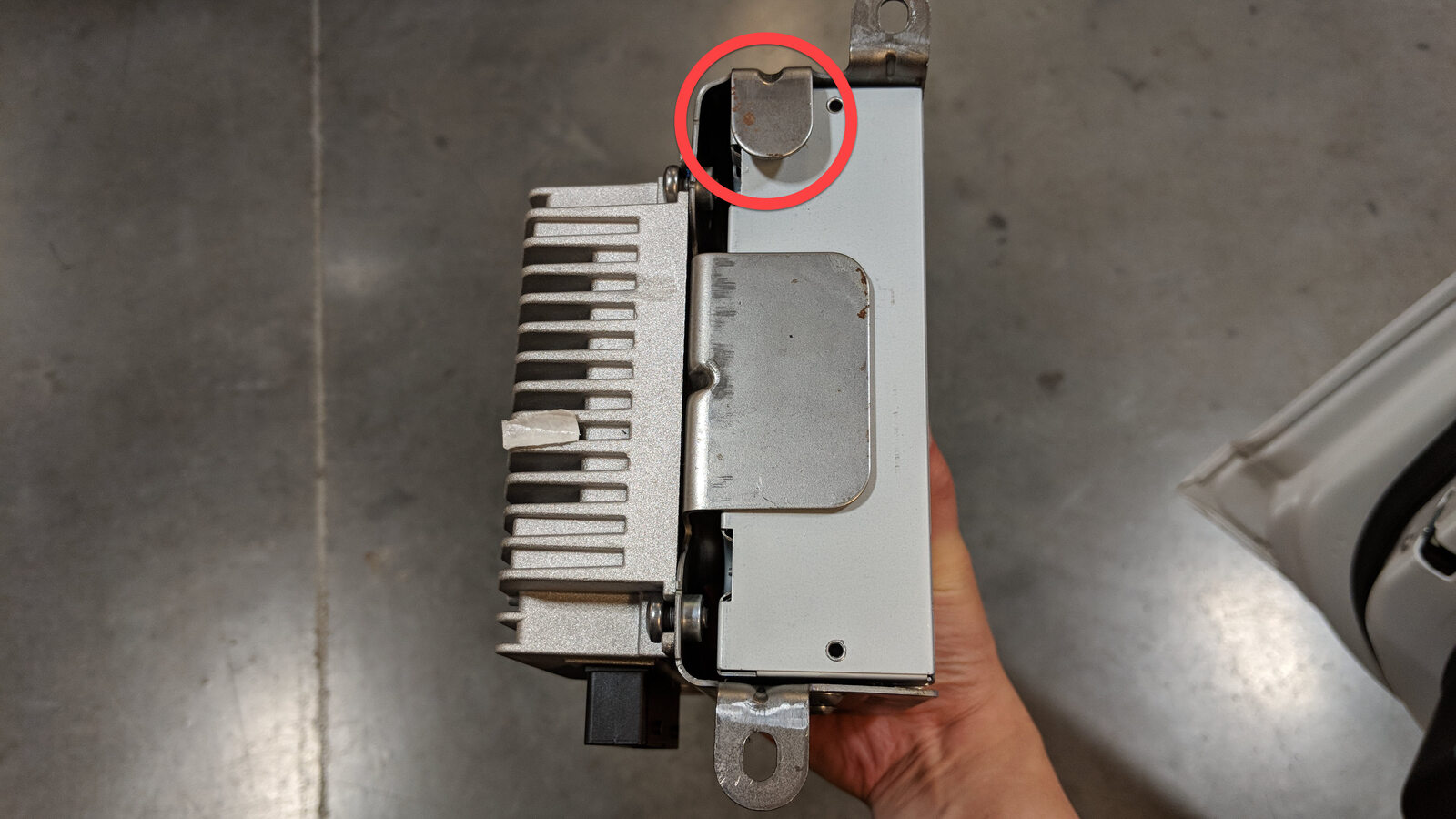

    1x tab, There's a tab on bracket that requires sliding assembly forward slightly to release

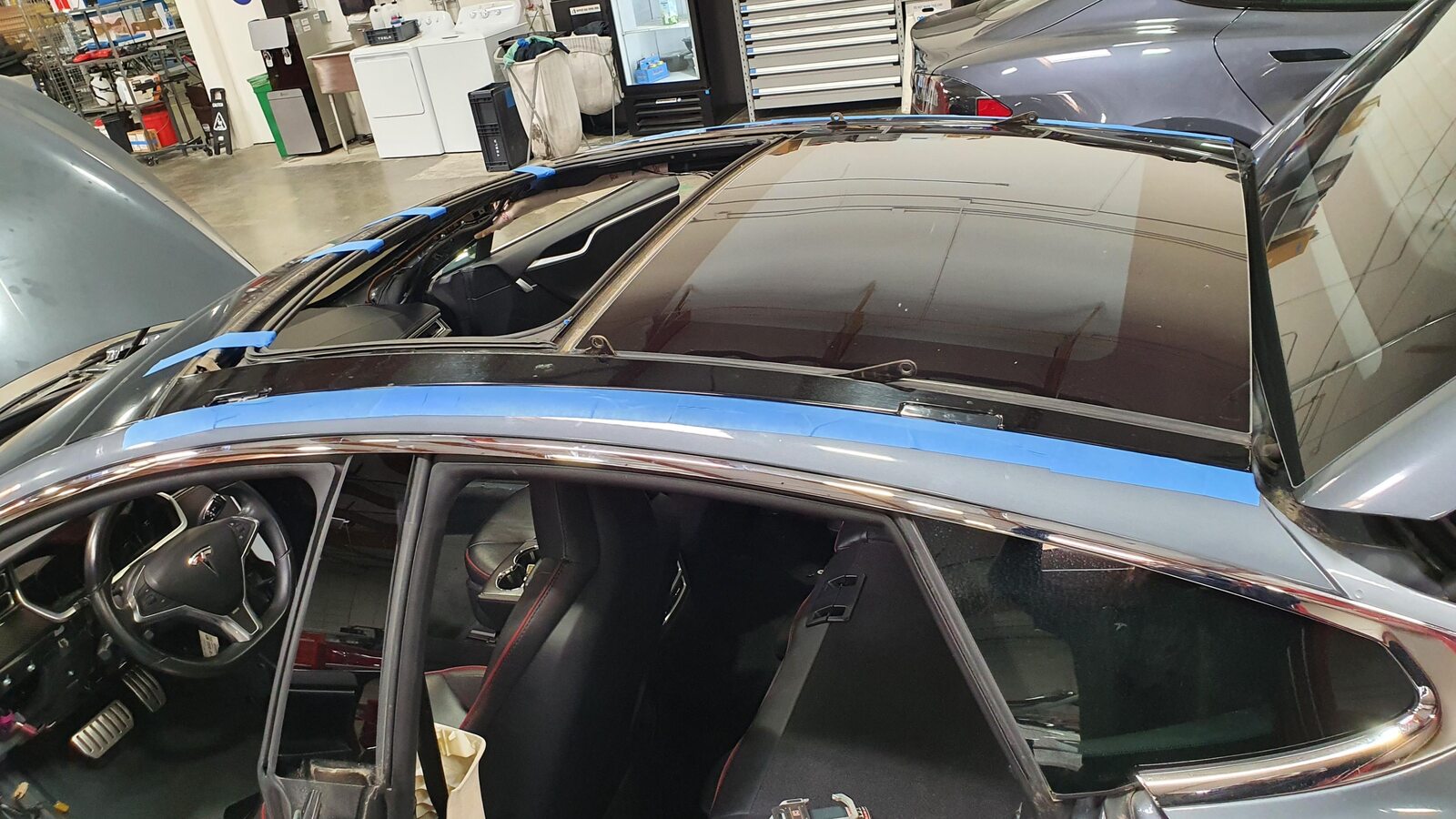

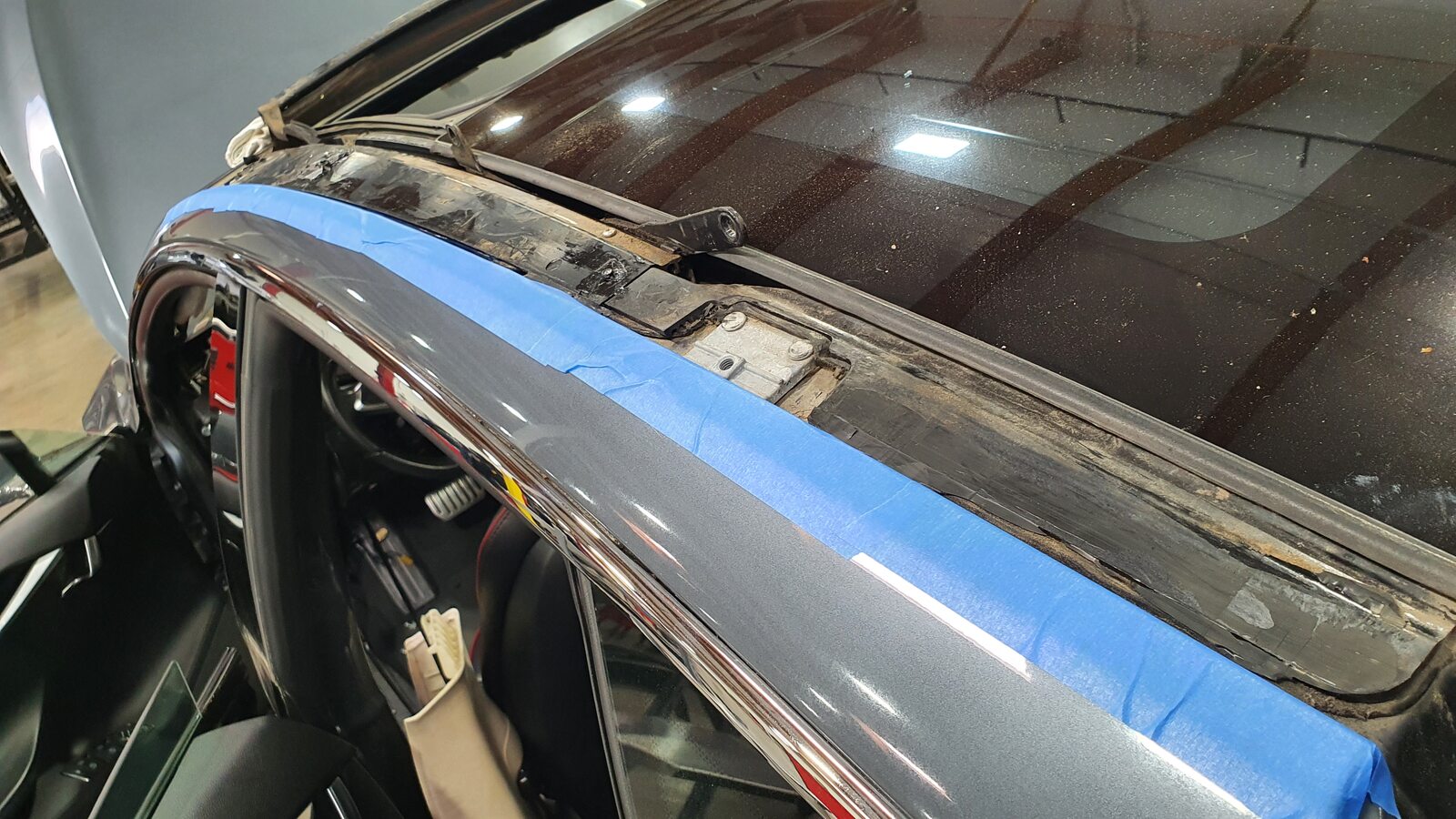

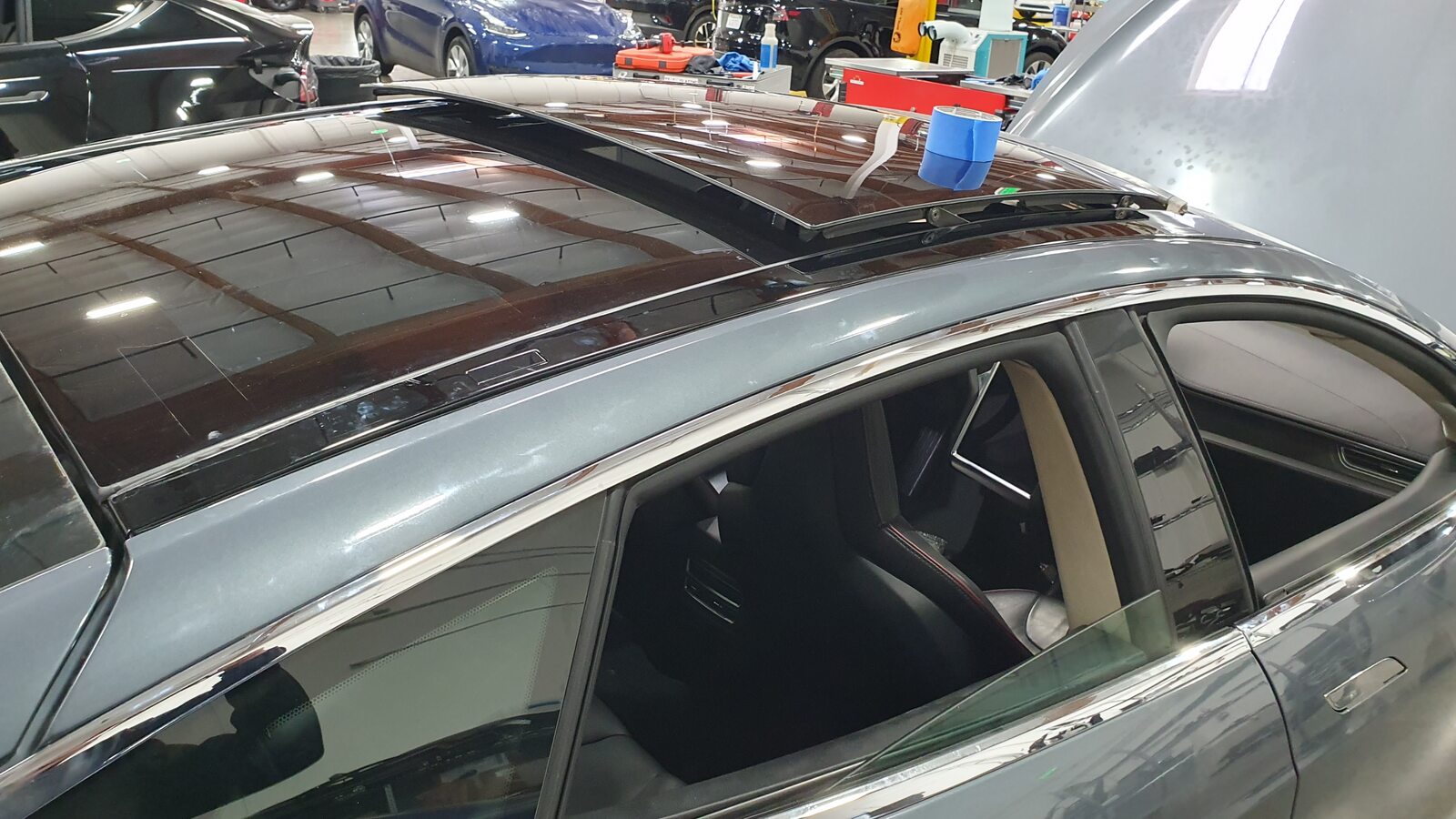

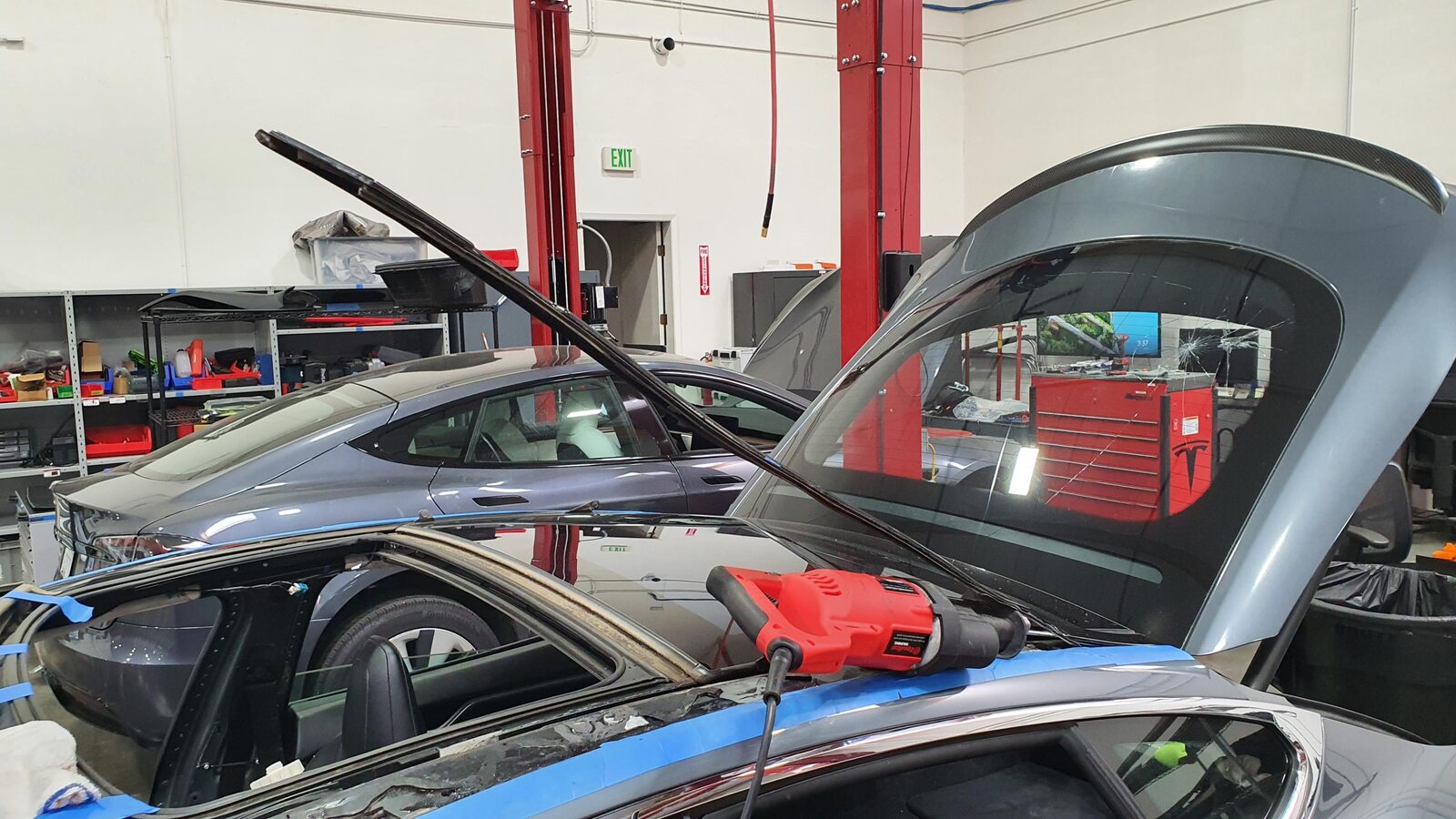

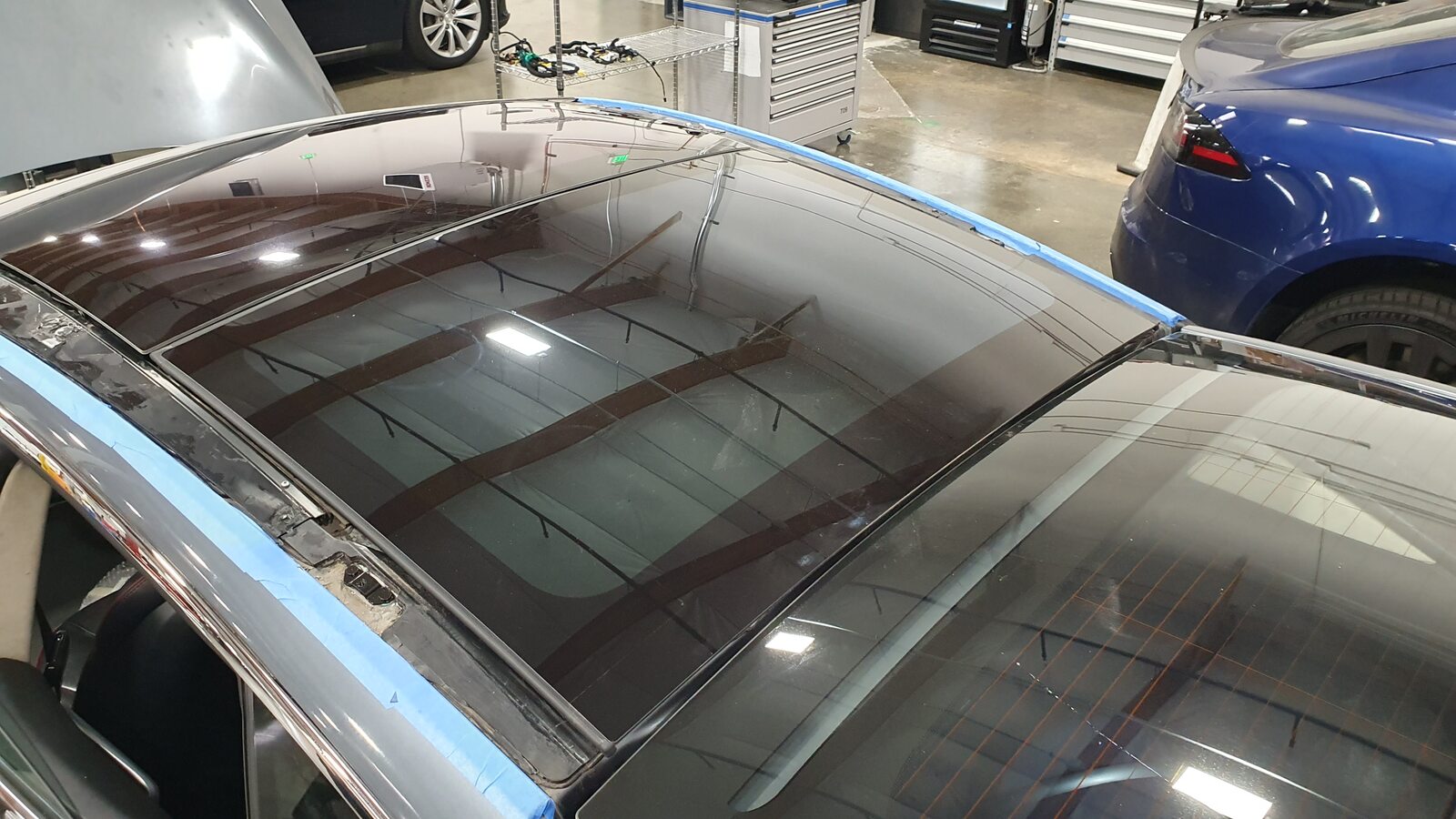

  19. Apply masking tape onto roof rail
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply masking tape onto roof rail to prevent paint damage from working on vehicle roof

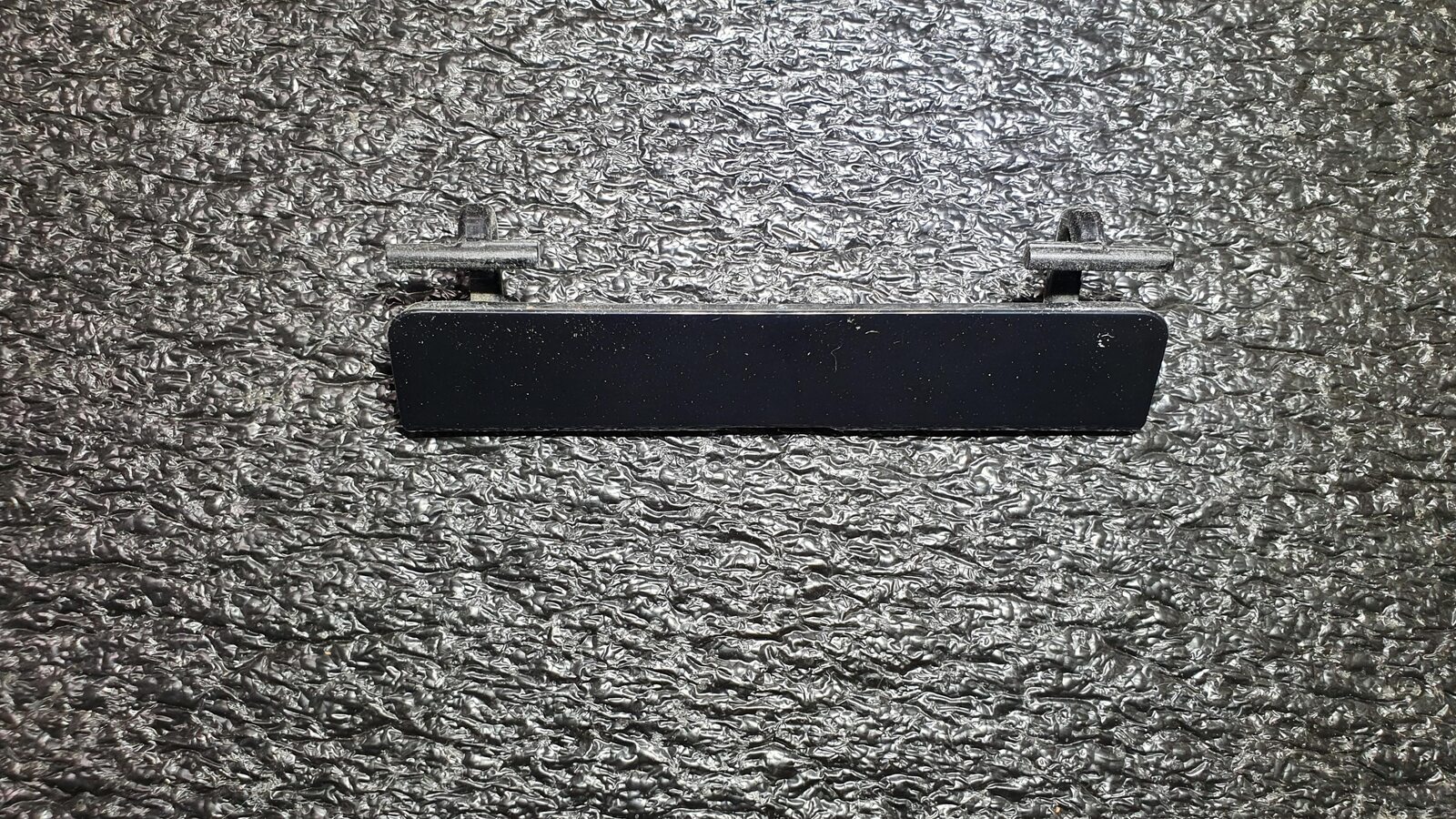

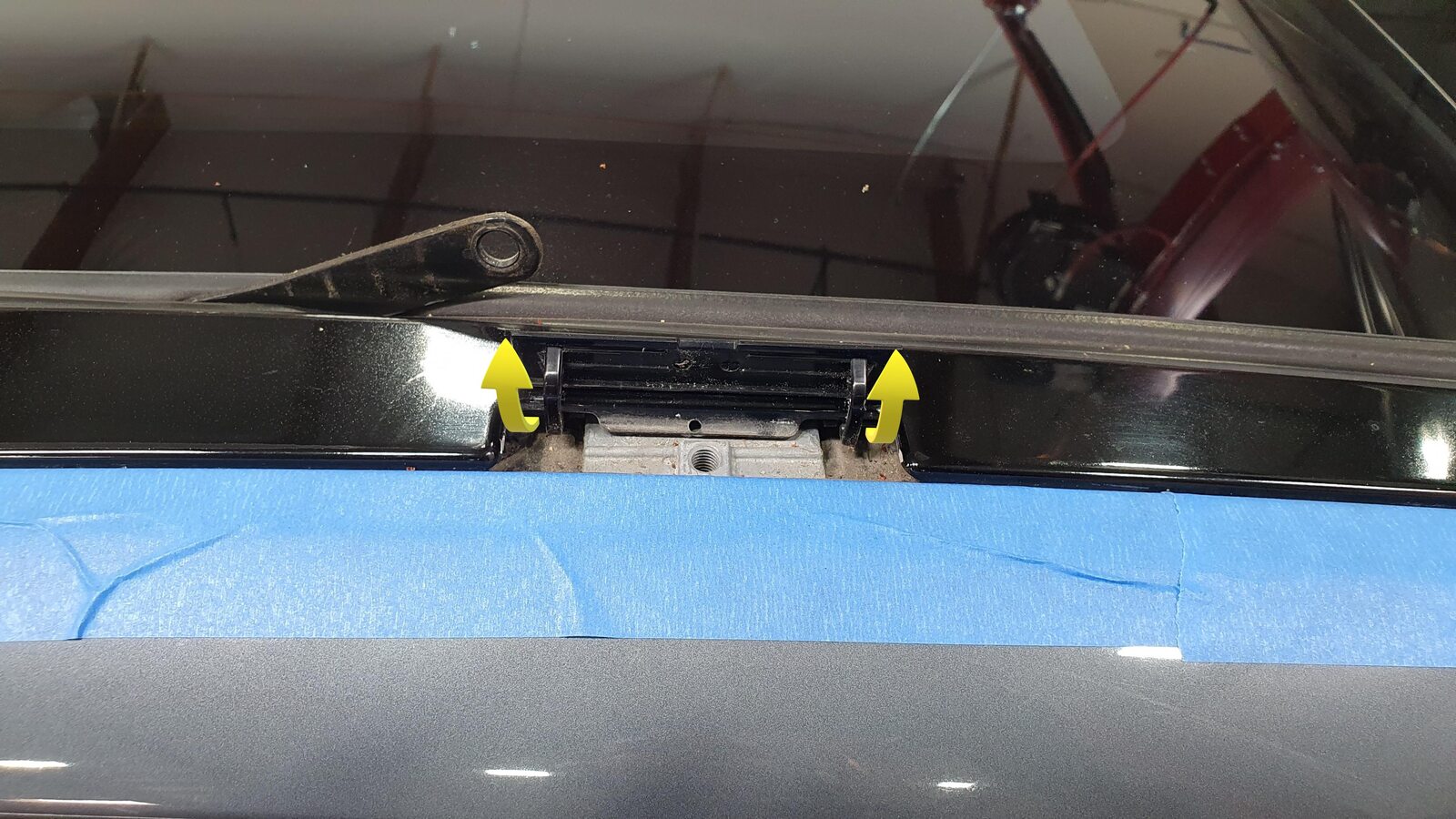

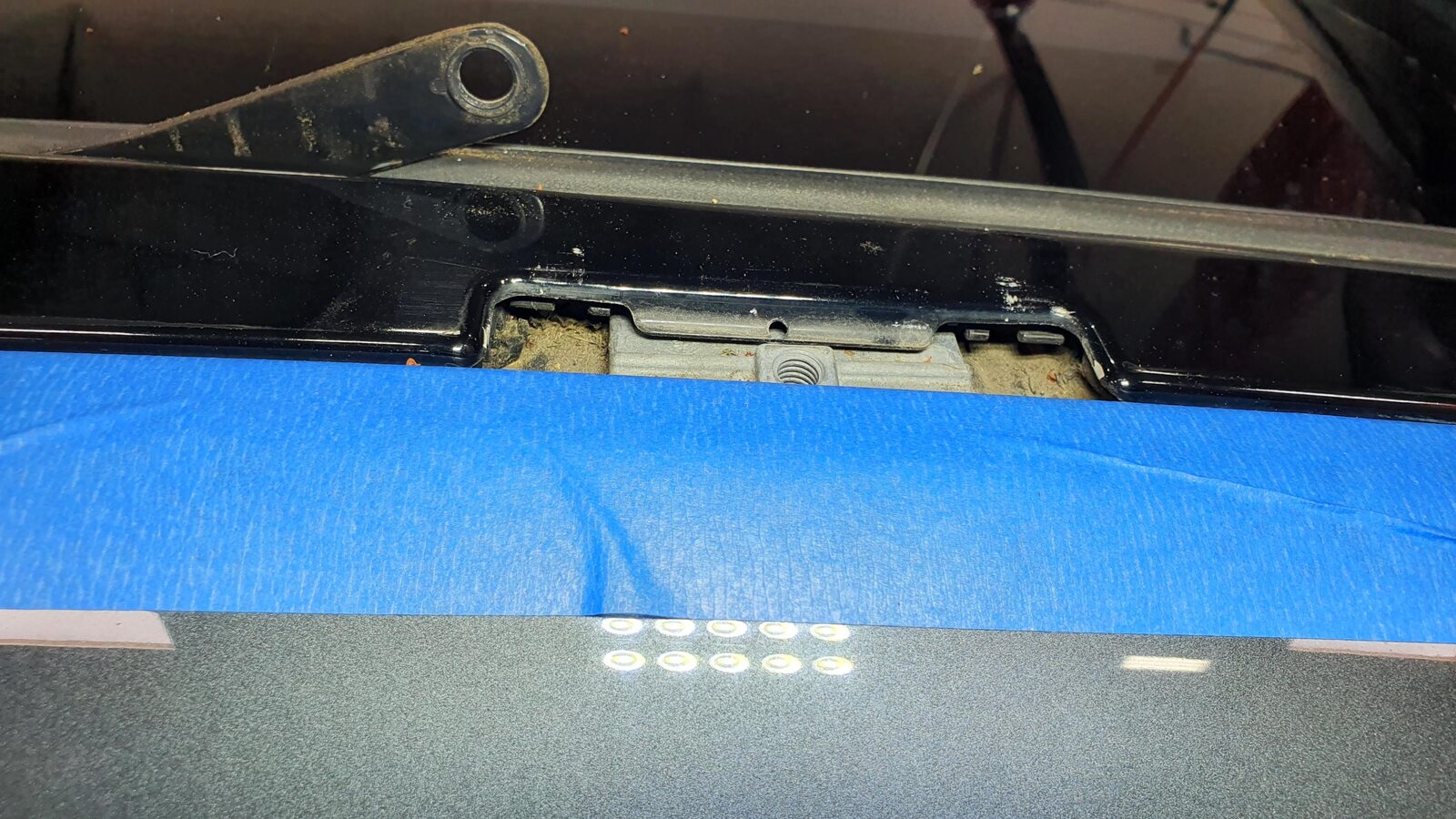

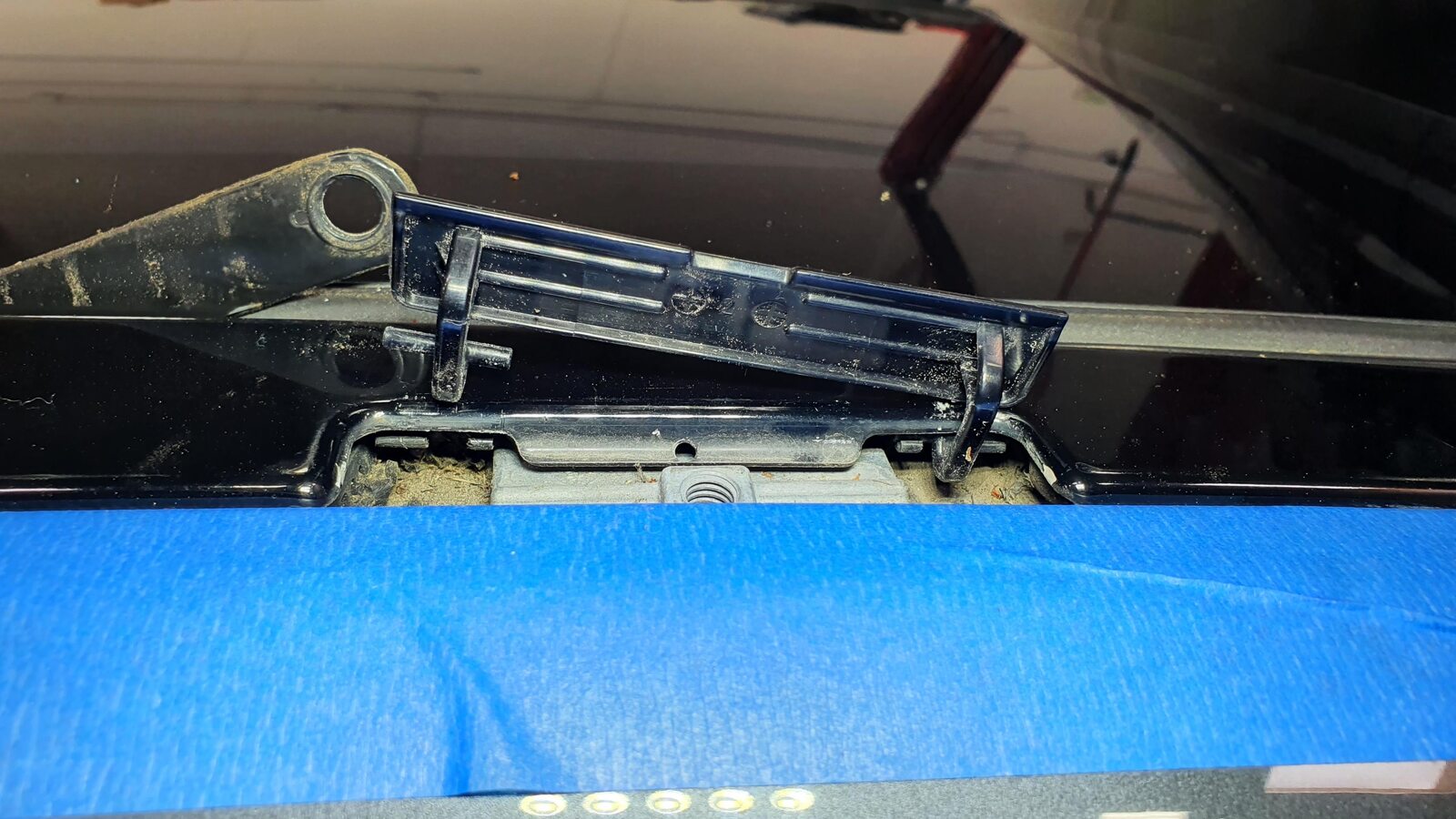

  20. Remove LH side applique roof rack doors
    Informational PurposesAn informational icon, calling your attention
    Note
    2x roof rack doors, Careful not to break roof rack doors upon removal

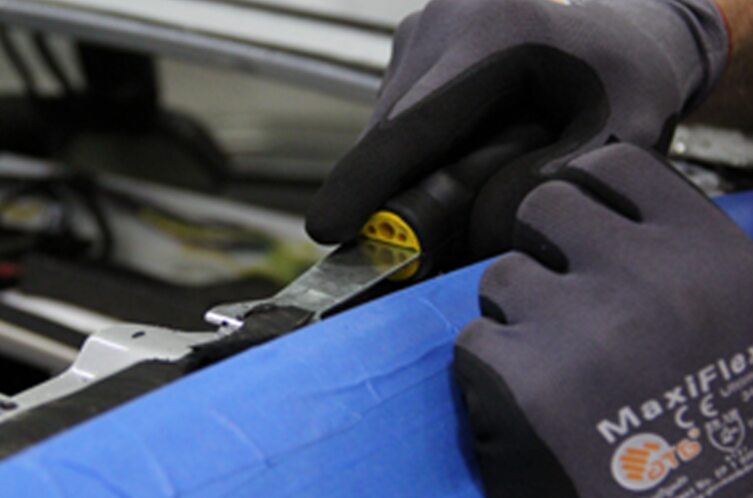

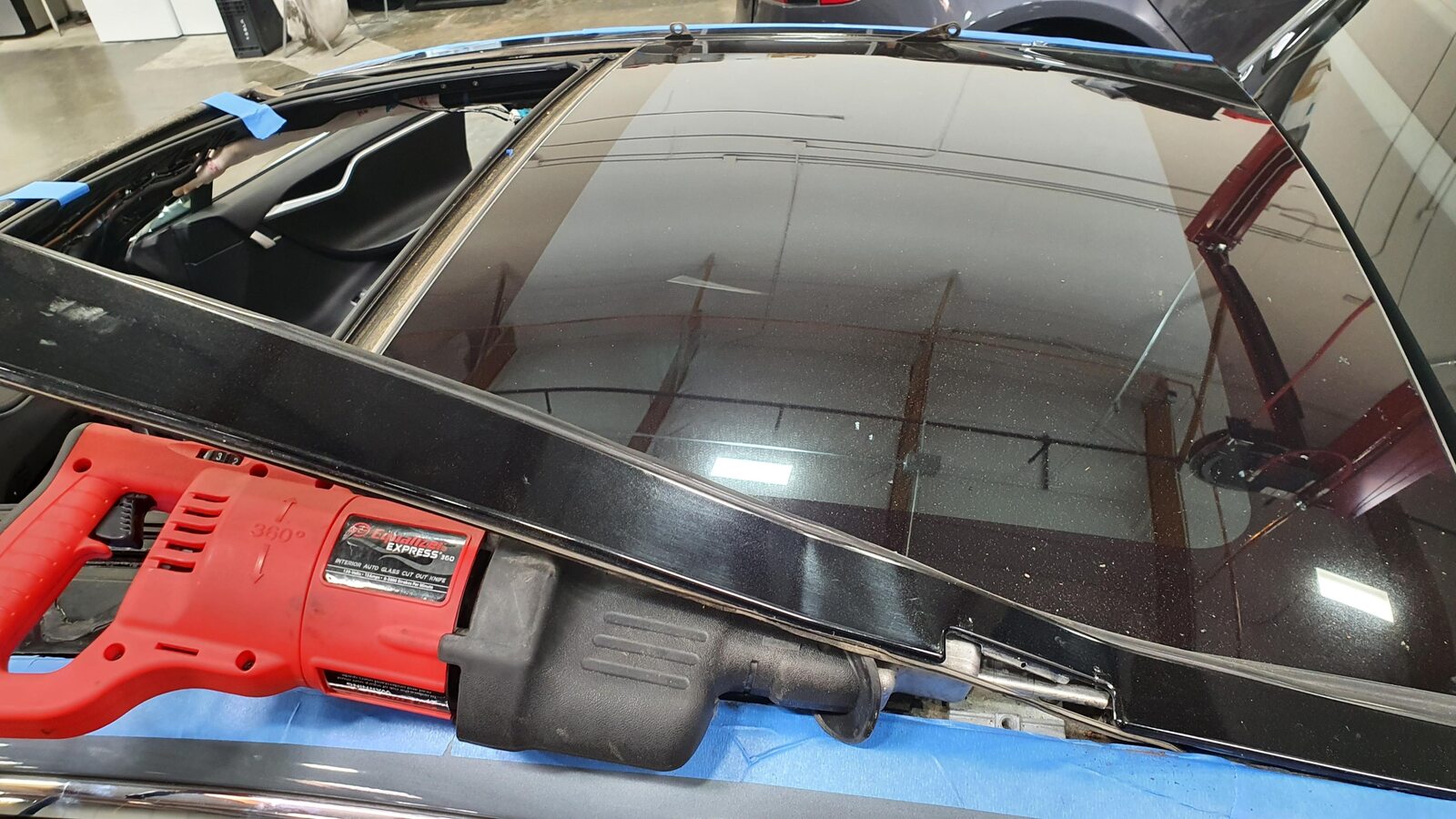

  21. Remove LH side applique
    Informational PurposesAn informational icon, calling your attention
    Note
    Using hydro blade tool and glass cleaner for lubrication cut through urethane to free 1.0 side applique, Ensure to clear seals and cut through urethane, Careful NOT to damage paint on roof rail as you cut

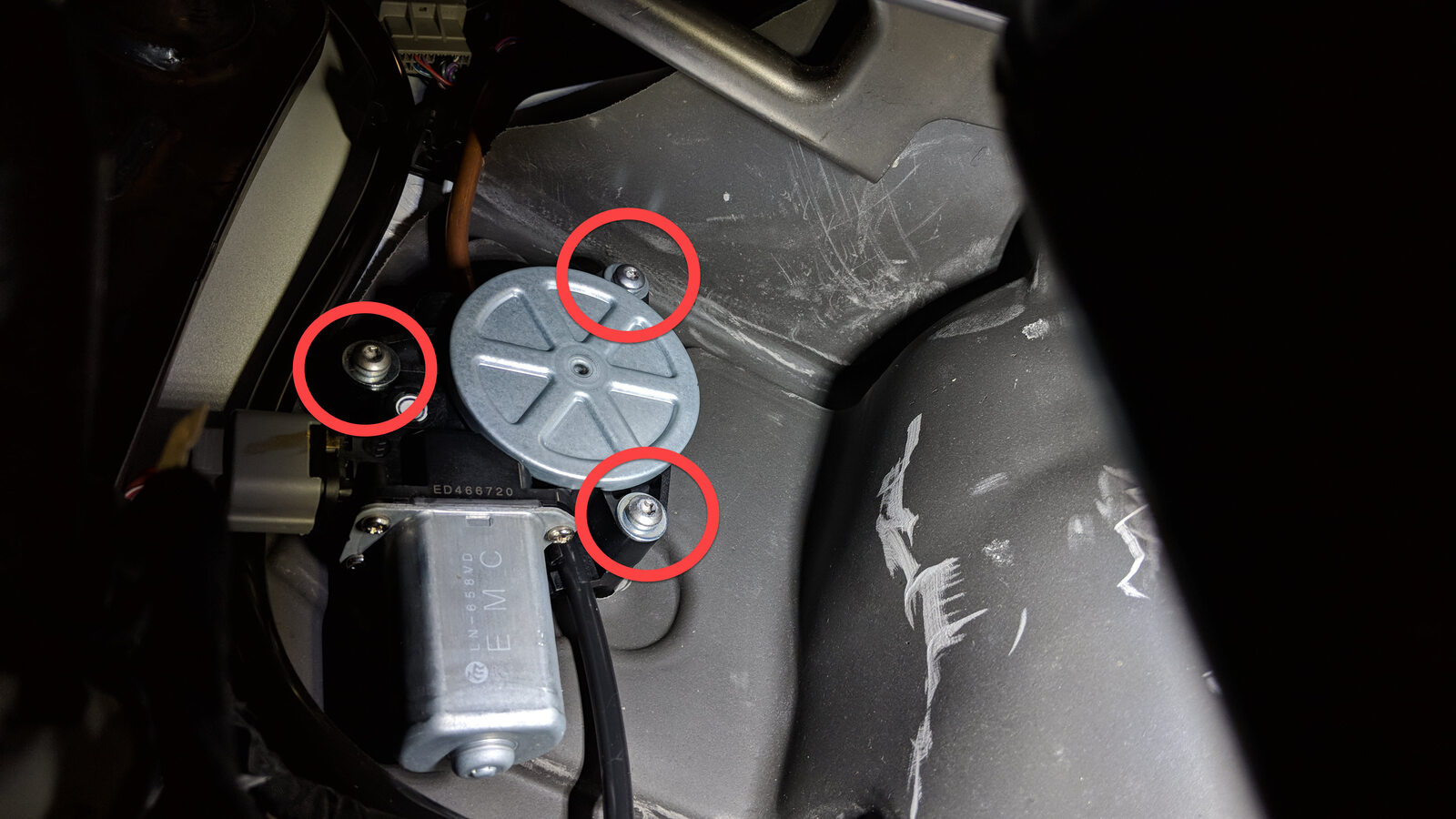

  22. Remove bolts securing LH roof motor
    Informational PurposesAn informational icon, calling your attention
    Note
    3x patch bolts, T25, 5 Nm, Discard after removal

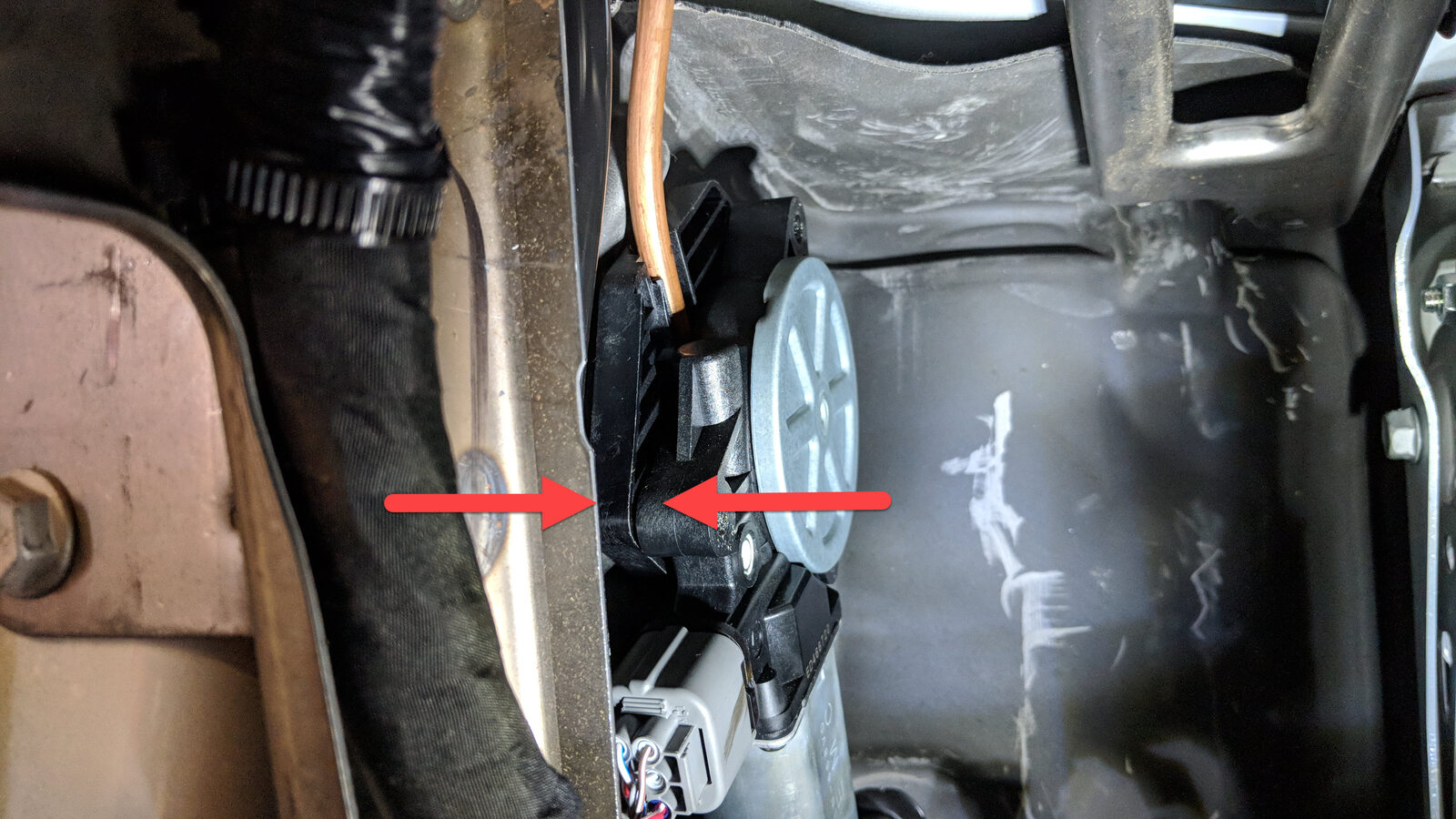

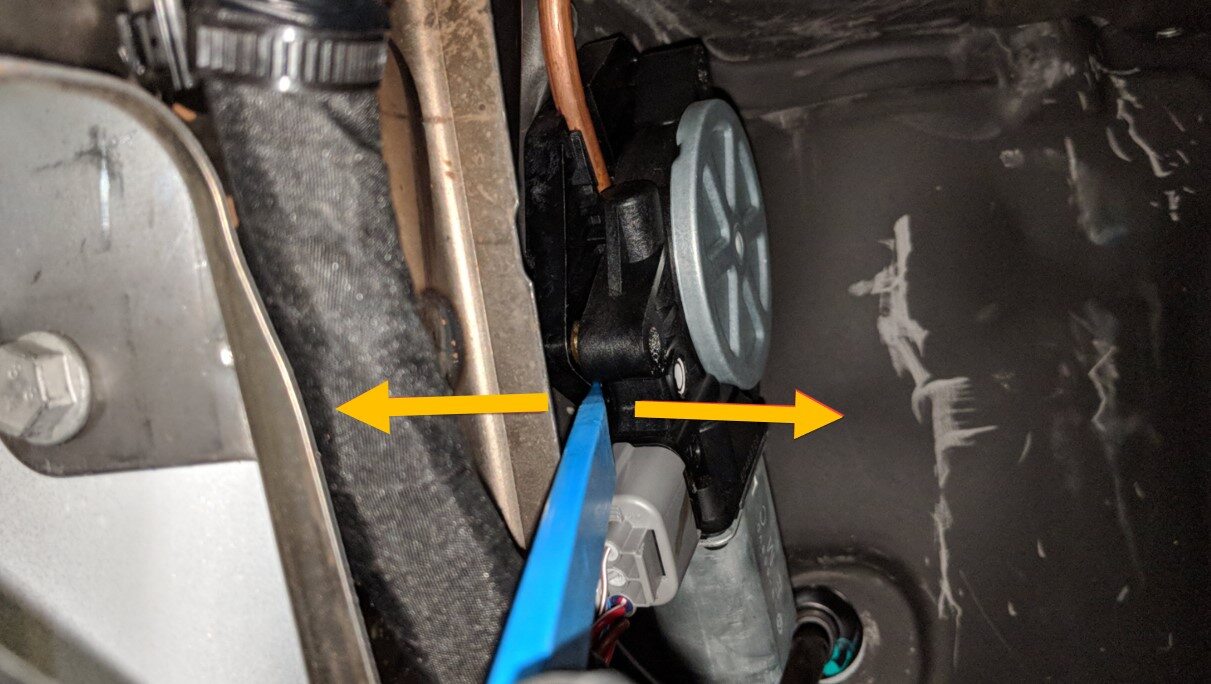

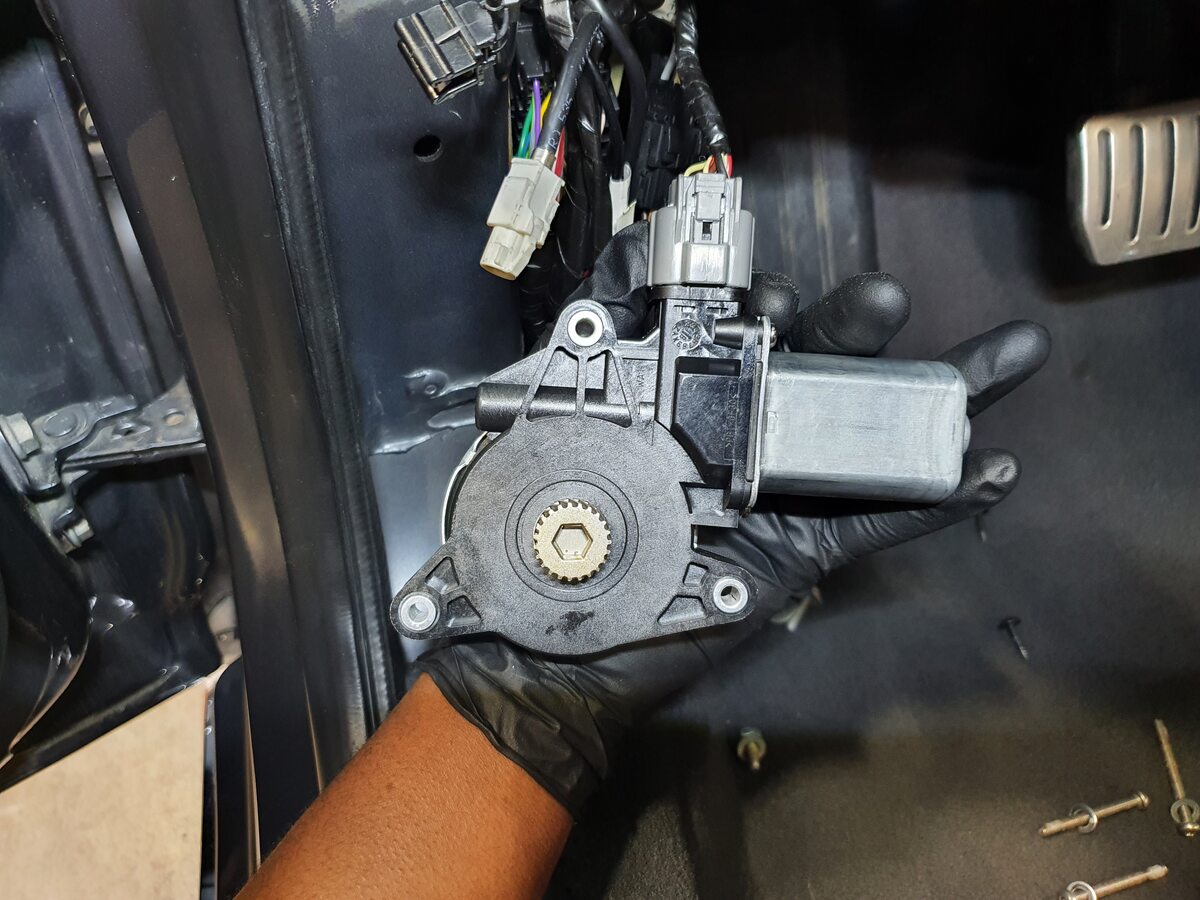

  23. Separate LH sunroof motor from motor block
    Informational PurposesAn informational icon, calling your attention
    Note
    Use plastic trim tool as needed

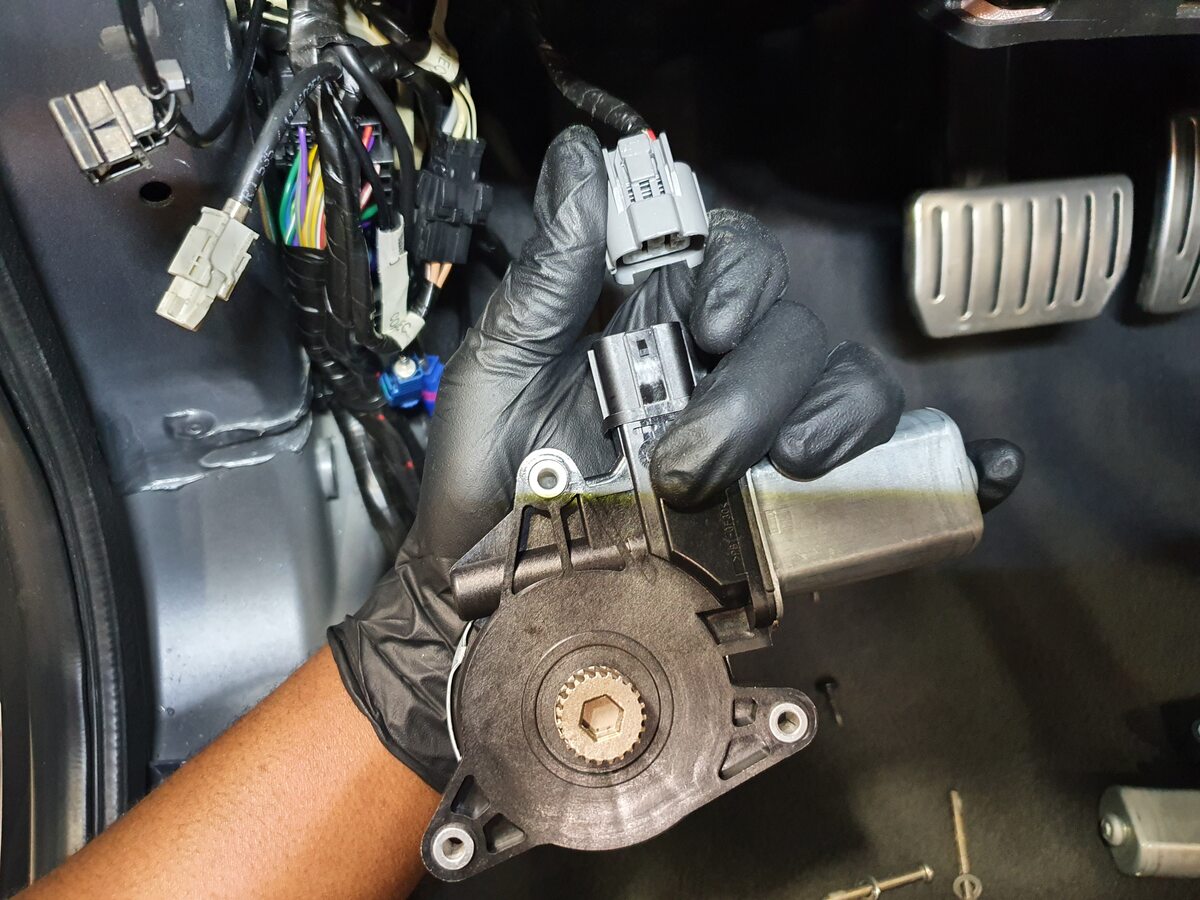

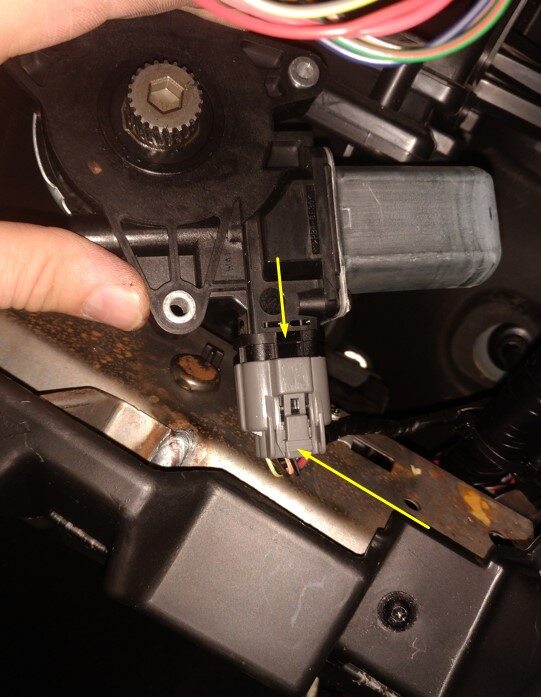

  24. Disconnect LH roof motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

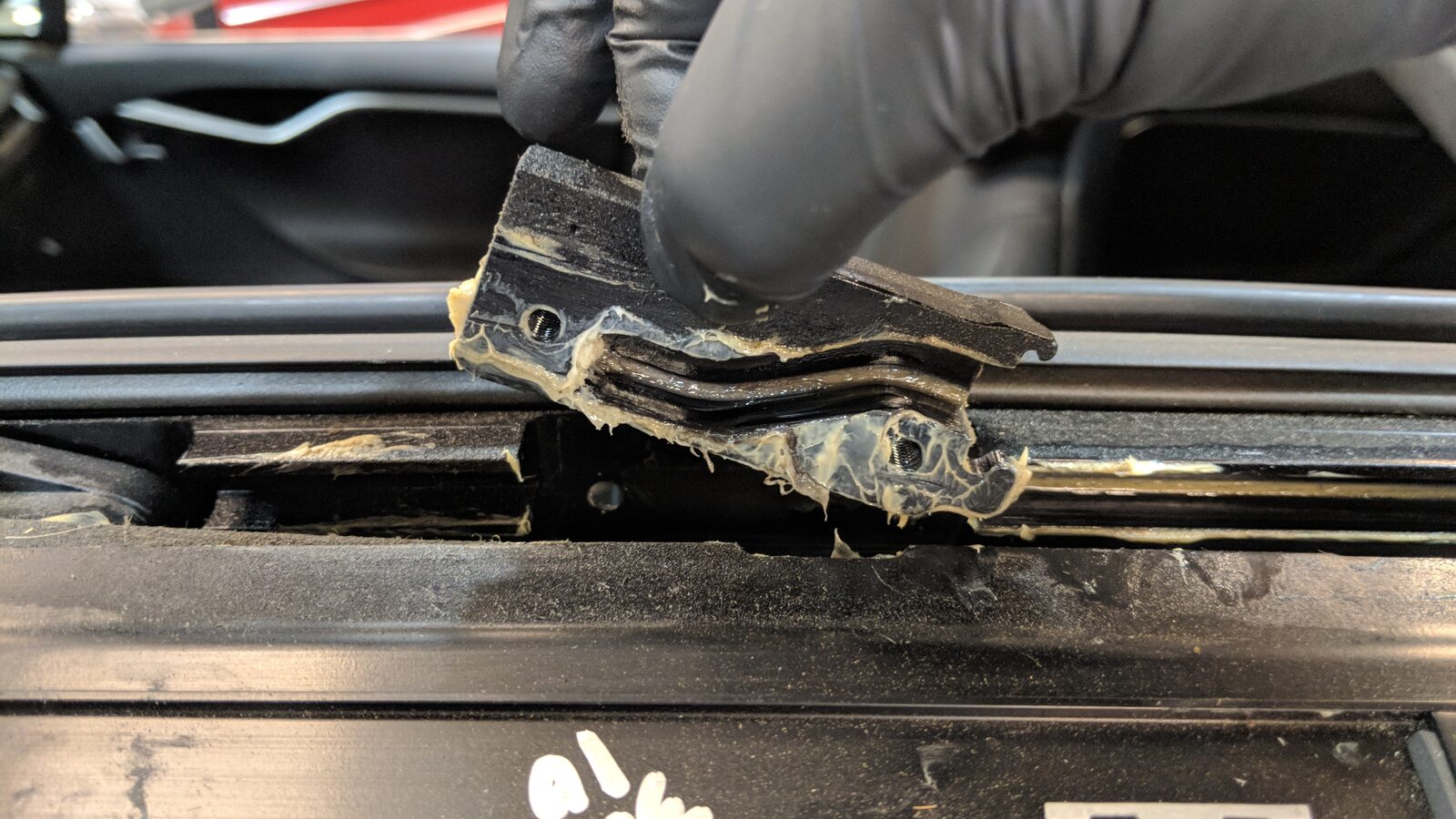

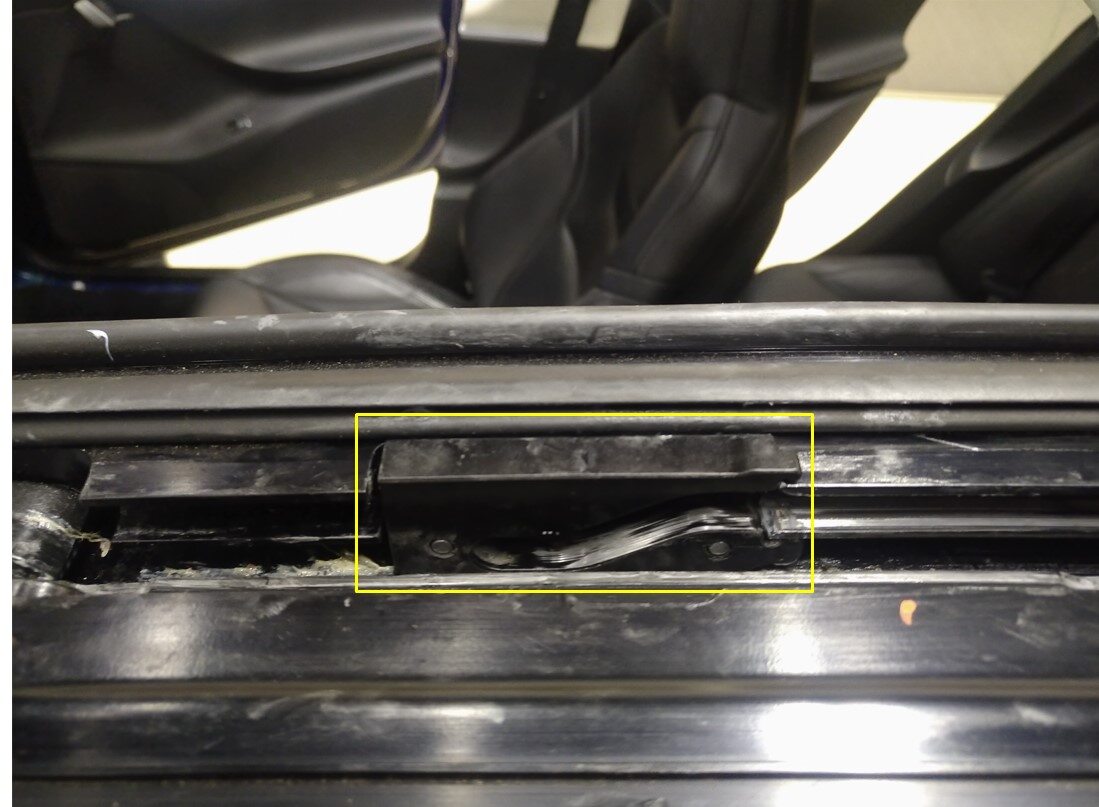

  25. Remove LH rear cam block
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws. T25, 5 Nm

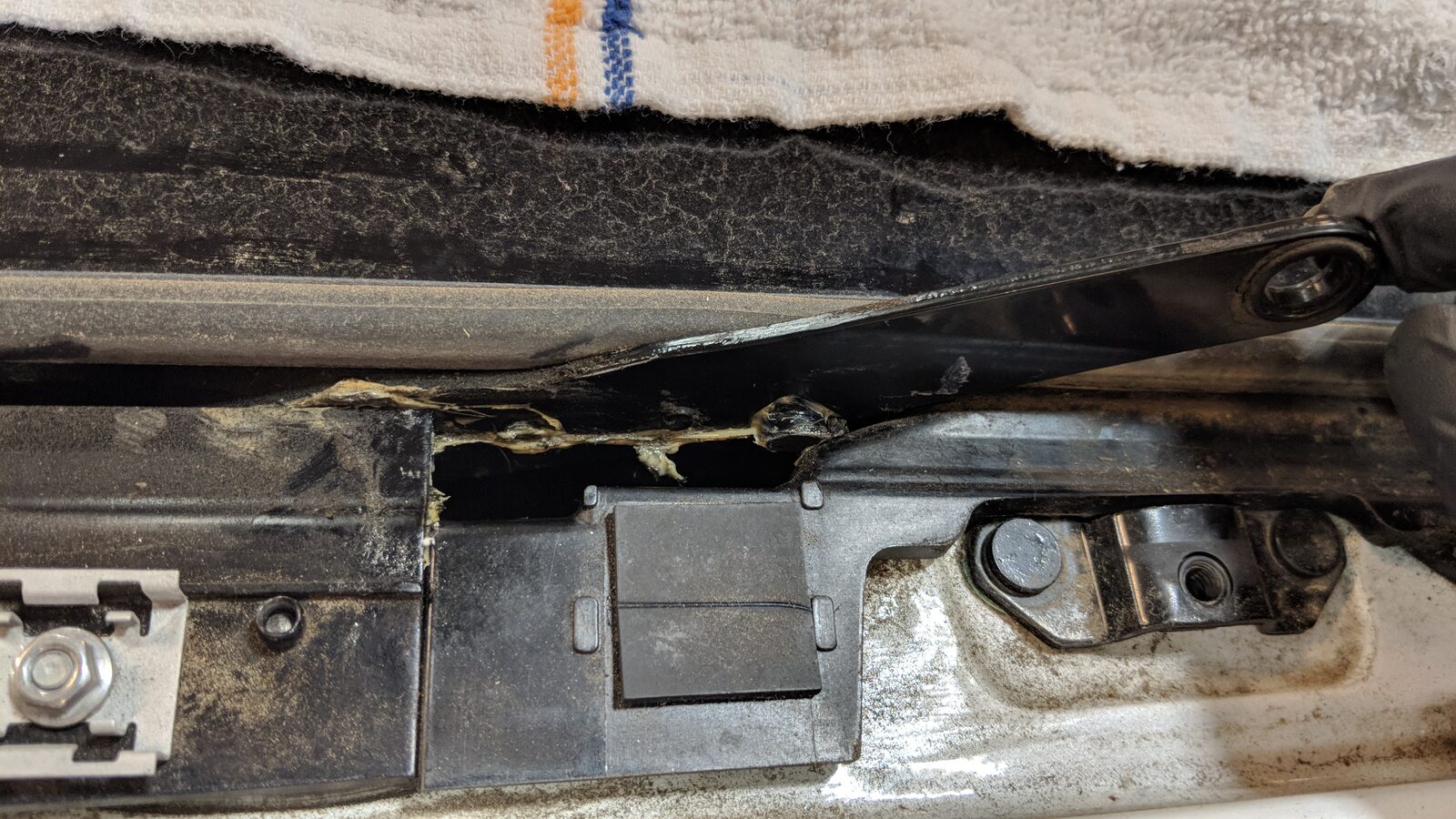

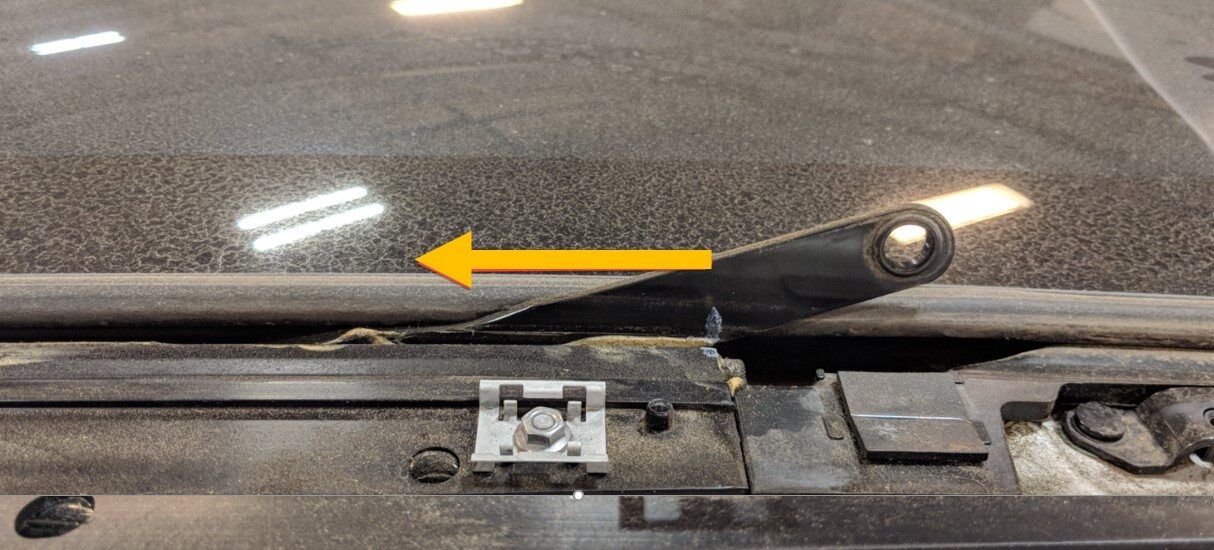

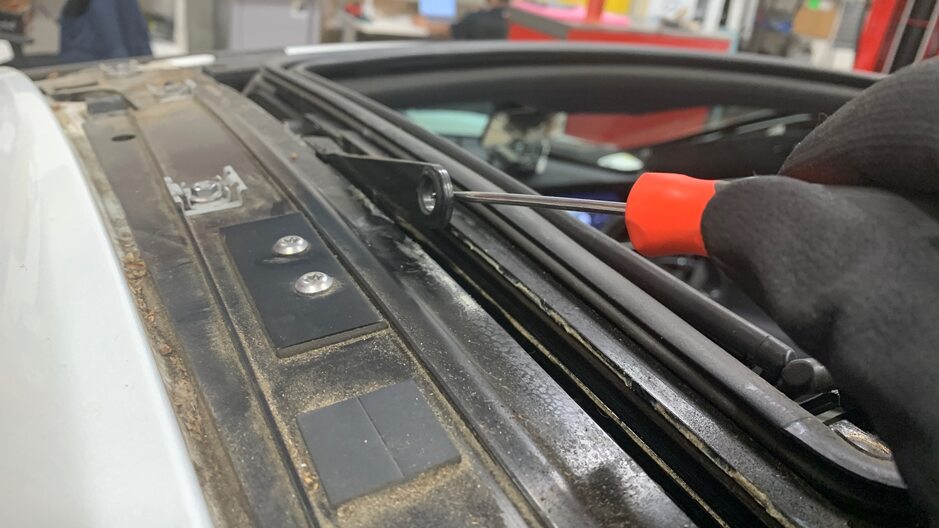

  26. Slide pano roof rear LH link forward to cam block opening
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a long bit to help move link
  27. Lift up rear LH link and remove guide shoe
  28. Slide pano roof rear LH link back past frame channel

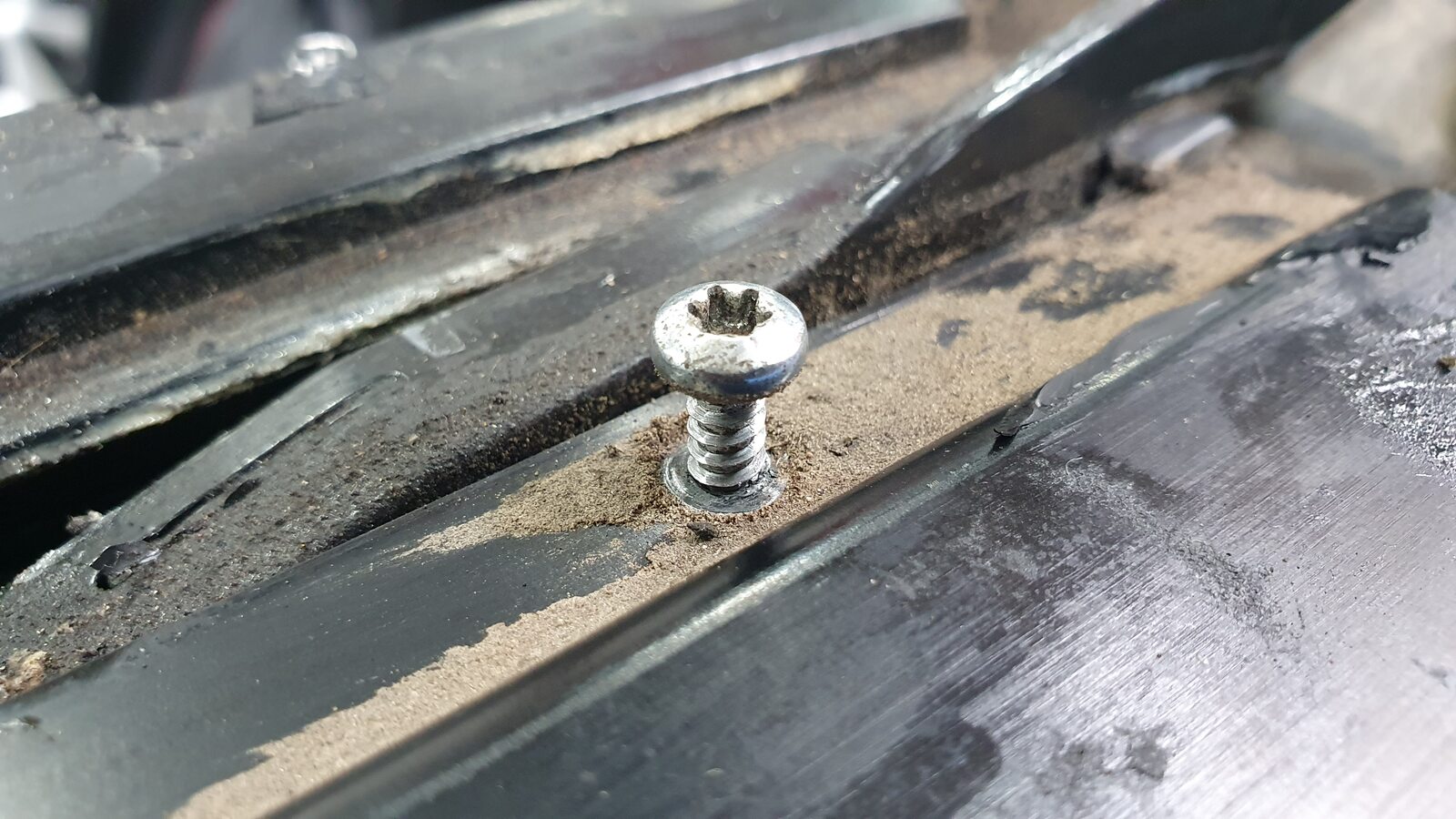

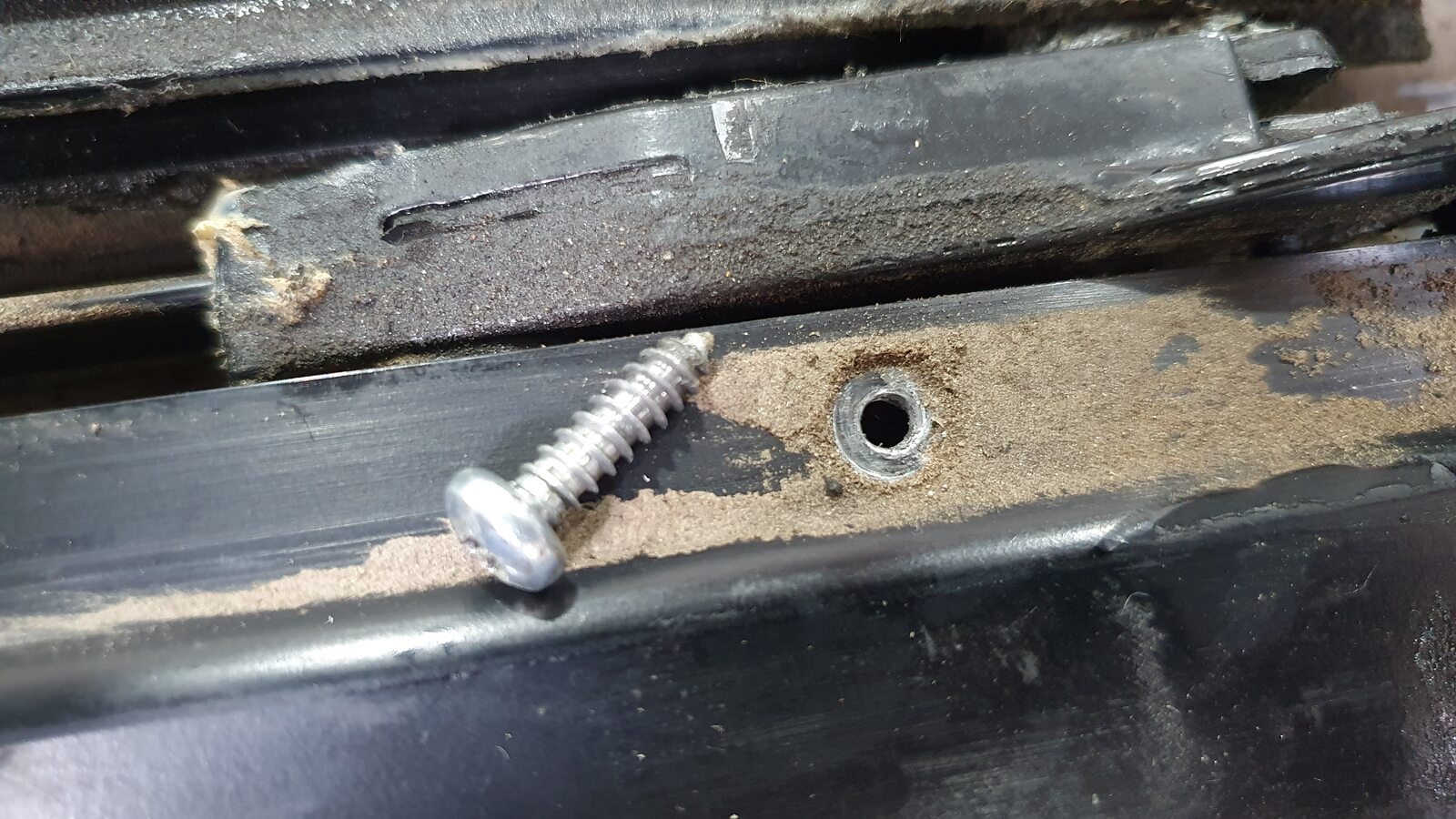

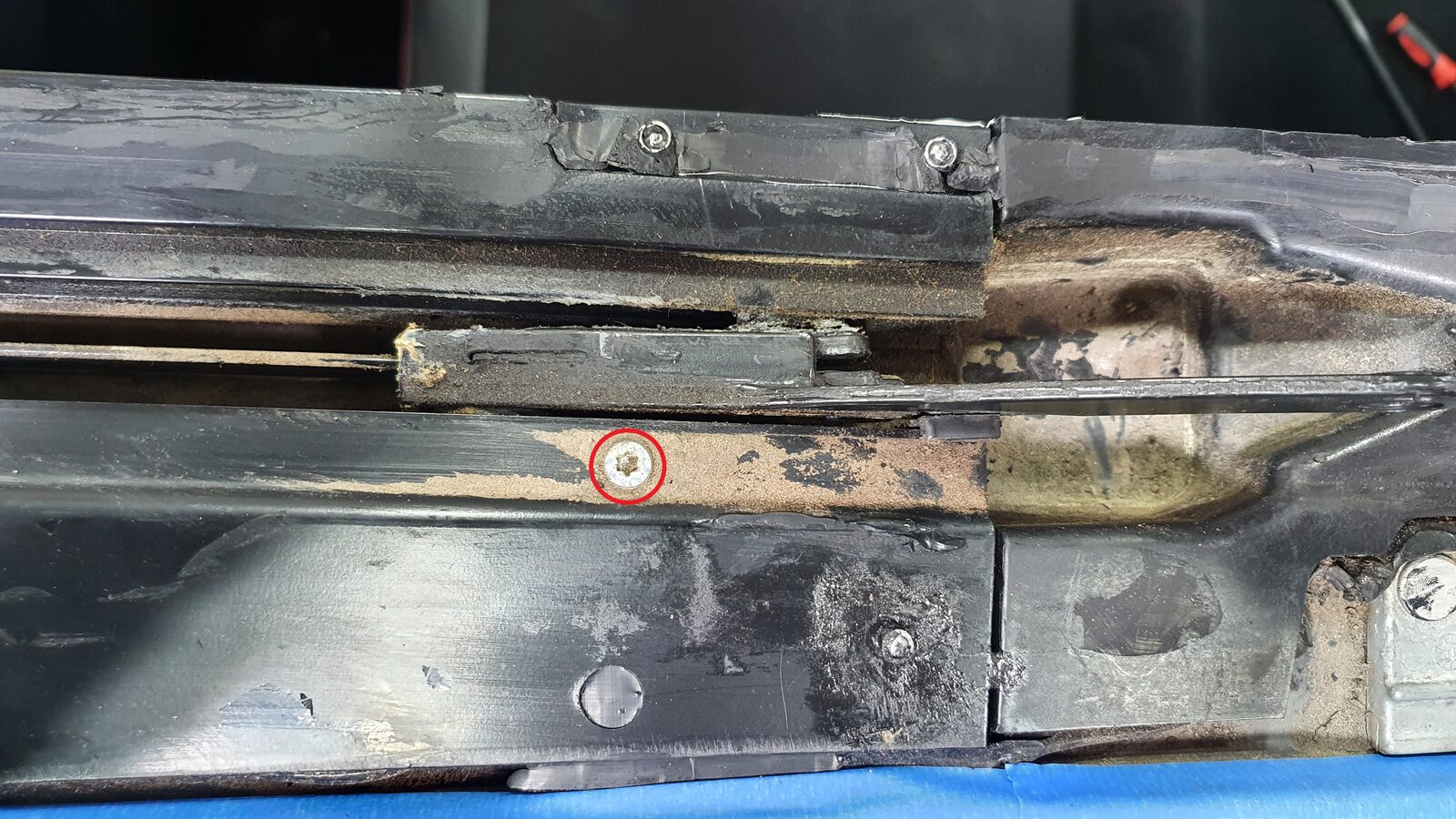

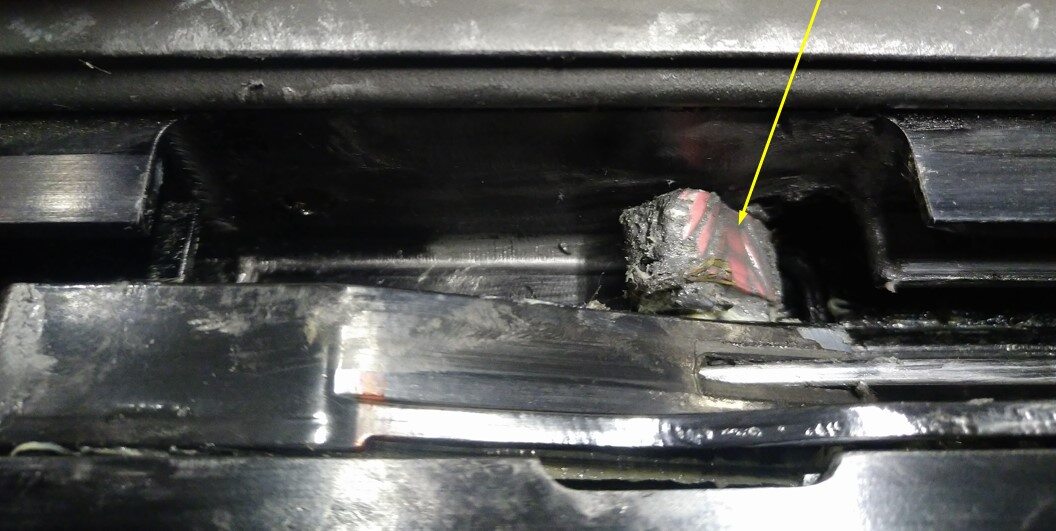

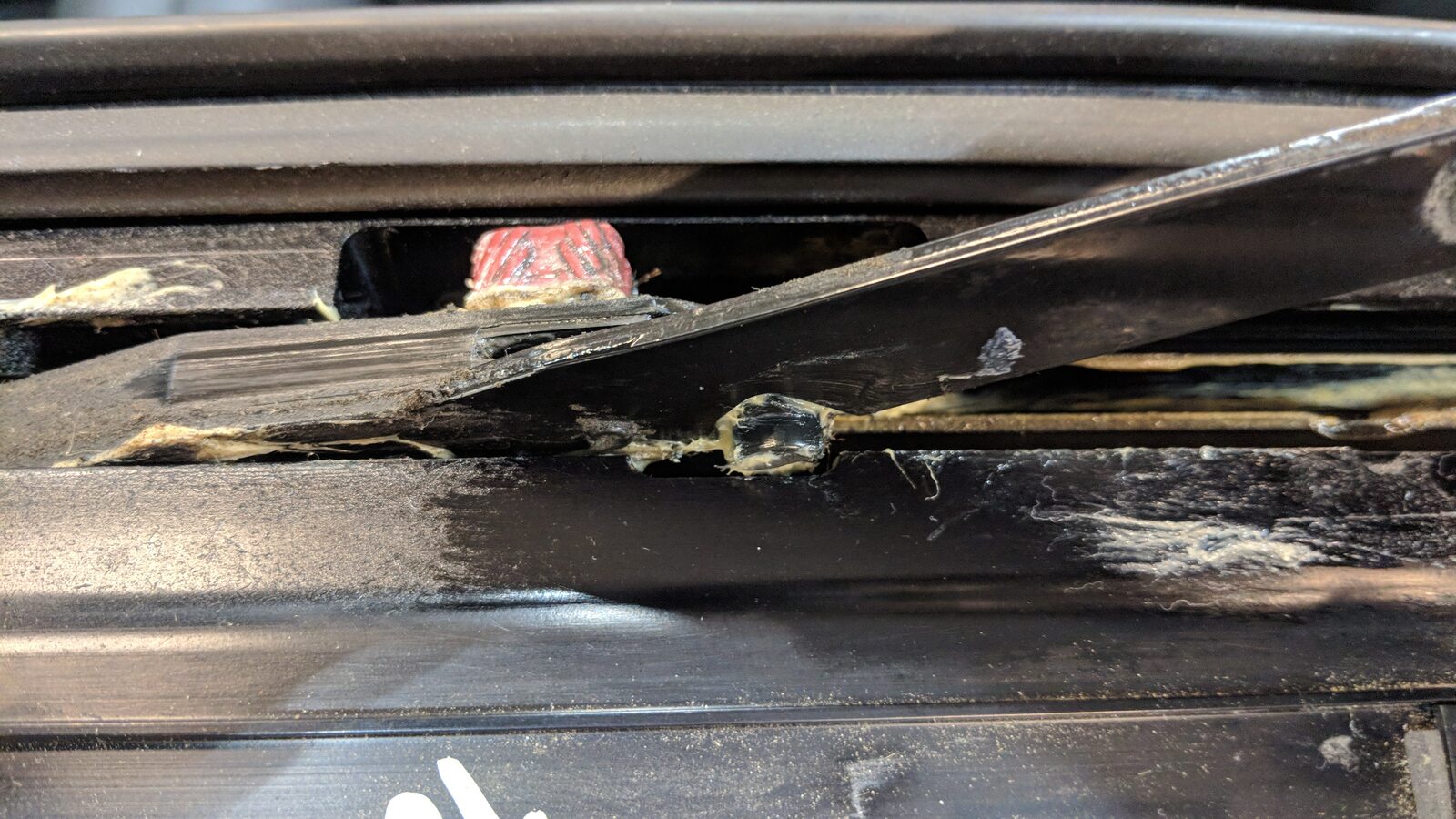

  29. Remove LH rear stop screw
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 6.5 Nm

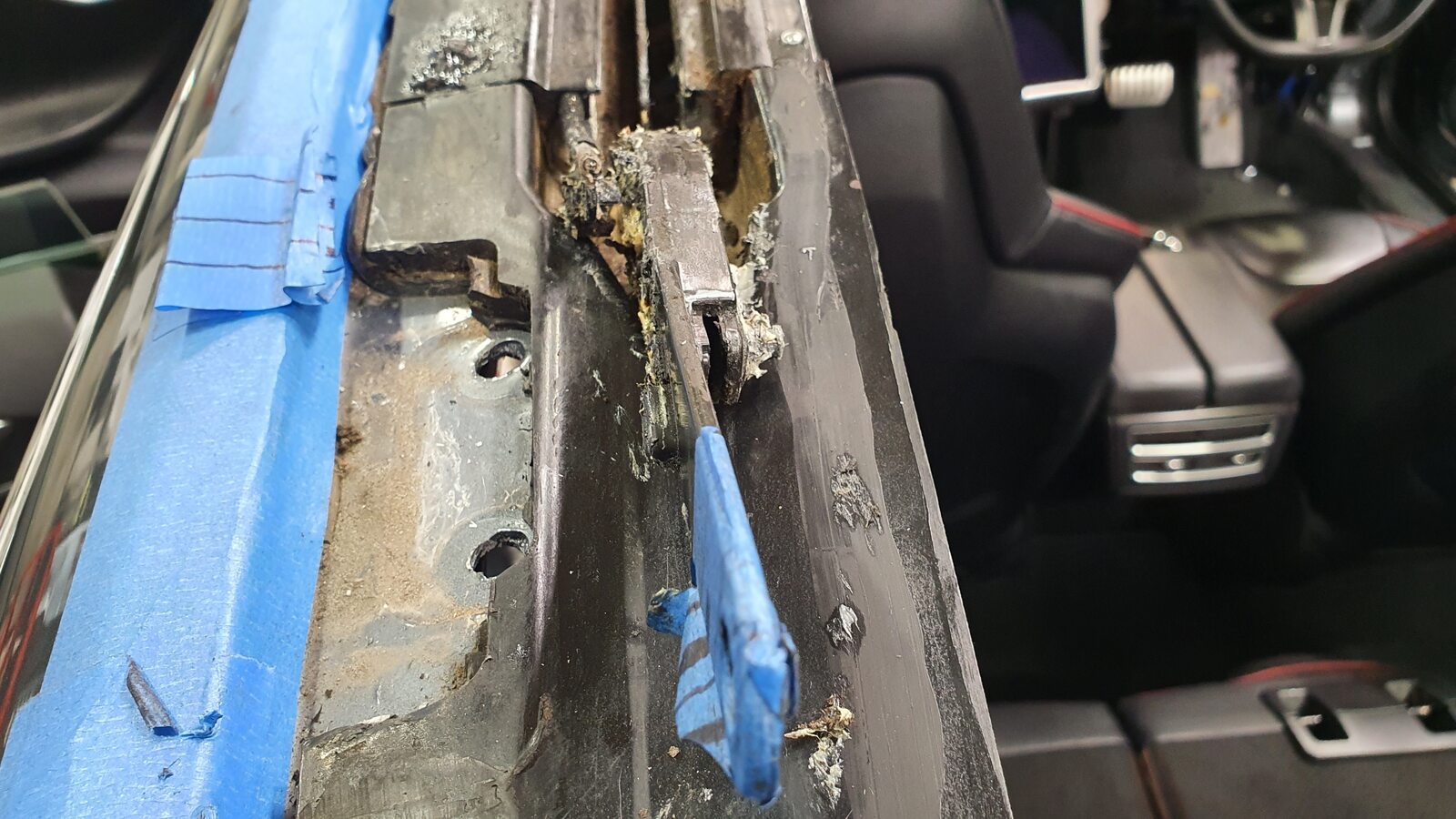

  30. Remove LH rear link
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull link rearward, You may need to use a bigger hook and pull more aggressively

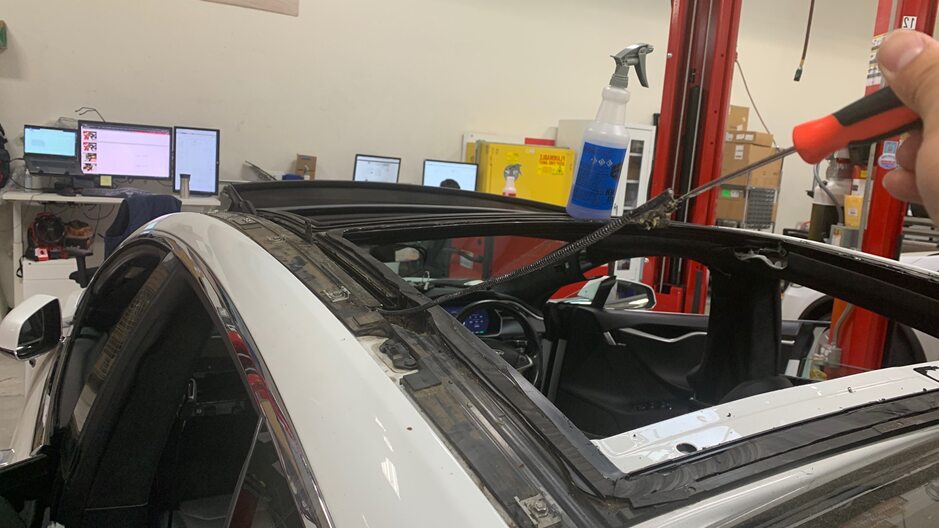

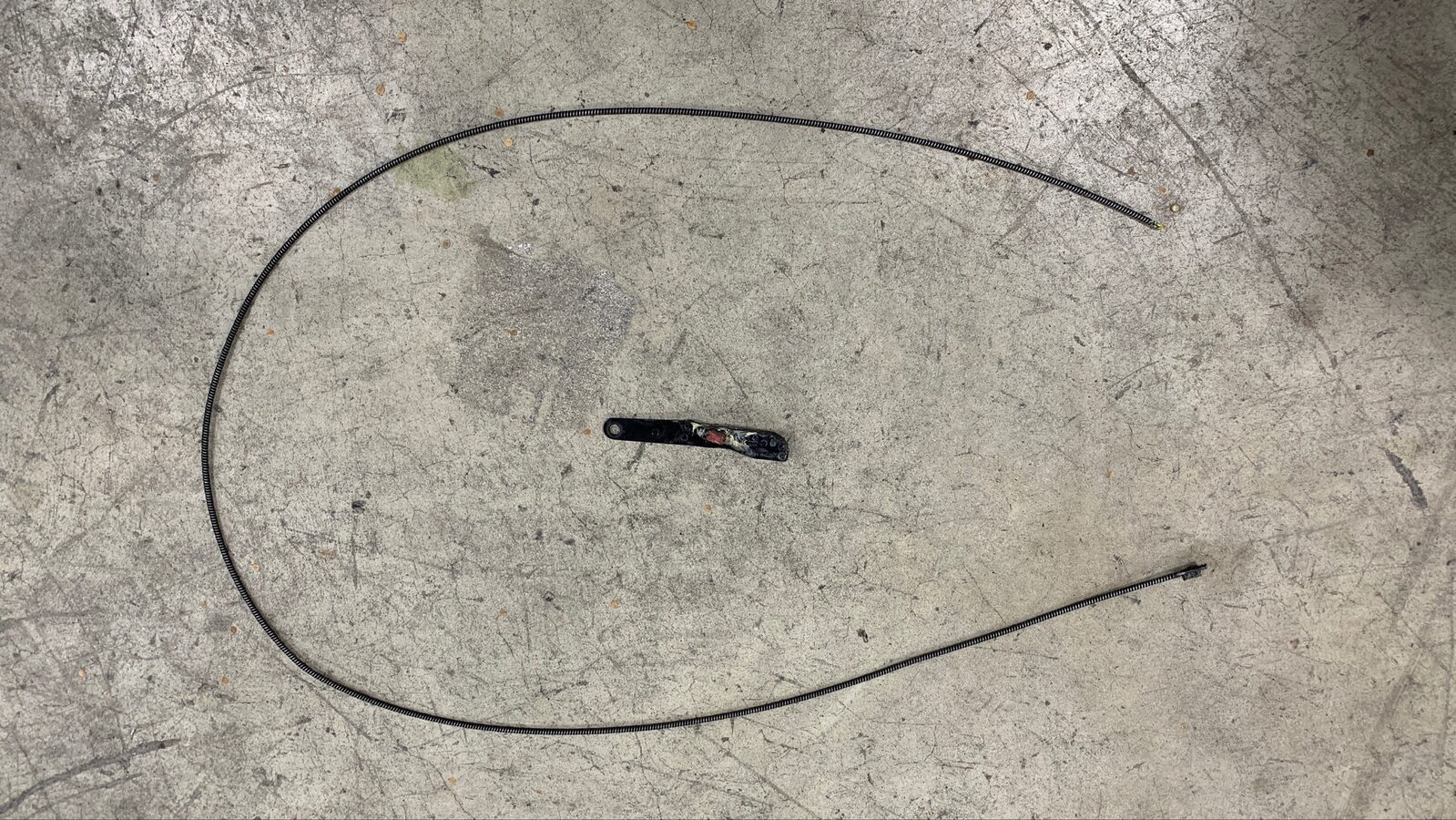

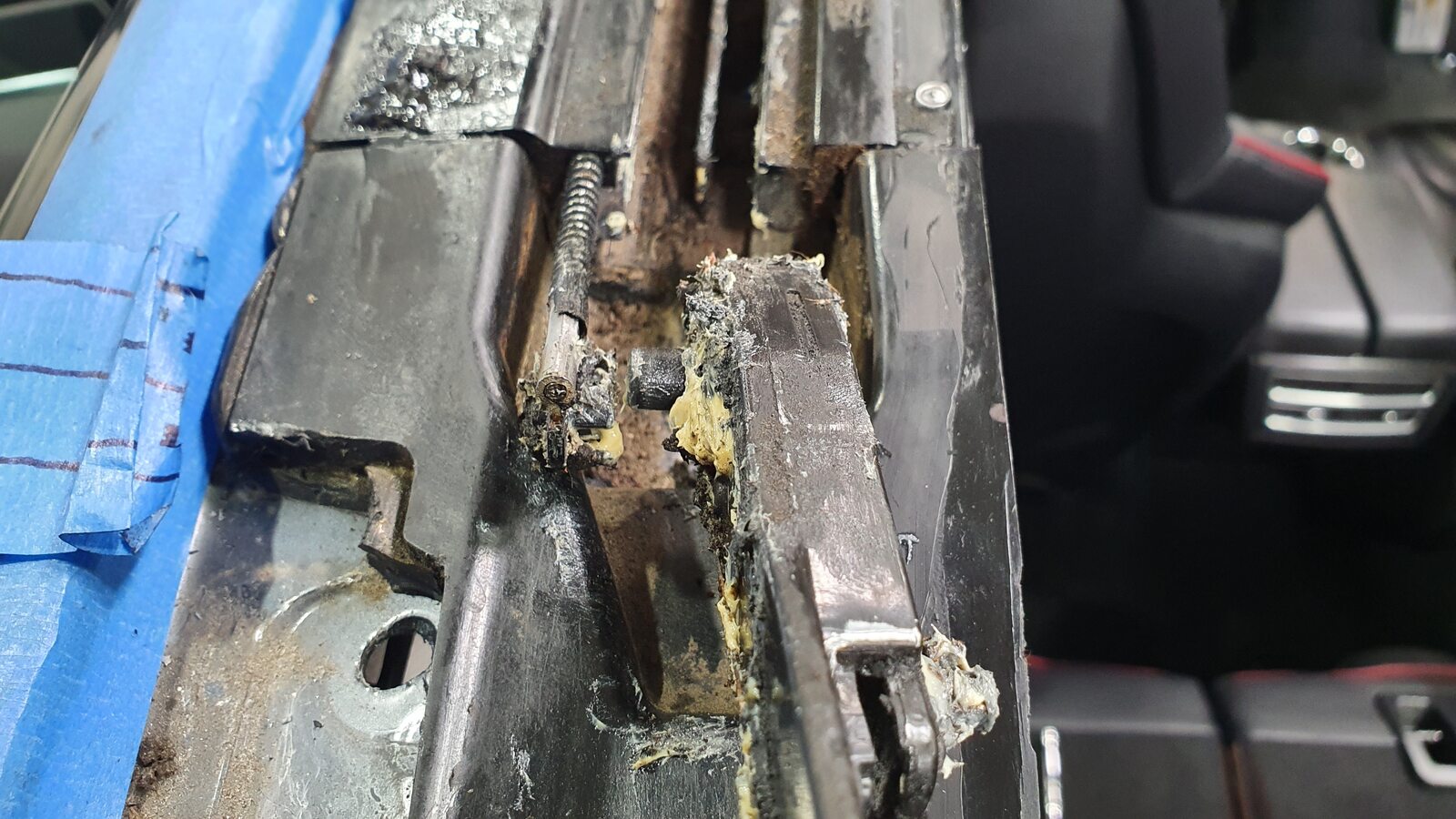

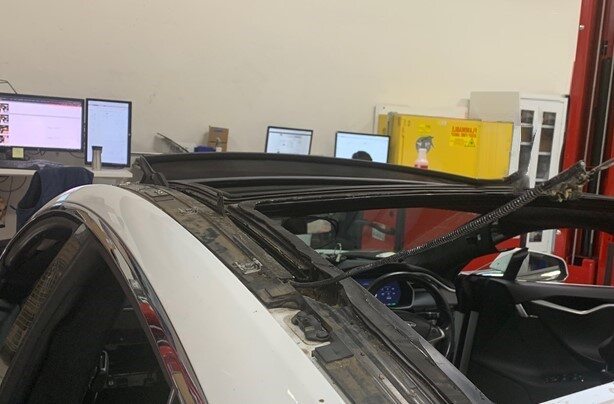

  31. Remove LH panoramic roof drive cable
    Informational PurposesAn informational icon, calling your attention
    Note
    Cable may get stuck where stop screw was installed, Apply good amount of force to remove

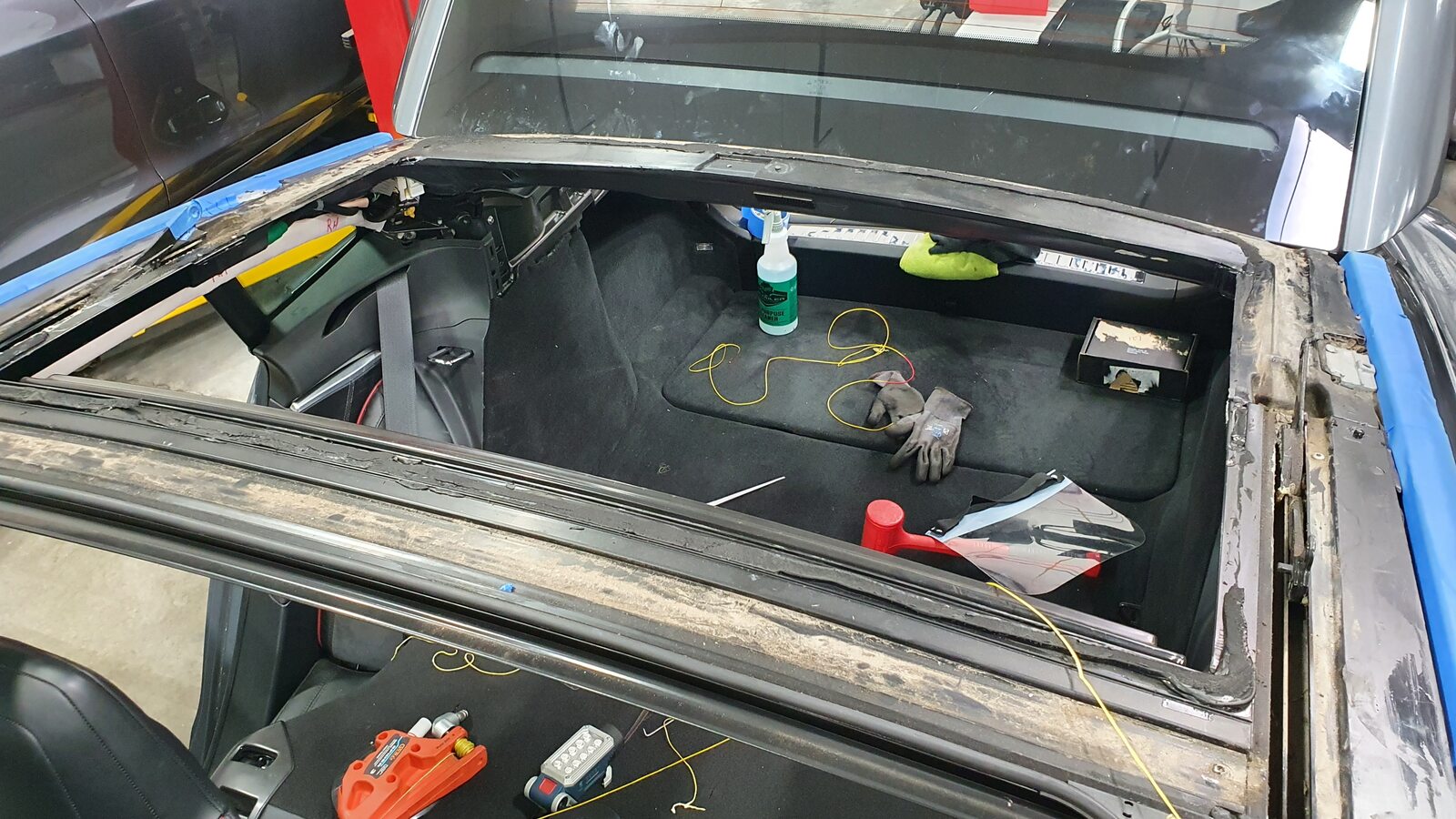

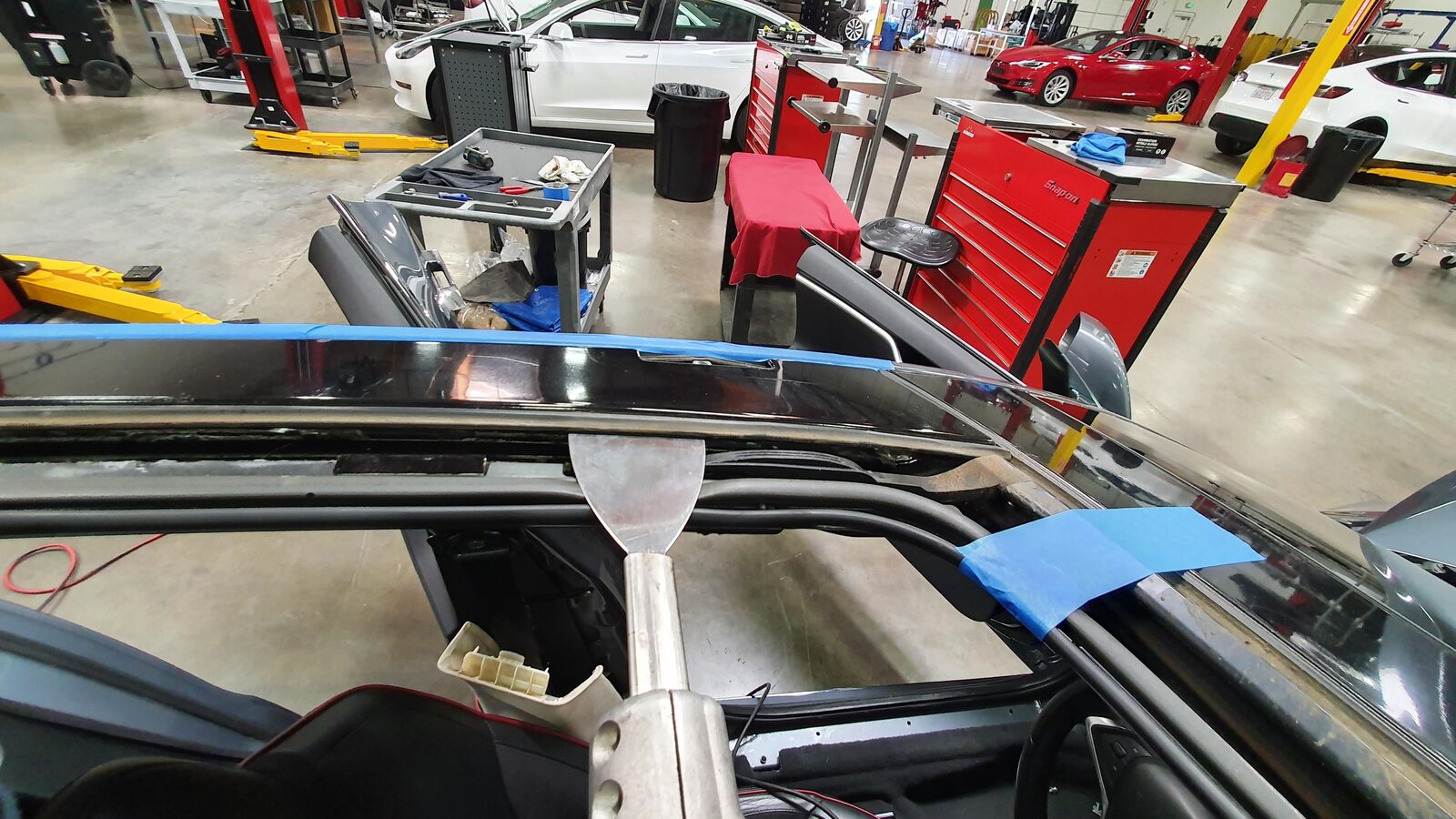

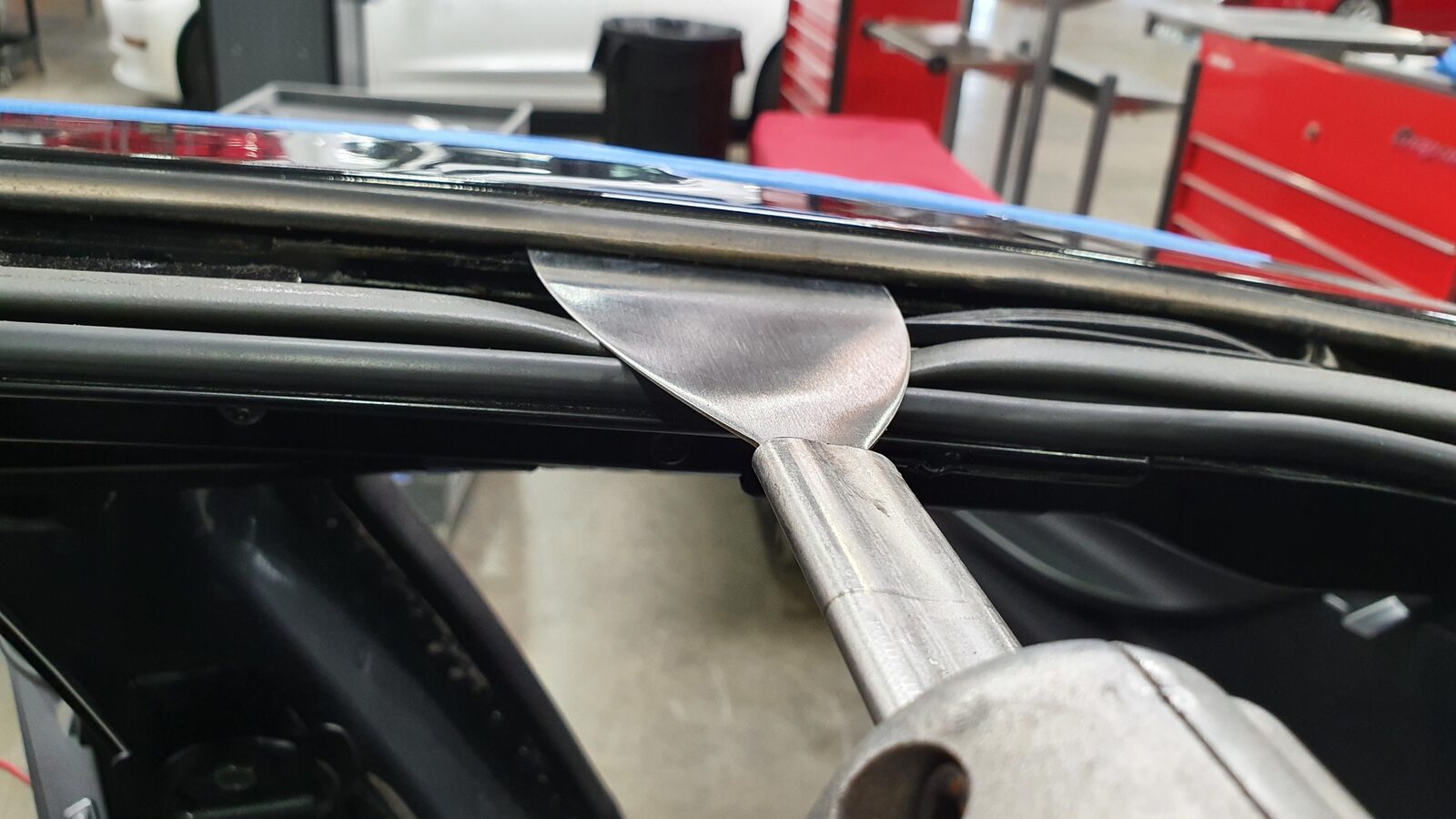

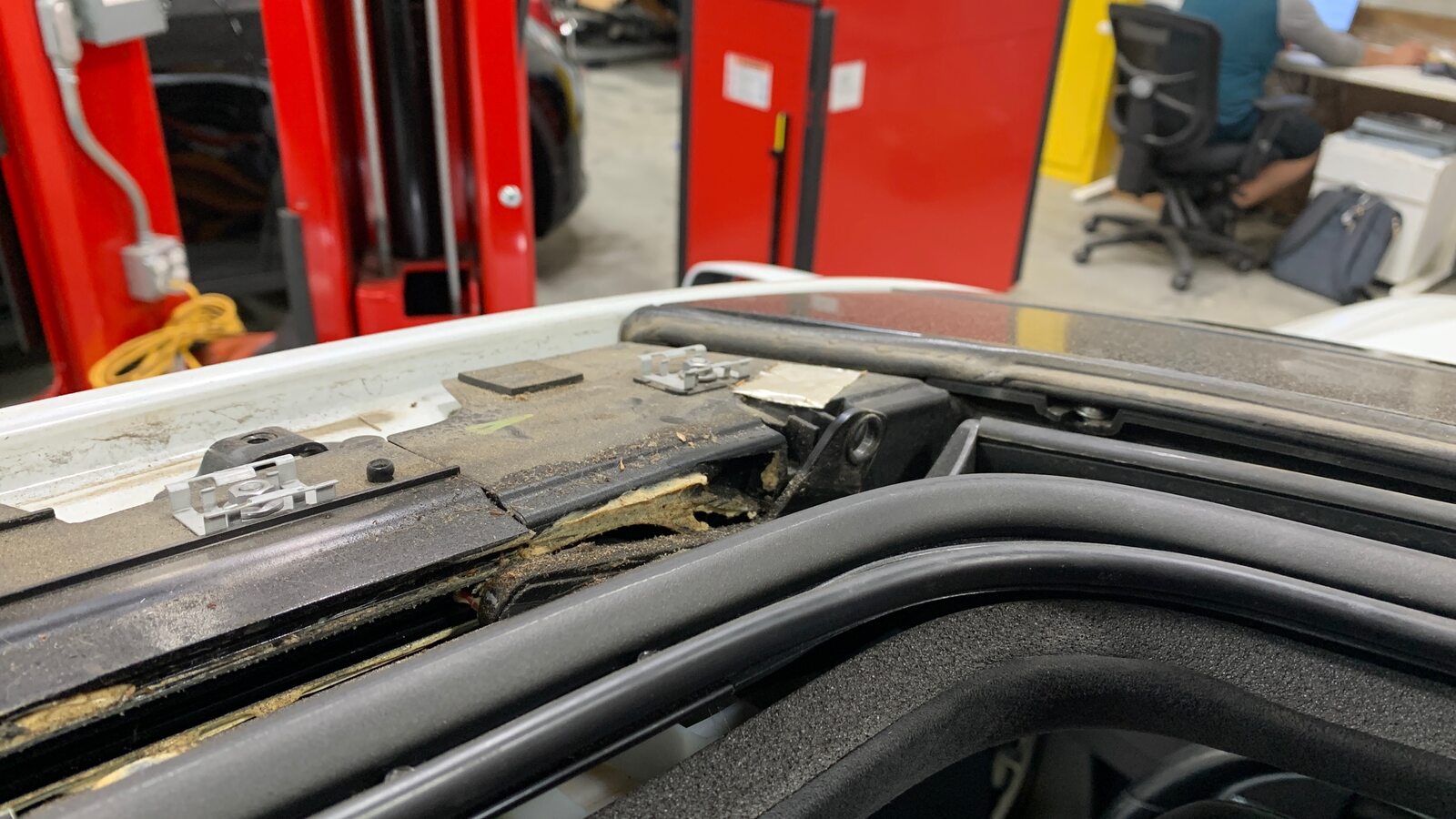

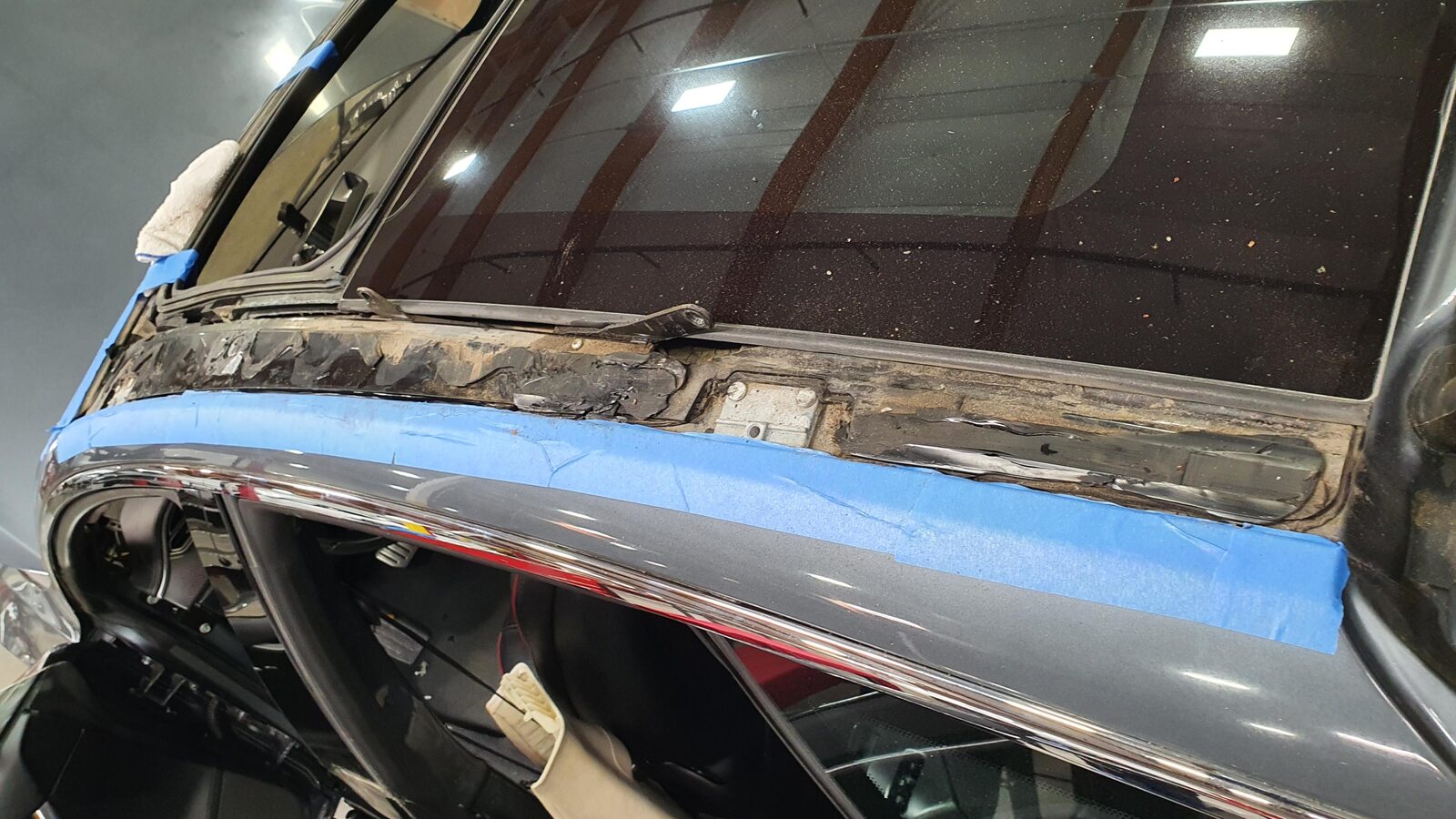

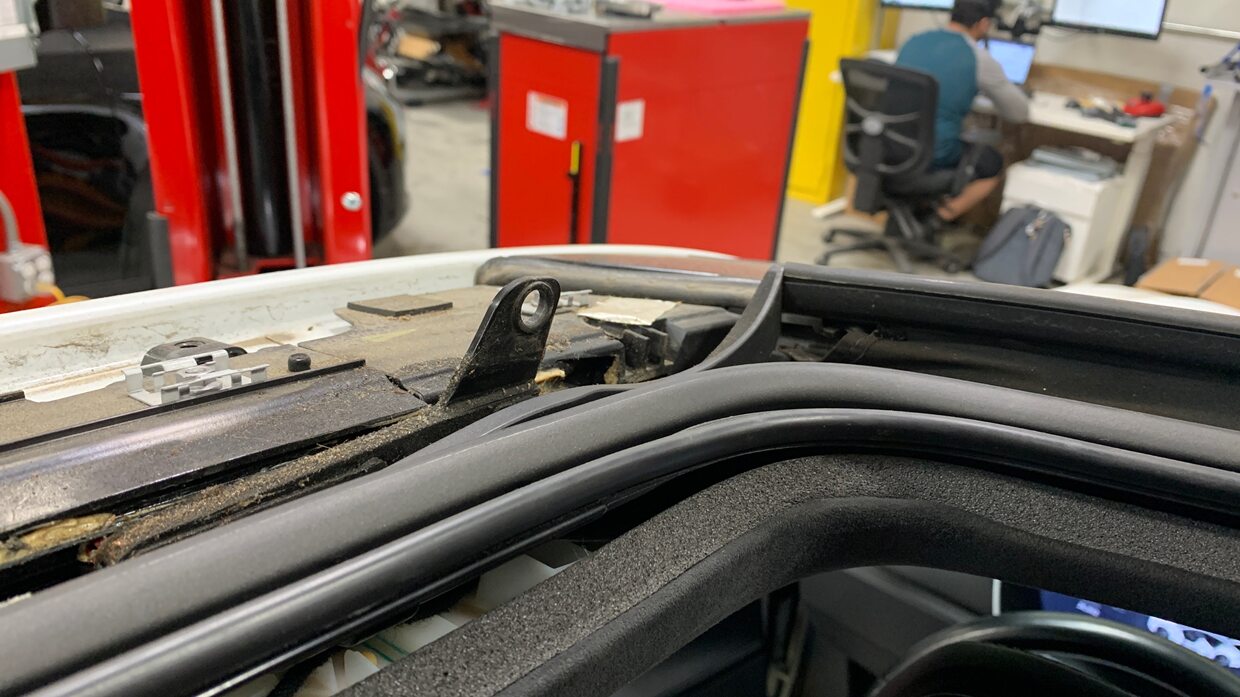

  32. Remove old urethane from body
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure residual urethane is 1 mm or less in thickness

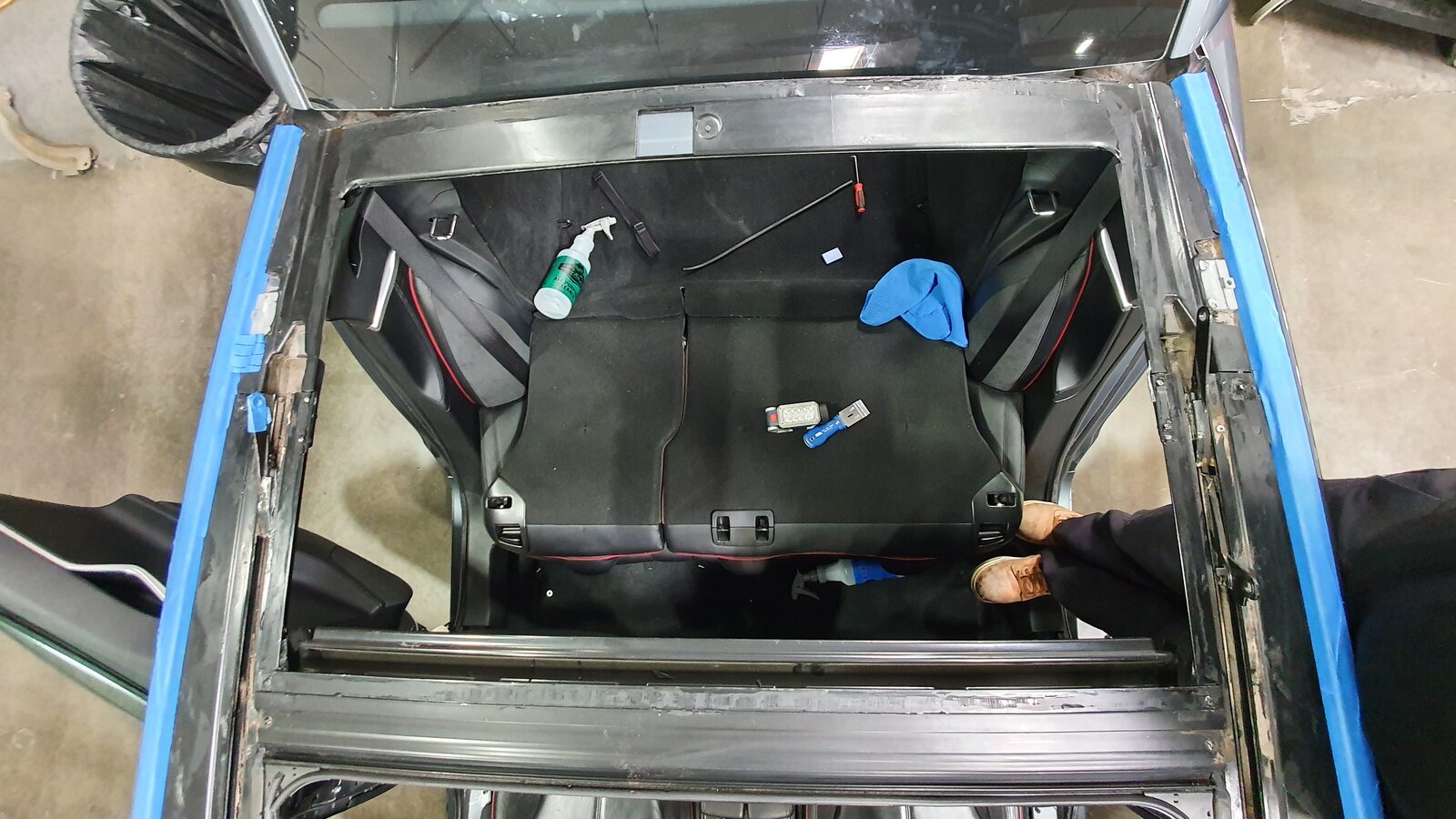

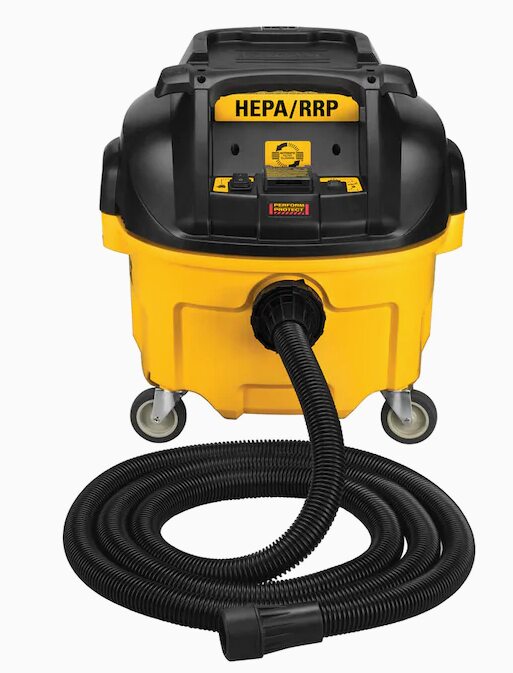

  33. Vacuum debris from body and headliner
    Informational PurposesAn informational icon, calling your attention
    Note
    Clean up roof area of vehicle to prepare for installation of new rear fixed glass

Installation

Examine all grease on the cable for contamination such as dirt, sand, or debris. If any contamination is present, remove all grease and apply new grease.
  1. Install LH panoramic roof drive cable
    Informational PurposesAn informational icon, calling your attention
    Note
    Leave enough slack to install link
  2. Insert rear LH link into drive cable
    Informational PurposesAn informational icon, calling your attention
    Note
    Both rear link and drive cable should fix like a puzzle, Careful not to damage fixed glass or side rail, Apply lubrication to ease installation
  3. Gently tap on rear LH link to move assembly into frame channels
  4. Slide pano roof rear LH link forward to cam block opening
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a long bit to help move link
  5. Lift up rear LH link and install guide shoe
  6. Slide pano roof rear LH link back towards rear opening
    Informational PurposesAn informational icon, calling your attention
    Note
    Don't slide link past rear stop screw
  7. Install LH rear cam block
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws. T25, 5 Nm
  8. Install LH rear stop screw
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 6.5 Nm

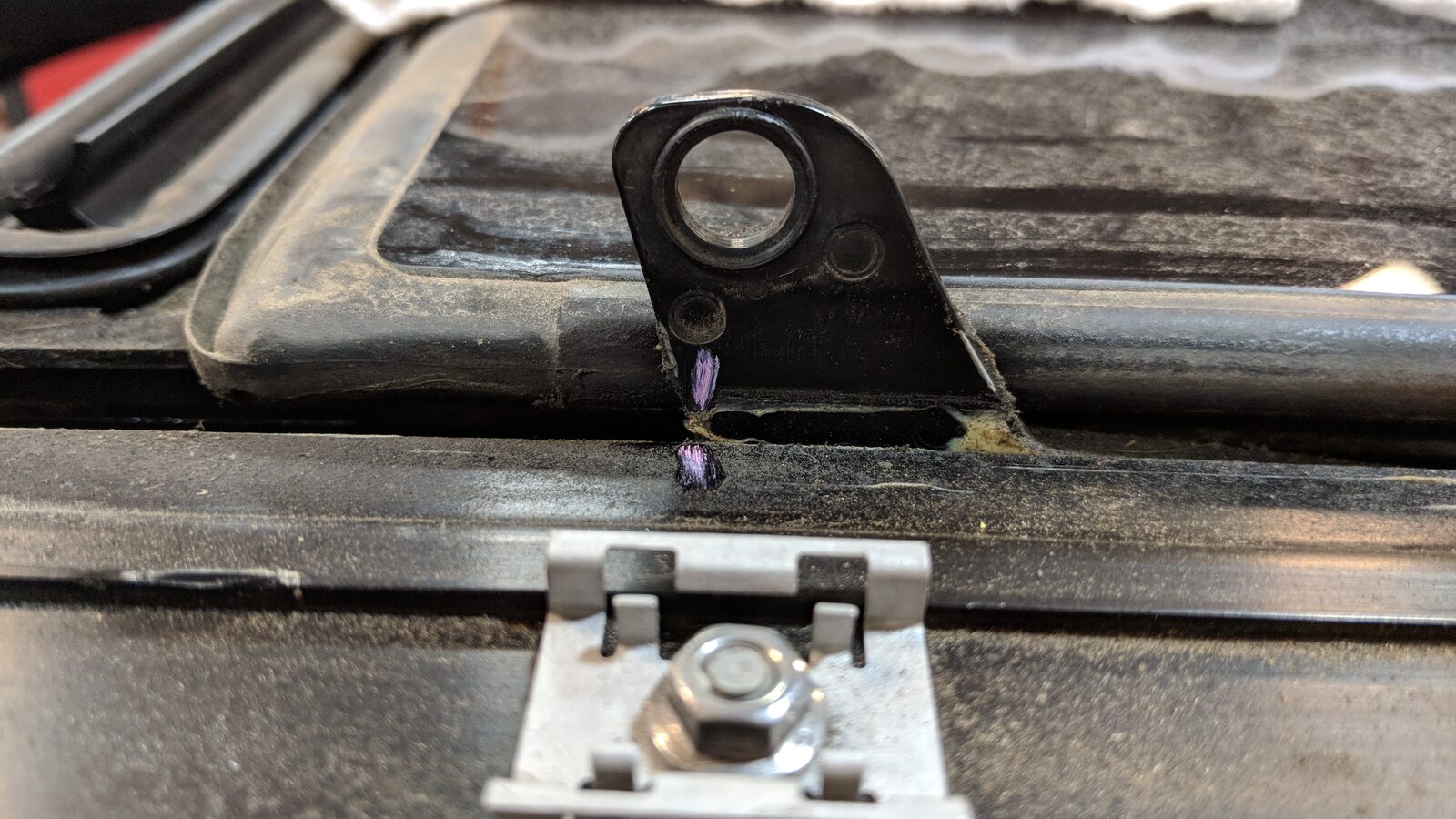

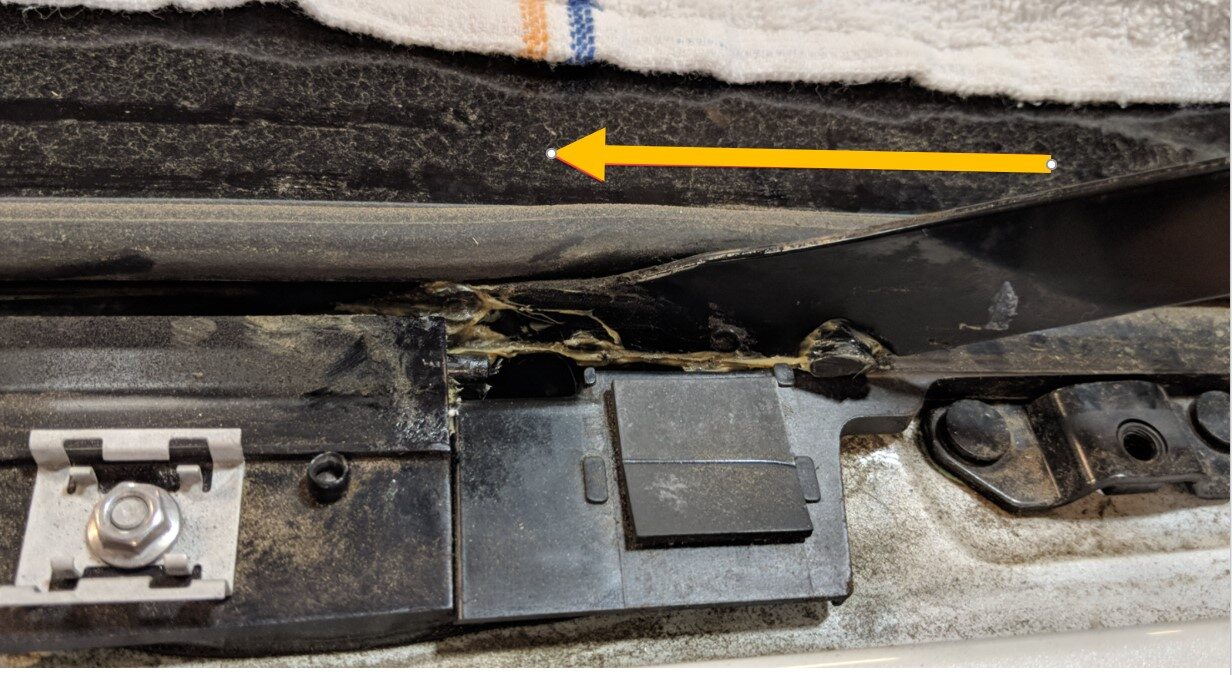

  9. Slide pano roof front LH link back
    Informational PurposesAn informational icon, calling your attention
    Note

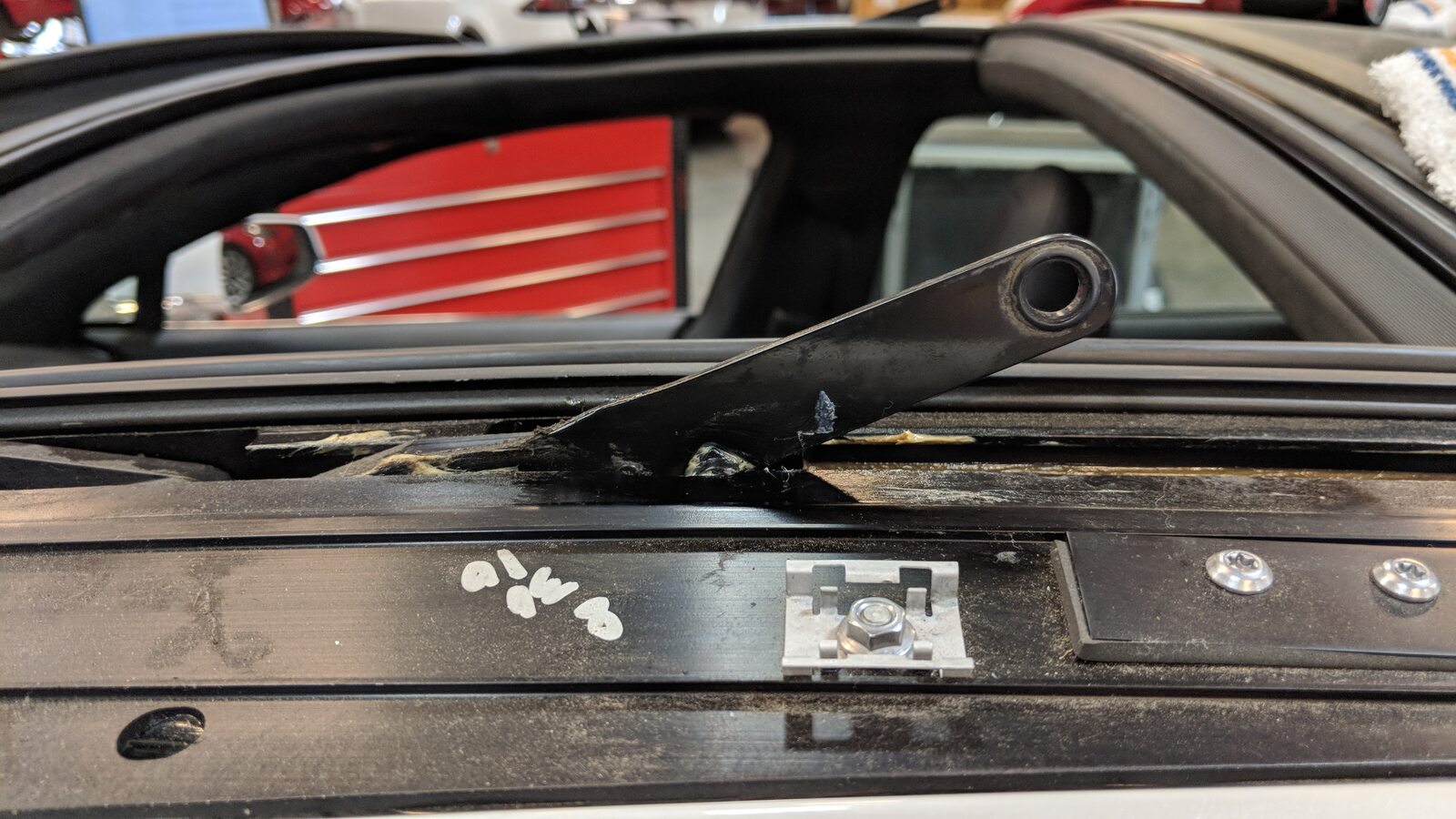

    Line up paint marks at link and pano frame
  10. Install LH roof motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  11. Position LH sunroof motor onto motor block
  12. Install bolts securing LH roof motor
    Informational PurposesAn informational icon, calling your attention
    Note
    3x patch bolts, T25, 5 Nm, Install new patch bolts

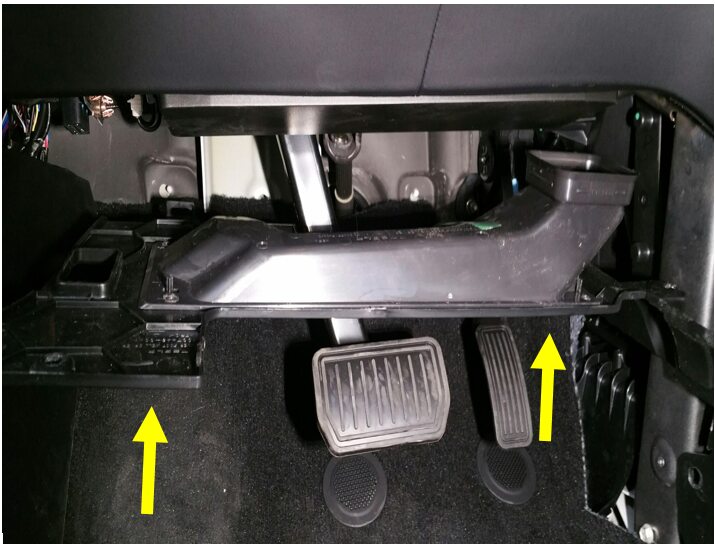

  13. Install amp/tuner bracket assembly back into IP
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure tab is above IP otherwise there will be a large gap near bulkhead
  14. Install bolts securing tuner bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    3x bolts, 10mm, 6 Nm
  15. Reconnect tuner connectors and secure edge clip
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 1x edge clip
  16. Install OBD II male side to bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2.3 Nm
  17. Connect premium amplifier if equipped
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Fully seat connector, then engage locking tab
  18. Install LH footwell cover
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 2 Nm, 1x connector
  19. Install LH center console carpeted closeout extension
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips
  20. Secure LH front console side panel clips
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips
  21. Install LH lower IP trim
    Informational PurposesAn informational icon, calling your attention
    Note
    1x screw, T20, 2 Nm, 9x clips, Replace any damaged or missing clips prior to installation
  22. Install LH lower A-pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, Number of clips securing A-pillar sill trim may vary depending on vehicle production date, Replace any damaged or missing clips prior to re-installing sill trim
  23. Install LH front floor mat
    Informational PurposesAn informational icon, calling your attention
    Note
    Secure 4x Velcro pads
  24. Install LH middle A-pillar trim
  25. Install LH IP side cover
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, 1x connector
  26. Move panoramic front links into original position
    Informational PurposesAn informational icon, calling your attention
    Note
    2x links
  27. Place sliding glass into position on vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance
  28. Install bolts securing sliding glass to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, T25, 5 Nm, Install new patch bolts
  29. Connect laptop to vehicle with a tethered Ethernet connection via Toolbox 3
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x clips, Newer models will access connector below MCU with cubby removed, Older models will access port at LH side of IP with end cap removedOpen Toolbox 3 website and establish connection to vehicle: https://toolbox.teslamotors.com, Select connection status icon at top right corner and select Connect Locally (icon will turn green when vehicle is connected), Local connection will enable service mode plus on display

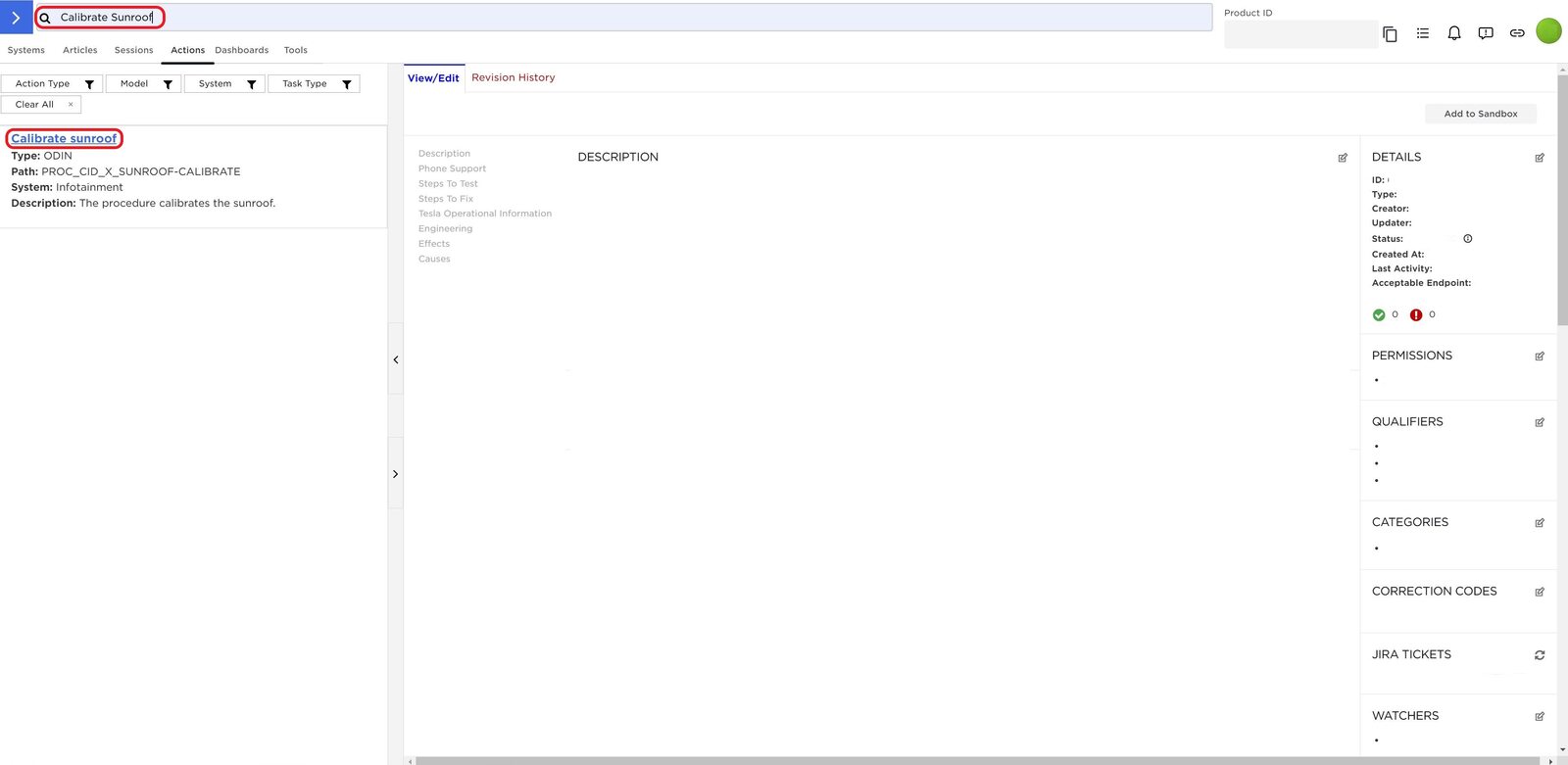

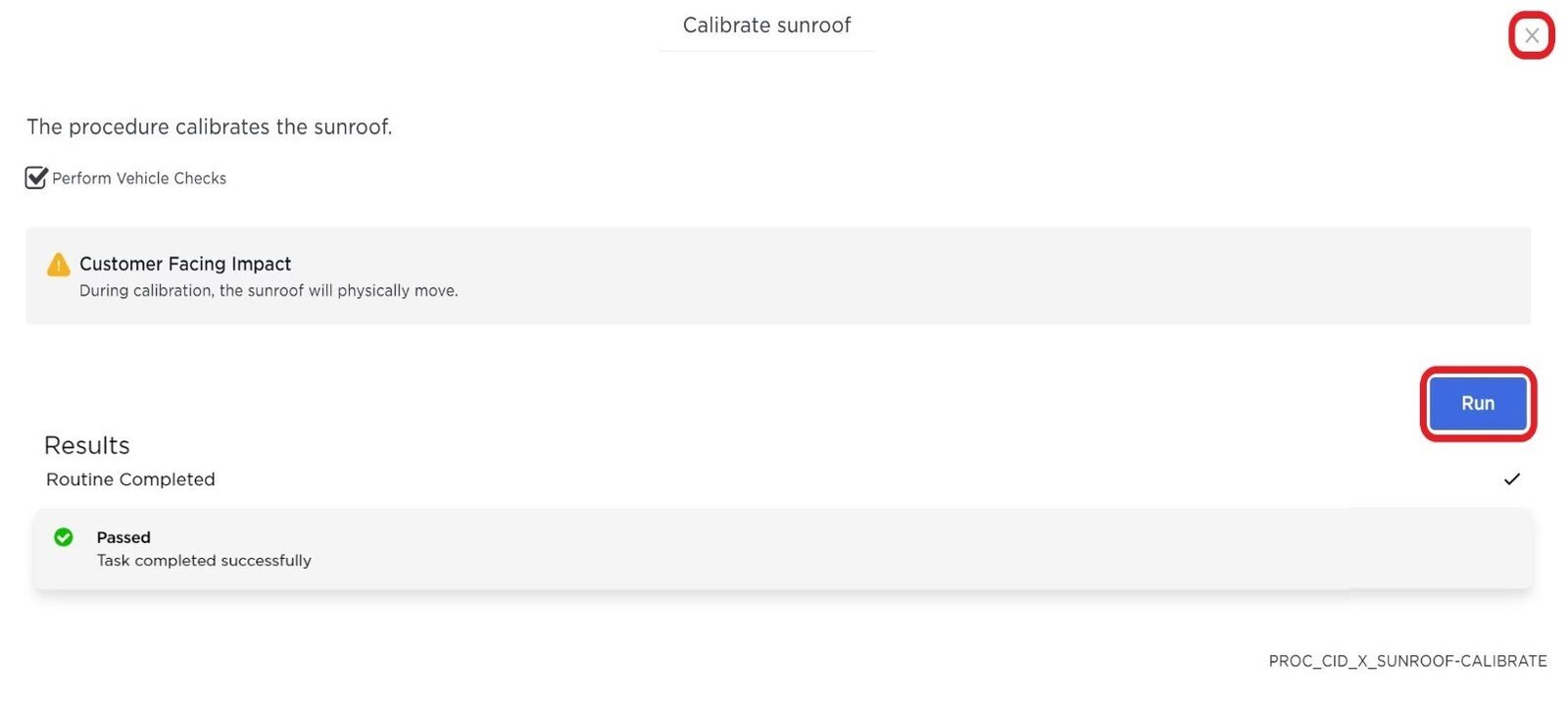

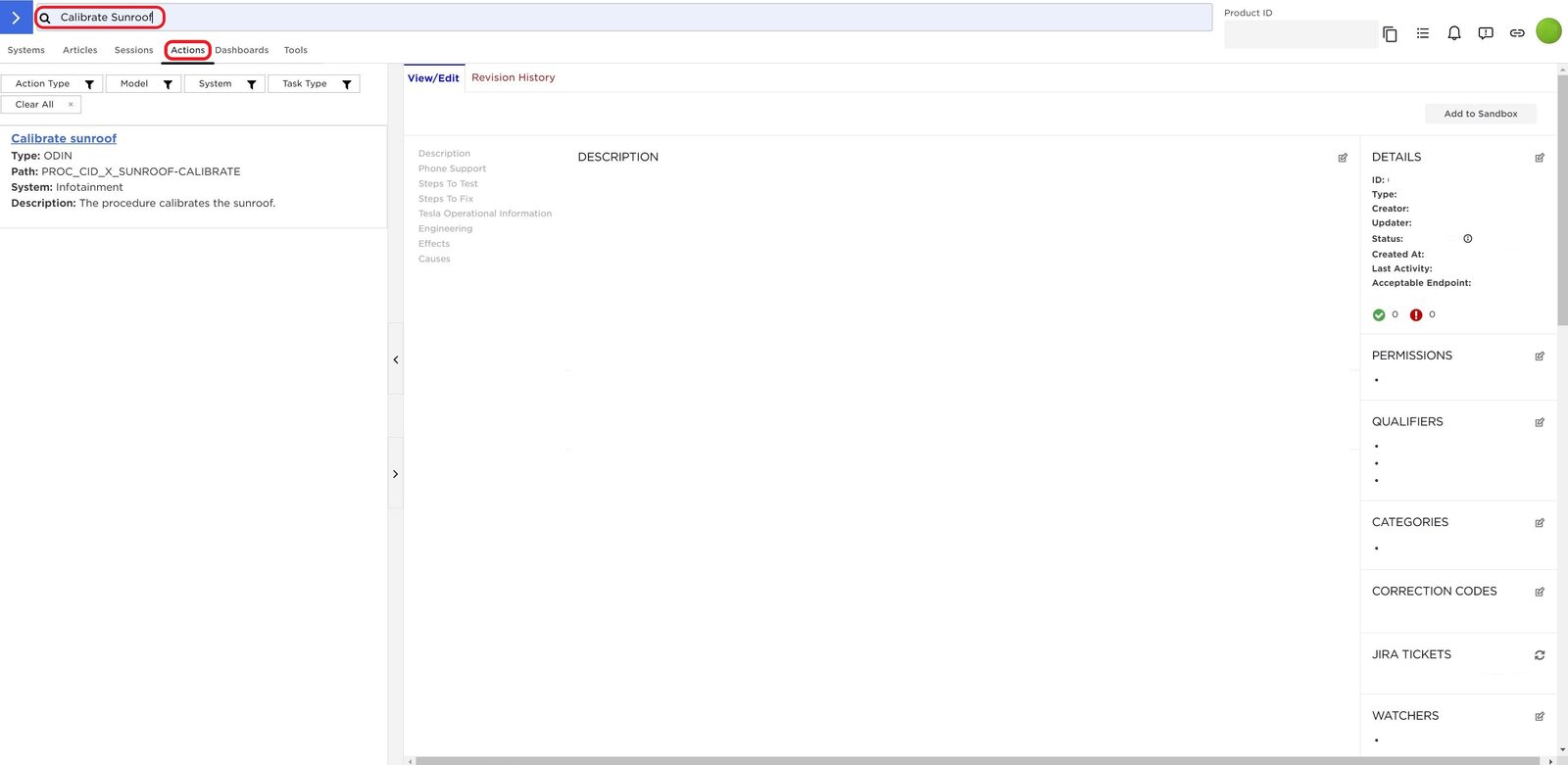

  30. Select ‘Actions’ tab and search for ‘Calibrate Sunroof’
  31. Select ‘Calibrate sunroof’, click ‘Run’, and allow routine to complete
    Informational PurposesAn informational icon, calling your attention
    Note
    Roof will fully close, then fully open

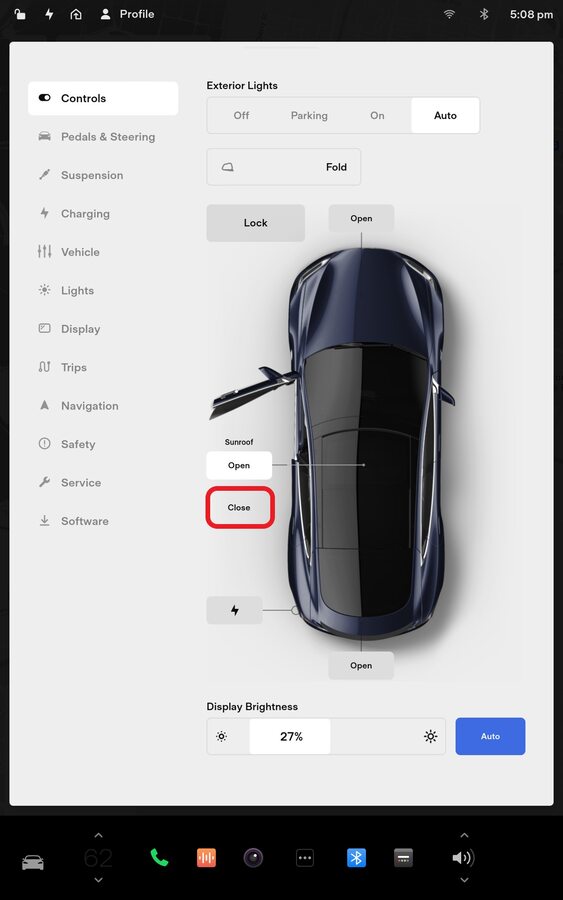

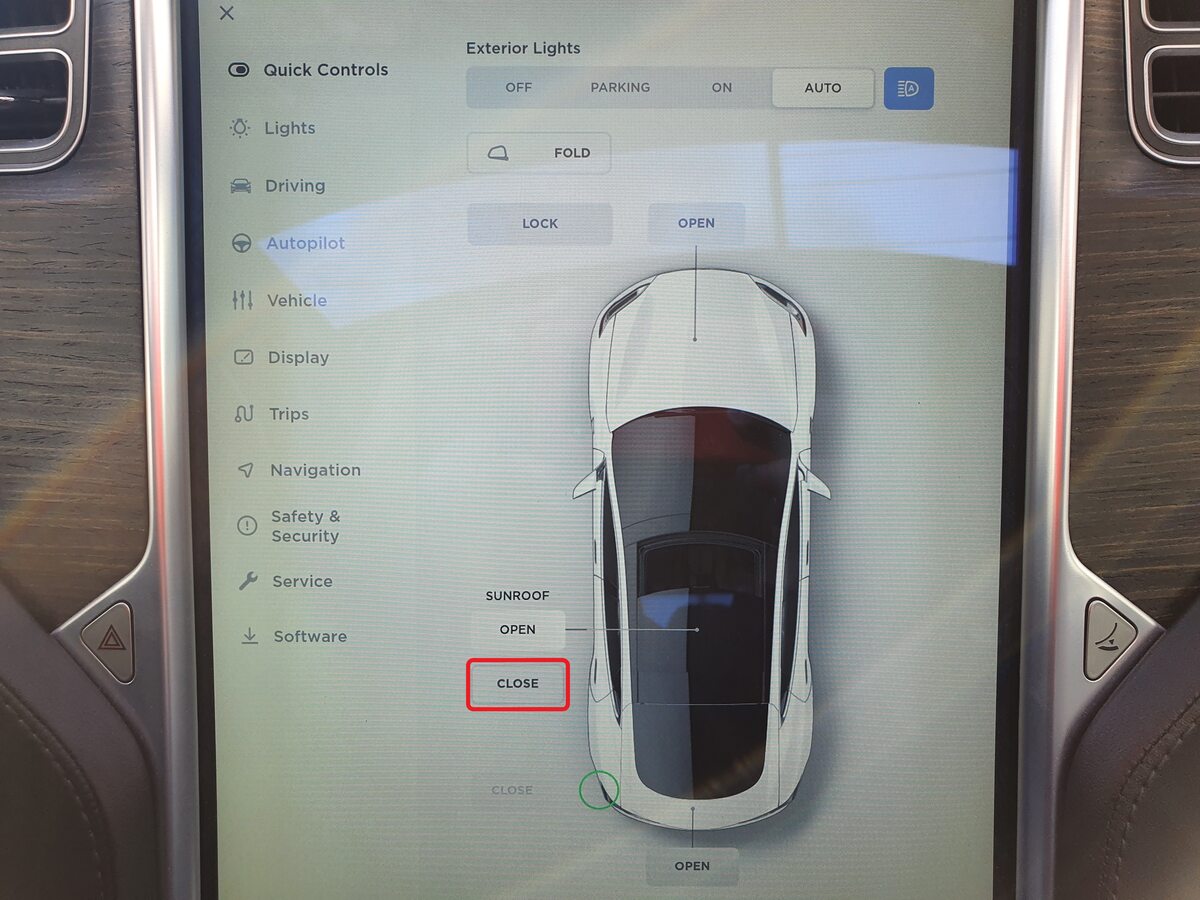

  32. Fully close sunroof using UI
  33. Disconnect Toolbox from vehicle and install cubby under MCU
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x clips, Ensure diagnostic cables are tucked into appropriate position then engage cubby

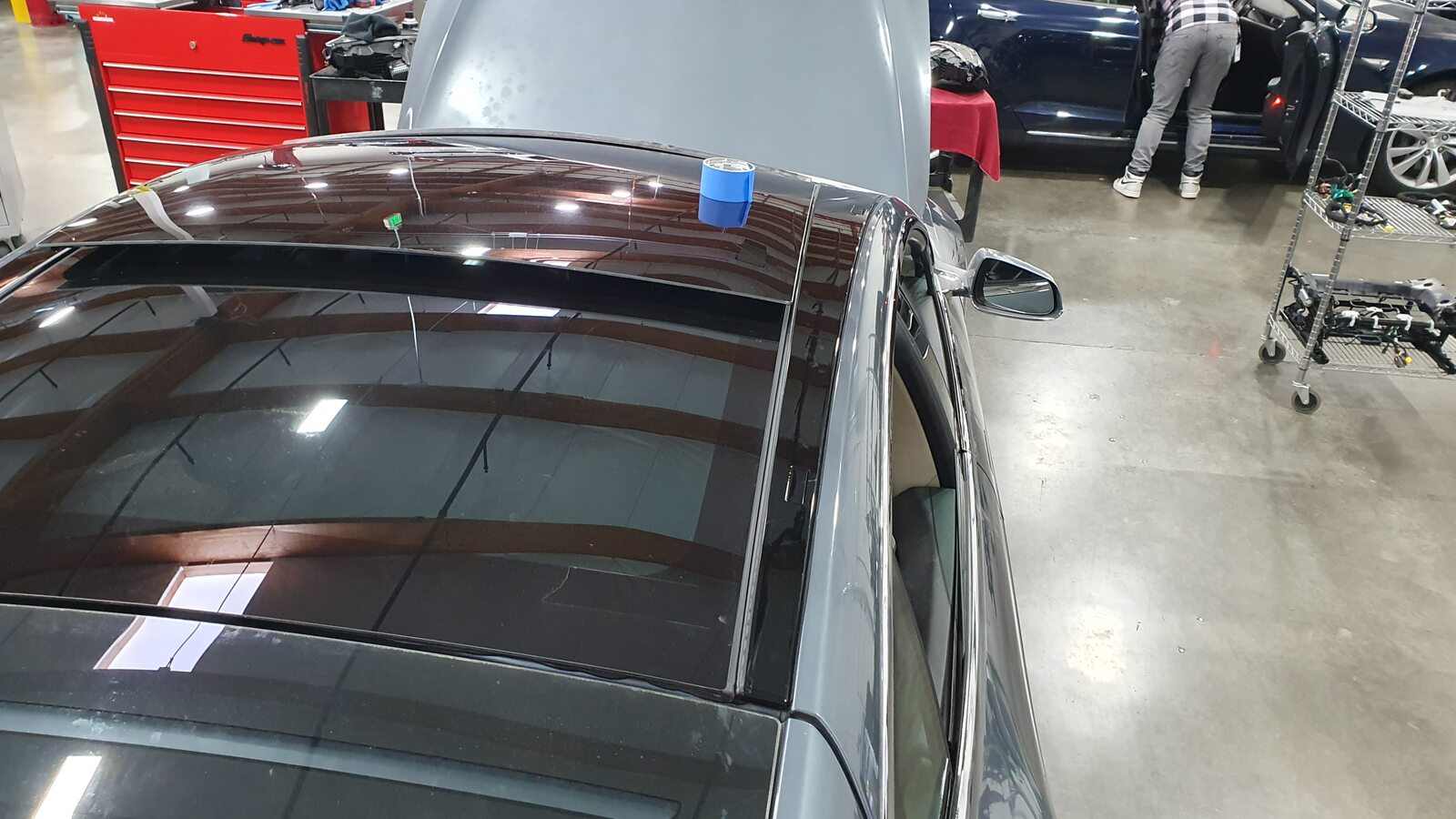

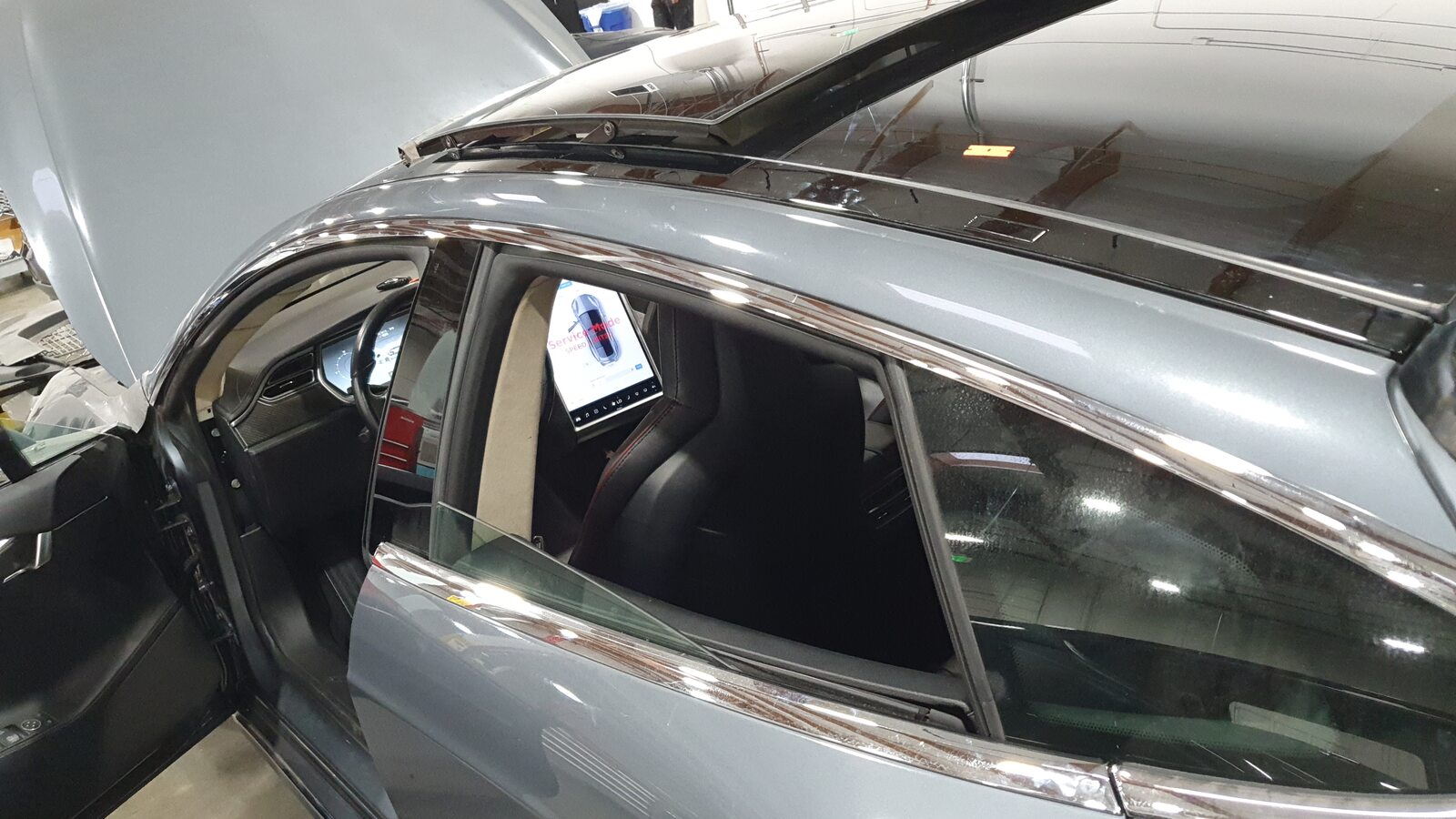

  34. Partially open panoramic sunroof
    Informational PurposesAn informational icon, calling your attention
    Note
    Choose vent option on UI to slightly open panoramic sunroof

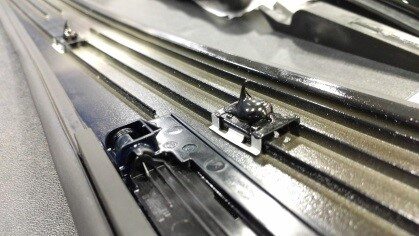

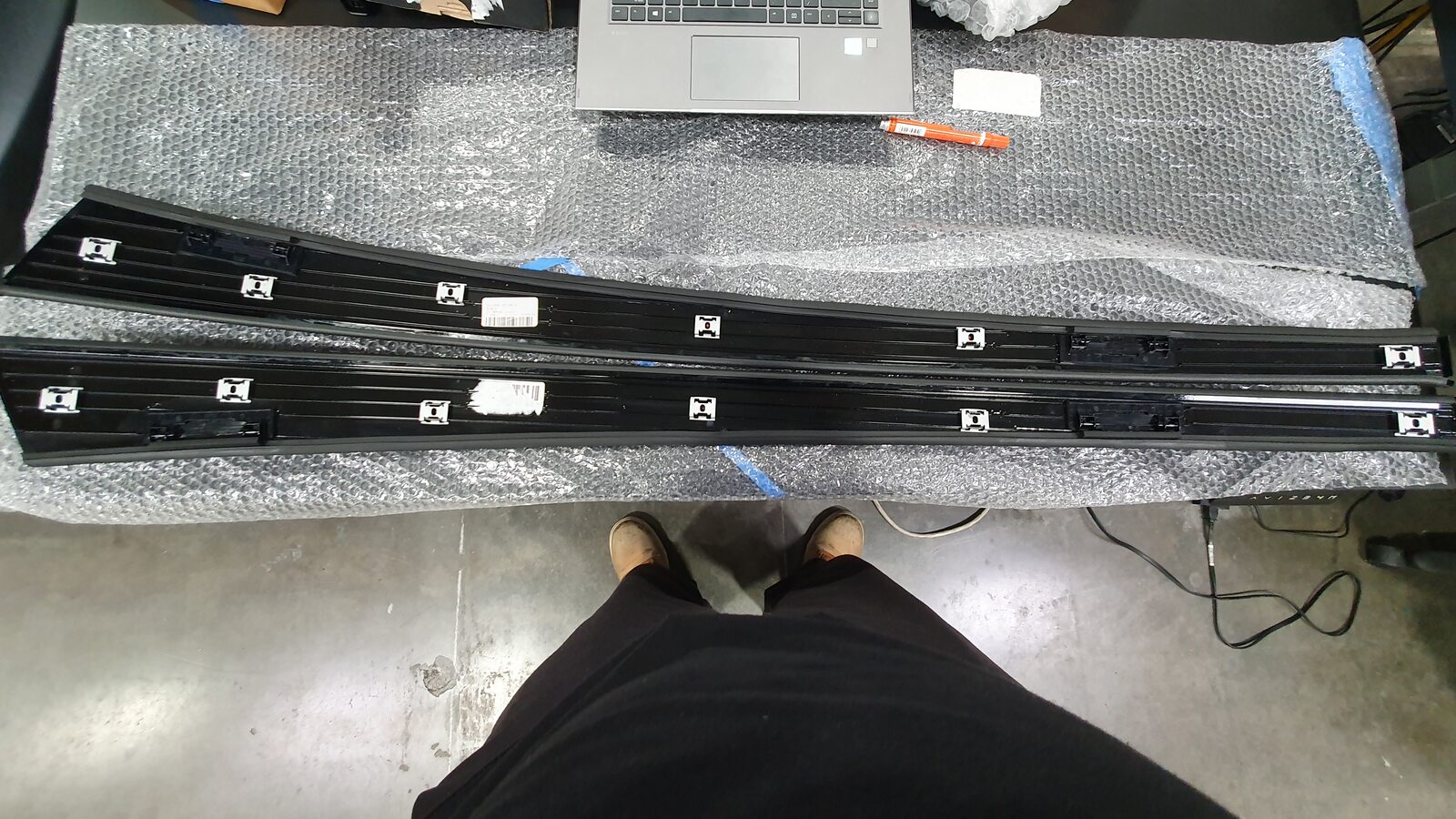

  35. Install clips onto LH roof applique
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply a small amount of grease in area where clip is going to be installed

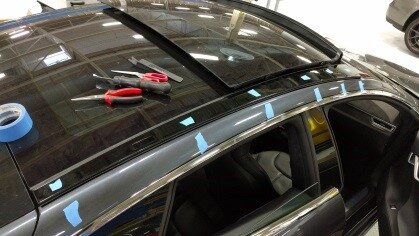

  36. Position LH roof applique into place
    Informational PurposesAn informational icon, calling your attention
    Note

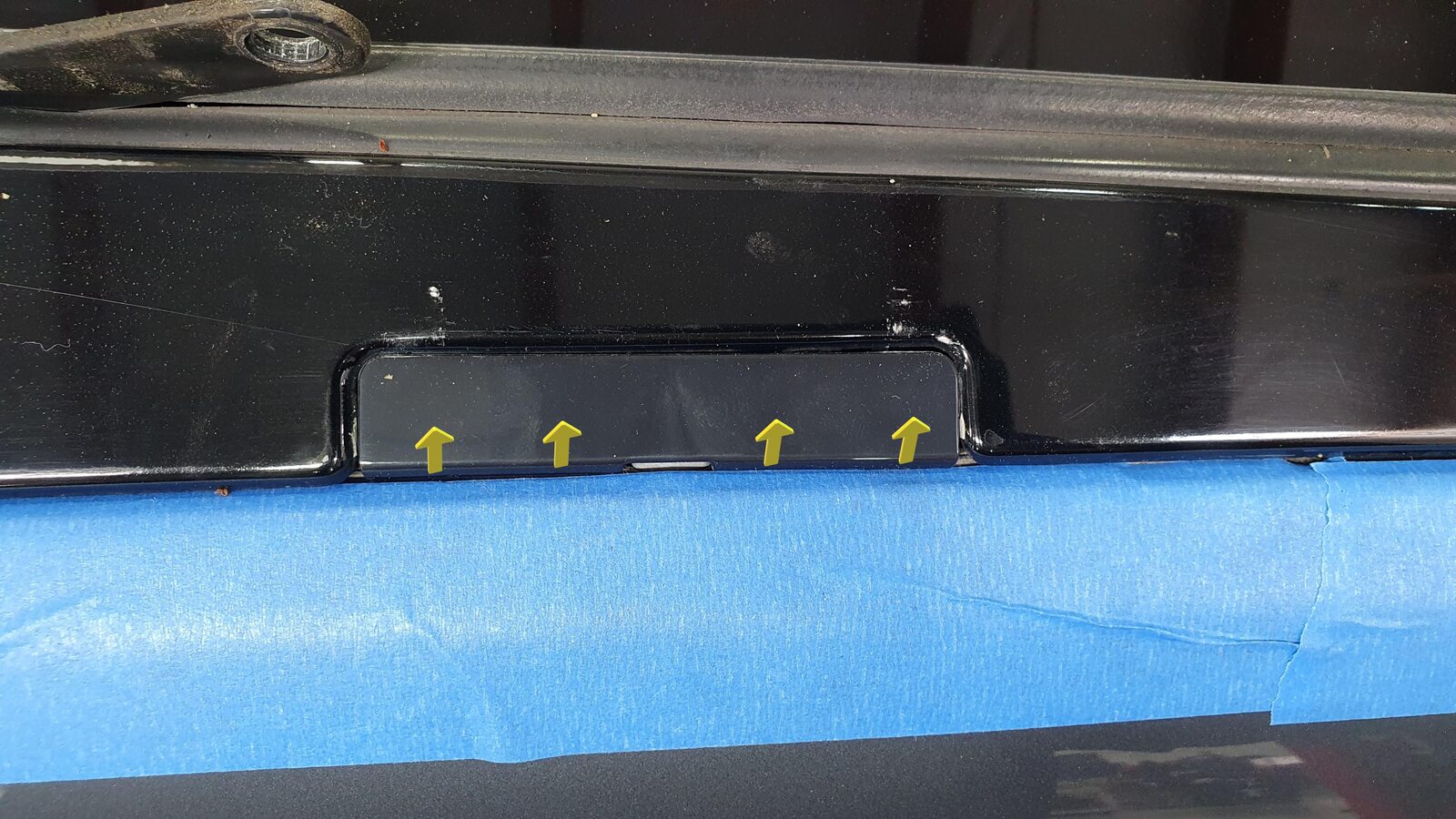

    Place tape marks on roof rail aligned with clips

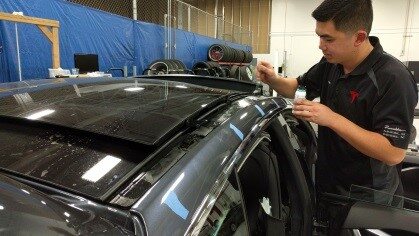

  37. Apply primer to frame and applique clips

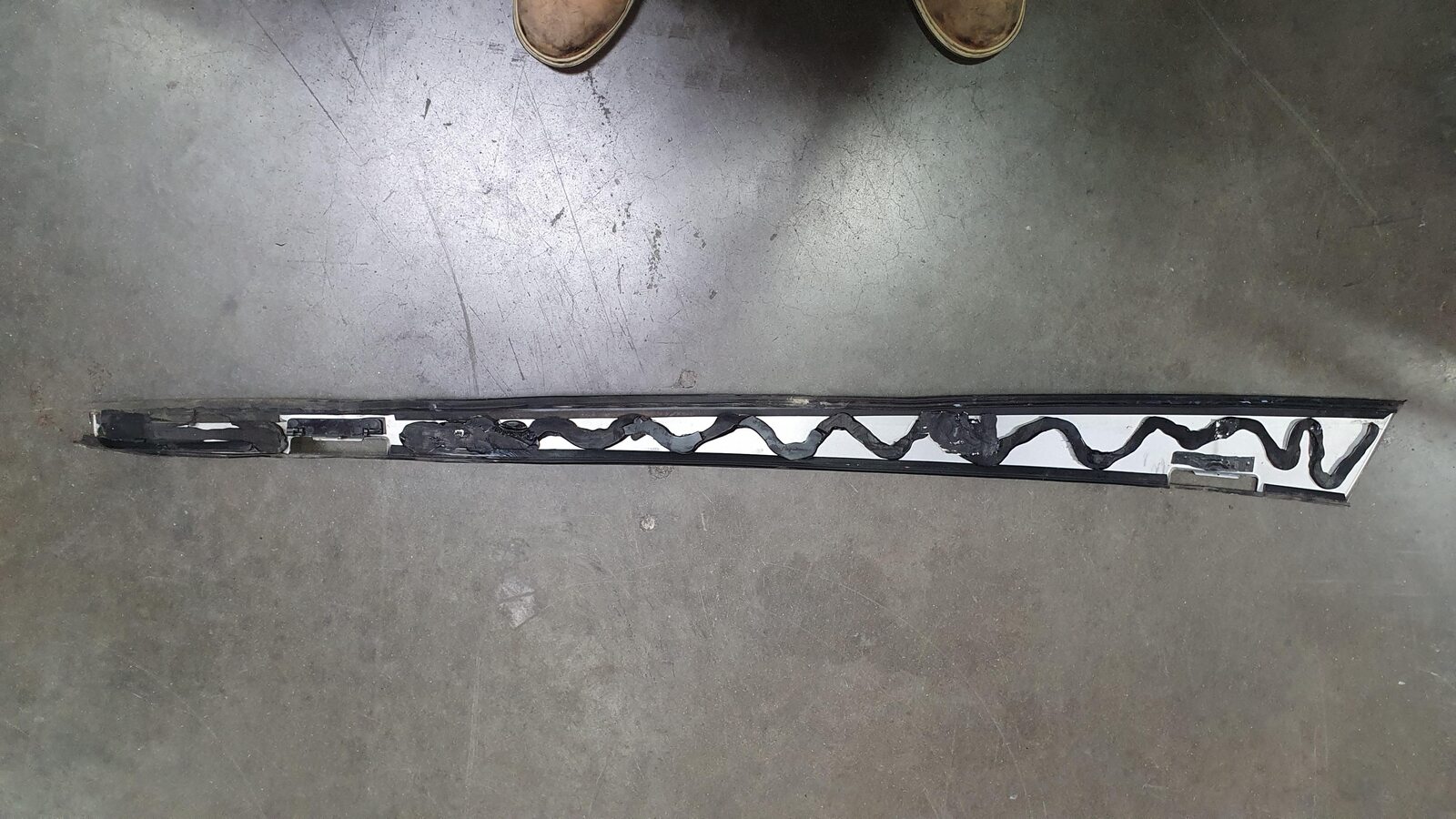

  38. Apply small amounts of urethane to back of clips
  39. Install LH roof appliques
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow urethane to set, Tape front edges down into installation position
  40. Remove masking tape from roof rails
  41. Operate sliding glass and verify that glass does not shudder while opening or closing

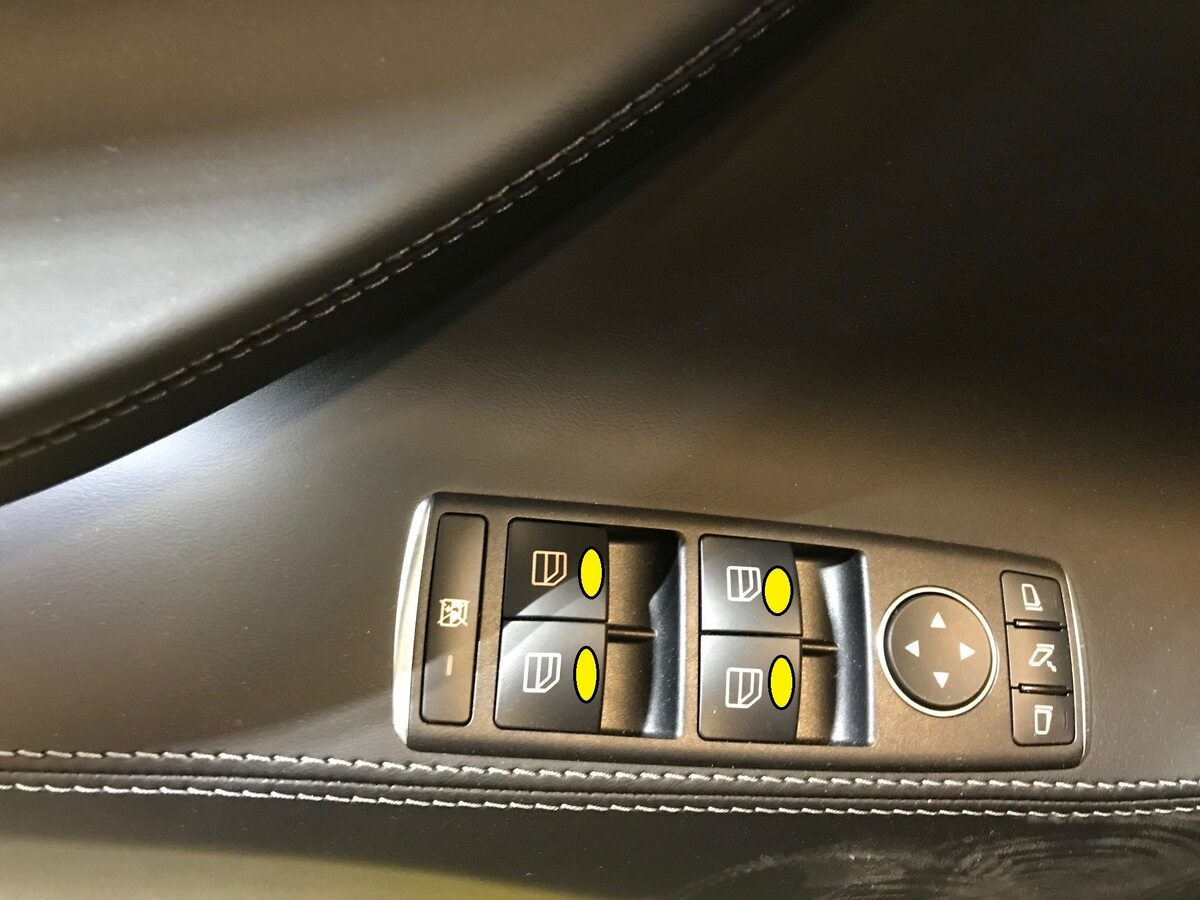

  42. Raise all four windows
  43. Close all four doors
