Fascia - Rear - Lower (Model Y Standard) (Remove and Replace)

校正代码 1001050112 注意：除非本程序中另有明确规定，否则上文所列校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-07-21: Released new procedure.

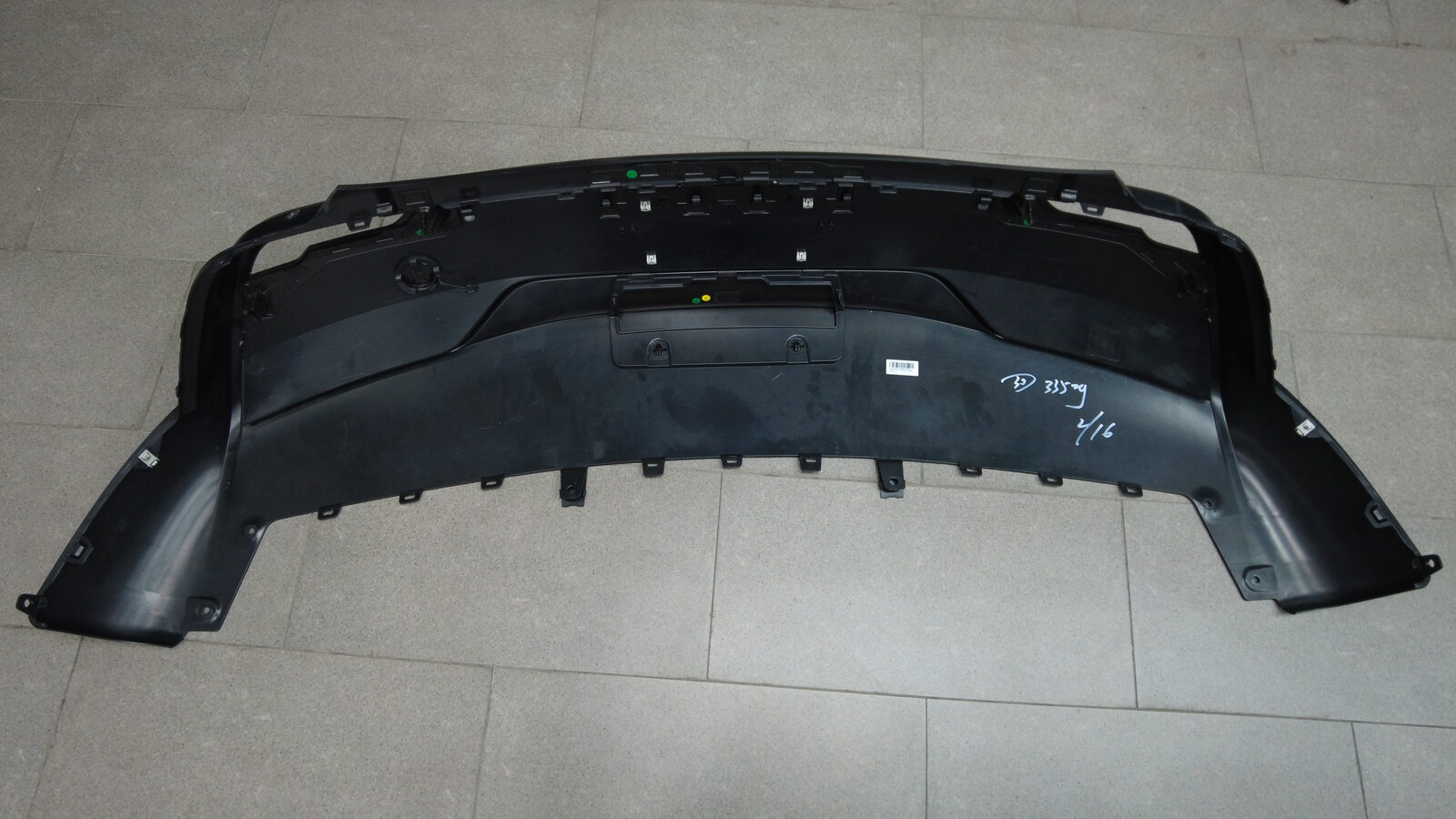

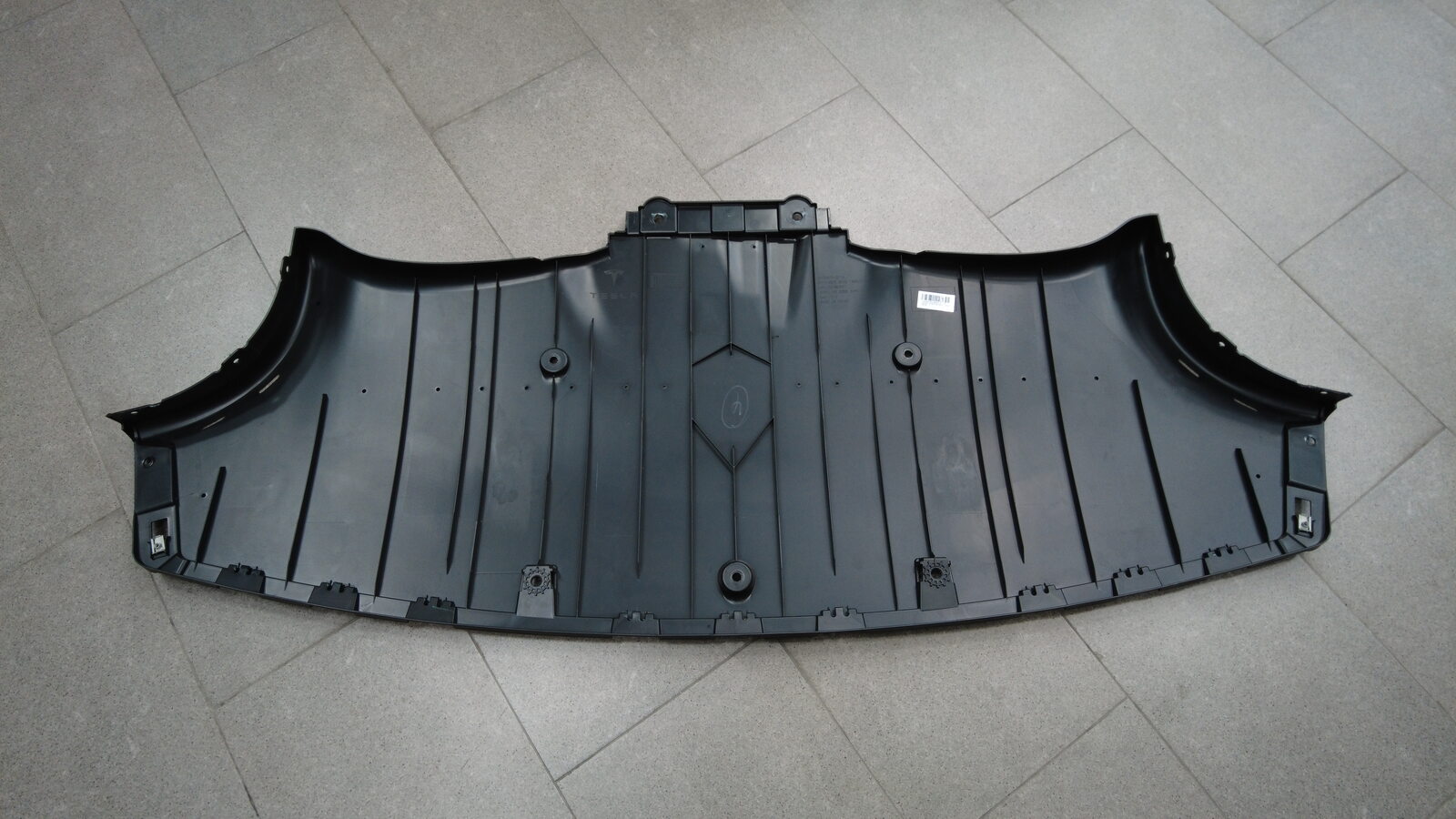

拆卸

  1. Remove the rear fascia assembly. See GUID-D2095EA8-C202-4040-AD3D-9C5C64BDCCB1.html.

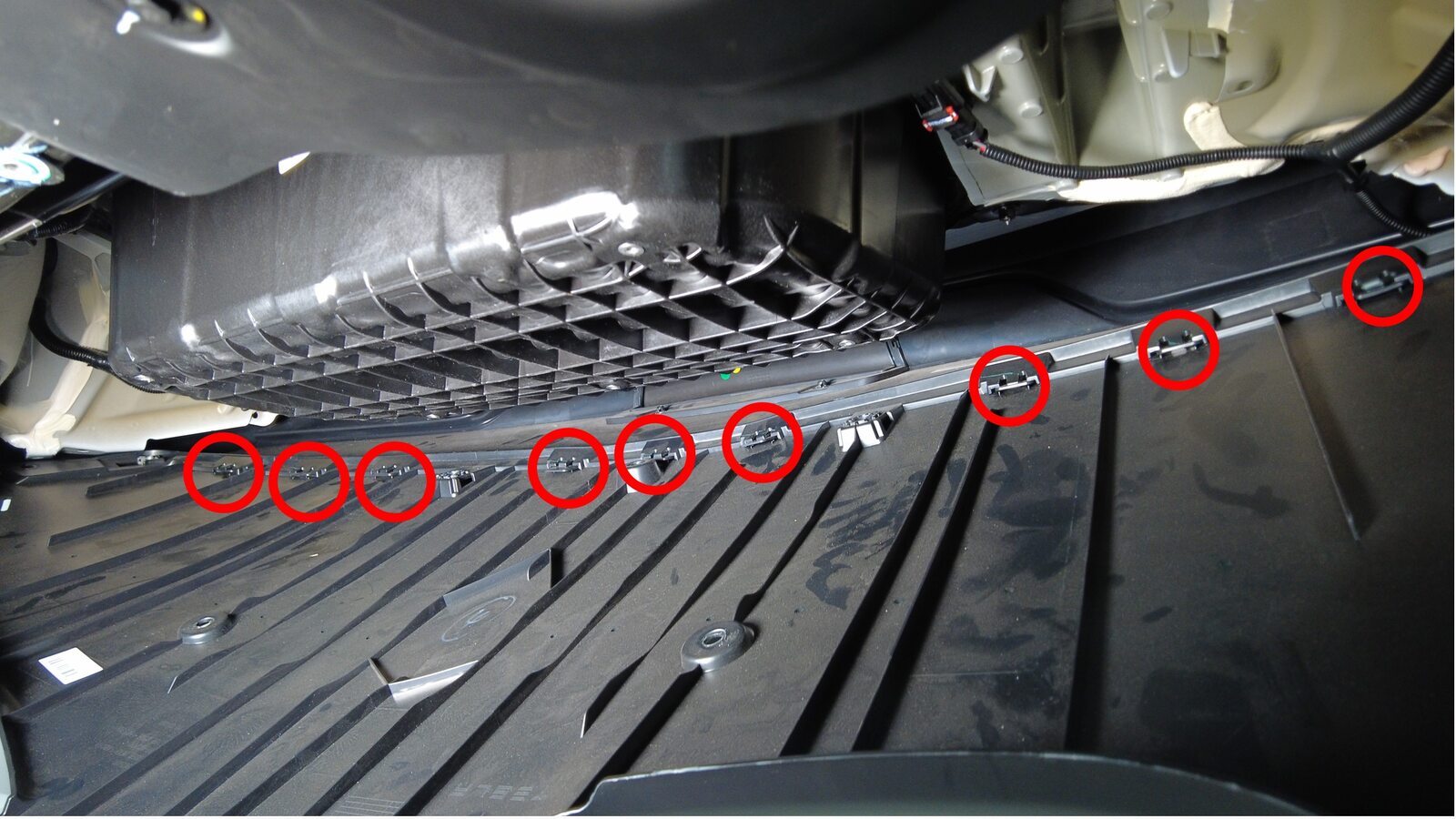

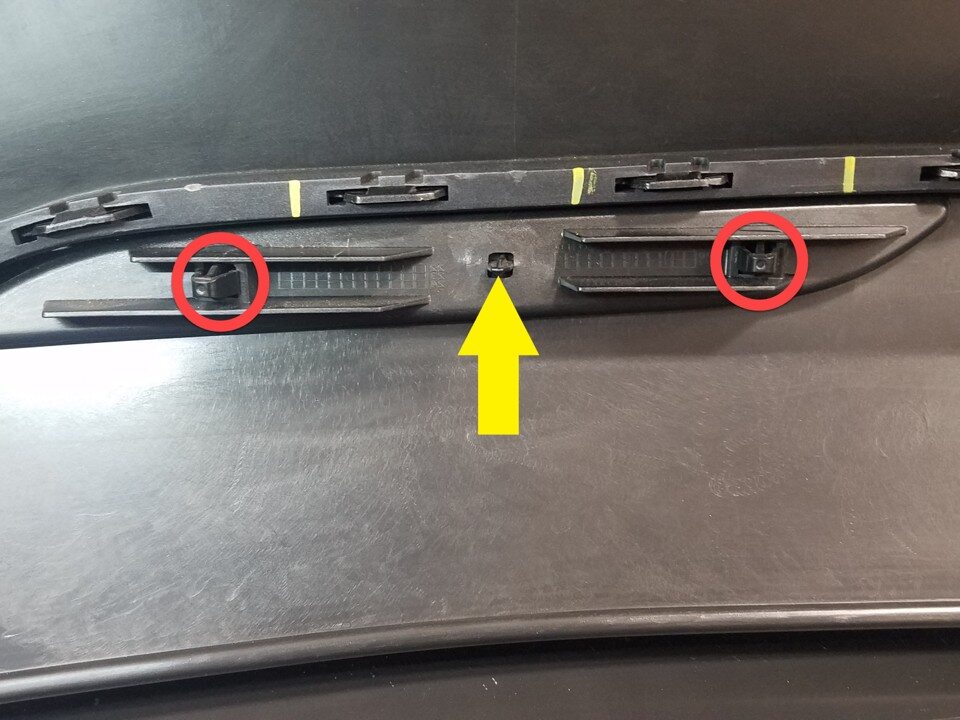

  2. Release the tabs (x9) that attach the rear diffuser to the rear lower fascia.

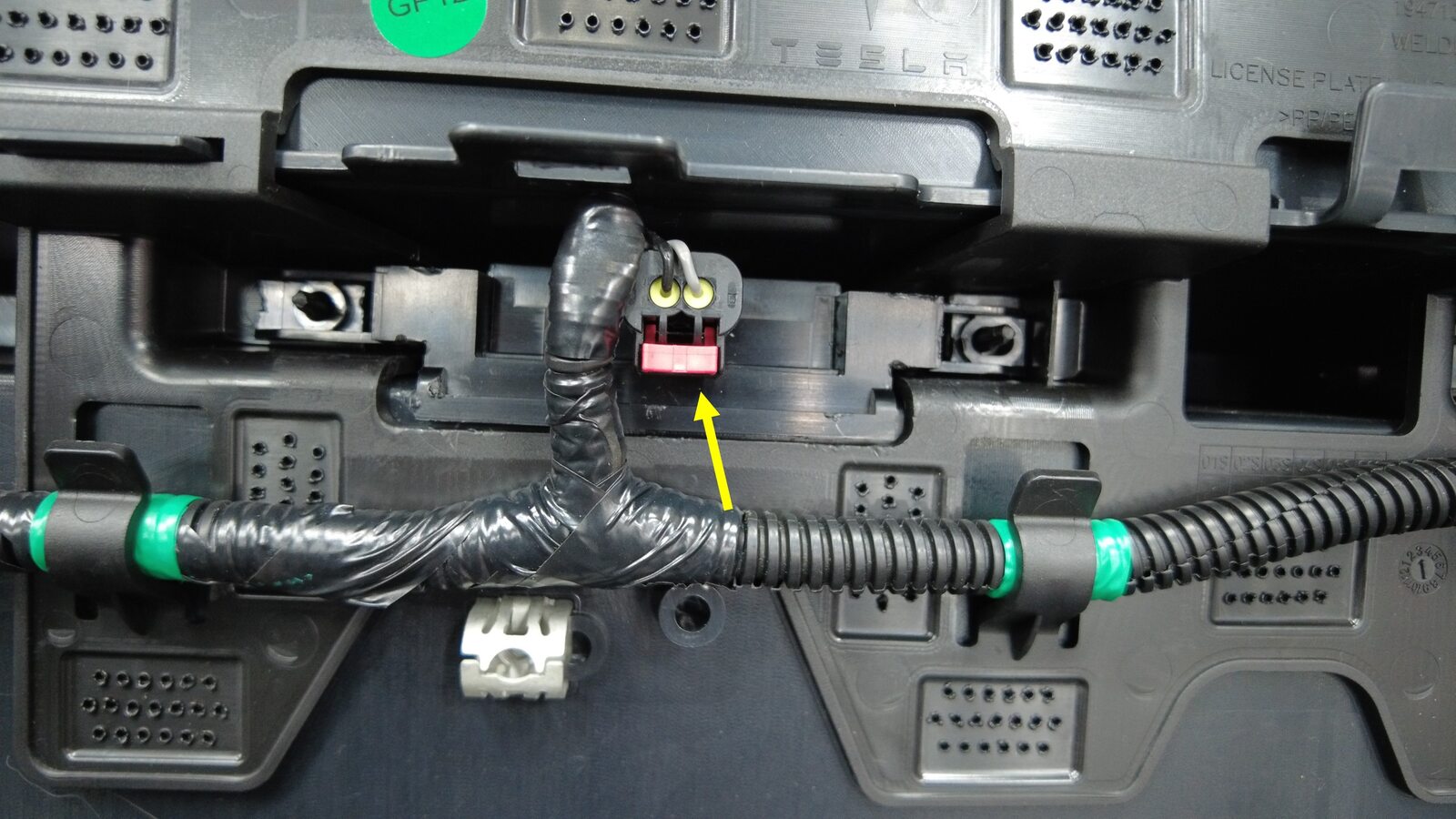

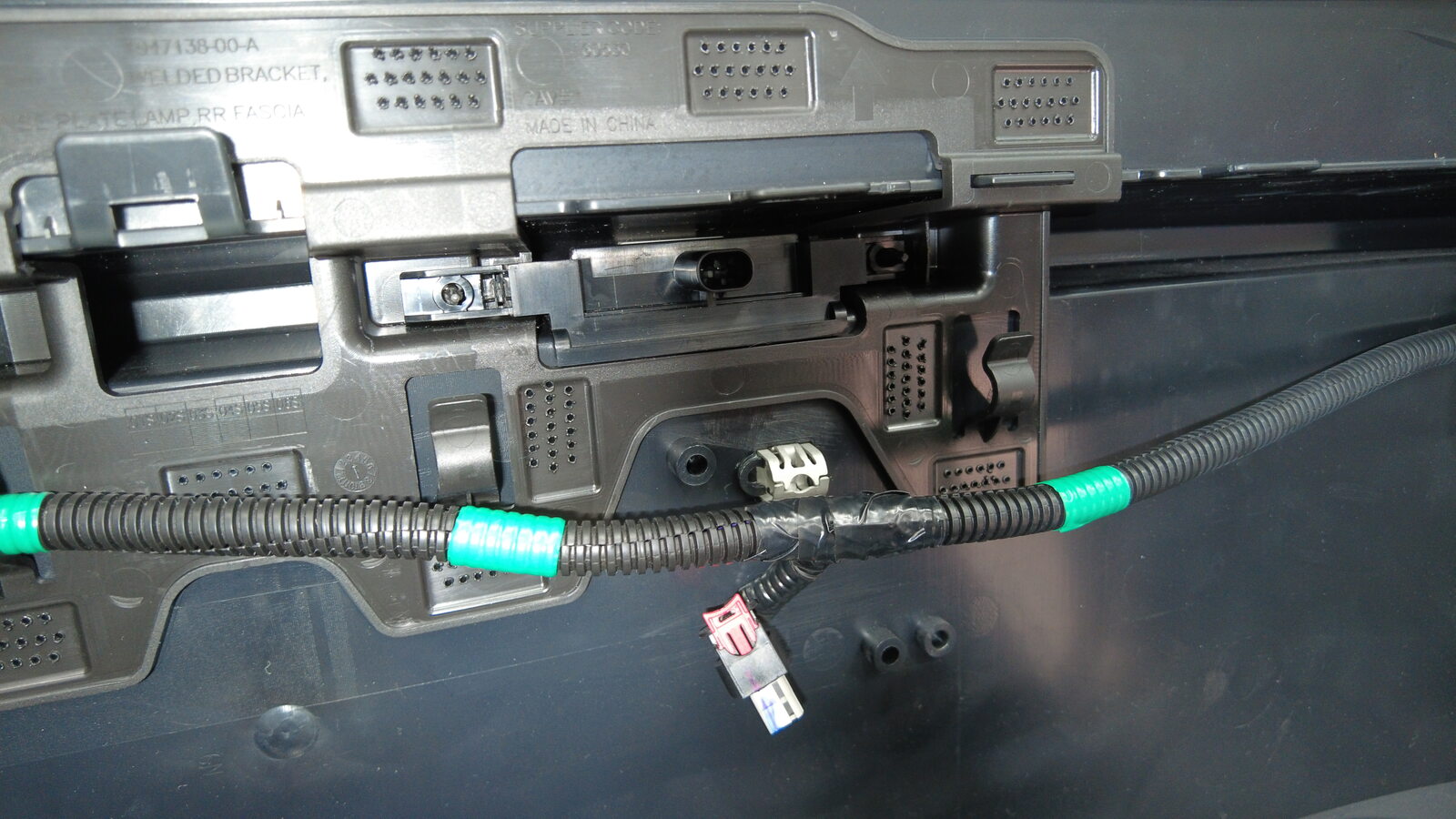

  3. Disconnect the rear license plate LH lamp connector.

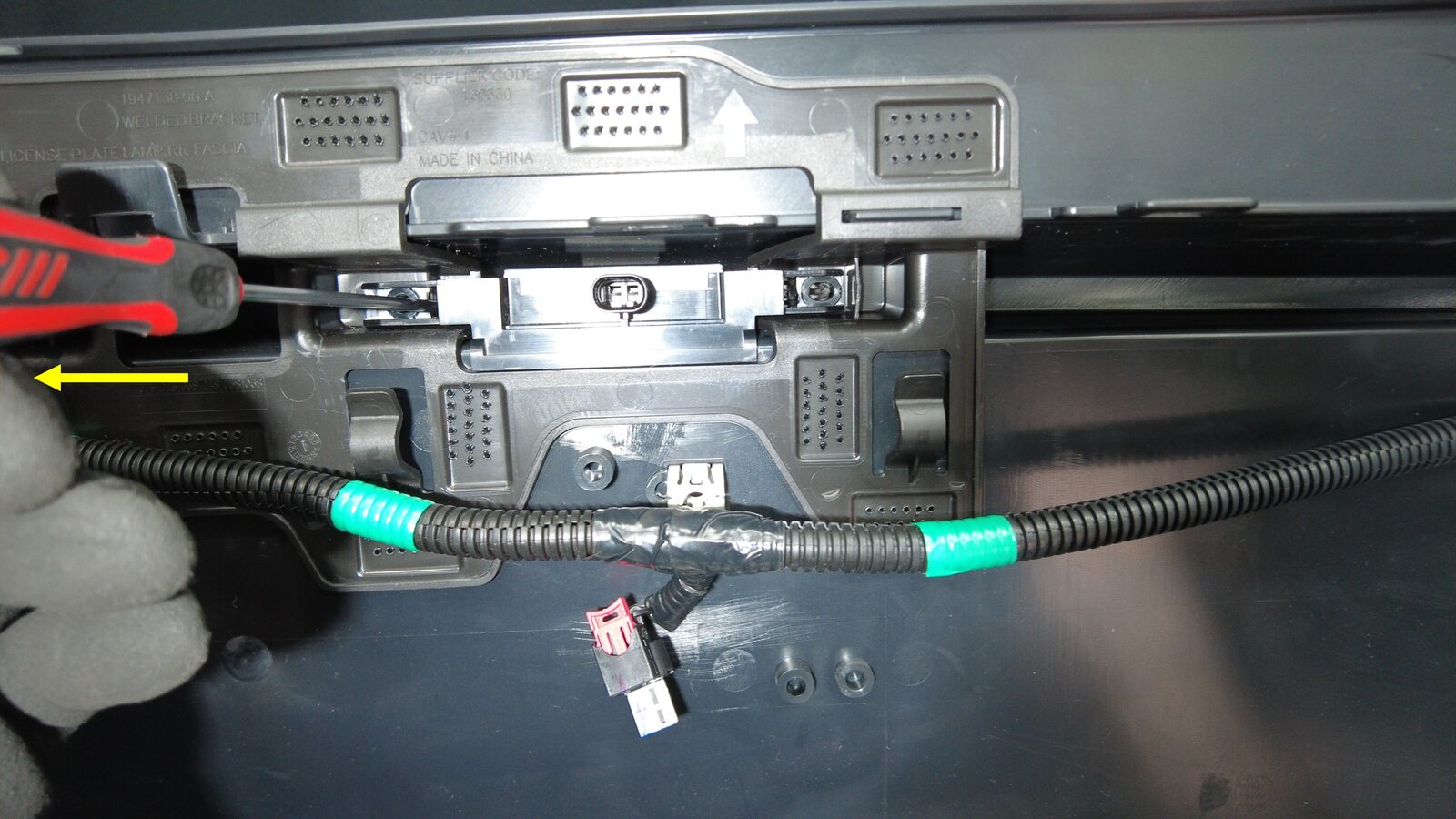

  4. Remove rear license plate LH lamp.
    Informational PurposesAn informational icon, calling your attention
    注

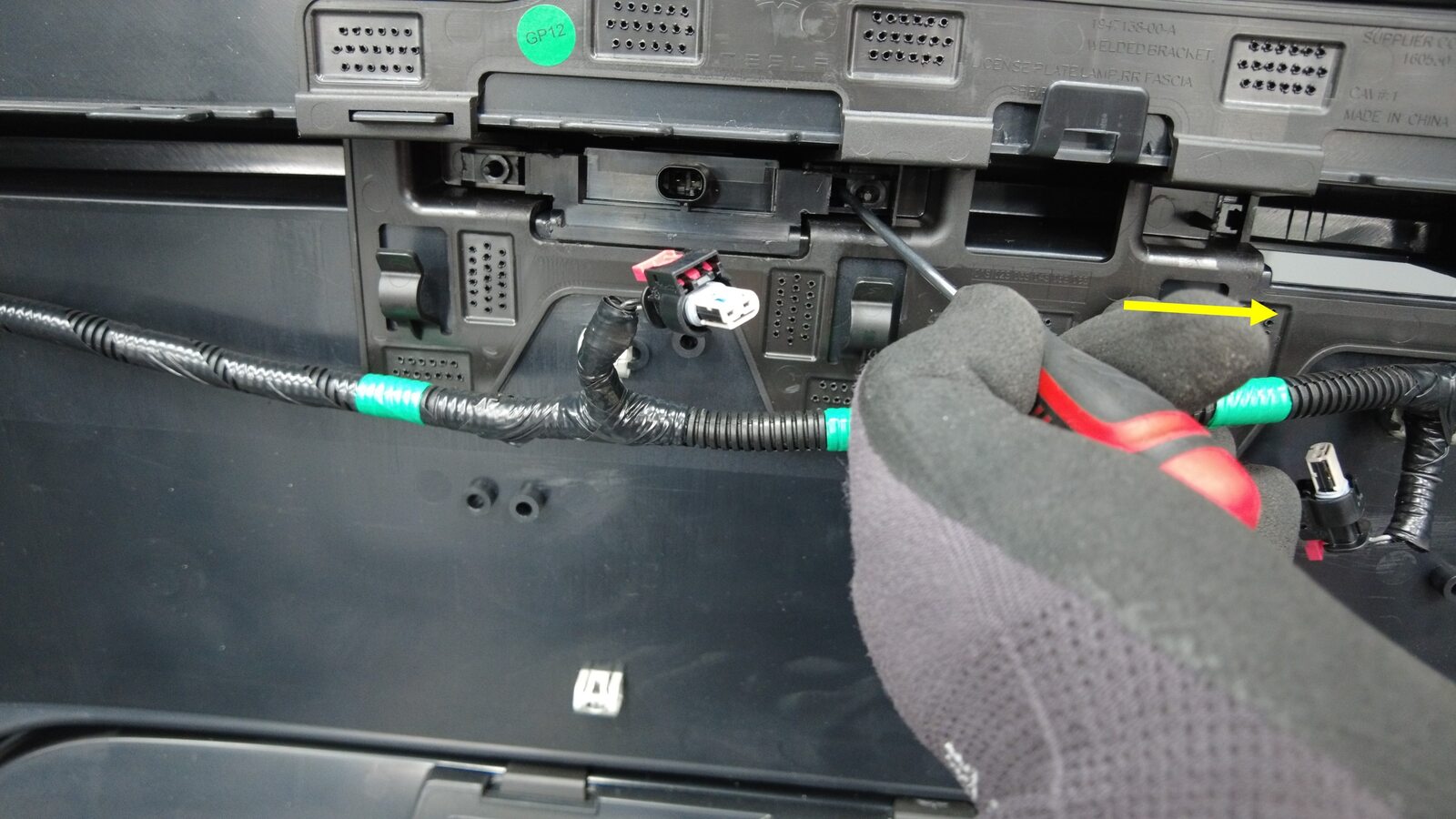

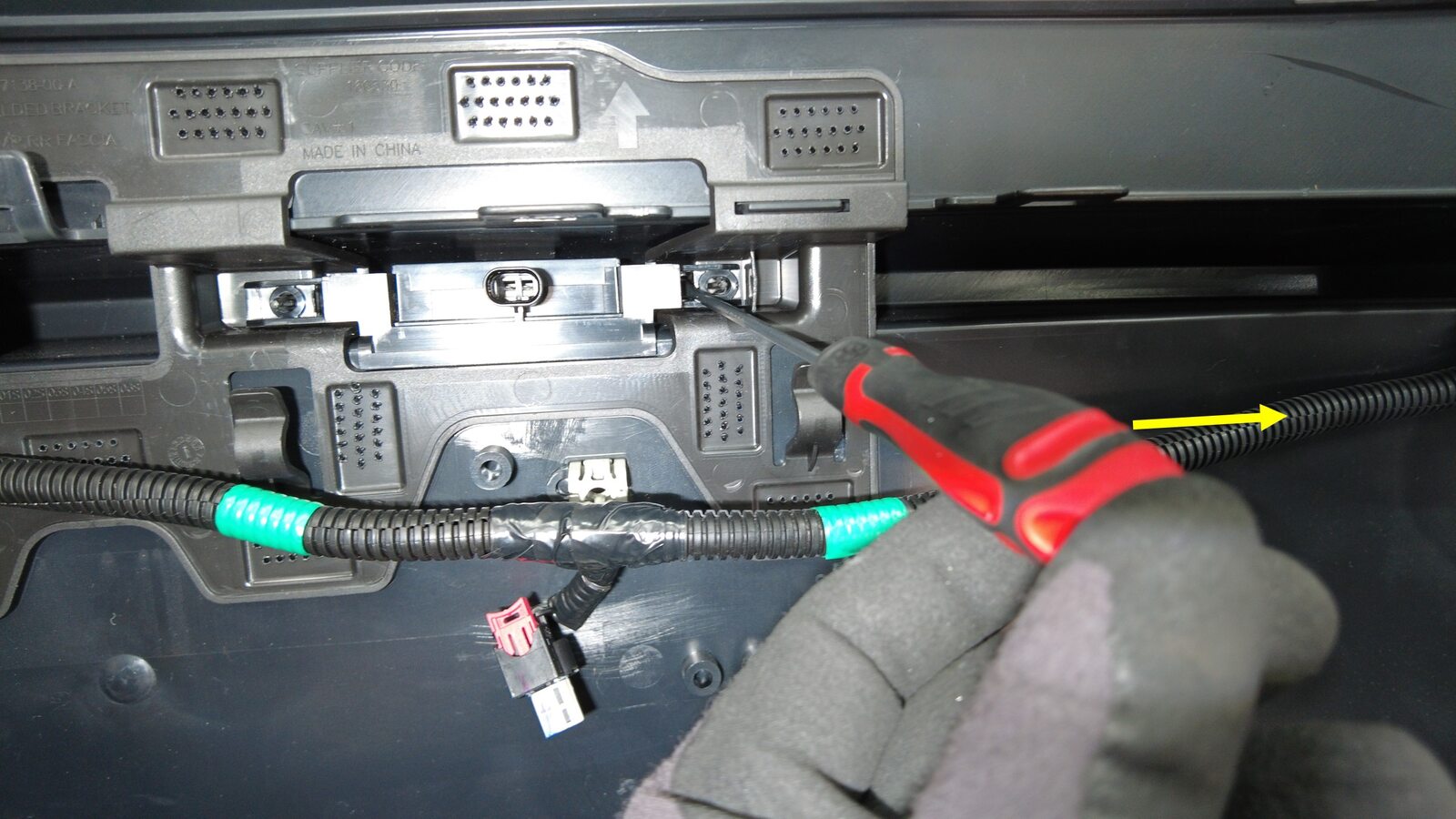

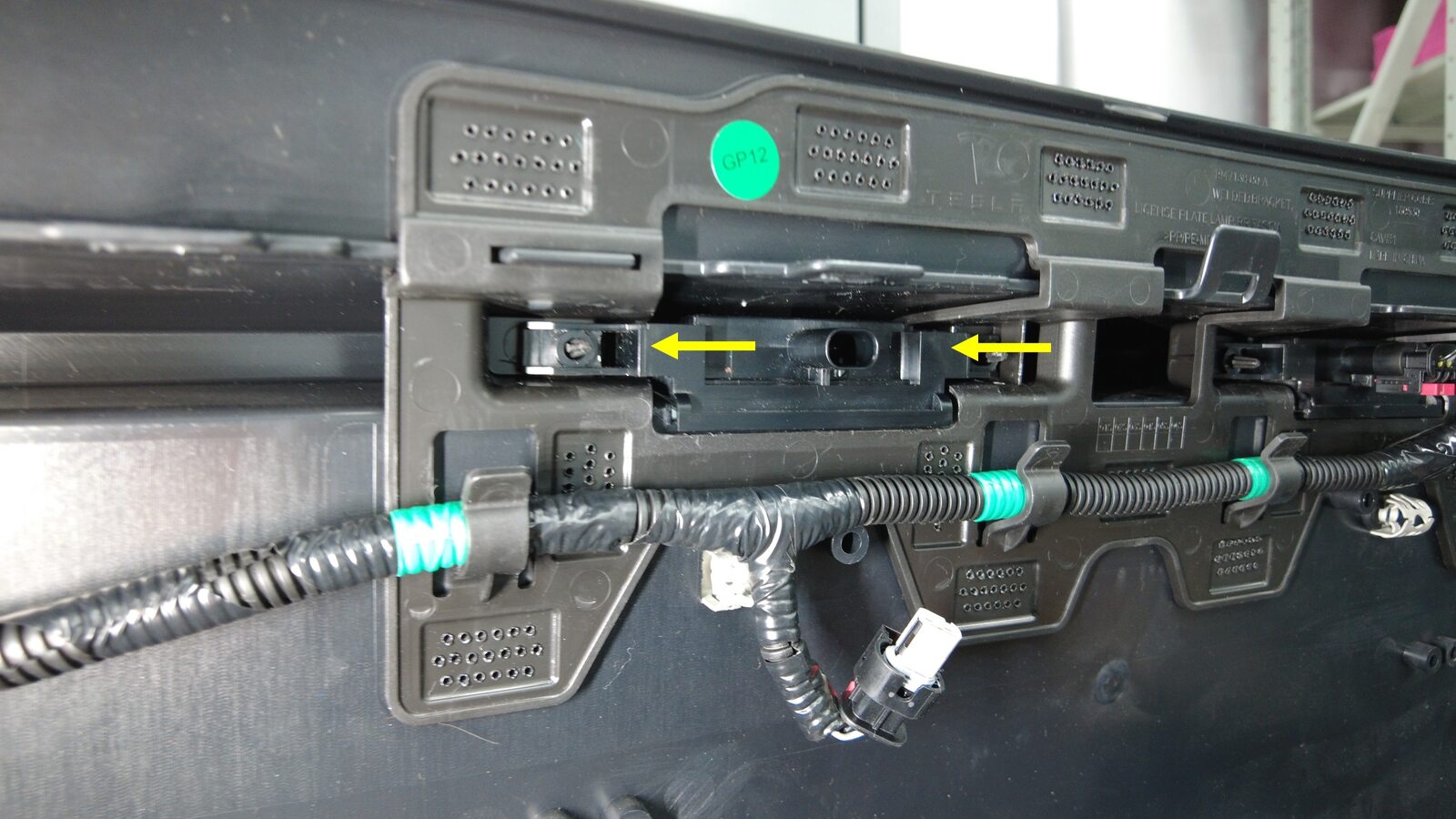

    Use a small screwdriver to apply force outwards, and then pull the lamp out backwards.

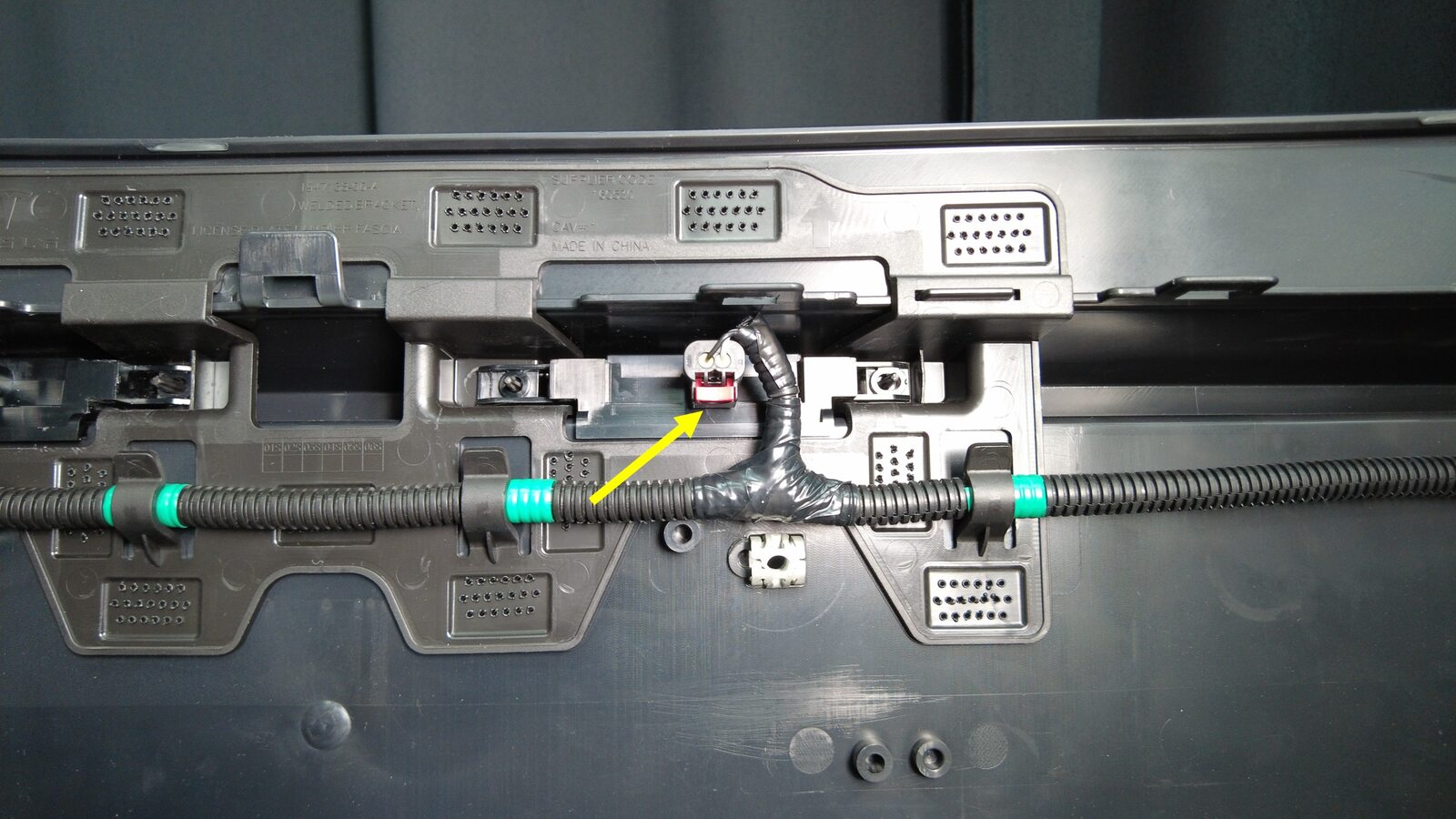

  5. Disconnect the rear license plate RH lamp connector.
  6. Remove the rear license plate RH lamp.
    Informational PurposesAn informational icon, calling your attention
    注

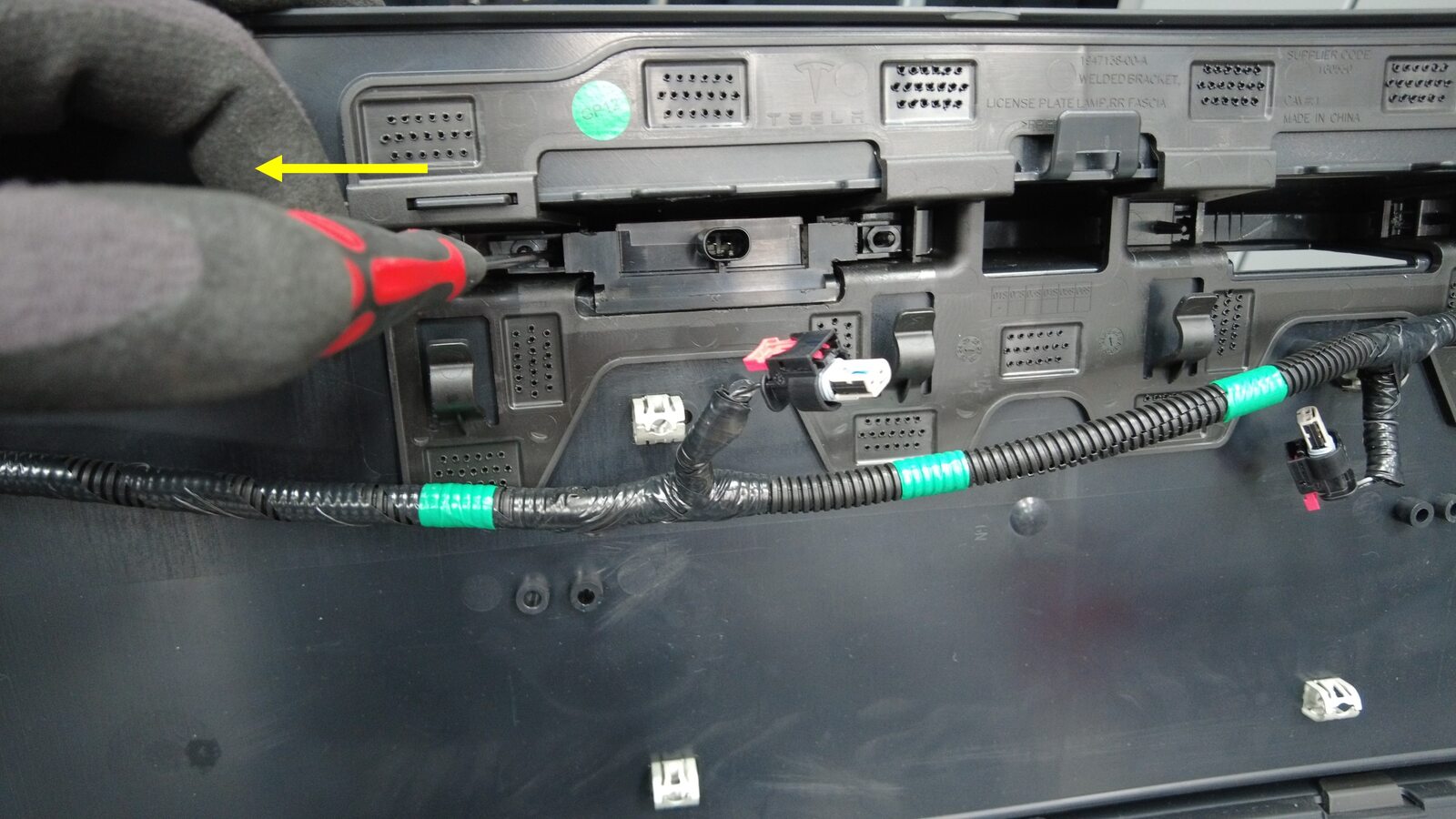

    Use a small screwdriver to apply force outwards, and then pull the lamp out backwards.

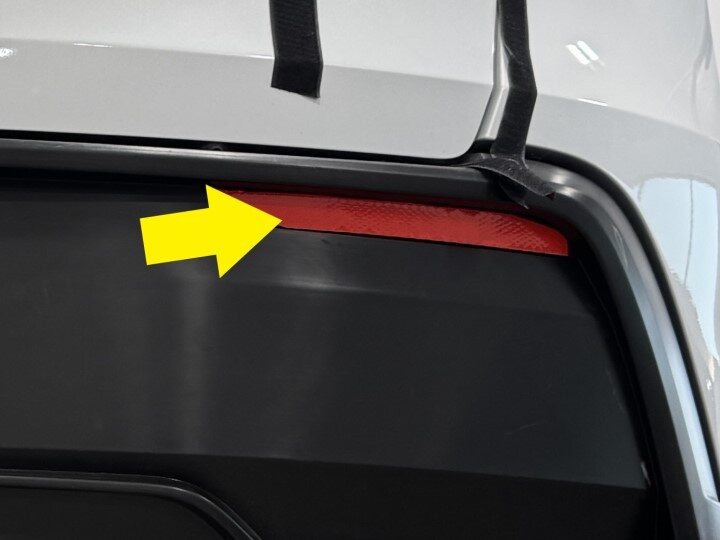

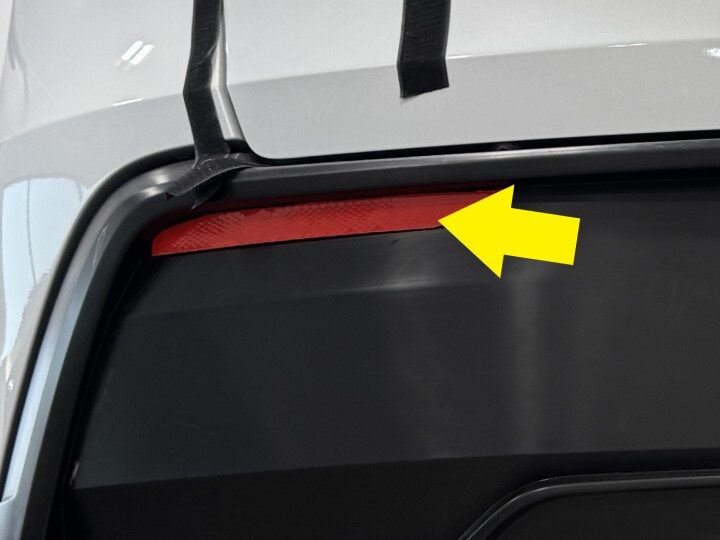

  7. Remove LH rear reflex.
    Informational PurposesAn informational icon, calling your attention
    注

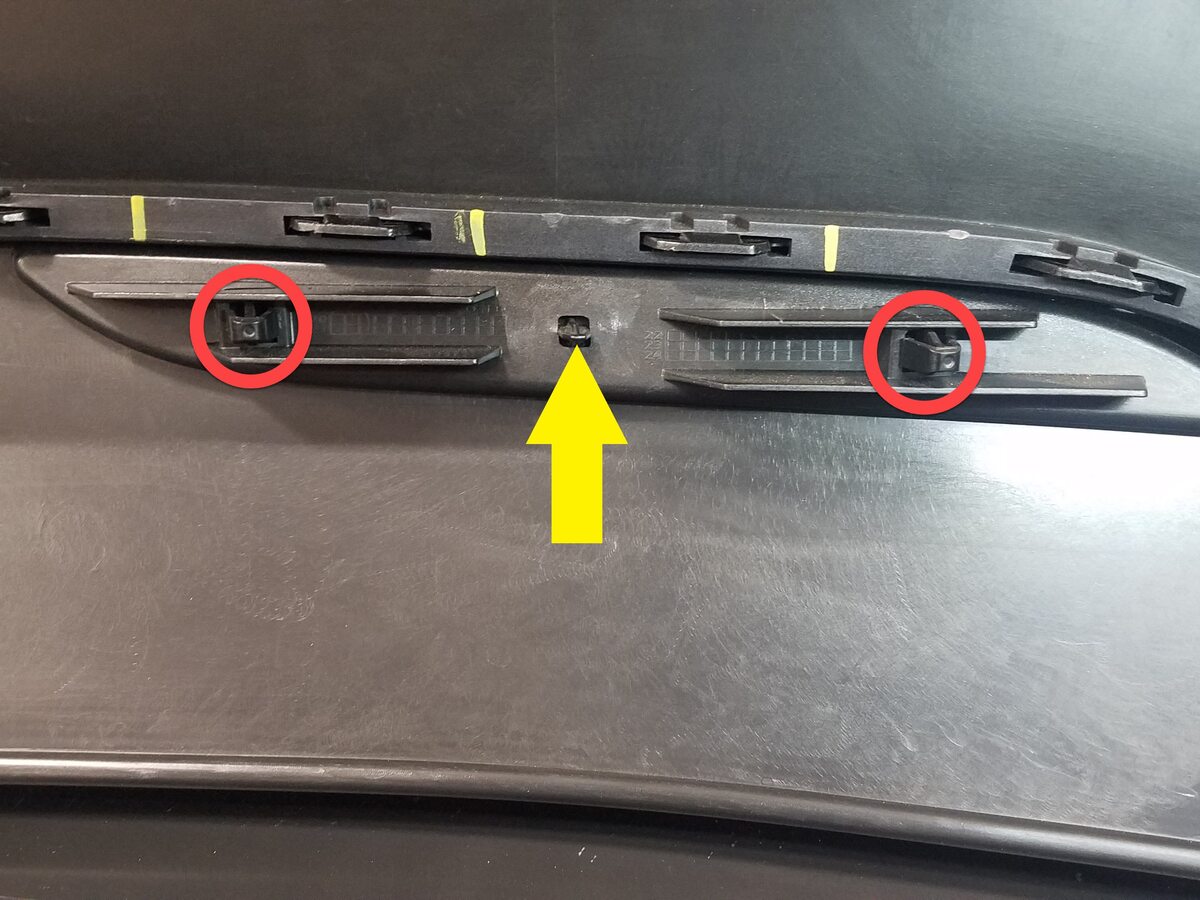

    Pull outwards from the inner edge with a trim tool to release the reflex.
  8. Remove the RH rear reflex.
    Informational PurposesAn informational icon, calling your attention
    注
    Pull outwards from the inner edge with a trim tool to release the reflex.

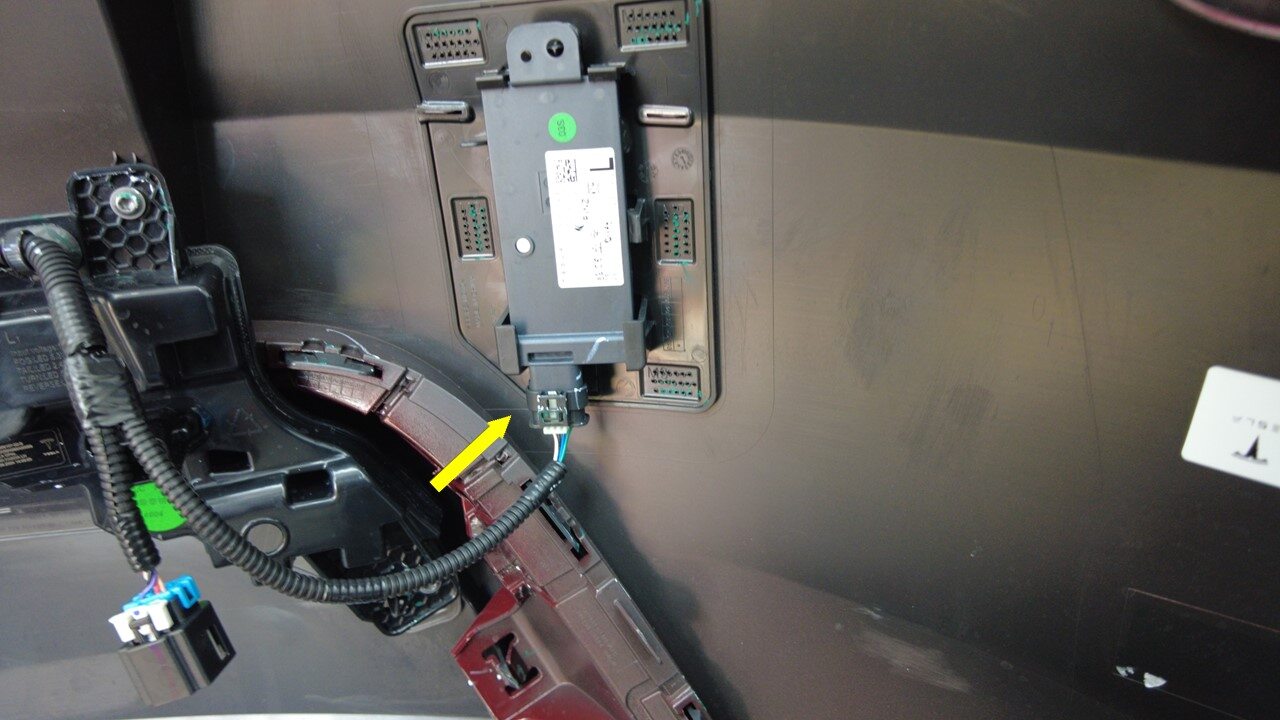

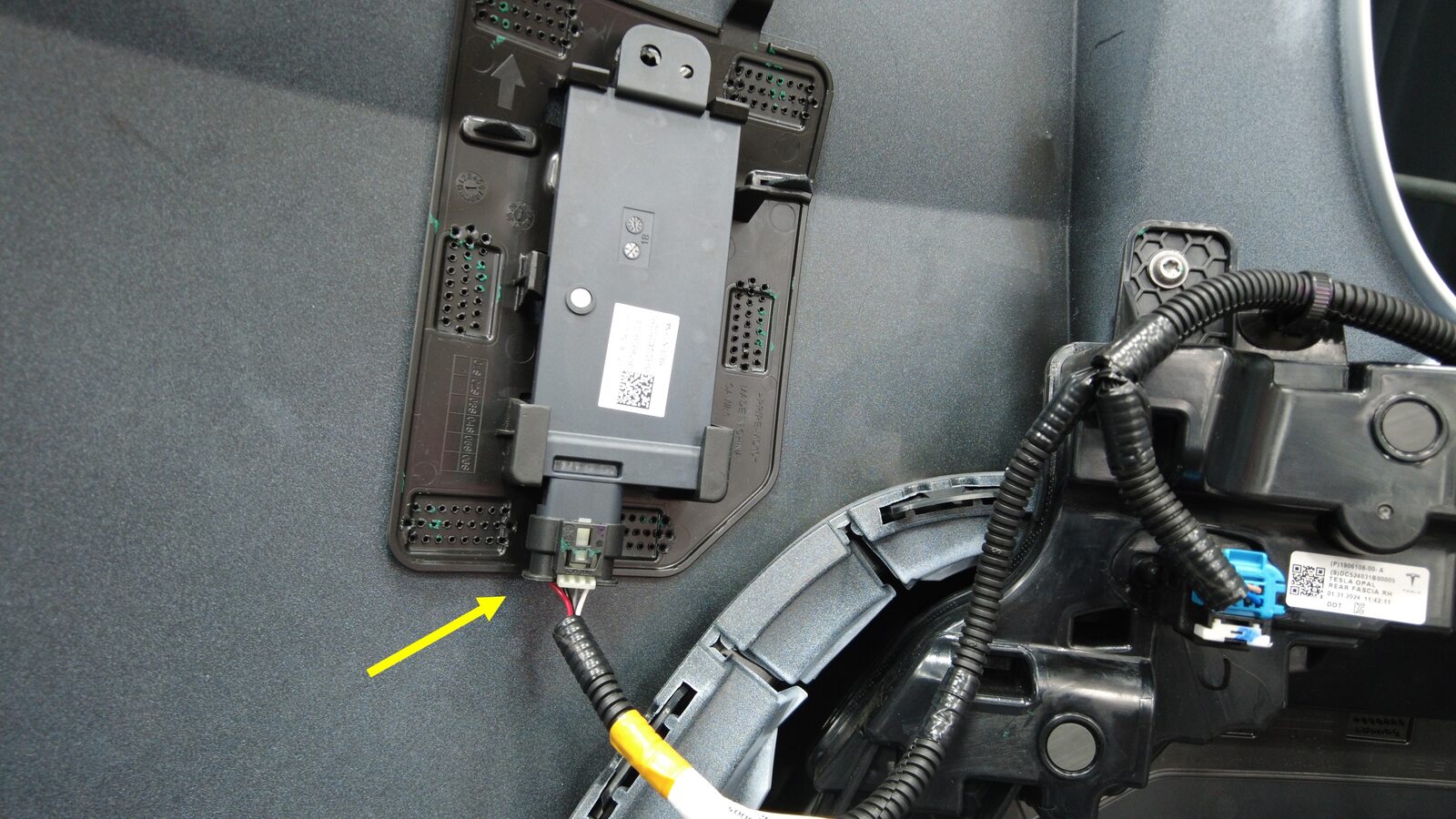

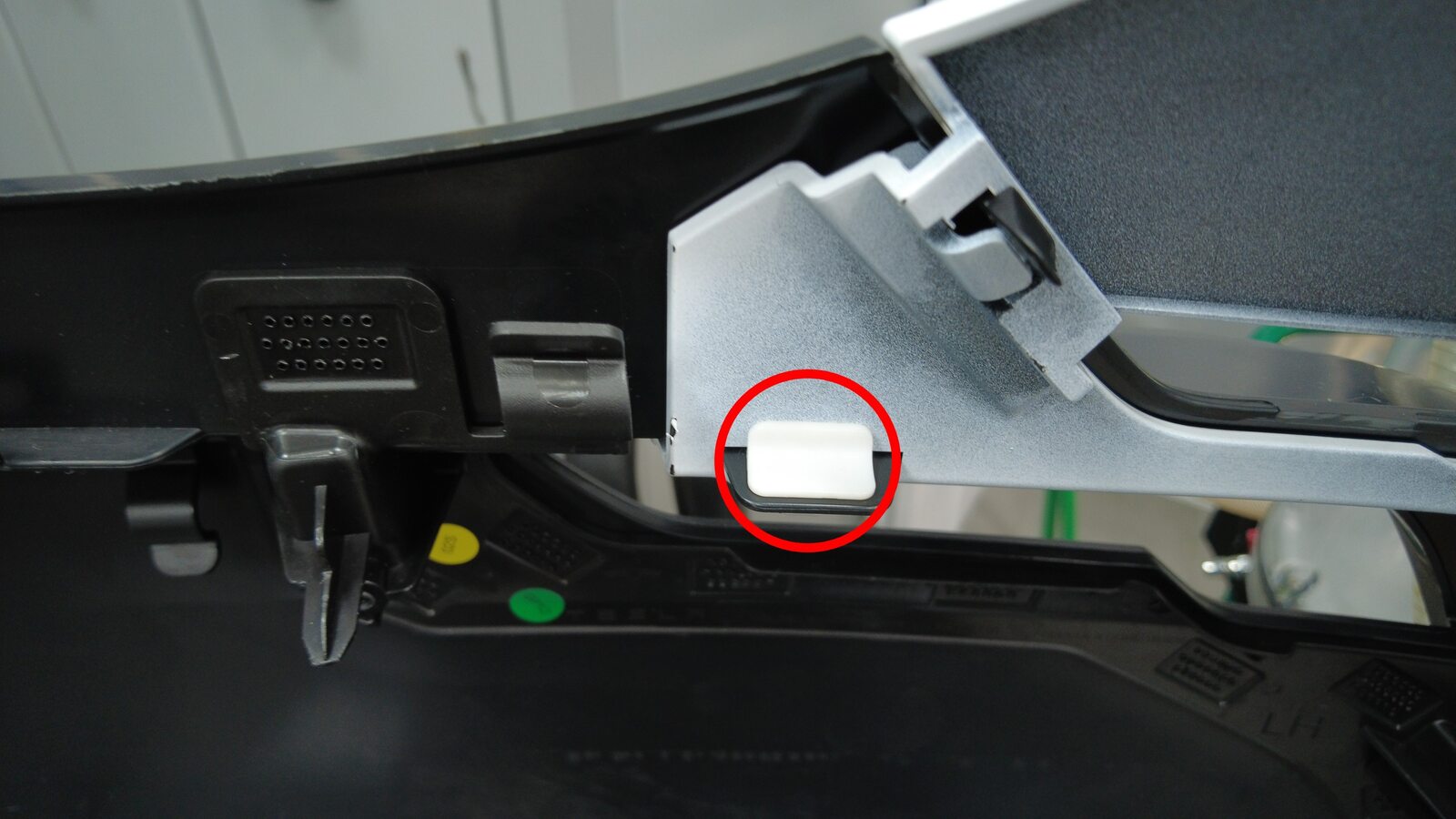

  9. Disconnect RH rear BLE connector
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Disengage locking tab

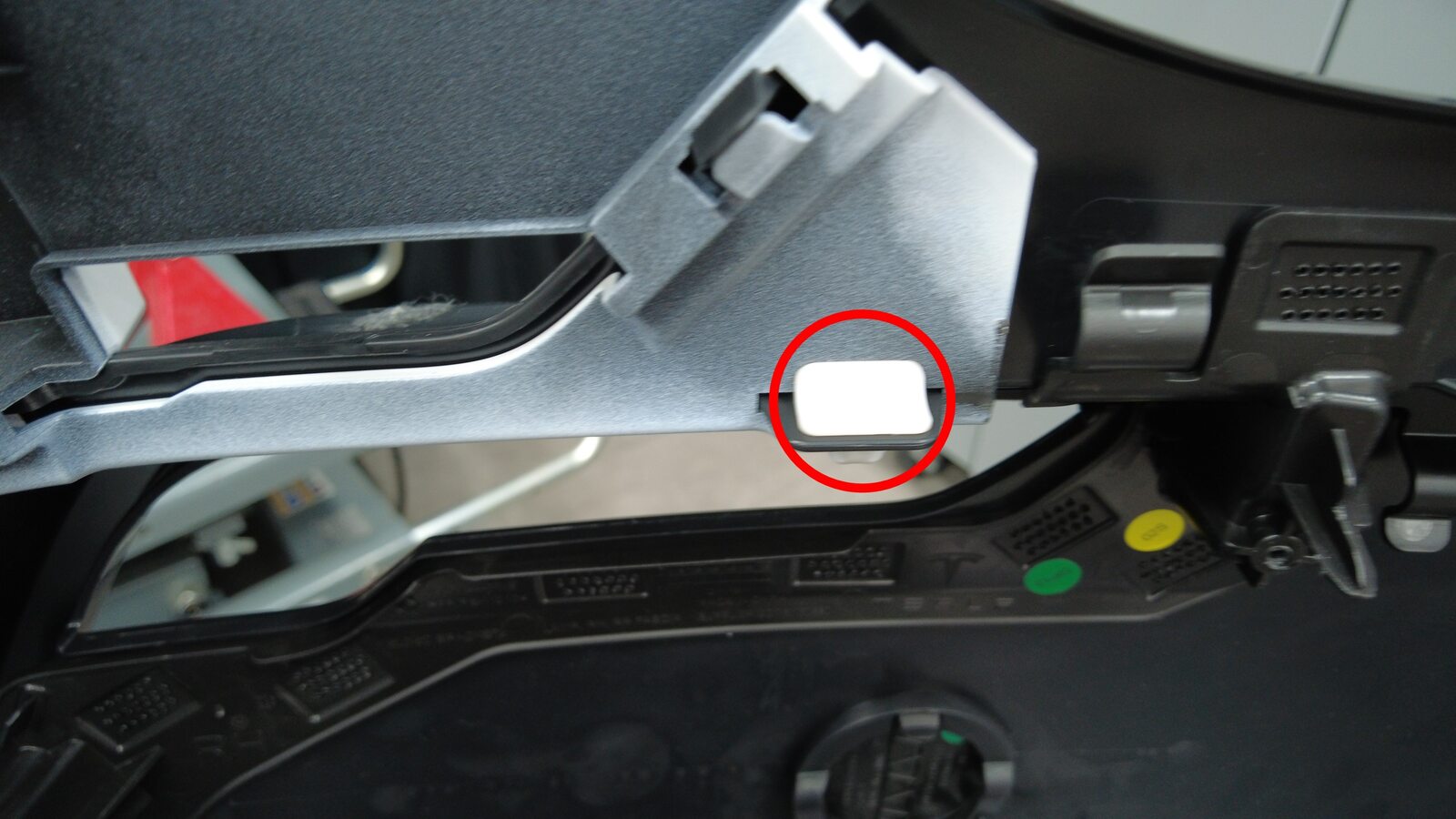

  10. Disconnect LH rear BLE connector
    Informational PurposesAn informational icon, calling your attention
    注
    1x connector, Disengage locking tab

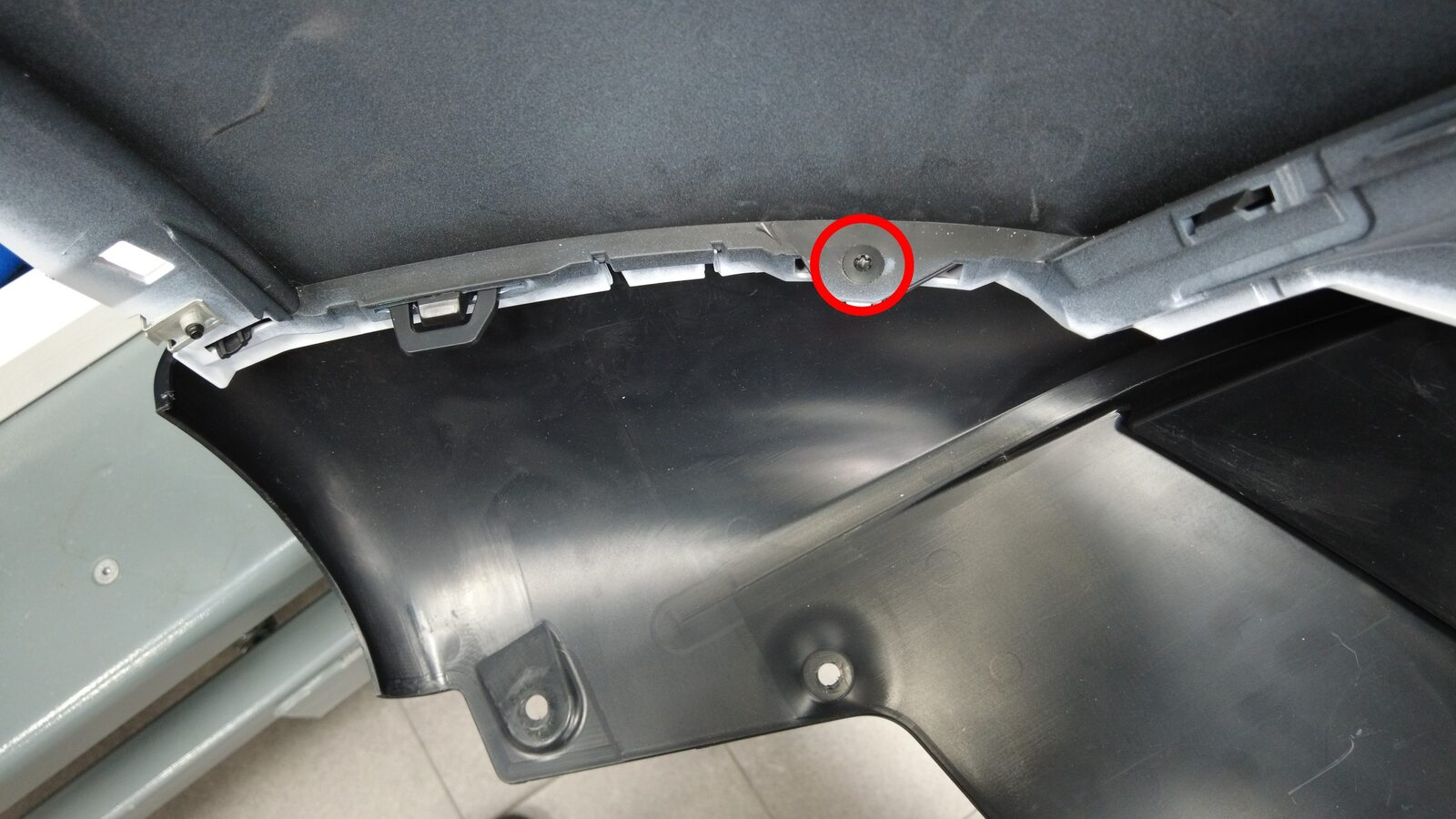

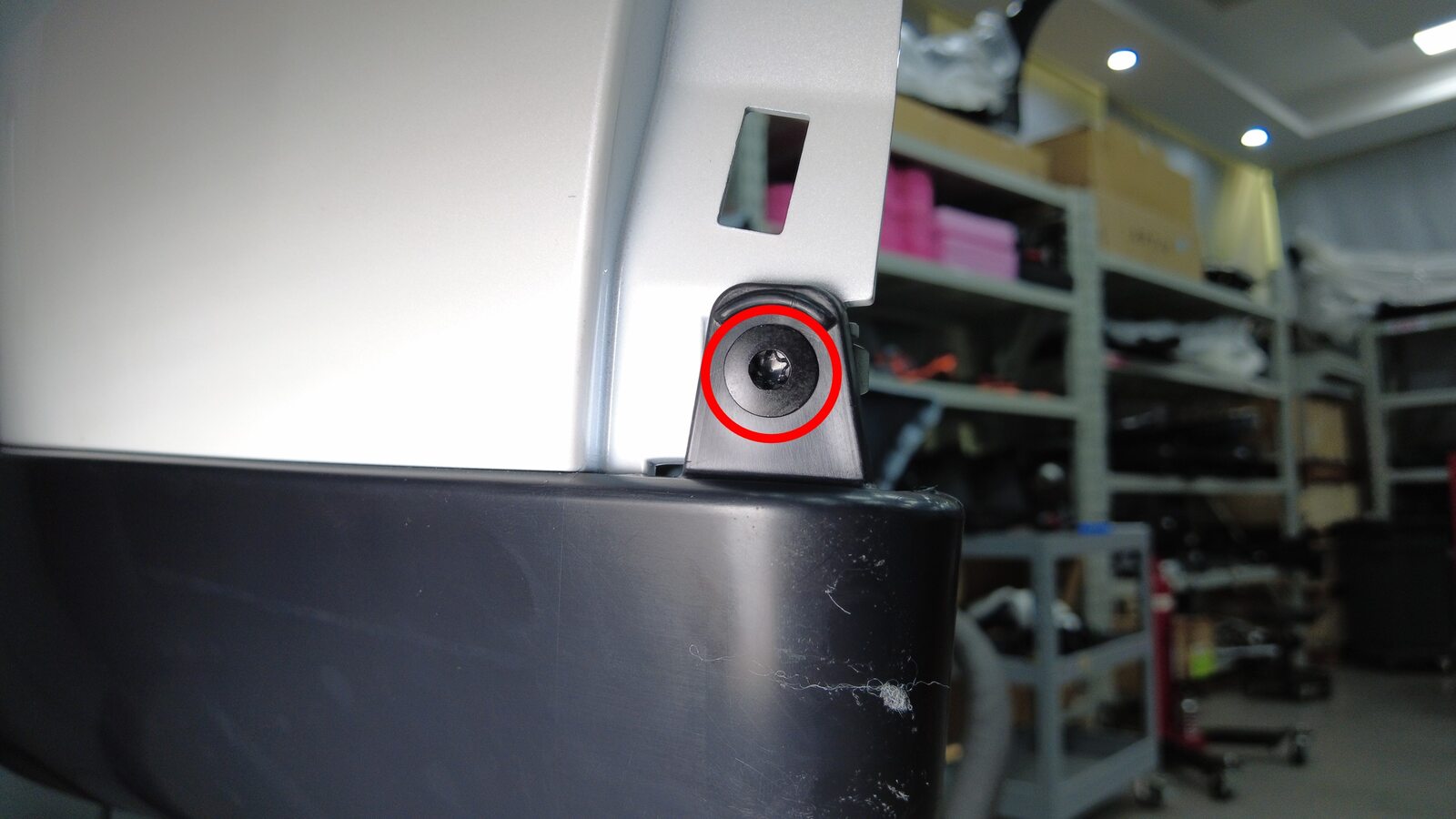

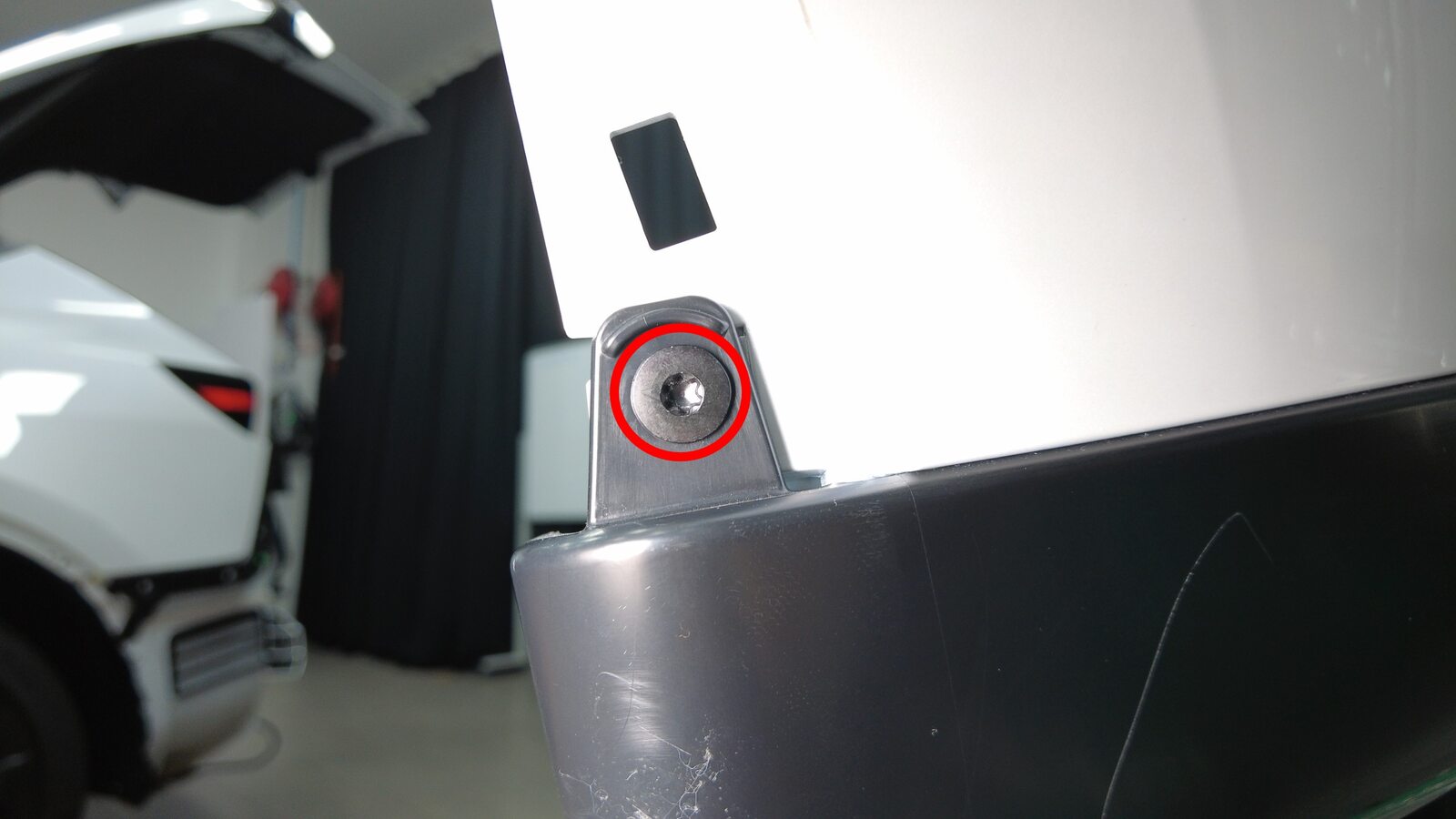

  11. Remove bolts securing LH rear upper fascia to rear lower fascia
    Informational PurposesAn informational icon, calling your attention
    注
    2x bolts, T30, 3 Nm

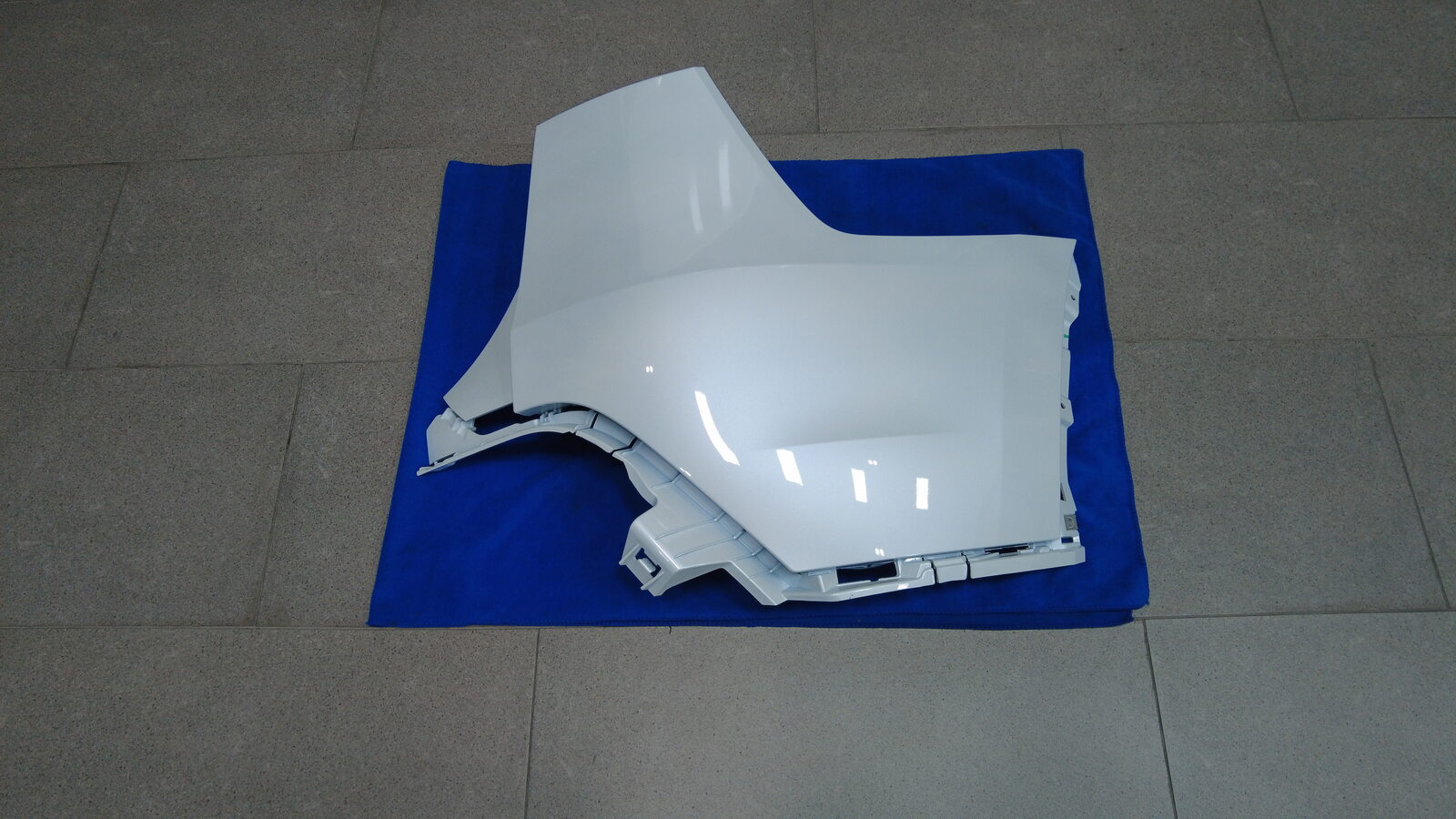

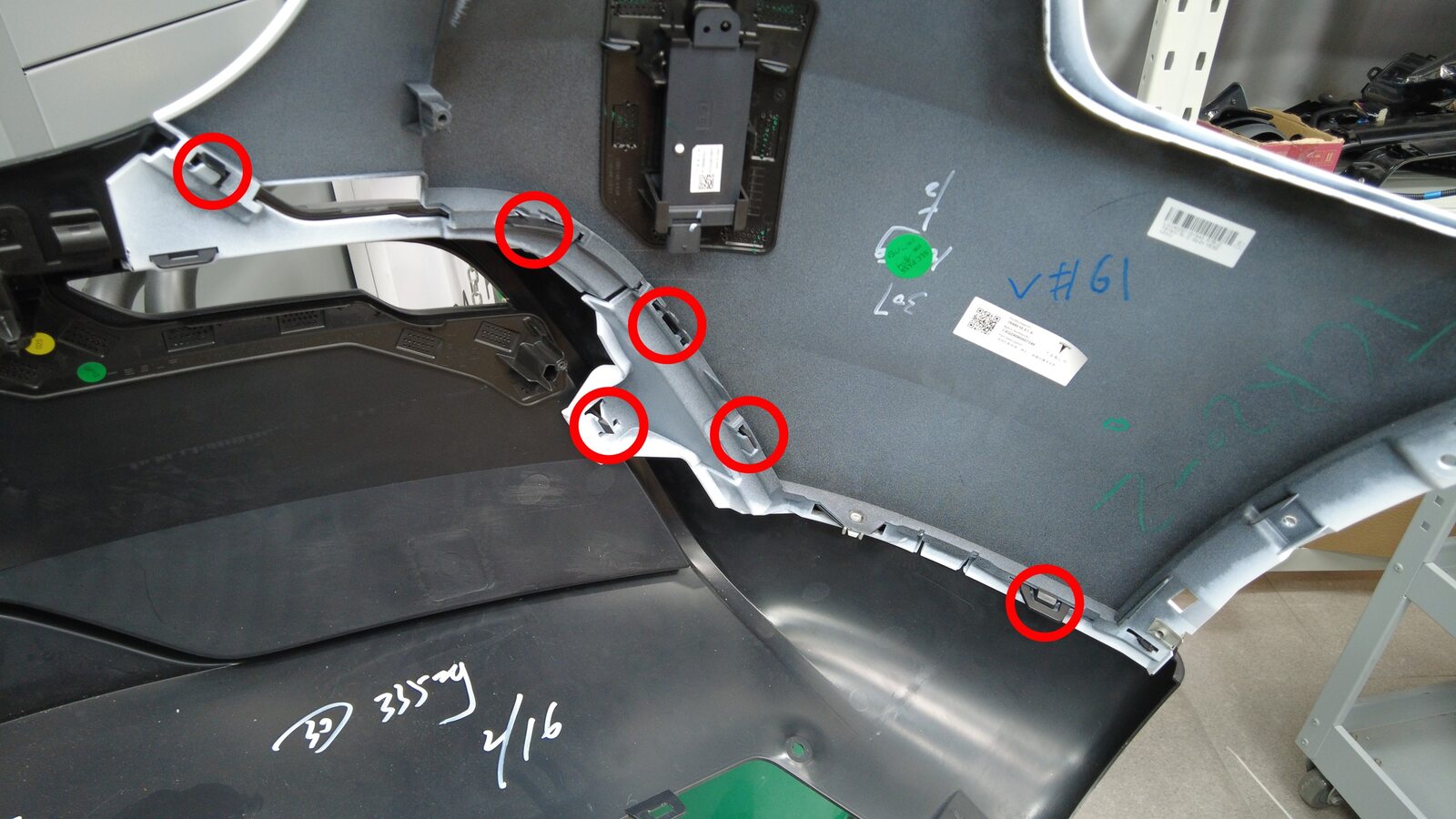

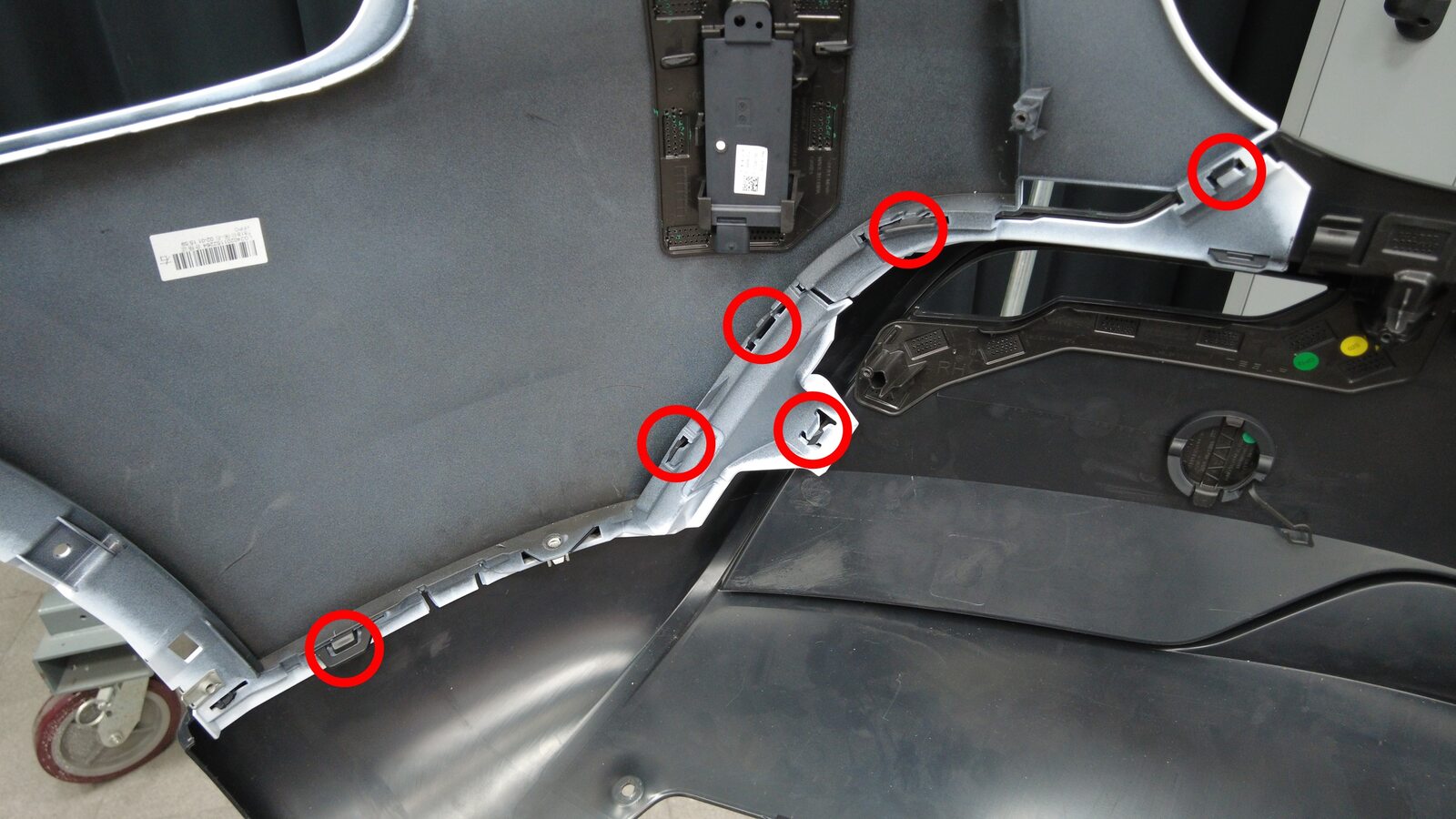

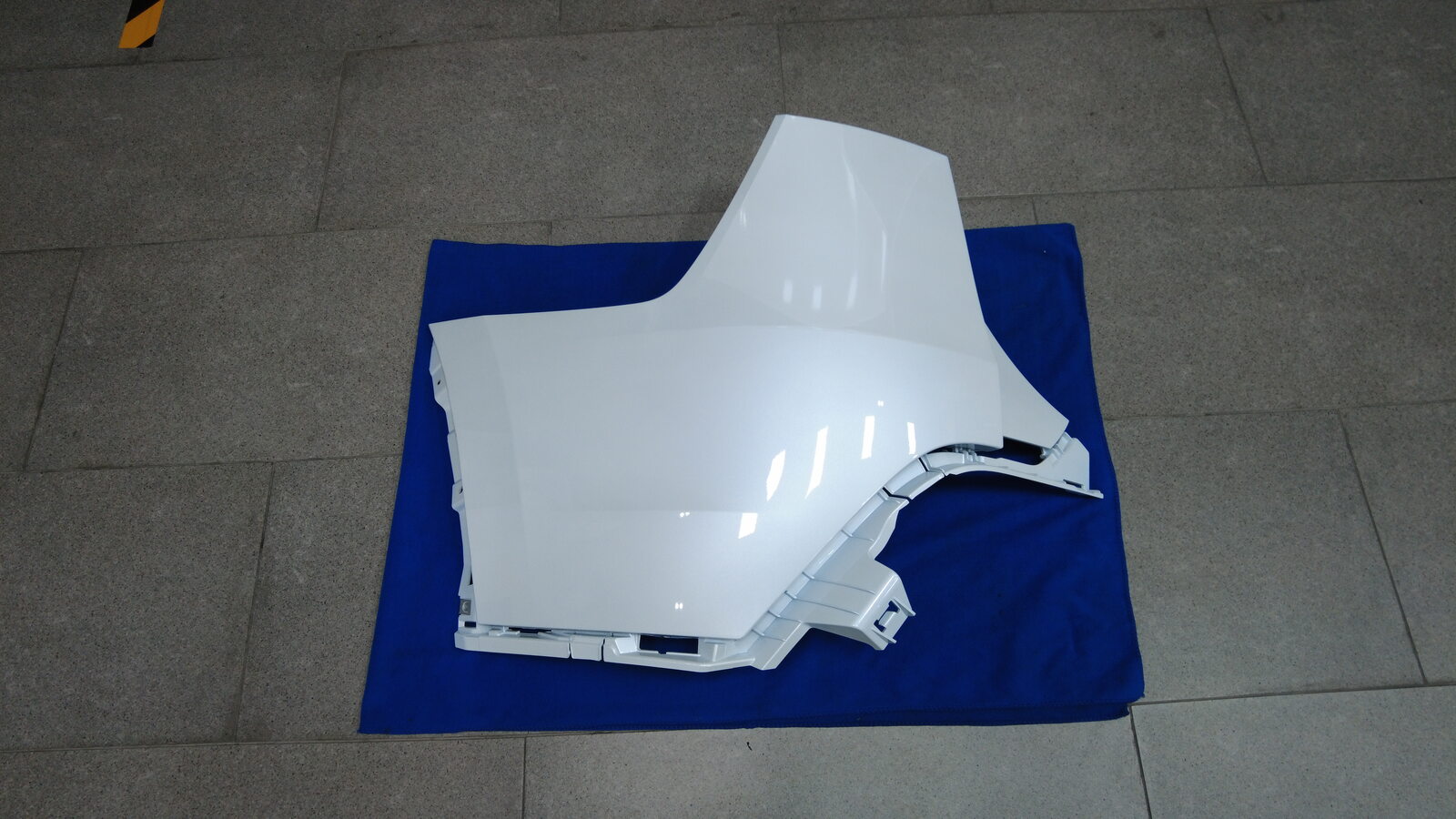

  12. Remove LH rear upper fascia from lower rear fascia
    Informational PurposesAn informational icon, calling your attention
    注
    7x clips

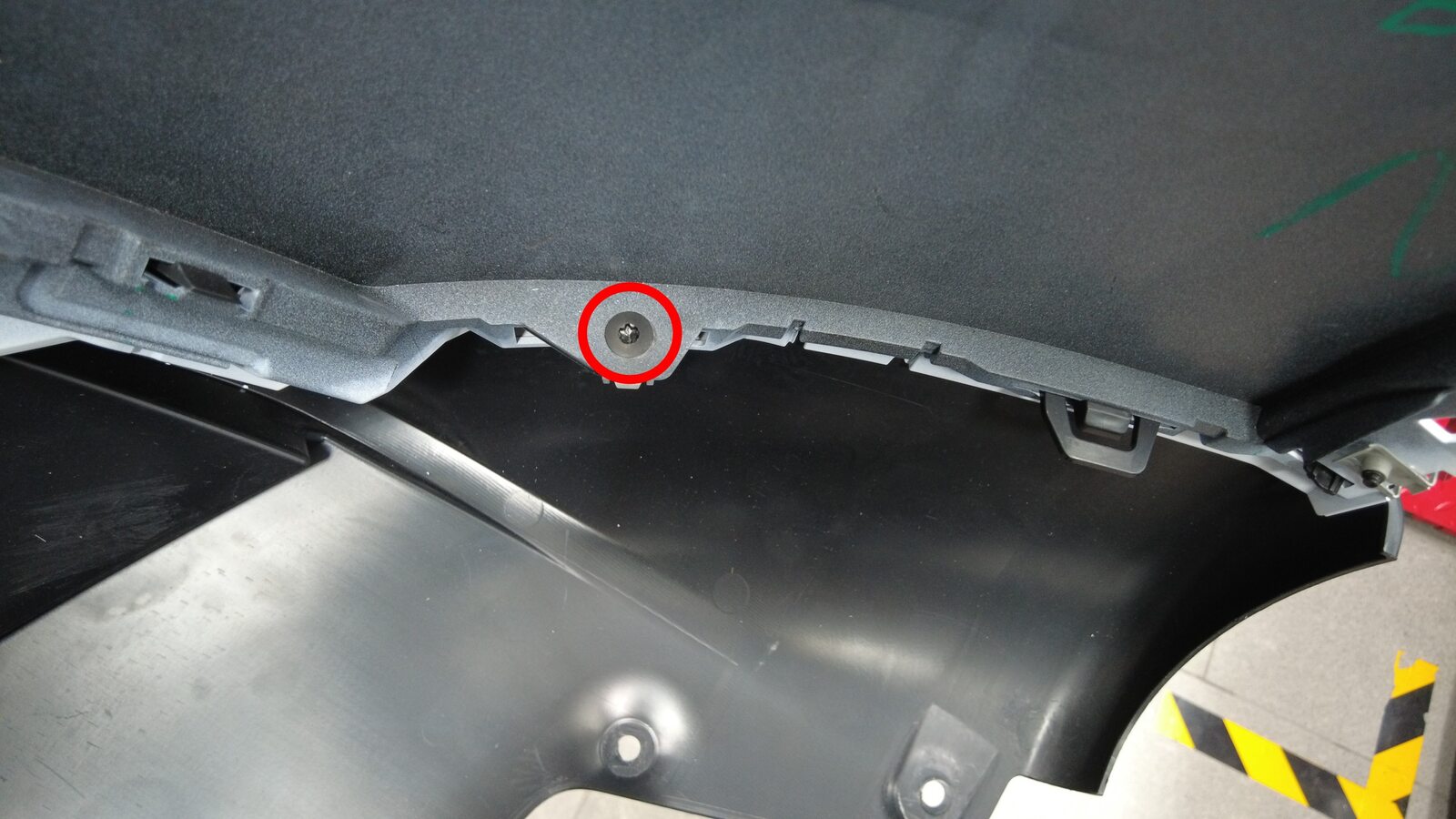

  13. Remove bolts securing RH rear upper fascia to rear lower fascia
    Informational PurposesAn informational icon, calling your attention
    注
    2x bolts, T30, 3 Nm
  14. Remove RH rear upper fascia from lower rear fascia
    Informational PurposesAn informational icon, calling your attention
    注
    7x clips

安装

  1. Install the clips (x7) that install the RH rear upper fascia to the lower rear fascia.
    Informational PurposesAn informational icon, calling your attention
    注
    7x clips
  2. Install the bolts (x2) that attach the RH rear upper fascia to the rear lower fascia.
    3 Nm (2.2 lbs-ft)
  3. Install the clips (x7) that attach the LH rear upper fascia to the lower rear fascia.
  4. Install the bolts (x2) that attach the LH rear upper fascia to the rear lower fascia.
    3 Nm (2.2 lbs-ft)
  5. Connect the LH rear BLE connector.
  6. Install the LH rear reflex.
    Informational PurposesAn informational icon, calling your attention
    注
    Push firmly inward to attach the reflex.
  7. Install the RH rear reflex.
    Informational PurposesAn informational icon, calling your attention
    注
    Push firmly inward to attach the reflex.
  8. Connect the RH rear BLE connector.

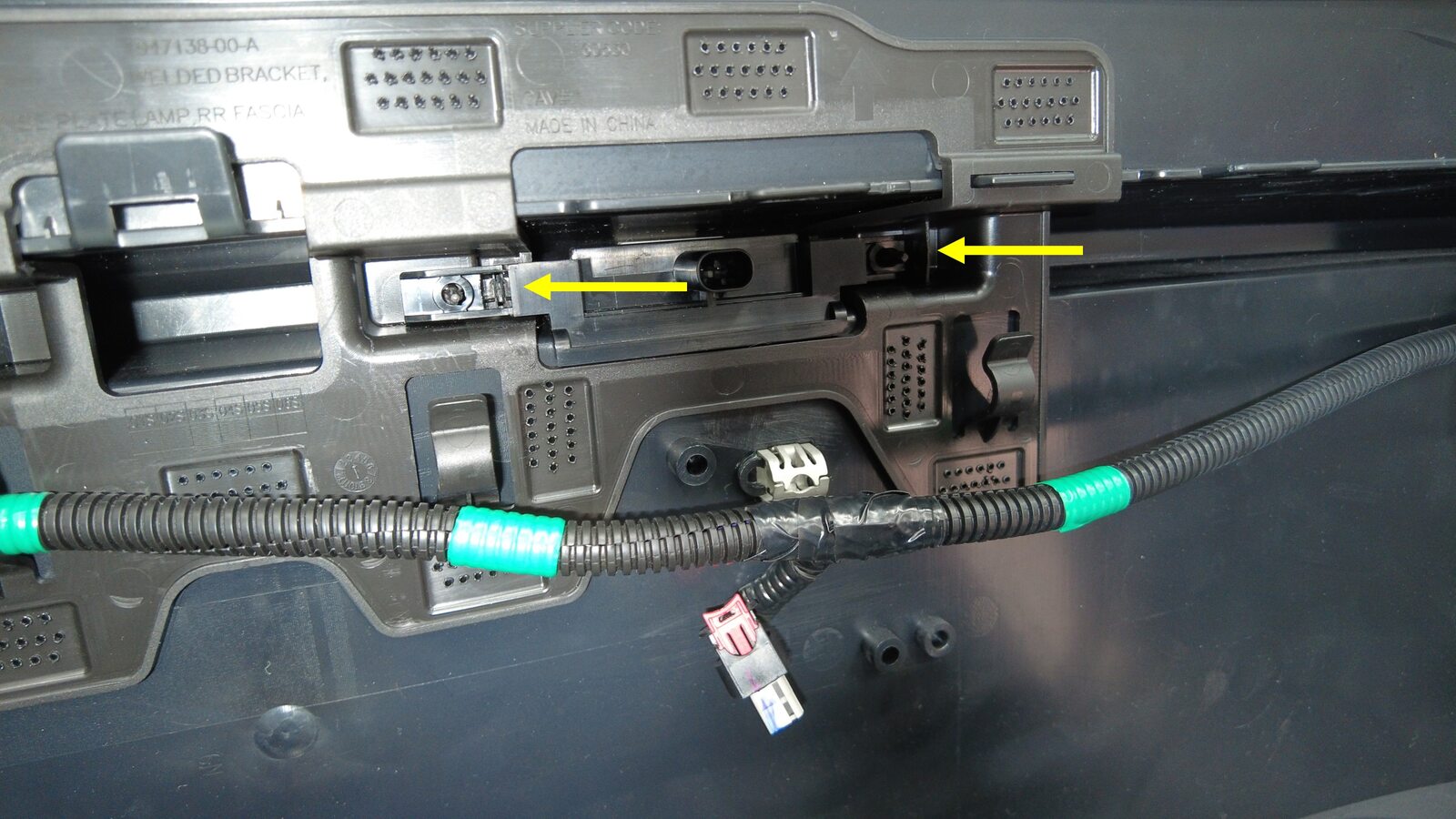

  9. Install the rear license plate LH lamp to the fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    注
    Push in until you hear two "click" sounds.
  10. Connect the rear license plate LH lamp connector.
  11. Install the rear license plate RH lamp to the fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    注
    Push in until you hear two "click" sounds.
  12. Connect the rear license plate RH lamp connector.
  13. Install the tabs (x9) that attach the rear diffuser to the rear lower fascia.
  14. Install the rear fascia assembly. See GUID-D2095EA8-C202-4040-AD3D-9C5C64BDCCB1.html.
