校正代码 1309010501 1309010502 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

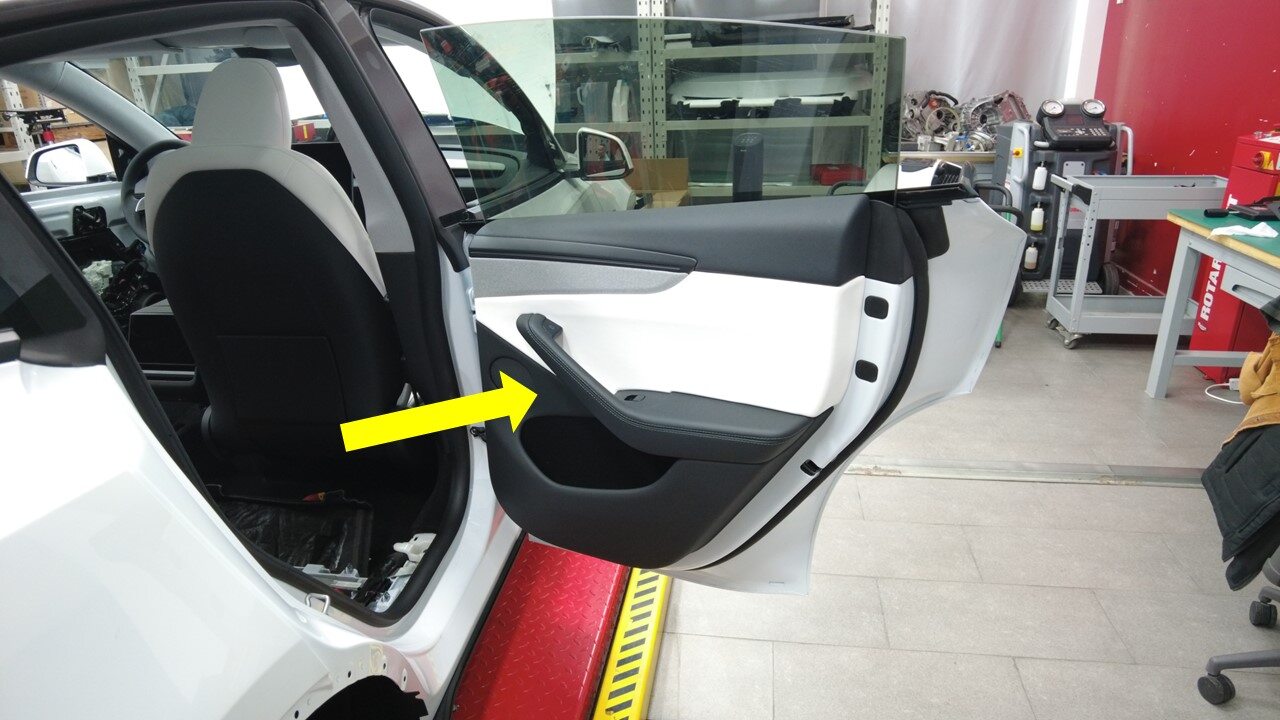

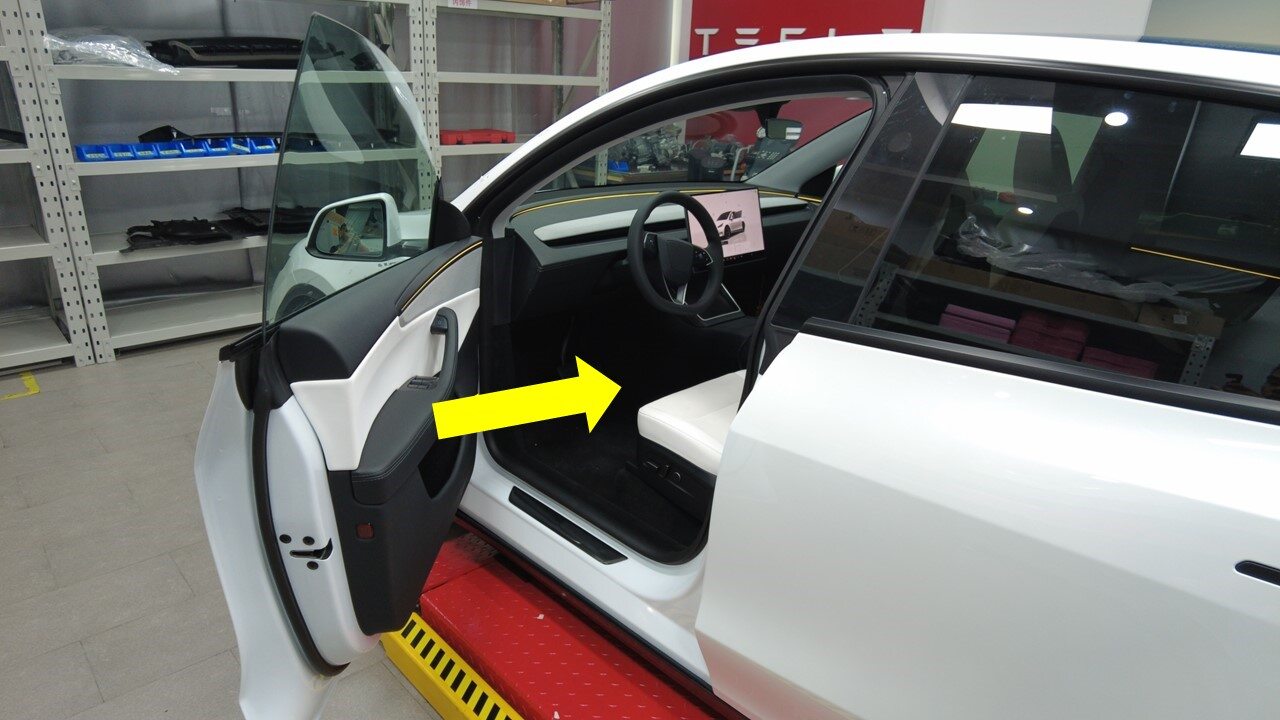

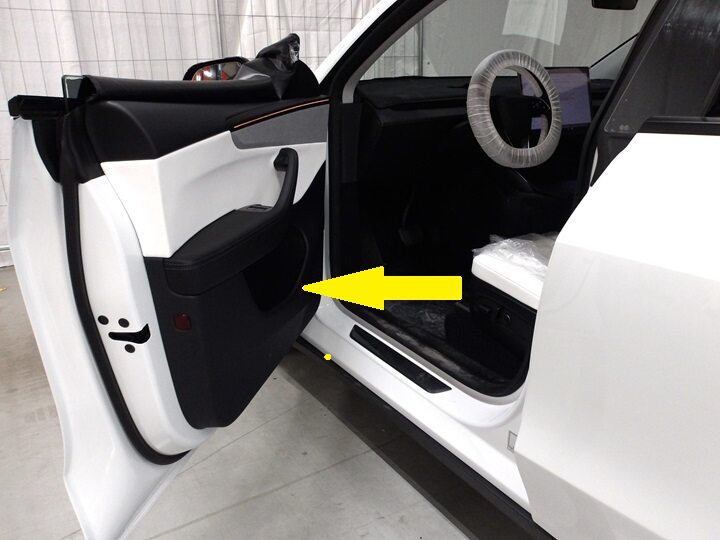

1. Open LH front door

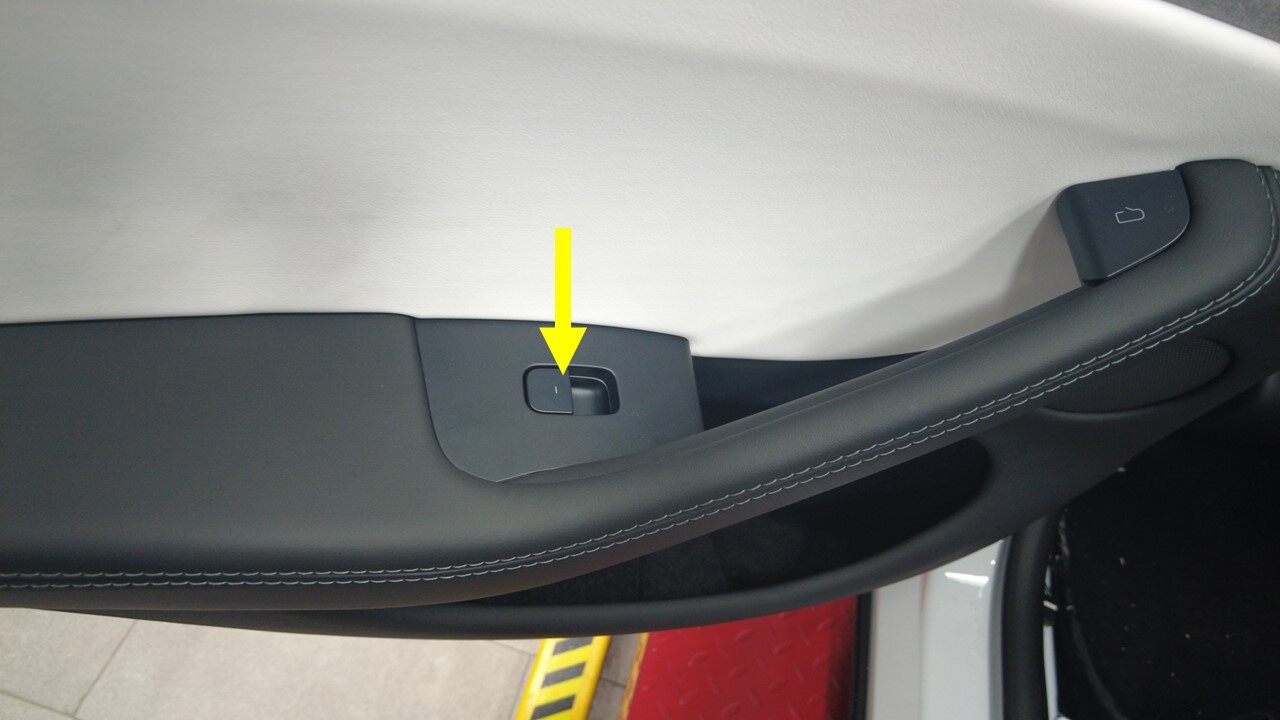

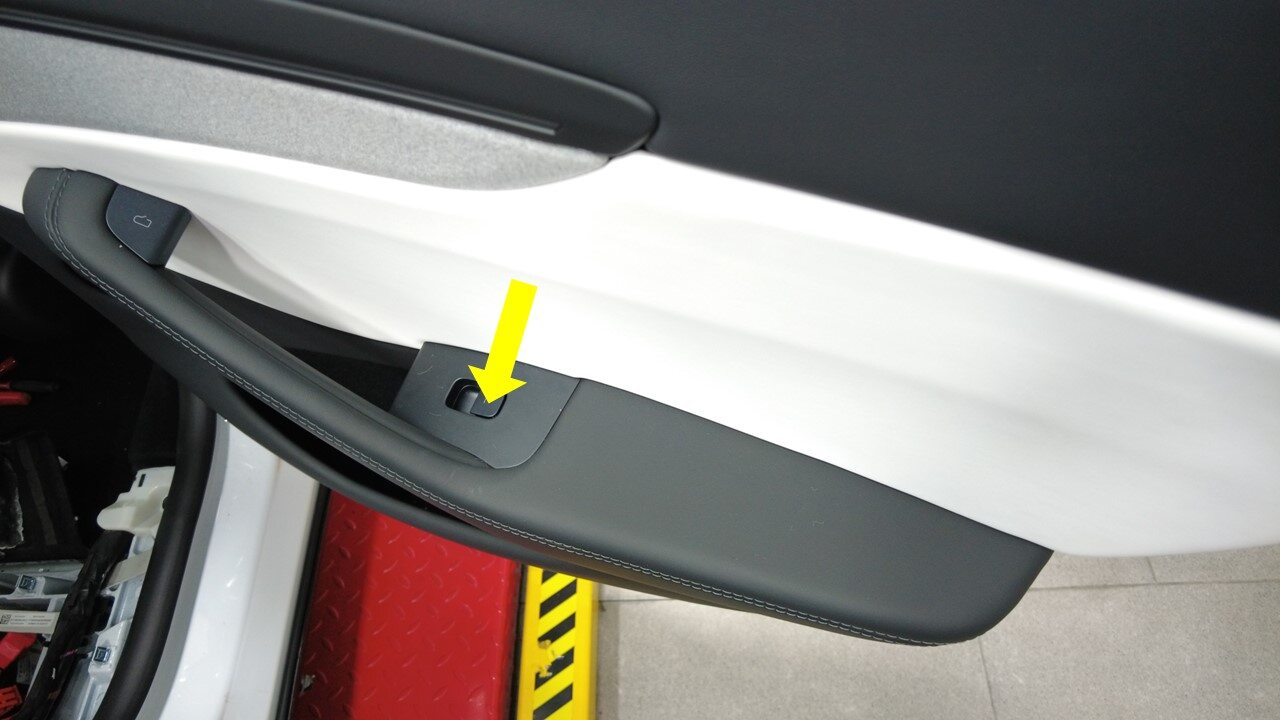

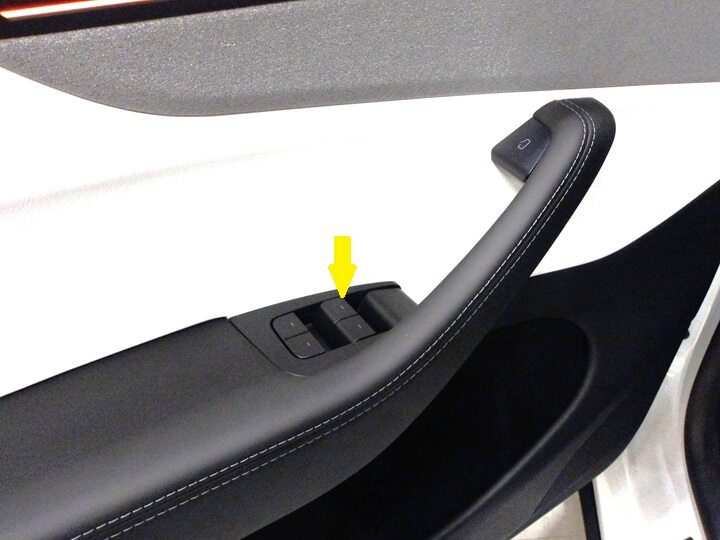

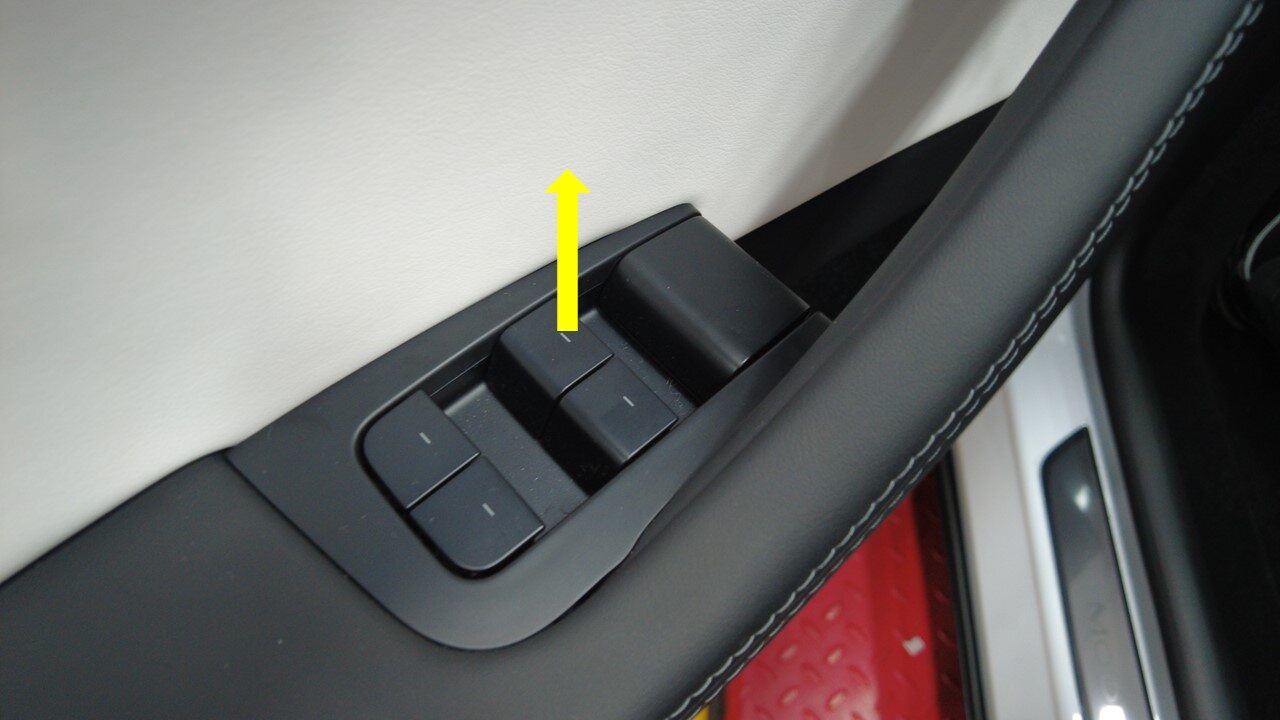

2. Lower LH front window

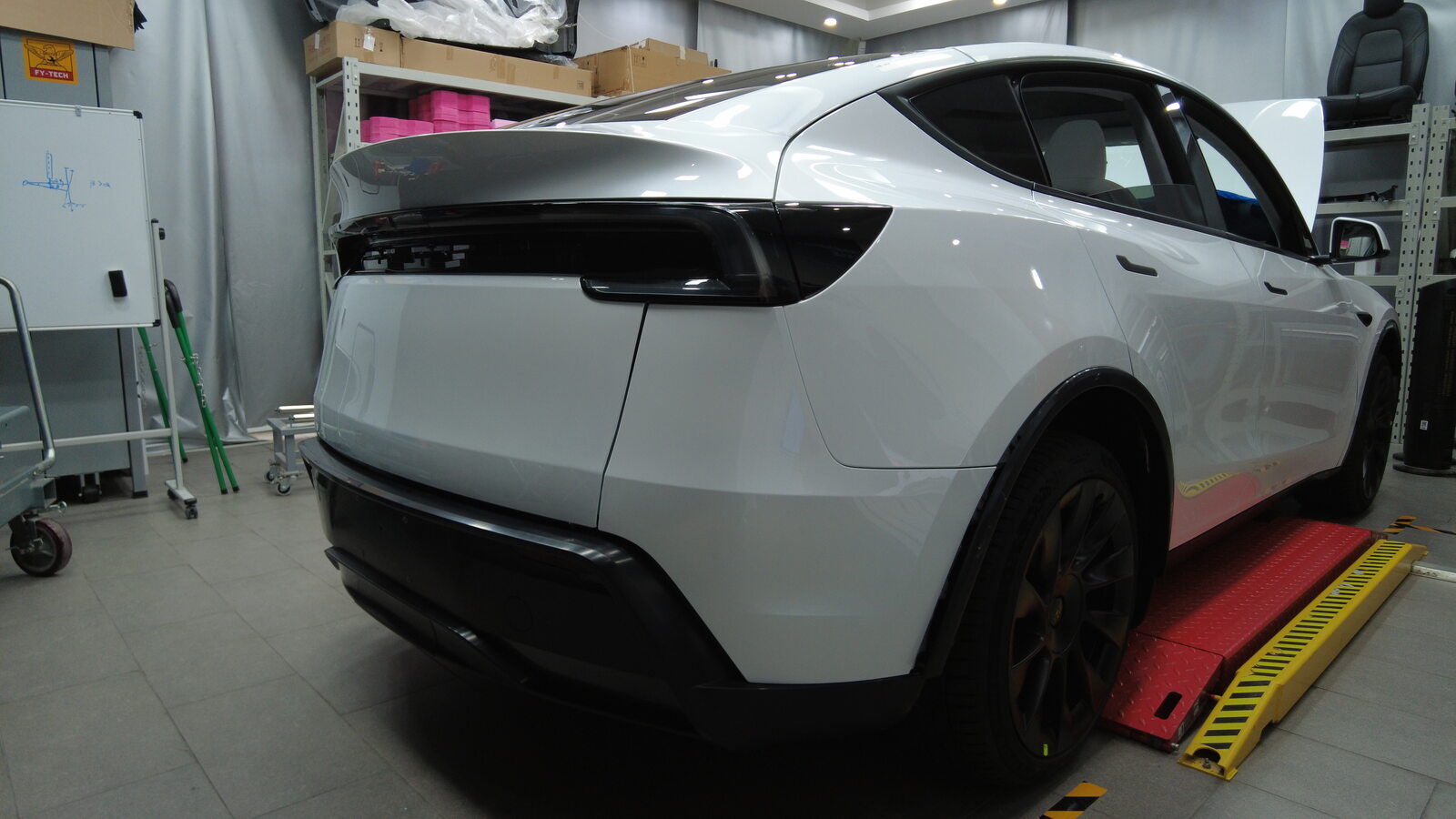

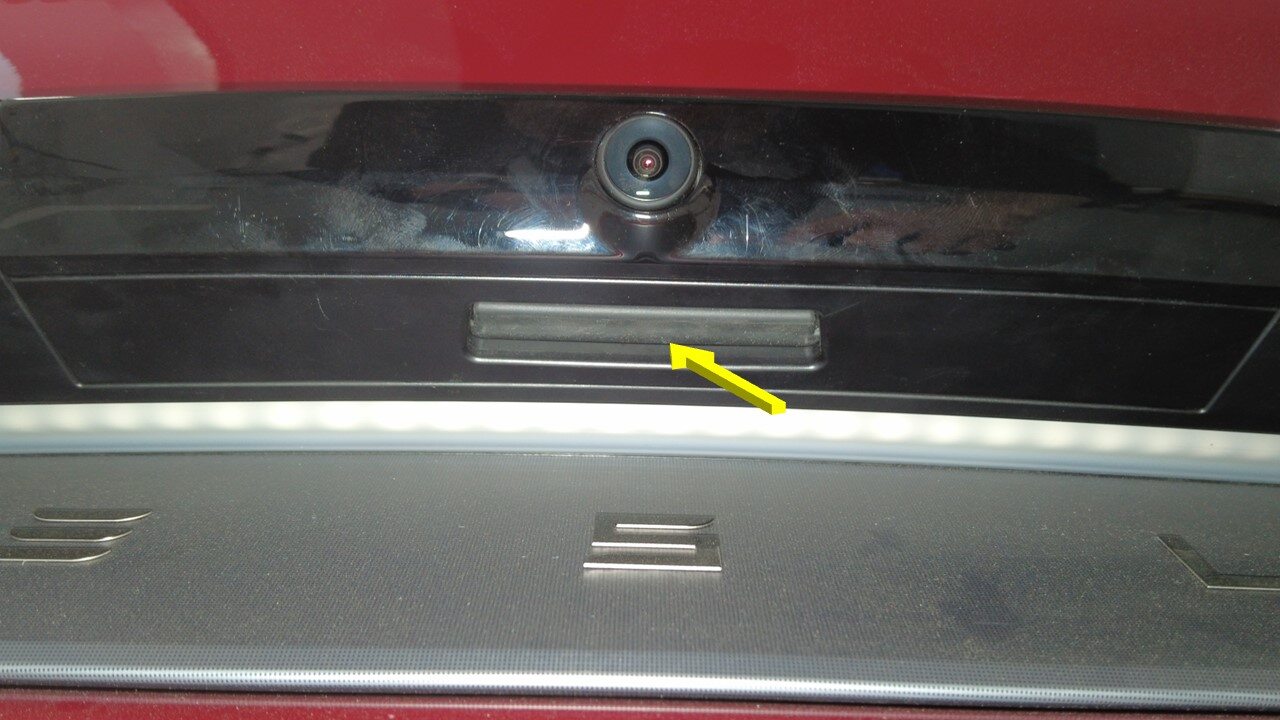

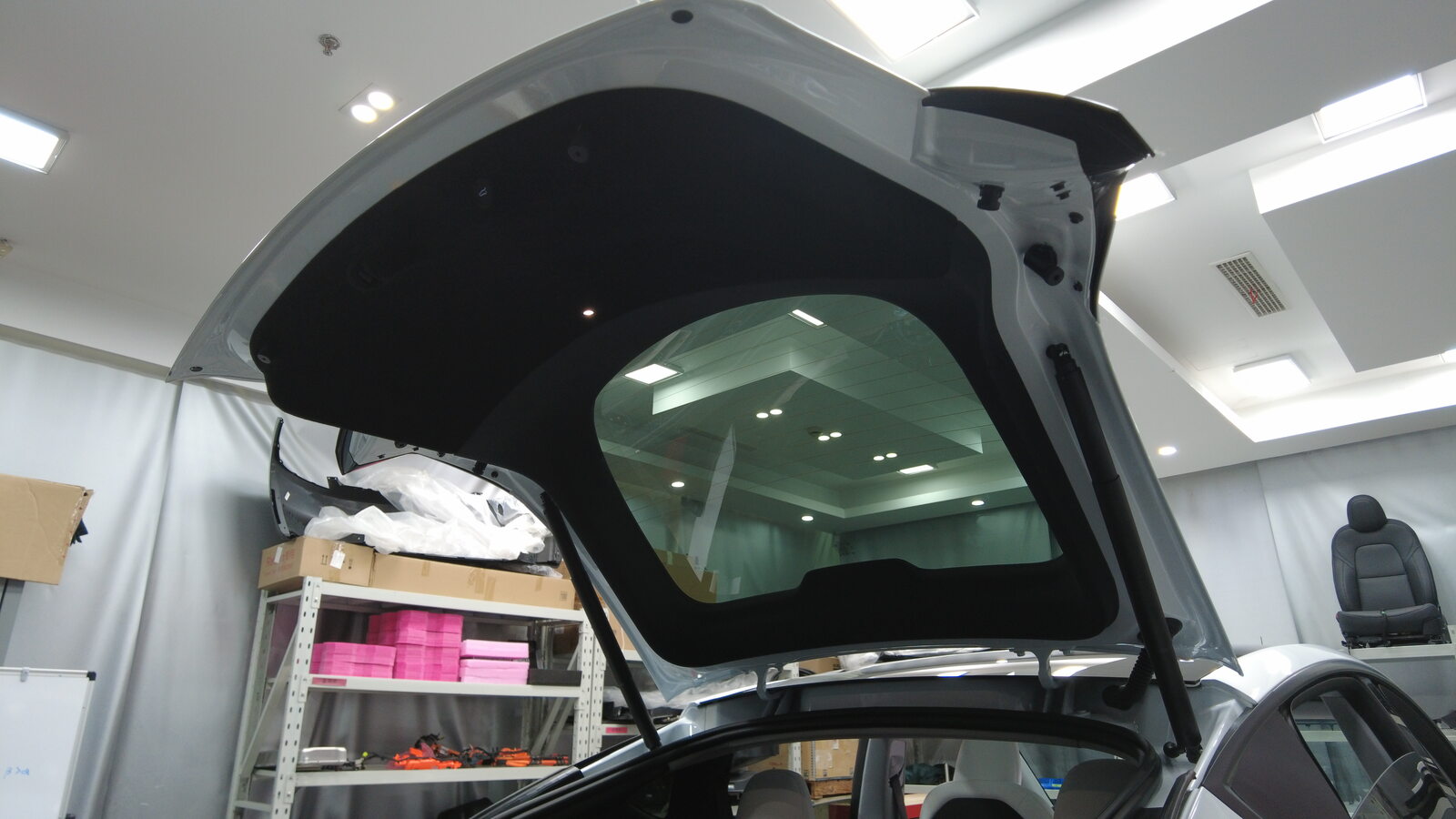

3. Open liftgate

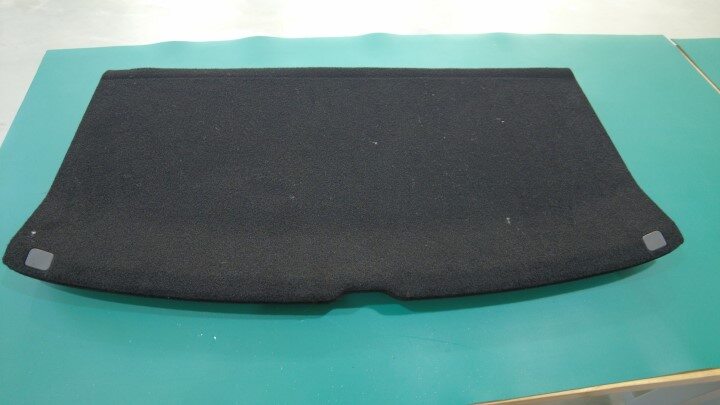

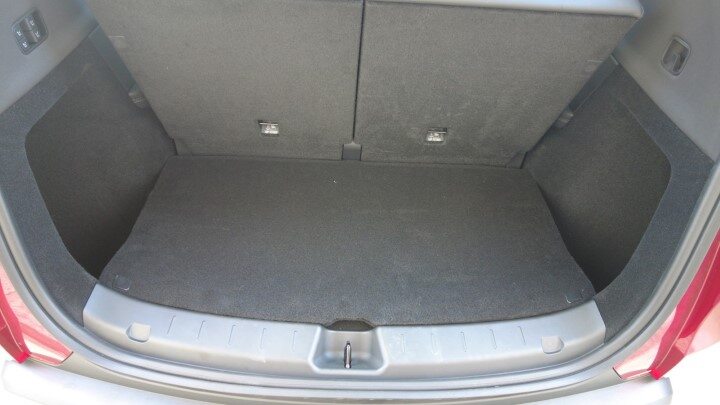

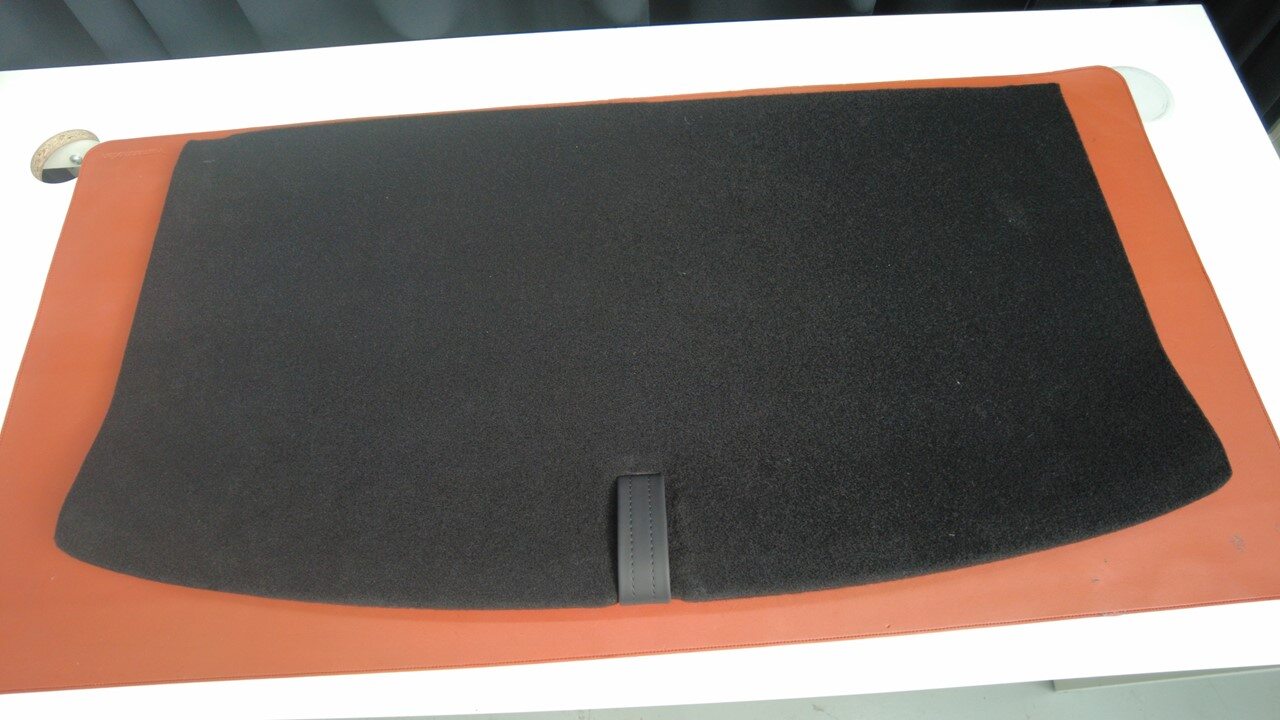

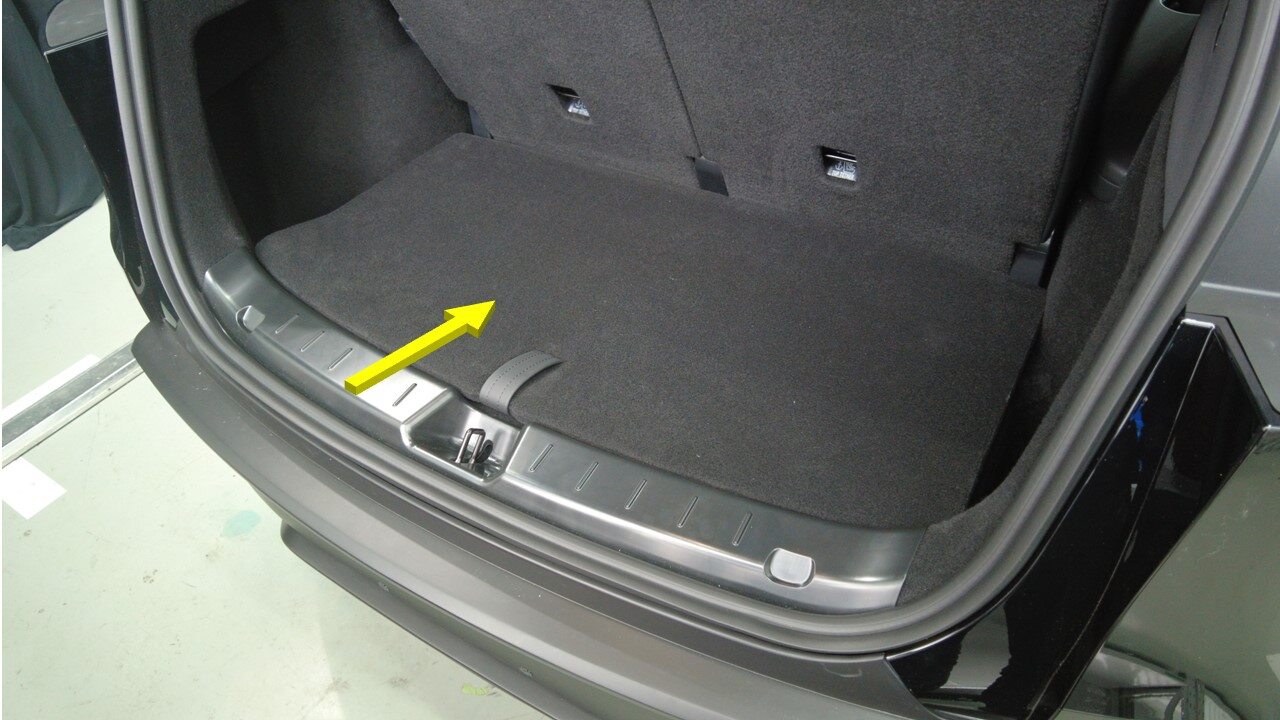

4. Remove trunk load floor from vehicle

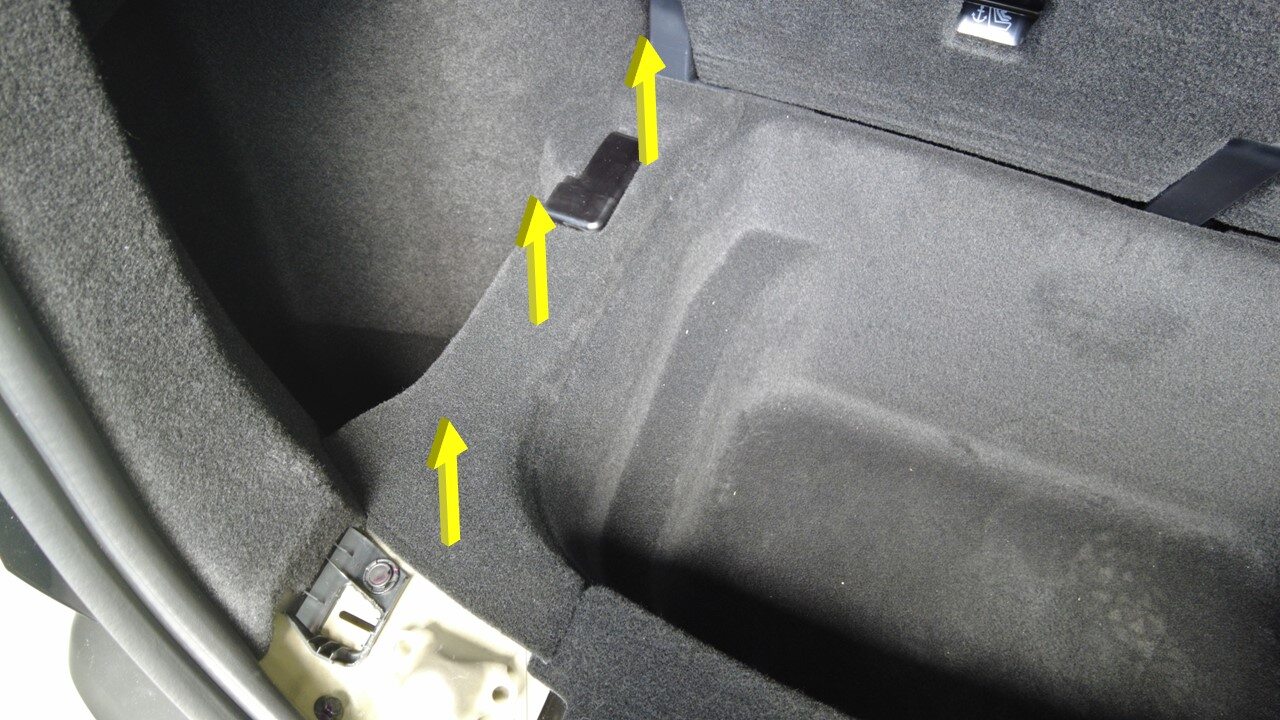

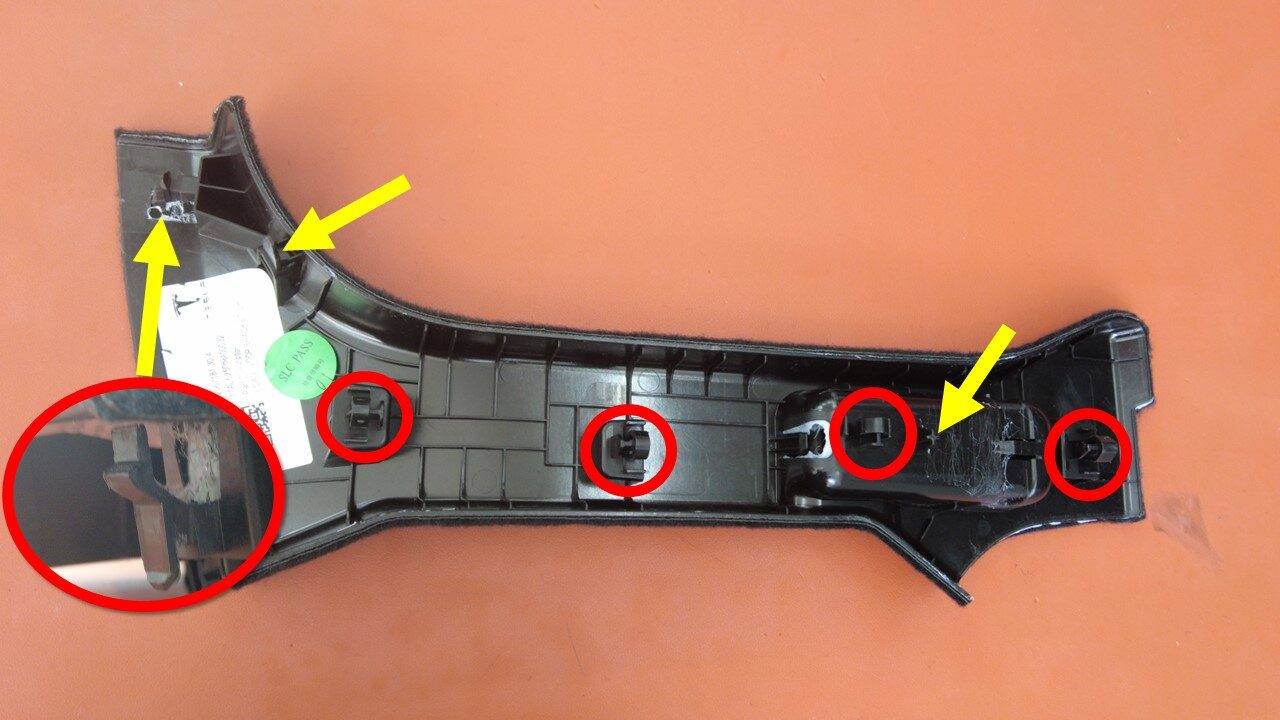

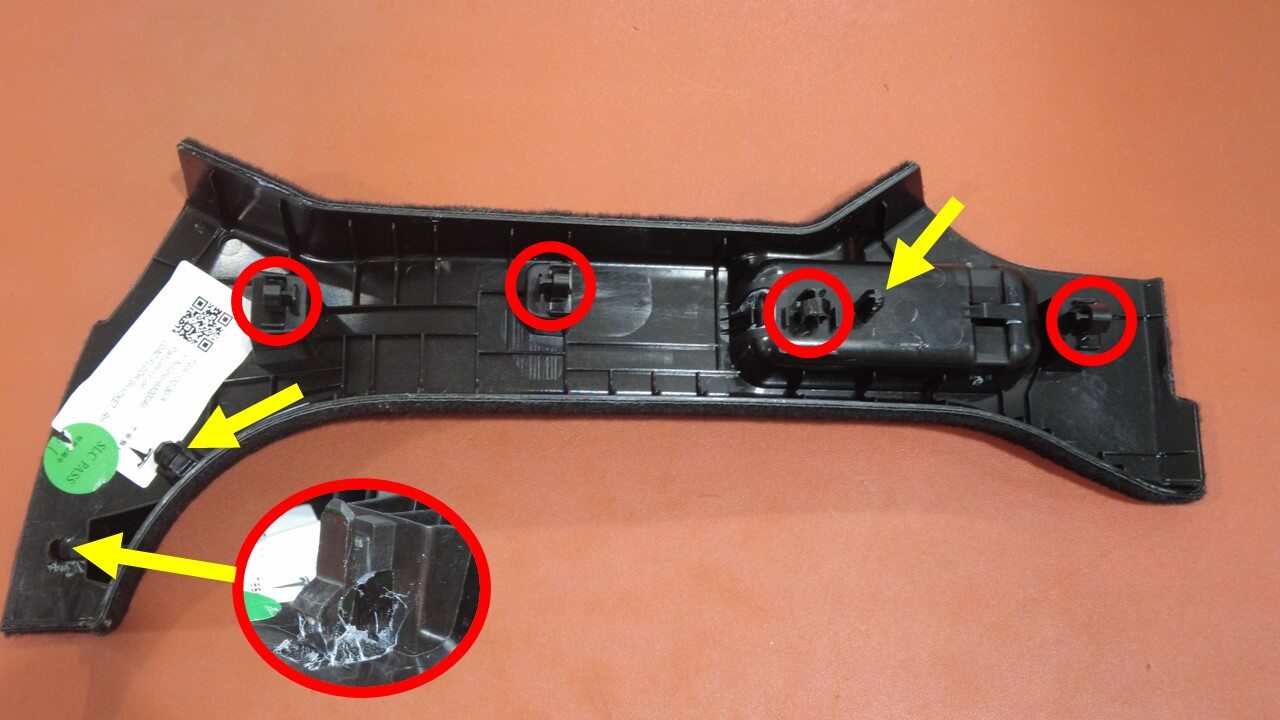

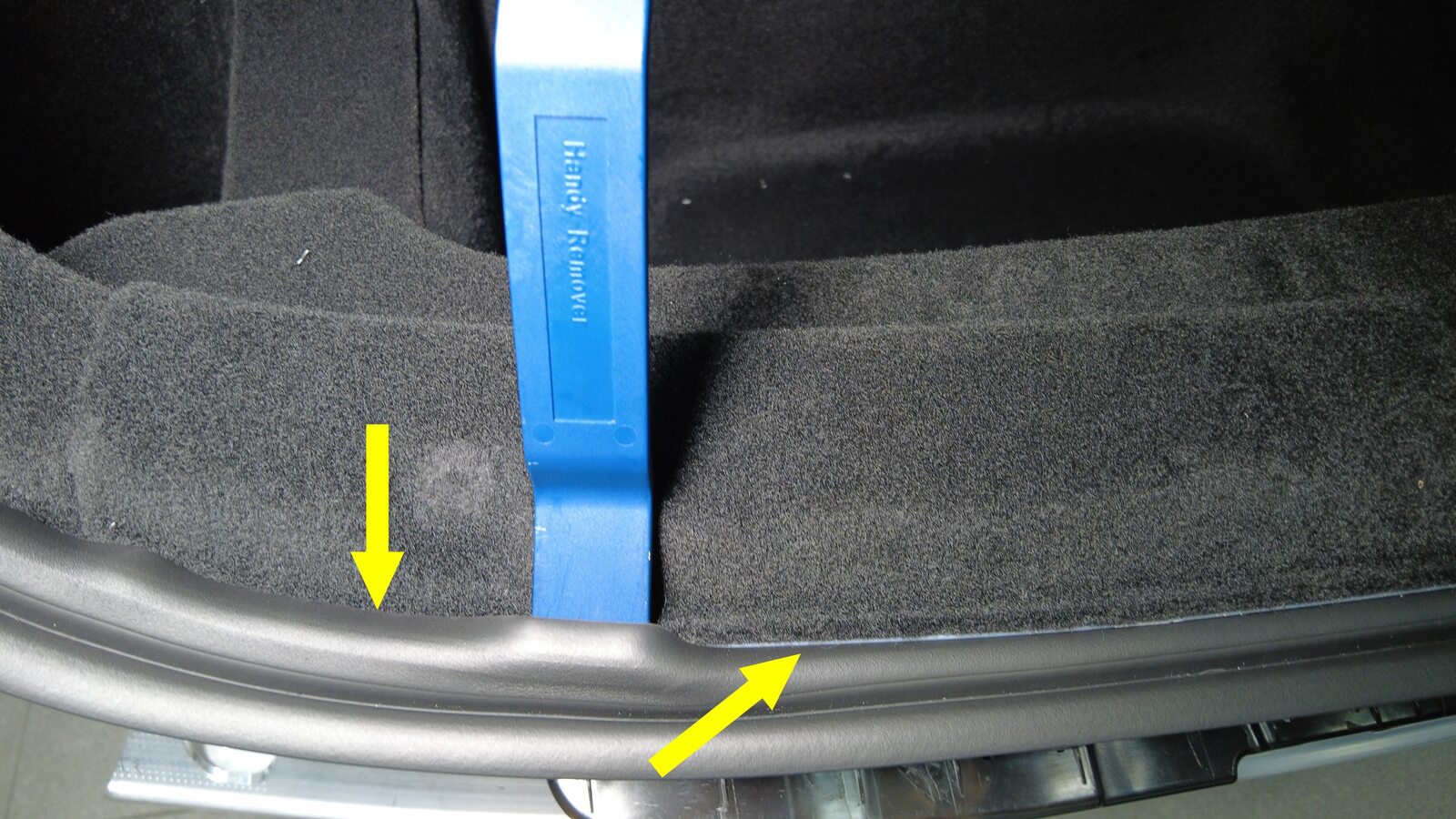

5. Remove trunk sill trim from vehicle
   注

   4x clips, 2x location pins

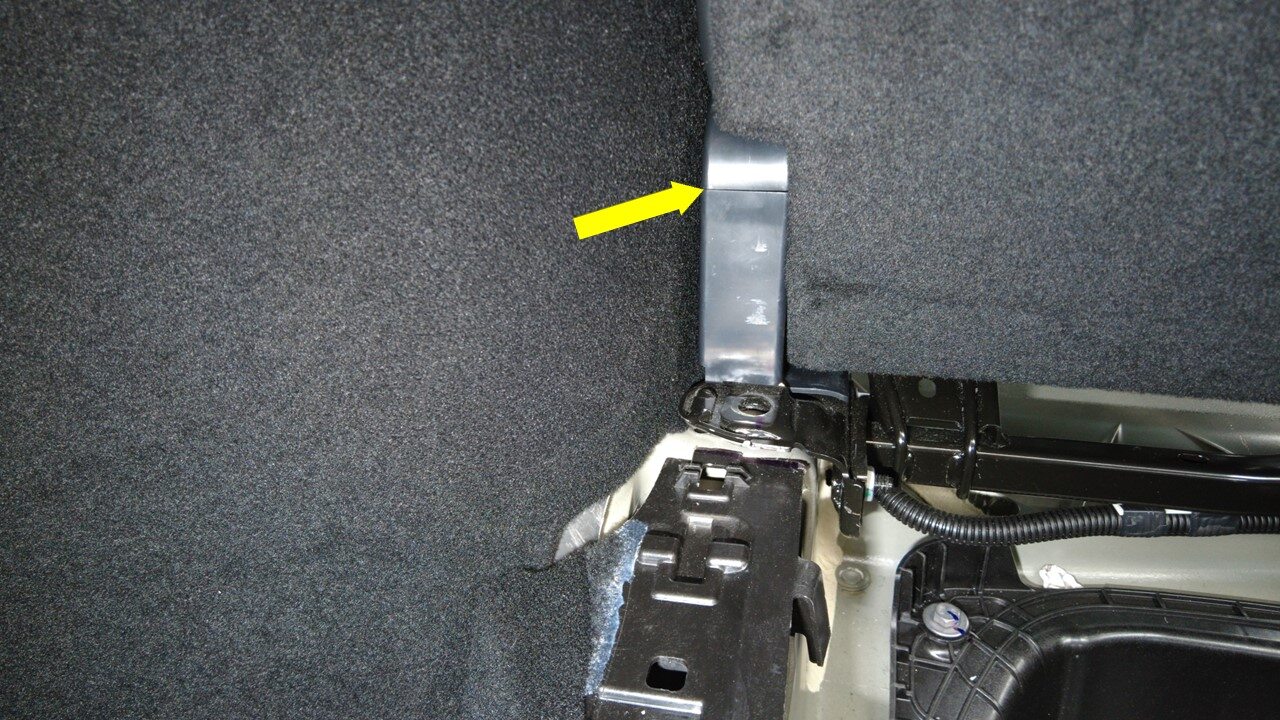

6. Remove LH load floor bracket from vehicle
   注

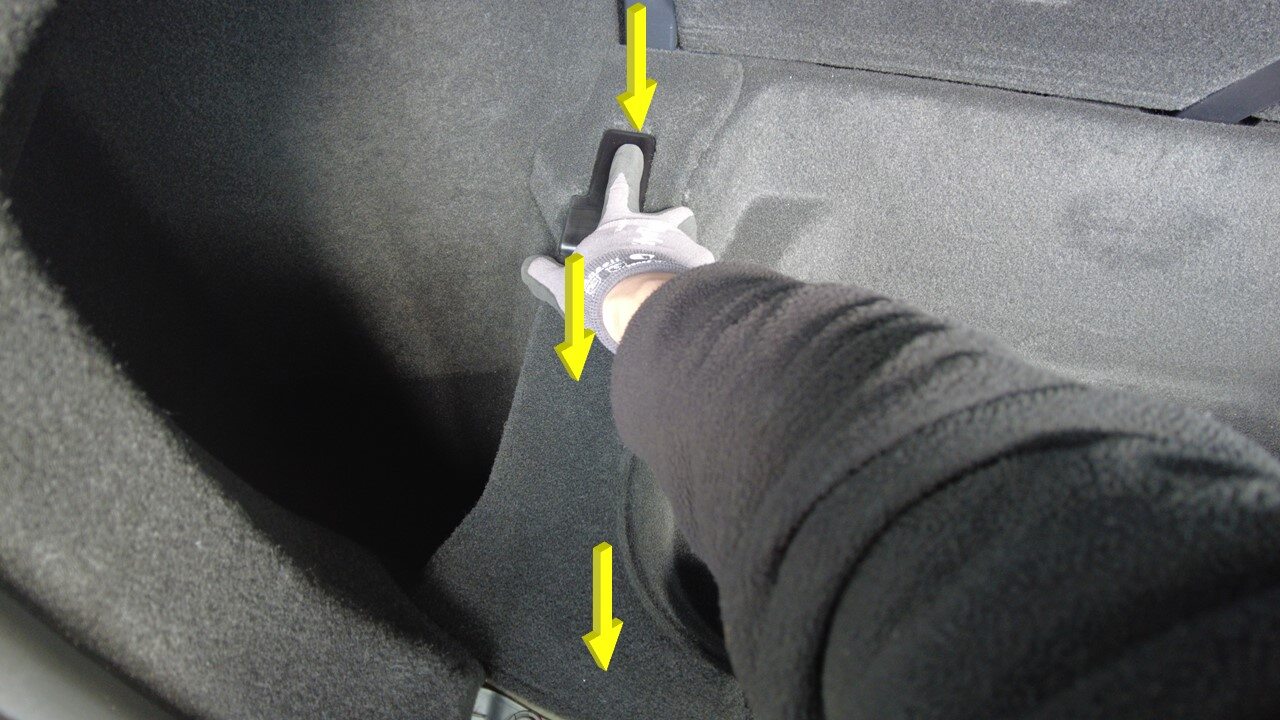

   5x clips, 2x location pins

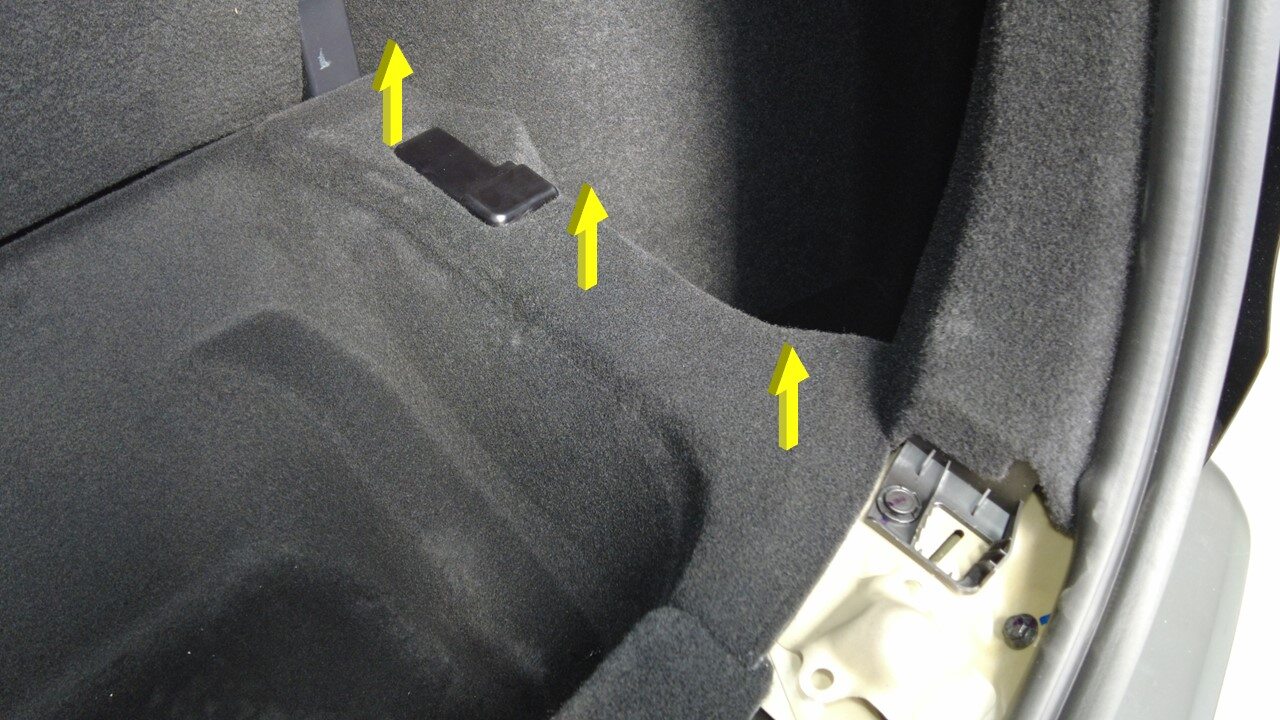

7. Remove RH load floor bracket from vehicle
   注

   5x clips, 2x location pins

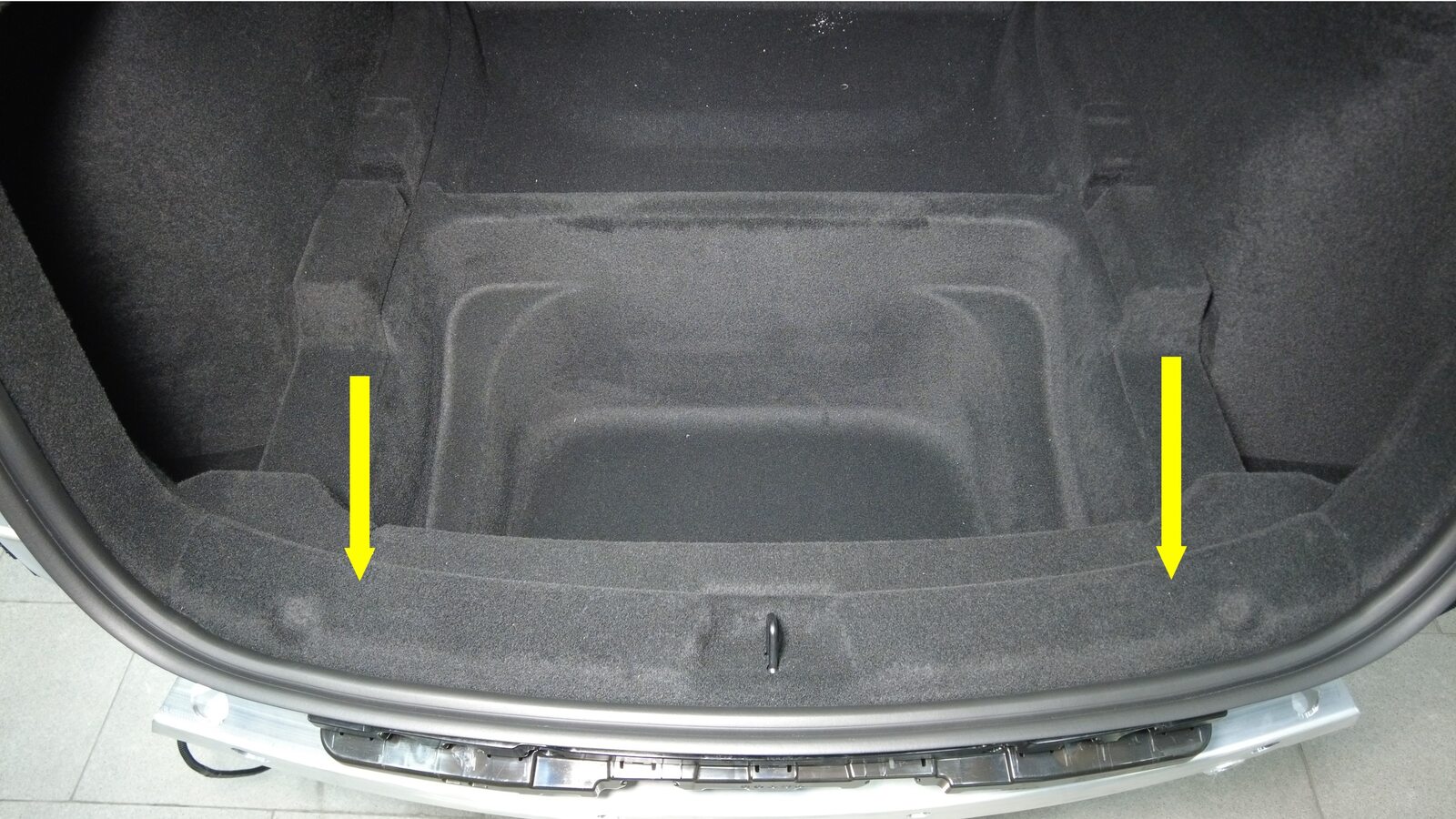

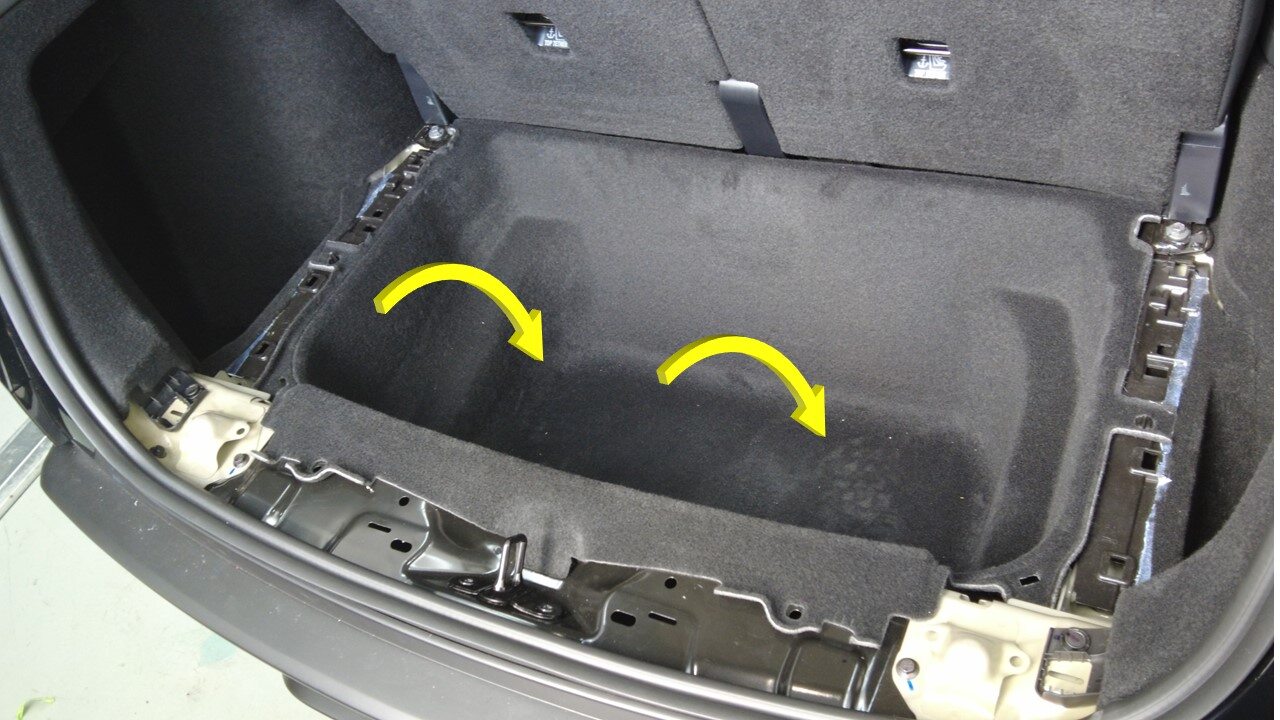

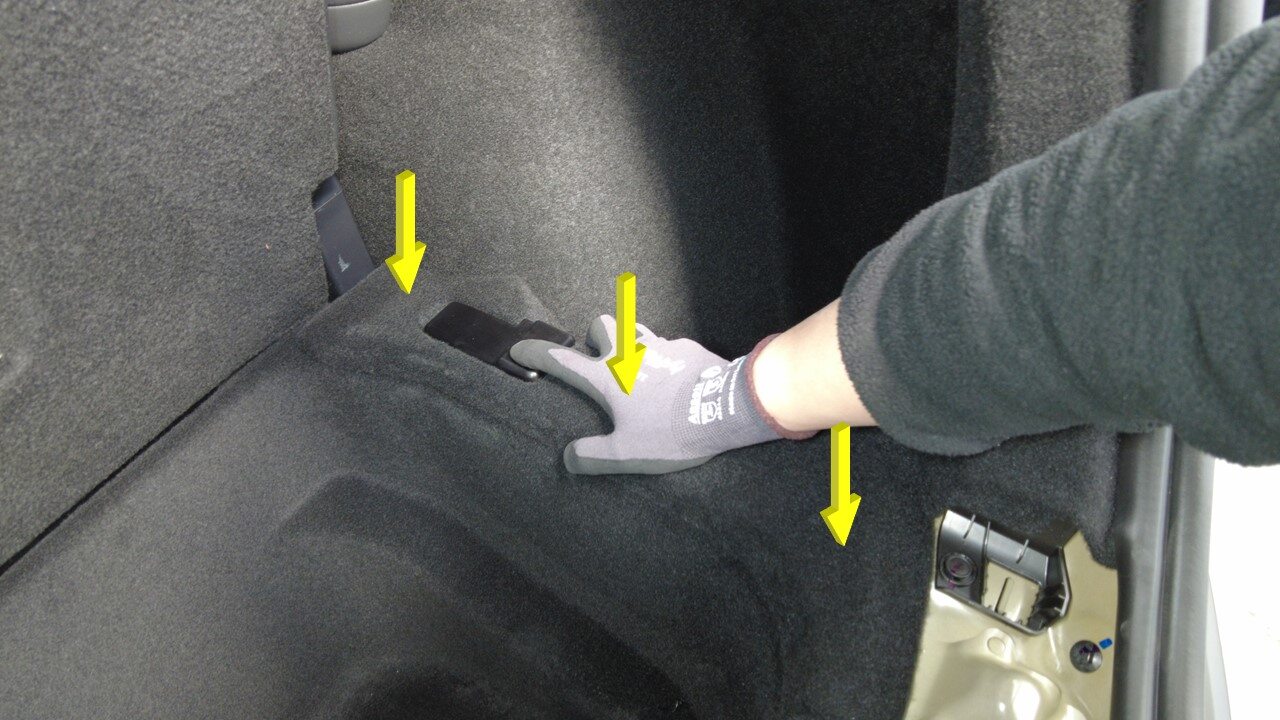

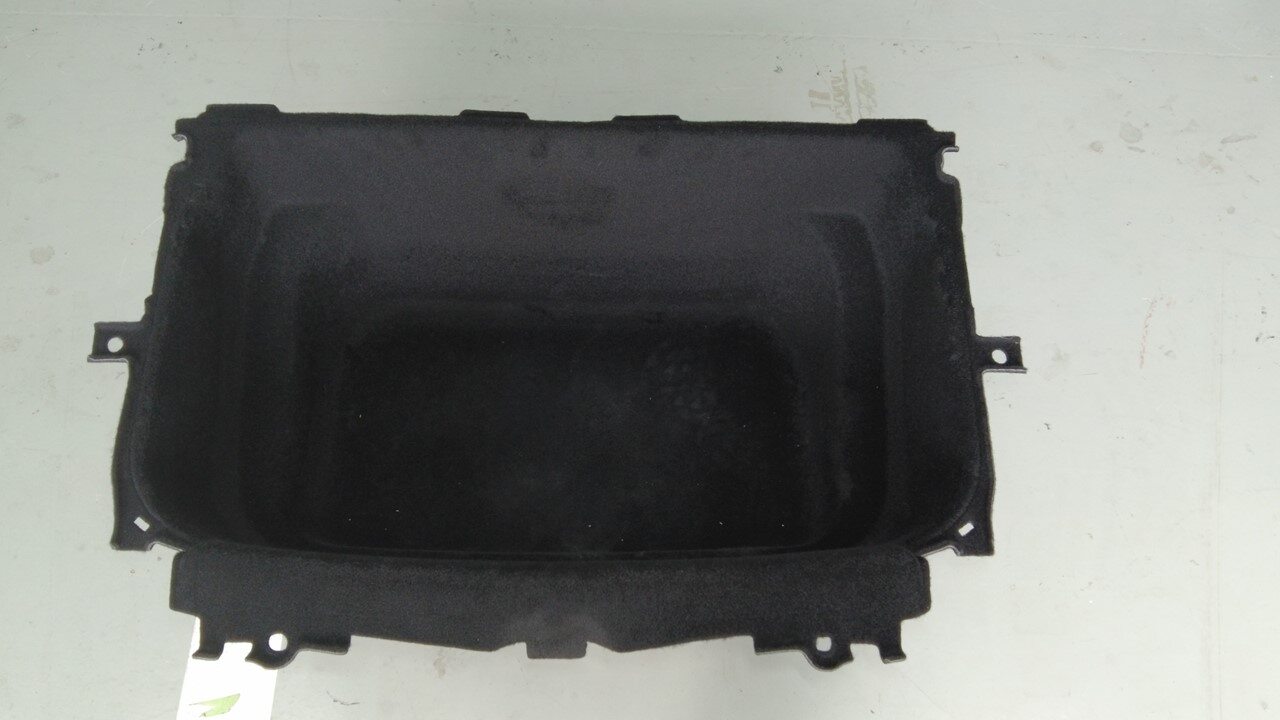

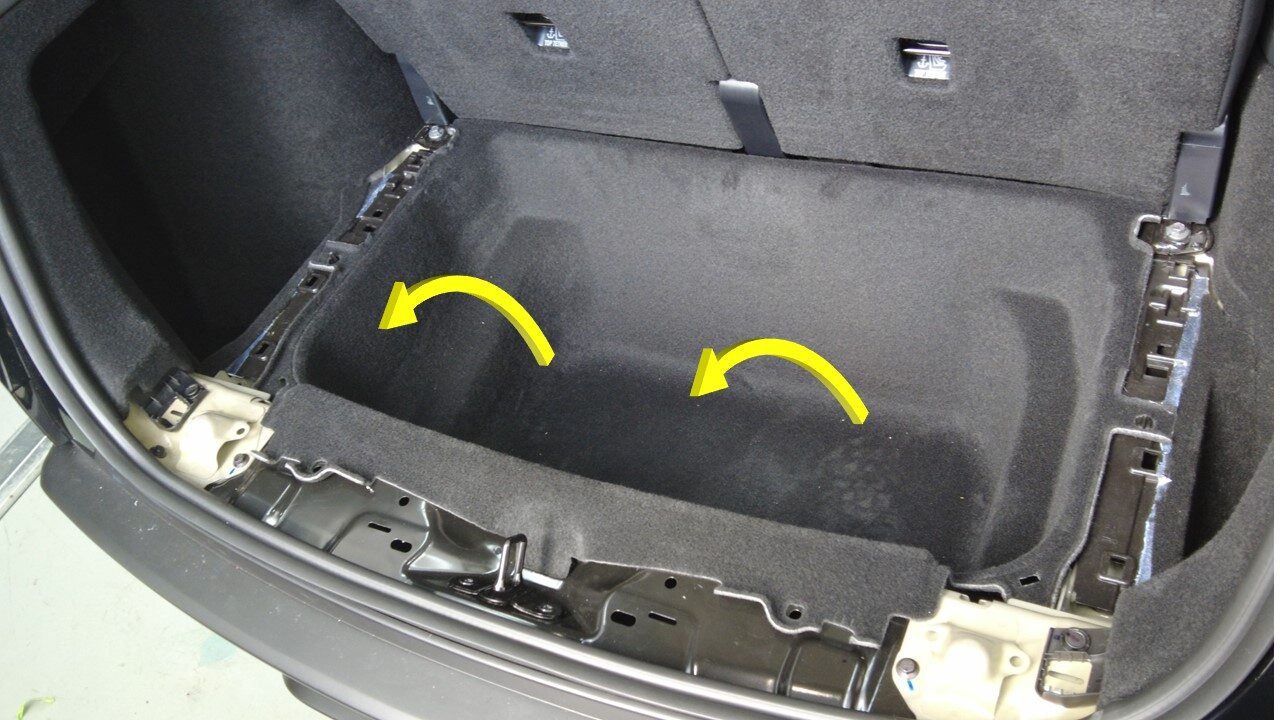

8. Remove trunk tub from vehicle
   注

   2x push clips, 2x location holes

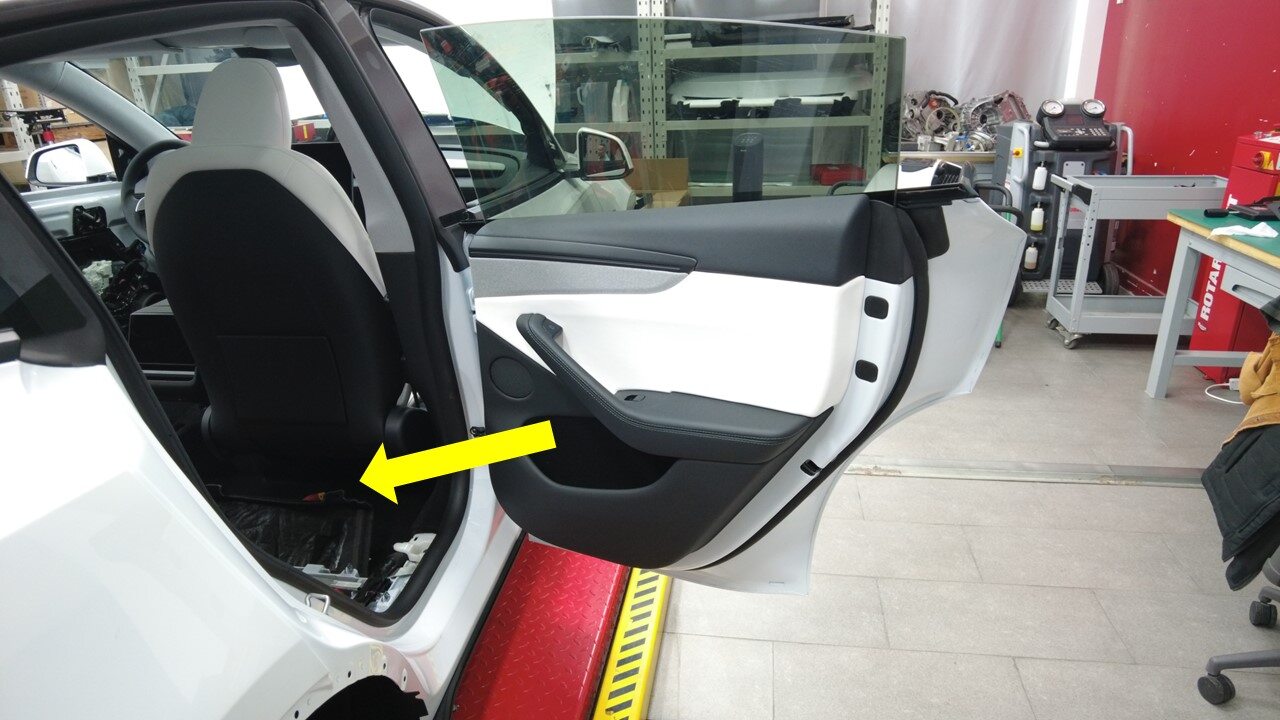

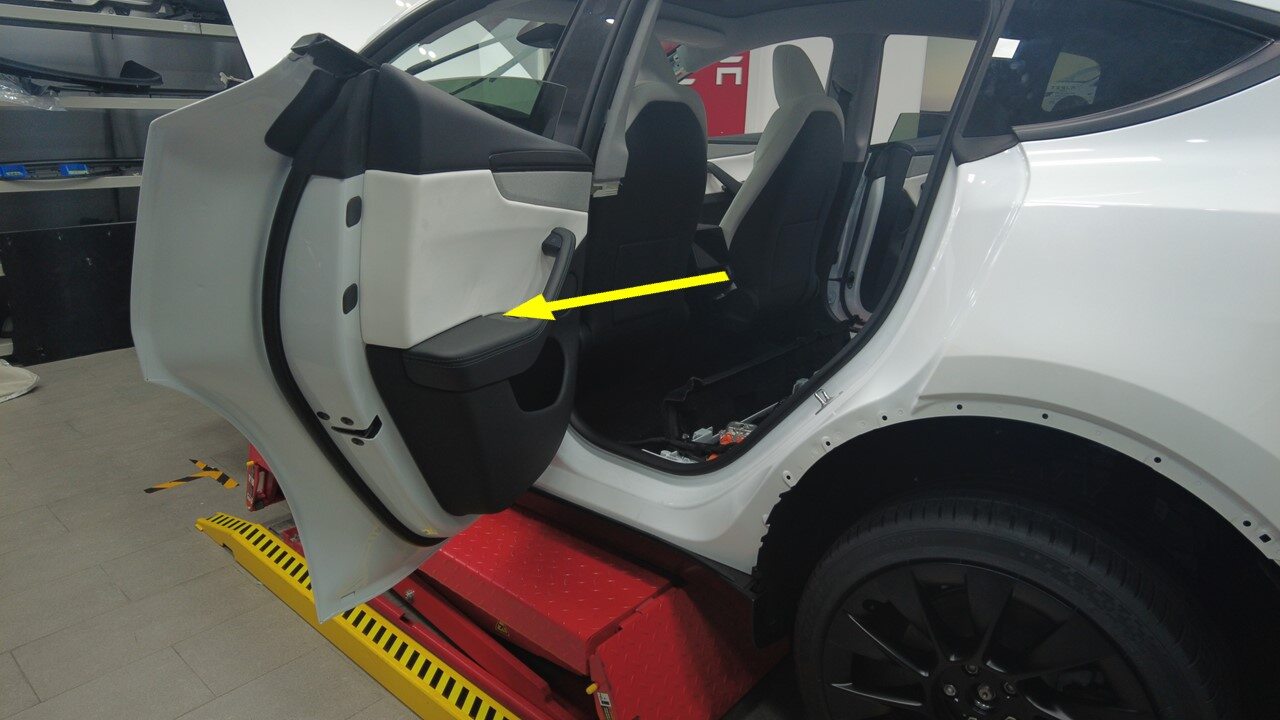

9. Open LH rear door



10. Lower LH rear window

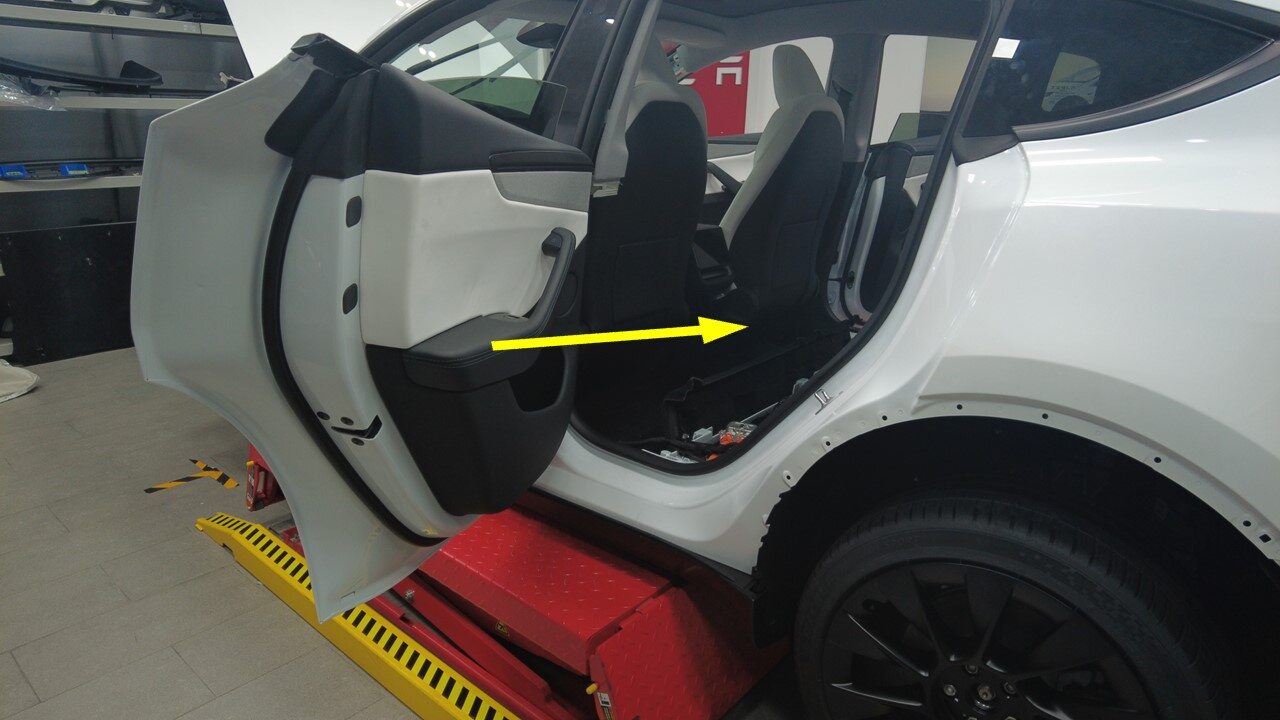

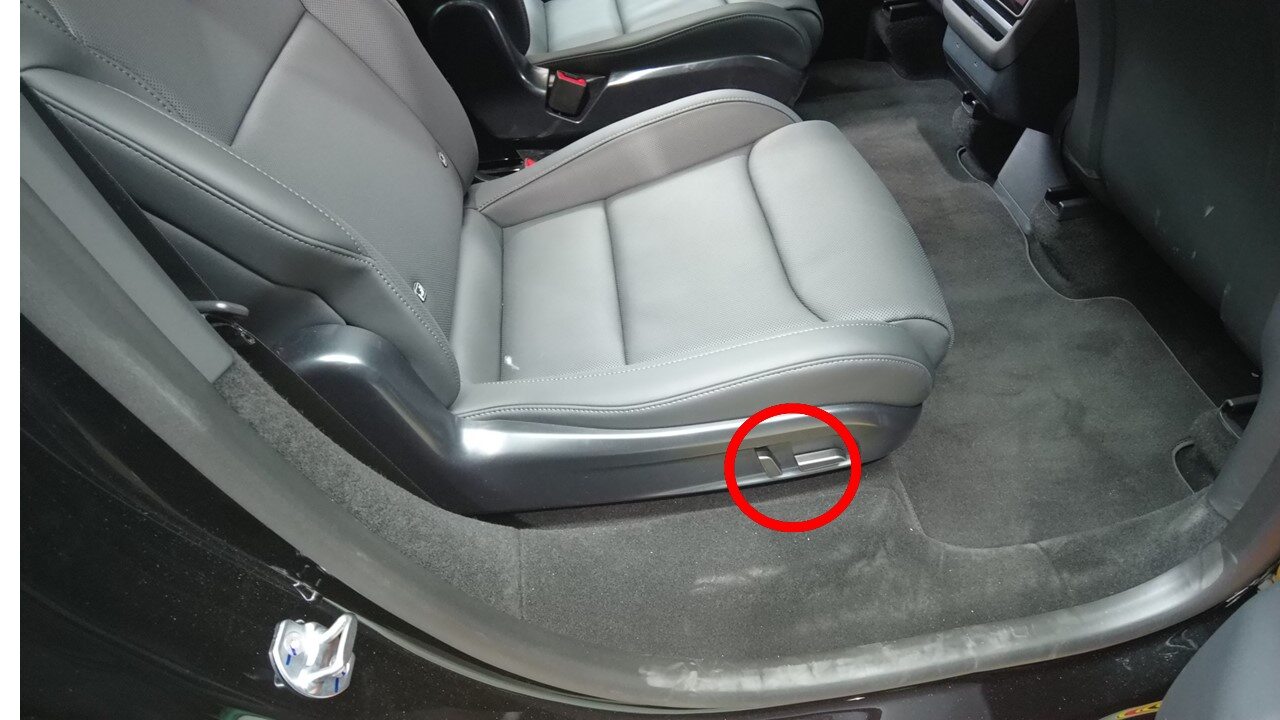

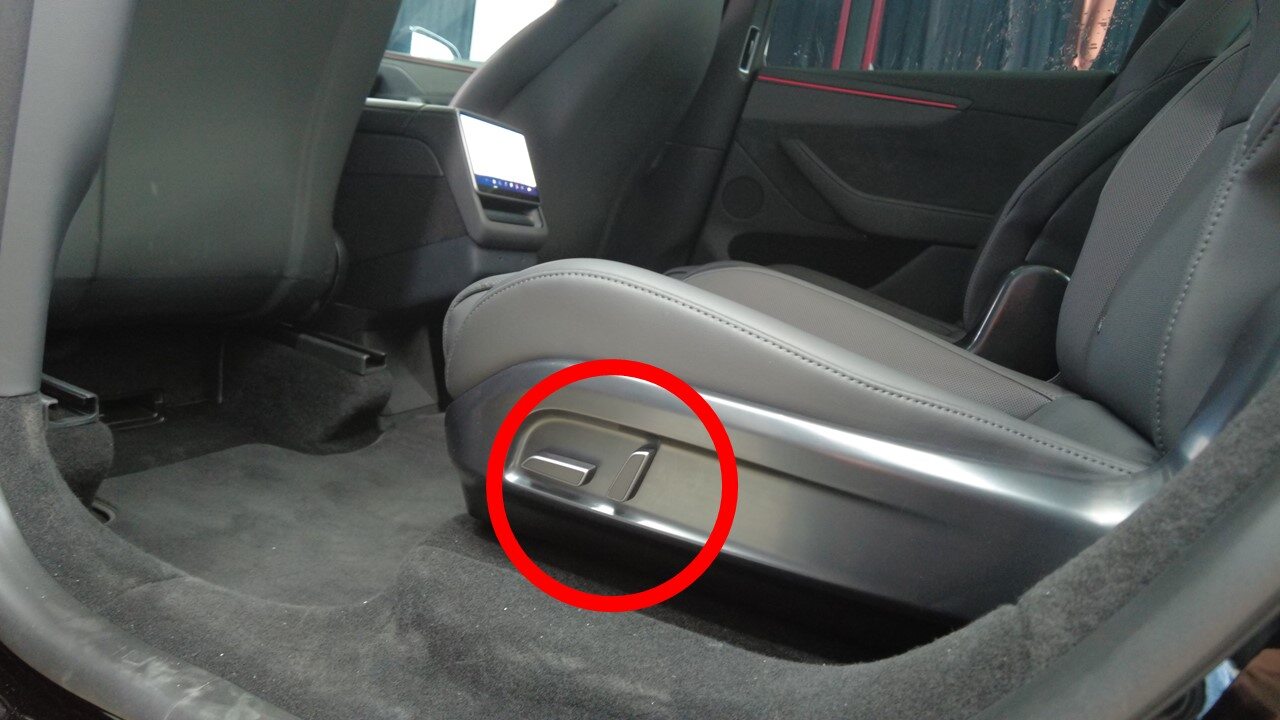

11. Move LH 2nd row seat forward
    注

    Adjust seat back if needed



12. Open RH rear door



13. Lower RH rear window

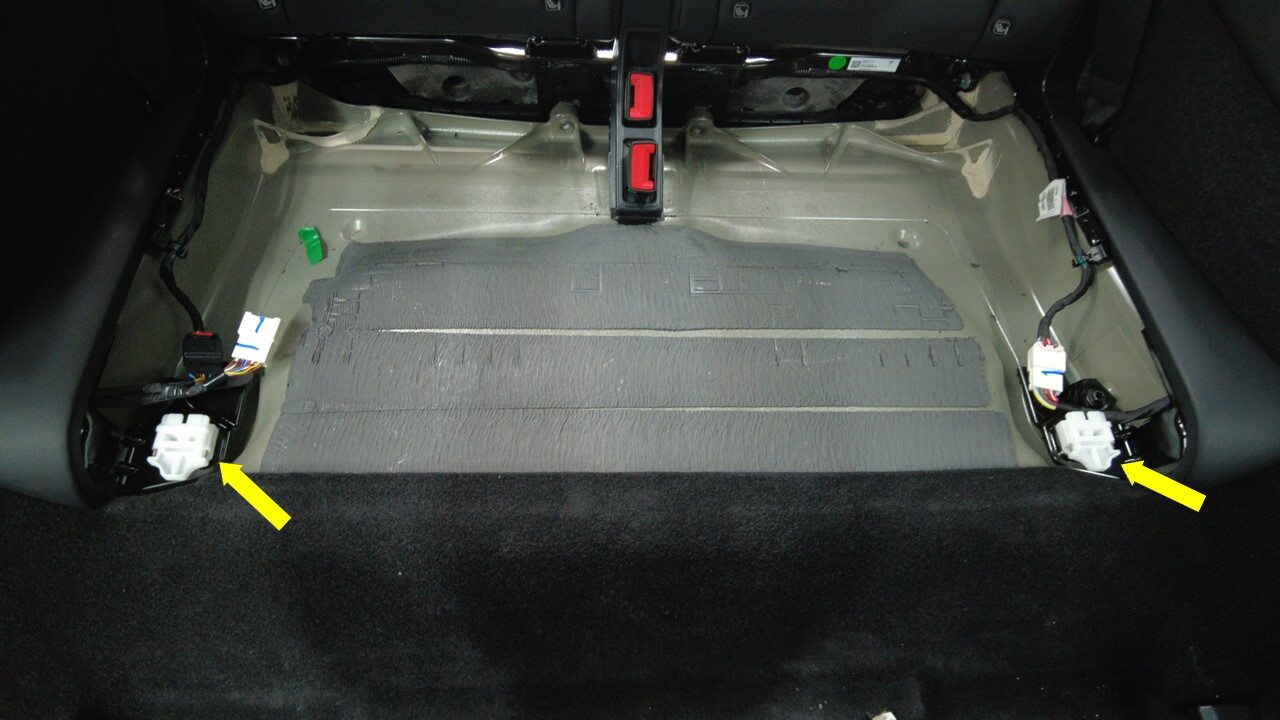

14. Move RH 2nd row seat forward
    注

    Adjust seat back if needed

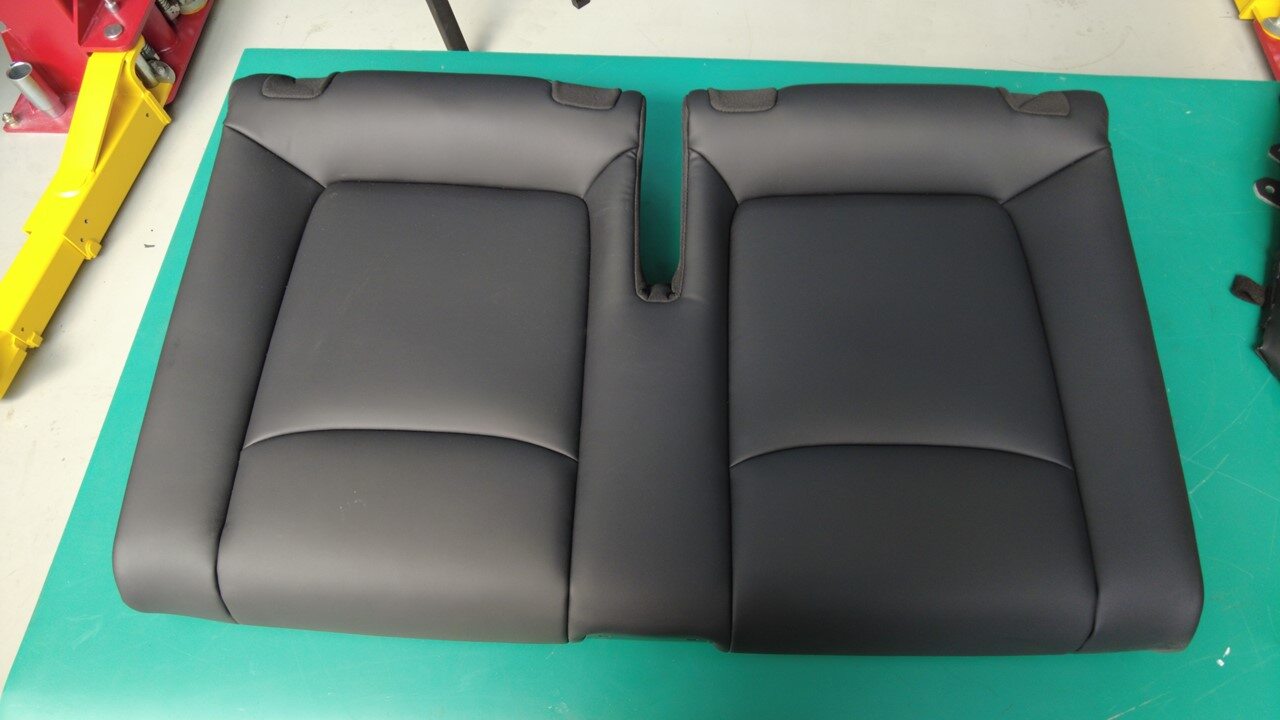

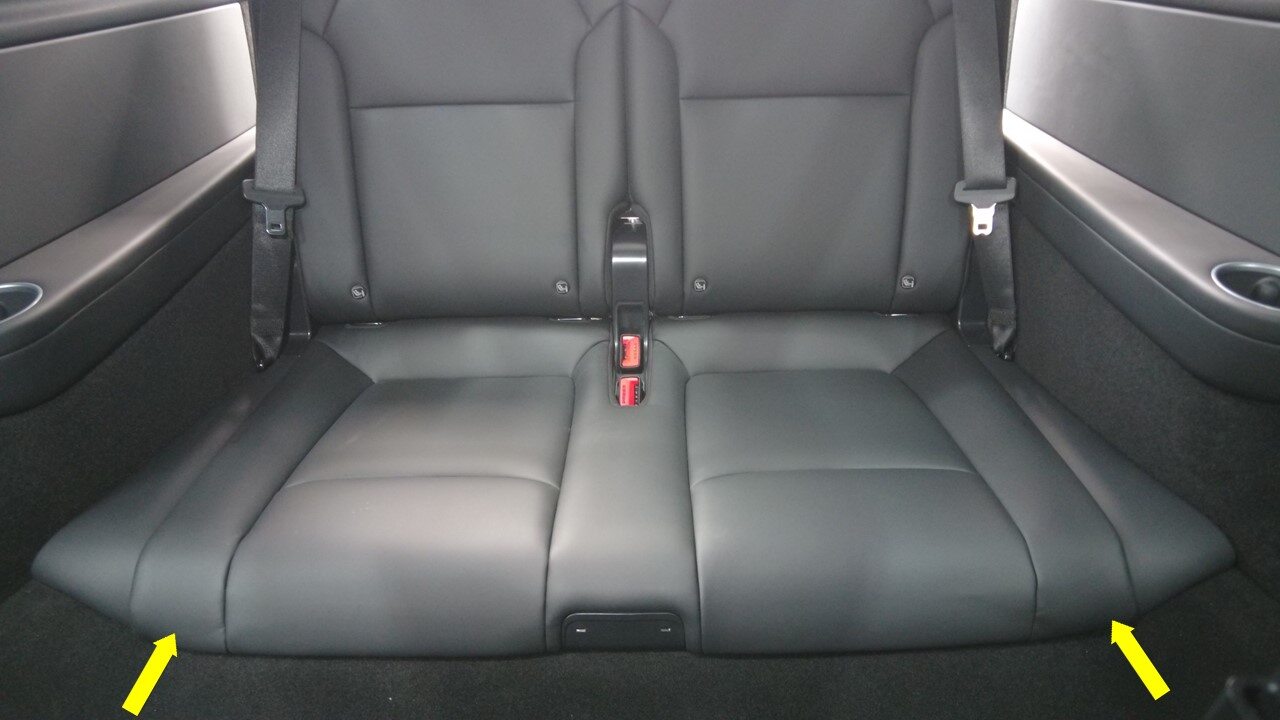

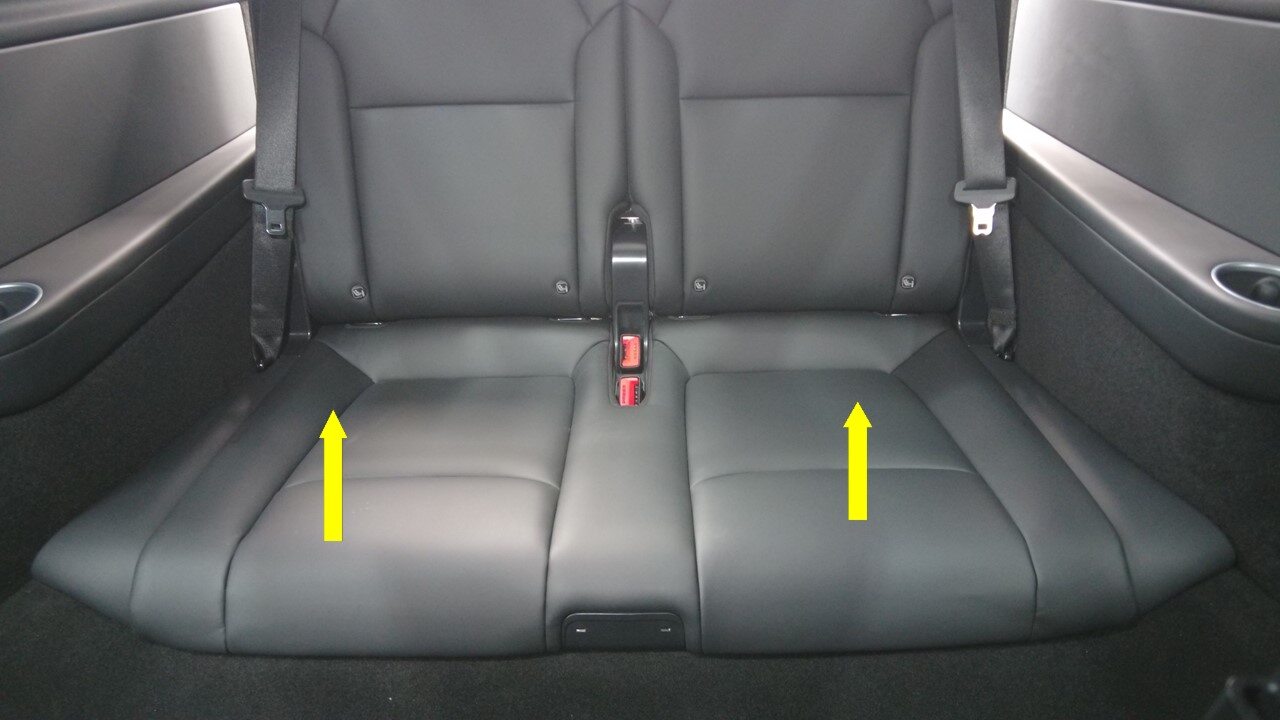

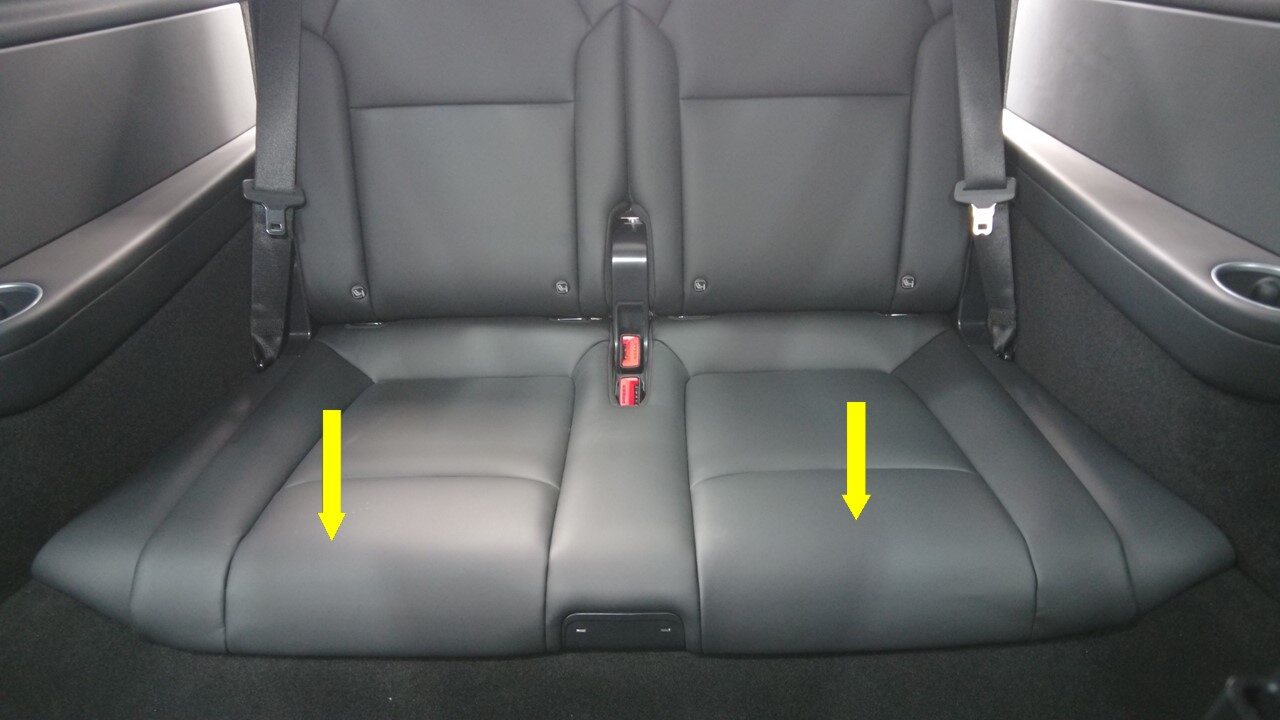

15. Remove 3rd row seat cushion
    注

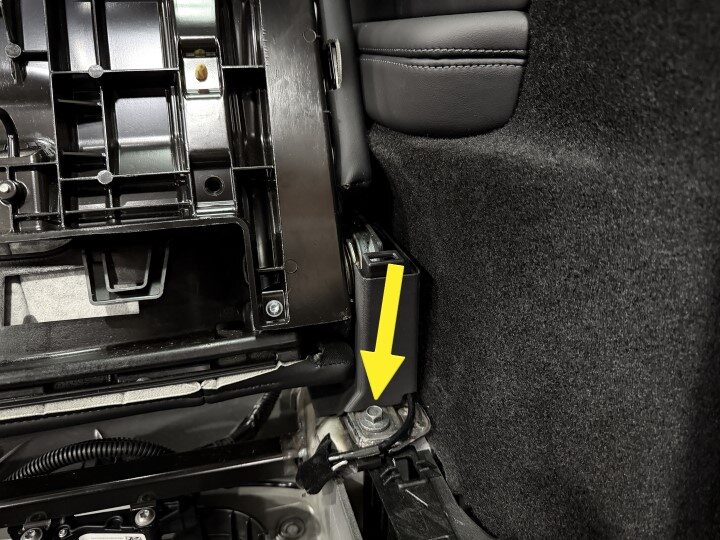

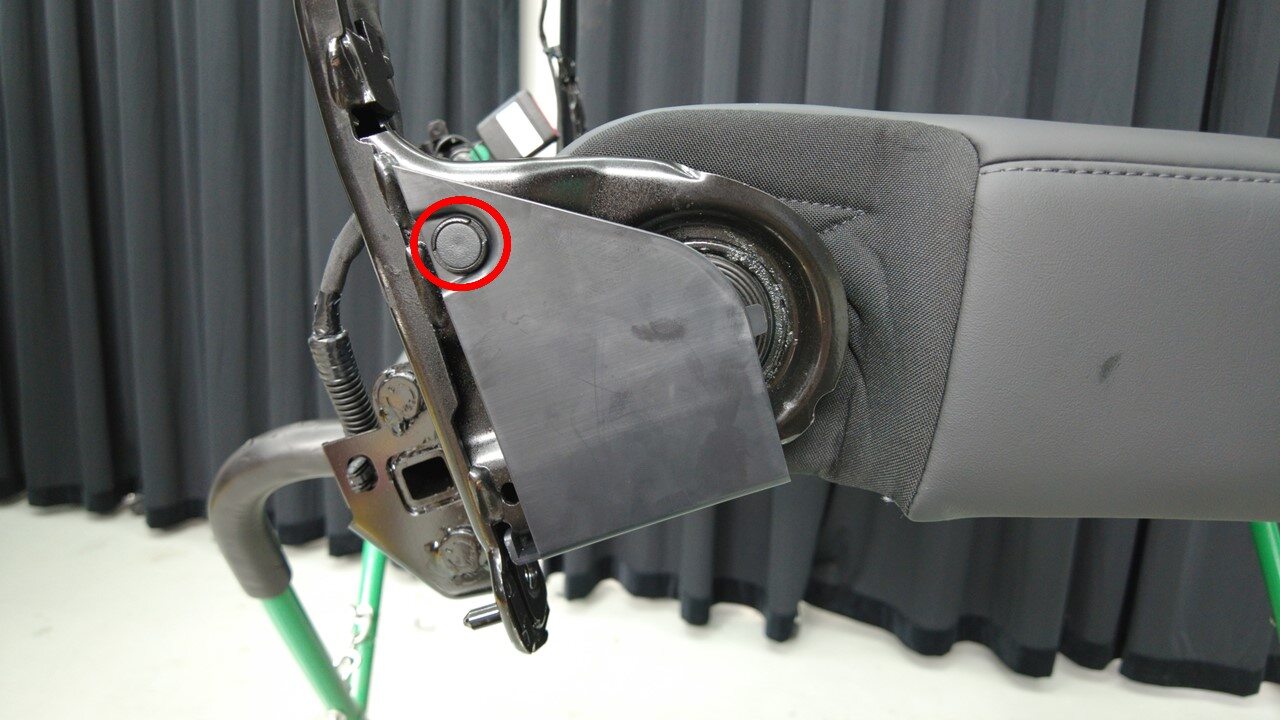

    2x clips, 1x connector, Press tabs backward then pull front edge up

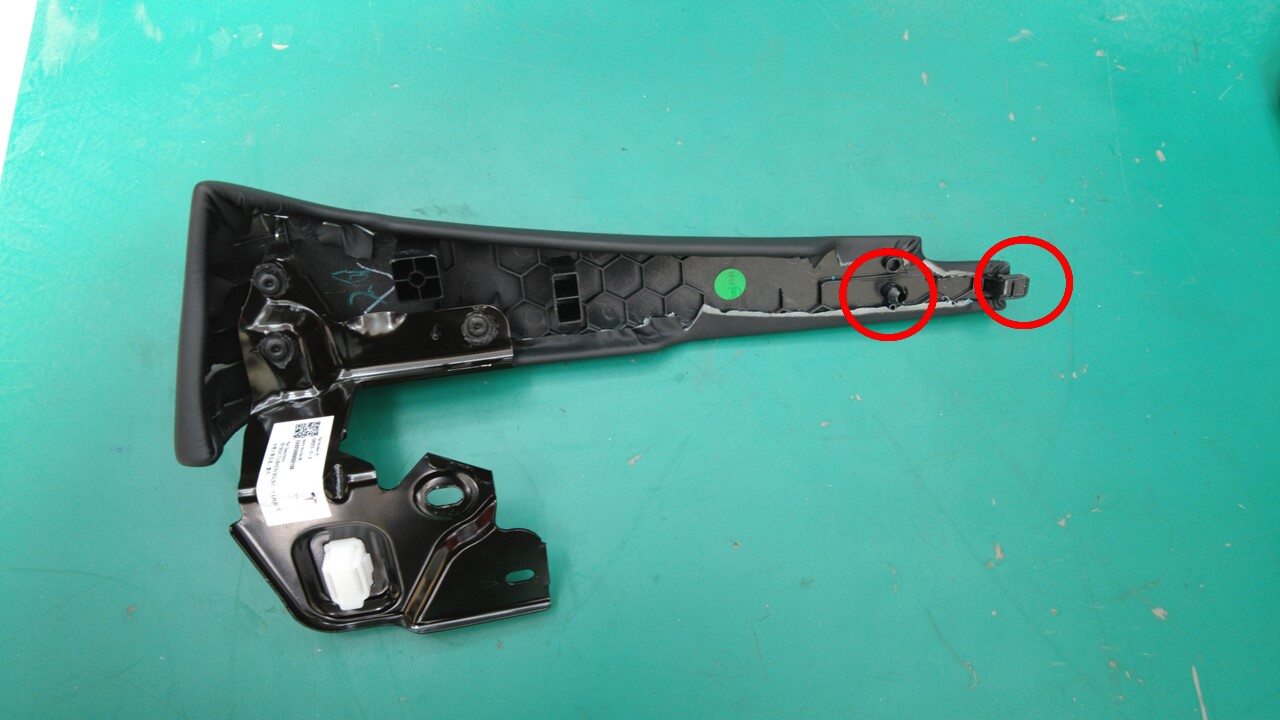

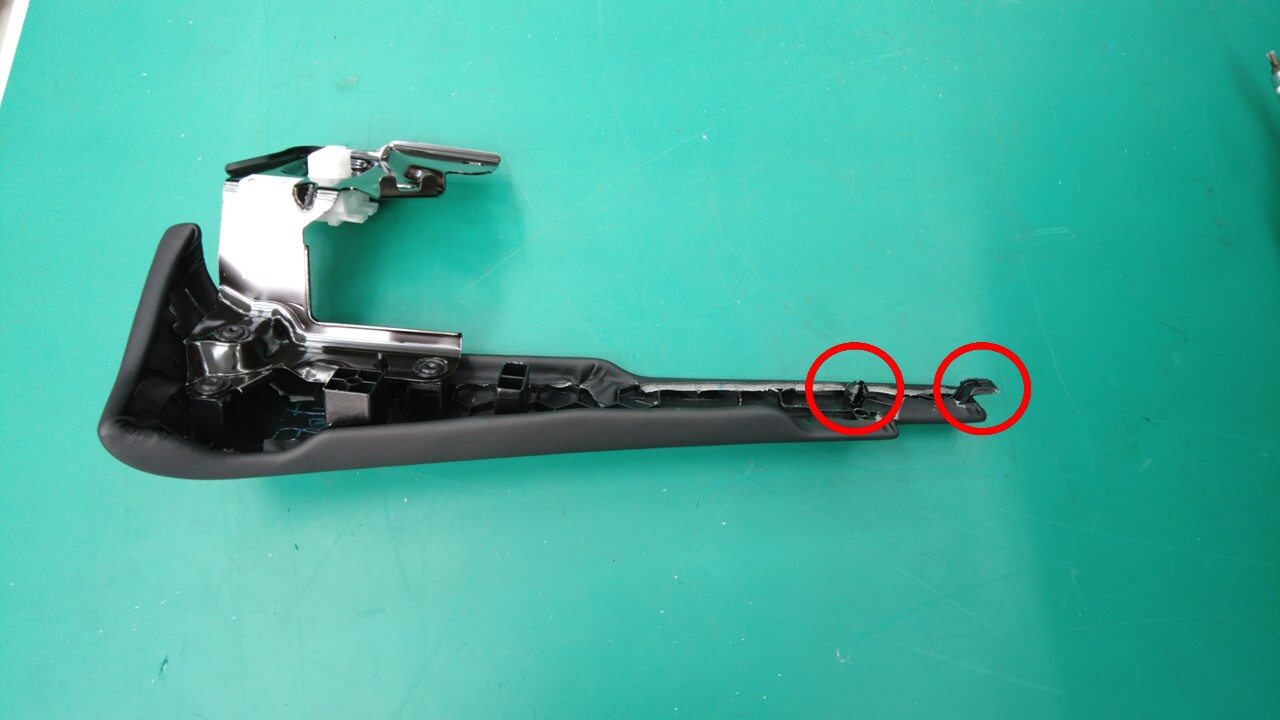

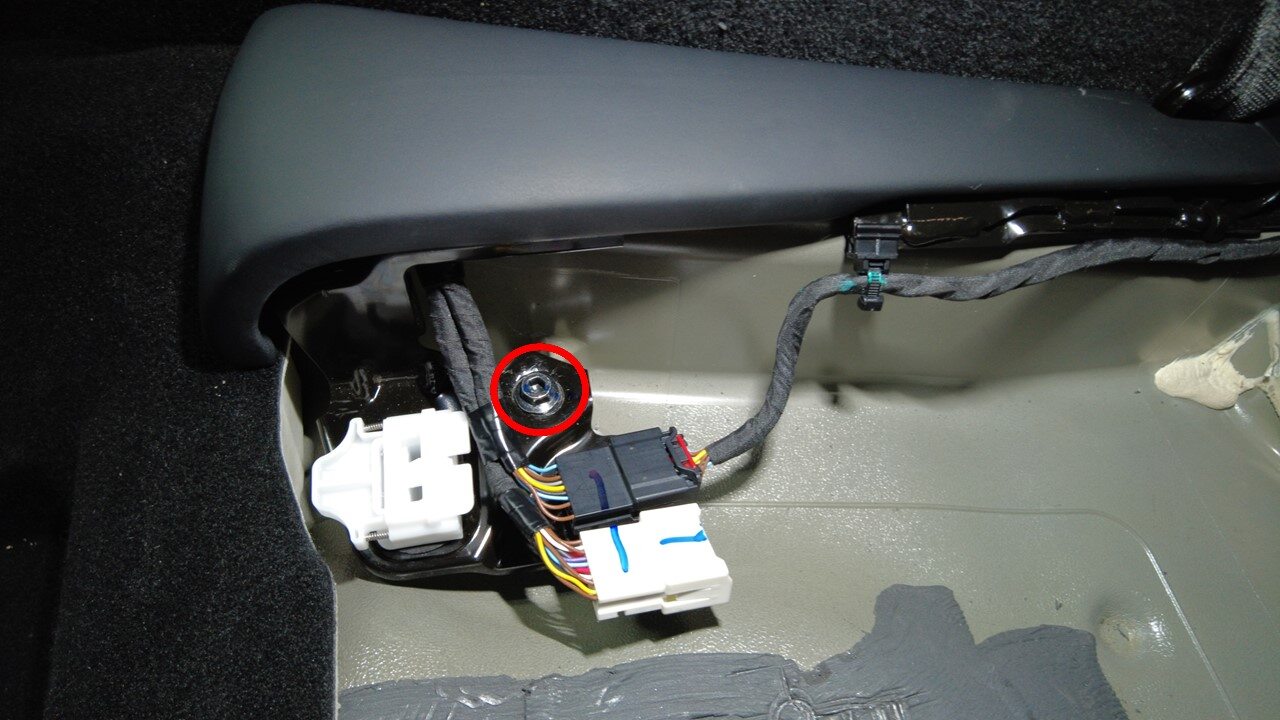

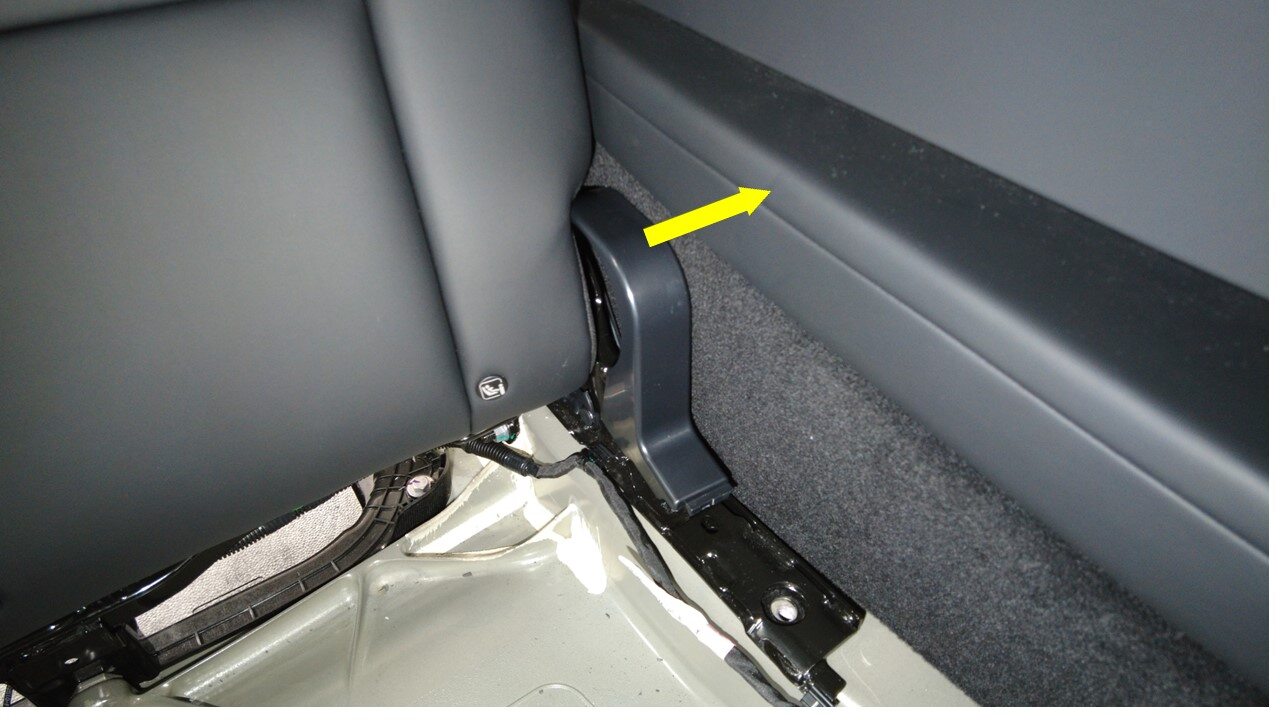

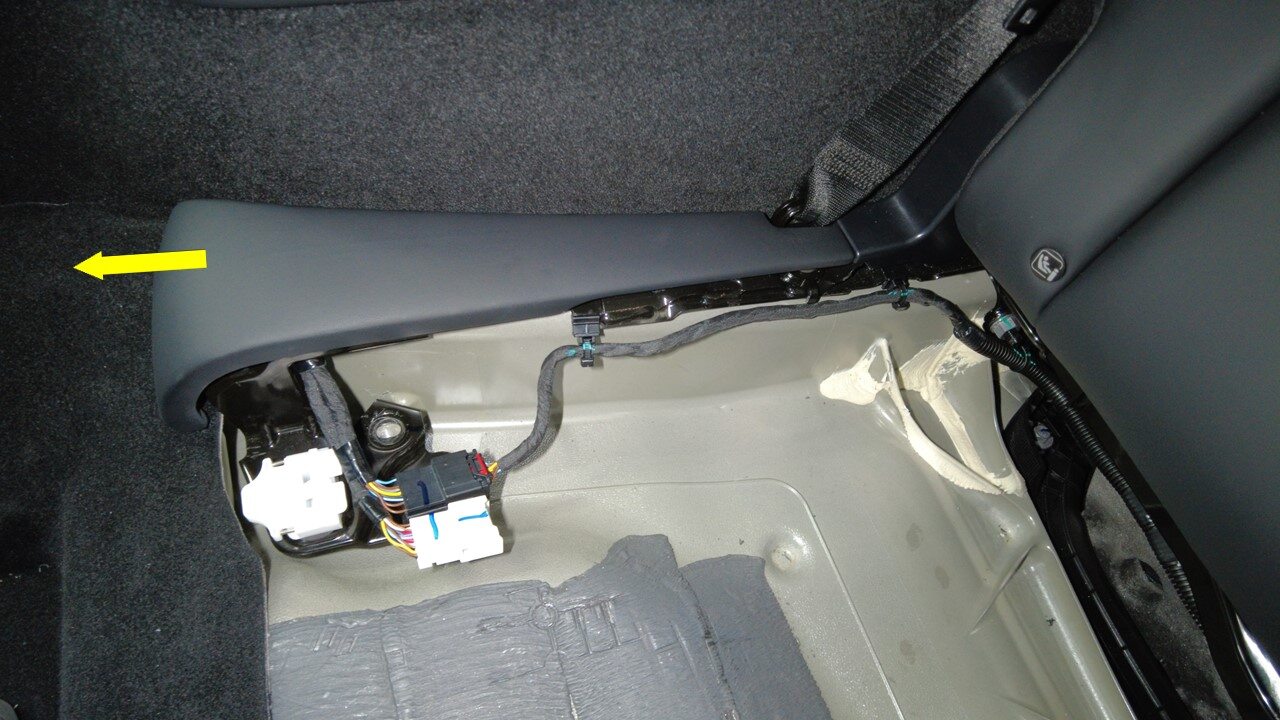

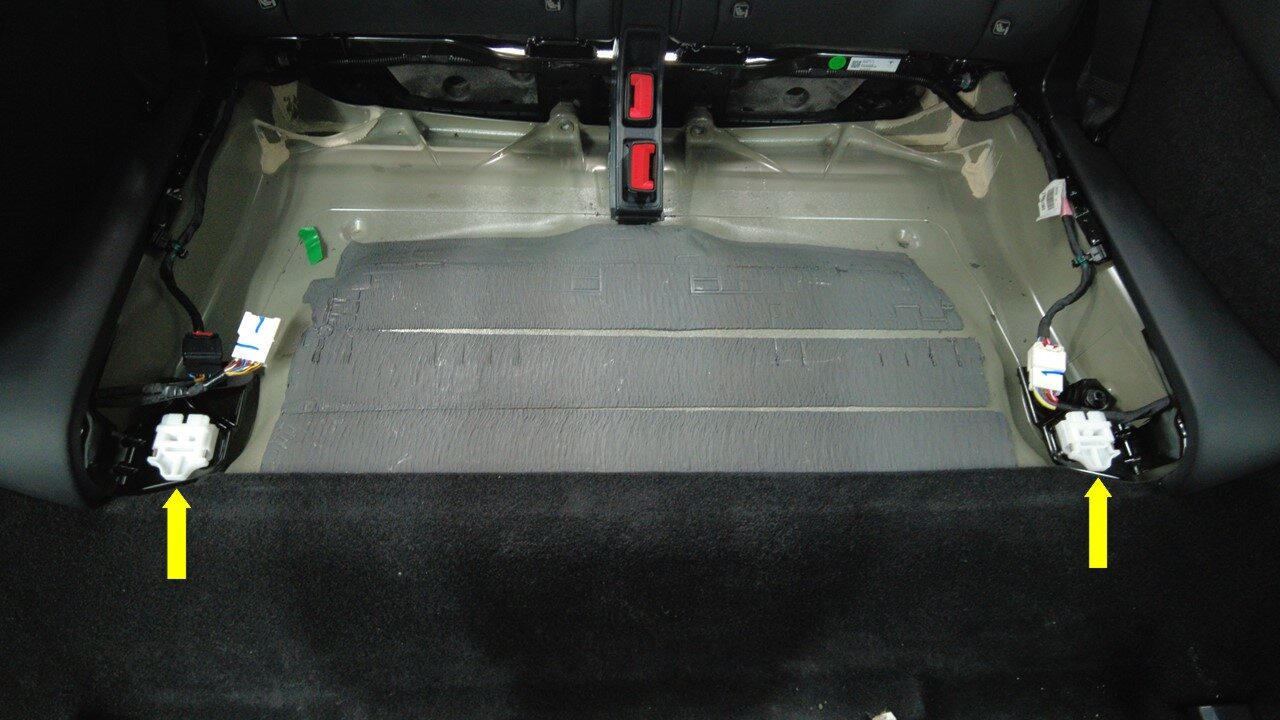

16. Remove 3rd row LH seat cushion bolster
    注

    1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide LH seat cushion bolster towards front of vehicle to remove

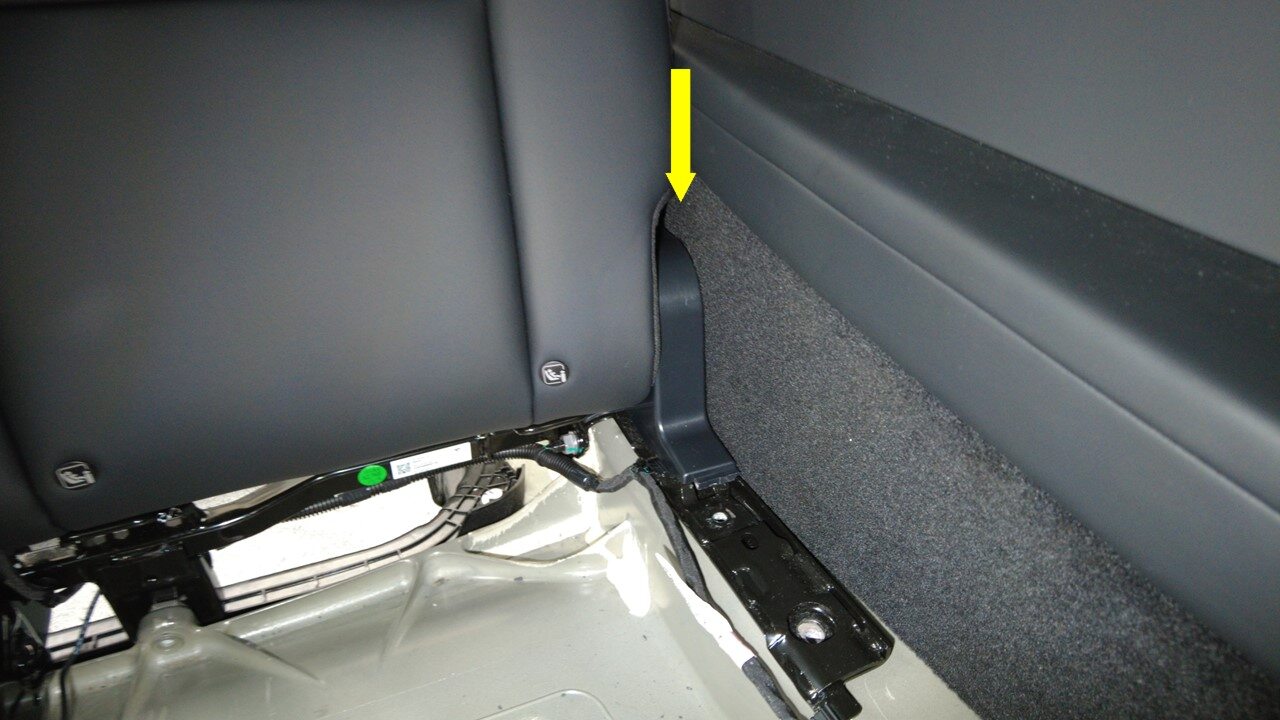

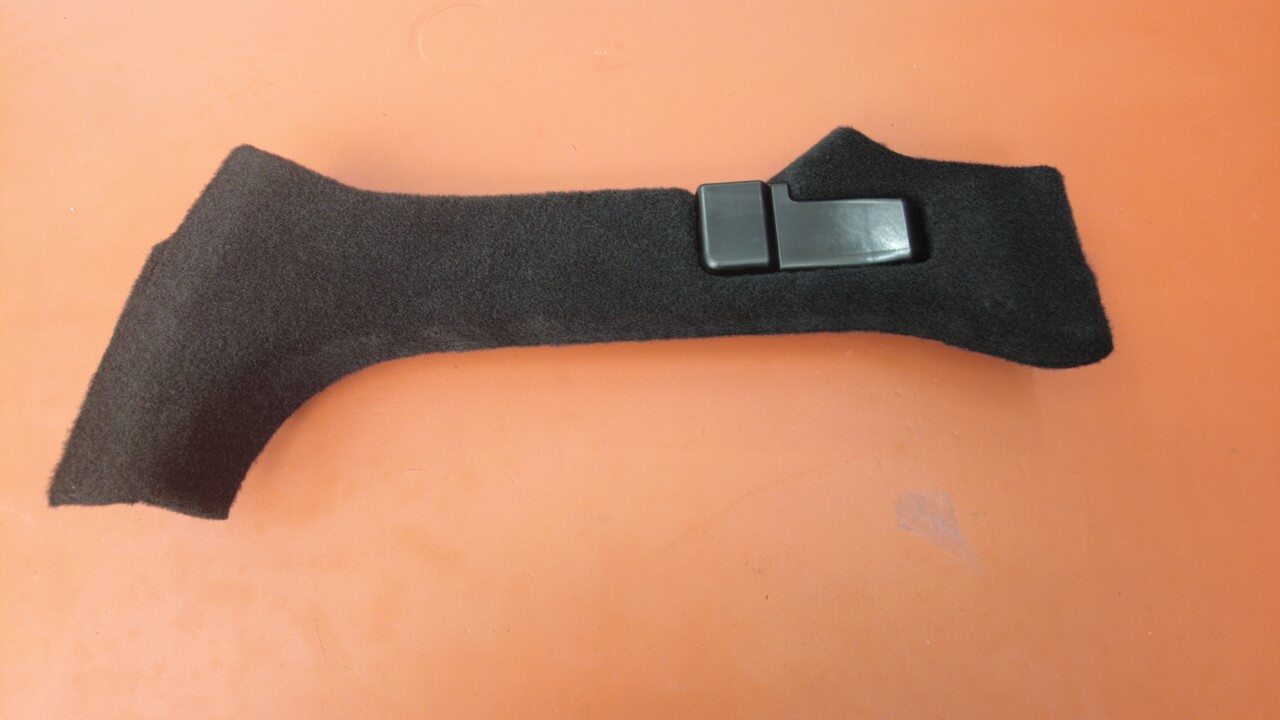

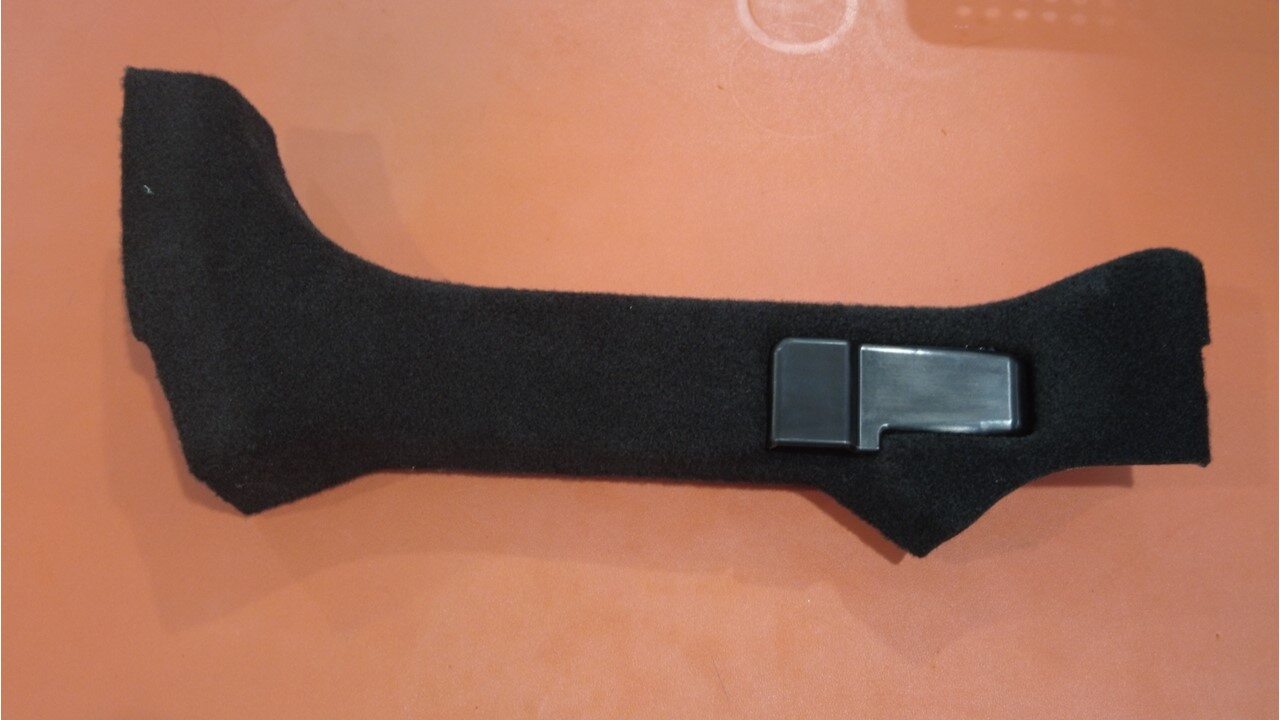

17. Remove 3rd row RH outer B-cover from inner B-cover
    注

    3x tabs, First lift upward, Then remove by pulling forward

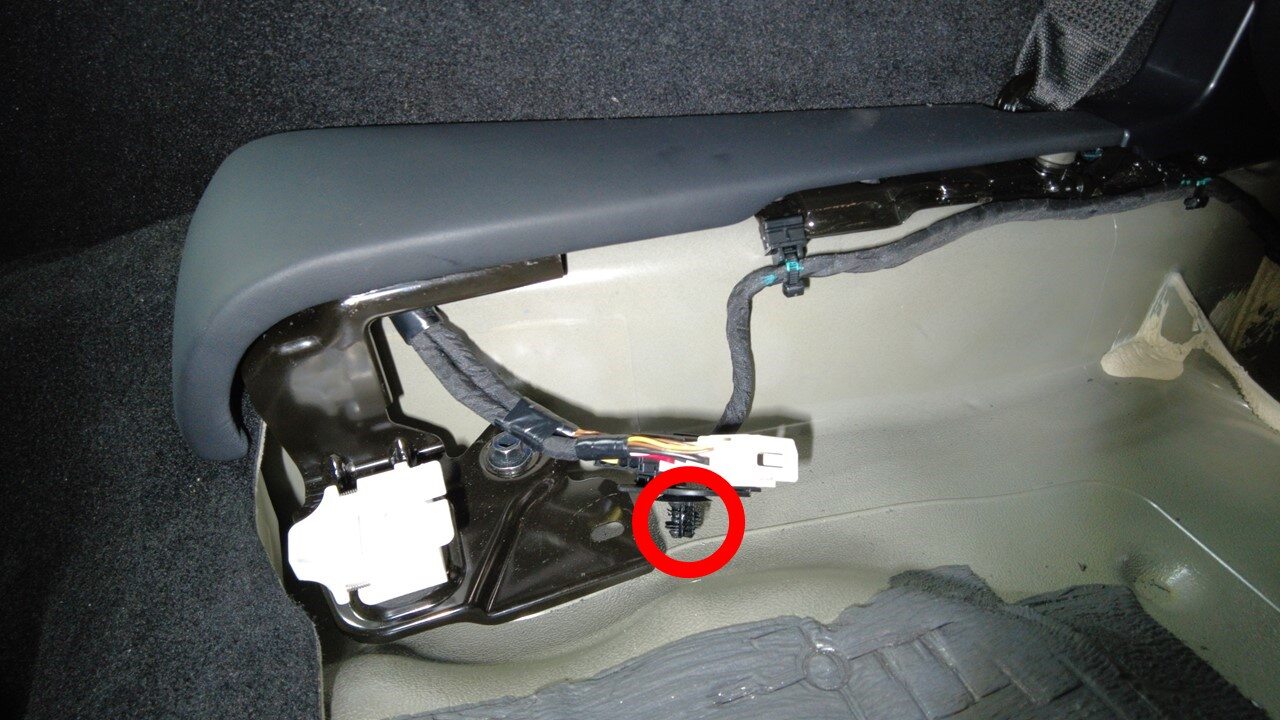

18. Release clip securing 3rd row RH seat frame harness to seat cushion bolster
    注

    1x clip





19. Remove 3rd row RH seat cushion bolster
    注

    1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide RH seat cushion bolster towards front of vehicle to remove

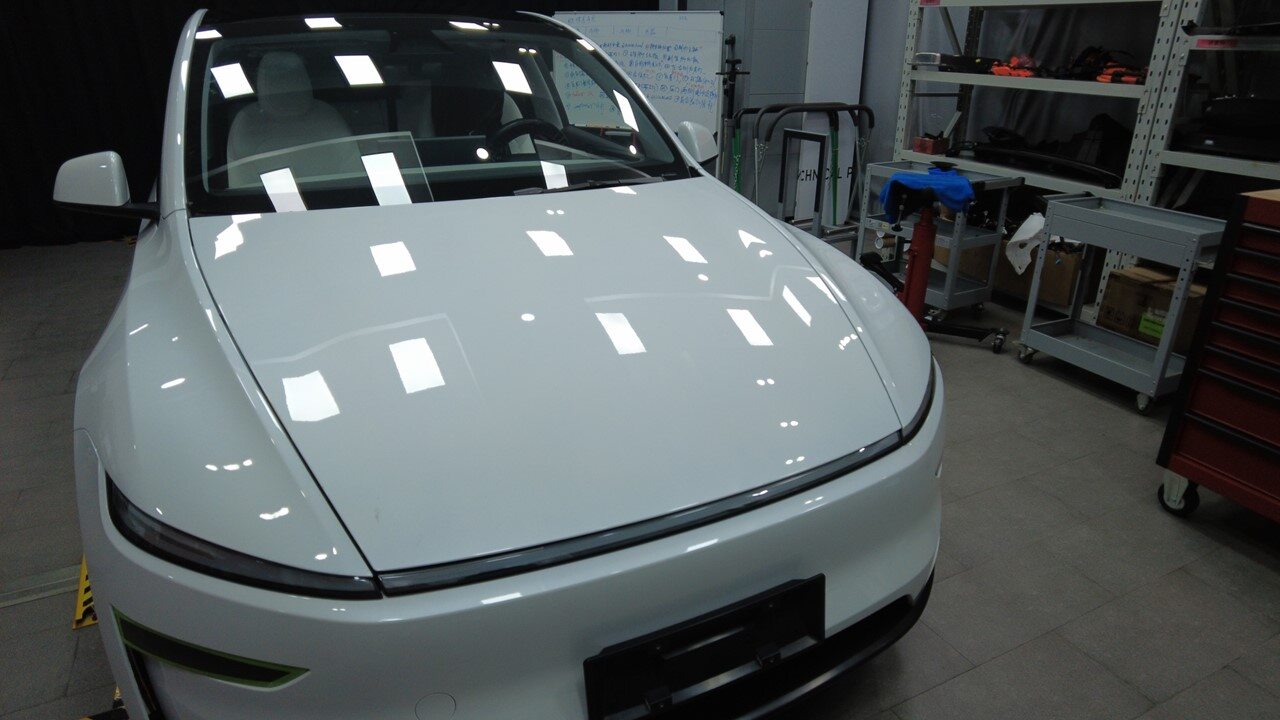

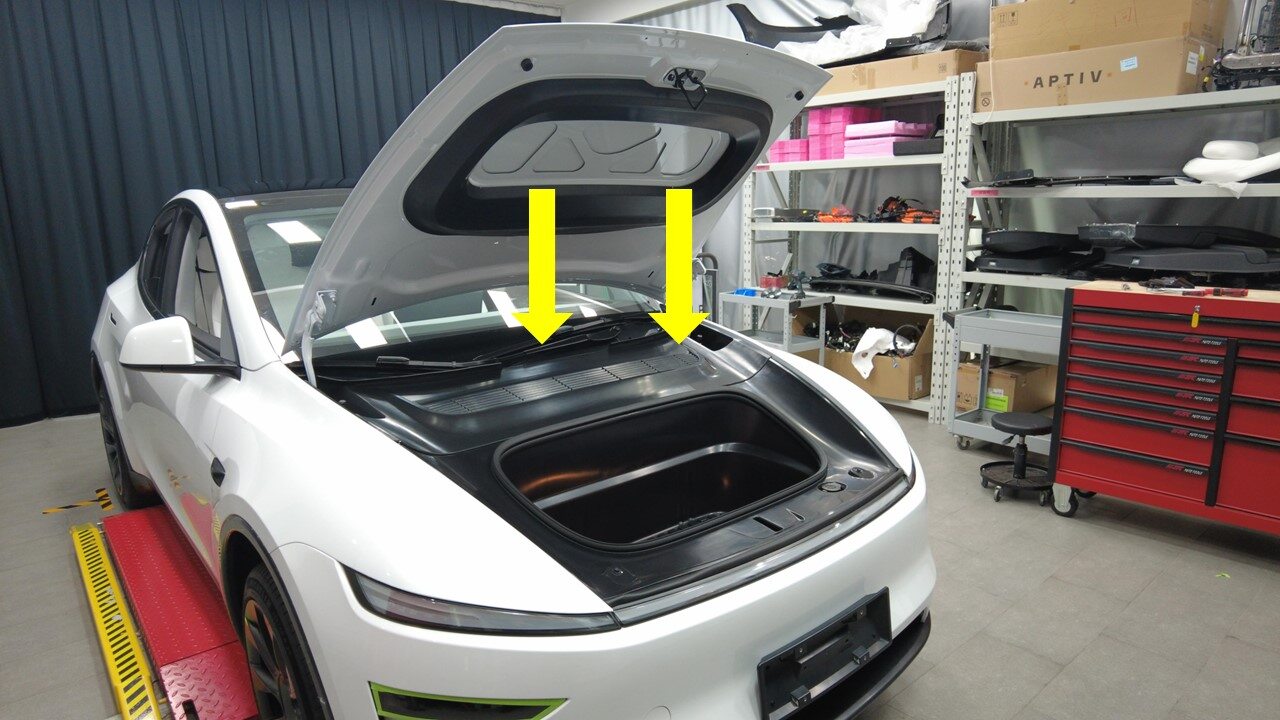

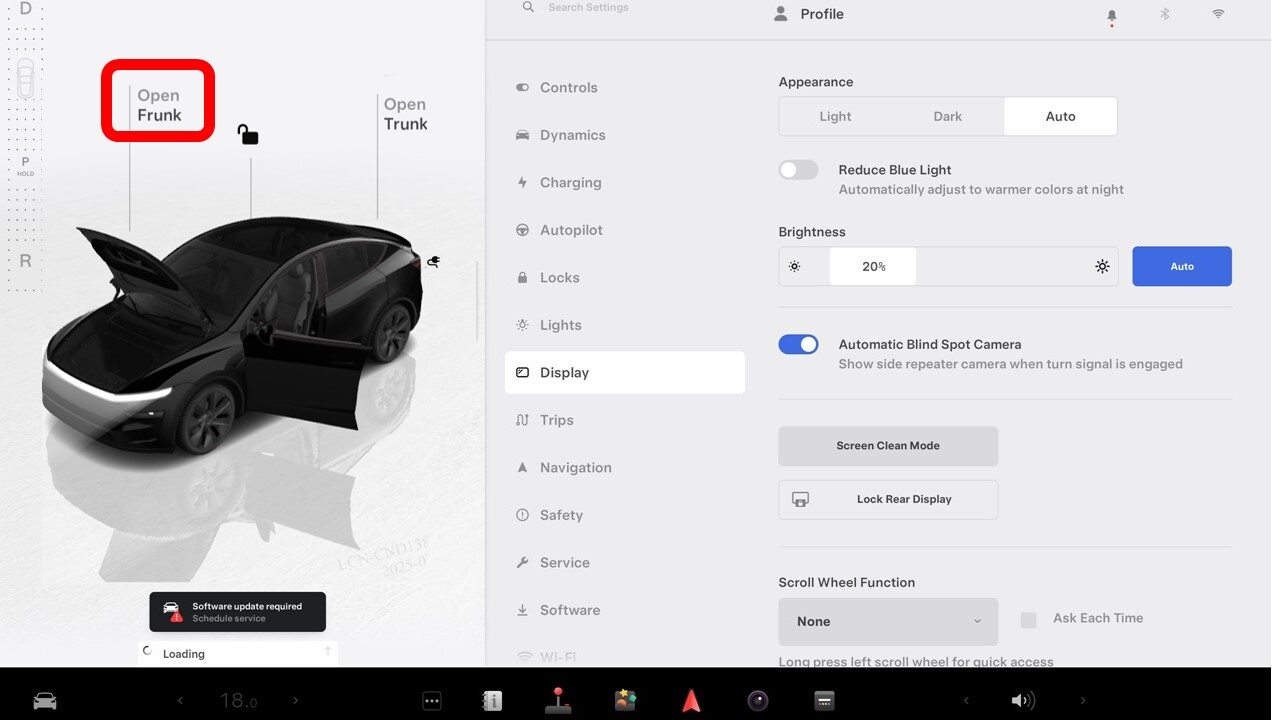

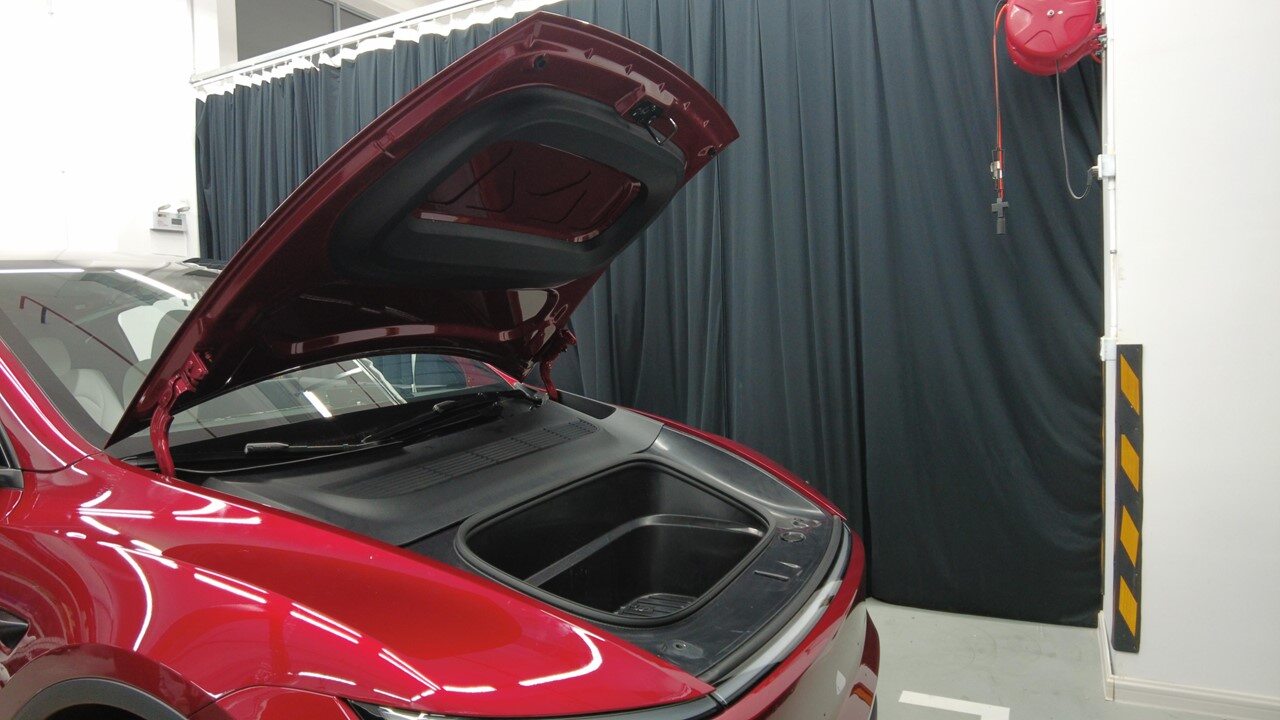

20. Open hood

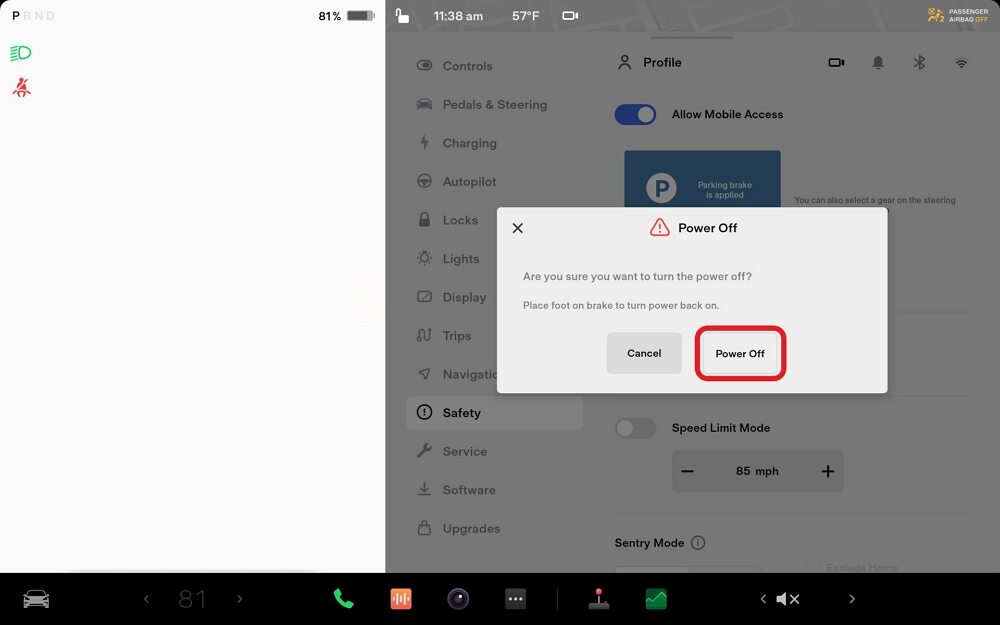

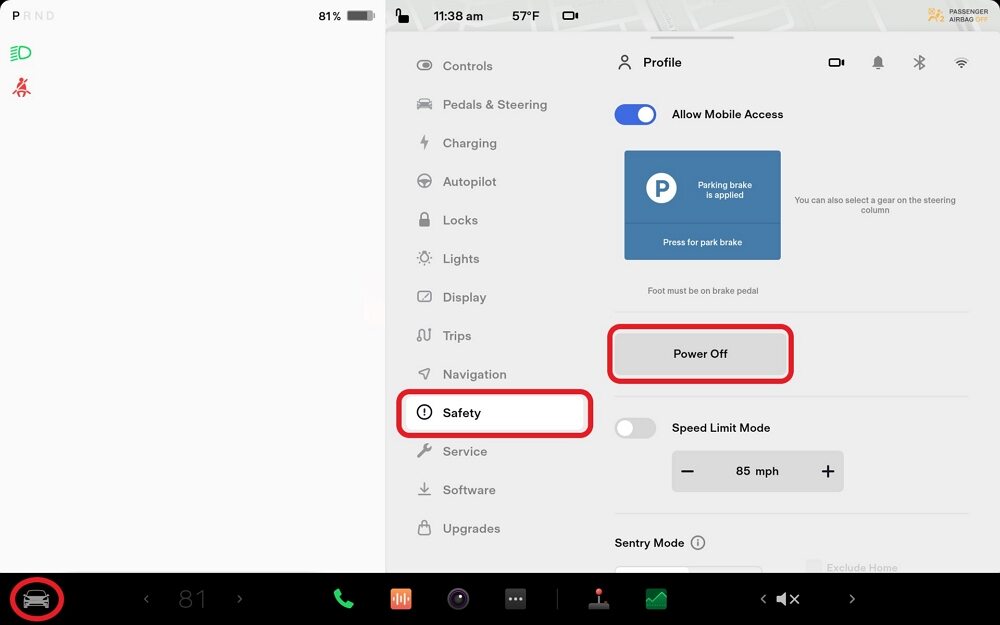

21. Power off vehicle from center display
    注

    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

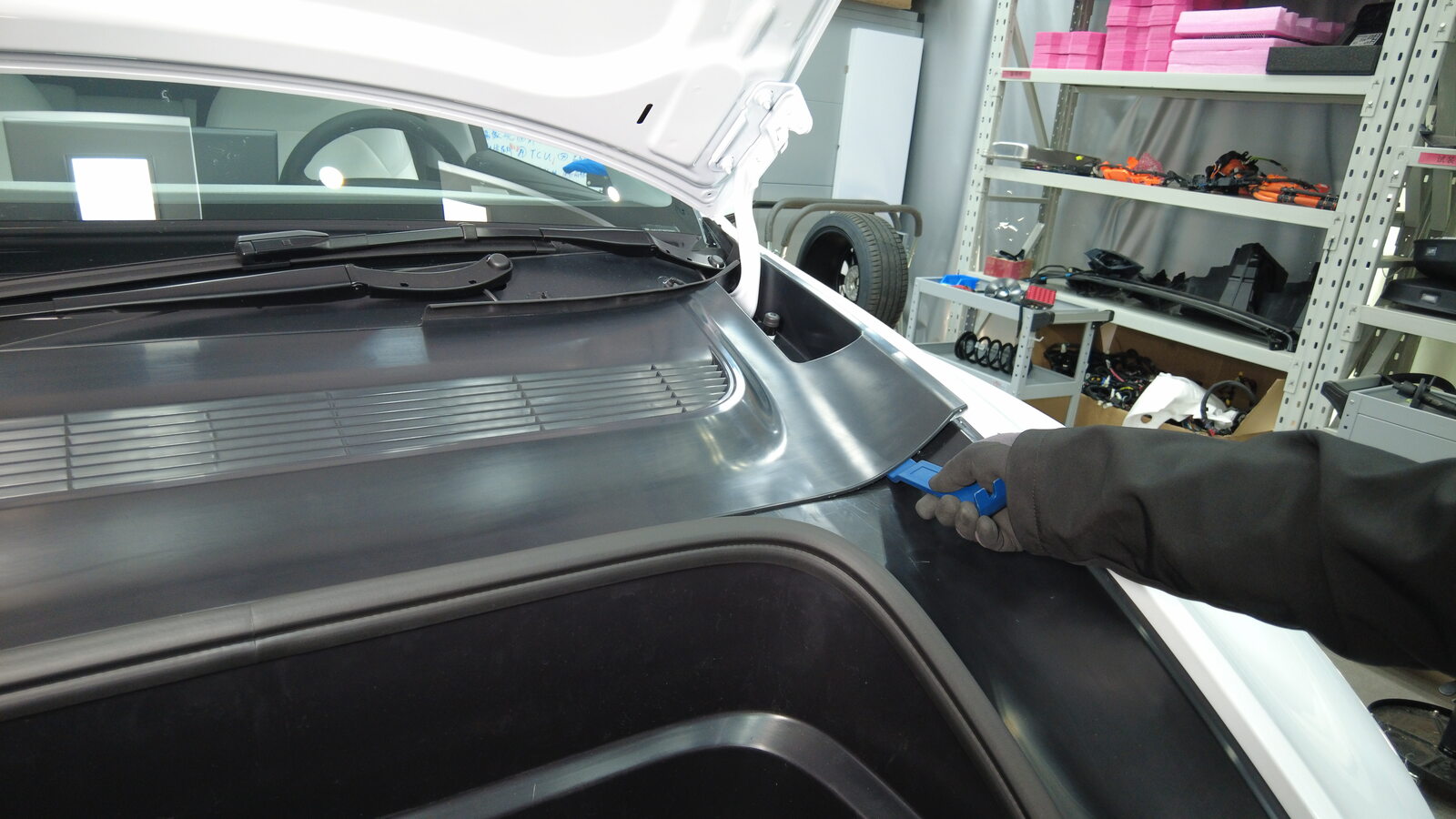

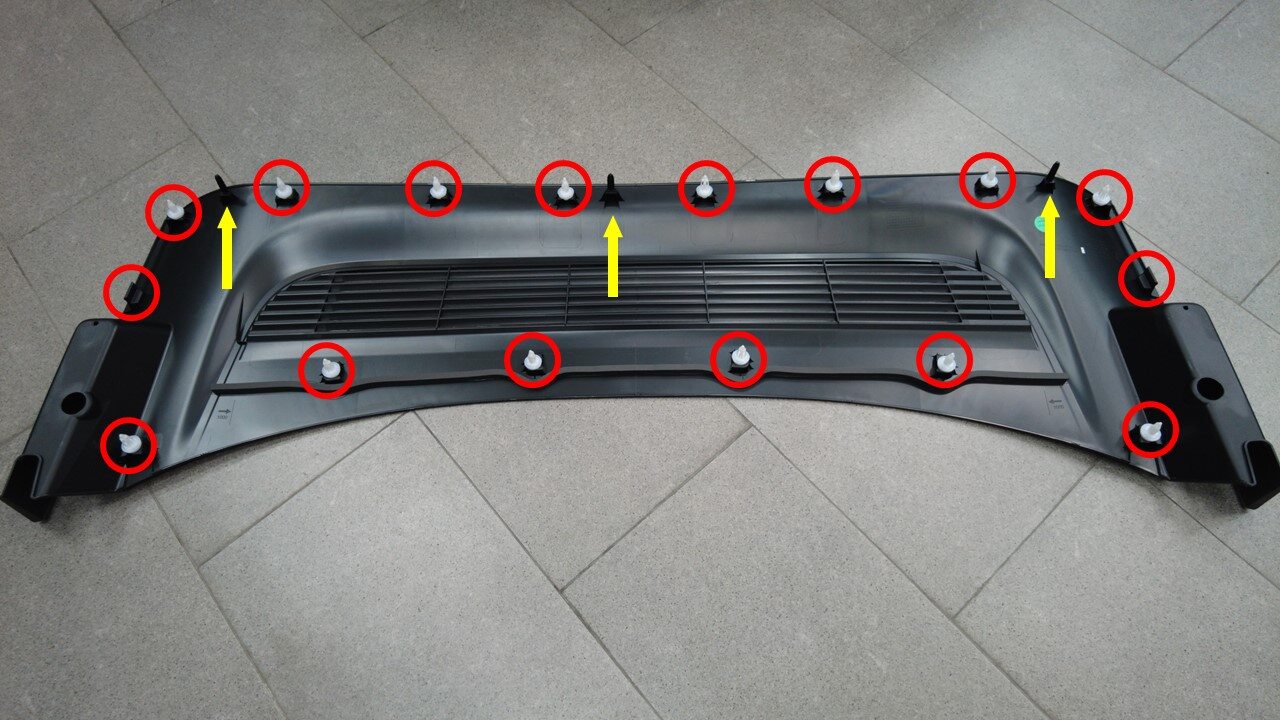

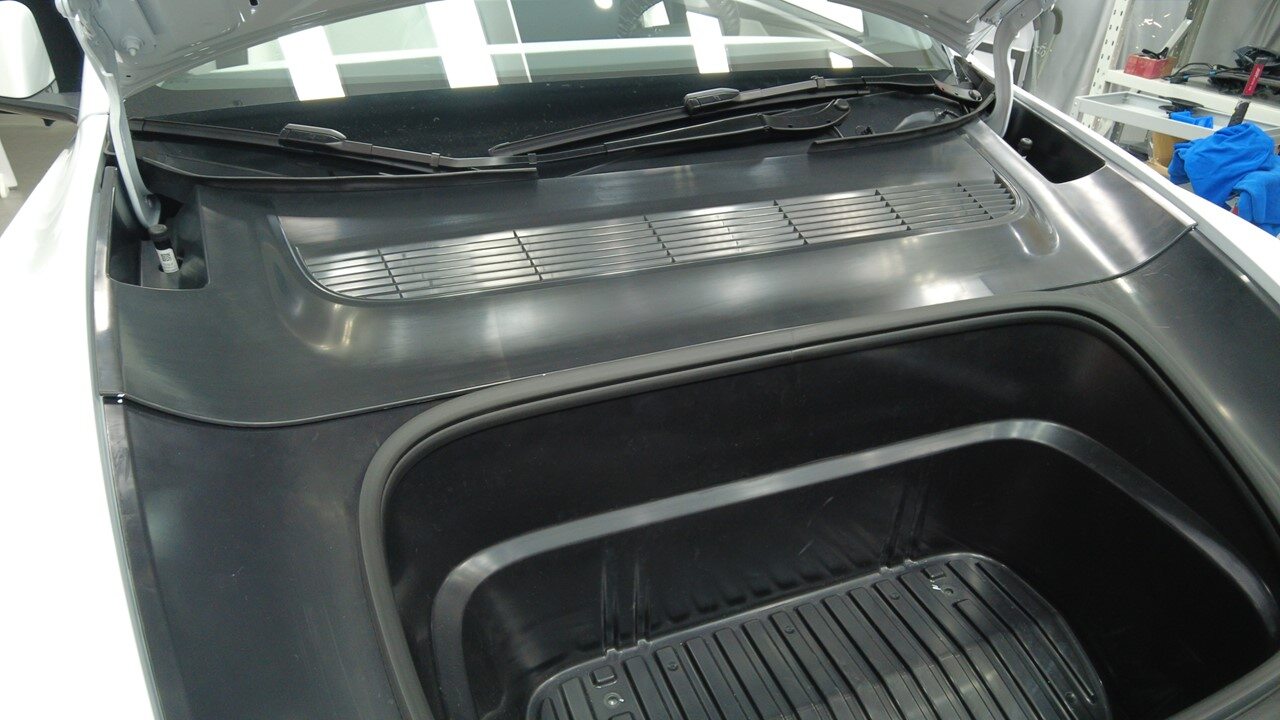

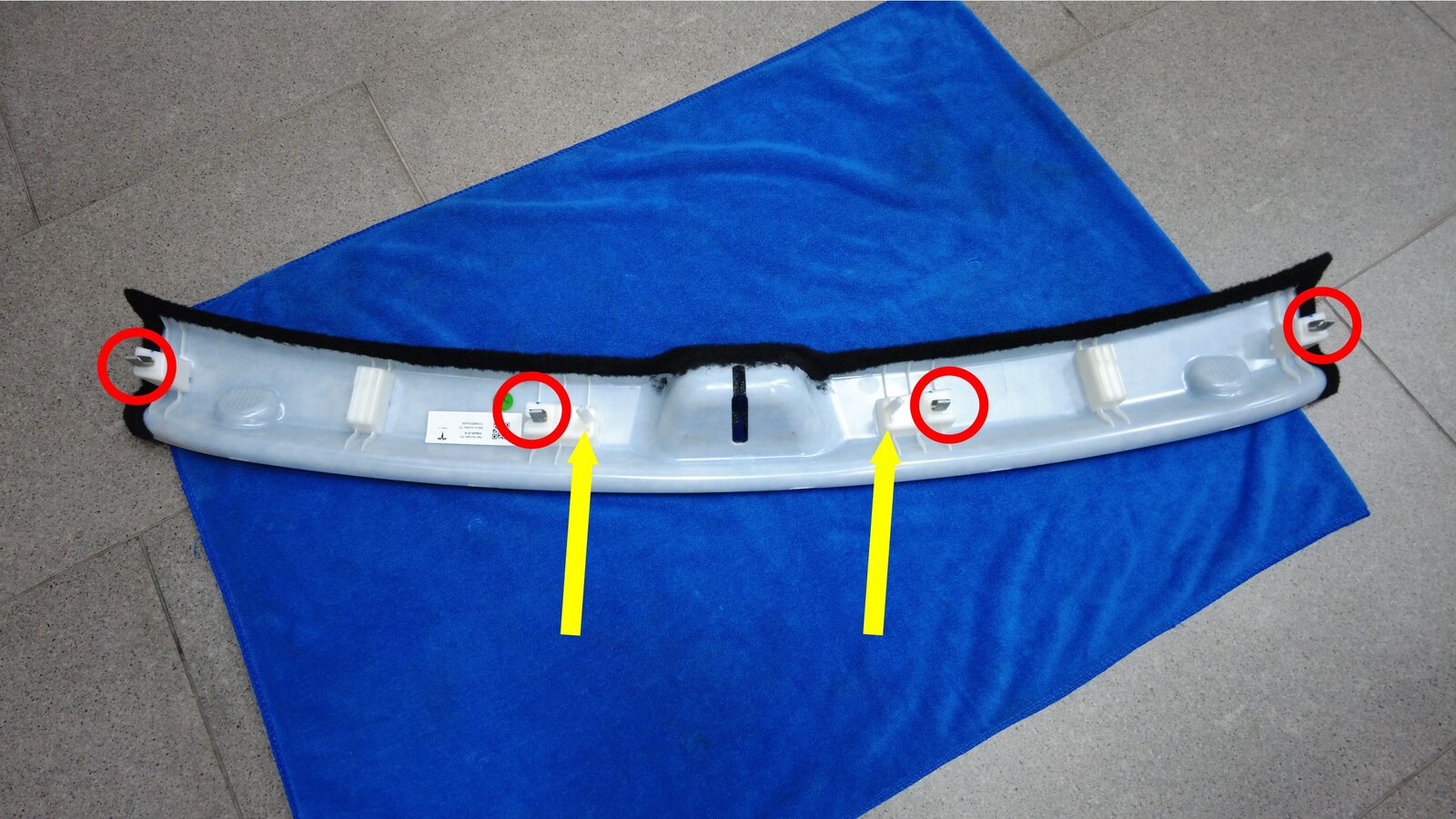

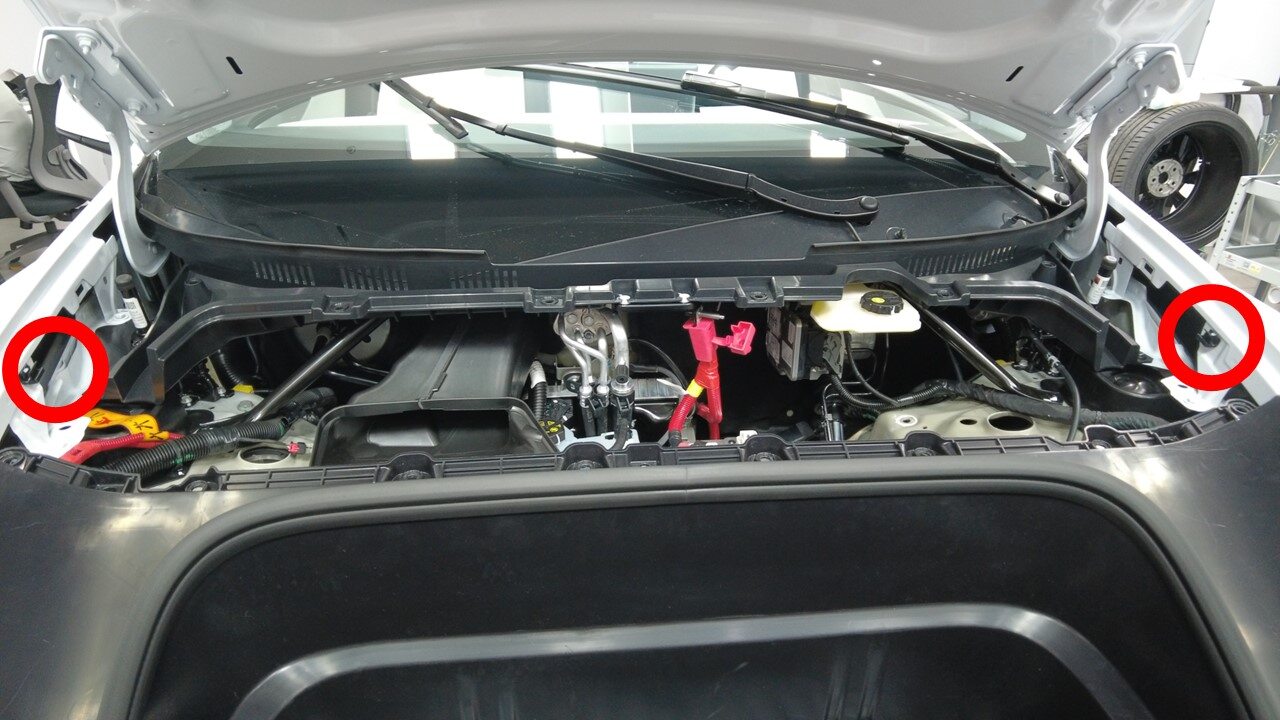

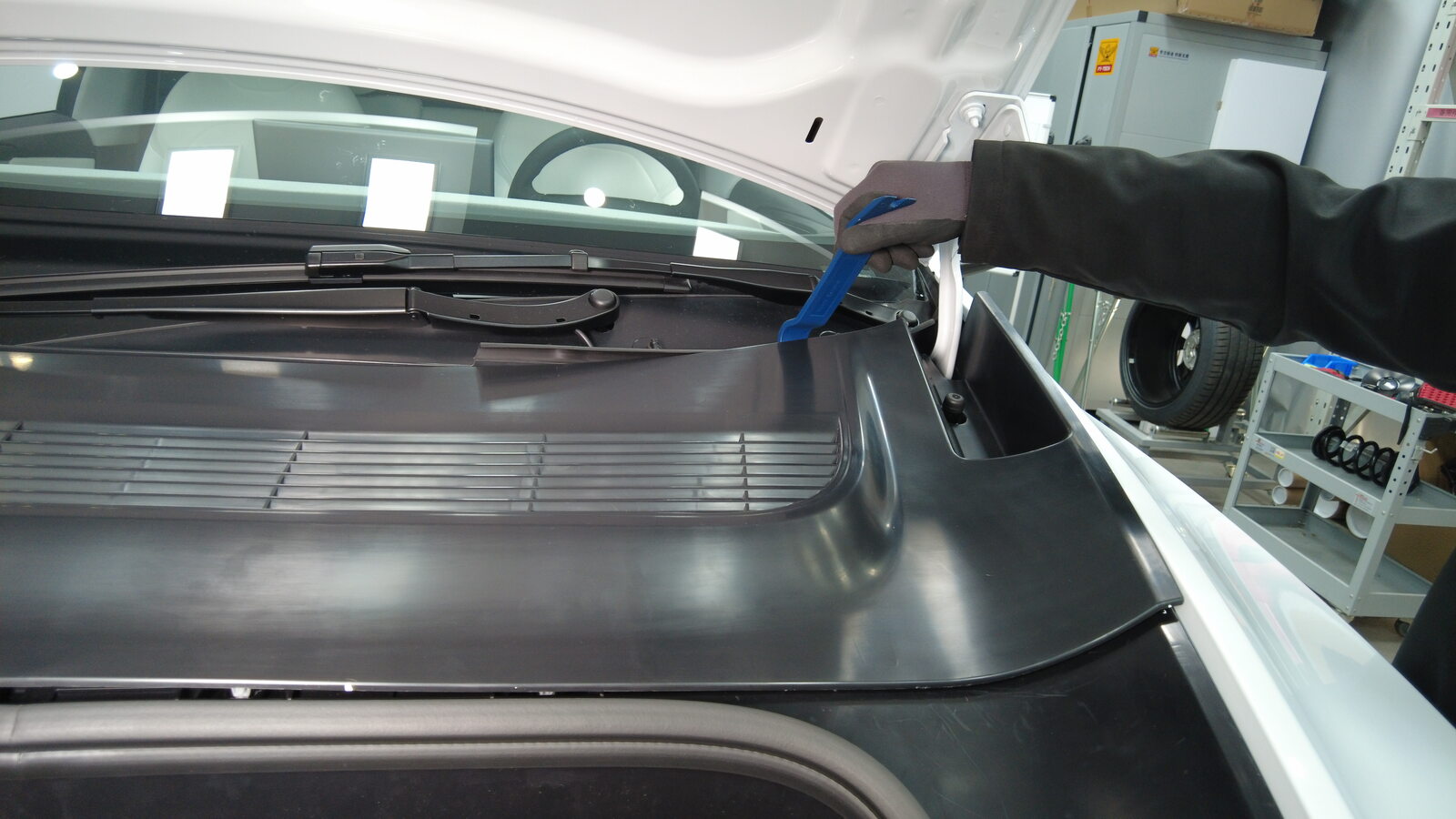

22. Remove rear apron
    注

    16x trim clips, 3x datums, 2x clips

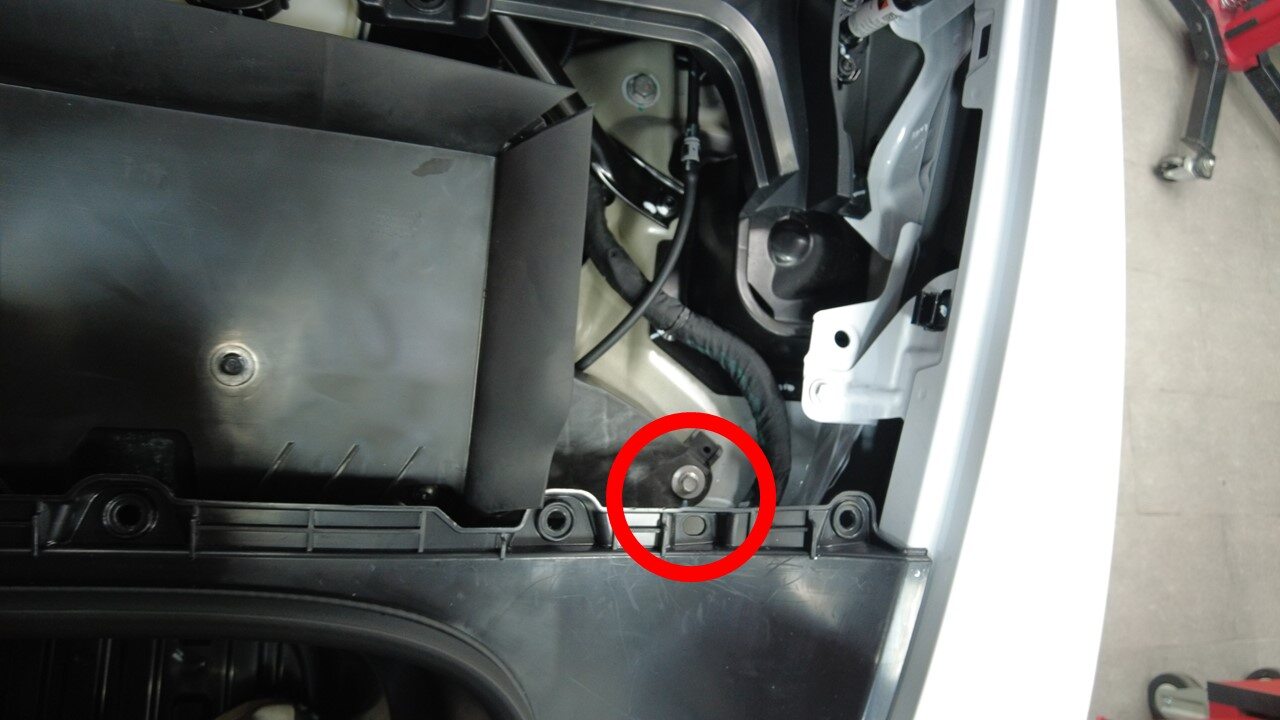

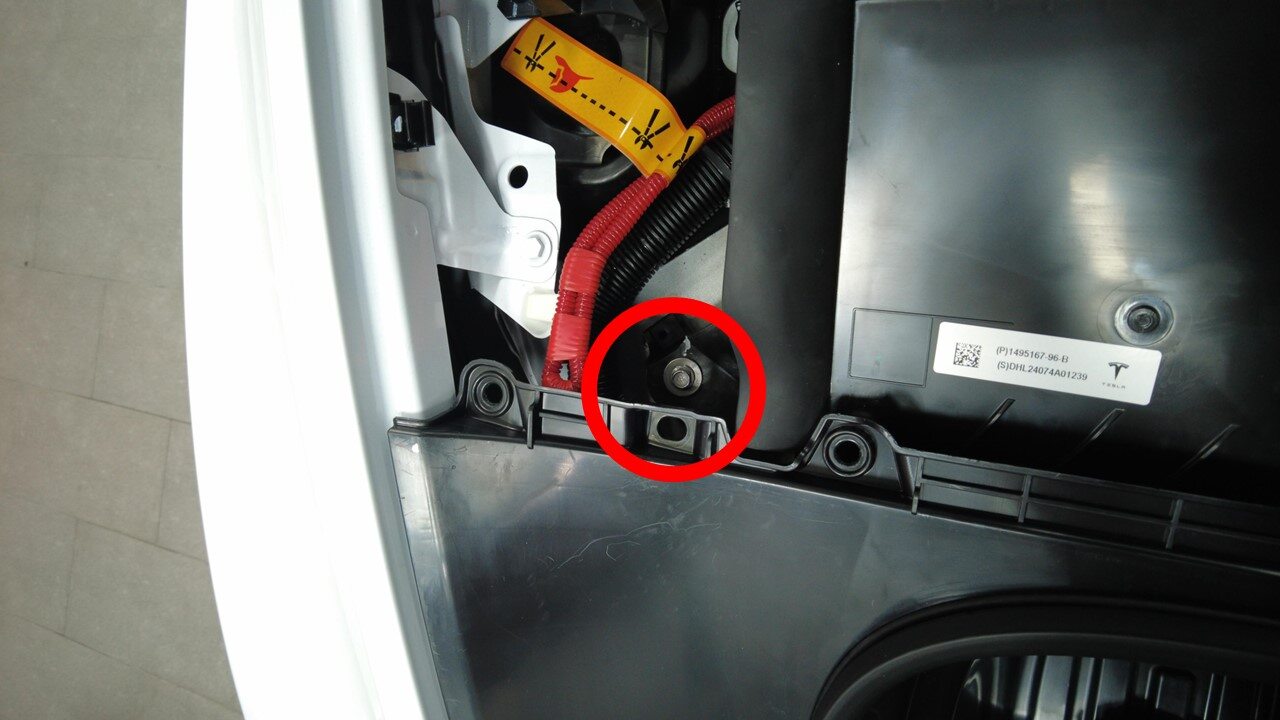

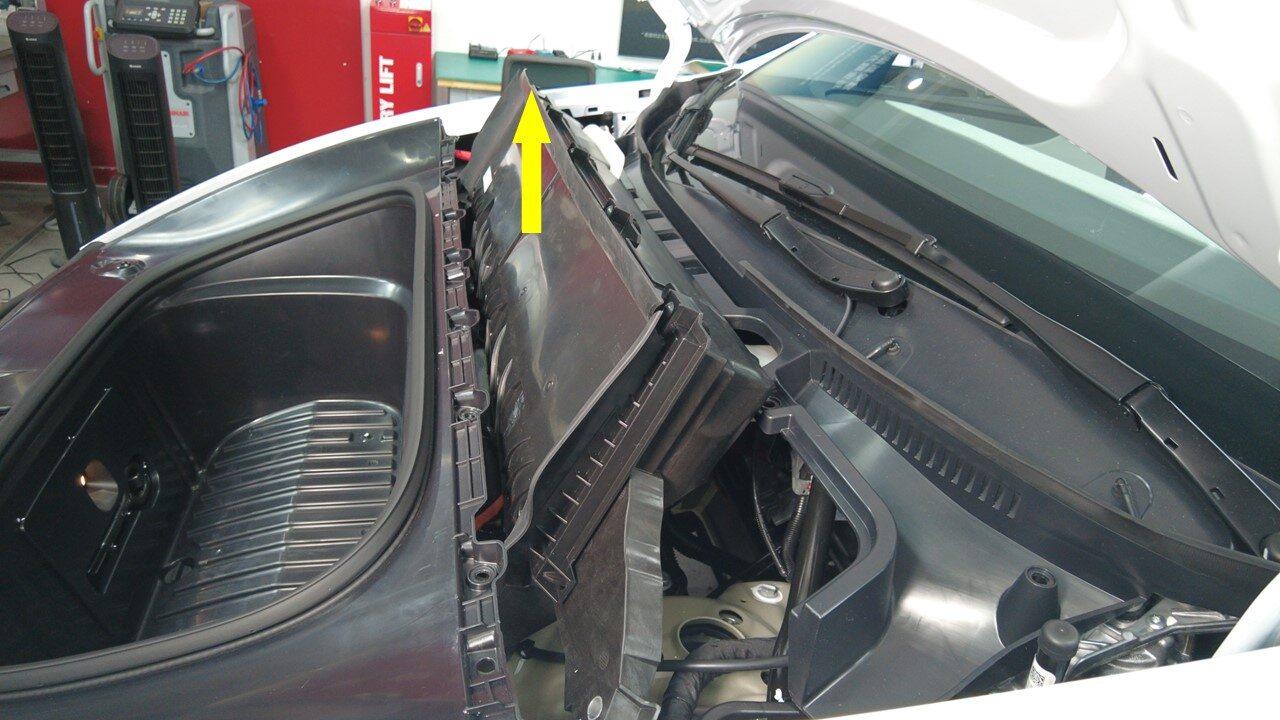

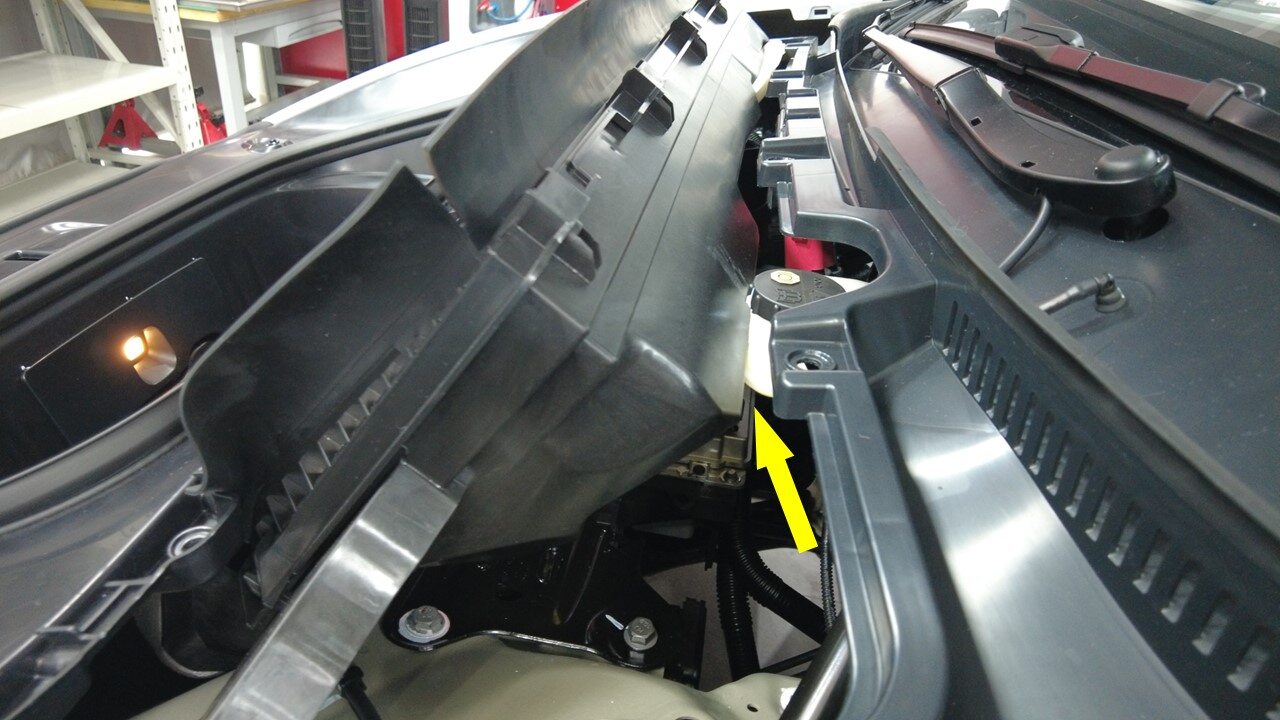

23. Remove HEPA filter assembly
    注

    2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly

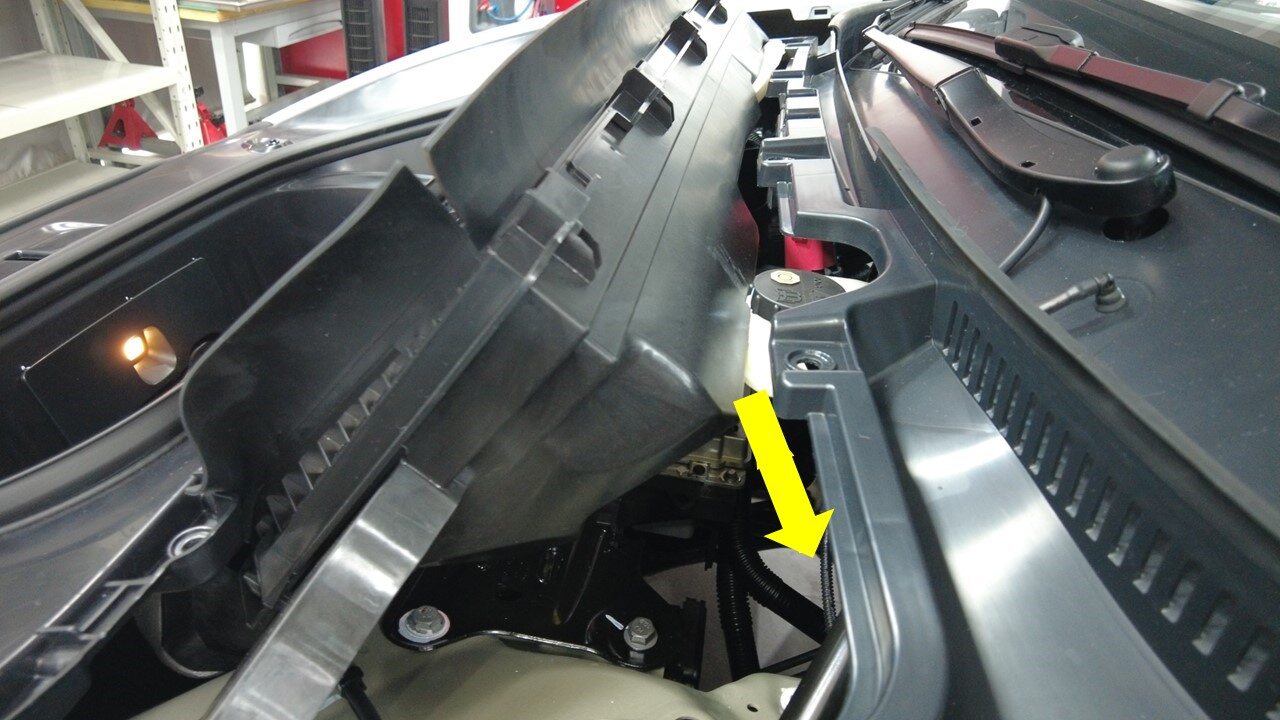

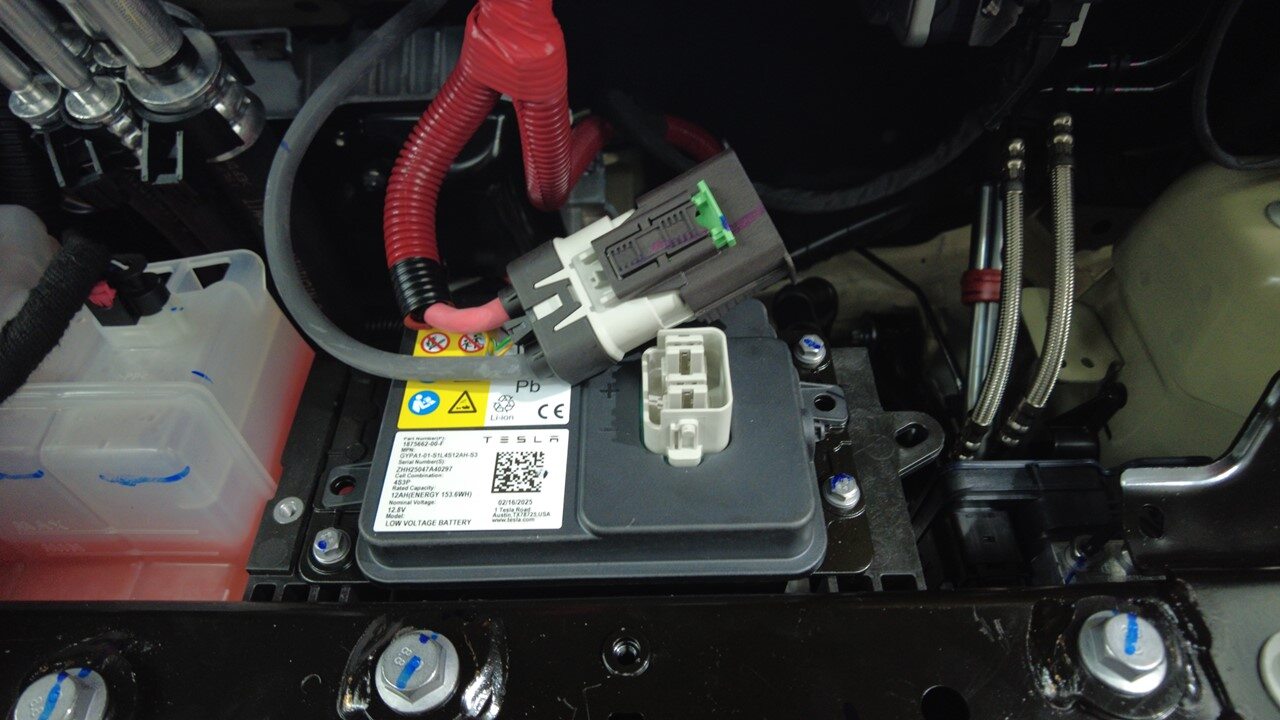

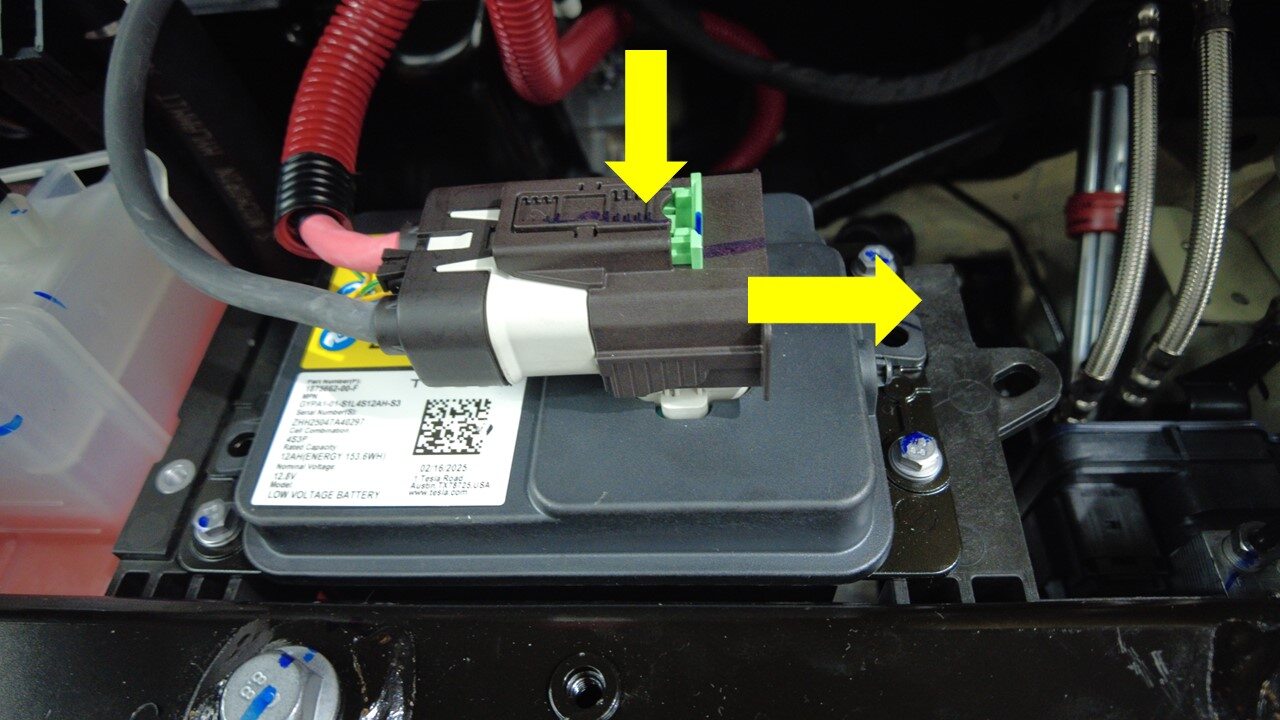

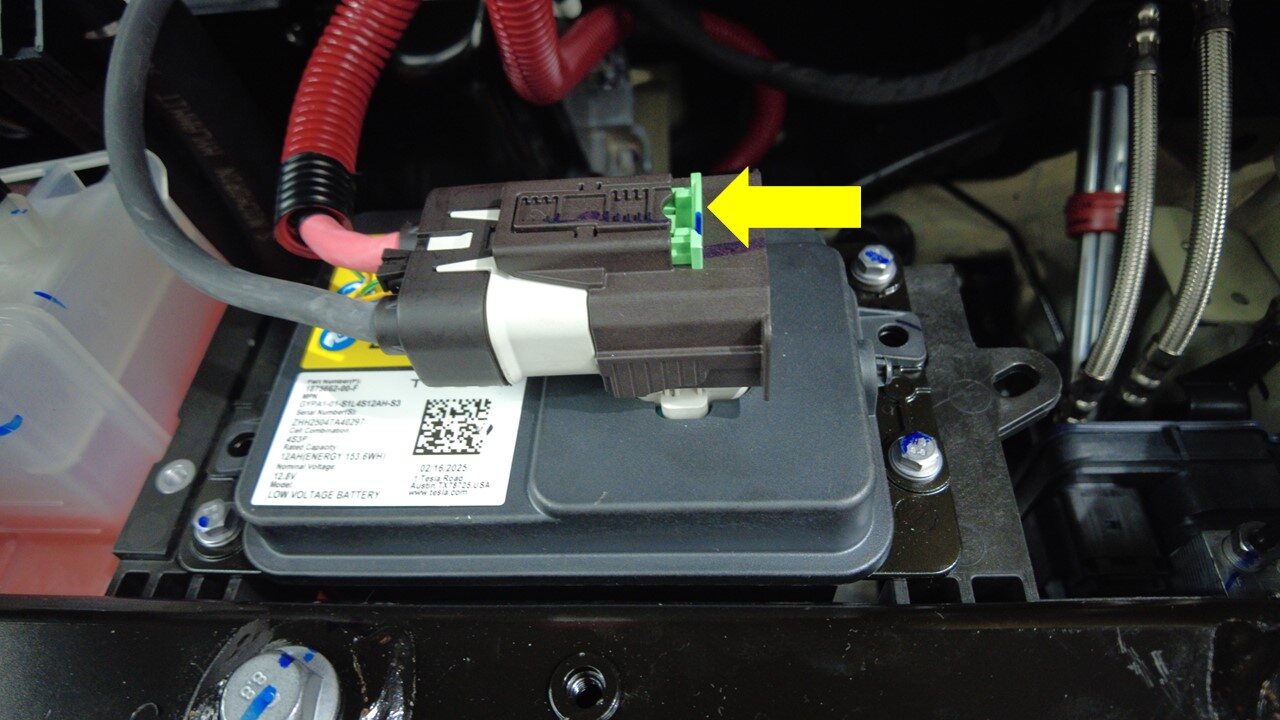

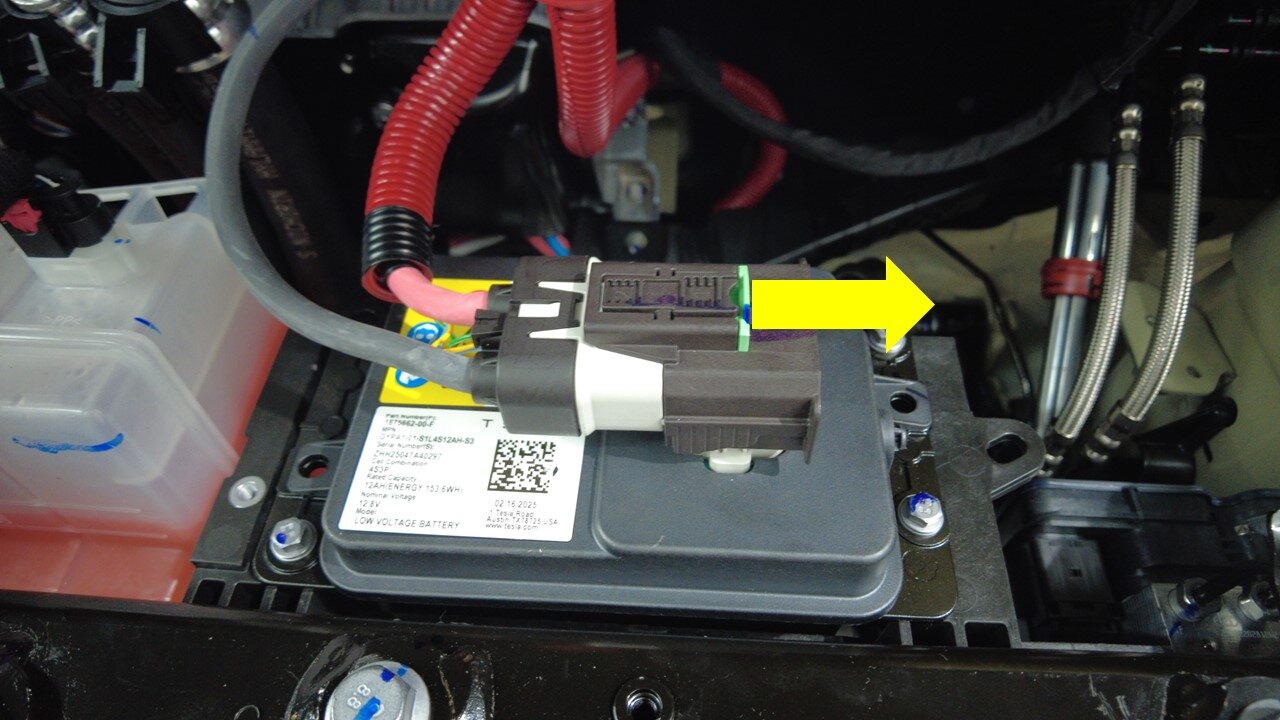

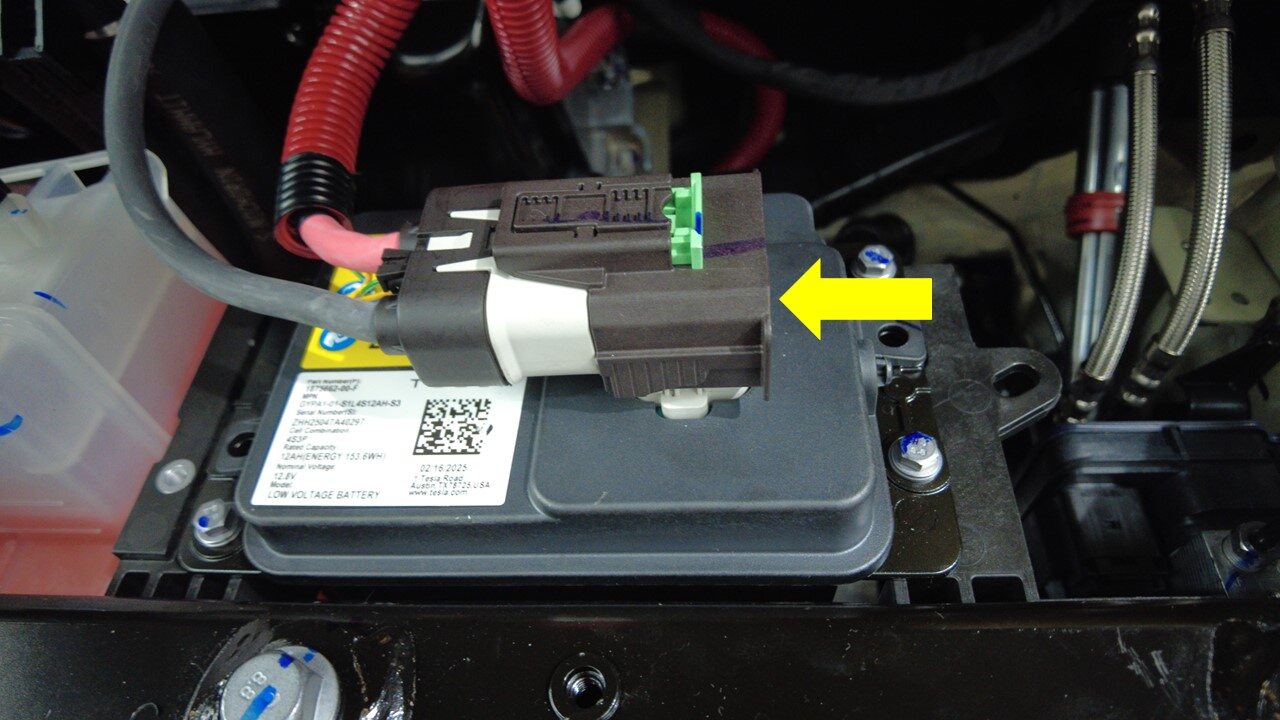

24. Disconnect LV battery and first responder loop
    注

    2x connectors, Ensure that one minute has passed after window movement before performing the power-off, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

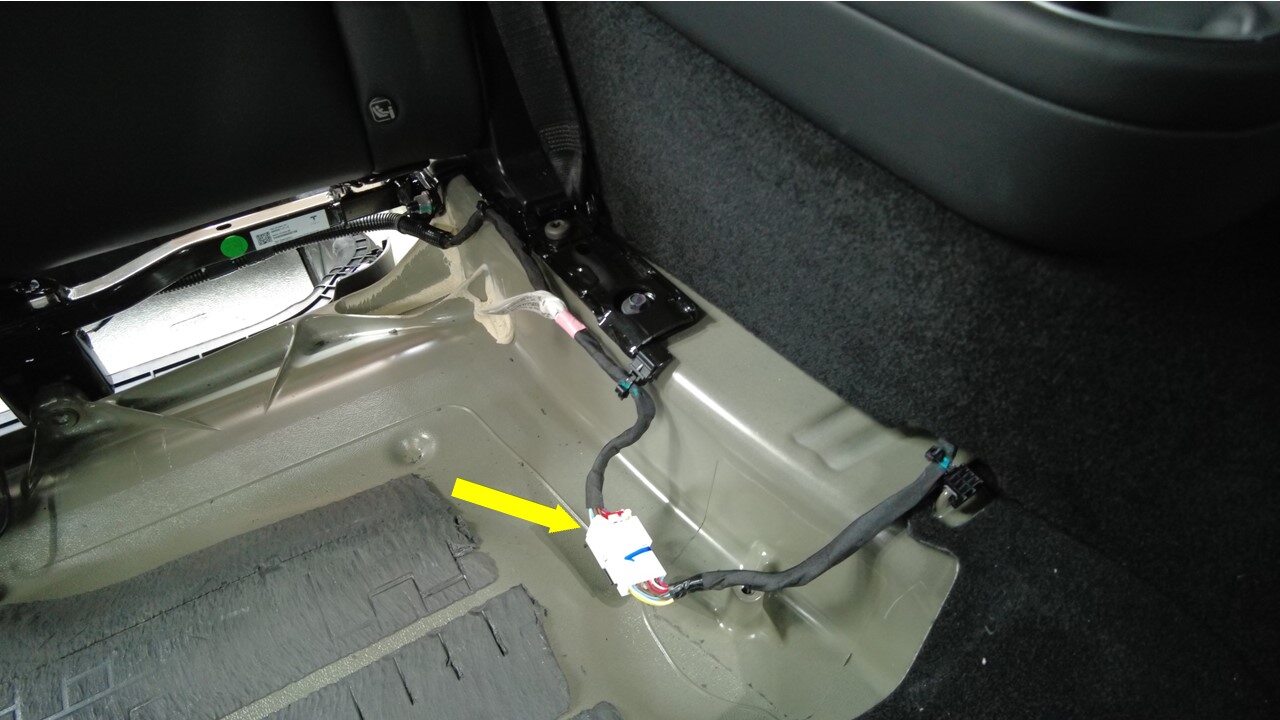

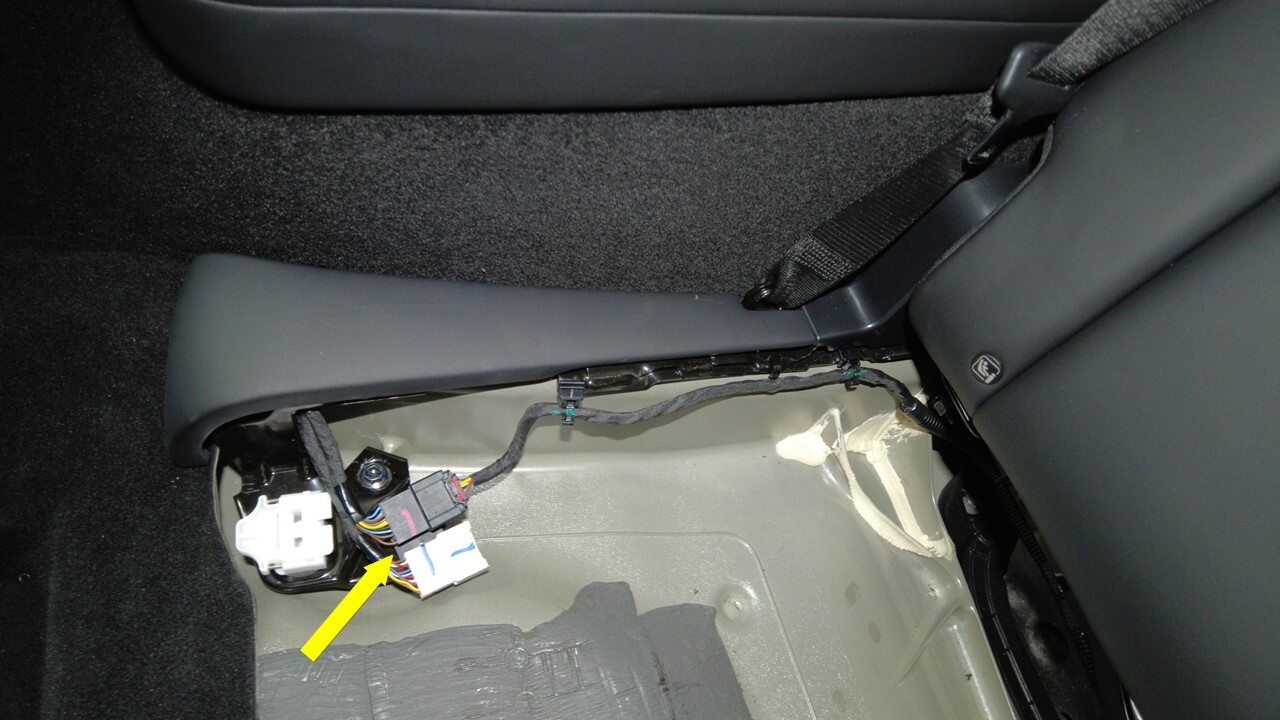

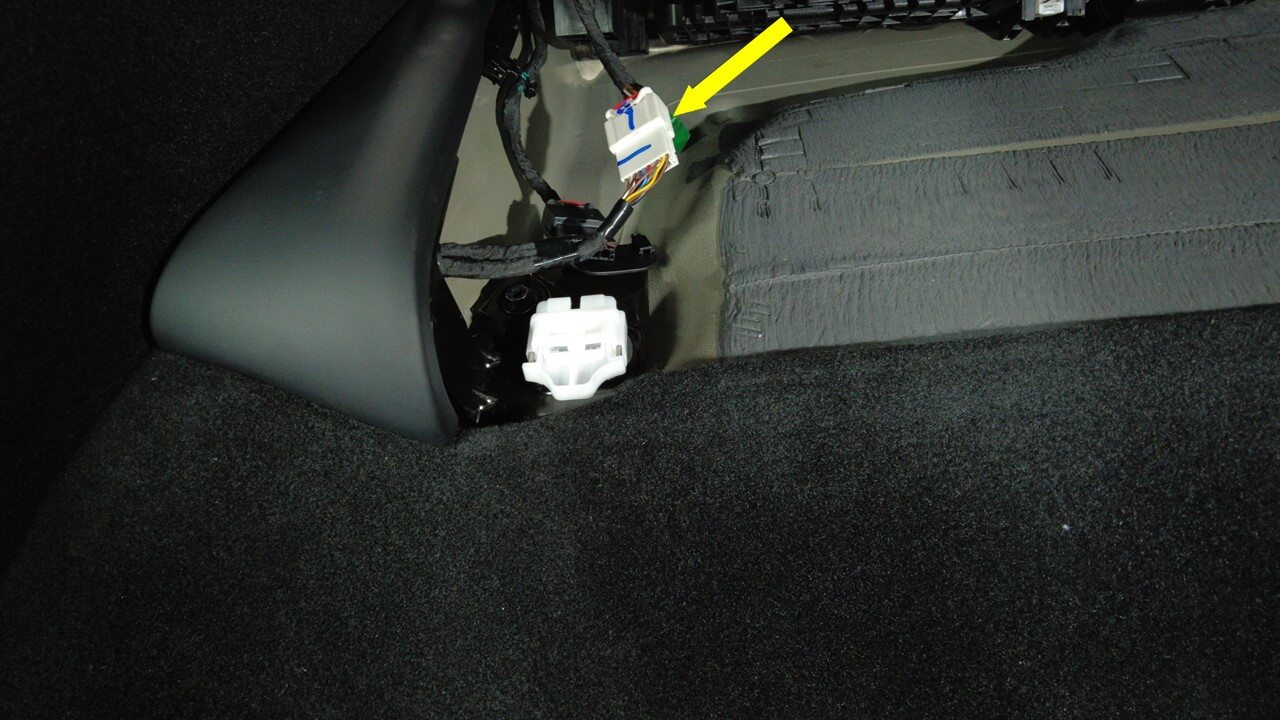

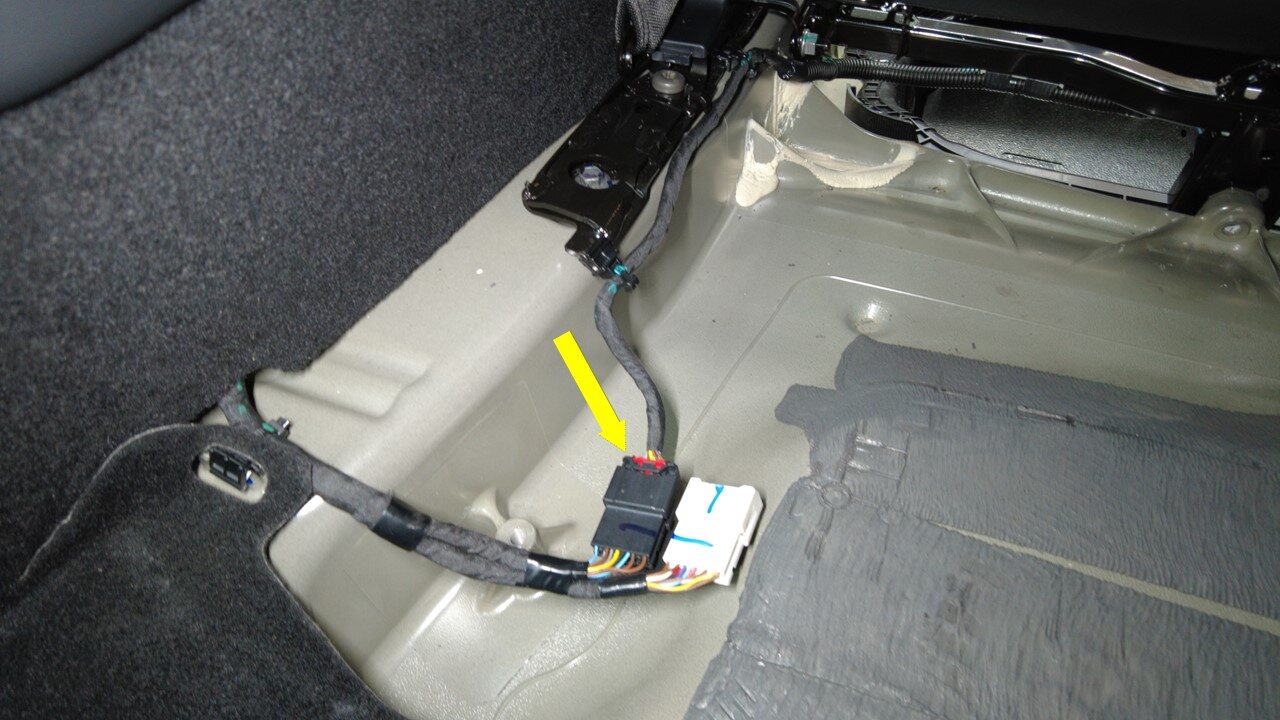

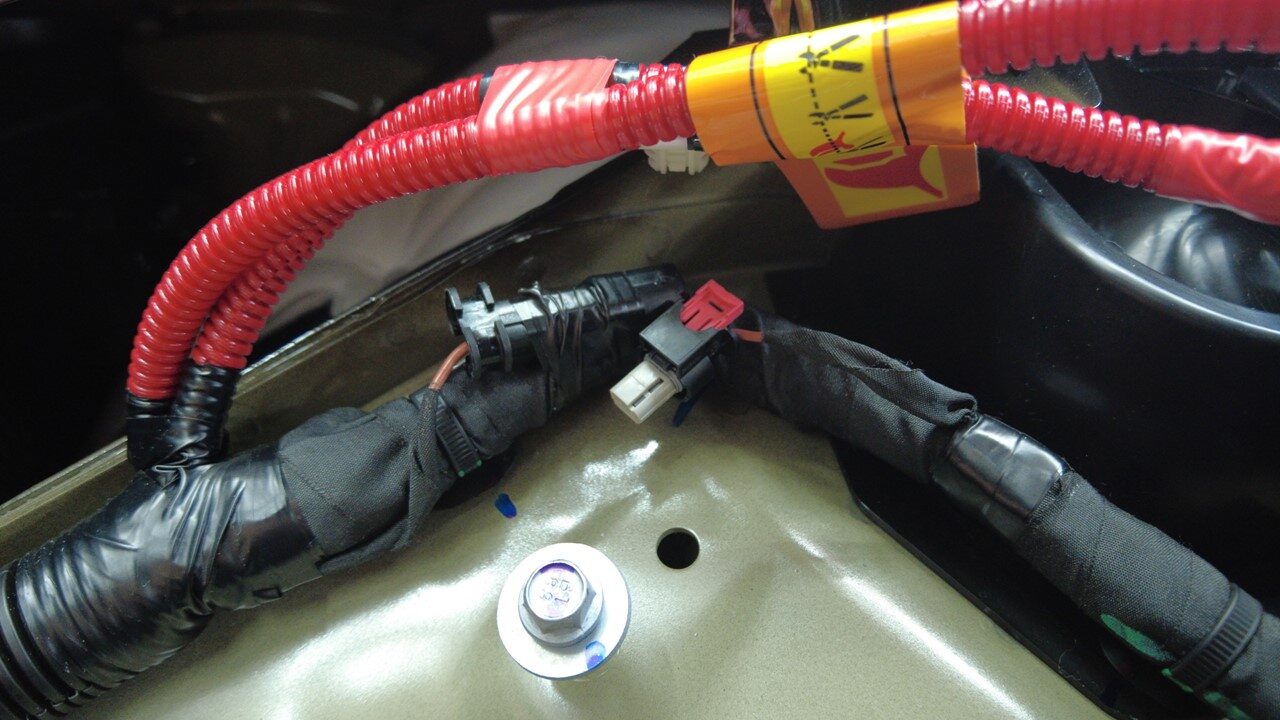

25. Disconnect 3rd row LH seat frame harness connector
    注

    1x connector

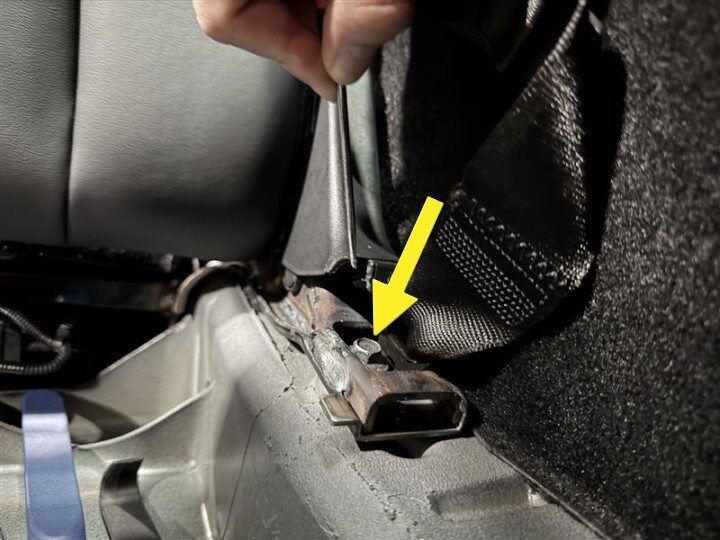

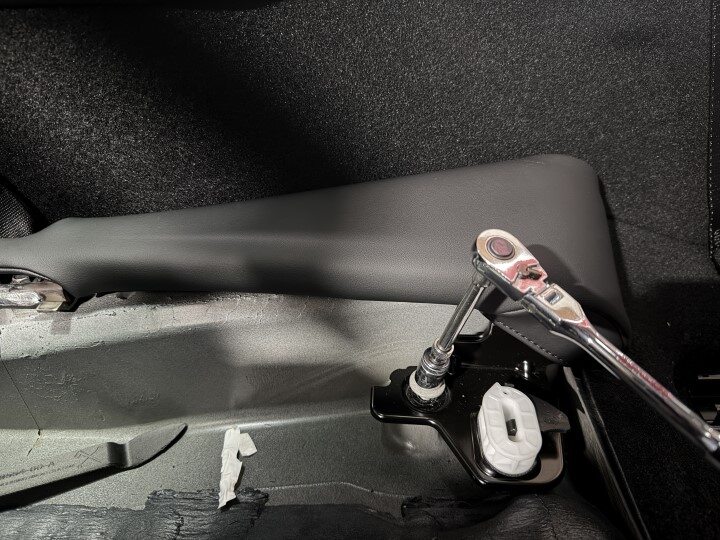

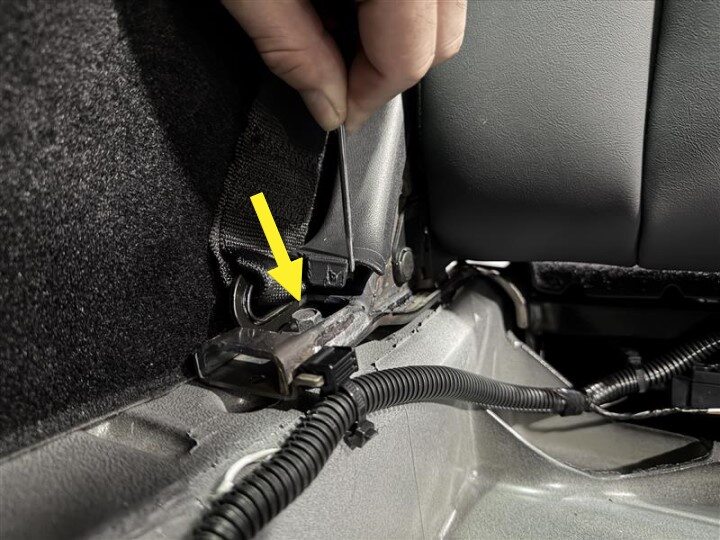

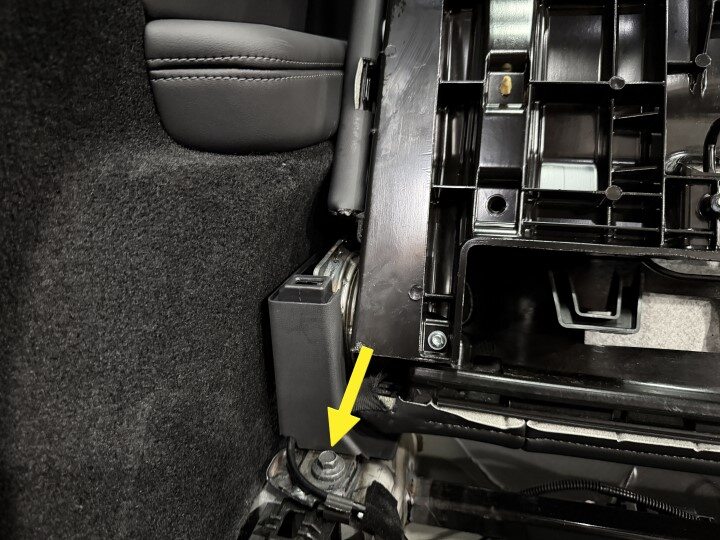

26. Remove bolt securing 3rd row LH seatbelt and seatback
    注

    1x bolt, 11mm, 37 Nm, Discard bolt after removal



27. Remove bolt securing 3rd row RH seatbelt and seatback
    注

    1x bolt, 11mm, 37 Nm, Discard bolt after removal

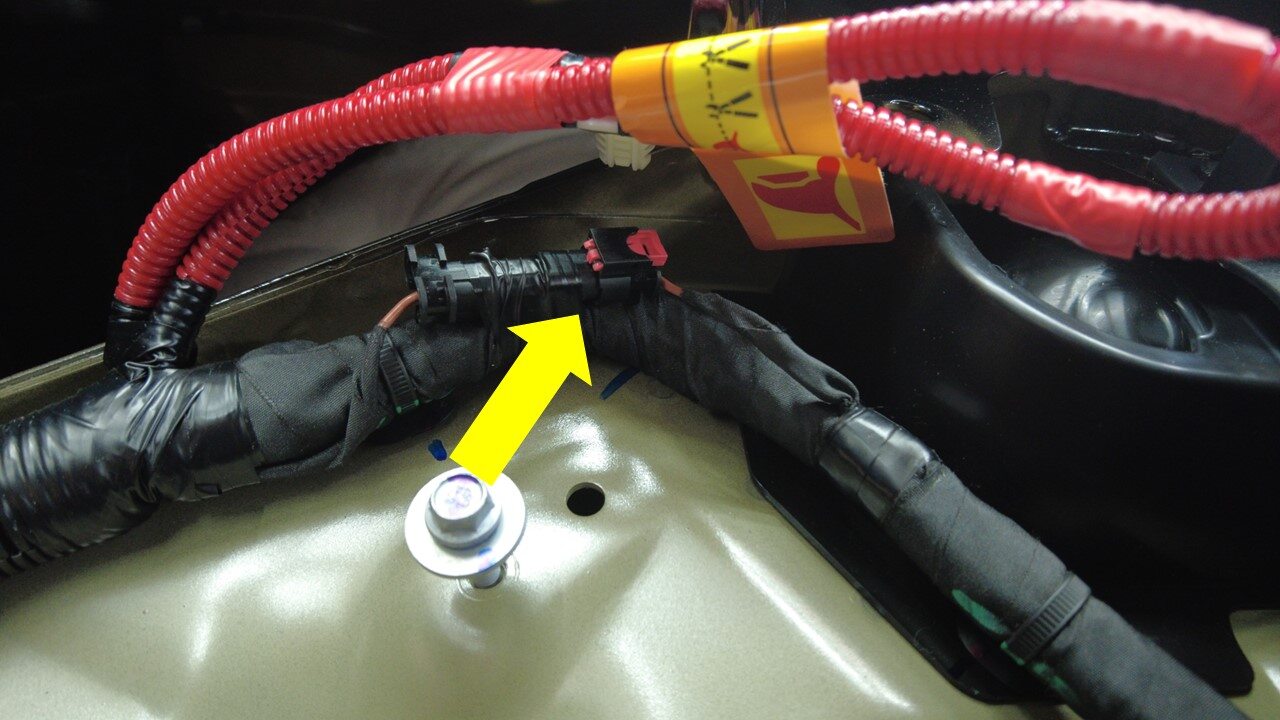

28. Disconnect 3rd row RH seat frame harness connector
    注

    1x connector

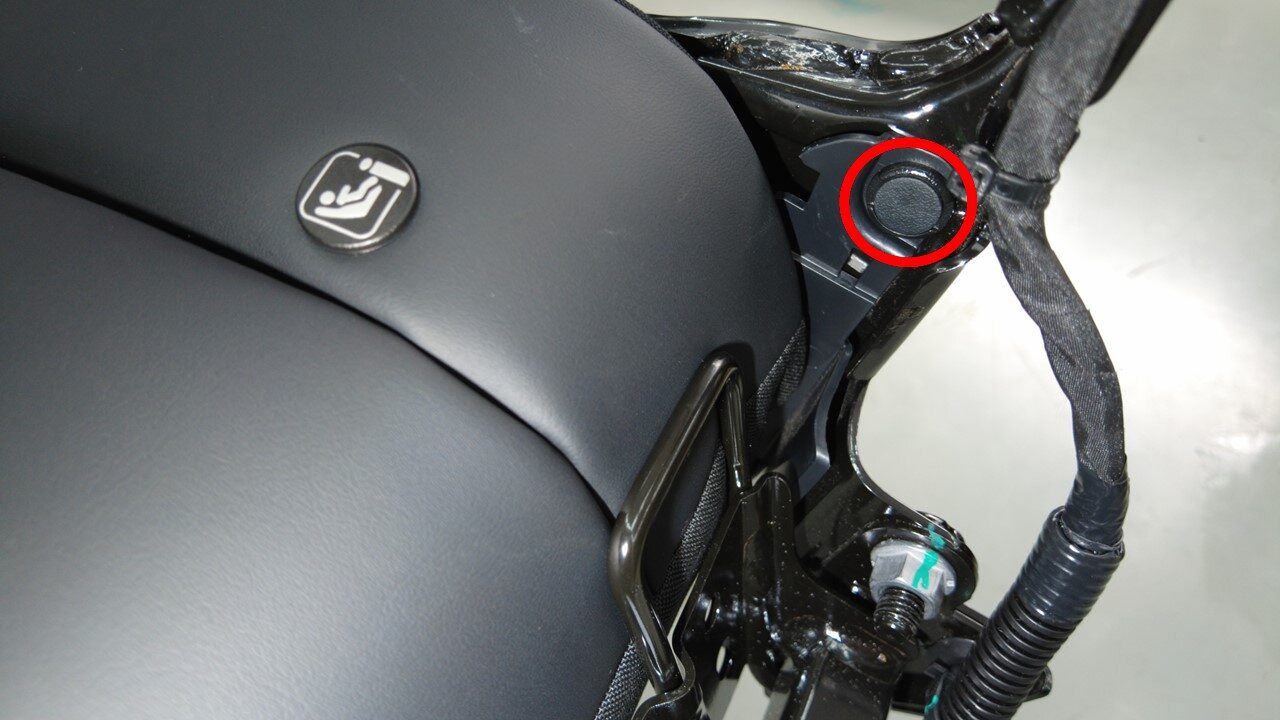

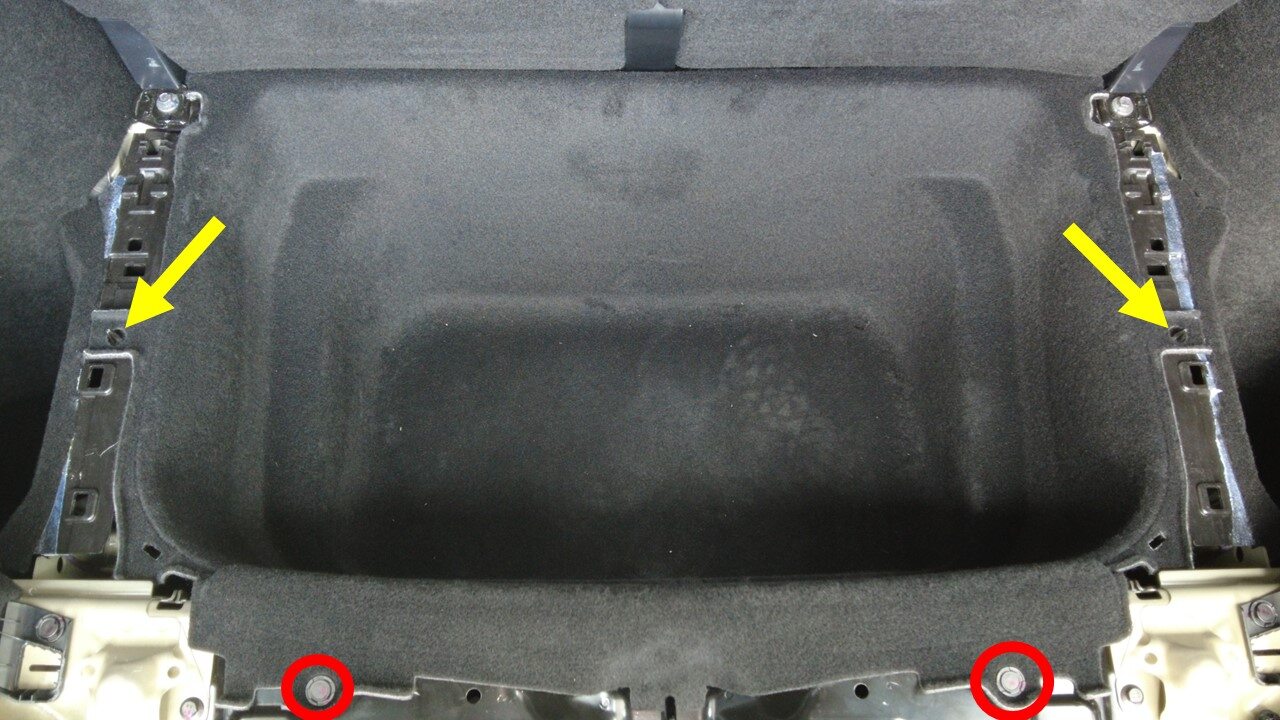

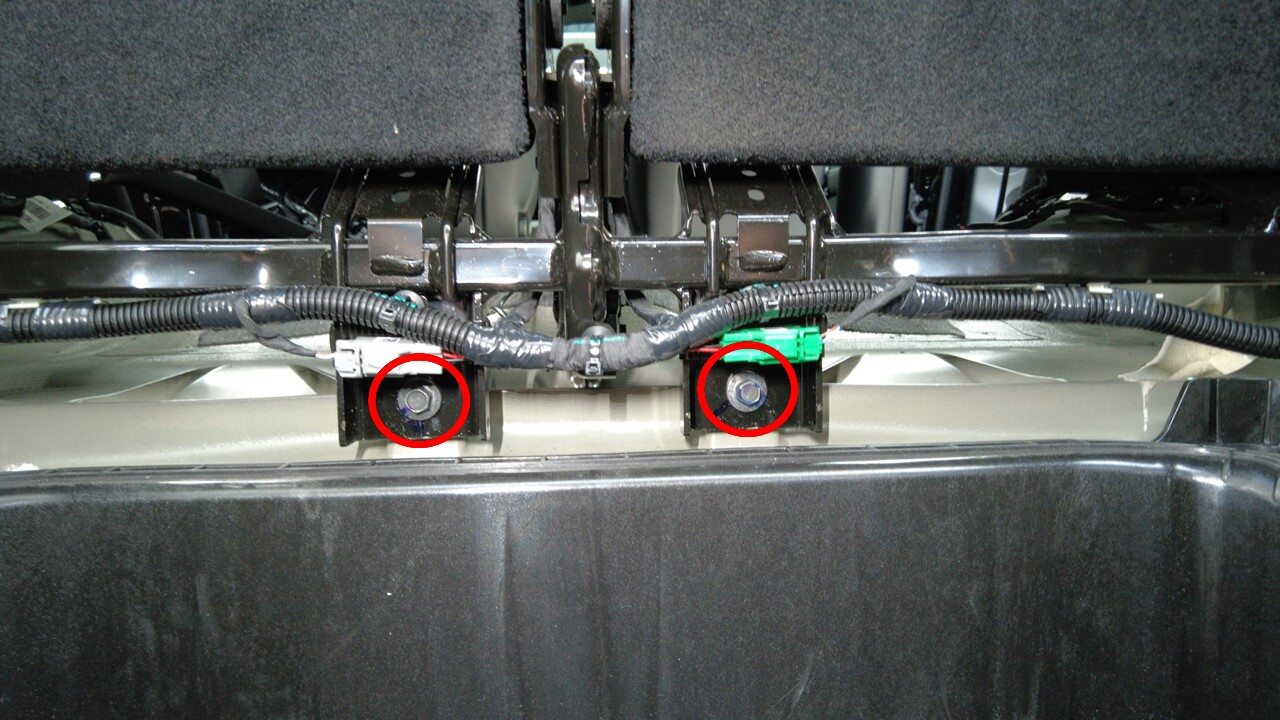

29. Remove inner bolts securing 3rd row seatback complete to body
    注

    2x bolts, 11mm, 37 Nm, Discard bolts after removal



30. Remove lateral bolts securing rear of 3rd row seat back
    注

    2x fasteners

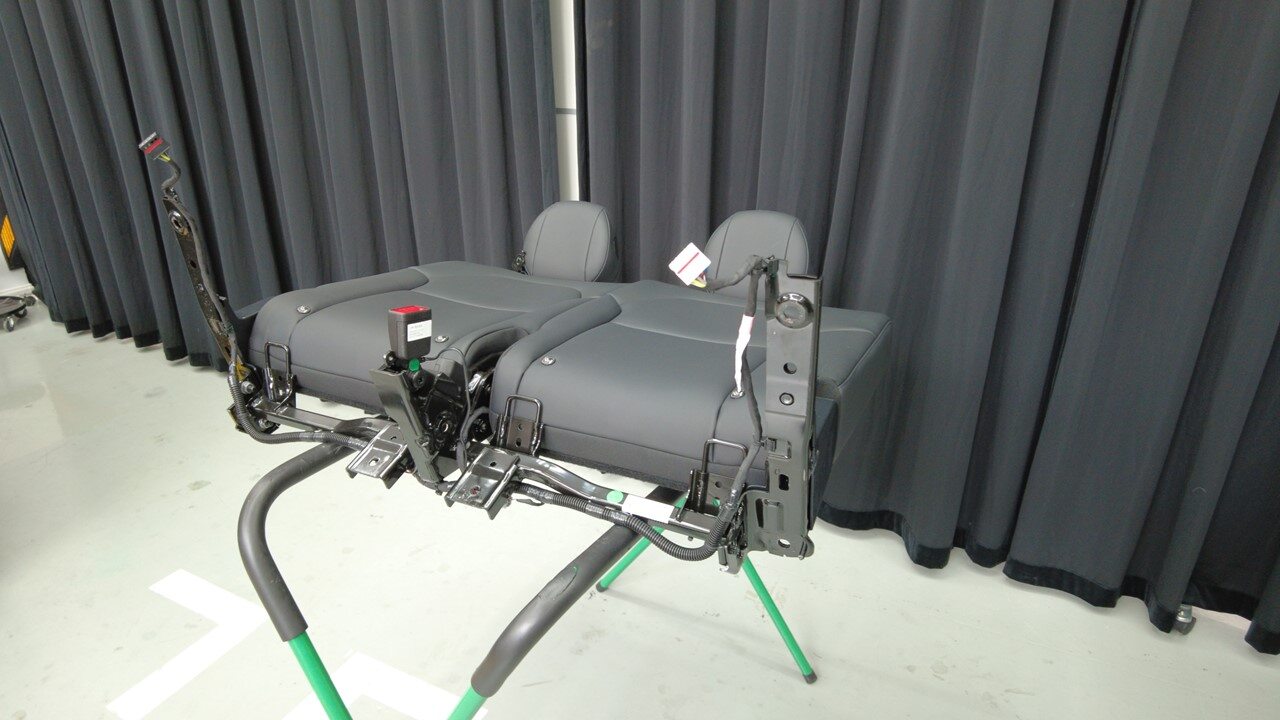

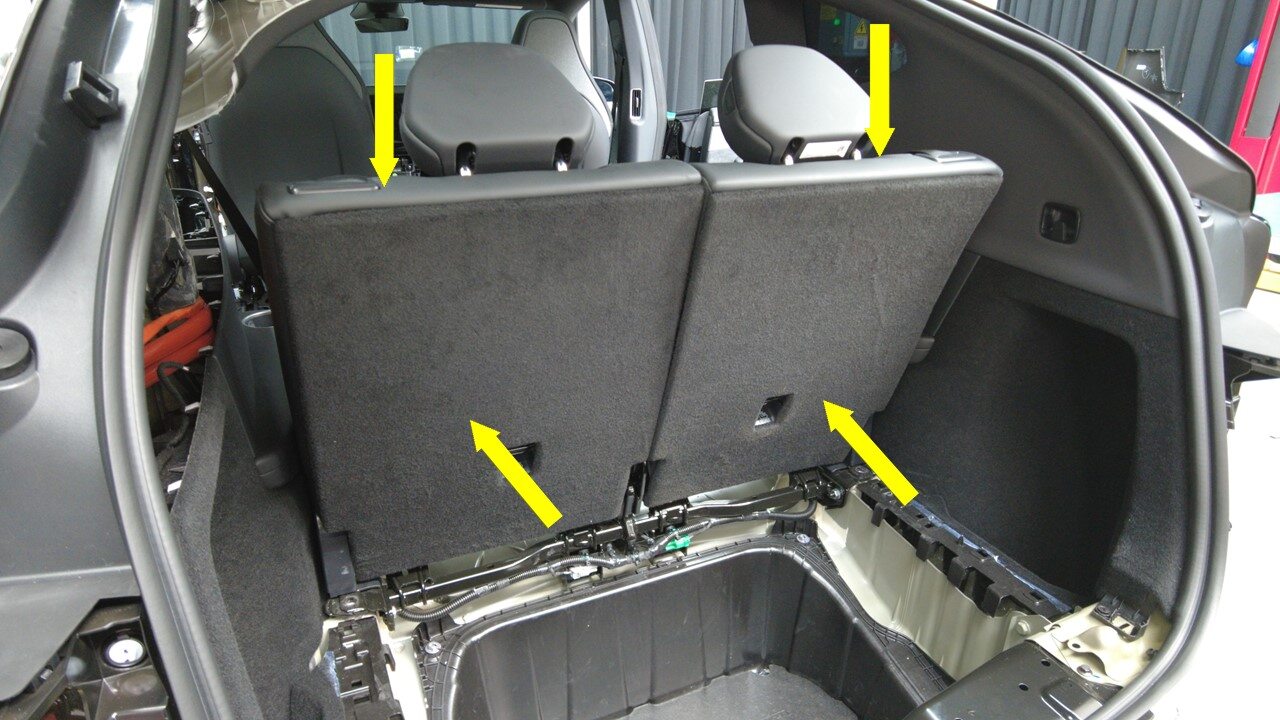

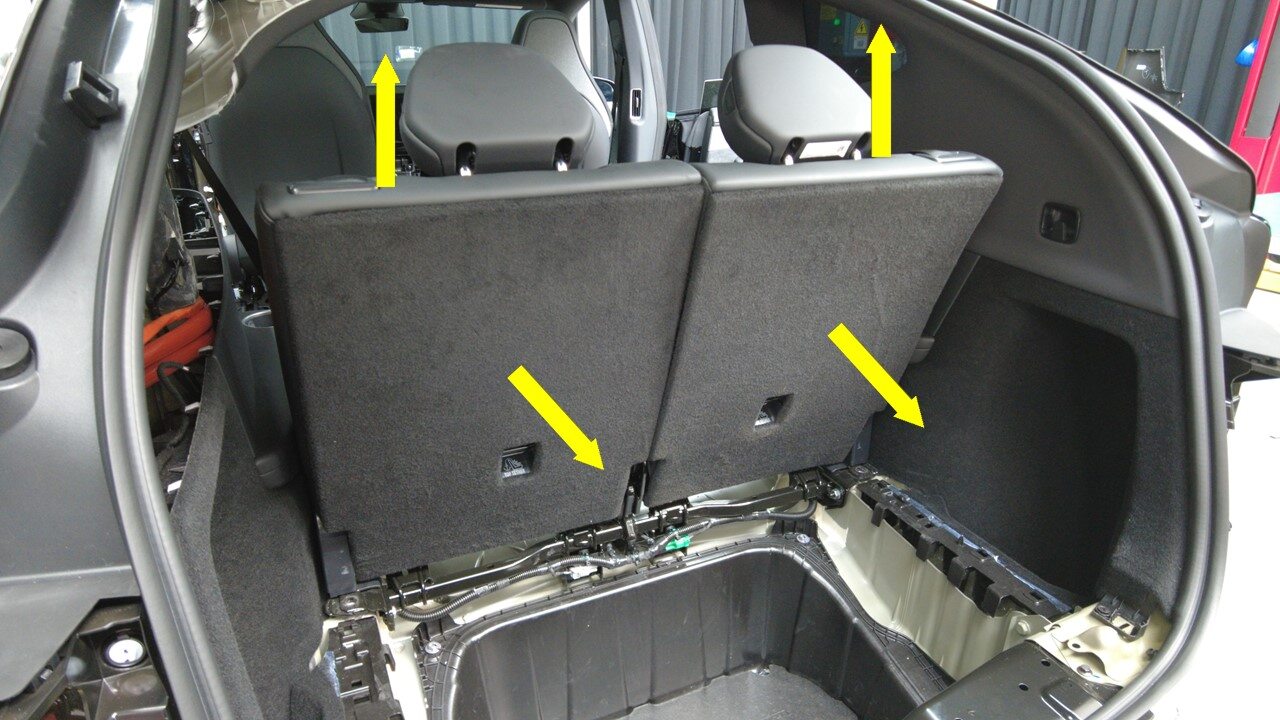

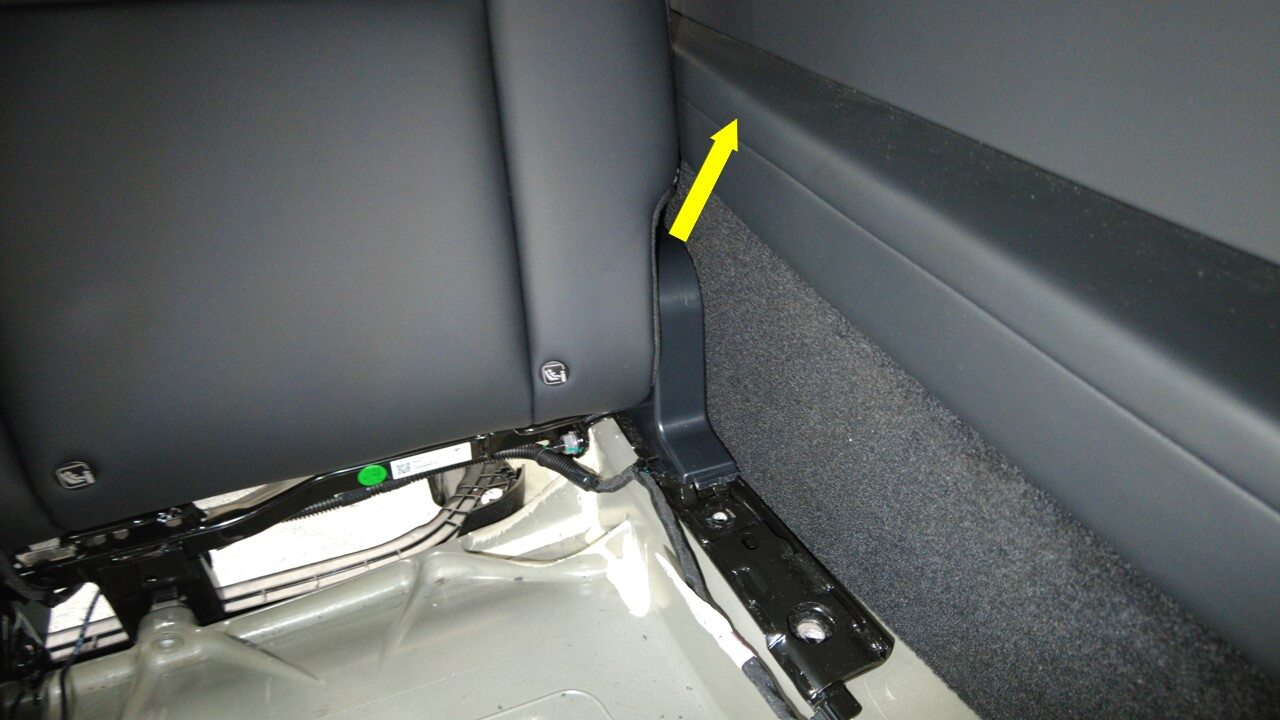

31. Remove 3rd row seatback complete from vehicle
    注

    2x location pins, First lift up, Then move the entire body backward, Remove 3rd row seatback complete through the liftgate, Recommended assistant assistance

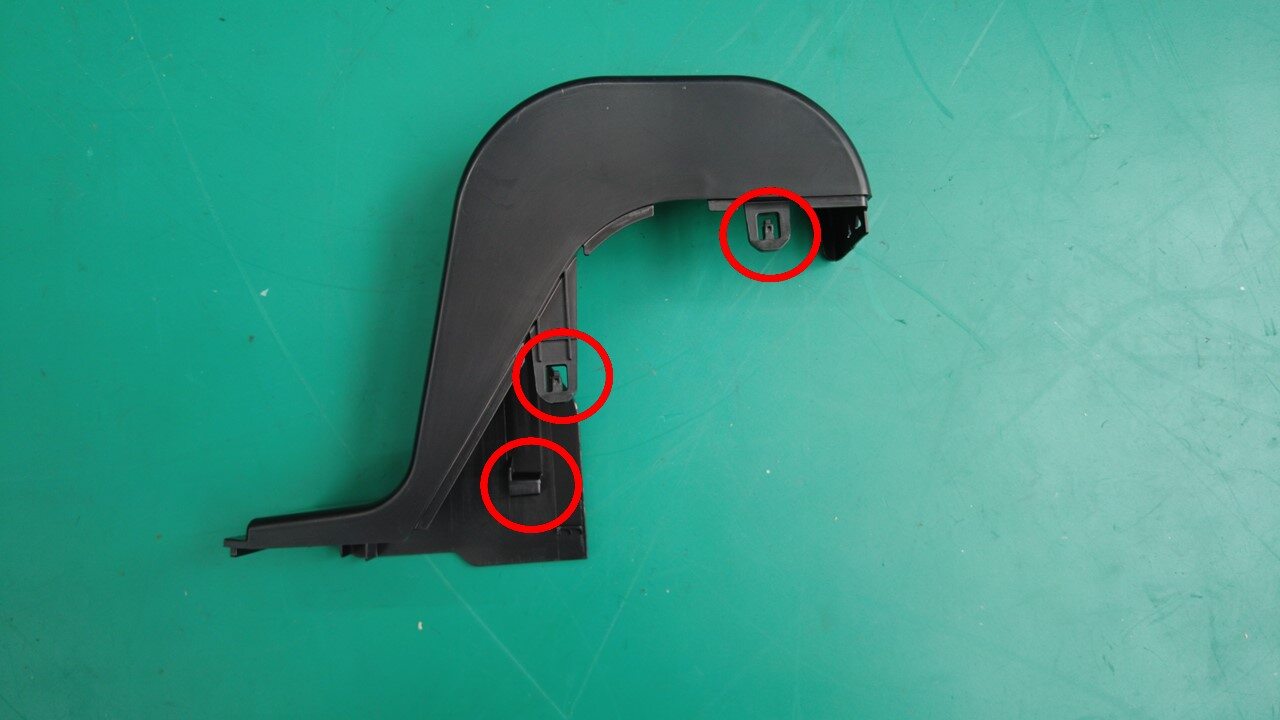

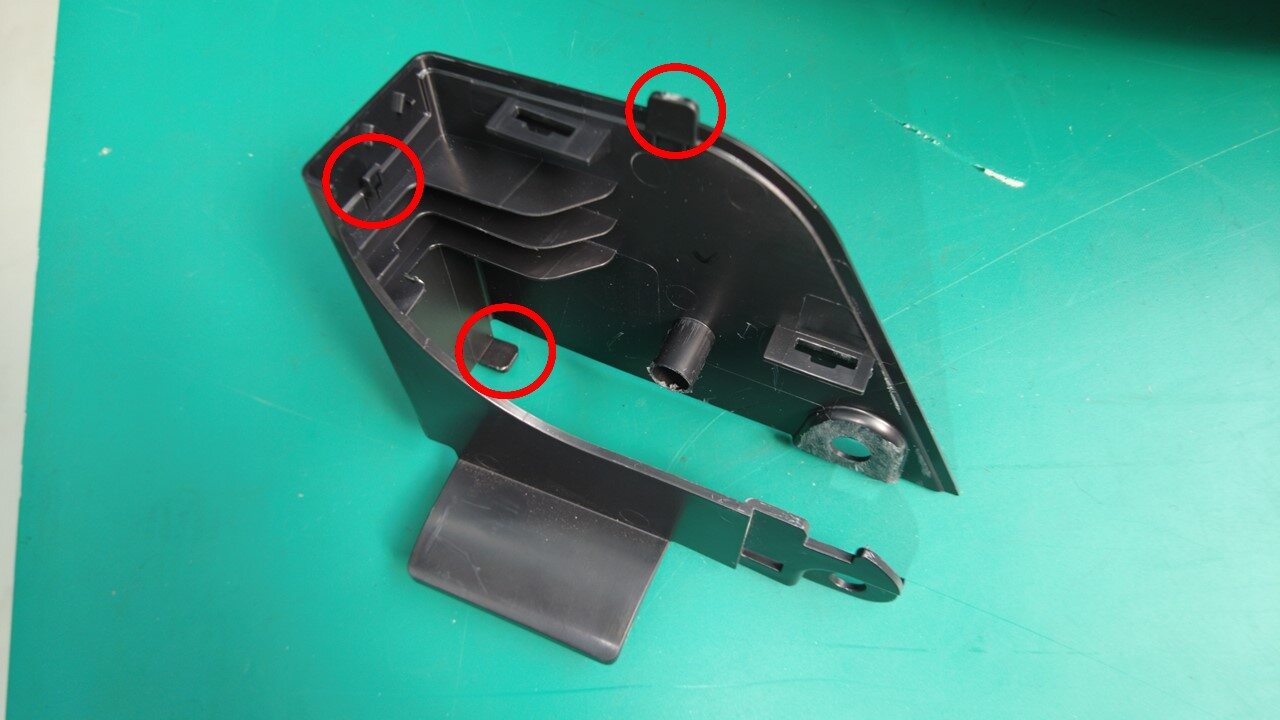

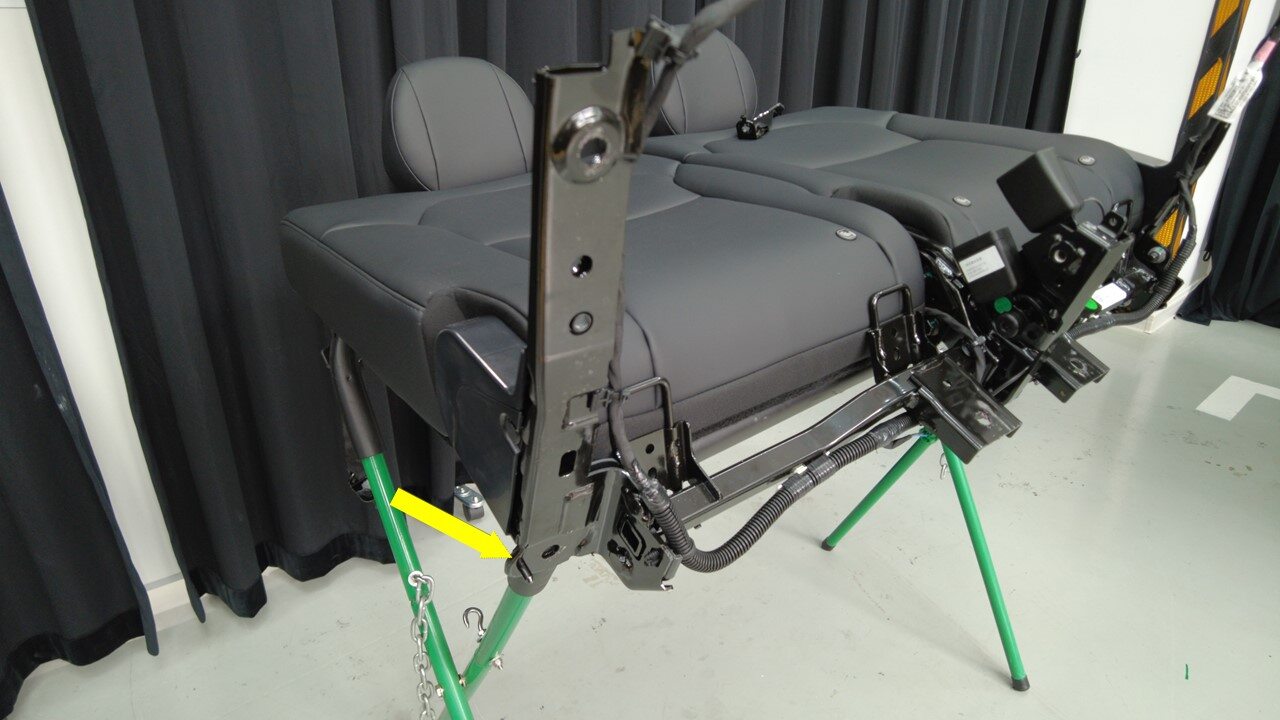

32. Remove 3rd row LH inner B-cover from seatback frame assembly
    注

    2x clips, 3x tabs







33. Install 3rd row LH inner B-cover to seatback frame assembly
    注

    2x clips, 3x tabs







34. Install 3rd row seatback complete onto vehicle
    注

    2x location pins, Recommended assistant assistance







35. Install lateral bolts securing rear of 3rd row seat back
    注

    2x fasteners





36. install inner bolts securing 3rd row seatback complete to body
    注

    2x bolts, 11mm, 37 Nm, Install new bolts, Install bolts hand tight, Torque at later step



37. install bolt securing 3rd row RH seat belt and seat back
    注

    1x bolt, 11mm, 37 Nm, Install new bolt, Install bolt hand tight, Torque at later step



38. install bolt securing 3rd row LH seat belt and seat back
    注

    1x bolt, 11mm, 37 Nm, Install new bolt, Install bolt hand tight, Torque at later step



39. Connect 3rd row RH seat frame harness connector
    注

    1x connector

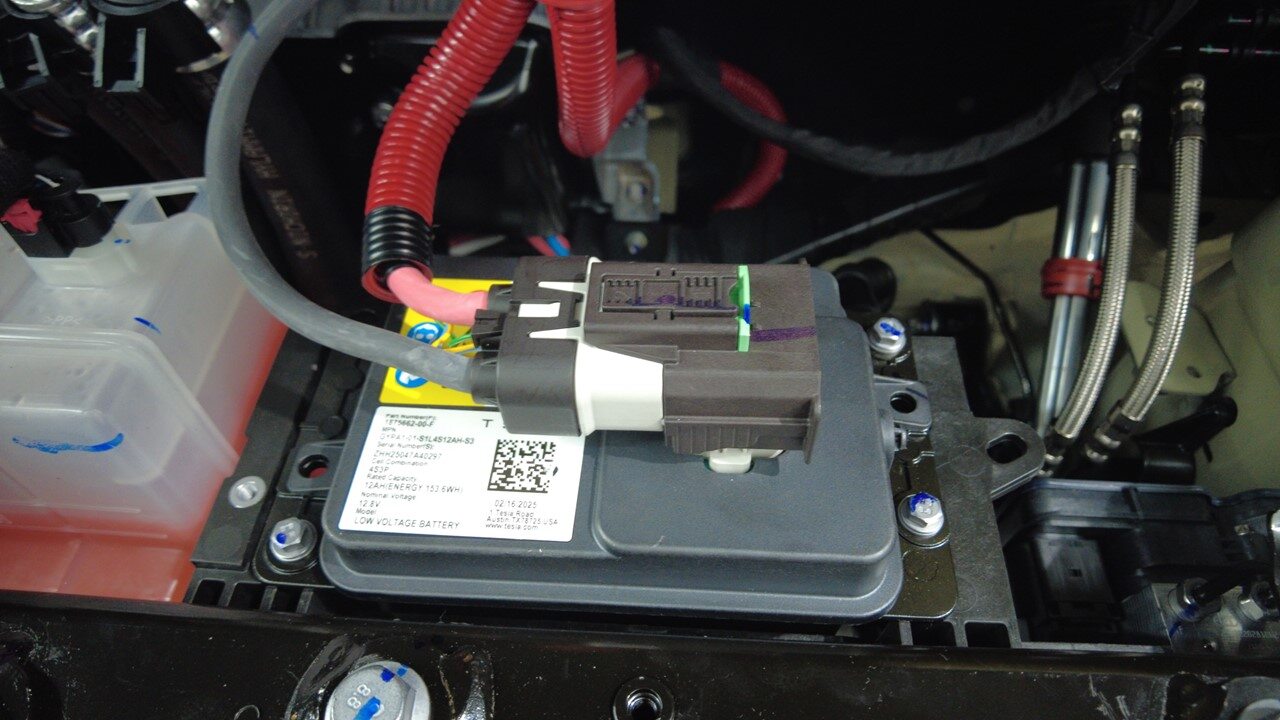

40. Connect first responder loop and LV battery
    注

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated

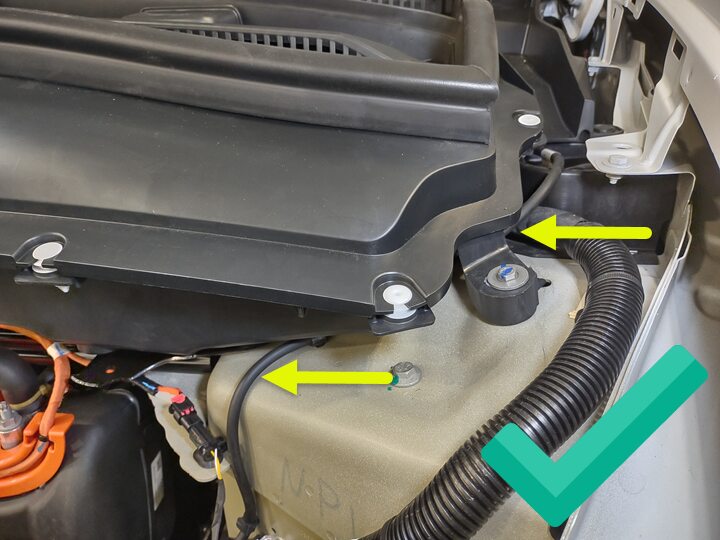

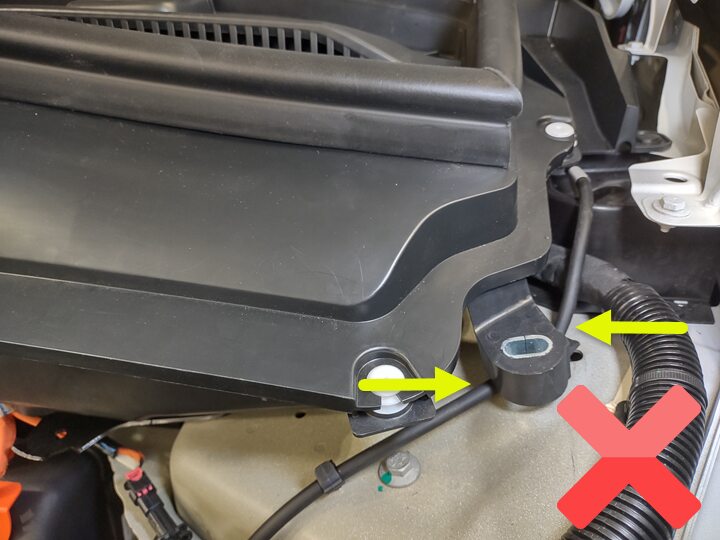

41. Install HEPA filter assembly
    注

    2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Do not pinch washer hose inbetween HEPA filter assembly and body













42. Install rear apron
    注

    16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron







43. Close hood





44. Install 3rd row RH seat cushion bolster
    注

    1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide RH seat cushion bolster into seat frame complete







45. Install clip securing 3rd row RH seat frame harness to seat cushion bolster
    注

    1x clip

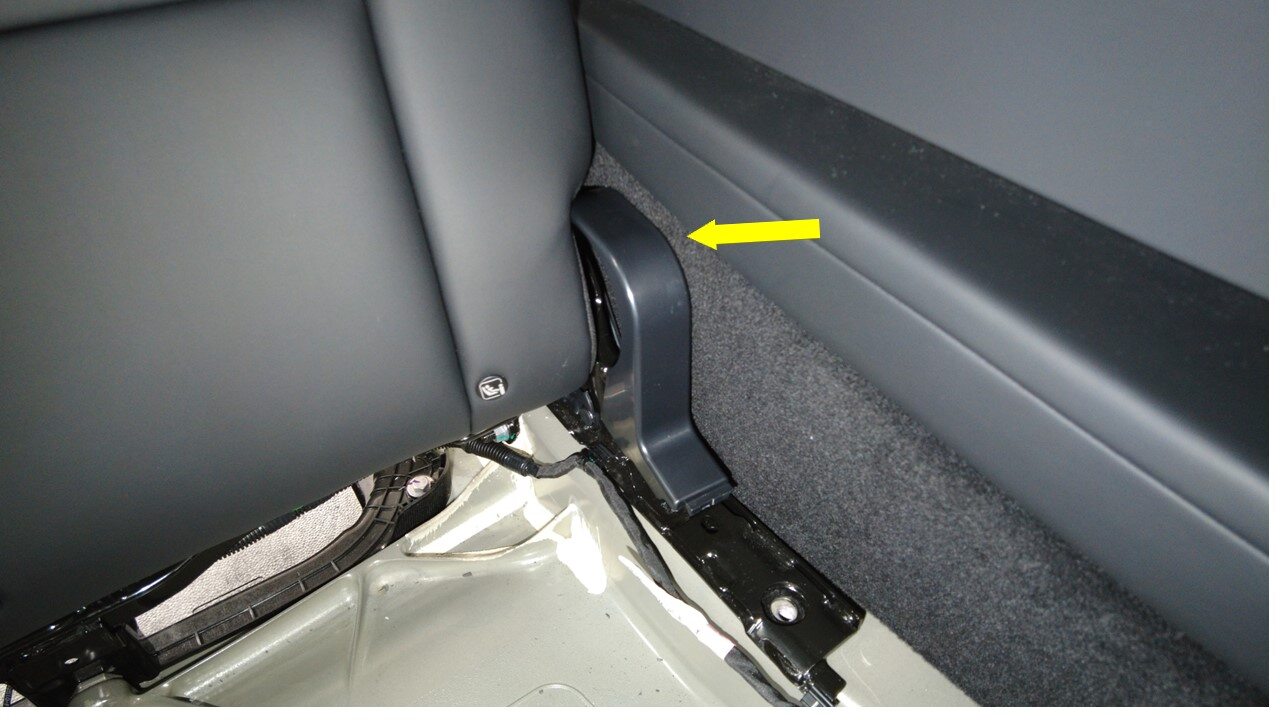

46. Install 3rd row LH outer cover to inner B-cover
    注

    3x tabs, Insert from front to back, Confirm alignment of the position, Then press downward









47. Install 3rd row LH seat cushion bolster
    注

    1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide LH seat cushion bolster into seat frame complete





48. Connect 3rd row seat harness connector and secure seats cushion complete
    注

    2x clips, 1x connector, Insert buckles through holes, Slide rear inward then align front clips, Perform push-pull-push test









49. Move RH 2nd row seat to original position



50. Raise RH rear window



51. Close RH rear door



52. Move LH 2nd row seat to original position



53. Raise LH rear window



54. Close LH rear door



55. Install trunk tub onto vehicle
    注

    2x push clips, 2x location holes







56. Install RH load floor bracket onto vehicle
    注

    5x clips, 2x location pins







57. Install LH load floor bracket onto vehicle
    注

    5x clips, 2x location pins







58. Install trunk sill trim onto vehicle
    注

    4x clips, 2x location pins, Seat seal around edge of trim







59. Install trunk load floor onto vehicle

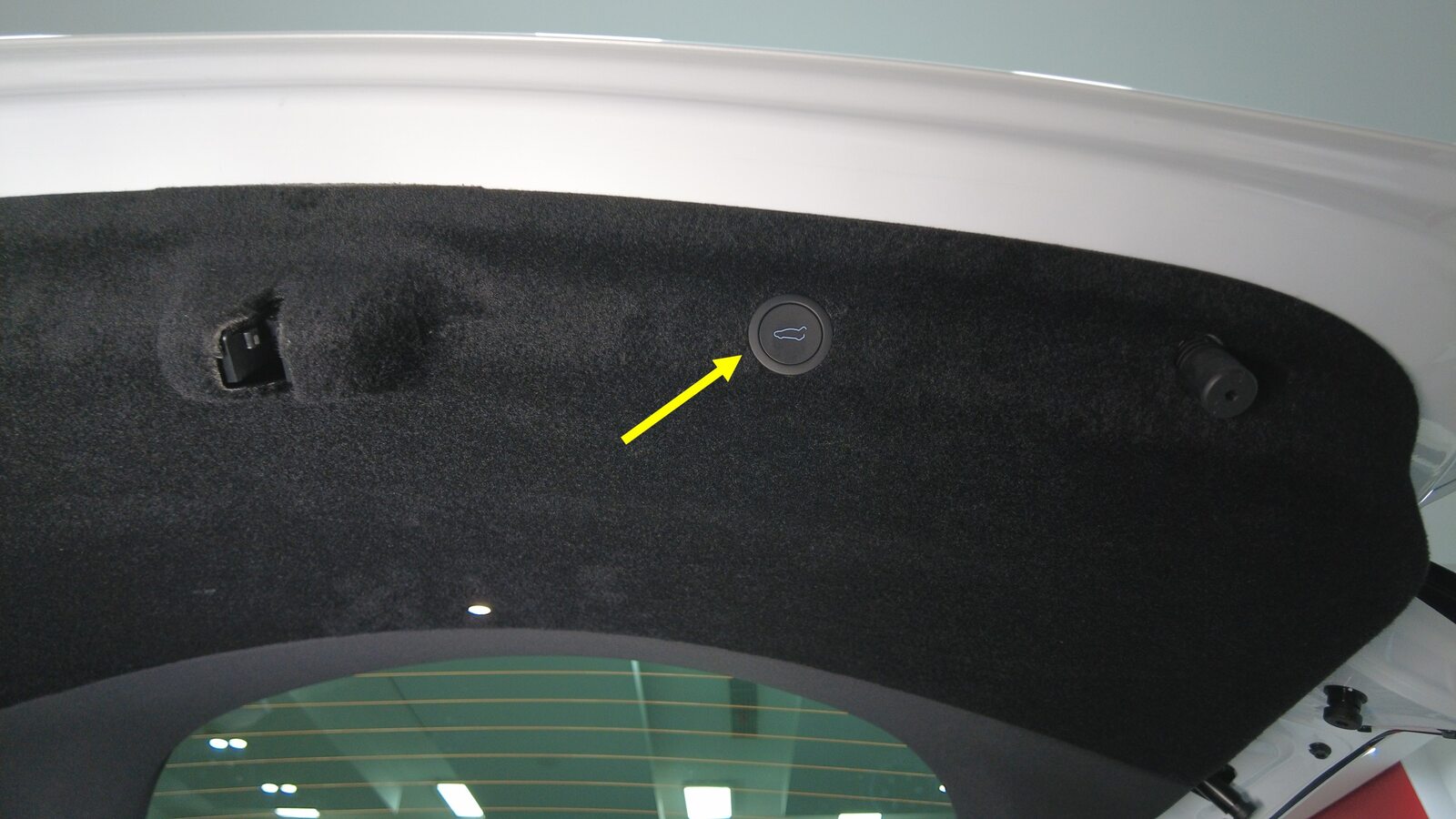

60. Close liftgate





61. Raise LH front window



62. Close LH front door
