高压电池 - 全轮驱动 - 单相 ((拆卸和安装))

校正代码 1601010601 3.12 注意:除非本程序中另有明确规定,否则上文所列校正代码及相关 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时深入了解 FRT 及其创建方式。 注意:请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意:请参阅人体工程学注意事项查看安全健康的作业规程。

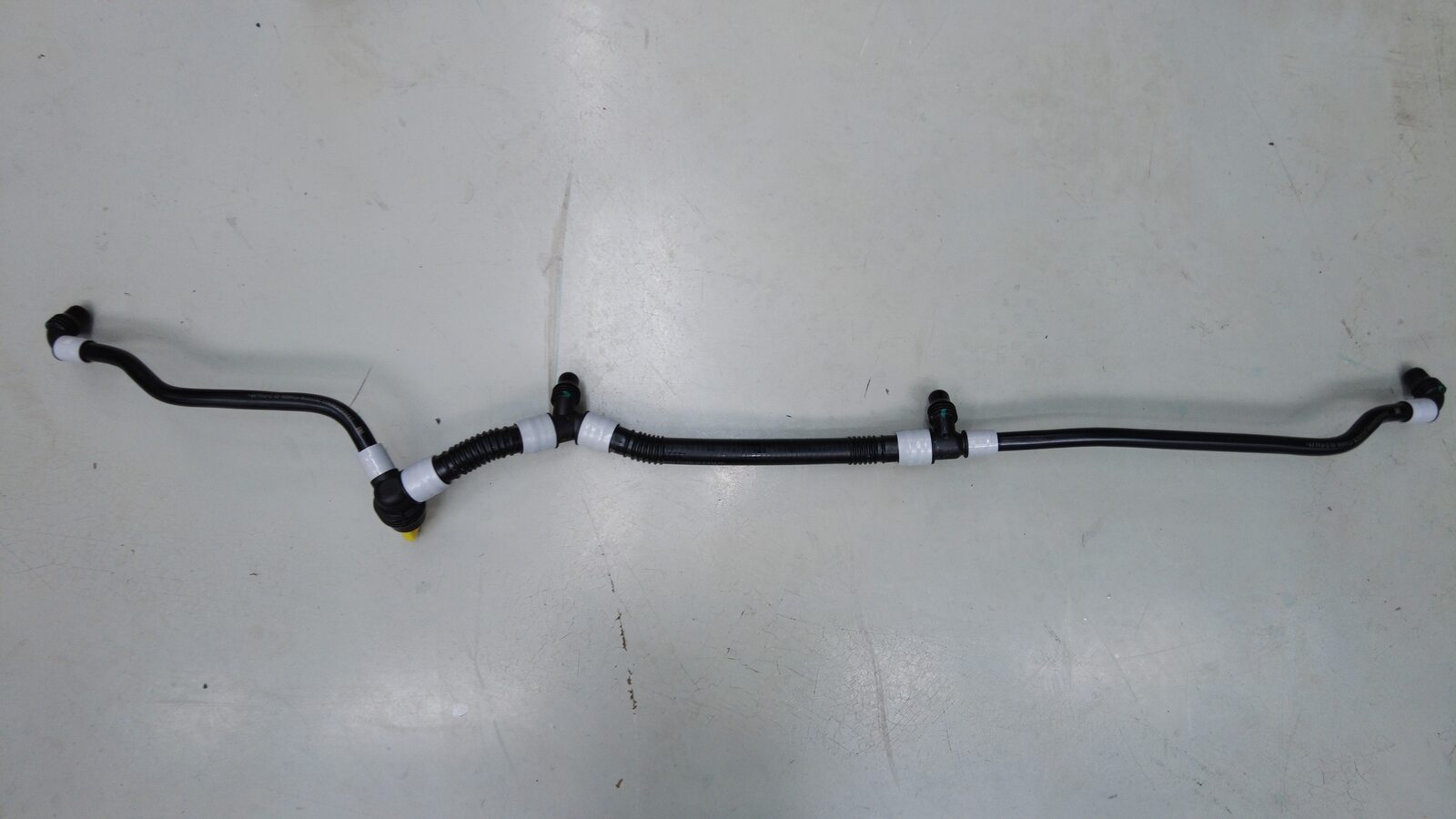

  • 2026-10-20: Removed the removal and installation steps for stabilizer bar, the 2nd row 40 seat and the HV battery front manifold tube, and updated the HV disablement procedure.

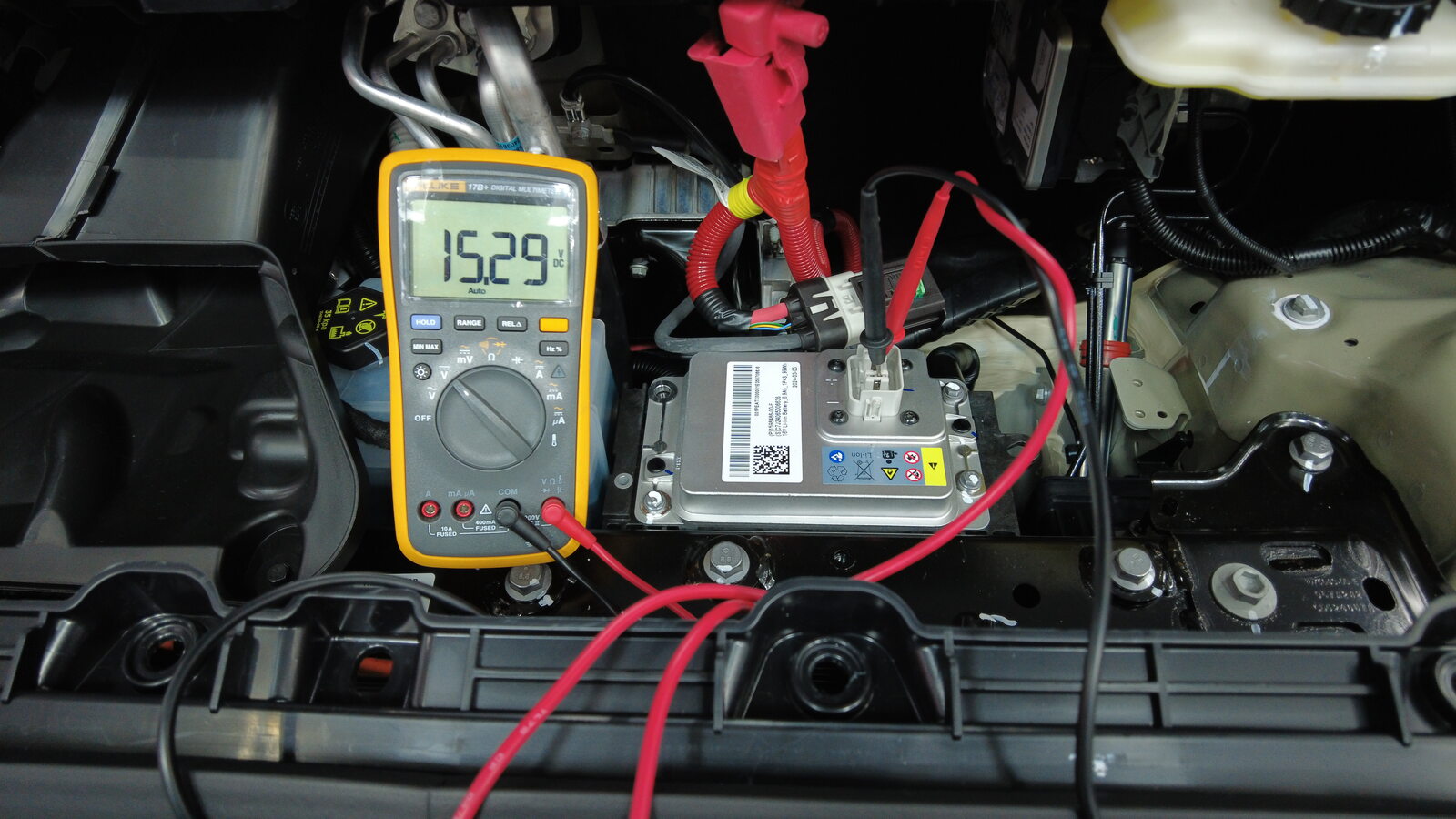

  • 2025-06-04: Added instruction to zero adjust the Hioki resistance meter prior to measurement.
警告
本程序为“草案”。虽已通过验证,但可能仍有“警告”和“注意”事项缺失。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。

拆卸

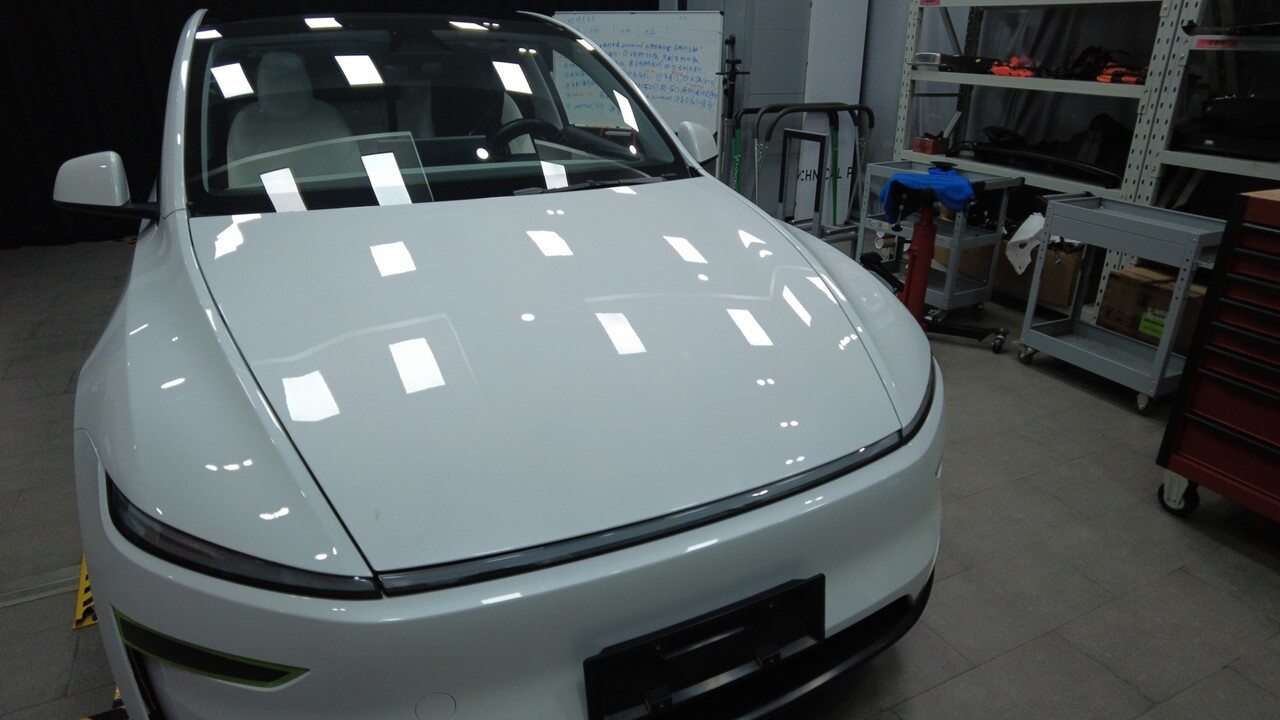

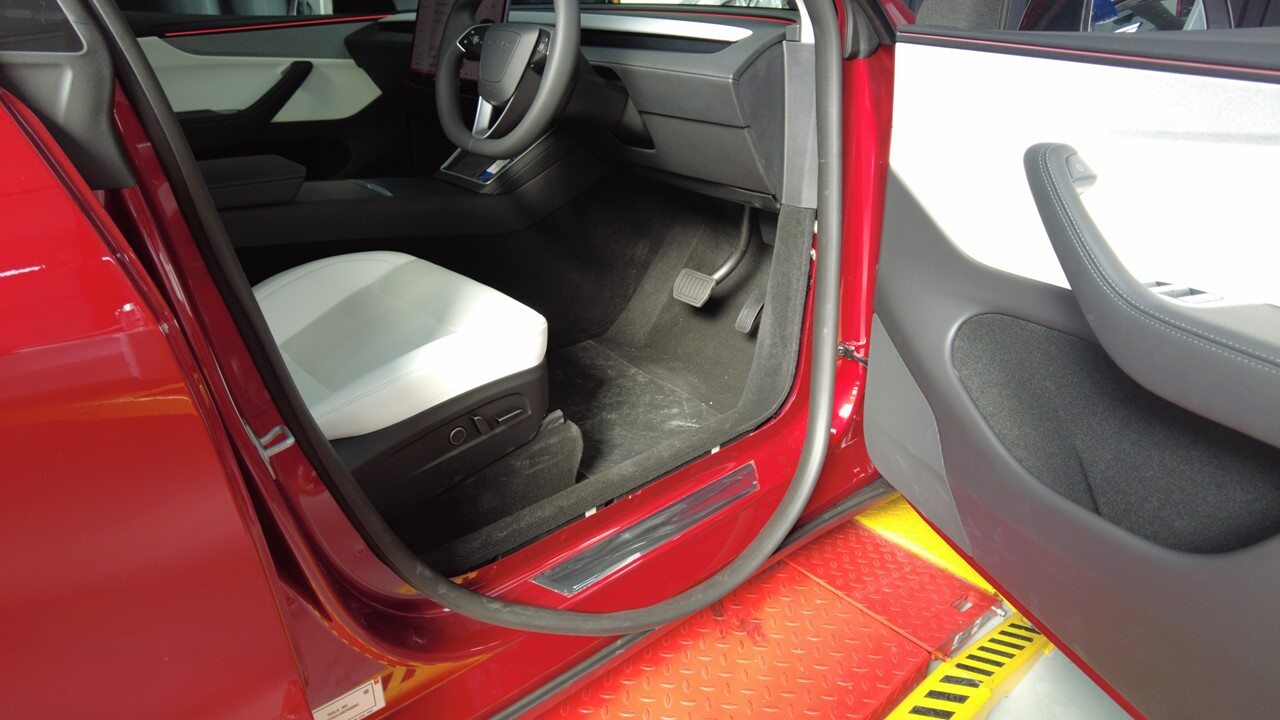

  1. Open all four doors and lower all four windows.
  2. Open the liftgate.
  3. Enter Service Mode. See 维护模式.

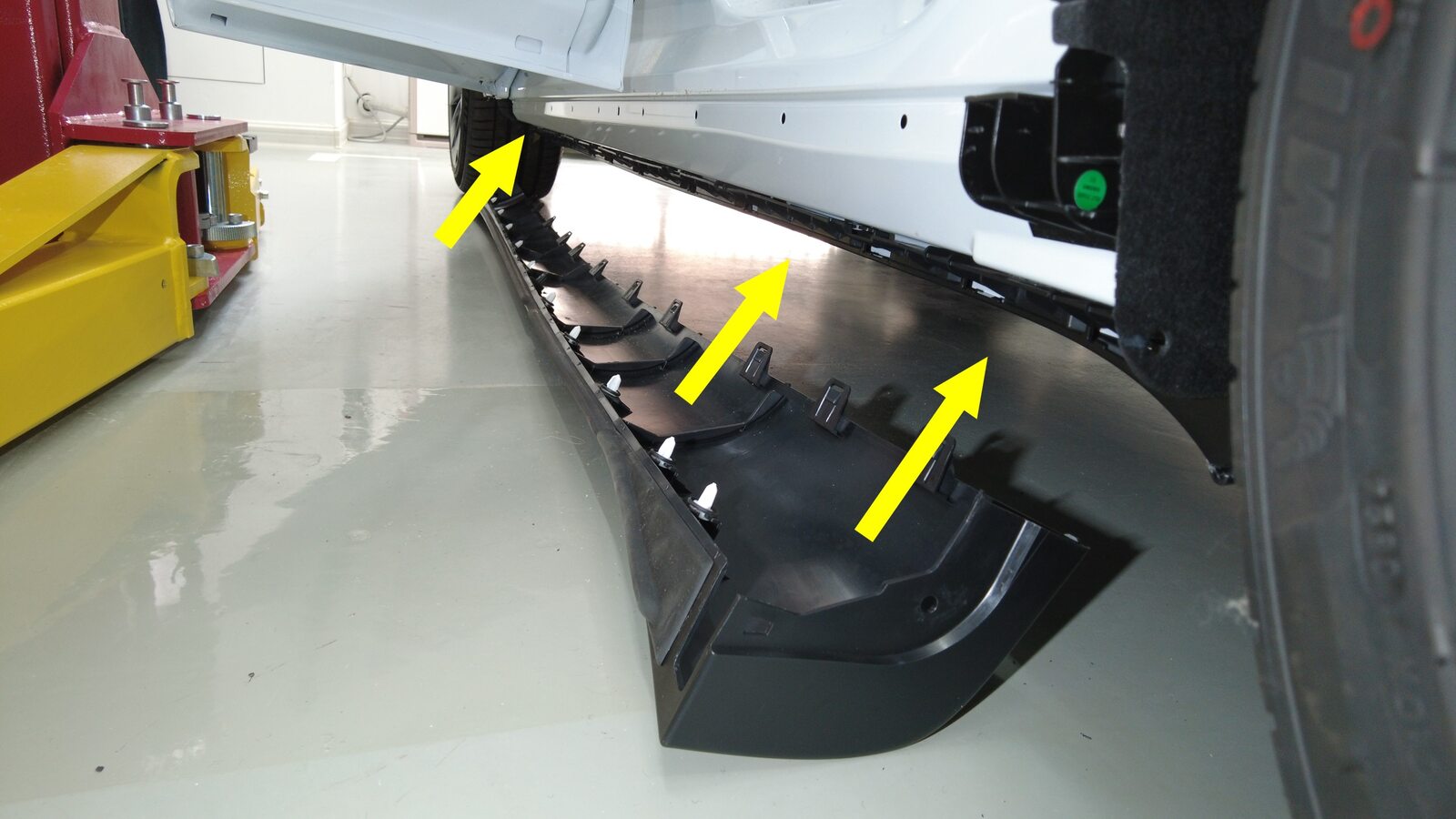

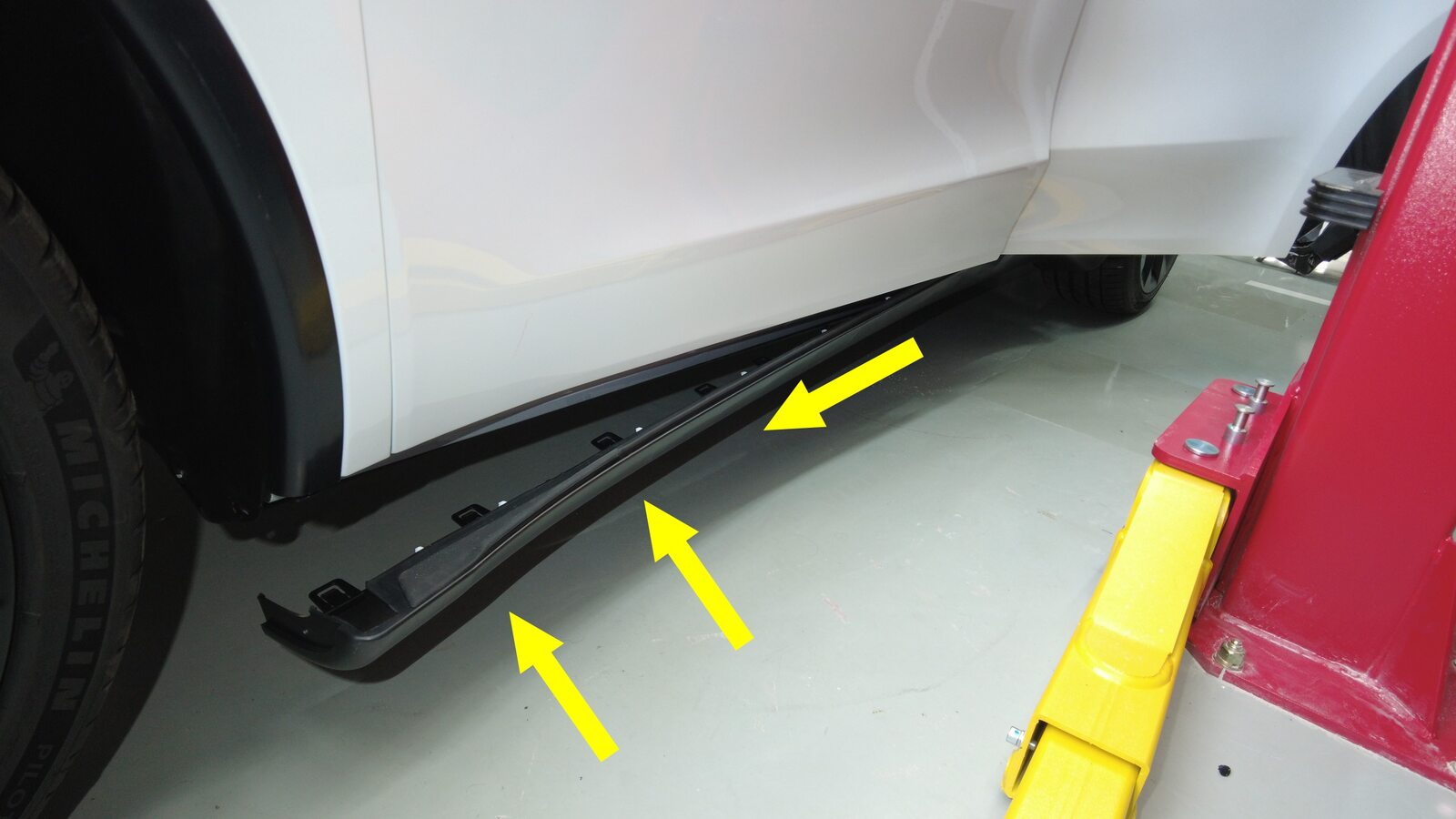

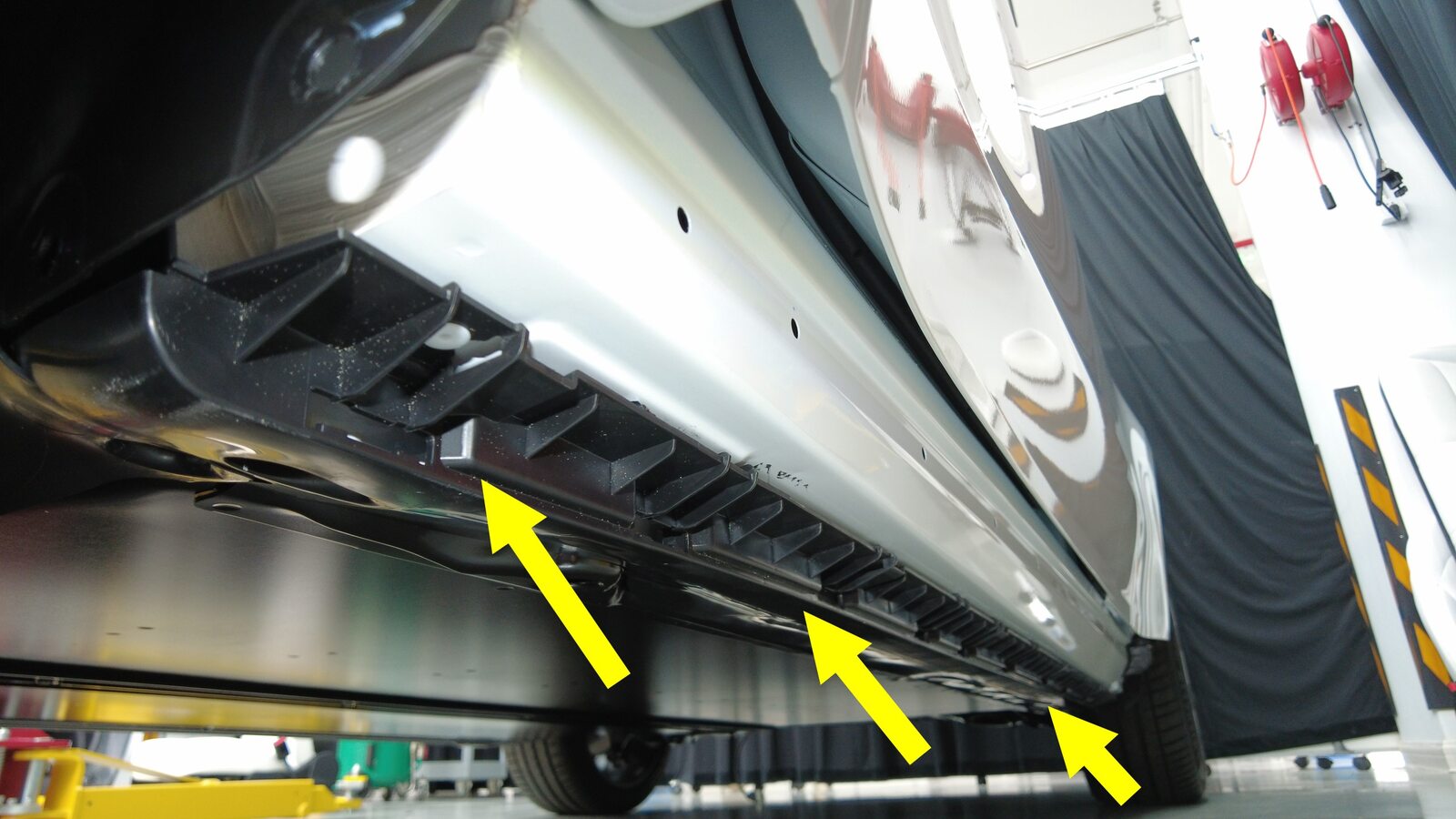

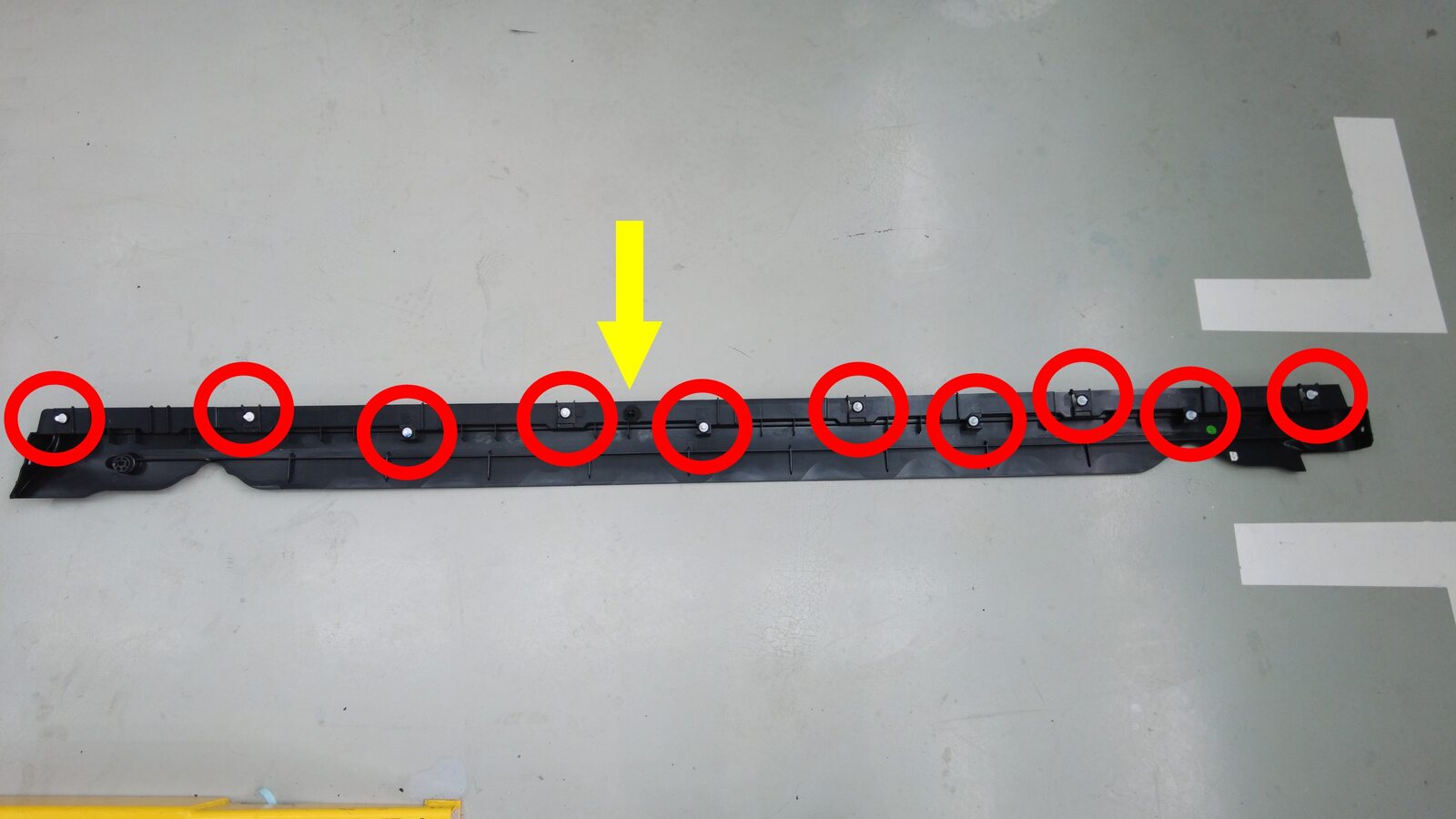

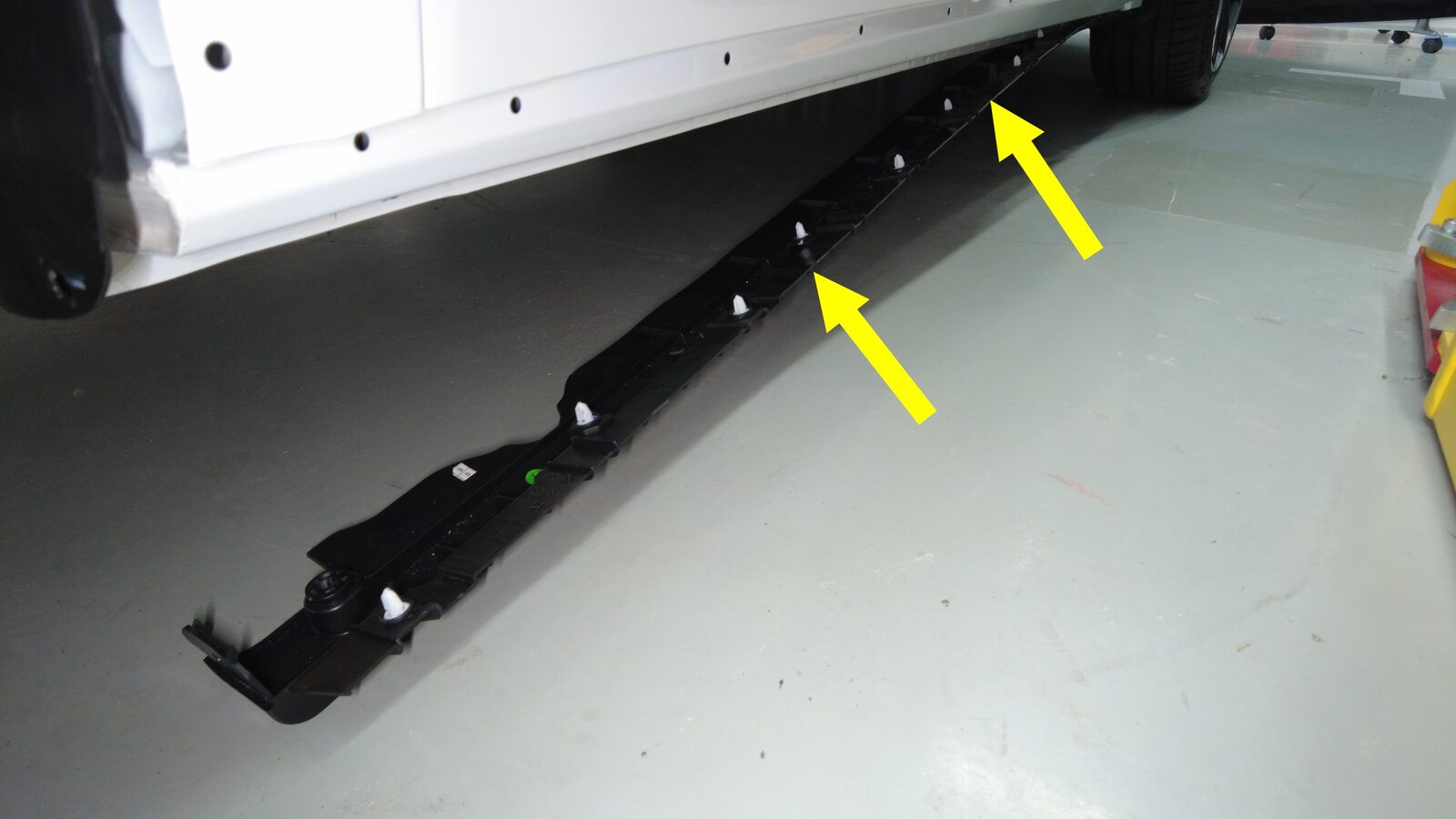

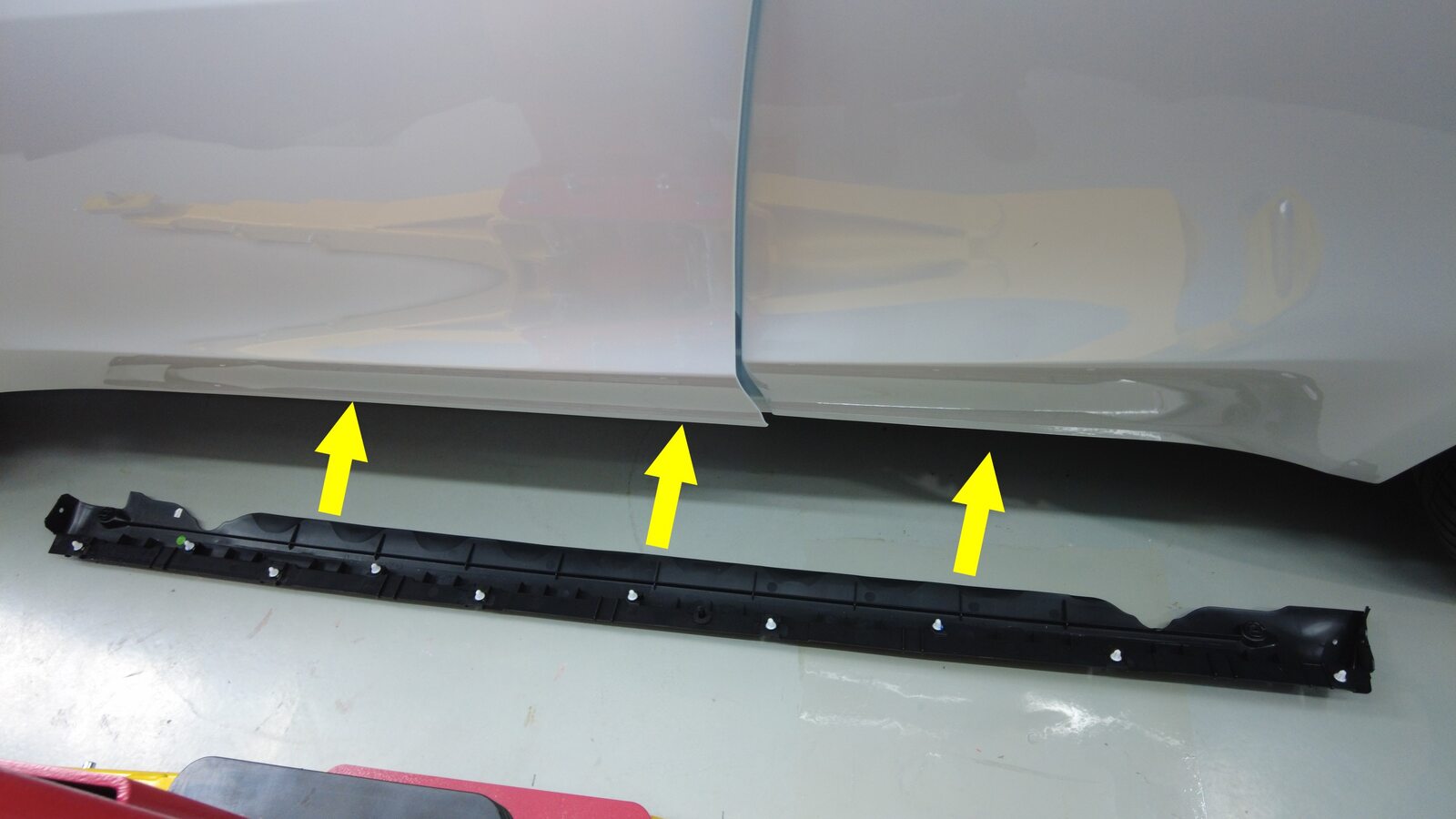

  4. Remove the LH and RH rocker carriers. See 托架 - 门槛饰板 - 左侧 ((拆卸和更换)).

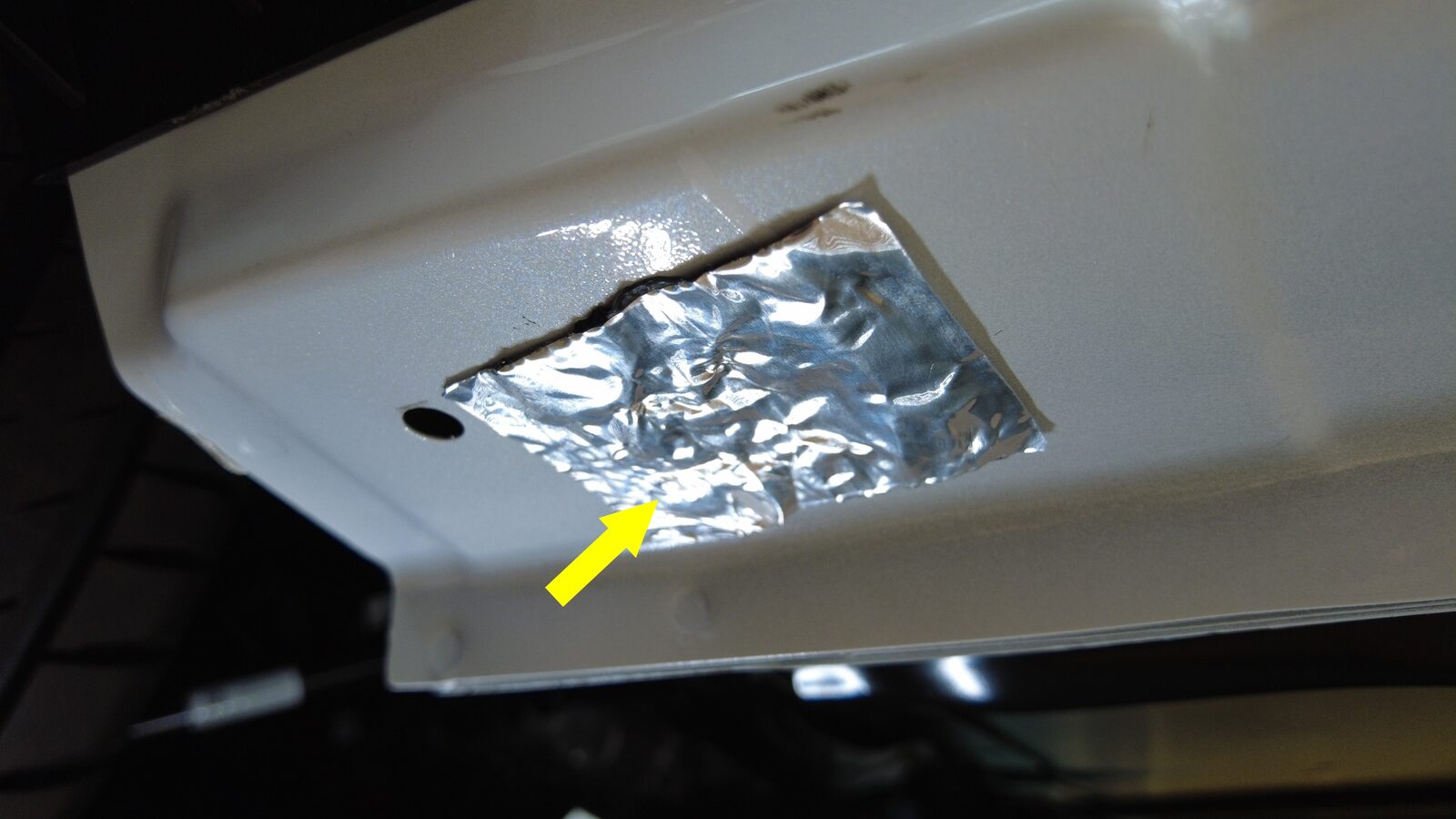

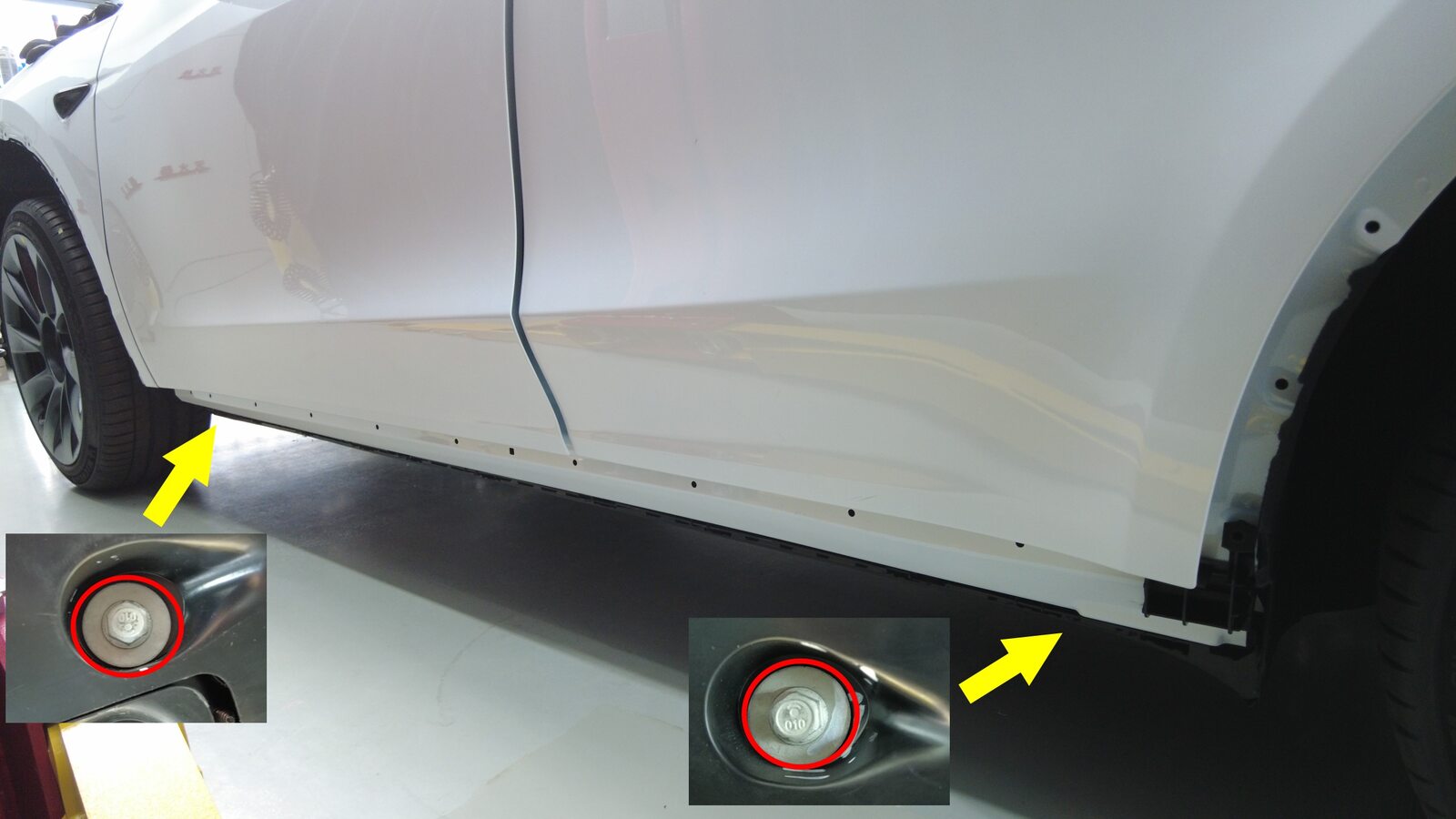

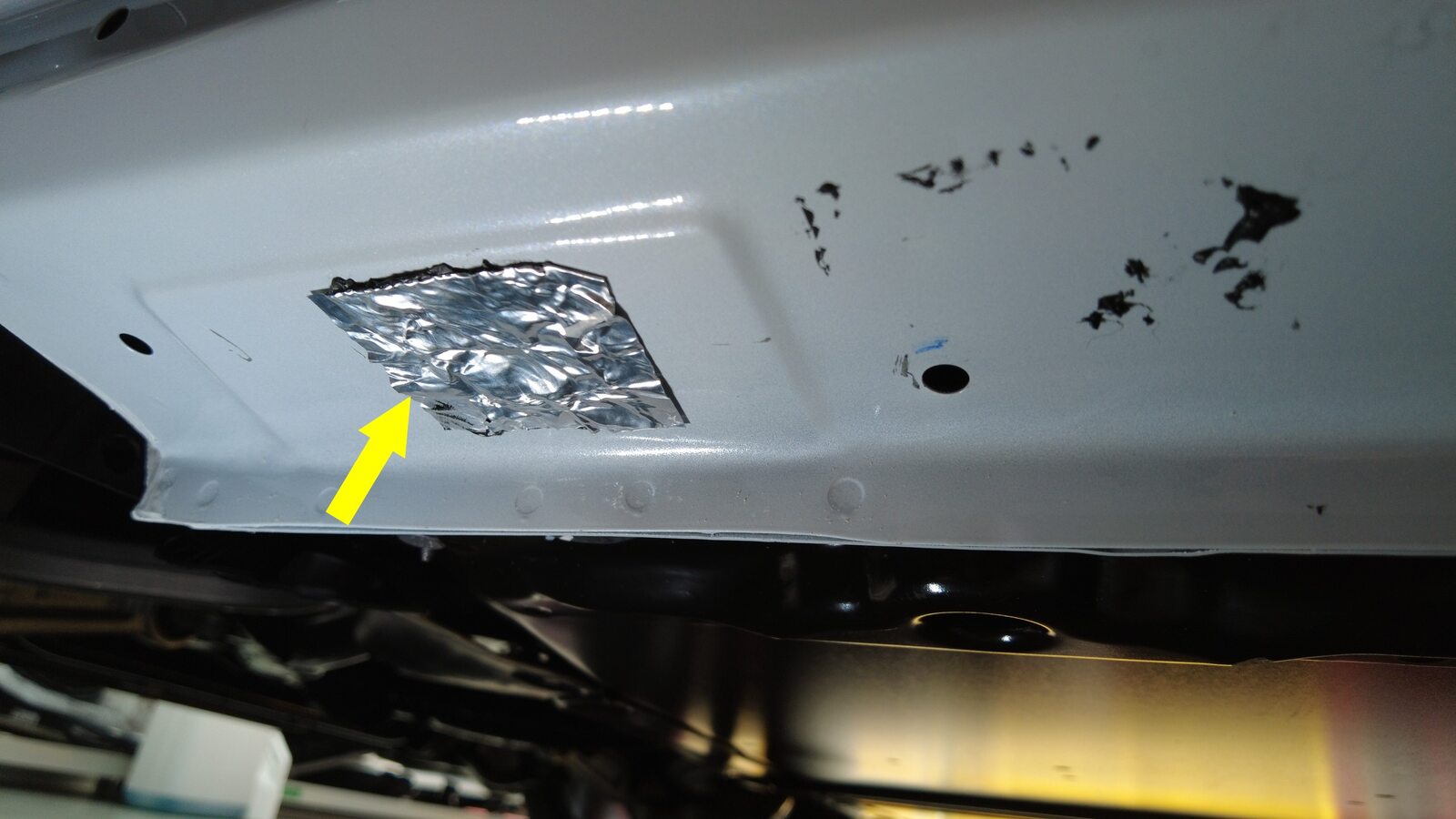

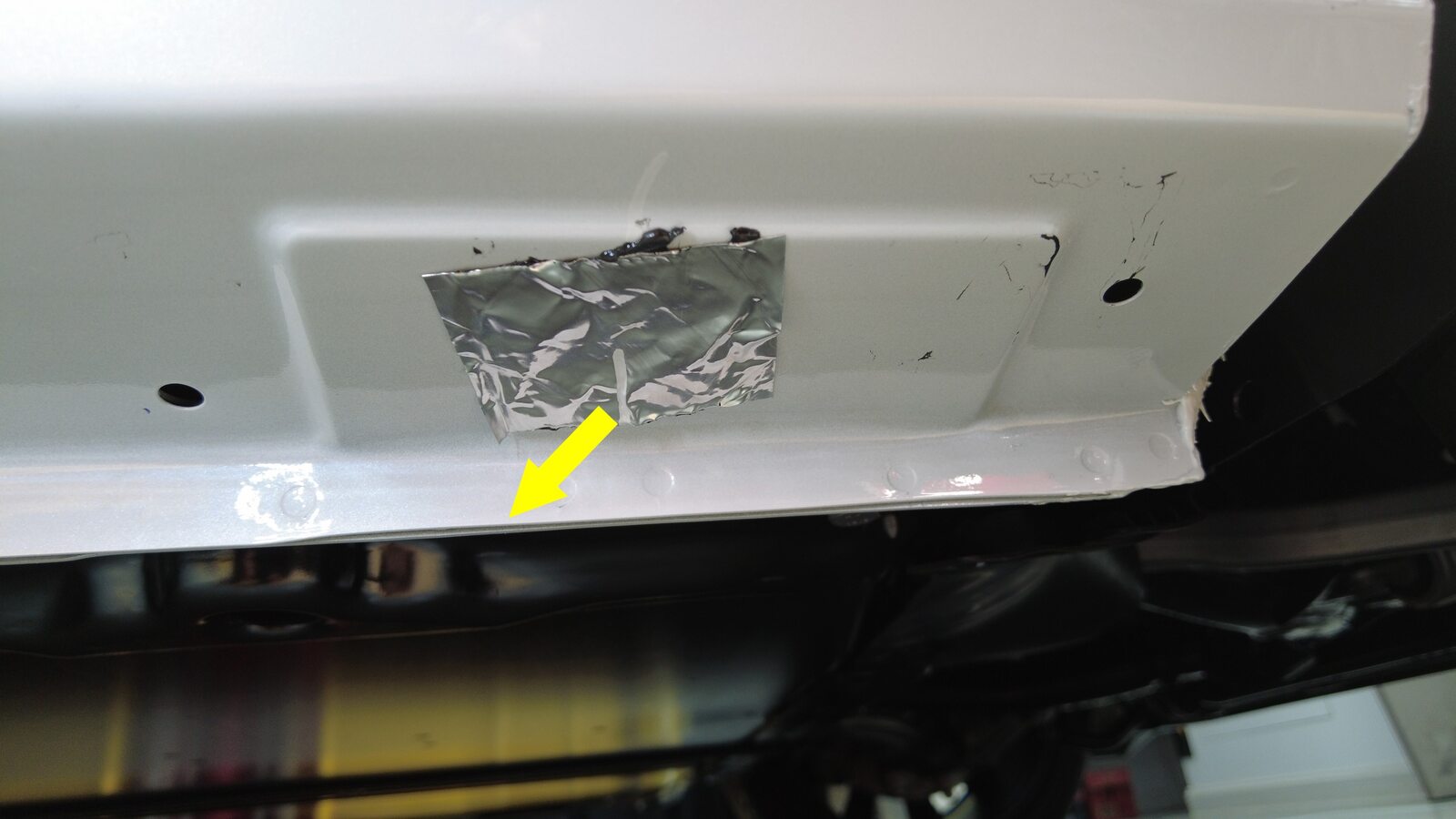

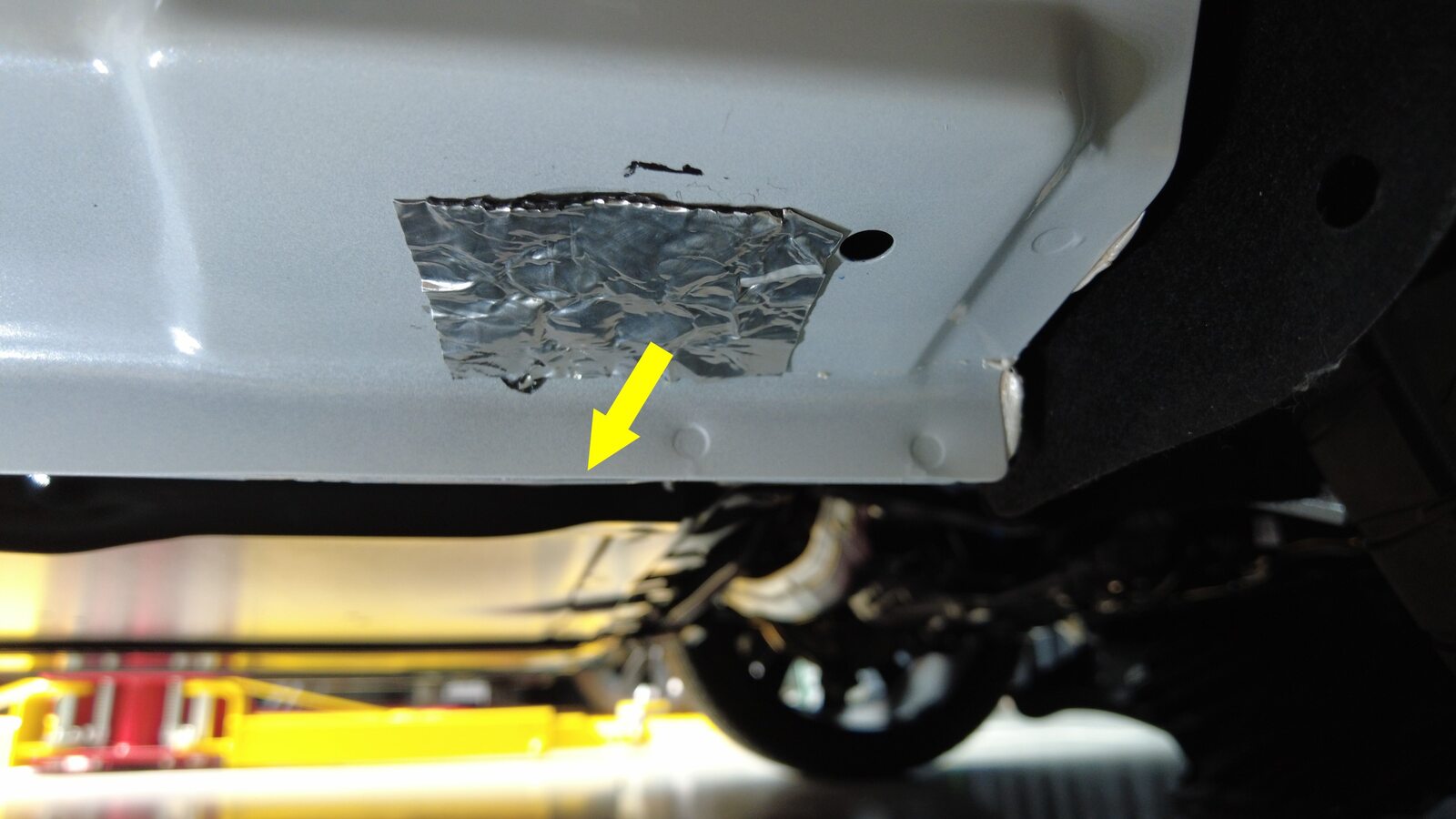

  5. Remove butyl patches covering LH rocker access holes
    注
    2x butyl patches, Clean excess butyl from area, Discard after removal

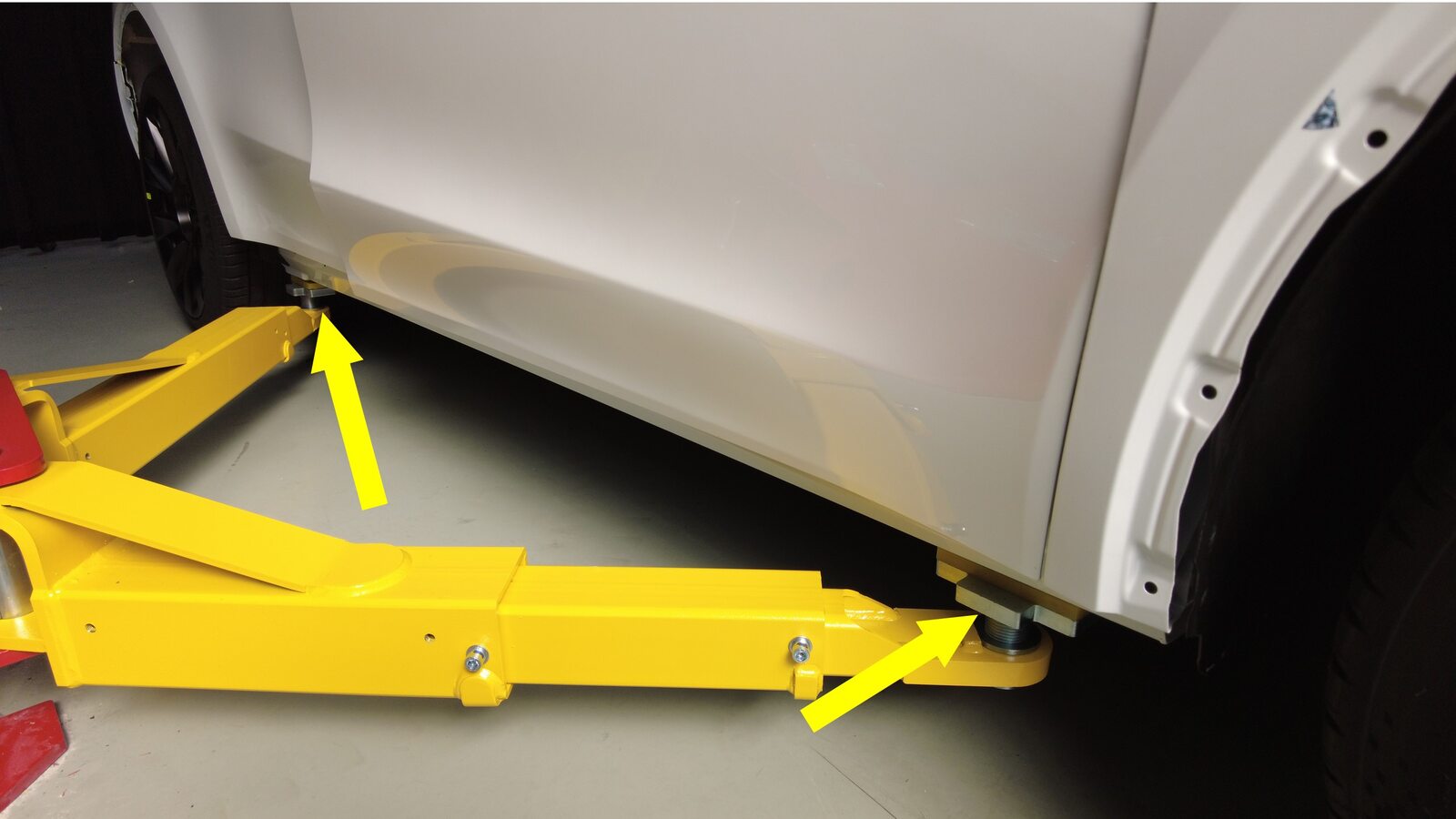

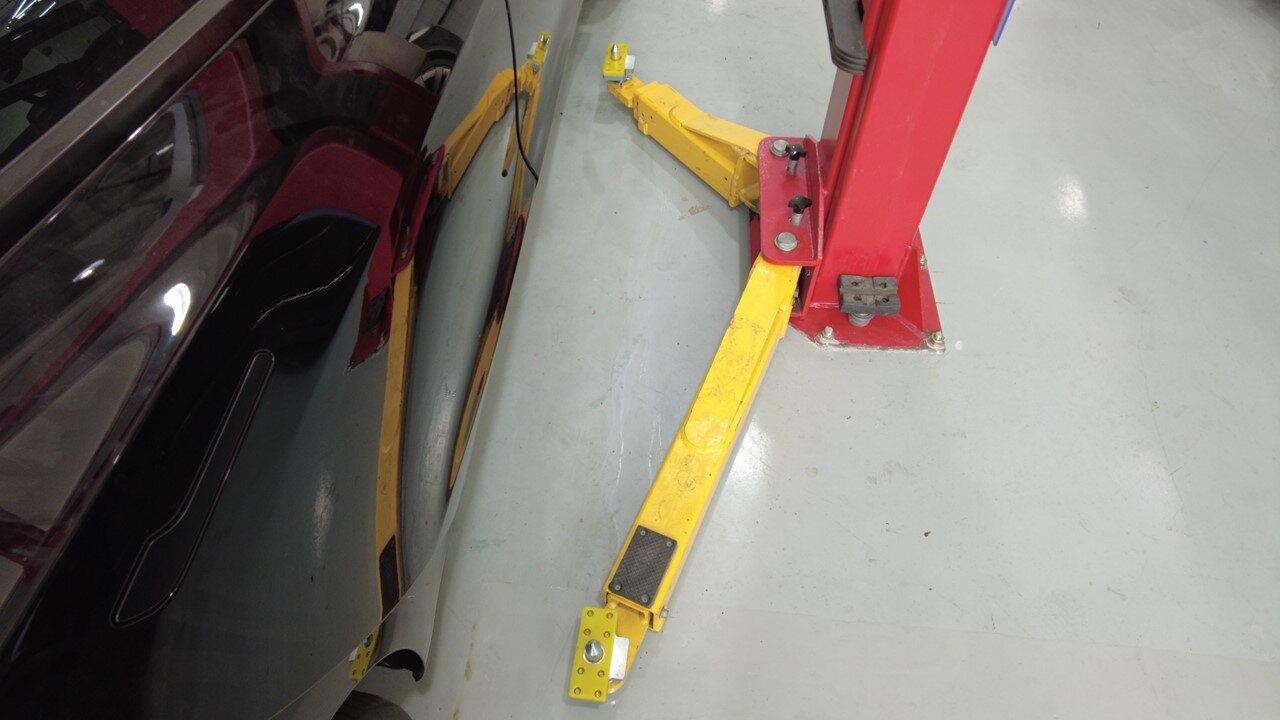

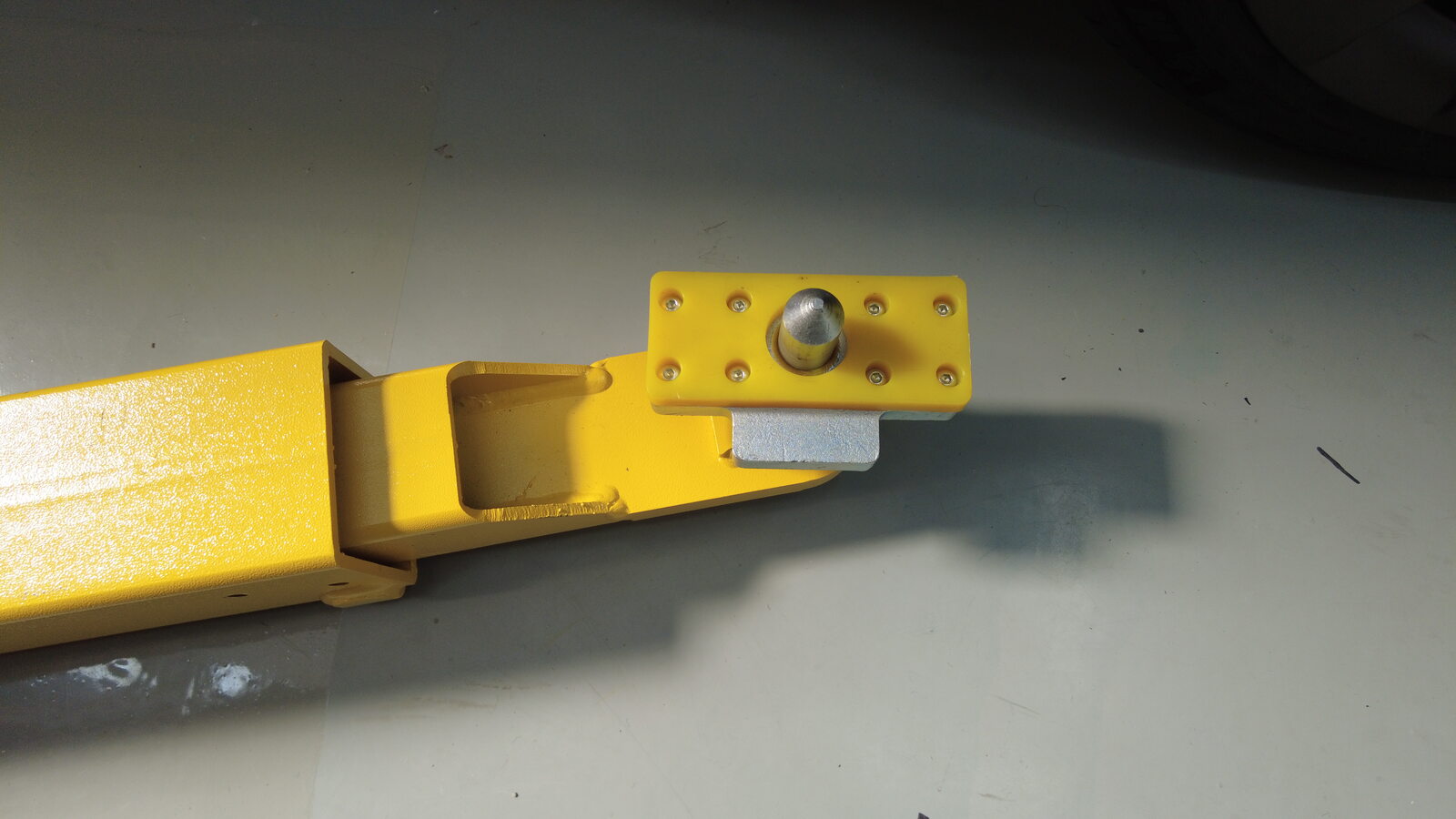

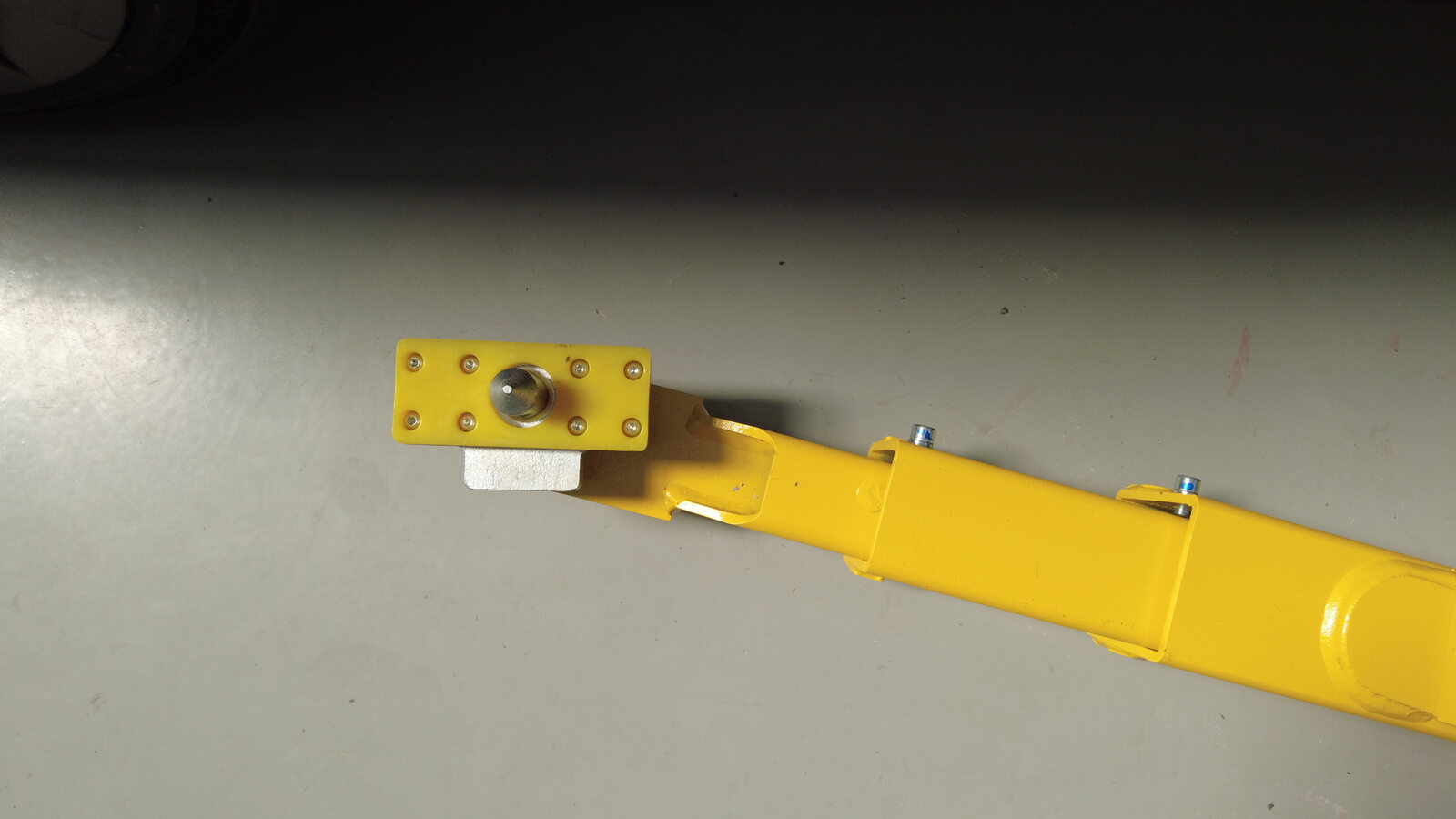

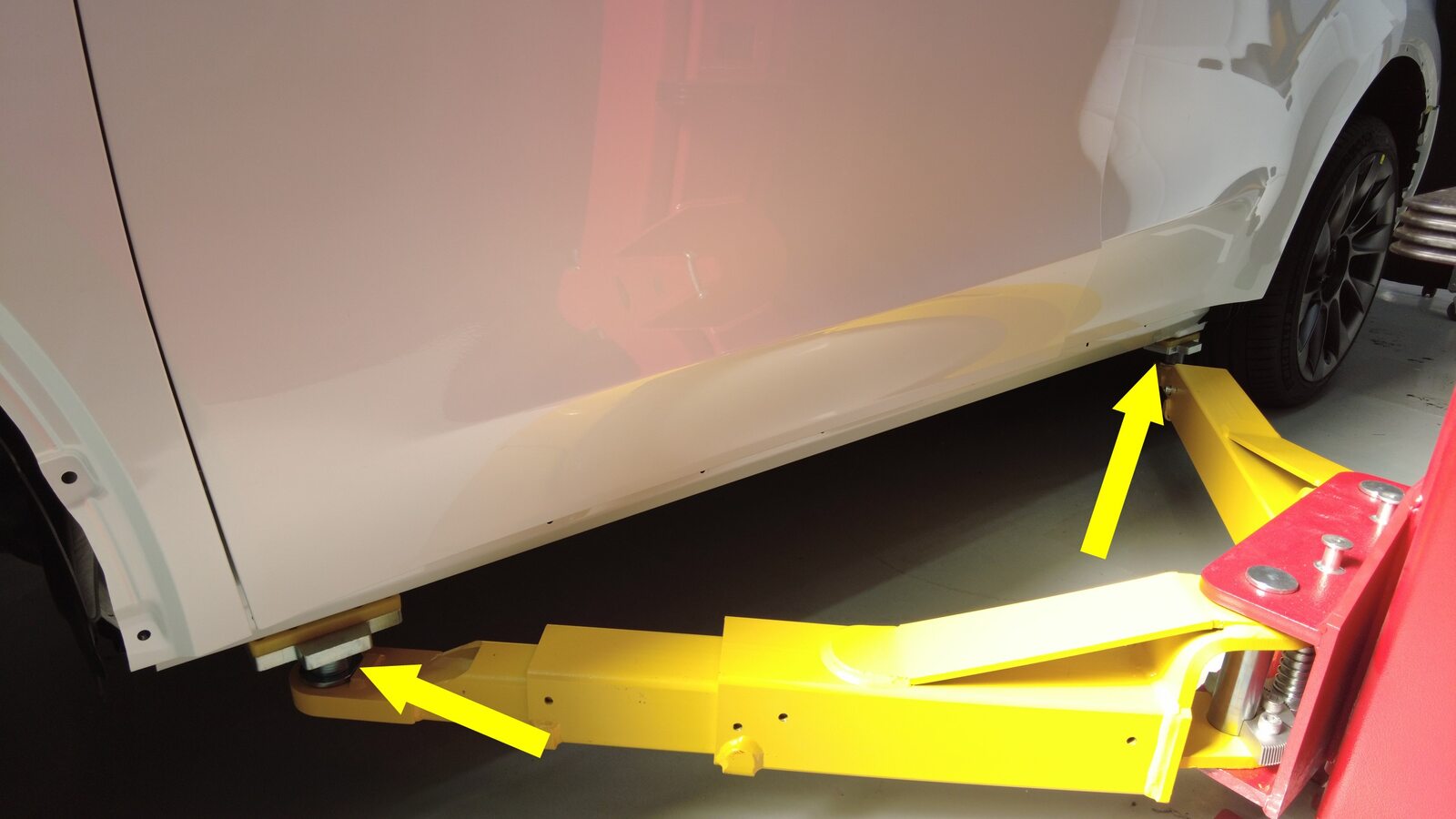

  6. Install lift pad adapters onto LH lift
    注
    2x lift pad adapters
  7. Remove butyl patches covering RH rocker access holes
    注
    2x butyl patches, Clean excess butyl from area, Discard after removal

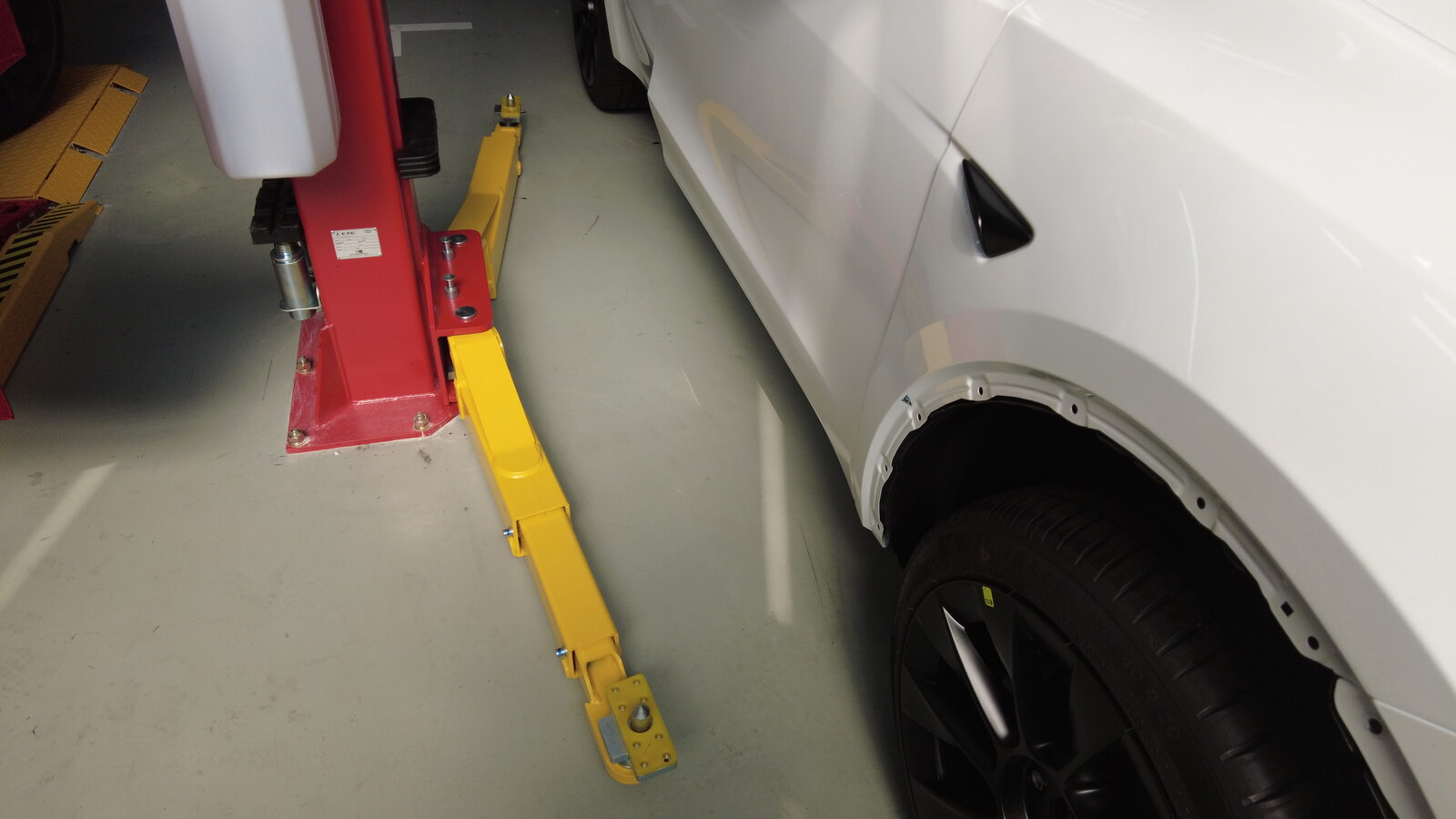

  8. Install lift pad adapters onto RH lift
    注
    2x lift pad adapters

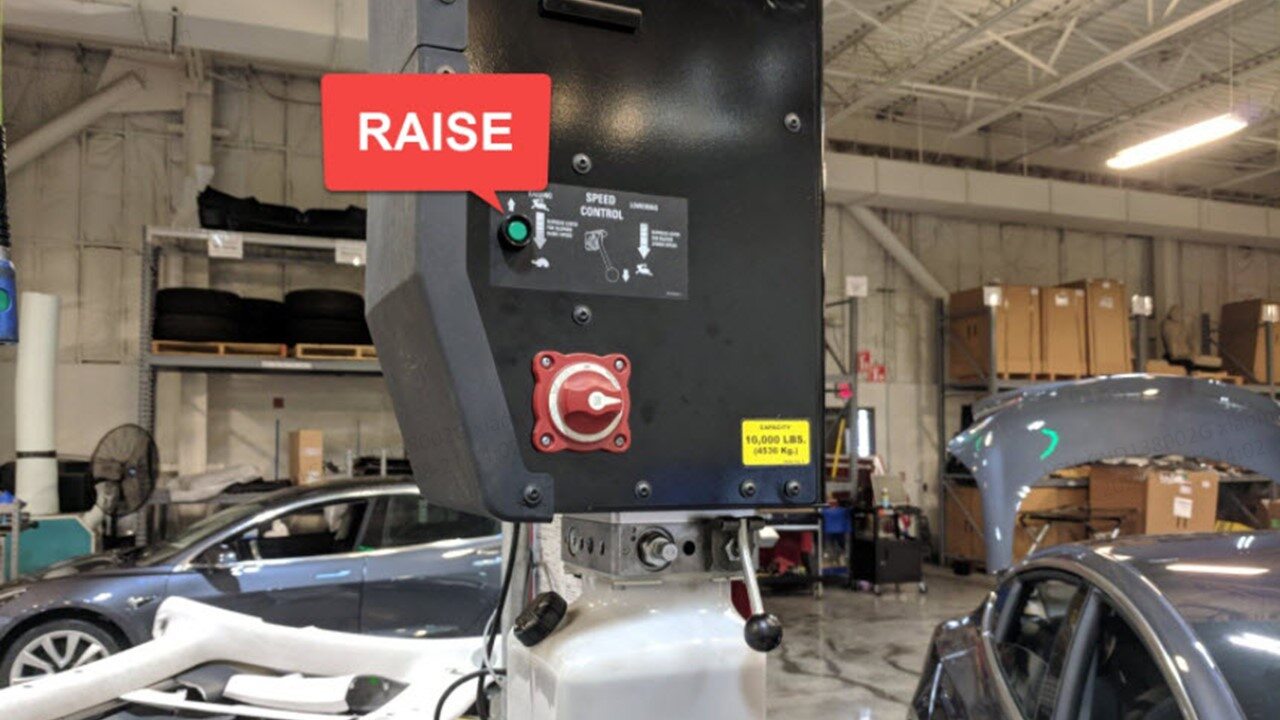

  9. Raise and support the vehicle.
  10. Unlock the vehicle gateway. See 网关(解锁).
  11. On the touchscreen, tap the Service Mode "wrench" (at the bottom of the touchscreen UI), and then tap Thermal > Coolant System > Coolant Fill/Drain > Run, and allow the routine to complete.

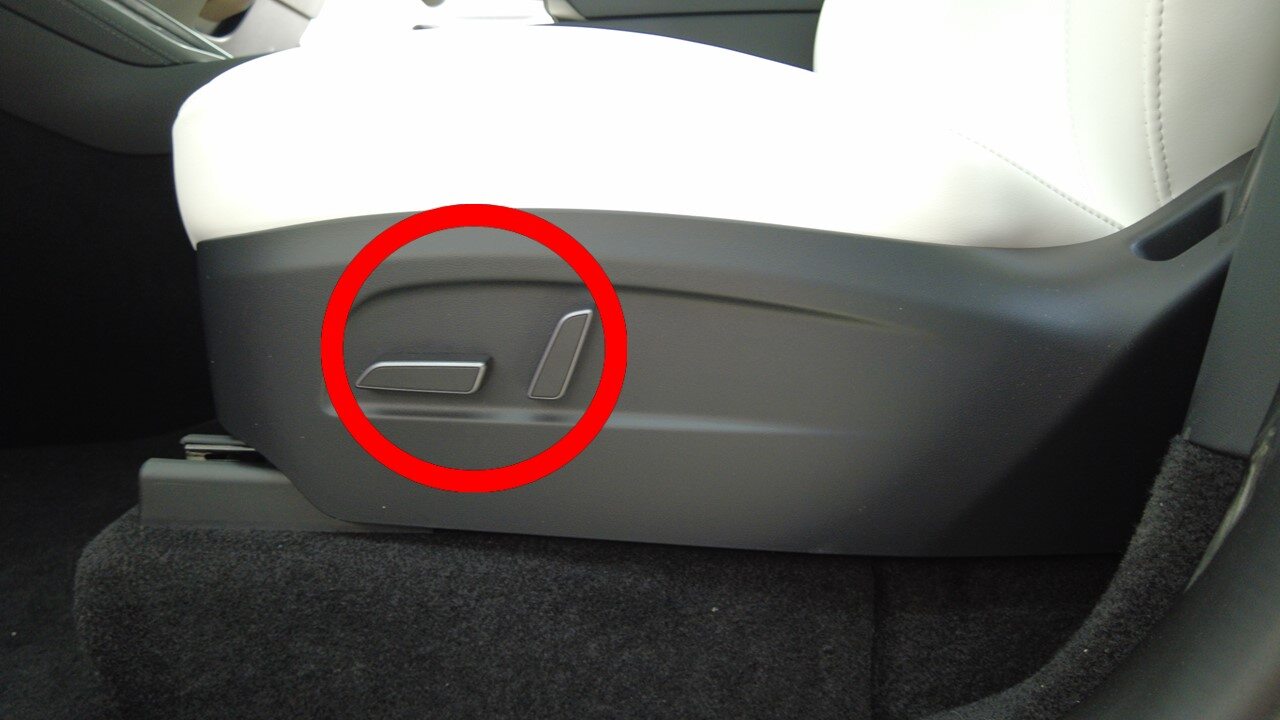

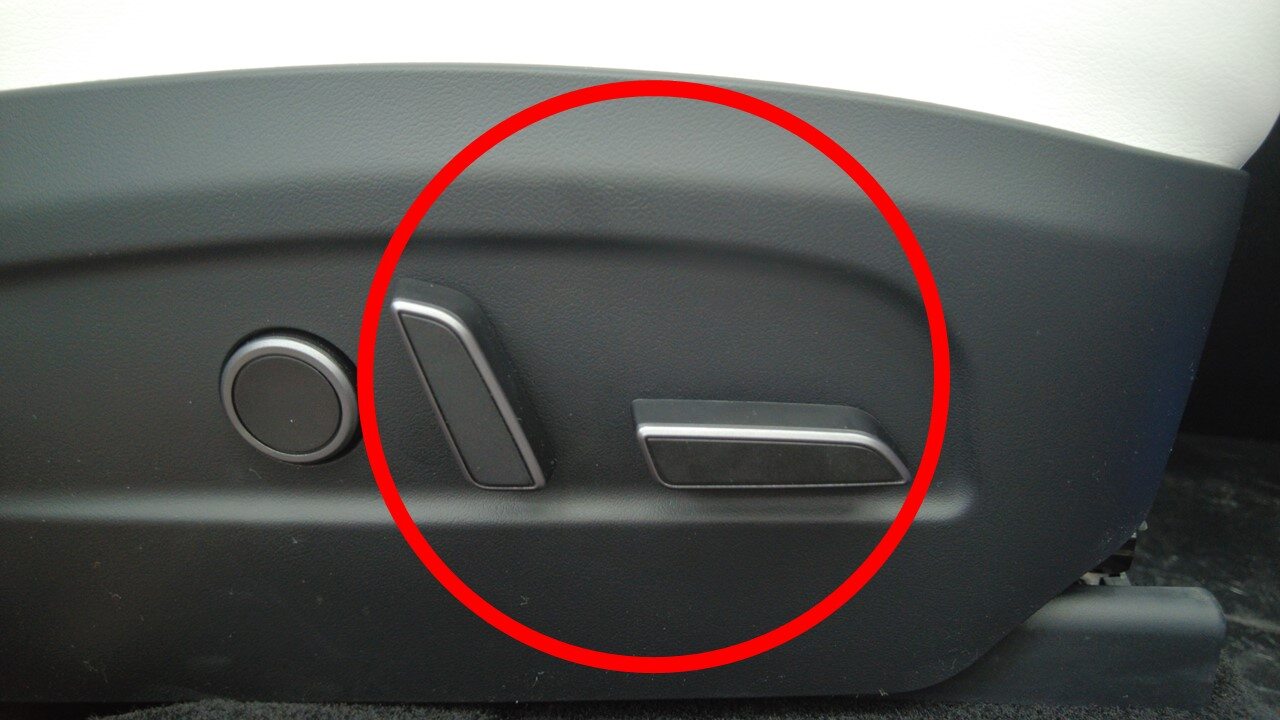

  12. Move RH front seat forward
    注
    Adjust seat back if needed to avoid contacting headliner
  13. Move LH front seat forward
    注
    Adjust seat back if needed to avoid contacting headliner
  14. Remove the 2nd row LH and center seat assembly. See 座椅 - 第二排 - 左侧(5 座) ((拆卸和安装)).
  15. Disconnect the 2nd row 40 seat connector.

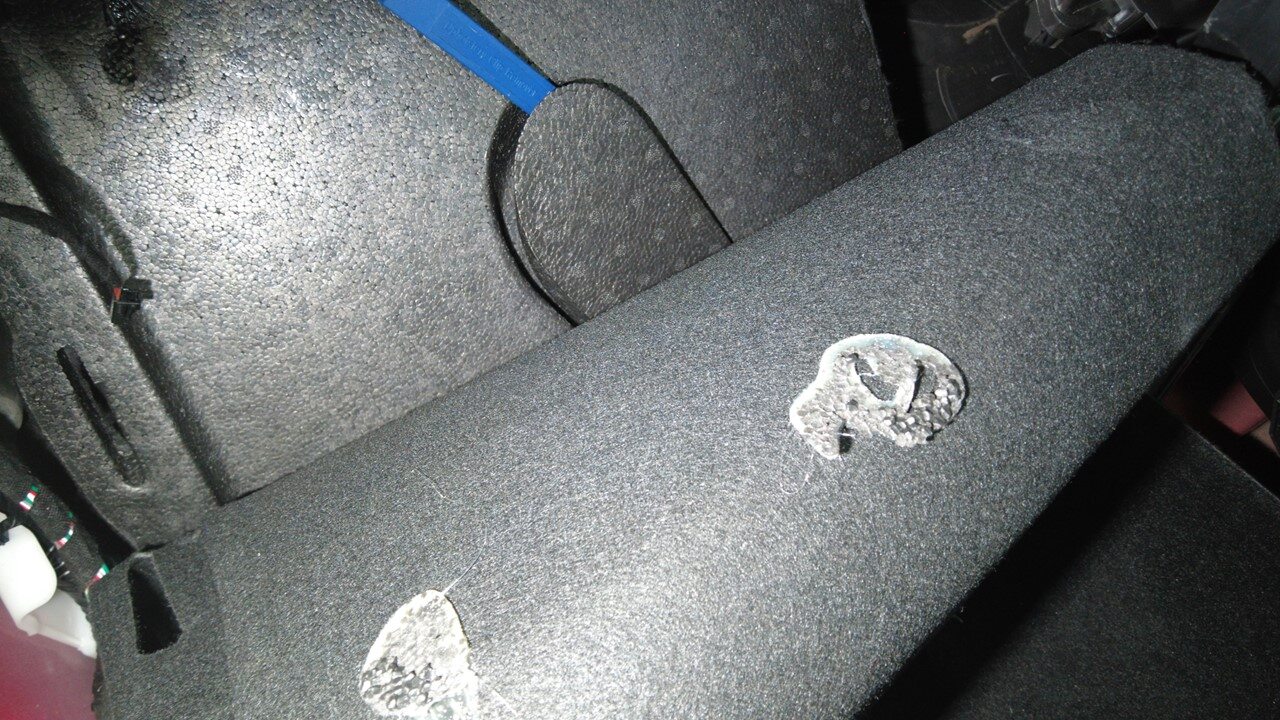

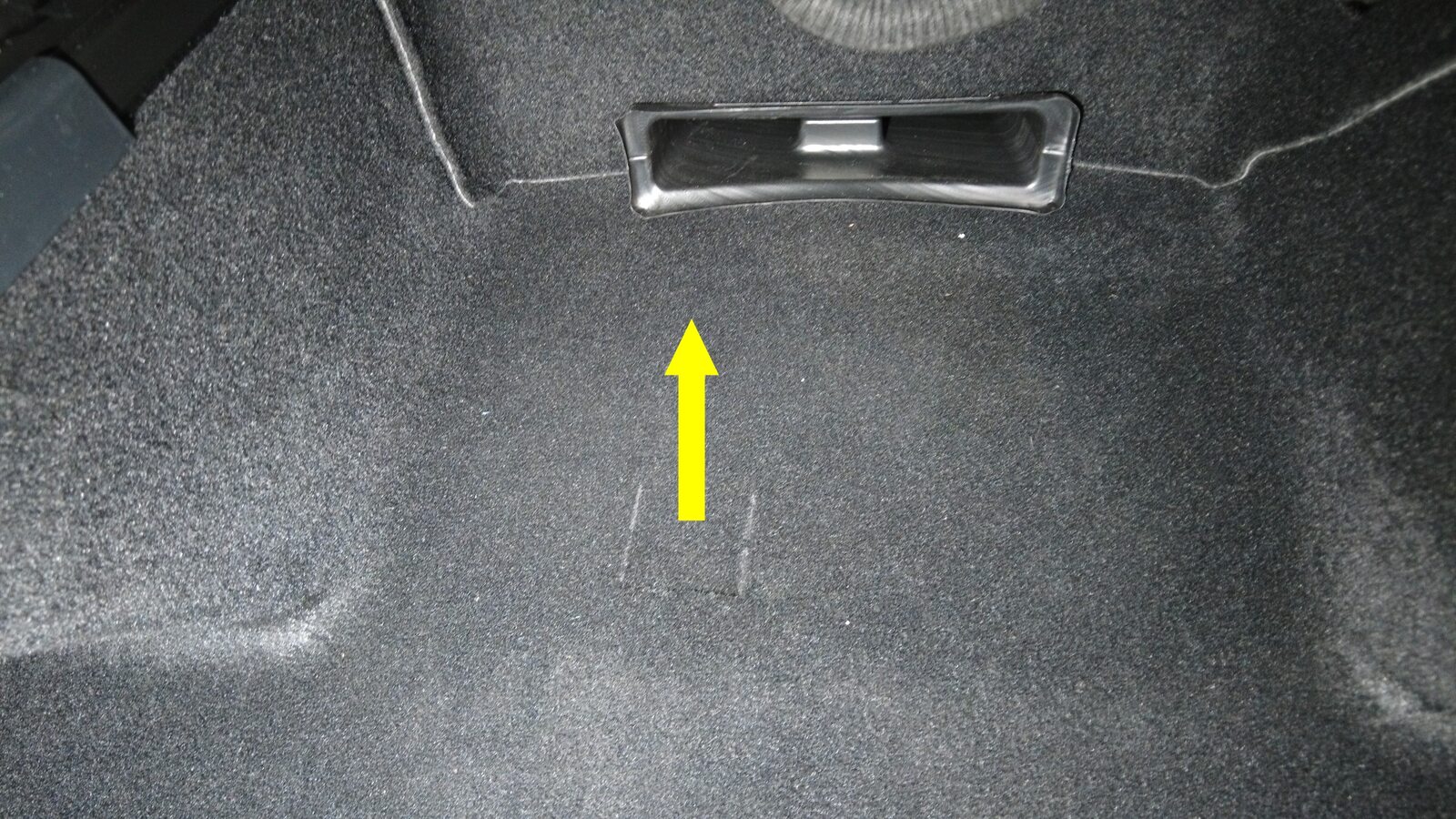

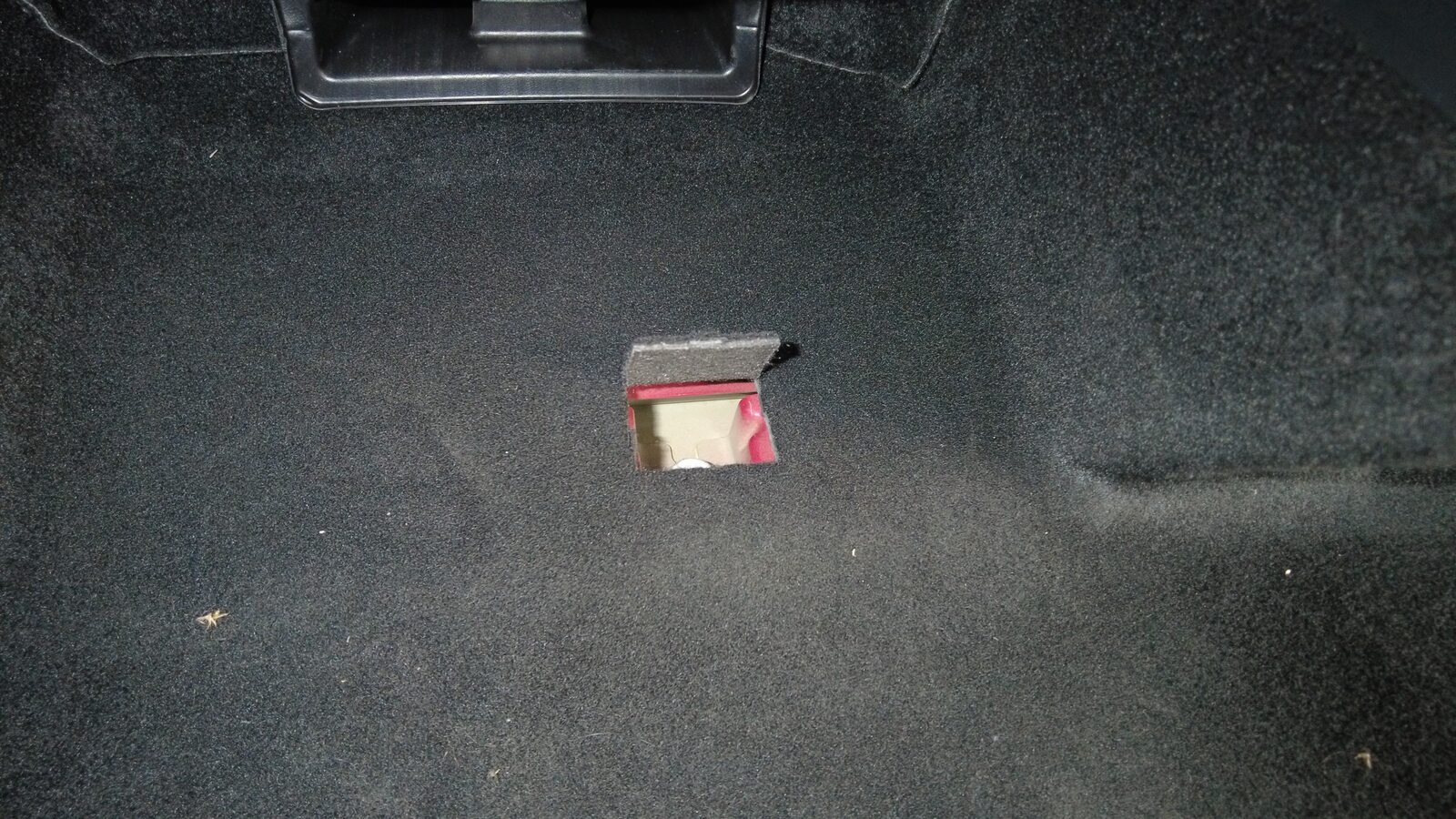

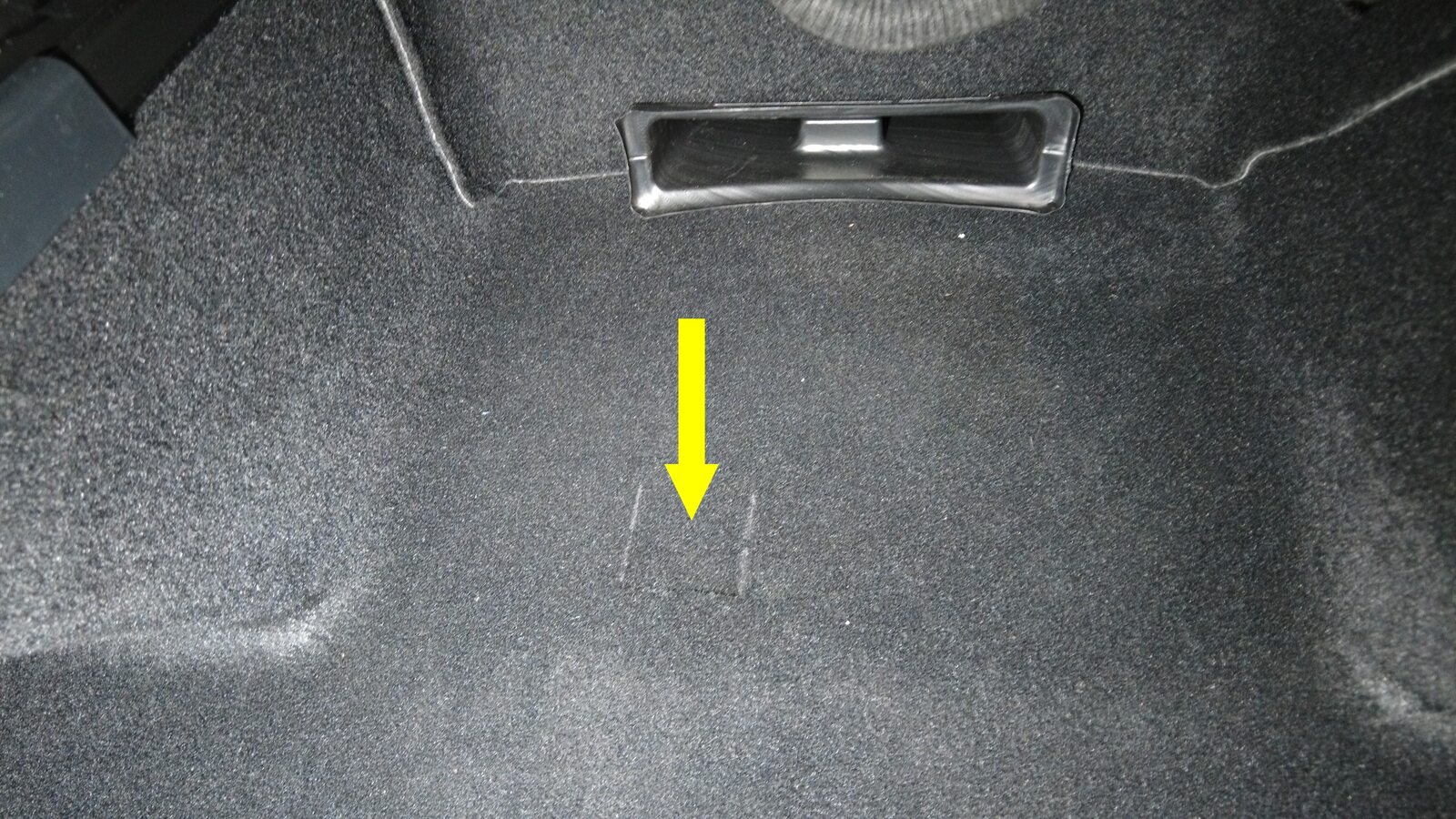

  16. Separate carpet perforation below LH front seat to access LH middle inner HV battery bolt
    注
    Located below rear of LH front seat, Expand the hole if necessary

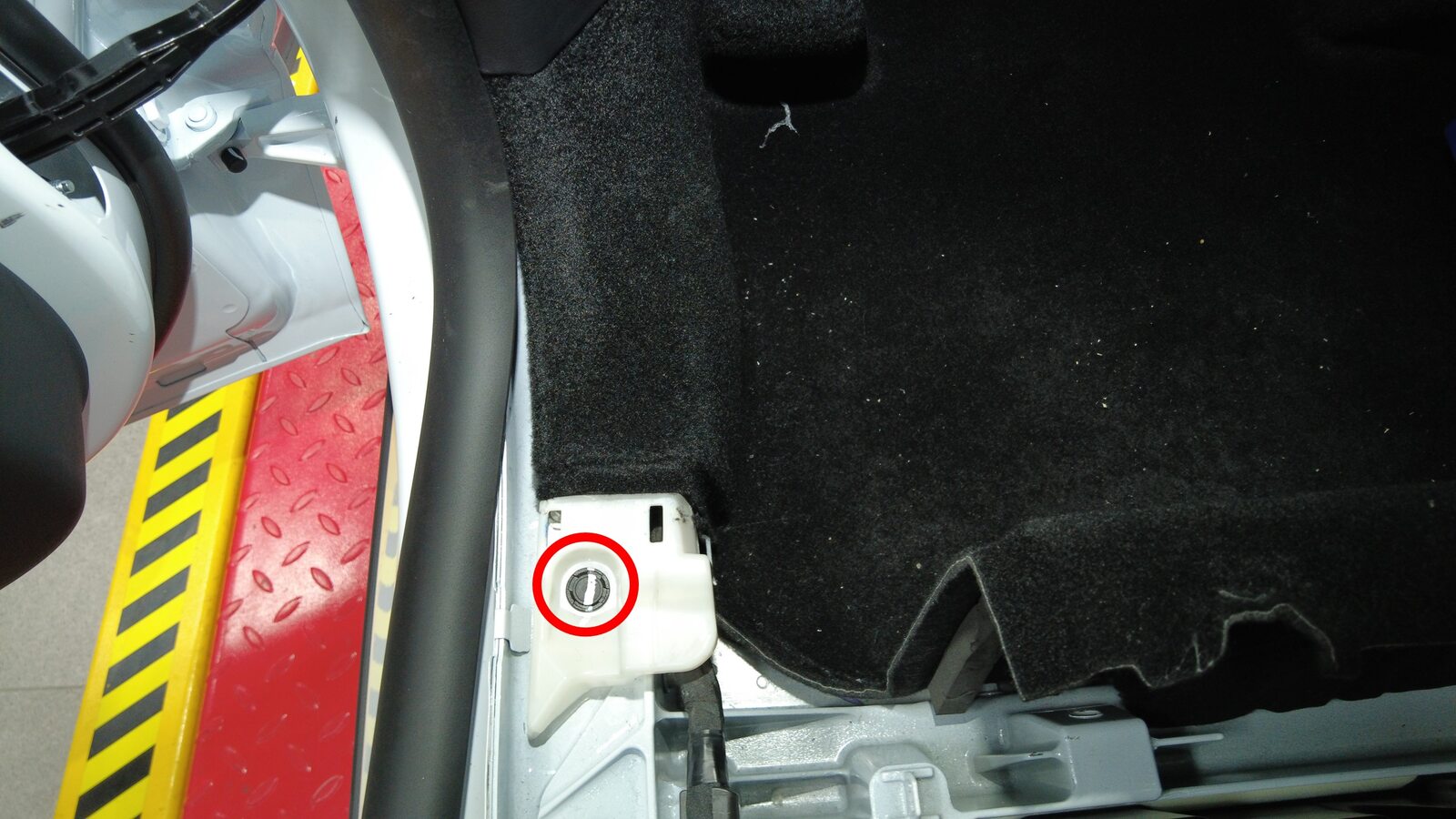

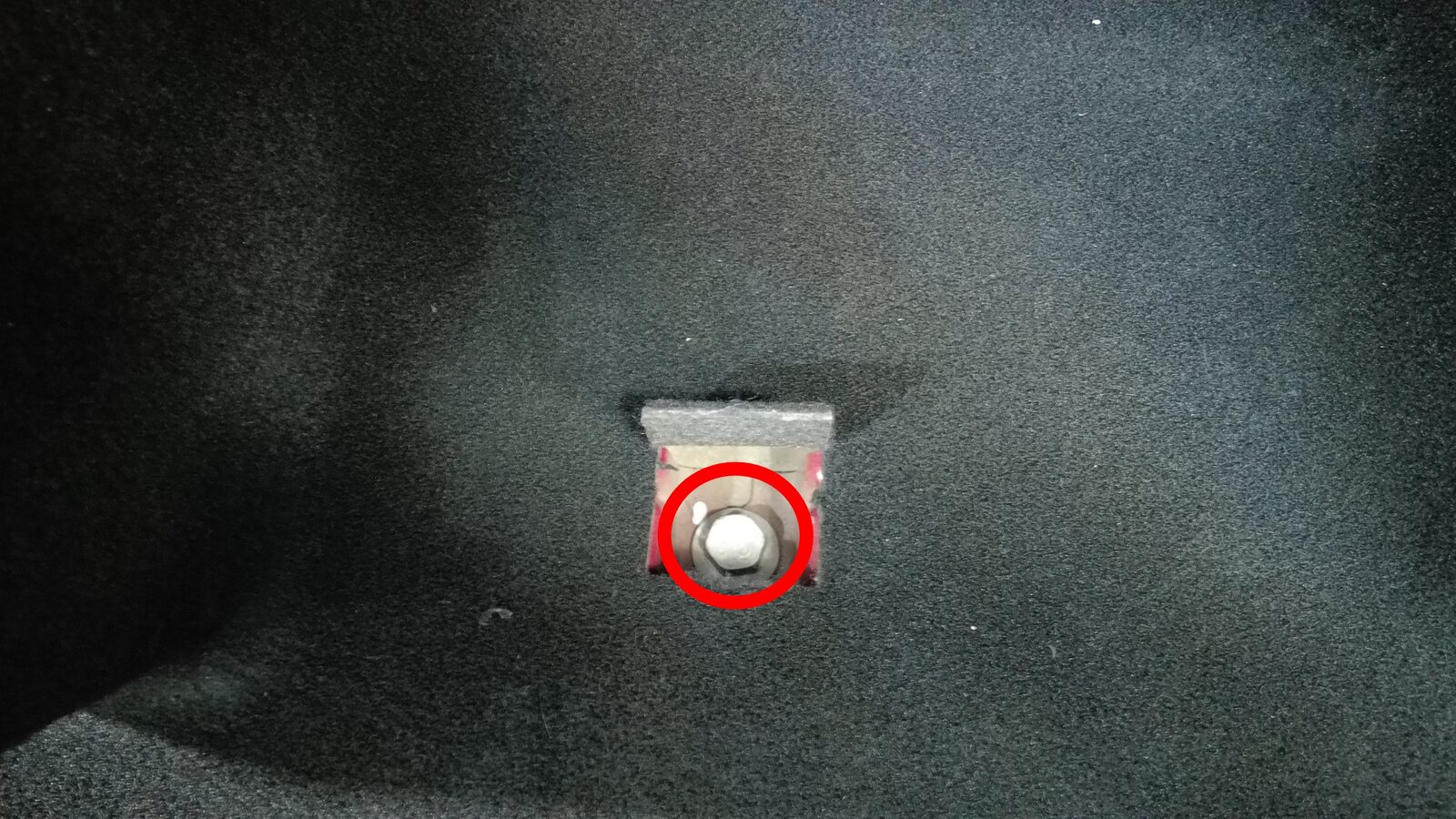

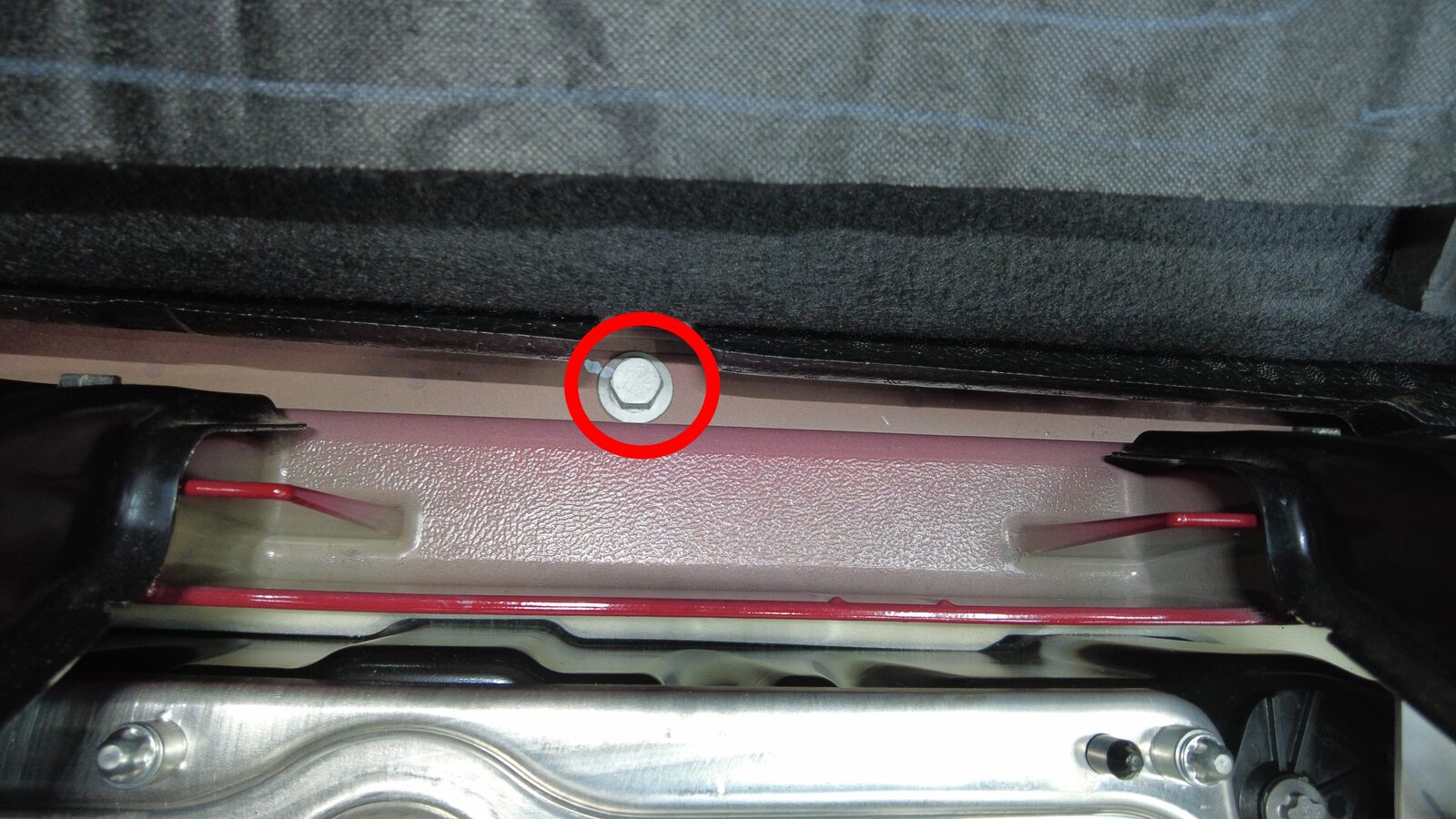

  17. Remove LH middle inner HV battery bolt
    注
    1x bolt, 16mm, 66 Nm
  18. Separate carpet perforation below RH front seat to access RH middle inner HV battery bolt
    注
    Located below rear of RH front seat, Expand the hole if necessary
  19. Remove RH middle inner HV battery bolt
    注
    1x bolt, 16mm, 66 Nm

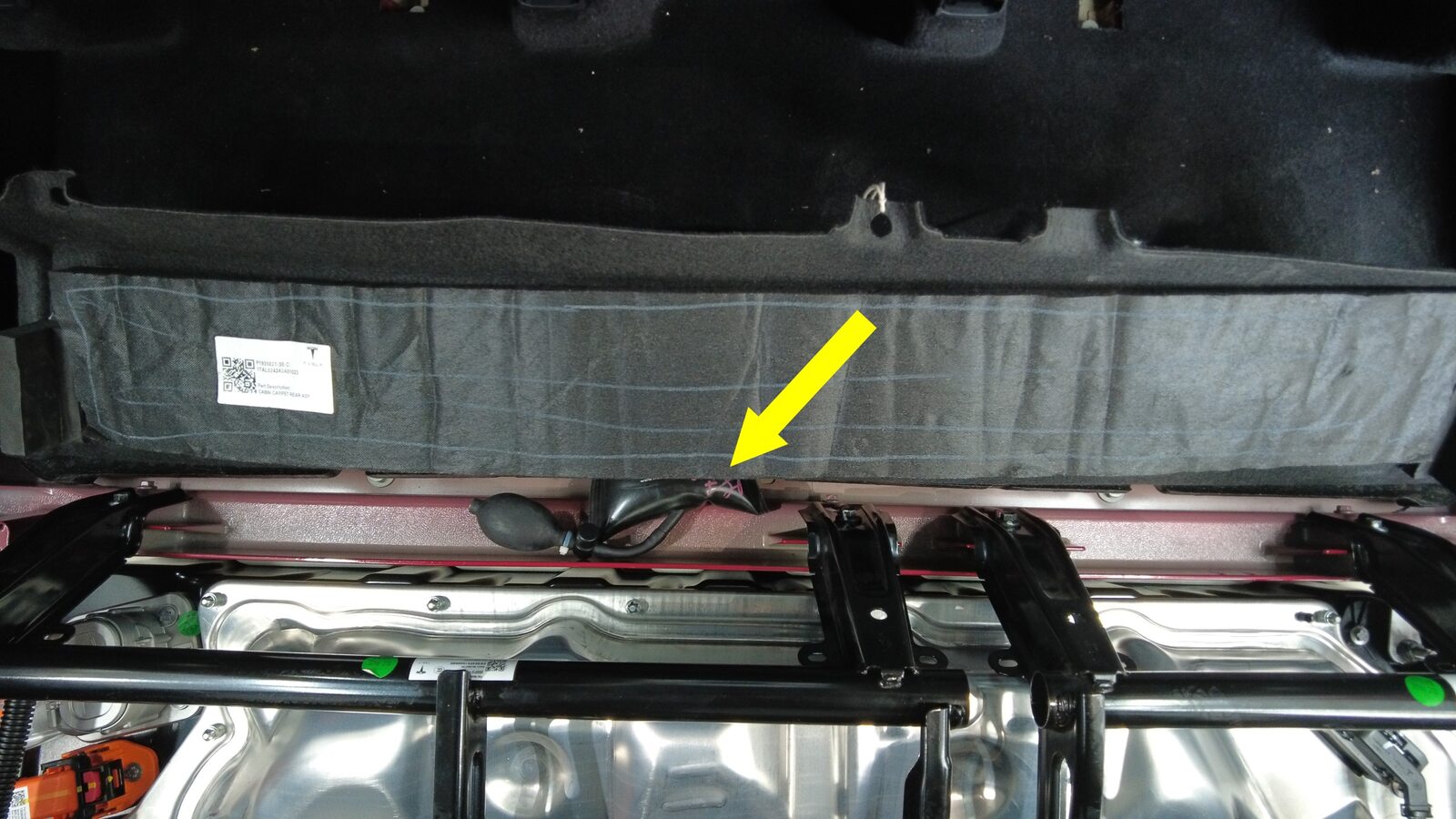

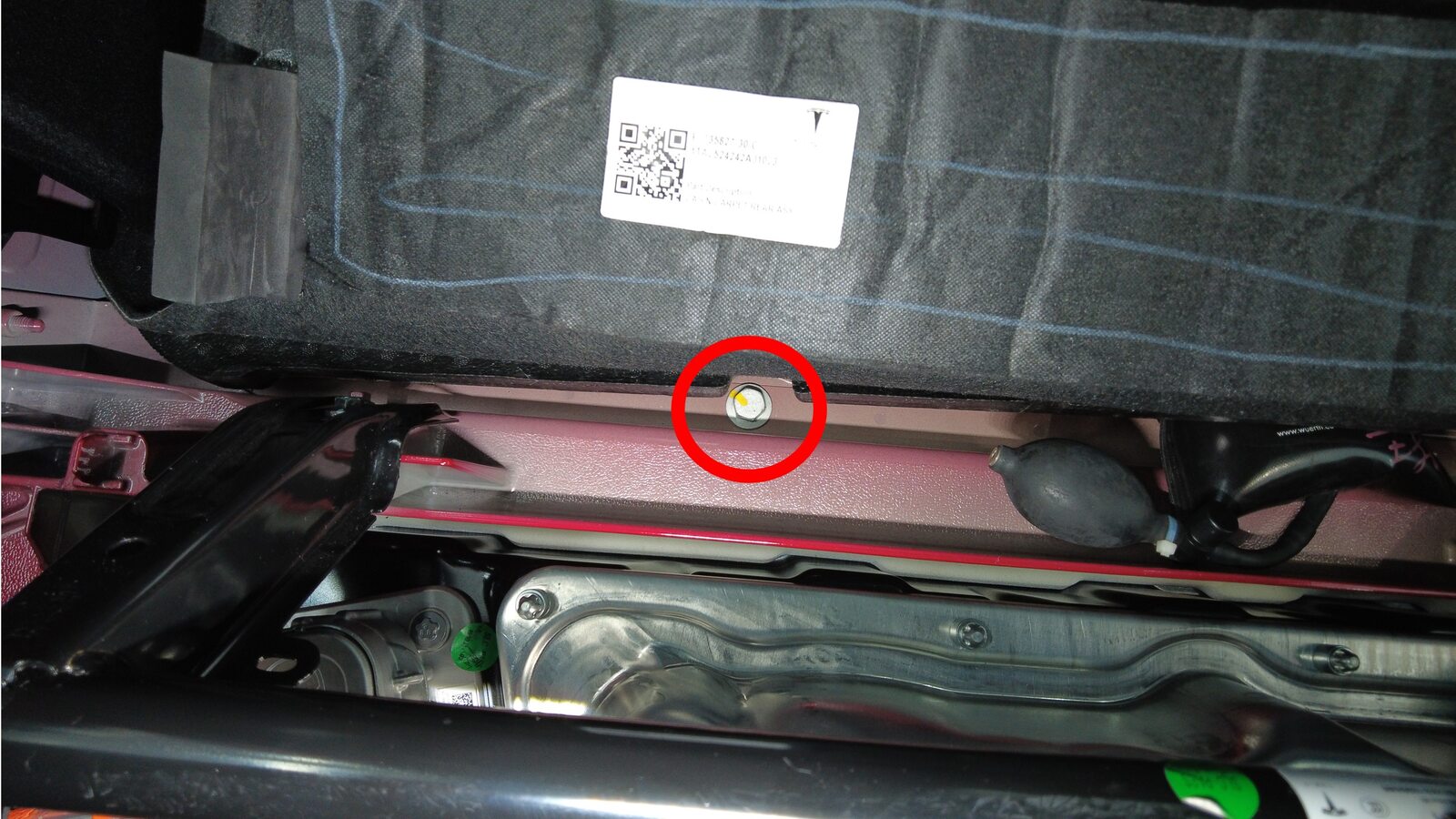

  20. Position air bag beneath rear cabin carpet to raise and allow access to rear inner HV battery bolts
  21. Remove LH rear inner HV battery bolt
    注
    1x bolt, 16mm, 66 Nm, Located below LH rear main carpet
  22. Remove RH rear inner HV battery bolt
    注
    1x bolt, 16mm, 66 Nm, Located below RH rear main carpet
  23. Remove the LH lower A-pillar trim. See 饰板 - 下 - A 柱 - 左侧 ((拆卸和更换)).
  24. Remove the LH side center console panel. See 侧板 - 前 - 中控台 - 左侧 ((拆卸和更换)).

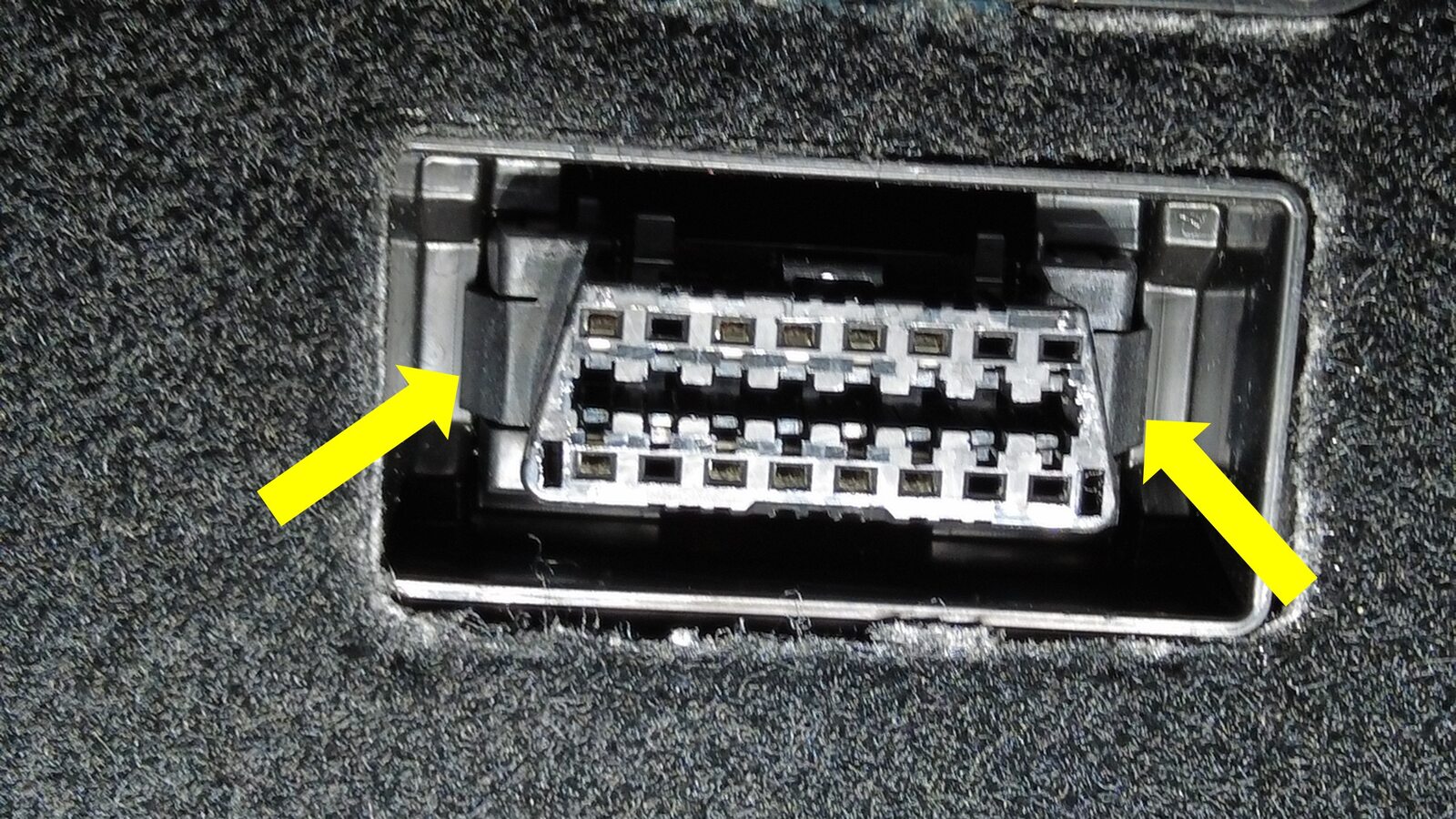

  25. Release OBD port from LH cabin carpet cover
    注

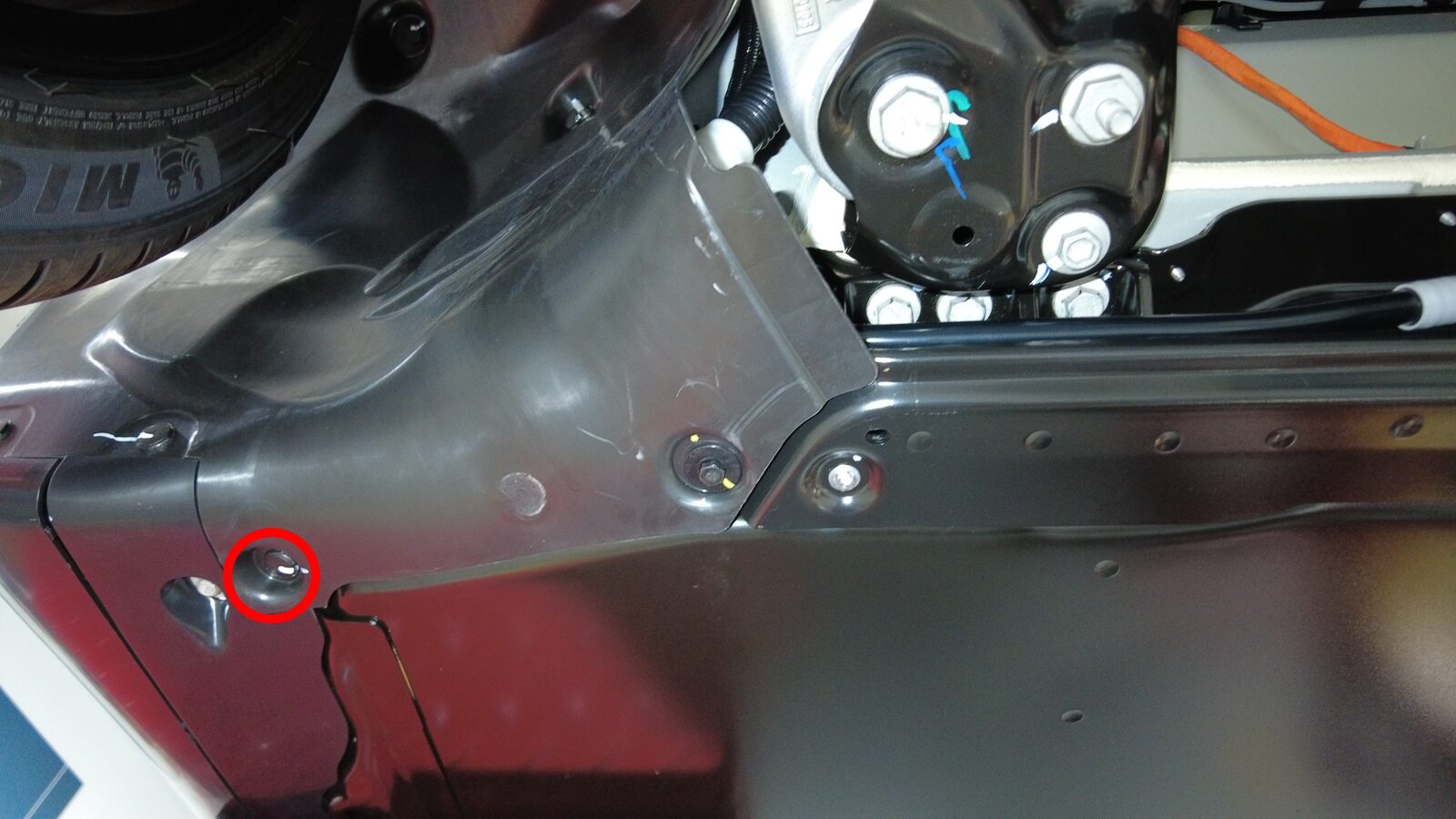

    2x tabs, Press black tabs to unlock then push upwards out of footwell cover

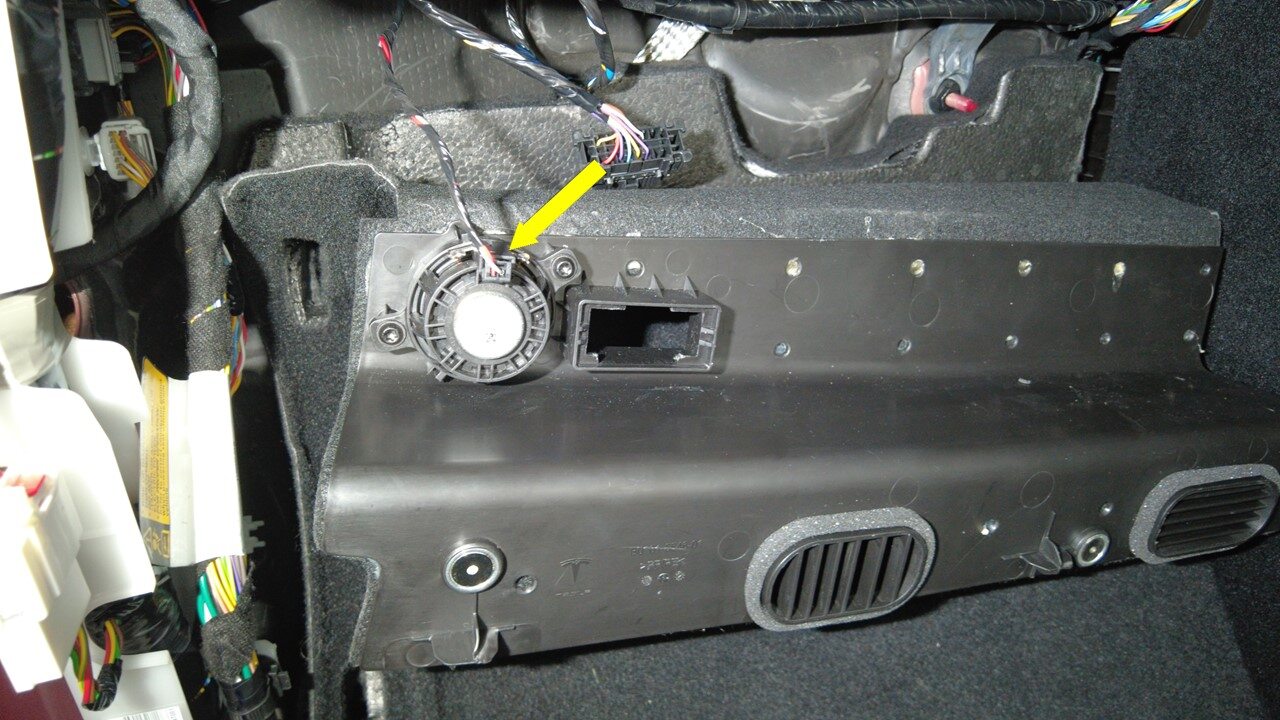

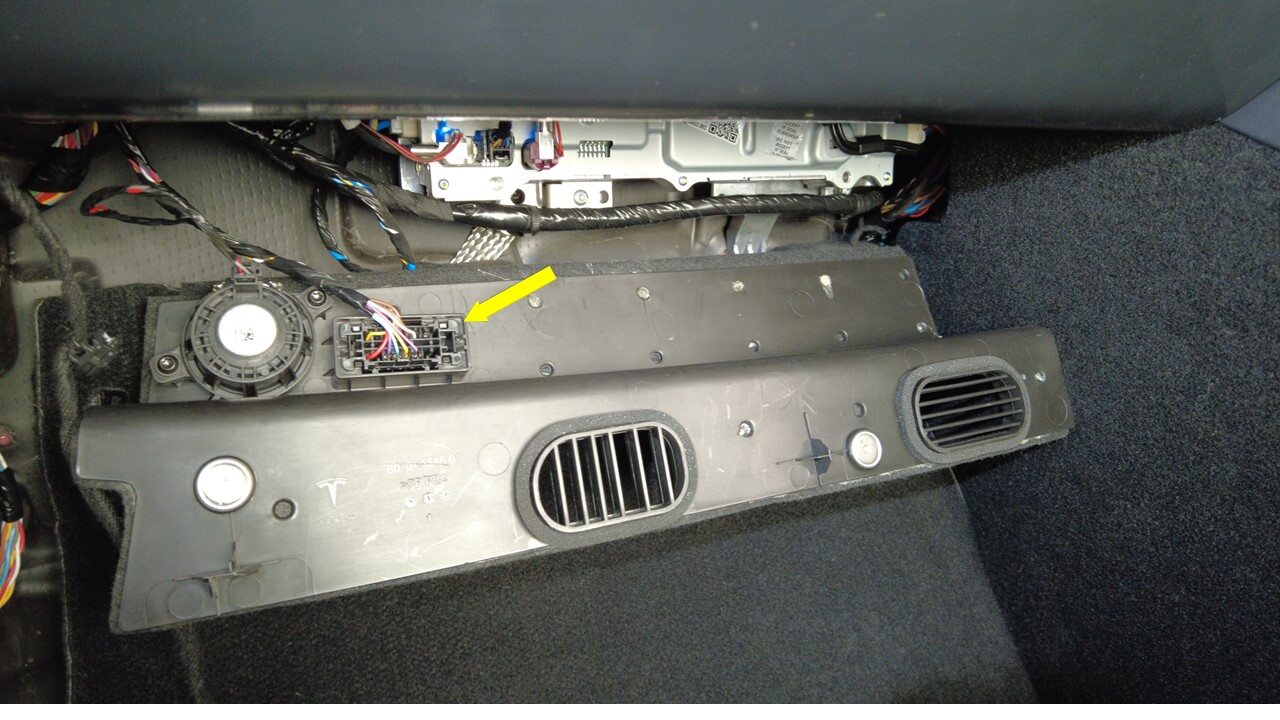

  26. Disconnect E-CALL speaker connector
    注
    1x connector

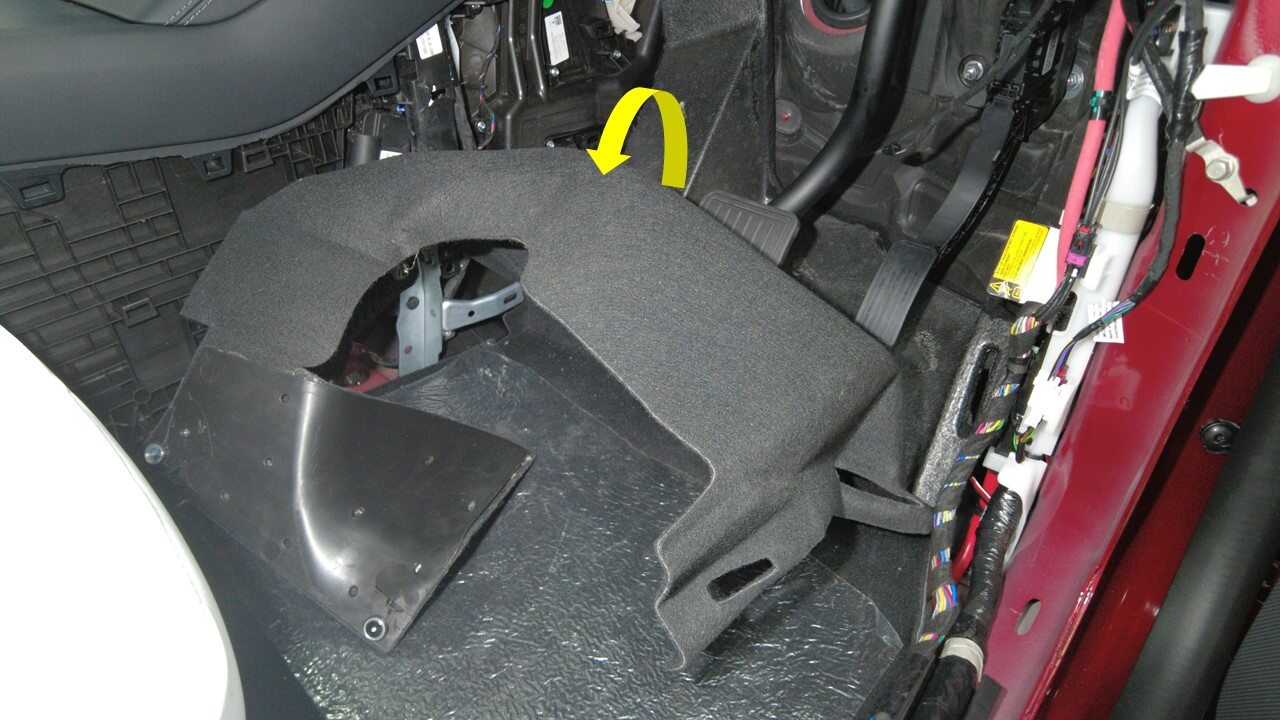

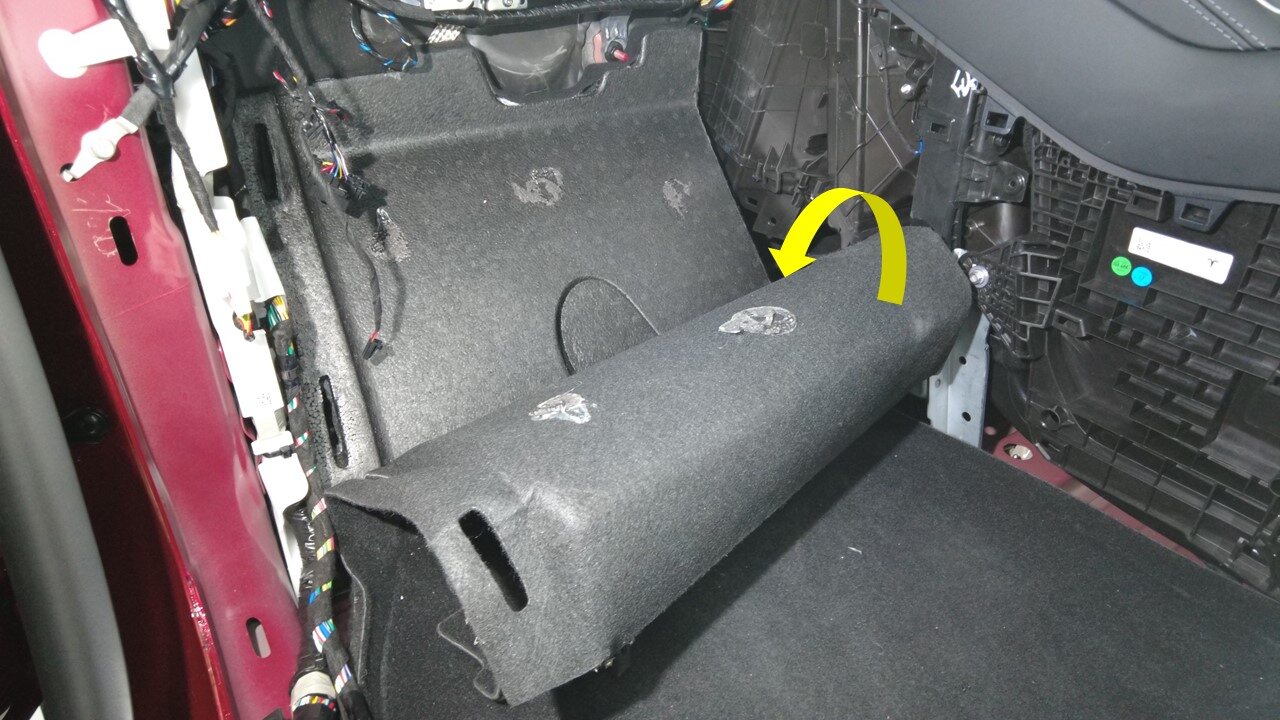

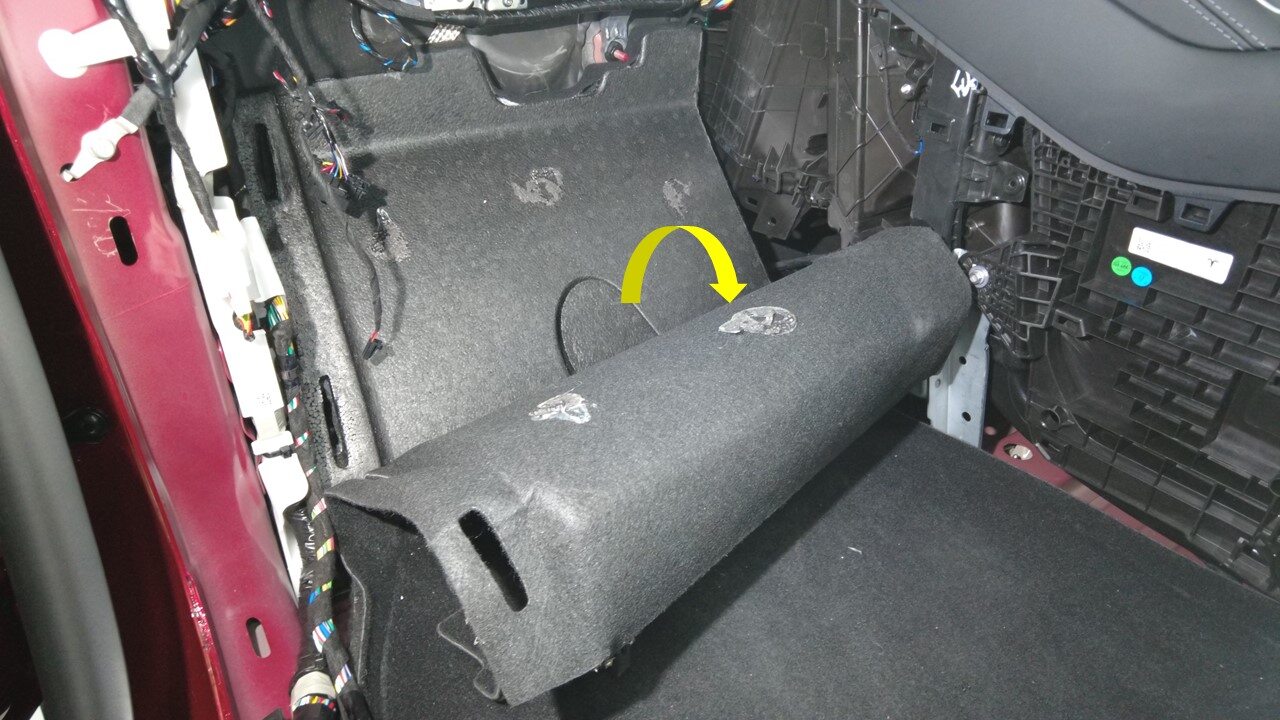

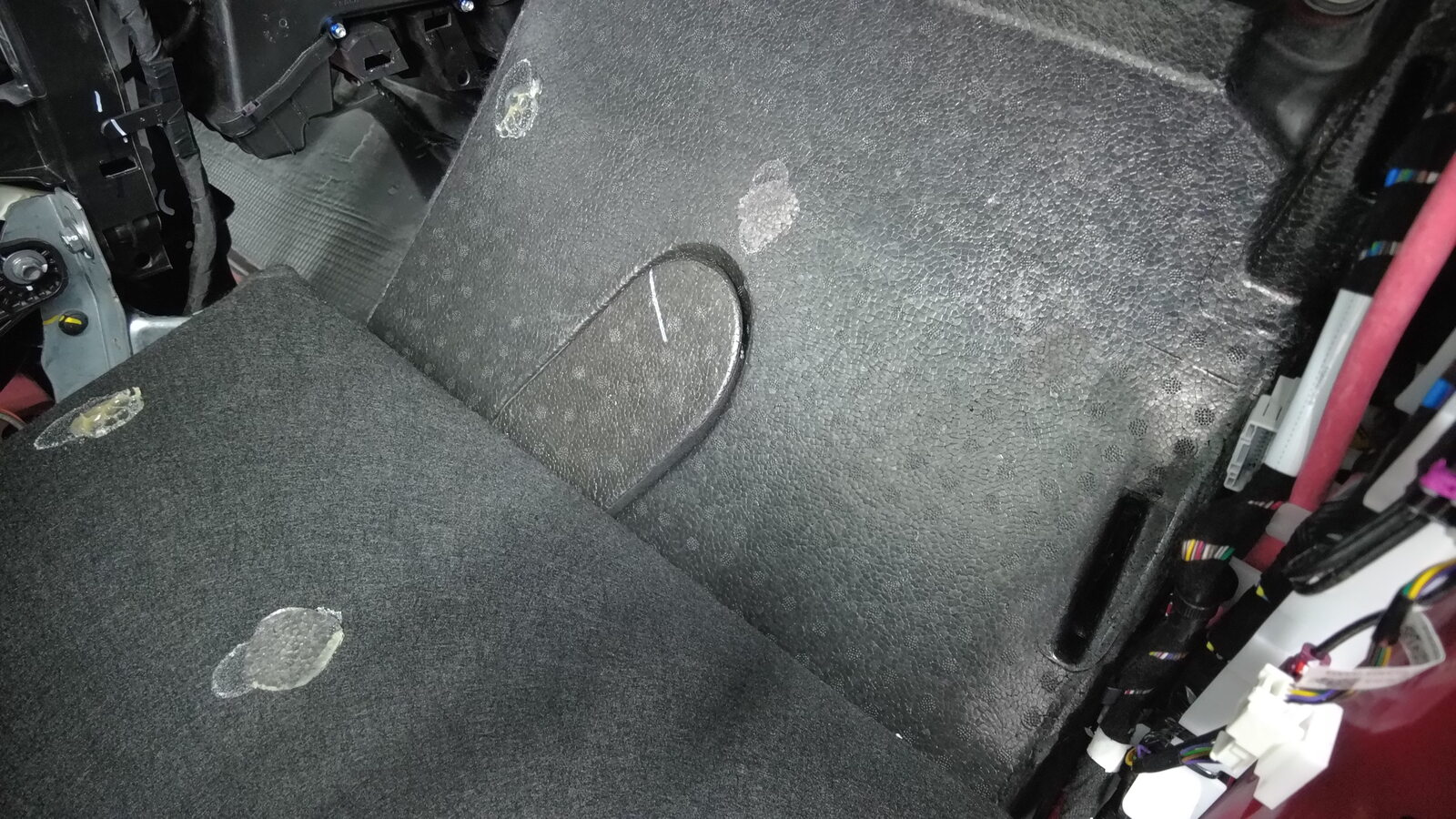

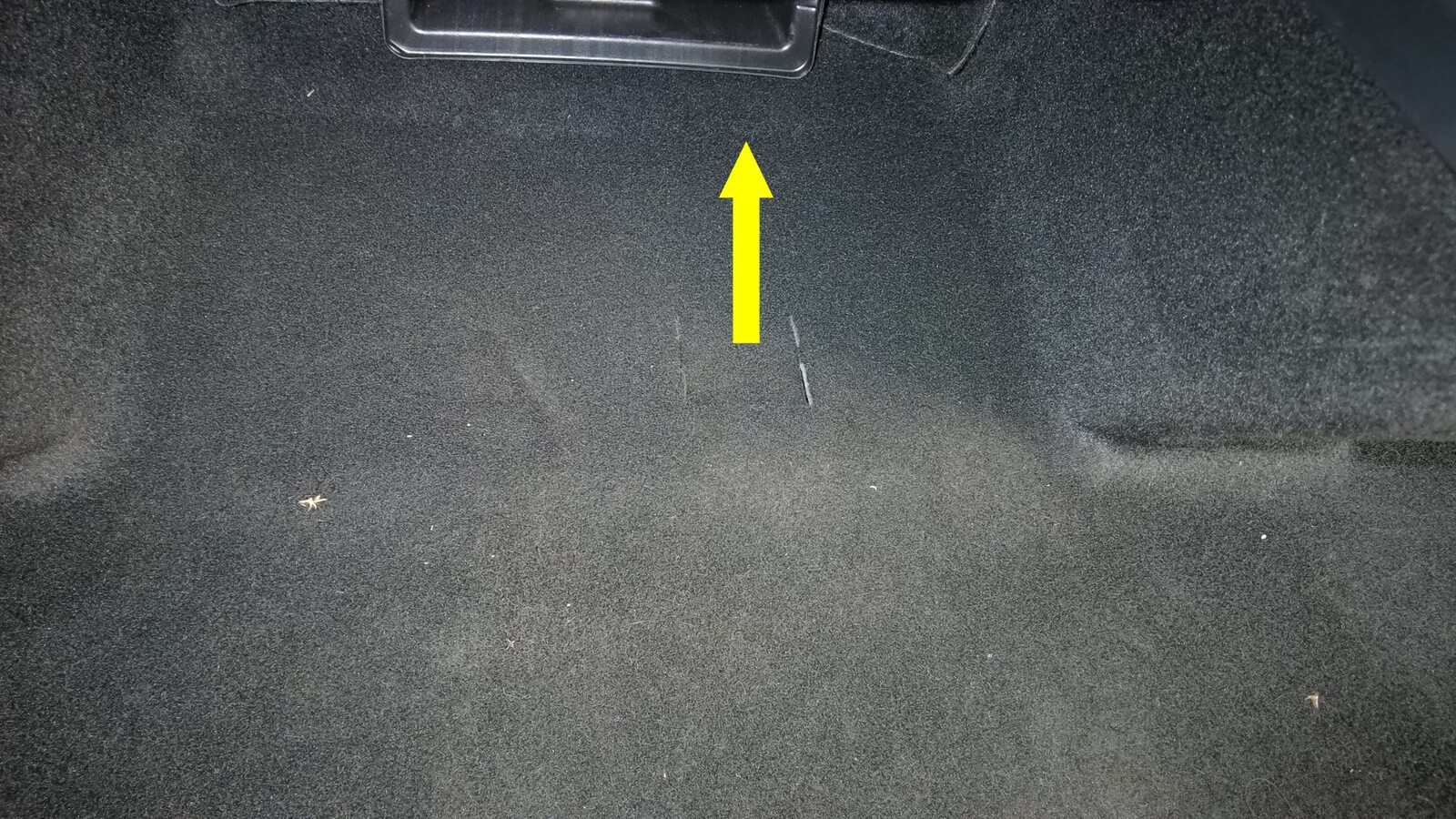

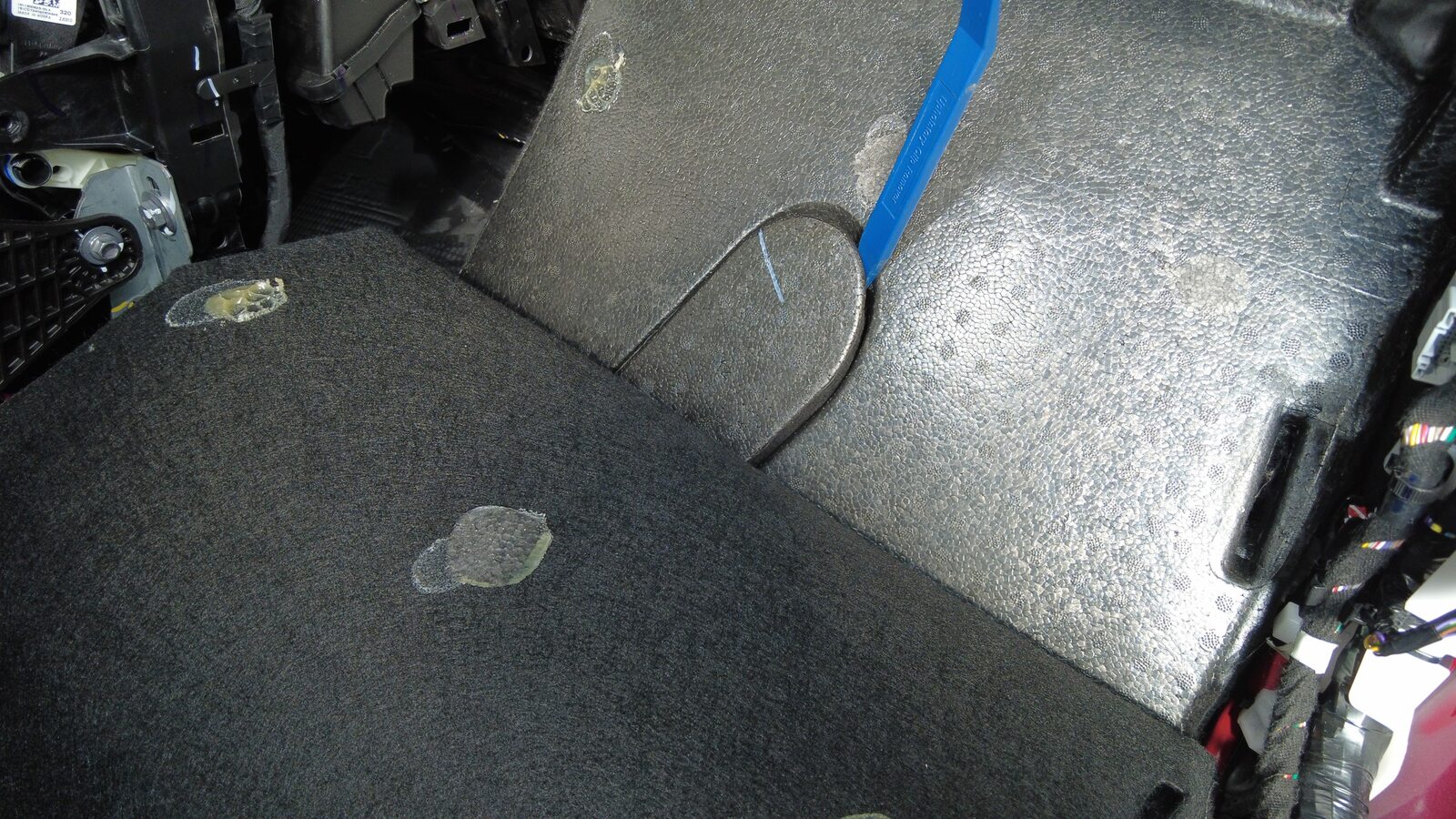

  27. Fold LH front cabin carpet rearward
    注
    Different regions may stick the carpet and foam together and tear them apart

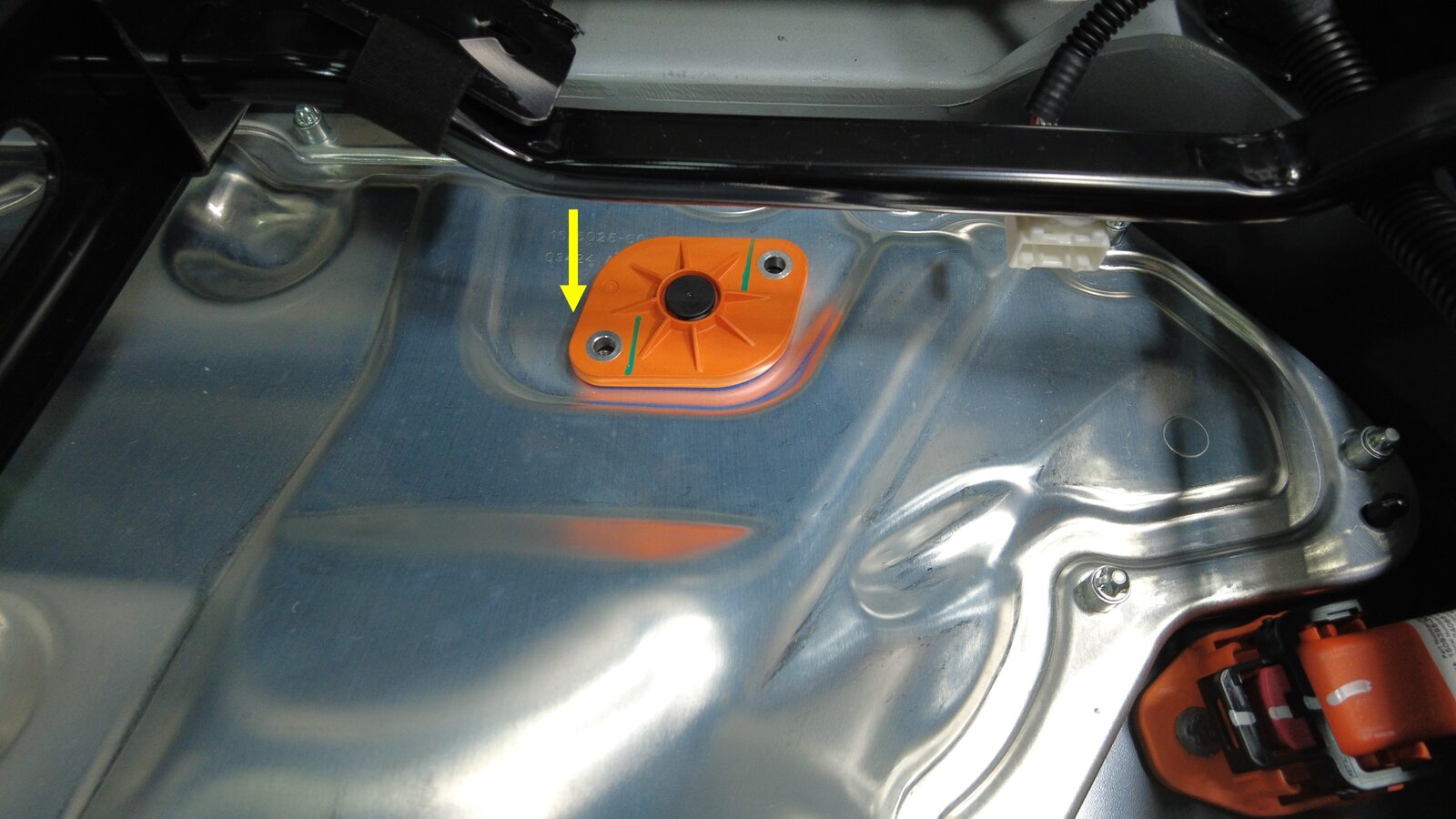

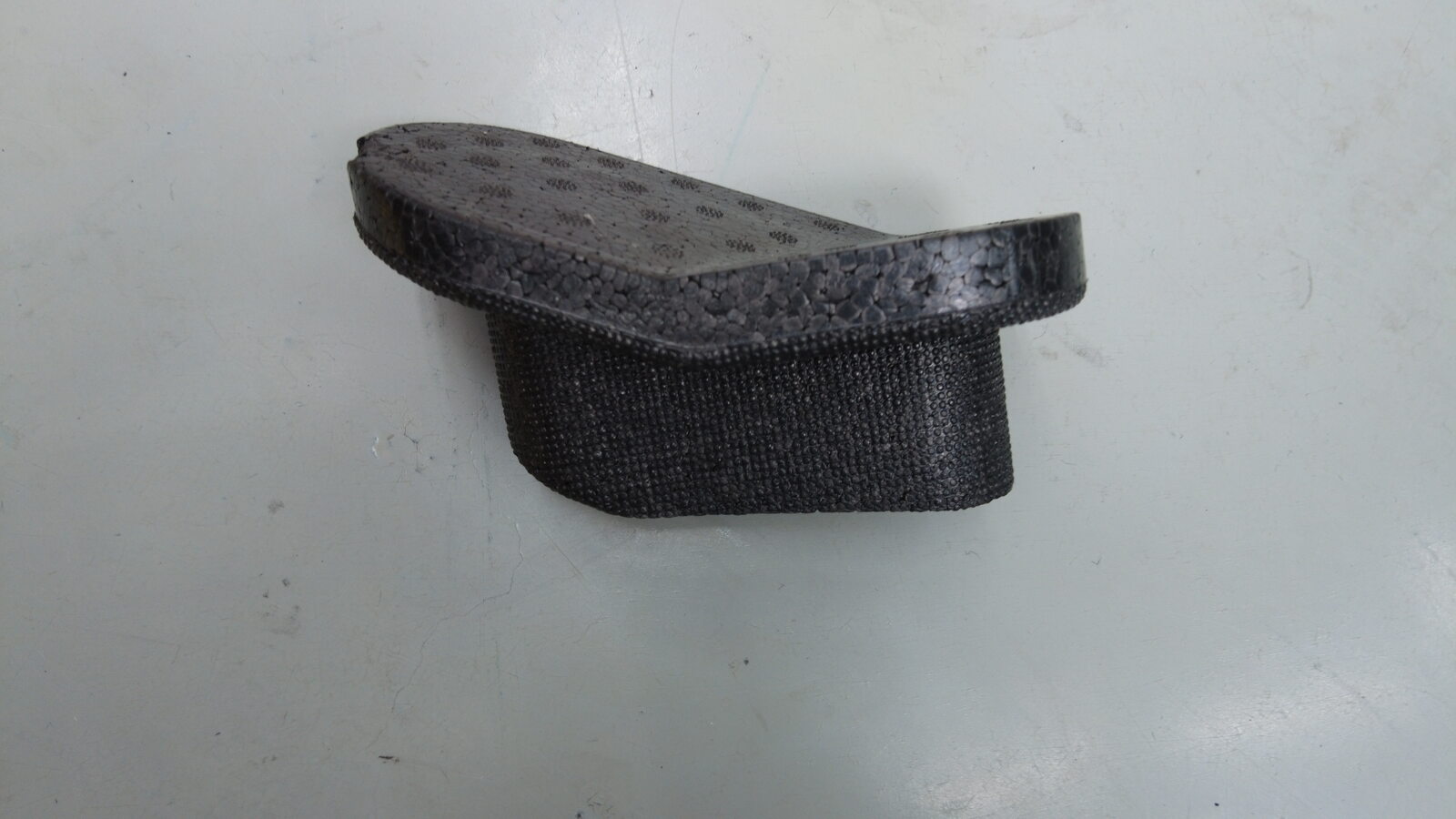

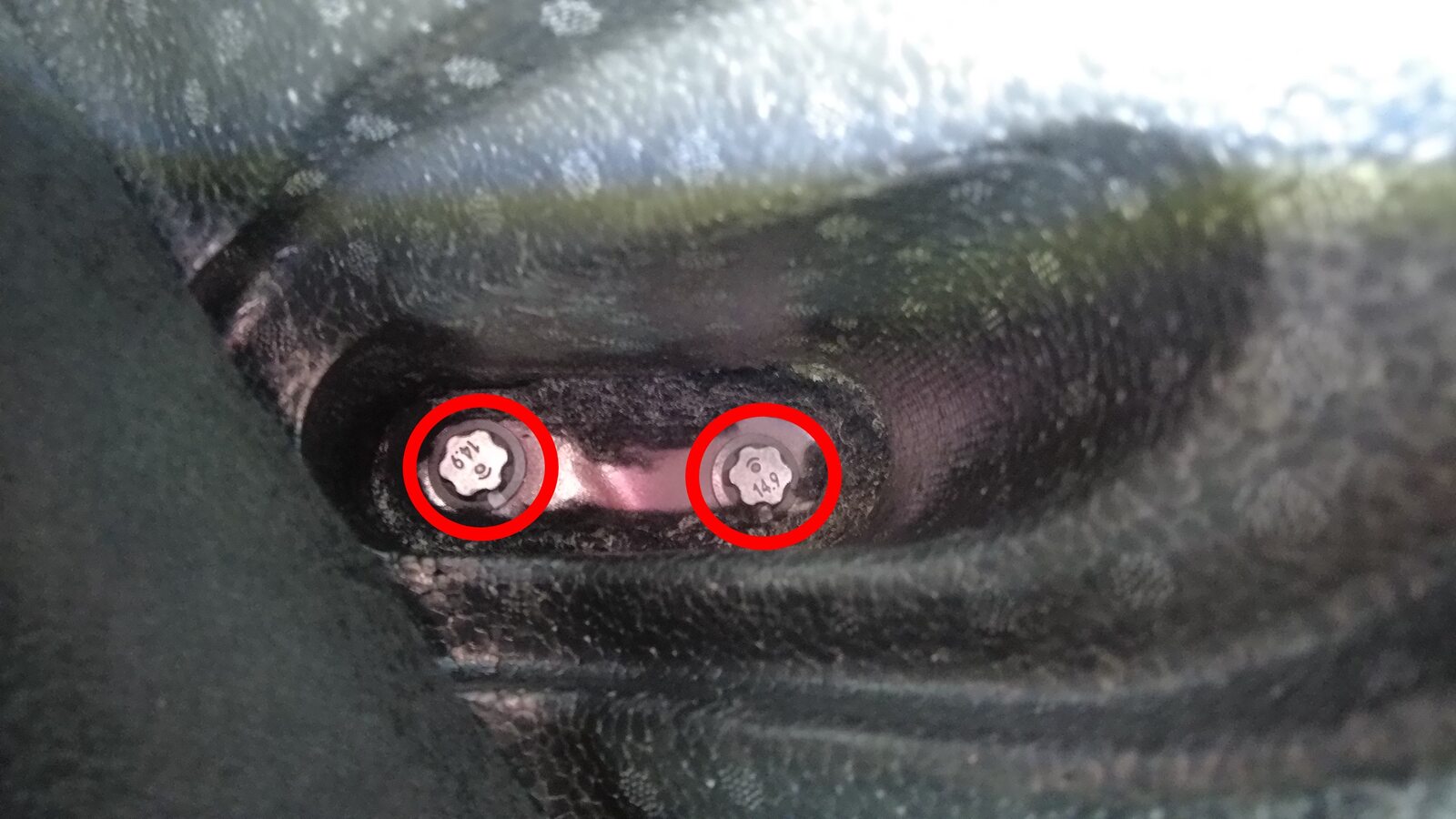

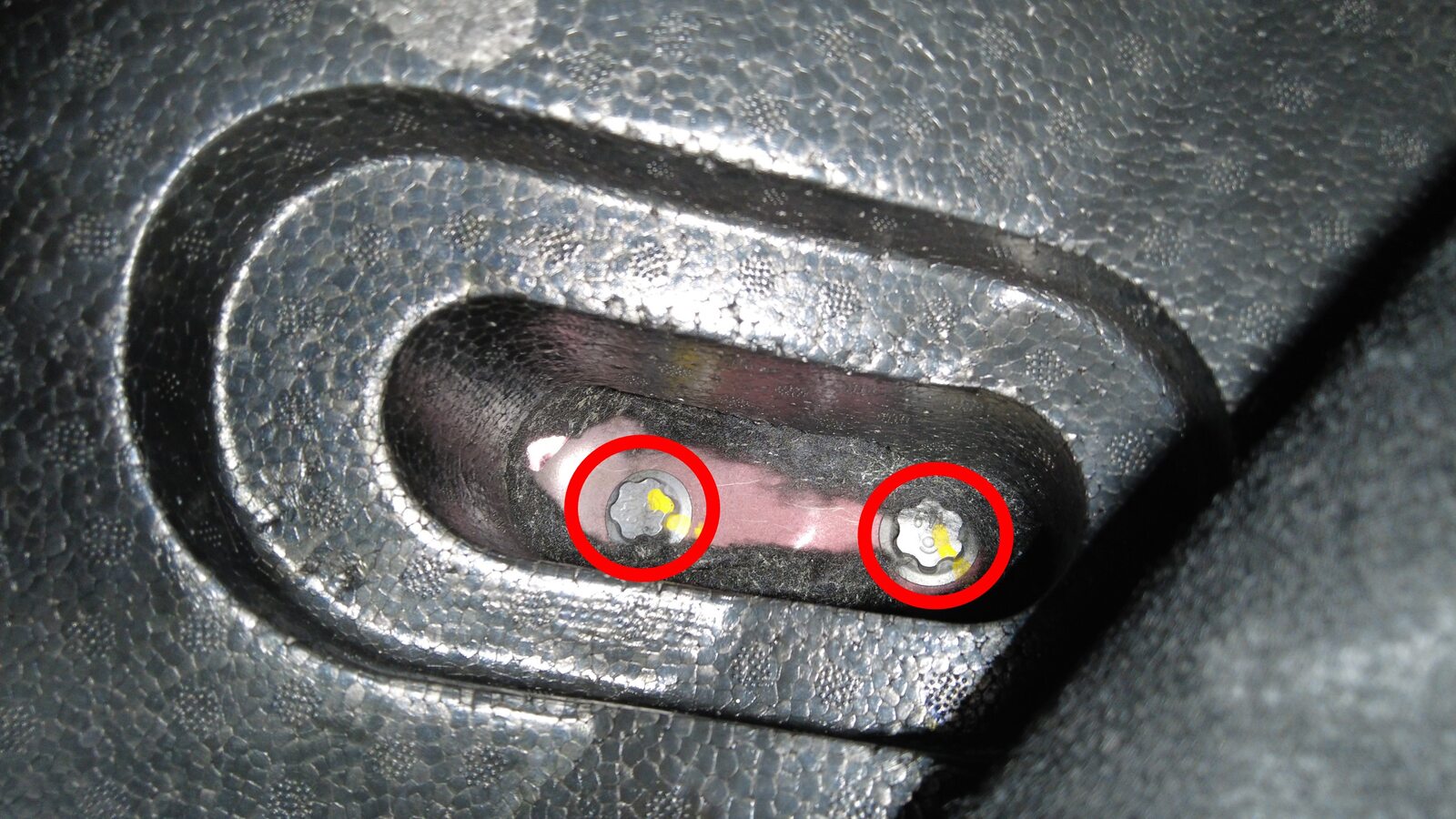

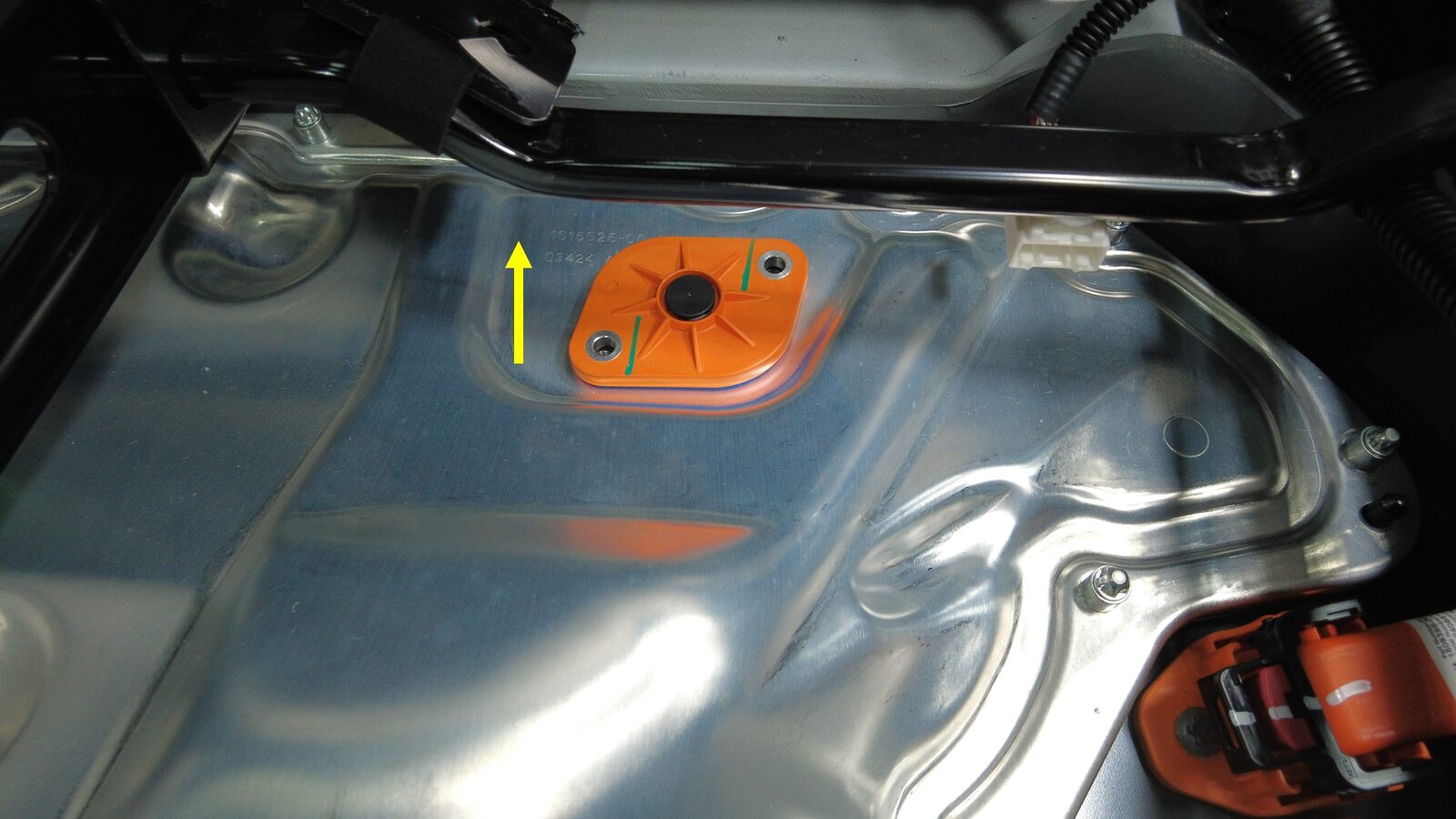

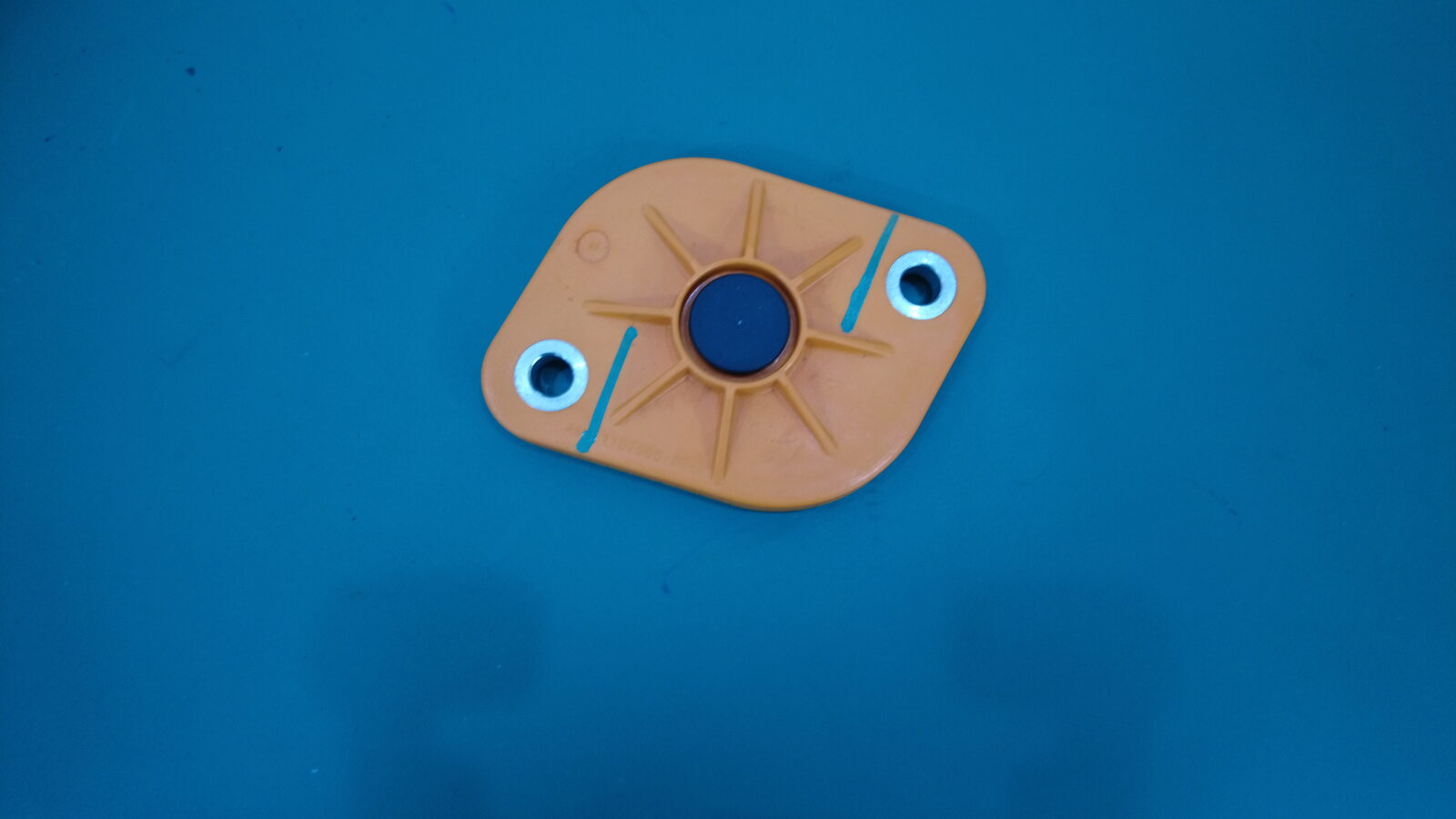

  28. Remove foam plug to access LH front inner HV battery bolts
    注
    1x foam plug

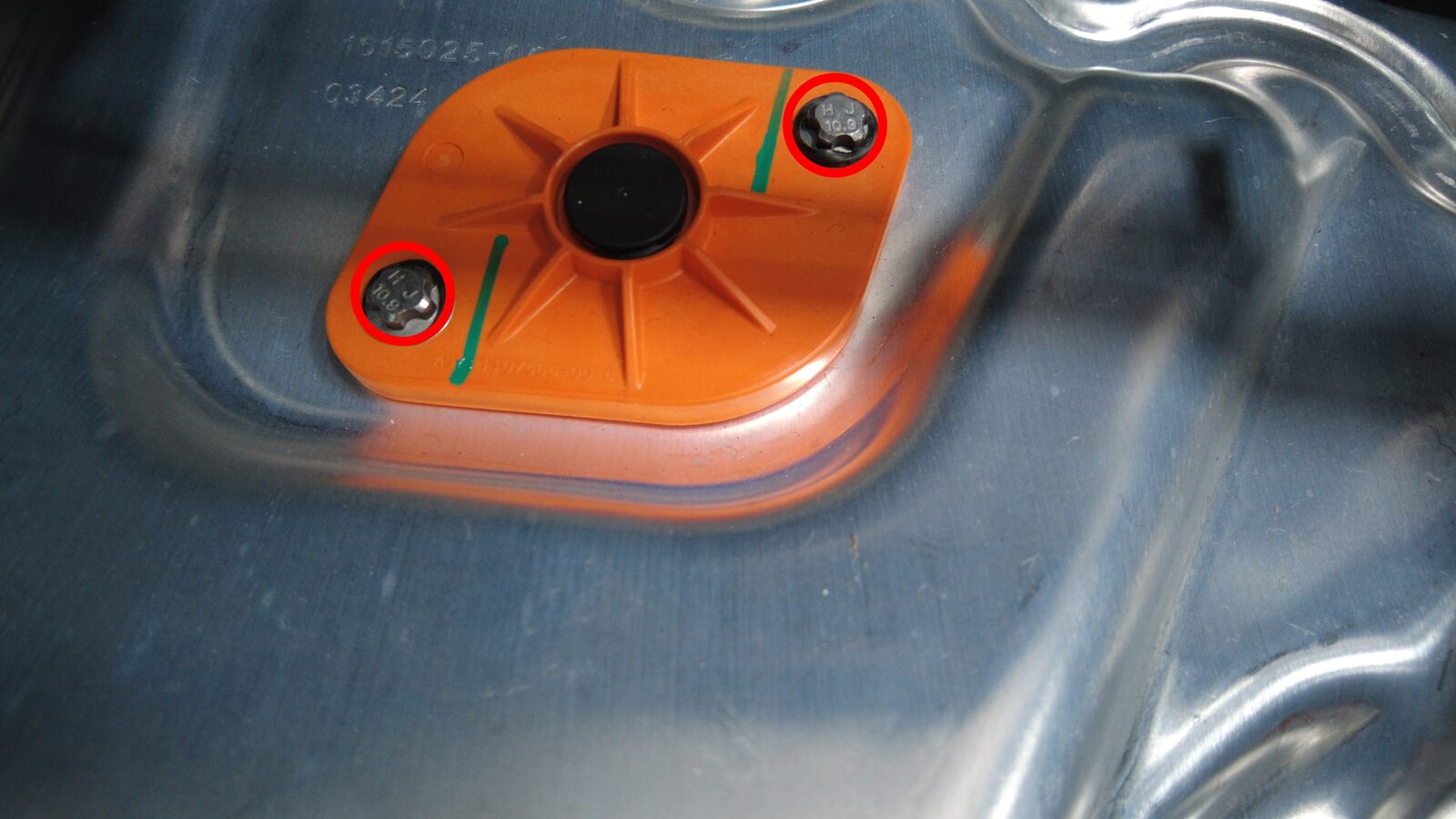

  29. Remove both LH front inner HV battery bolts
    注
    2x bolts, EP20, 136 Nm
  30. Remove the RH lower A-pillar trim. See 饰板 - 下 - A 柱 - 左侧 ((拆卸和更换)).
  31. Remove the RH side center console panel. See 侧板 - 前 - 中控台 - 右侧 ((拆卸和更换)).

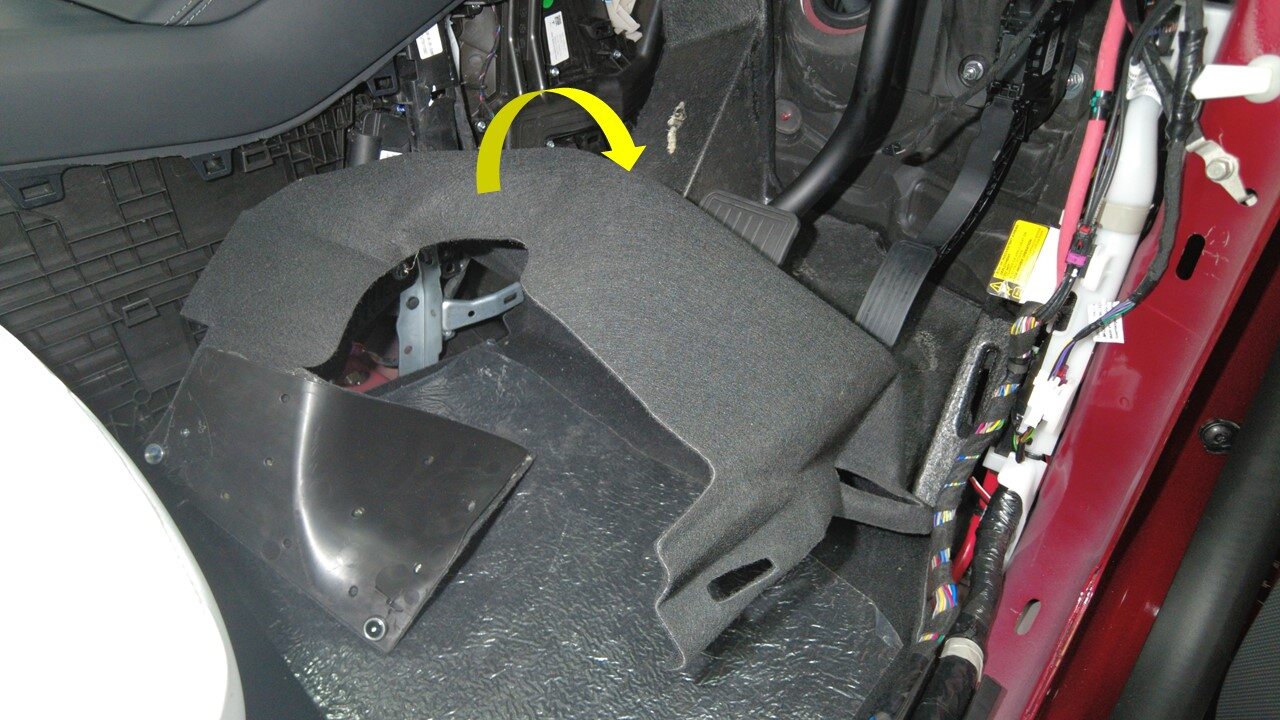

  32. Fold RH front cabin carpet rearward
    注
    Maneuver carpet below brake pedal and accelerator pedal, Different regions may stick the carpet and foam together and tear them apart
  33. Remove foam plug to access RH front inner HV battery bolts
    注
    1x foam plug
  34. Remove both RH front inner HV battery bolts
    注
    2x bolts, EP20, 136 Nm
  35. Disconnect the LV power. See 低压电源(断开和连接) (Modify).

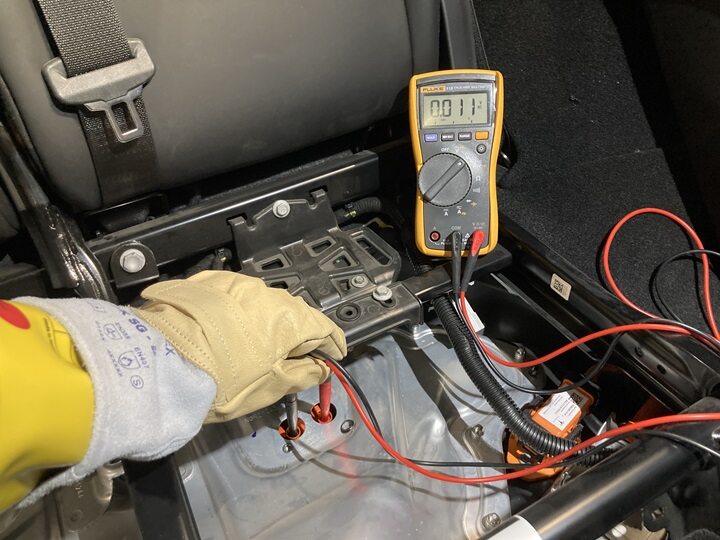

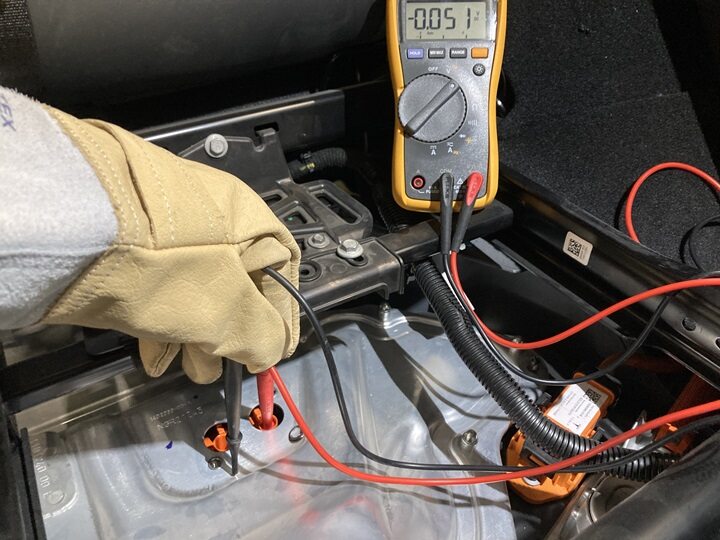

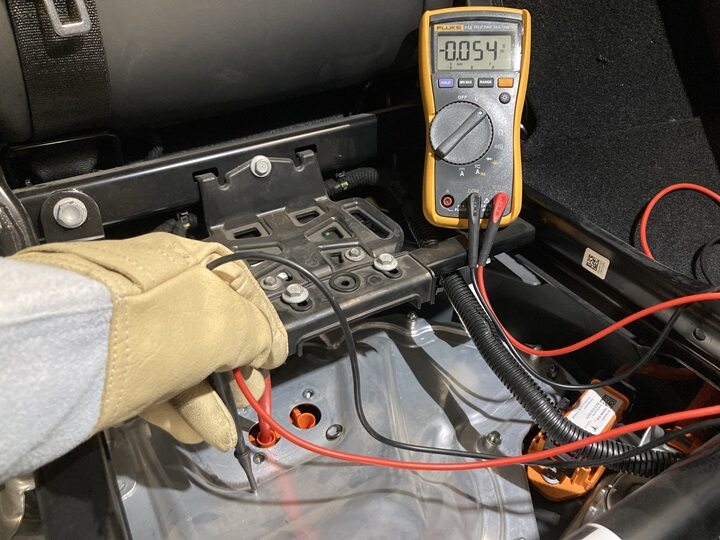

  36. Perform the Vehicle HV Disablement Procedure. See 车辆高压禁用程序.

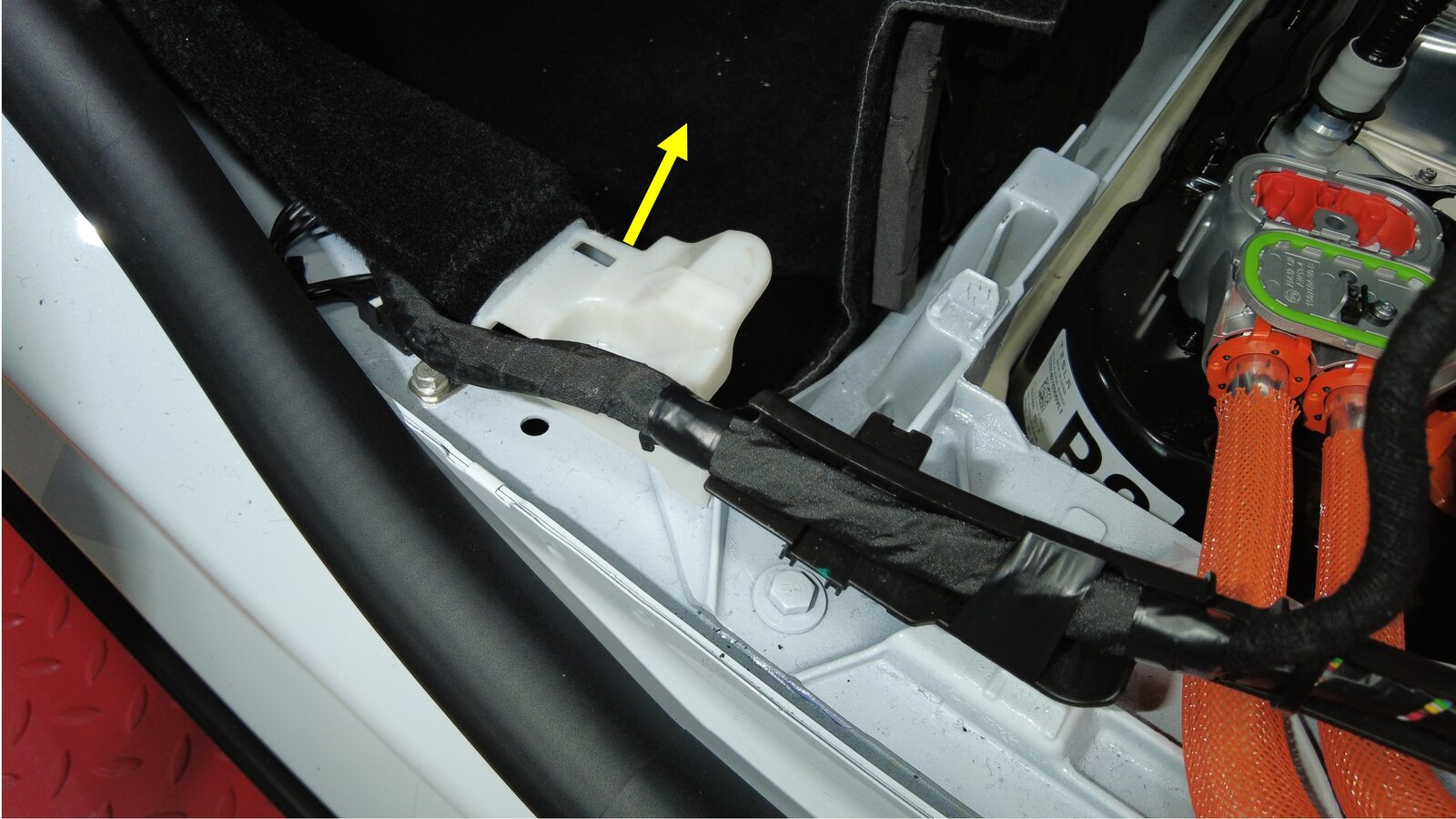

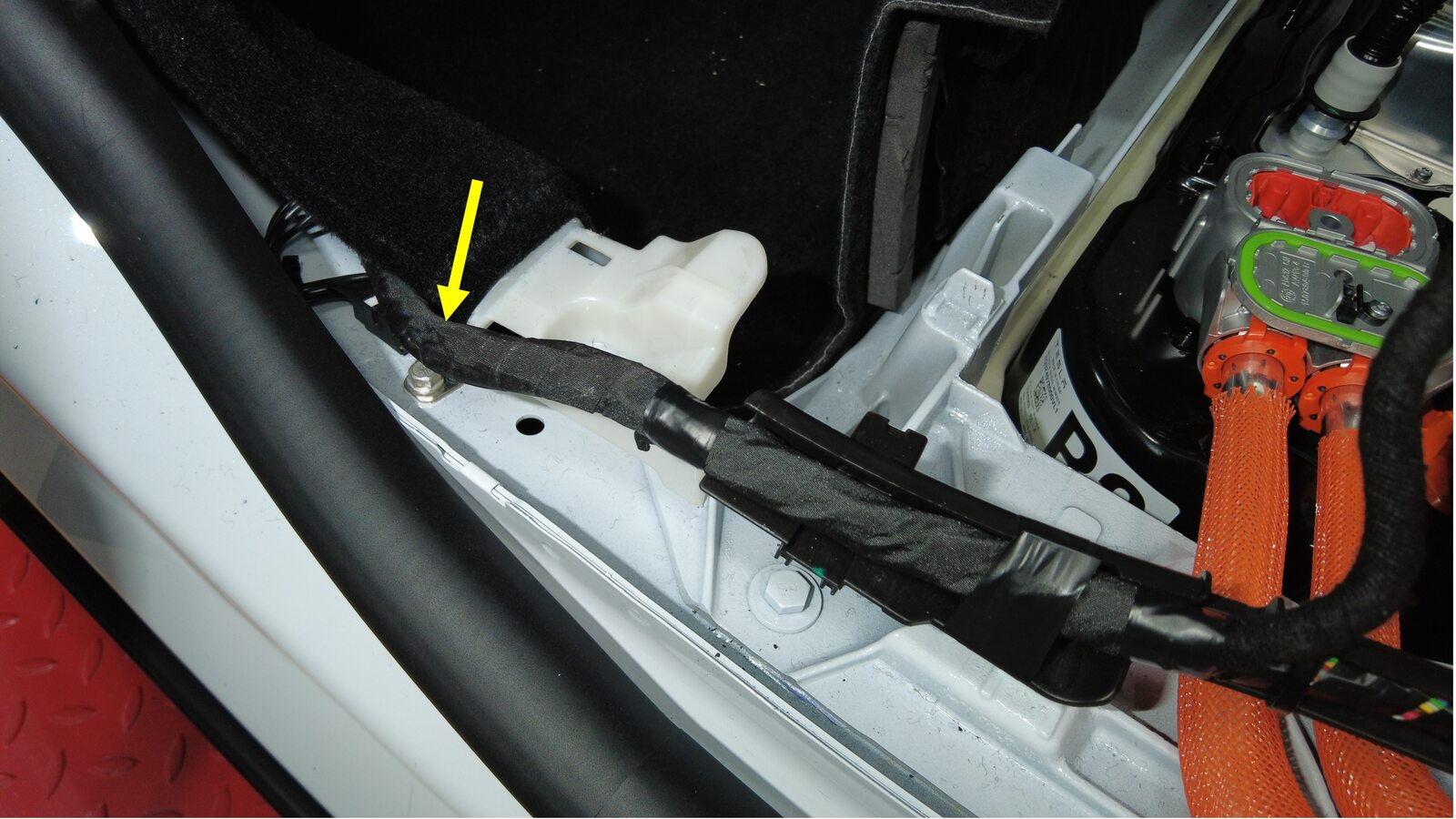

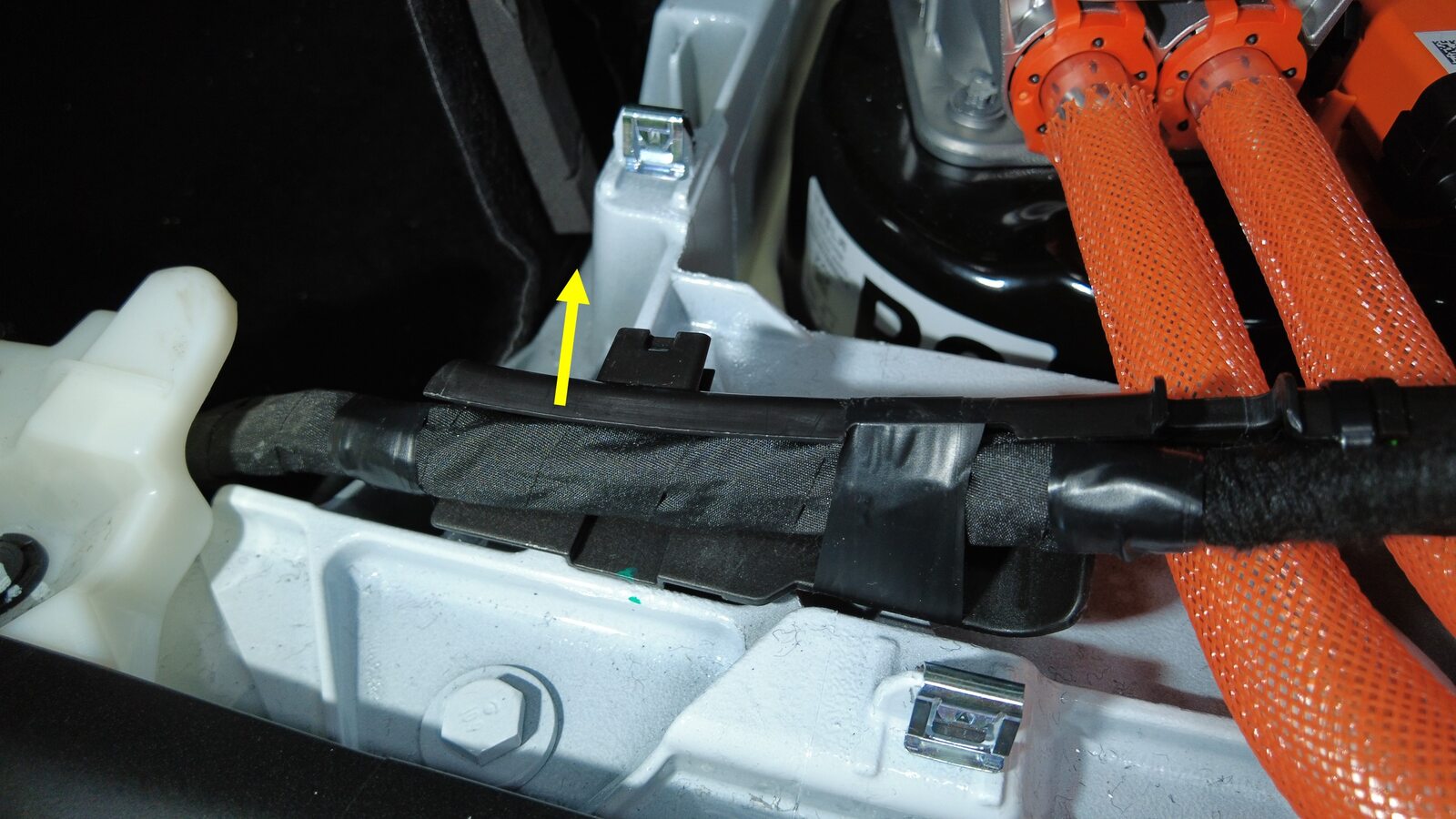

  37. Release LH body harness from rear body and move aside
    注
    1x clip
  38. Partially remove LH B-pillar lower trim
    注
    1x push clip

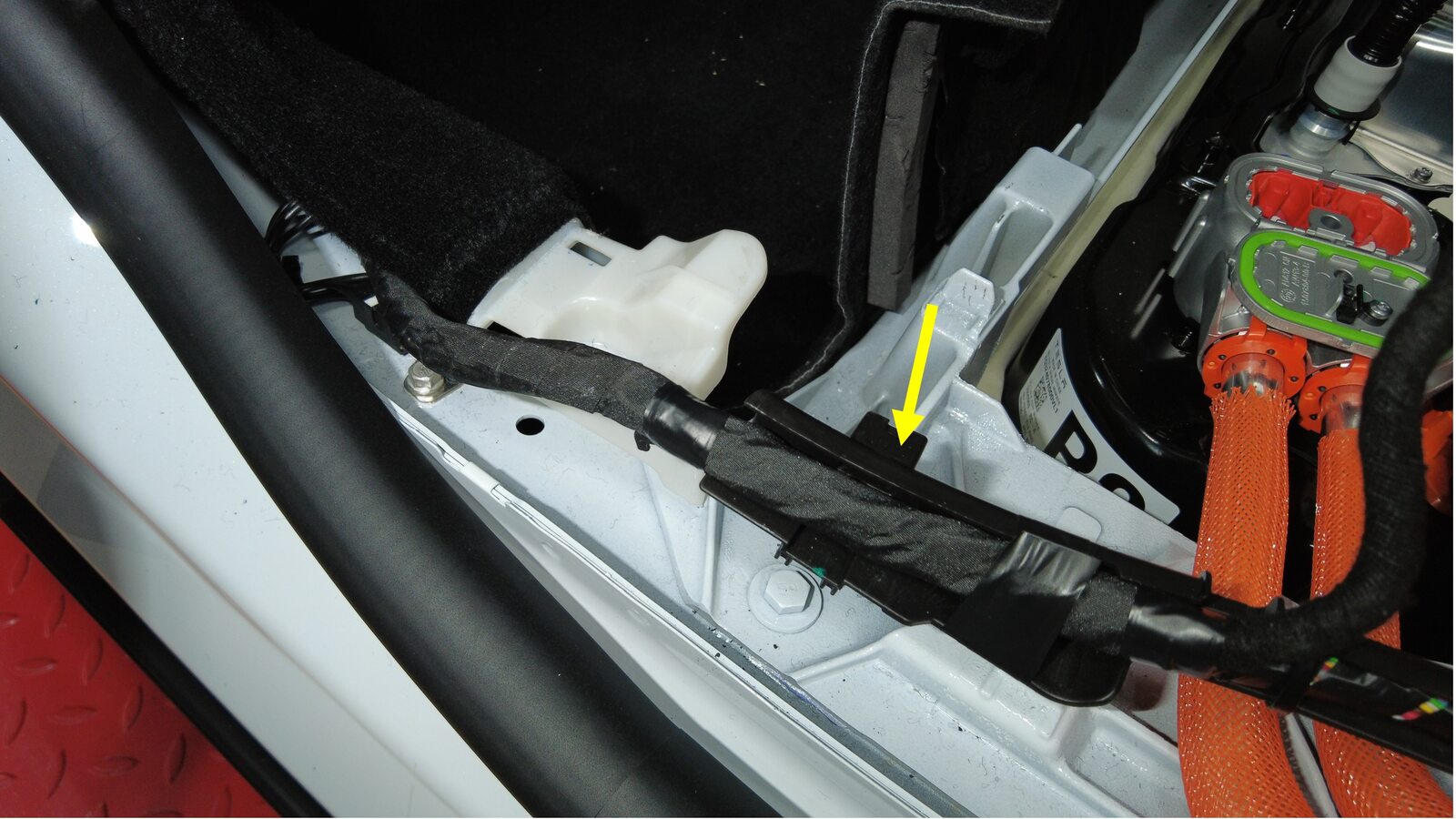

  39. Partially pull out LH rear body harness
  40. Remove all items from pockets and ensure not wearing metal items

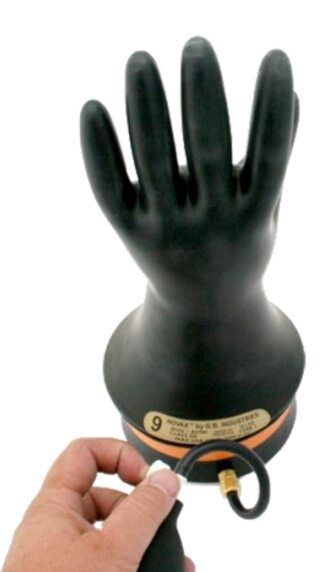

  41. Inspect HV insulating gloves
    注
    Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC

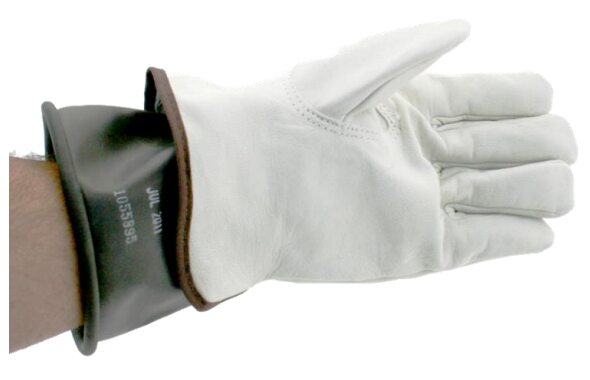

  42. Put on HV insulating gloves and leather over gloves

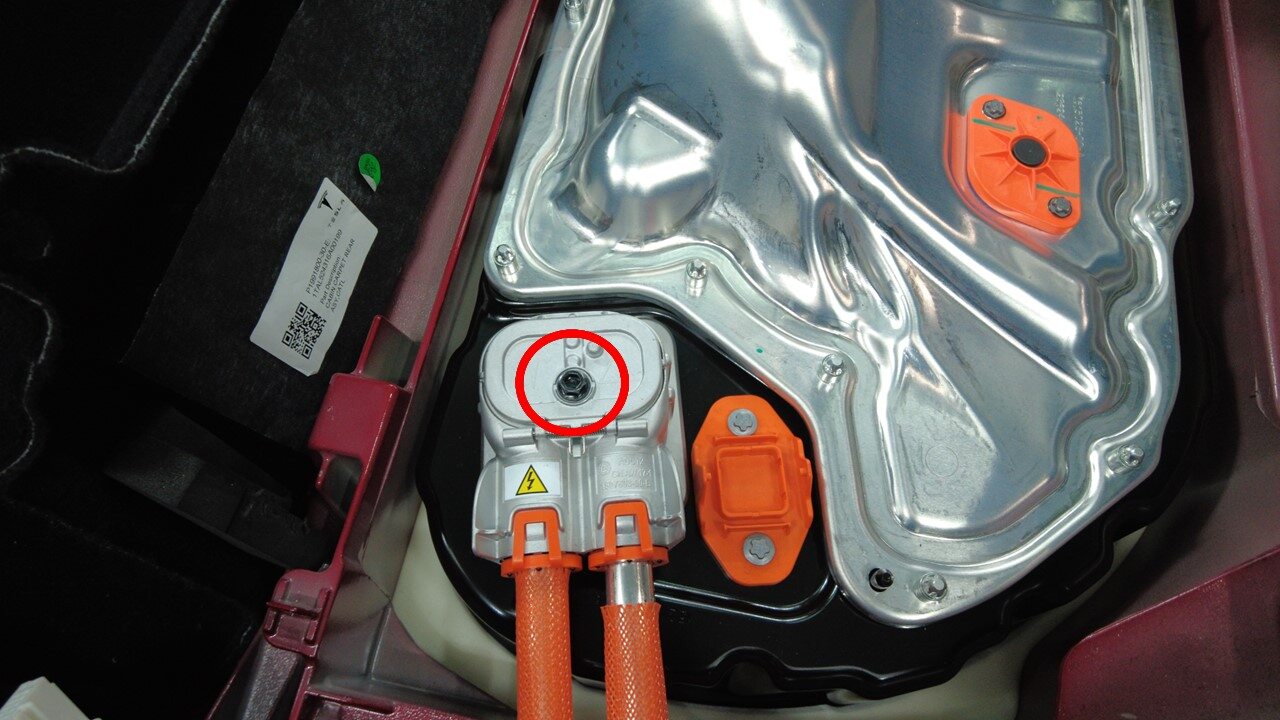

  43. Remove fastener securing busbar cover access door
    注
    1x bolt, 10mm, 9 Nm

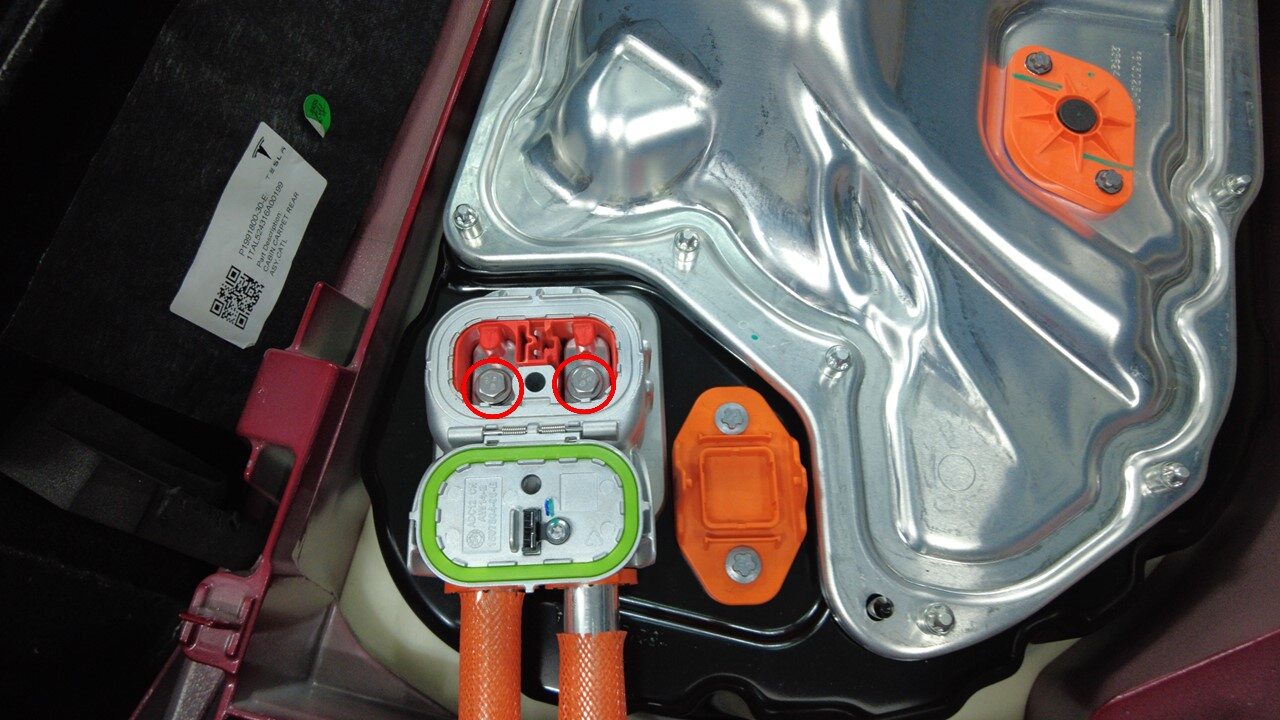

  44. Remove bolts securing charge port busbar kit to HV header
    注
    2x bolts, 10mm, 9 Nm

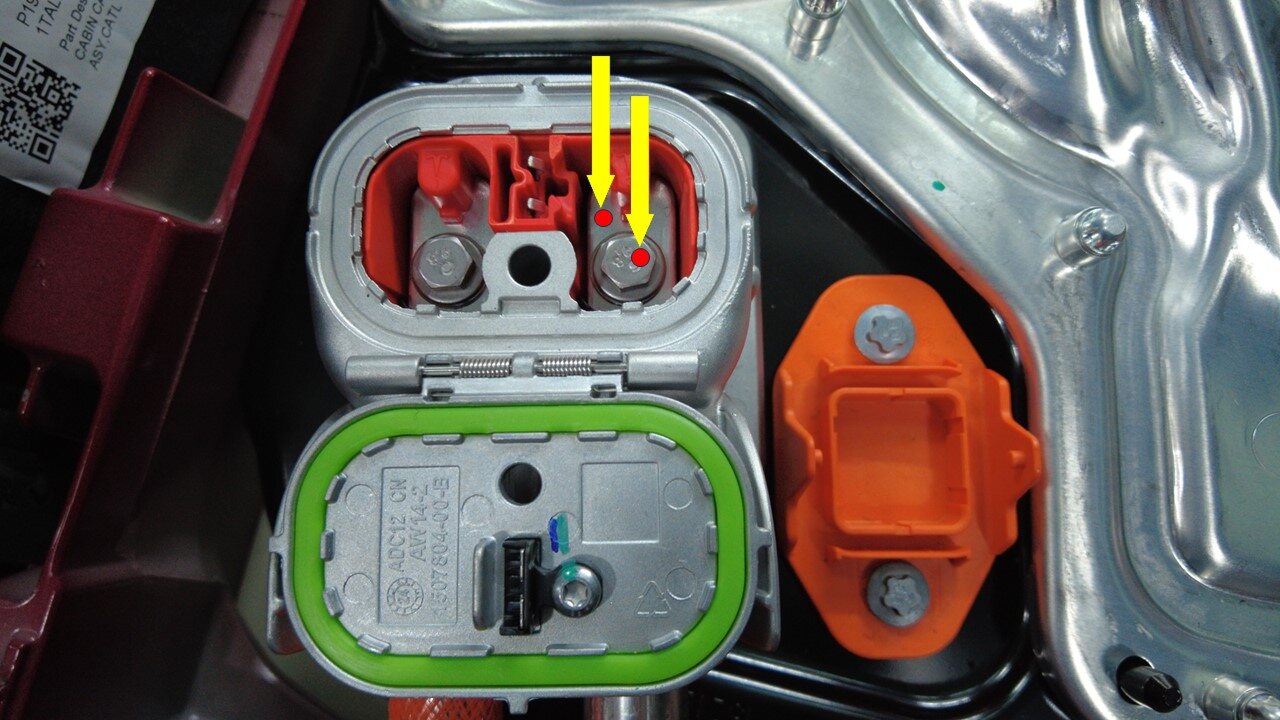

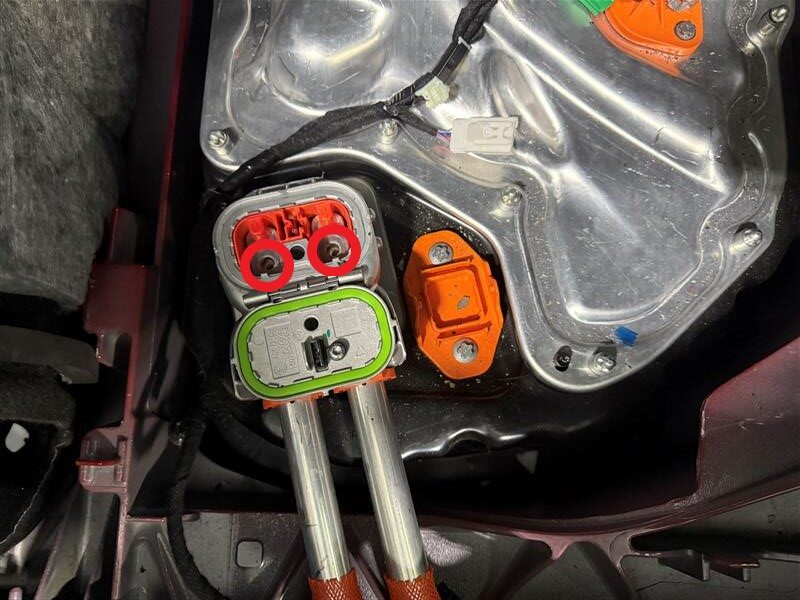

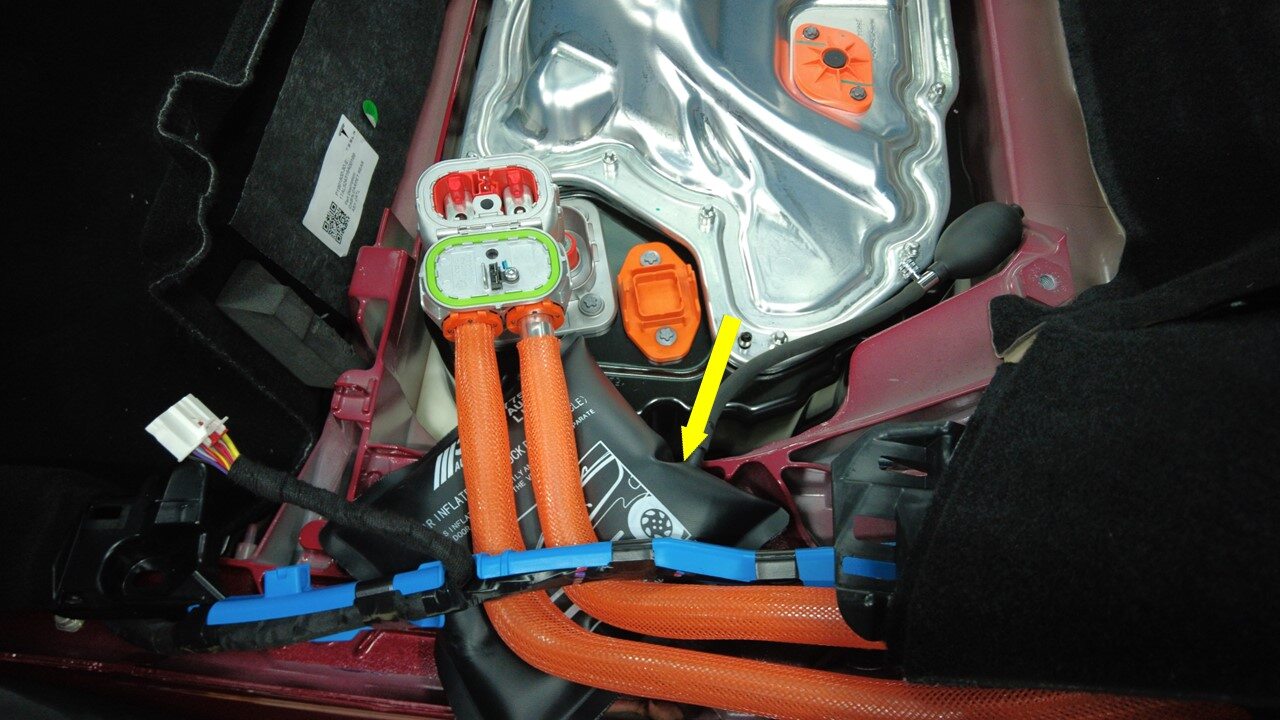

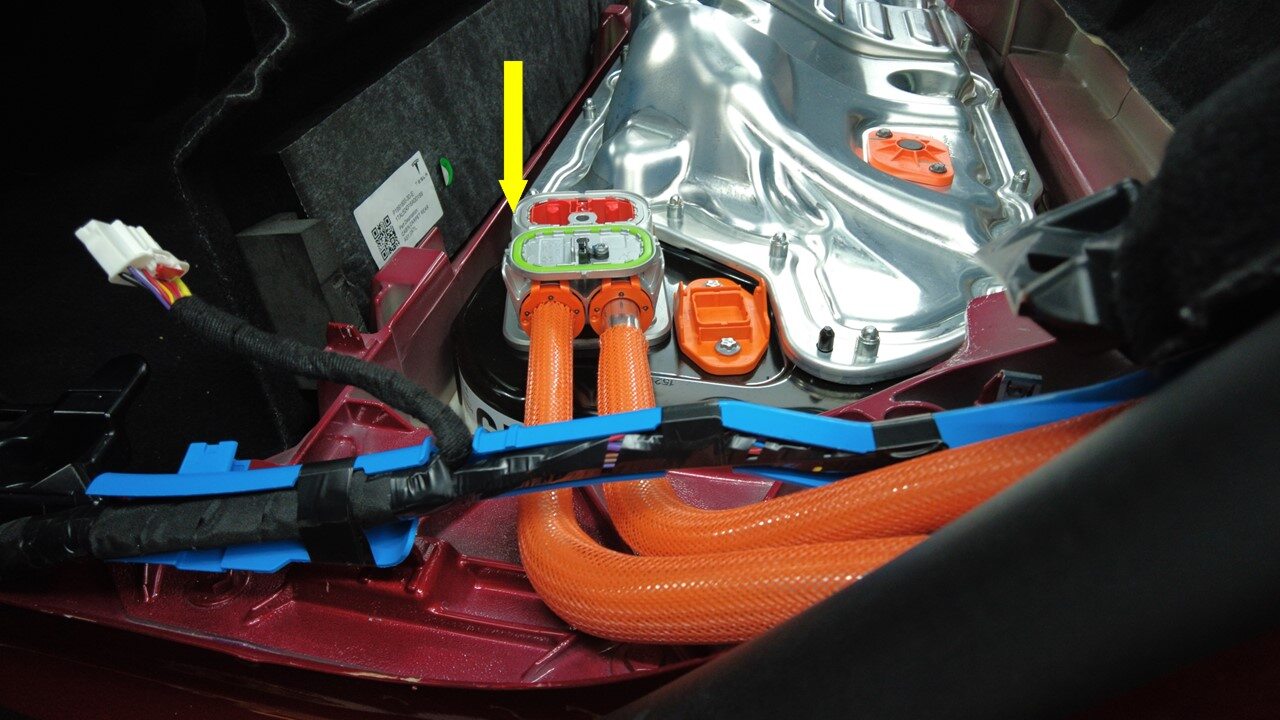

  45. Lift busbar kit connector to remove from HV header
    注
    Use inflatable air bag to suspend Busbar away from HV header during removal and installation, Hold busbar firmly as there is tension on, Avoid damaging the harness bracket
  46. Remove HV insulating gloves

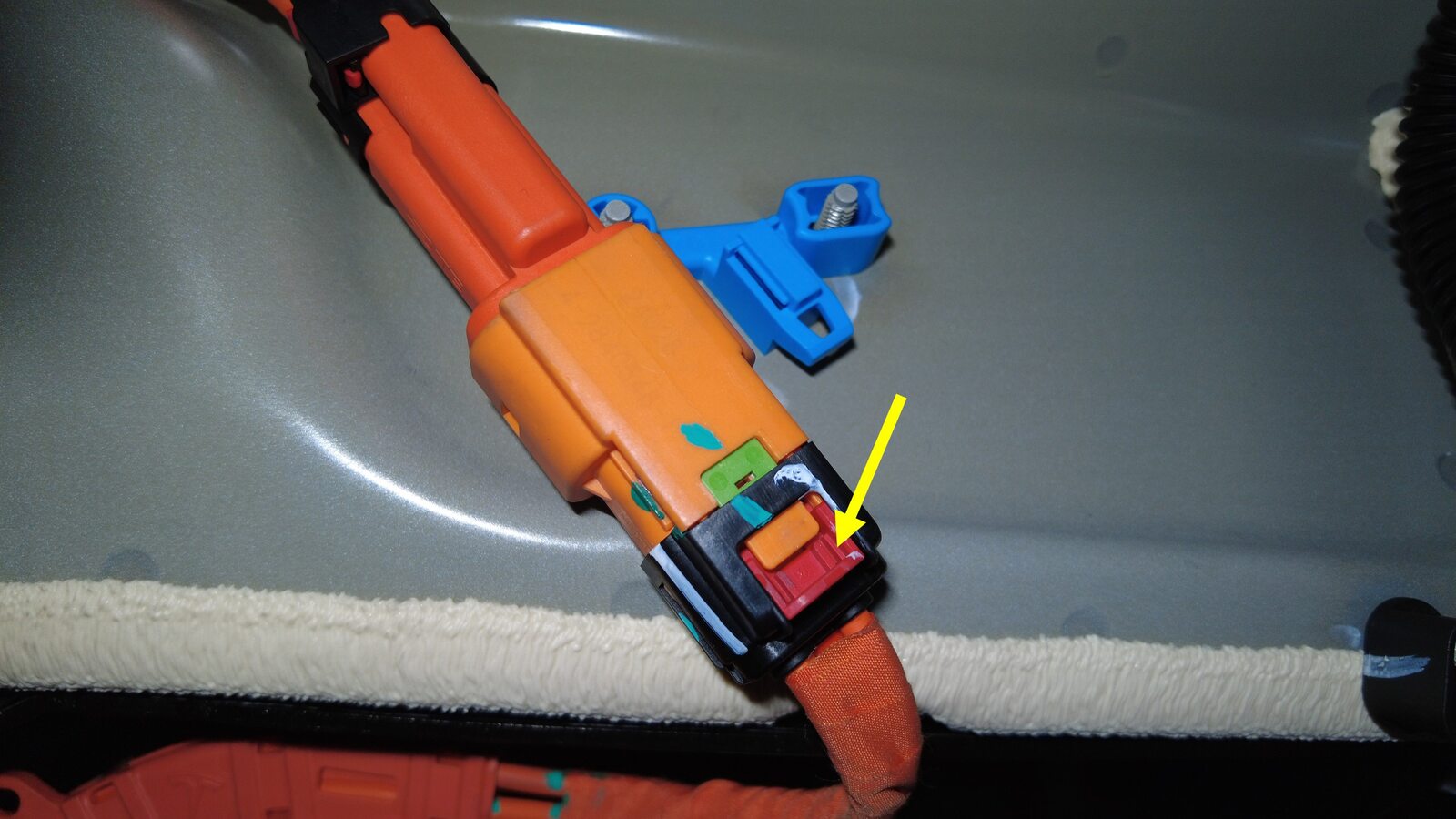

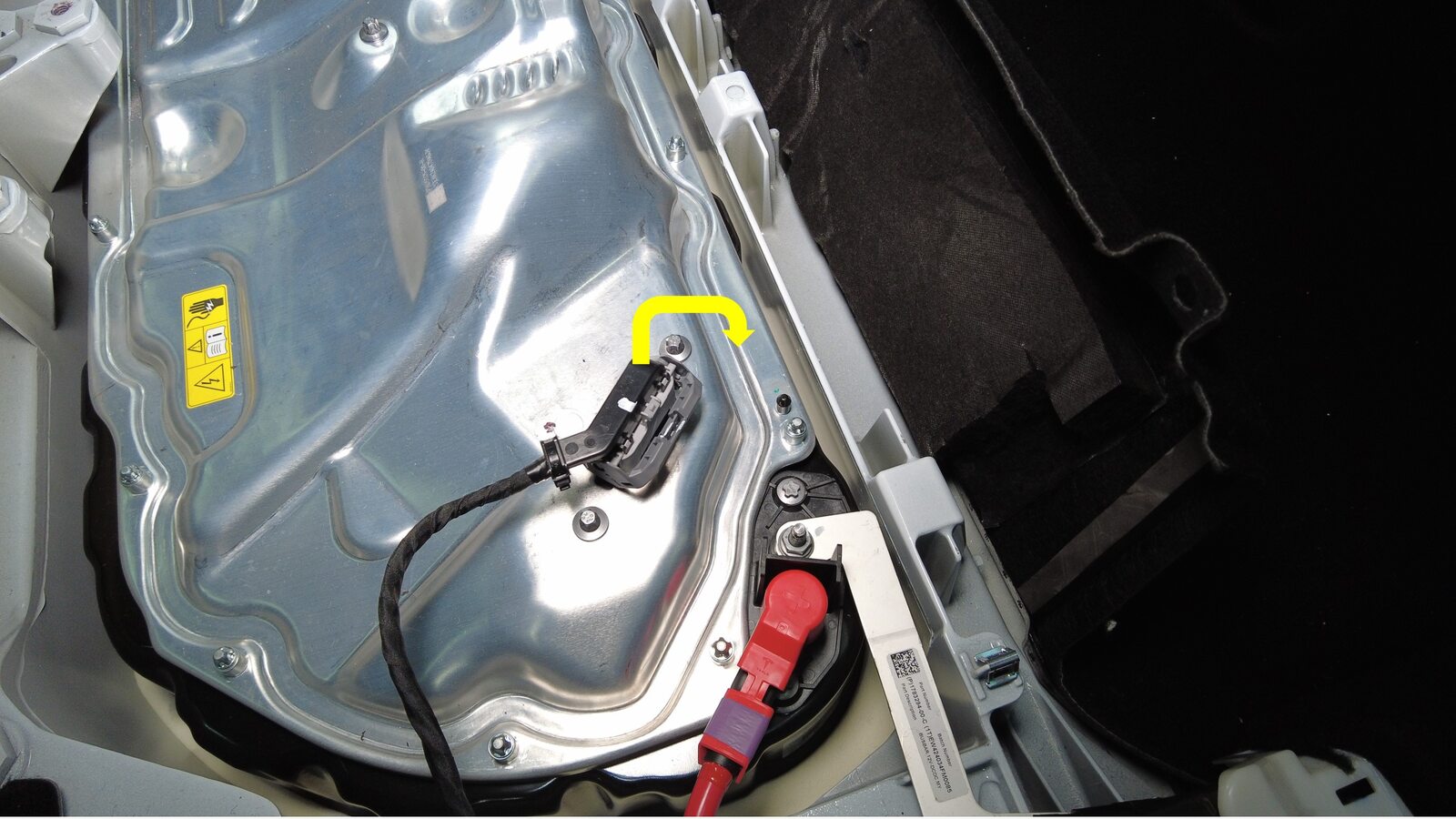

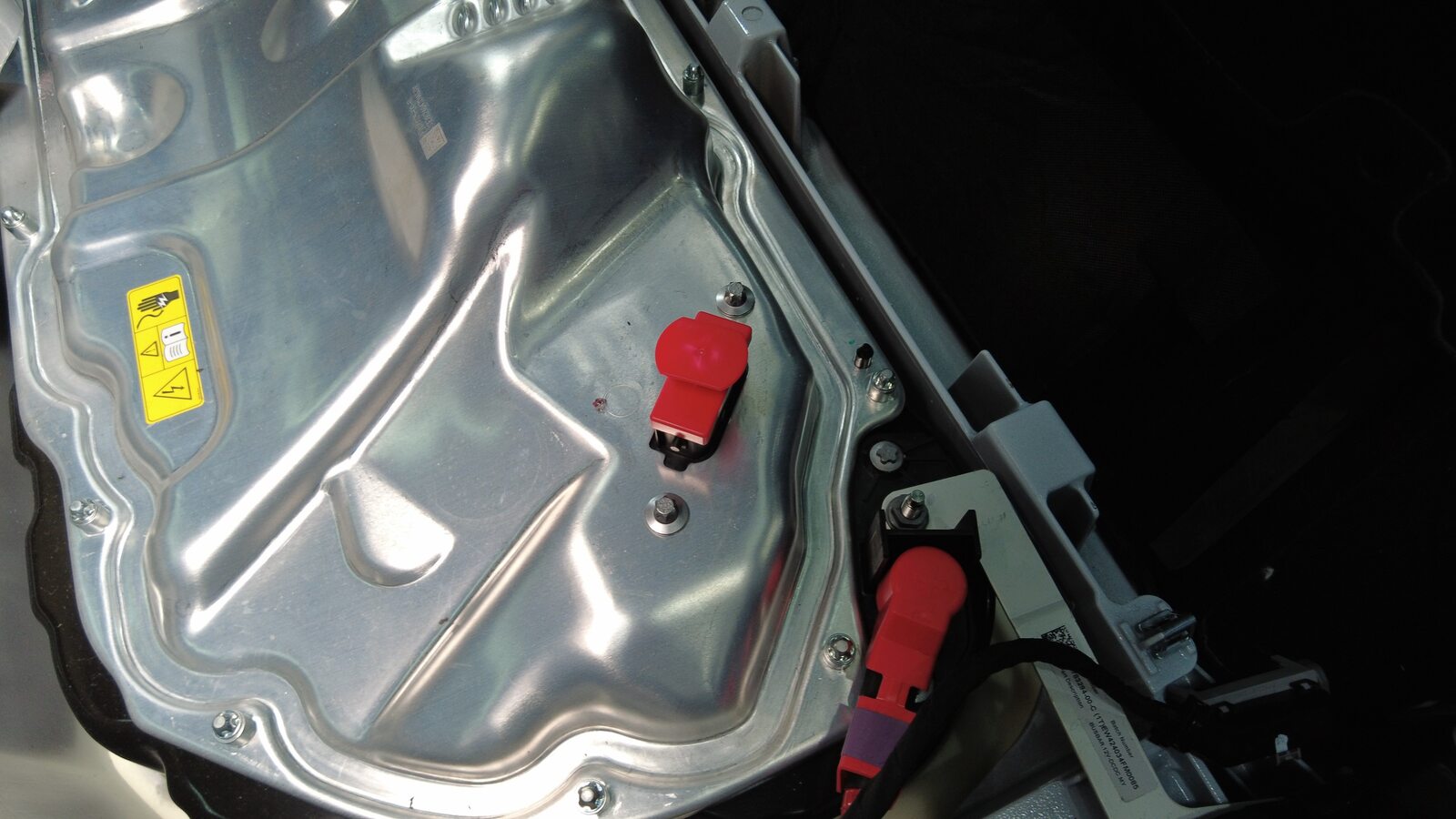

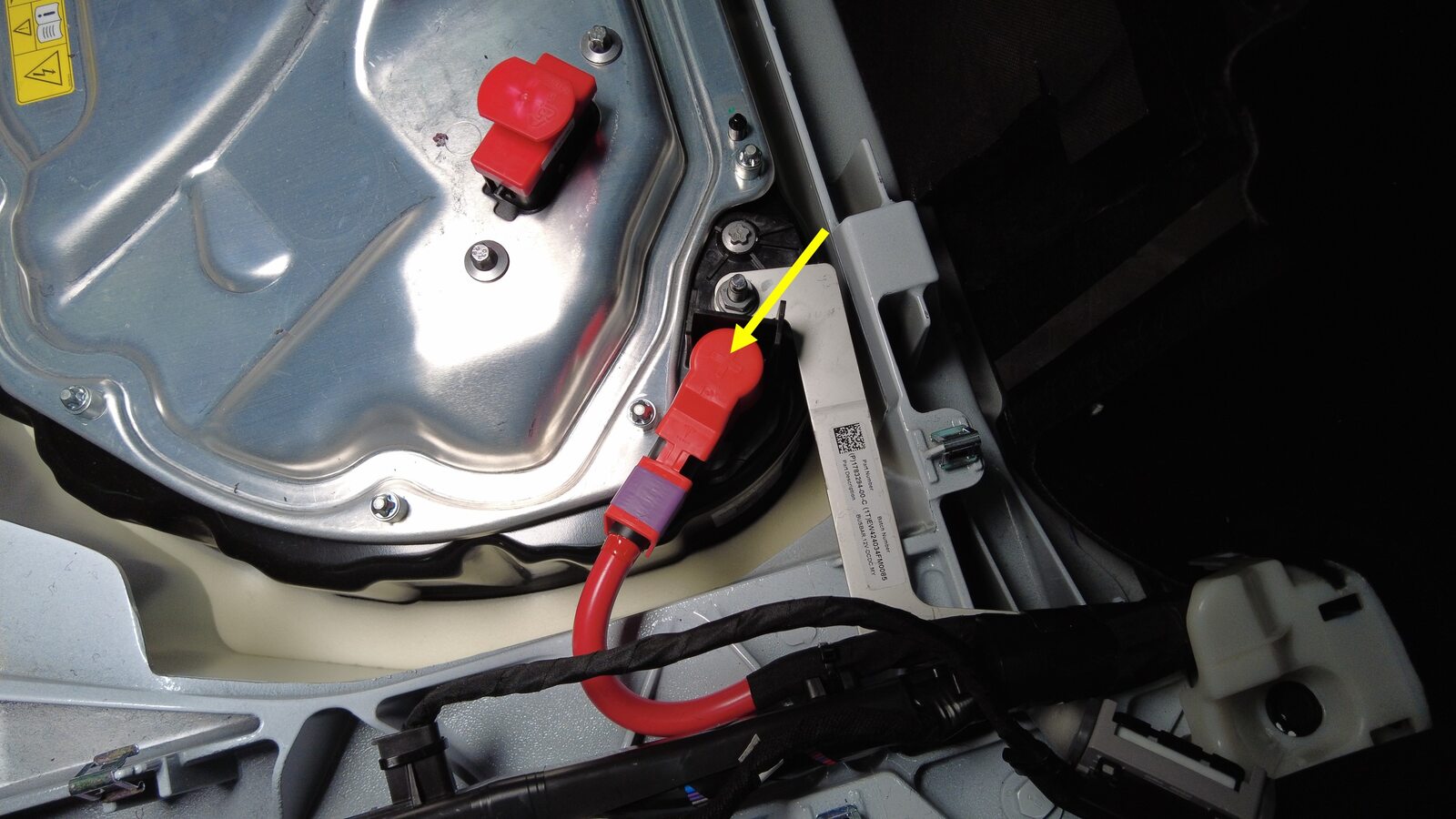

  47. Disconnect HVC logic connector and install logic cap
    注
    1x connector, 1x cap, Release locking tab then push the handle downward to release connector

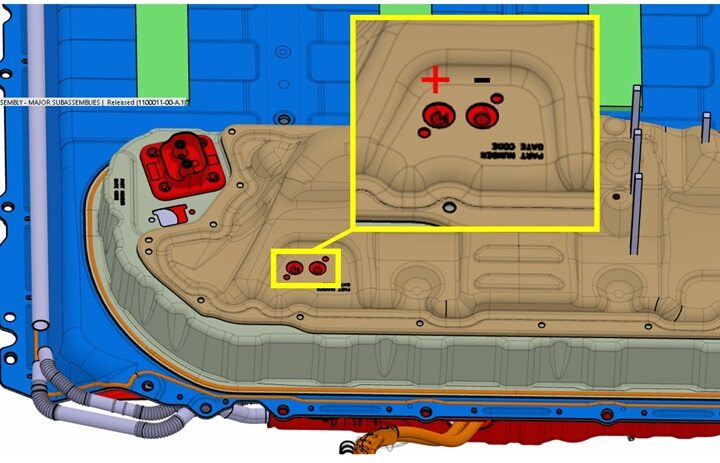

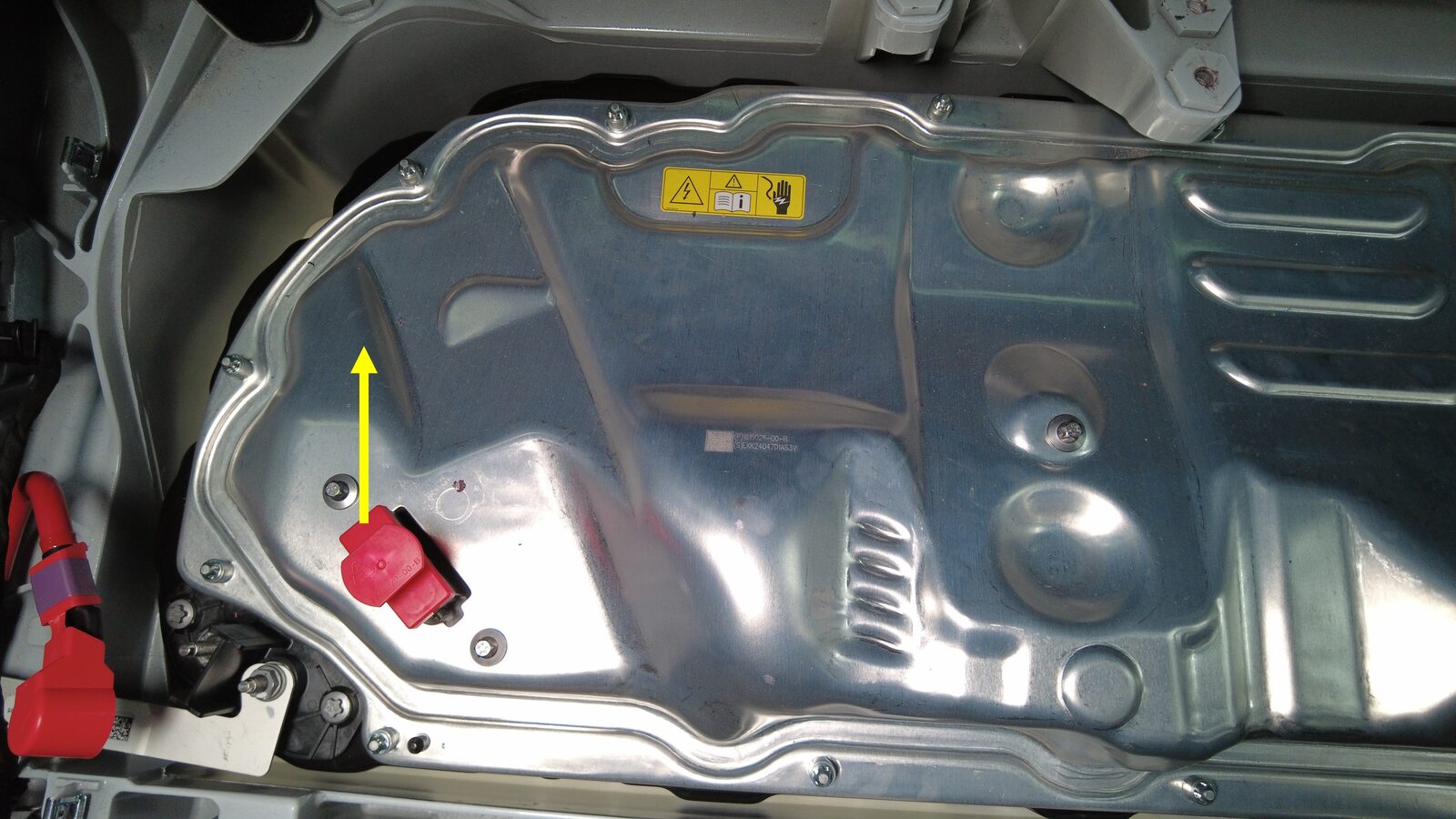

  48. Release positive 12V output cover from PCS cable
    注
    1x cover

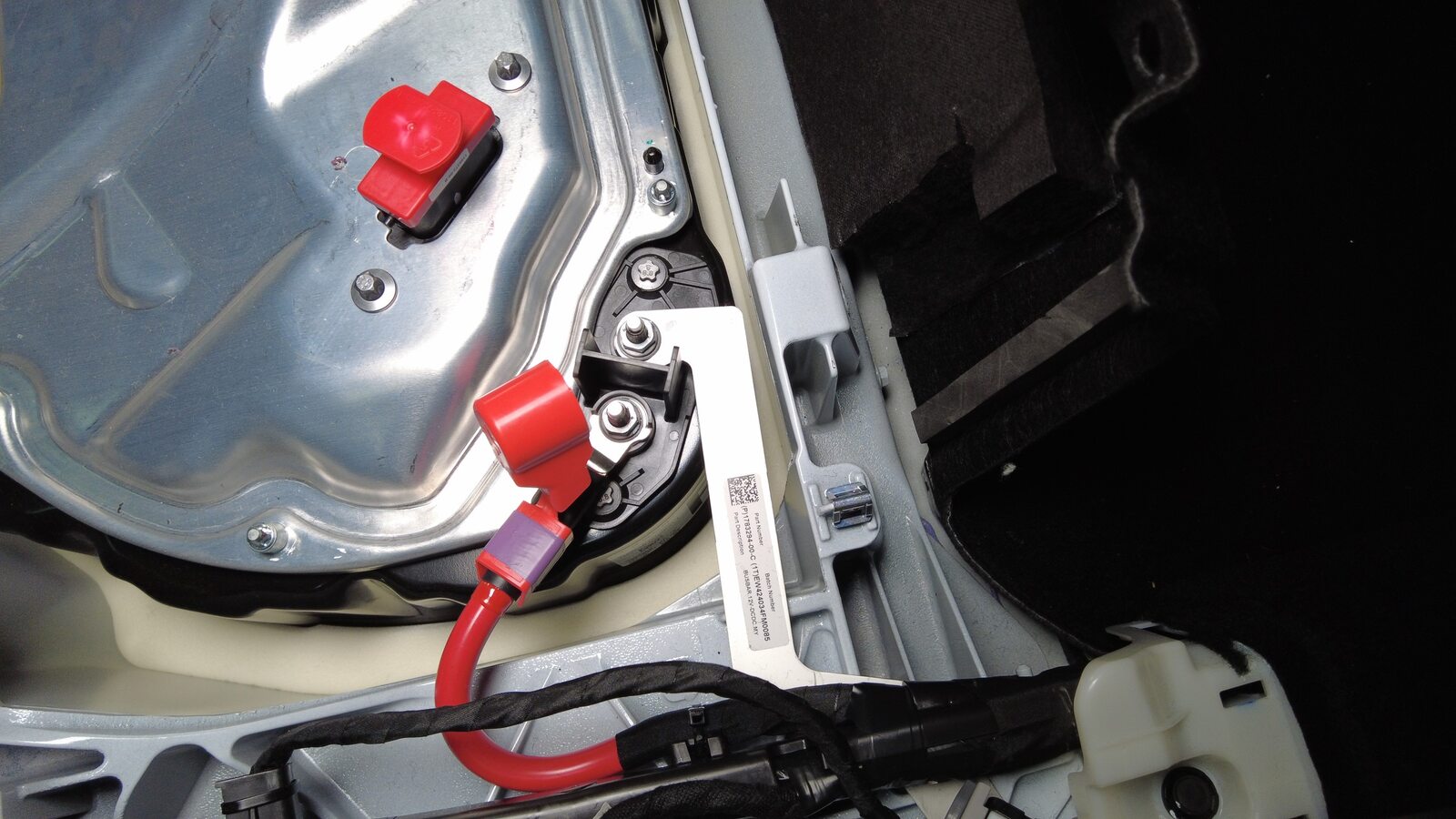

  49. Remove PCS cable from 12V passthrough output
    注
    1x nut, 13mm, 9 Nm, Discard nut after removal

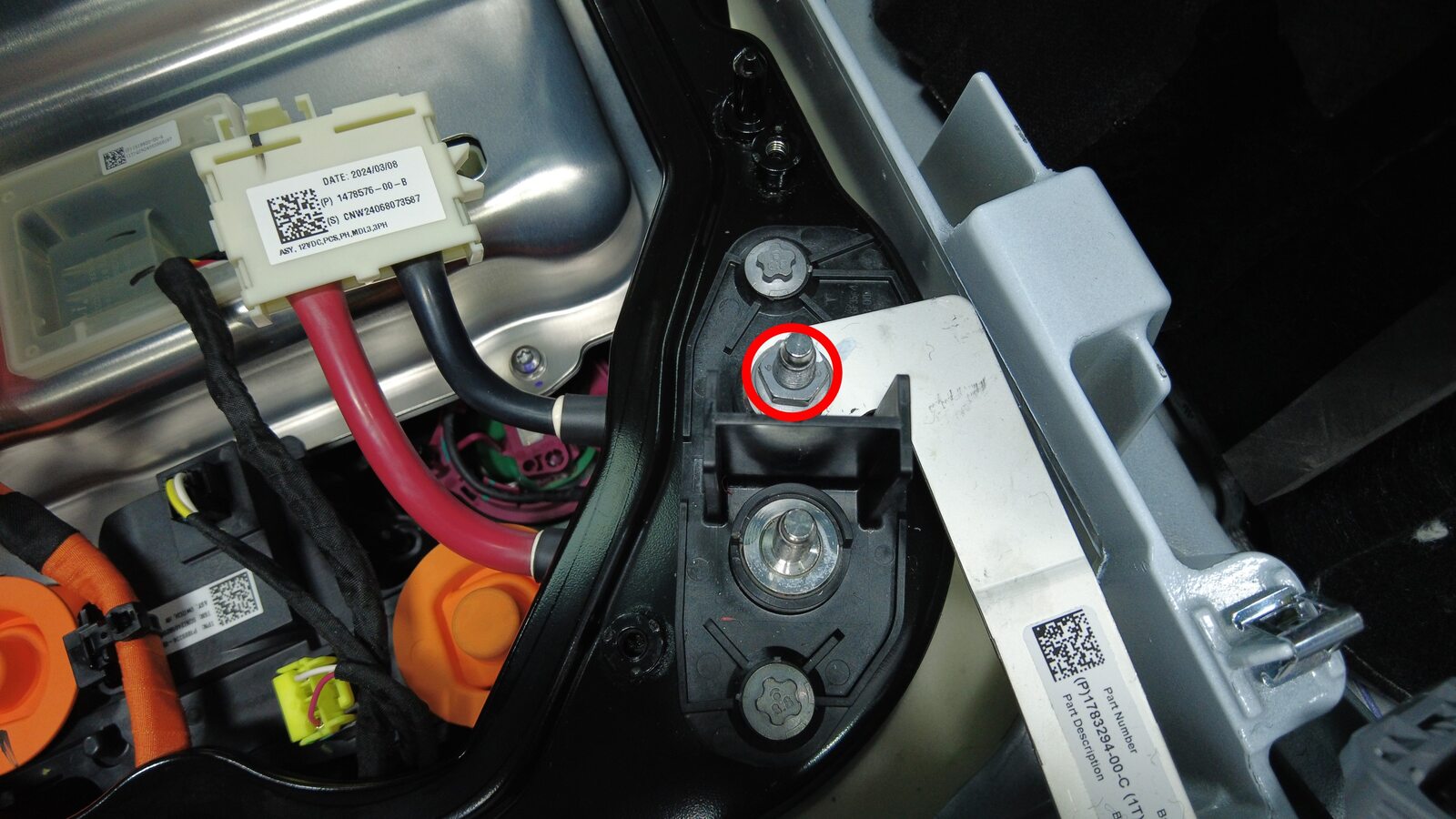

  50. Remove nut securing DCDC ground busbar to HV battery
    注
    1x nyloc nut, 13mm, 9 Nm, Discard nut after removal

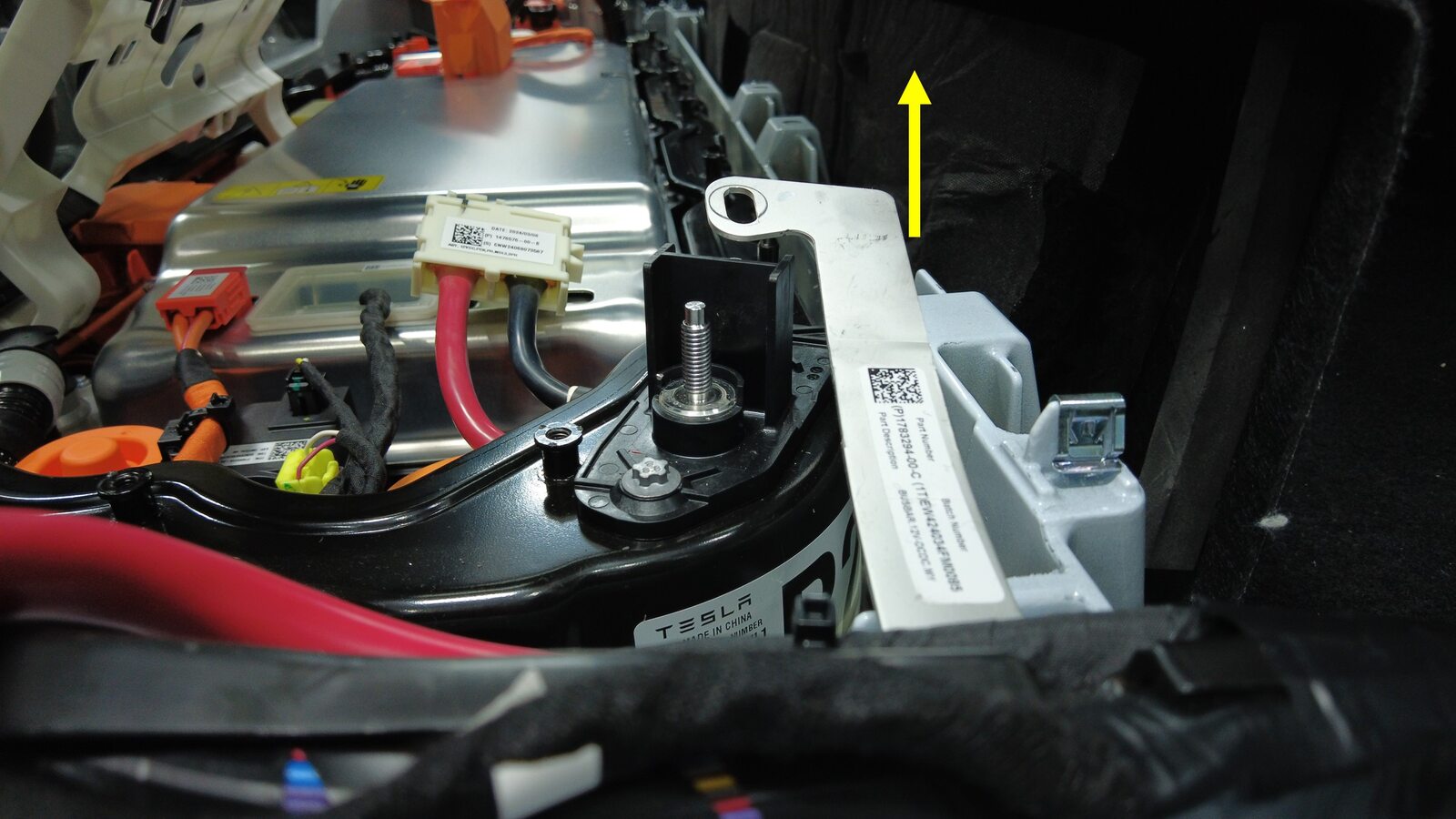

  51. Gently lift the DCDC ground busbar upwards

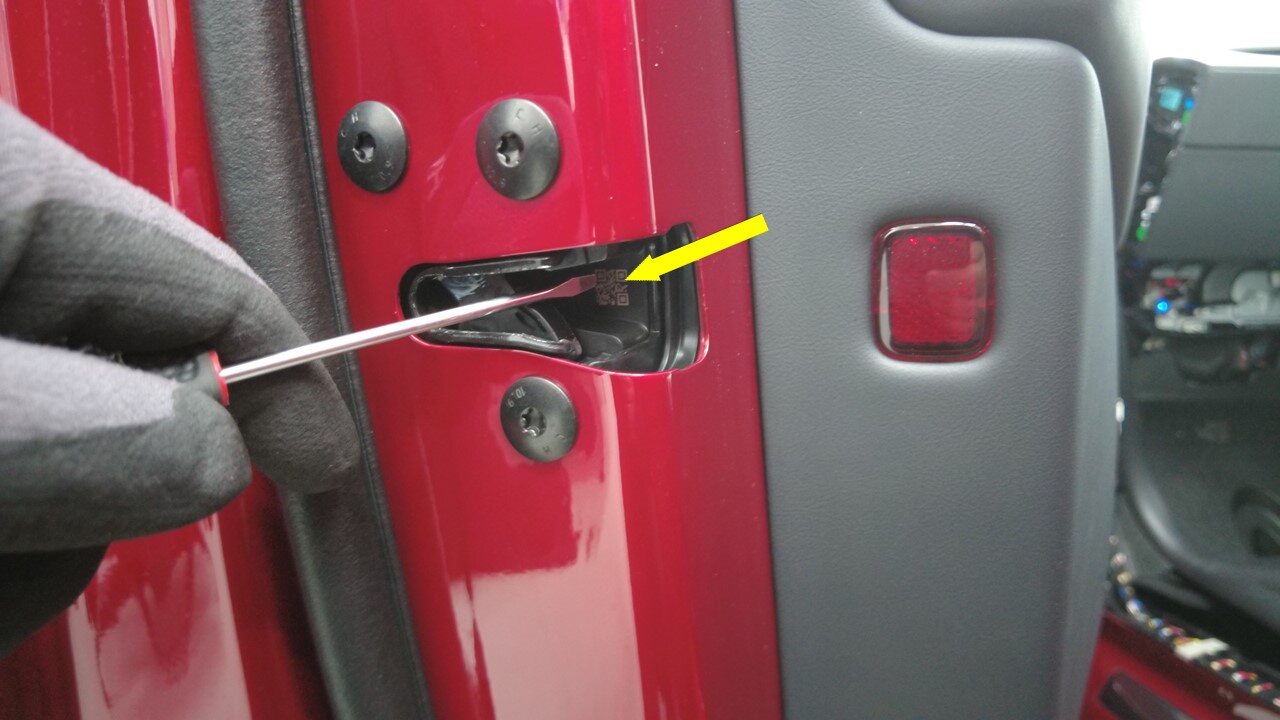

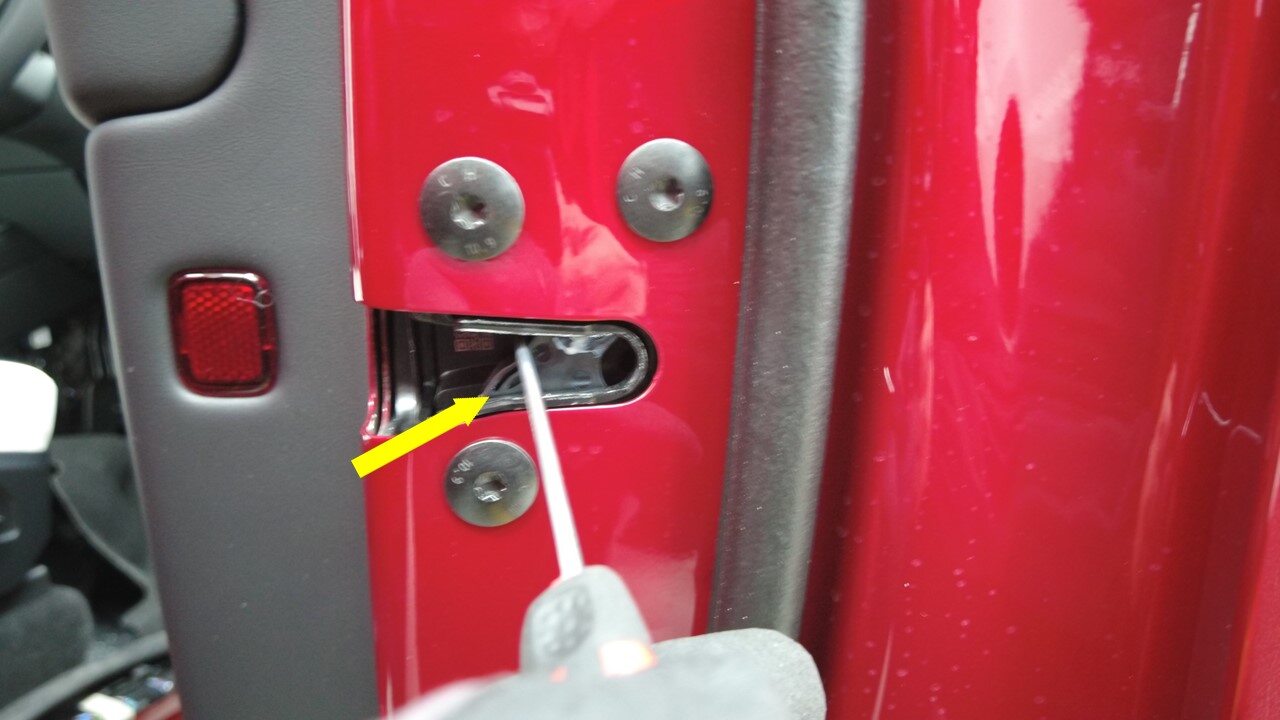

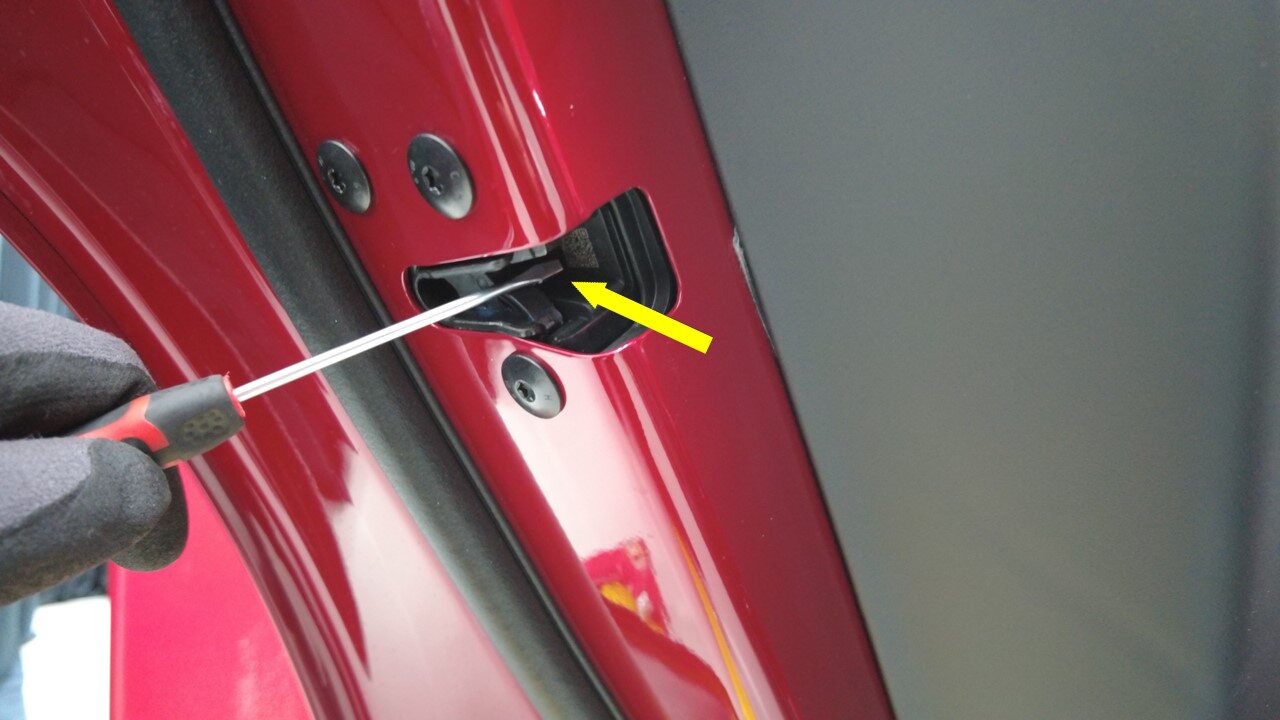

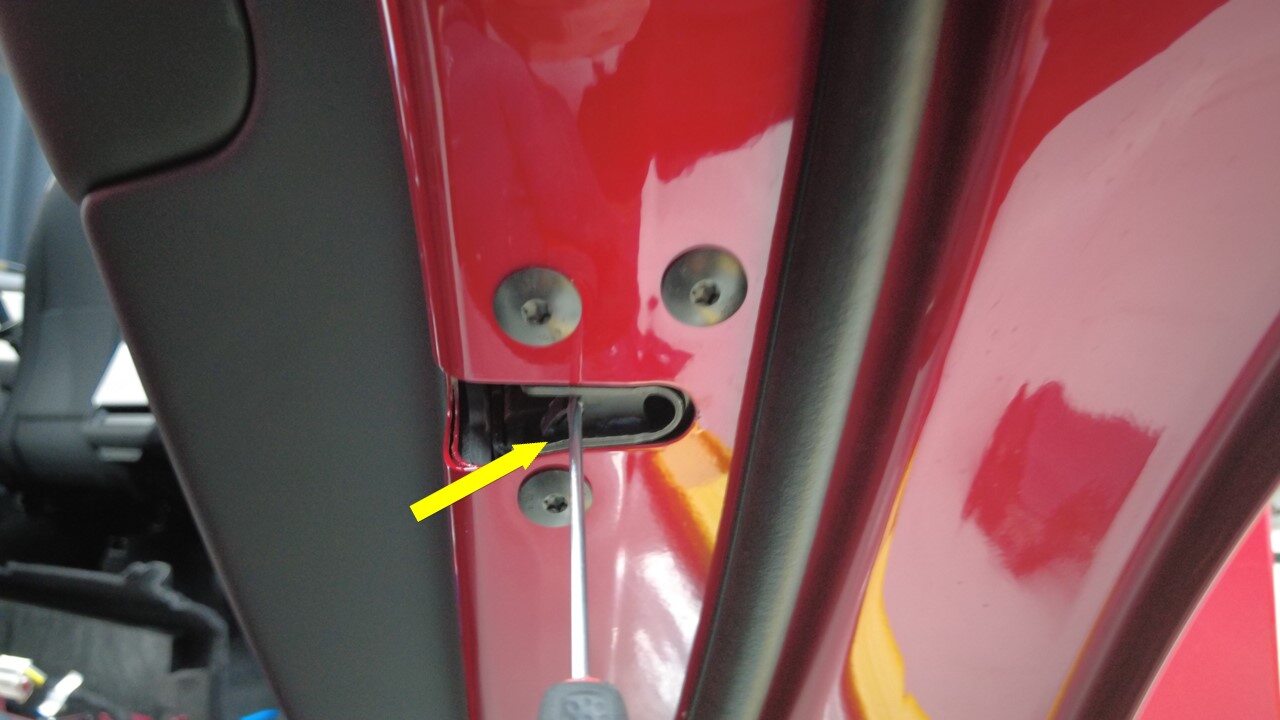

  52. Close LH front door latch
  53. Close LH rear door latch manually
  54. Close RH front door latch
  55. Close RH rear door latch manually
  56. Close all four doors
  57. Raise and support vehicle
    注
    Recommended assistance, Before lifting, Ensure that the vehicle is not connected to a charging device, The positioning pin must be inserted into the car body holes
  58. Remove the front aero shield panel. See 流线型护板 - 前底板 ((拆卸和更换)).

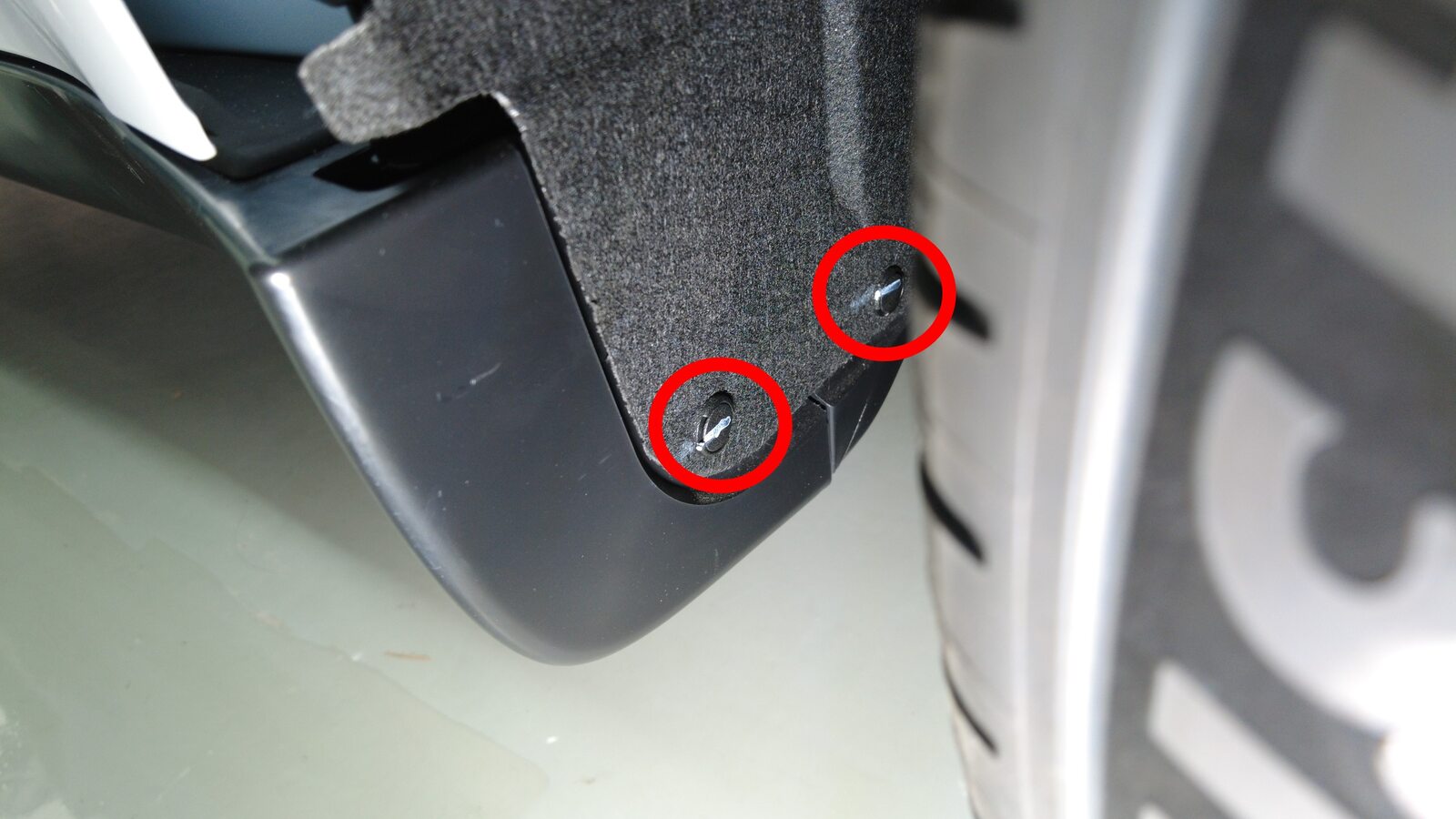

  59. Release LH front wheel liner from skid plate
    注
    1x bolt, 10mm, 5 Nm

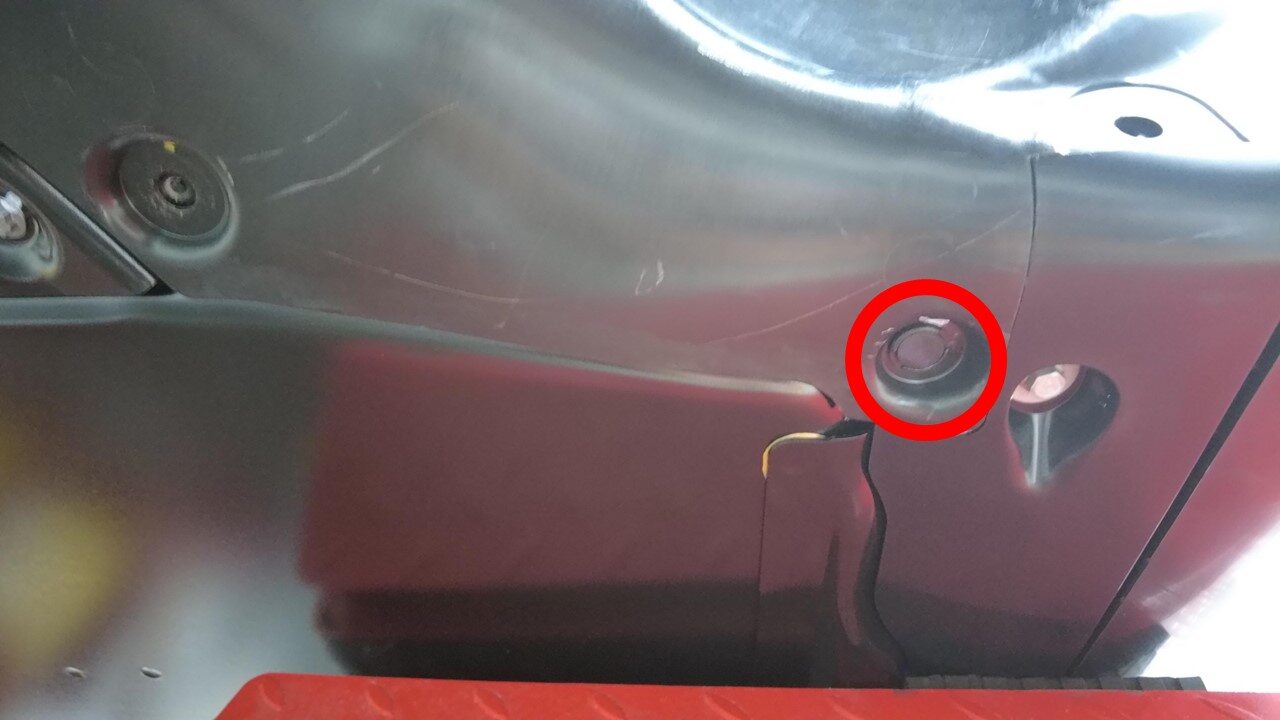

  60. Remove clip securing LH wheel liner to body
    注
    1x push clip

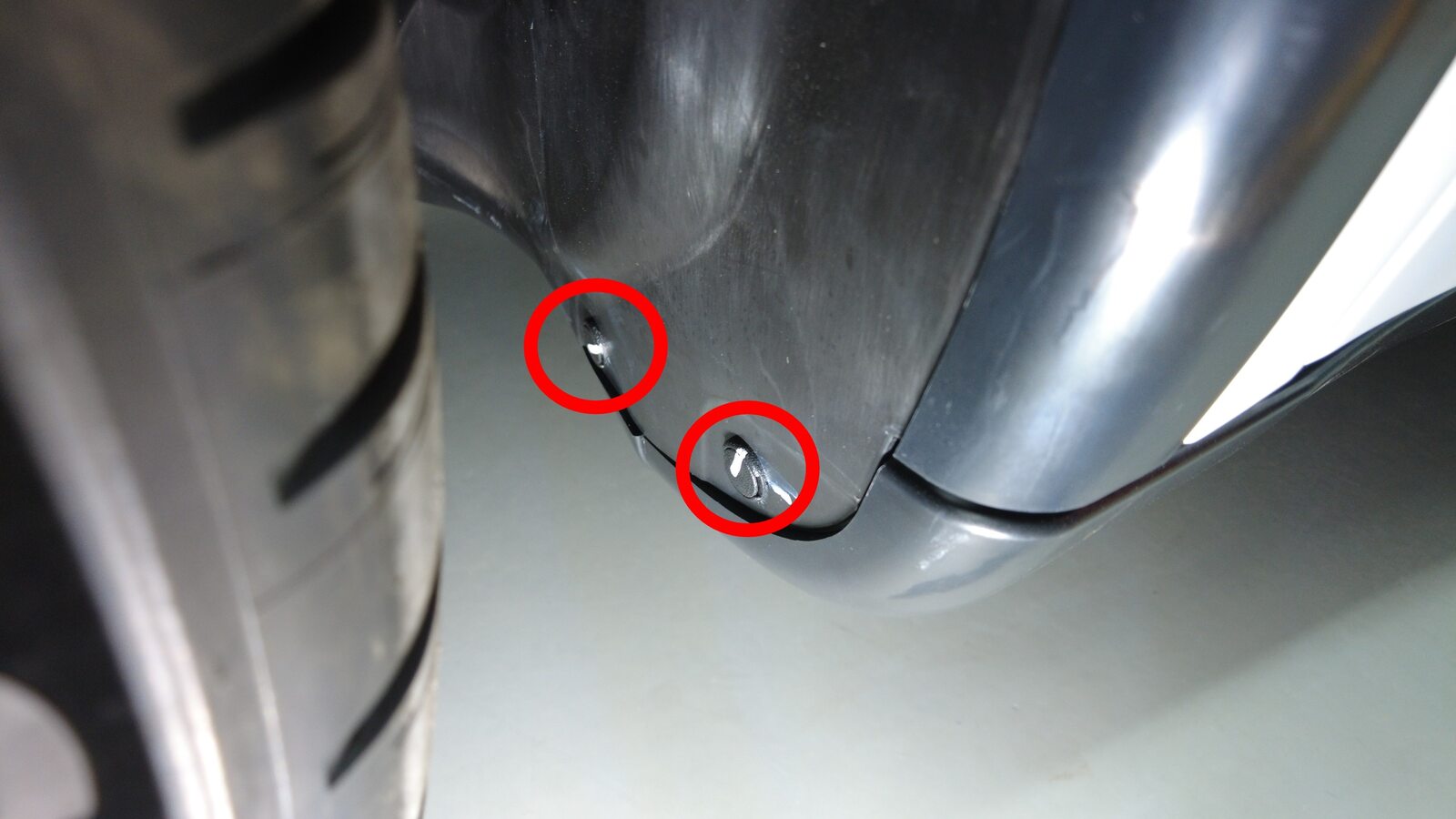

  61. Release RH front wheel liner from skid plate
    注
    1x bolt, 10mm, 5 Nm
  62. Remove clip securing RH wheel liner to body
    注
    1x push clip

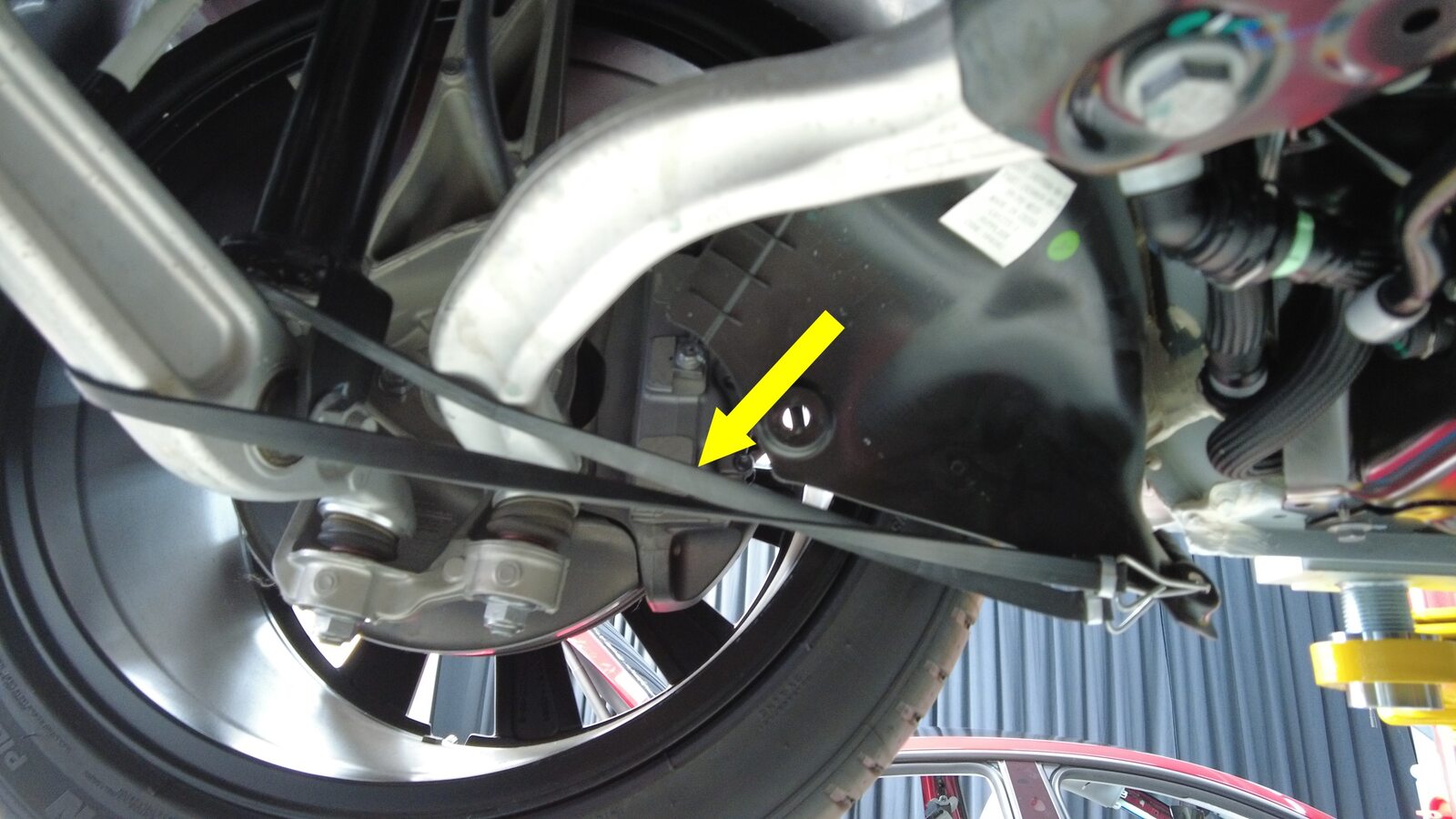

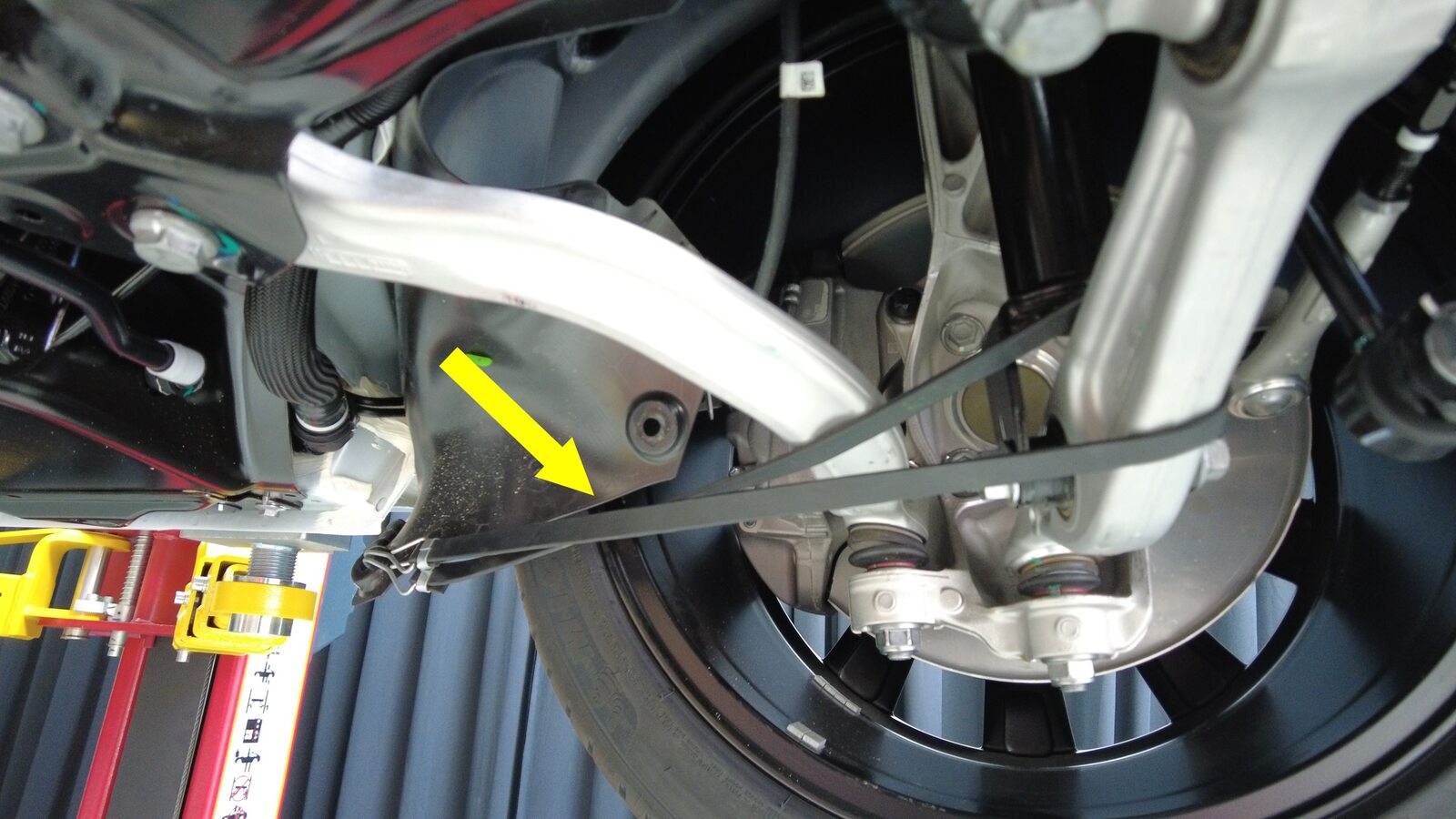

  63. Use bungee strap to pull back LH front wheel liner
    注
    Secure to subframe
  64. Use bungee strap to pull back RH front wheel liner
    注
    Secure to subframe

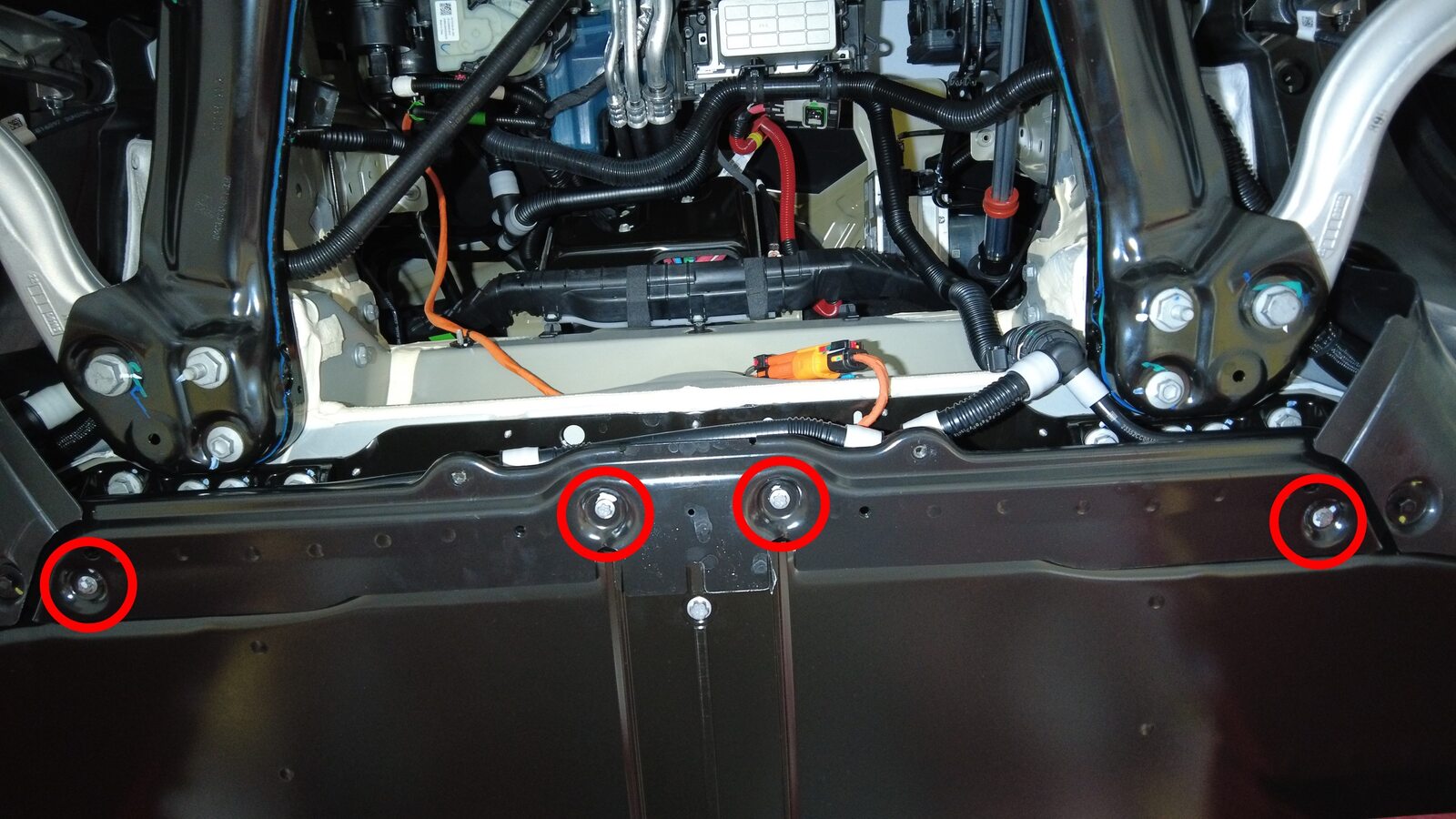

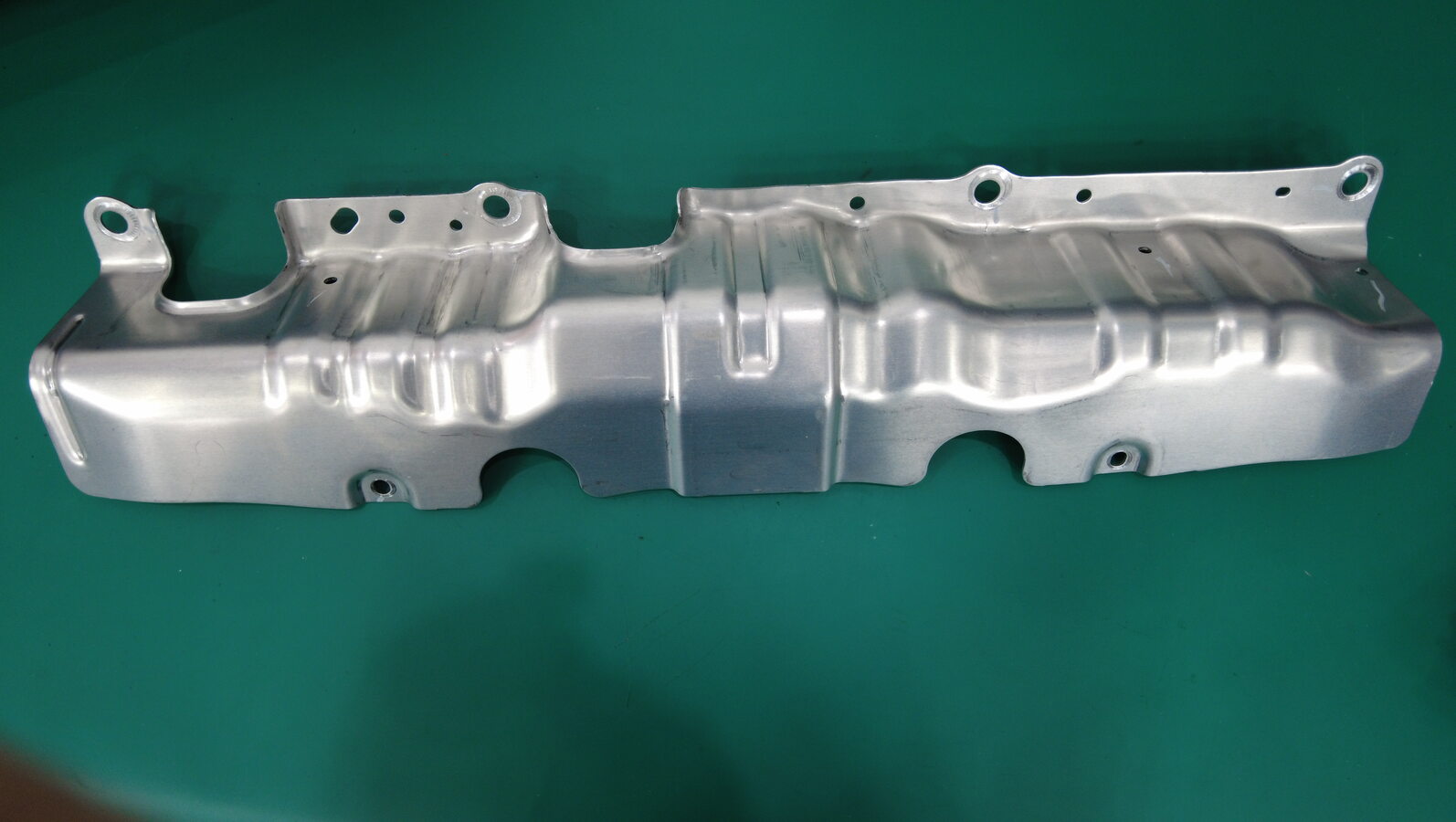

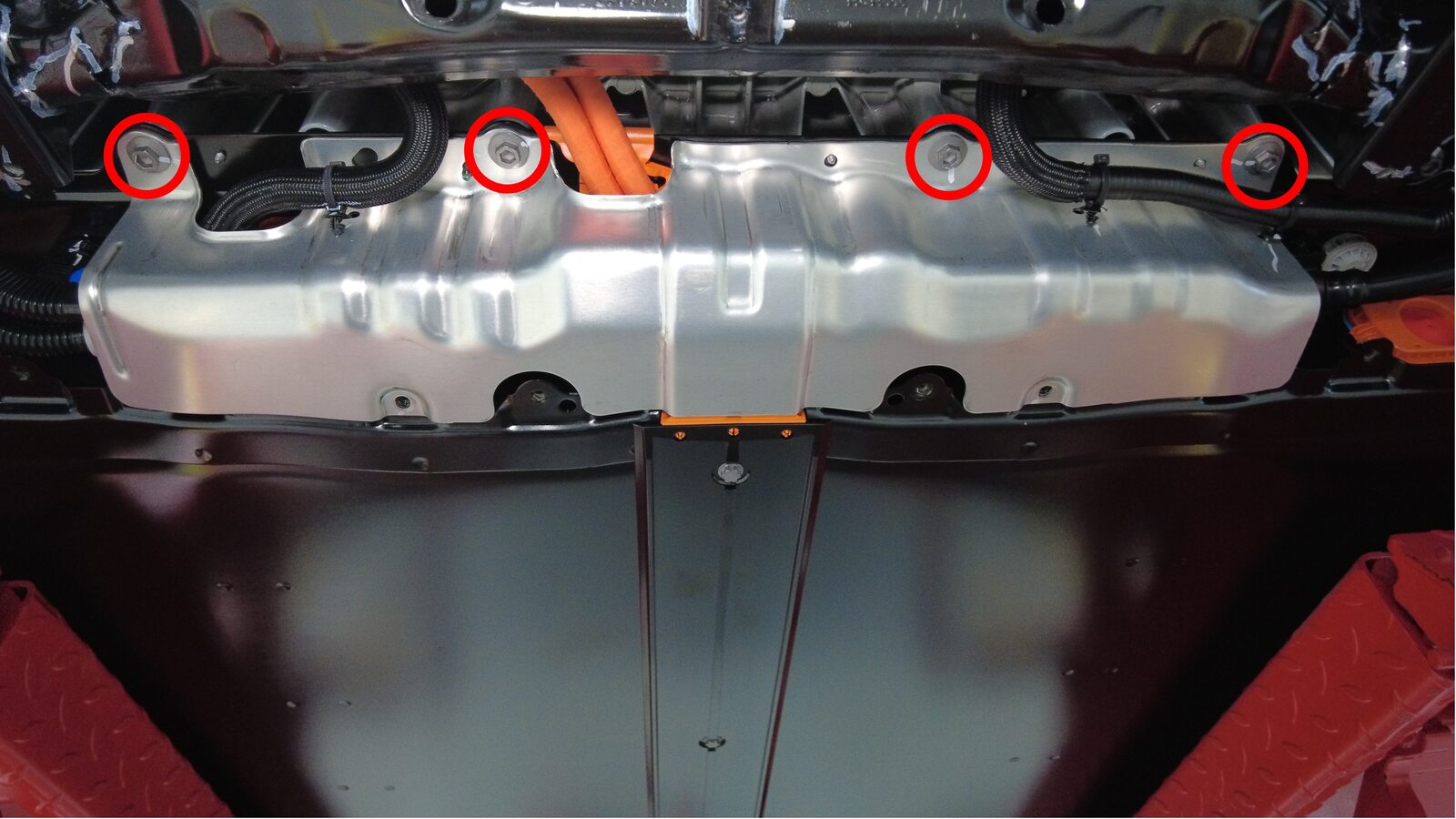

  65. Remove front skid plate
    注
    4x bolts, EP10, 13 Nm, 2x tabs, Move forward to remove
  66. Inspect HV insulating gloves
    注
    Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC
  67. Put on HV insulating gloves and leather over gloves

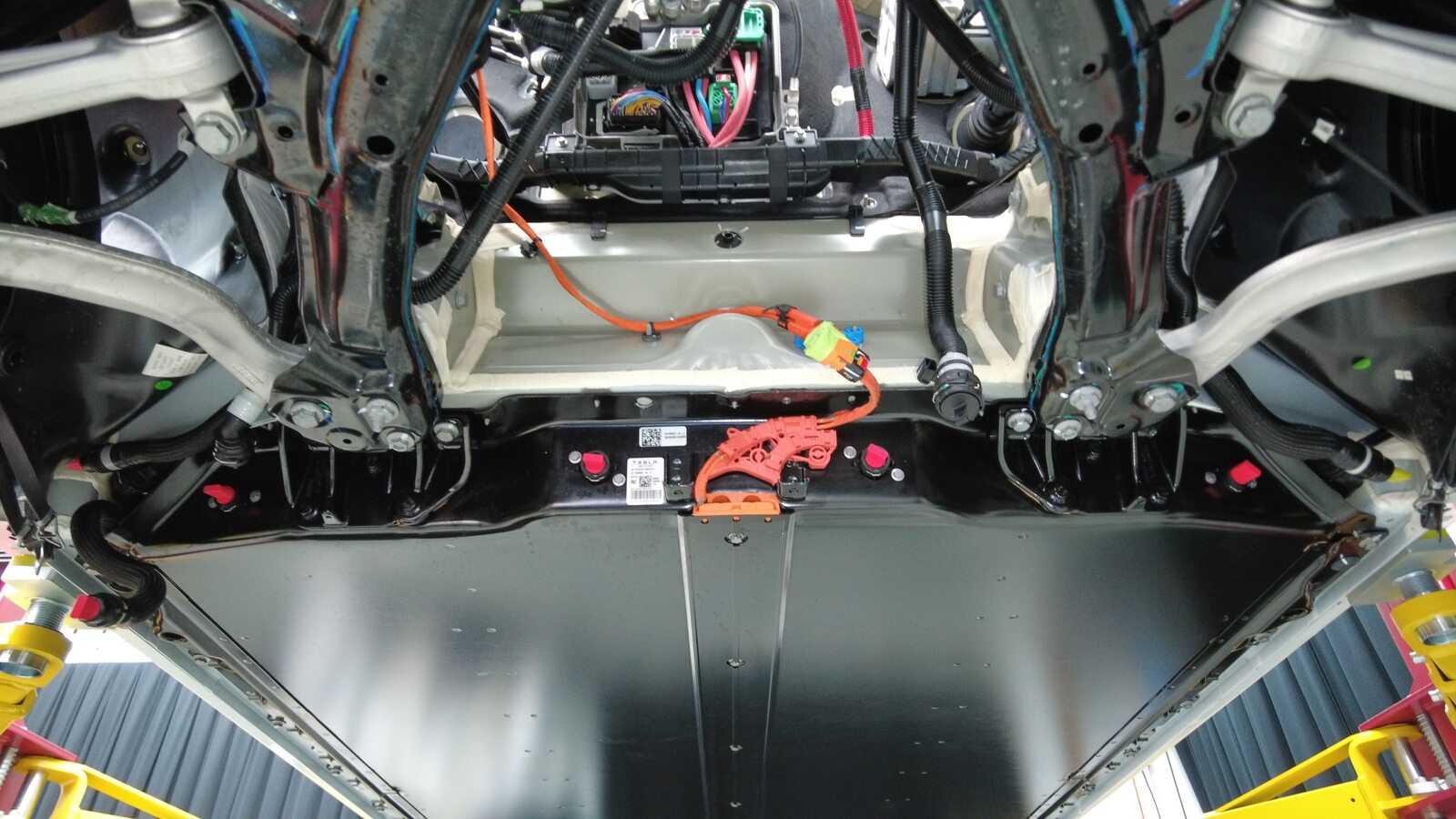

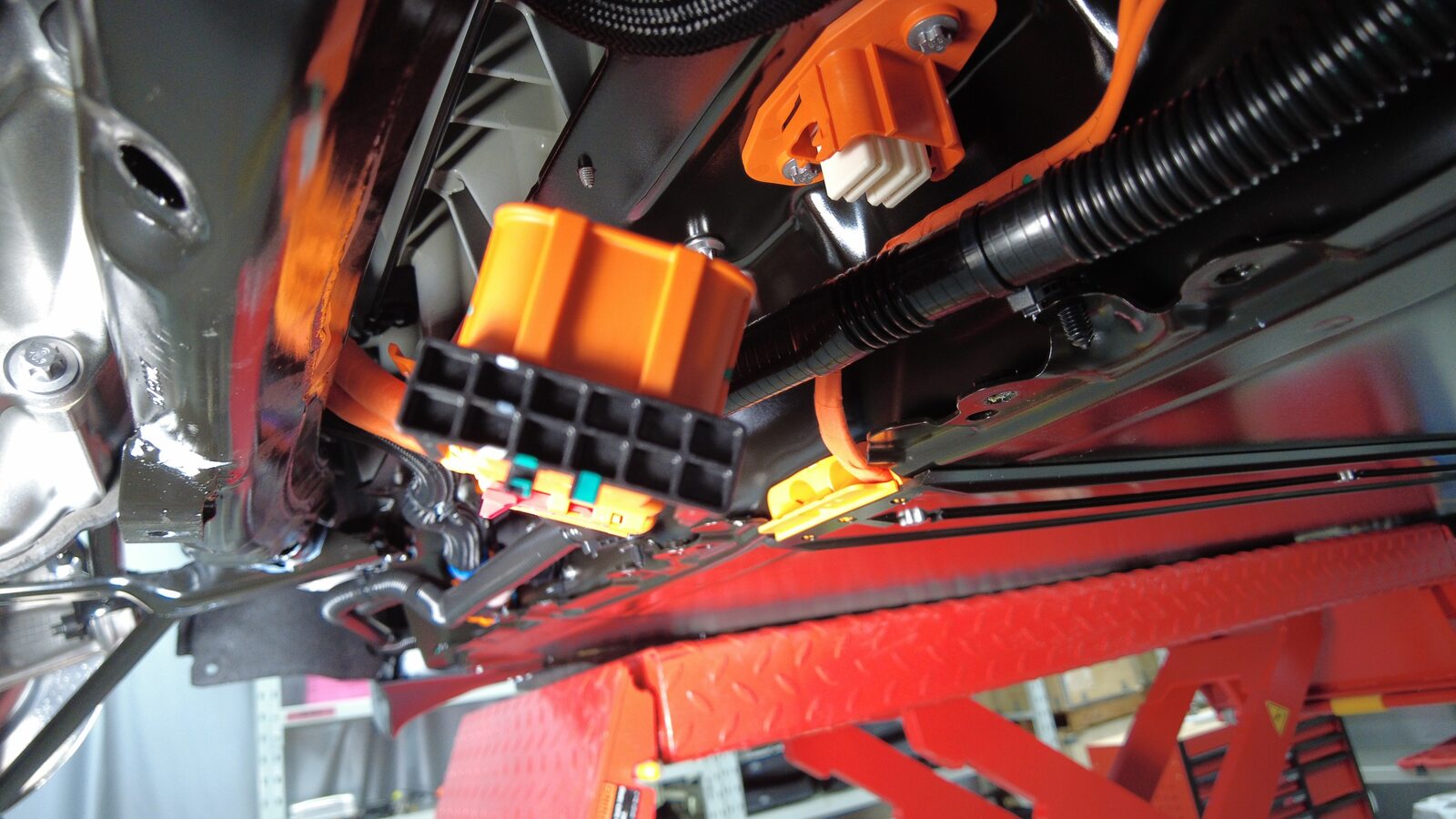

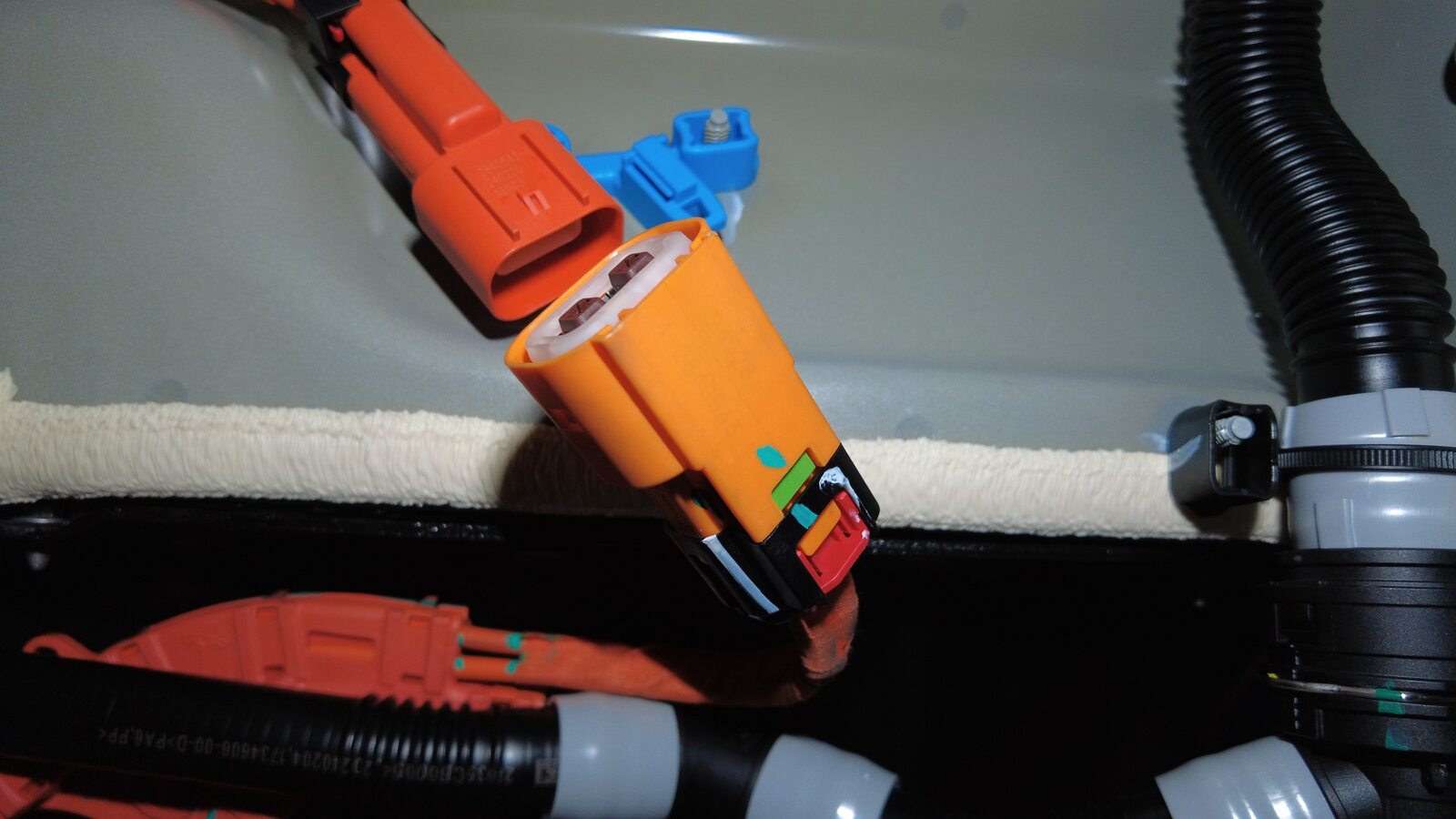

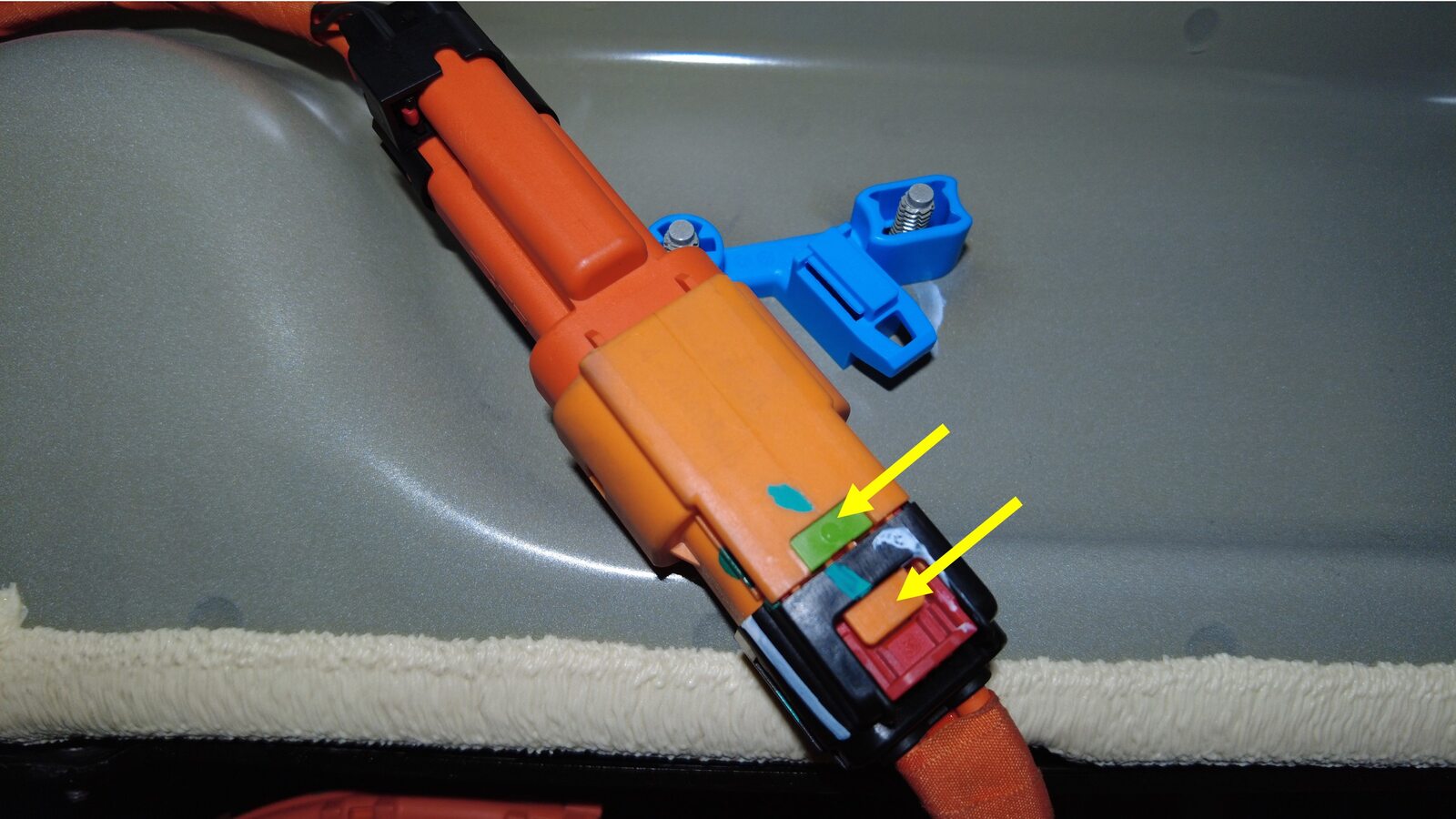

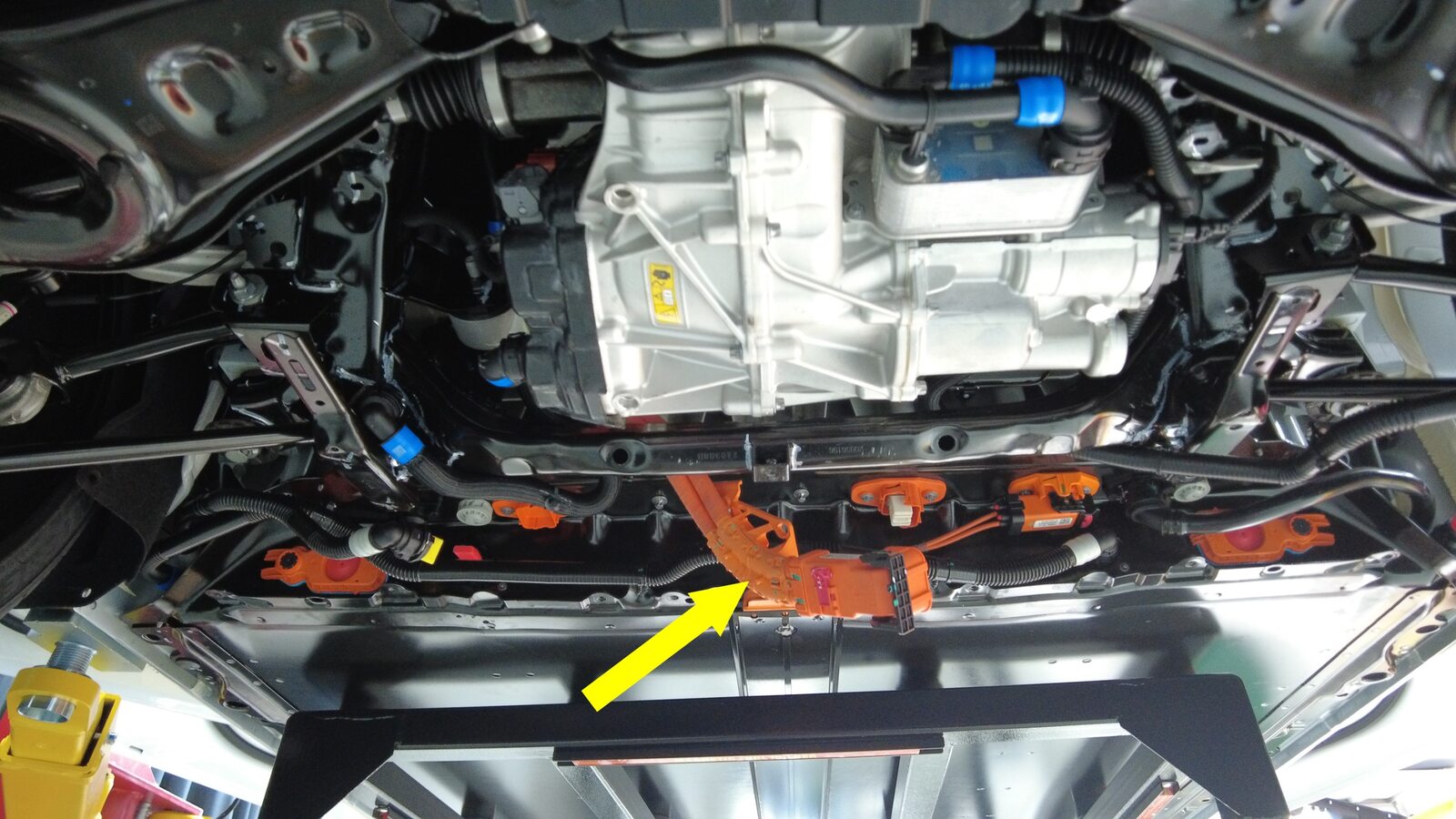

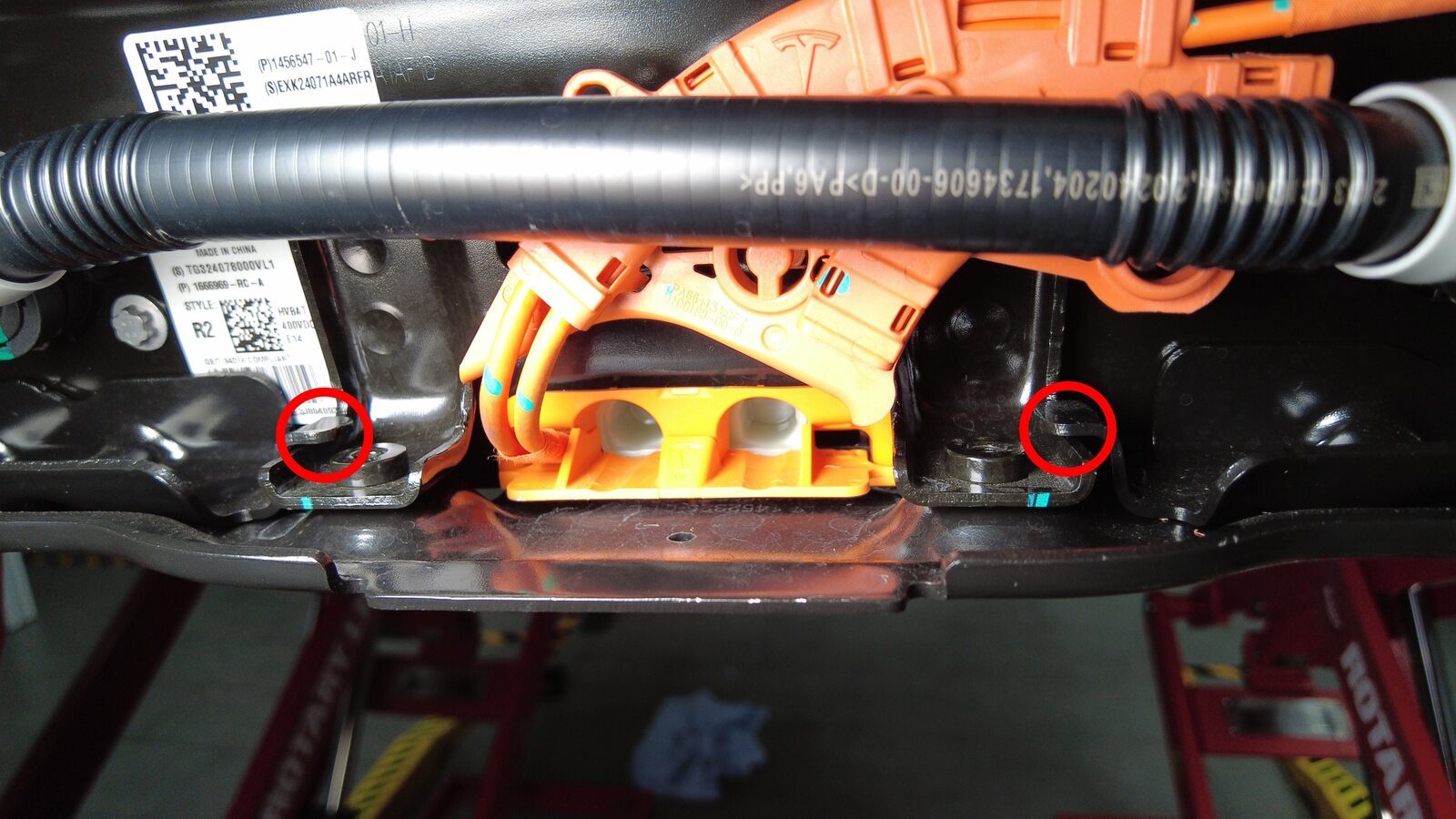

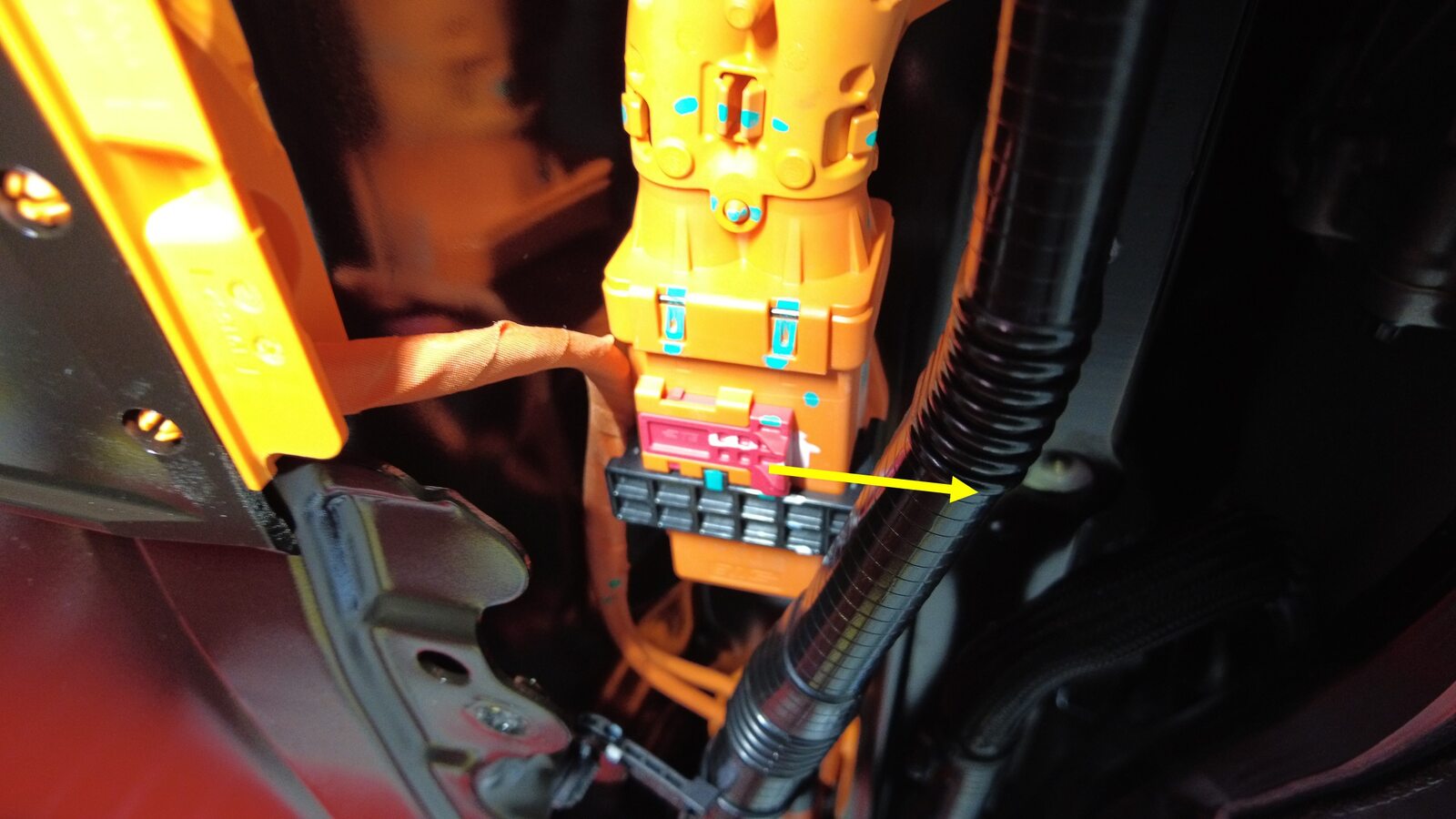

  68. Disconnect AC compressor HV harness connector from HV Ancillary harness
    注
    1x locking connector, 3 stage locking connectors, Disengage the red locking tab by pulling it away from the connector, Depress yellow tab and pull the connector backward then depress the green tab to release
  69. Remove HV insulating gloves

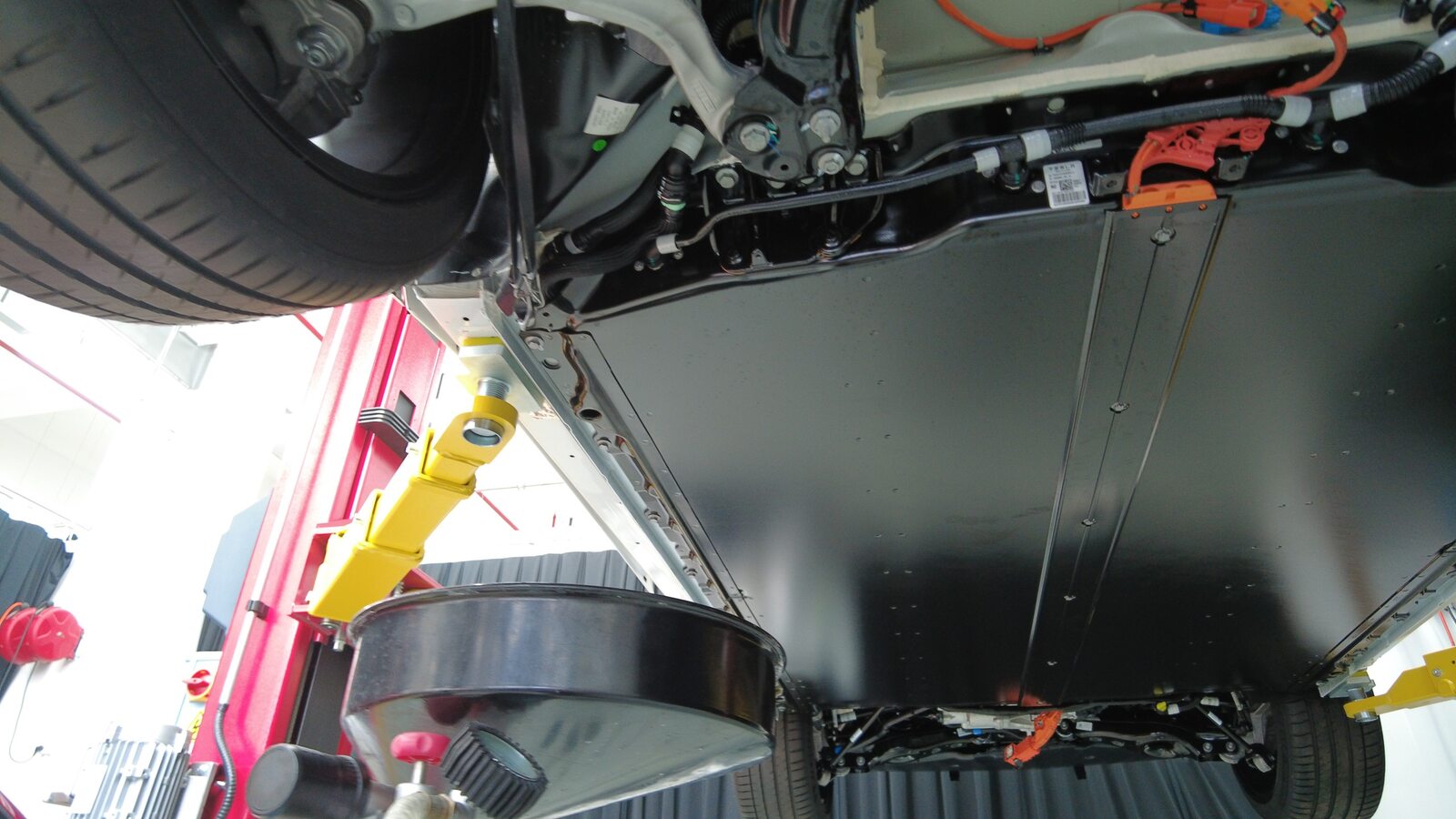

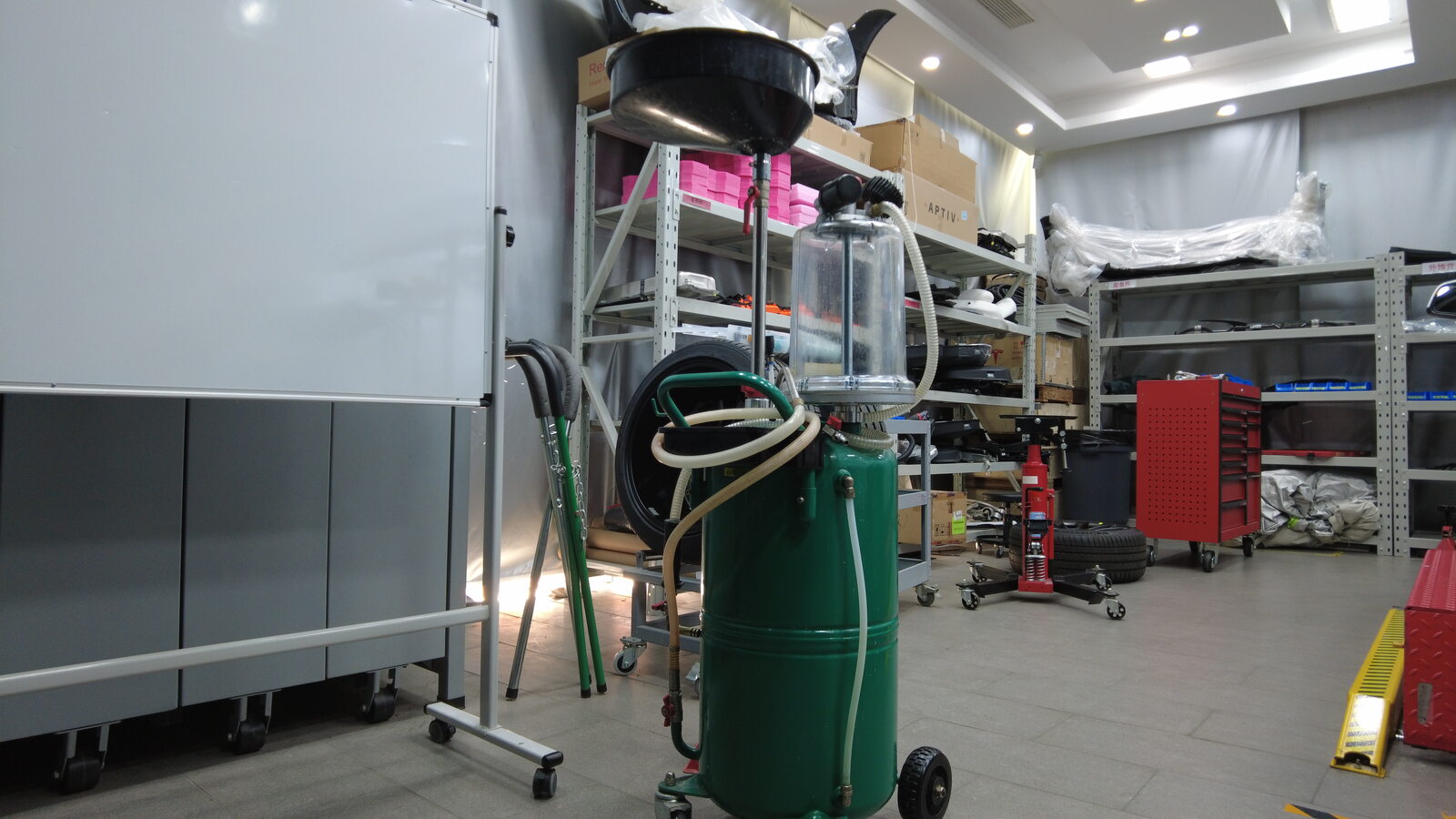

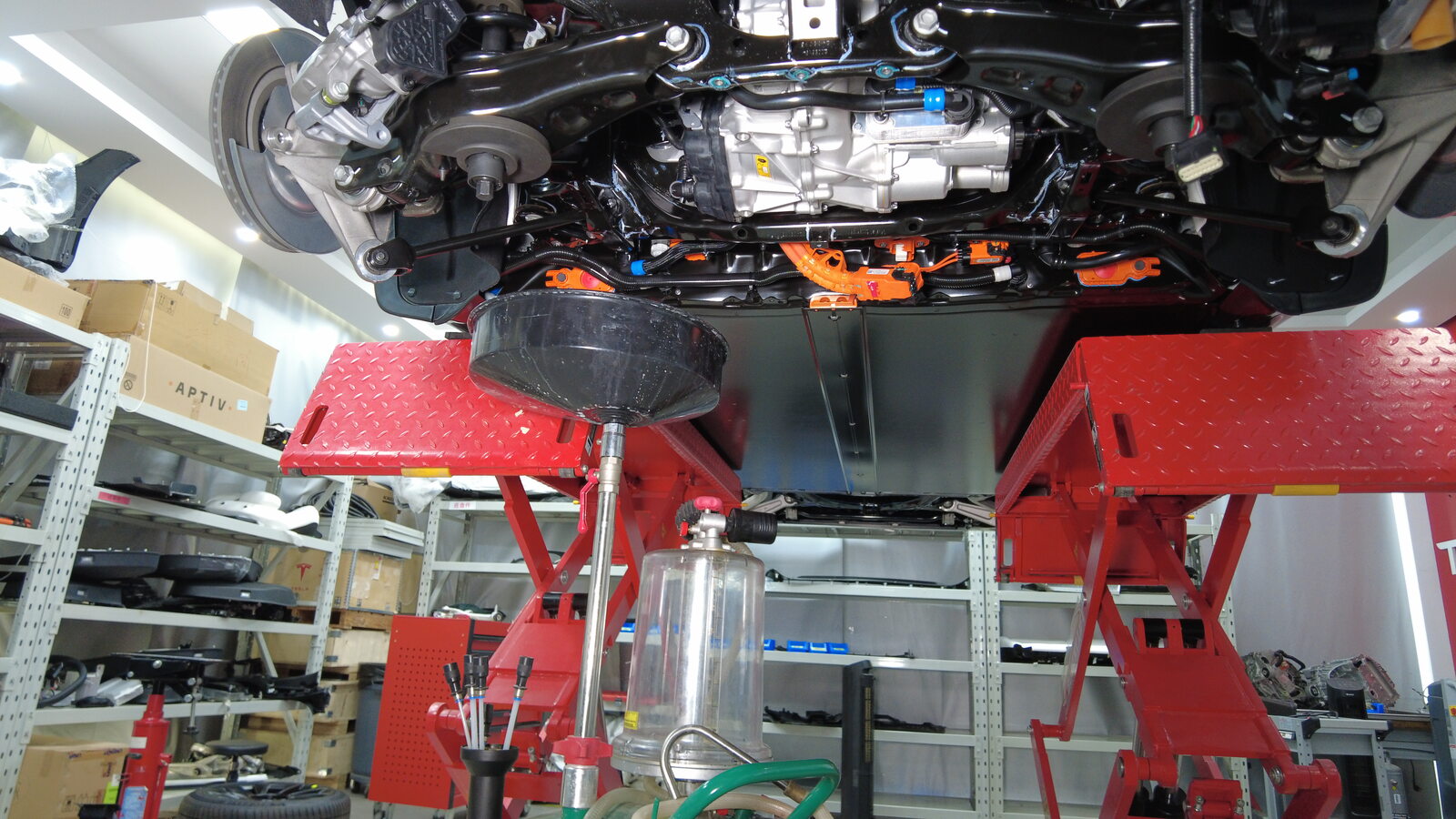

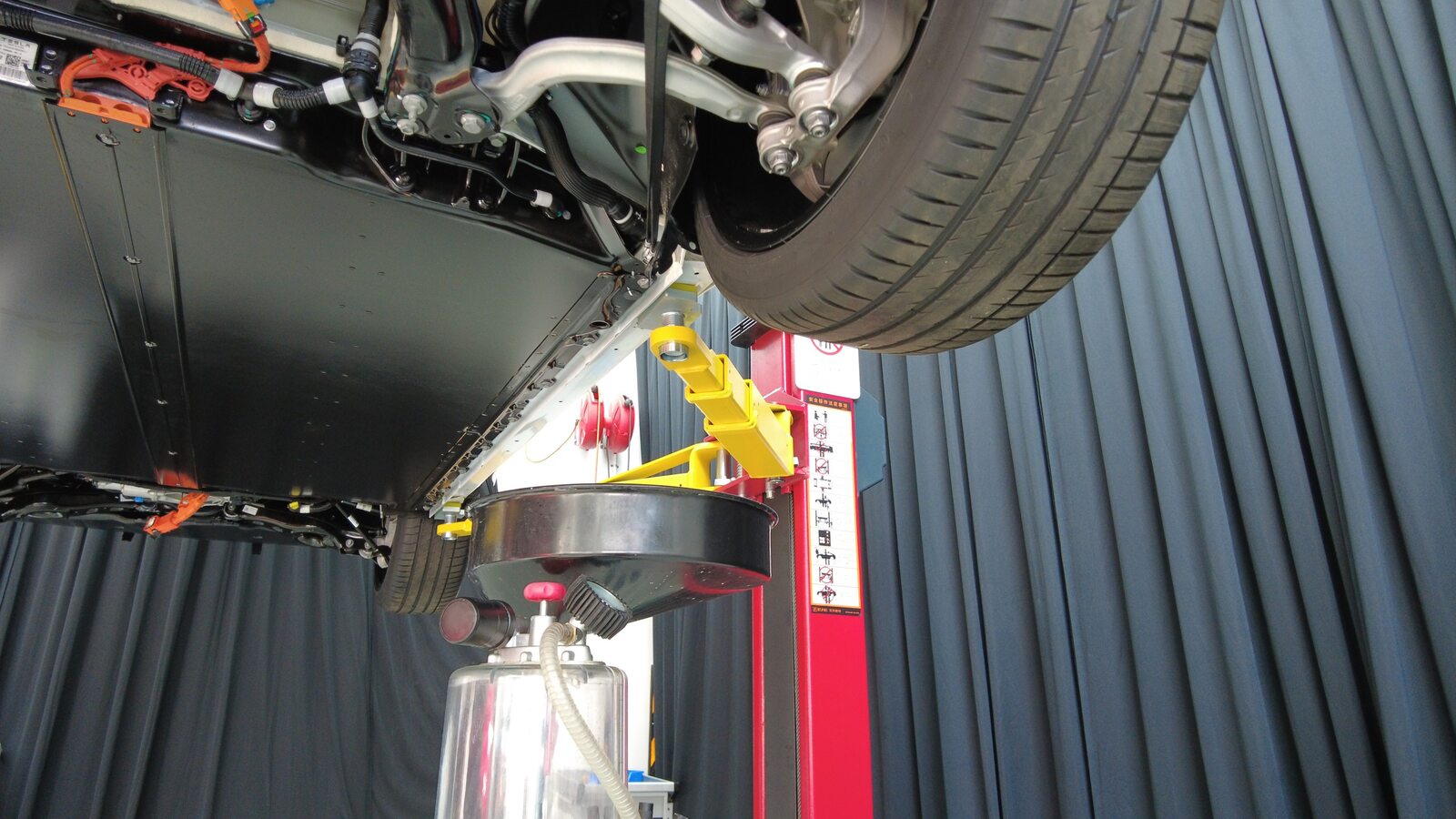

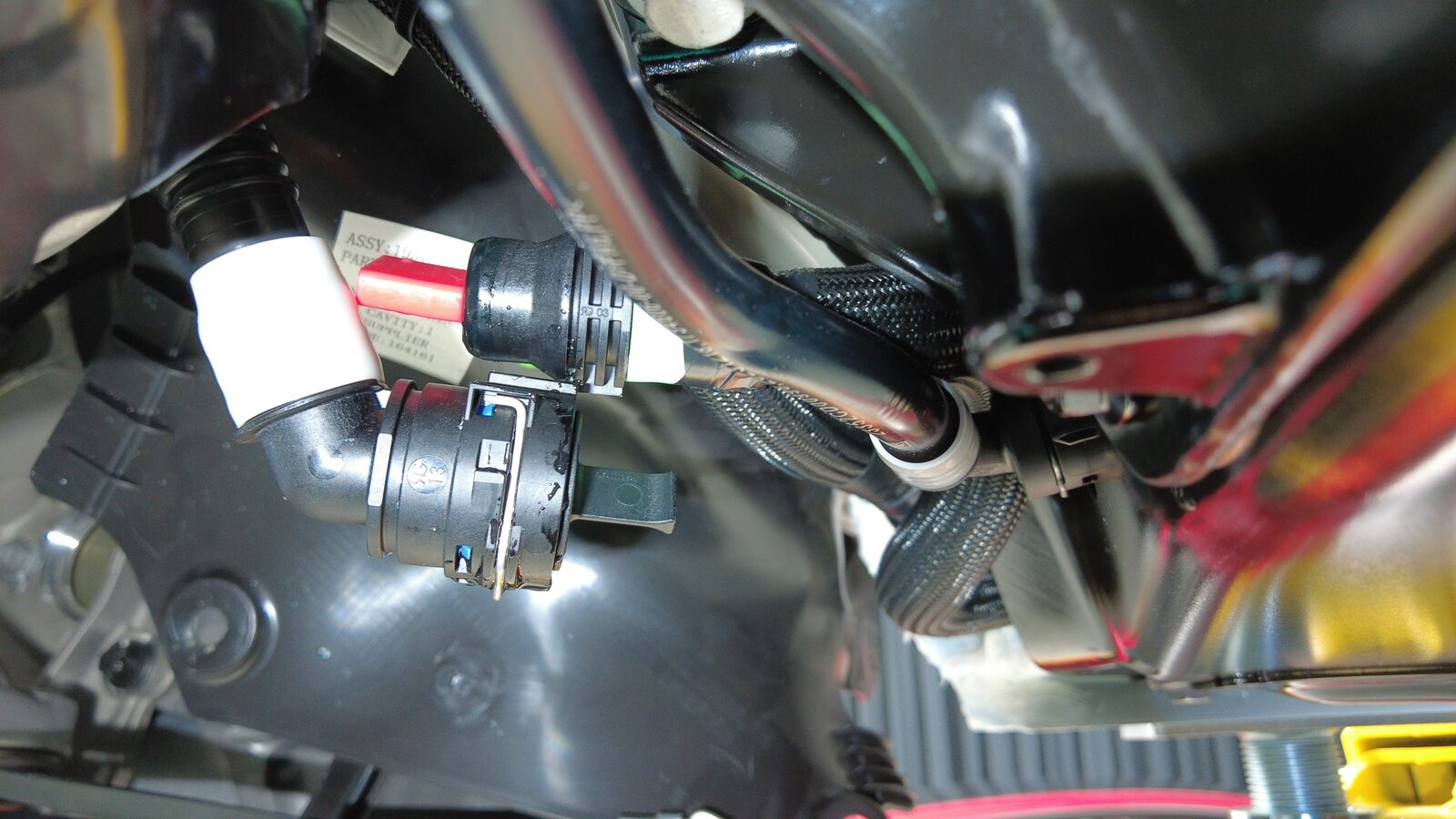

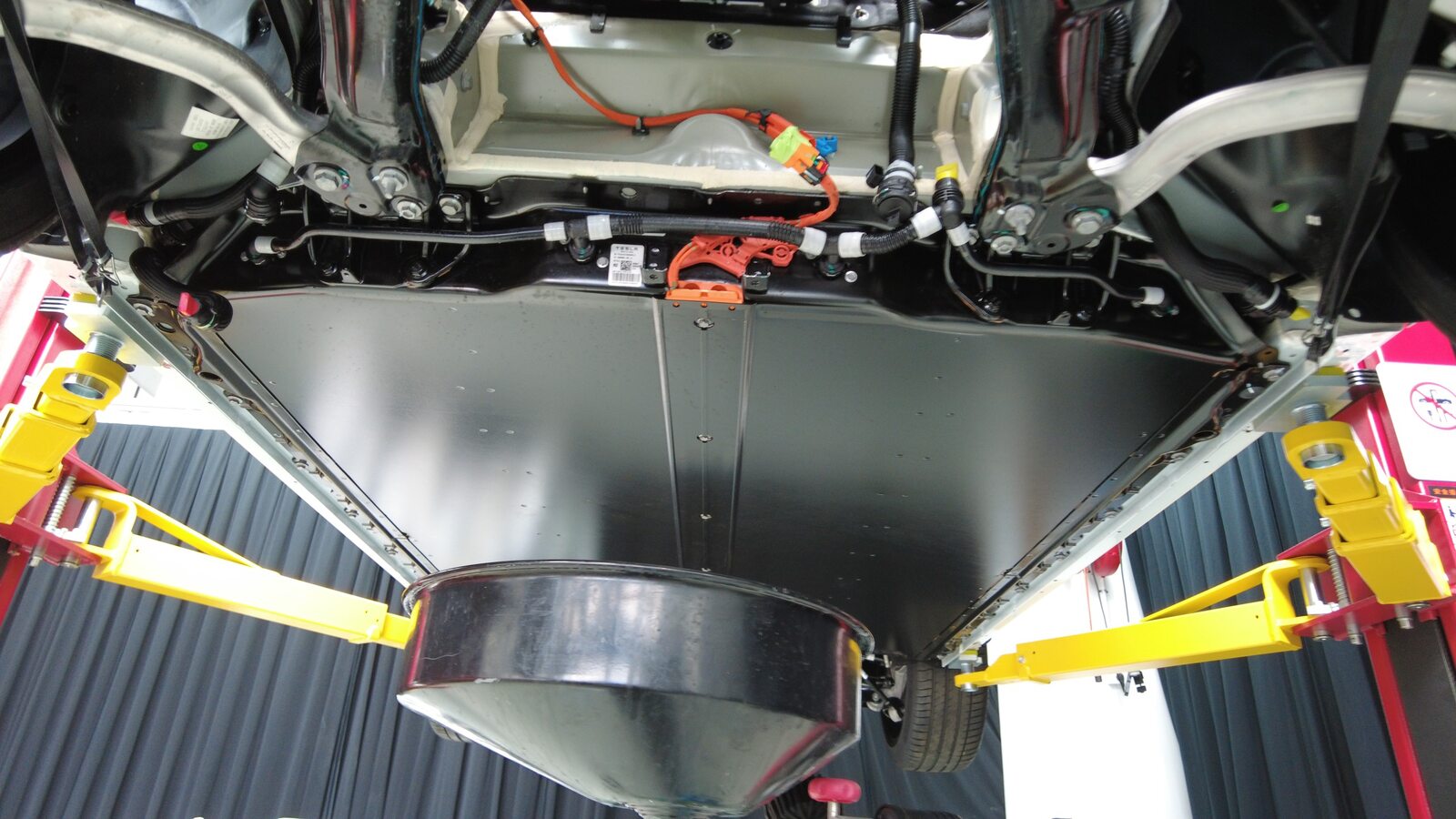

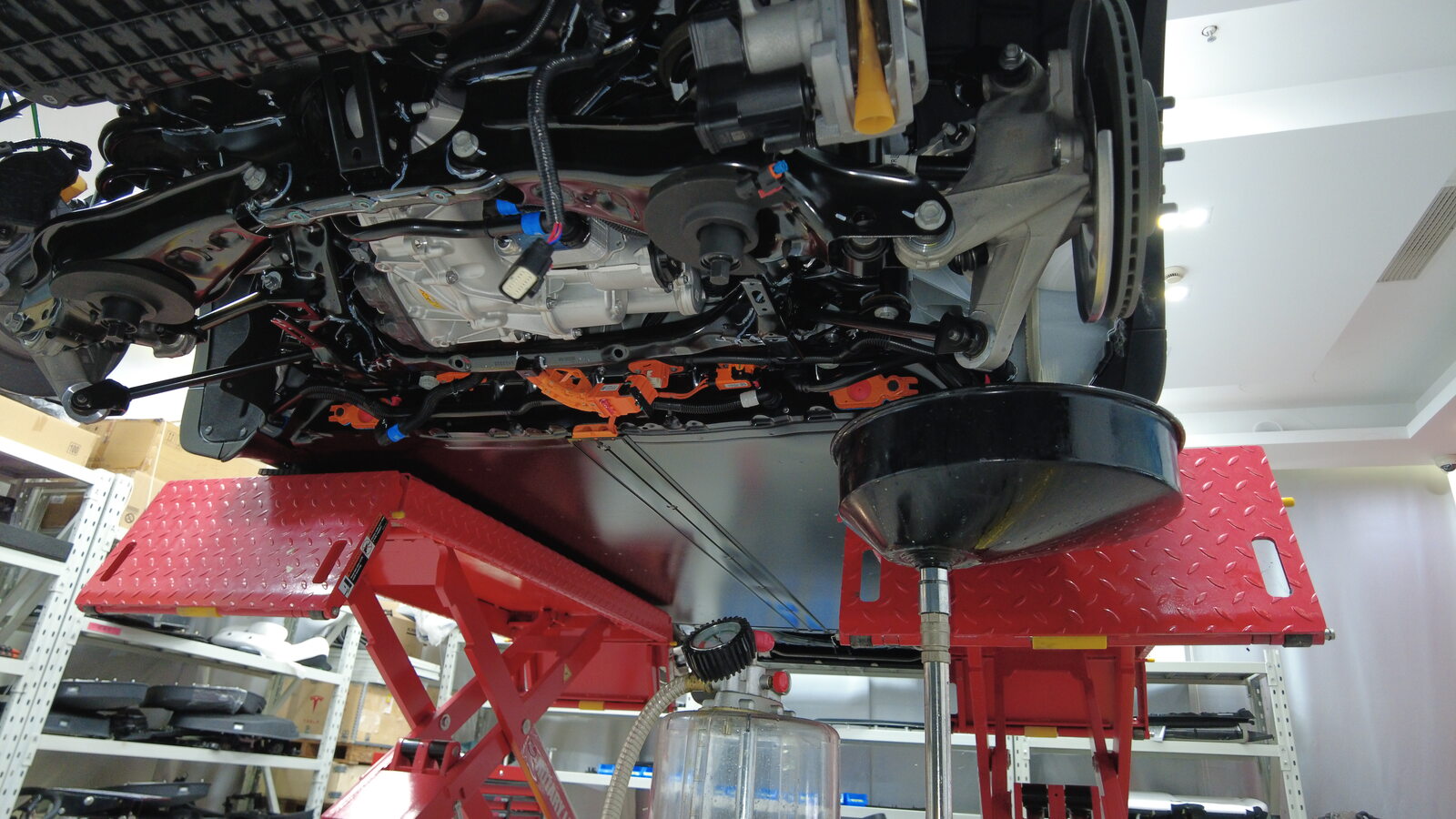

  70. Position coolant drain container underneath LH front of HV battery

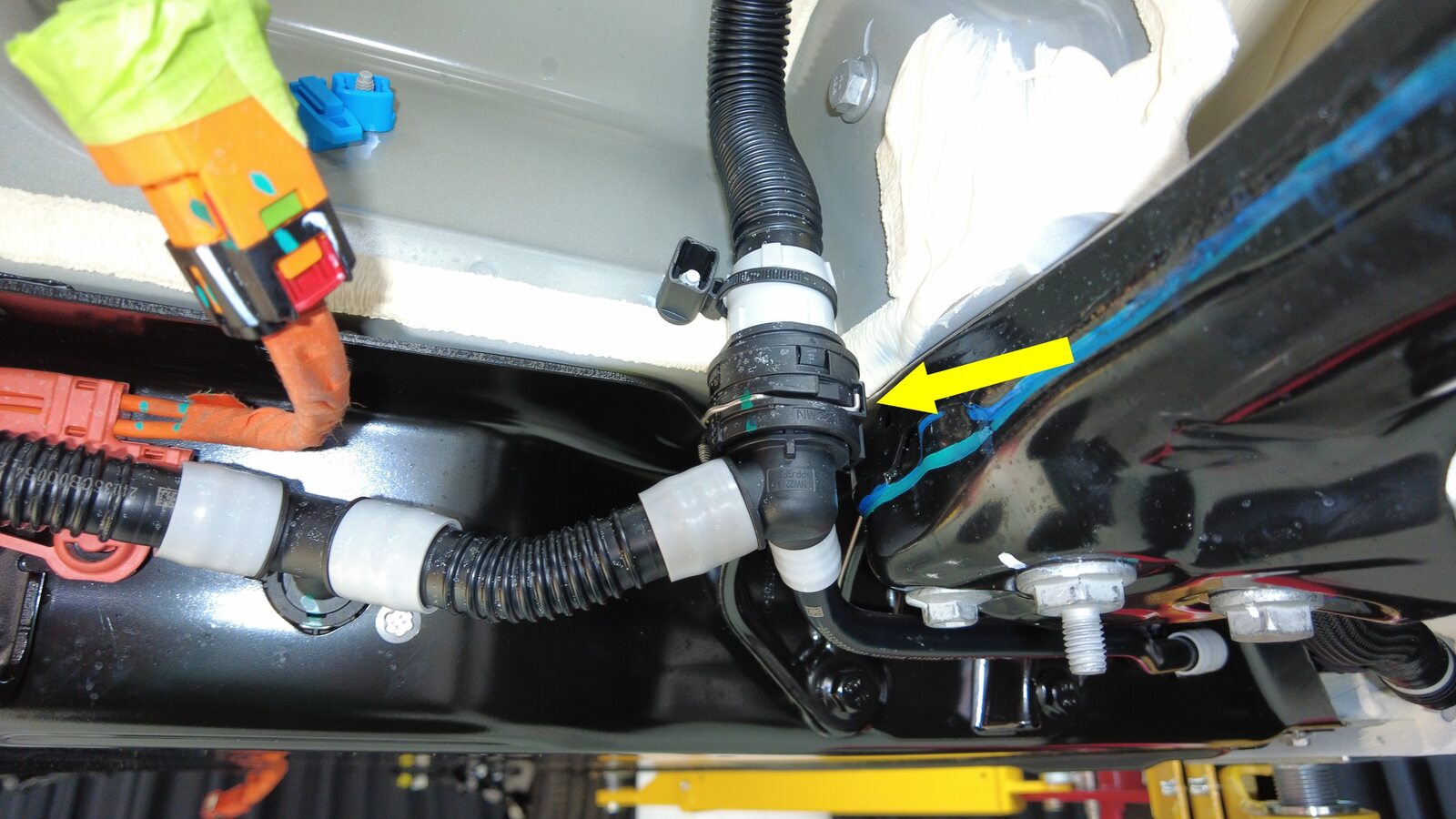

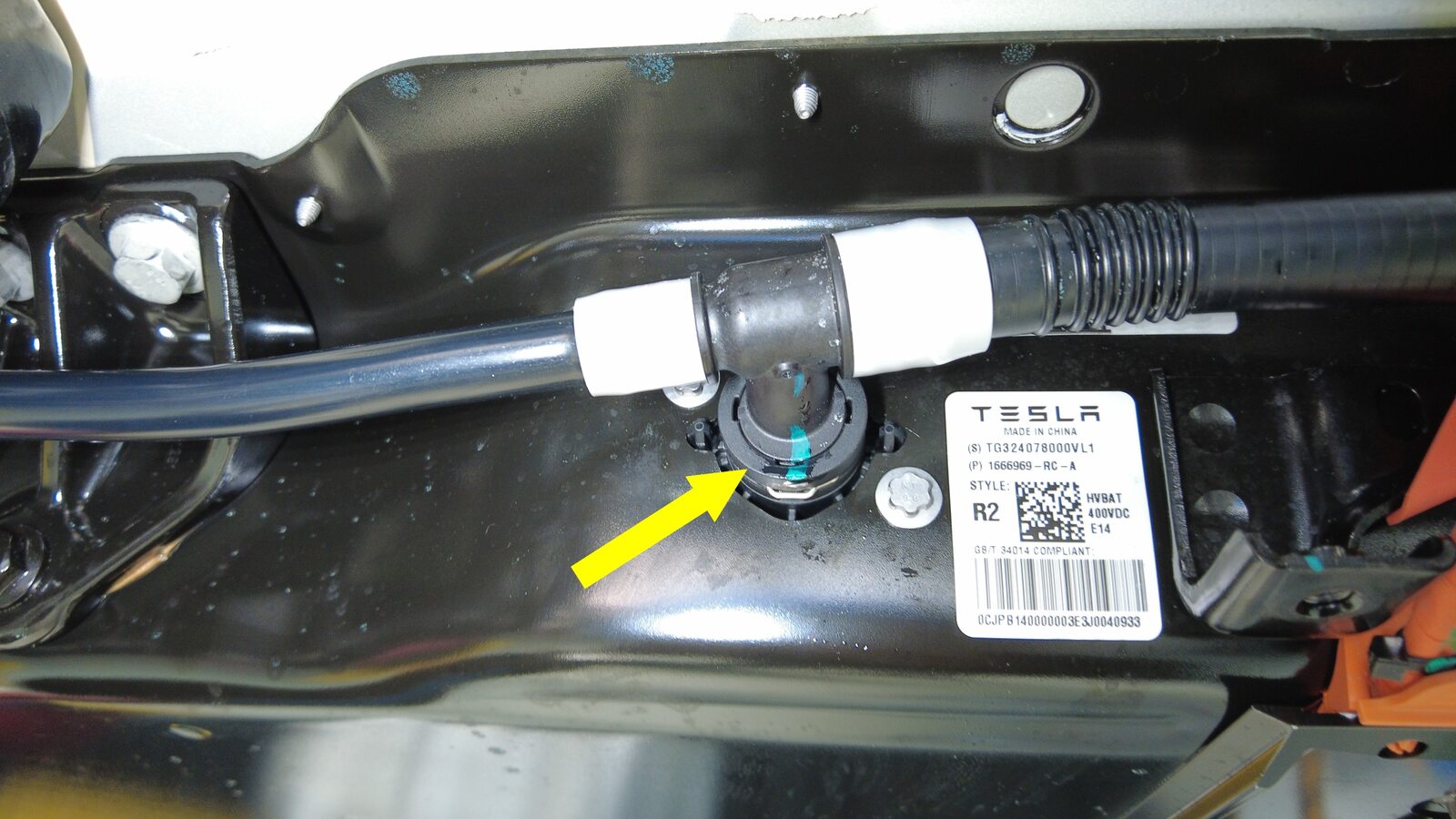

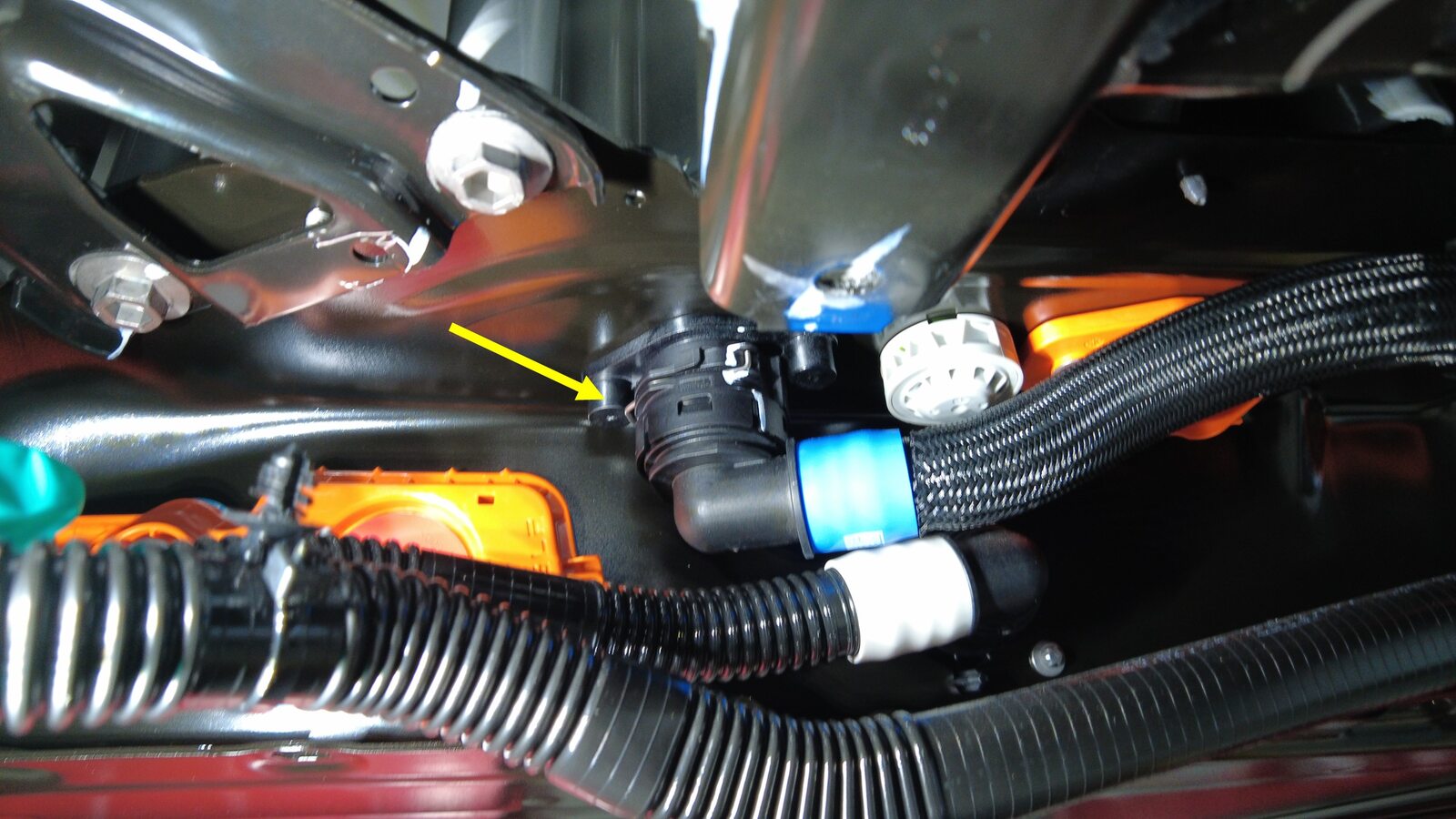

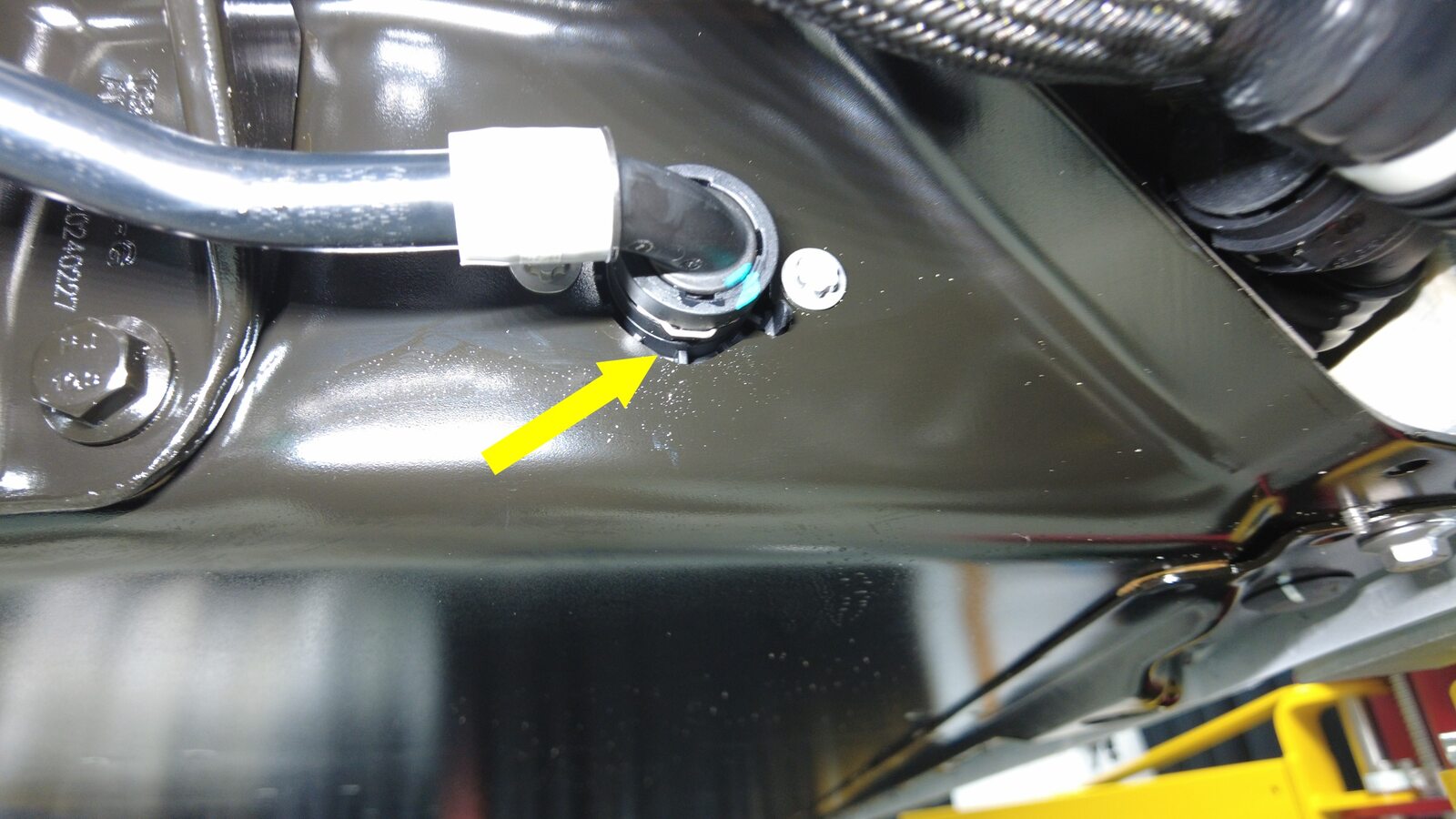

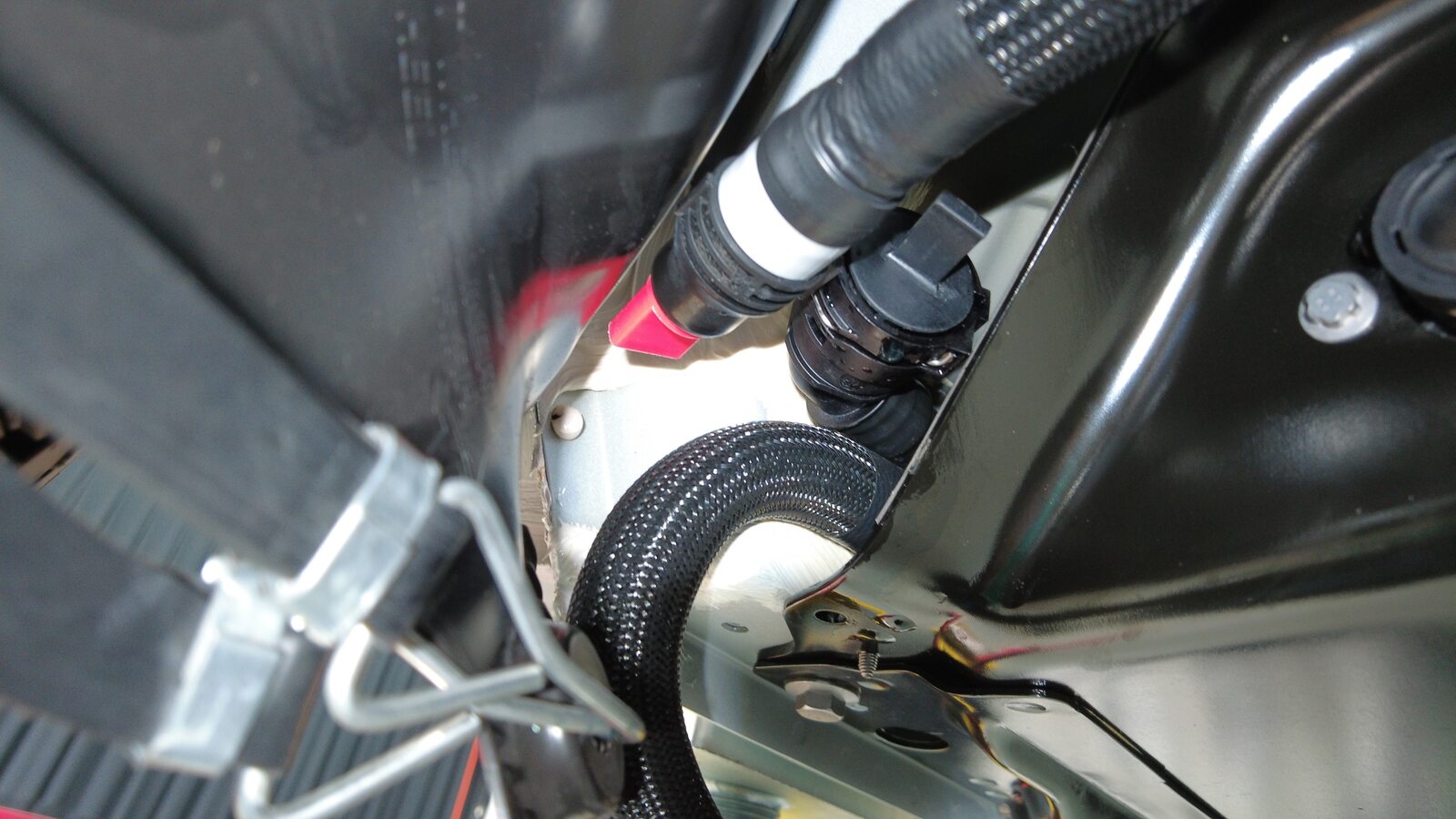

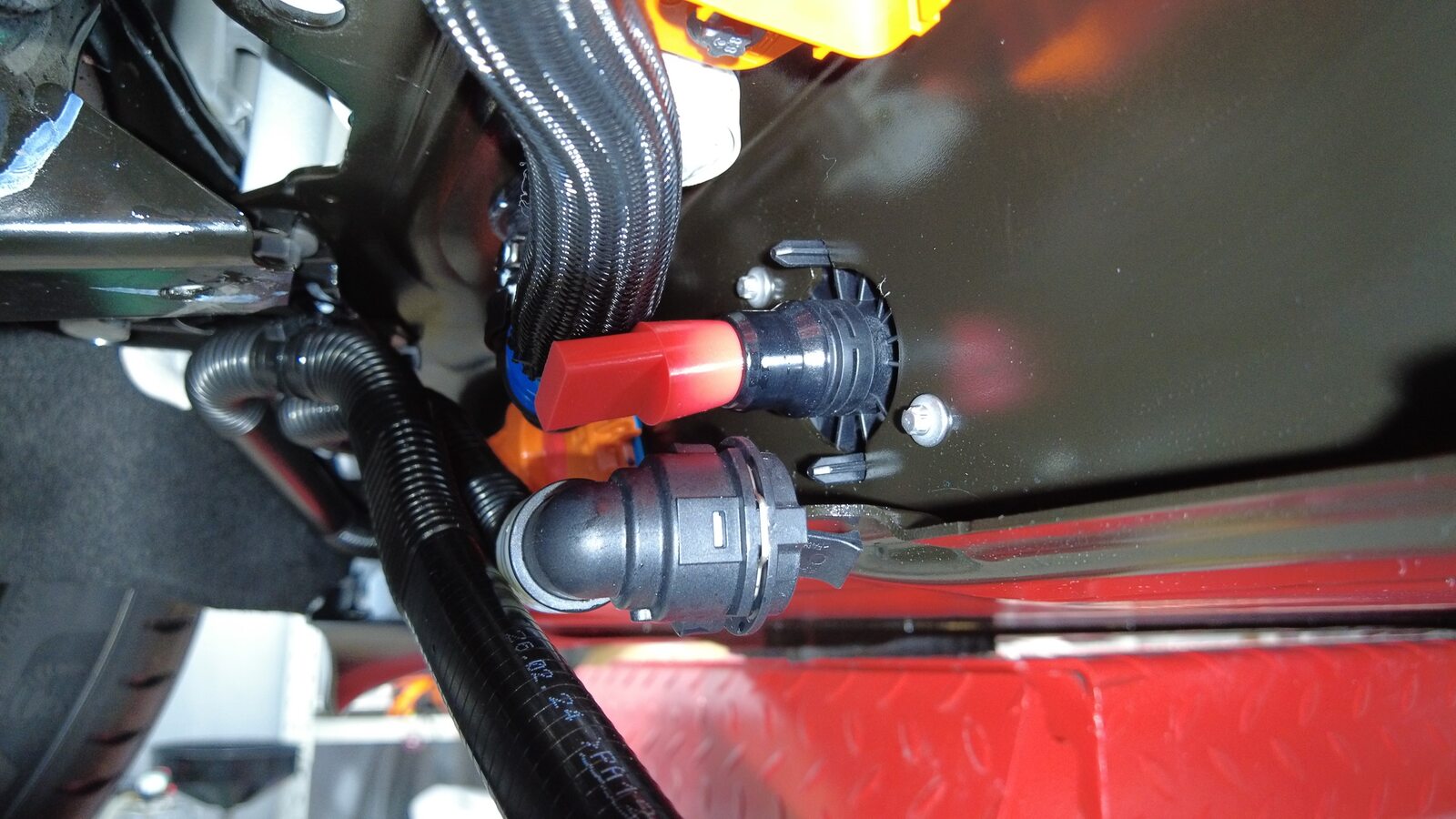

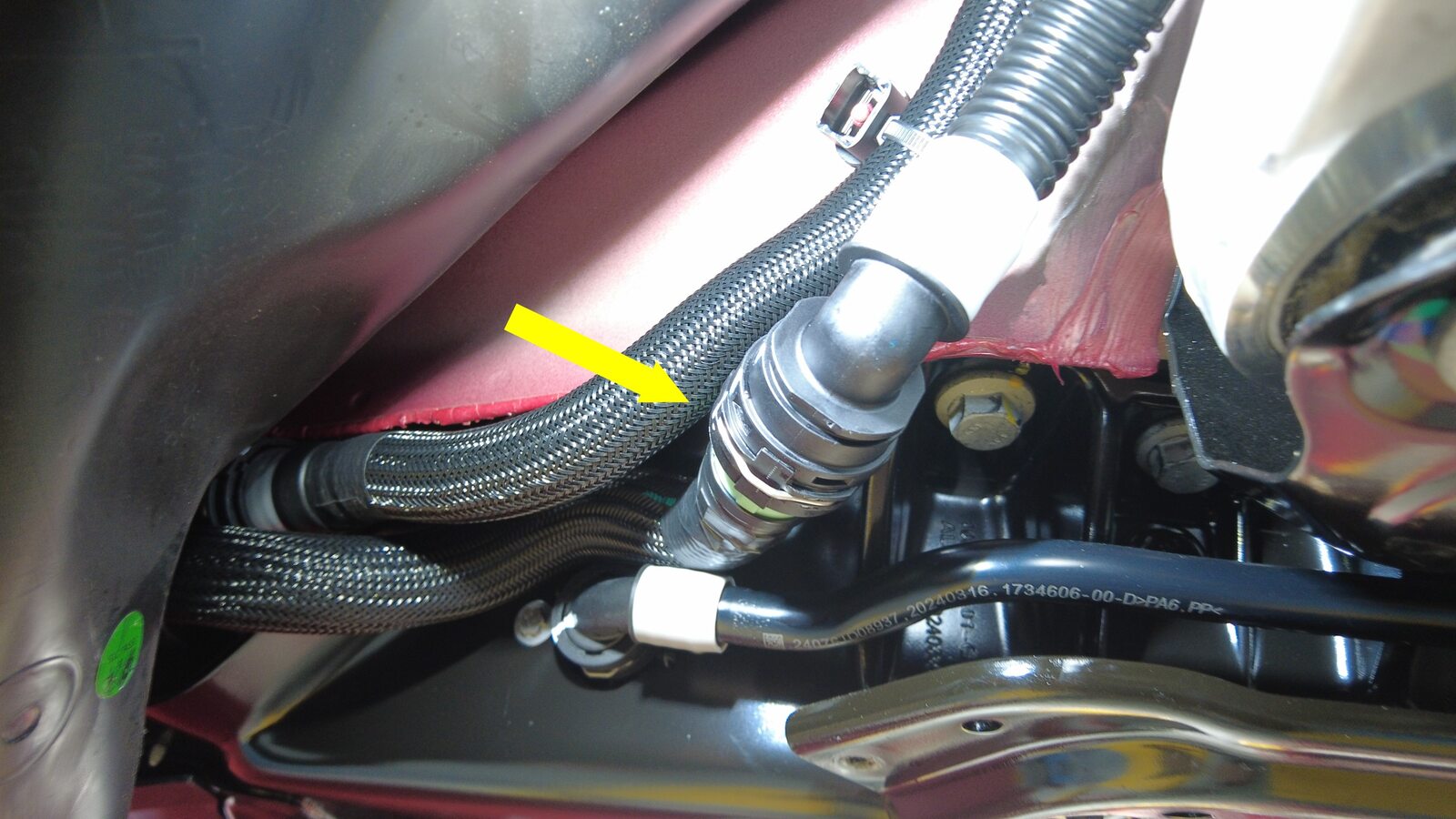

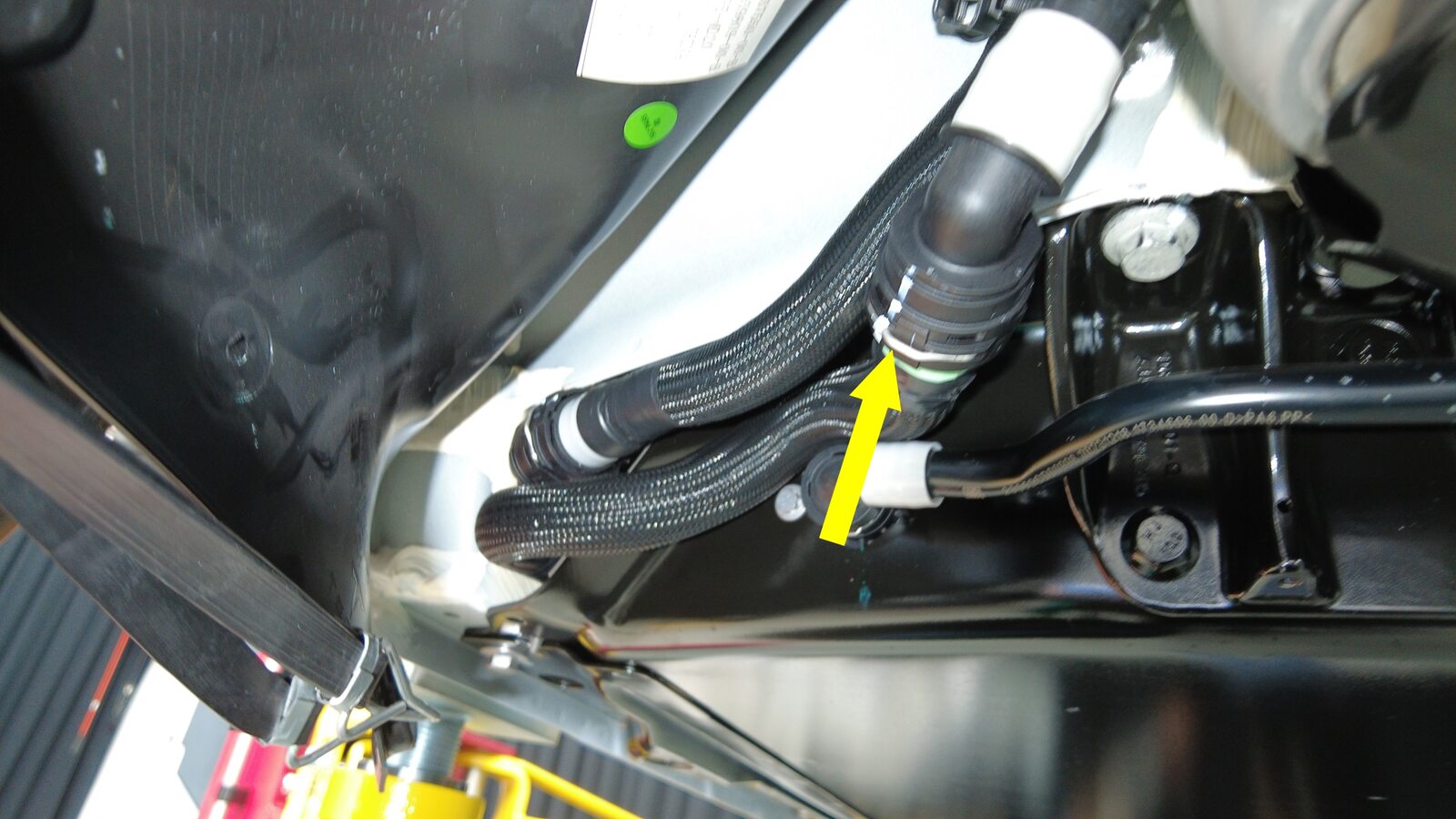

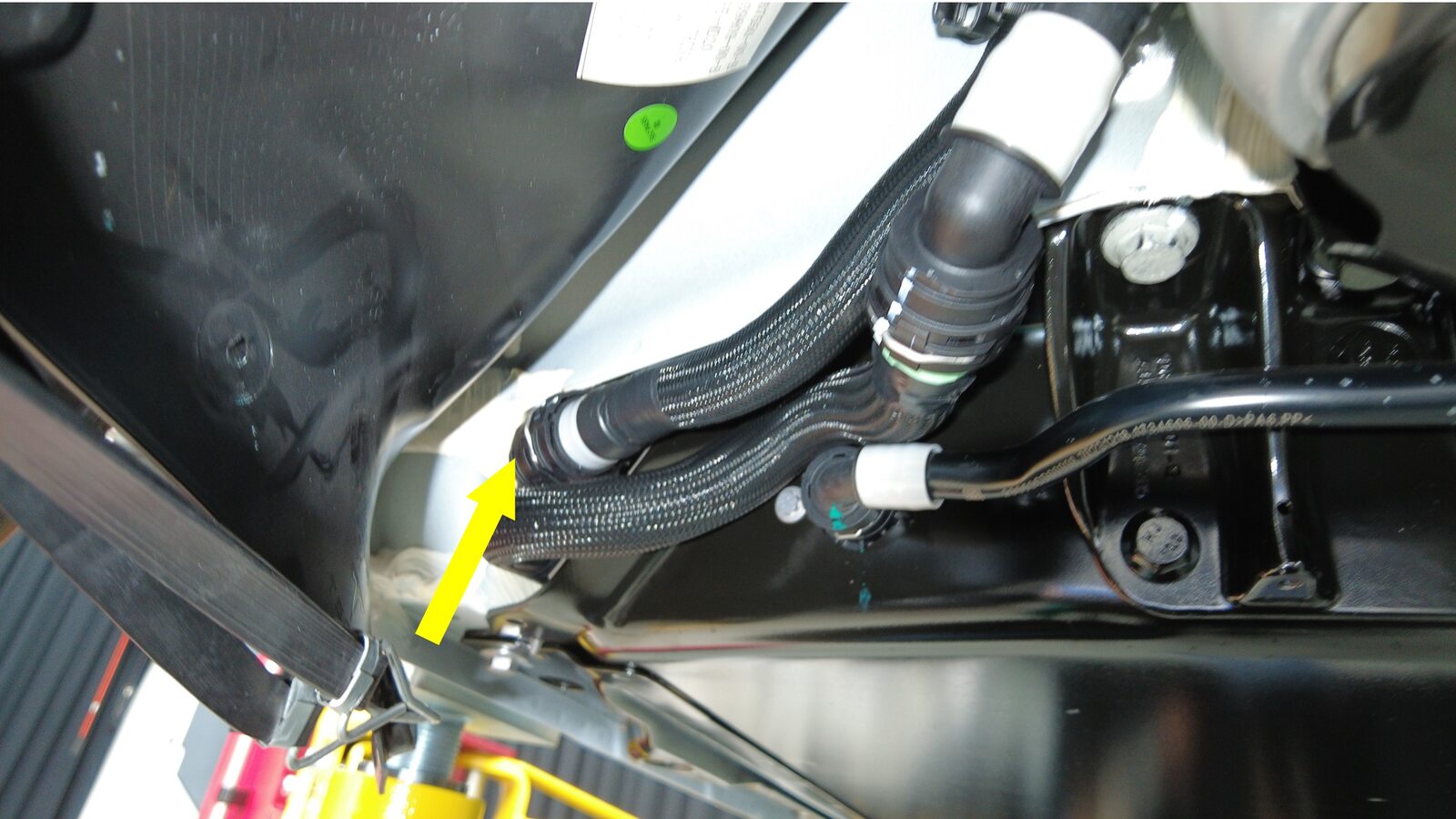

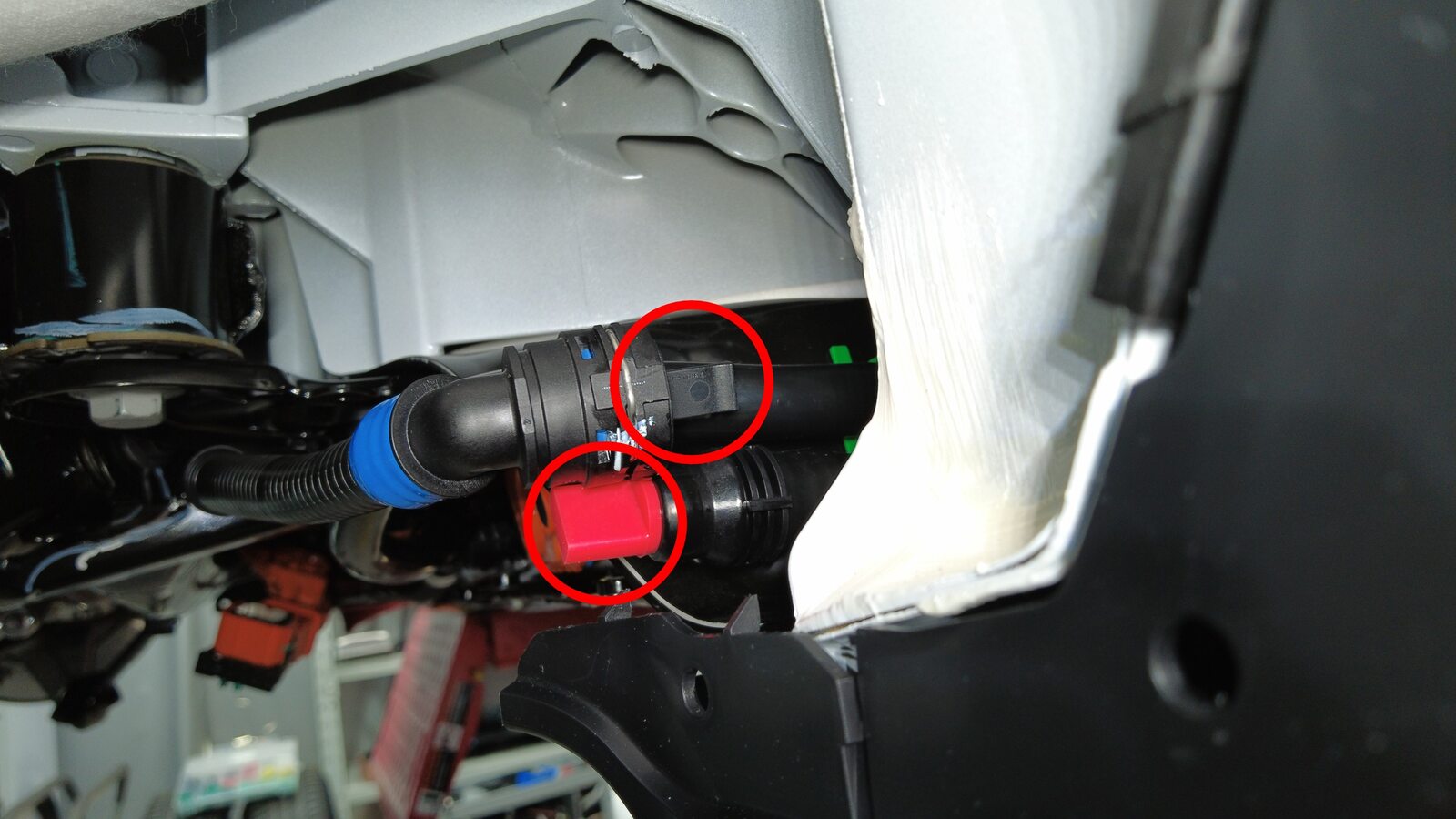

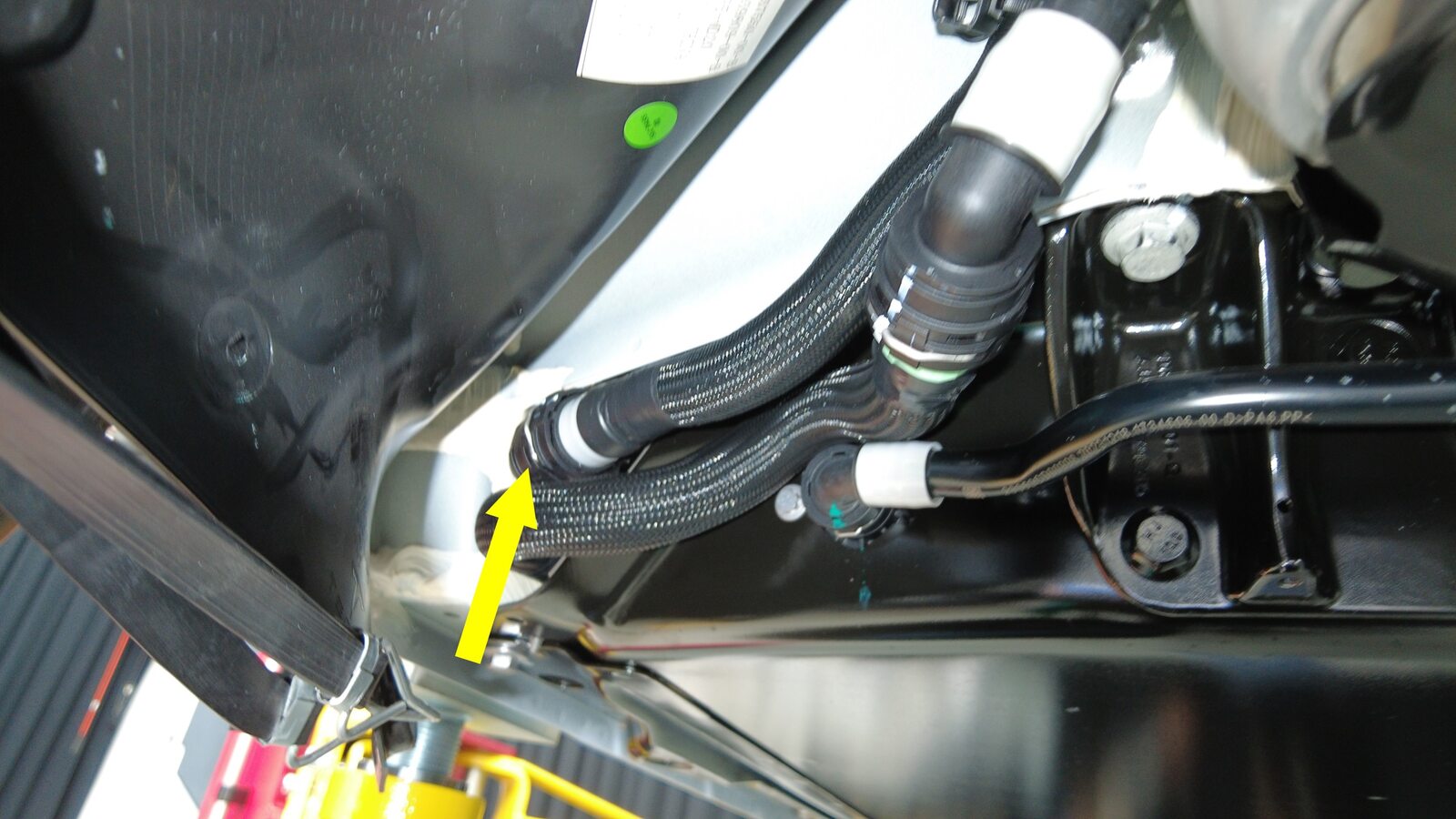

  71. Disconnect HV battery return hose at LH side of vehicle and plug hoses
    注
    1x spring clip, If the battery is returned to Reman, Please remove the special tool plugs

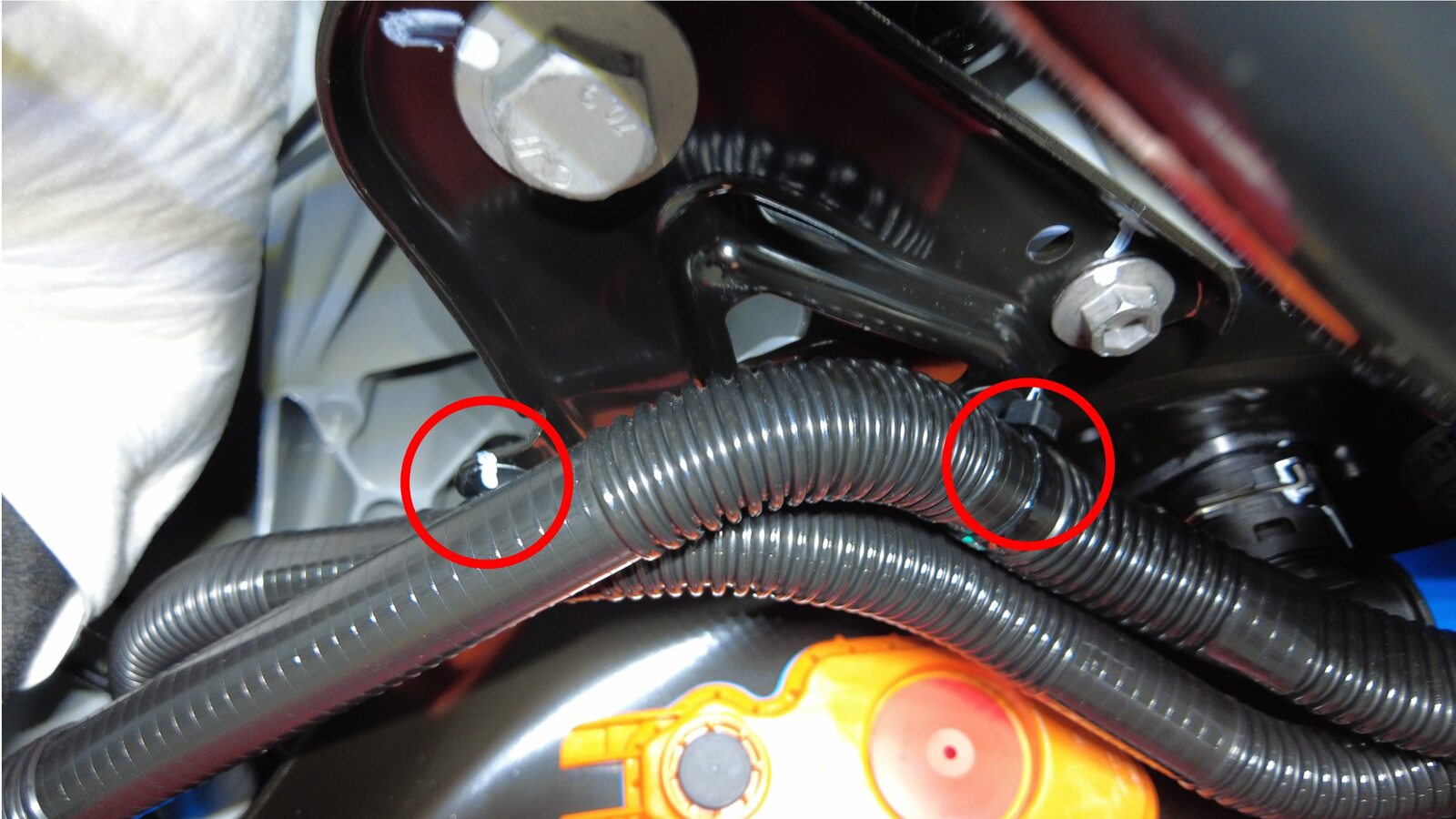

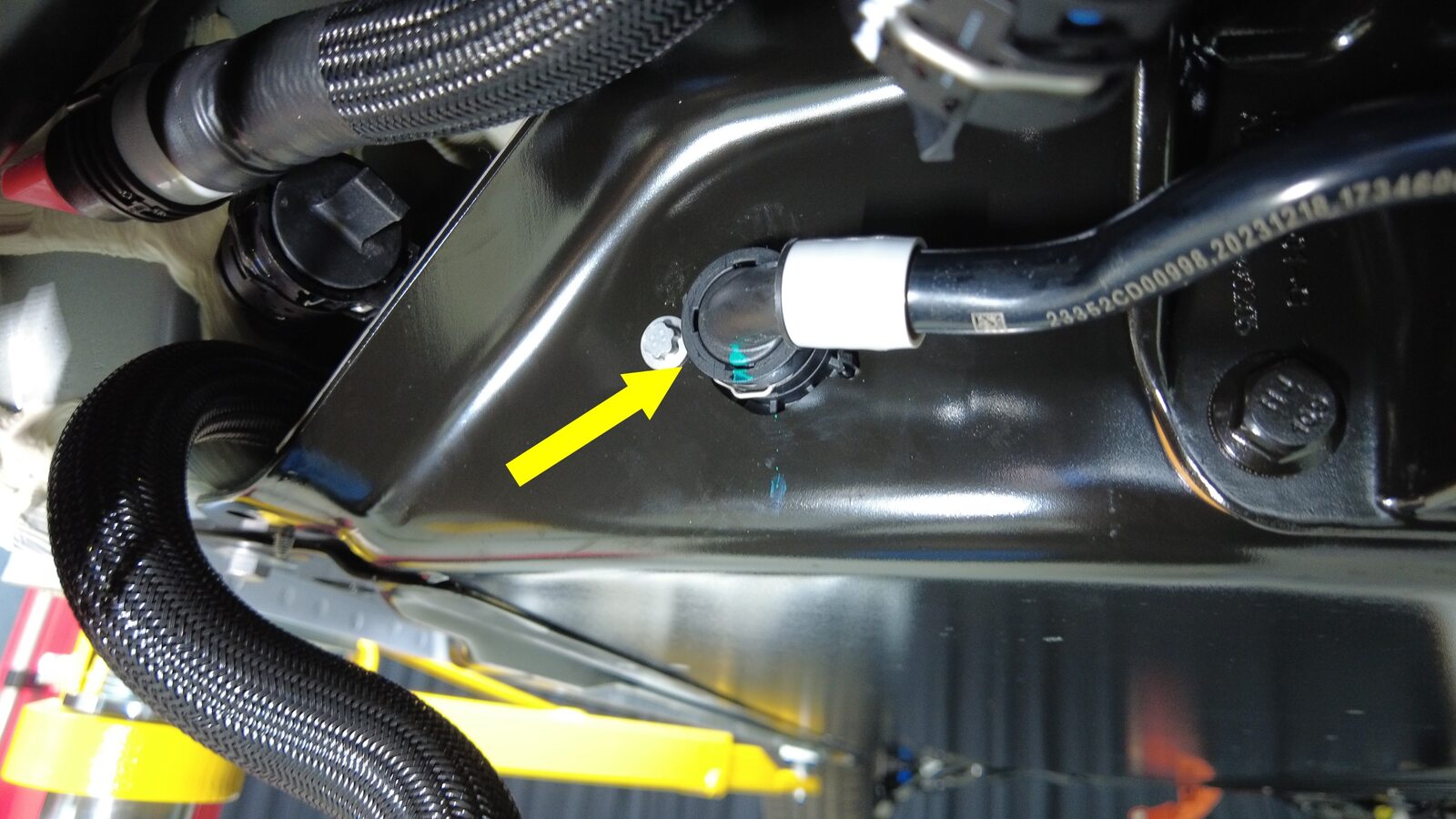

  72. Release Chiller to Battery hose from Dash Crossmember
    注
    1x clip

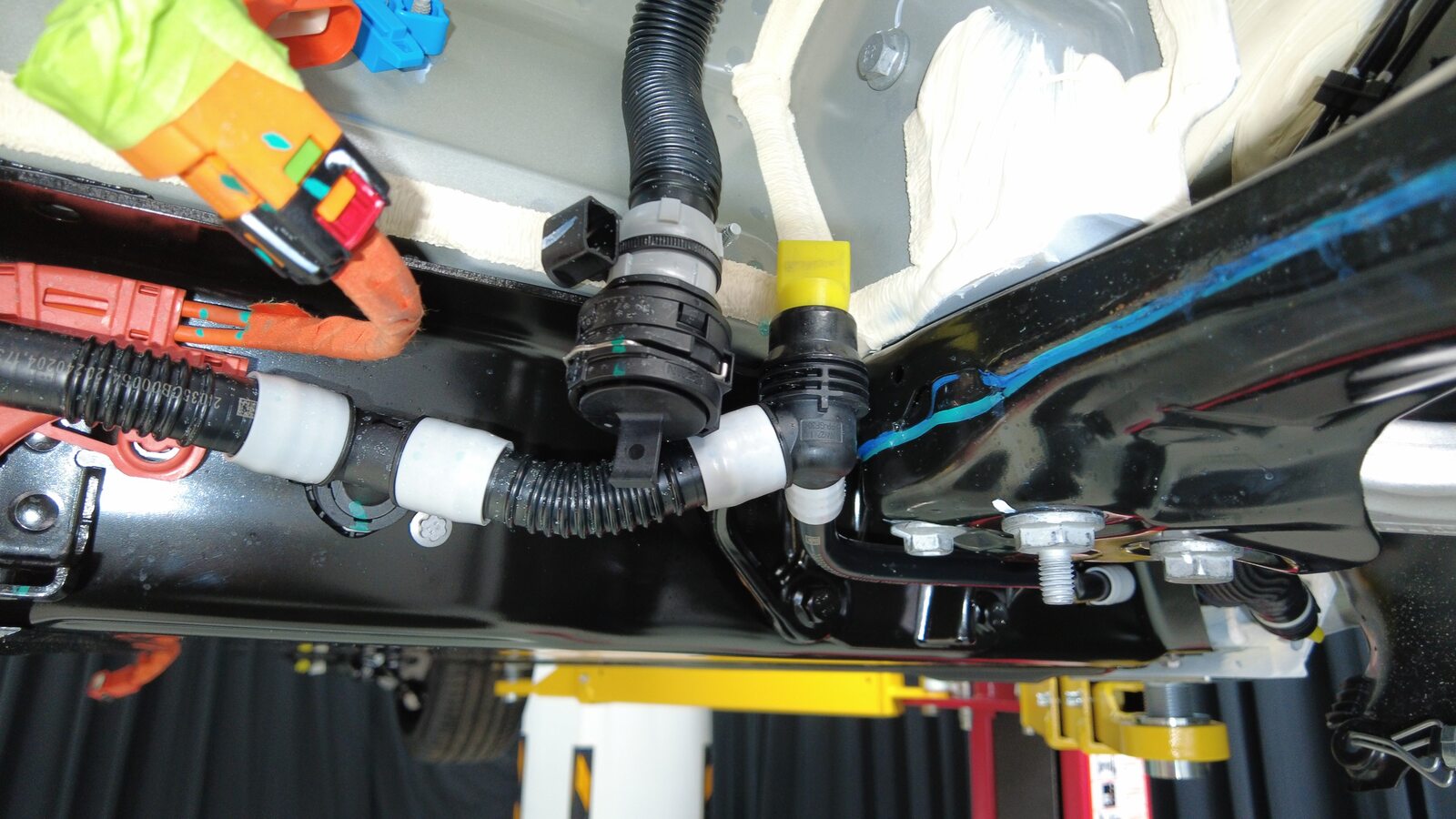

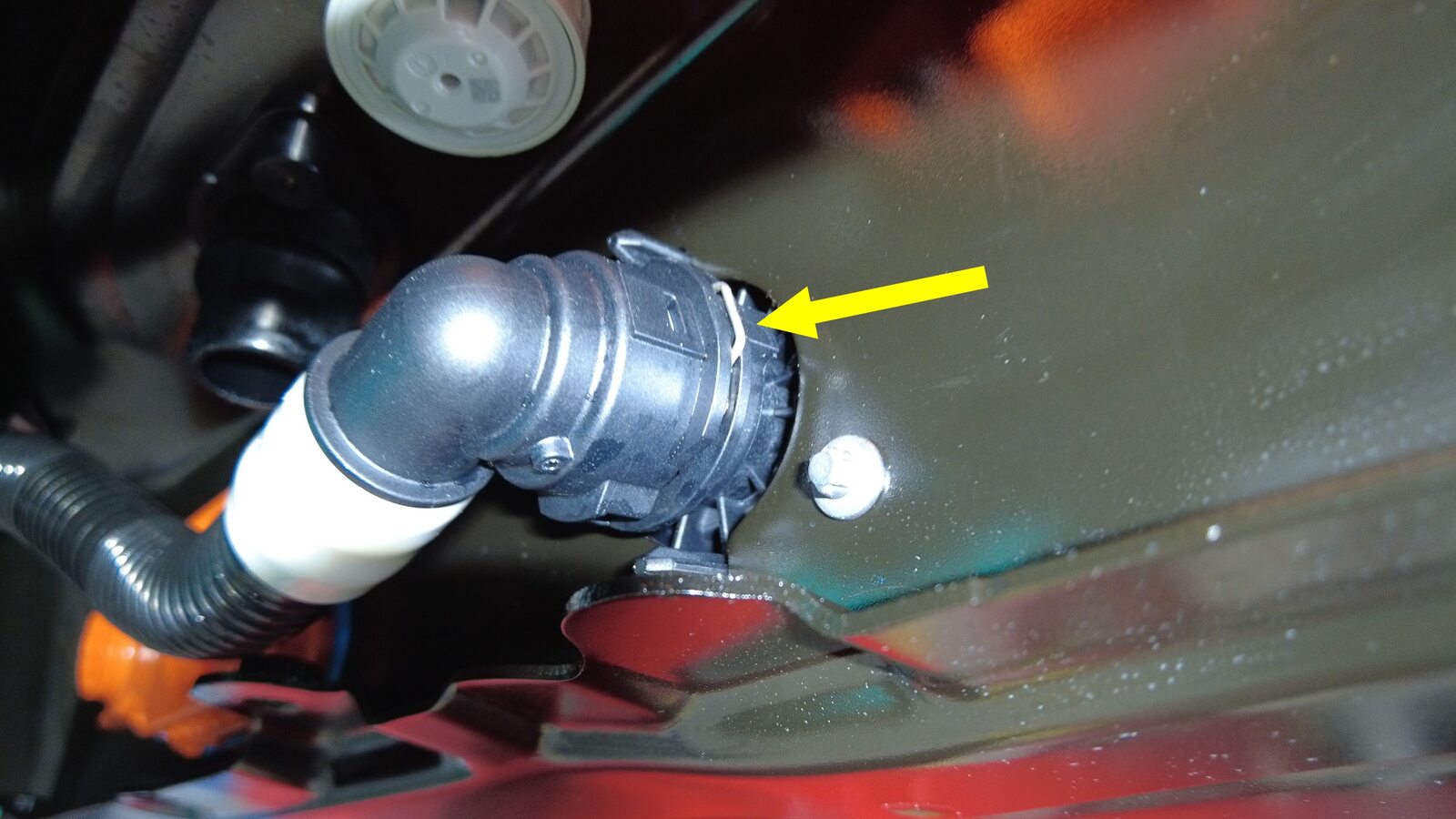

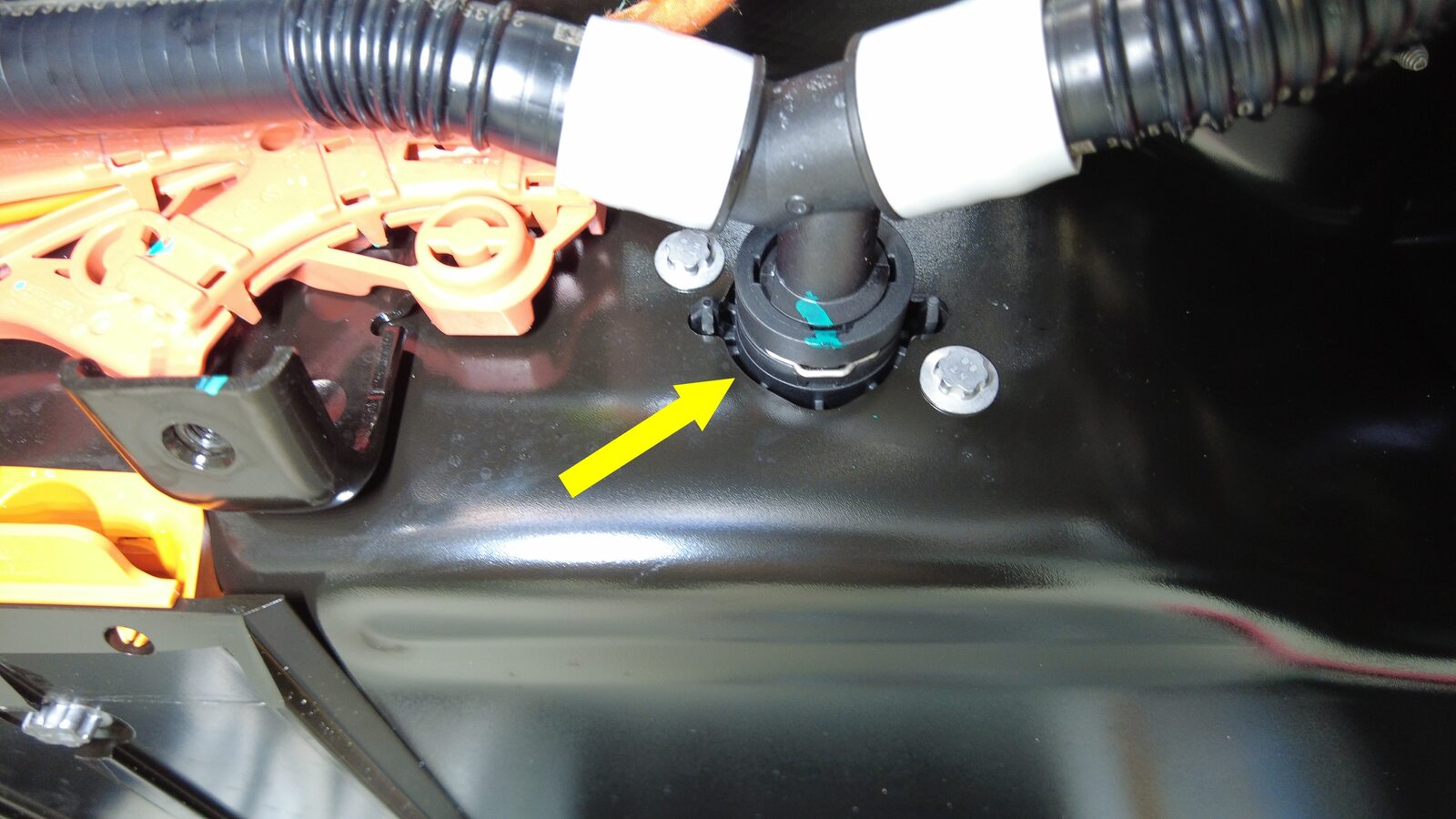

  73. Disconnect HV battery manifold hoses and plug hoses
    注
    1x spring clip, Loss of coolant greater than 1L requires coolant vacuum fill, If the battery is returned to Reman, Please remove the special tool plugs
  74. Position coolant drain container underneath RH front of HV battery

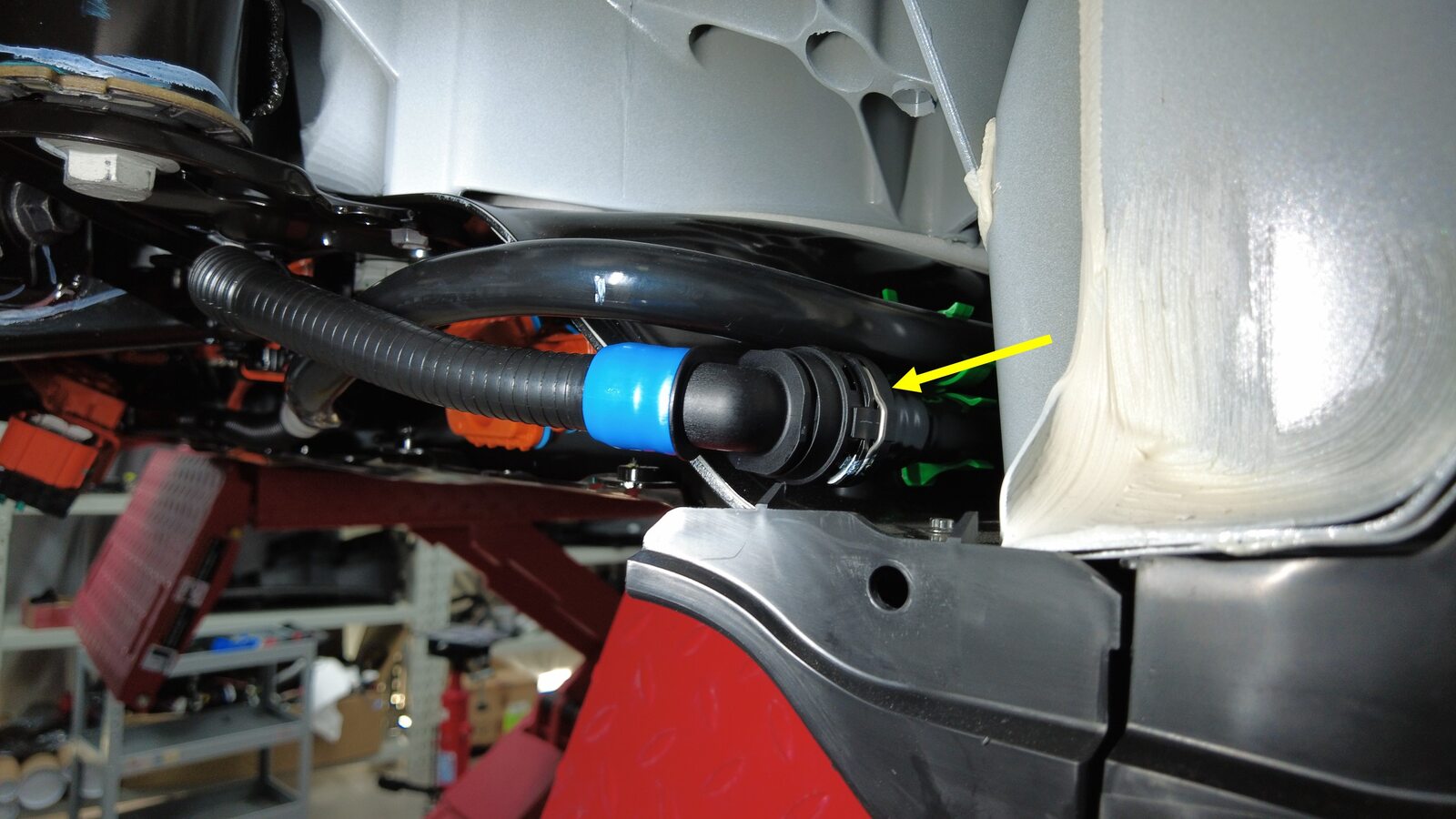

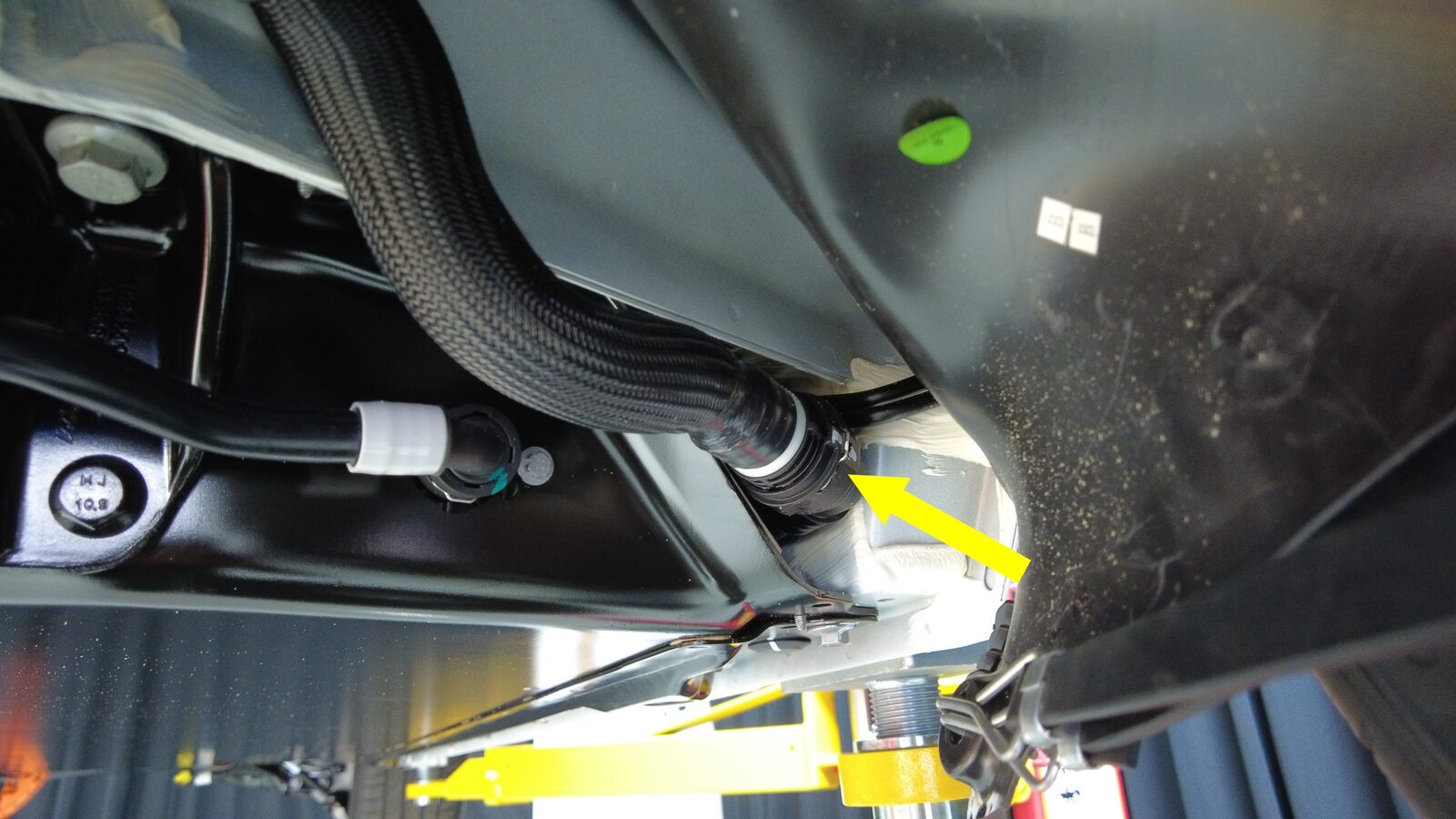

  75. Disconnect powertrain return hose from powertrain return tube and plug hoses
    注
    1x spring clip

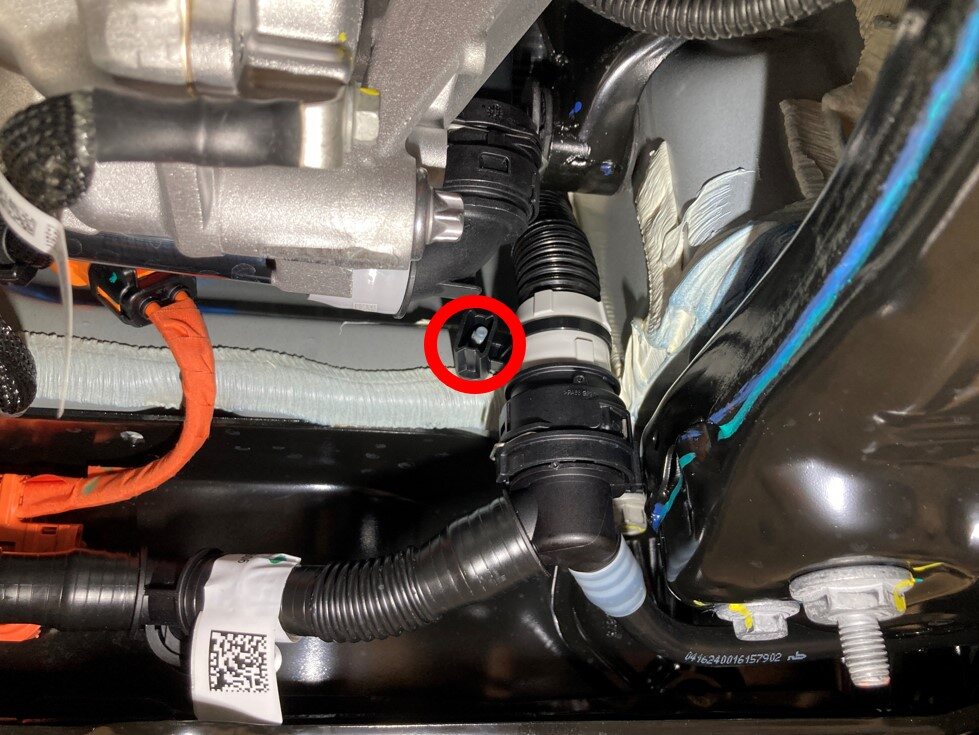

  76. Disconnect powertrain supply hose from powertrain supply tube and plug hoses
    注
    1x spring clip, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plugs
  77. Position coolant drain container underneath front of HV battery
  78. Disconnect LH coolant hose from rear of HV battery
    注
    1x spring clip, 2x plugs, Plug both the coolant hose and passthrough, If the battery is returned to Reman, please remove the special tool plug
  79. Disconnect RDU inverter inlet hose from rear of HV battery and plug both ends
    注
    1x spring clip, 2x plugs, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plug
  80. Position coolant drain underneath RH rear of HV battery

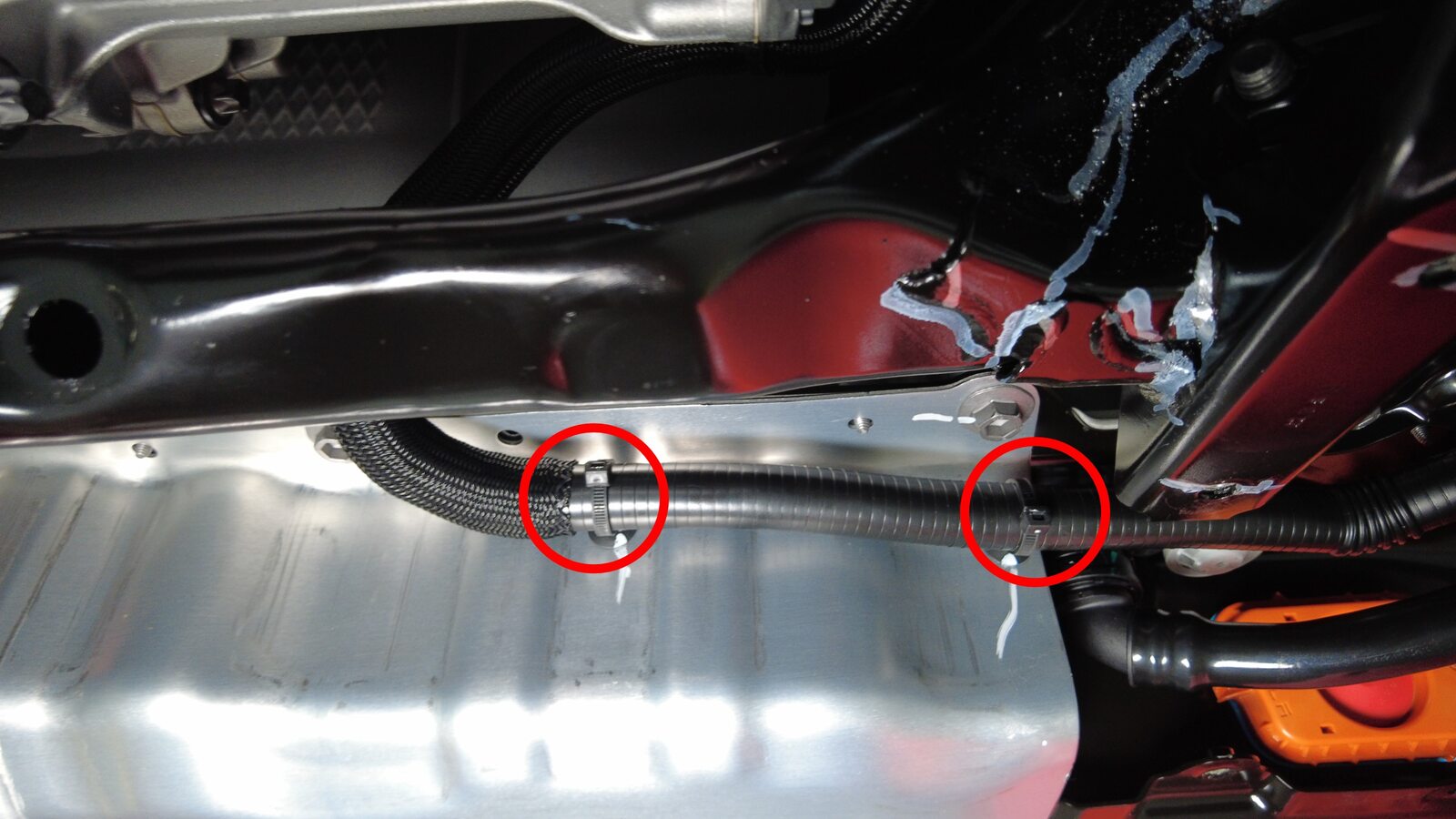

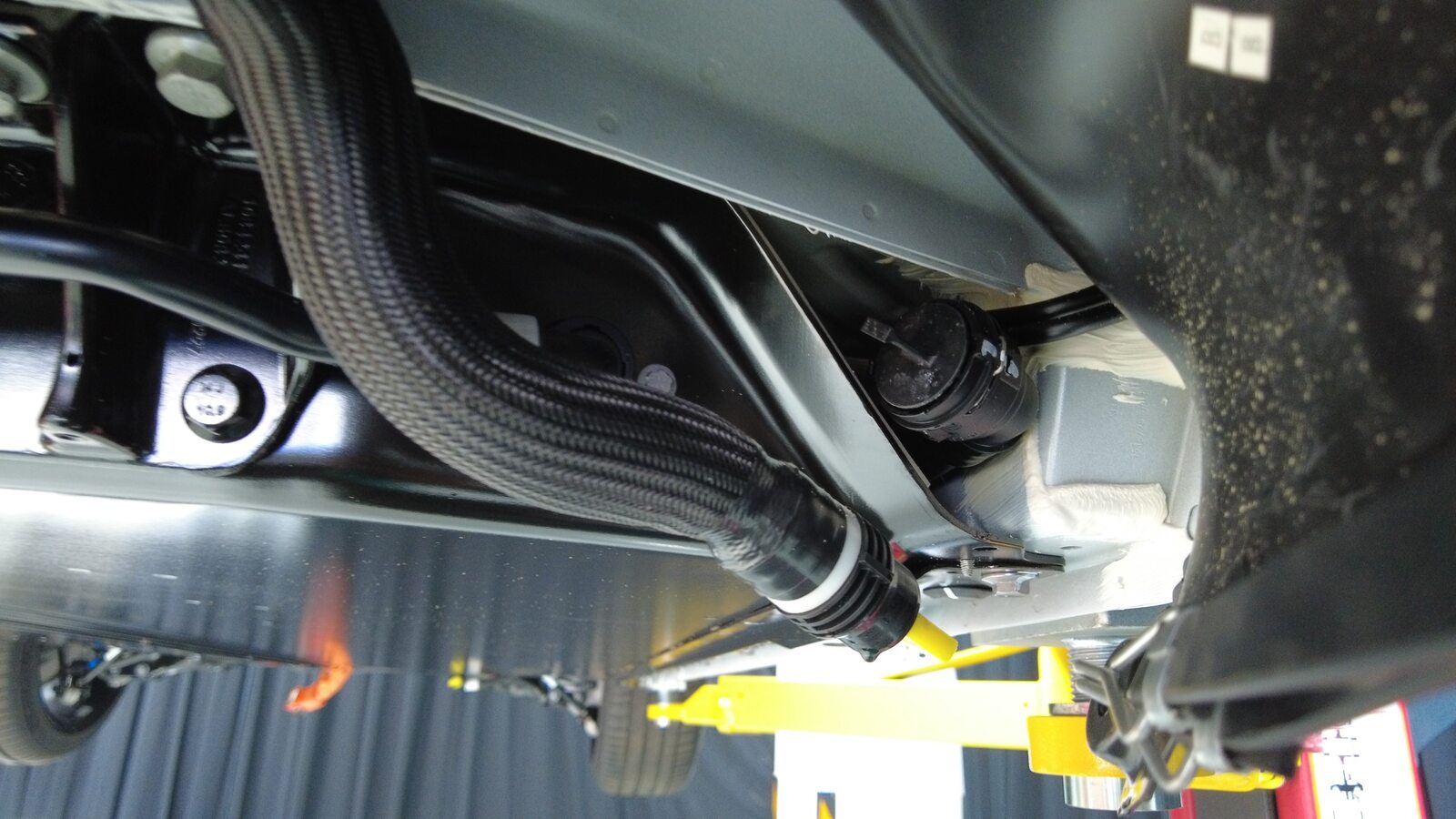

  81. Disconnect coolant outlet hose to rear return hose and plug hoses
    注
    1x spring clip, 2x plugs, Use shop towel to clean any residue coolant inside RH rocker panel if necessary, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plugs
  82. Remove coolant drain container from underneath vehicle

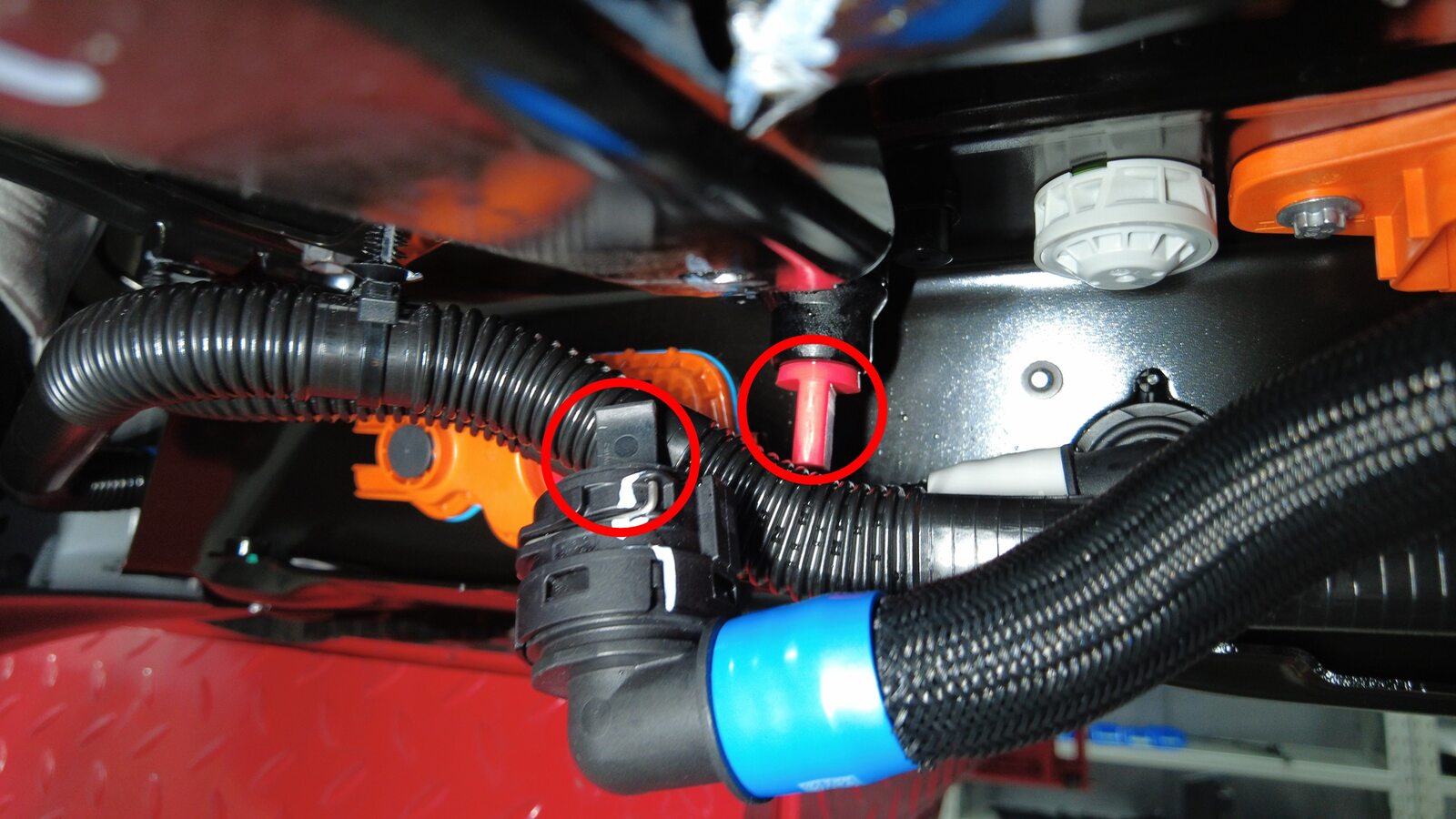

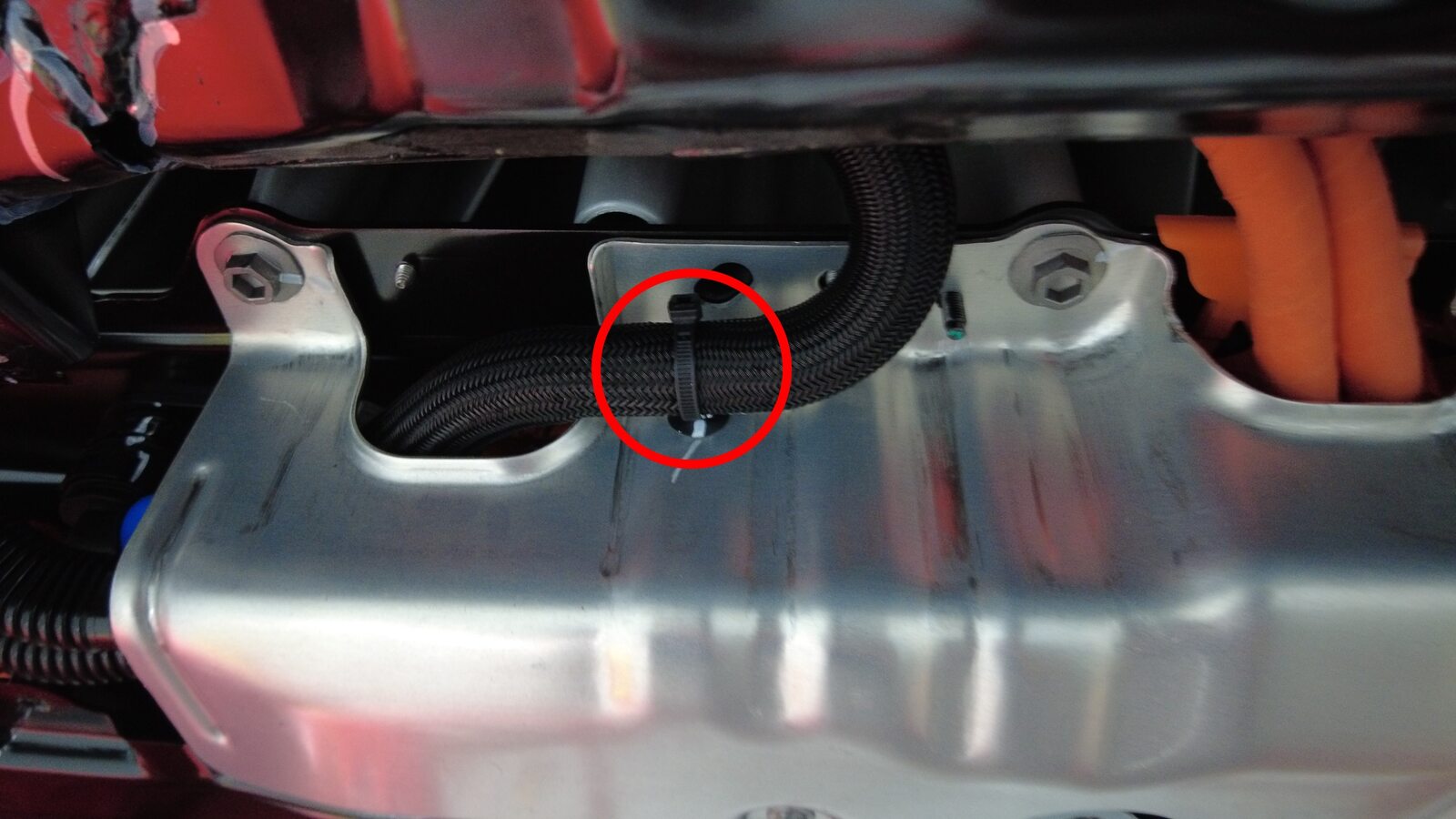

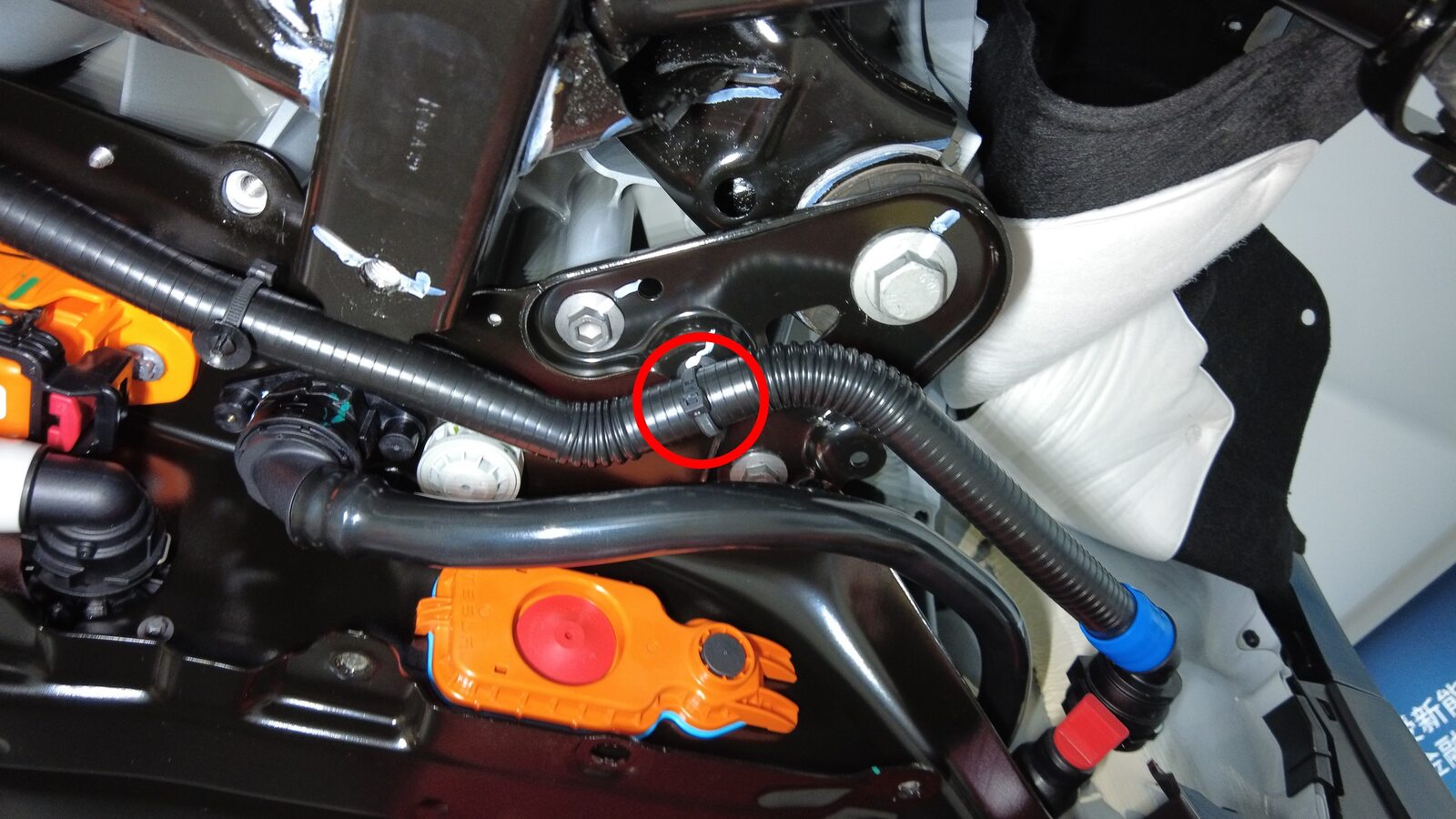

  83. Release clip securing coolant hoses to RH shear plate
    注
    1x fir tree clip

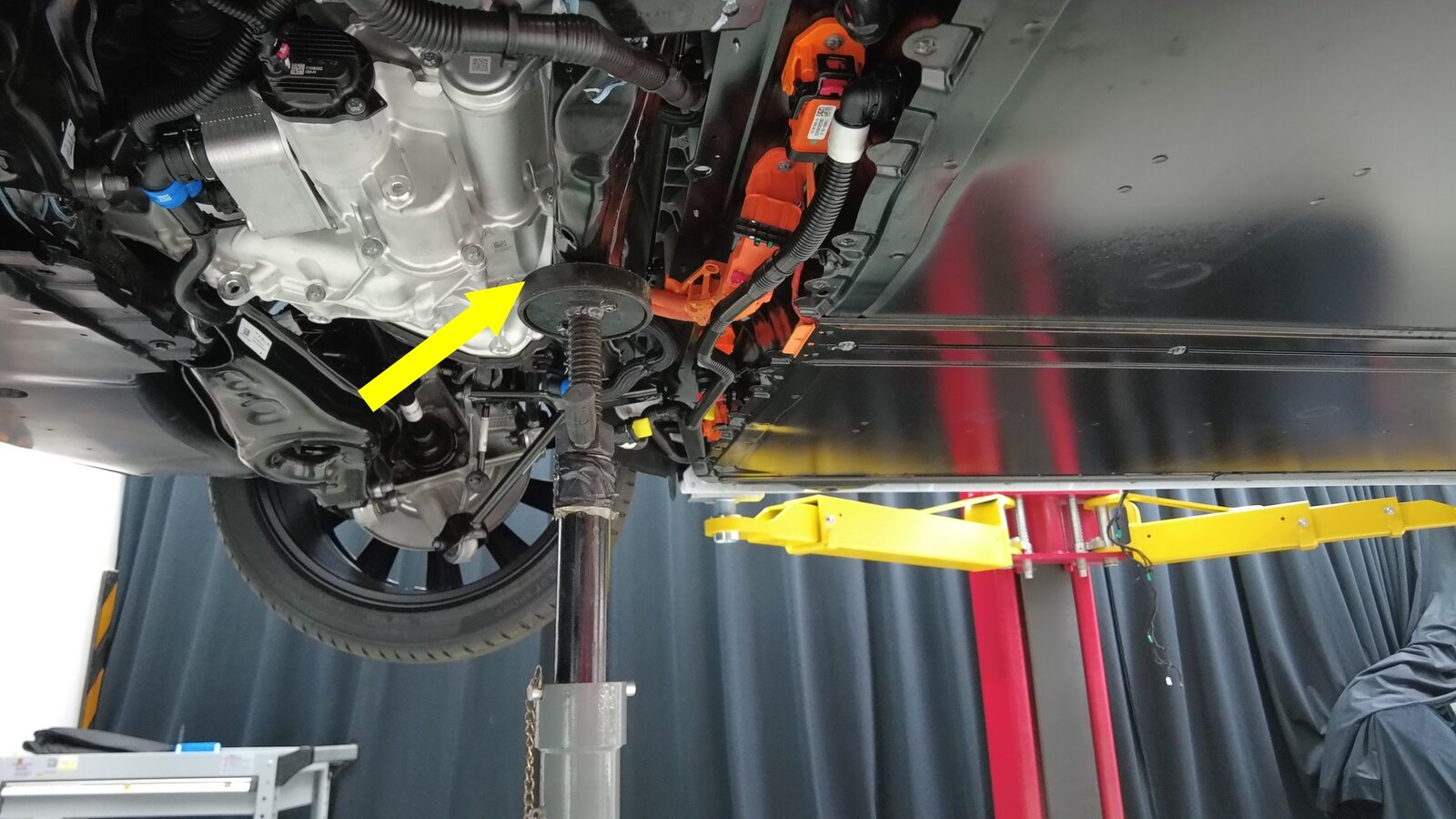

  84. Position support stand to support front portion of rear subframe

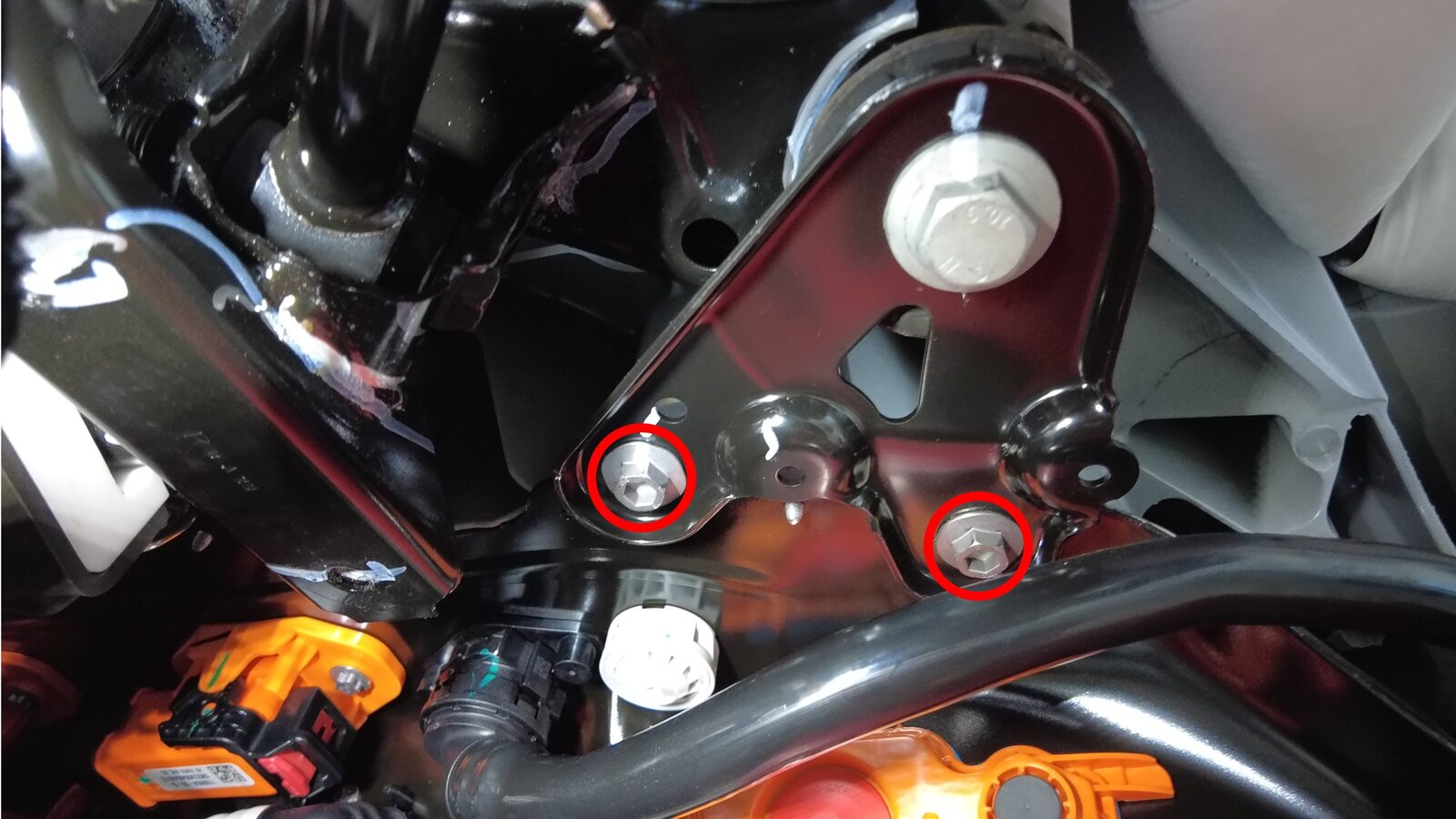

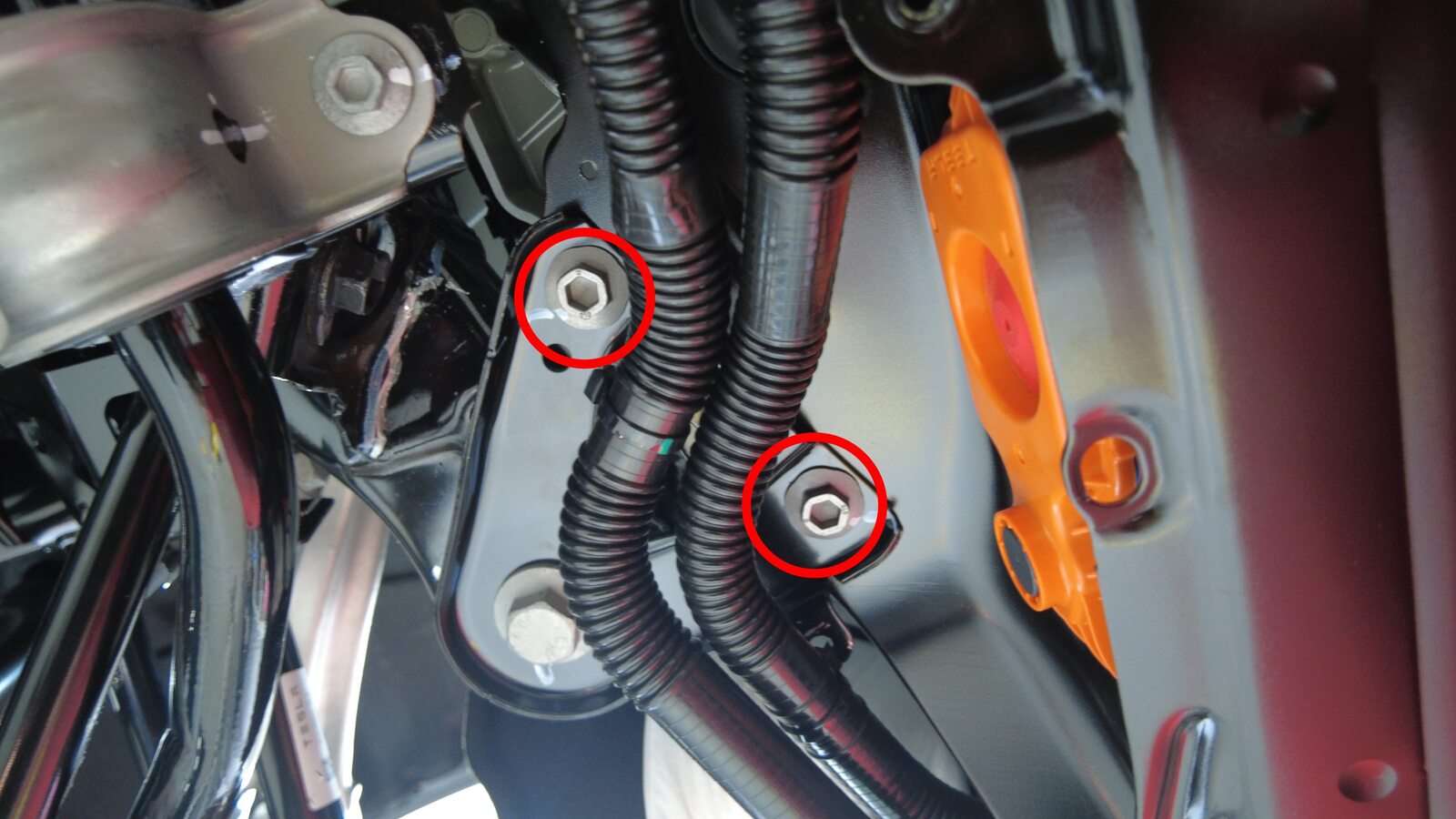

  85. Remove smaller fasteners for LH shear plate
    注
    2x bolts, 13mm, 64 Nm

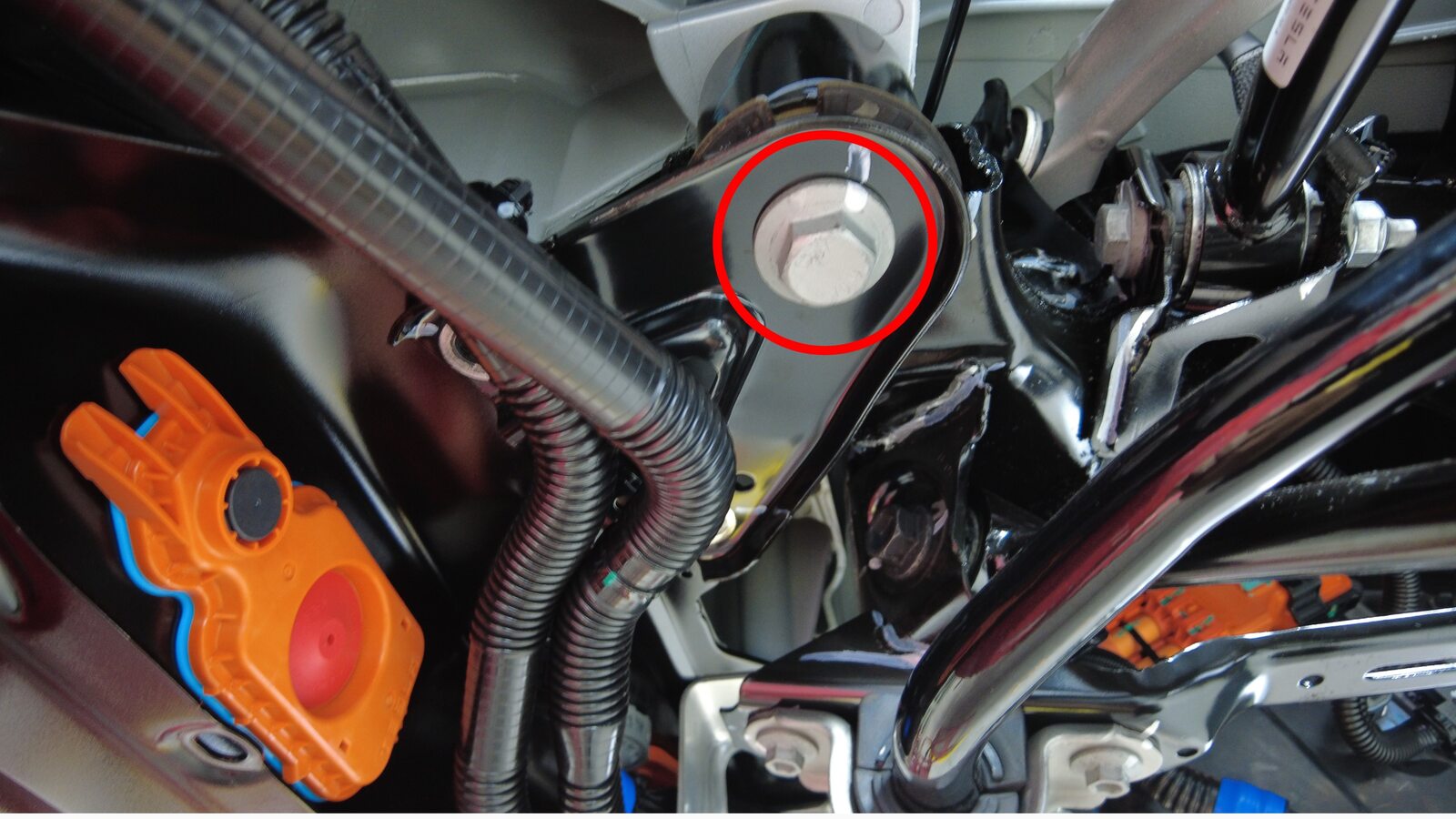

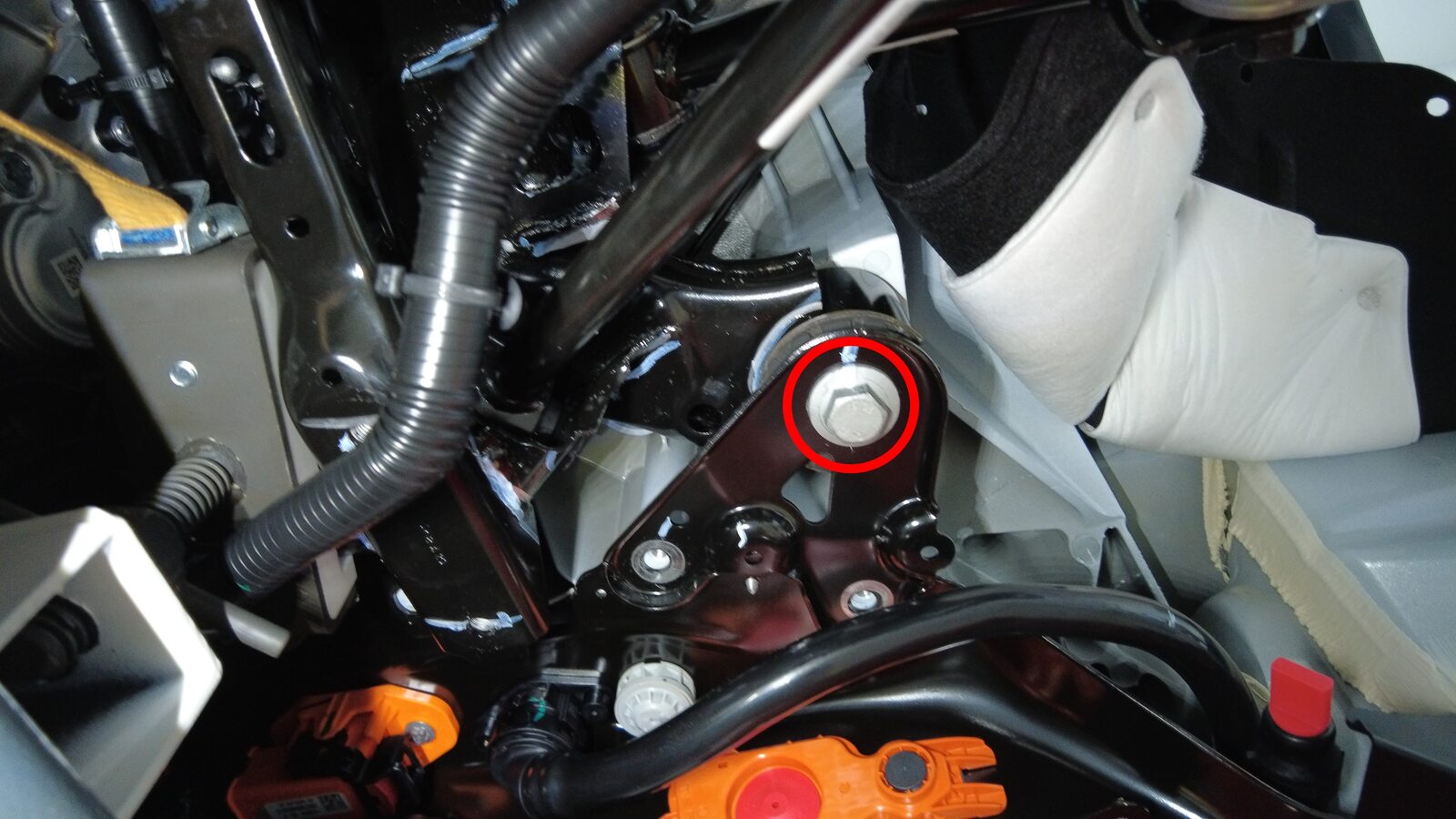

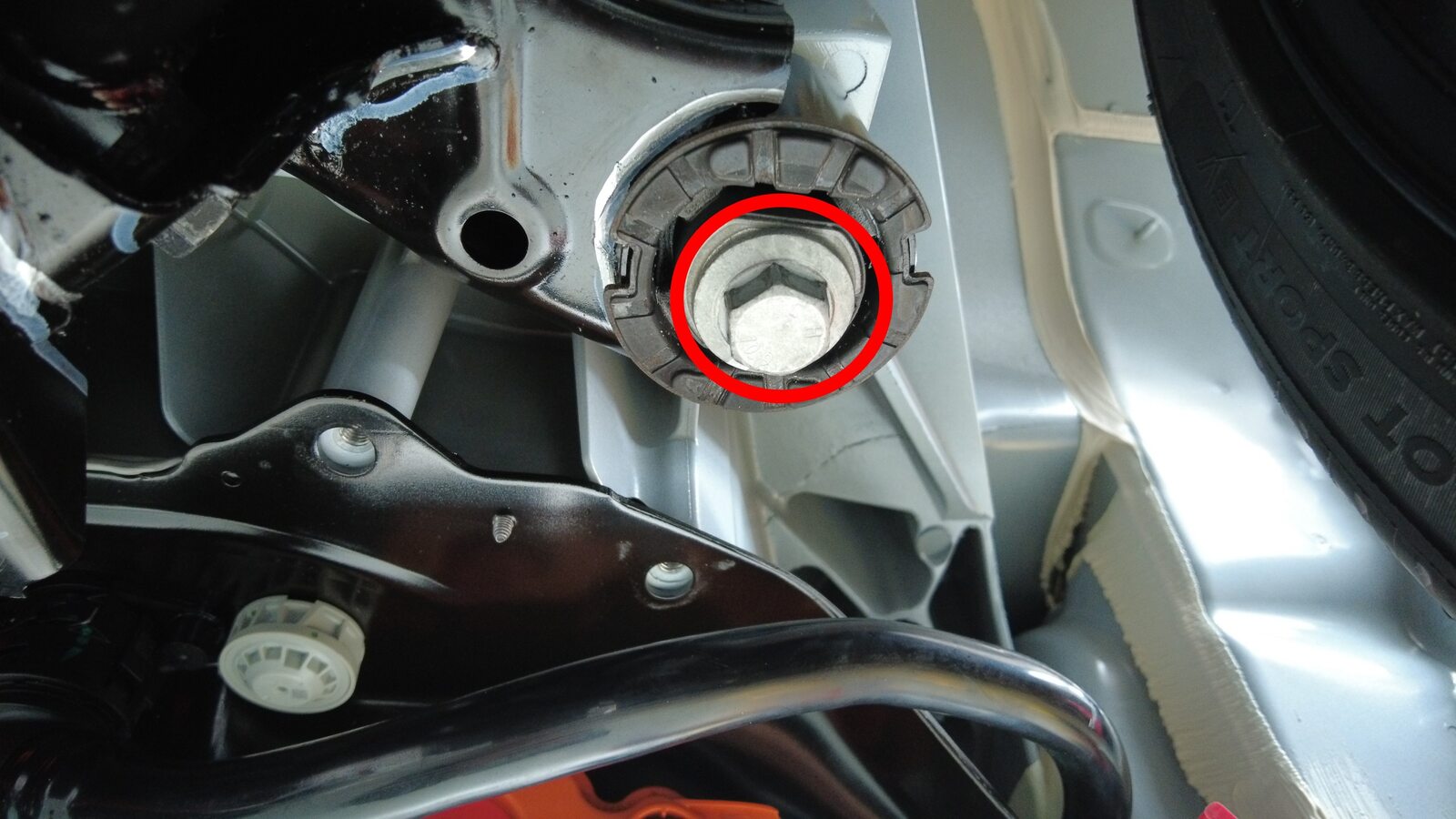

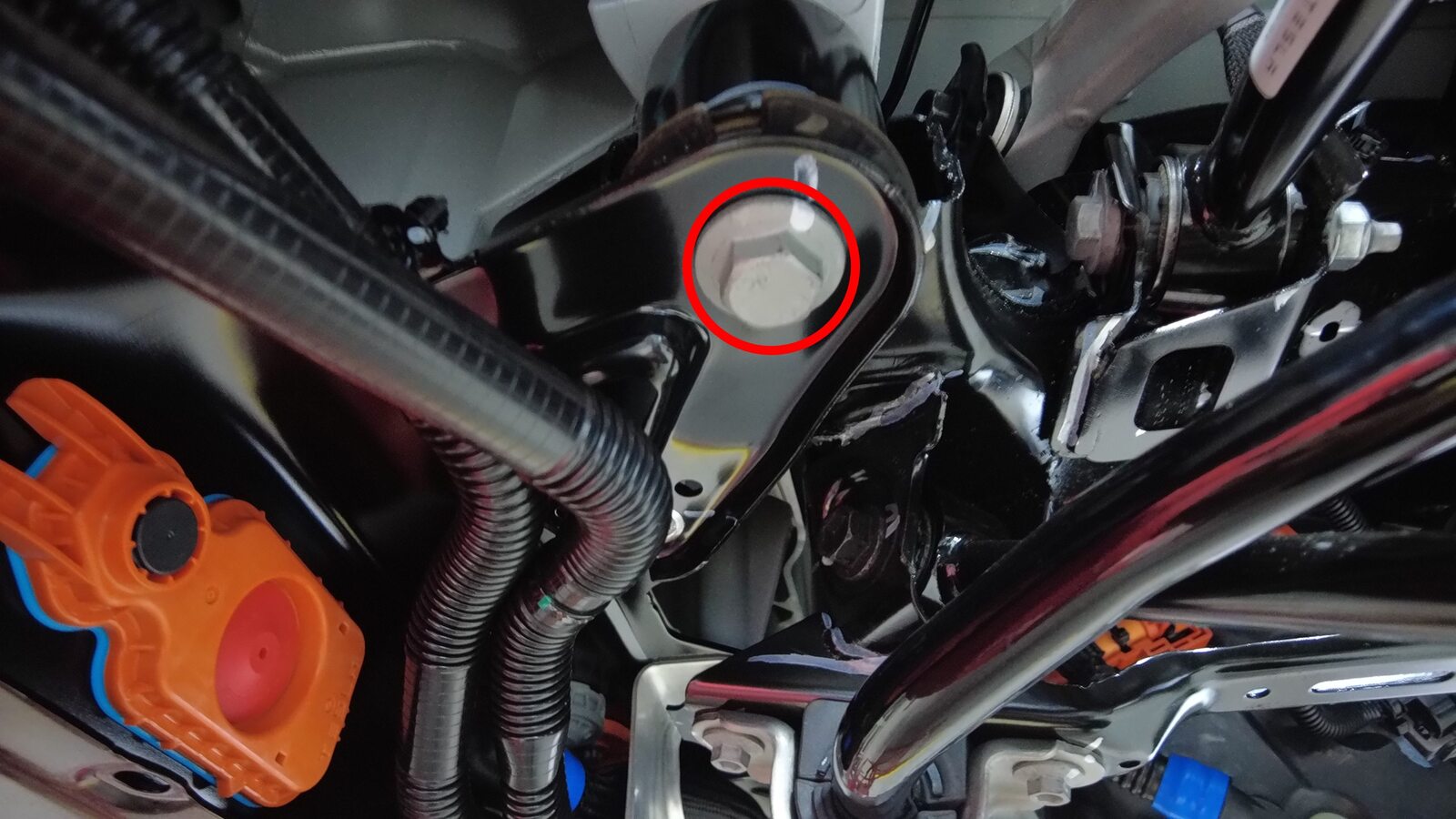

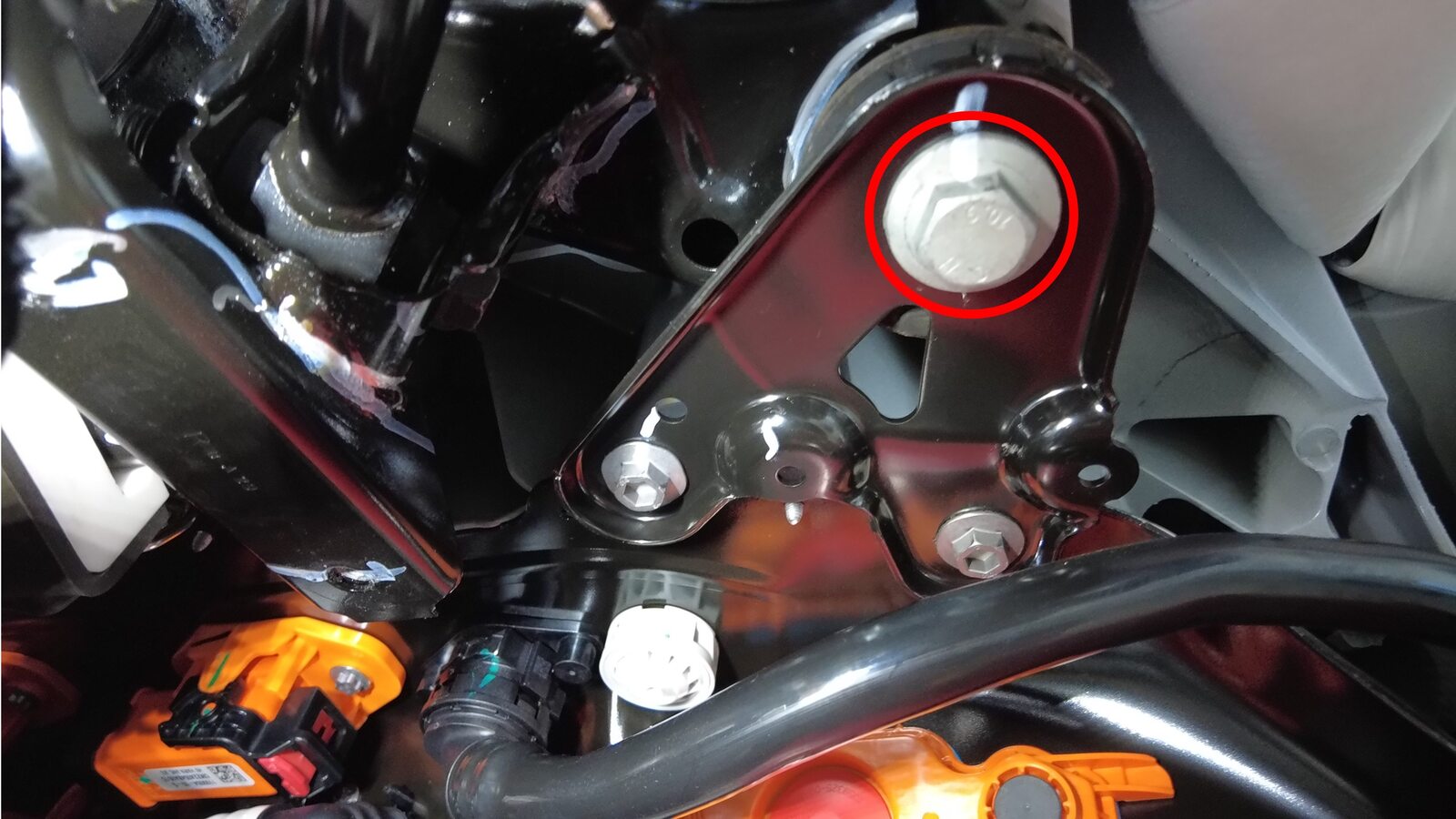

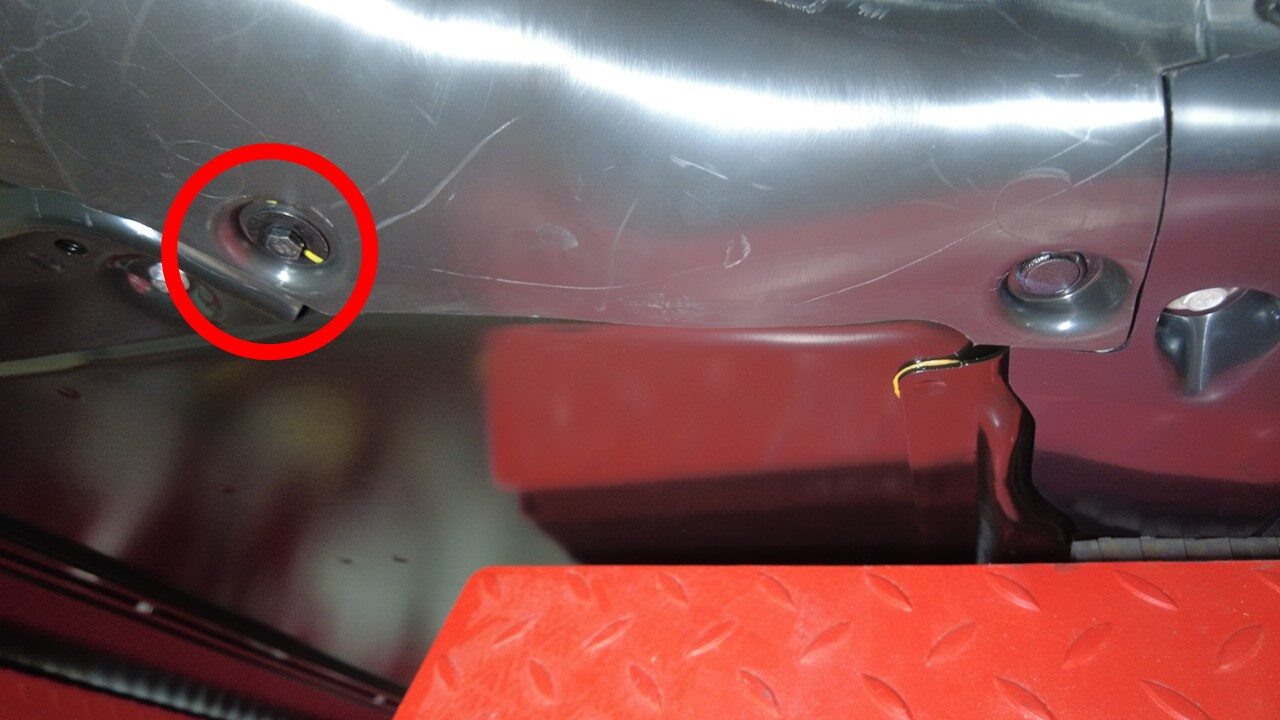

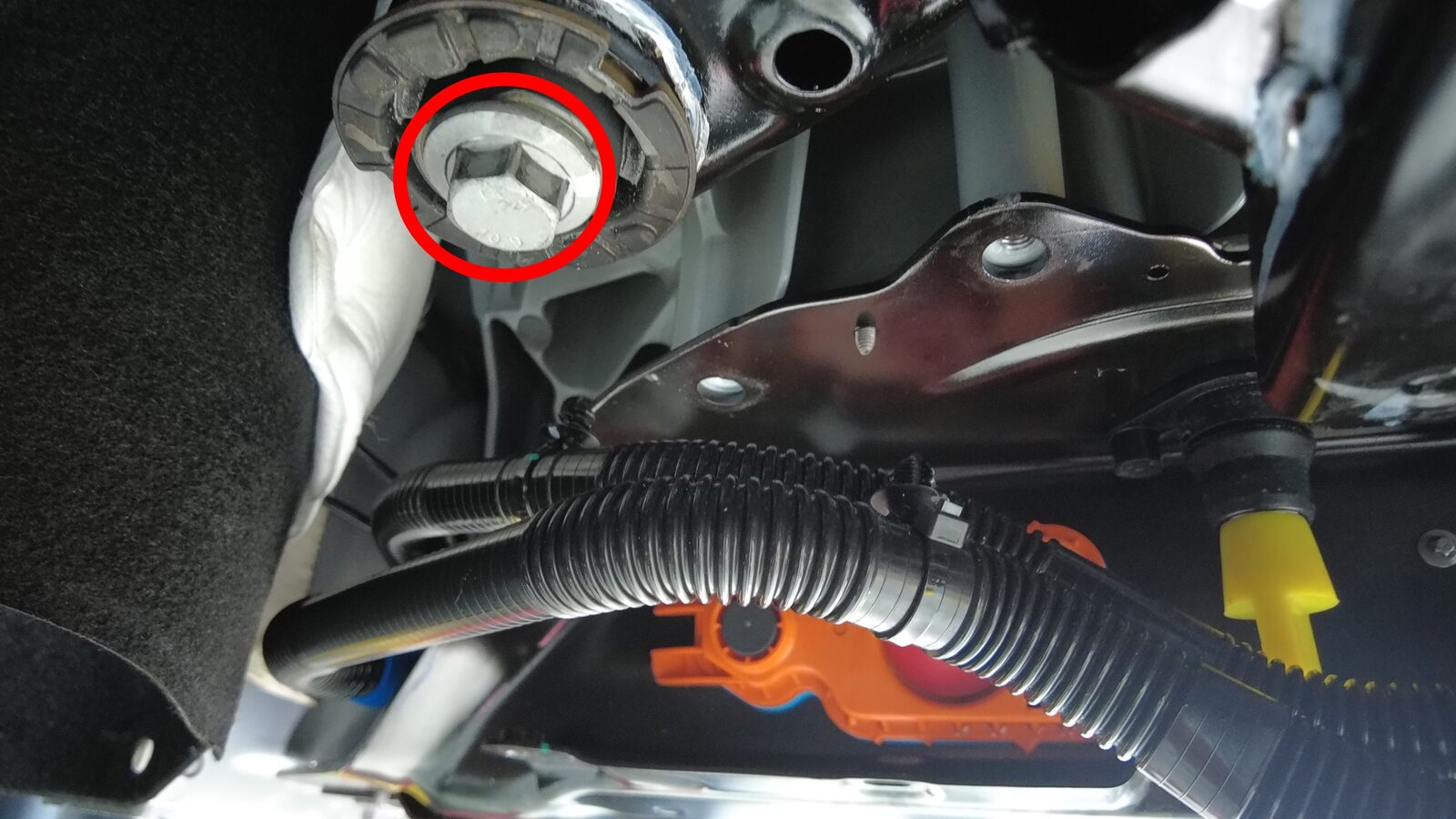

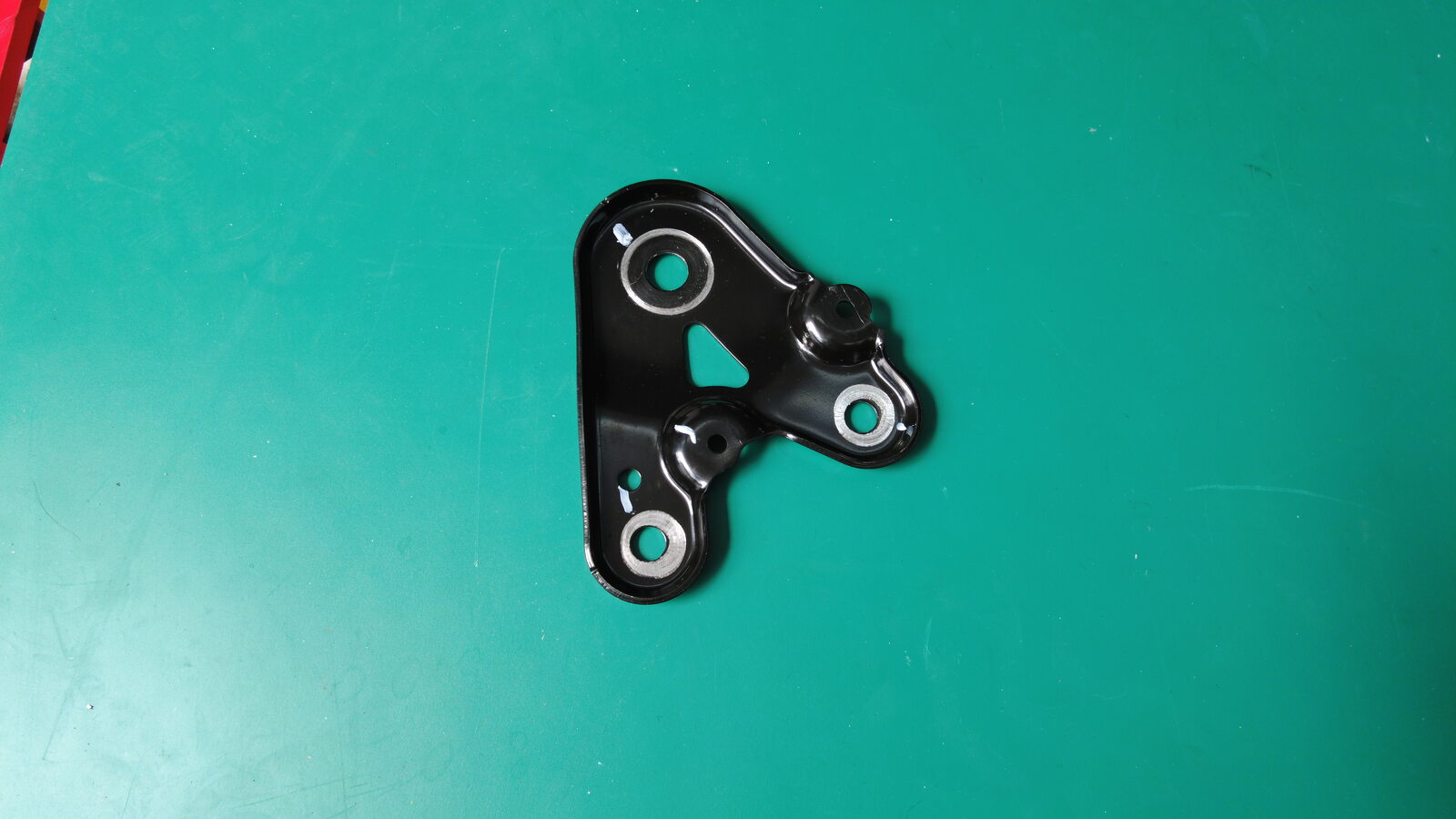

  86. Remove large bolt securing LH shear plate and subframe to body and remove shear plate
    注
    1x bolt, 21mm, 125 Nm
  87. Hand tighten bolt securing LH side of subframe to body
    注
    1x bolt, 21mm, 125 Nm
  88. Remove smaller fasteners for RH shear plate
    注
    2x bolts, 13mm, 64 Nm
  89. Remove large bolt securing RH shear plate and subframe to body and remove shear plate
    注
    1x bolt, 21mm, 125 Nm
  90. Hand tighten bolt securing RH side of subframe to body
    注
    1x bolt, 21mm, 125 Nm
  91. Remove support stand from under vehicle

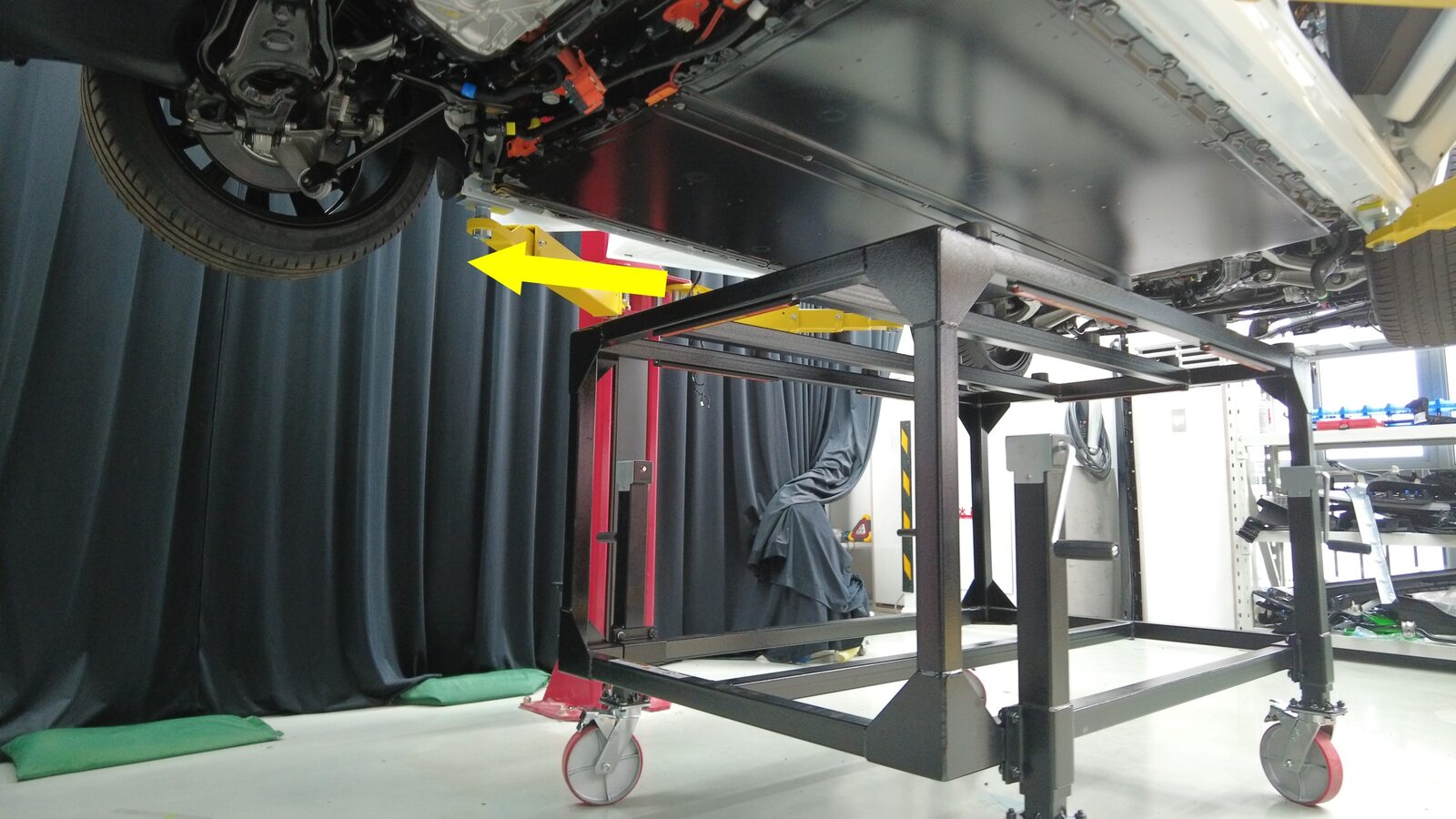

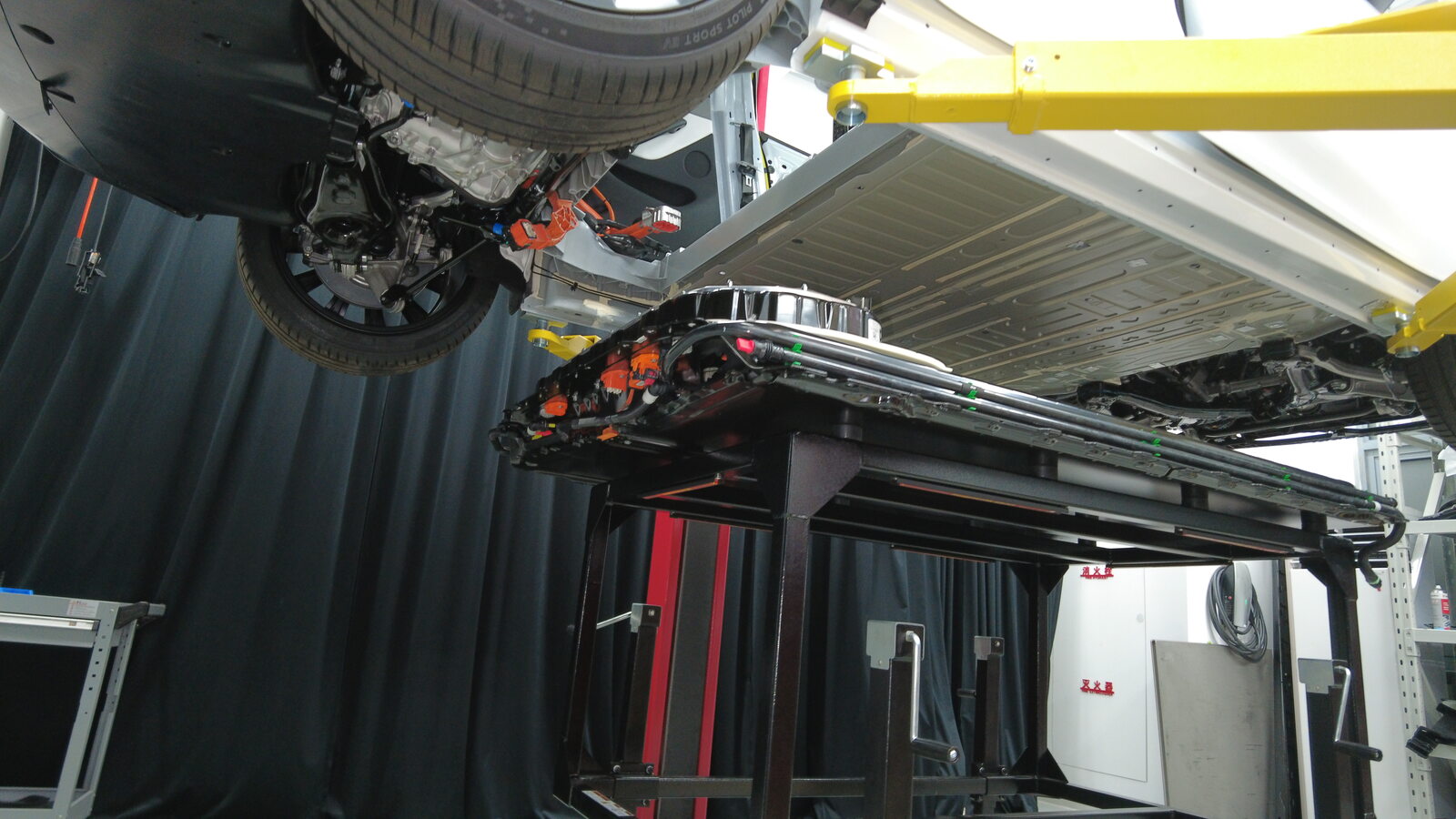

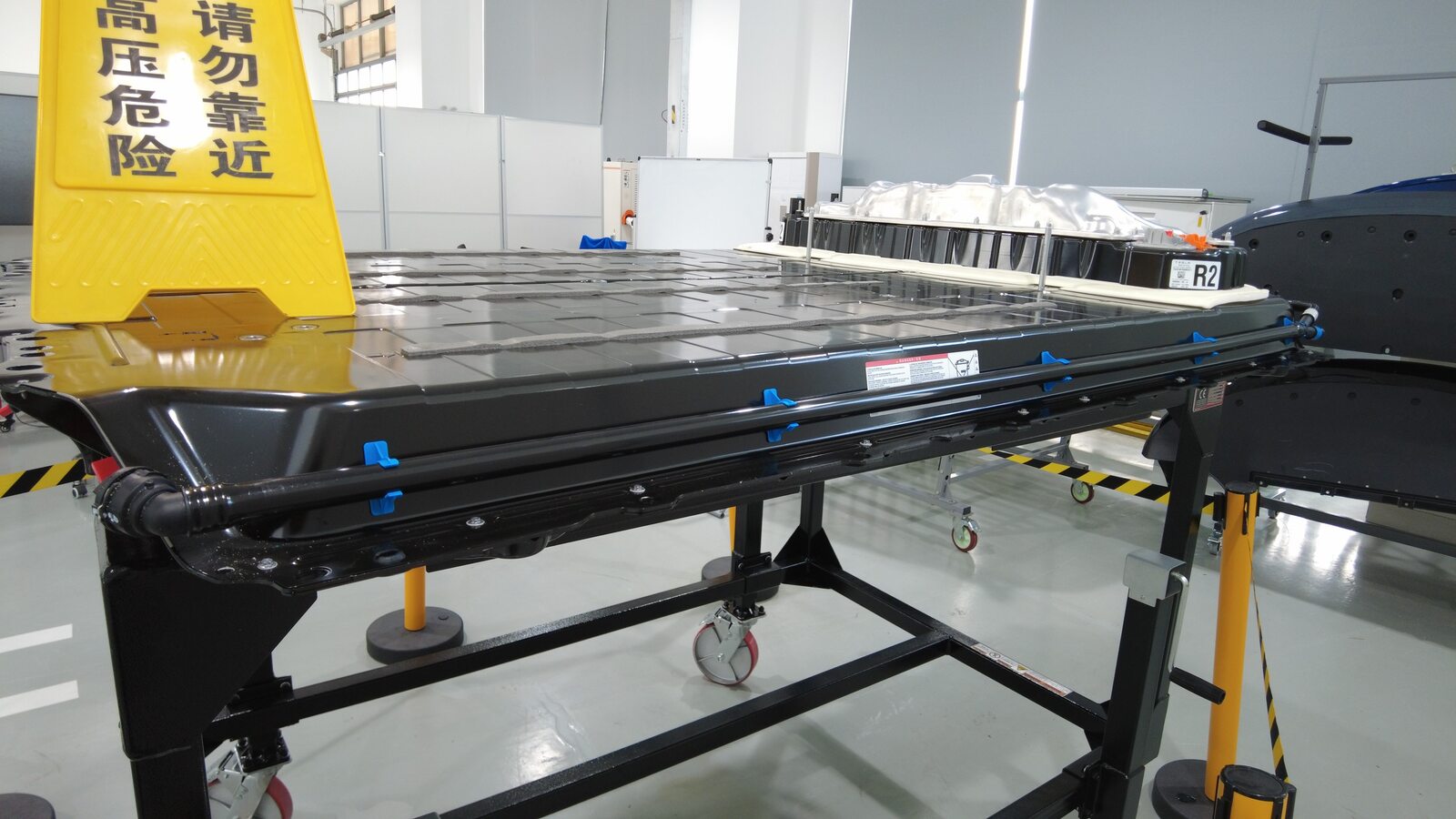

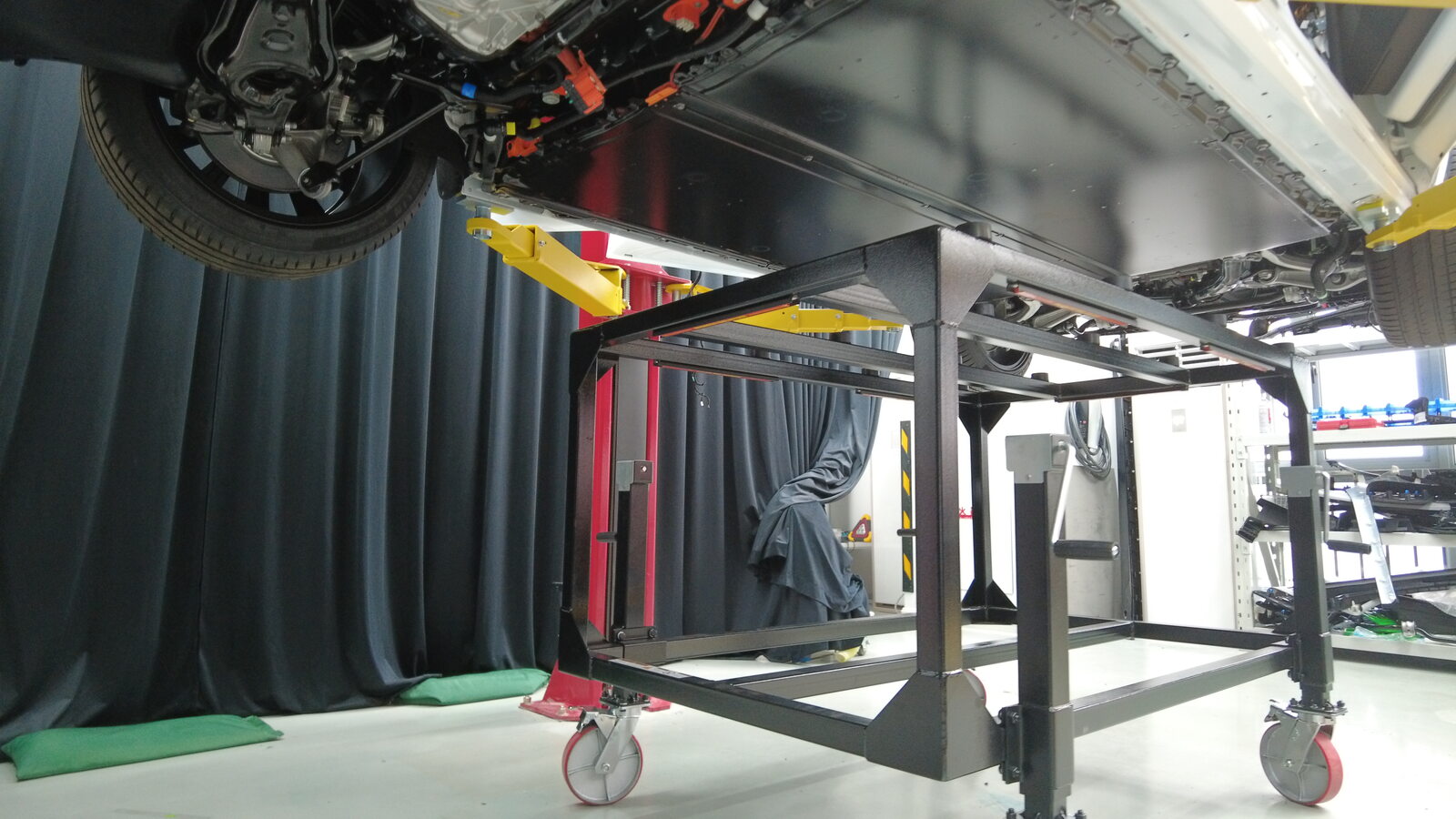

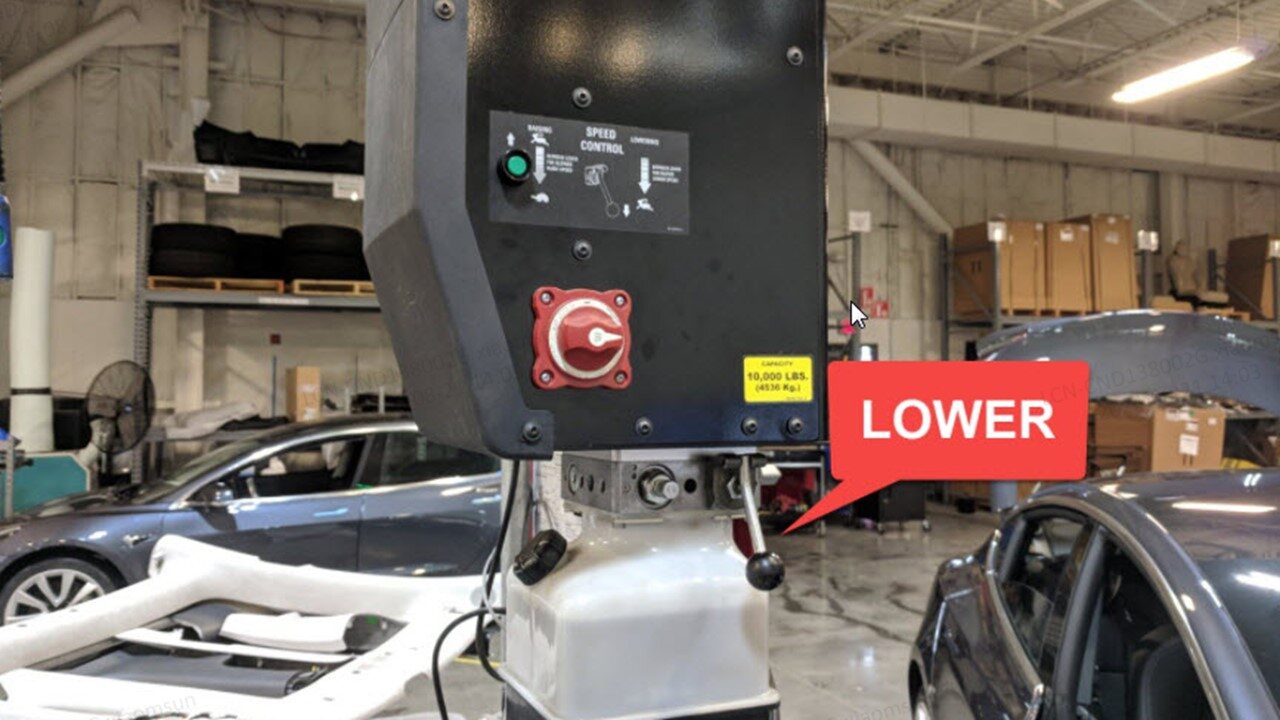

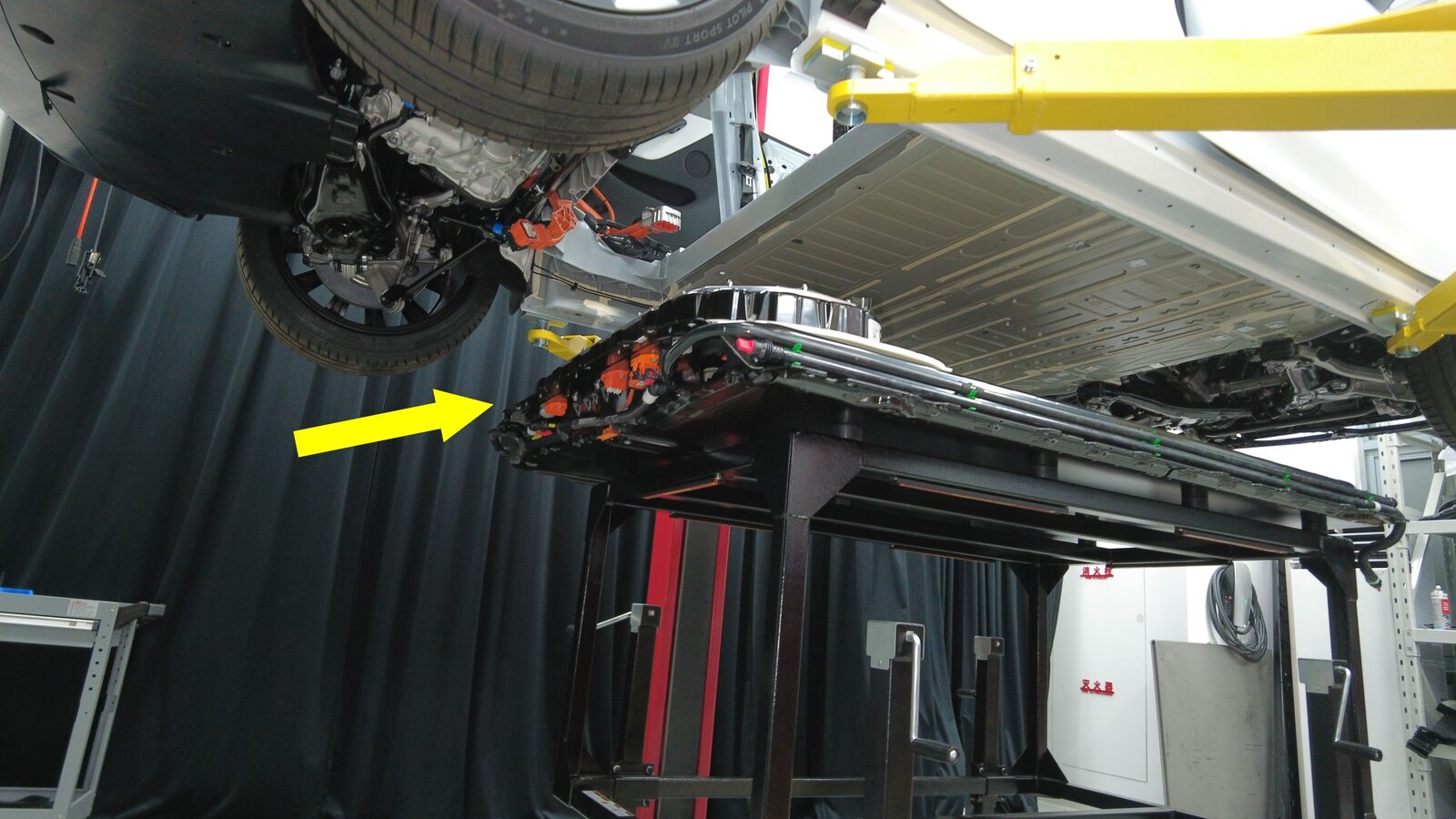

  92. Place HV battery table into position and lower vehicle to support HV battery
    注
    Recommend assistance, Line up table so center 4 bolts are accessible through opening in table, Adjust final battery table position using adjustable caster jacks on table

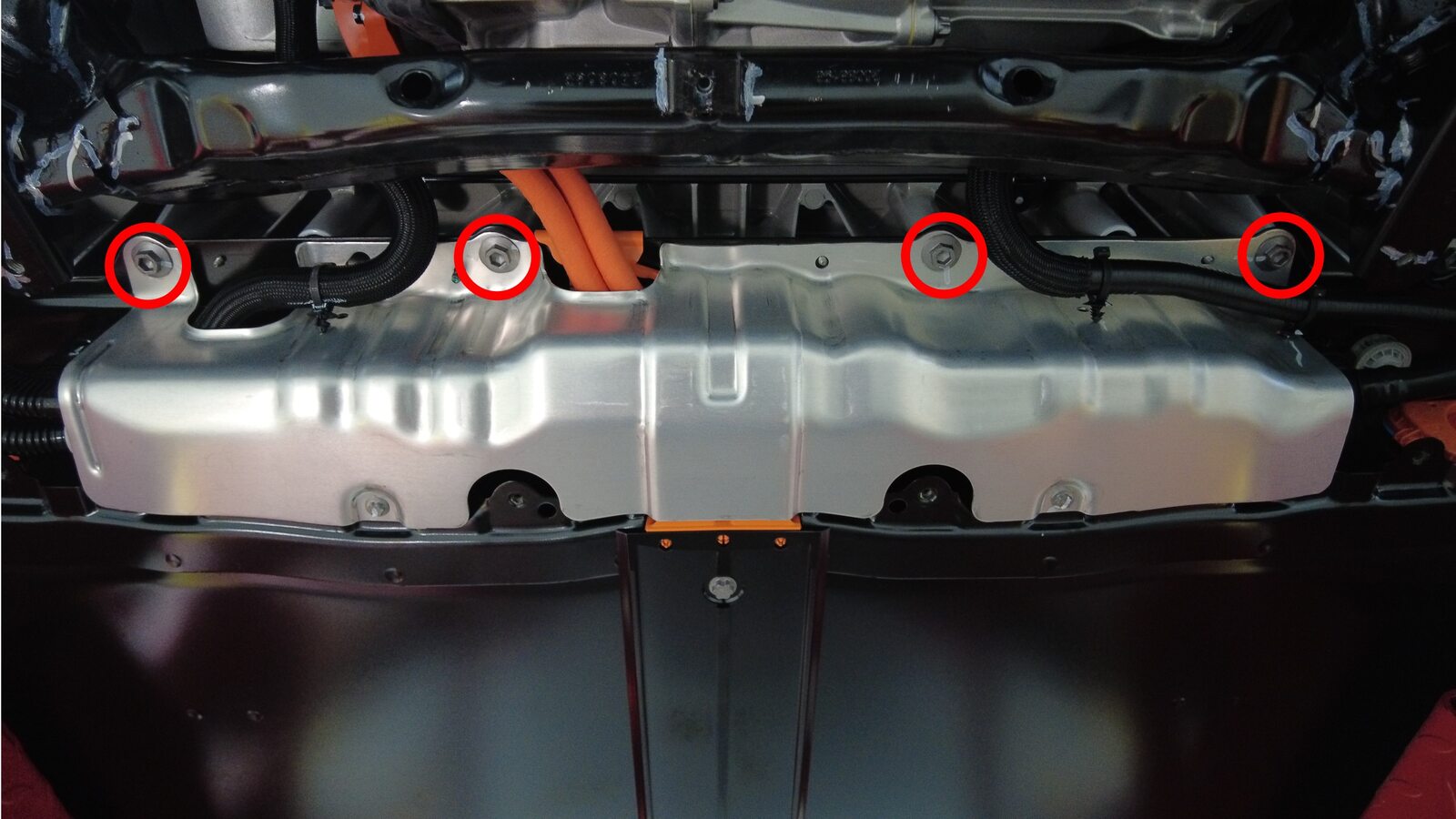

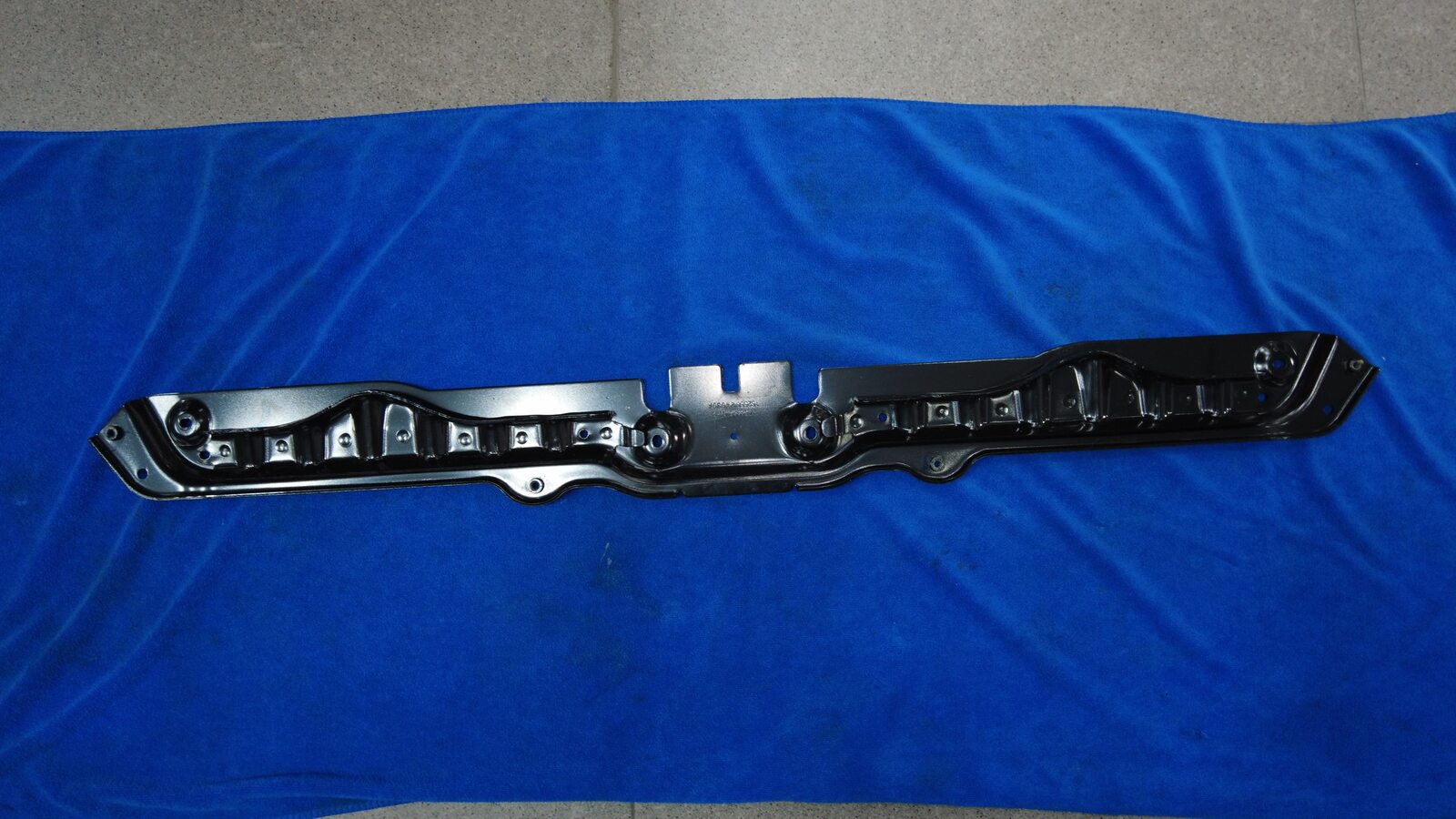

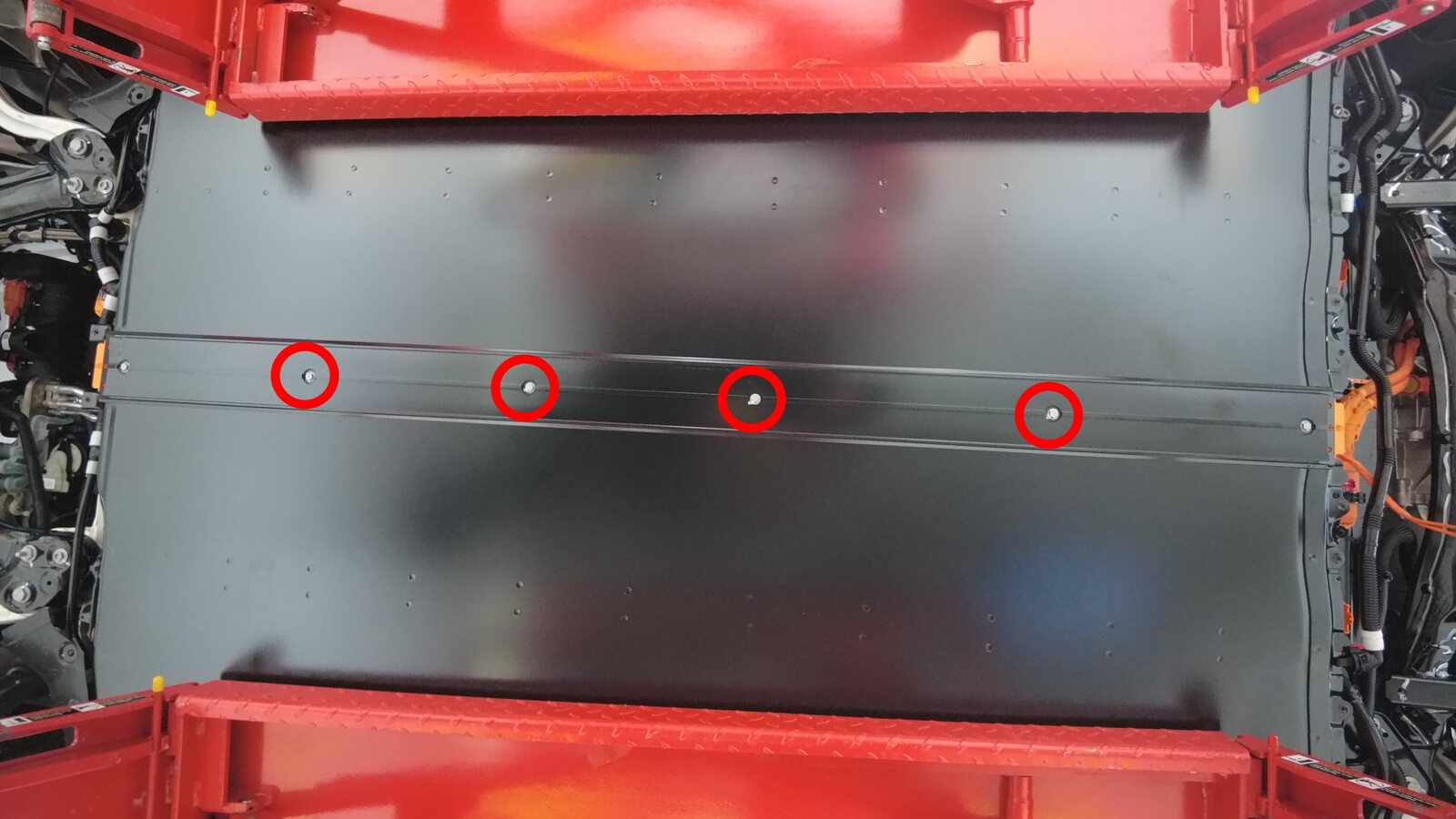

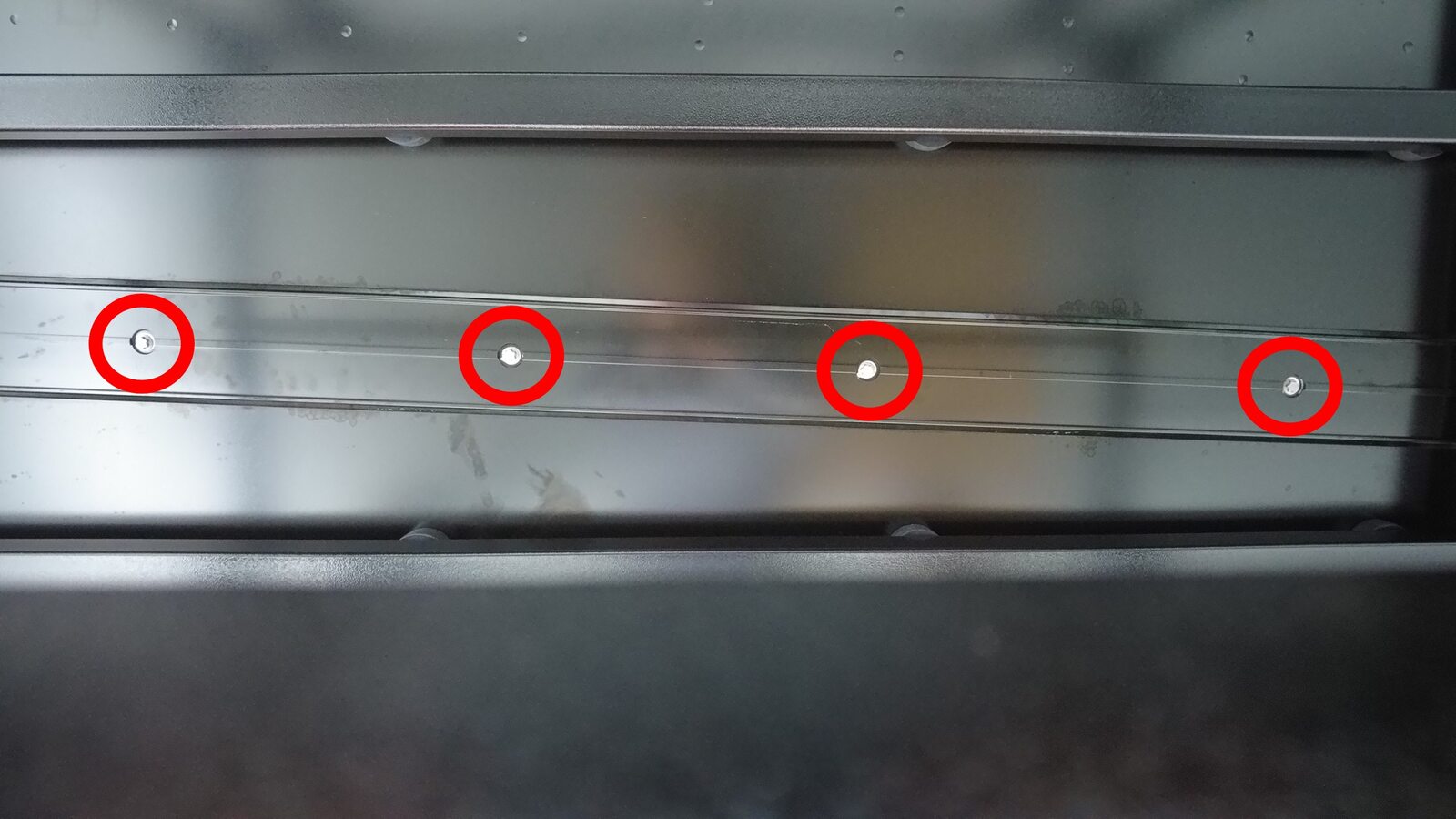

  93. Remove central bolts securing HV battery center ski cover
    注
    4x bolts, EP14, 34 Nm

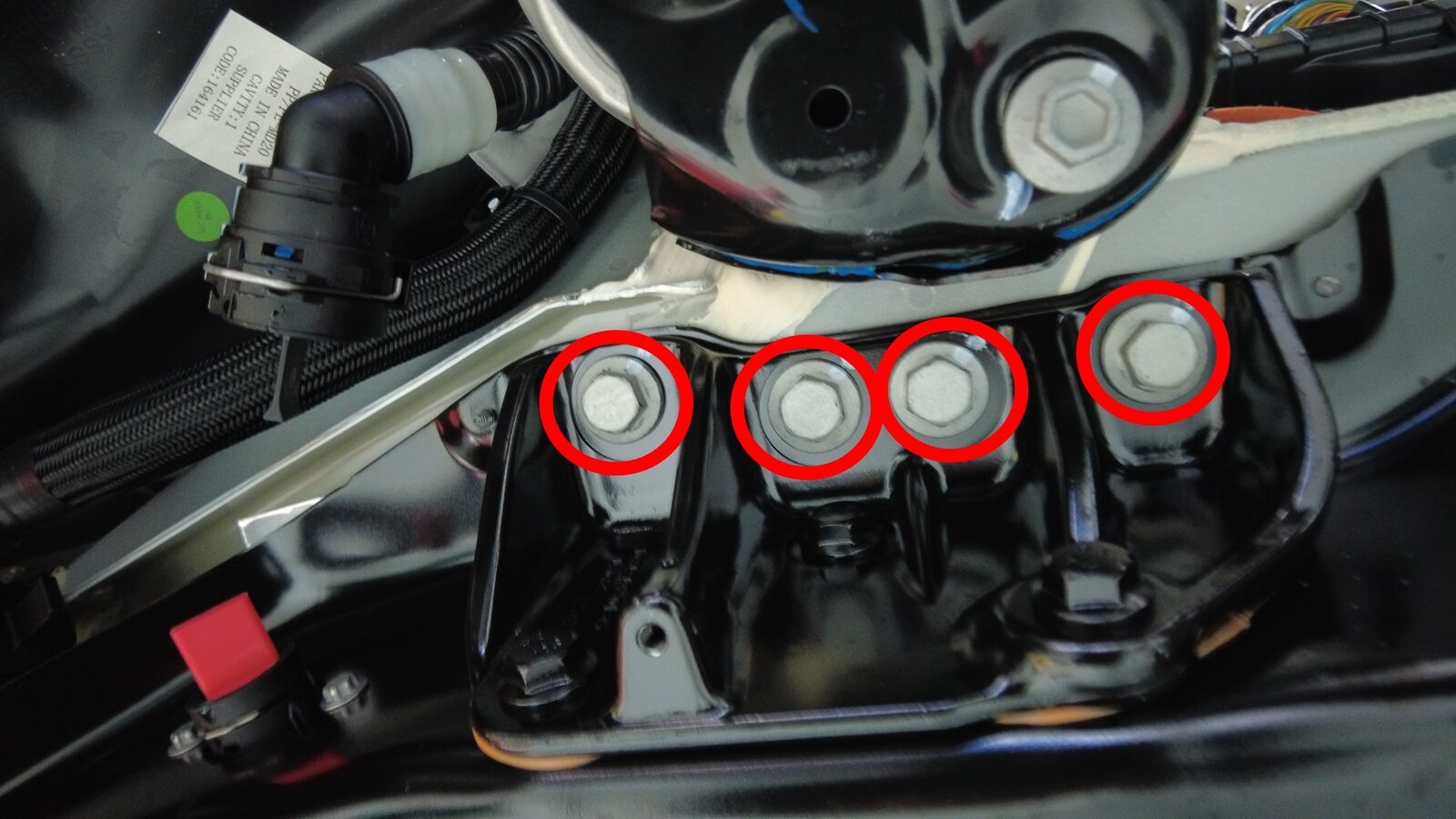

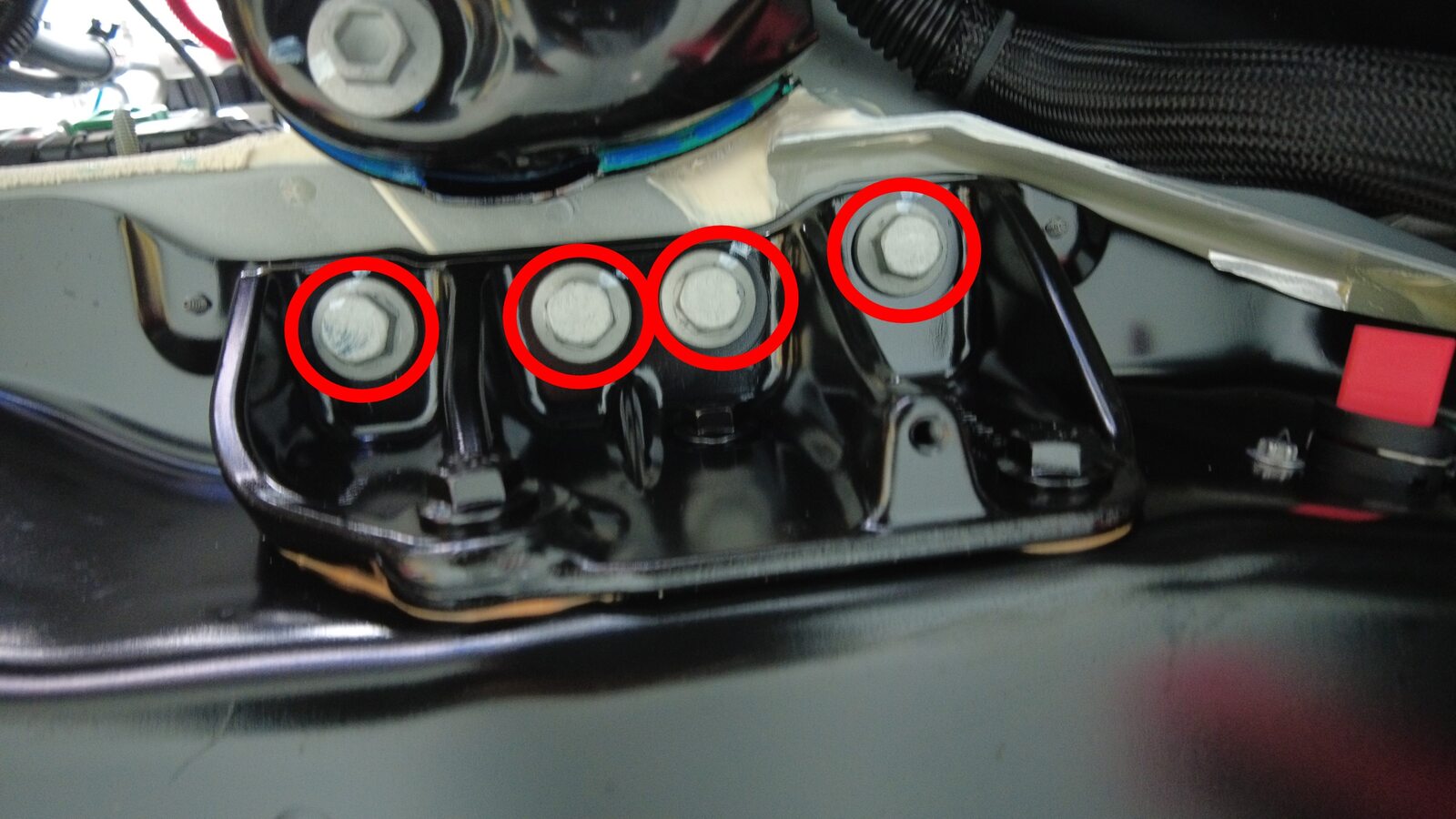

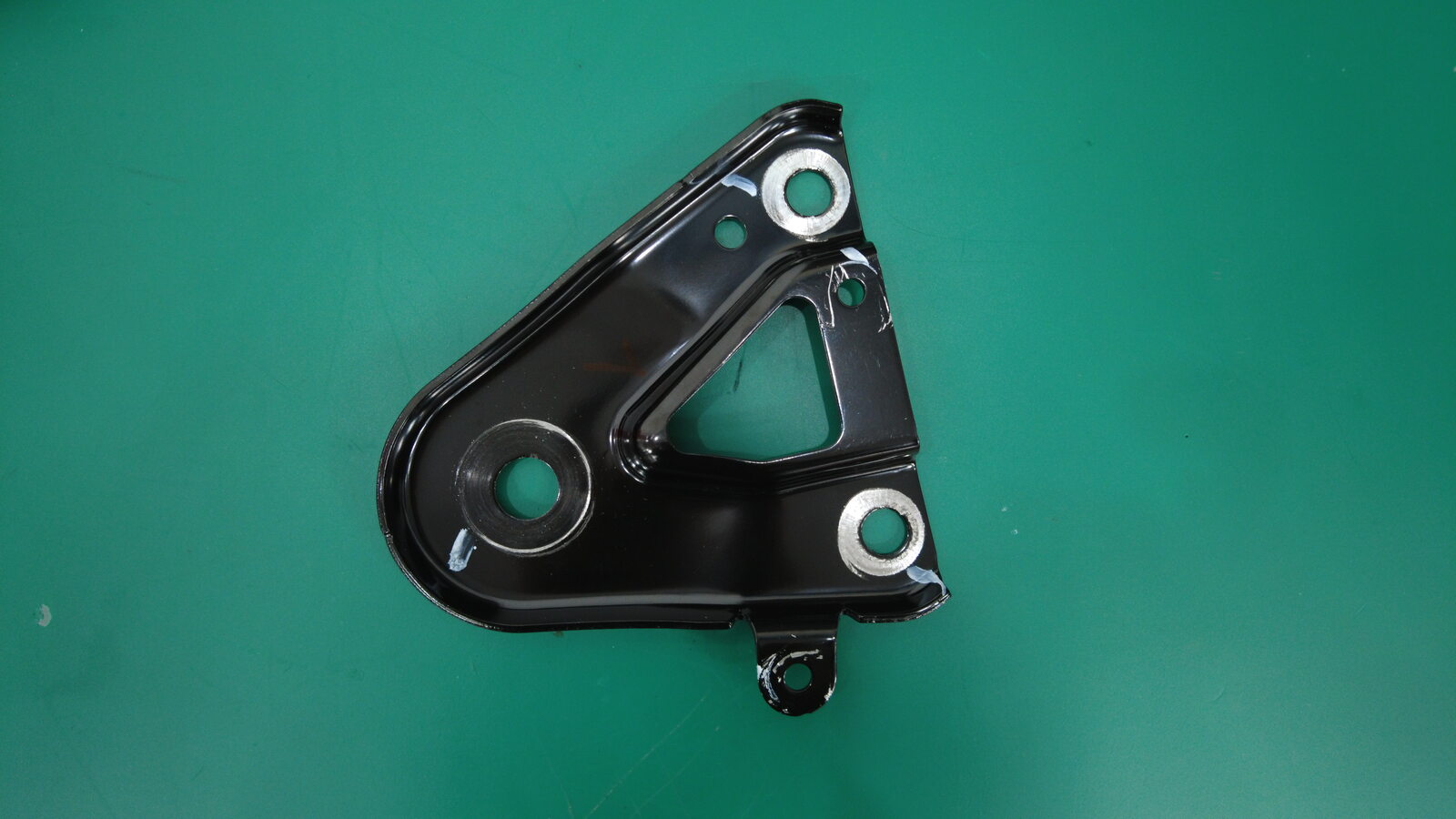

  94. Remove bolts securing LH front support bracket to vehicle
    注
    4x bolts, 16mm, 110 Nm
  95. Remove bolts securing RH front support bracket to vehicle
    注
    4x bolts, 16mm, 110 Nm

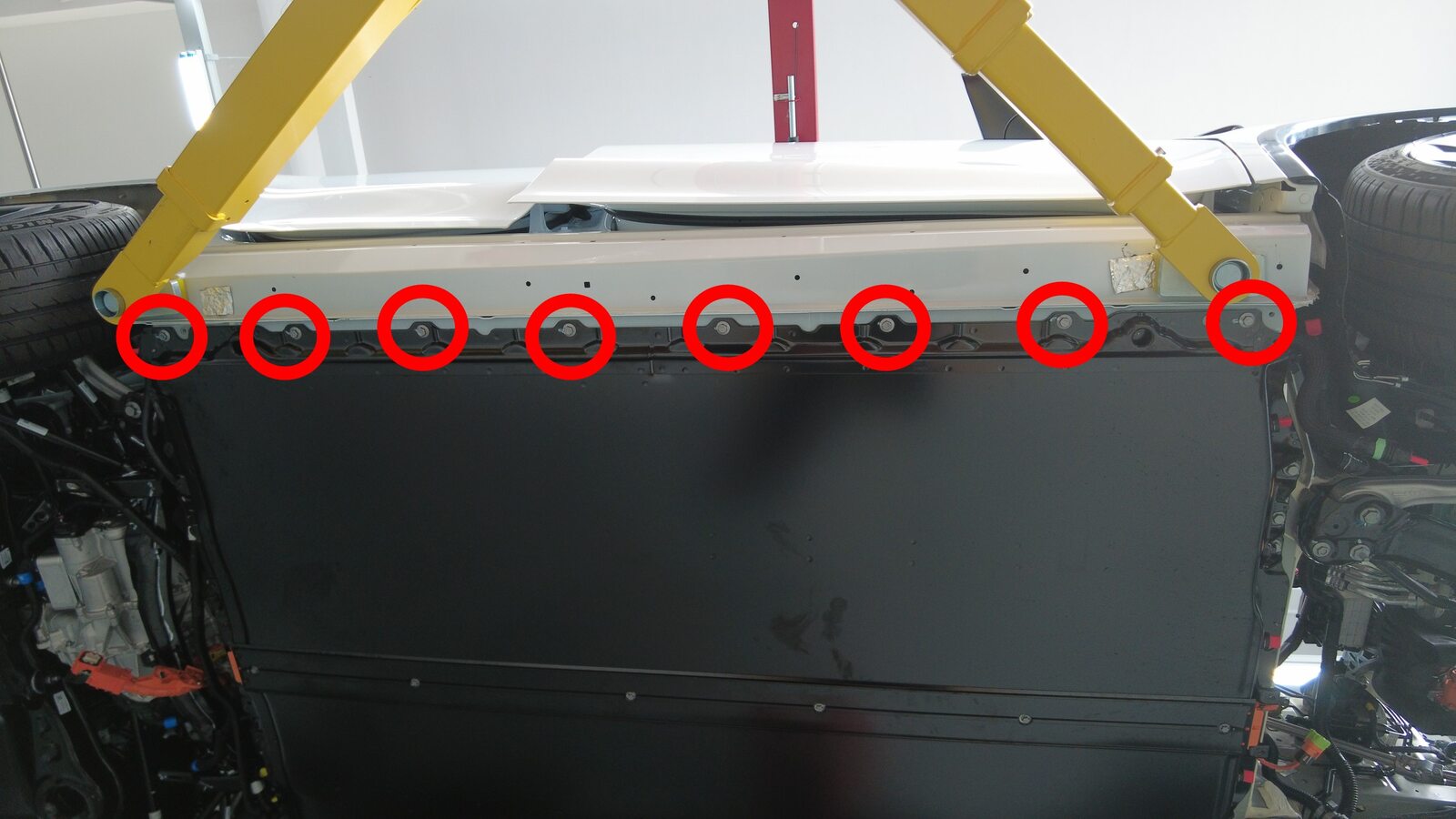

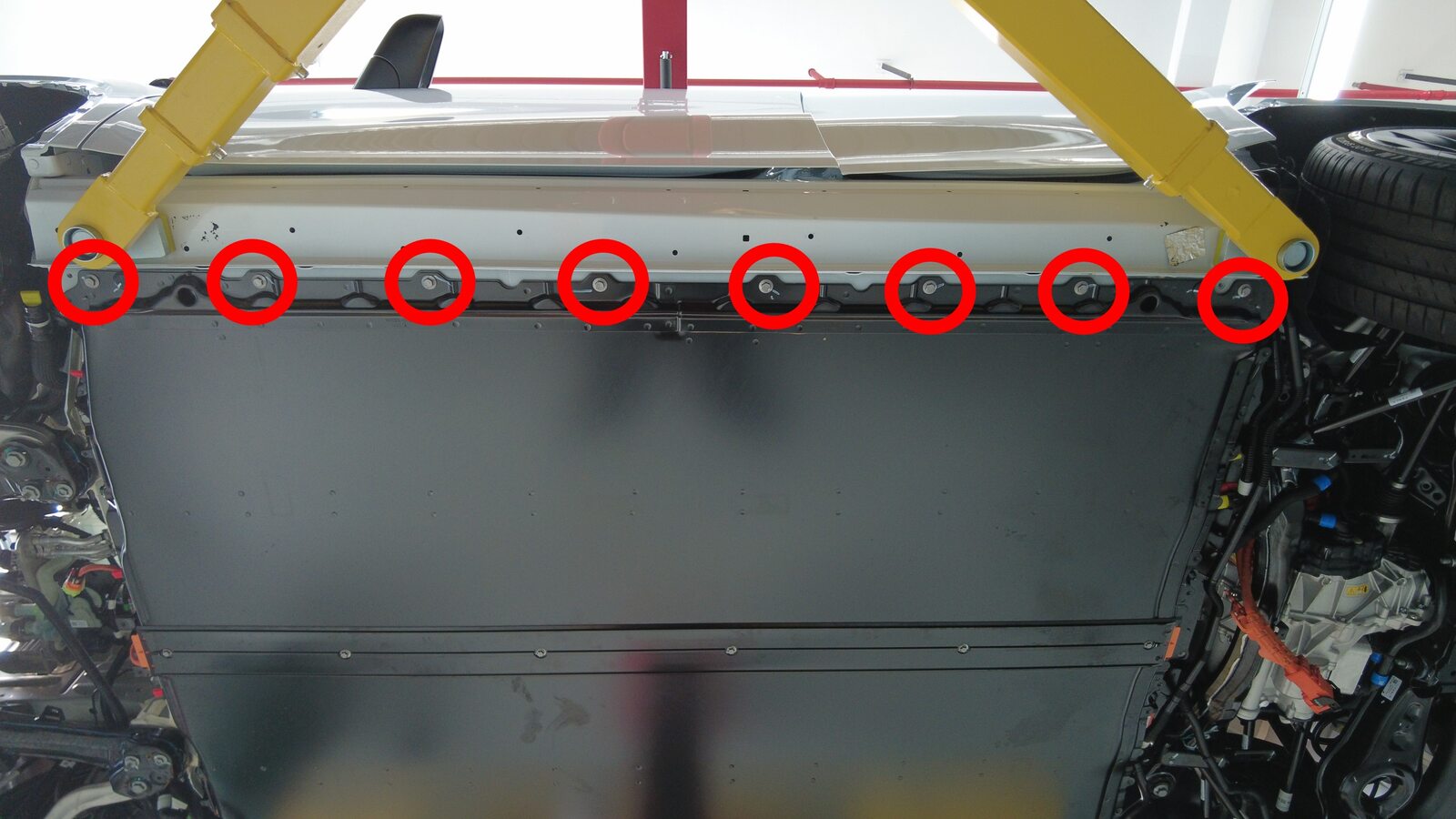

  96. Remove LH bolts securing HV battery to vehicle
    注
    8x bolts, 13mm, 35 Nm
  97. Remove RH bolts securing HV battery to vehicle
    注
    8x bolts, 13mm, 35 Nm
  98. Raise vehicle free of HV battery
    注
    Recommend assistance

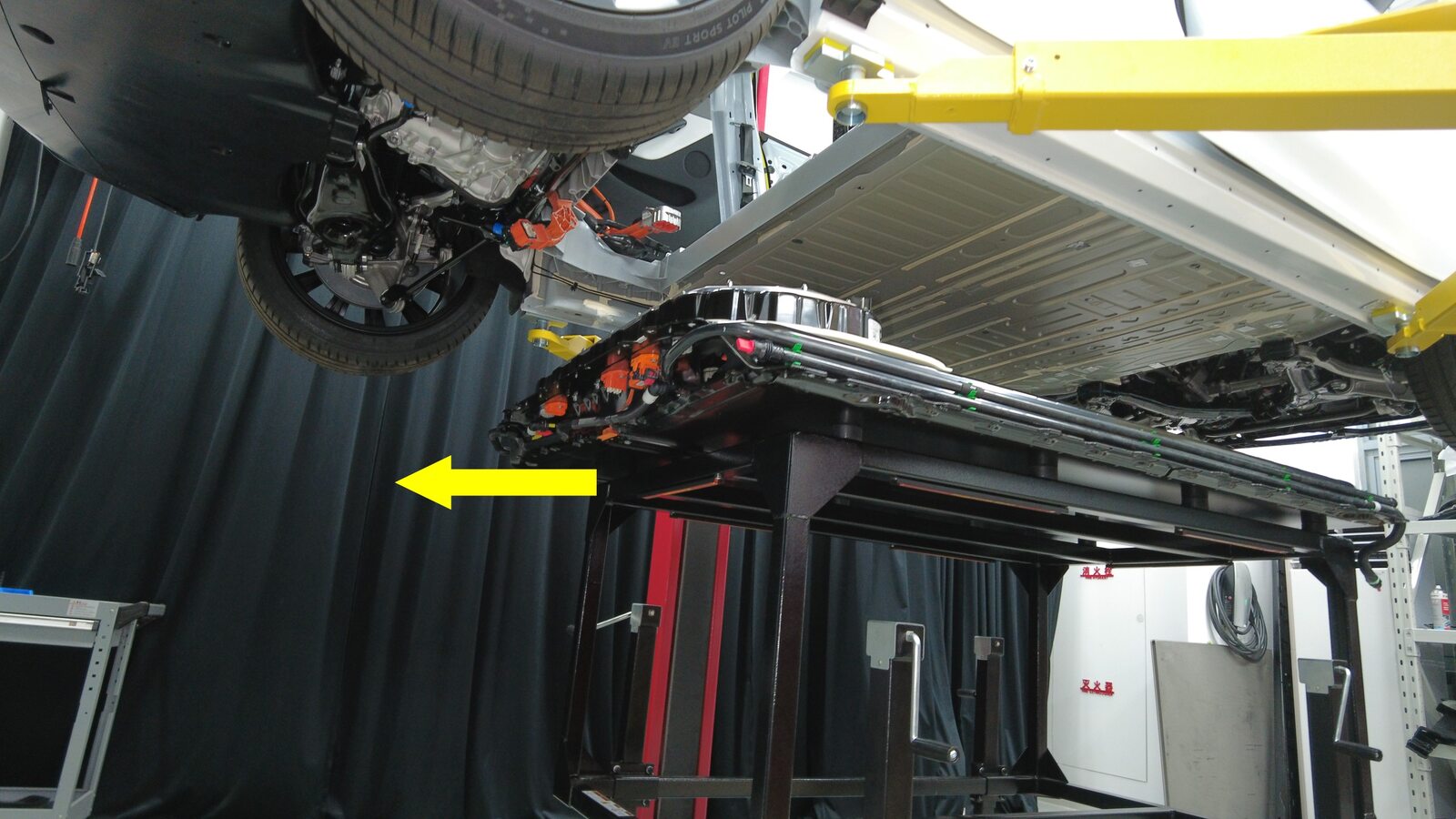

  99. Remove battery from under vehicle
    注
    Recommend assistance

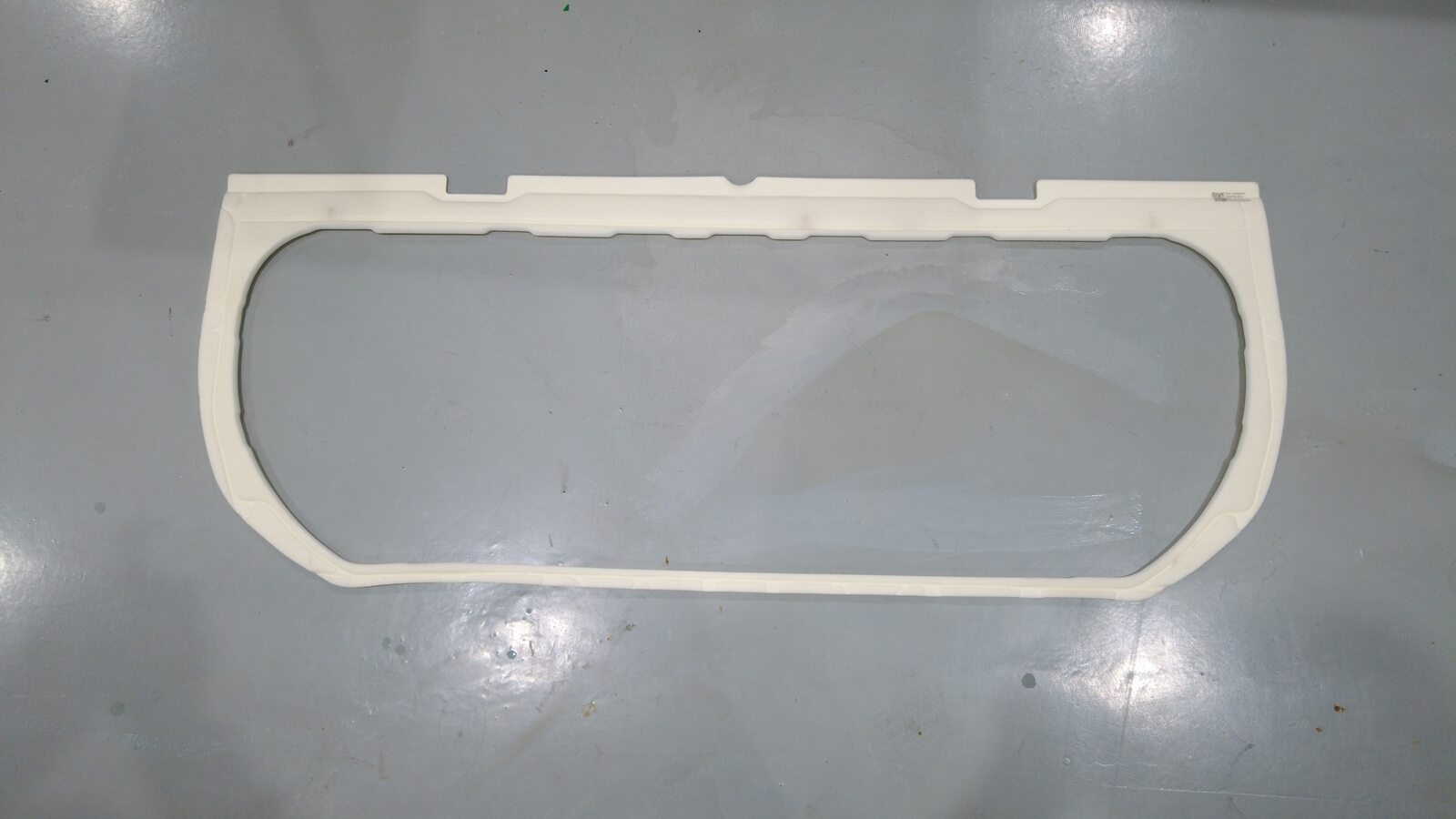

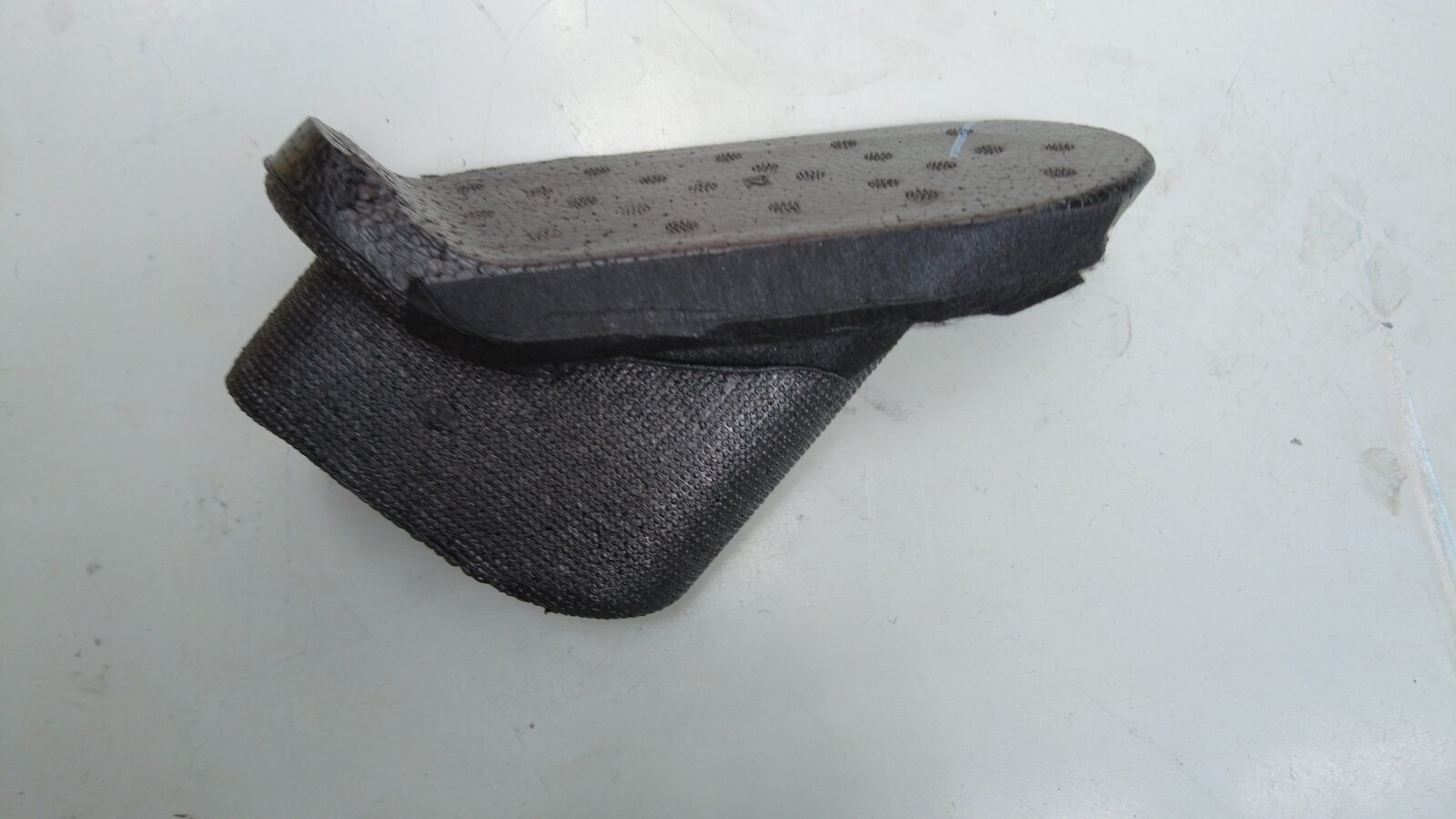

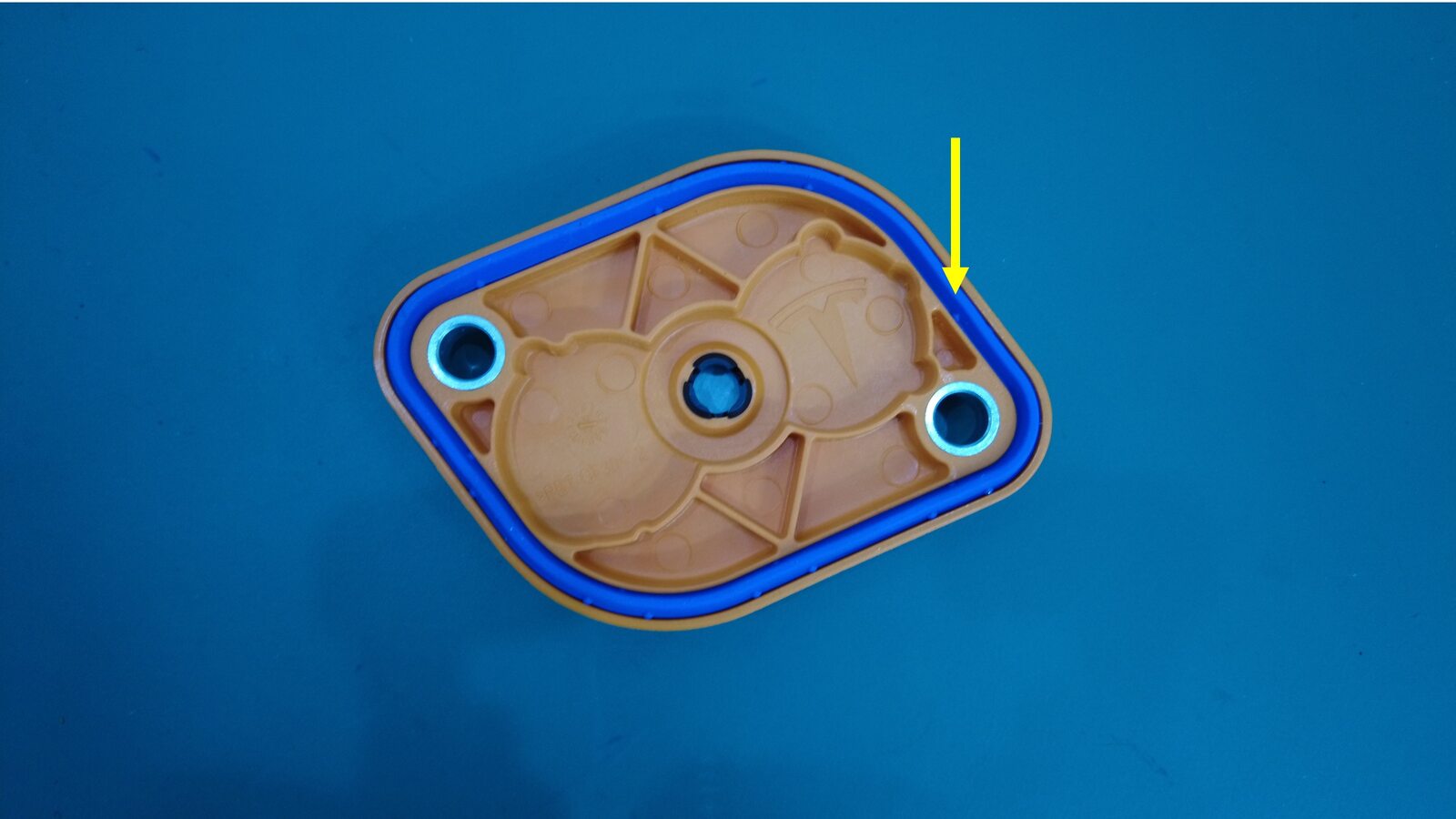

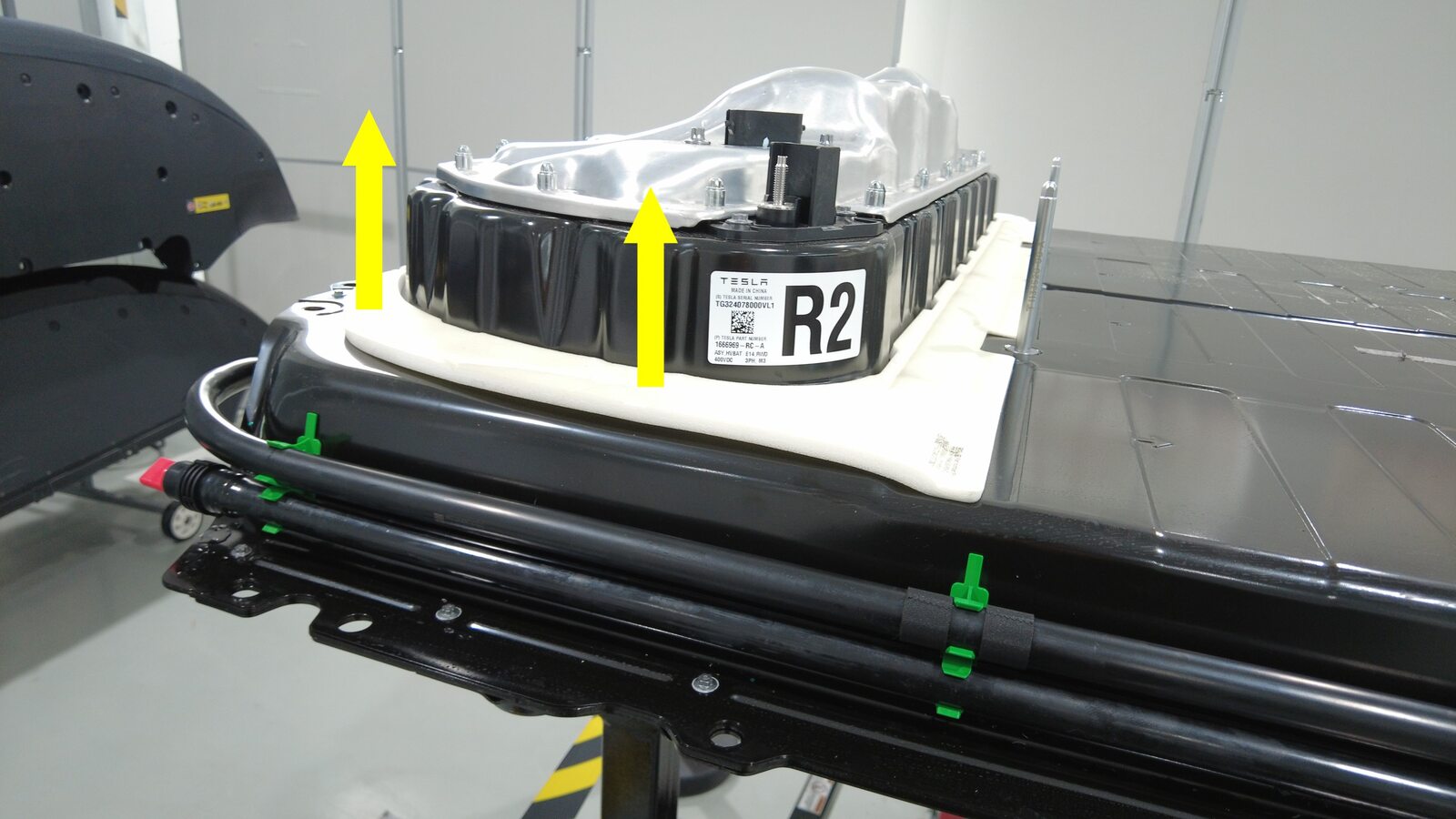

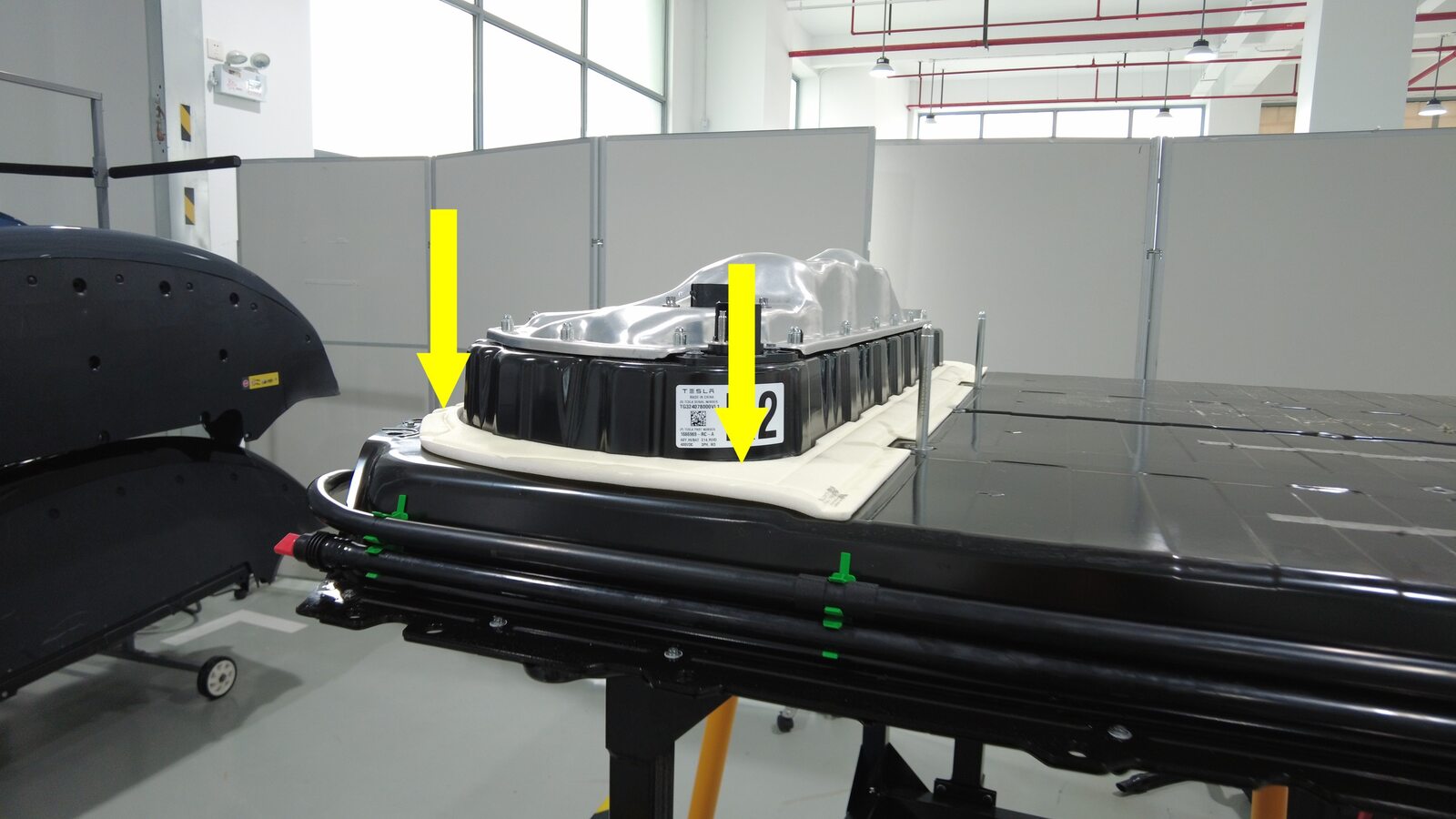

  100. Remove penthouse engagement seal from HV battery pack
    注
    Discard anytime HV battery is removed from vehicle

安装

  1. Install penthouse engagement seal onto HV battery pack
    注
    This seal is a one time use item and should be replaced each time a HV battery pack is removed from vehicle or installed onto a new HV battery pack if not equipped

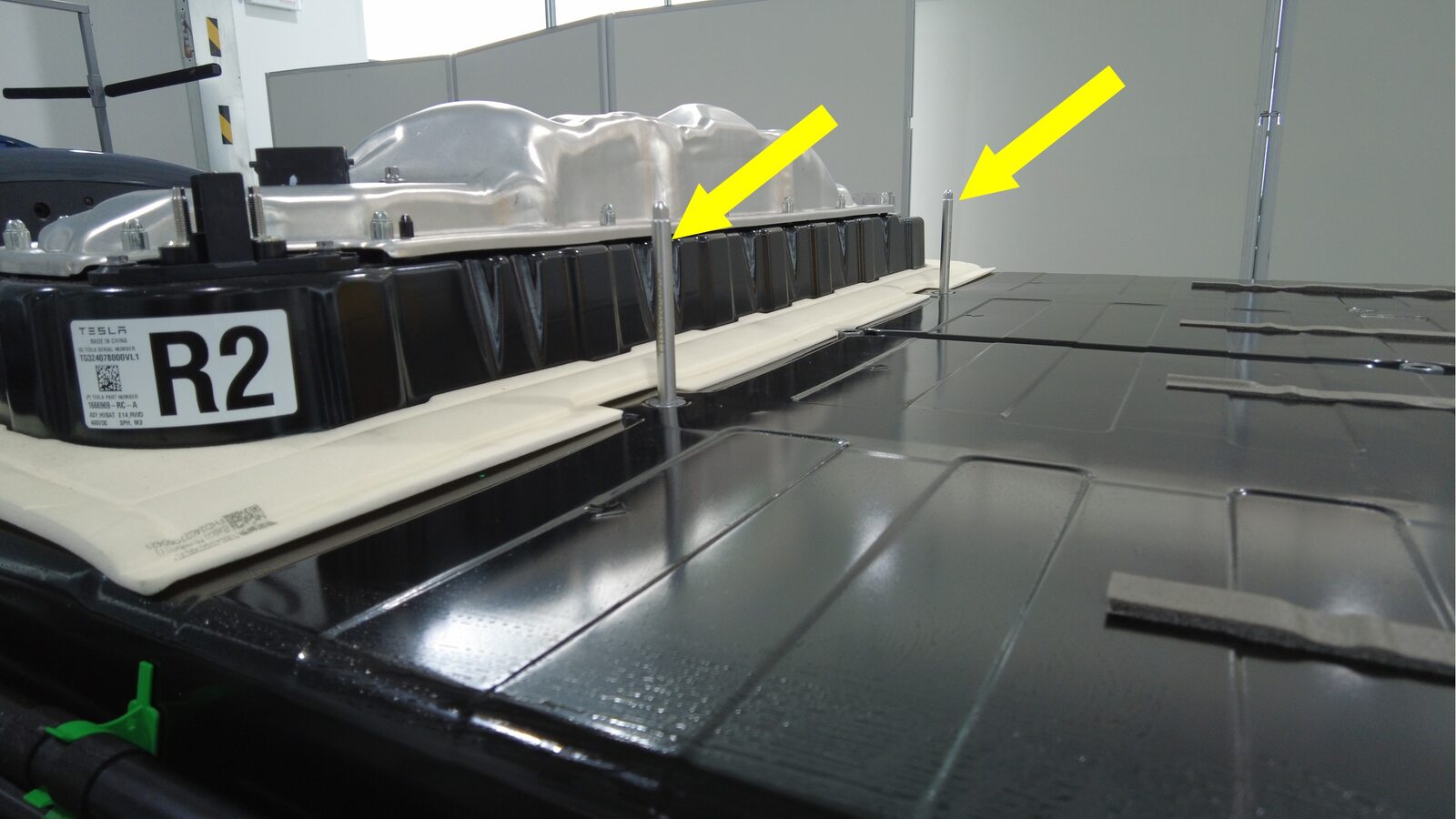

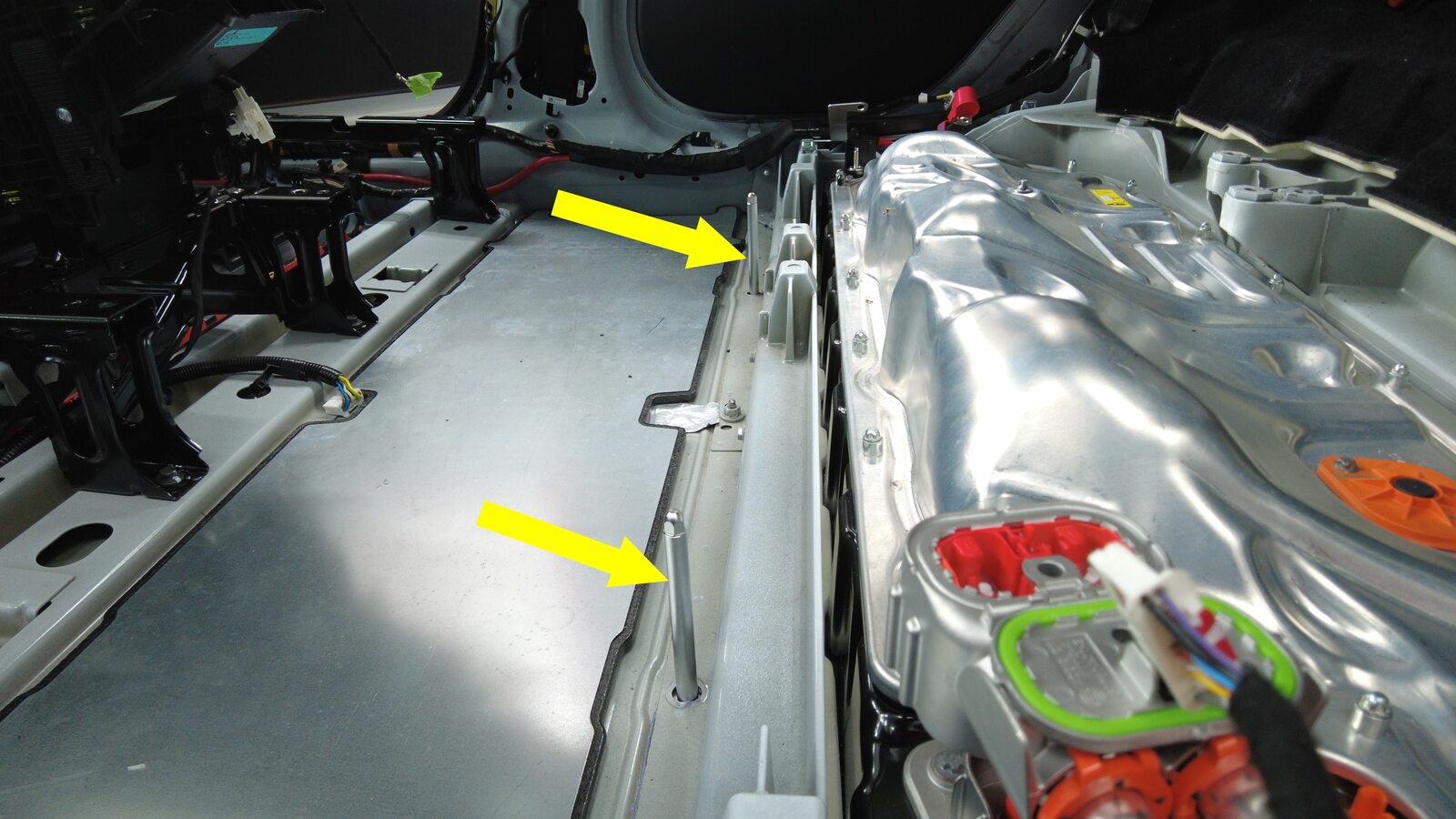

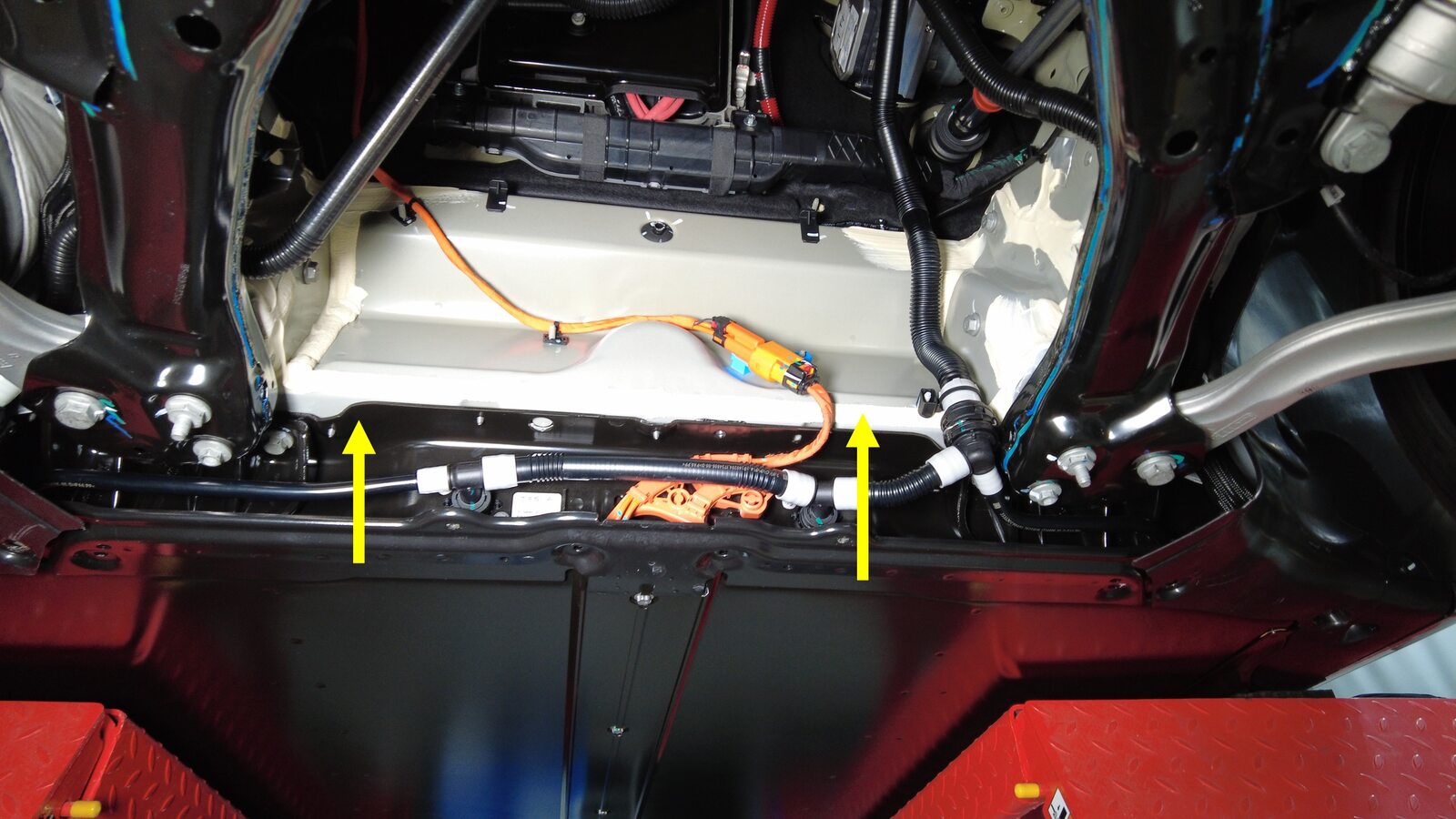

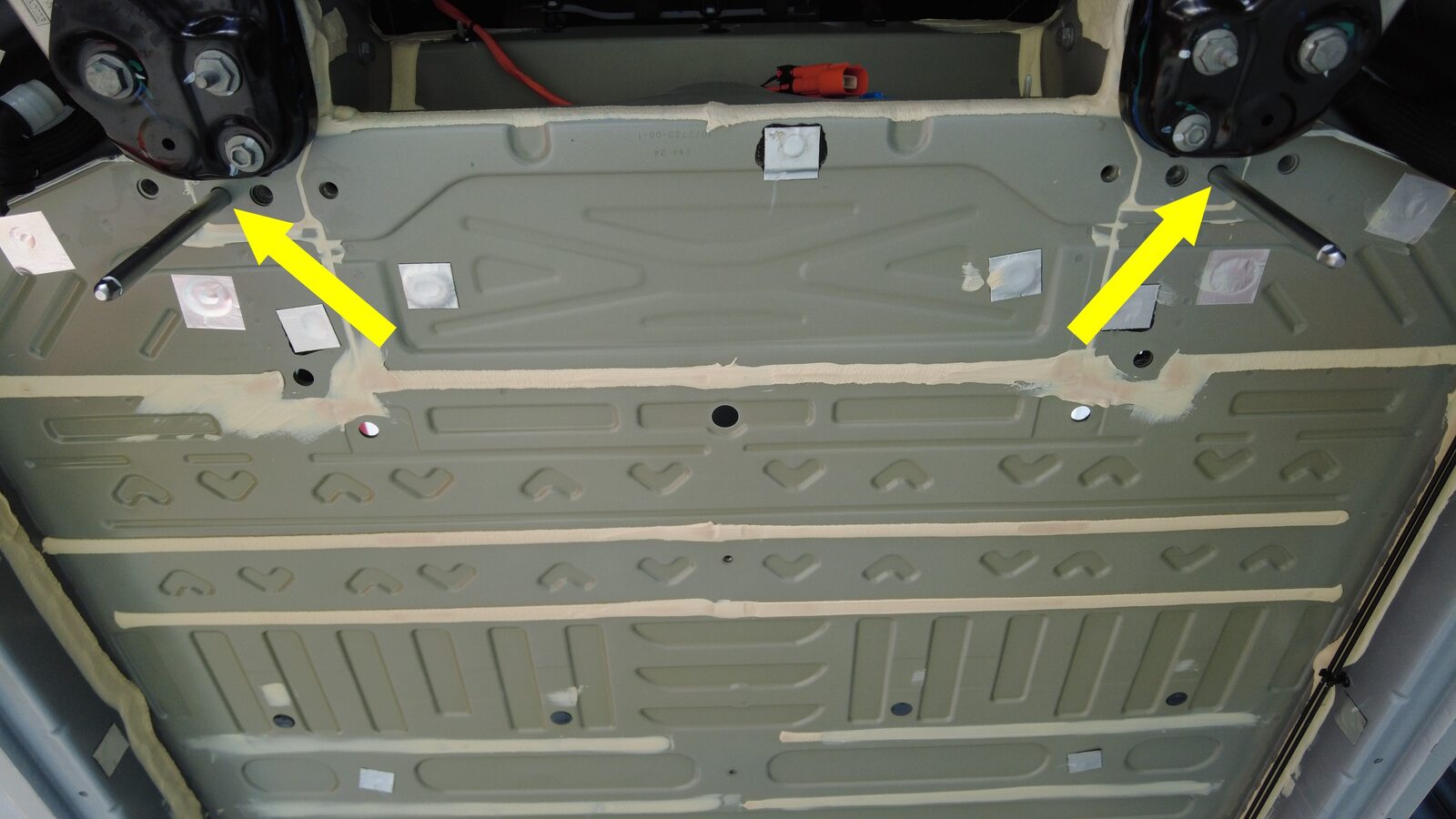

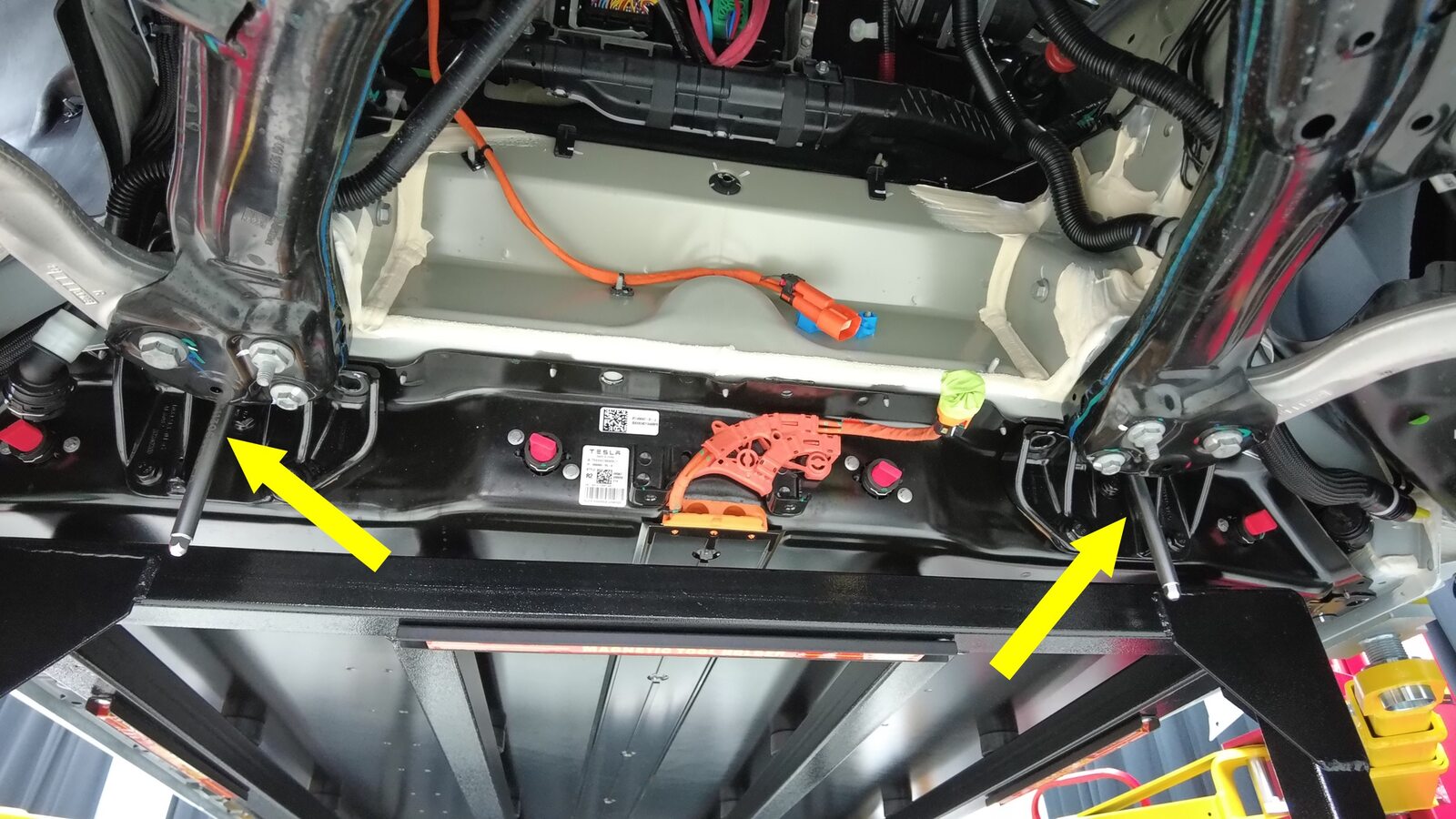

  2. Install HV battery alignment rods
    注
    2x rods, To body at front of vehicle, 2x rods, To battery near penthouse
  3. Position HV battery under vehicle
    注
    Recommend assistance
  4. Lower vehicle onto HV battery and align holes
    注
    Recommend assistance, Use alignment rods, Be sure coolant hoses do not get caught on alignment rods, Caution not to damage HV cable, Do not fully lower vehicle onto battery (this will help with installing battery bolts)
  5. Loosely install RH bolts securing HV battery to vehicle hand tight
    注
    8x bolts, 13mm, 35 Nm, Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step
  6. Loosely install LH bolts securing HV battery to vehicle hand tight
    注
    8x bolts, 13mm, 35 Nm, Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step
  7. Remove HV battery alignment rods
    注
    2x rods, To body at front of vehicle, 2x rods, To battery near penthouse
  8. Install LH rear inner HV battery bolt hand tight
    注
    1x bolt, 16mm, 66 Nm, Torque at later step
  9. Install LH middle inner HV battery bolt hand tight
    注
    1x bolt, 16mm, 66 Nm, Torque at later step
  10. Install RH rear inner battery bolt hand tight
    注
    1x bolt, 16mm, 66 Nm, Torque at later step
  11. Install RH inner HV battery bolt hand tight
    注
    1x bolt, 16mm, 66 Nm, Torque at later step
  12. Install both LH front inner HV battery bolts hand tight
    注
    2x bolts, EP20, 136 Nm, Torque at later step
  13. Install both RH front inner HV battery bolts hand tight
    注
    2x bolts, EP20, 136 Nm, Torque at later step
  14. Set bolts securing RH front support bracket to vehicle with cordless impact
    注
    4x bolts, 16mm, 110 Nm, Torque at later step
  15. Set bolts securing LH front support bracket to vehicle with cordless impact
    注
    4x bolts, 16mm, 110 Nm, Torque at later step
  16. Set central bolts securing HV battery center ski cover with cordless impact
    注
    4x bolts, EP14, 34 Nm, Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step
  17. Lower vehicle onto pack completely
    注
    Recommend assistance
  18. Torque RH bolts securing HV battery to vehicle
    注
    8x bolts, 13mm, 35 Nm
  19. Torque LH bolts securing HV battery to vehicle
    注
    8x bolts, 13mm, 35 Nm
  20. Torque bolts securing RH front support bracket to vehicle
    注
    4x bolts, 16mm, 110 Nm
  21. Torque bolts securing LH front support bracket to vehicle
    注
    4x bolts, 16mm, 110 Nm
  22. Torque central bolts securing HV battery through center ski cover
    注
    4x bolts, EP14, 34 Nm
  23. Raise vehicle and lower onto locks, then remove battery table from under vehicle
    注
    Recommend assistance, Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  24. Position support stand to support front section of rear subframe
  25. Remove bolt securing LH side of rear subframe to body
    注
    1x bolt, 21mm, 125 Nm
  26. Install bolts securing LH shear plate to HV battery hand tight
    注
    2x bolts, 13mm, 64 Nm, Torque at later step
  27. Install bolt and shear plate to LH side of rear subframe hand tight
    注
    1x bolt, 21mm, 125 Nm, Torque at later step
  28. Torque bolt securing subframe and LH shear plate to body
    注
    1x front bolt, 21mm, 125 Nm, Mark bolt after torque
  29. Torque bolts securing LH shear plates to vehicle
    注
    2x bolts, 13mm, 64 Nm
  30. Remove bolt securing RH side of rear subframe to body
    注
    1x bolt, 21mm, 125 Nm
  31. Install bolts securing RH shear plate to HV battery hand tight
    注
    2x bolts, 13mm, 65 Nm, Torque at later step
  32. Install bolt and shear plate to RH side of rear subframe hand tight
    注
    1x bolt, 21mm, 125 Nm, Torque at later step
  33. Torque bolt securing subframe and RH rear shear plate to body
    注
    1x bolt, 21mm, 125 Nm
  34. Torque bolts securing RH shear plates to vehicle
    注
    2x bolts, 13mm, 64 Nm
  35. Remove support stand from under vehicle
  36. Install clips securing coolant hoses to LH shear plate
    注
    2x fir tree clips
  37. Install clip securing coolant hoses to RH shear plate
    注
    1x fir tree clip
  38. Position coolant drain underneath RH rear of HV battery
  39. Remove hose plugs and connect coolant outlet hose to rear return hose
    注
    执行推拉推测试,确保软管完全就位。请勿晃动软管连接点。
  40. Position coolant drain container under LH rear of vehicle
  41. Remove plugs and connect RDU inverter inlet hose to rear of HV battery
    注
    执行推拉推测试,确保软管完全就位。请勿晃动软管连接点。
  42. Connect LH coolant hose to rear of HV battery
    注
    执行推拉推测试,确保软管完全就位。请勿晃动软管连接点。
  43. Remove coolant drain container from underneath vehicle
  44. Put on HV insulating gloves and leather over gloves

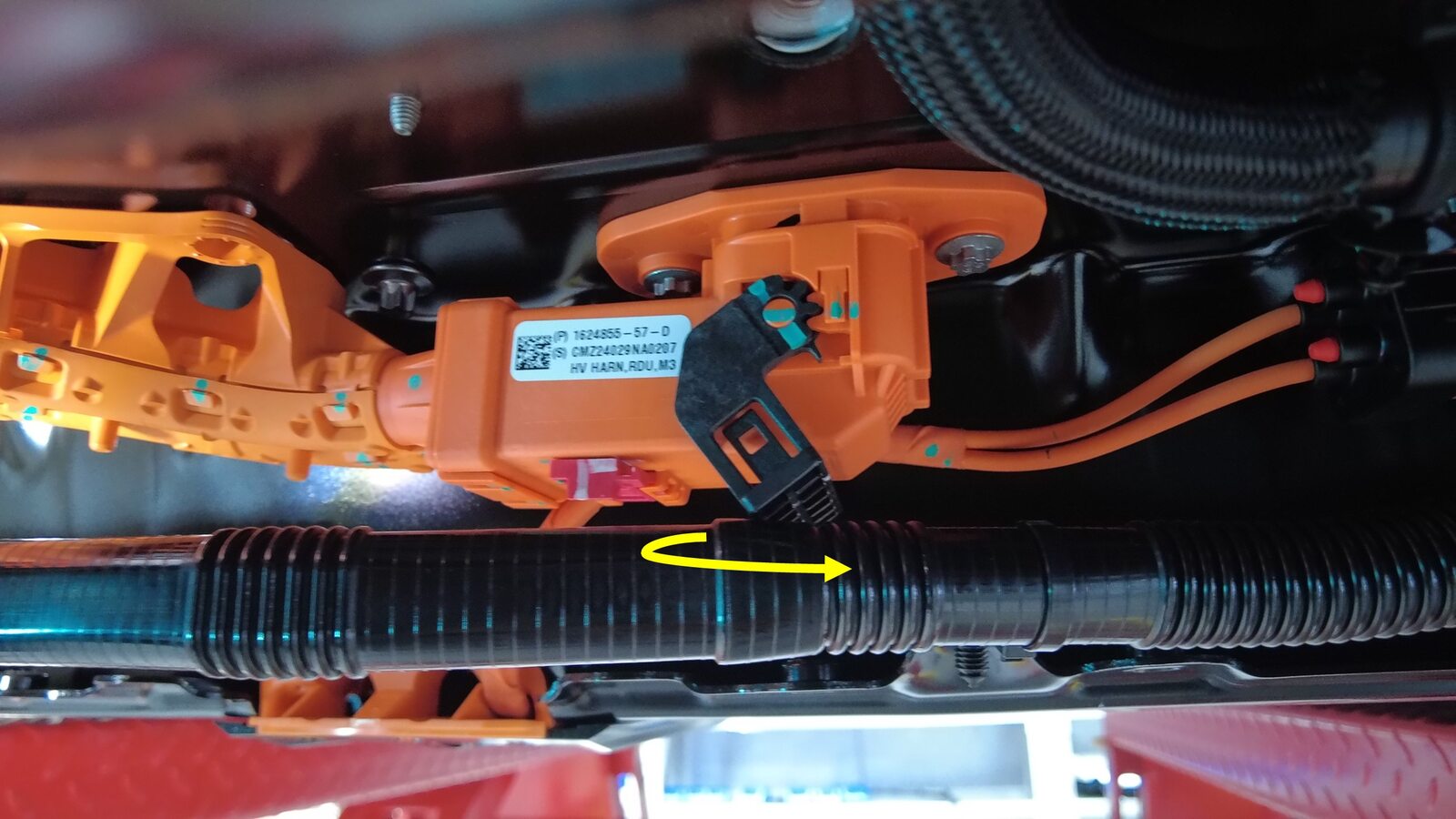

  45. Connect RDU HV cable to HV battery
    注
    1x connector, Make sure the connector lock is 90 degrees from the connector before beginning to secure the connector, Use one hand to support the connector while other latching locking tab. Once installed, Verify that the latch is not damaged and fully secured in the latched position

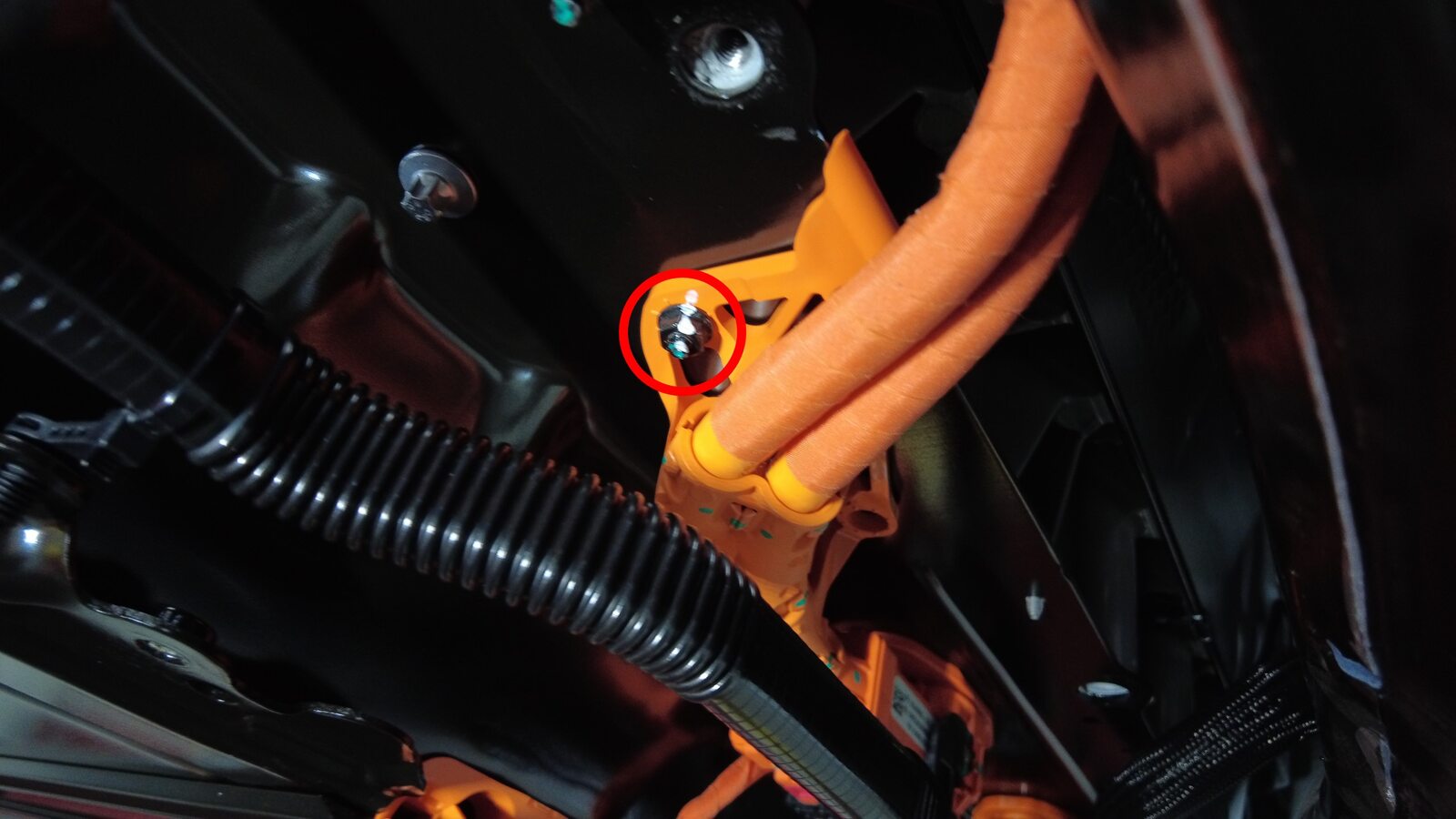

  46. Install nut securing RDU HV cable bracket to HV battery
    注
    1x nut, 10mm, 10 Nm
  47. Remove HV insulating gloves

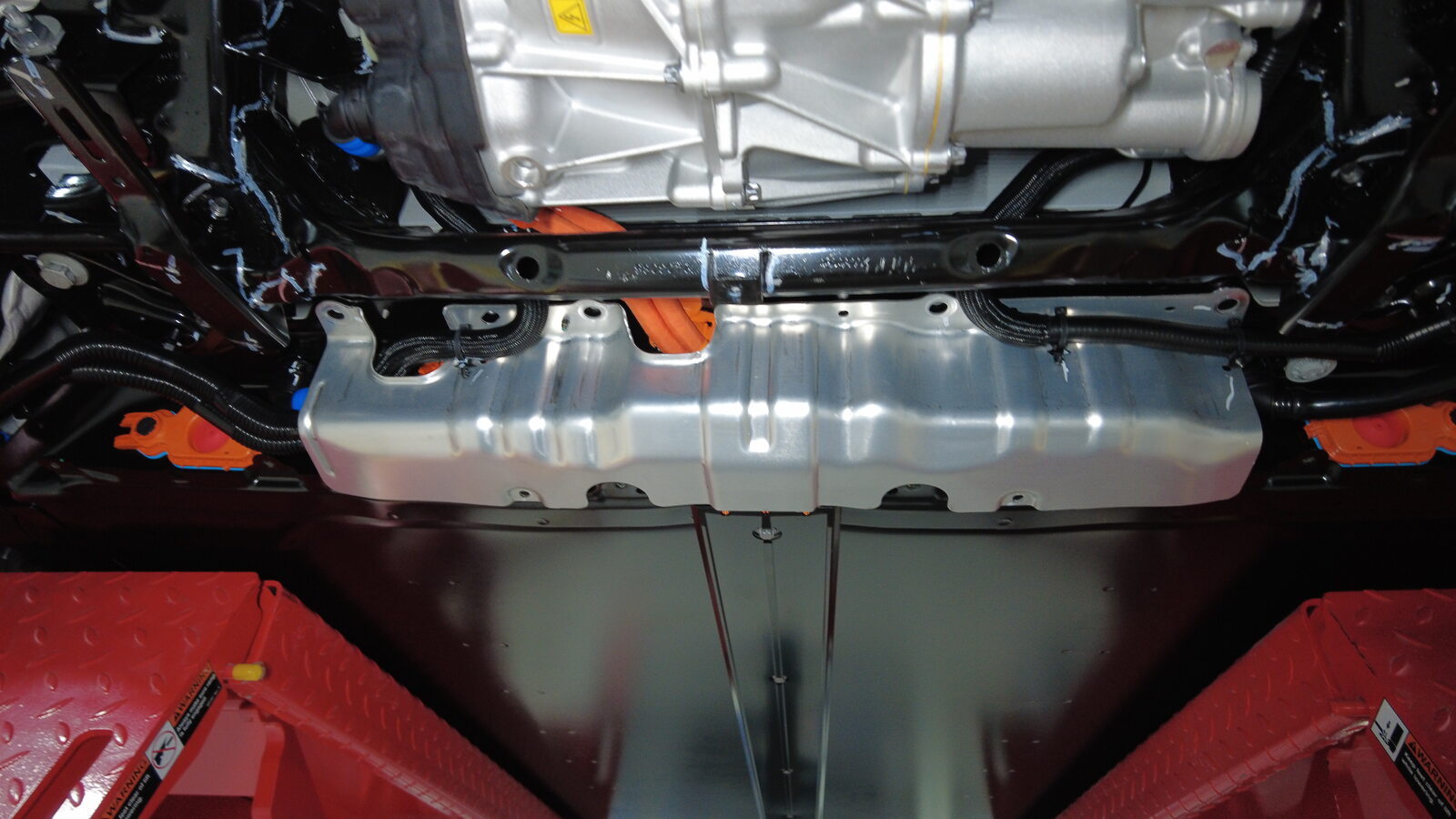

  48. Position HV battery rear skid plate enclosure
    注
    Recommend assistance if needed
  49. Install upper bolts securing HV battery rear skid plate enclosure hand tight
    注
    4x bolts, 13mm, 64 Nm
  50. Install lower bolts securing HV battery rear skid plate enclosure
    注
    2x bolts, EP10, 13 Nm
  51. Torque bolts securing HV battery rear skid plate enclosure to vehicle
    注
    4x bolts, 13mm, 64 Nm
  52. Install RH side hose clips to rear battery skid plate
    注
    2x fir tree clips
  53. Install LH side hose clip to rear battery skid plate
    注
    1x fir tree clip
  54. Install the rear aero shield. See 流线型护板 - 后底板 ((拆卸和更换)).
  55. Position coolant drain container underneath front of HV battery
  56. Connect HV battery front manifold coolant hose
    注
    1x spring clip, Remove plugs, Perform push-pull test to verify hoses are fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill
  57. Install Chiller to Battery hose to Dash Crossmember
    注
    1x clip
  58. Position coolant drain container underneath LH front of HV battery
  59. Connect HV battery coolant return hose
    注
    1x spring clip, Remove plugs, Perform push-pull test to verify hoses are fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill
  60. Position coolant drain container underneath RH front of HV battery
  61. Connect bypass powertrain return hose
    注
    1x spring clip, Remove plugs, Perform push-pull test to verify hoses are fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill
  62. Connect powertrain supply hose
    注
    1x spring clip, Remove plugs, Perform push-pull-push test to make sure hose is fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill
  63. Remove coolant drain container from underneath vehicle
  64. Put on HV insulating gloves and leather over gloves
  65. Connect AC compressor HV harness connector to HV Ancillary harness
    注
    1x locking connector, 3 stage locking connector, After the connector is seated and there is an audible click, Engage the second lock by pressing towards the connector, Engage locking tab
  66. Remove HV insulating gloves
  67. Install front skid plate
    注
    4x bolts, EP10, 13 Nm, 2x tabs, Position and move backward to installation
  68. Release LH front wheel liner from bungee strap
    注
    Remove strap from vehicle
  69. Install LH front wheel liner from skid plate
    注
    1x bolt, 10mm, 5 Nm
  70. Install clip securing LH wheel liner to body
    注
    1x push clip
  71. Release RH front wheel liner from bungee strap
    注
    Remove strap from vehicle
  72. Install the front aero shield panel. See 流线型护板 - 前底板 ((拆卸和更换)).

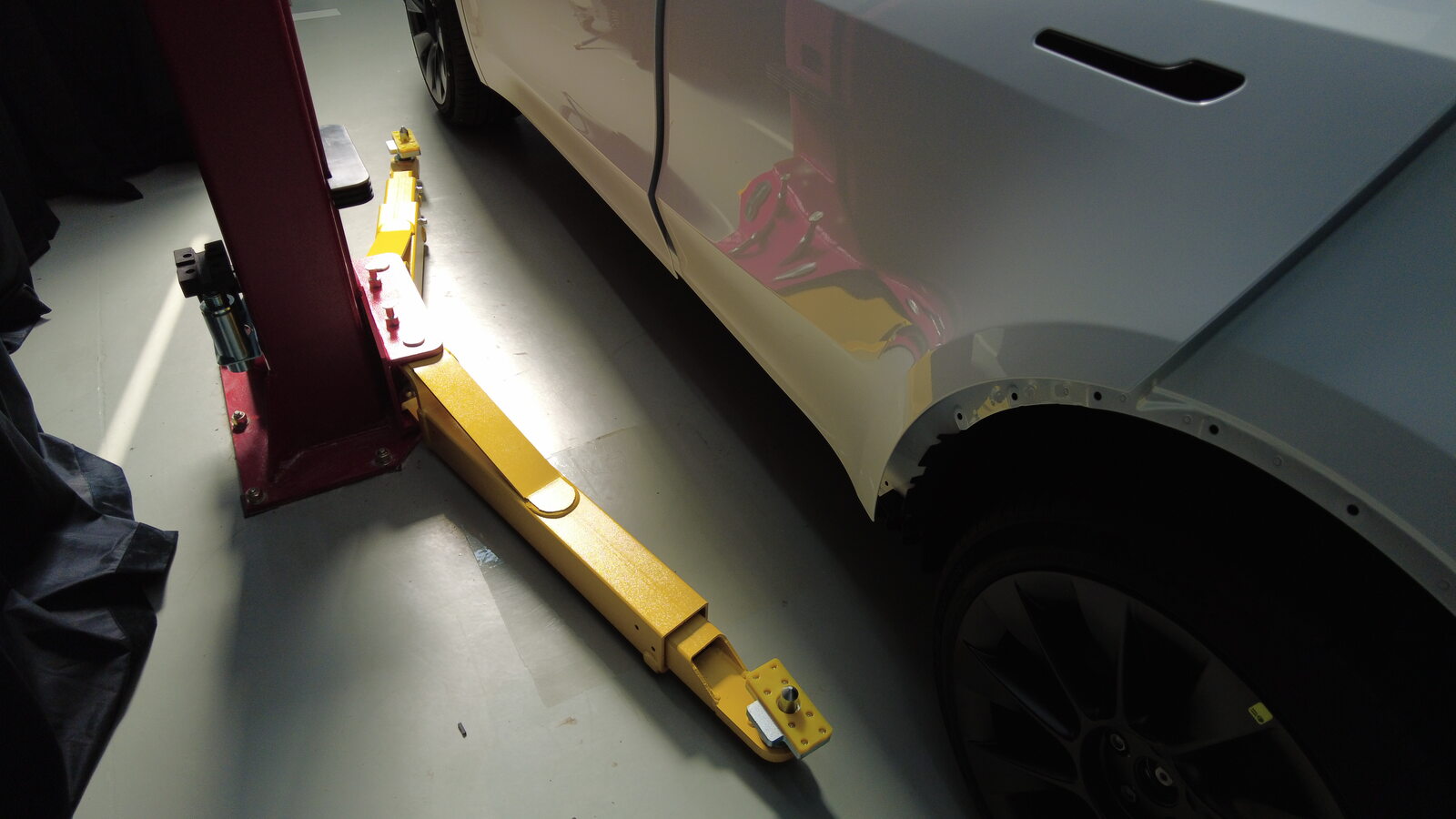

  73. Move rack arms away from vehicle
  74. Install butyl patches onto LH rocker access holes
    注
    2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch, Cut to the required size, Roughly 2" x 2 1/2"
  75. Install butyl patches onto RH rocker access holes
    注
    2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch, Cut to the required size, Roughly 2" x 2 1/2"
  76. Install the LH and RH rocker carrier and rocker cover to the vehicle. See 托架 - 门槛饰板 - 左侧 ((拆卸和更换)).
  77. Install DCDC ground busbar to HV battery
    注
    Gently press down
  78. Install nut securing DCDC ground busbar to HV battery
    注
    1x nyloc nut, 13mm, 9 Nm, Install new nyloc nut
  79. Install positive 12V output from PCS cable and torque nut securing it
    注
    1x nut, 13mm, 9 Nm, Install new nut, Mark the nut after torque
  80. Install positive 12V output cover to PCS cable
    注
    1x cover
  81. Remove logic cap and connect HVC logic connector
    注
    1x connector, 1x logic cap, Align connector then pull the handle to locking position get connector fully seated
  82. Put on HV insulating gloves and leather over gloves

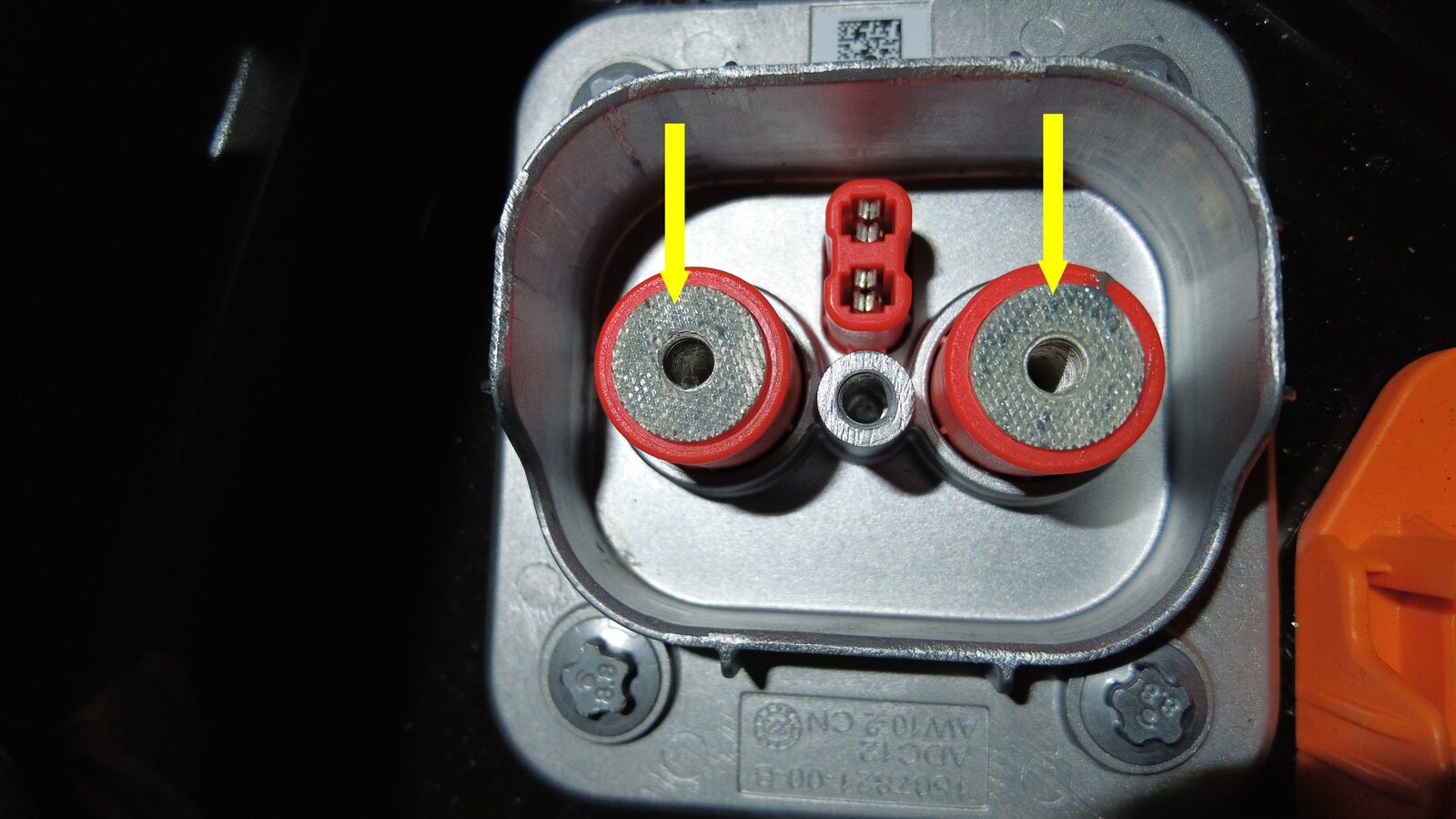

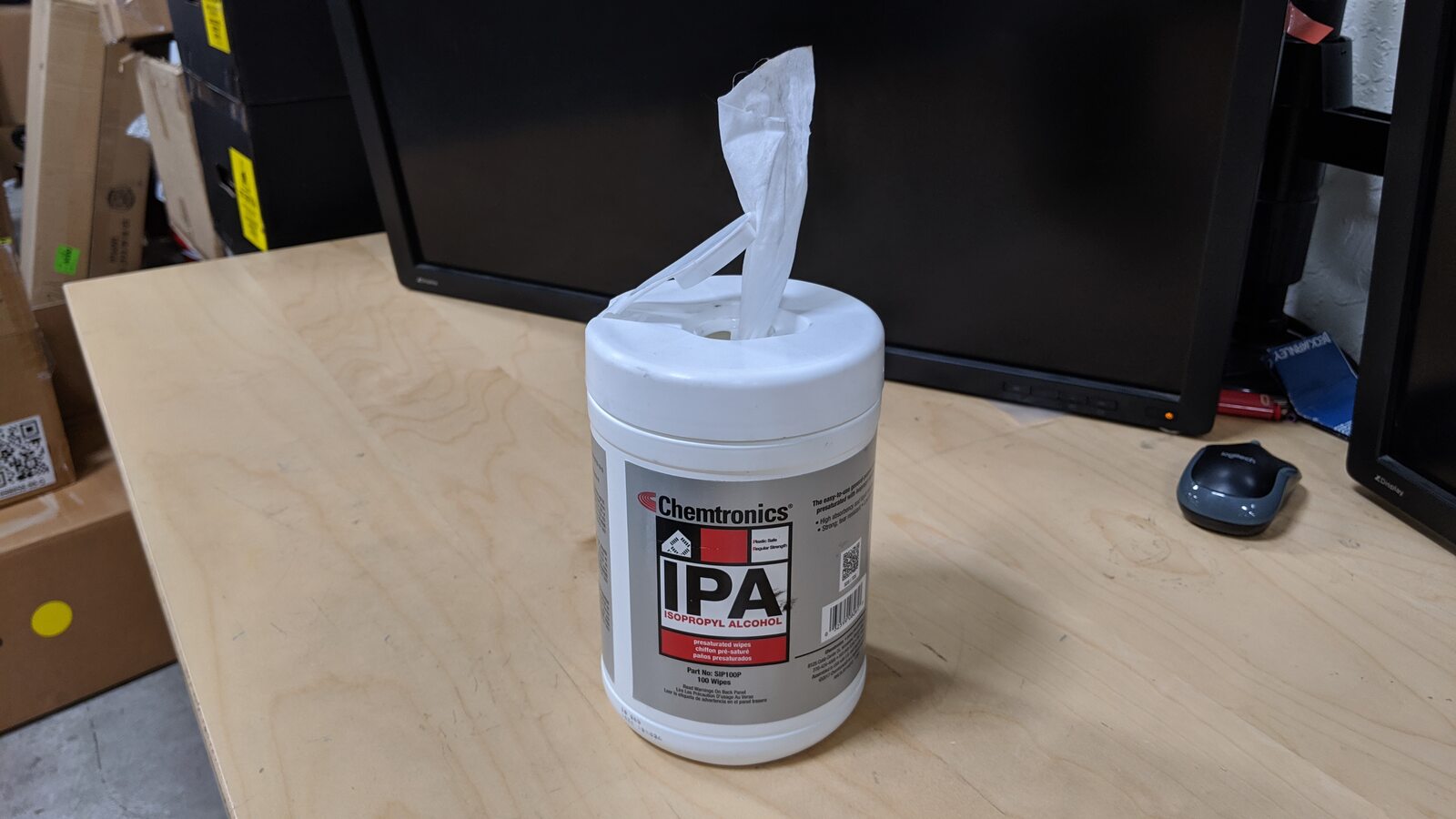

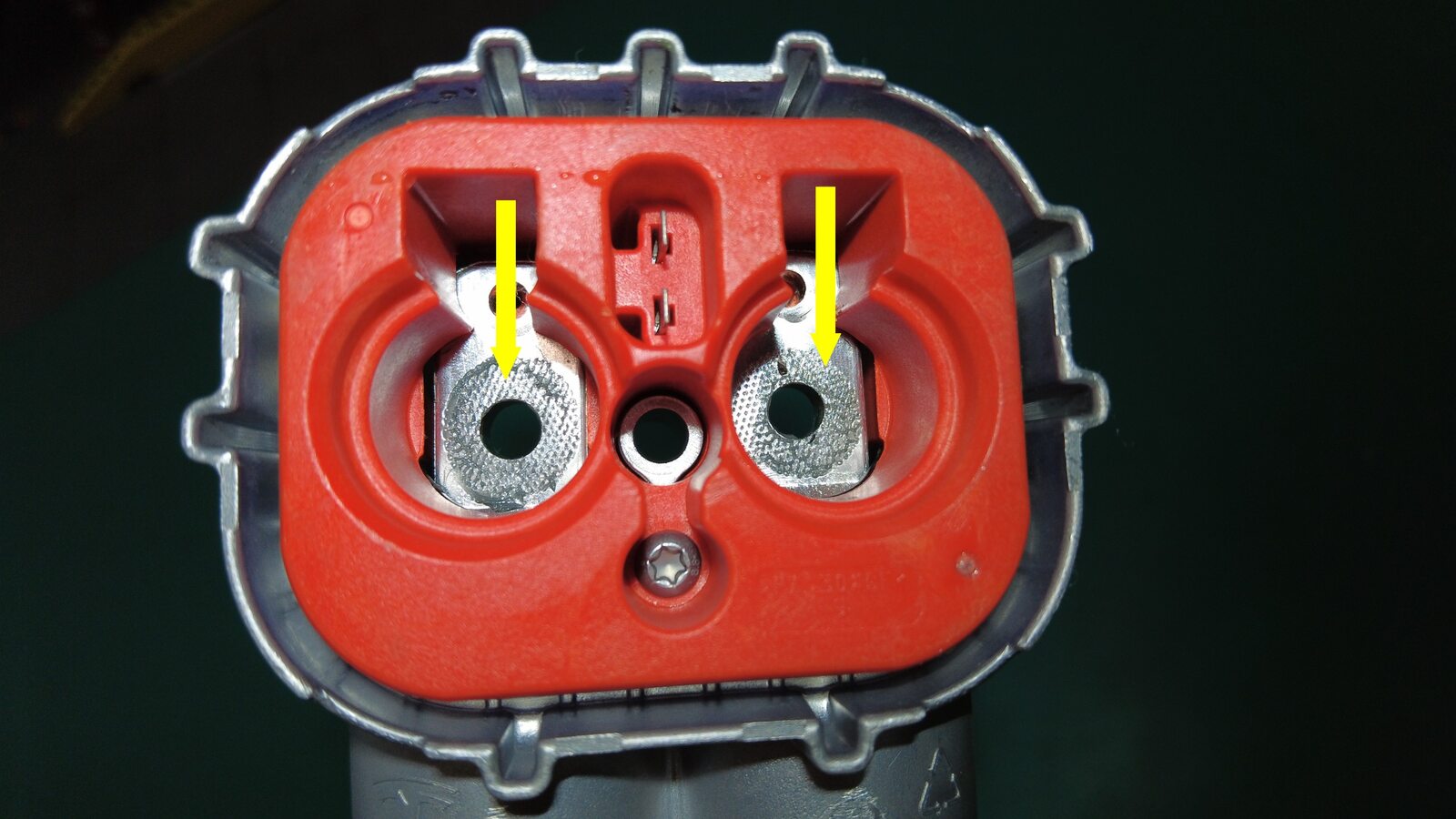

  83. Clean HV connector contact surface of residual Penetrox
    注
    Allow 1 minute dry time, New busbar comes with penetrox applied to HV connector
  84. Clean busbar HV connector contact surface of residual Penetrox
    注
    Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar

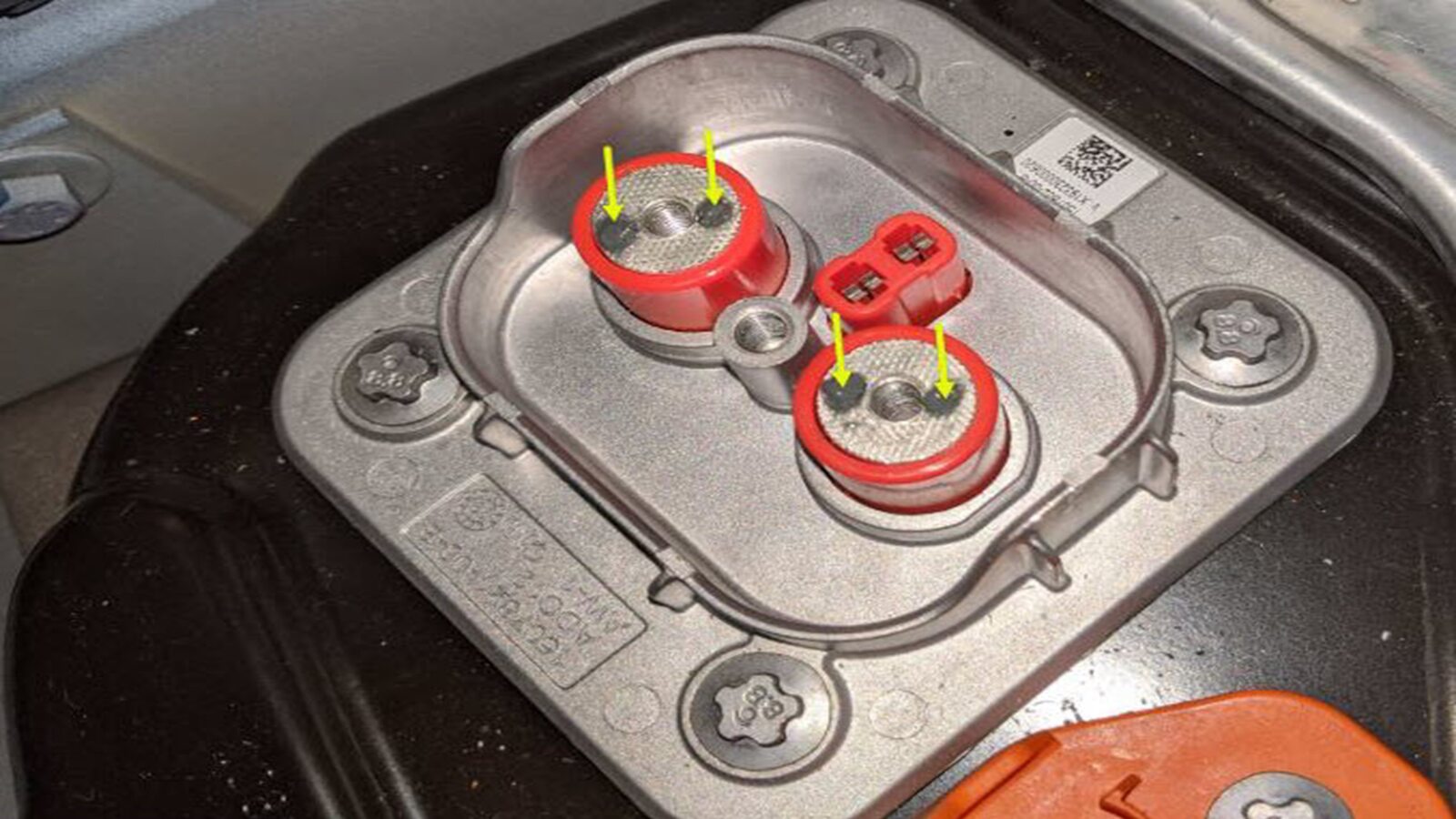

  85. Apply Penetrox onto HV connector joints
    注
    Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered
  86. Remove Inflatable Air Bag from under HV header
  87. Position busbar kit connector and lower onto HV header
    注
    4x guide tabs, Shift rear end of busbar assembly upward to help ease installation, If excessive force is required to seat busbars, They may have been bent. Inspect for damage and replace if necessary
  88. Install bolts securing charge port busbar kit to HV header
    注
    2x bolts, 10mm, 9 Nm, Mark after torque
  89. Perform a zero adjust of the Hioki resistance meter. See 电阻表(零点调节).

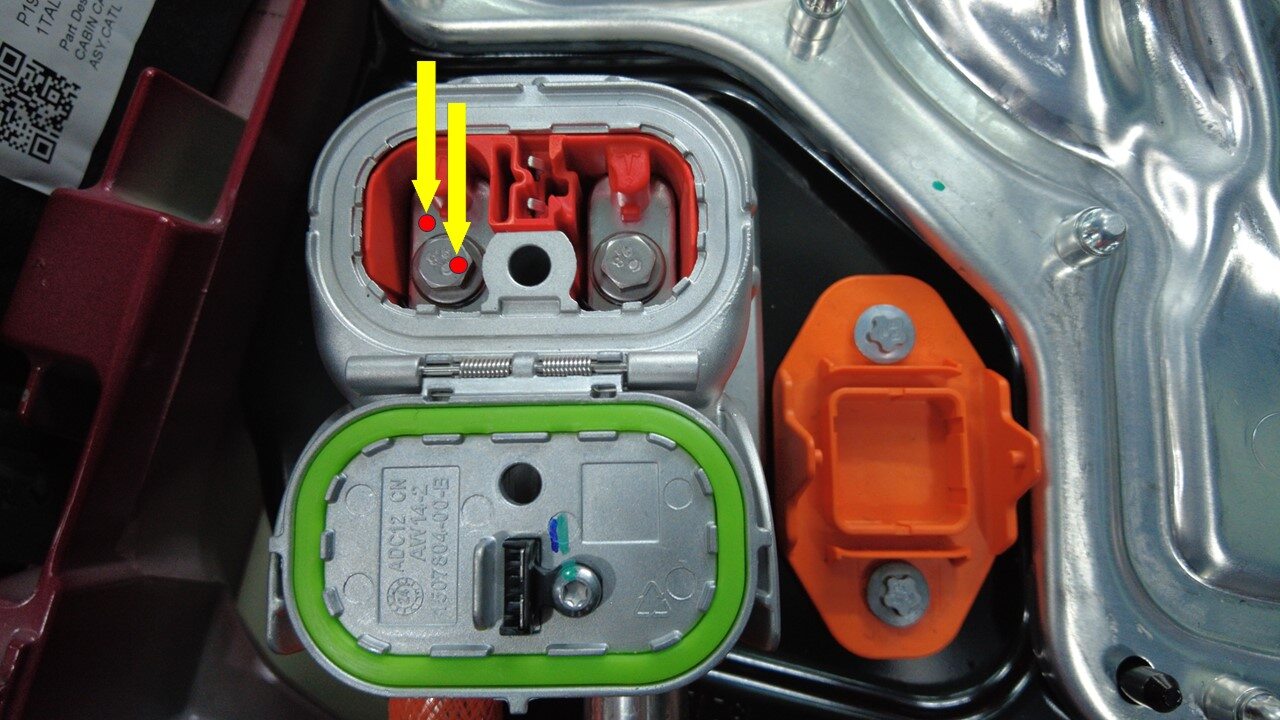

  90. Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head
    注
    2x HV joints, The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ). If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session. If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again. If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), Hioki test passed, proceed to next step

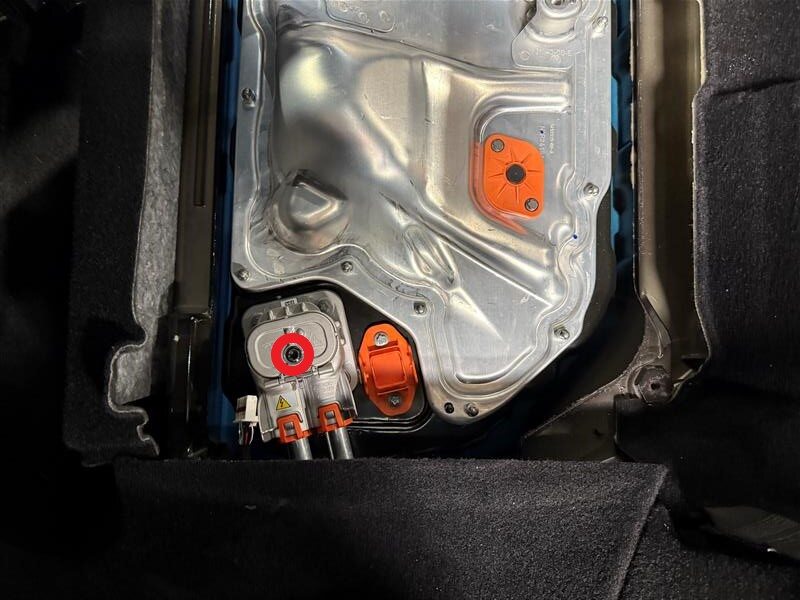

  91. Install fastener securing busbar cover access door
    注
    1x bolt, 10mm, 9 Nm
  92. Position LH rear body harness under LH lower C pillar trim
  93. Install LH body harness onto rear body
    注
    1x clip
  94. Partially install LH B-pillar lower trim
    注
    1x push clip
  95. Perform a cooling system vacuum refill. See 冷却系统 - 真空再充注 (Test/Adjust).
  96. Connect the LV power. See 低压电源(断开和连接) (Modify).
  97. Unlock the vehicle gateway. See 网关(解锁).
  98. On the touchscreen, tap the Service Mode "wrench" (at the bottom of the touchscreen UI), and then tap Thermal > Actions > Stop Thermal Fill/Drain > Run, and allow the routine to complete.
  99. Tap Thermal > Coolant System > Coolant Purge Start > Run, and allow the routine to complete.
    注
    Make sure vehicle is not in Drive, shifting the vehicle into Drive will stop this routine. The test will last approximately 10 mins. The test will vary speeds from 3500-6500 RPM (idle speed = ~1500 RPM) and actuate the valve between series and parallel. If speed hovers at 7000 RPM, it indicates the pump is air locked, perform the vacuum fill again. Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle.
  100. Torque both RH forward HV battery bolts
    注
    2x bolts, EP20, 136 Nm
  101. Install RH front cabin carpet support access plug
    注
    1x plug
  102. Fold RH front main cabin carpet back to original position
  103. Install the RH side center console panel. See 侧板 - 前 - 中控台 - 右侧 ((拆卸和更换)).
  104. Install the RH lower A-pillar trim. See 饰板 - 下 - A 柱 - 左侧 ((拆卸和更换)).

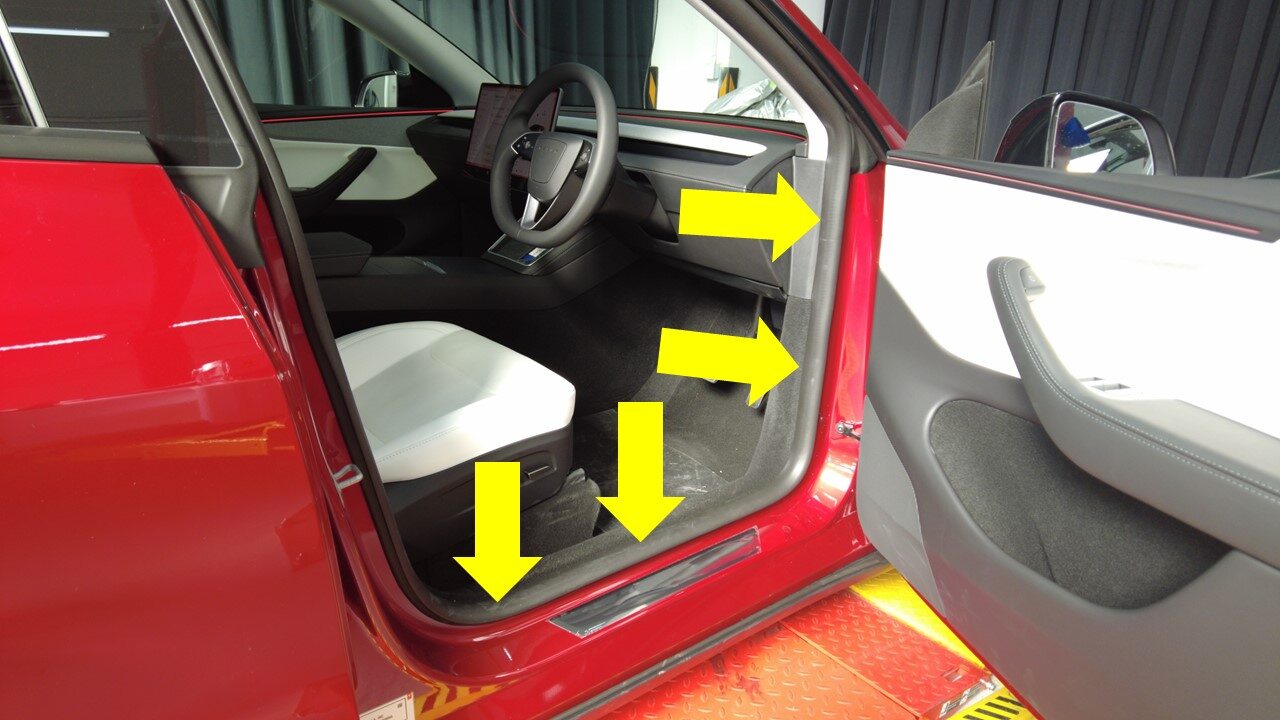

  105. Install RH front primary door seal
    注
    Verify seal is seated properly on all trim panels
  106. Move RH front seat forward
    注
    Adjust seat back if needed to avoid contacting headliner
  107. Torque both LH front inner HV battery bolts
    注
    2x bolts, EP20, 136 Nm
  108. Install LH front cabin carpet support access plugs
    注
    1x plug
  109. Fold LH front cabin carpet back to original position
  110. Install the LH side center console panel. See 侧板 - 前 - 中控台 - 左侧 ((拆卸和更换)).
  111. Connect E-CALL speaker connector
    注
    1x connector
  112. Install OBD port
    注
    2x tabs, Ensure black tabs in lock position
  113. Install the LH lower A-pillar trim. See 饰板 - 下 - A 柱 - 左侧 ((拆卸和更换)).
  114. Move LH front seat forward
    注
    Adjust seat back if needed to avoid contacting headliner
  115. Torque LH rear inner HV battery bolt
    注
    1x bolt, 16mm, 66 Nm, Located below LH rear main carpet
  116. Torque RH rear inner battery bolt
    注
    1x bolt, 16mm, 66 Nm, Located below RH rear main carpet
  117. Remove air bag from between rear cabin carpet and body
  118. Torque LH middle inner HV battery bolt
    注
    1x bolt, 16mm, 66 Nm
  119. Fold LH side of rear main carpet to its original position
  120. Torque RH middle inner HV battery bolt
    注
    1x bolt, 16mm, 66 Nm
  121. Fold RH side of rear main carpet to its original position
  122. Connect the 2nd row 40 seat connector.
  123. Install the 2nd row LH and center seat assembly. See 座椅 - 第二排 - 左侧(5 座) ((拆卸和安装)).
  124. Inspect coolant level and top off as necessary
    注
    Ensure that fluid level is at Max line, Vacuum fill required if greater than 1L lost during repair

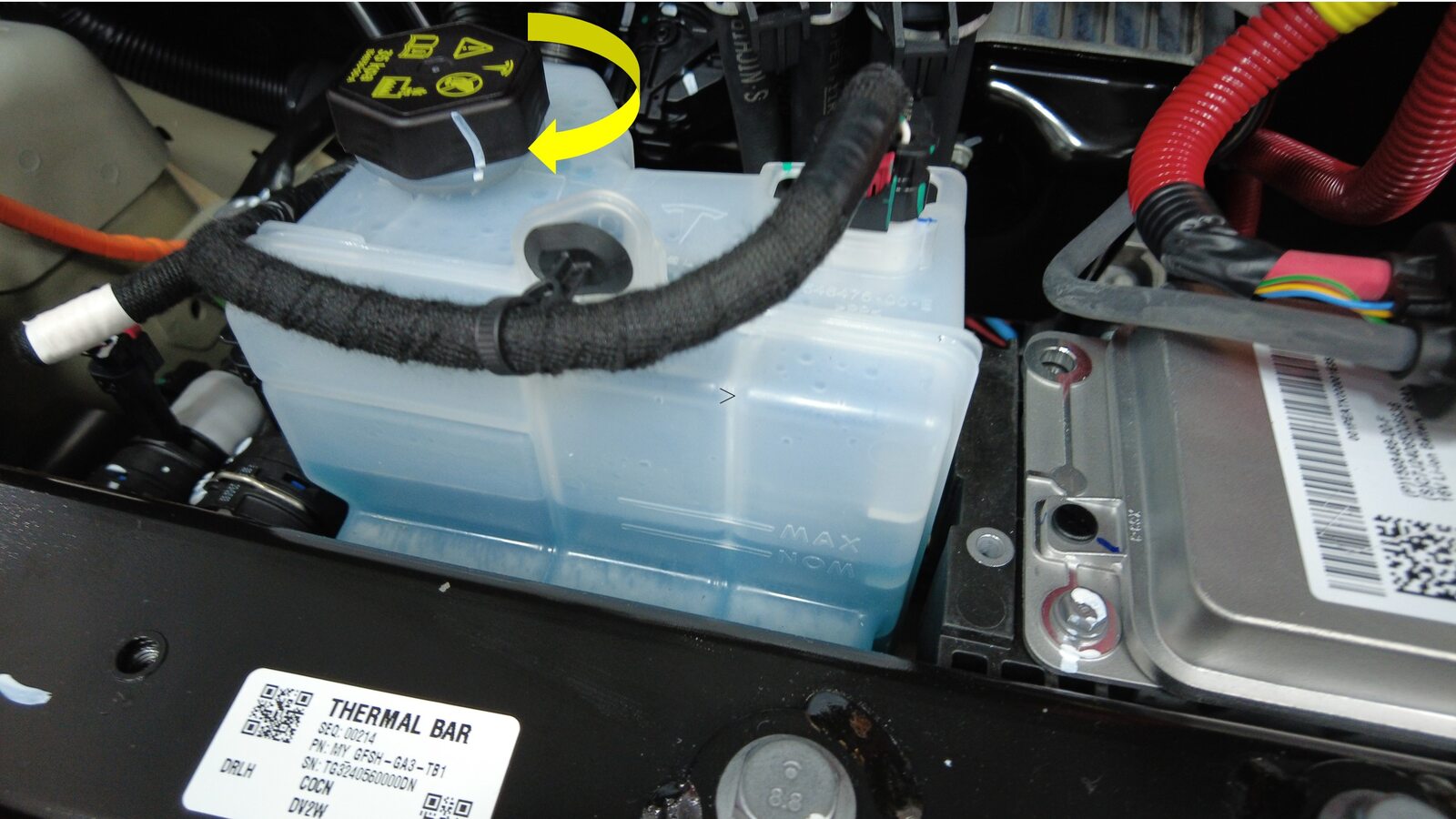

  125. Install coolant bottle cap
  126. Exit Service Mode. See 维护模式.
  127. 运行 ODIN 例行程序 PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
  128. Install HEPA filter. See 滤清器总成 - HEPA ((拆卸和更换)).
  129. Install the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
  130. Move RH front seat to original position
    注
    Adjust seat back if needed to avoid contacting headliner
  131. Move LH front seat to original position
    注
    Adjust seat back if needed to avoid contacting headliner
  132. Close liftgate.
  133. Raise all four windows and close all four doors.
    注
    Unlatch doors before closing if necessary
