2nd Row Seat Back Harness - LH (7 Seater) (Remove and Replace)

校正代码 NEW 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-01-26: Released new procedure.

拆卸

  1. Open LH front door.
  2. Lower LH front window.
  3. Move LH front seat forward.
  4. Open LH rear door.
  5. Lower LH rear window.
  6. Position 60 seat into easy entry mode.
    注

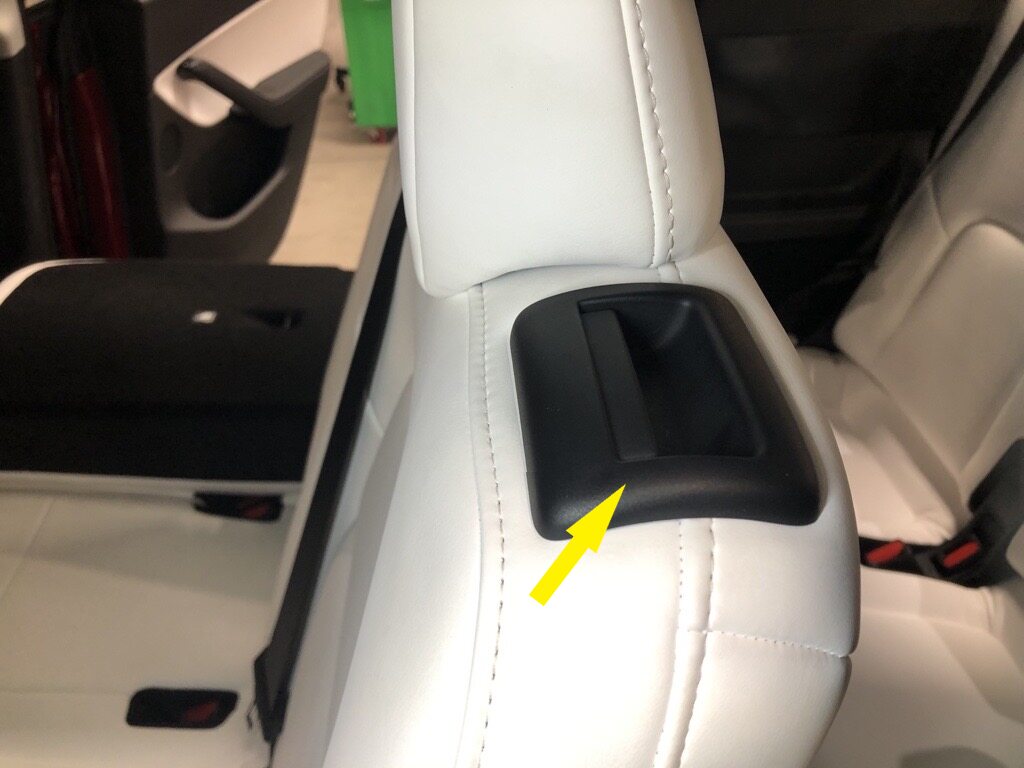

    Press shoulder switch and push LH seat forward to position into easy entry mode.

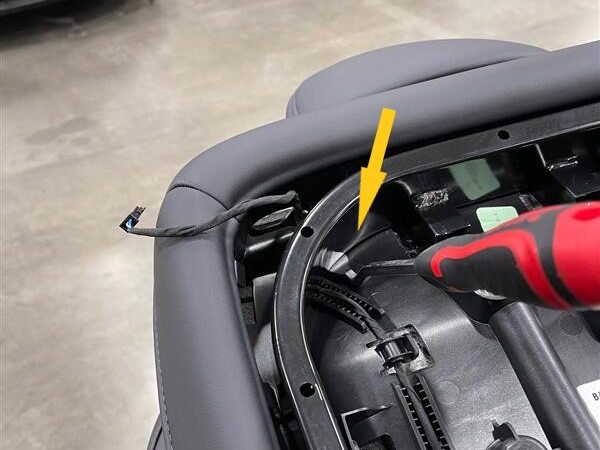

  7. Remove LH shoulder switch from LH seat assembly.
    注

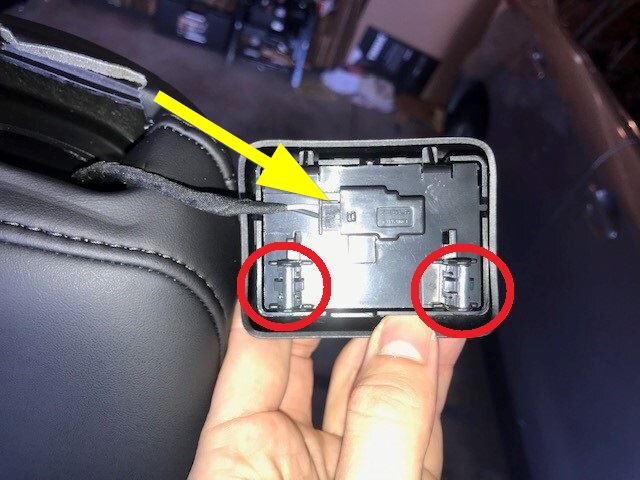

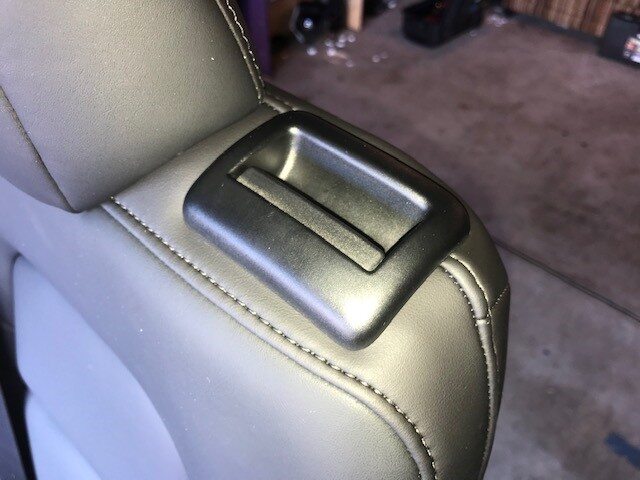

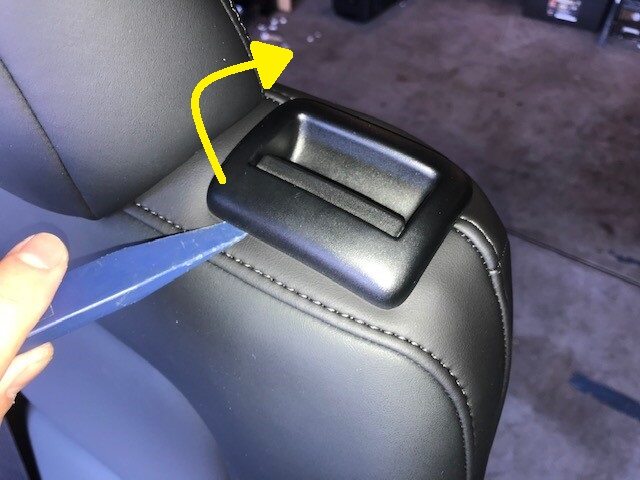

    Using plastic trim tool pry the top of the switch away from LH seat assembly to ease removal.

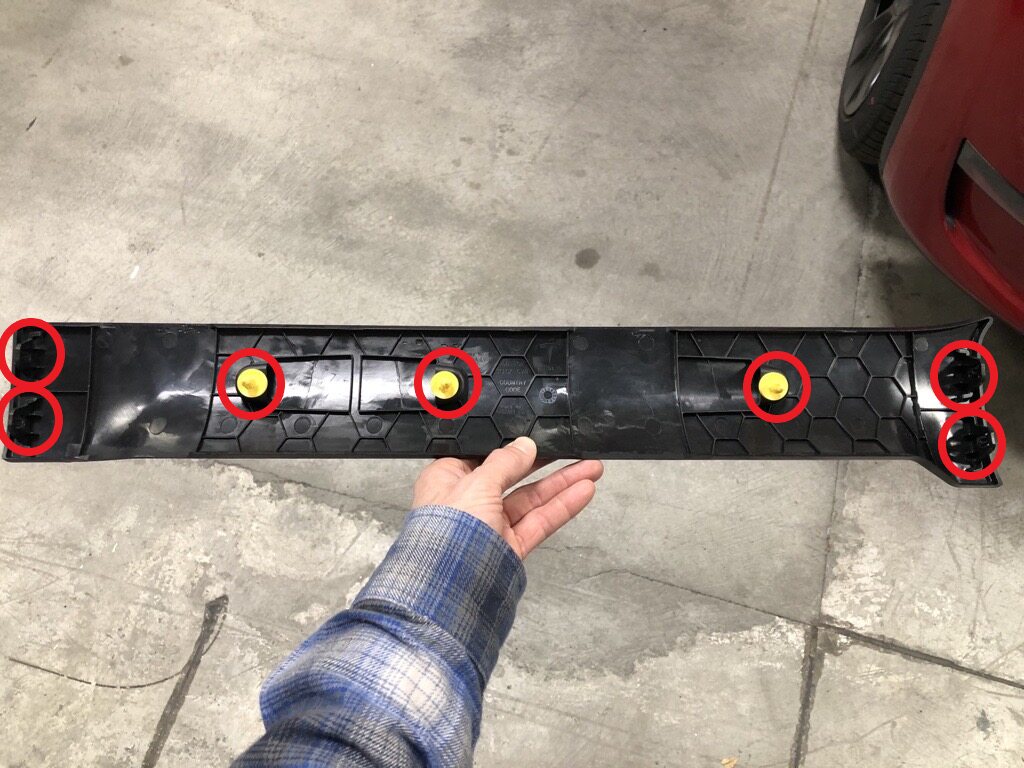

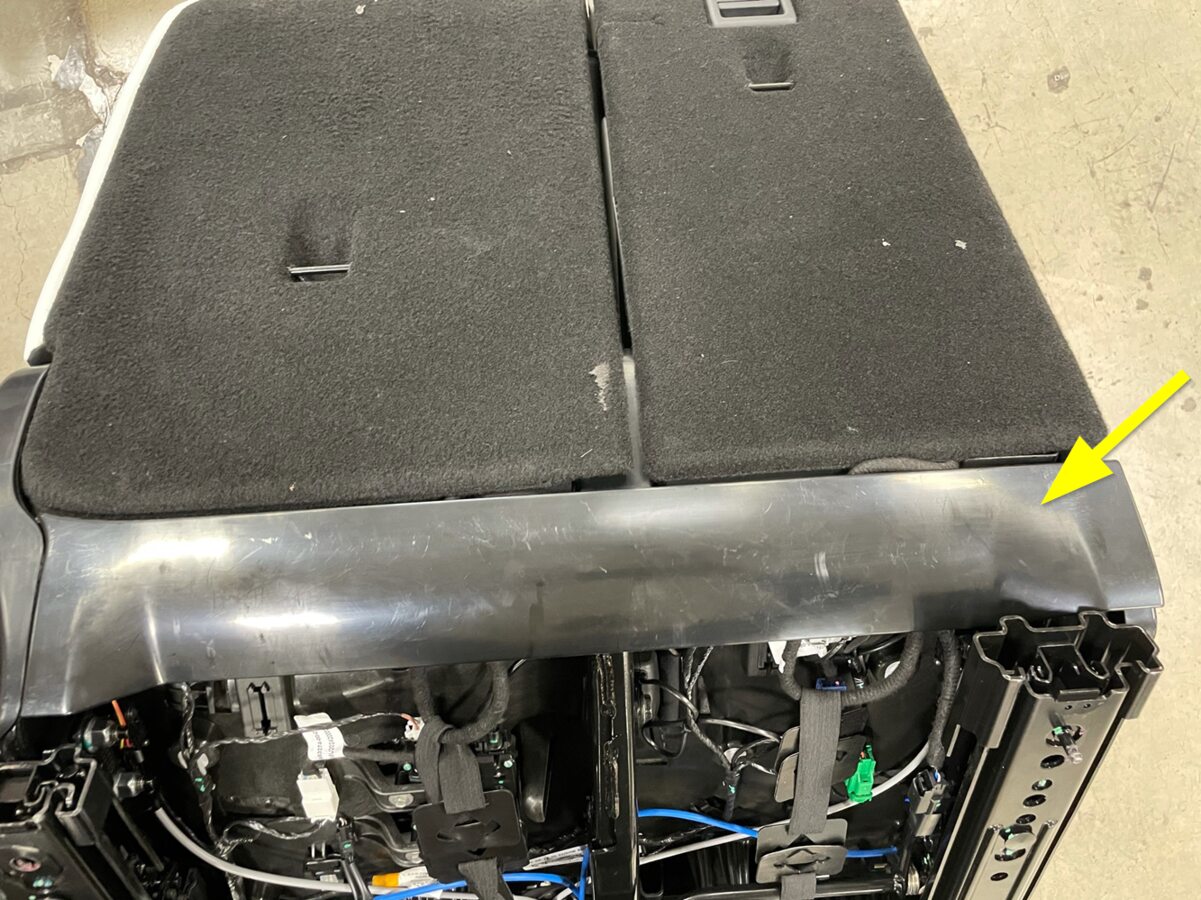

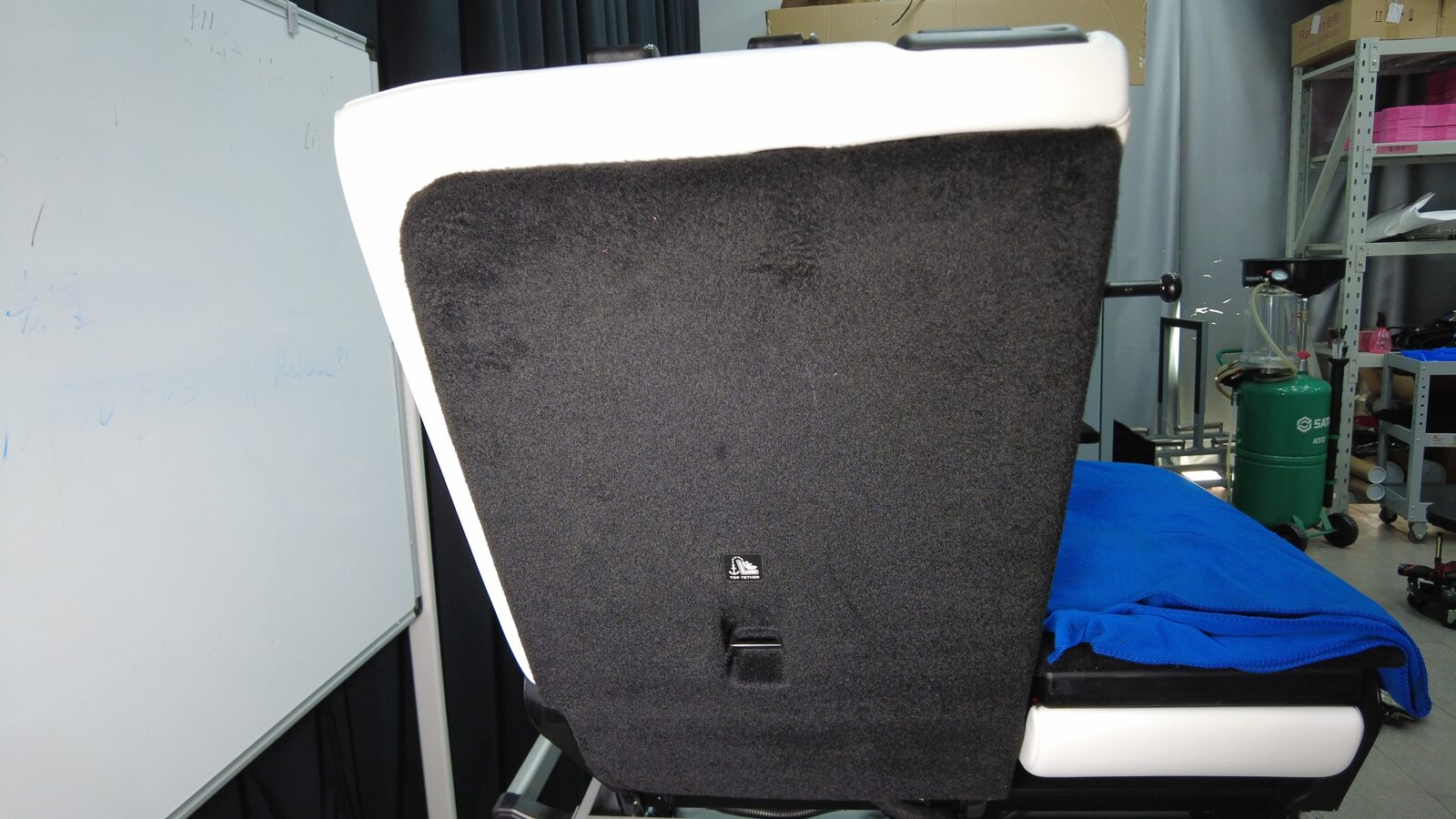

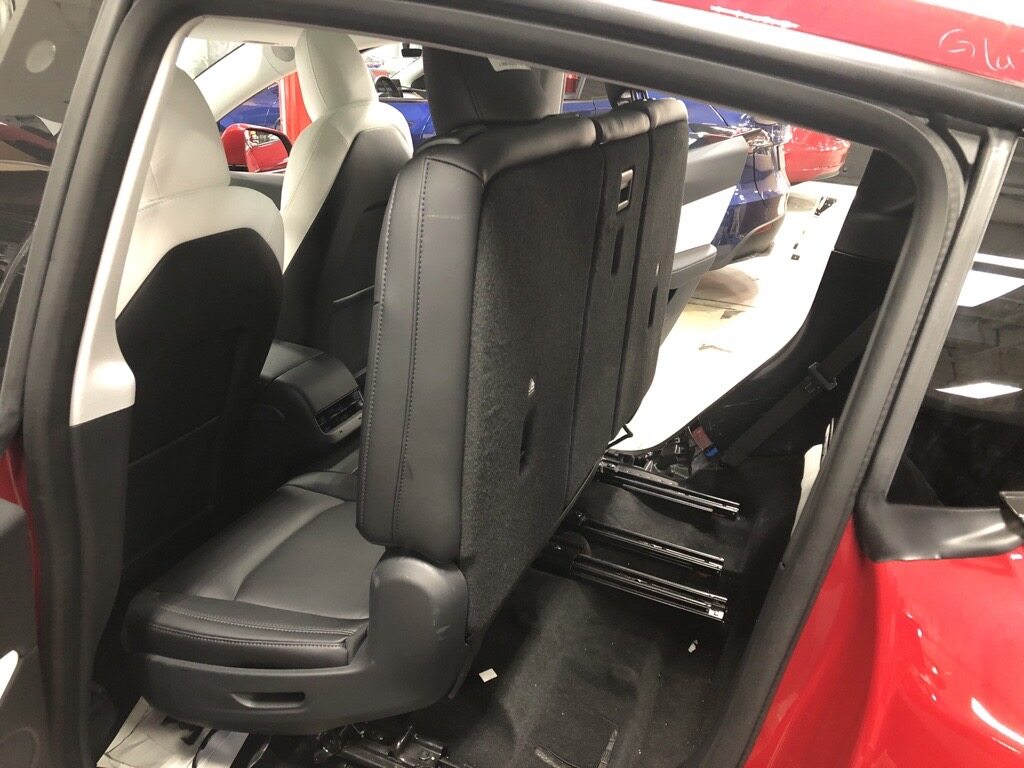

  8. Remove 2nd row LH seatback assembly toe kick panel.
    注
    Pry up on LH side of LH toe kick cover to release clips, and repeat on RH side to fully remove.

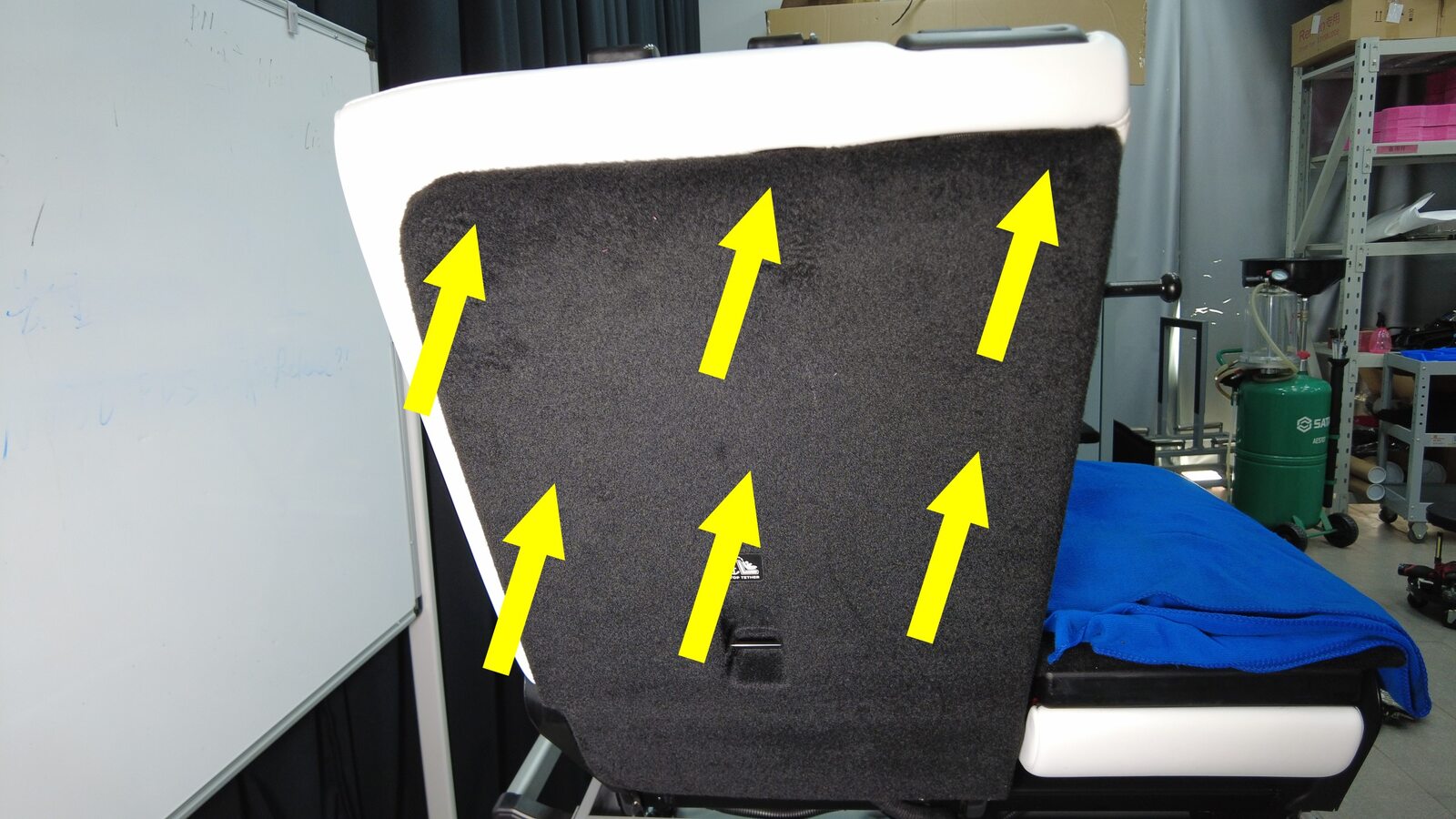

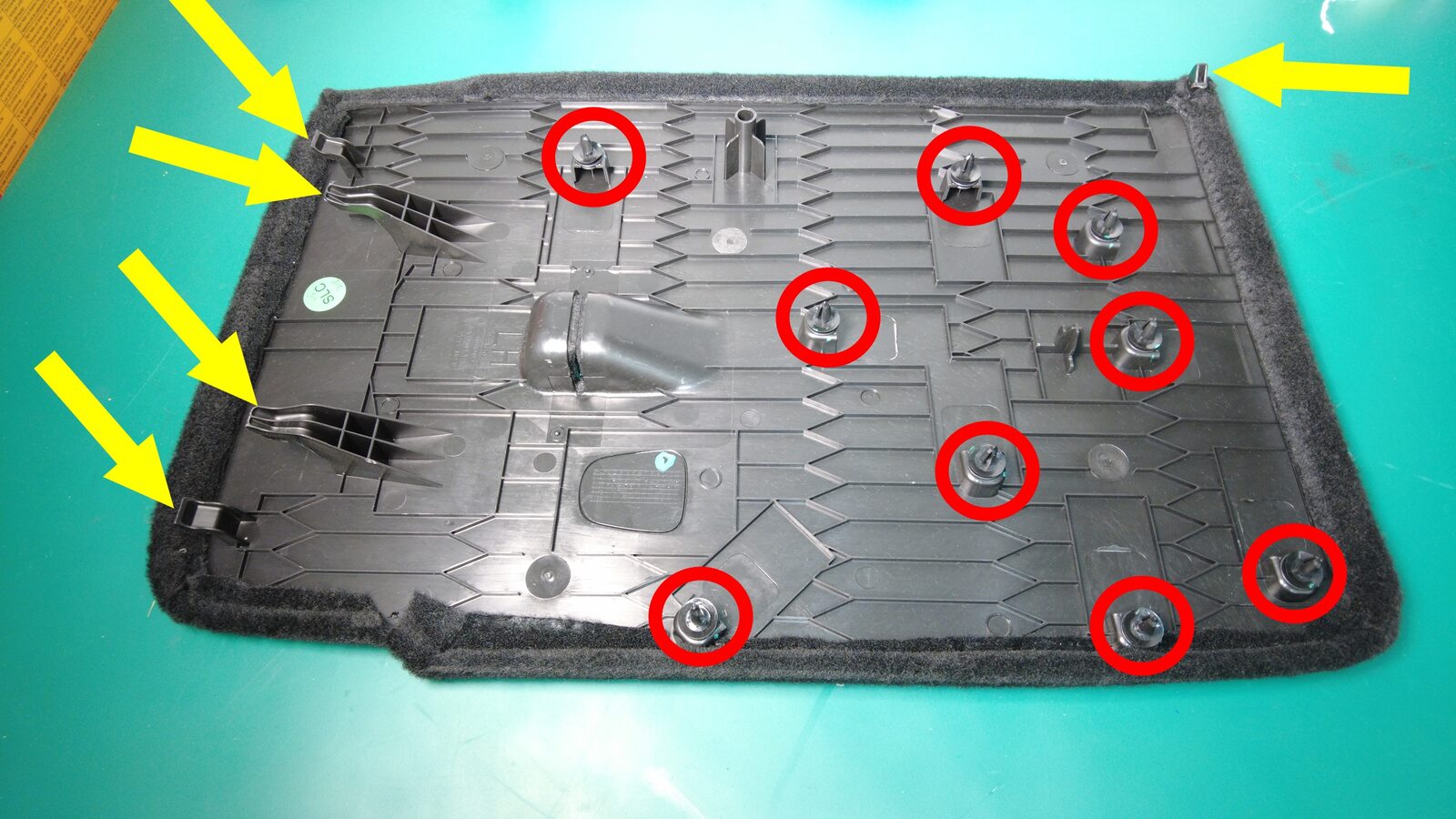

  9. Remove backpanel from 2nd row LH seatback.
    注

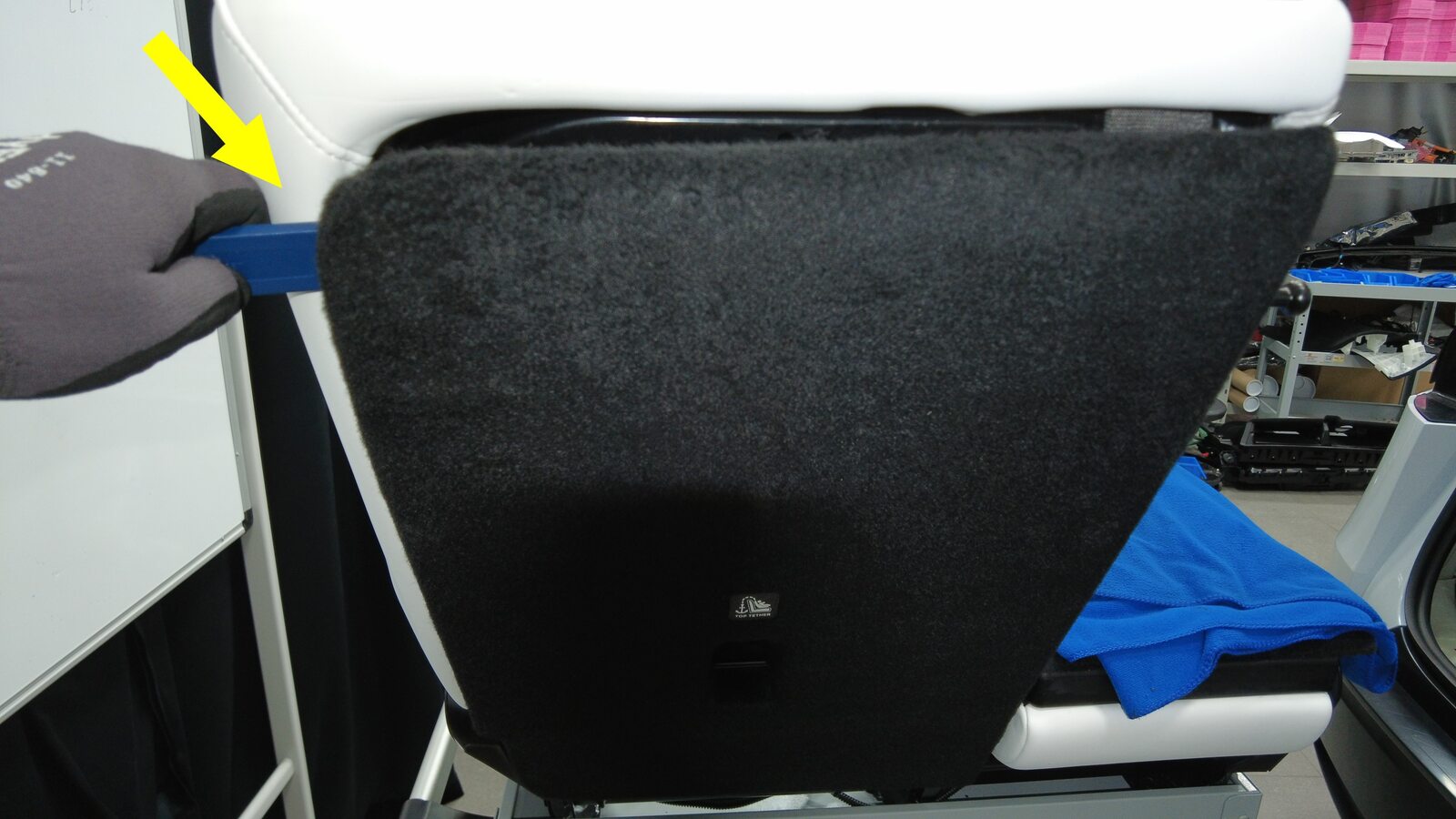

    Starting from upper left release all clips, and detach lower hooks afterwards.

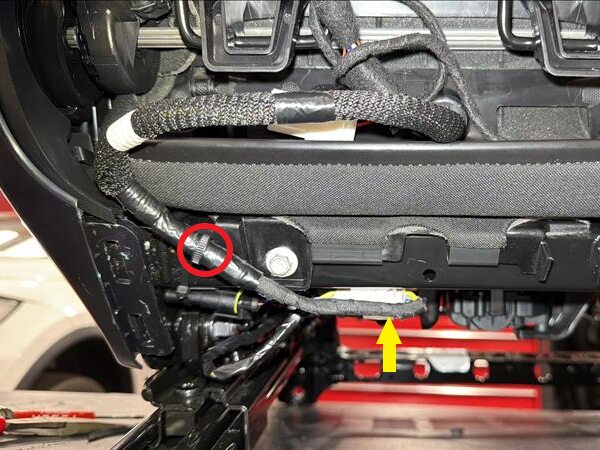

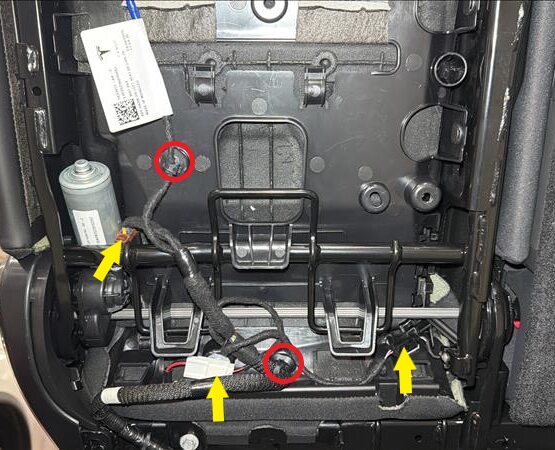

  10. Remove LH seatback harness.
    注
    4x connectors, 3x fir tree clips, Route shoulder switch connector into seat, unplug remaining connector and unclip harness from seat back, use pry tool if needed to fit connector between seat back and frame.

安装

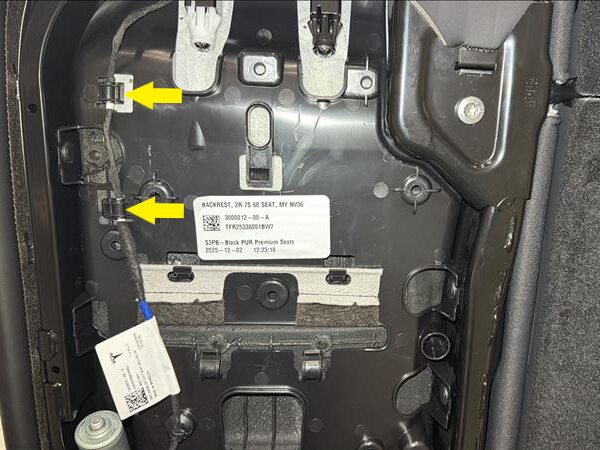

  1. Install LH seatback harness.
    注
    Route new seat harness onto seat back, plug in the connection, route shoulder switch connection back out of the seat, and clip the harness into place.
  2. Install LH shoulder switch to LH seat assembly.
  3. Install backpanel to 2nd row LH seatback.
    注
    9x clips, 5 hooks, attach hooks onto frame rail, work upwards and fasten all the clips.
  4. Install LH toe kick cover.
  5. Move LH seat to original position.
  6. Raise LH rear window.
  7. Close LH rear door.
  8. Move LH front seat to original position.
  9. Raise LH front window.
