2nd Row B-Cover Center Inner - 7-Seater (Remove and Replace)
校正代码
1308020101
1308020102
注意:除非本程序中另有明确规定,否则上文所列校正代码及相关 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。
注意:请参阅平均维修工时深入了解 FRT 及其创建方式。
注意:请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。
注意:请参阅人体工程学注意事项查看安全健康的作业规程。
- 2026-01-26: Released new procedure.
拆卸
- Open all four doors.
-
Move LH front seat forward.
NoteAdjust seat back if needed to avoid contacting headliner.
- Lower all four windows.
-
Move RH front seat forward.
NoteAdjust seatback if needed to avoid contacting headliner.

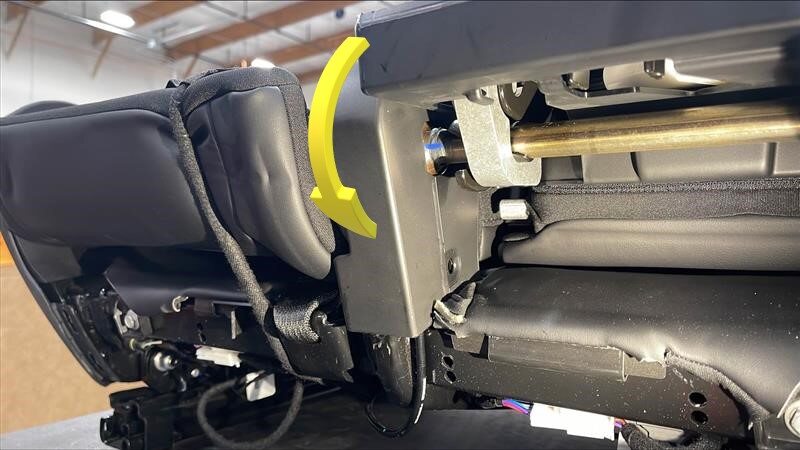

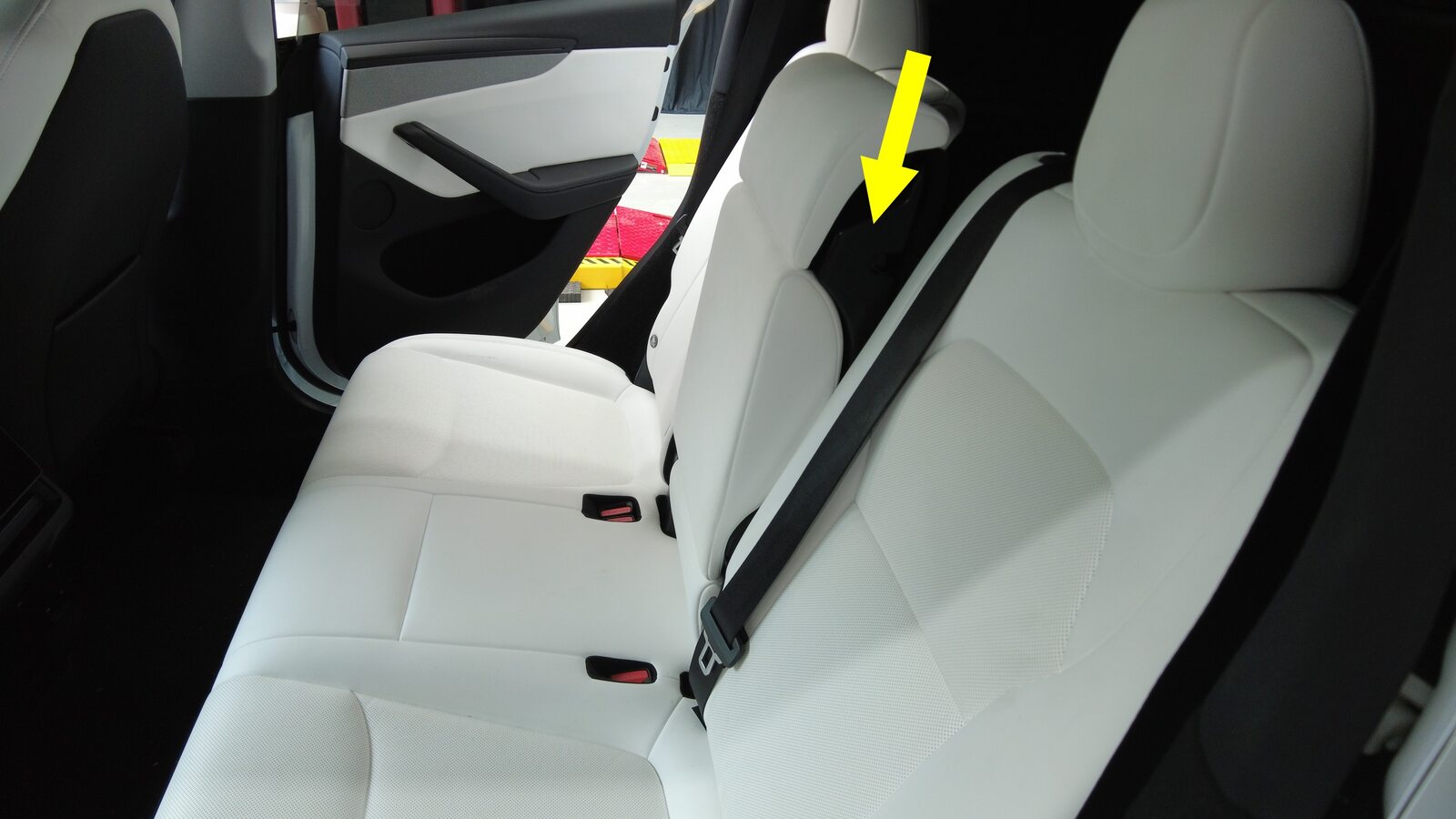

- Fold 2nd row 60 seatback down.
-

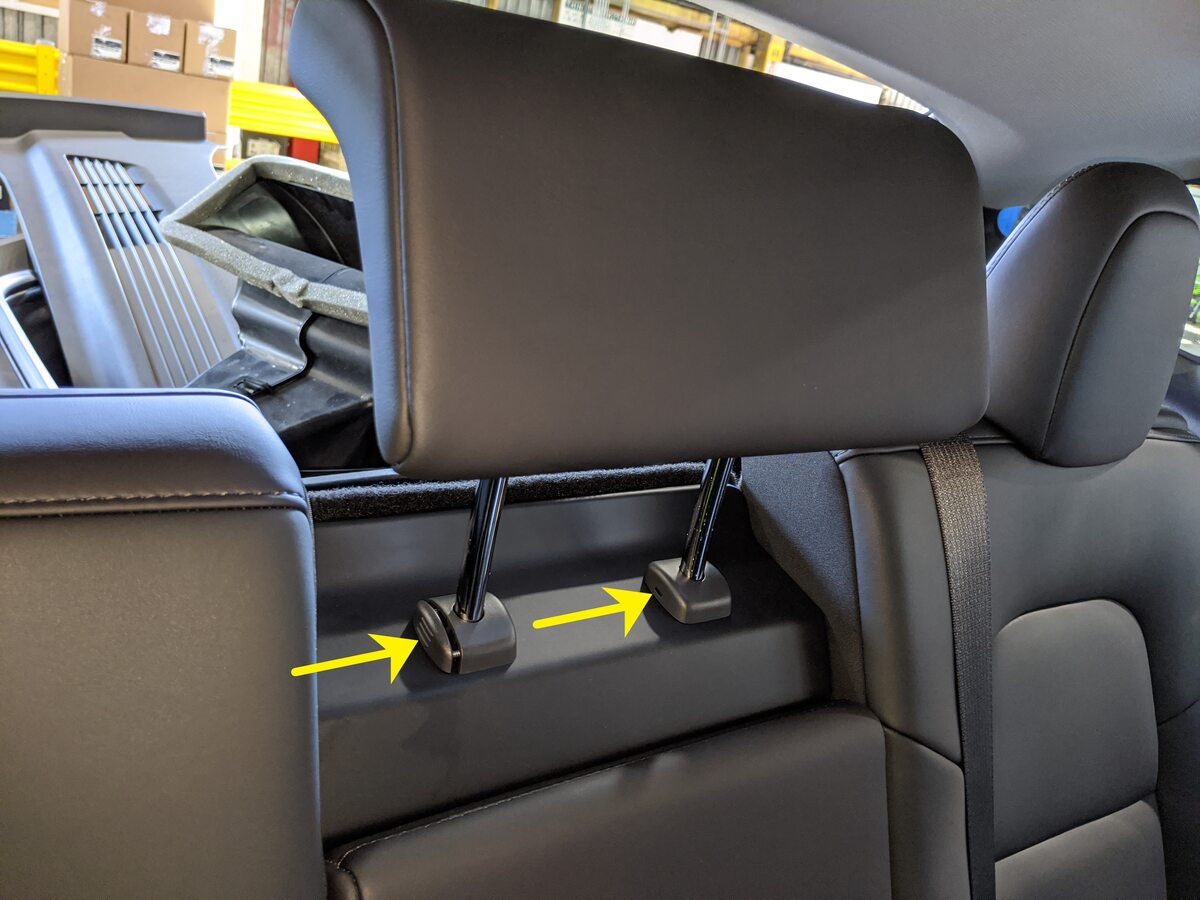

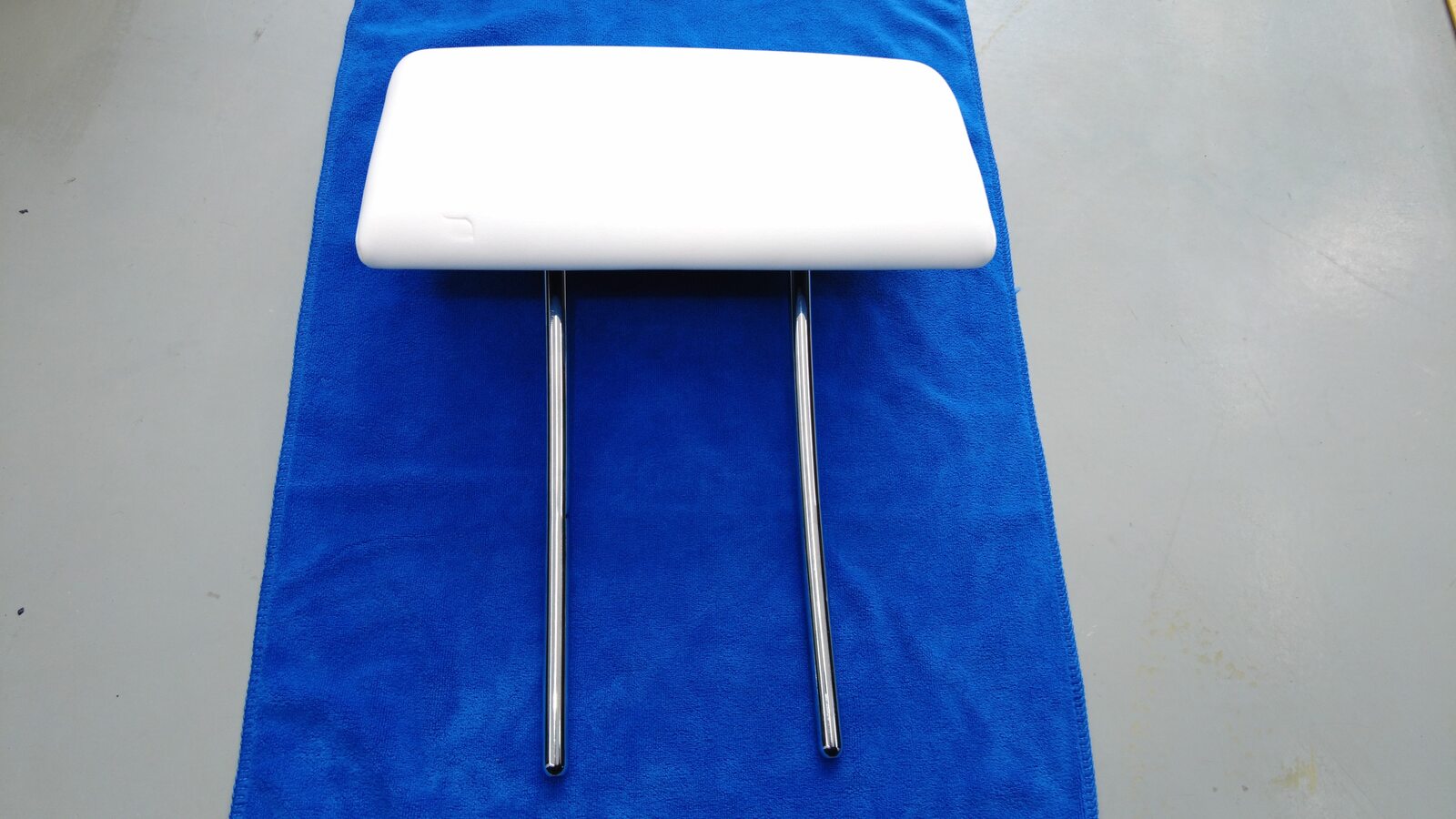

Remove center seatback headrest.
NoteSimultaneously depress the guide button and insert a 90 degree pick into the guide opening, and lift up while engaged.
-

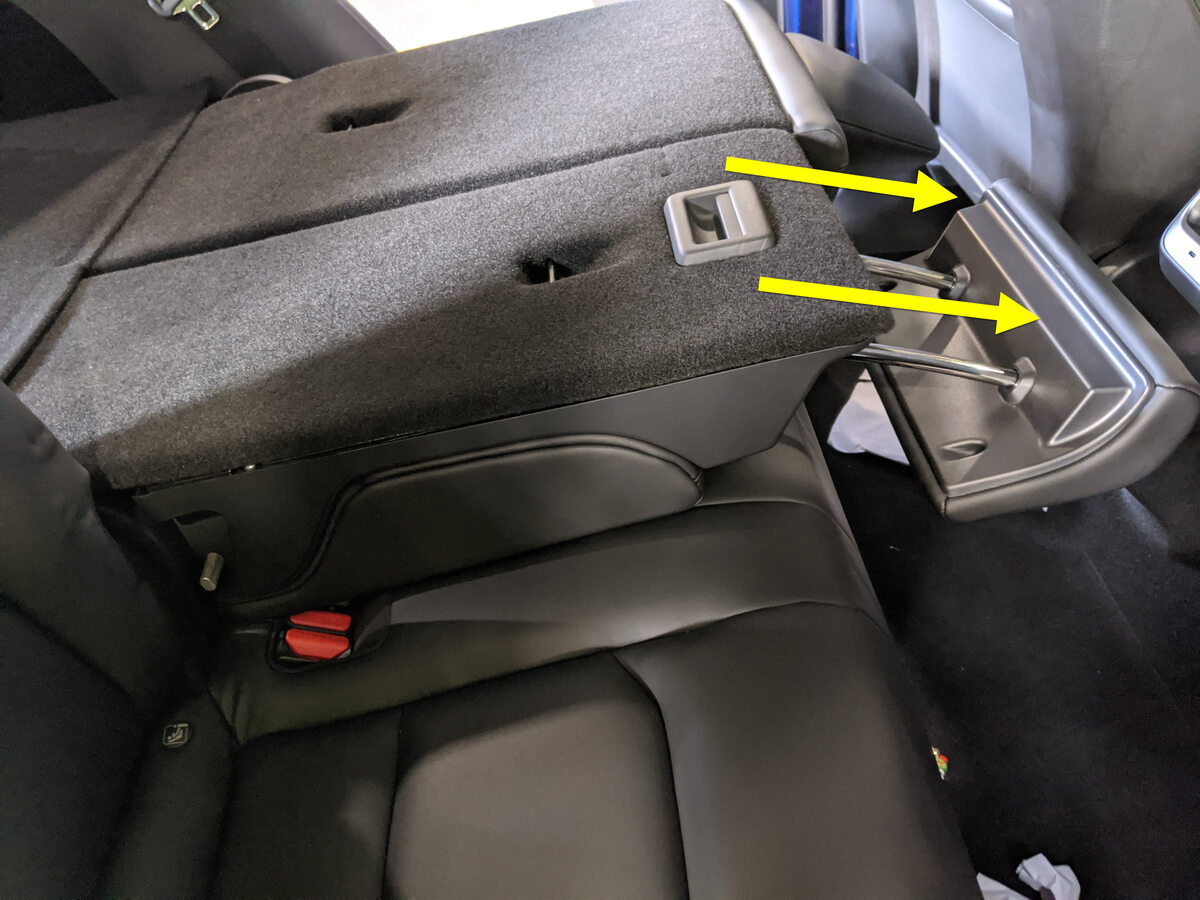

Remove center backpanel from 2nd row
center seatback.

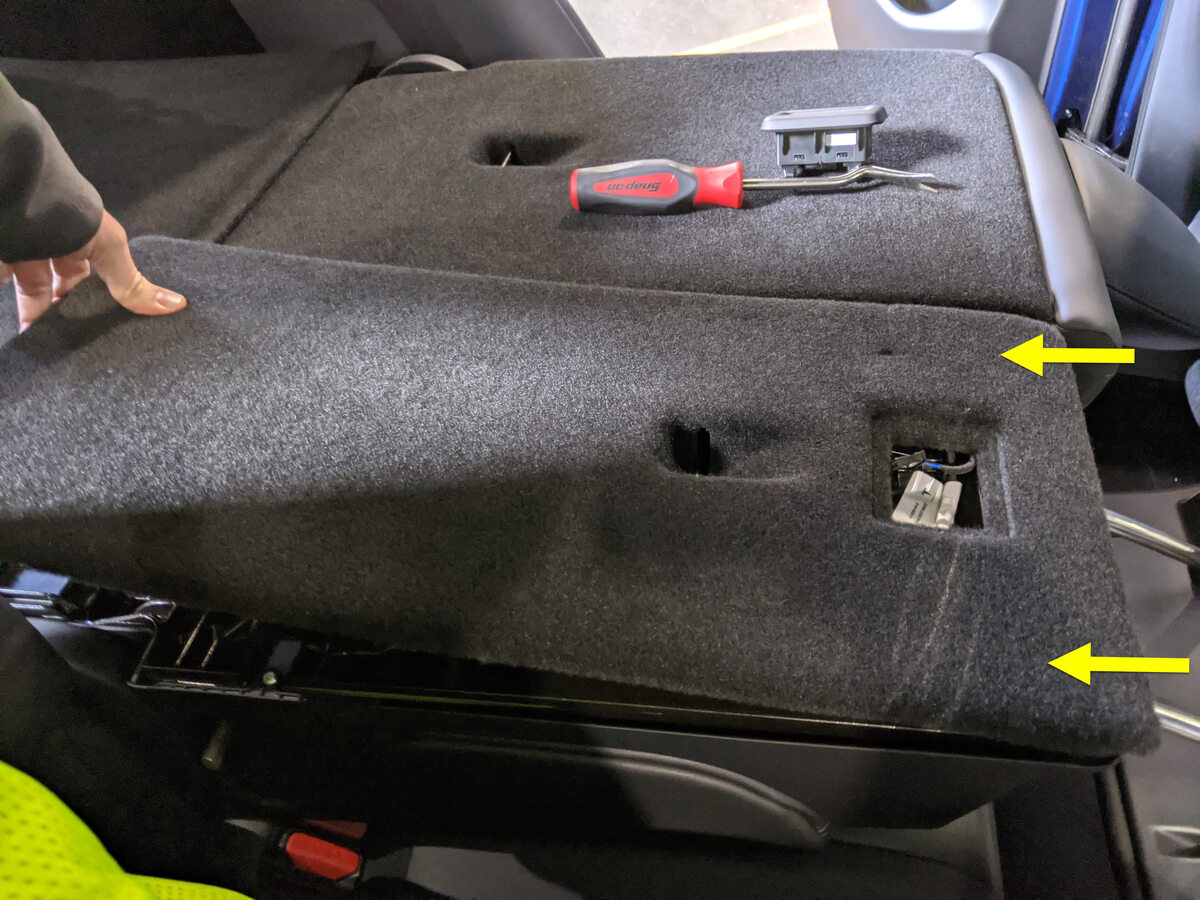

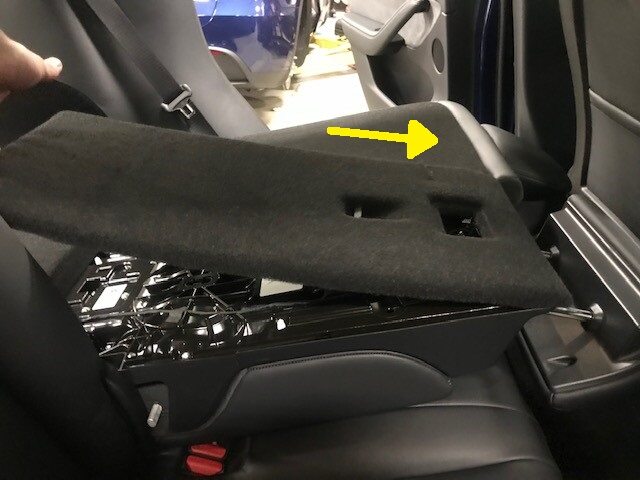

NoteLift up at the lower 20 backpanel and then slide forward to release.
-

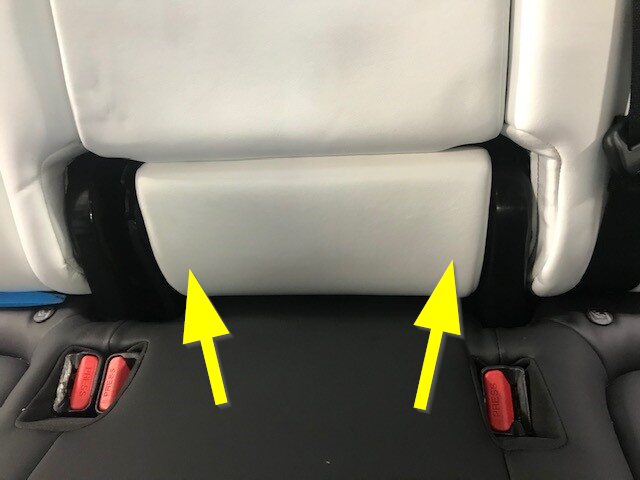

Remove center seatback lumbar bun
fastener.

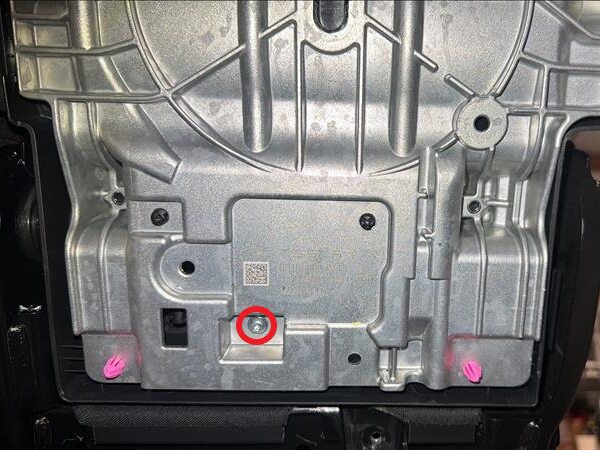

Note1x screw, T20, 1.5 Nm
-

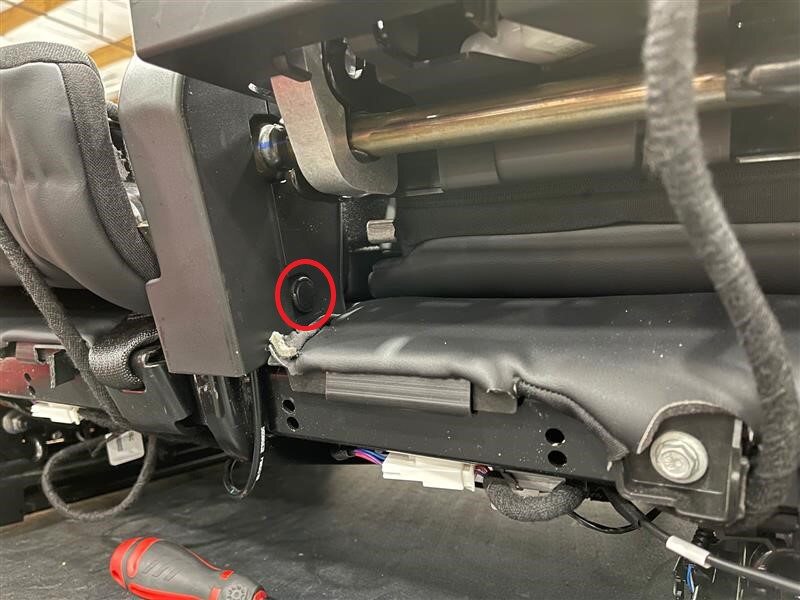

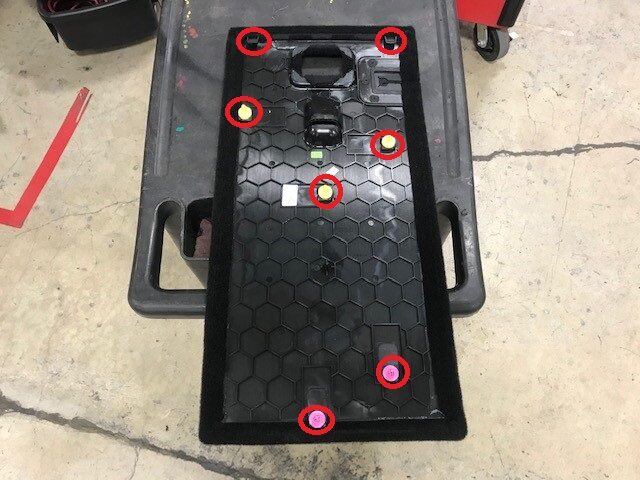

Remove push clip from trim.
Note1x clip, Remove trim clip from cover
安装
-
Install center inner cover.
NoteInstall inner cover ensuring the clips seat to outer cover.
-
Install push clip to trim.
-
Install center seatback lumbar
bun.
NotePress seatback lumbar bun into center frame.
- Fold 2nd row 60 seatback down.
-
Install center seatback lumbar bun
fastener.
Note1x screw, T20, 1.5 Nm.
-

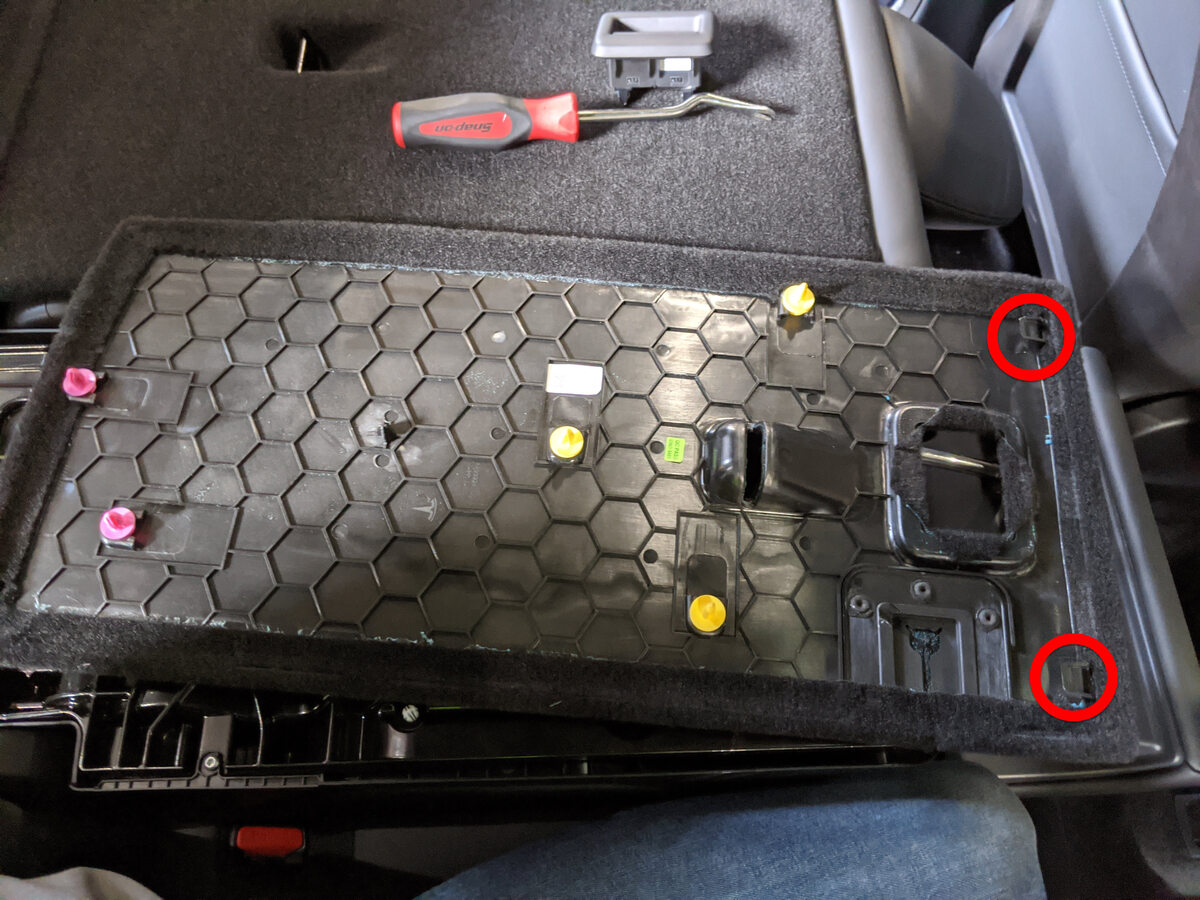

Insert backpanel hooks (X2) into
center seat back assembly.
NoteEngage hooks and slide rearward into position, early production have 4x hooks.
-
Install 2nd row center headrest.
- Return 2nd row 60 seatback to vertical position.
- Move RH front seat to original position.
- Move LH front seat to original position.
- Raise all four windows.
-
Close all four doors
NoteIf LV is powered up then unlatch rear doors before closing.
