2nd Row Seat Harness- RH (7 Seater) (Remove and Replace)
校正代码
1710080701
1710080702
注意:除非本程序中另有明确规定,否则上文所列校正代码及相关 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。
注意:请参阅平均维修工时深入了解 FRT 及其创建方式。
注意:请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。
注意:请参阅人体工程学注意事项查看安全健康的作业规程。
- 2026-01-26: Released new procedure.
拆卸
- Open RH front door.
- Lower RH front window.
- Open RH rear door.
- Lower RH rear window.
- Move RH front seat forward.
-

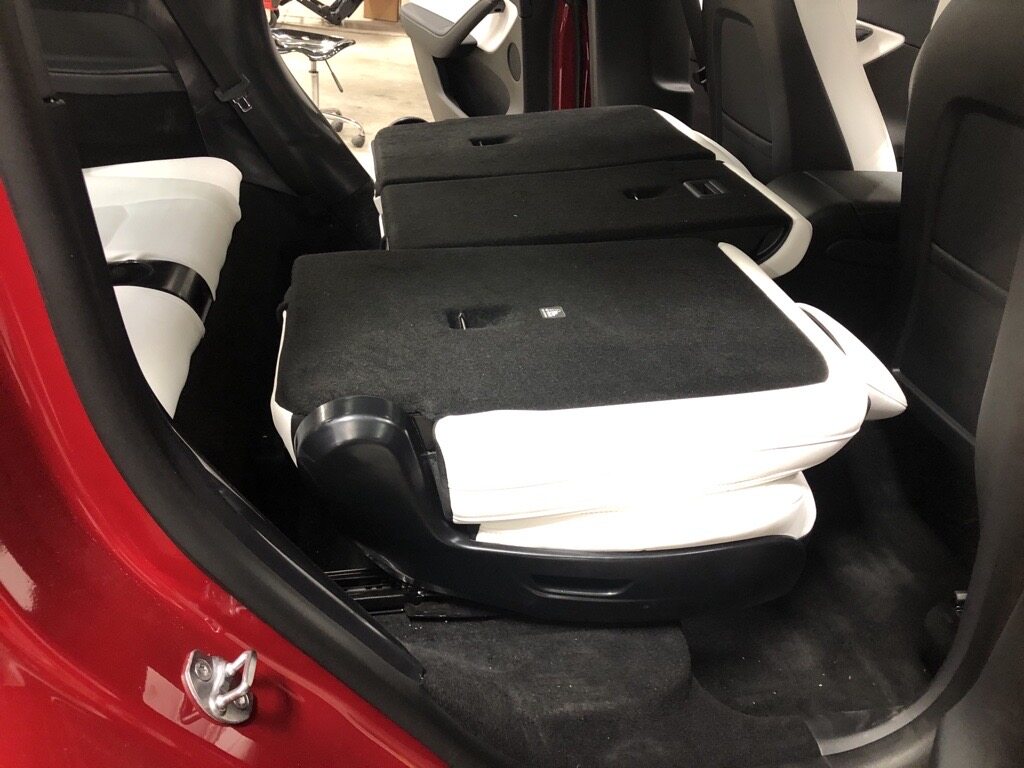

Fold 2nd row RH seatback down.
NoteProtect seat back upholstery if necessary.
-

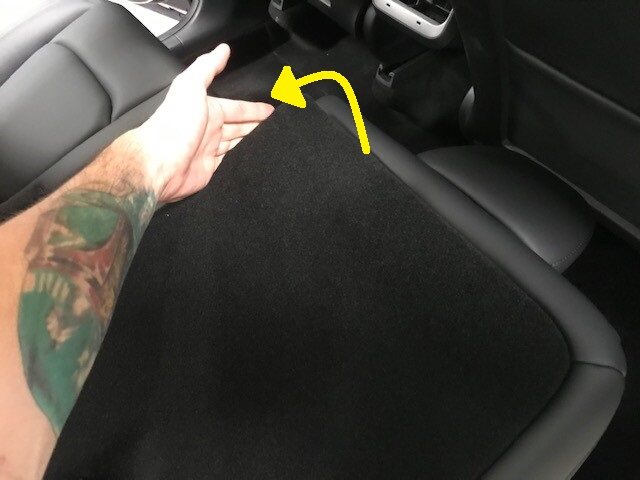

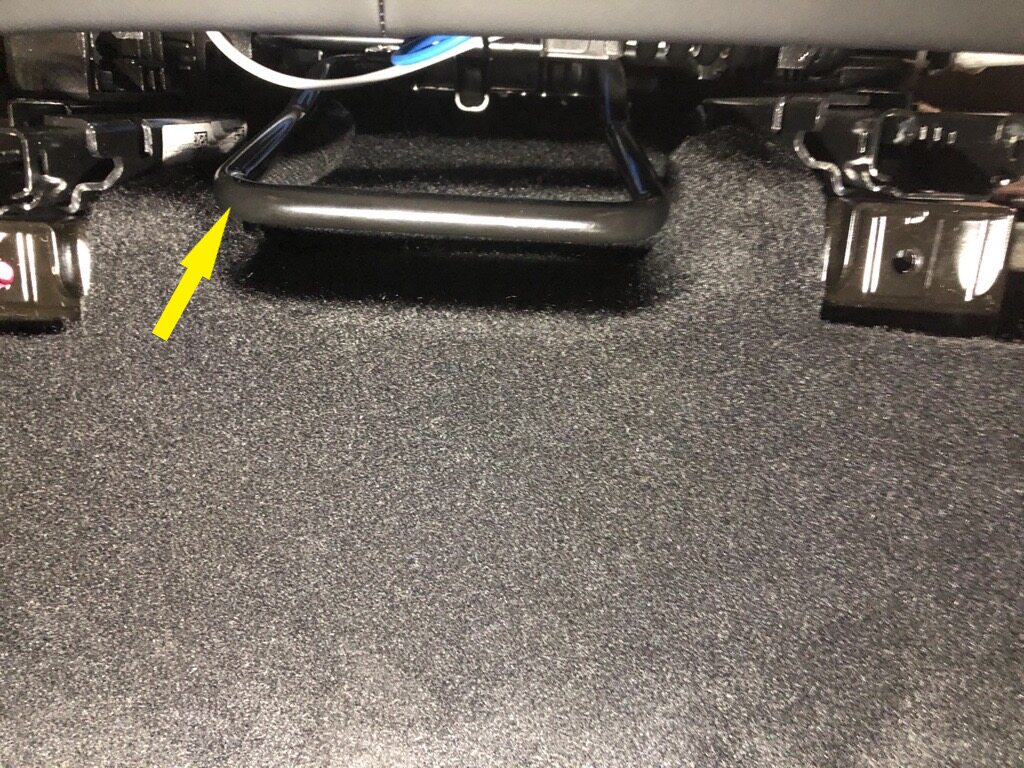

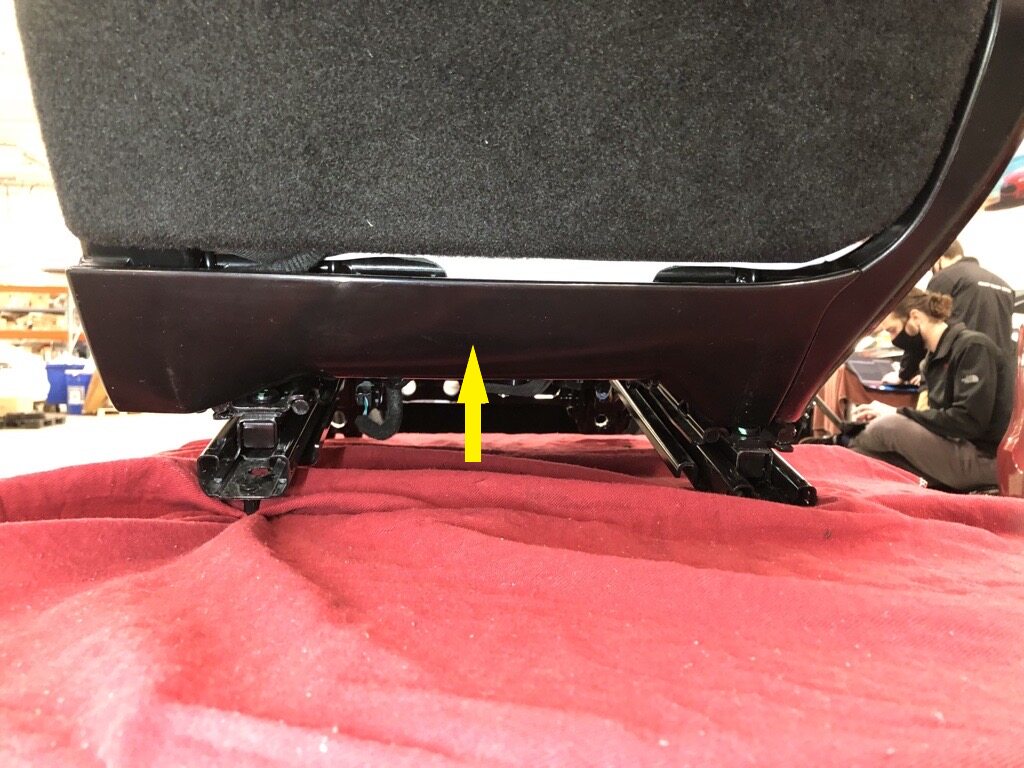

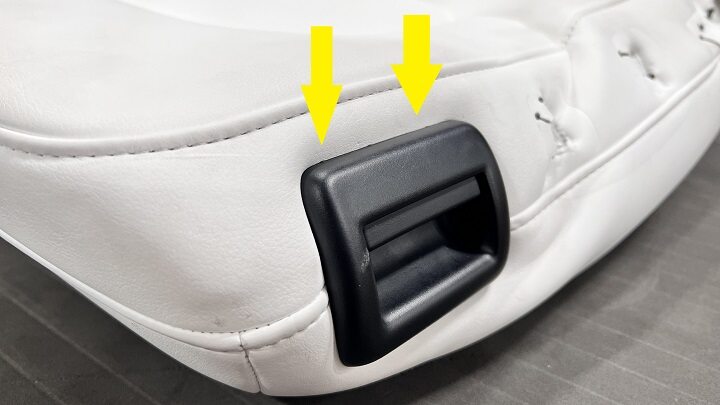

Move RH seat forward using towel
bar.
NoteWith one hand on towel bar pull up and slide the seat forward with your other hand.
-

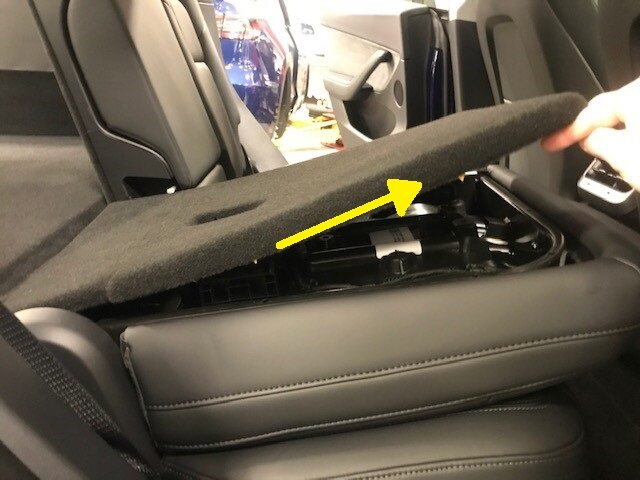

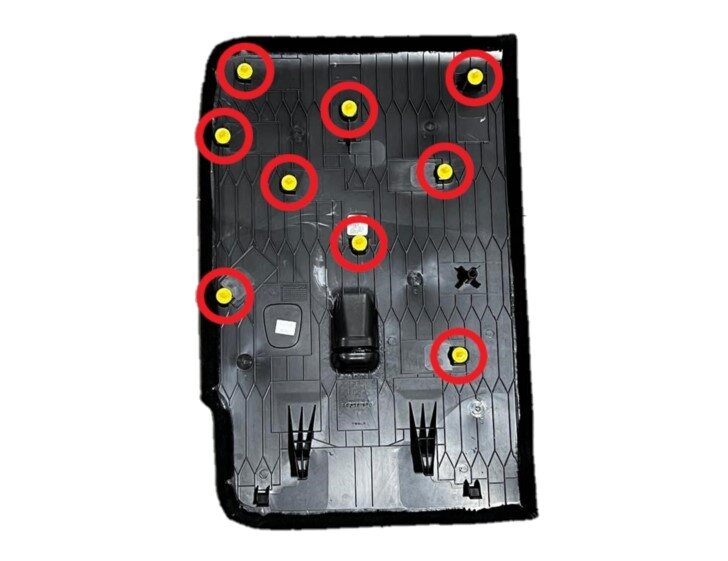

Remove 2nd row RH seat
backpanel.

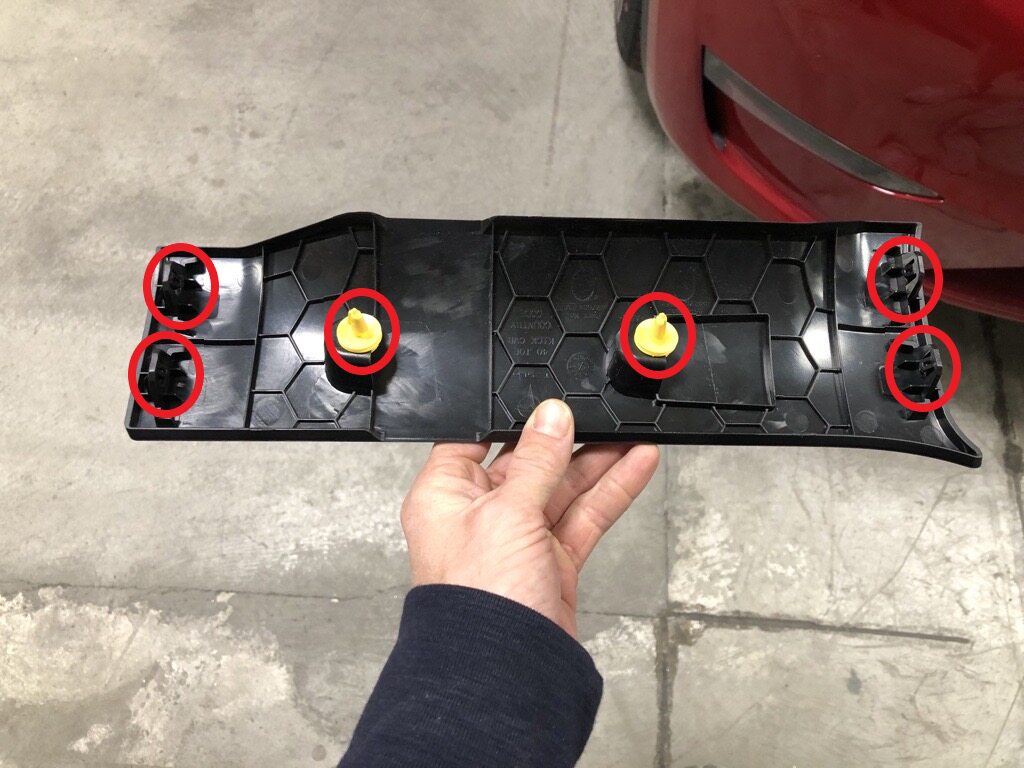

NoteLift up at the top left corner of RH pack panel to release clips and then slide forward to release hooks.
-

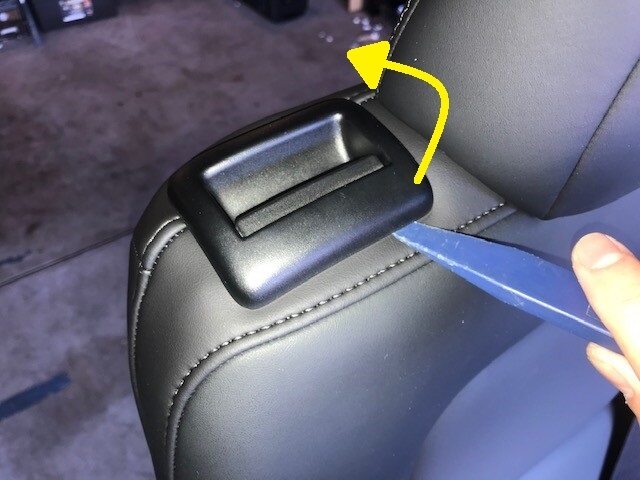

Remove RH shoulder switch from RH seat
assembly.

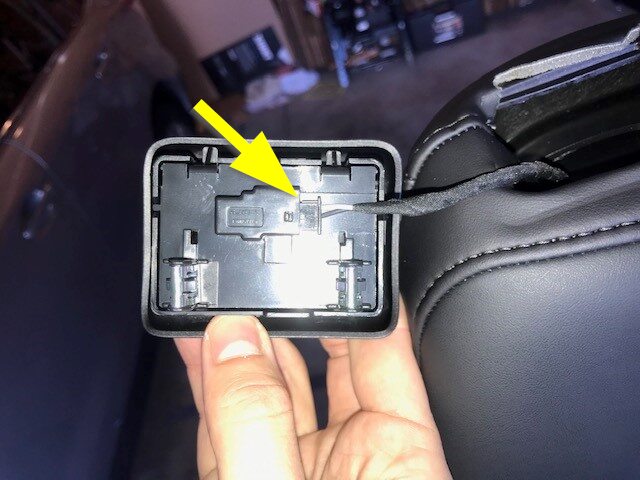

NoteUsing plastic trim tool pry the top of the switch away from 40 seat assembly to ease removal.
-
Remove RH seat toe kick cover.
-
Remove easy-entry switch.
-

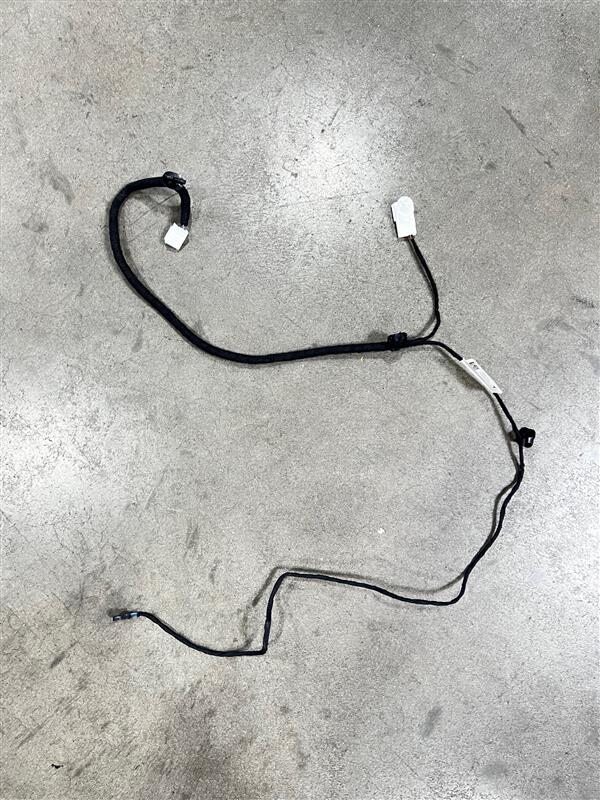

Remove RH seat back harness.
-

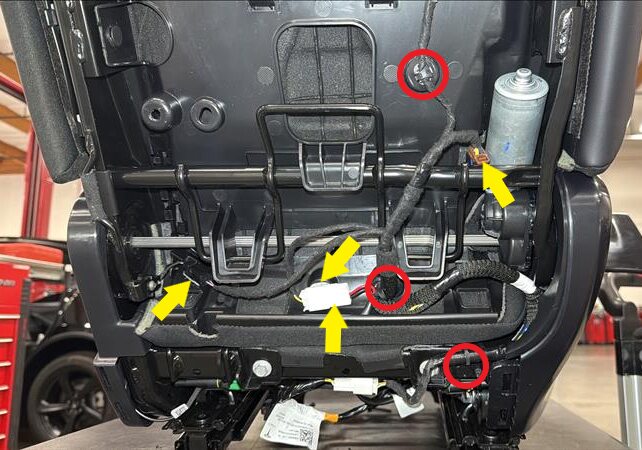

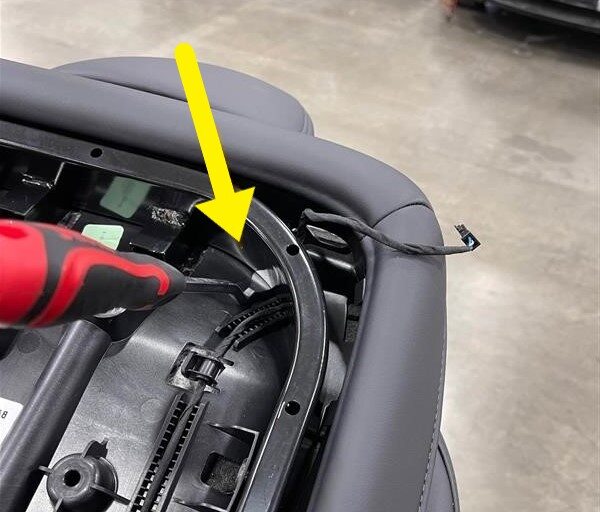

Remove 2nd row seat RH seat harness
from seat assembly.

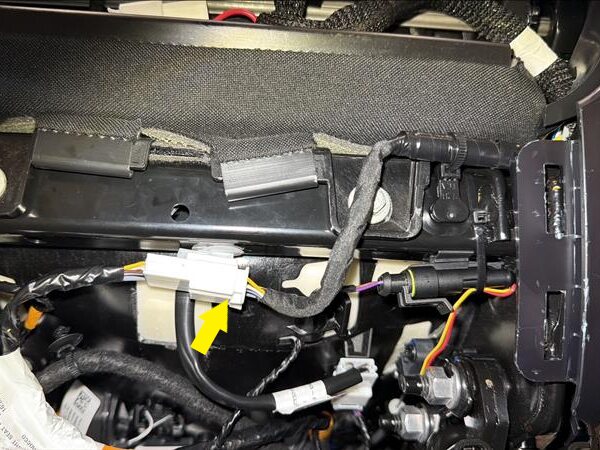

NoteUse a pry tool to release shoulder switch connection from between seatback and frame.
安装
-
Route and install 2nd row seat RH seat
harness onto seat assembly.
NoteUse a pry tool to insert shoulder switch connection between seatback and frame.
-
Install RH seat back harness.

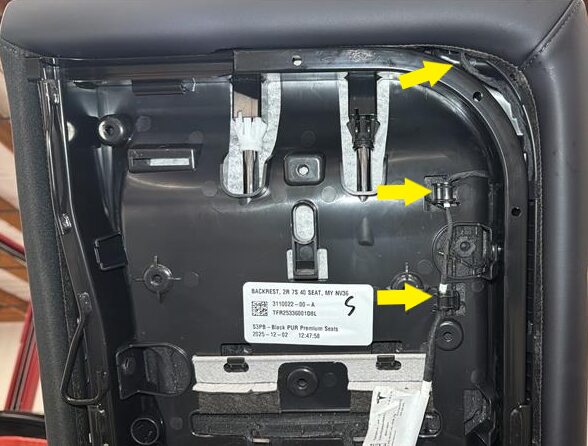

NoteSecure harness to harness guide.
-

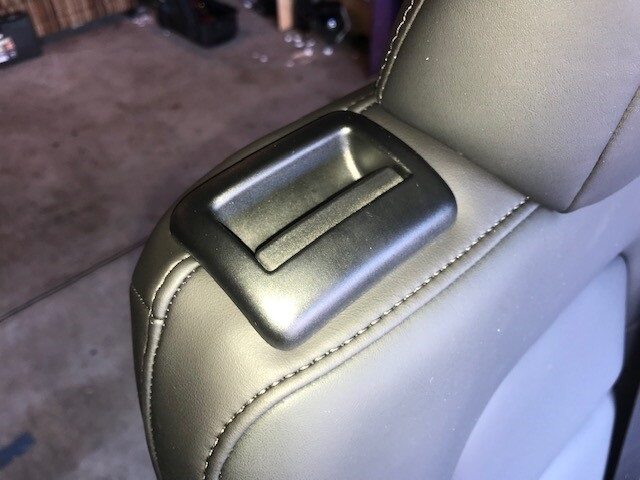

Install RH shoulder switch to RH seat
assembly.
-
Install RH seat toe kick cover.
-
Install RH backpanel onto seat
back.
NoteInstall back panel clips to seat back frame starting at lower back panel working your way up towards upper back panel.
- Move 2nd row RH seatback to vertical position.
- Move RH front seat to original position.
- Raise RH rear window.
- Close RH rear door.
- Raise RH front window.
- Close RH front door.
