校正代码 1710060301 1710060302 FRT 2.82 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

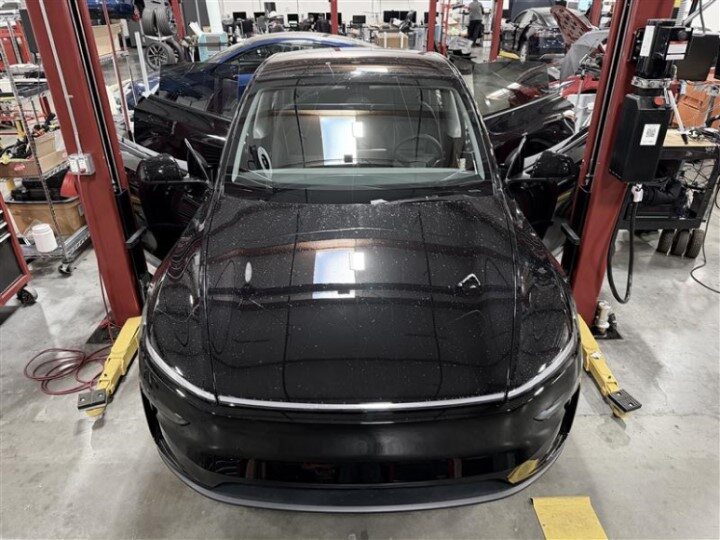

1. Open all four doors



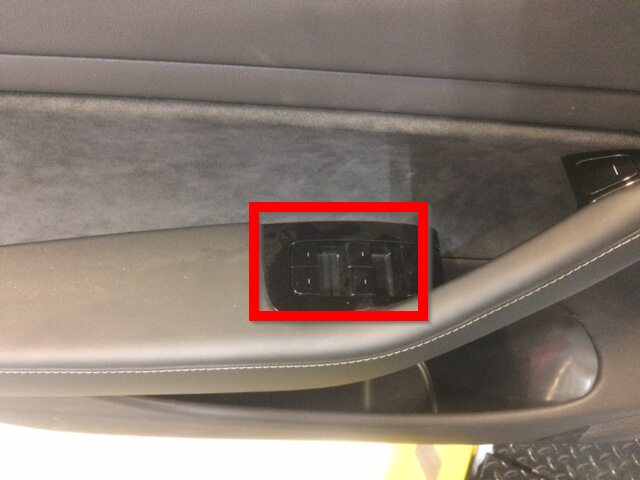

2. Lower all four windows

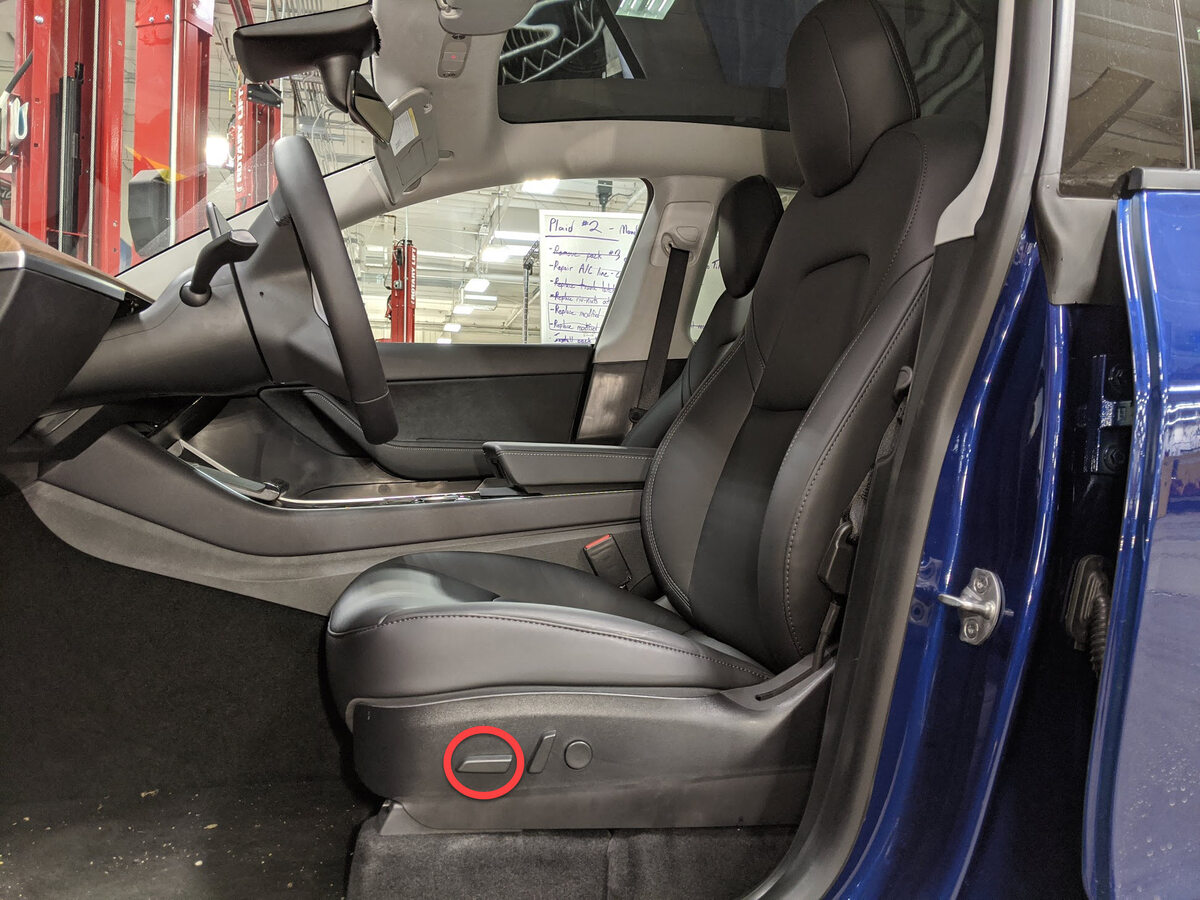

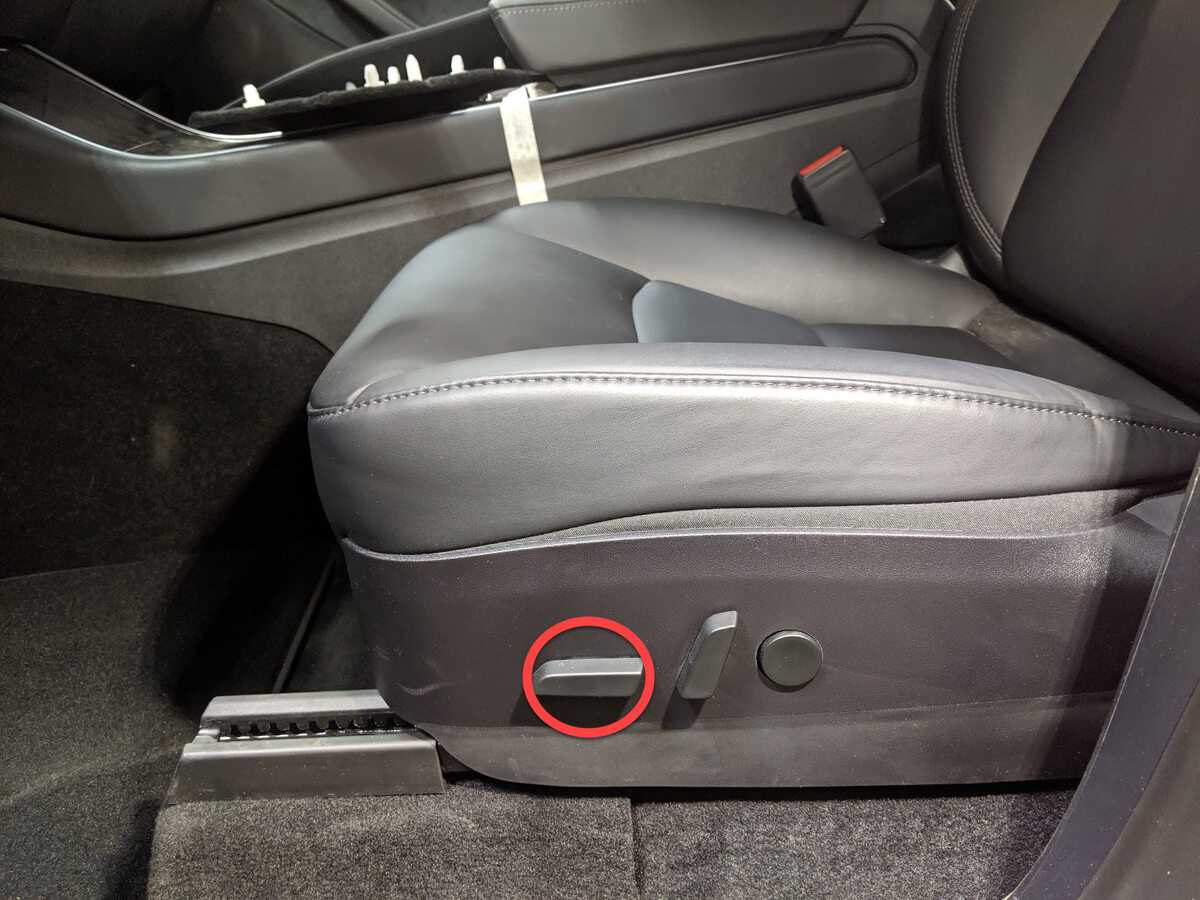

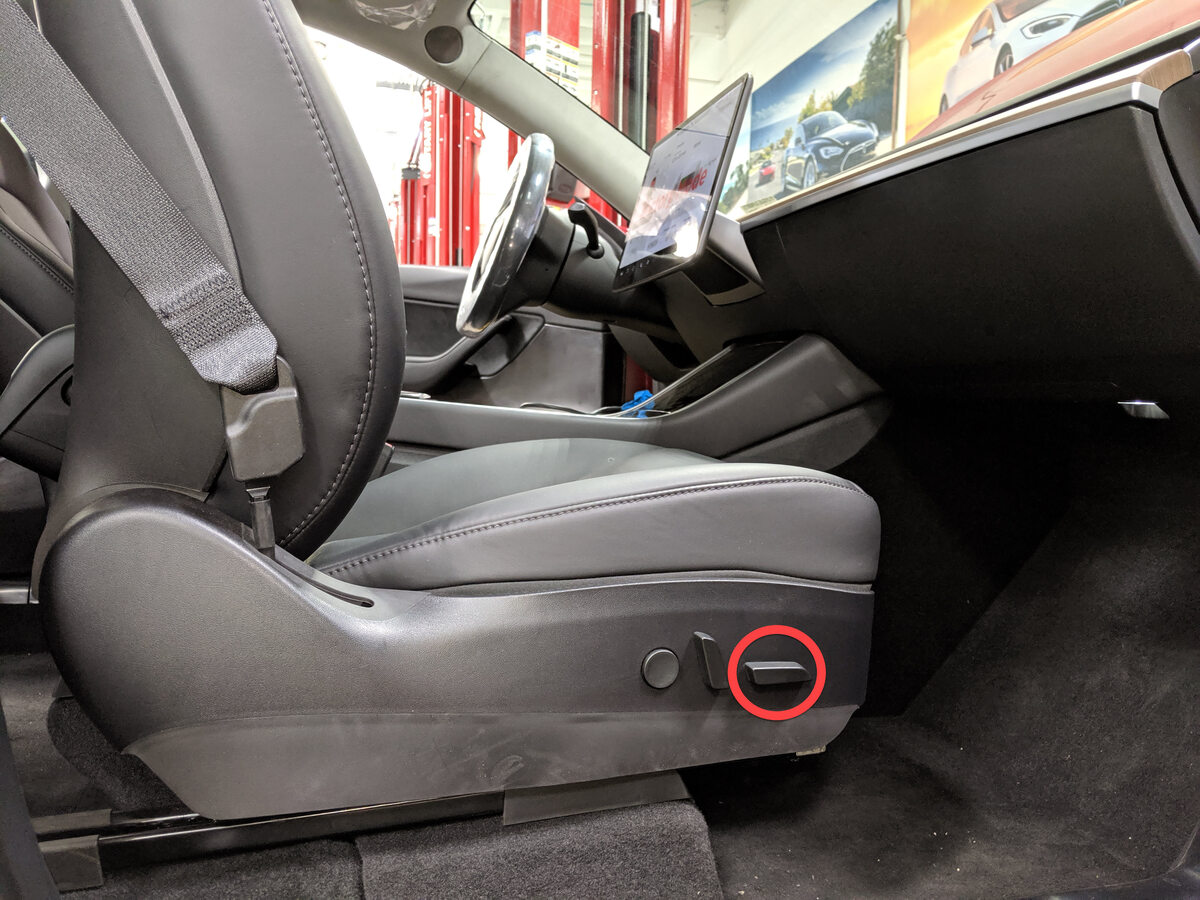

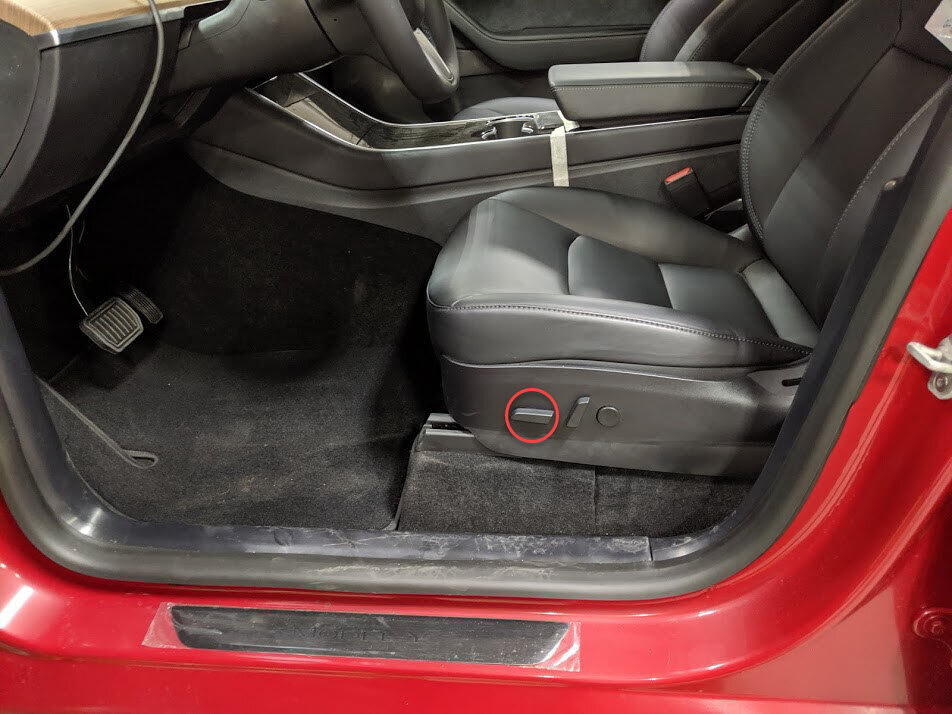

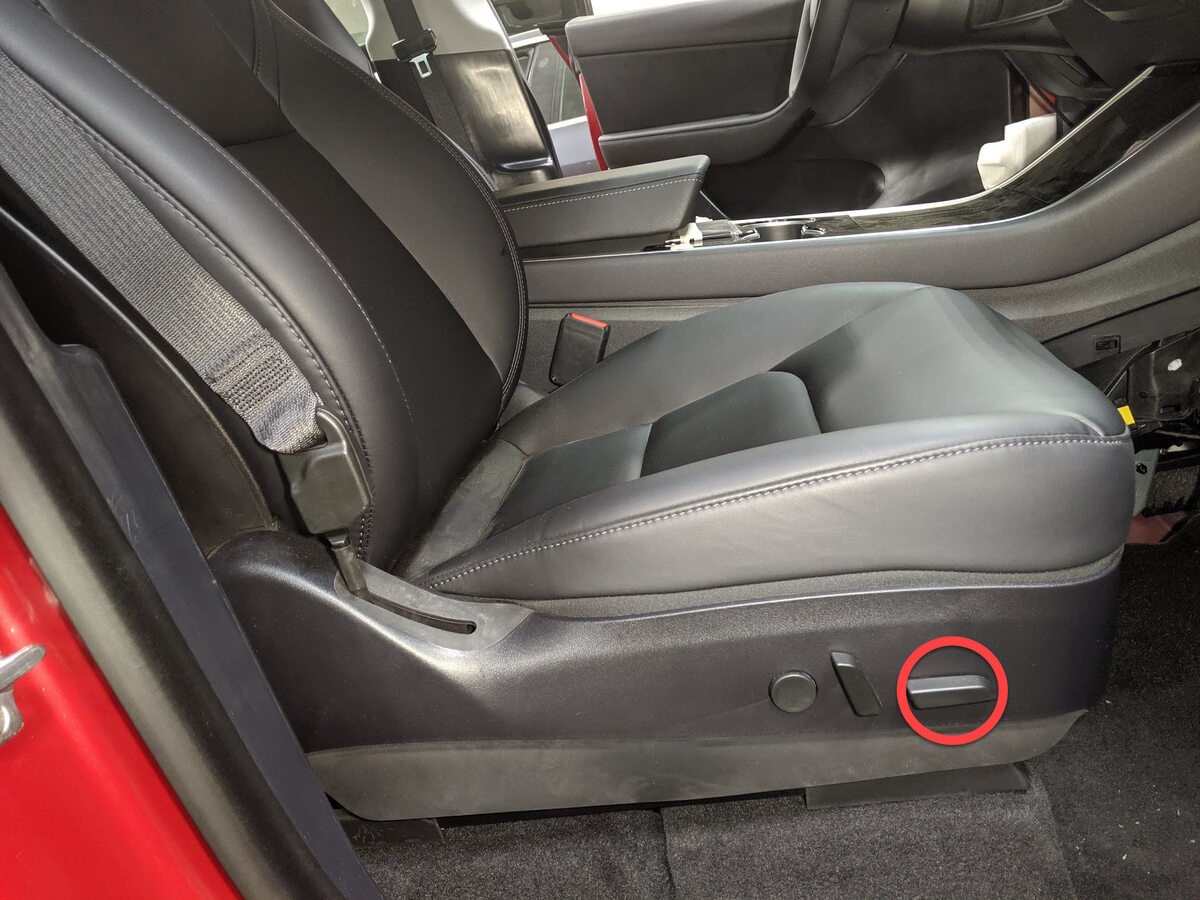

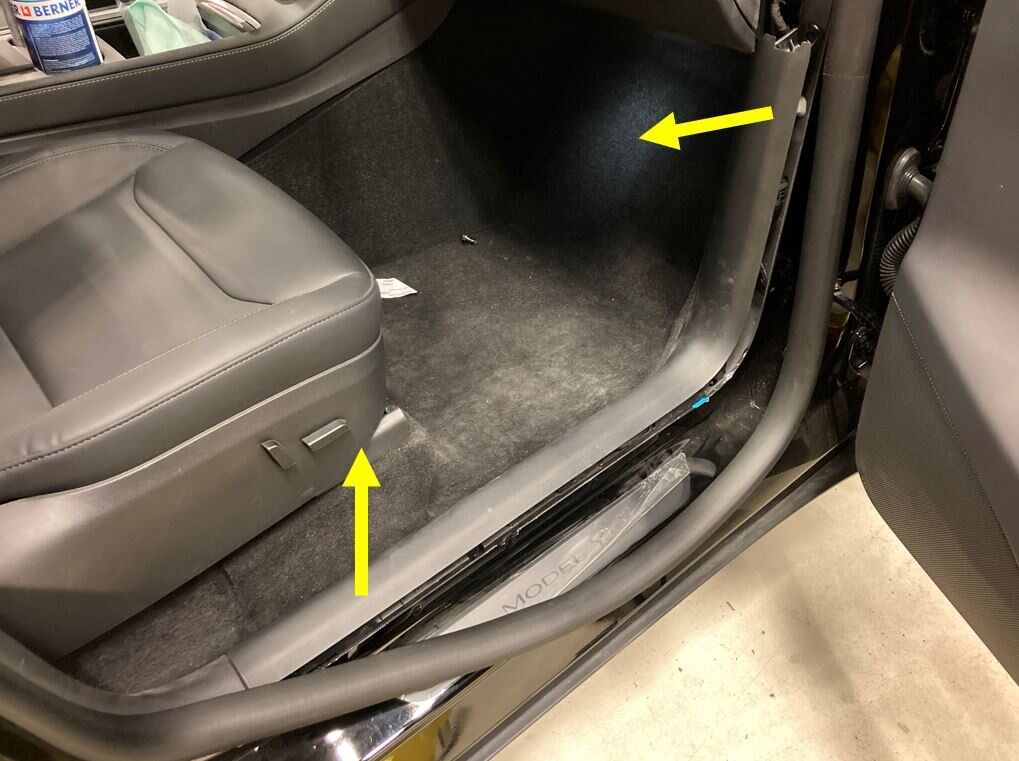

3. Move LH front seat forward

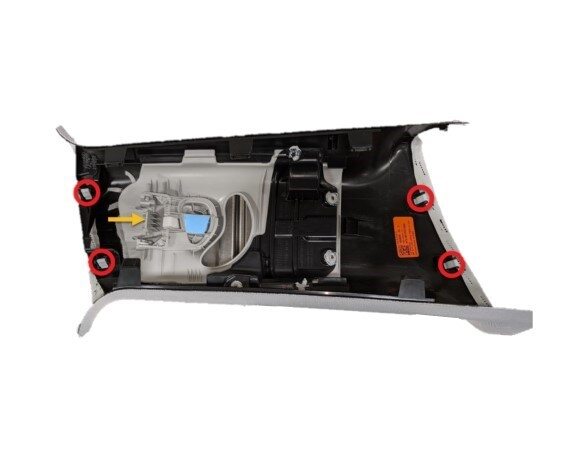

4. Move RH front seat forward



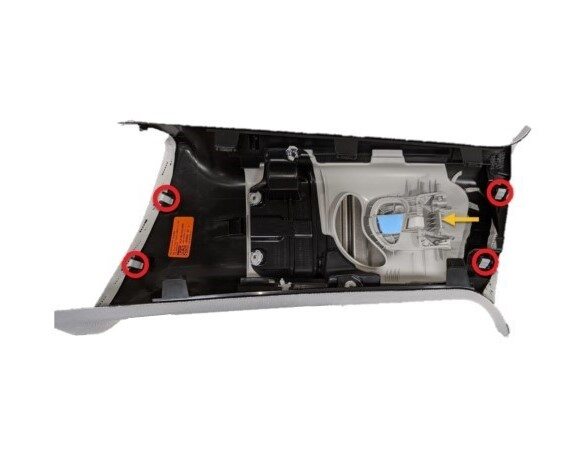

5. Remove LH lower C-pillar trim

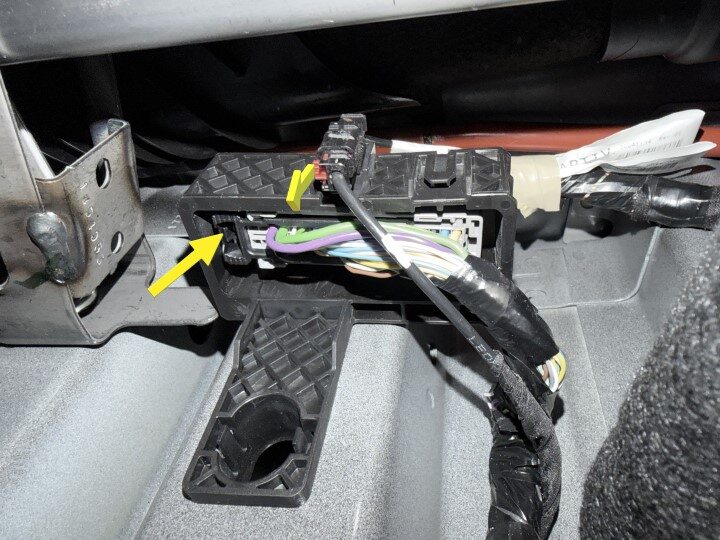

   注

   4x tabs, 3x clipsMove door seal to the side before removing LH lower C-pillar trim

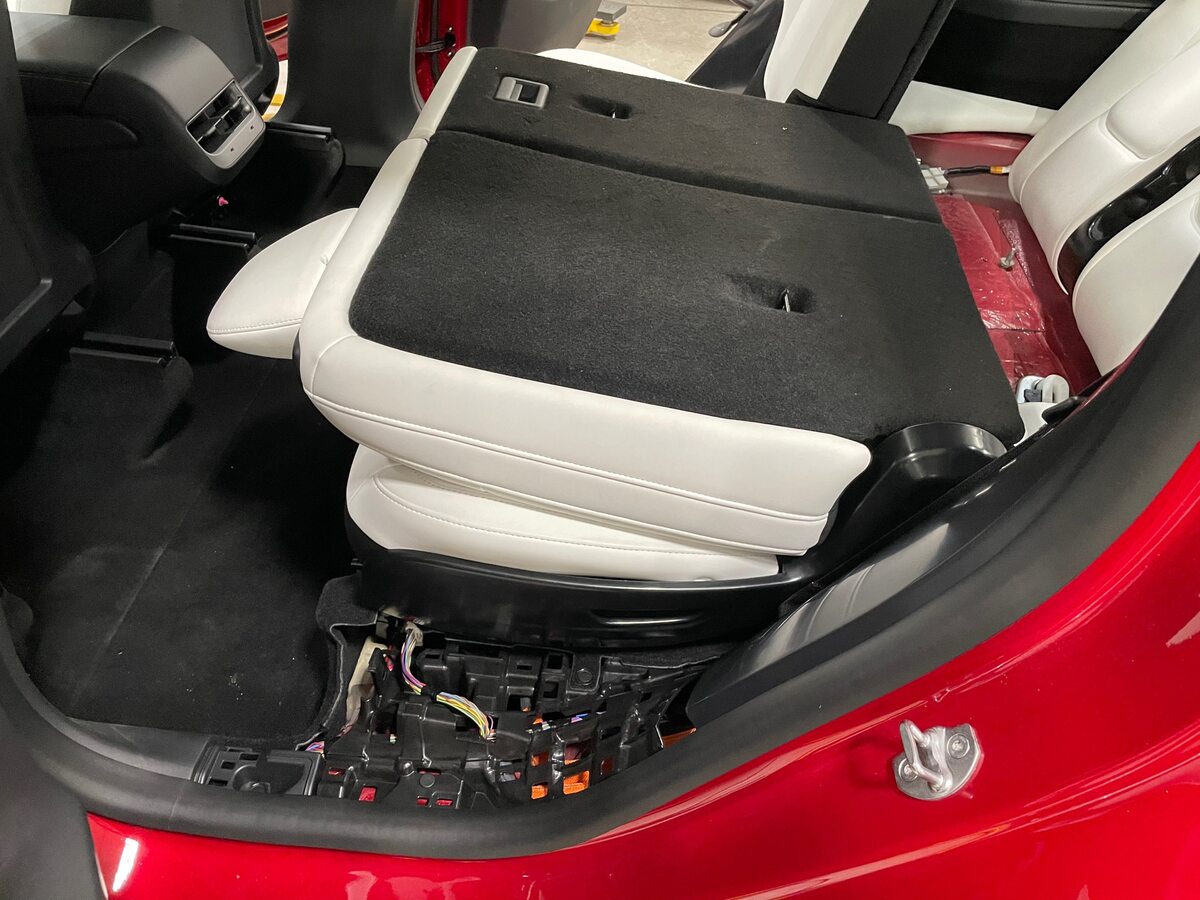

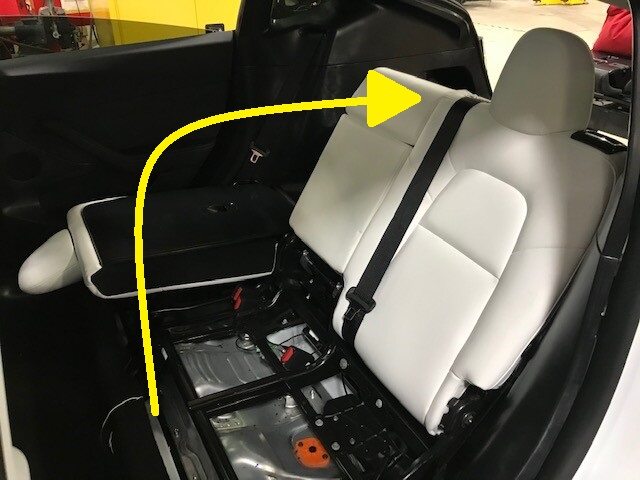

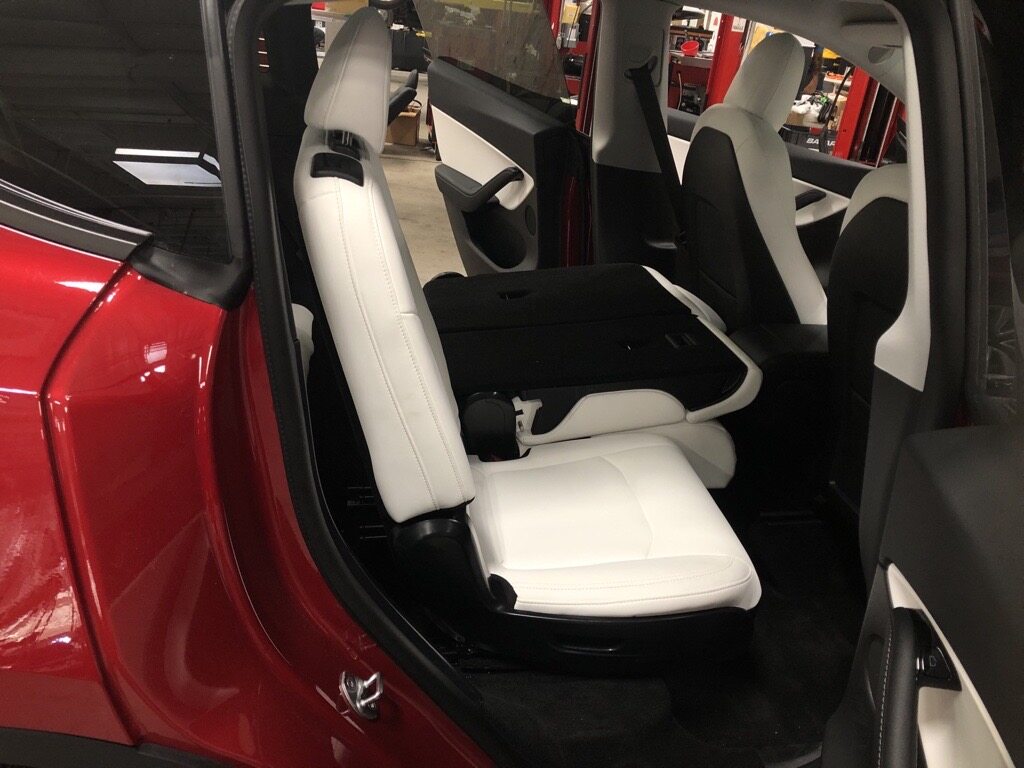

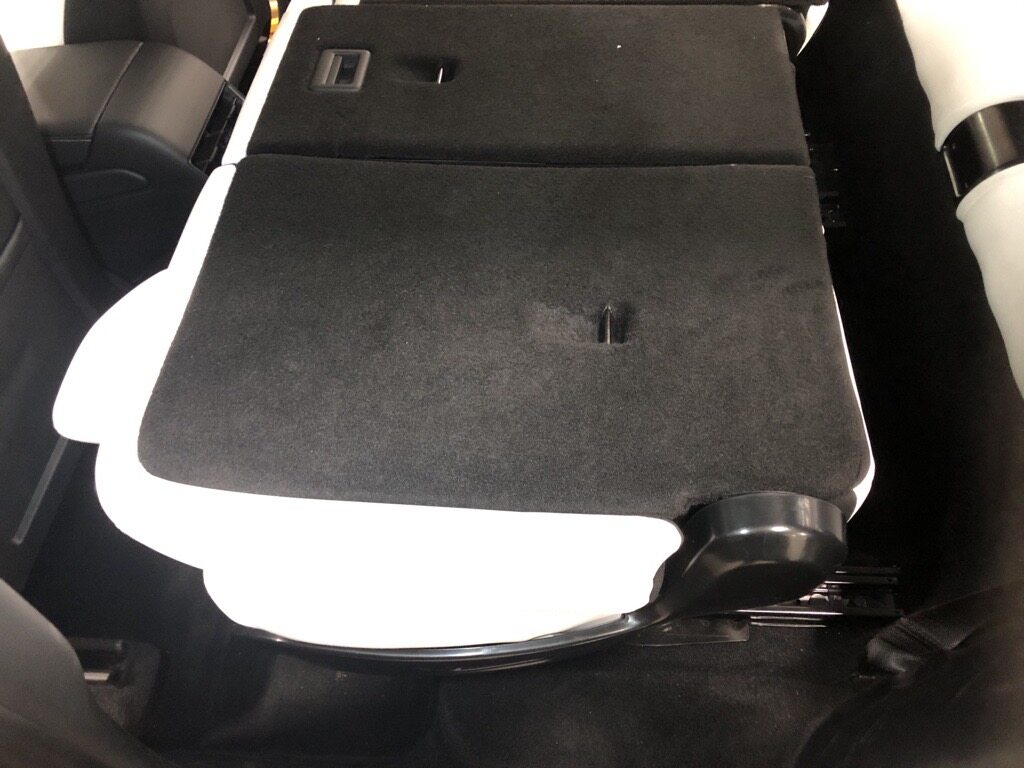

6. Fold down 2nd row 60 seatback assembly
   注

   Press button, fold forwards

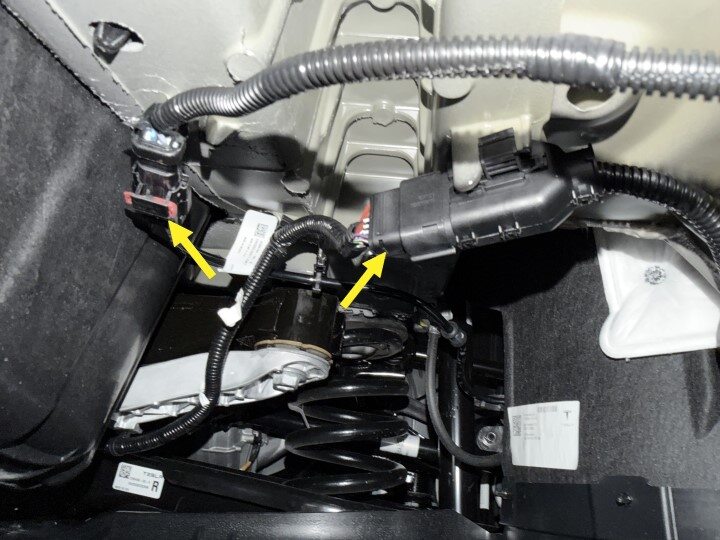

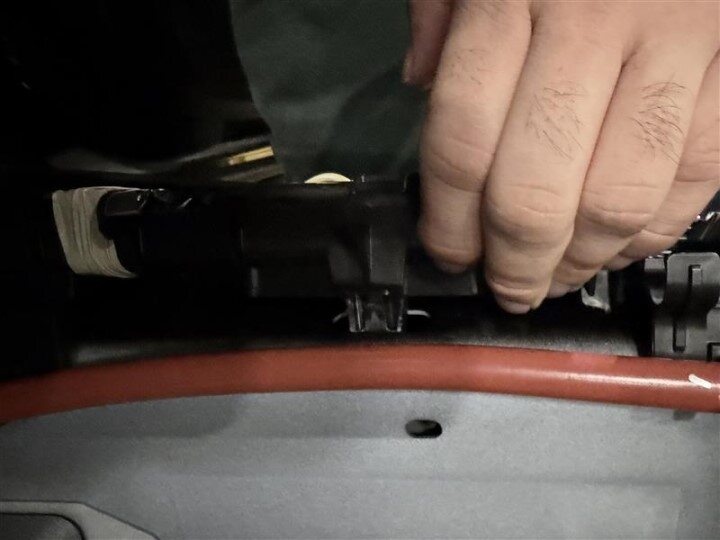

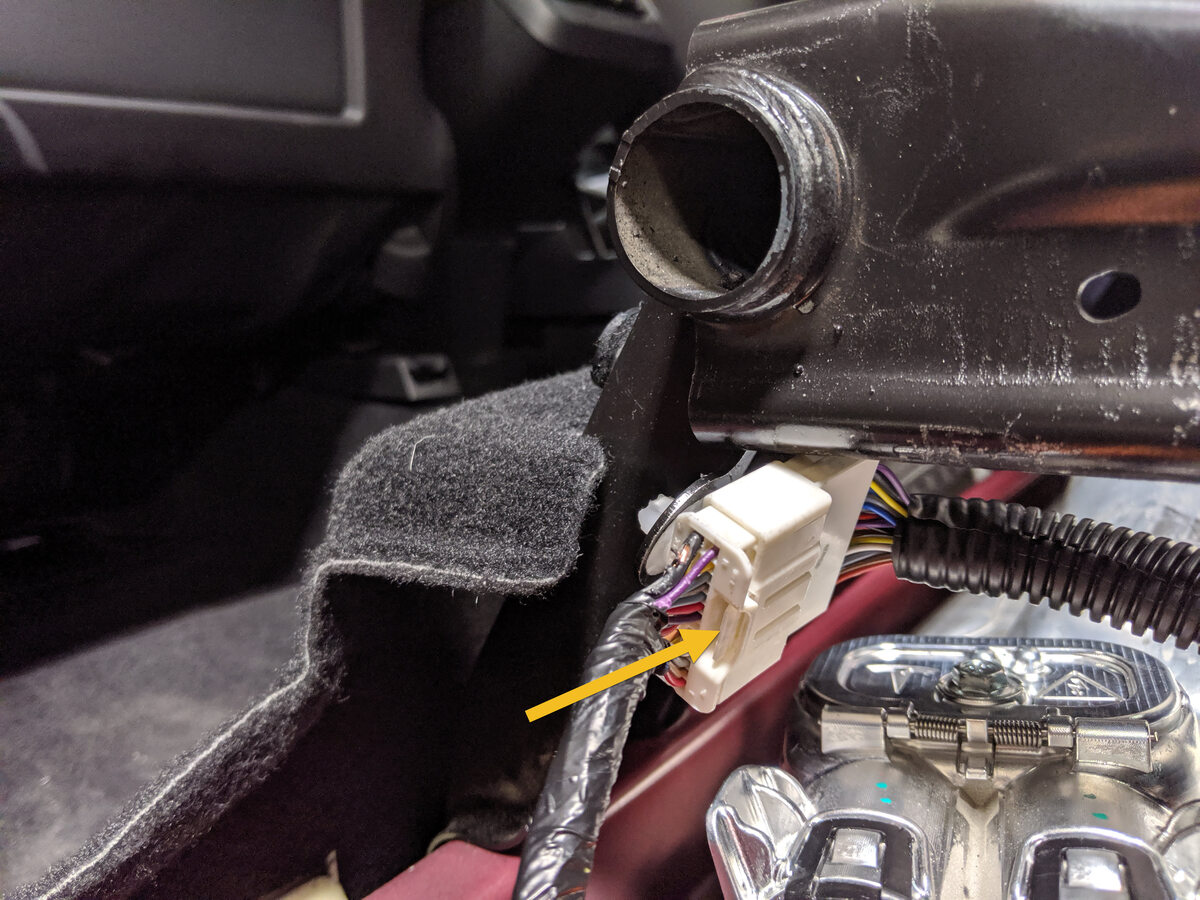

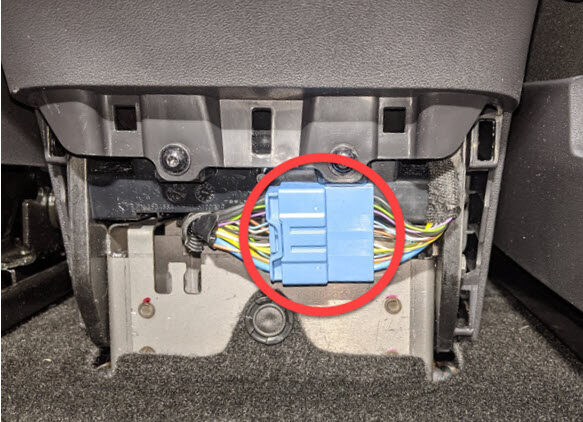

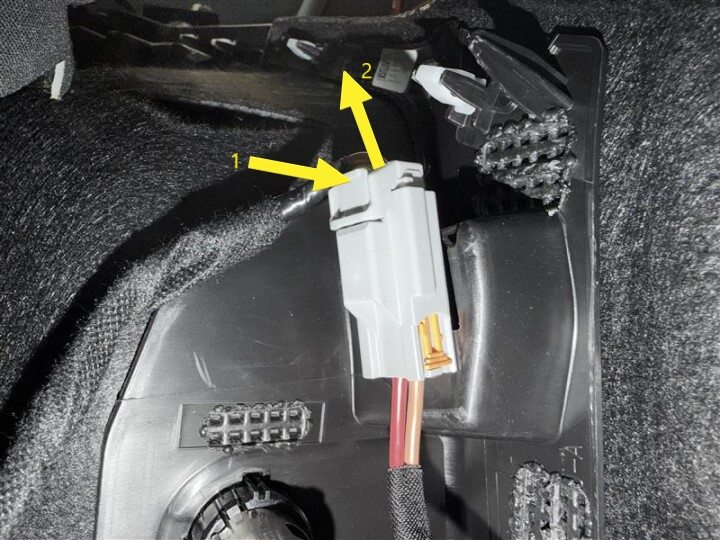

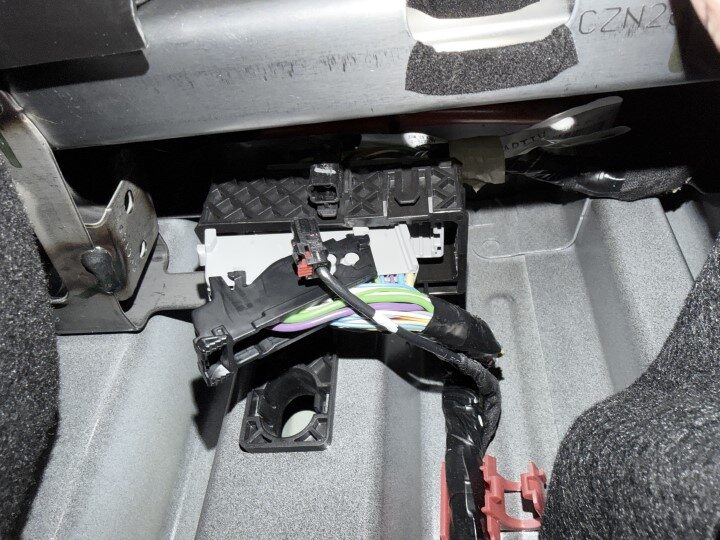

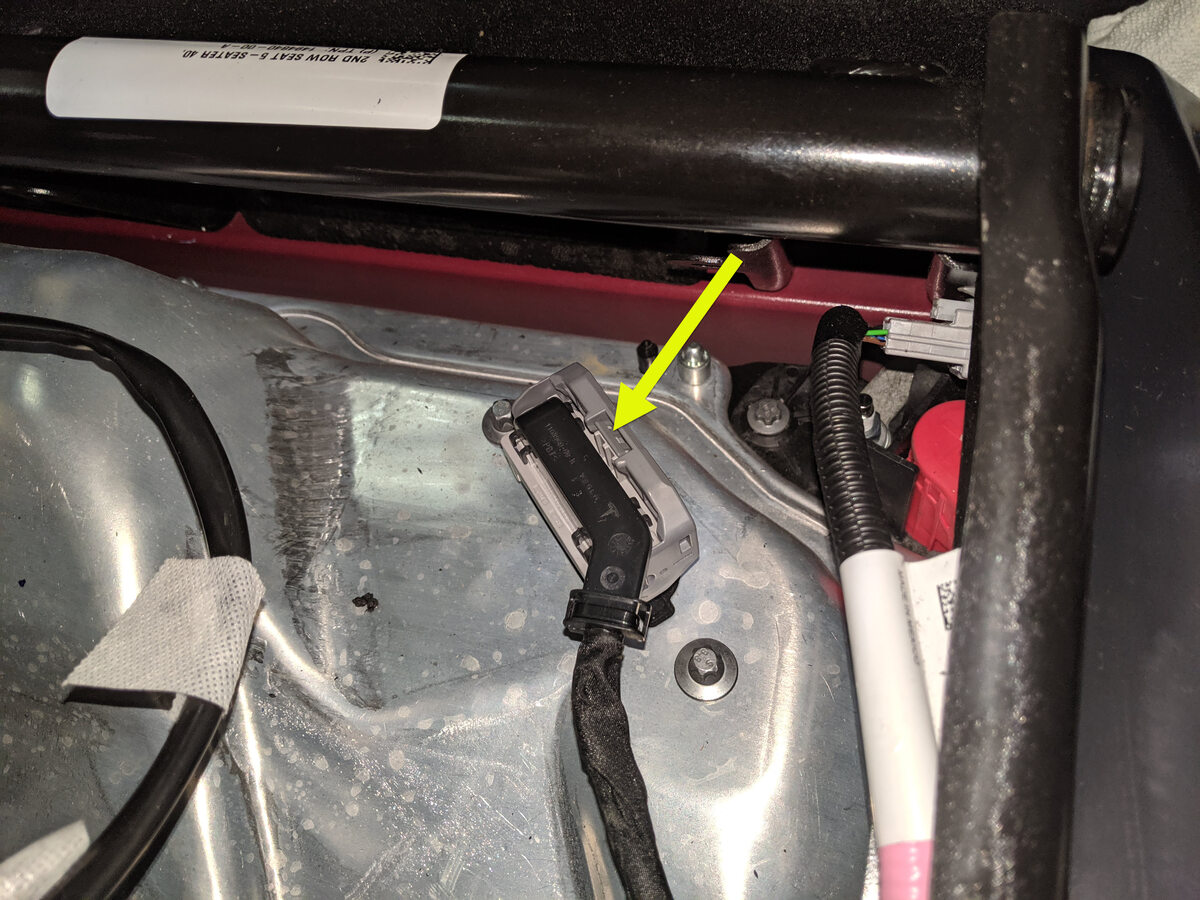

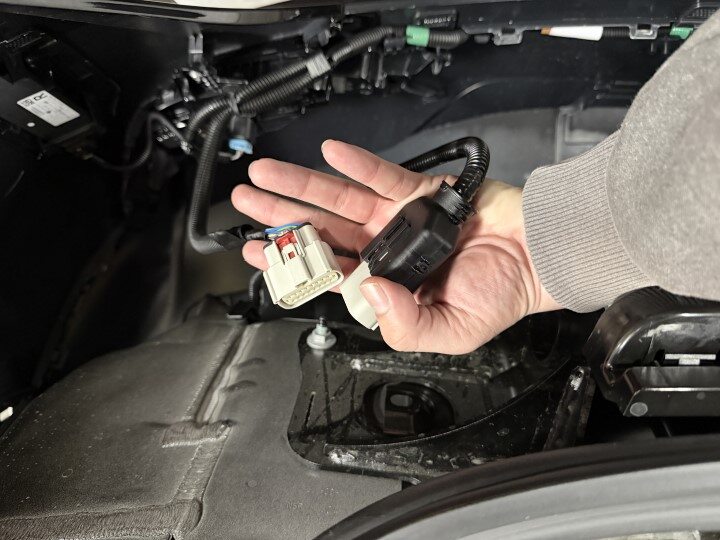

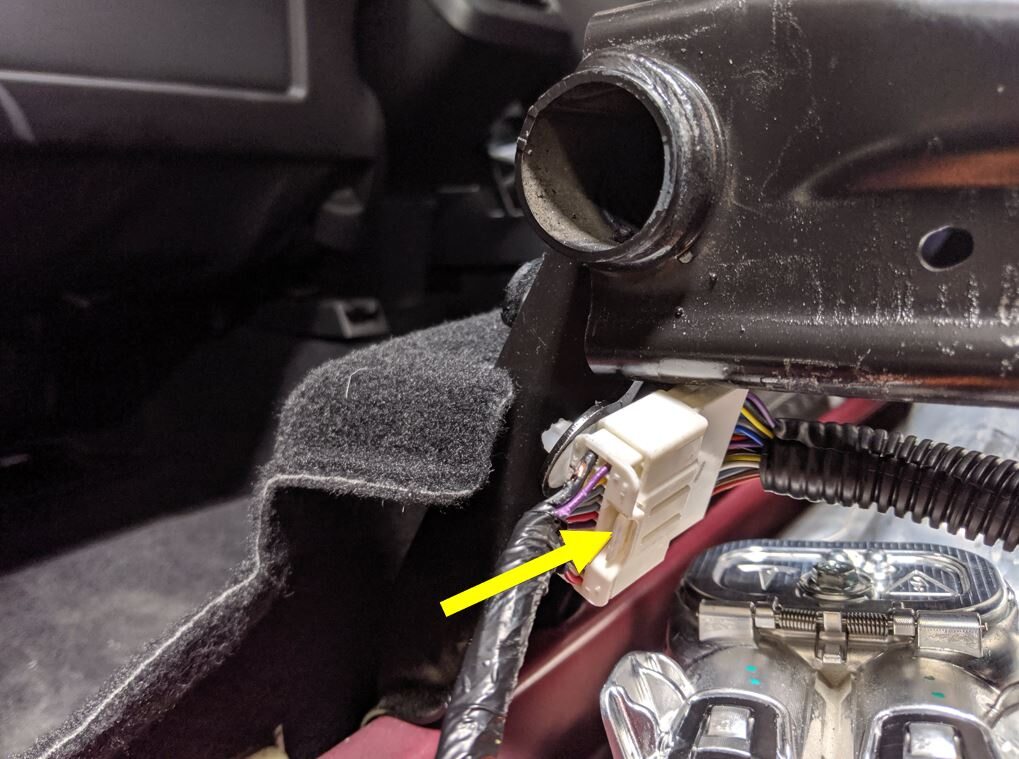

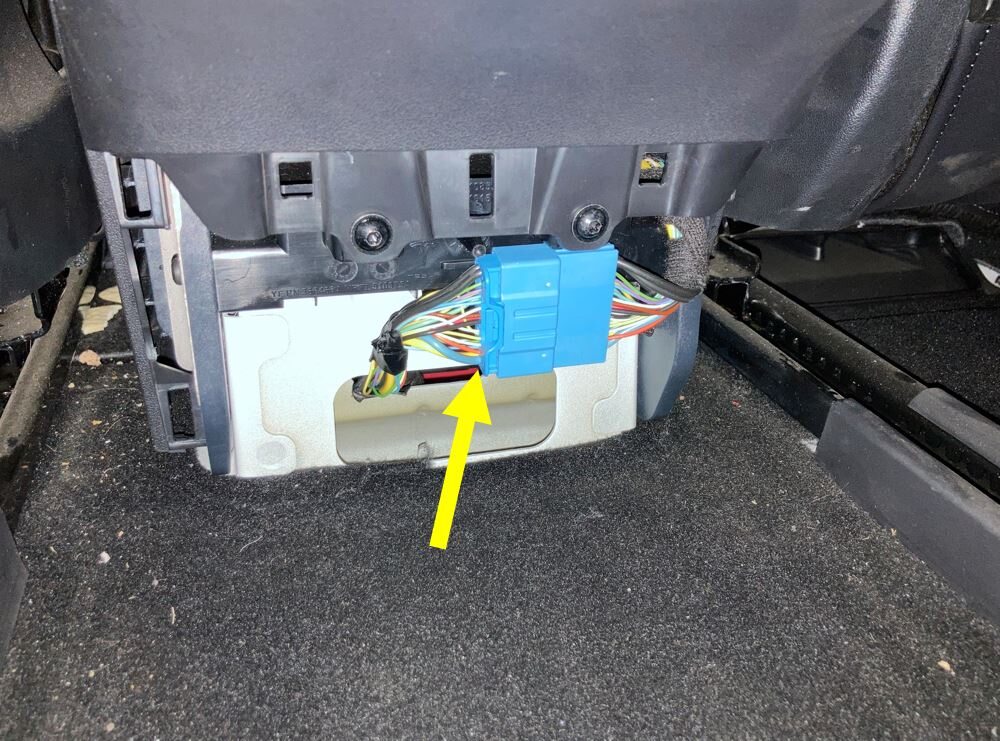

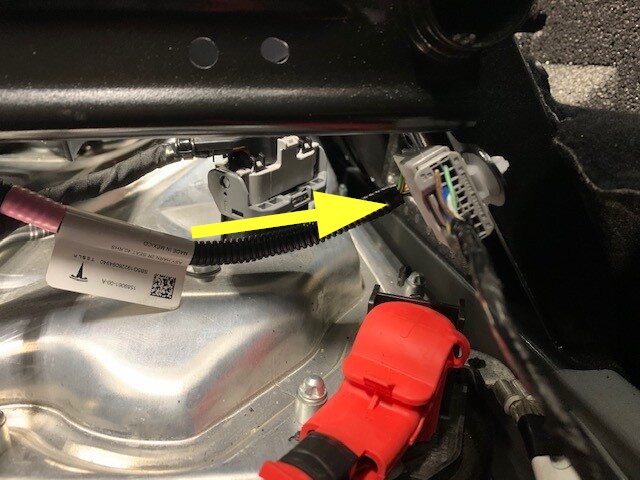

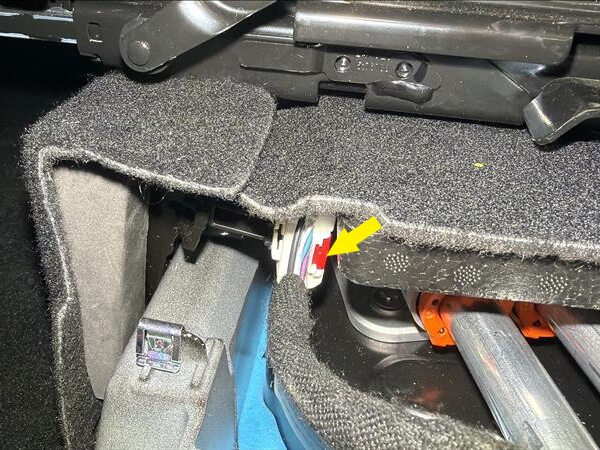

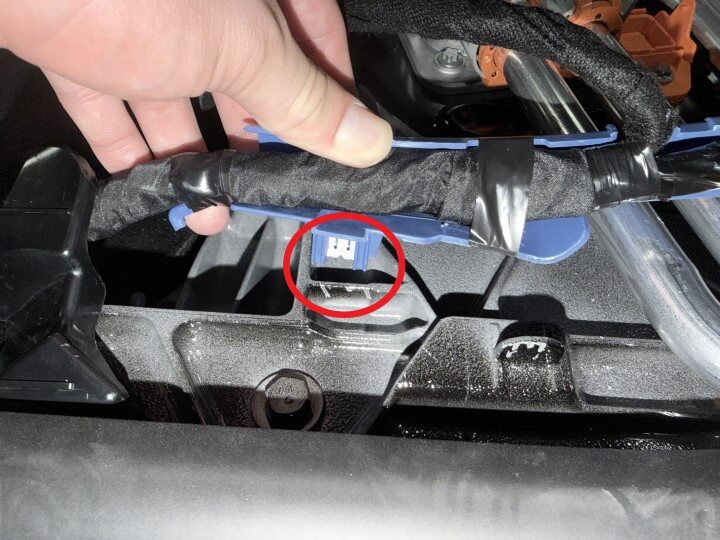

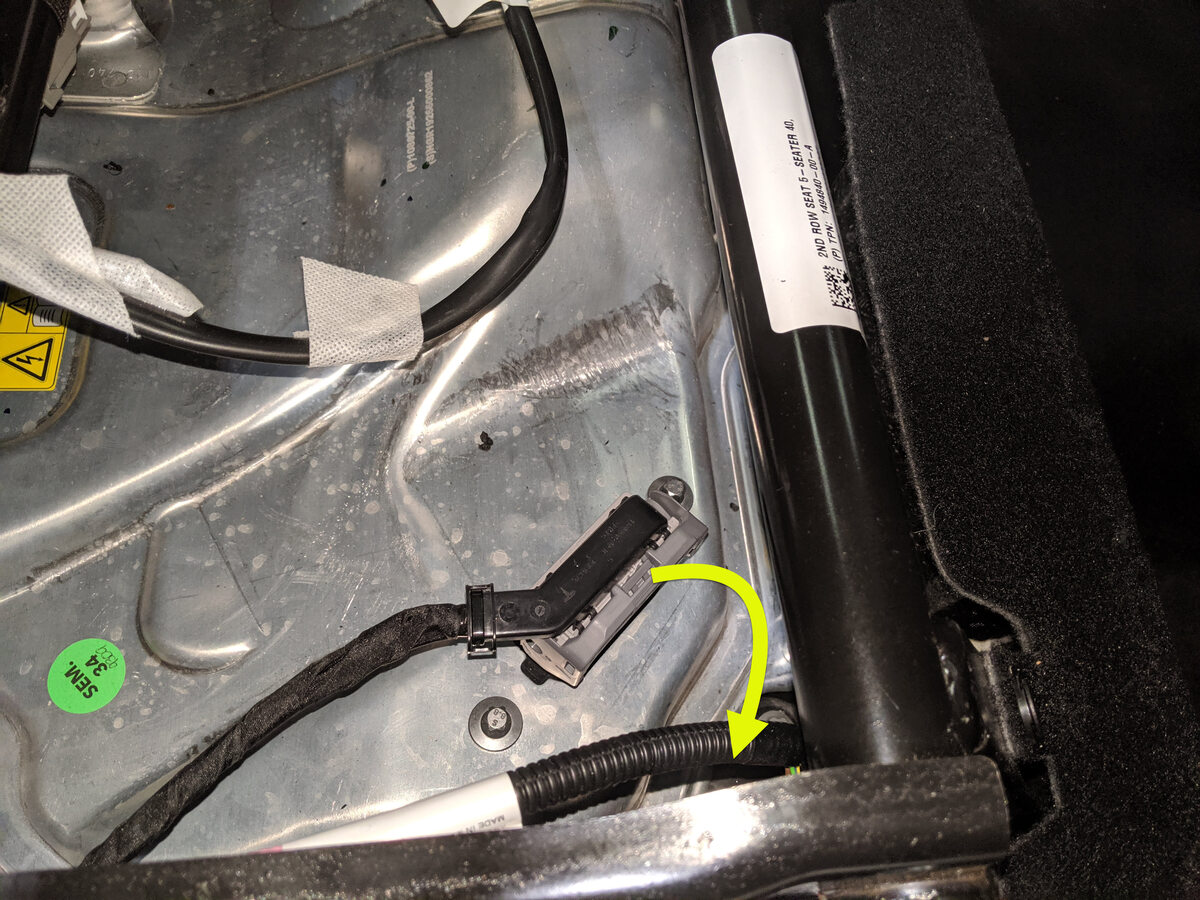

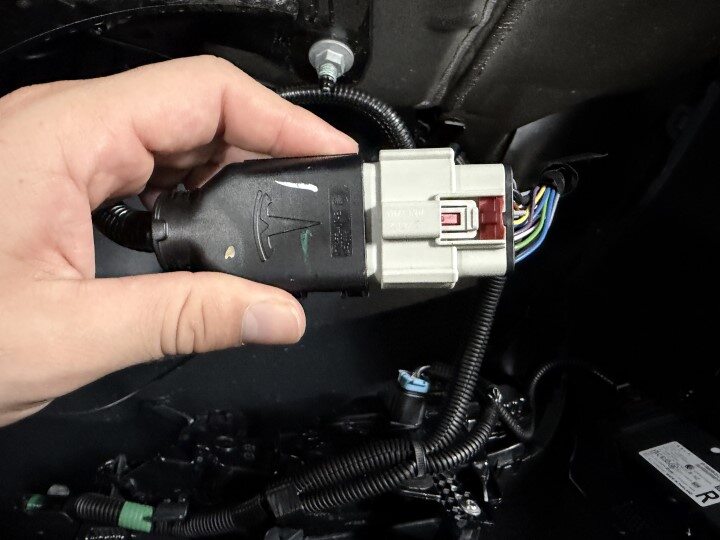

7. Disconnect 2nd row 60 seat connector
   注

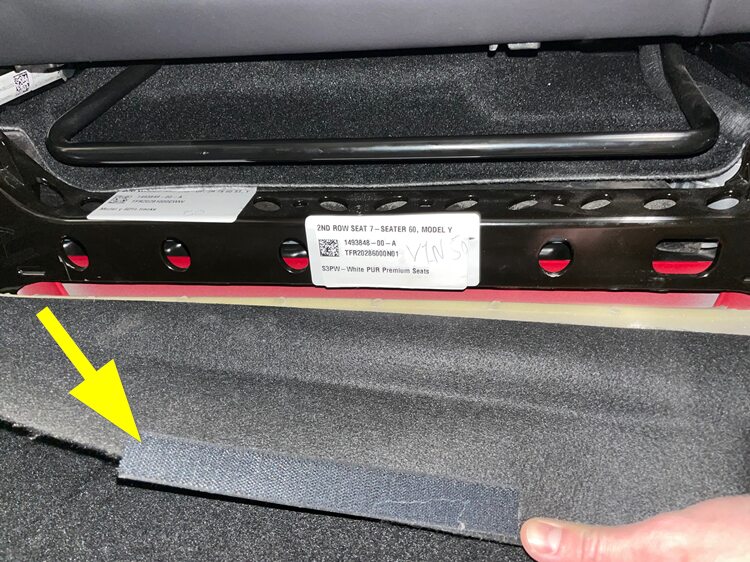

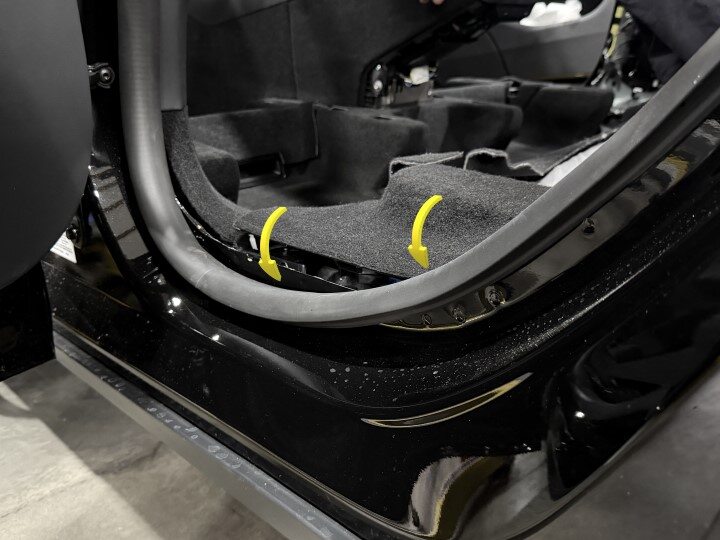

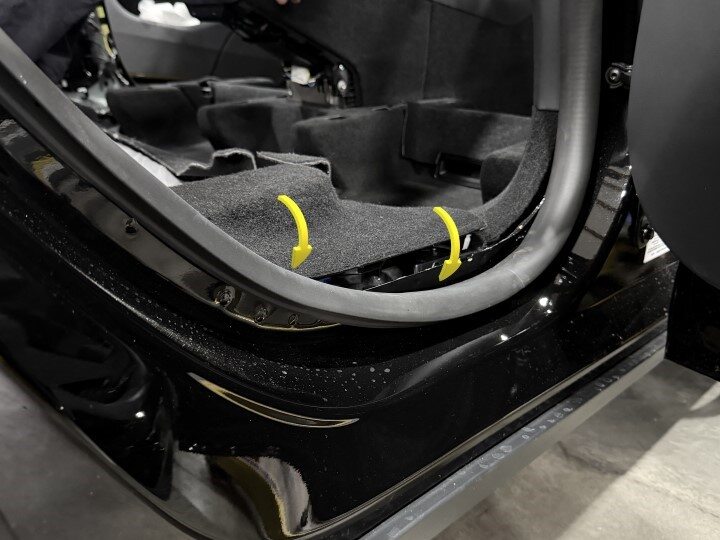

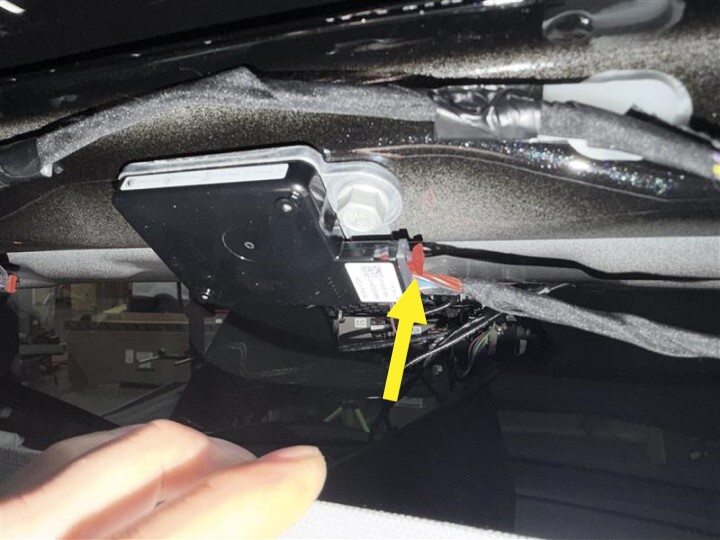

   1x connector, Newer models may have red locking tab

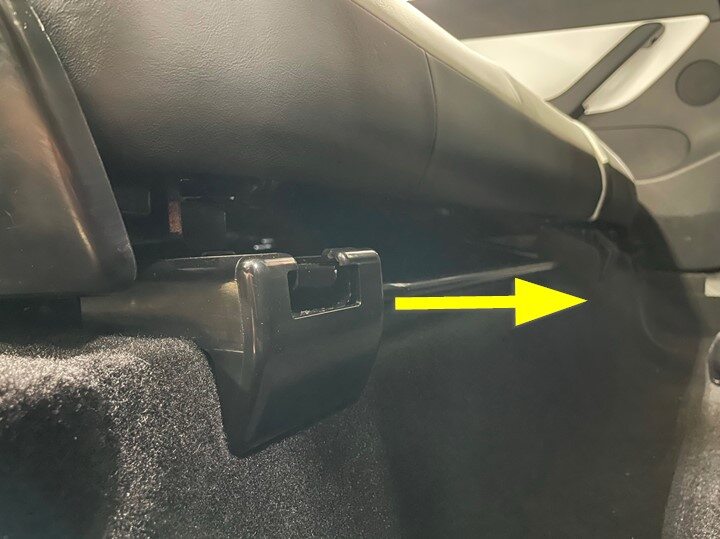

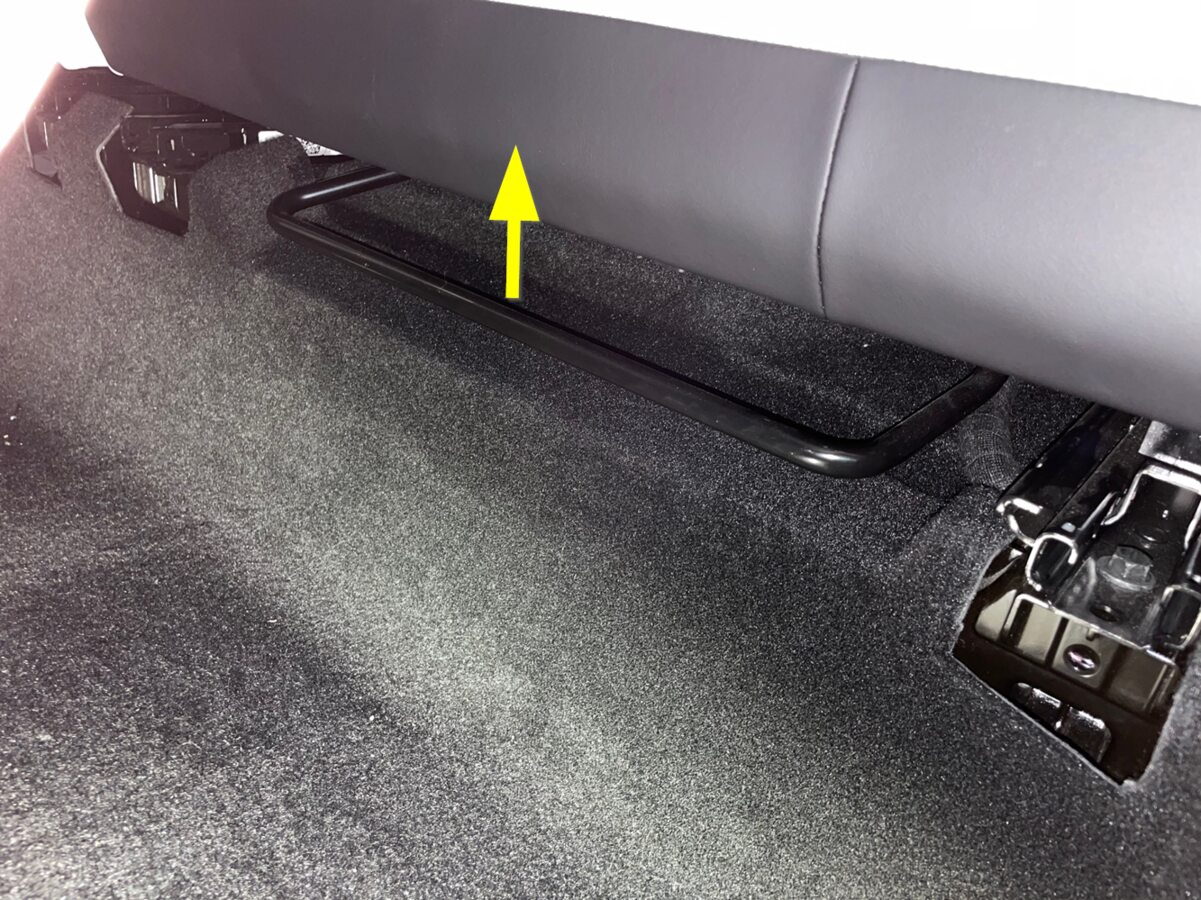

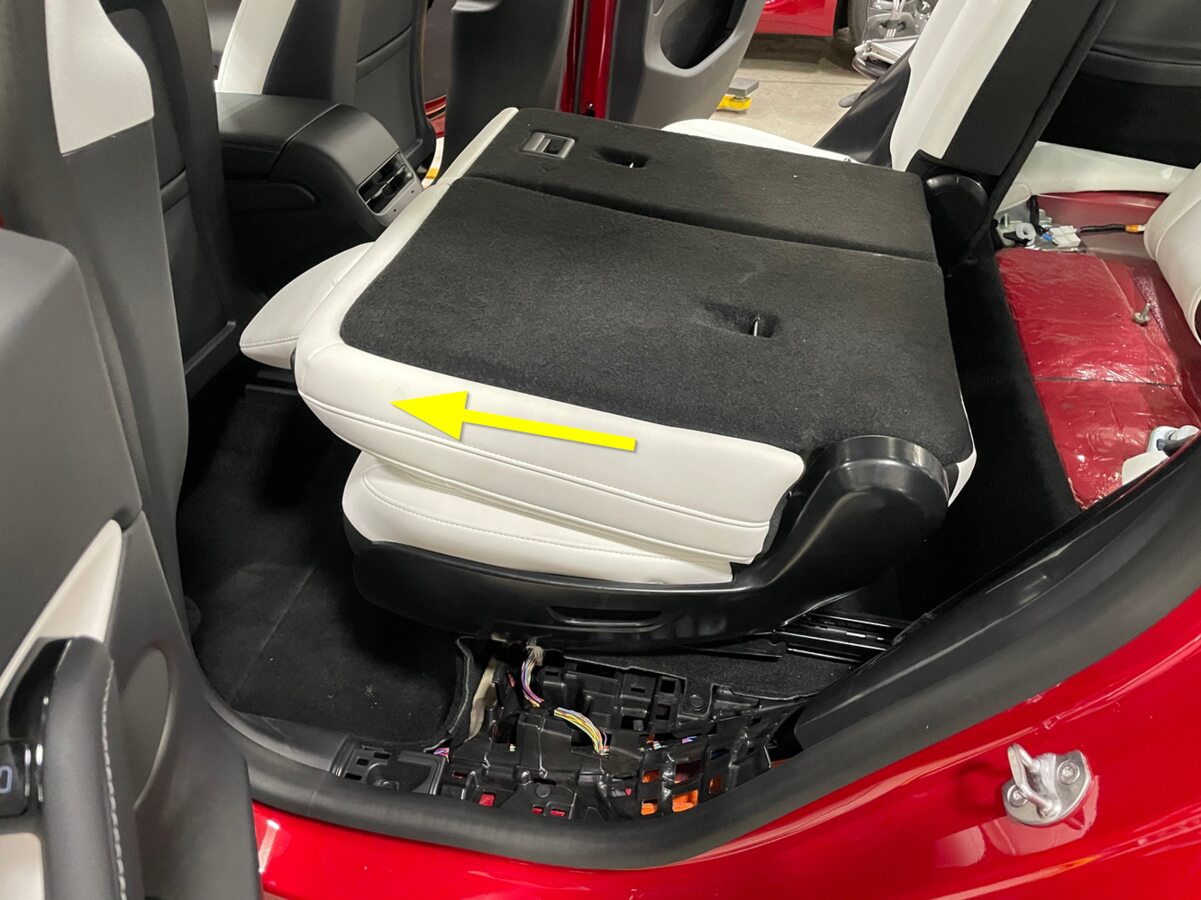

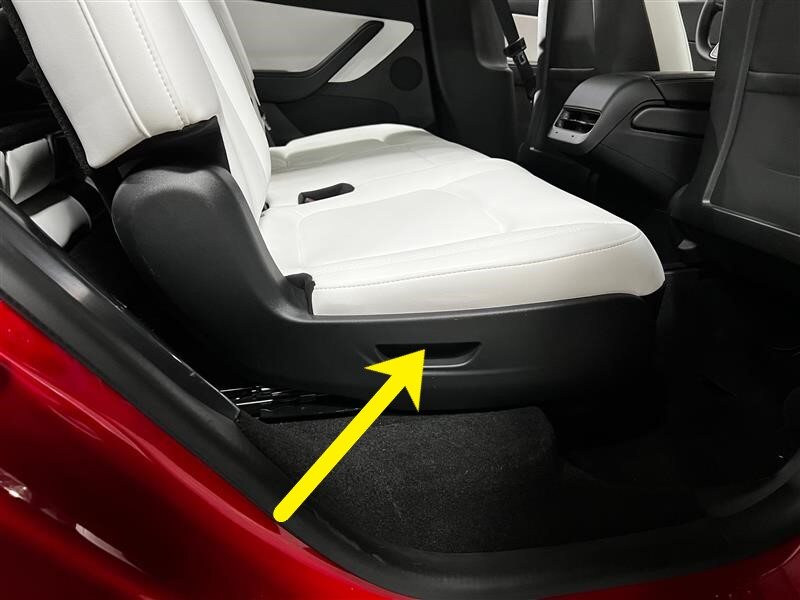

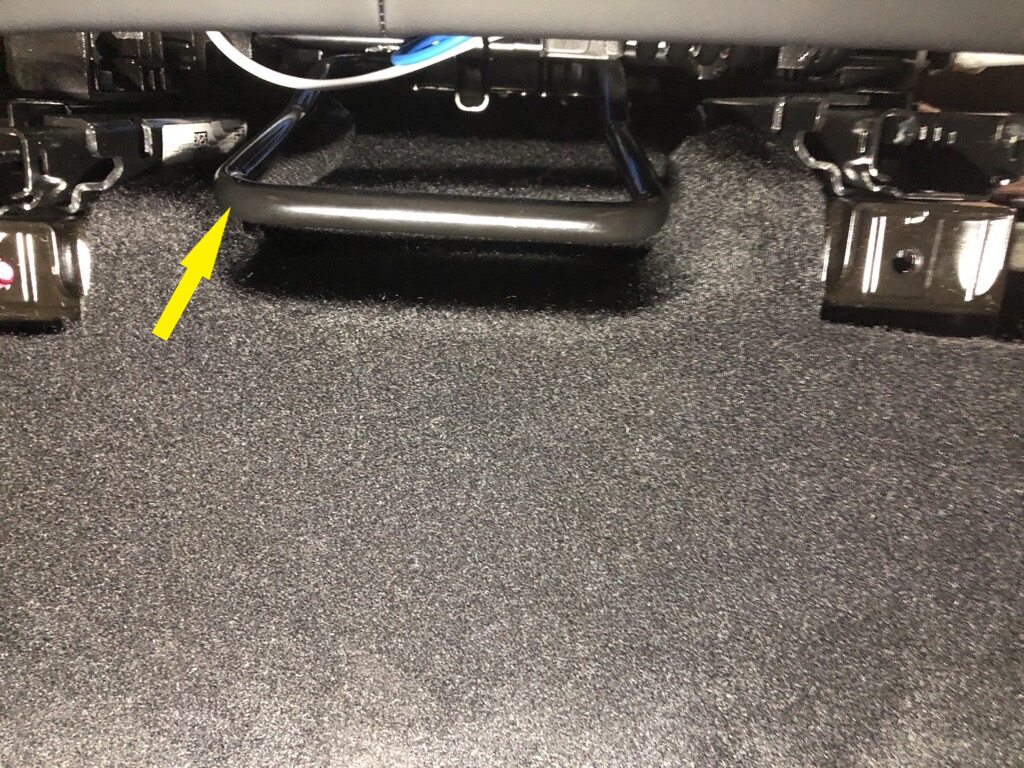

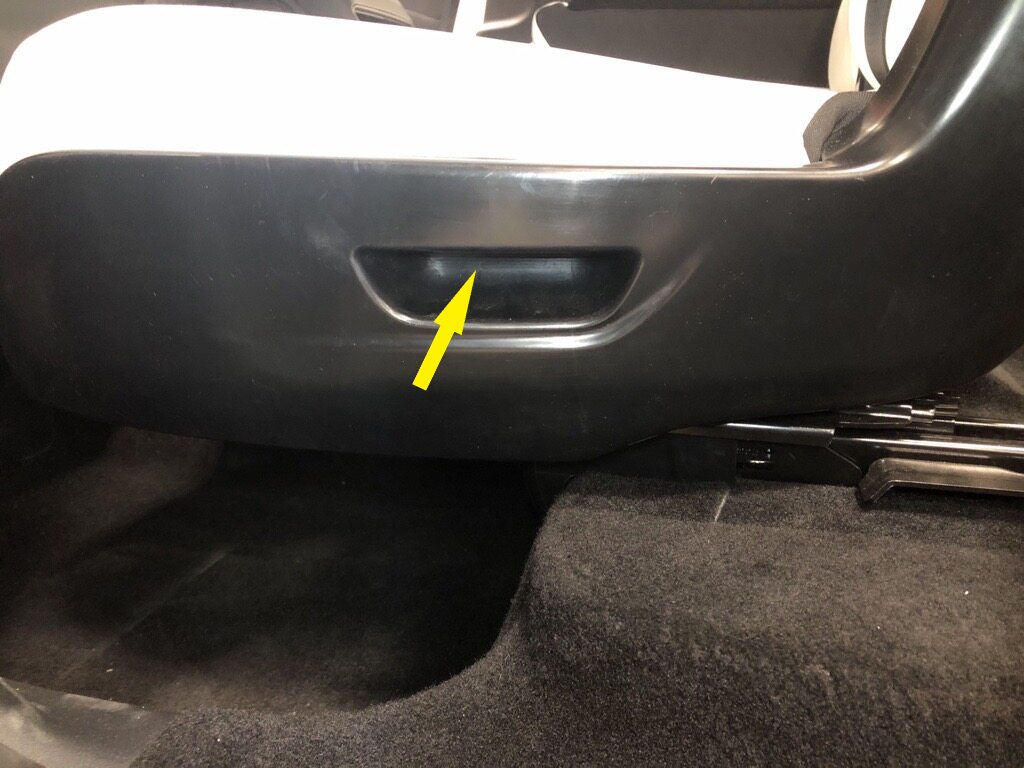

8. Move 60 seat forward using towel bar
   注

   With one hand on towel bar pull up and slide the seat forward with your other hand

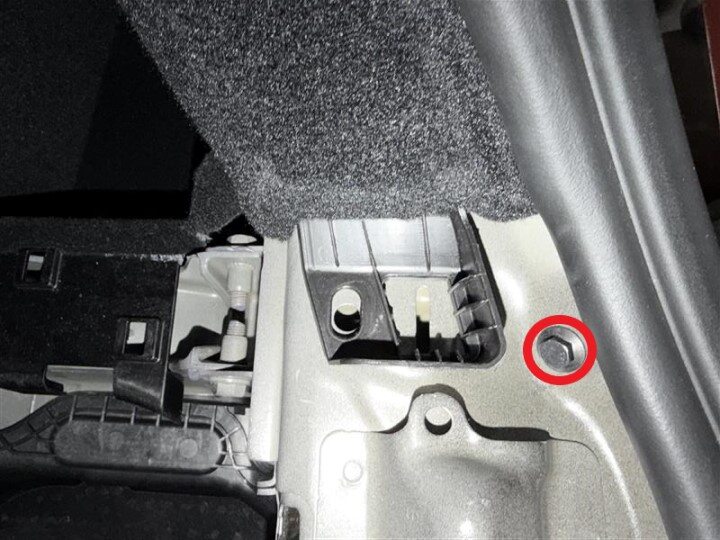

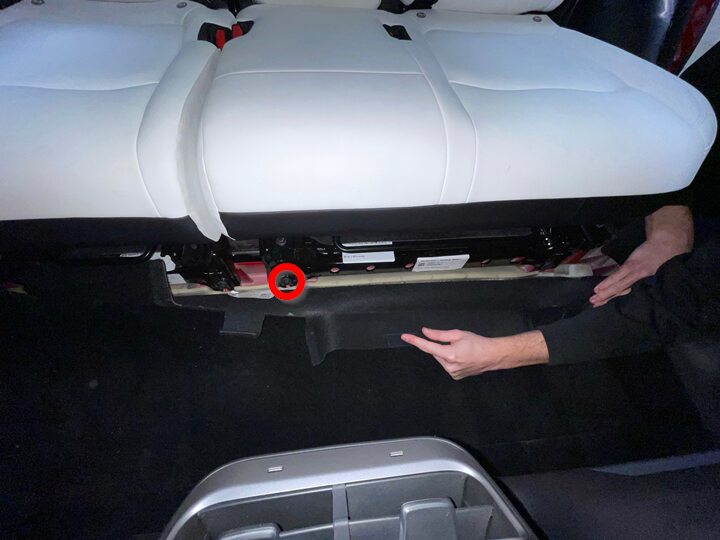

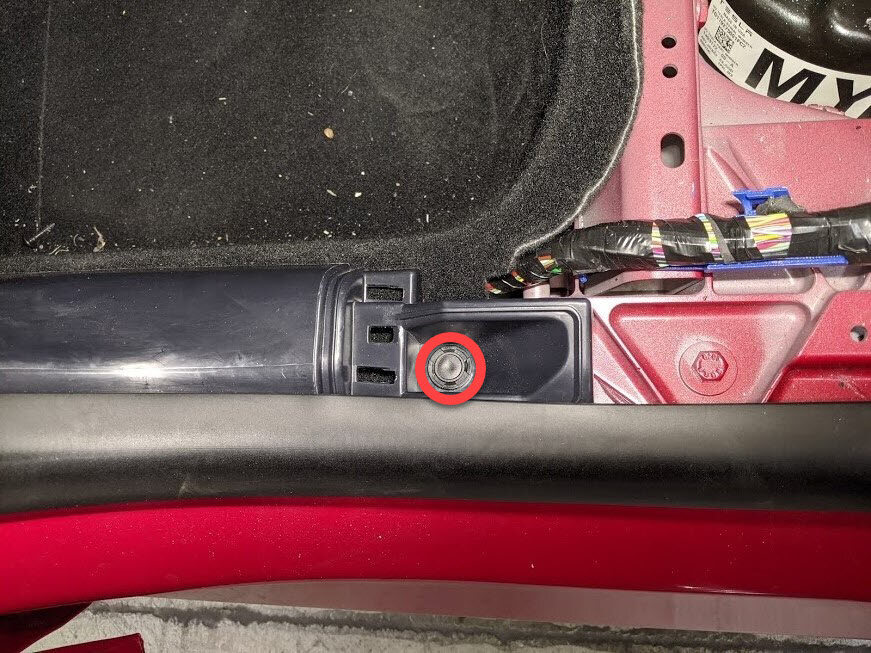

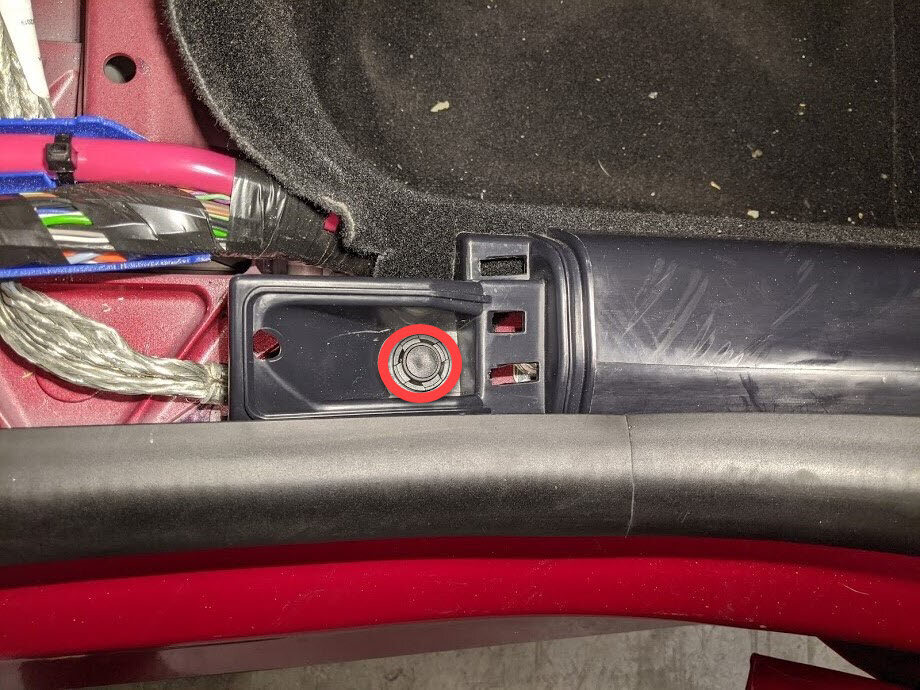

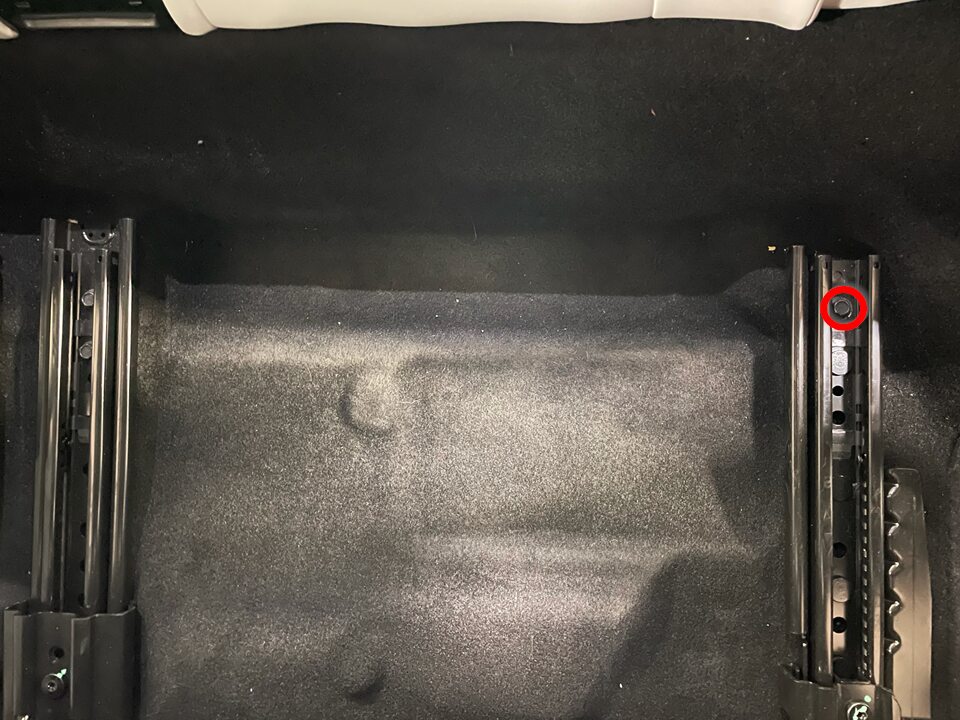

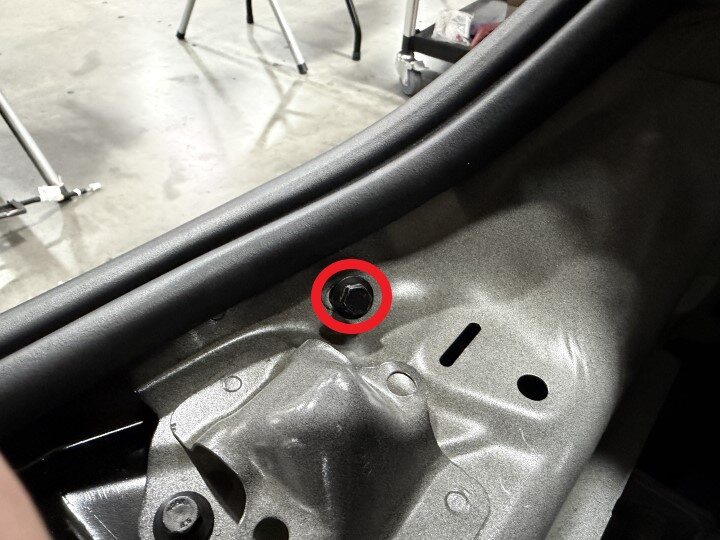

9. Remove 60 seat rear outboard track fastener
   注

   1x patch bolt, 11mm, 37 Nm, Discard after removal

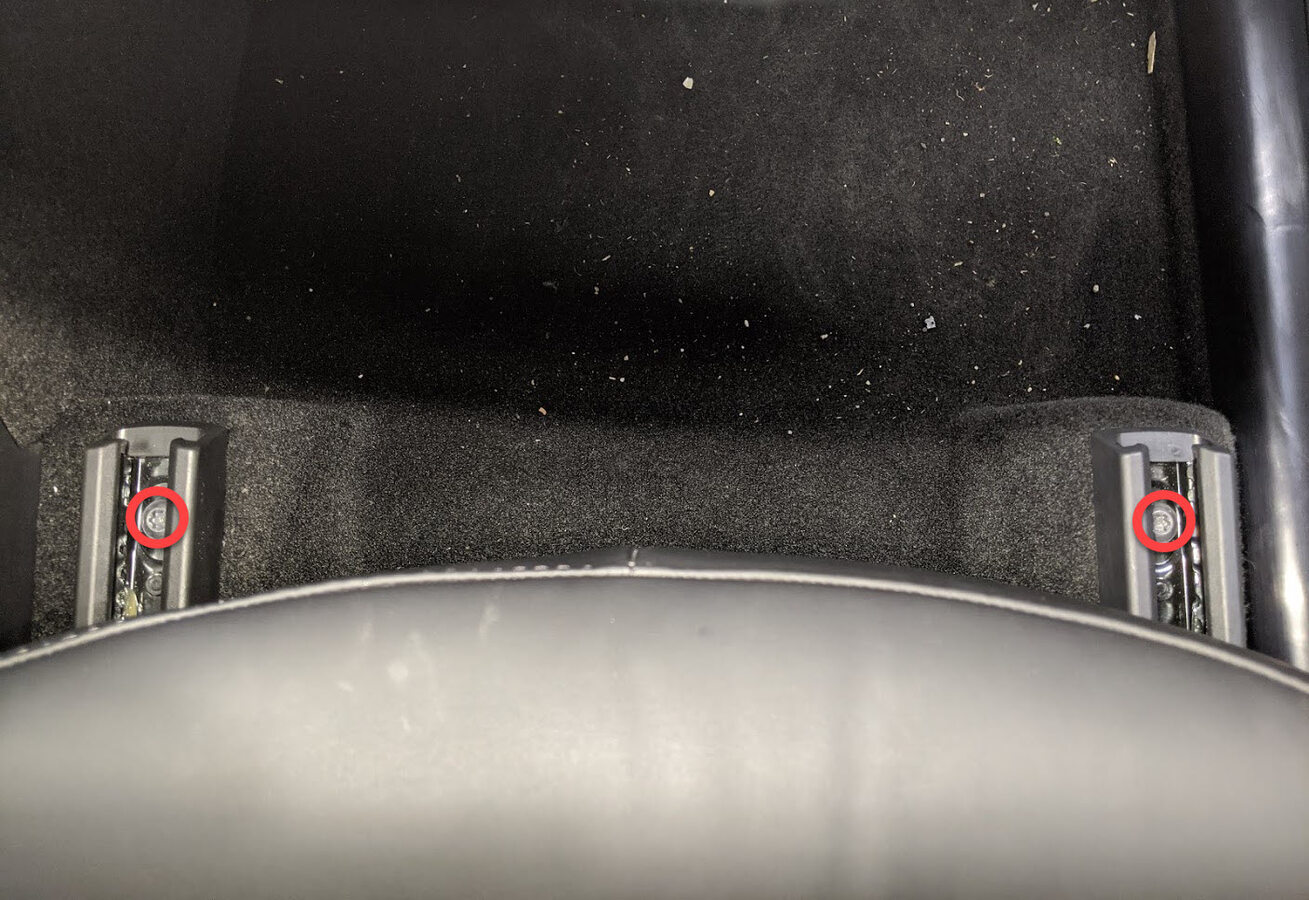

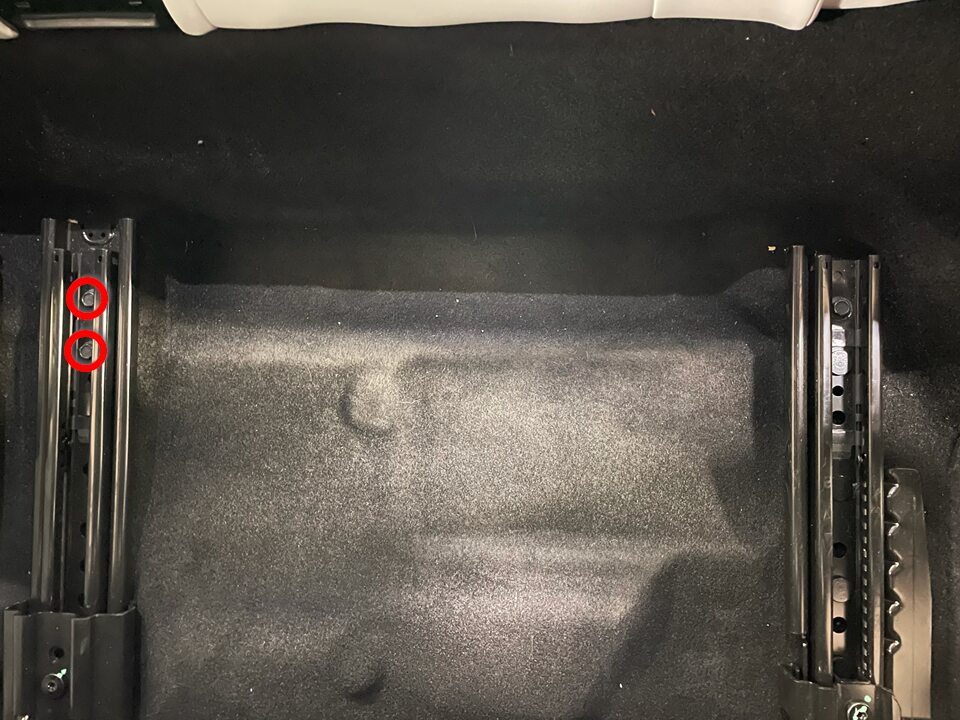

10. Remove 60 seat rear inboard track fasteners
    注

    2x patch bolts, 11mm, 37 Nm, Discard after removal



11. Move 60 seat fully rearward using towel bar
    注

    With one hand on towel bar pull up and slide the seat forward with your other hand

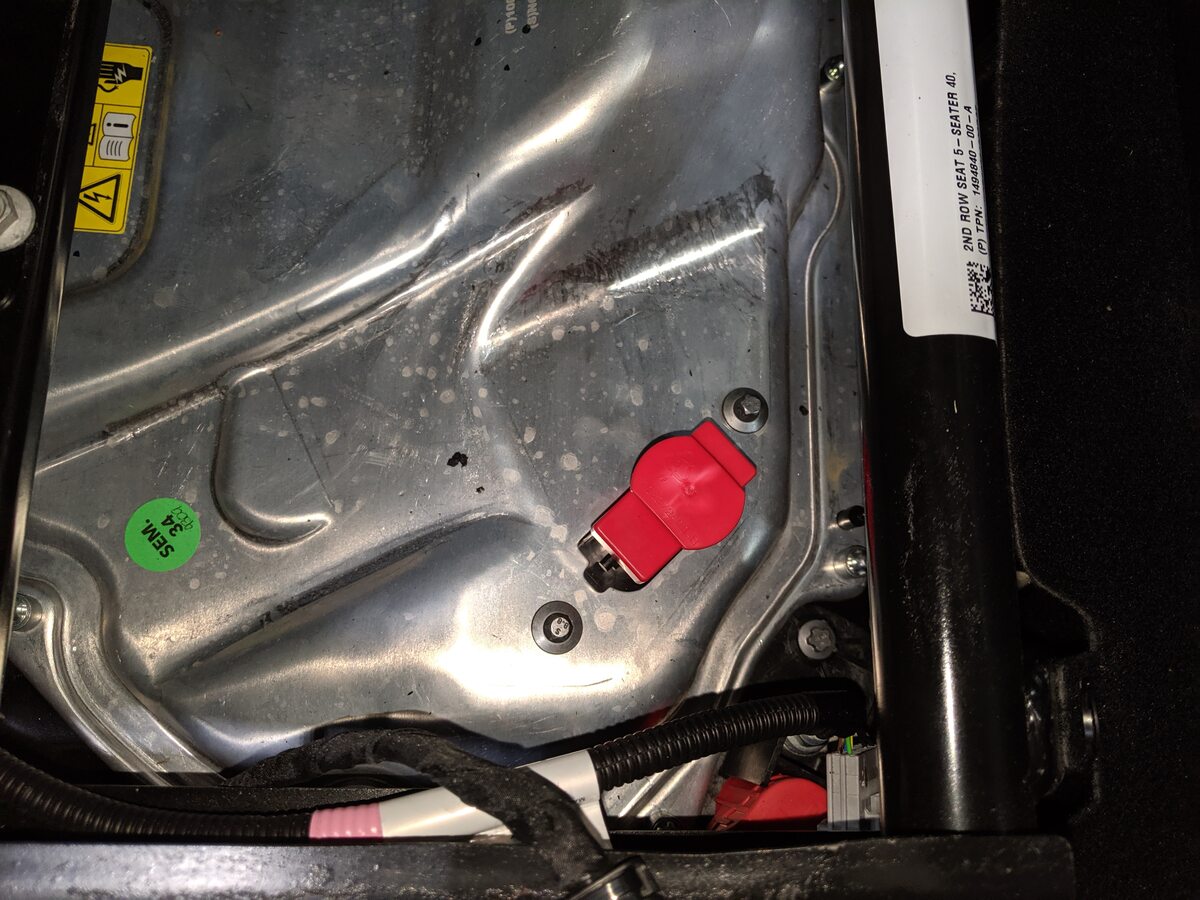

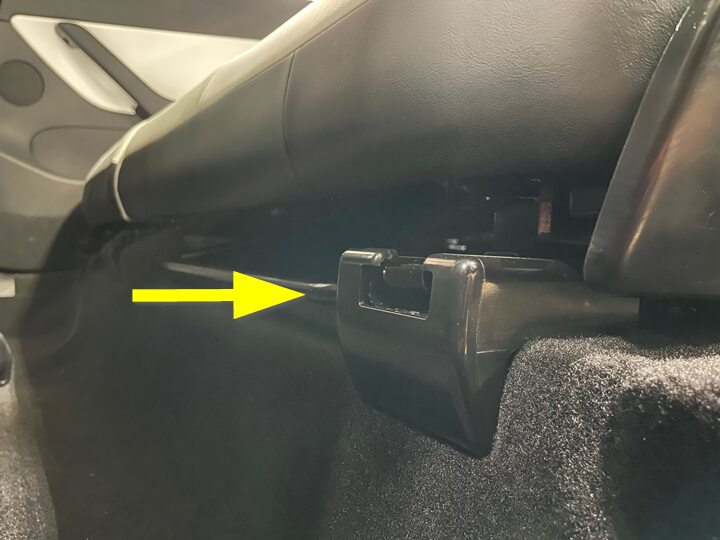

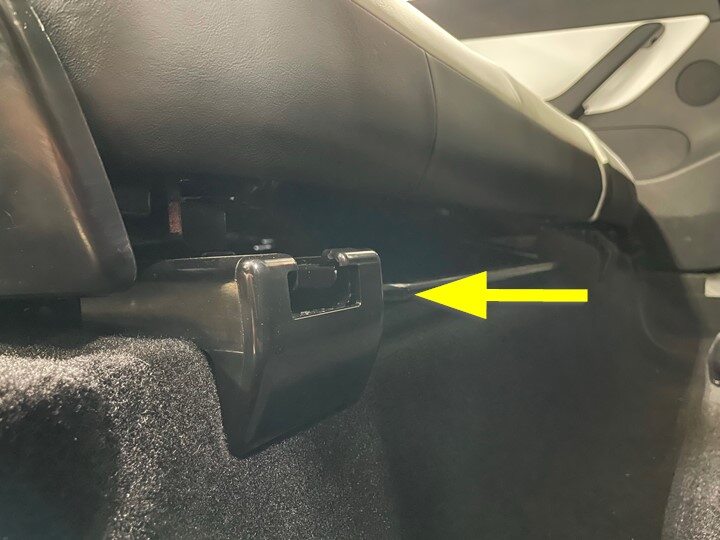

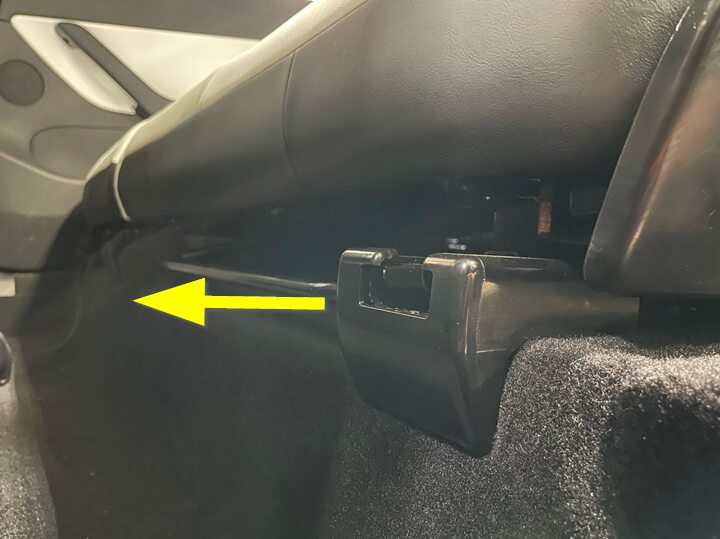

12. Remove 60 seat outboard track cover
    注

    1x clip, Slide covers forward to release from 60 seat tracks

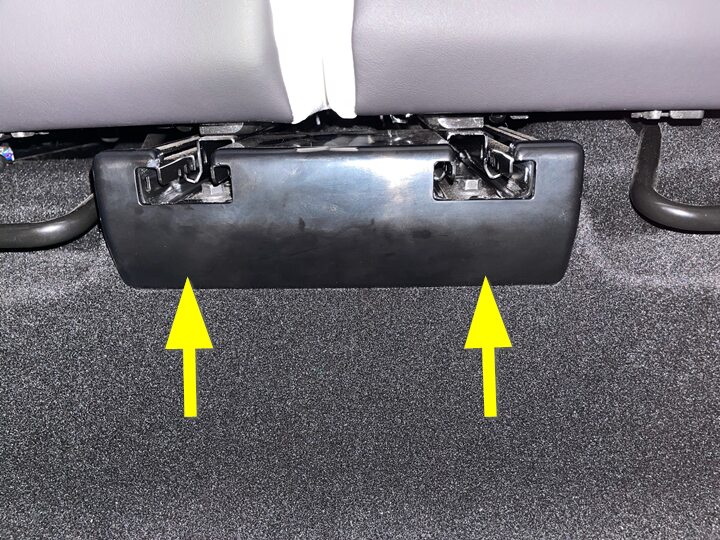

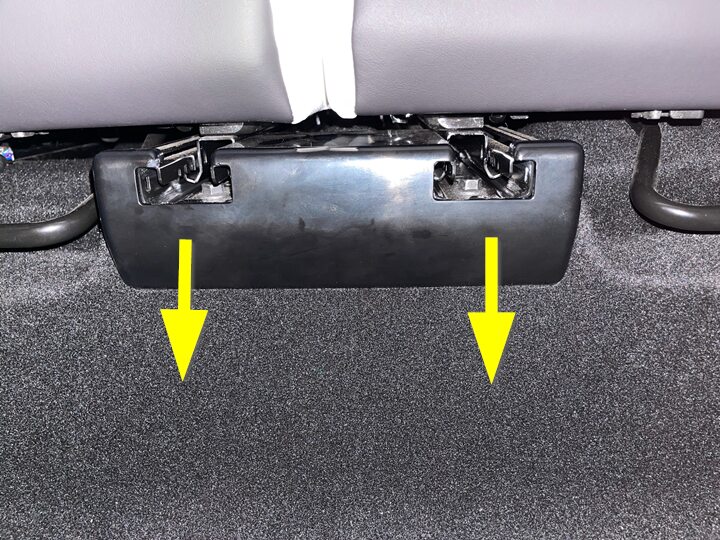

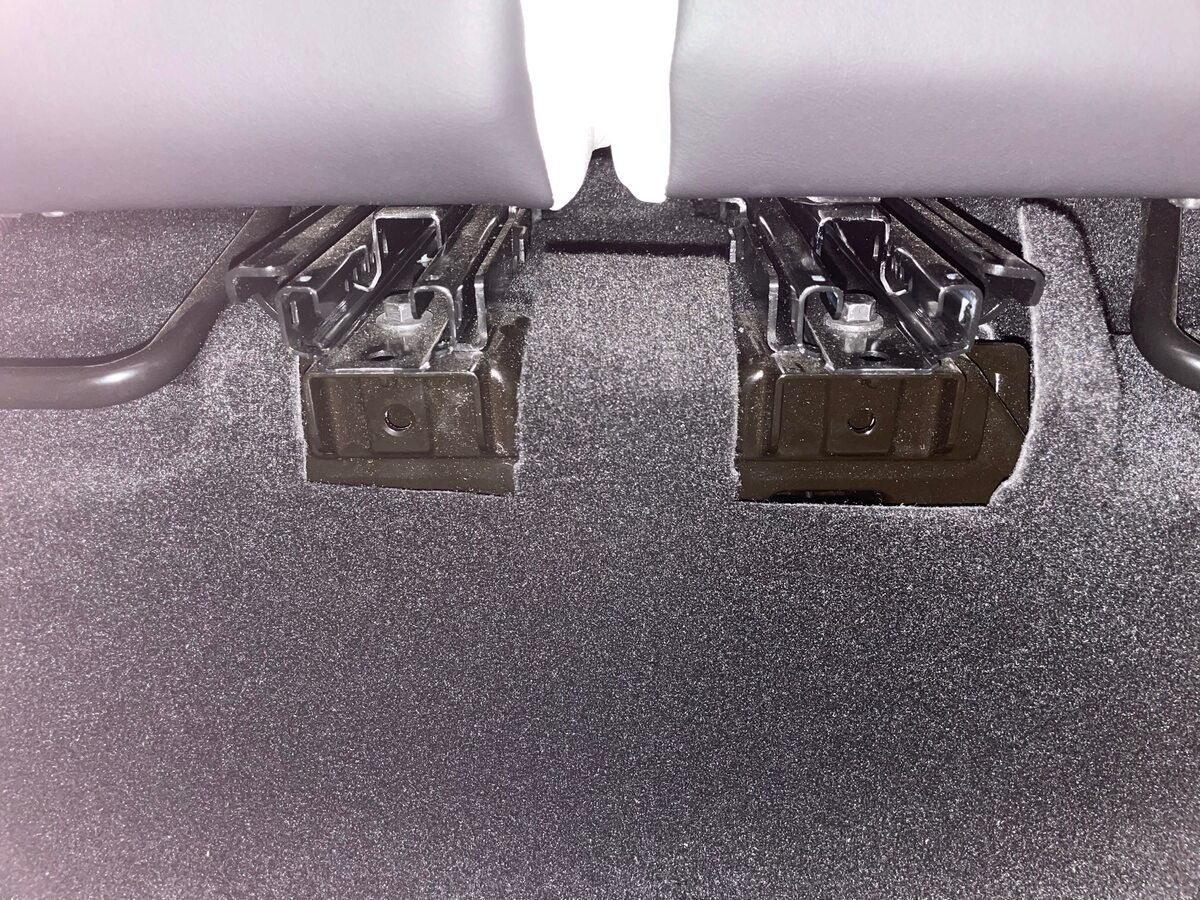

13. Remove center track cover from 2nd row seats
    注

    2x clips, Slide covers forward to release from 2nd row seat tracks

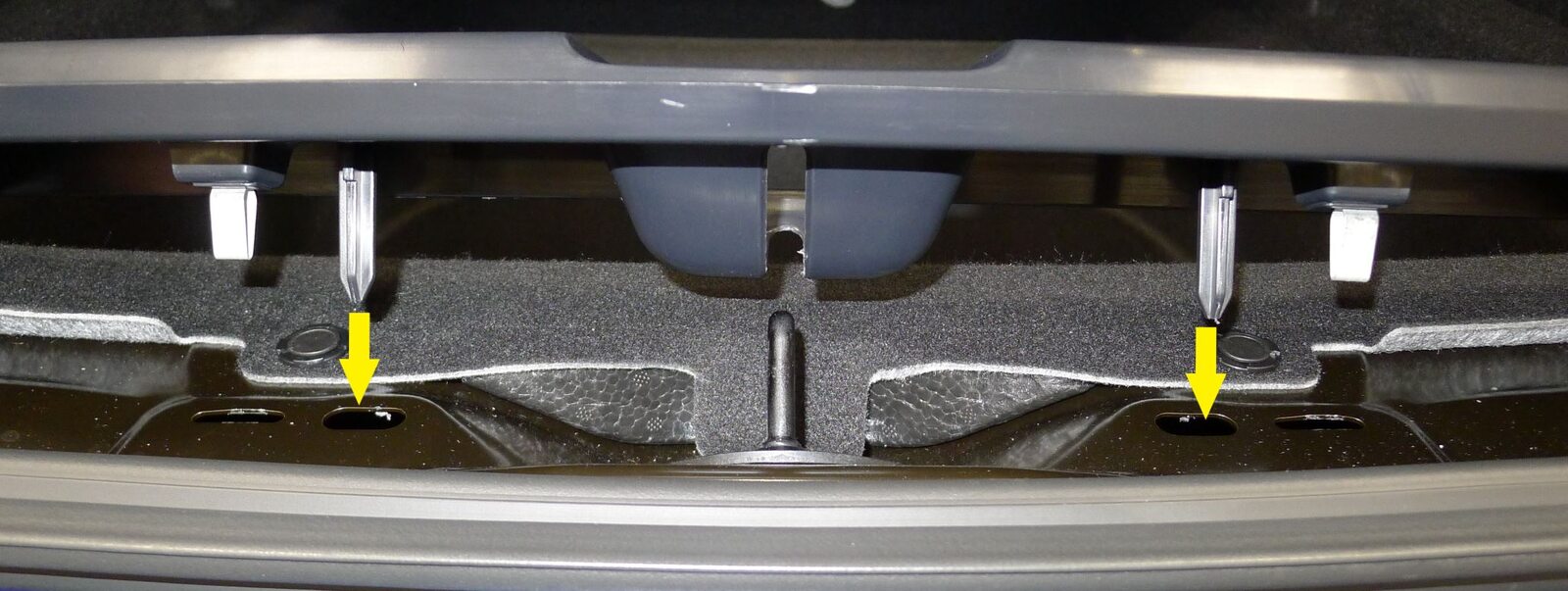

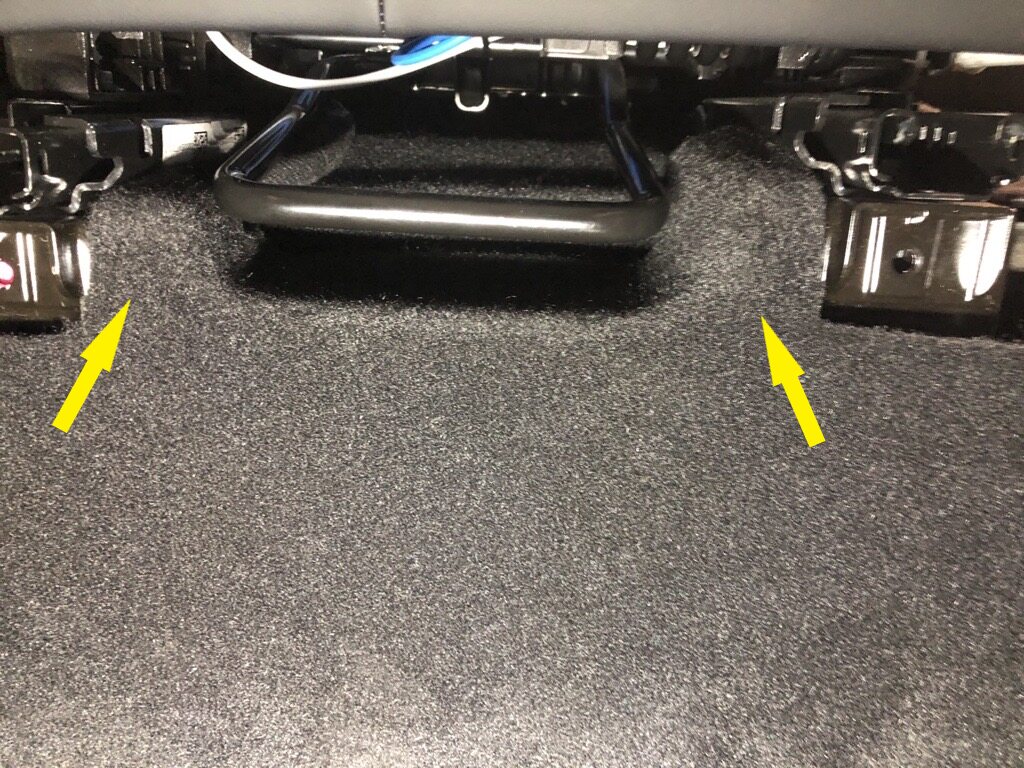

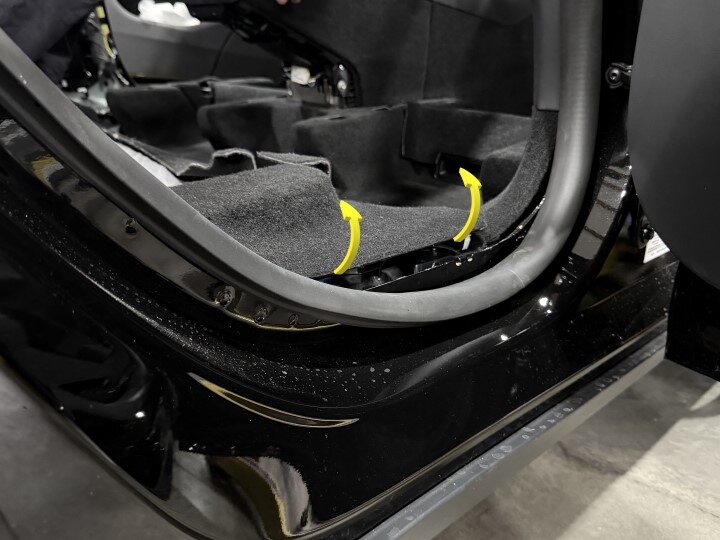

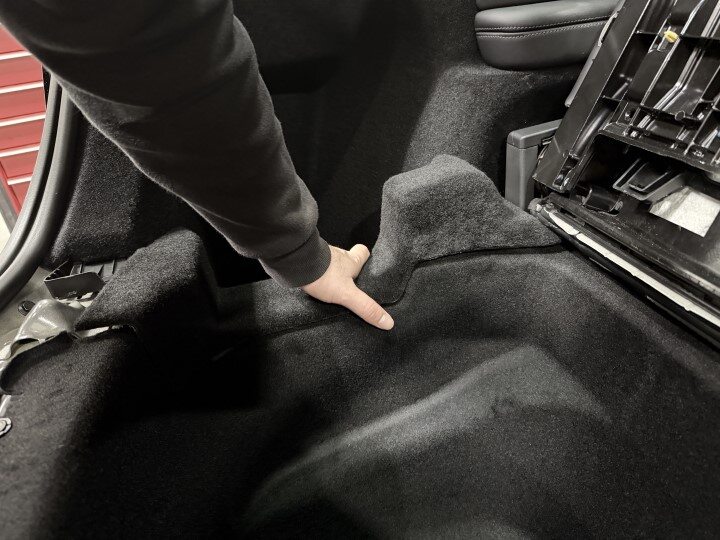

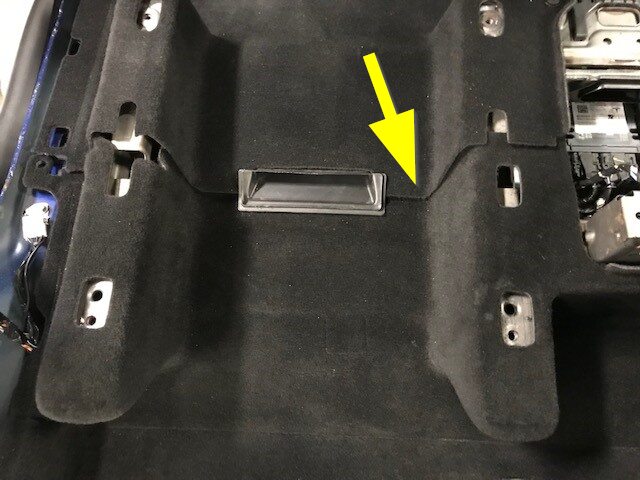

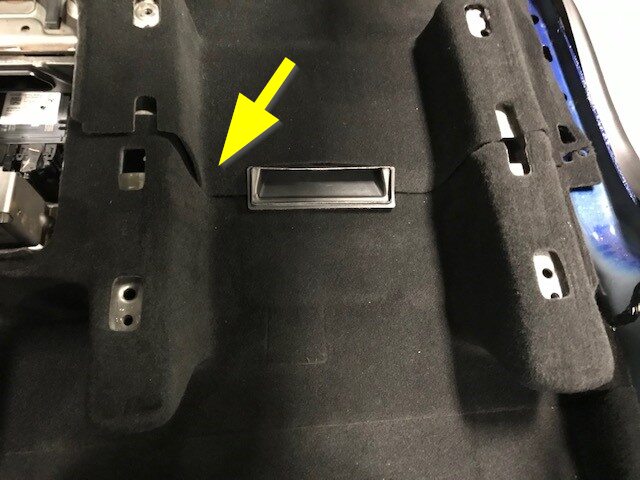

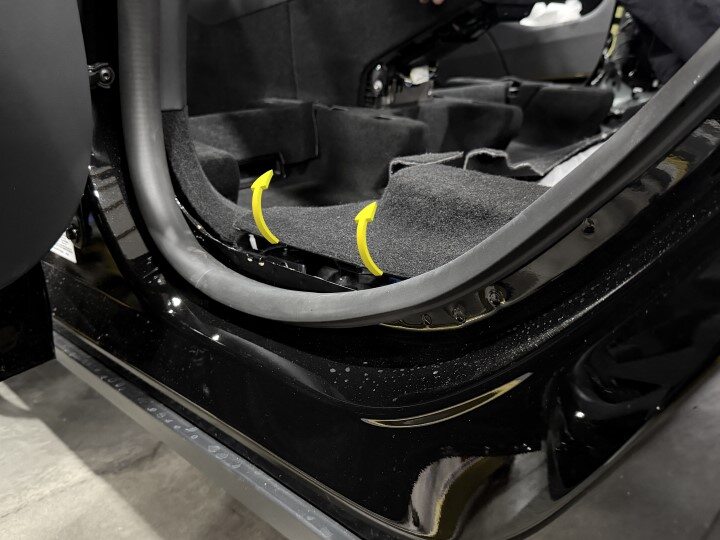

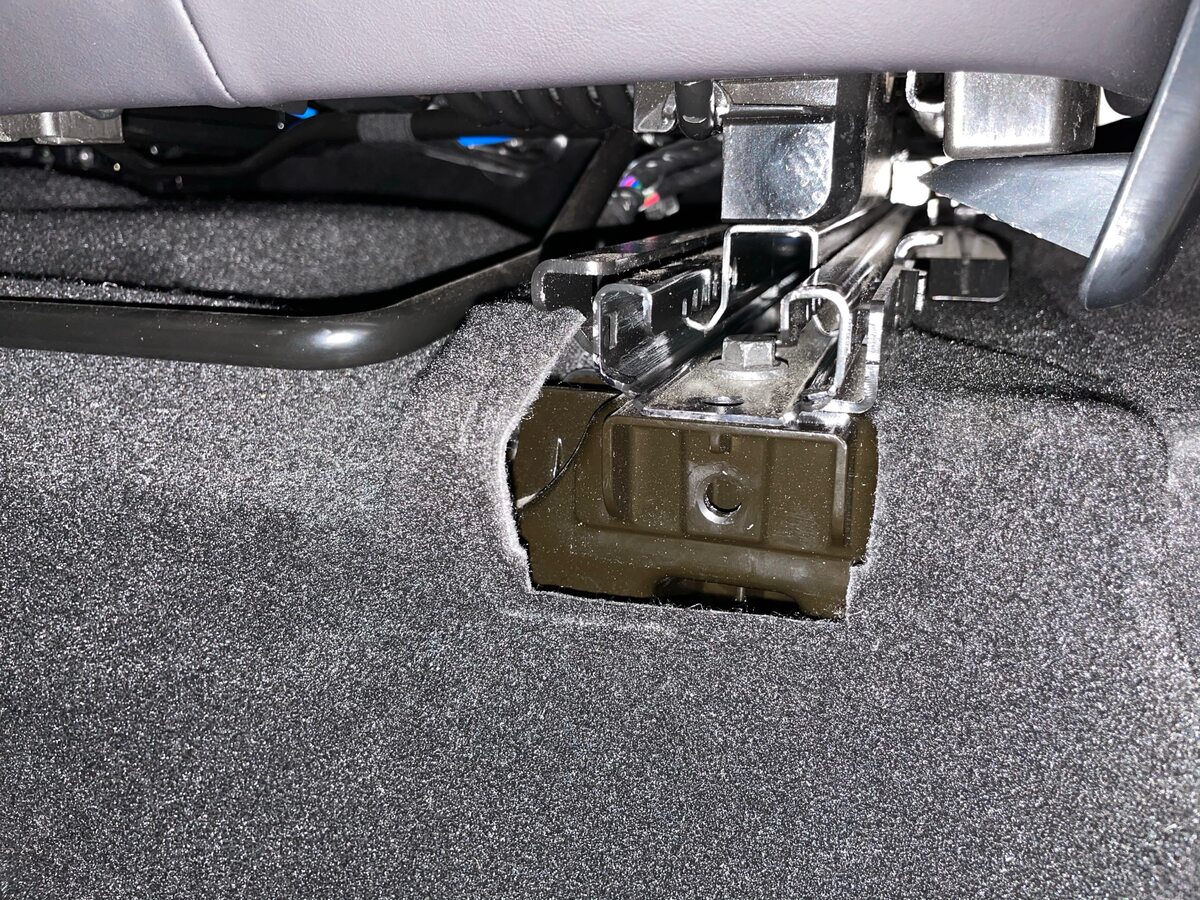

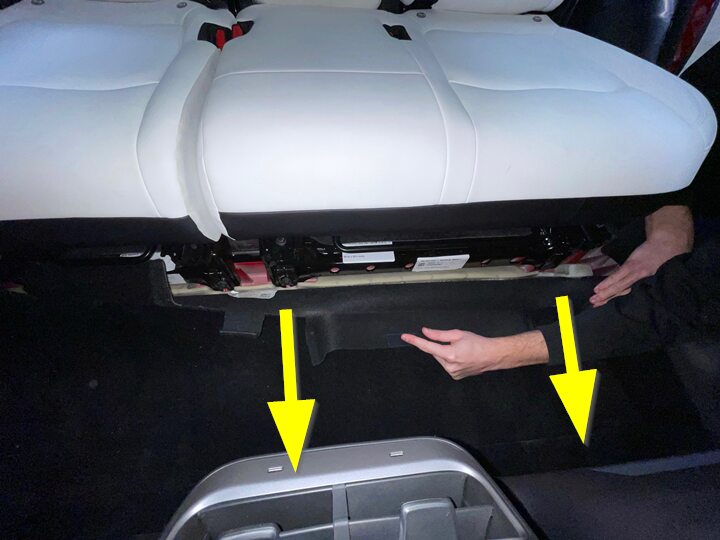

14. Release cabin carpet from 60 seat

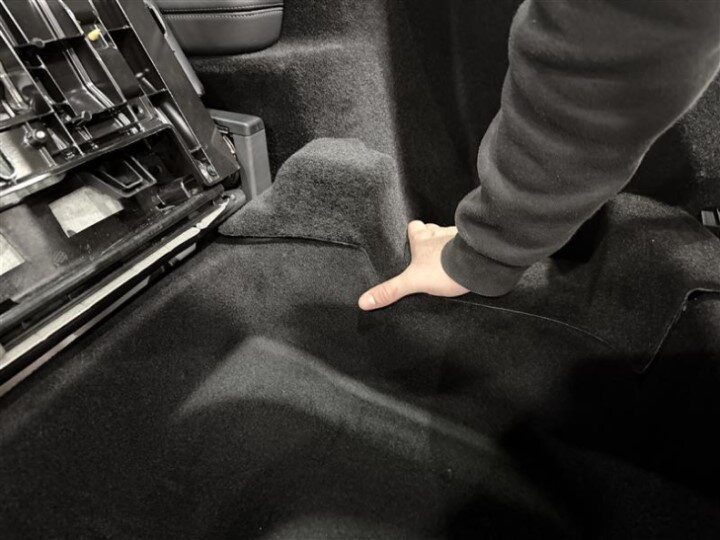

    注

    Pull cabin carpet towards front of vehicle

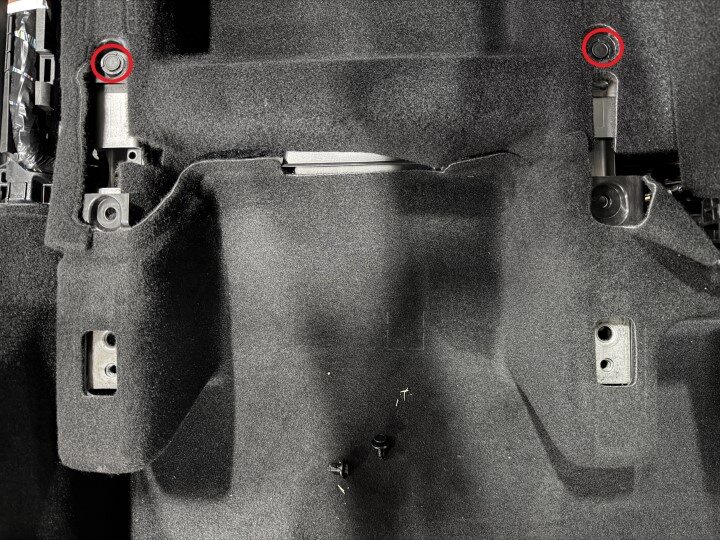

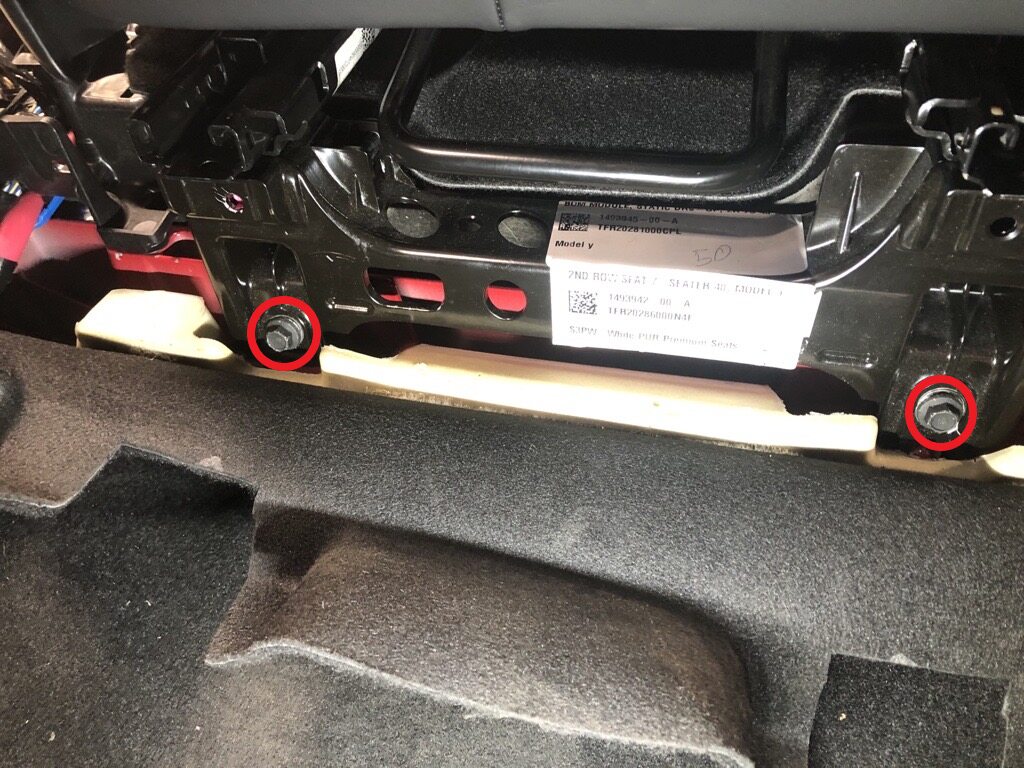

15. Remove 60 seat front inboard track fasteners
    注

    1x bolts, 11mm, 37 Nm, Discard after removal



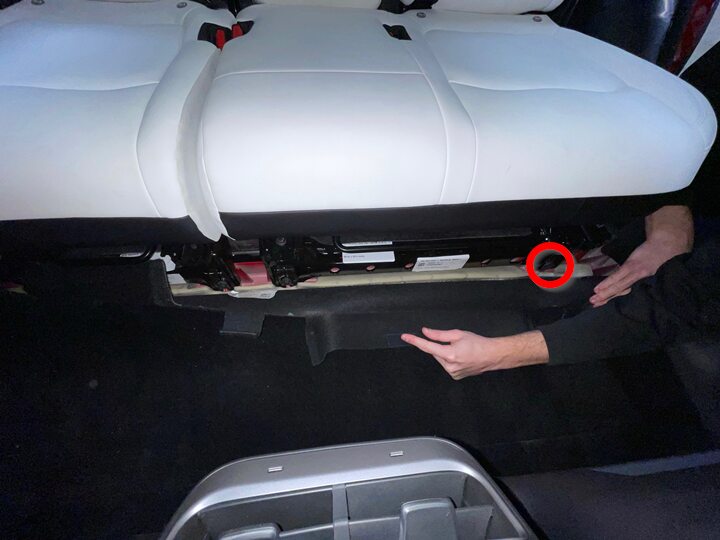

16. Remove 2nd row 60 seat frame front outboard track fasteners

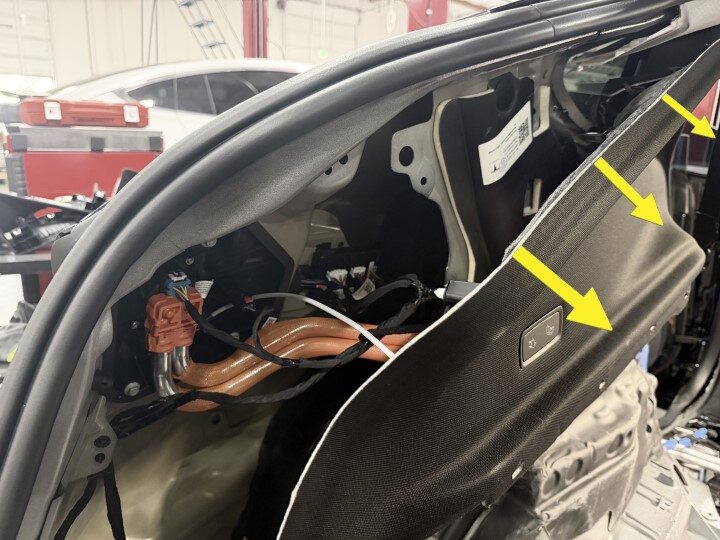

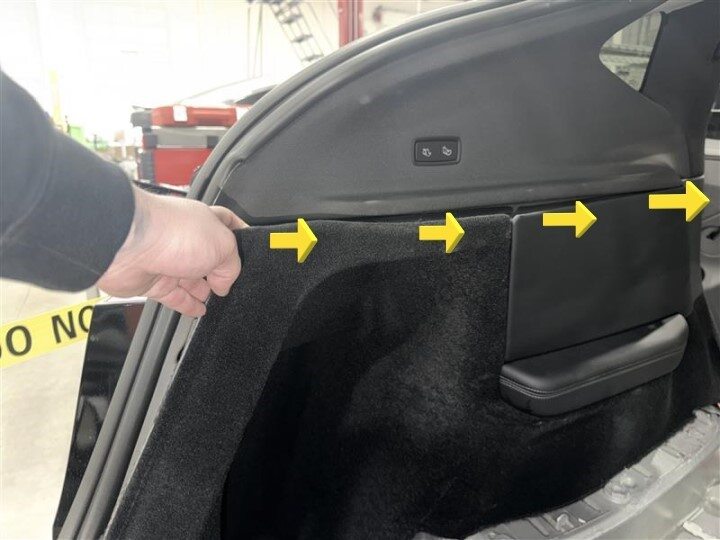

    注

    1x bolts, 11mm, 37 Nm, Discard after removal

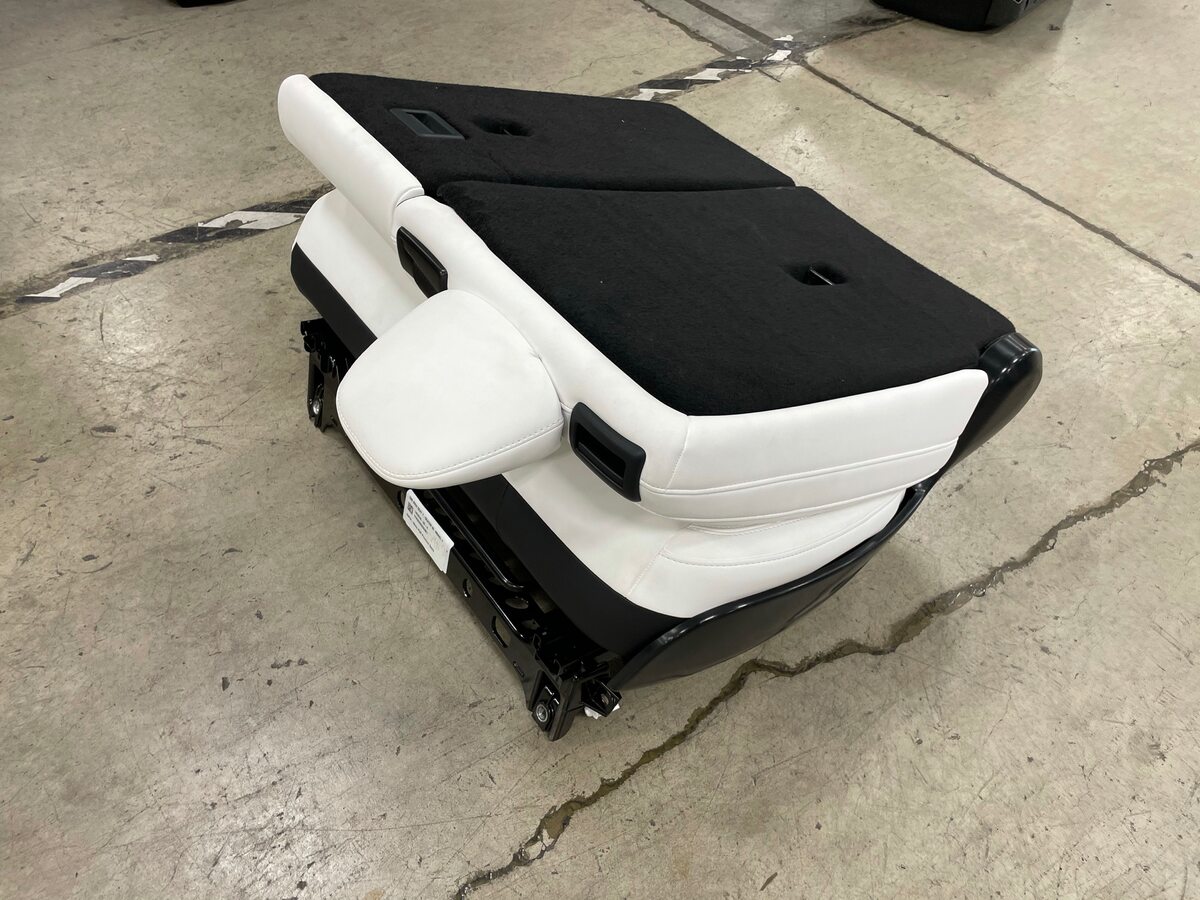

17. Remove 2nd row 60 seat assembly from vehicle
    注

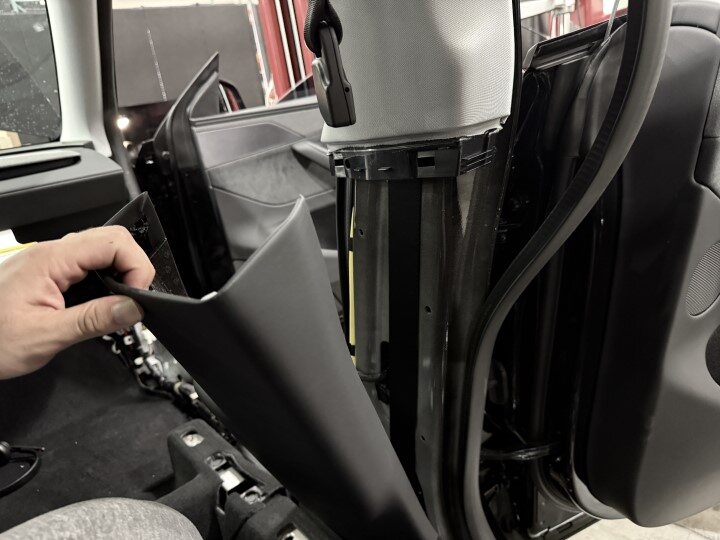

    Recommend assistance, Note: If seat that is not being replaced does not have ISOFIX flag for child locks, the seat cover will also require replacement

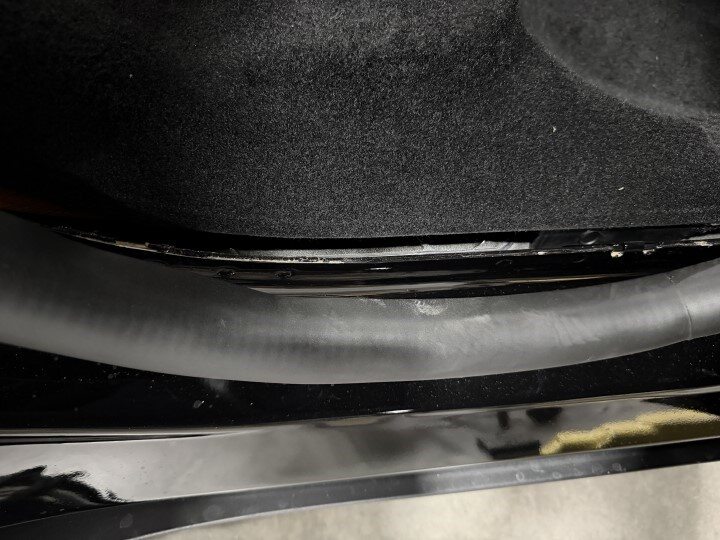

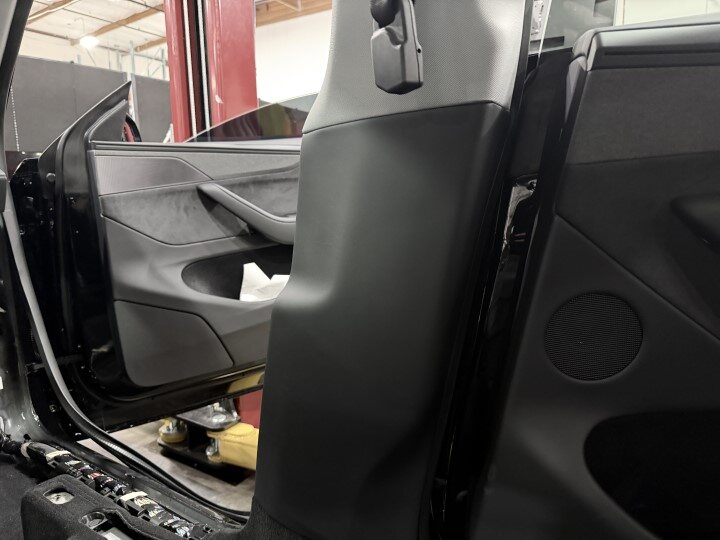

18. Remove RH C-pillar lower trim
    注

    4x tabs, 3x clips, Ensure to move door seal aside before removing lower trim









19. Remove 40 seat outboard track cover
    注

    1x clip, Slide cover forward to release from 40 seat track



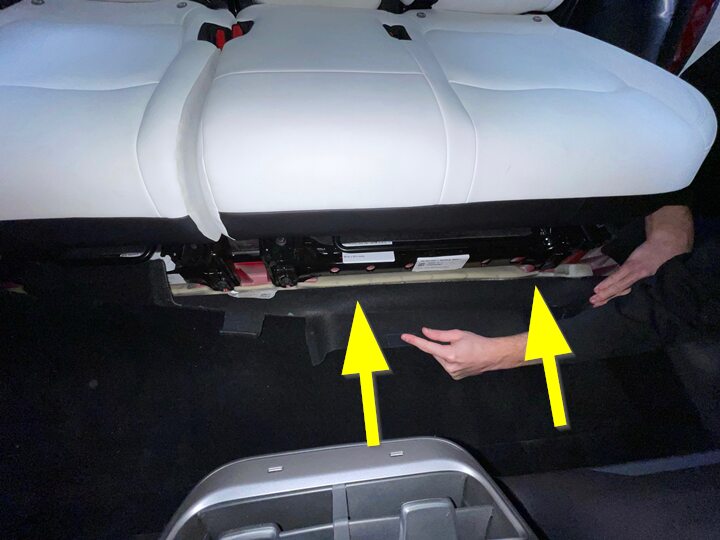

20. Release cabin carpet from 40 seat
    注

    Pull cabin carpet towards front of vehicle



21. Remove bolts securing 40 seat podium to vehicle
    注

    2x patch bolts, 11mm, 37 Nm, Discard bolts after removal

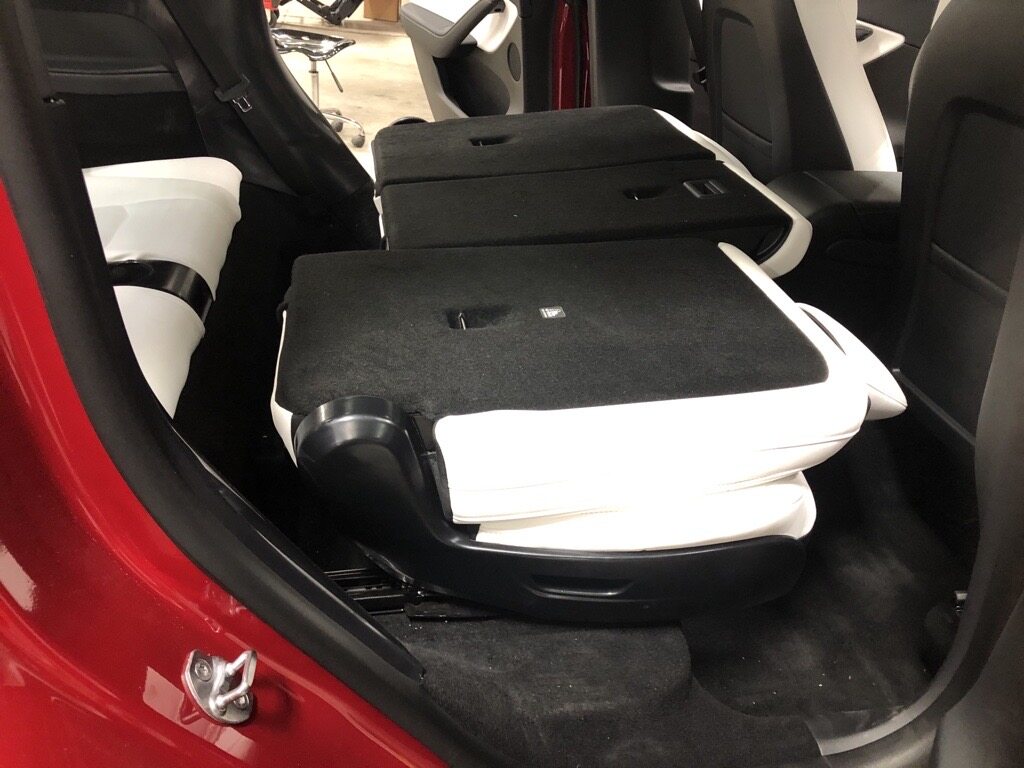

22. Fold 2nd row 40 seat down





23. Move 40 seat forward using towel bar
    注

    With one hand on towel bar pull up and slide the seat forward with your other hand

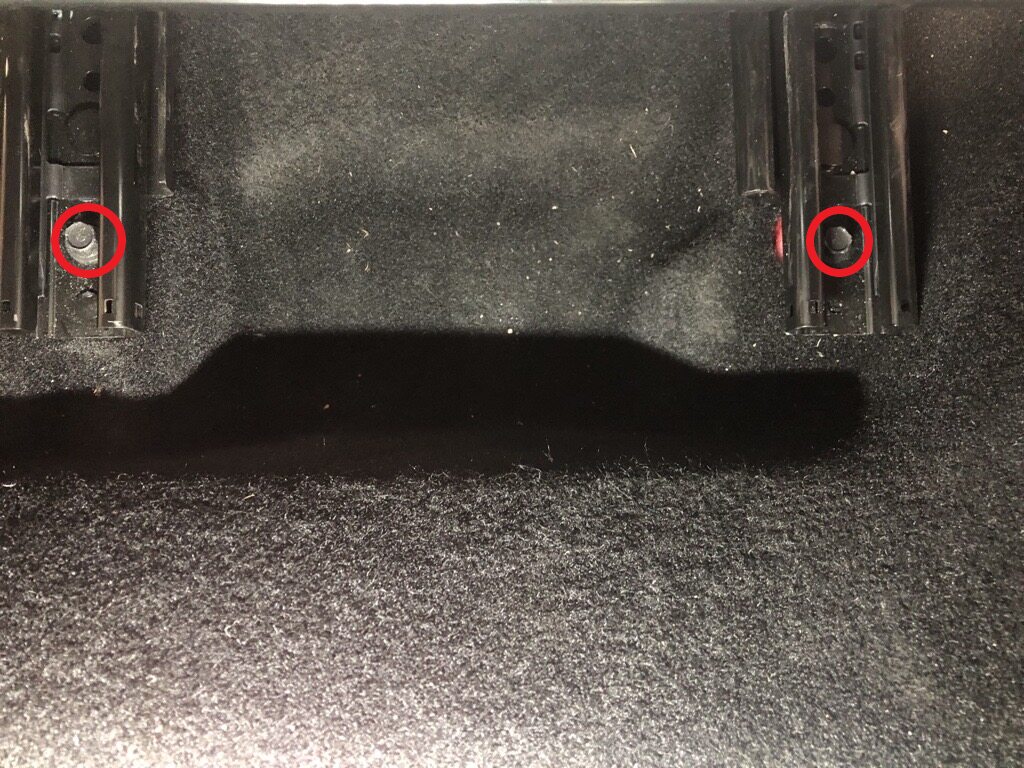

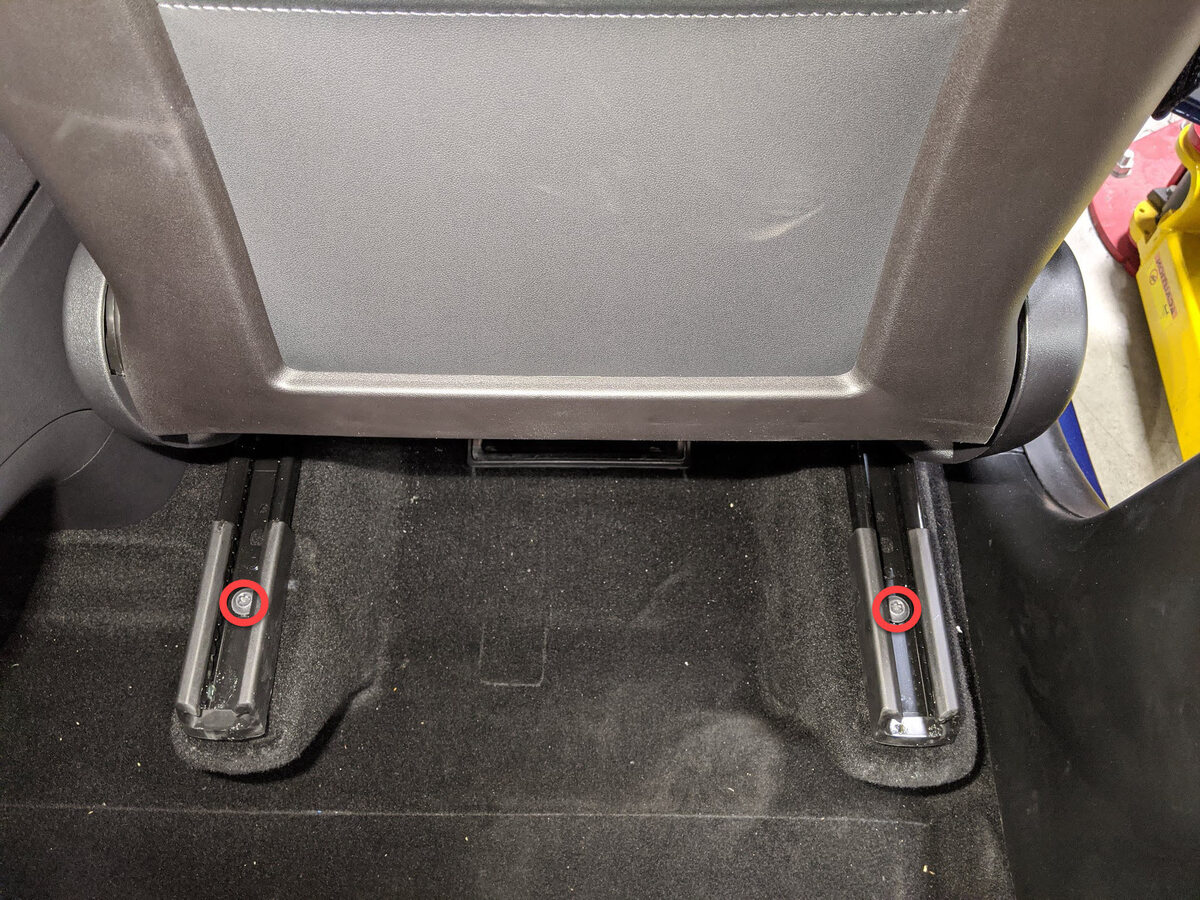

24. Remove bolts securing 40 seat inner and outer tracks to vehicle
    注

    2x patch bolts, 11mm, 37 Nm, Discard bolts after removal

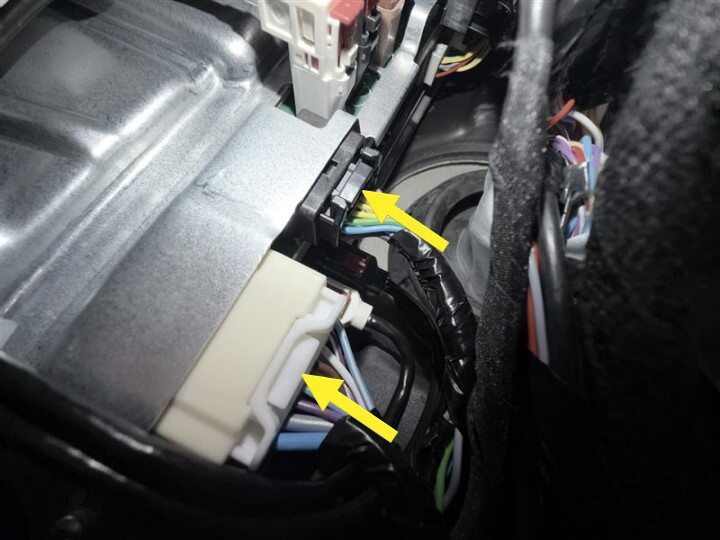

25. Move 40 seat fully rearward using towel bar

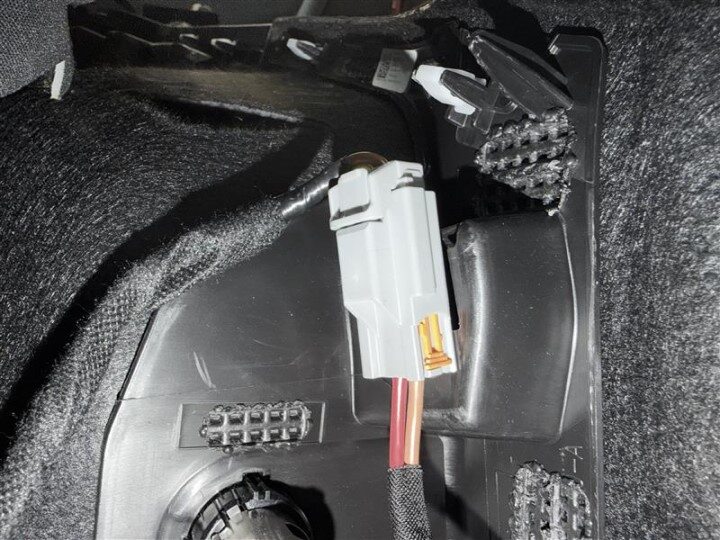

26. Disconnect 2nd row 40 seat connector
    注

    1x connector, Newer models may have red locking tab





27. Remove 40 seat from vehicle
    注

    Recommend assistance, Do not support 40 seat by cushion pan, Support 40 seat by podium

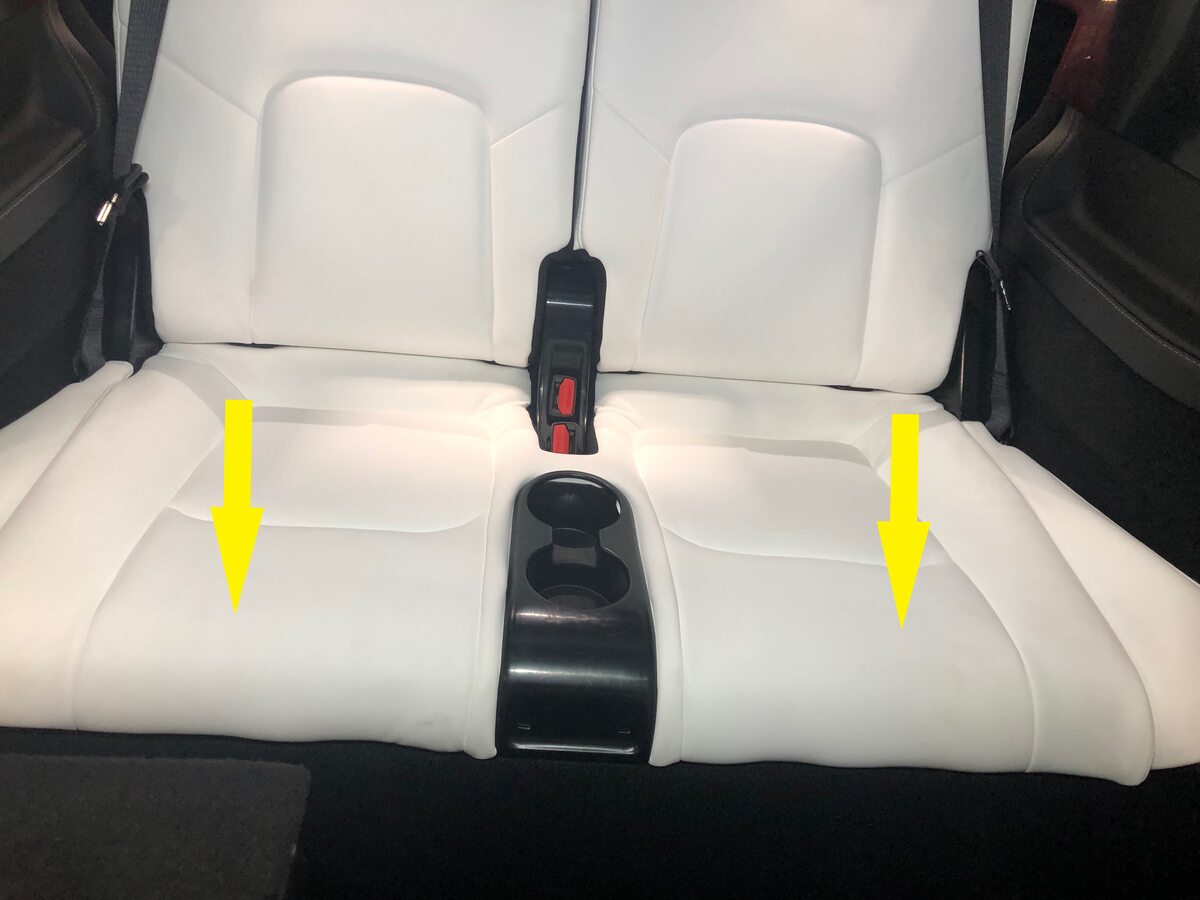

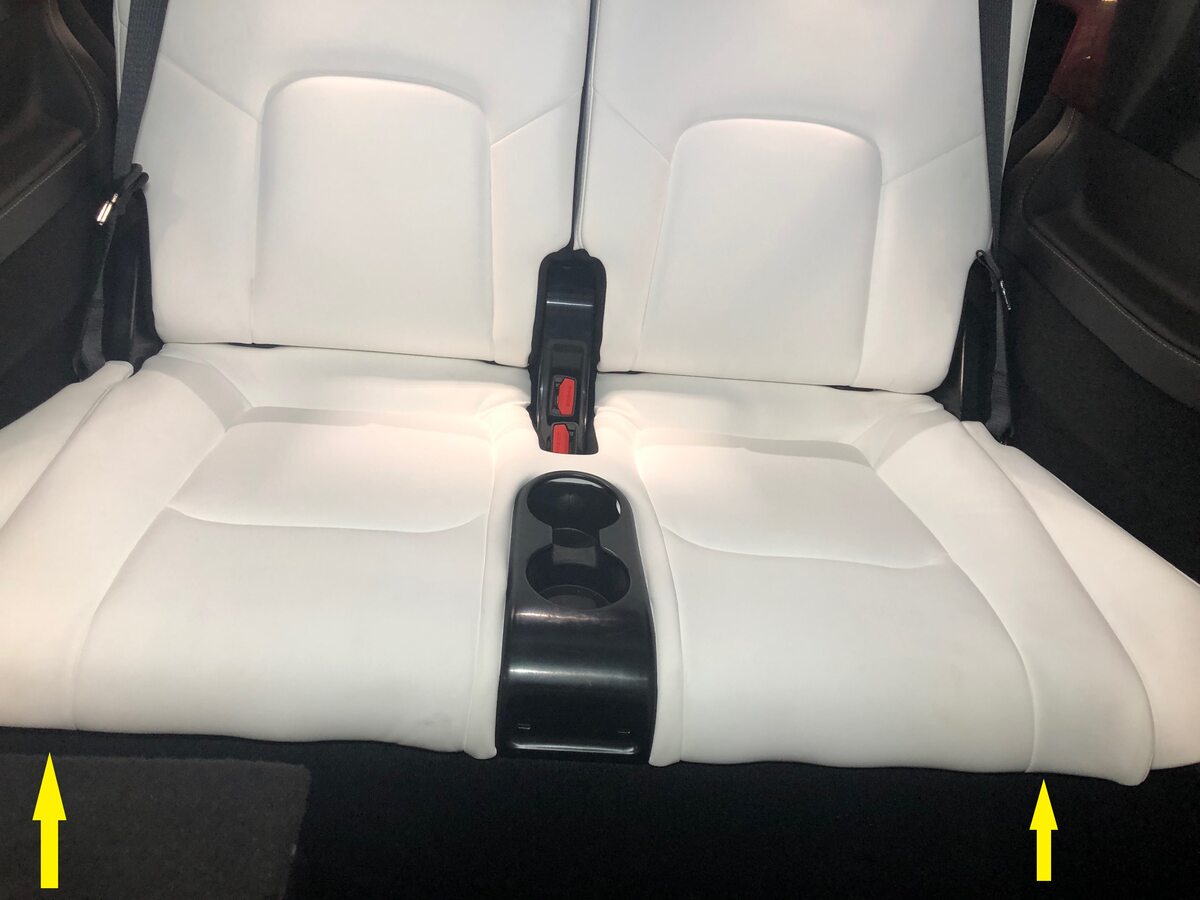

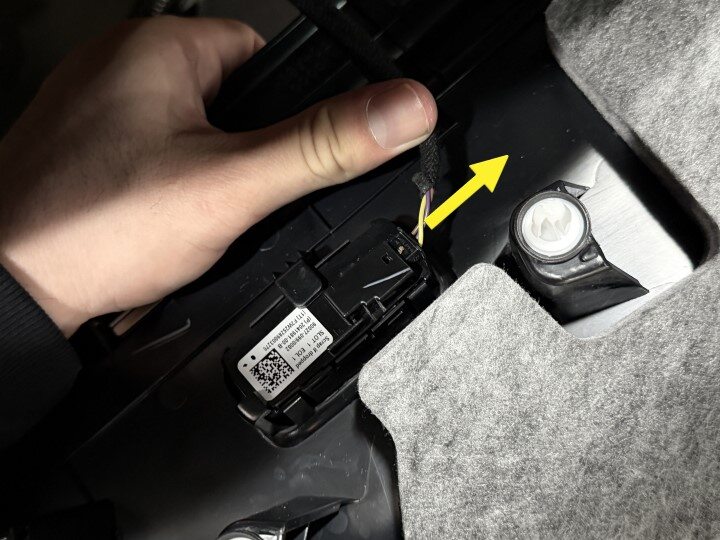

28. Remove 3rd row seat cushion and disconnect harness
    注

    1x connector, Pull LH and RH release lever under 3rd row seat cushion to release seat cushion

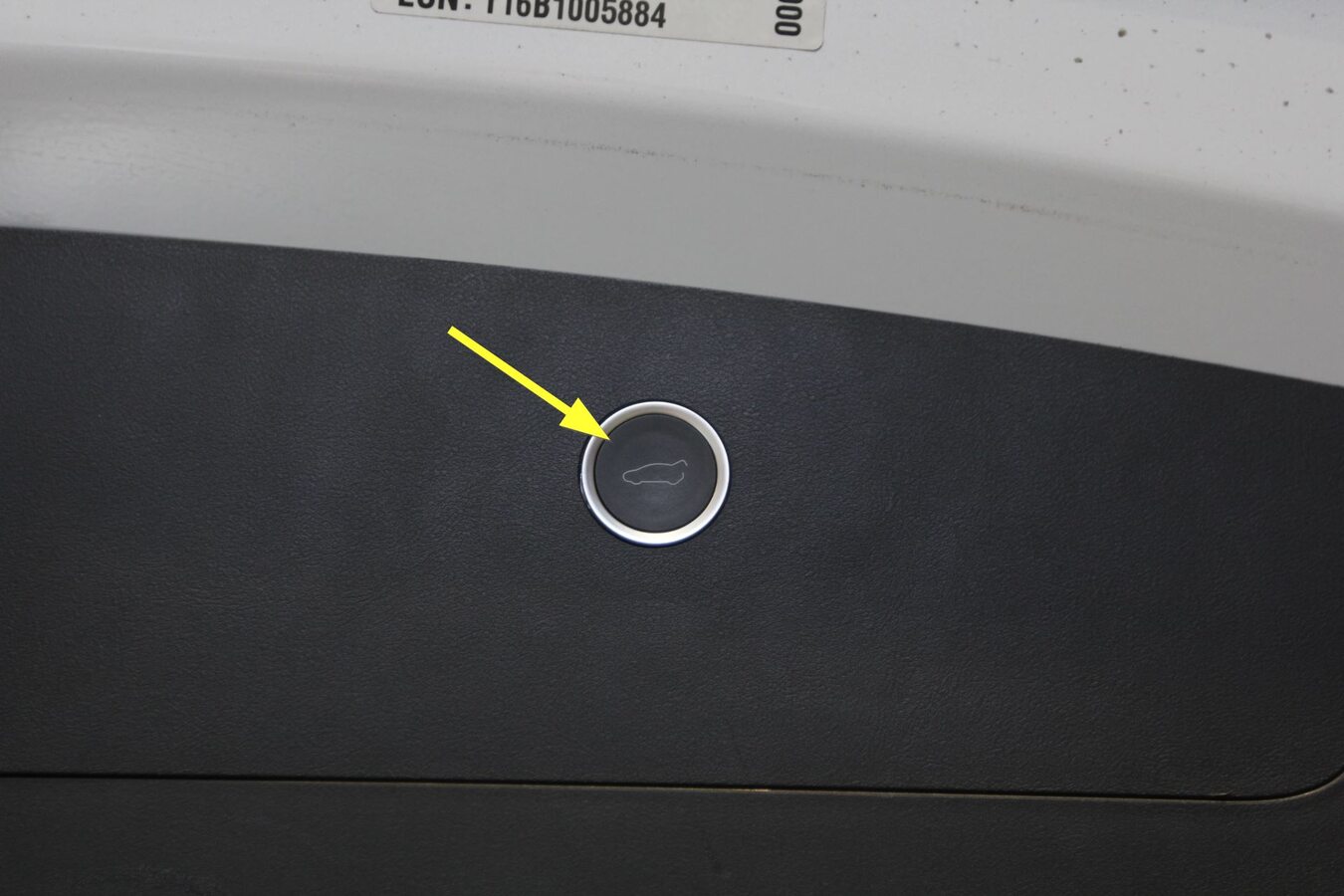

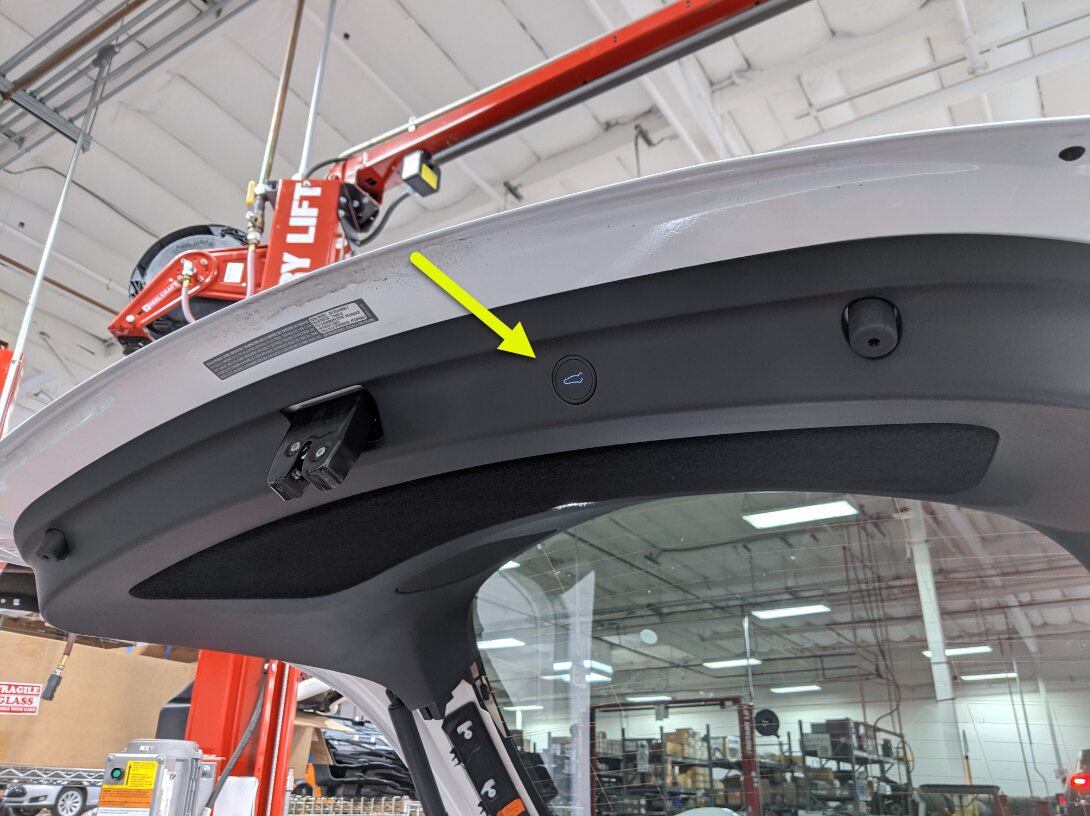

29. Open liftgate

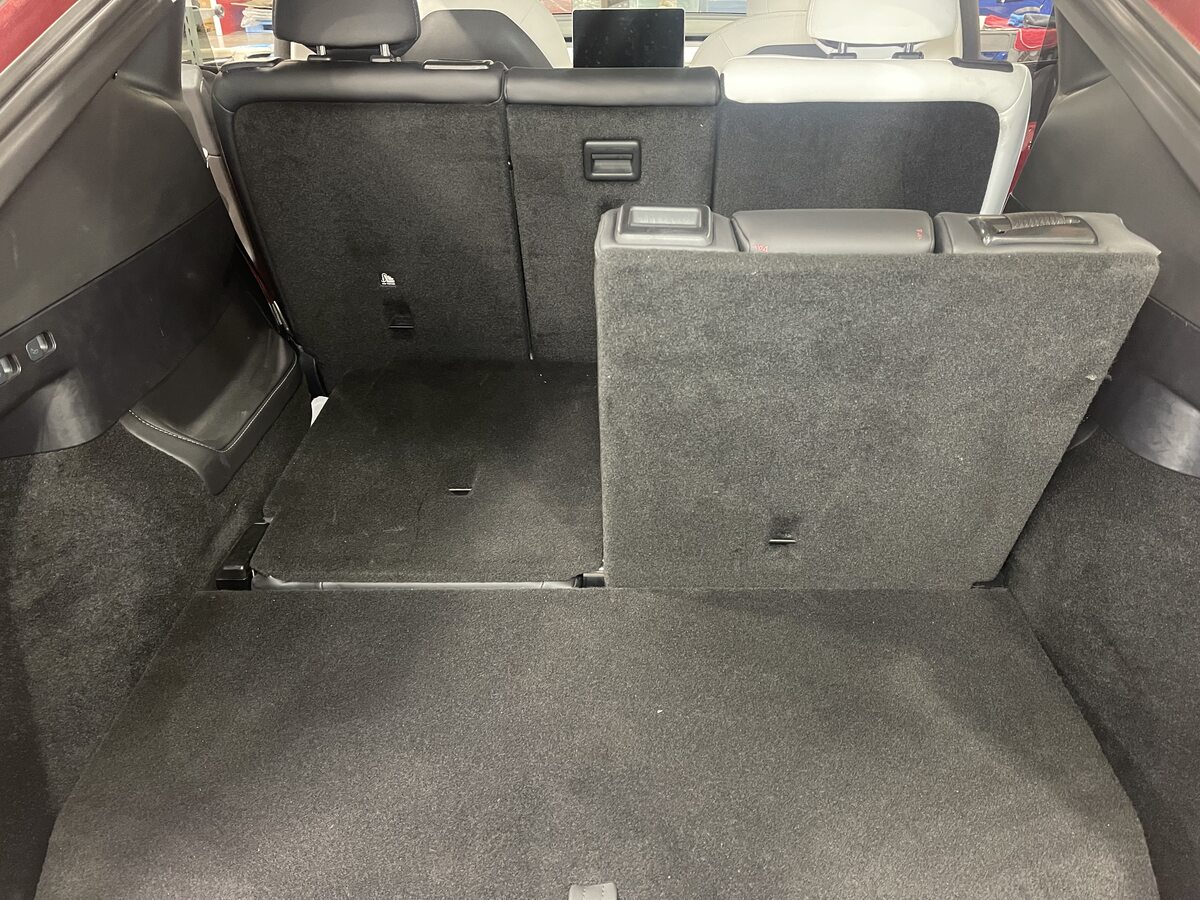

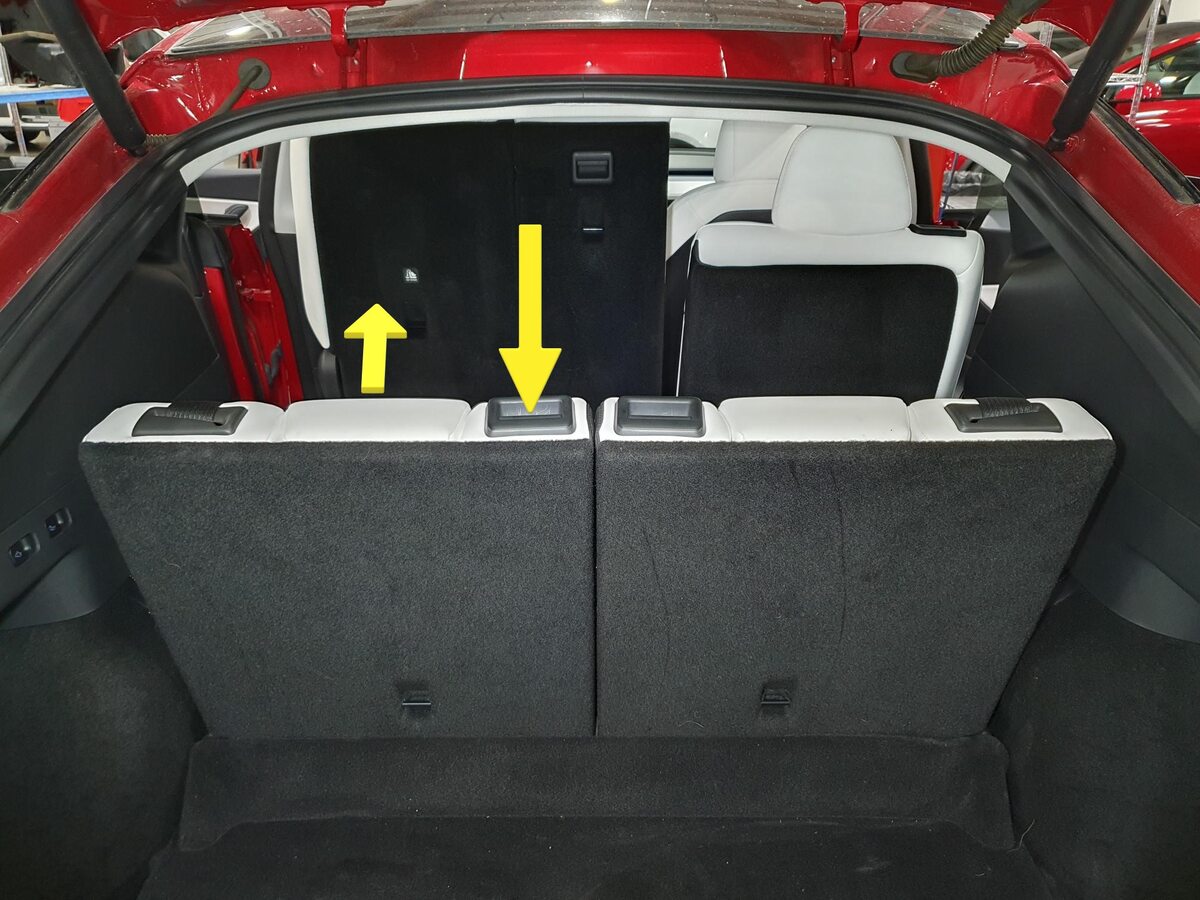

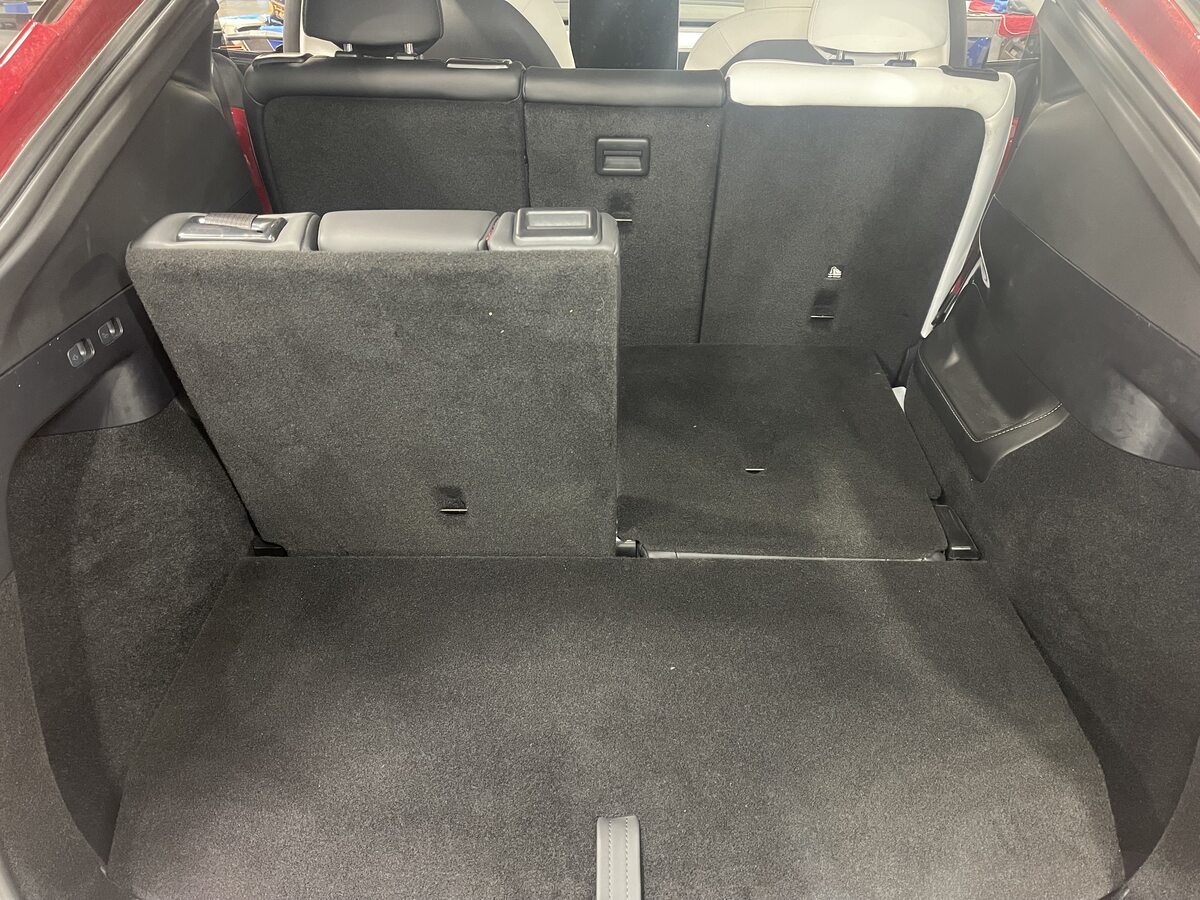

30. Release 3rd row LH seat backrest
    注

    Front switch at LH trunk trim panel





31. Release 3rd row RH seat backrest
    注

    Rear switch at LH trunk trim panel

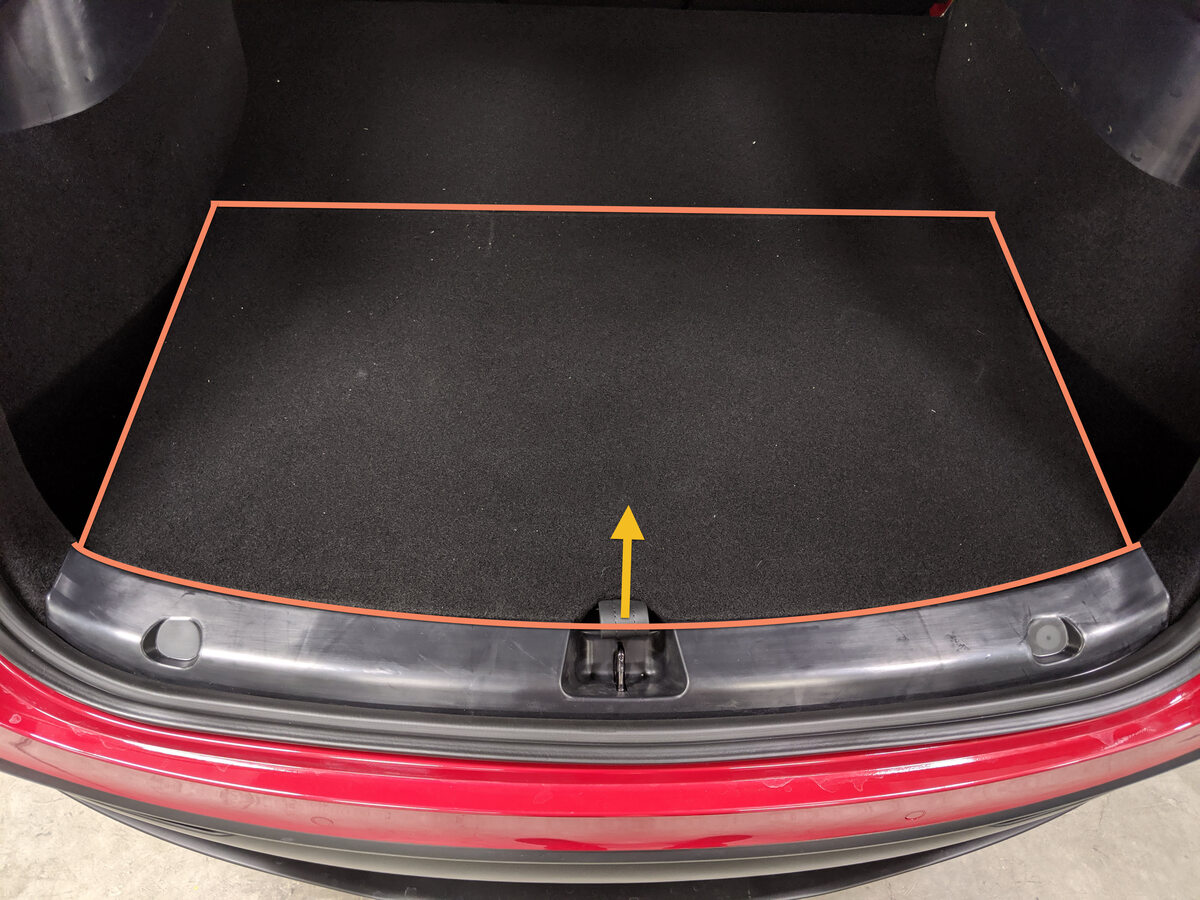

32. Remove rear load floor

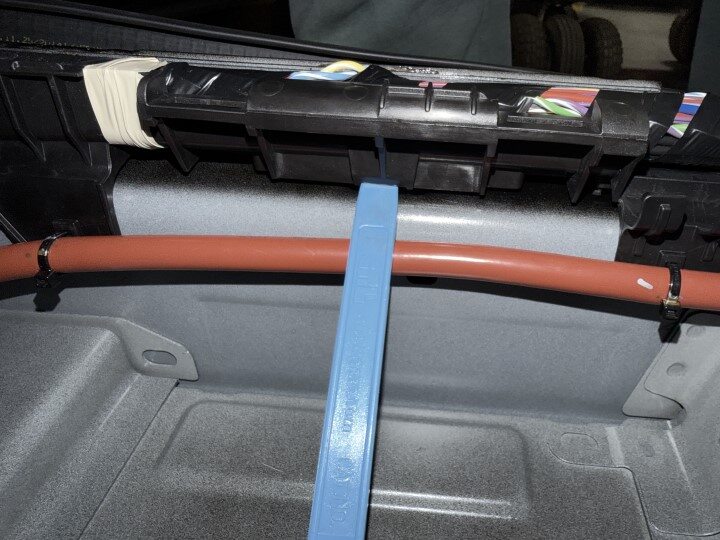

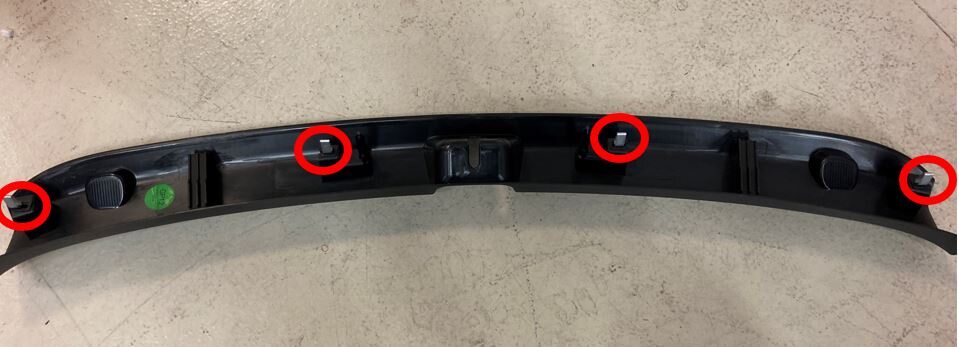

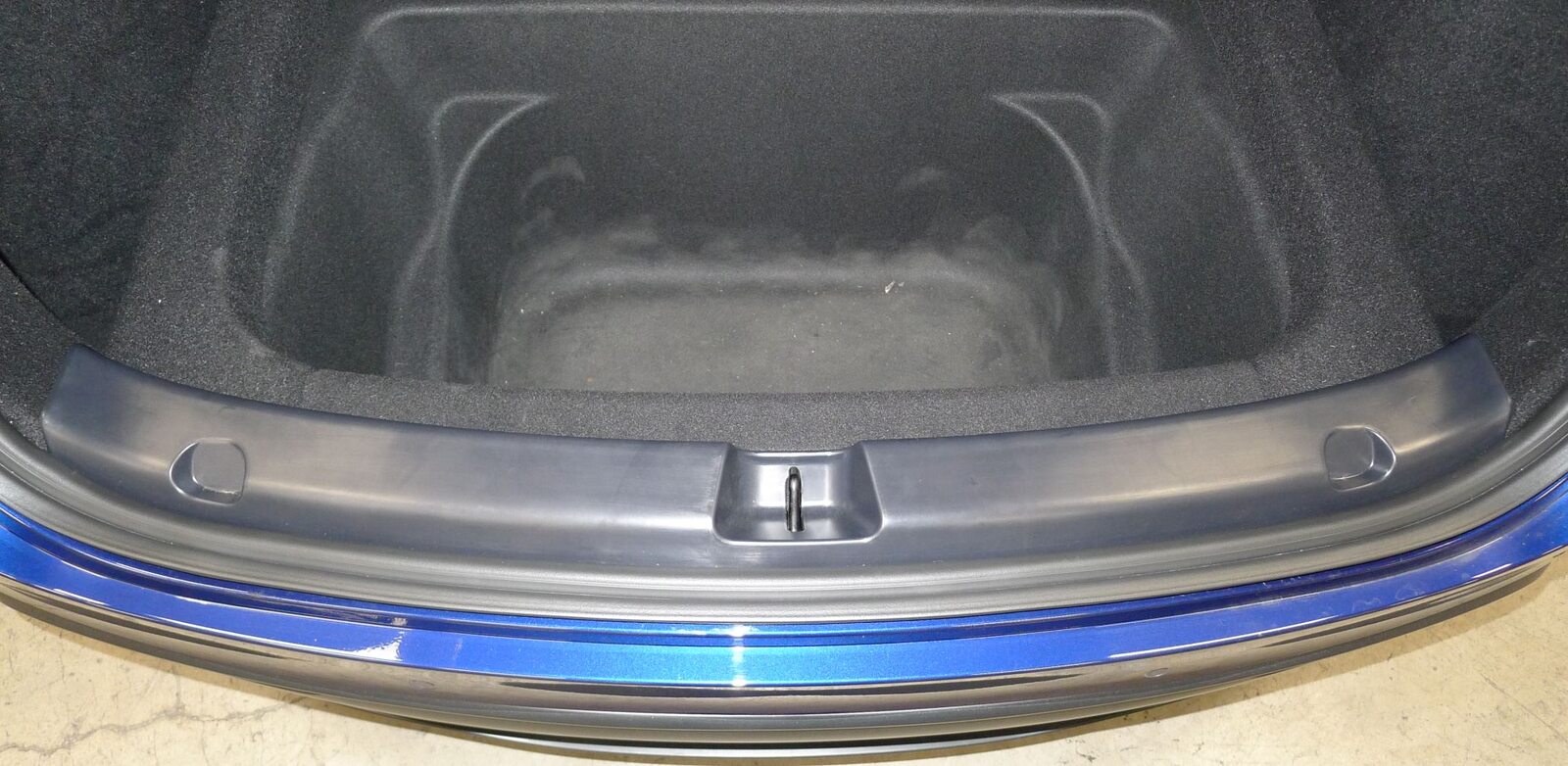

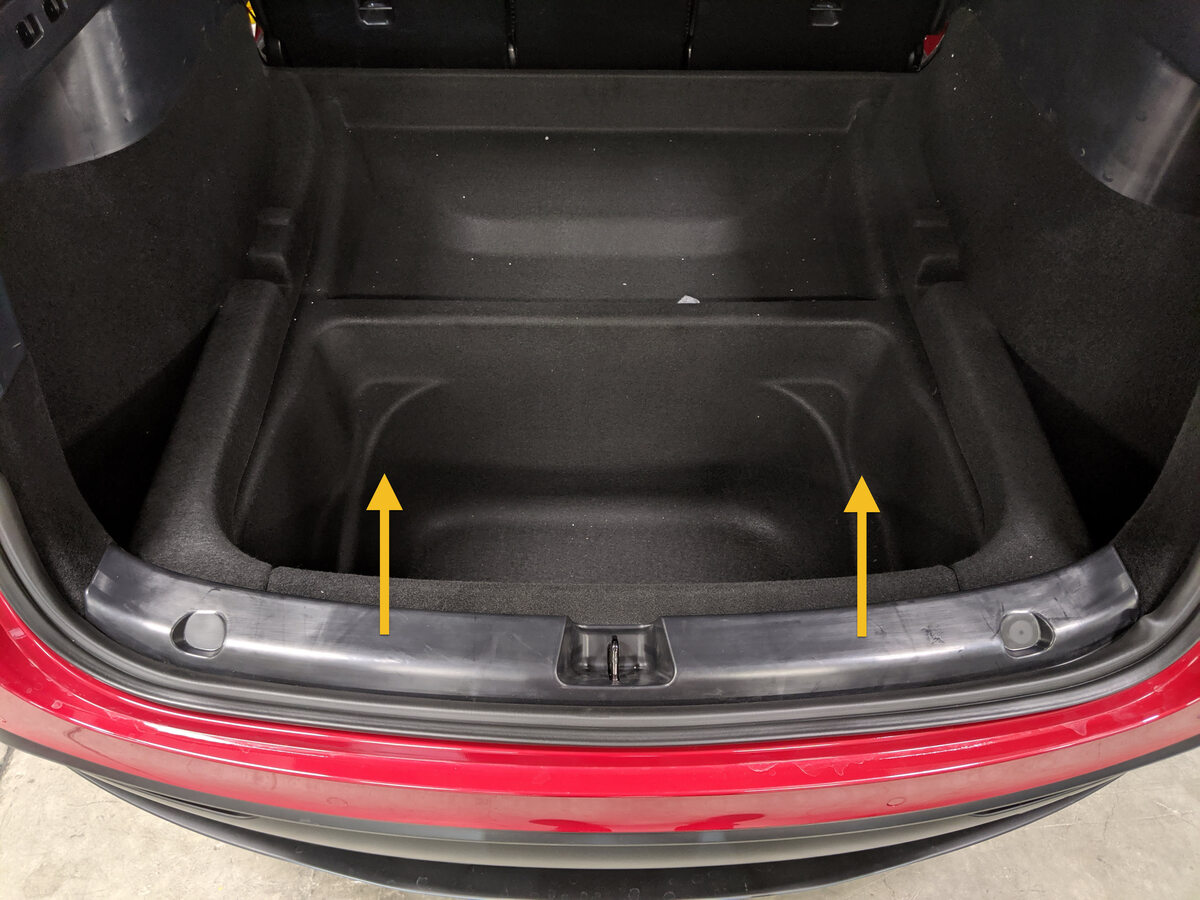

33. Remove trunk sill trim
    注

    4x clips





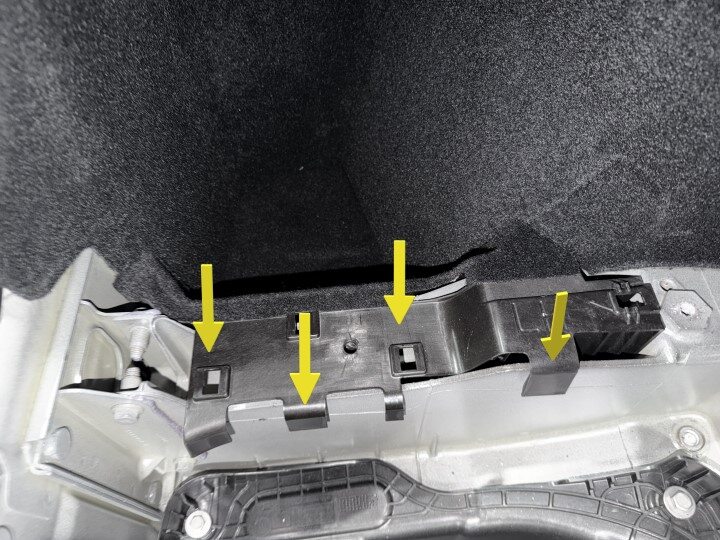

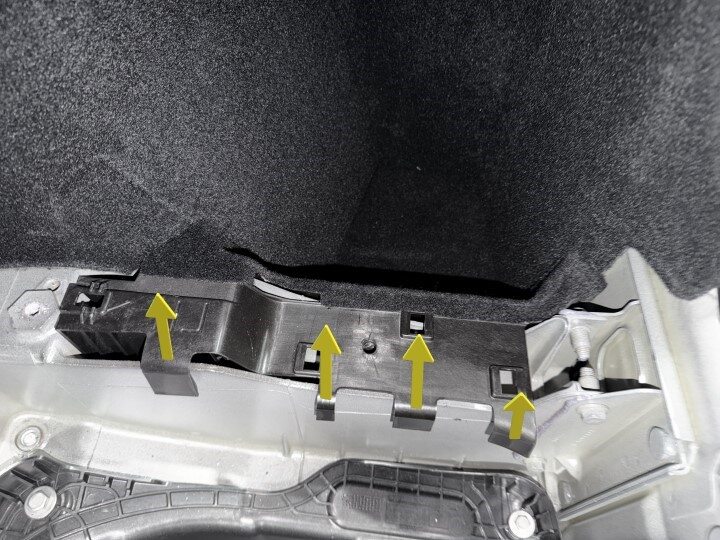

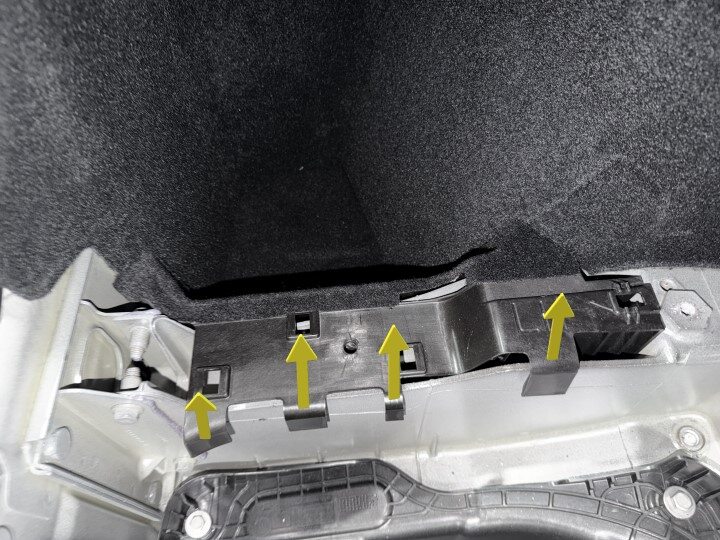

34. Remove LH load floor bracket
    注

    6x tabs

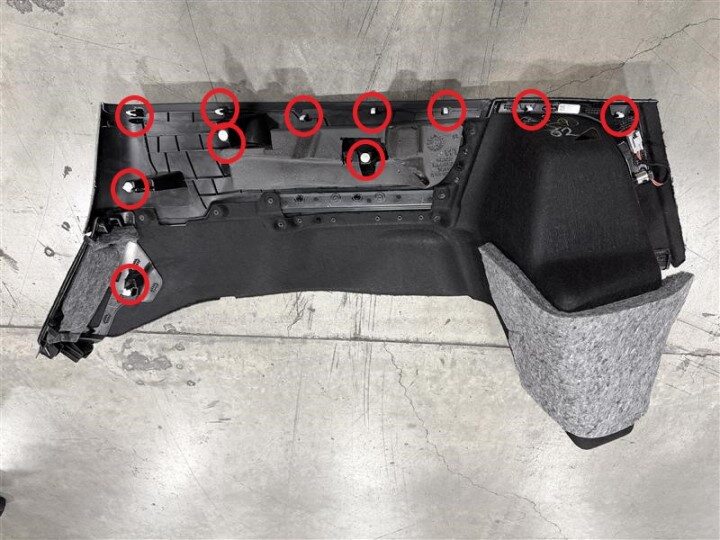

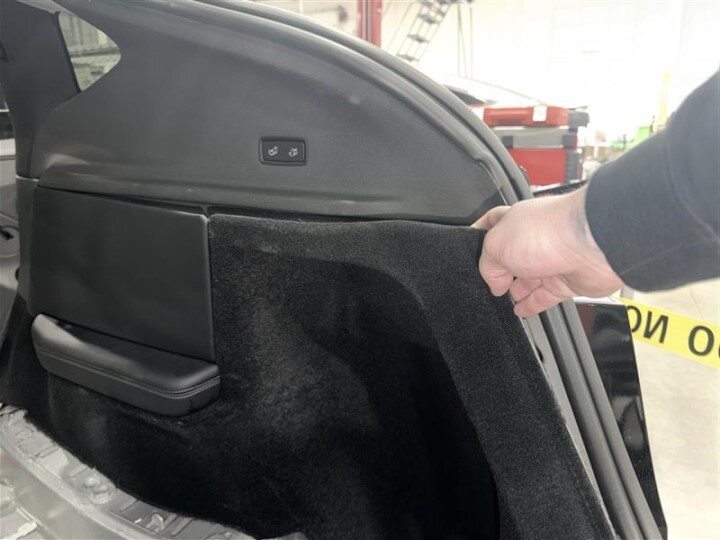

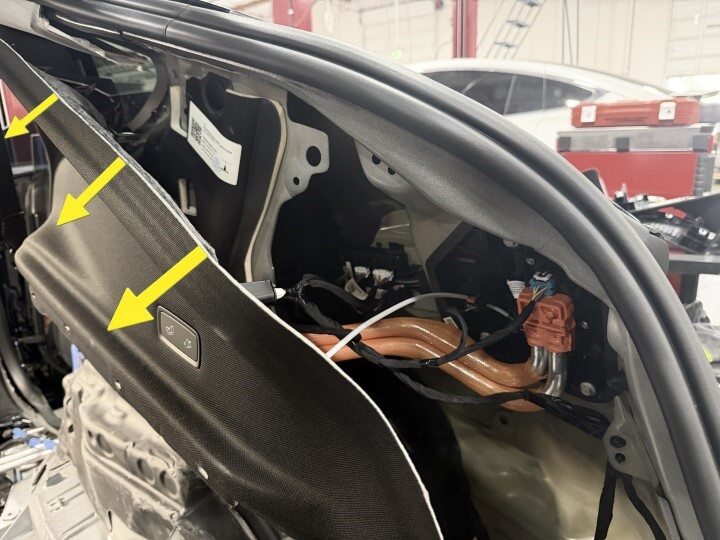

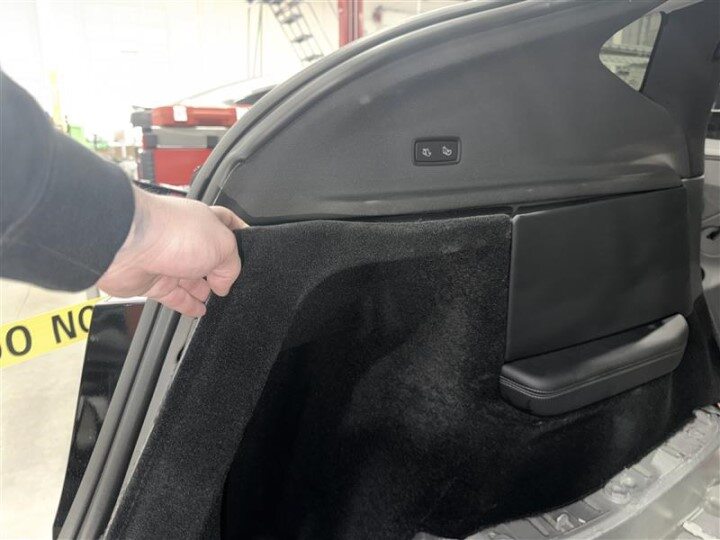

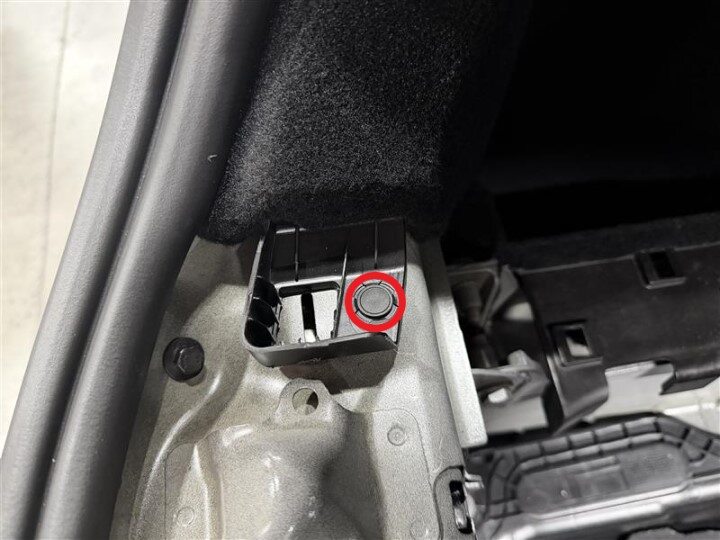

35. Release remaining clips and remove LH 7s trunk side trim

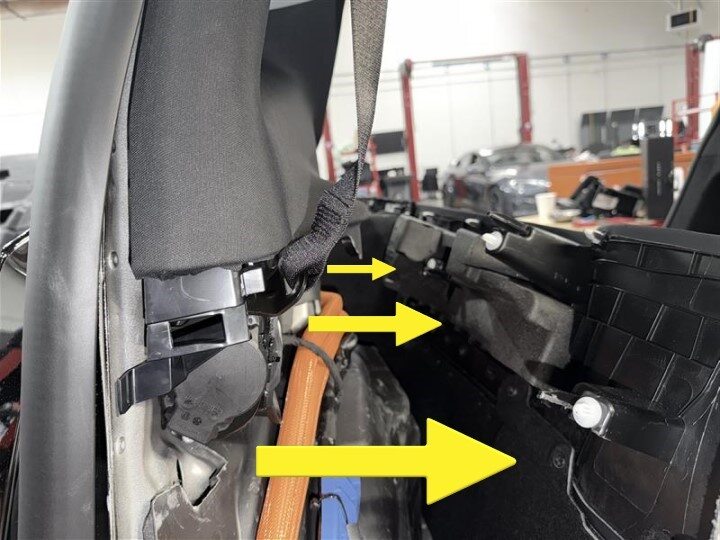

    注

    1x push clip, 2x clip tabs, 4x Guide tabs

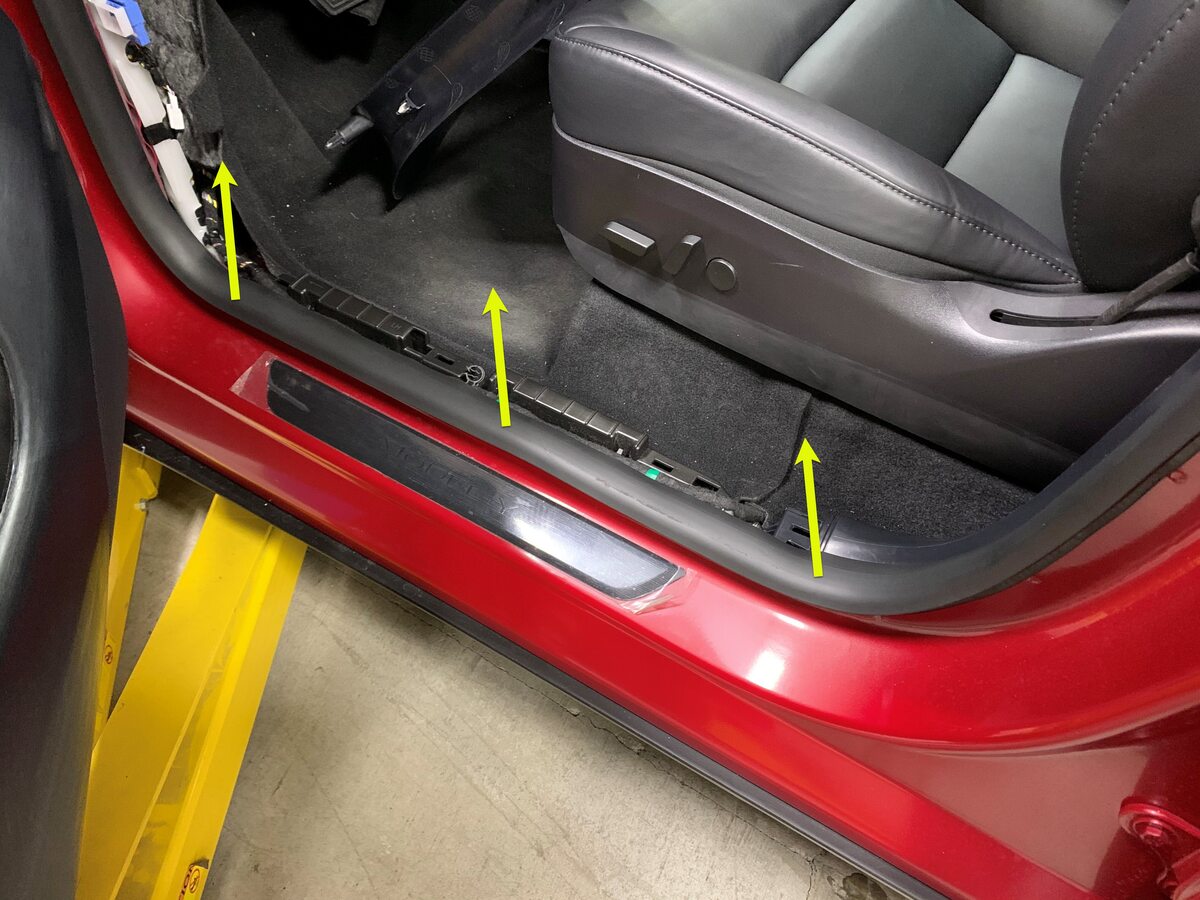

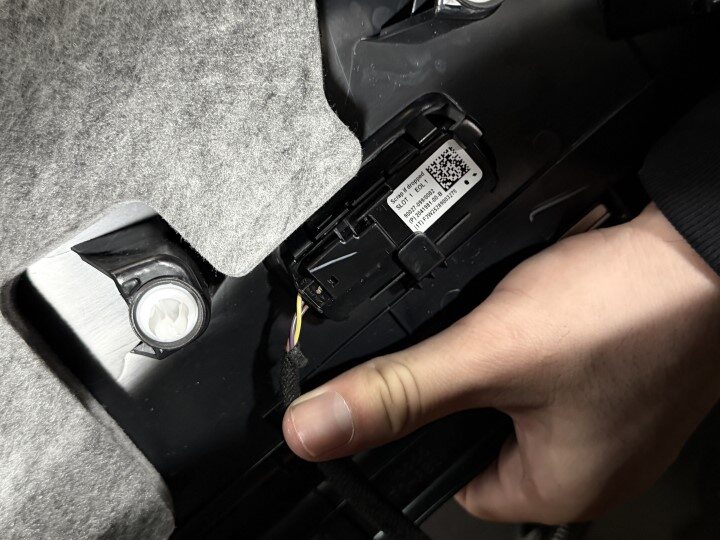

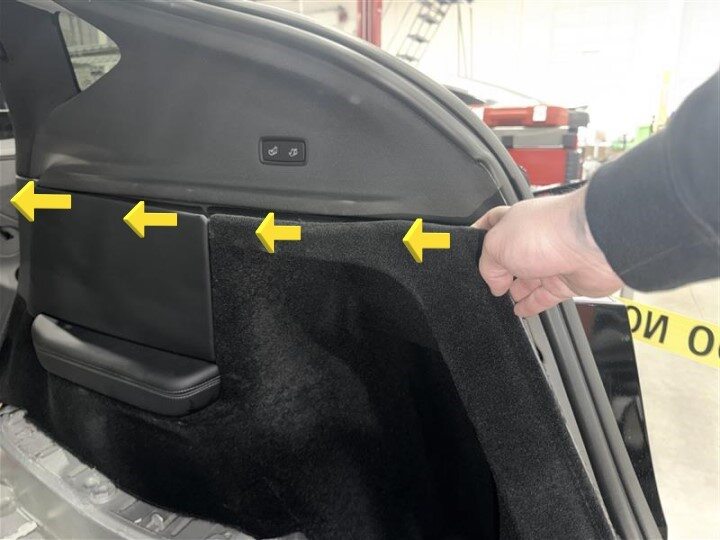

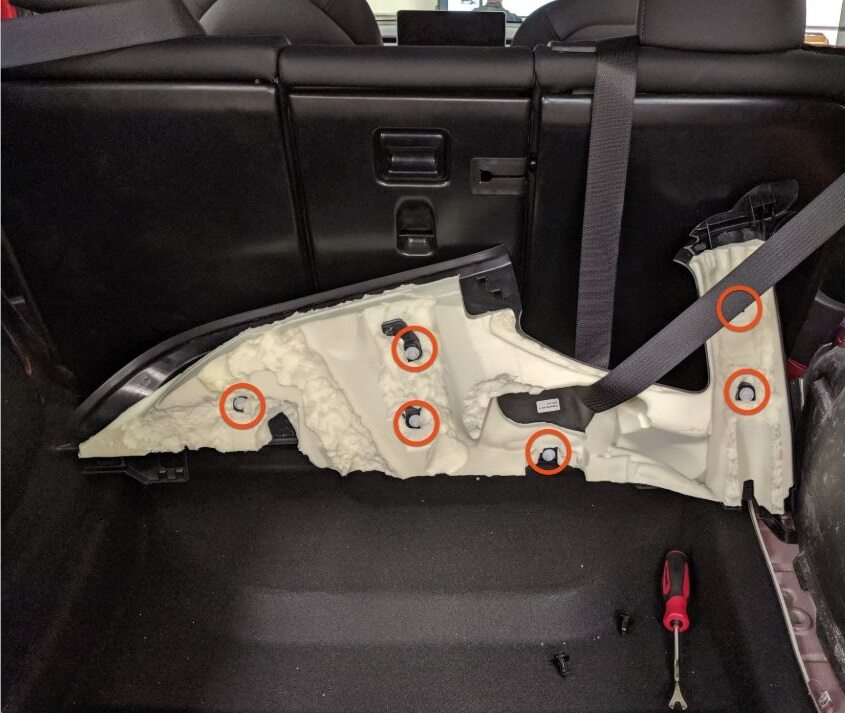

36. Release LH 7s trunk side trim and disconnect 12V outlet
    注

    4x clips, 7x tabs, 1x connectors

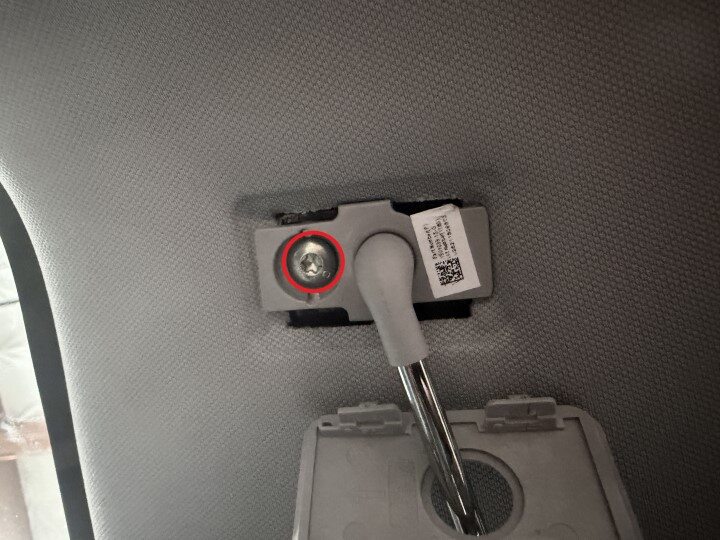

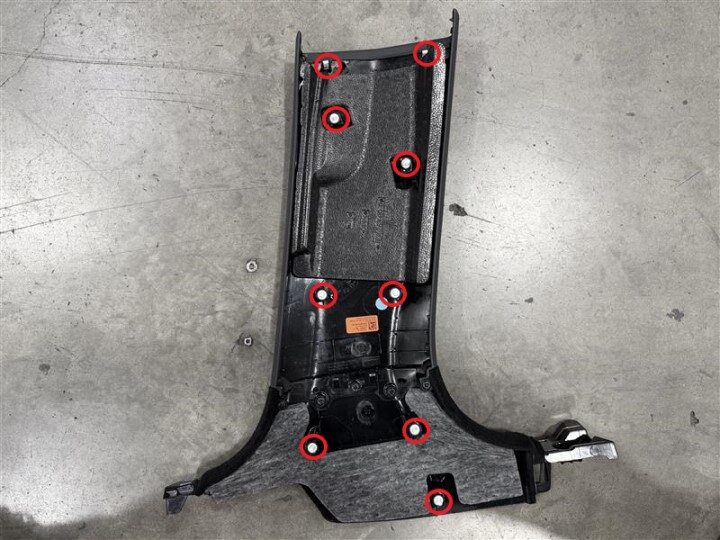

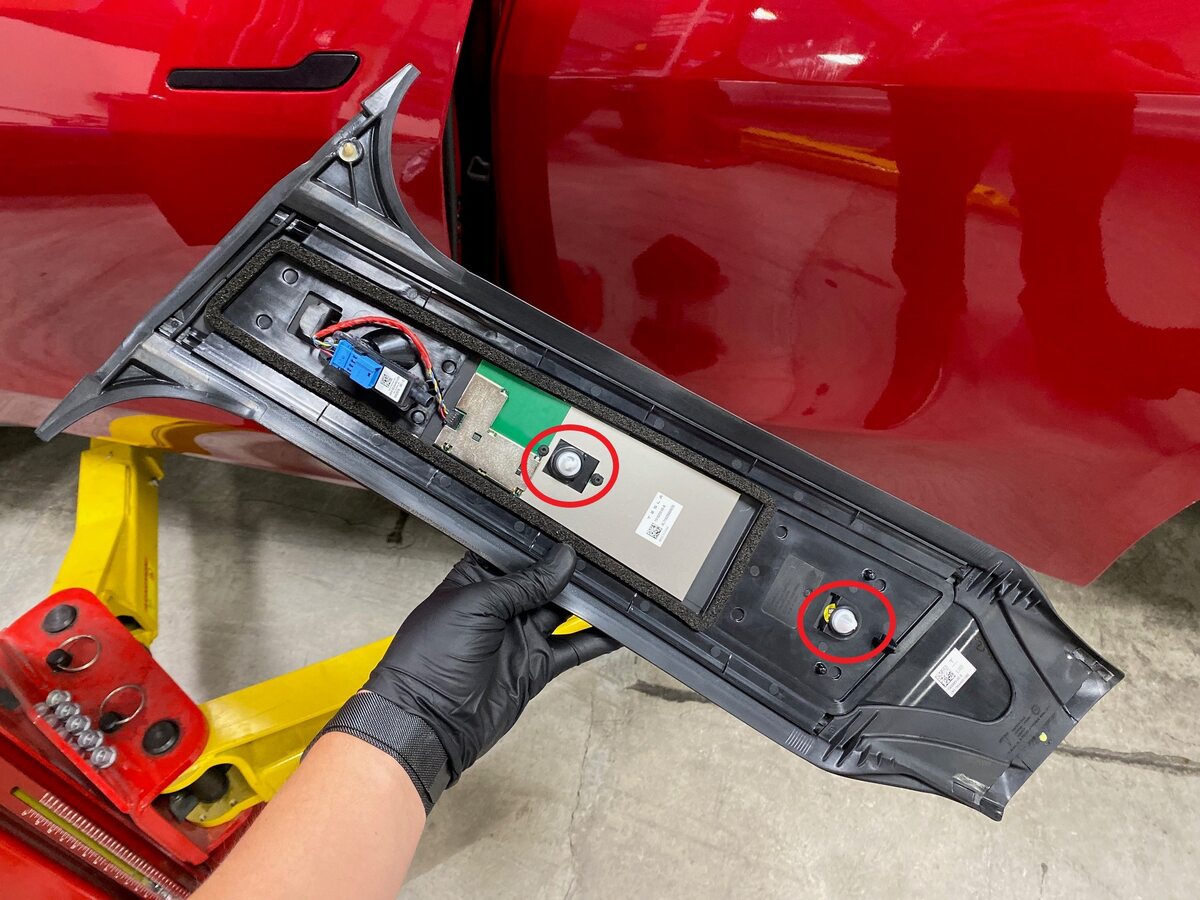

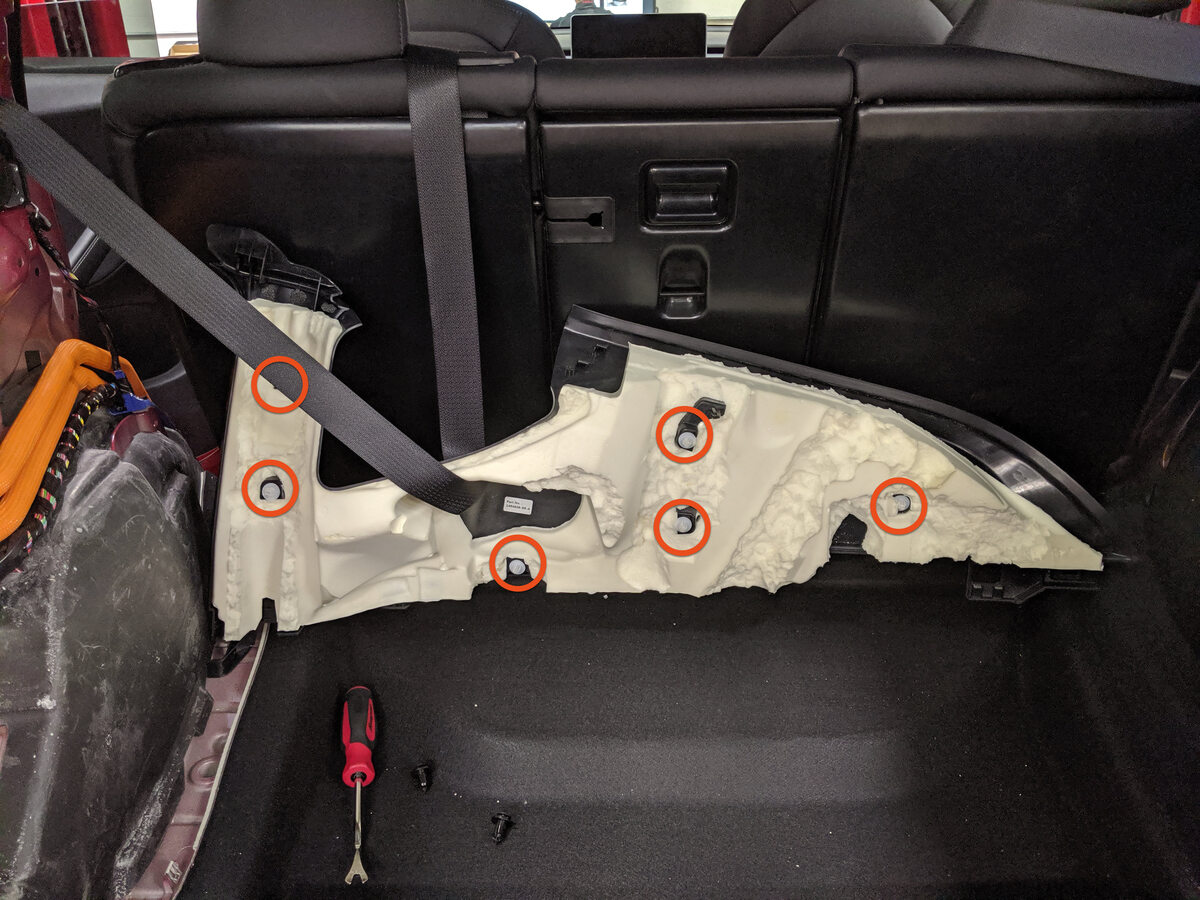

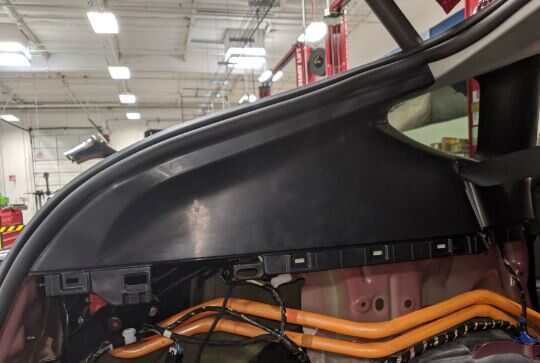

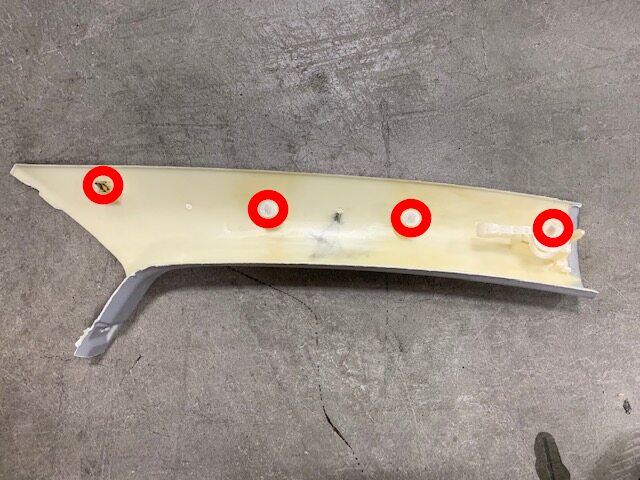

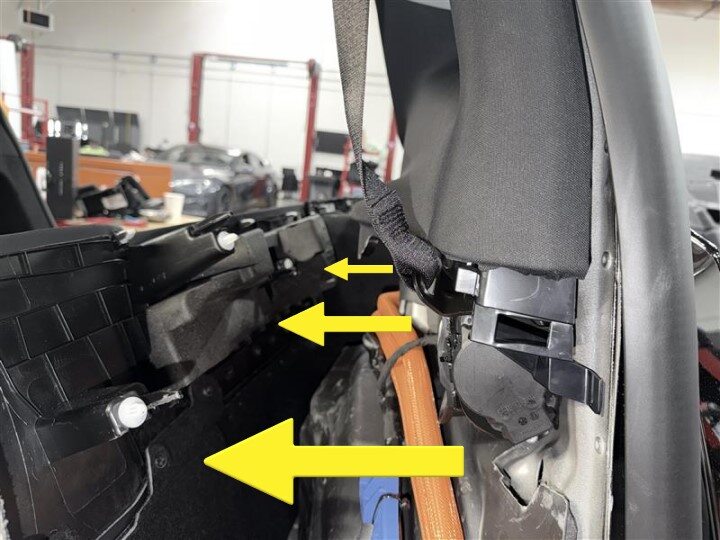

37. Remove LH upper C-pillar trim
    注

    2x tabs, 5x clips, 1x location pin

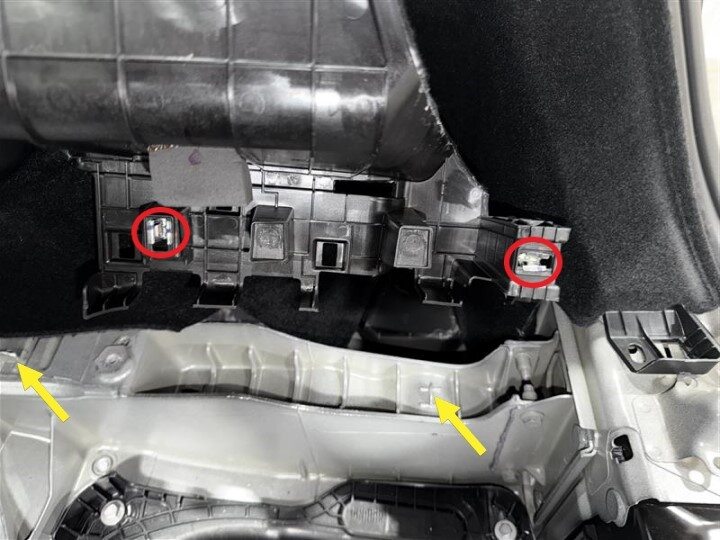

38. Remove RH load floor bracket
    注

    6x tabs





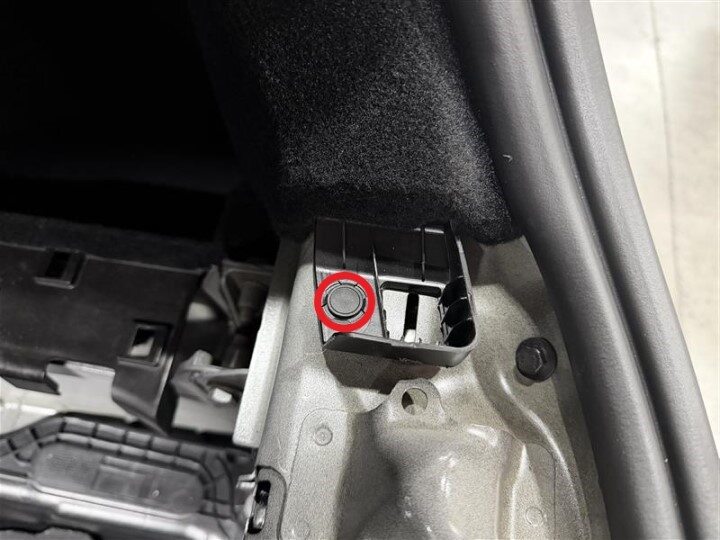

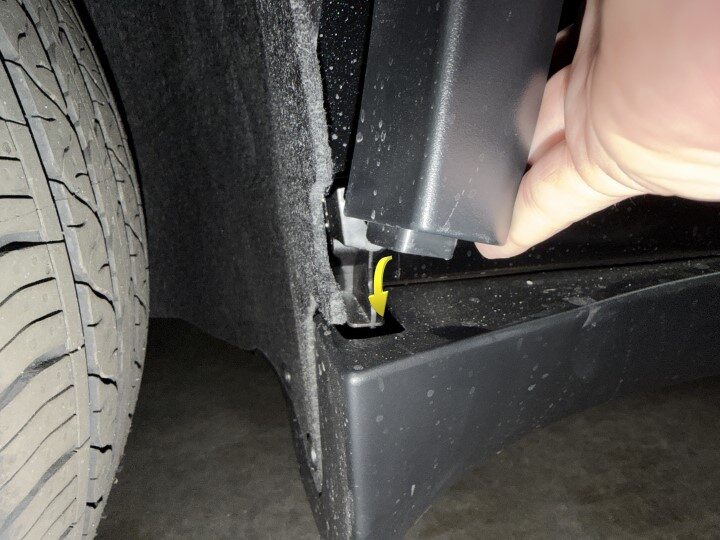

39. Remove RH trunk pocket bracket
    注

    1x push clip, 2x clip tabs, 4x Guide tabs







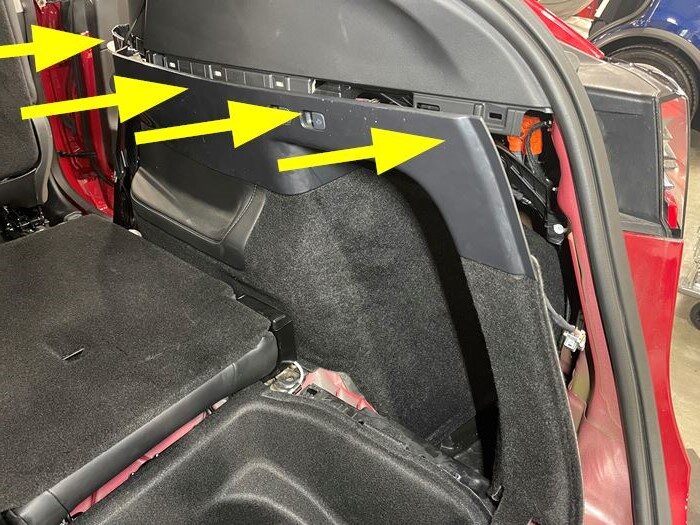

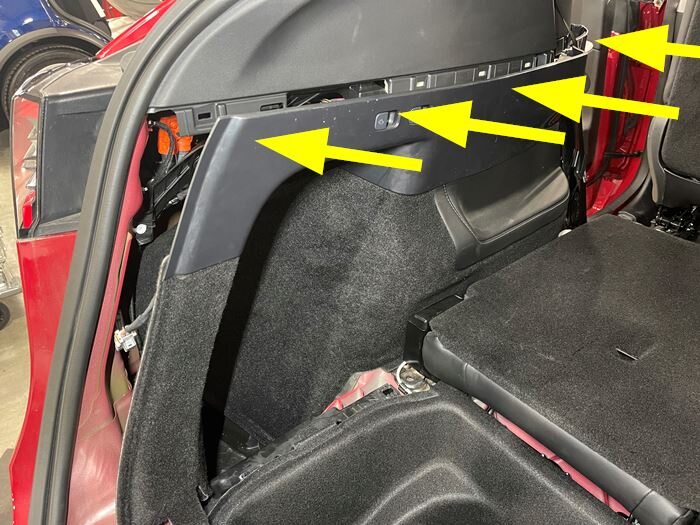

40. Release top edge of RH trunk side trim

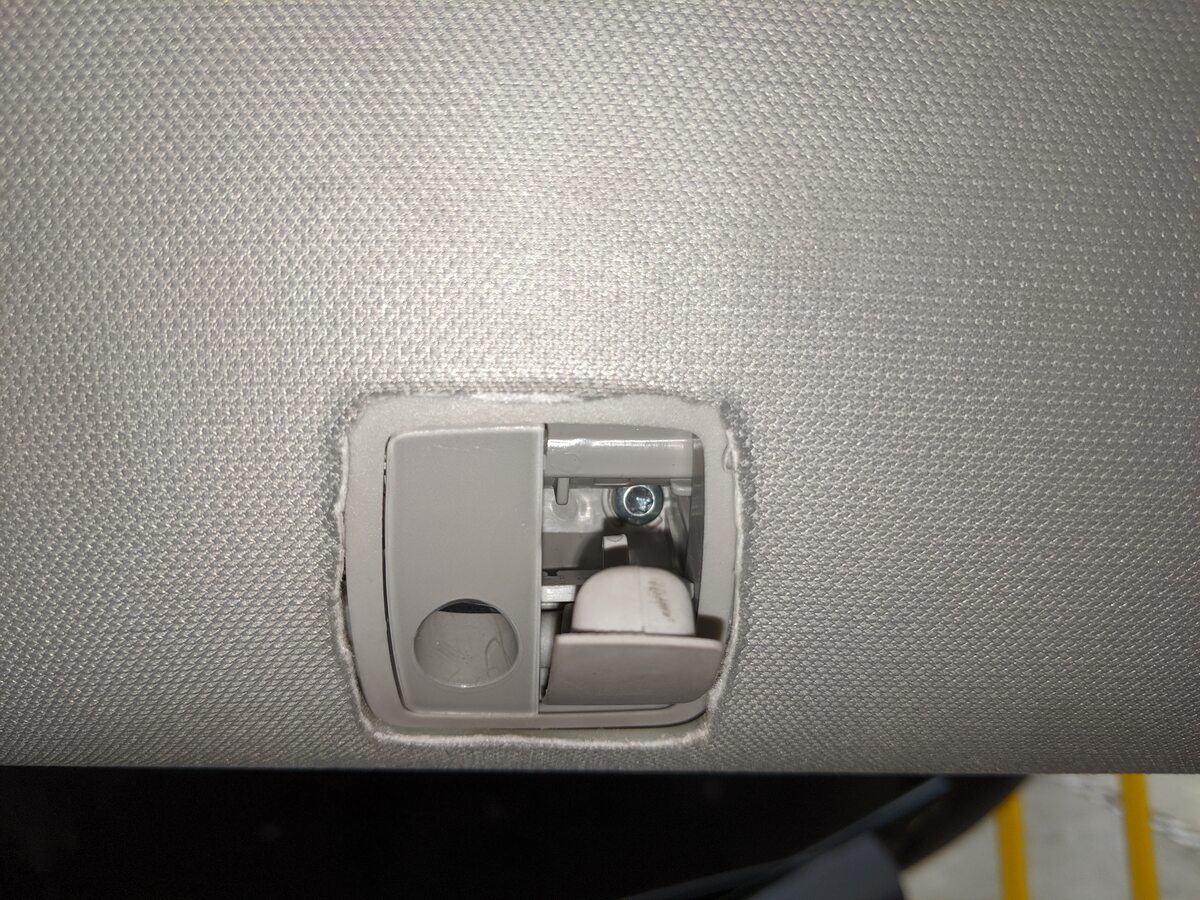

    注

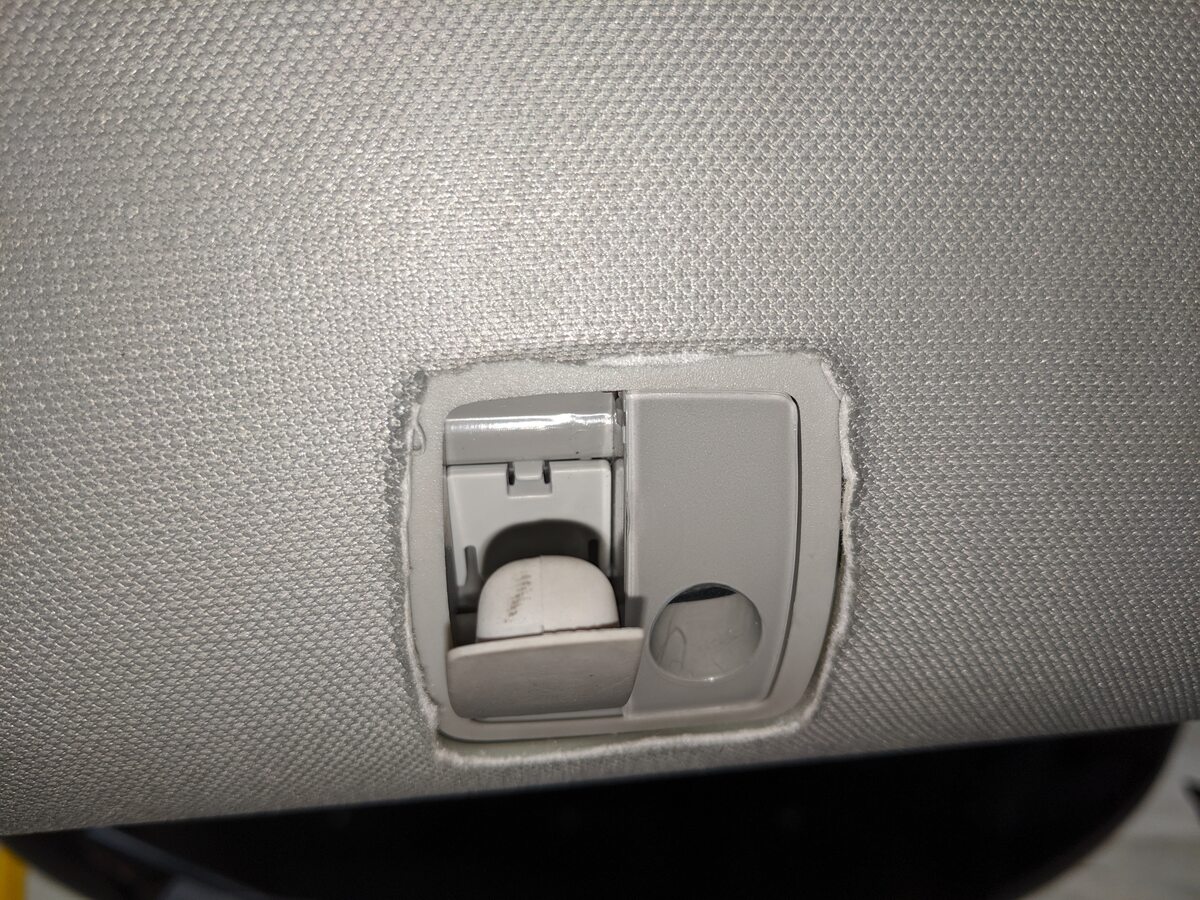

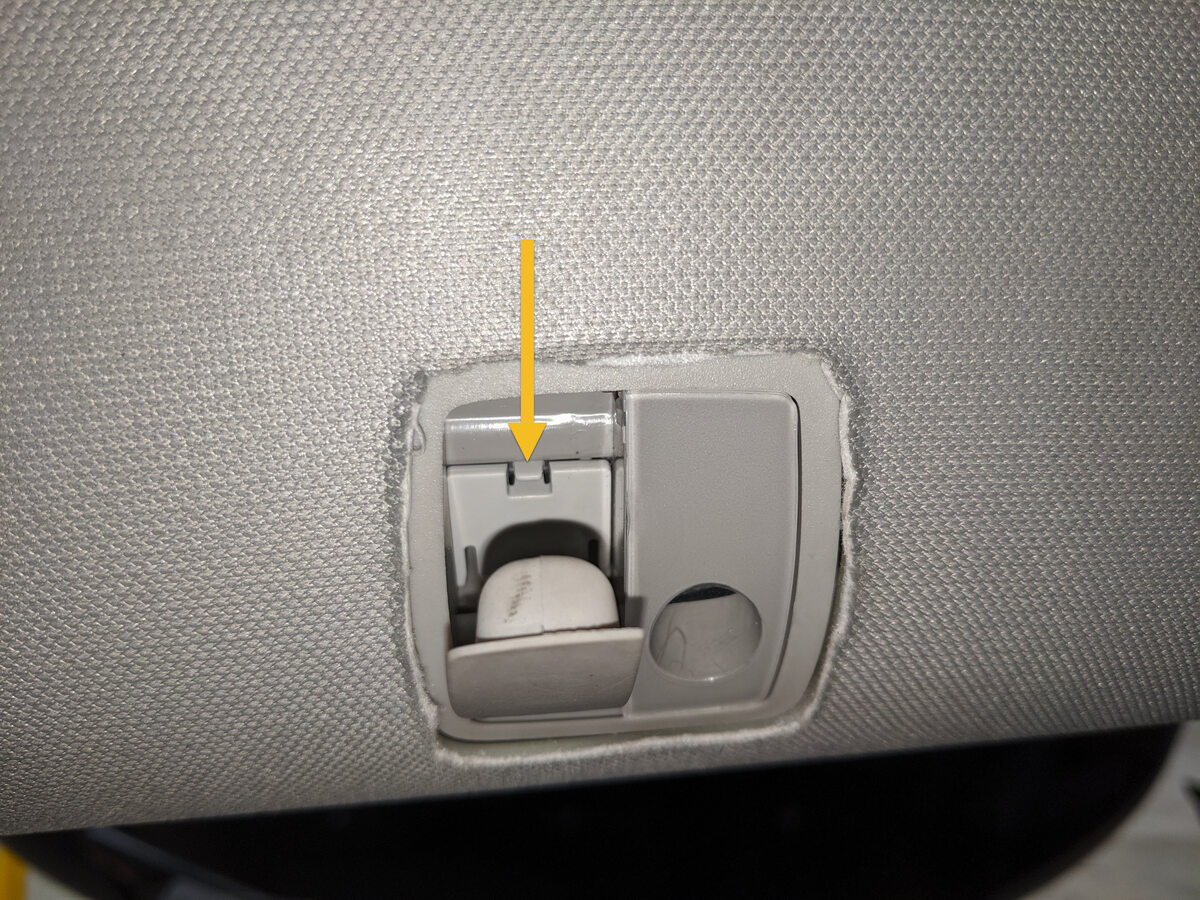

    4x clips, 7x tabs, 1x connectors









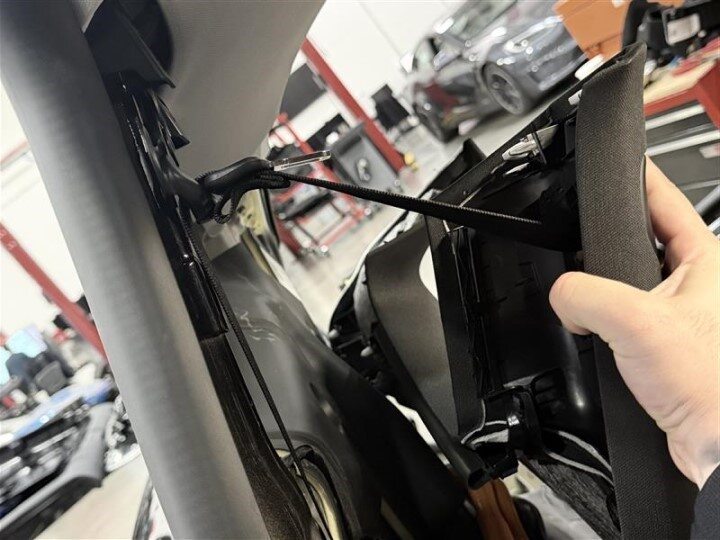

41. Remove RH upper C-pillar trim
    注

    6x clips, Guide front upper corner groove out from headliner and place trim aside, trim part may slightly differ by vehicle build location, and the number of clips may also varyt









42. Remove LH mid A pillar assembly

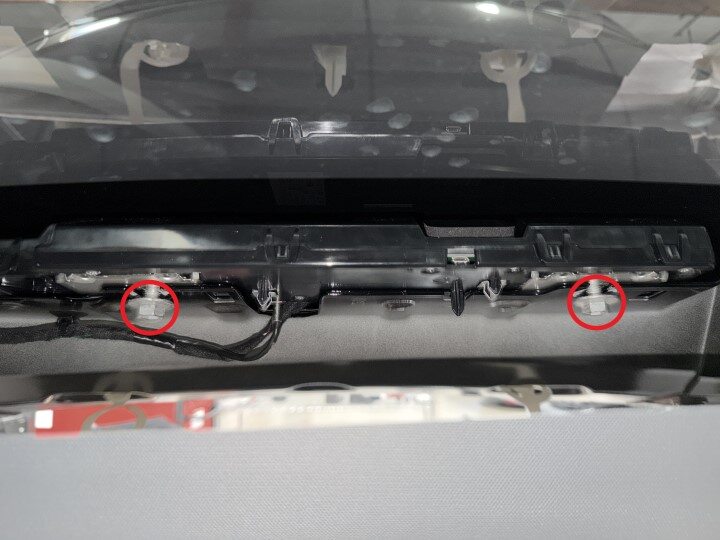

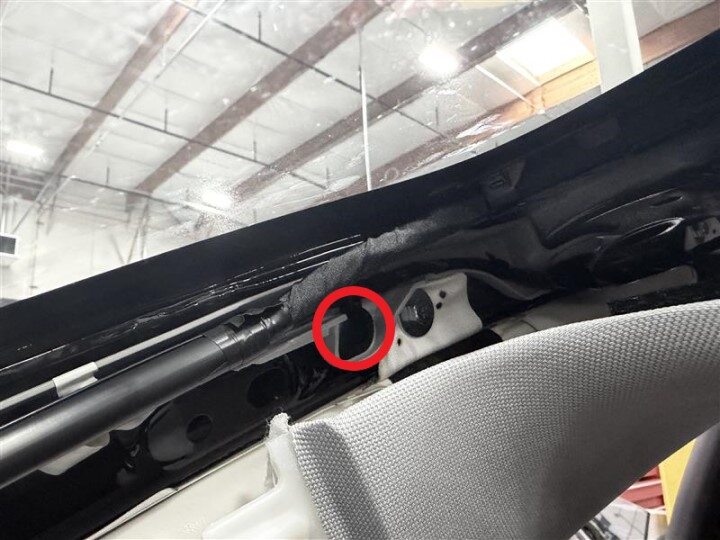

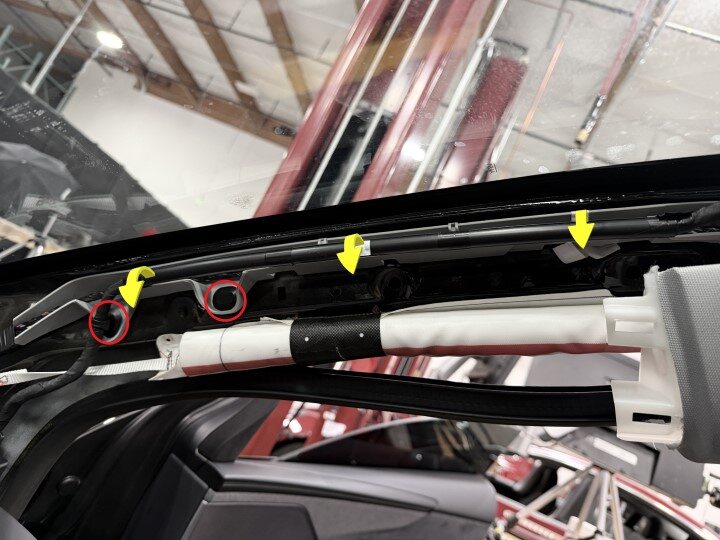

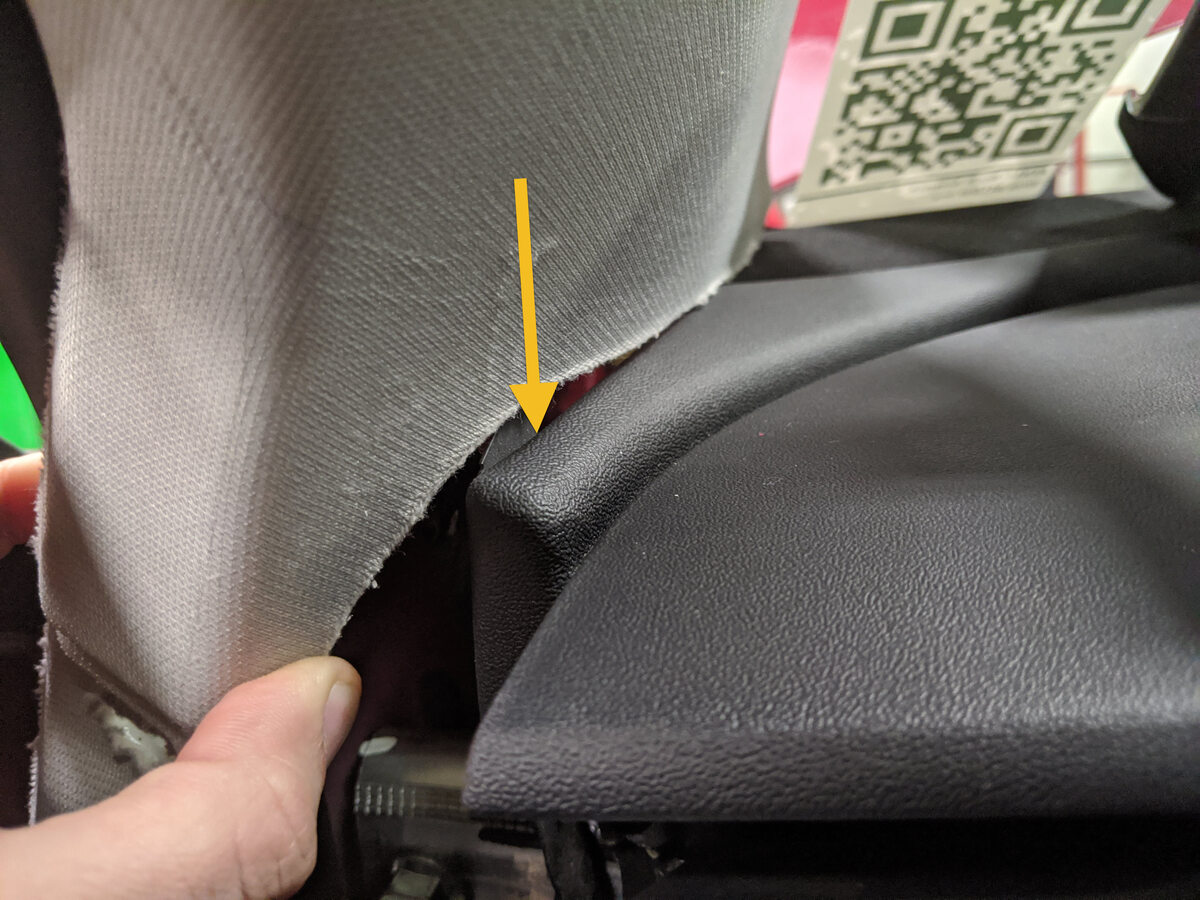

    注

    1x clip, 1x tab, Release upper clip then pull mid A pillar upward to remove



43. Remove clip securing LH lower A pillar trim

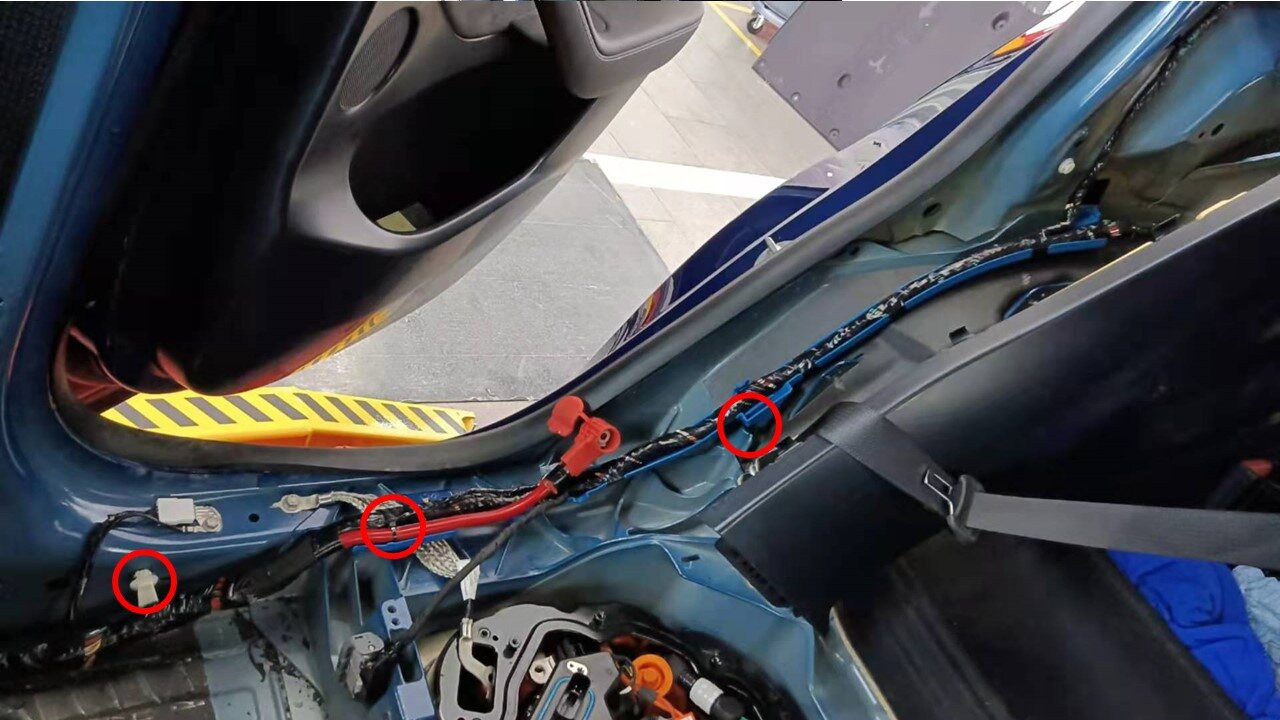

    注

    1x push clip

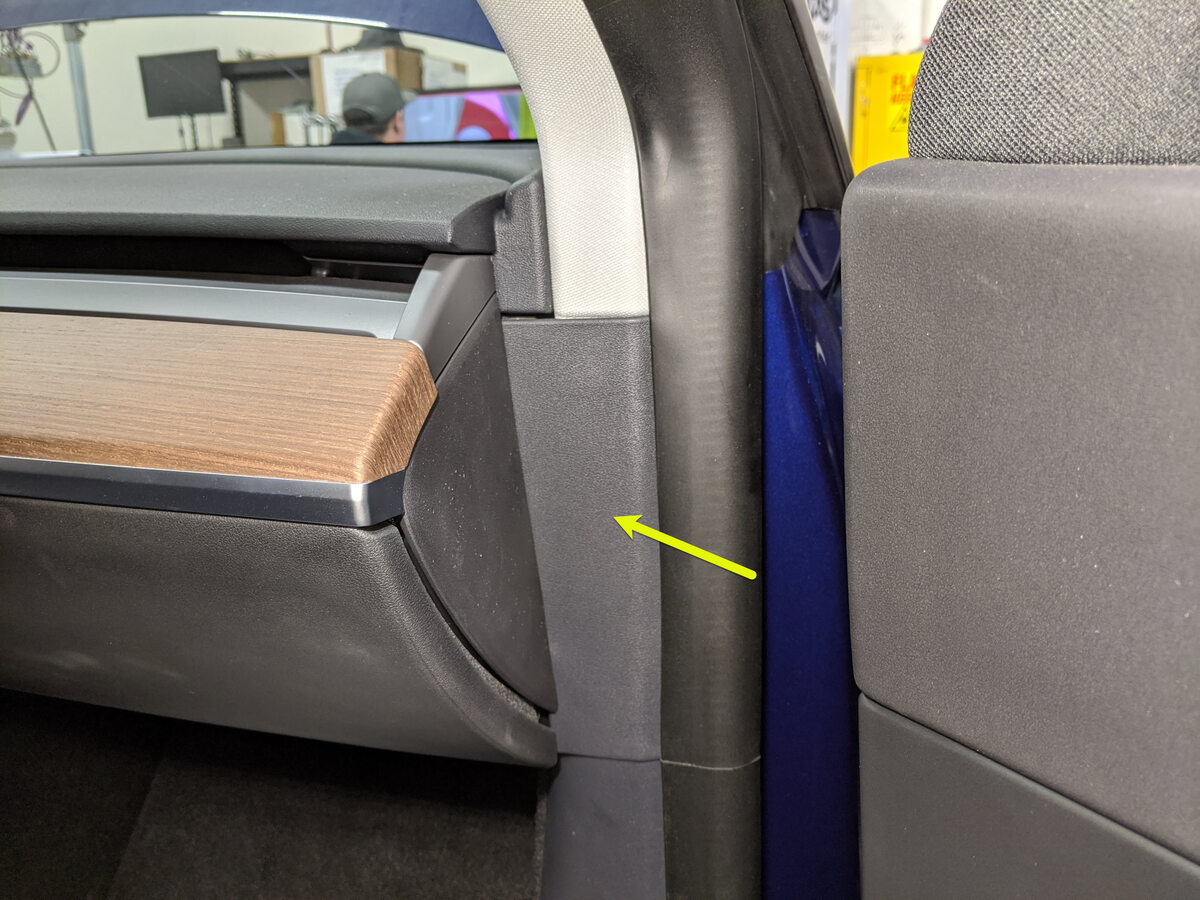

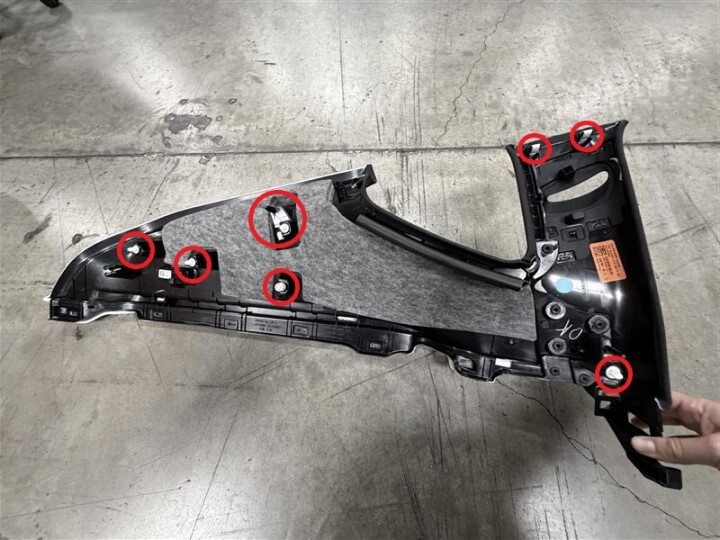

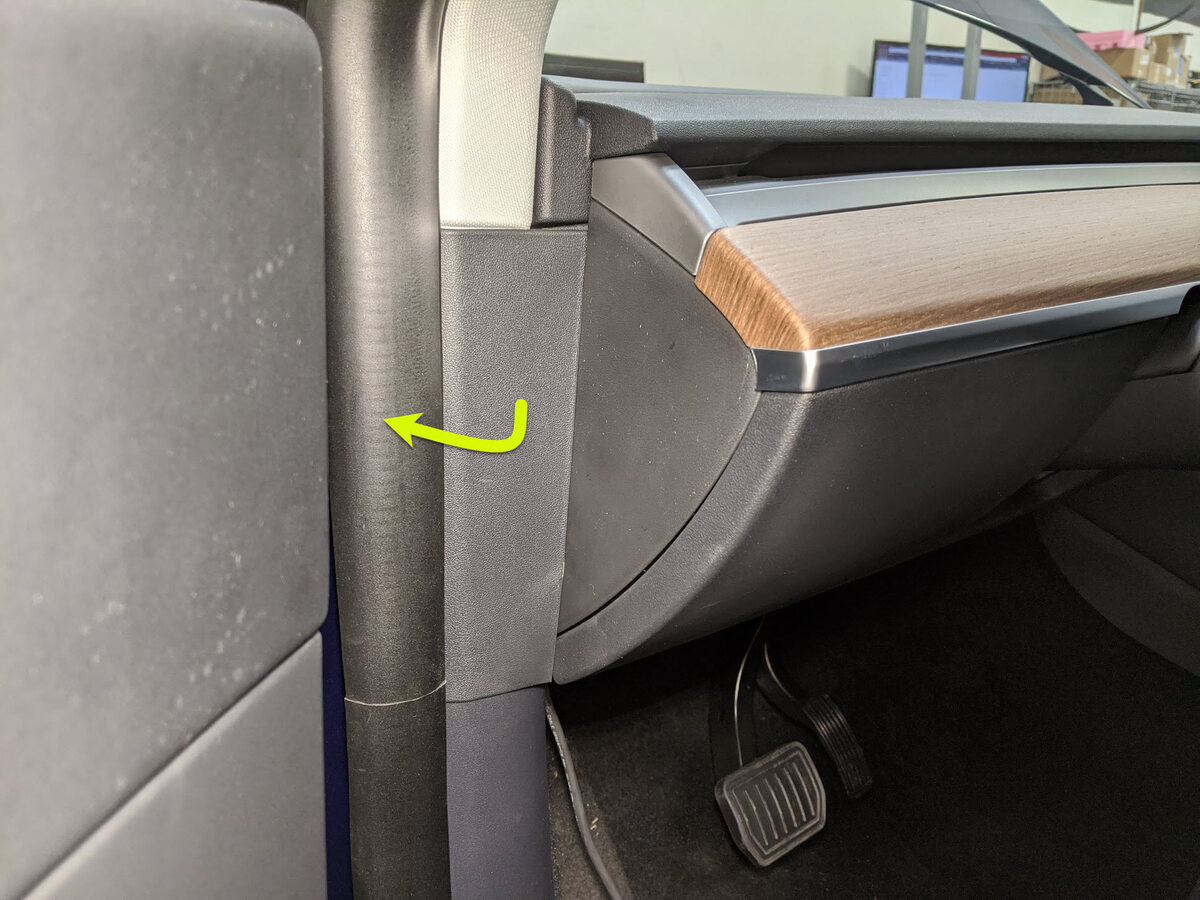

44. Remove LH lower A pillar trim
    注

    6x clips, 2 guide tabs, Pull rear of lower A pillar upward to release clip then pull rearward to release trim panel

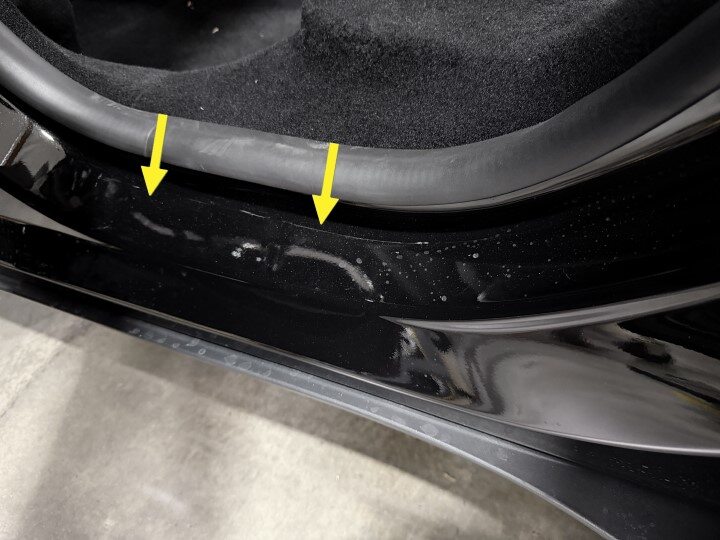

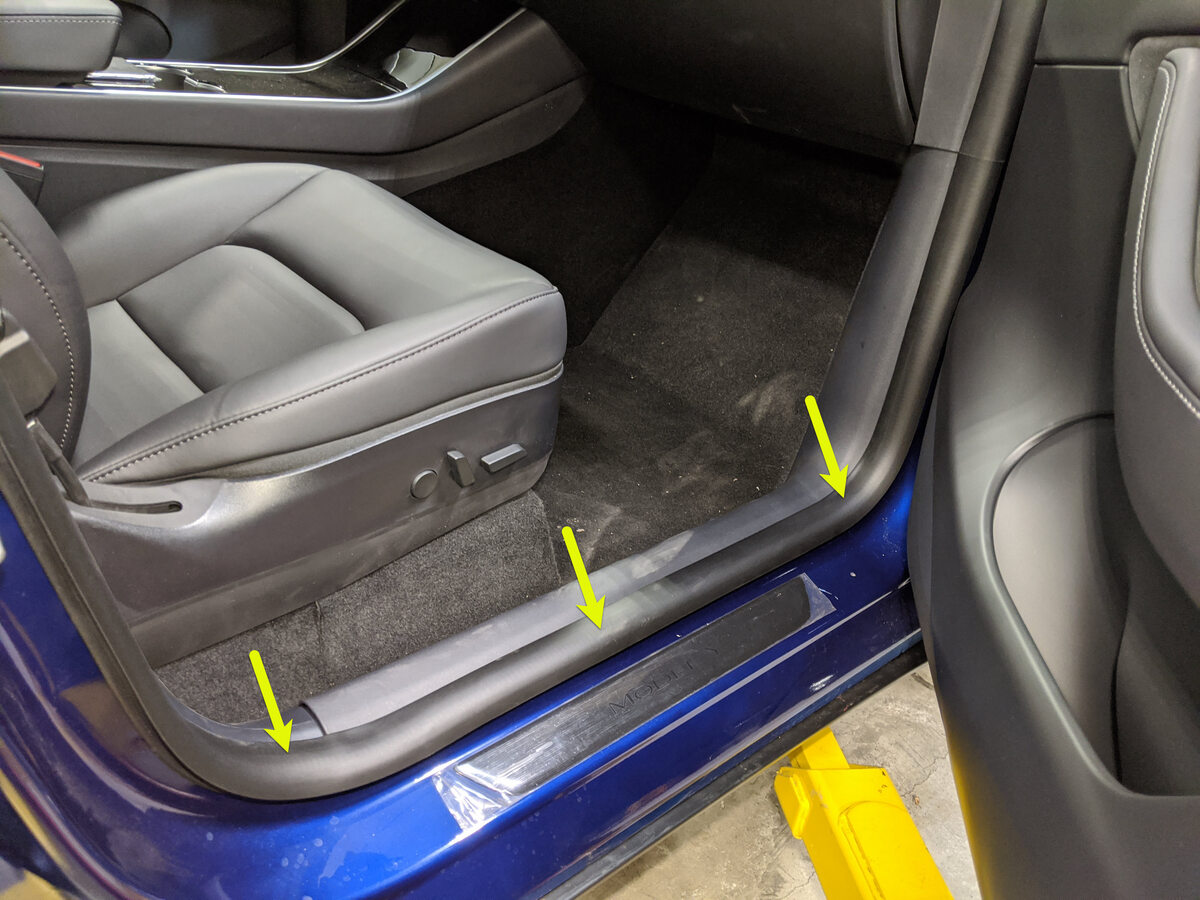

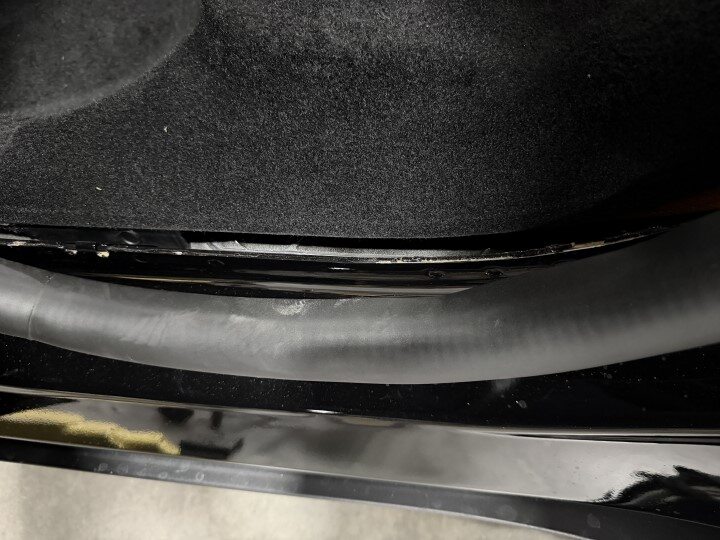

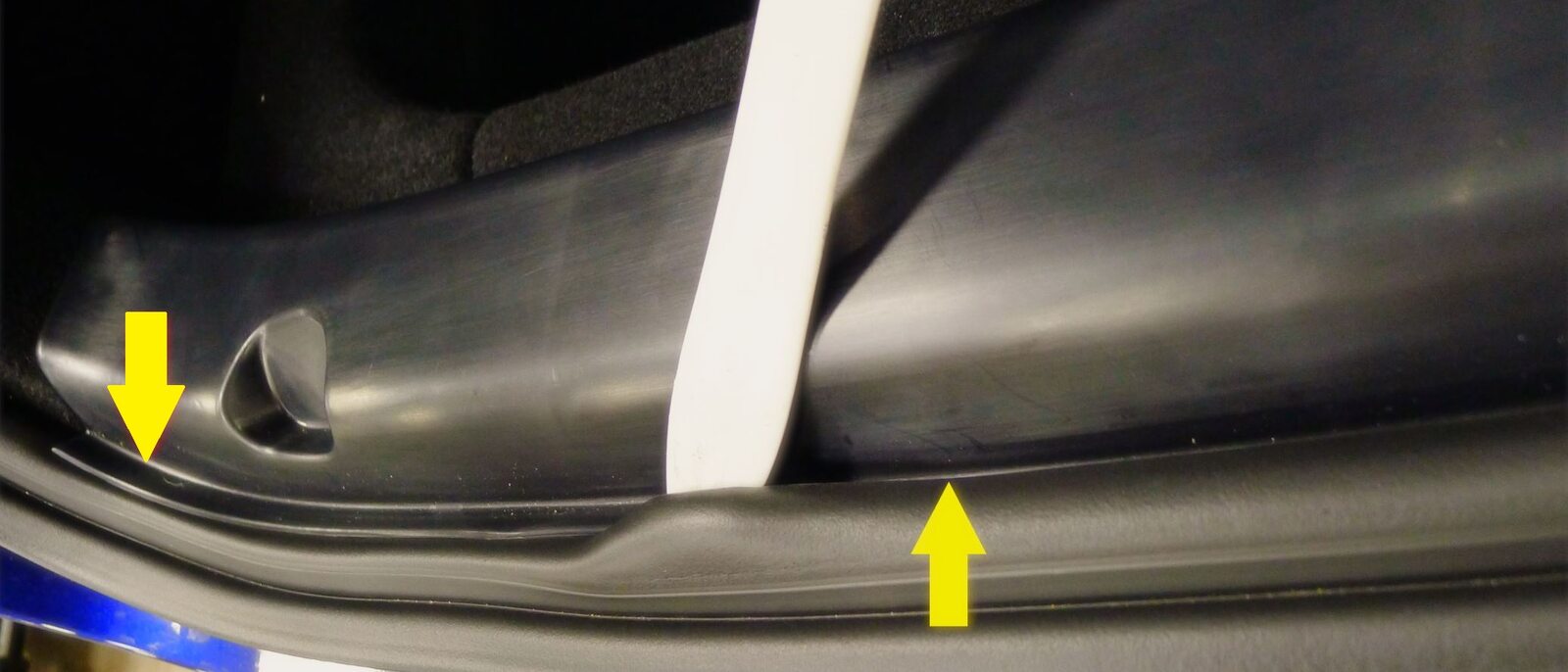

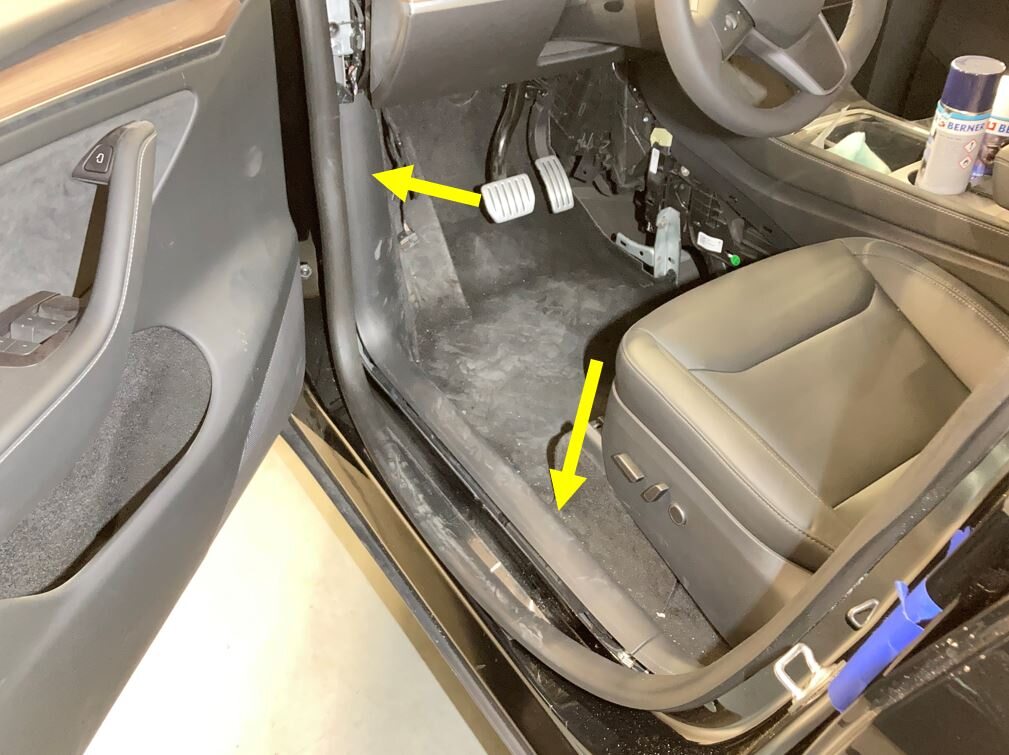

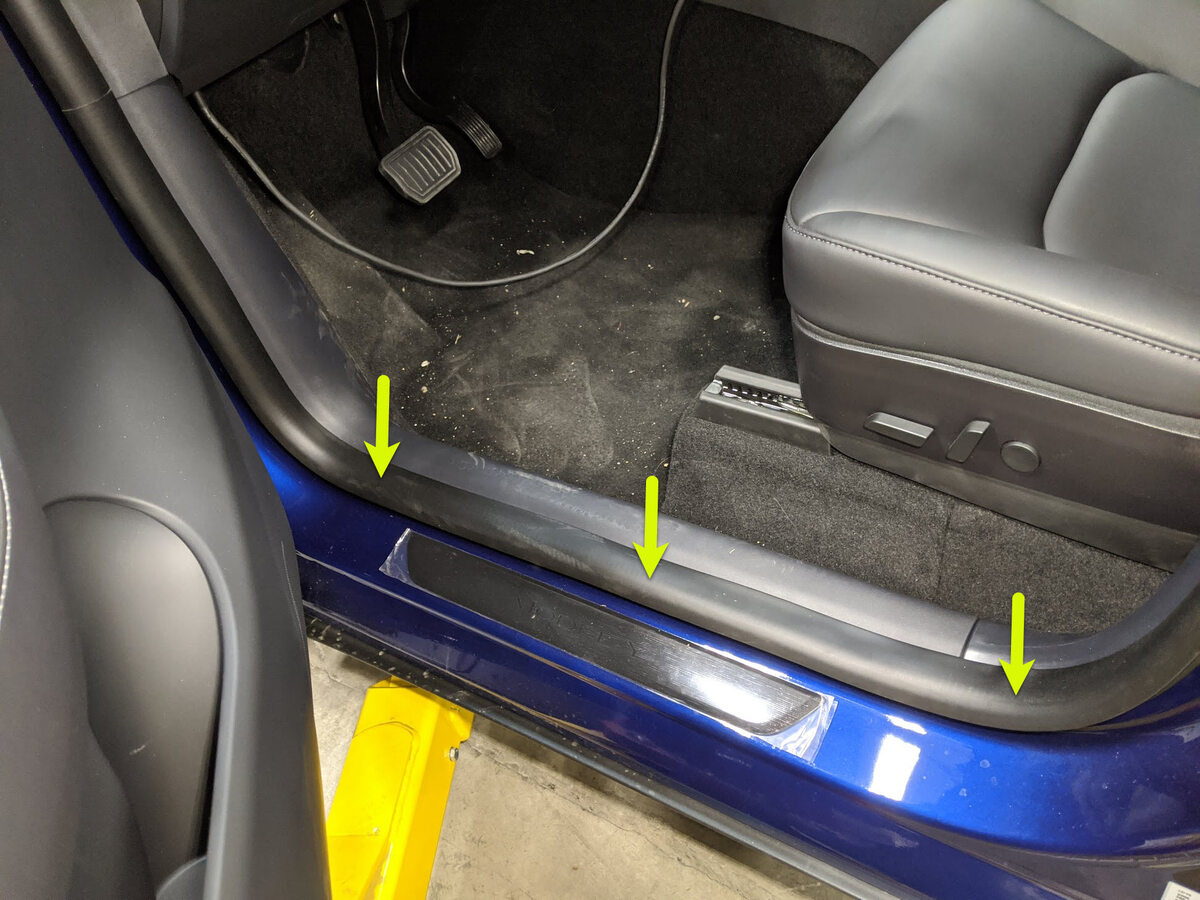

45. Partially release LH front primary door seal



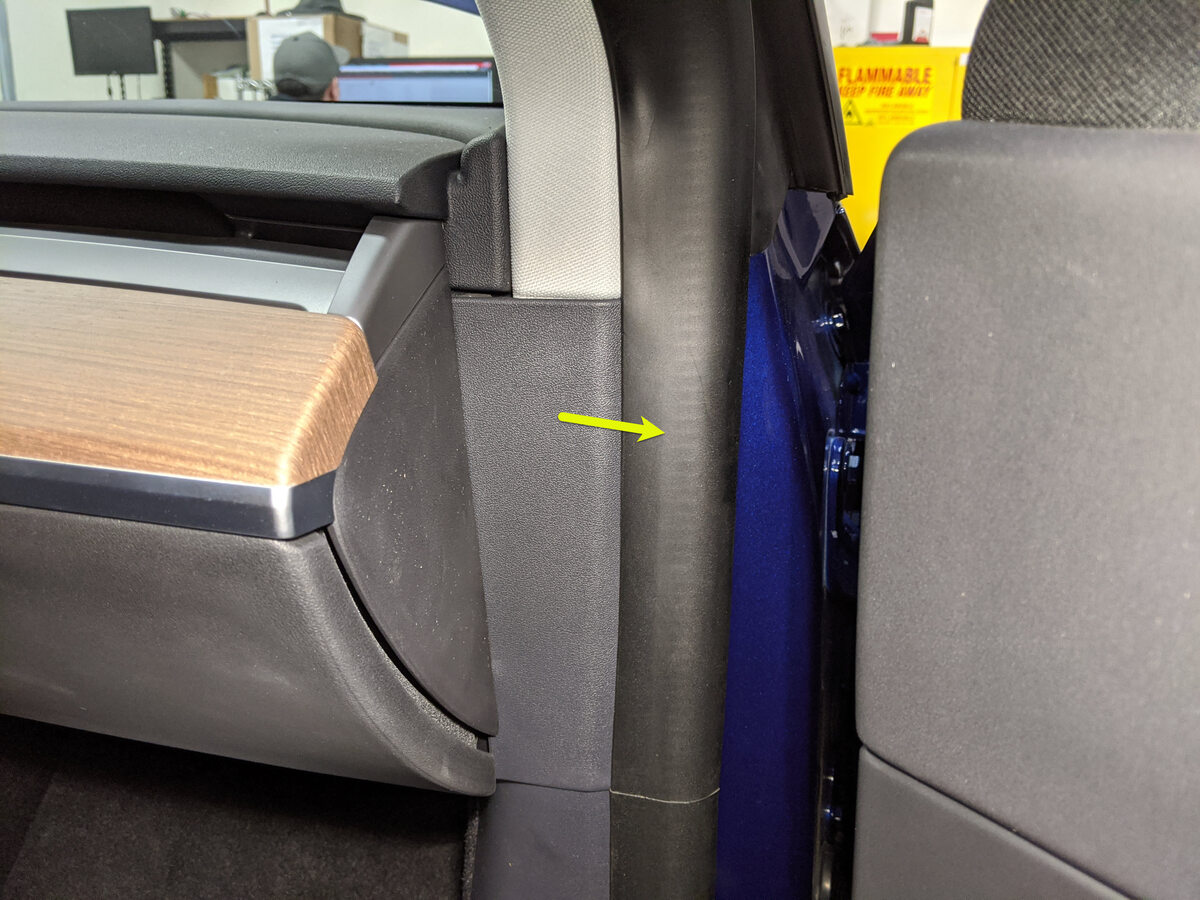

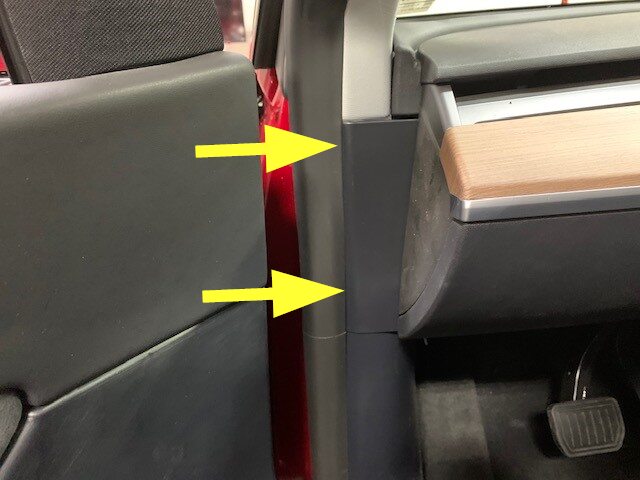

46. Remove RH mid A pillar assembly

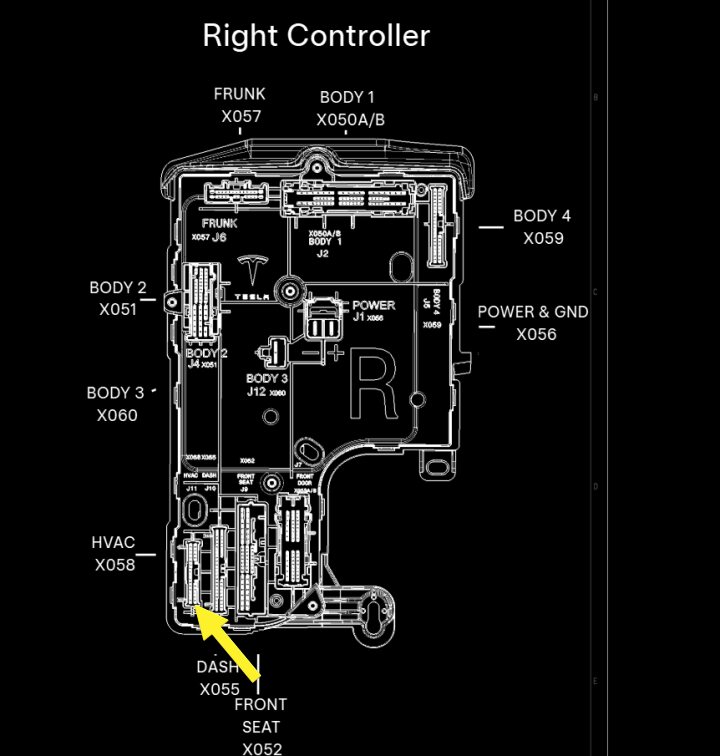

    注

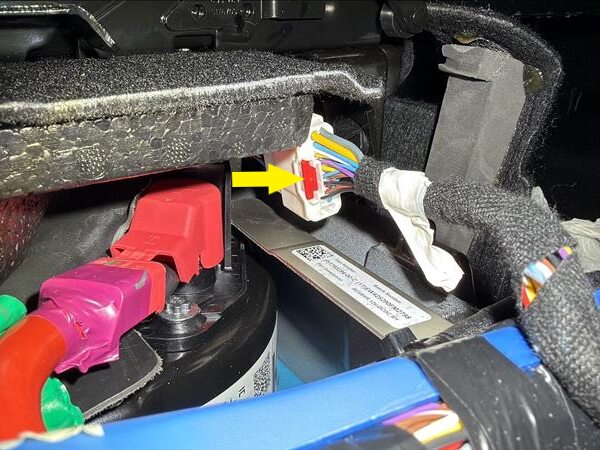

    1x clip, 1x tab, Release the upper clip then pull mid A pillar upward to remove

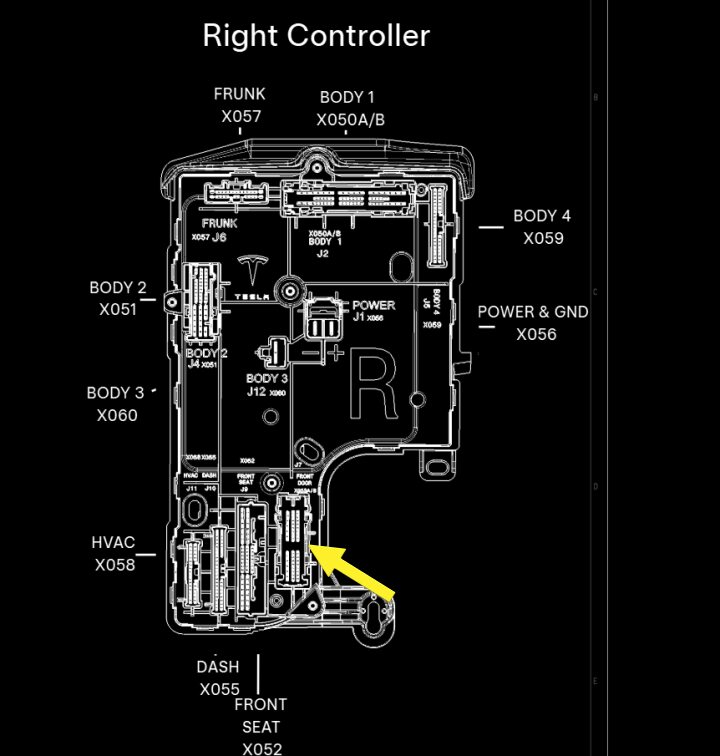

47. Remove clip securing RH lower A pillar trim

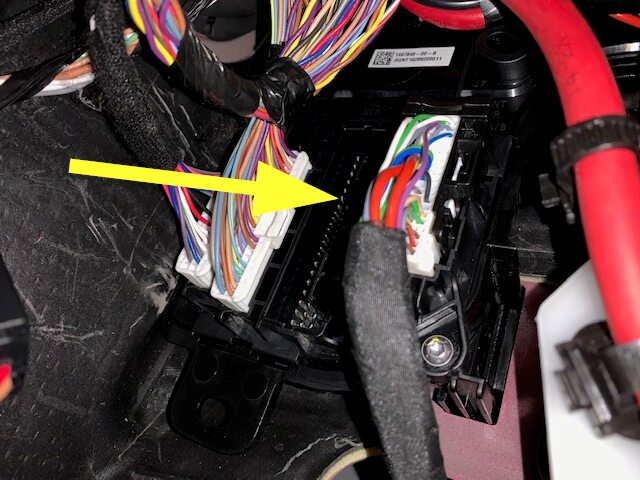

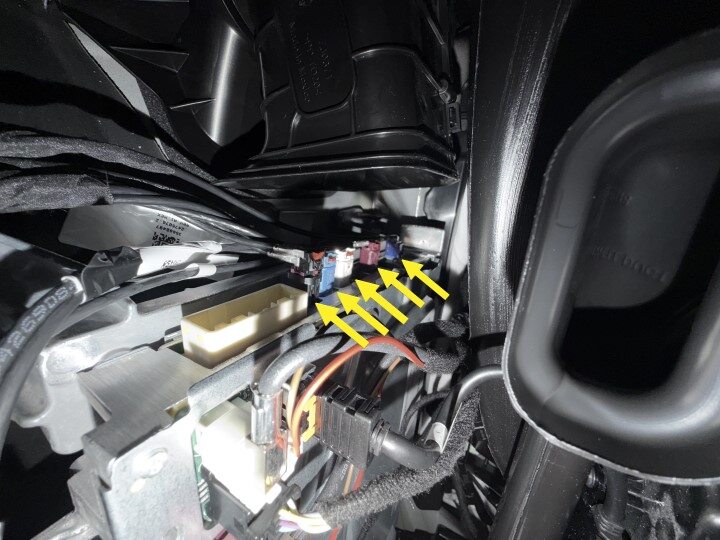

    注

    1x push clip



48. Remove RH lower A pillar trim to release seat harness.
    注

    6x clips, 2 guide tabs, Pull rear of lower A pillar upward to release clip then pull rearward to release trim panel



49. Partially release RH front primary door seal

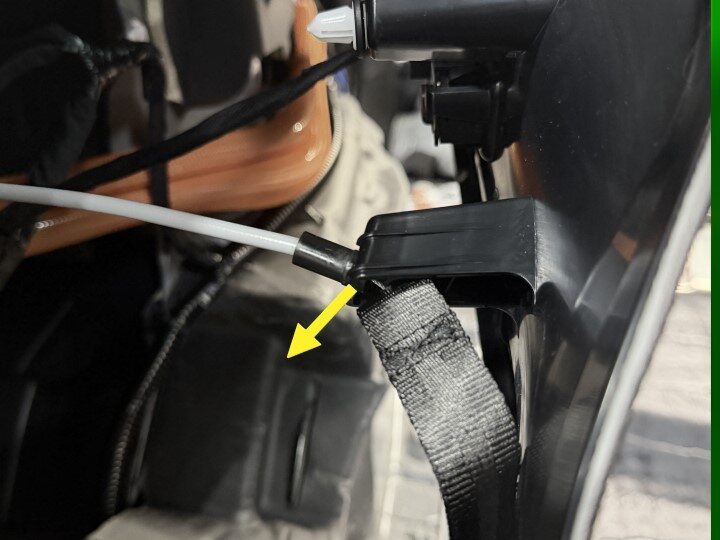

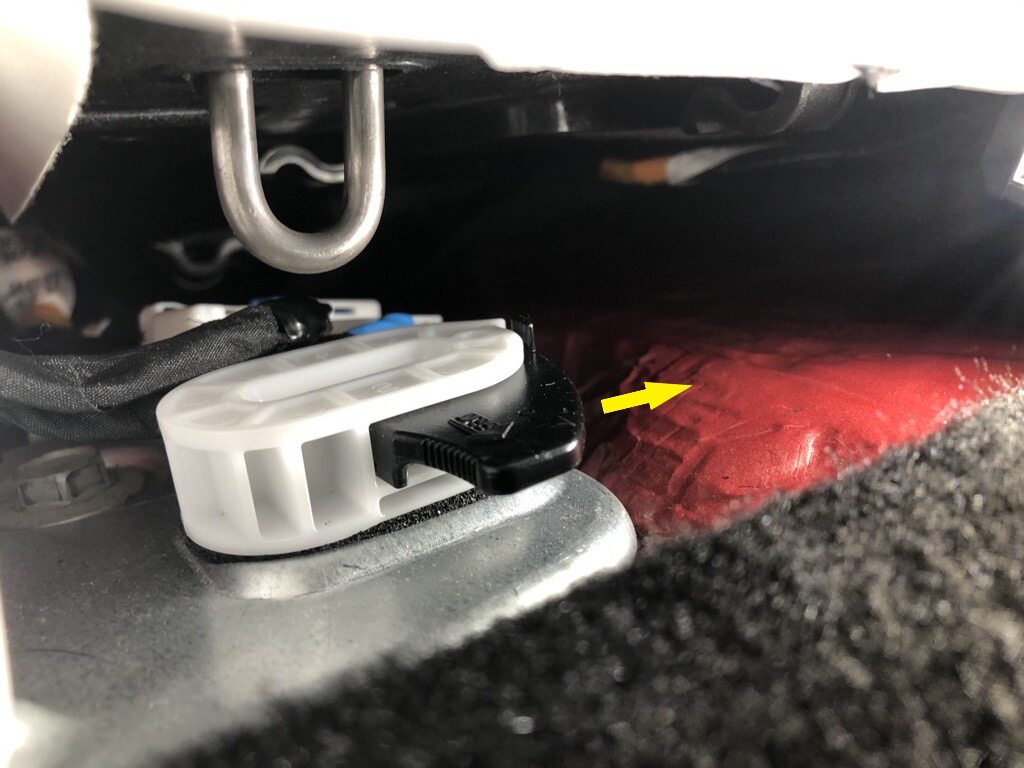

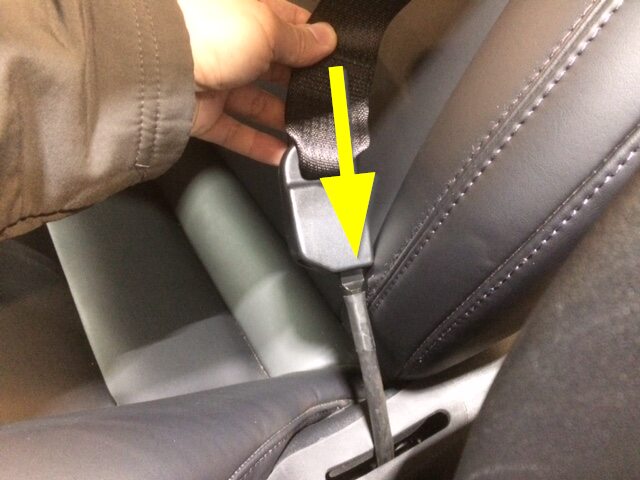

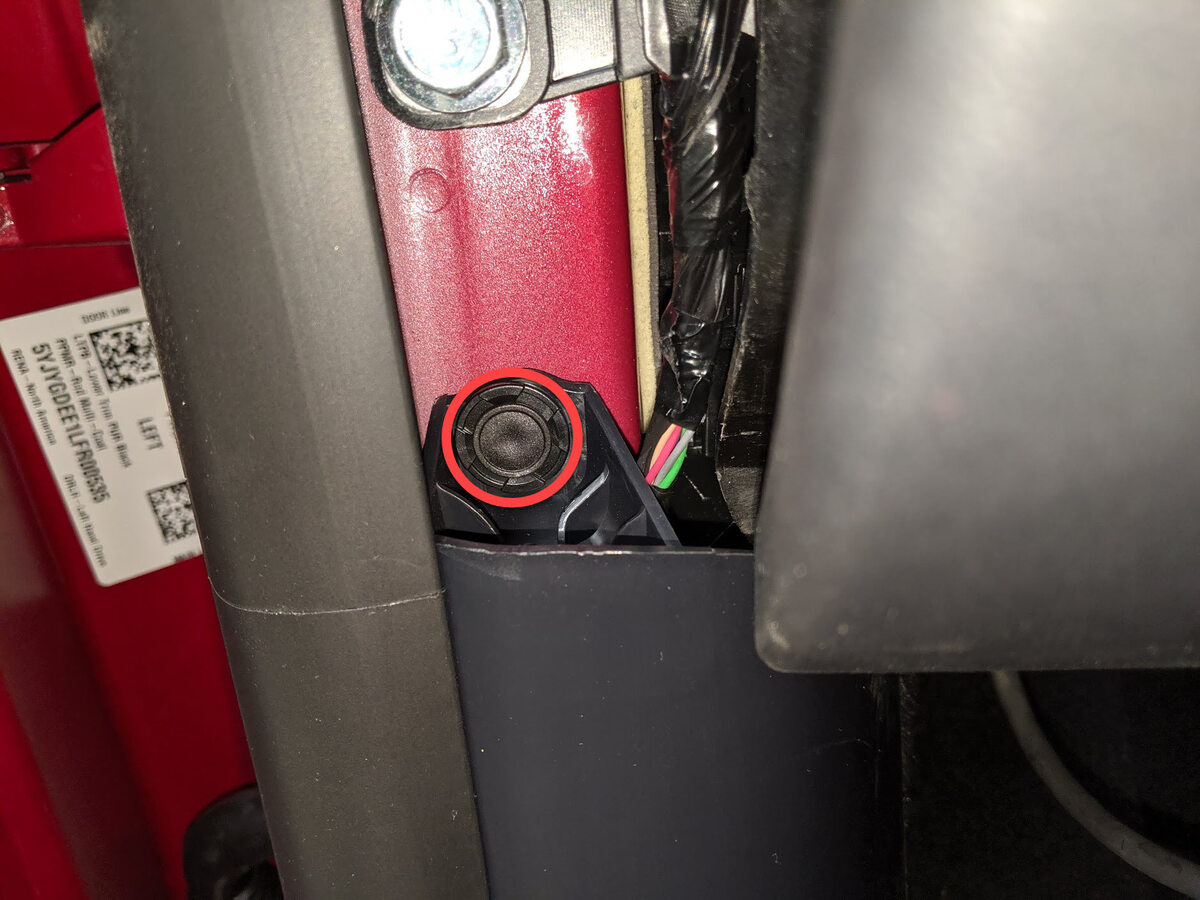

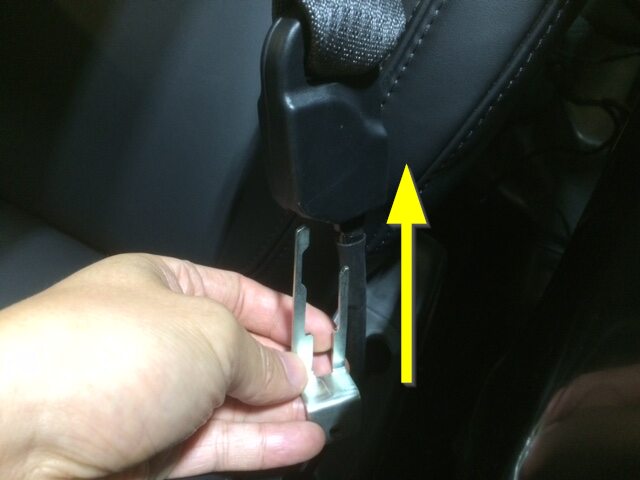

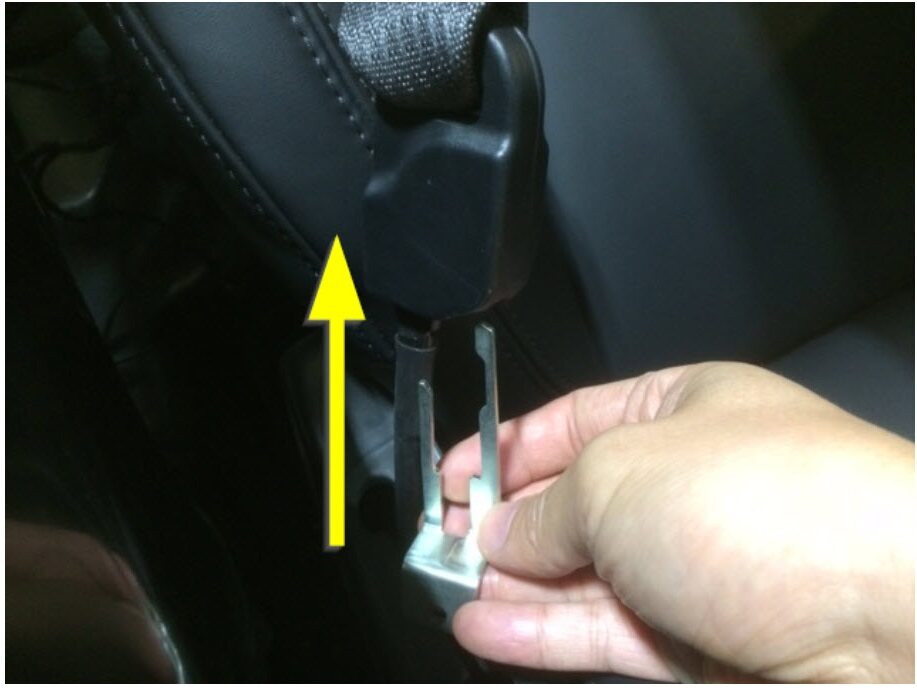

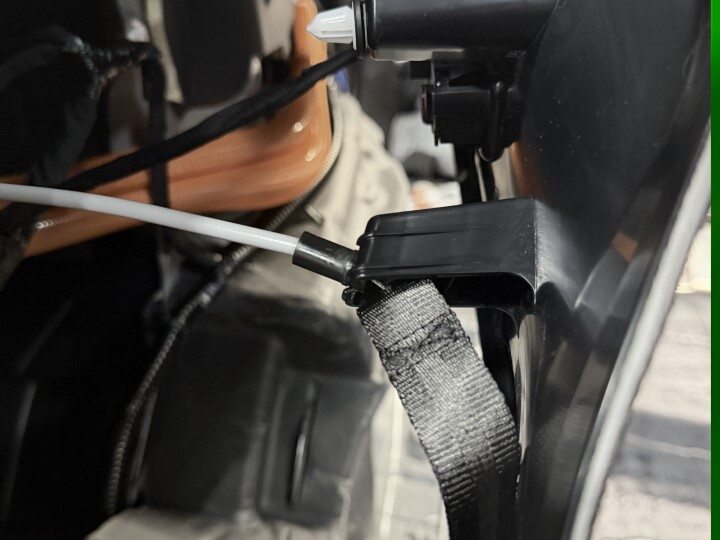

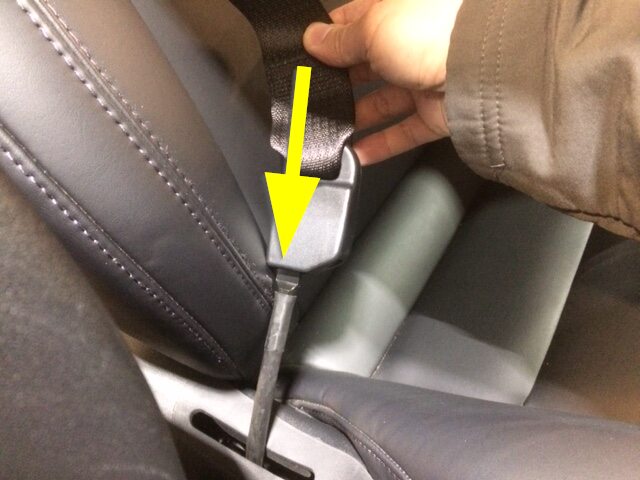

50. Release RH front seat belt retractor from pretensioner
    注

    Insert special removal tool into the bottom of the retractor to release



51. Release LH front seat belt retractor from pretensioner
    注

    Insert seat belt tool into the bottom of the retractor to release

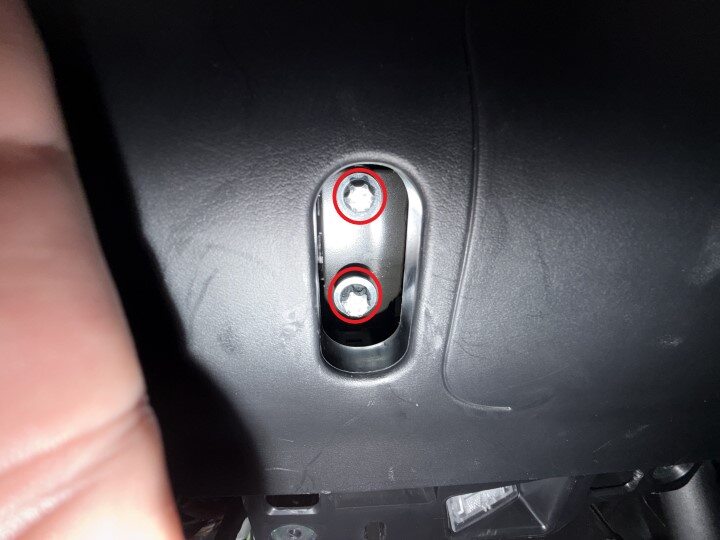

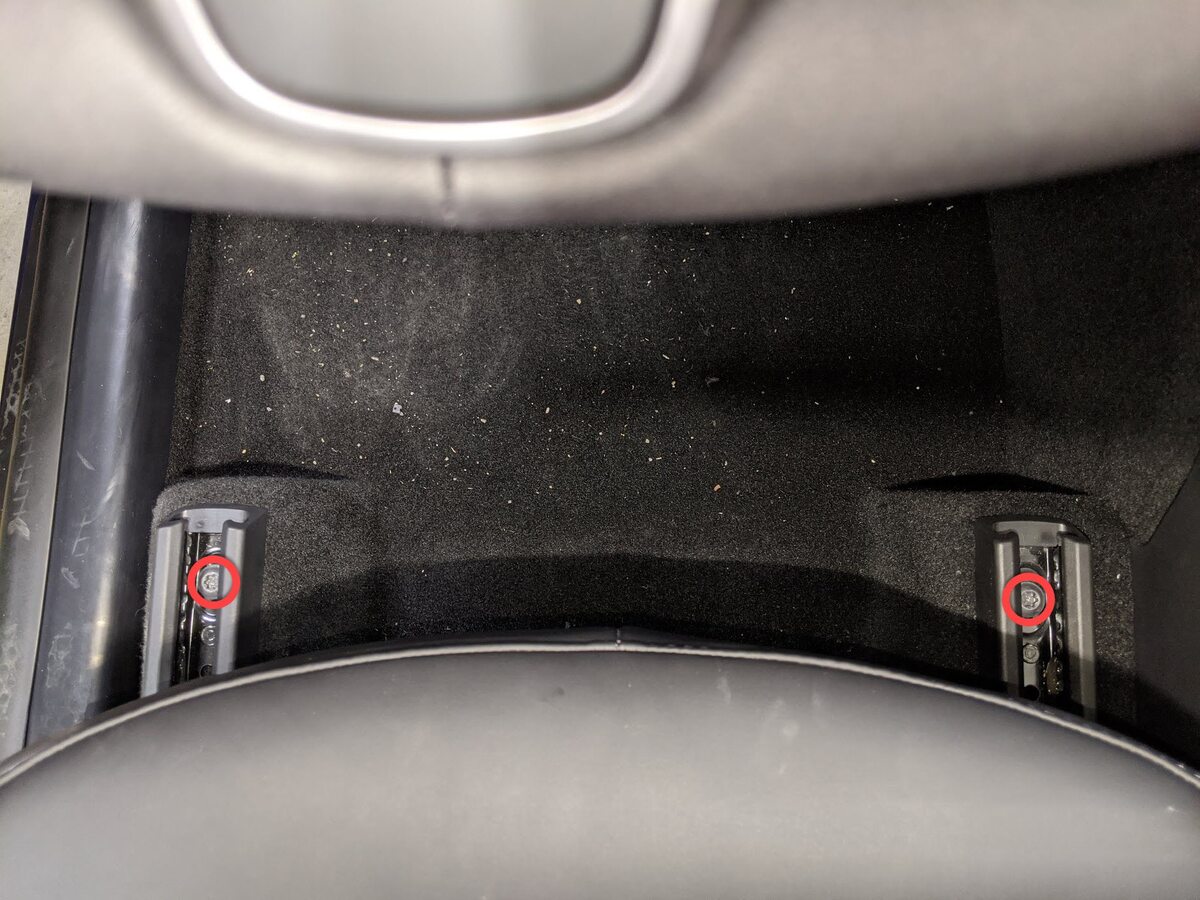

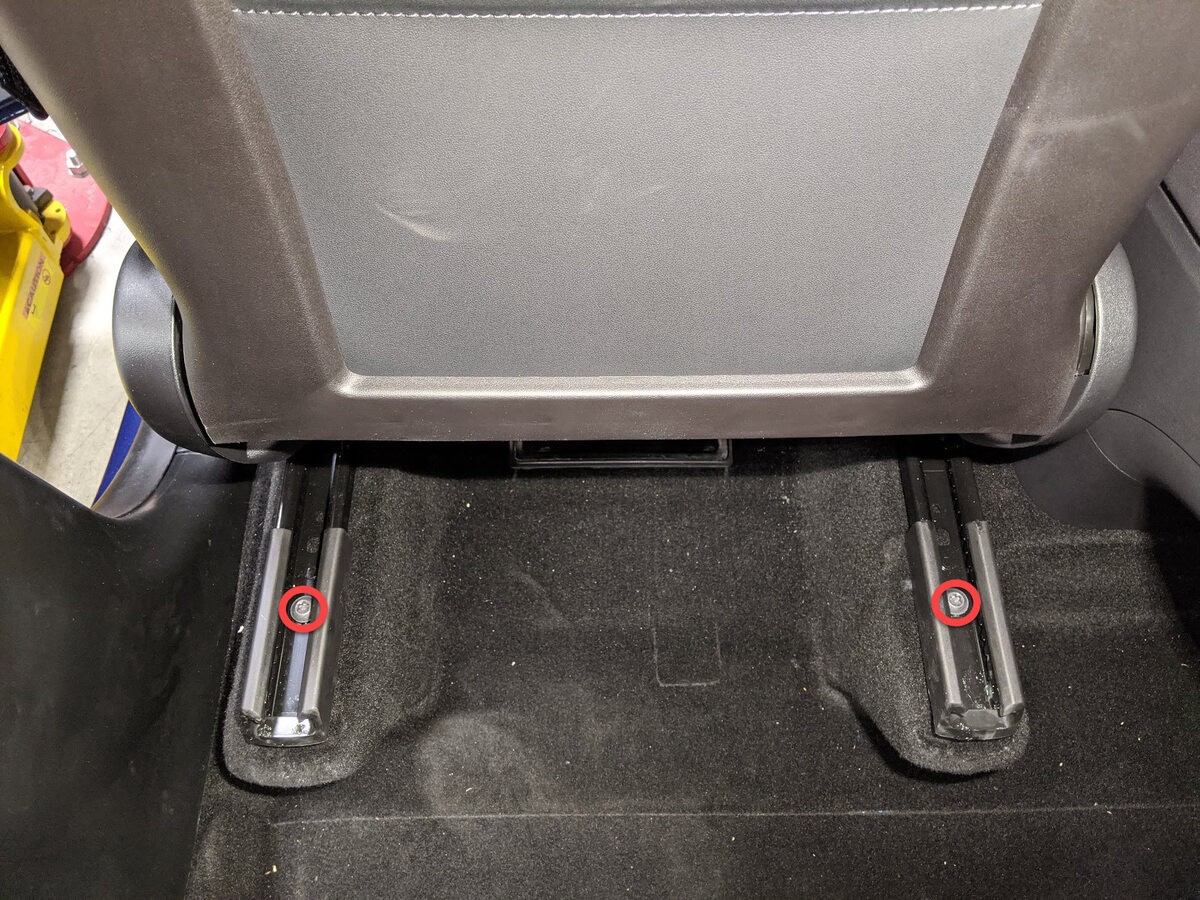

52. Remove LH front seat rear fasteners
    注

    2x patch bolts, TP45, 33.5 Nm, Discard after removal



53. Move LH front seat backward
    注

    Ensure profile is saved to allow seat position to be restored



54. Remove LH front seat front fasteners
    注

    2x patch bolts, TP45, 33.5 Nm, Discard after removal

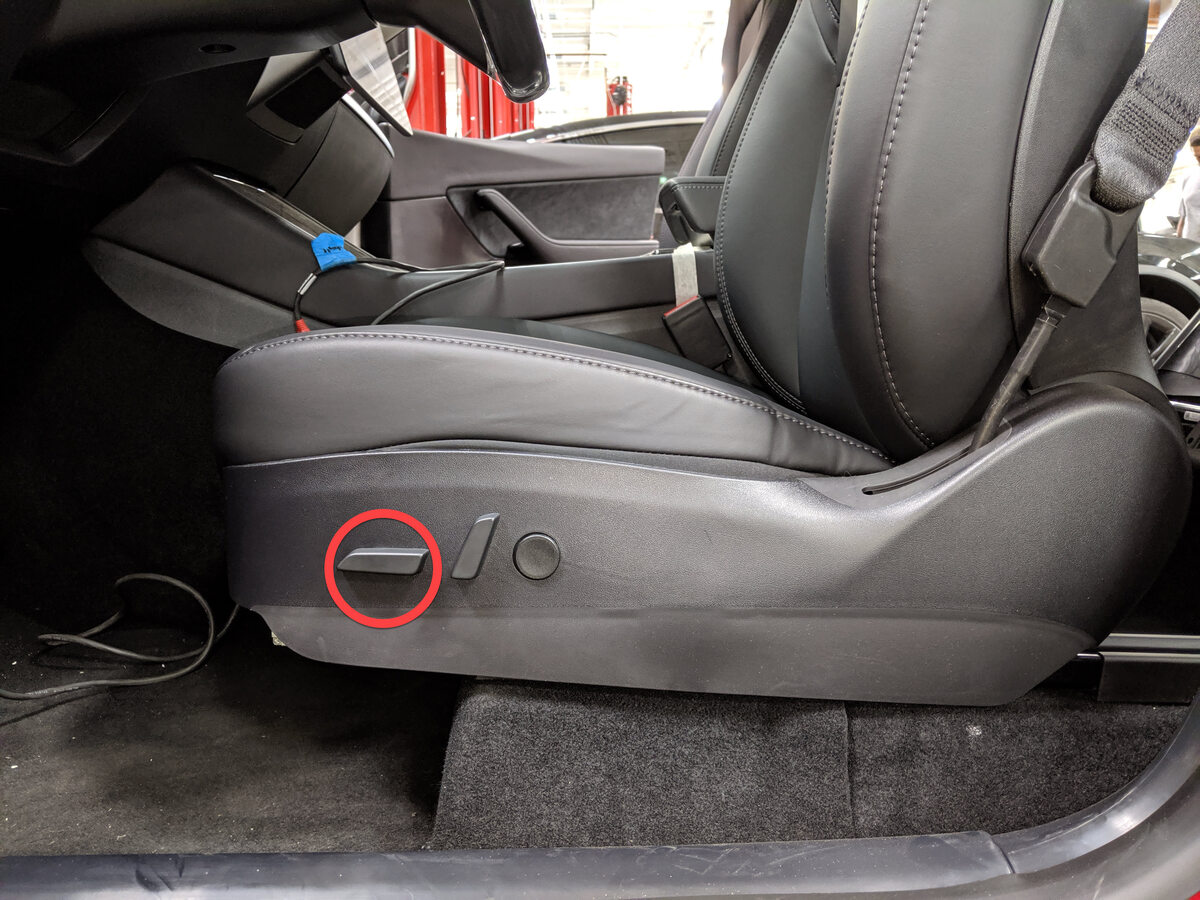

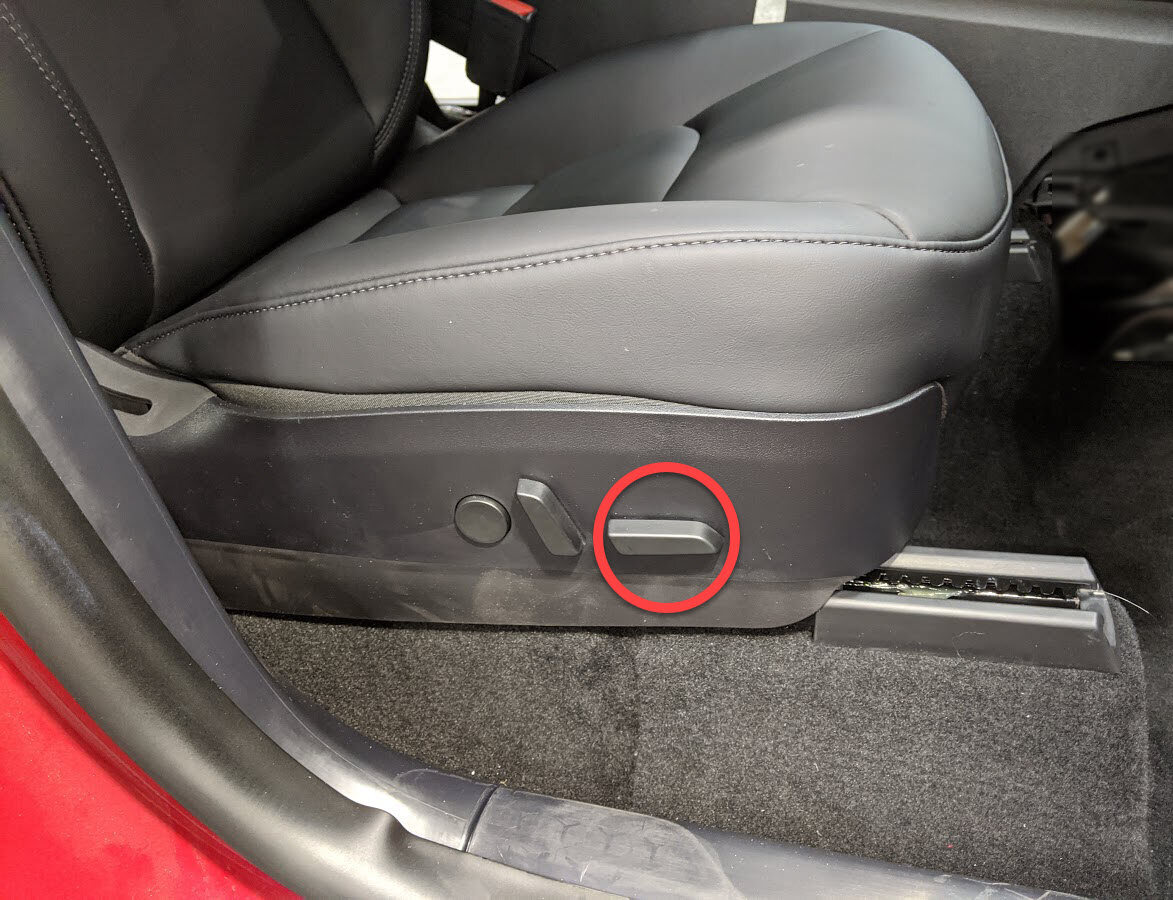

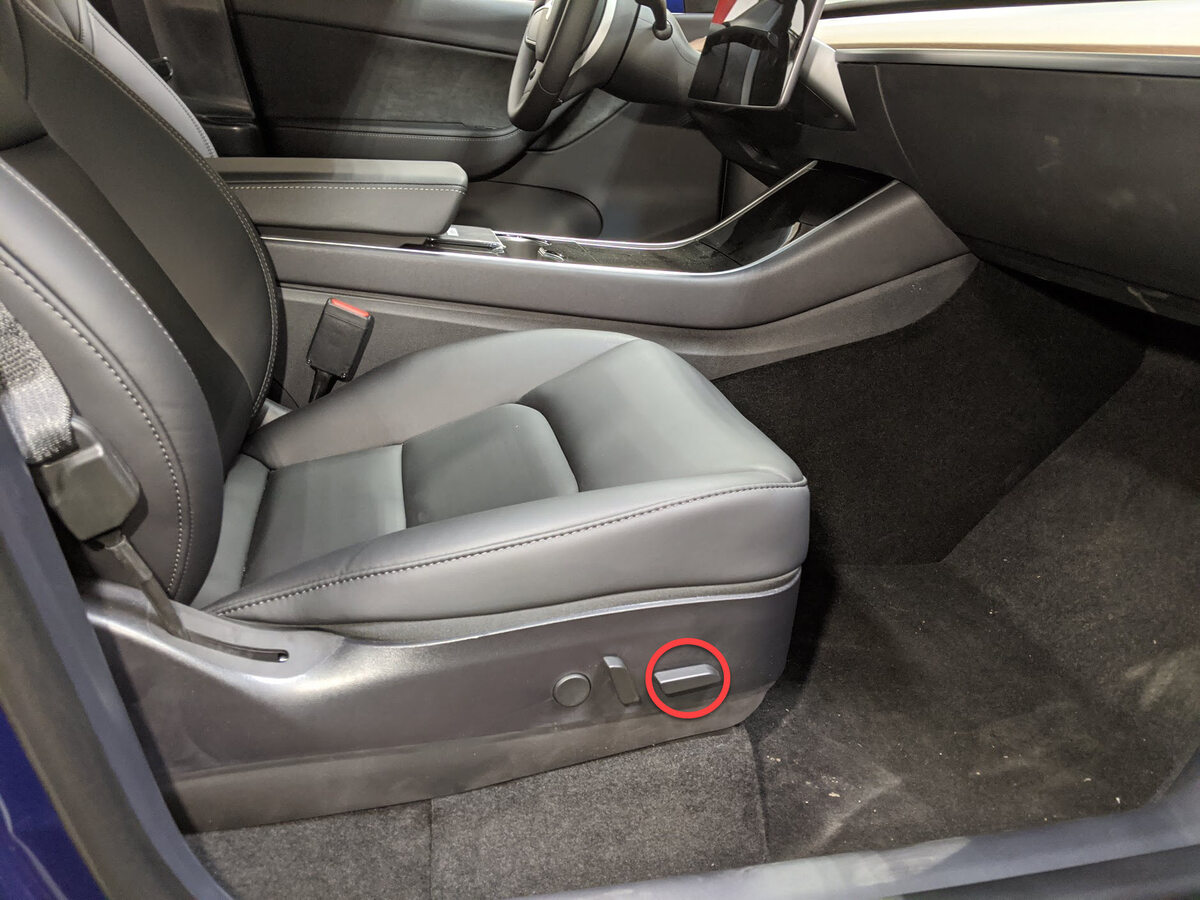

55. Adjust position of LH front seat for easy removal
    注

    Move seat to middle of track at most upright position



56. Remove RH front seat rear fasteners
    注

    2x patch bolts, TP45, 33.5 Nm, Discard after removal



57. Move RH front seat backward



58. Remove RH front seat front fasteners
    注

    2x patch bolts, TP45, 33.5 Nm, Discard after removal



59. Adjust position of RH front seat for easy removal
    注

    Move seat to middle of track at most upright position

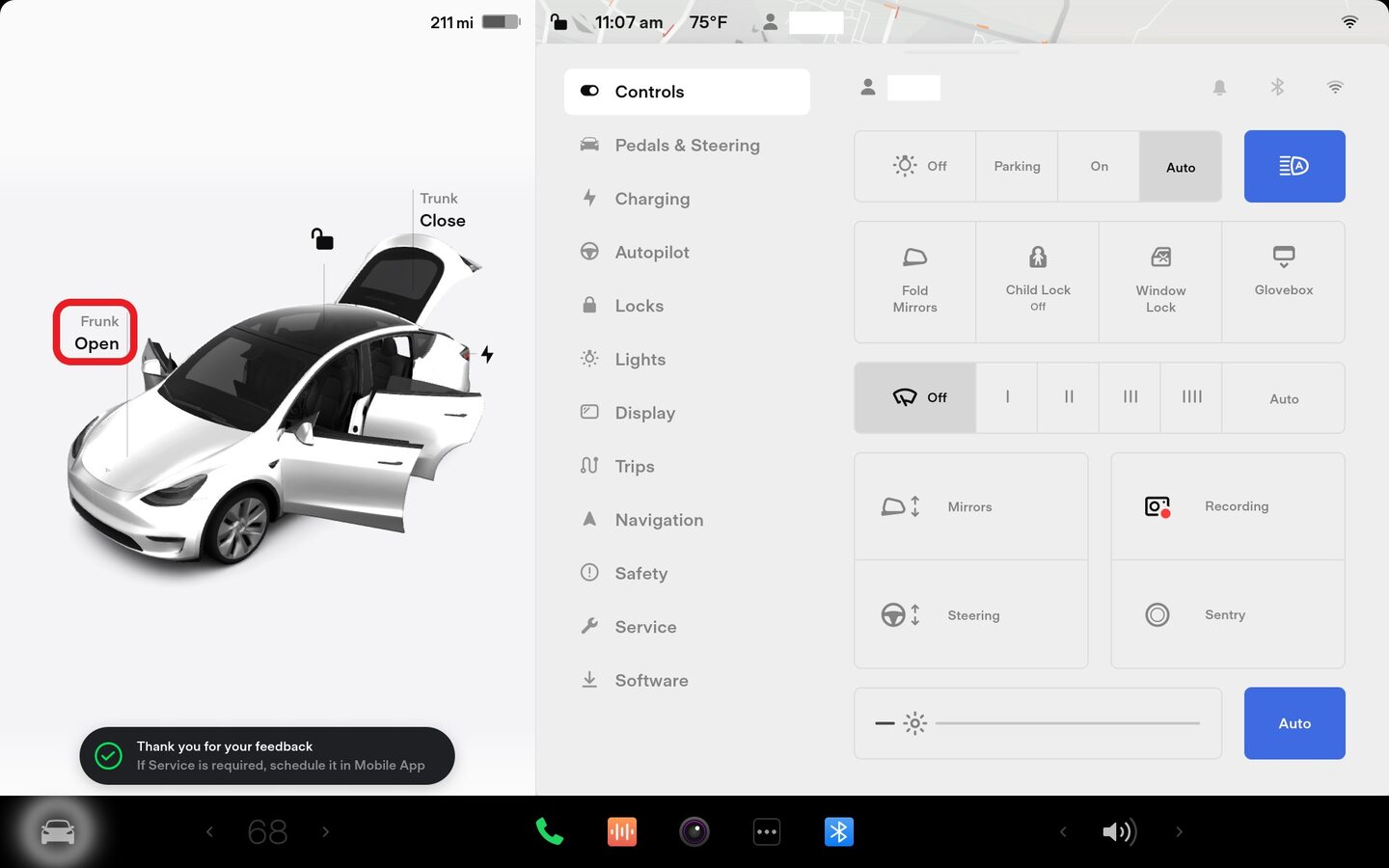

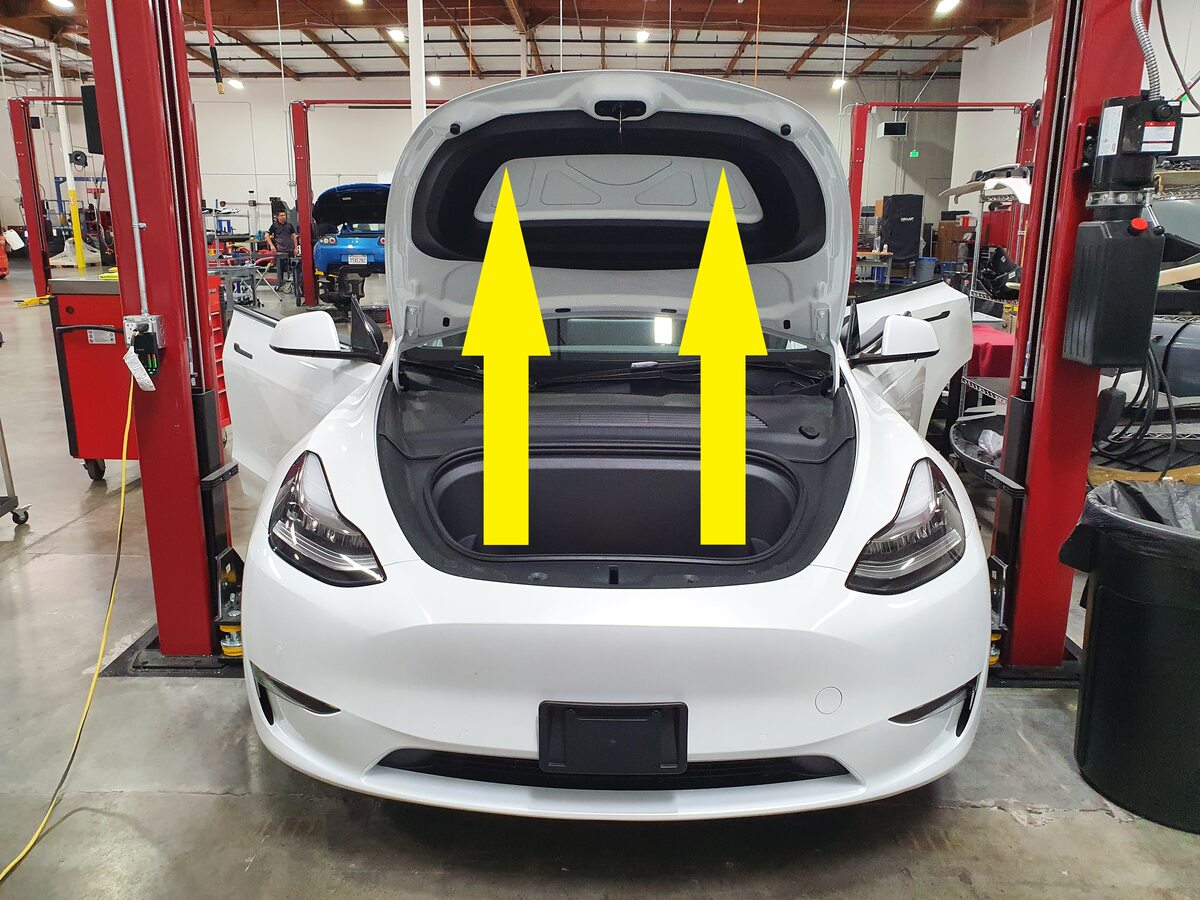

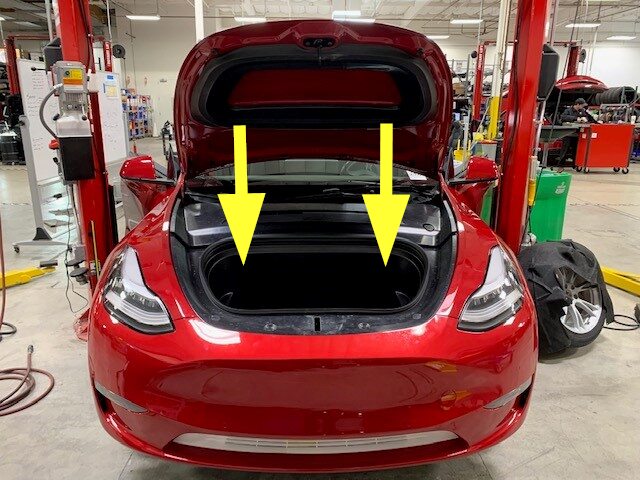

60. Open hood

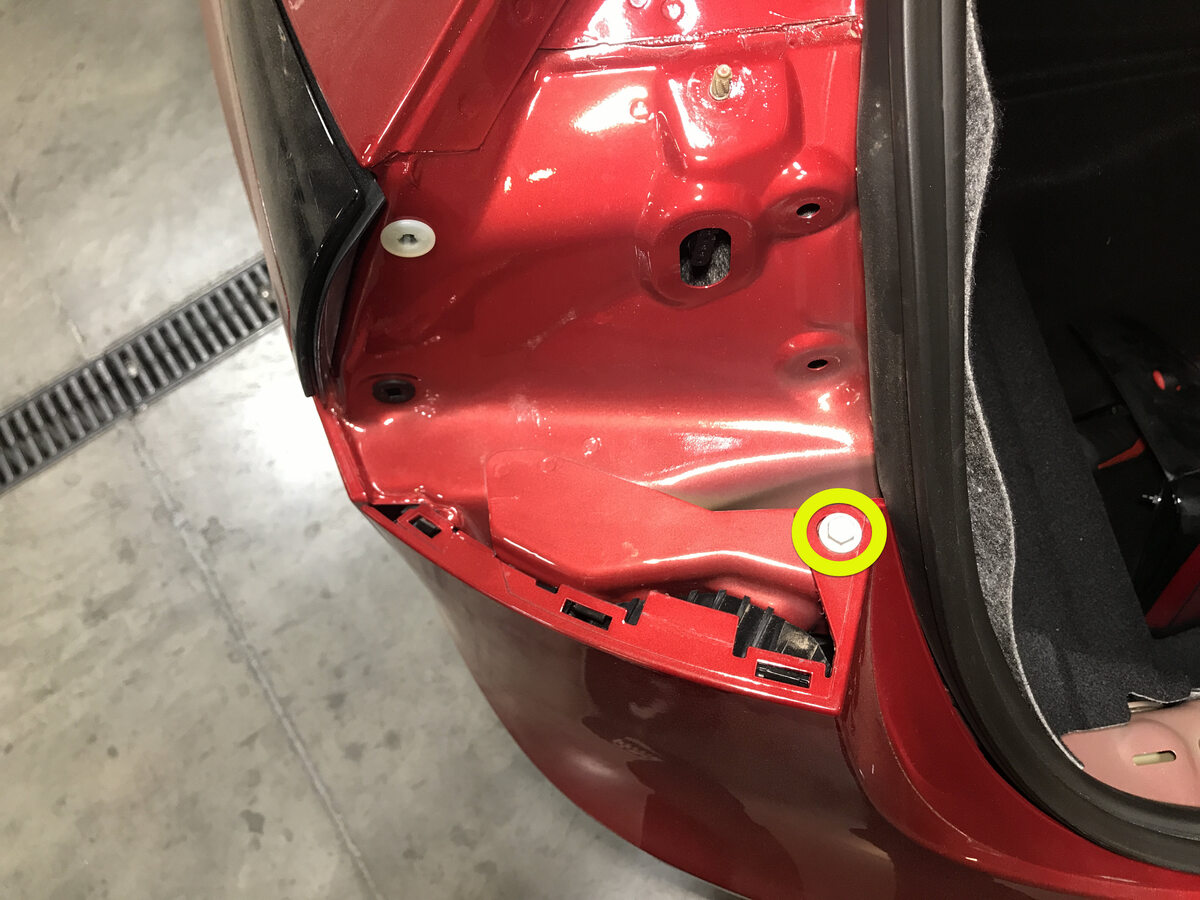

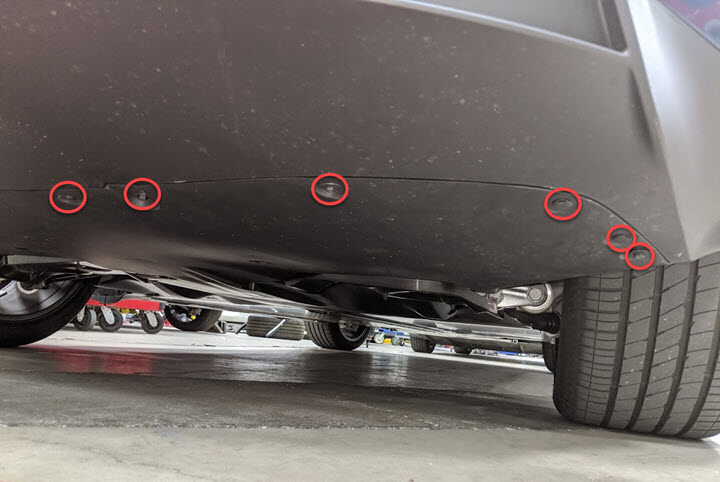

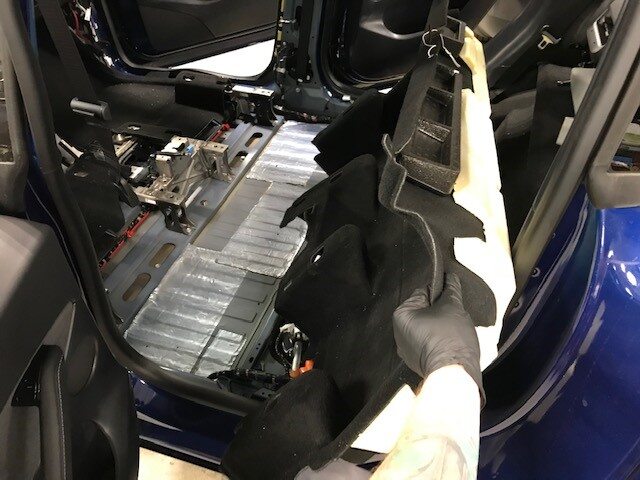

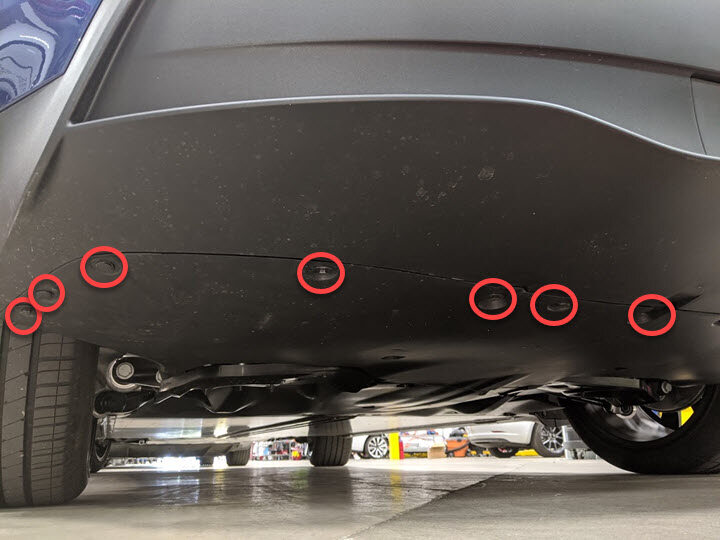

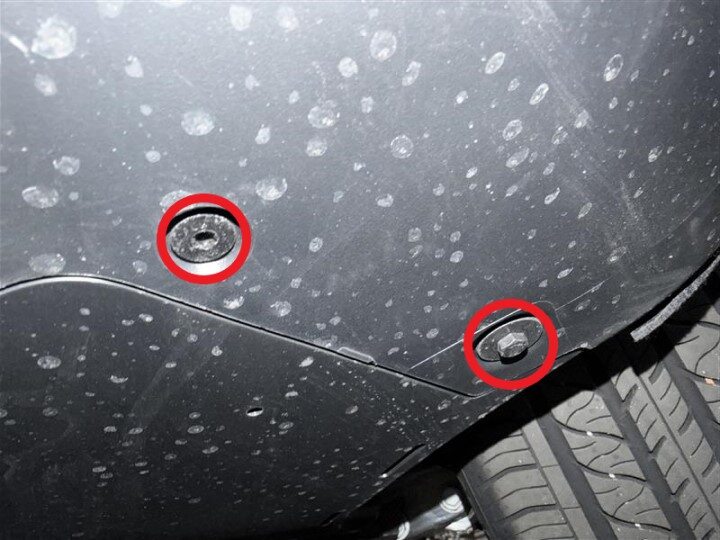

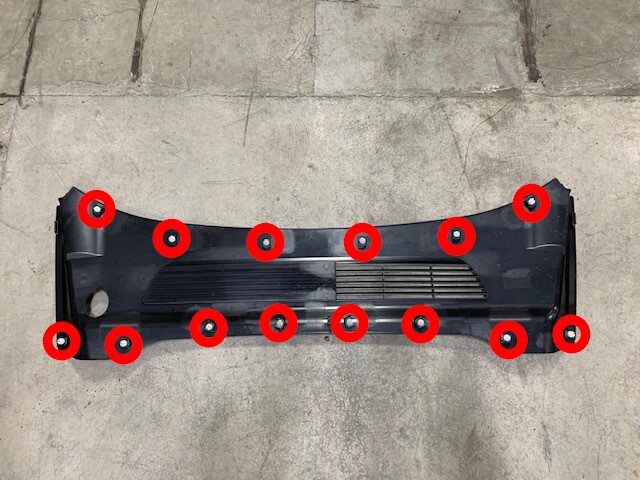

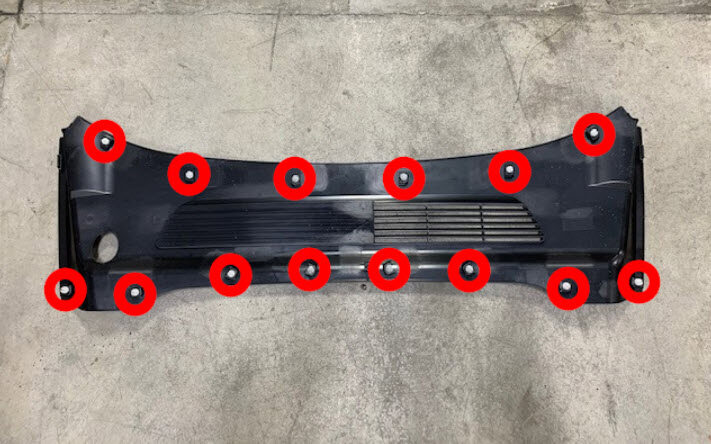

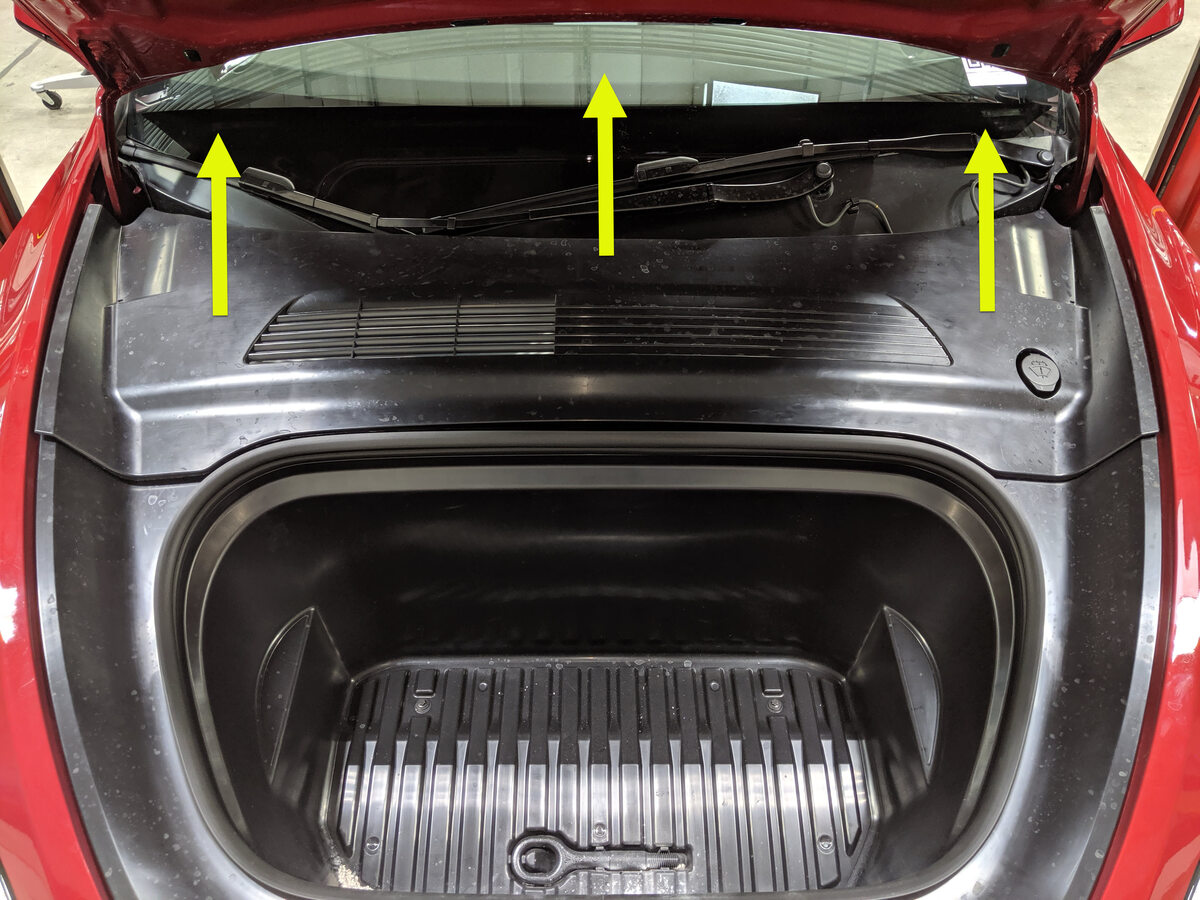

61. Remove rear apron
    注

    14x clips

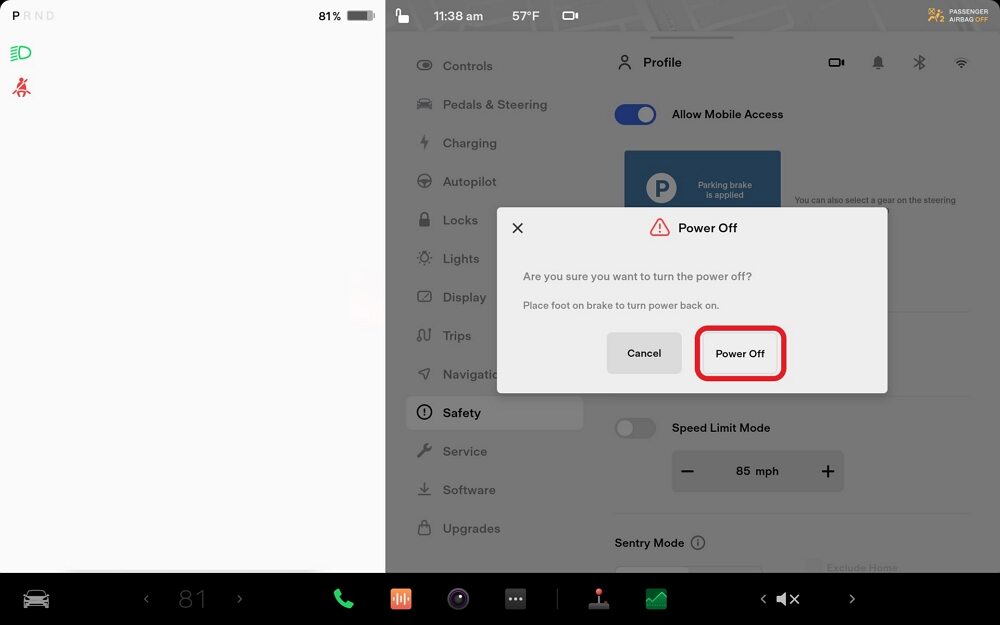

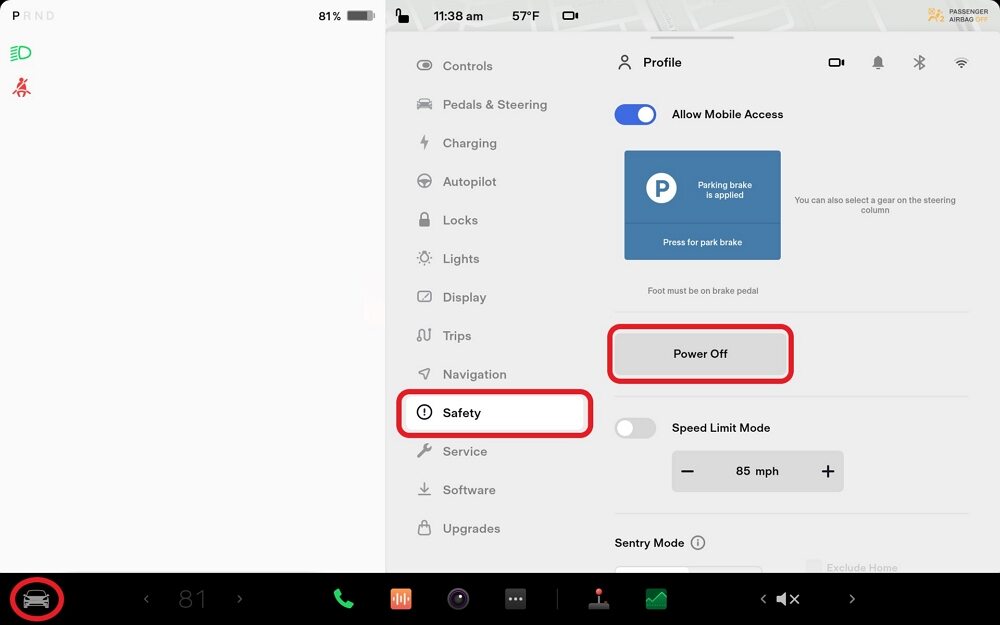

62. Power off vehicle from center display
    注

    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

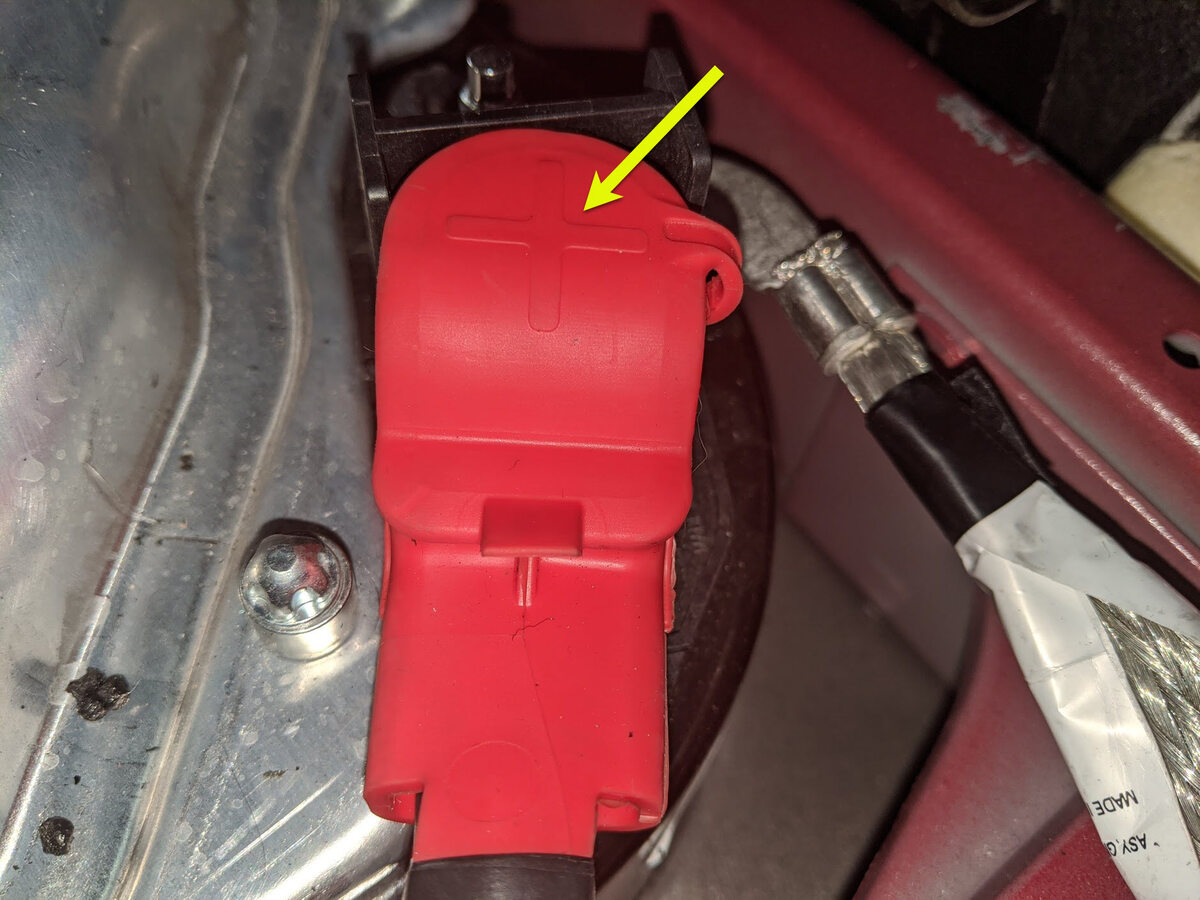

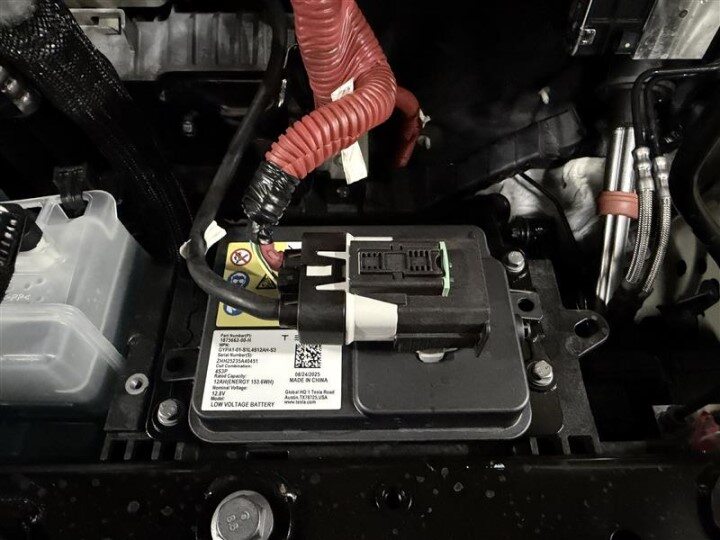

63. Disconnect LV battery and first responder loop
    注

    2x tabs, 2x connectors, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting Disconnect LV battery and first responder loop, Ensure that one minute has passed after window movement before performing the power-off, Battery should be disconnected before Firefighter line, Allow 2 minutes for all electrical circuits to fully discharge

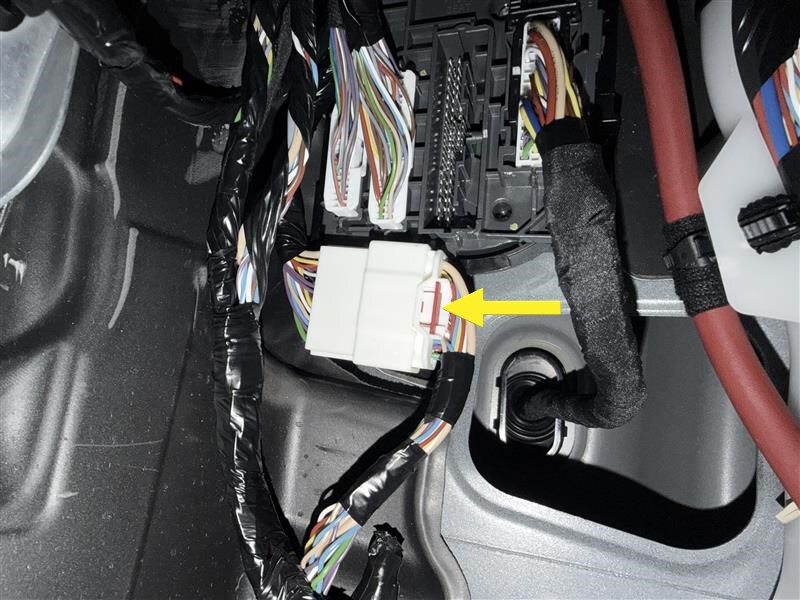

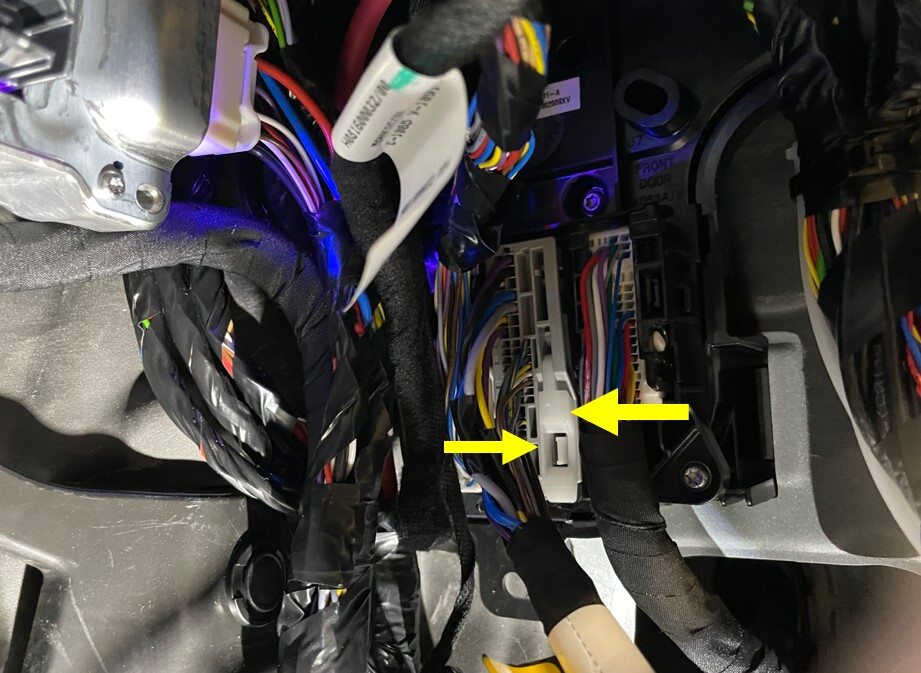

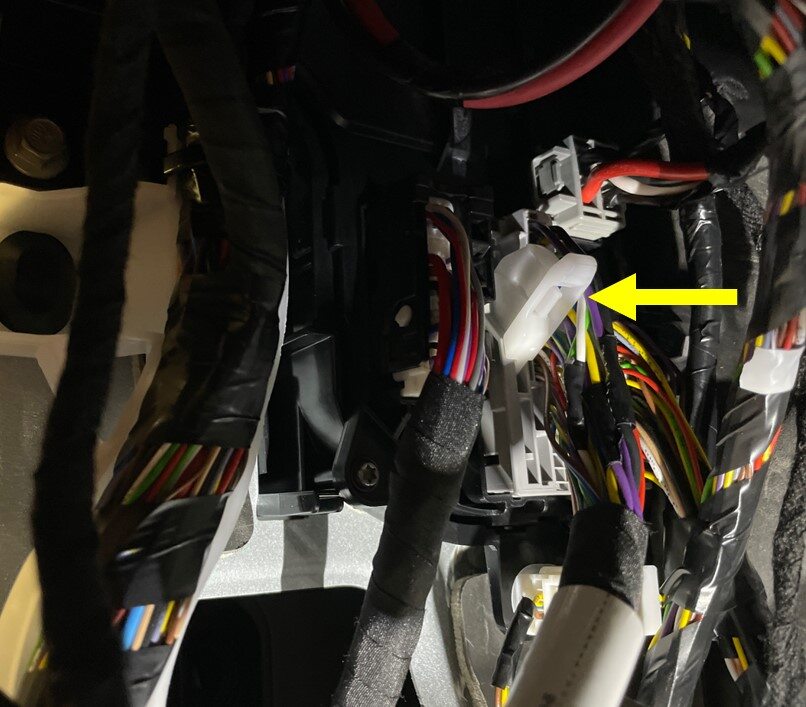

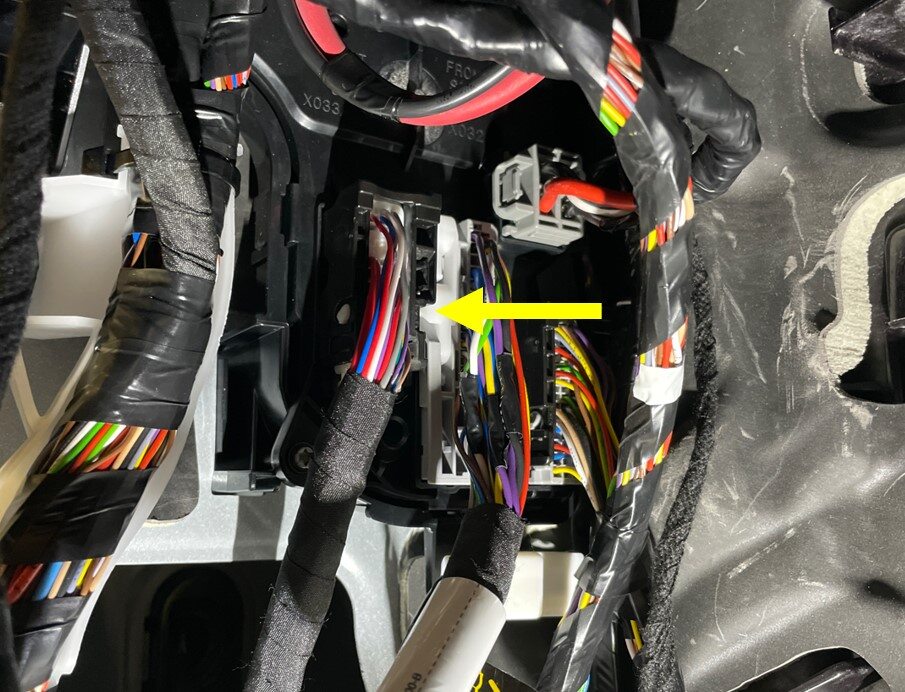

64. Disconnect LH front seat harness from VC left

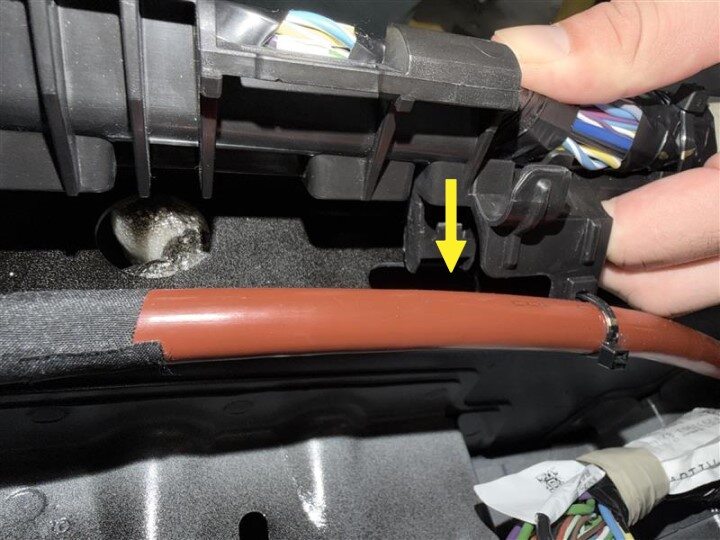

    注

    1x electrical connector, Release the lock by squeezing the release tab, Then fully disengage the lock by moving it away from the VC left, Do not force the connector, If the connector does not easily release from the VC the lock is still engaged

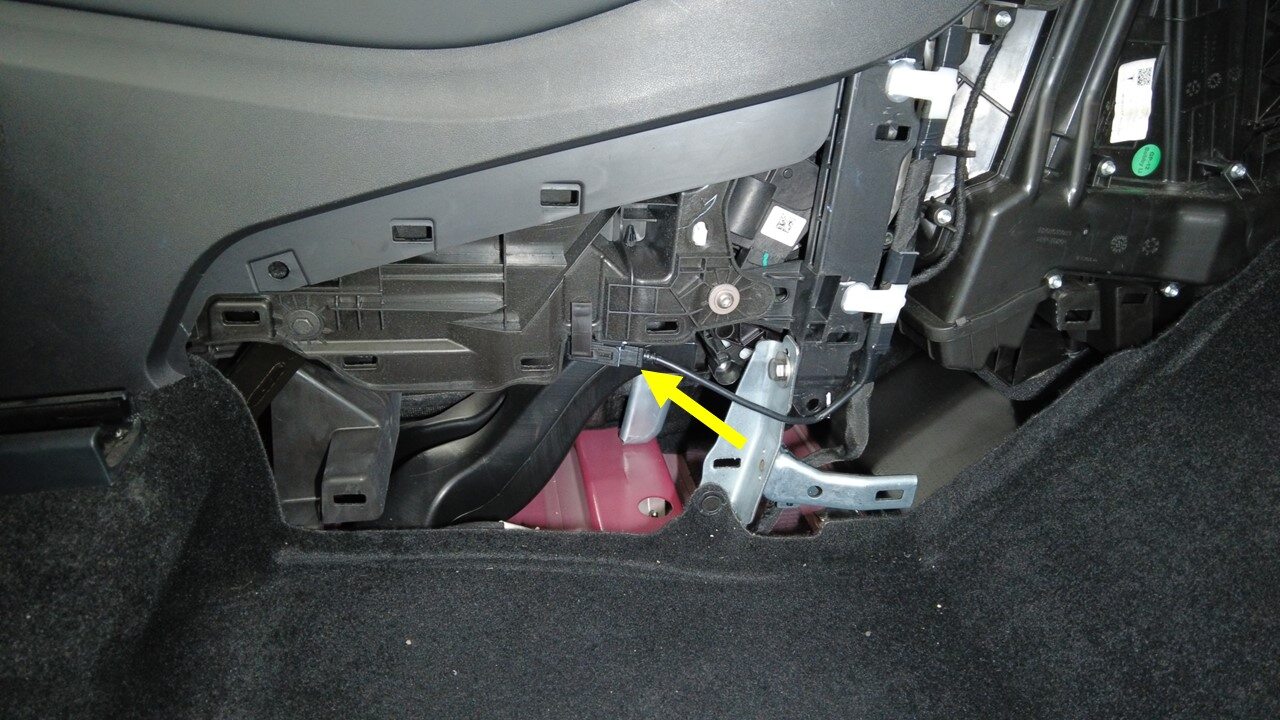

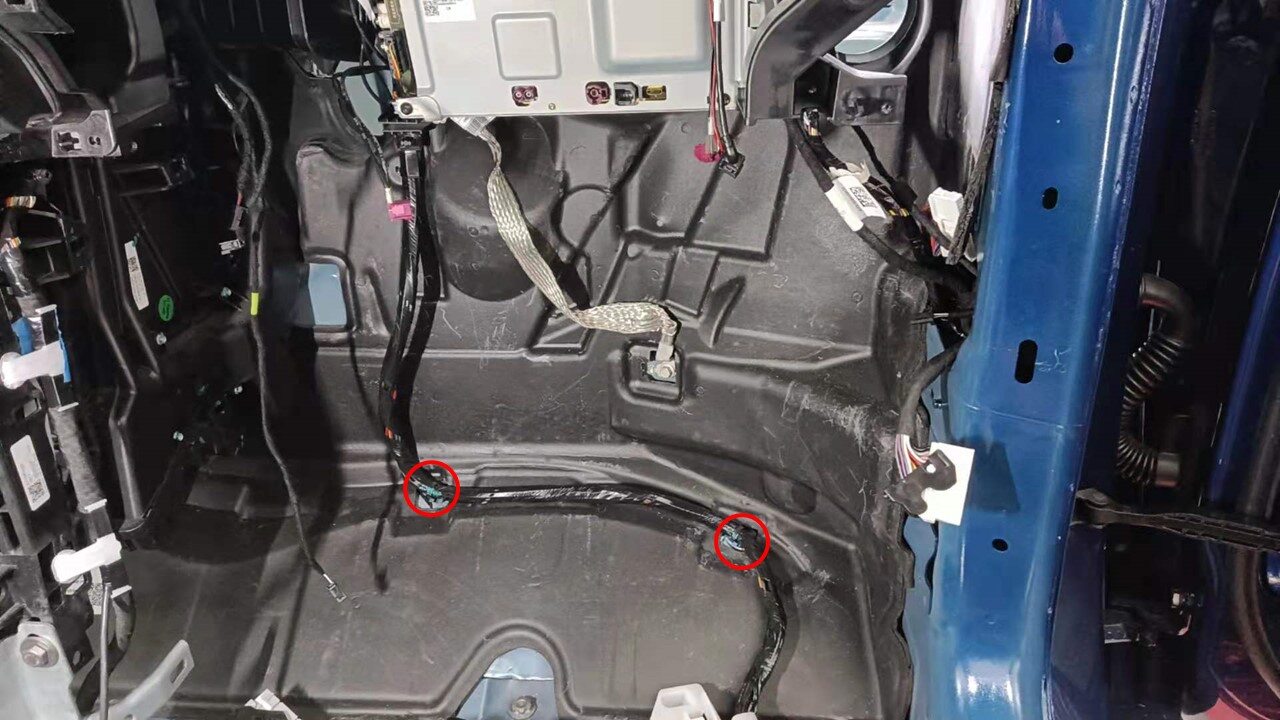

65. Remove LH front seat harness clips from LH footwell support bracket
    注

    2x retaining clips

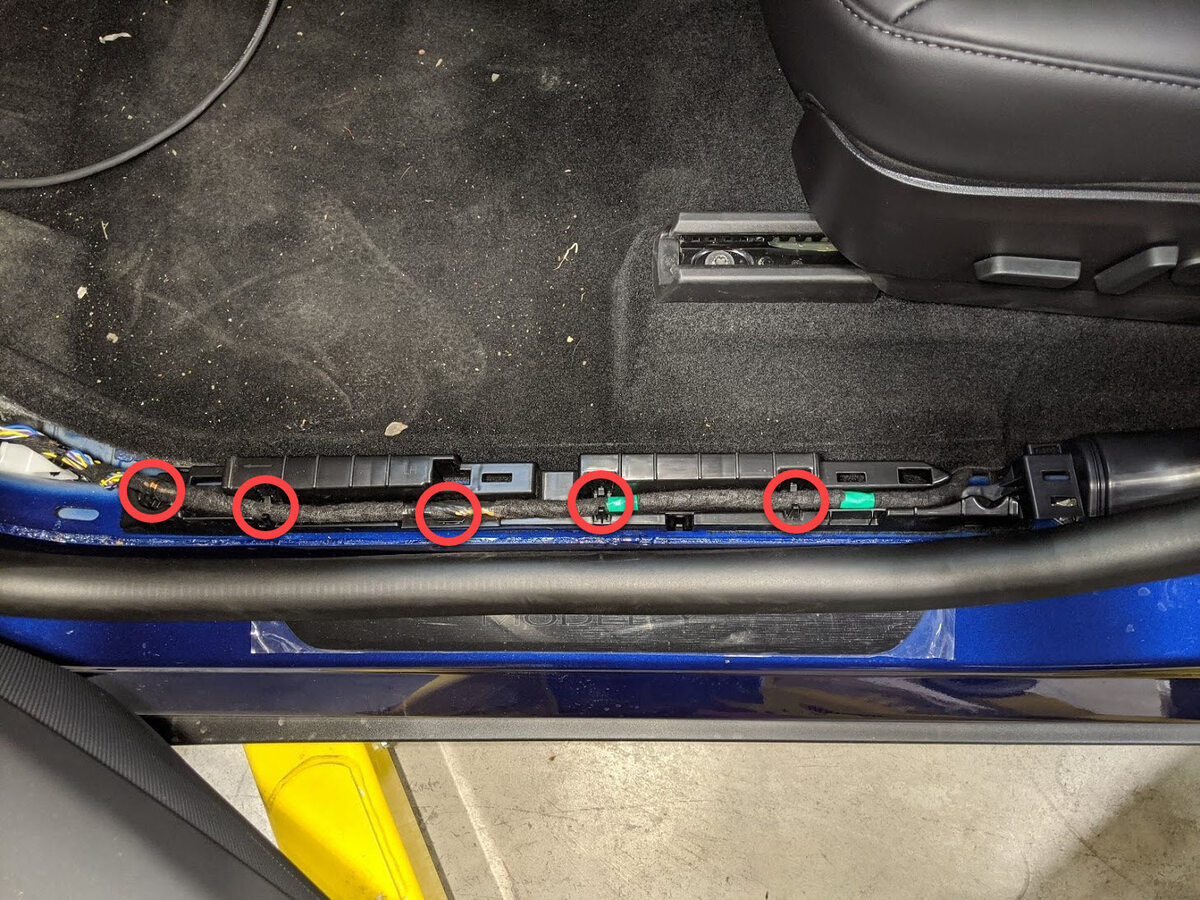

66. Release LH front seat harness from LH front sill panel harness bracket

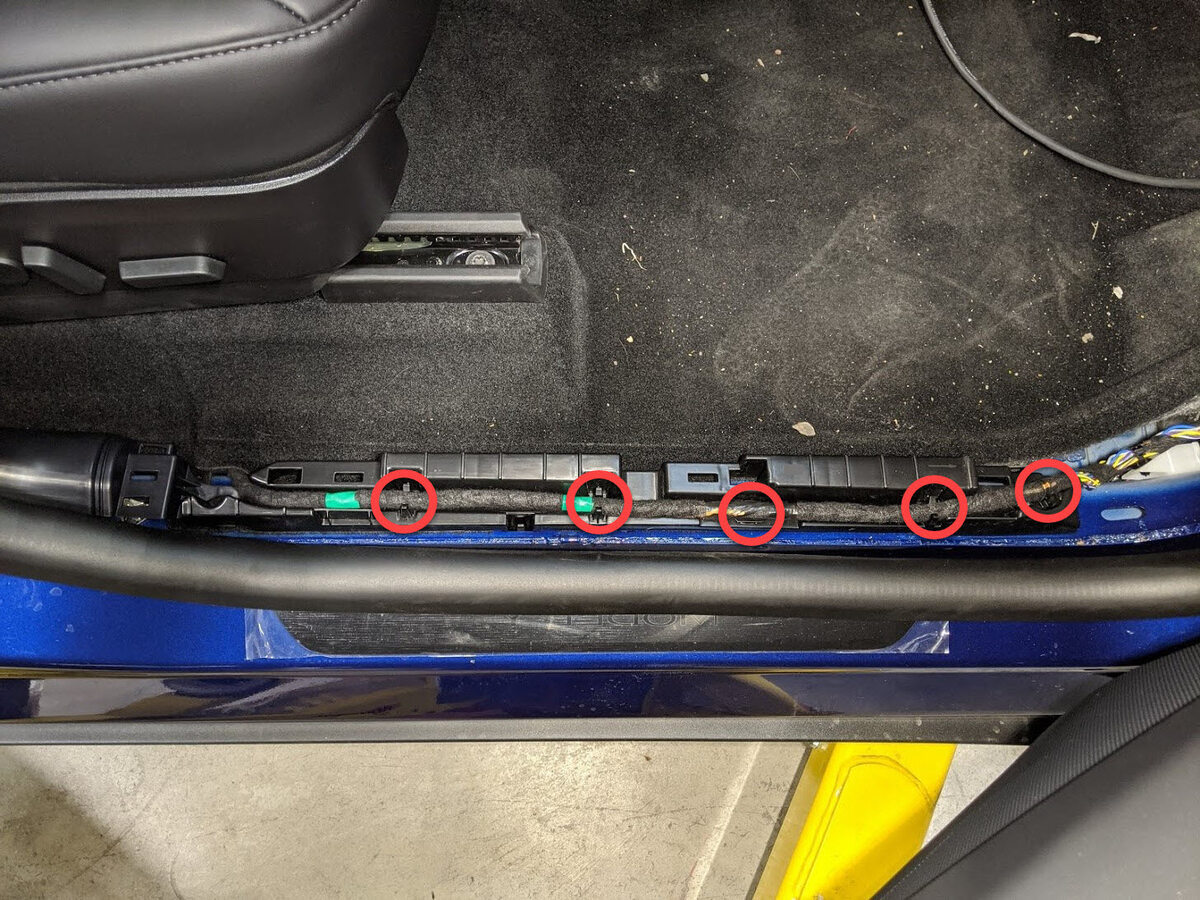

    注

    5x clips

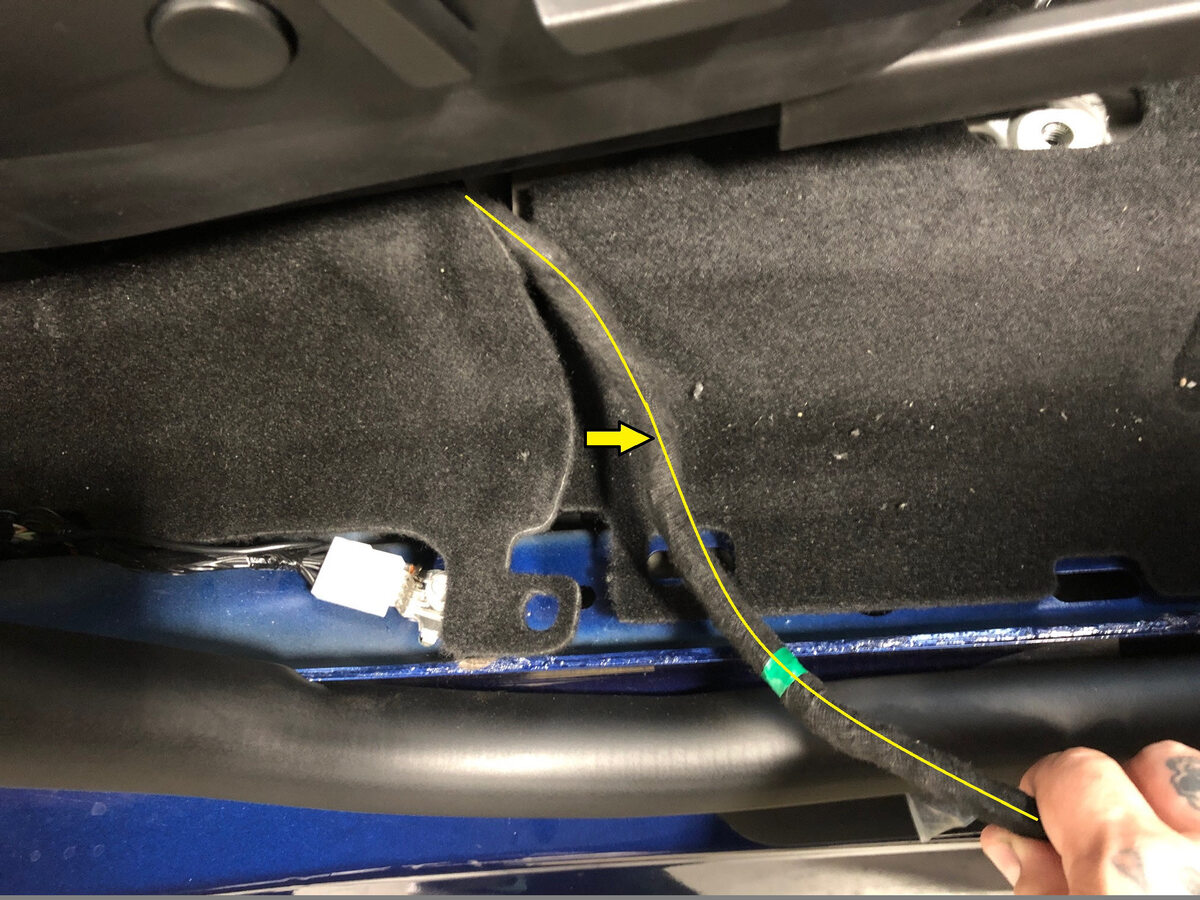

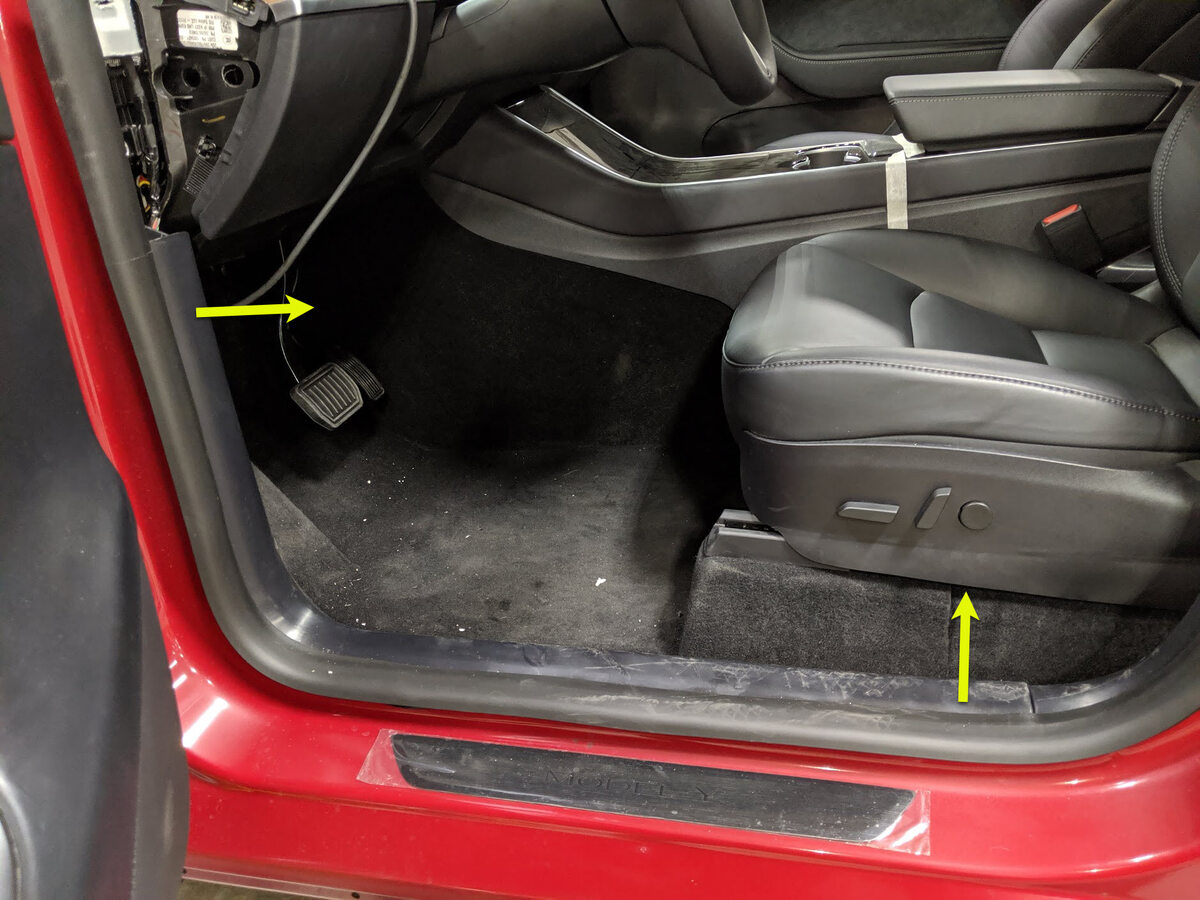

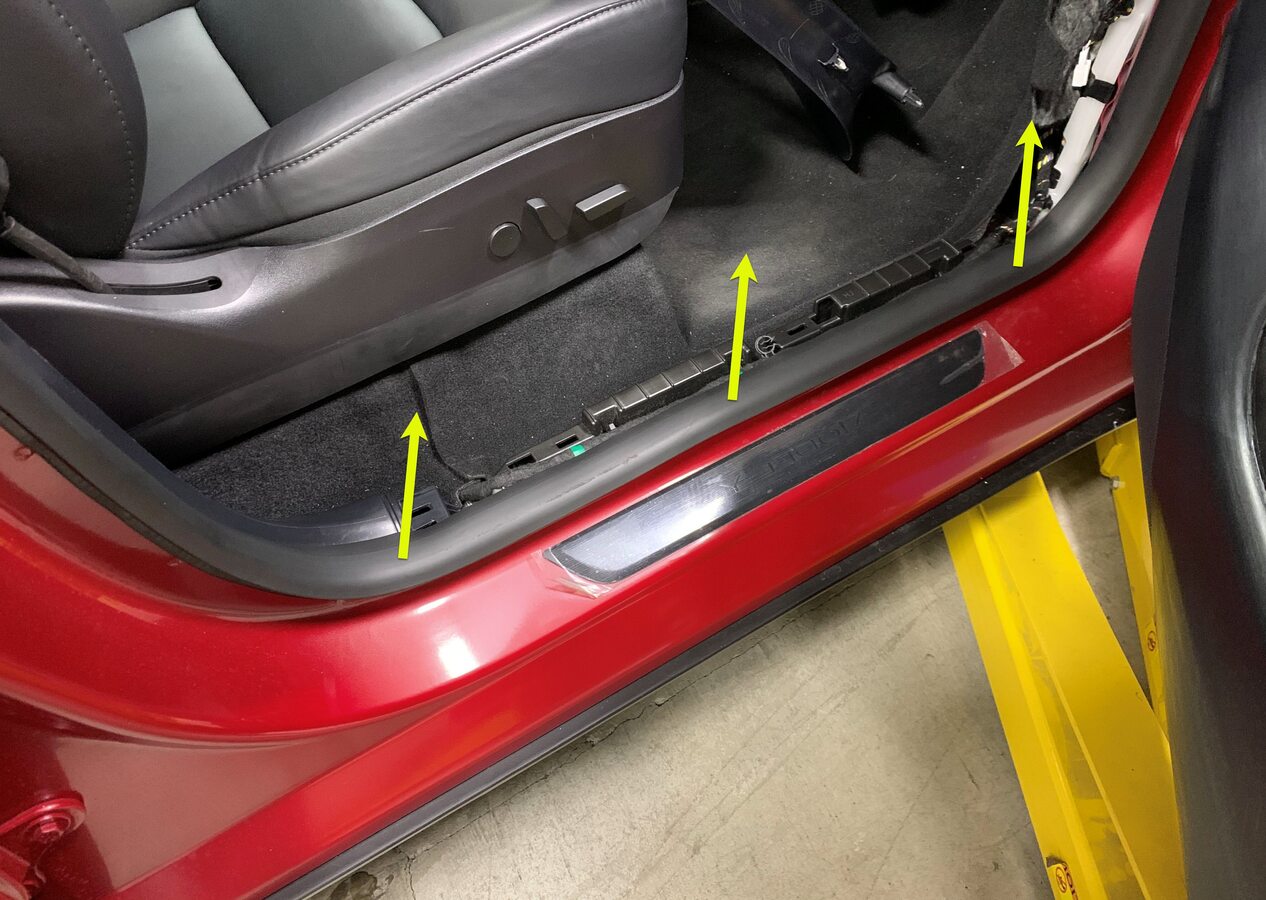

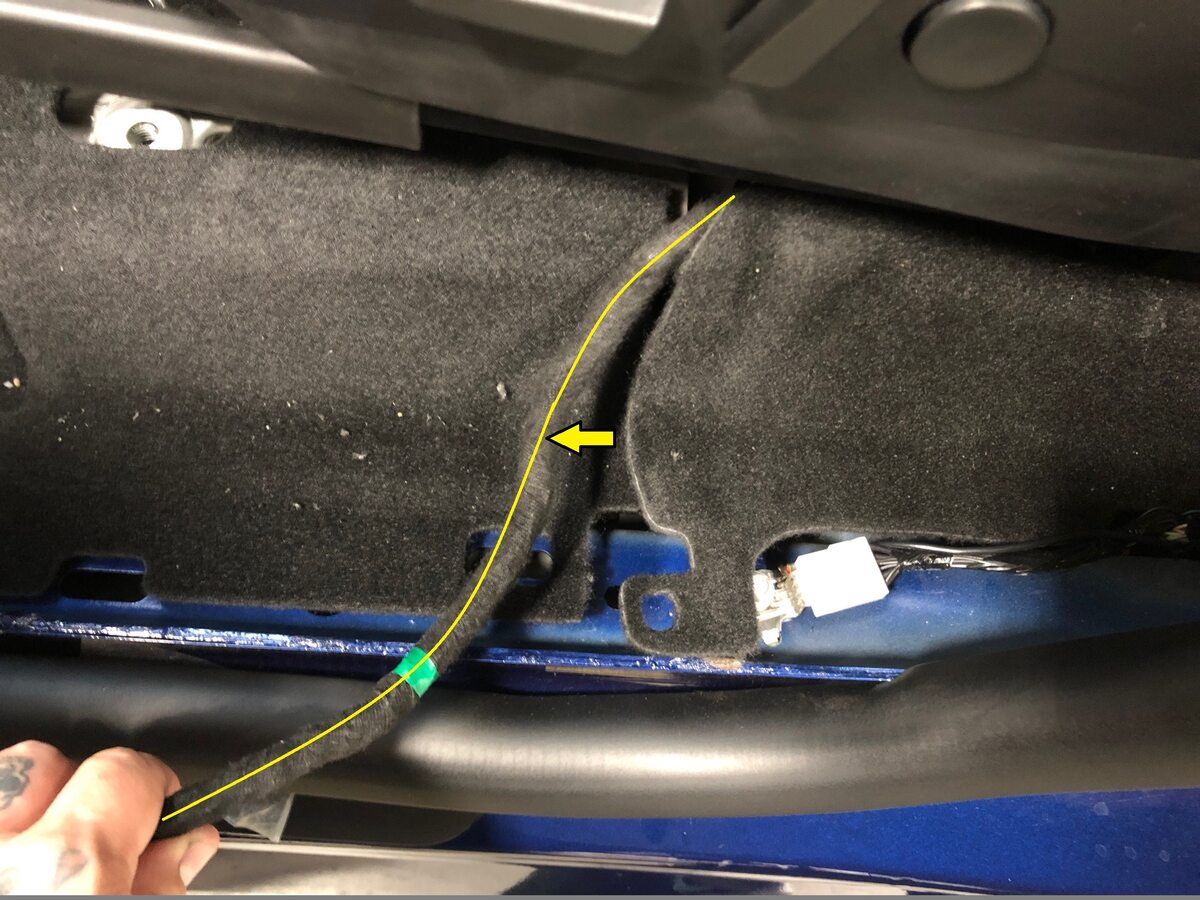

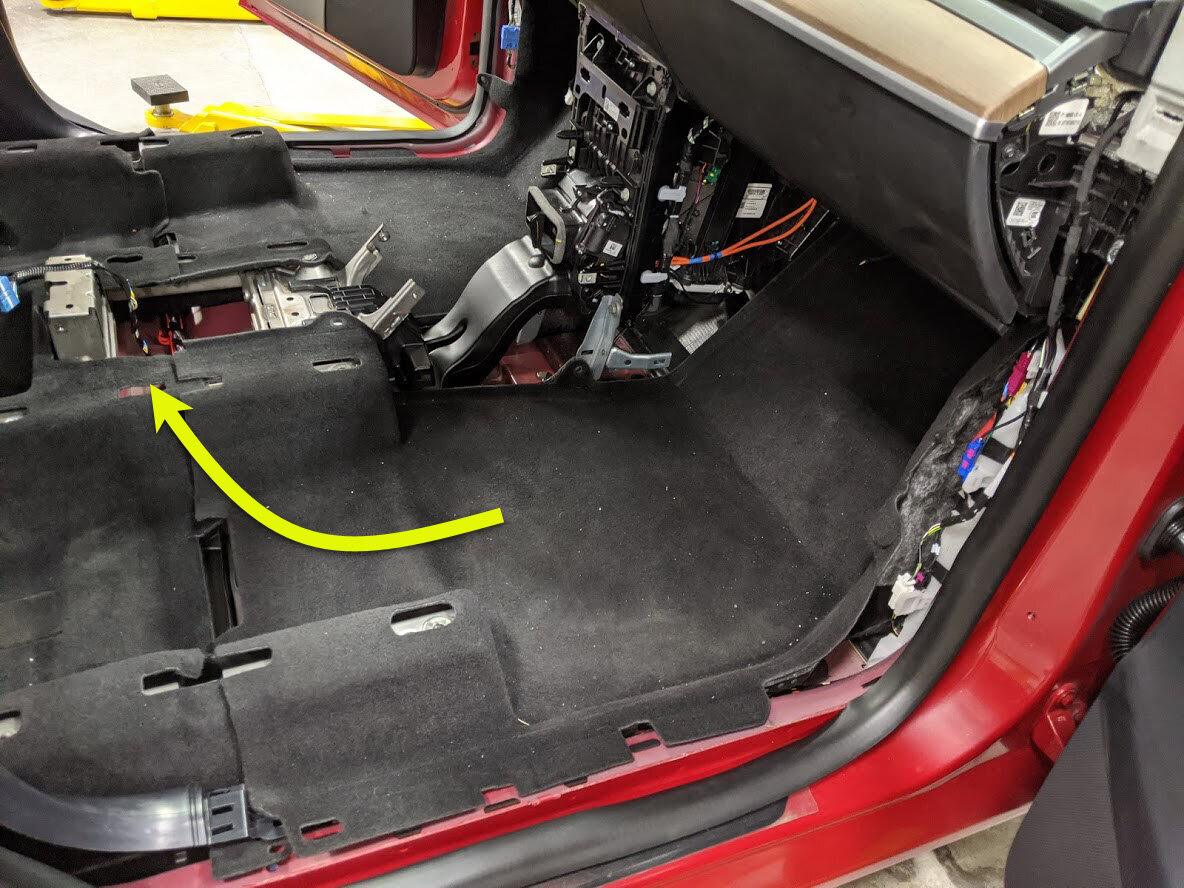

67. Pull LH front seat harness from under LH front cabin carpet

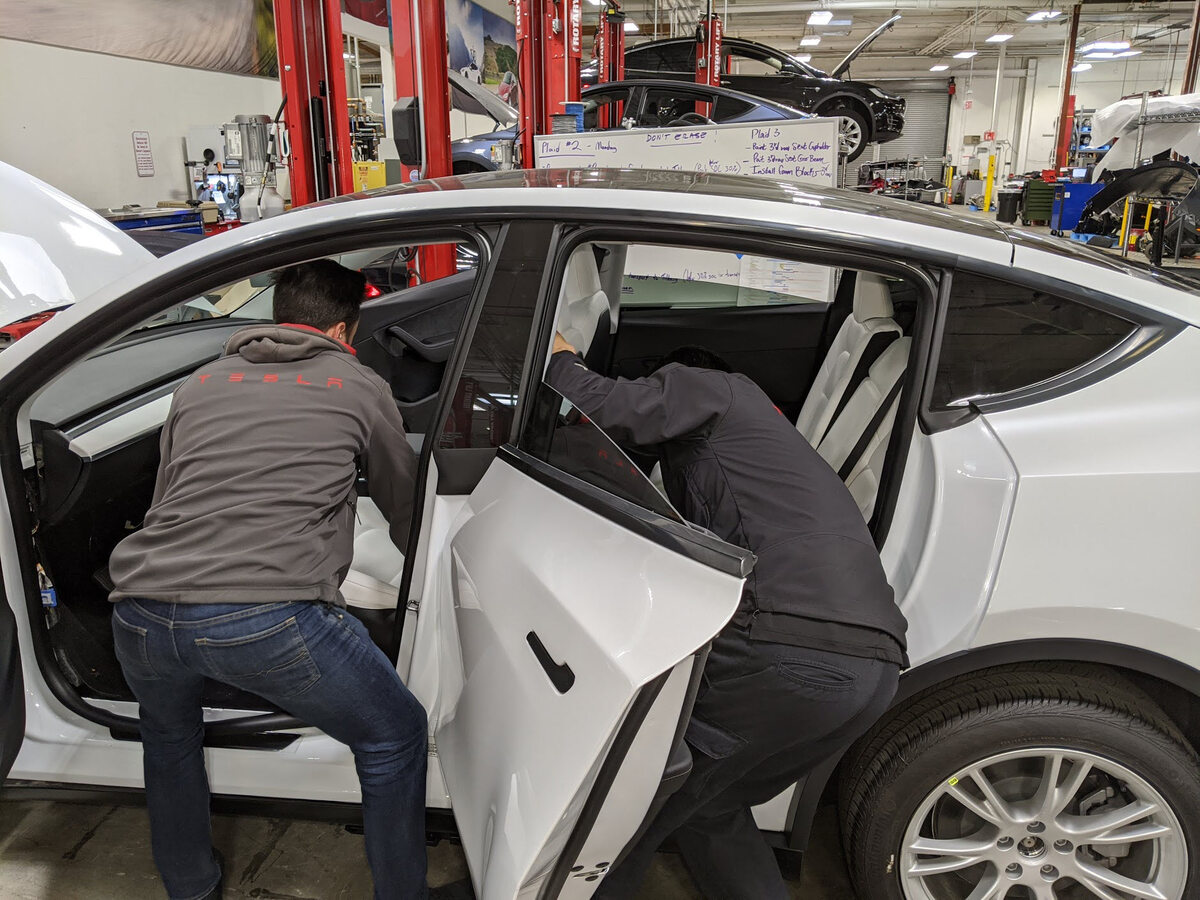

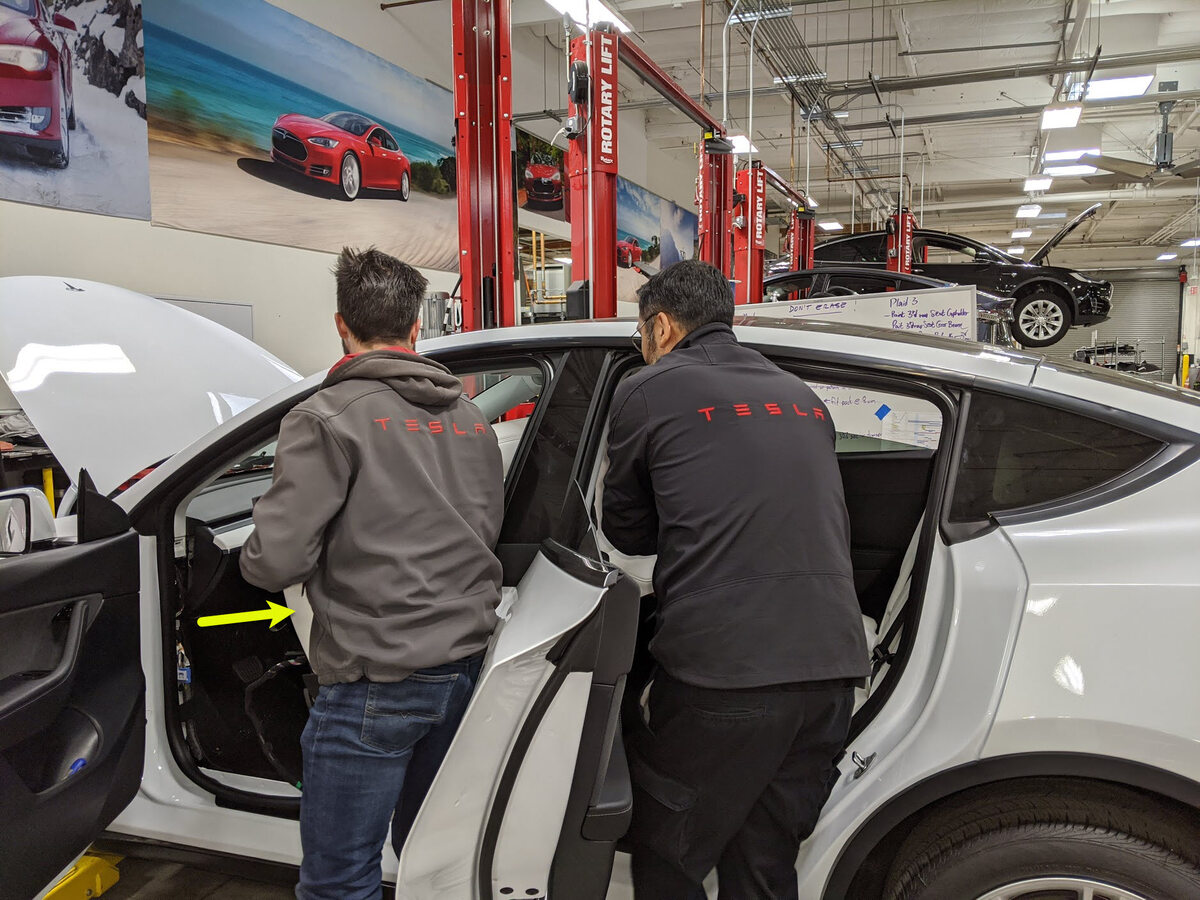

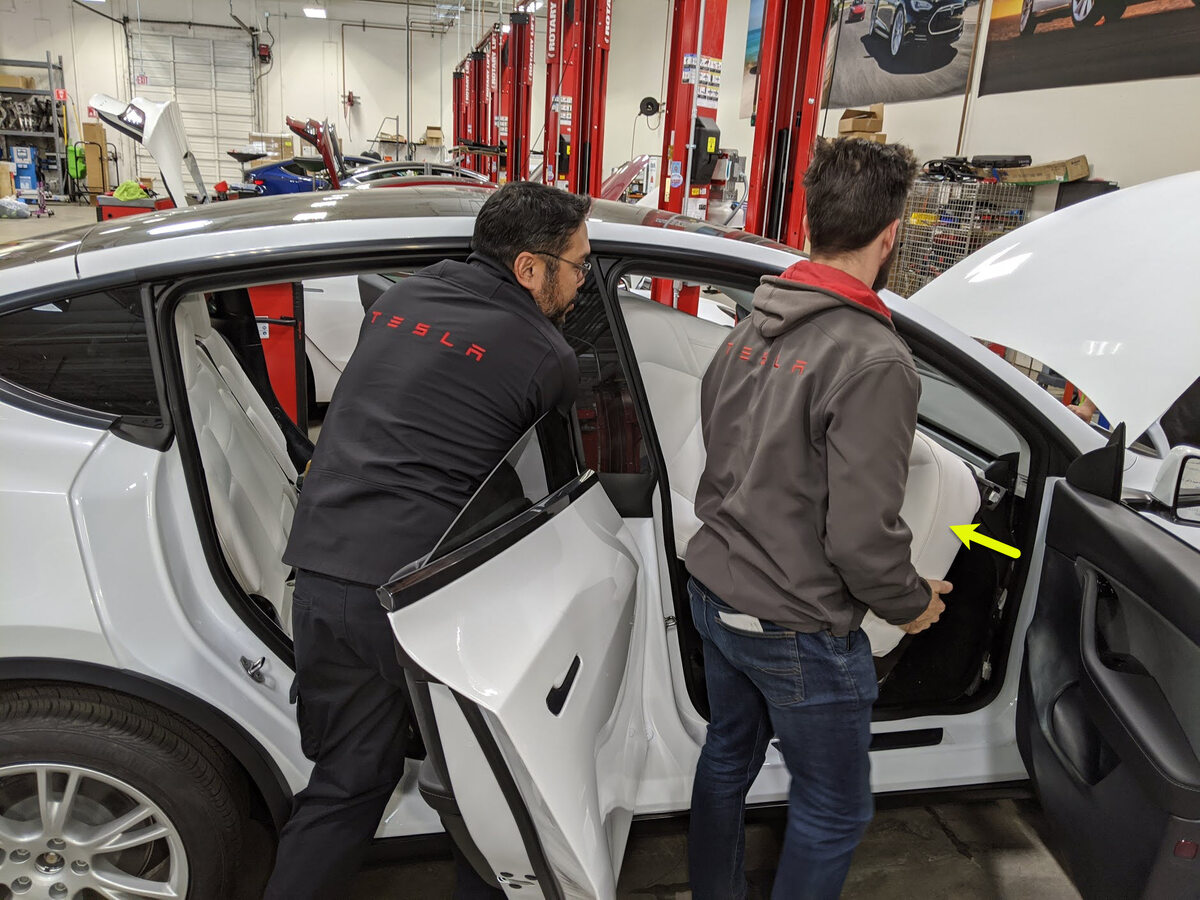

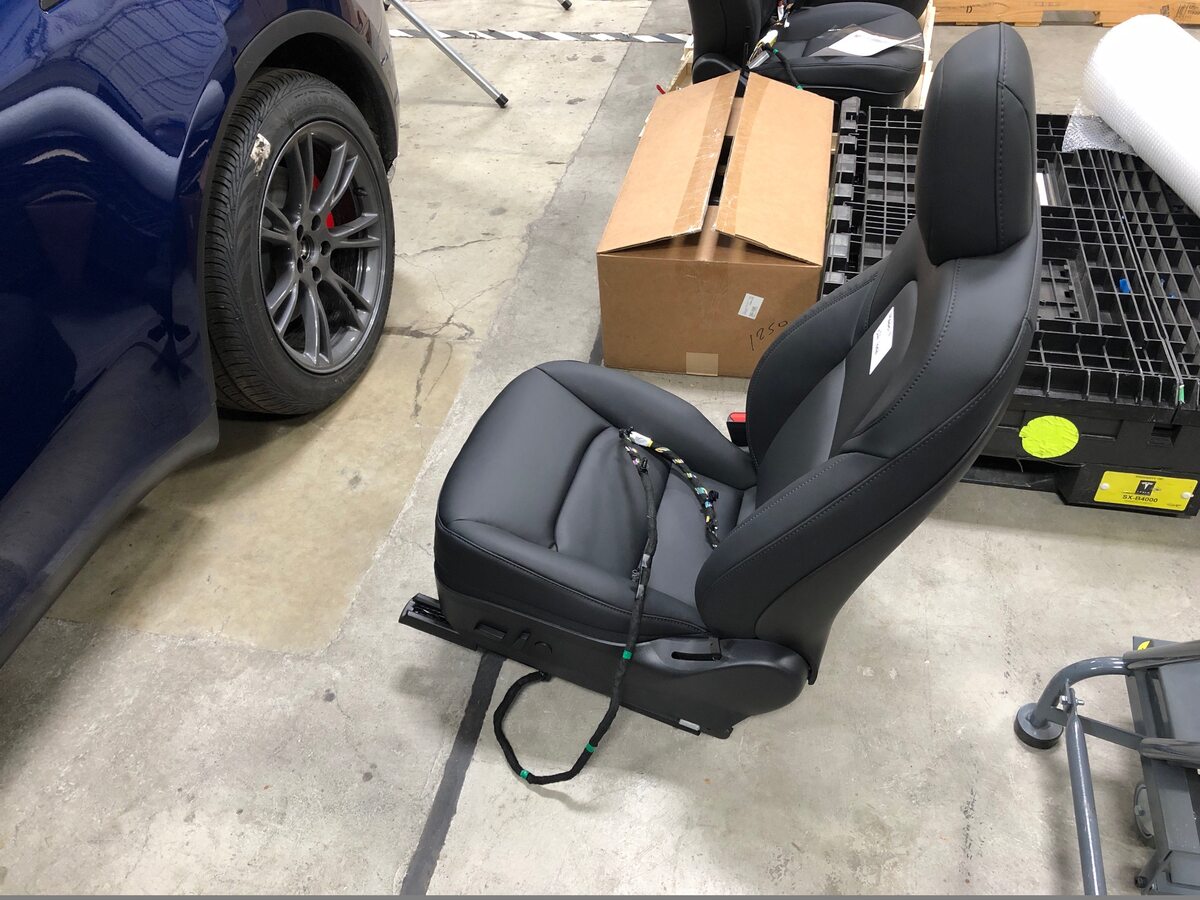

68. Remove LH front seat from vehicle
    注

    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim





69. Disconnect RH front seat harness from VC right
    注

    1x electrical connector, Release the lock by squeezing the release tab, Then fully disengage the lock by moving it away from the VC right, Do not force the connector, If the connector does not easily release from the VC the lock is still engaged





70. Remove RH front seat harness from RH footwell support bracket
    注

    2x retaining clips





71. Release RH front seat harness from lower A 12V bracket
    注

    5x clips



72. Pull RH front seat harness from under RH front cabin carpet



73. Remove RH front seat from vehicle
    注

    Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim

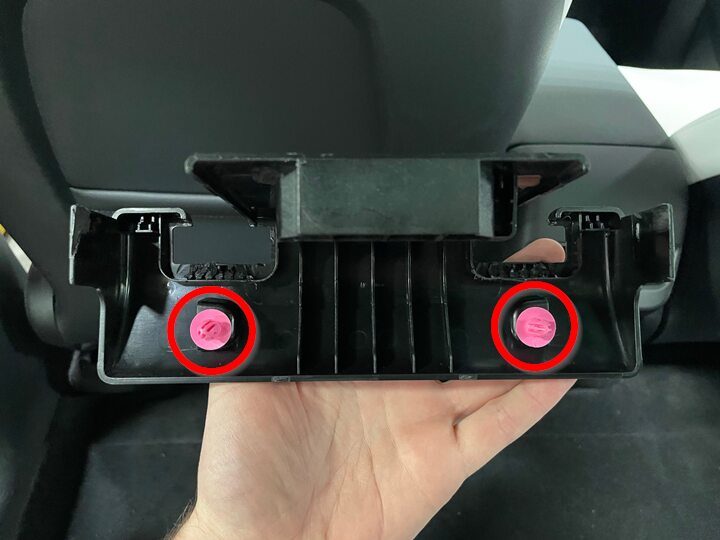

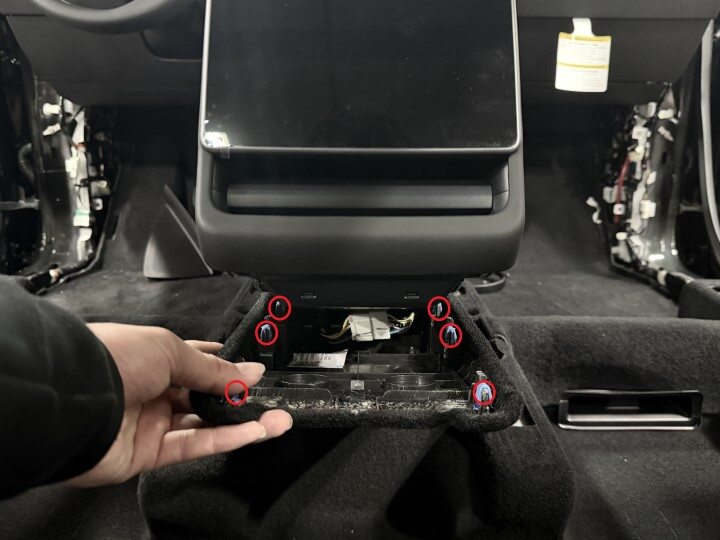

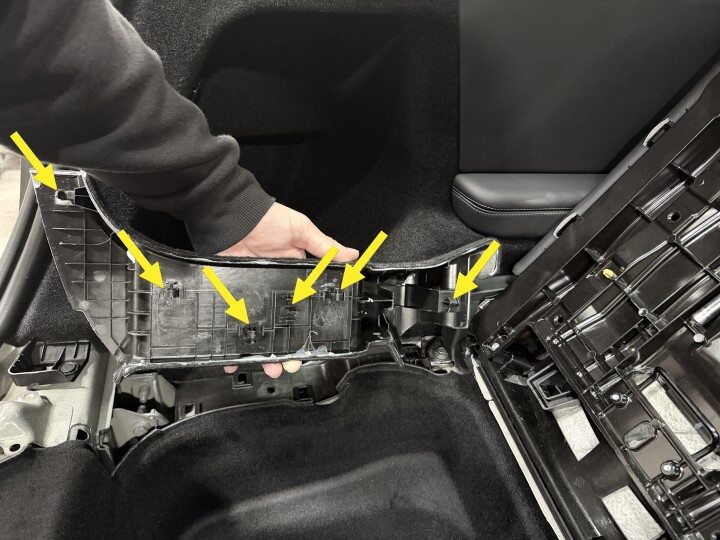

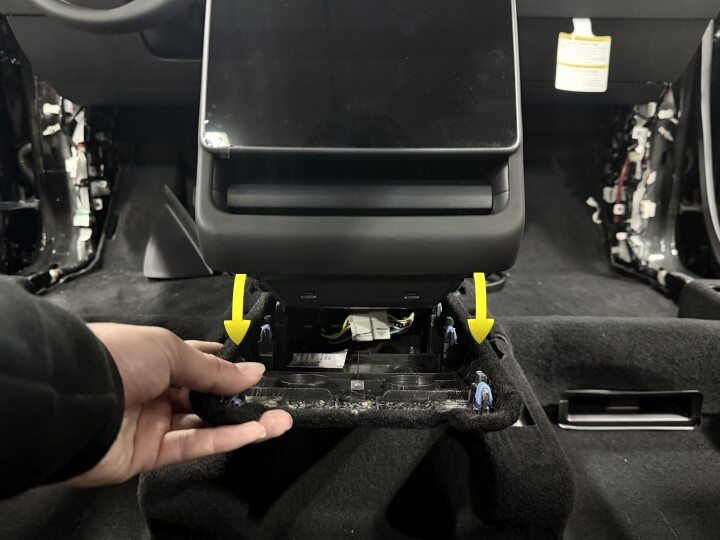

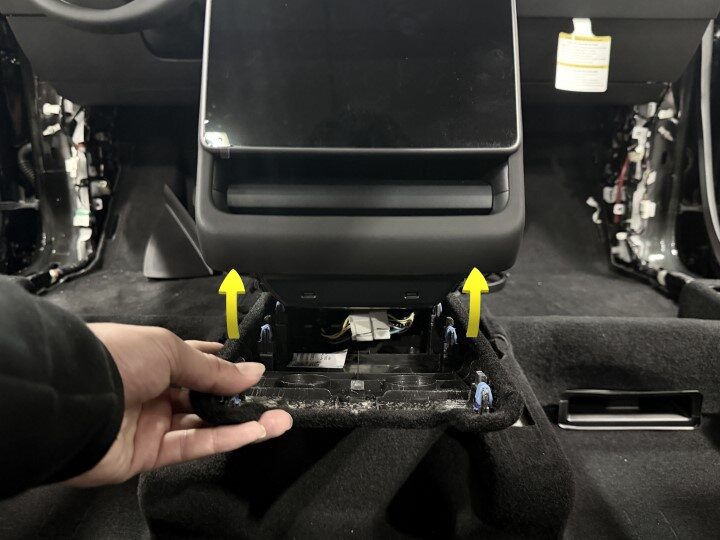

74. Remove console lower rear panel
    注

    6x tabs

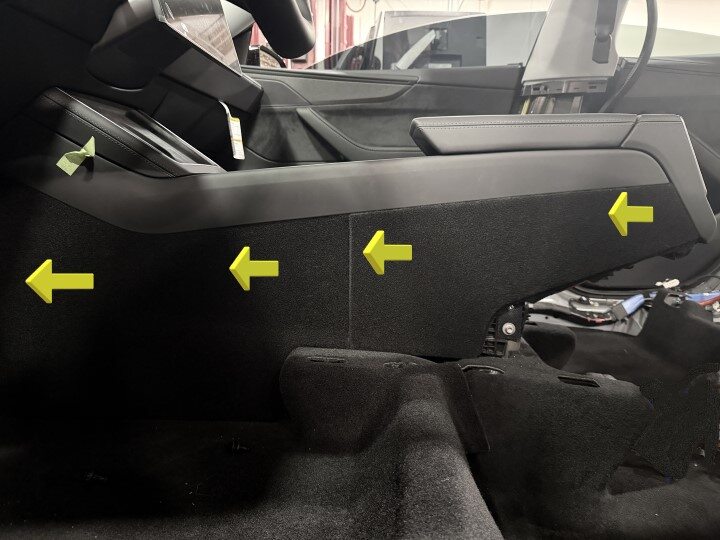

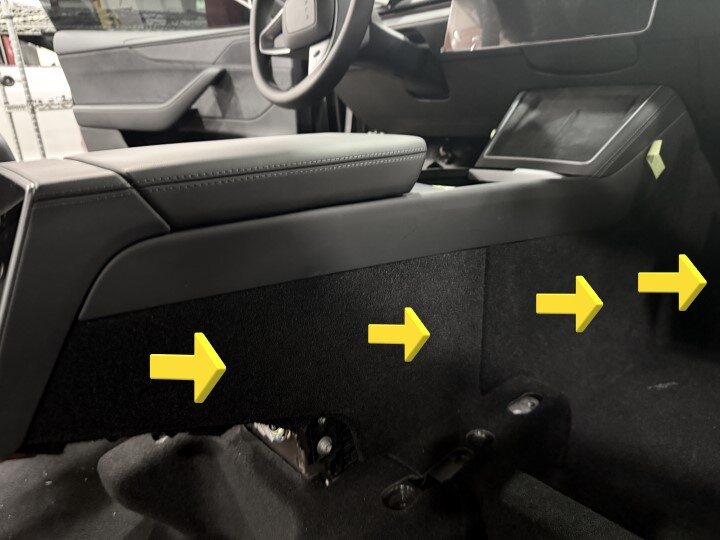

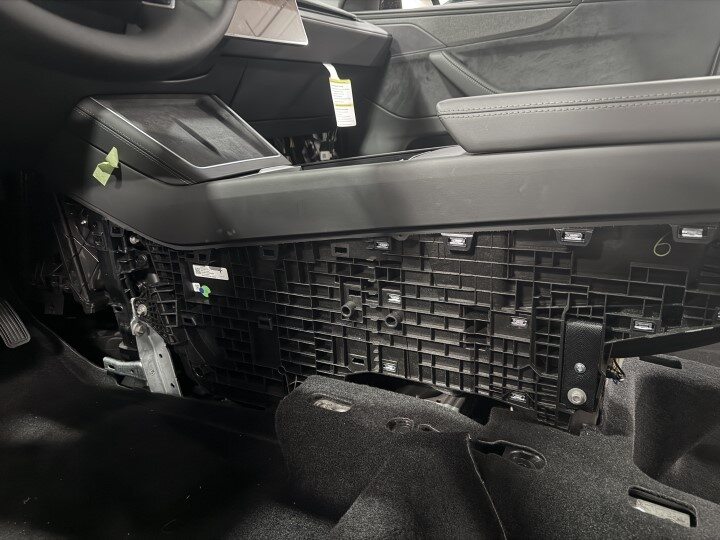

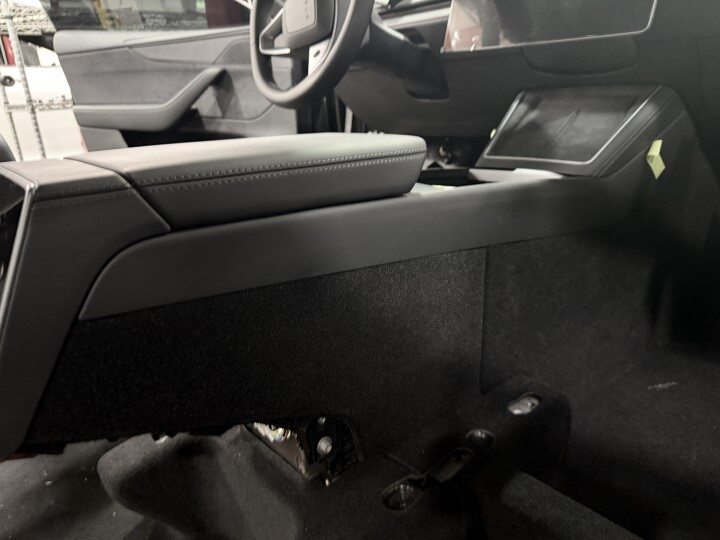

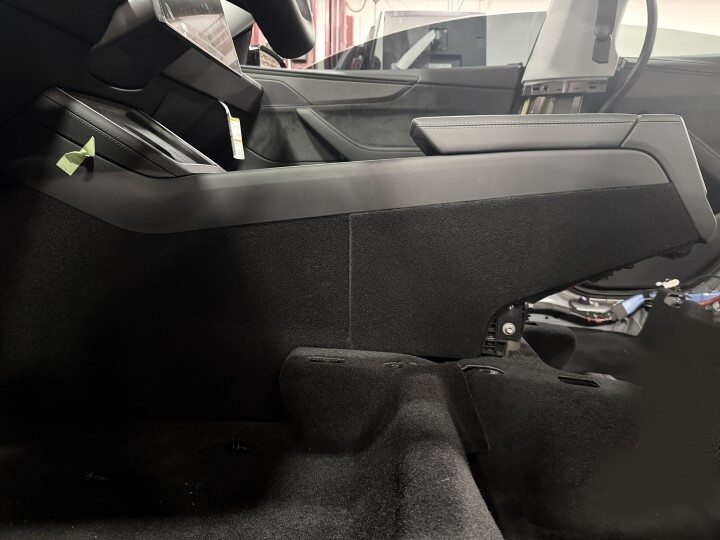

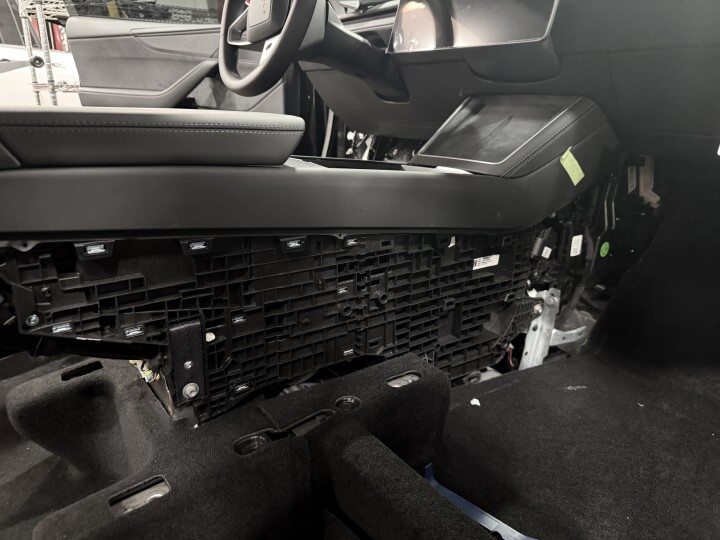

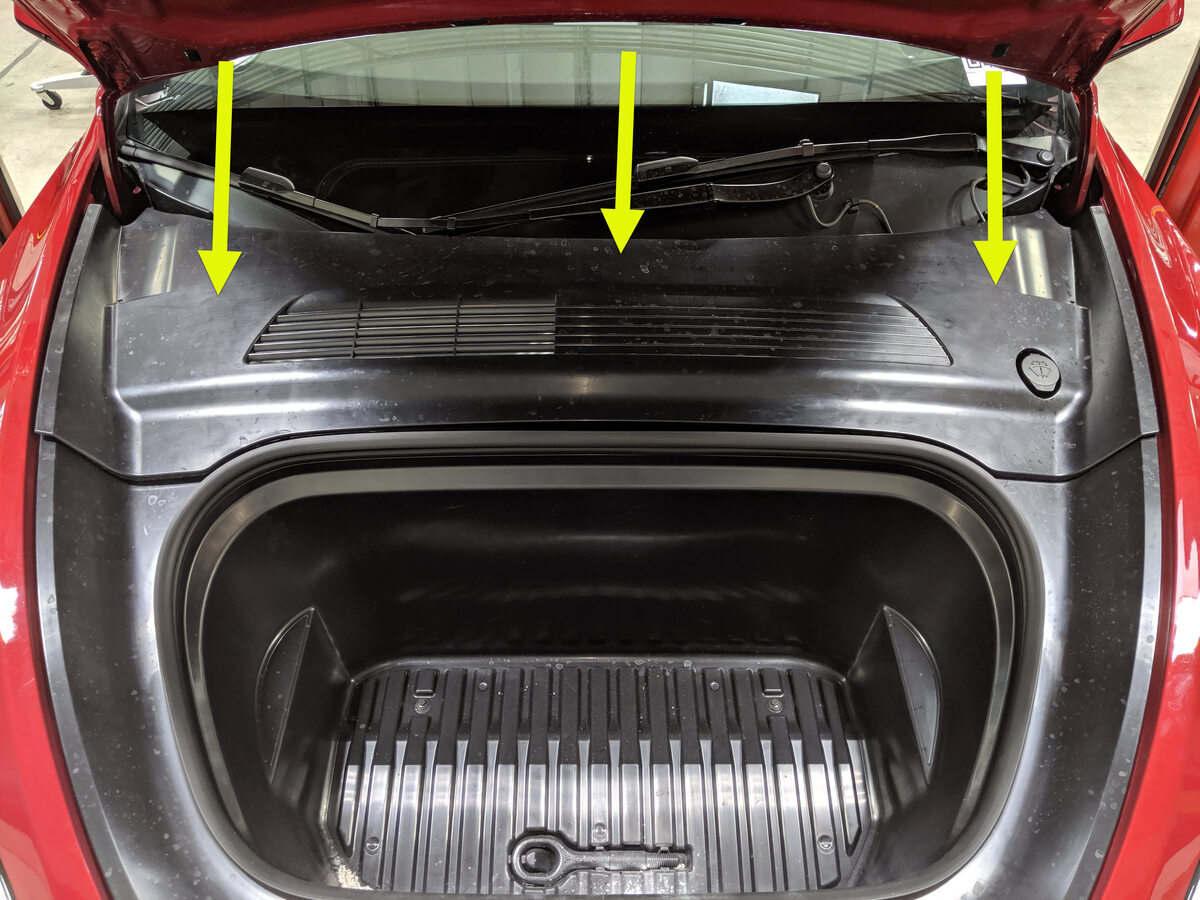

75. Remove LH center console carpet covers
    注

    2x covers, Use trim tool starting at top edge to release upper clips, then pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged

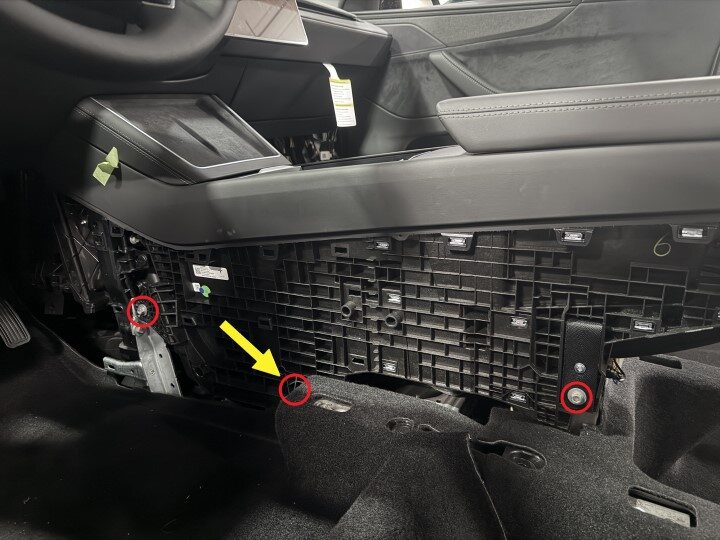

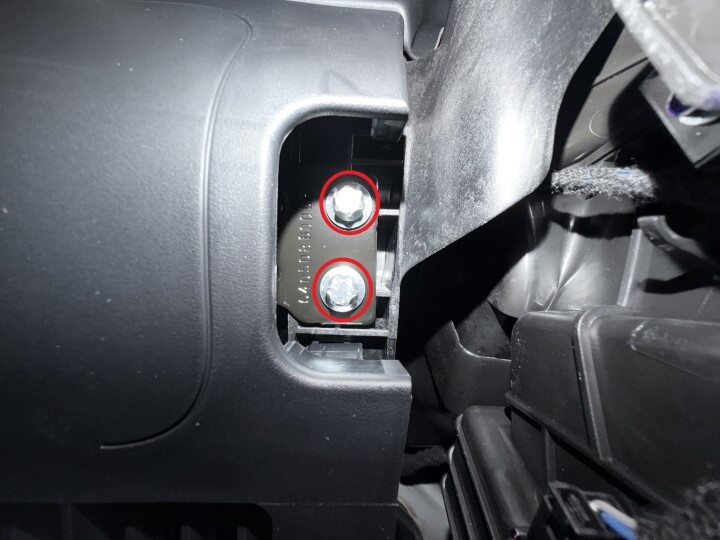

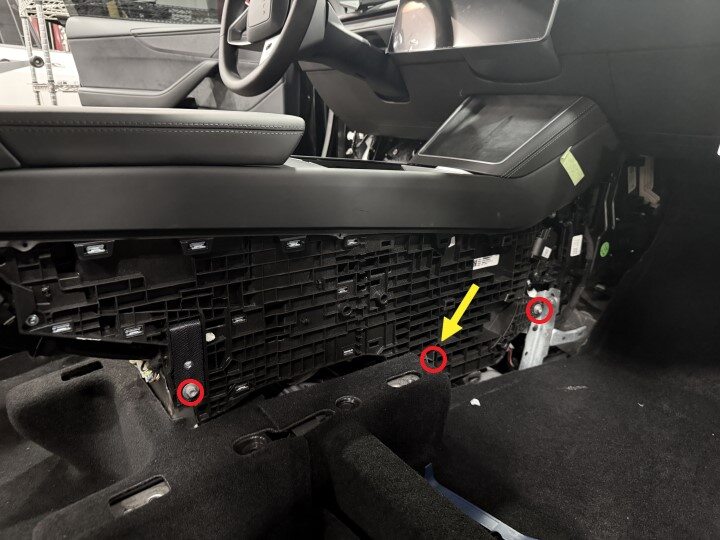

76. Remove LH exterior hardware from center console
    注

    3x bolt, 10mm, 7 Nm



77. Remove RH center console side panel carpets
    注

    2x covers, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged





78. Remove RH exterior hardware from center console
    注

    3x bolts, 10mm, 7 Nm



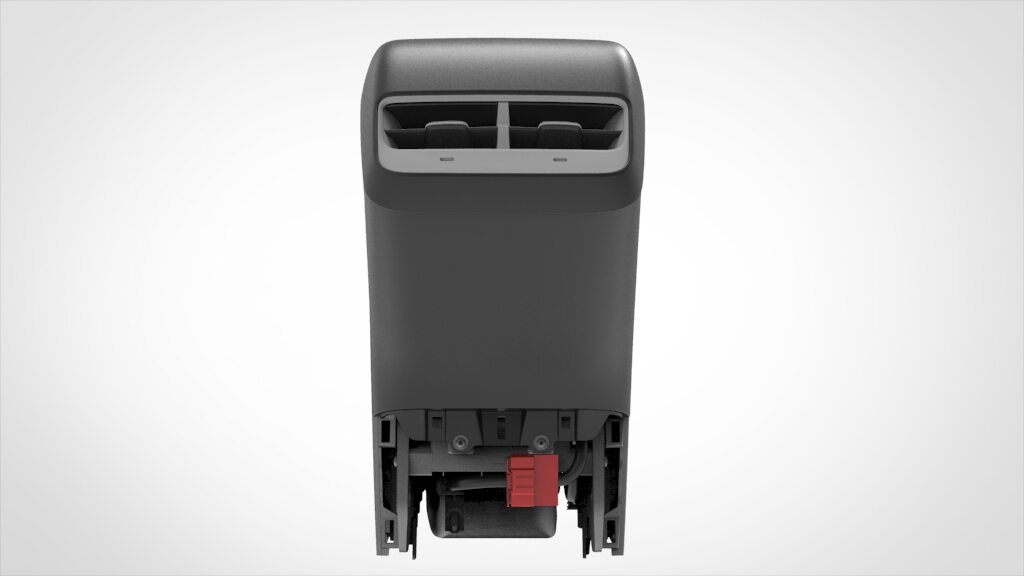

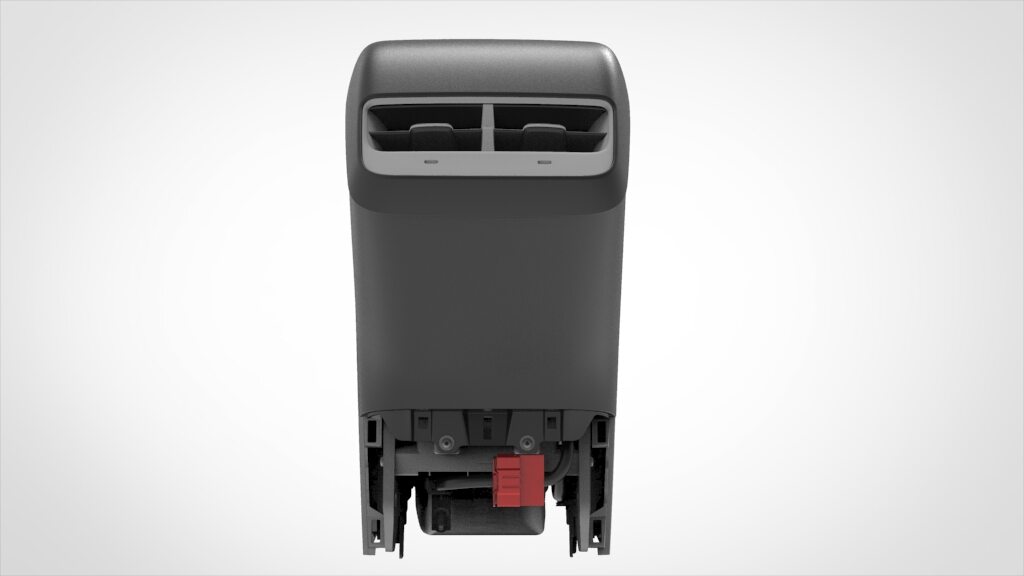

79. Disconnect harness from rear of center console
    注

    1x connector





80. Disconnect USB harness at right front of center console
    注

    1x USB connector



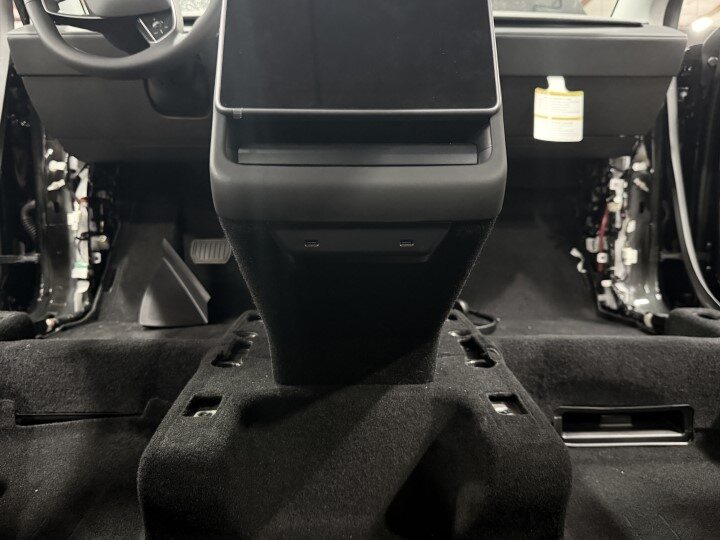

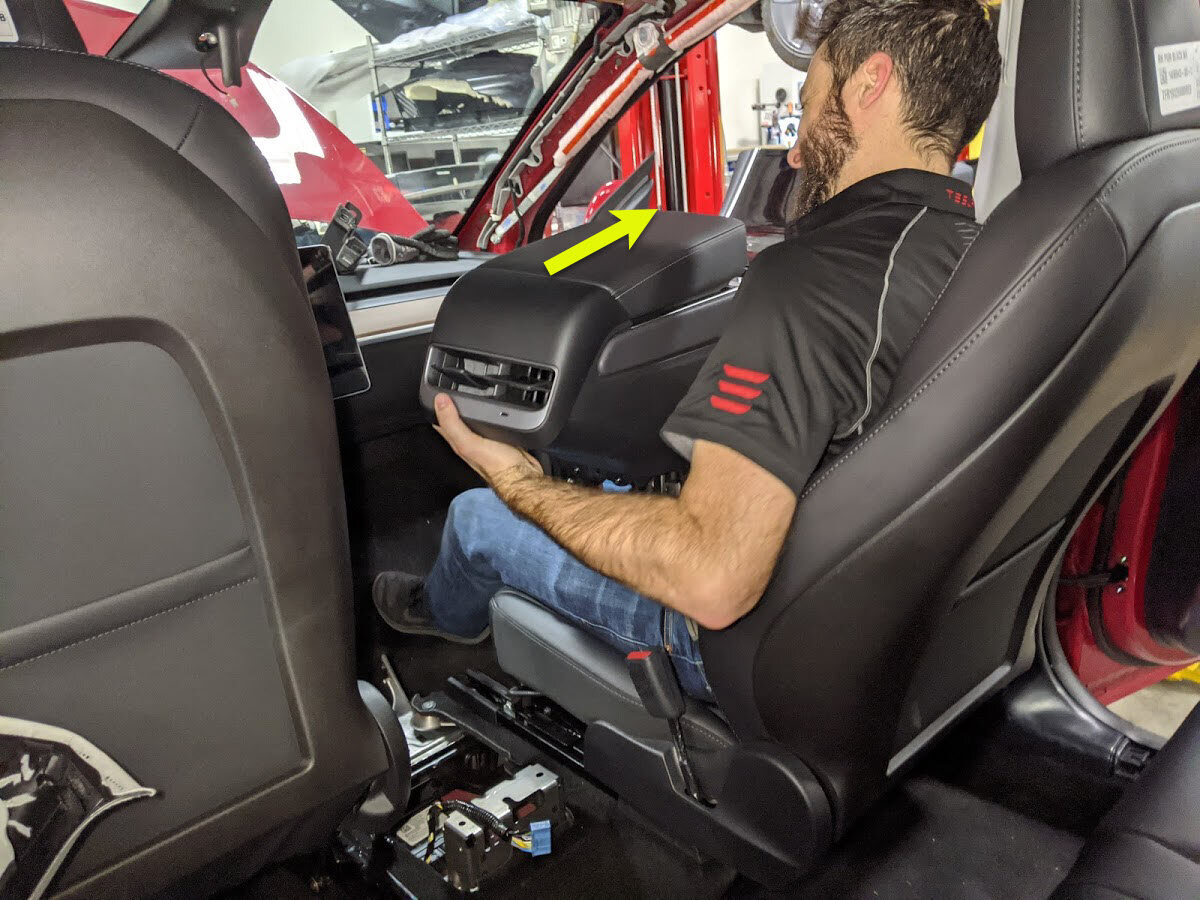

81. Remove center console from vehicle
    注

    Recommend assistance, Tilt rear of console upward, pull assembly towards rear of vehicle, then tilt front of console upward and remove through passenger side



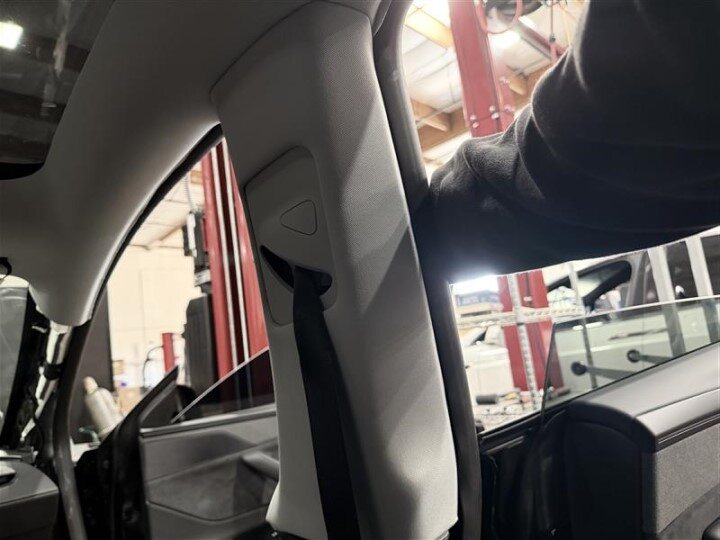

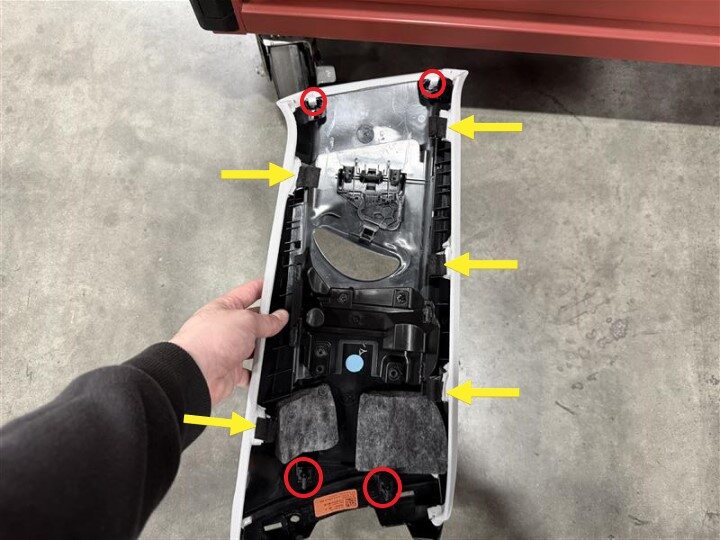

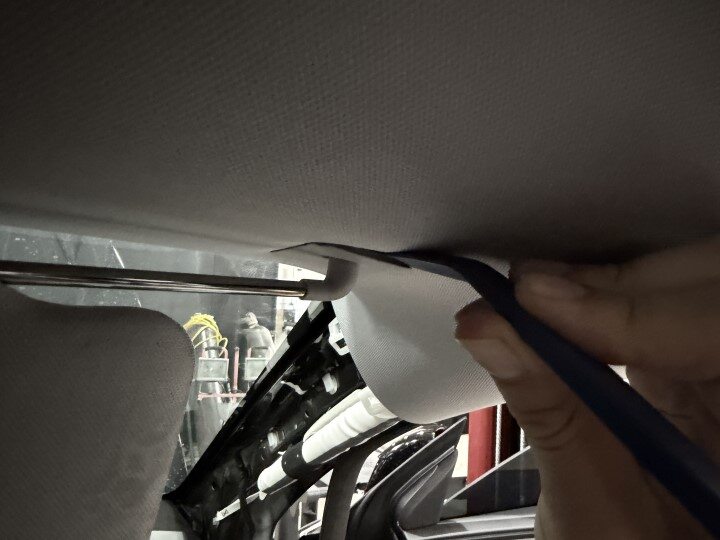

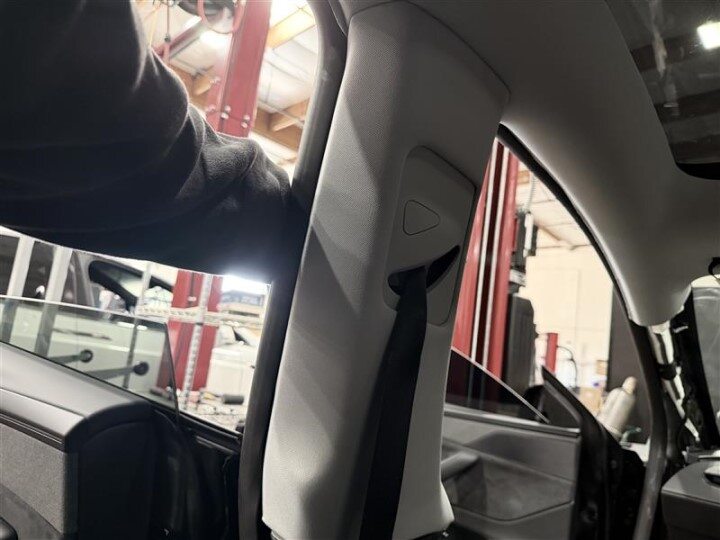

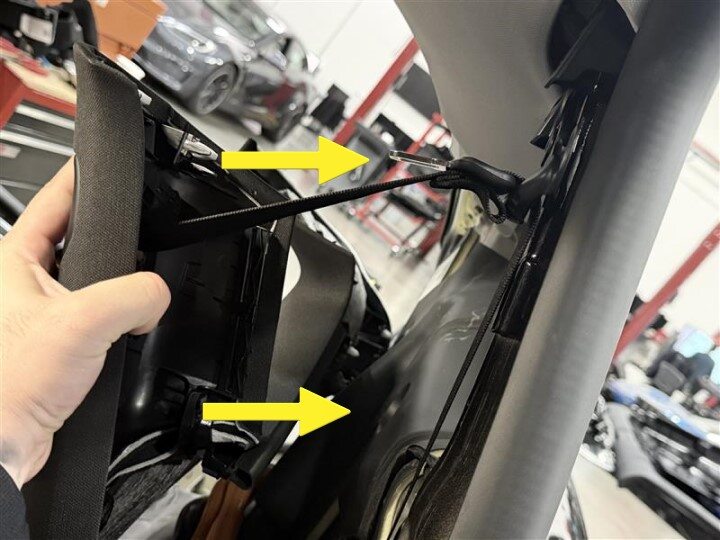

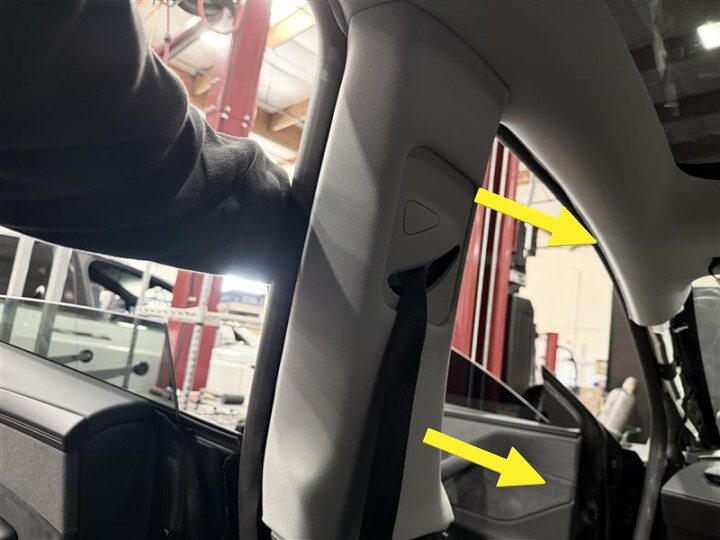

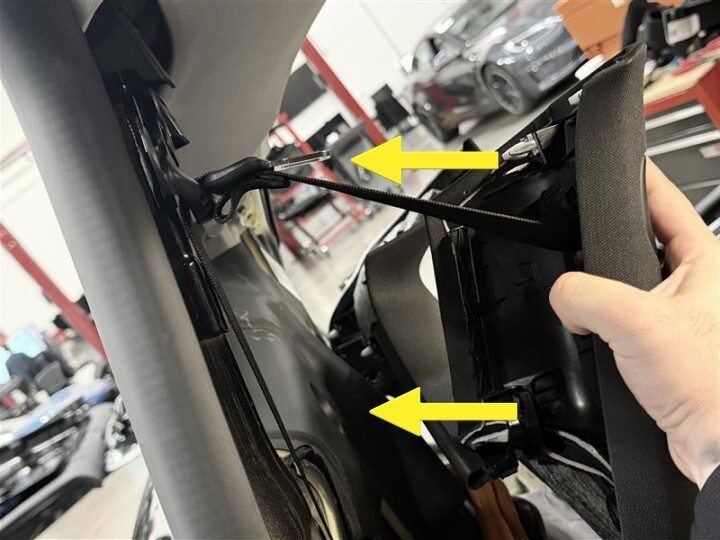

82. Release LH upper B pillar assembly and move aside

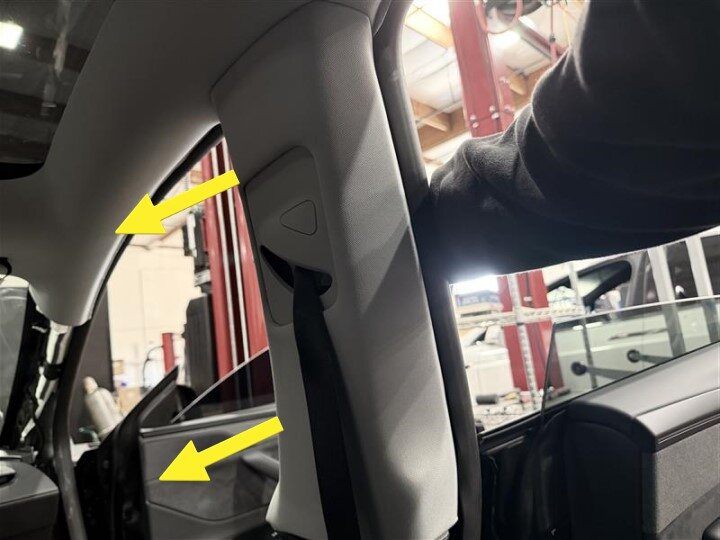

    注

    4x tabs, 5x retainers, Unhook retainers from body while pulling the bottom of the upper B pillar, then pull the top to release the remaining clips





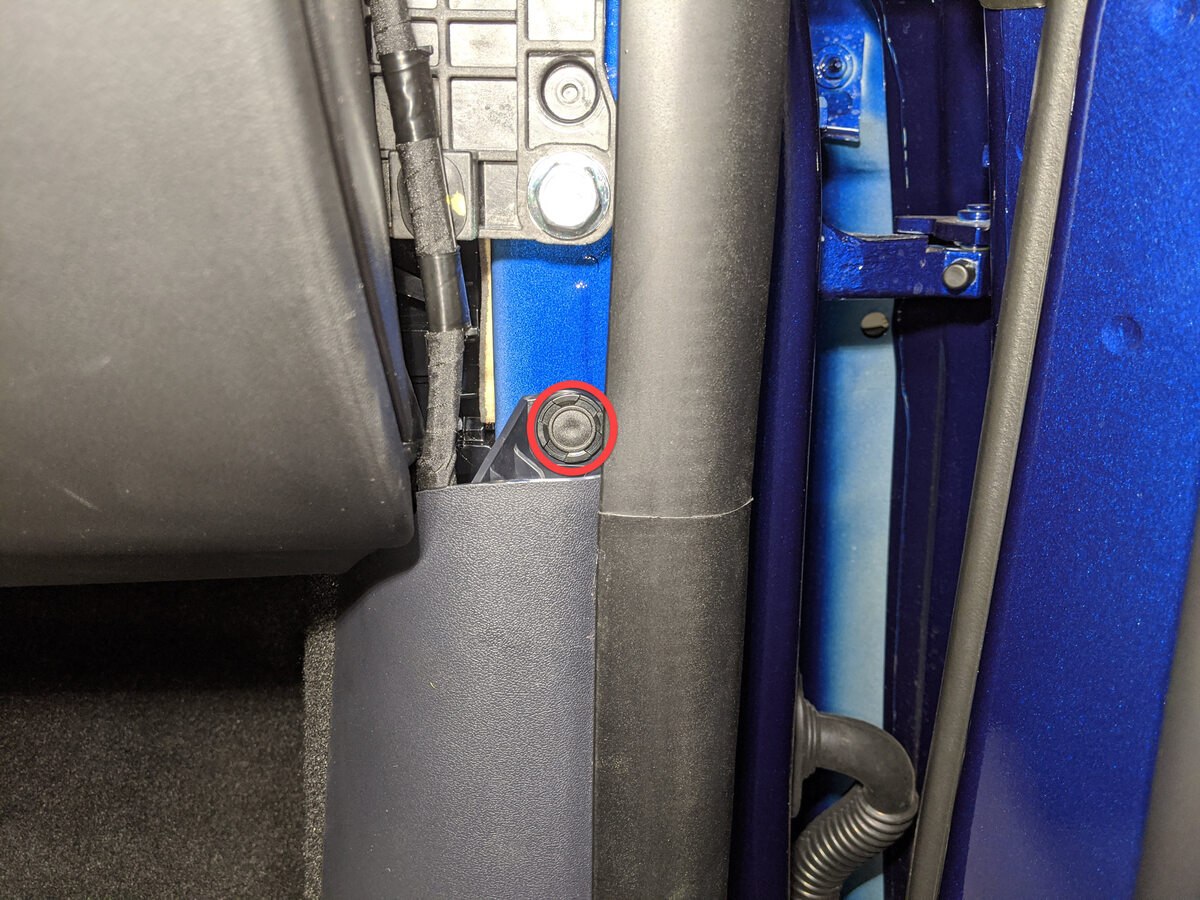

83. Remove clip securing LH lower B-pillar to body
    注

    1x push clip, Clip secures lower B-pillar and rear cabin carpet to body



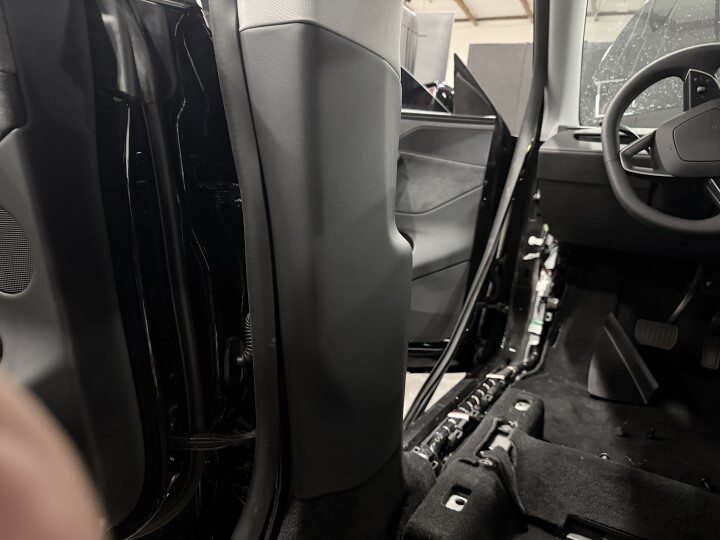

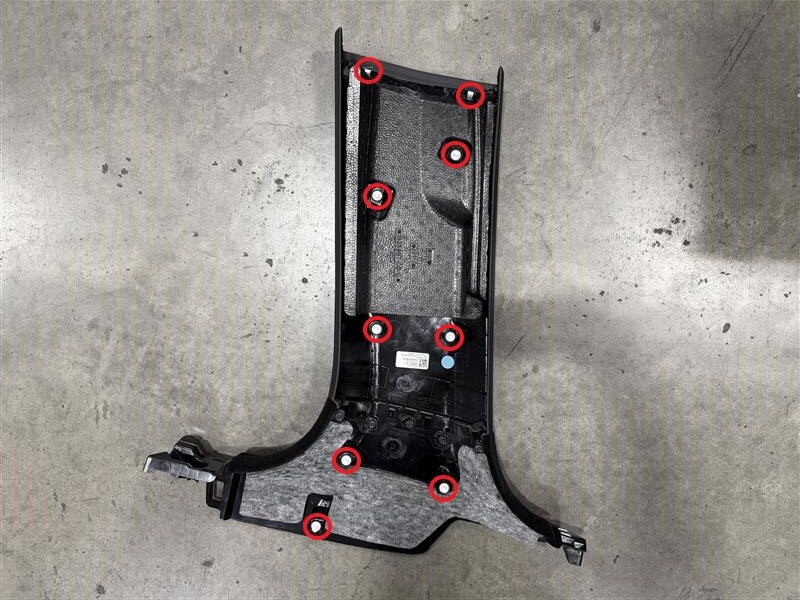

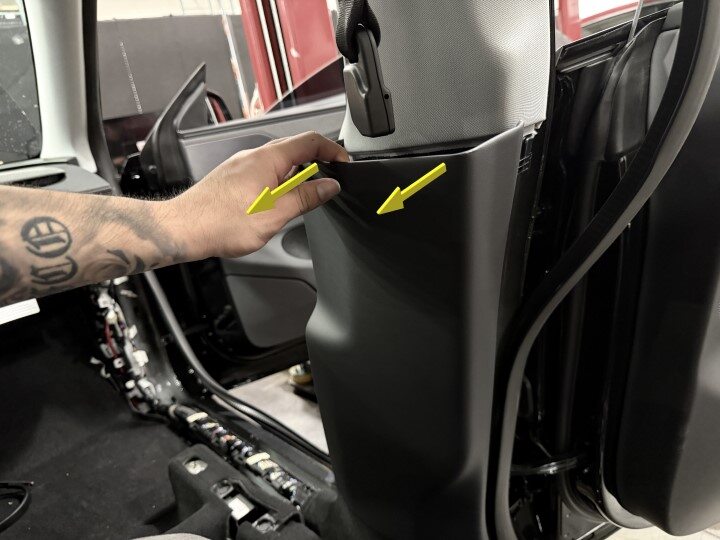

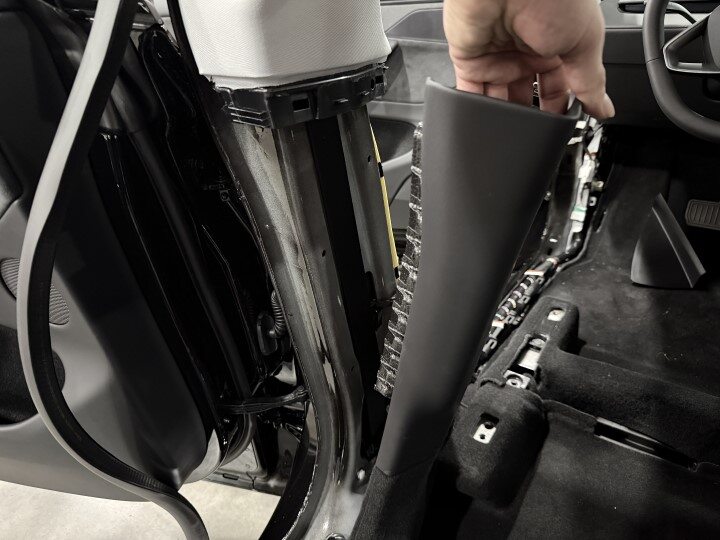

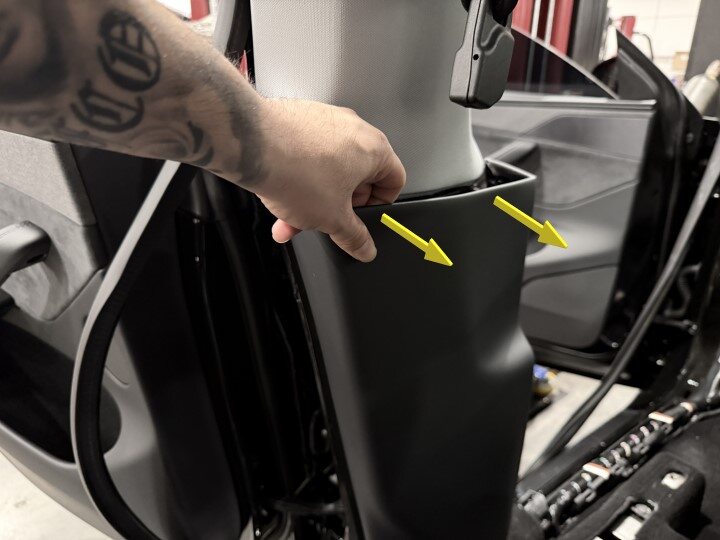

84. Remove LH lower B pillar assembly

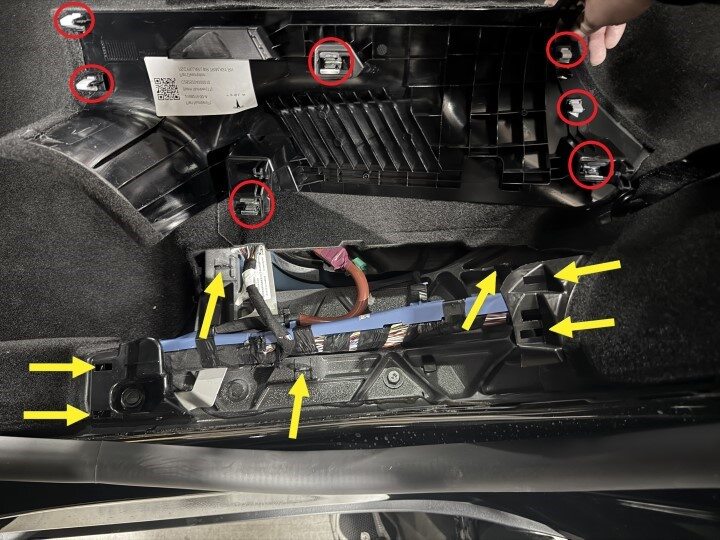

    注

    6x clips, Pull the top of B pillar to release top clips then work your way to bottom clips







85. Release clips securing RH upper B-pillar assembly and move aside
    注

    4x tabs, 5x retainers, Unhook retainers from body while pulling the bottom of the upper B pillar, then pull the top to release the remaining clips





86. Remove clip securing RH lower B-pillar to body
    注

    1x push clip, Clip secures lower B-pillar and rear cabin carpet to body



87. Remove RH lower B-pillar assembly
    注

    6x clips, Pull the top of B-pillar to release top clips then work your way to bottom clips

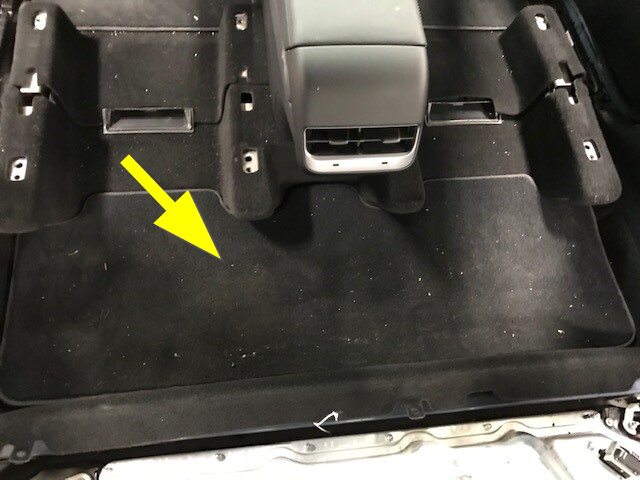

88. Remove rear floormat



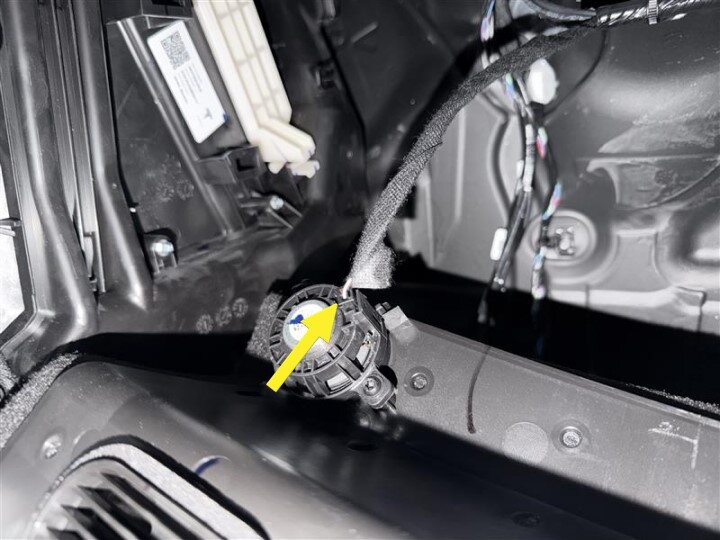

89. Disconnect emergency speaker connector from footwell
    注

    RH front carpet assembly has footwell attached, be cautious when pulling carpet away to avoid damaging harness.





90. Remove clips securing RH front carpet onto vehicle
    注

    2x push clips



91. Remove RH front cabin carpet assembly from vehicle
    注

    Once clips are removed, Lift up rear edge of carpet then slide out towards rear of vehicle, be cautious when pulling to avoid foam catching on seat risers

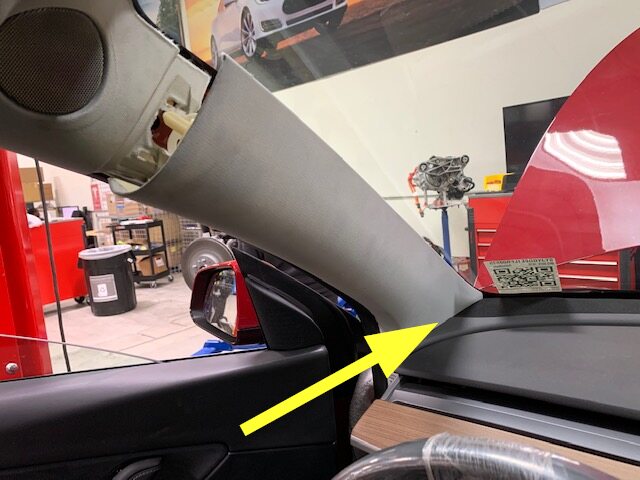

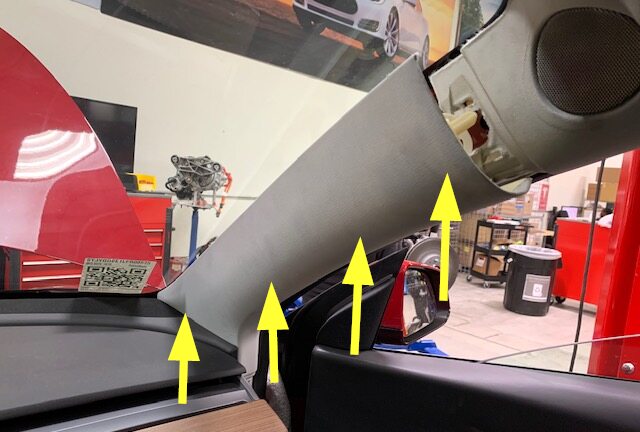

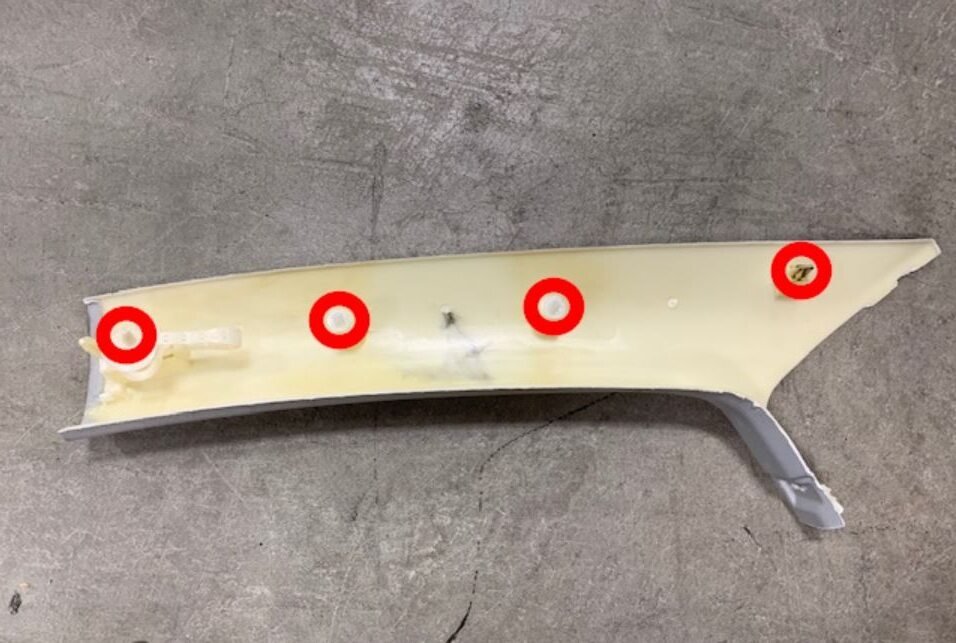

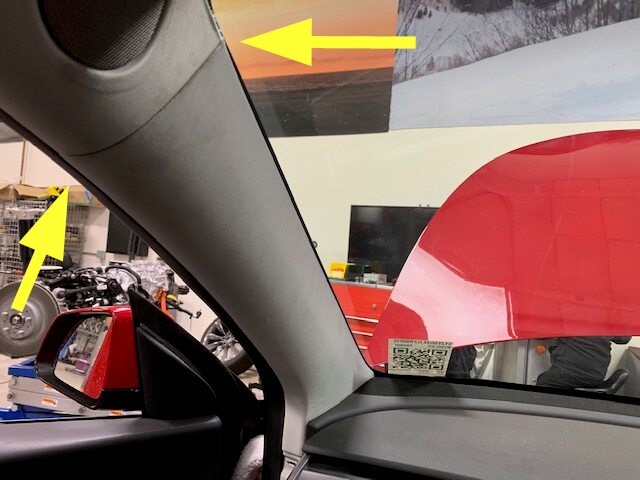

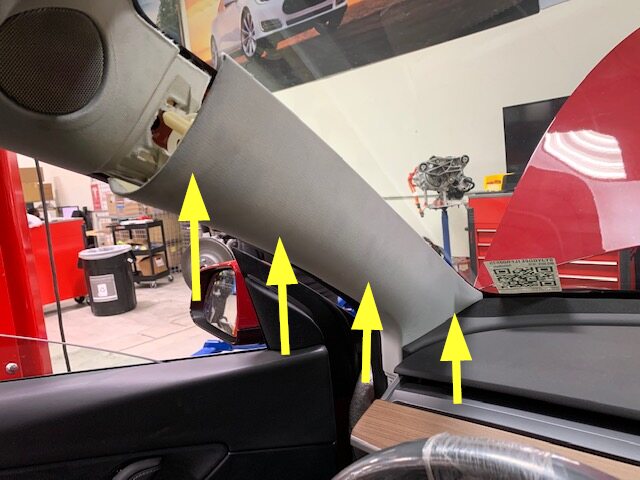

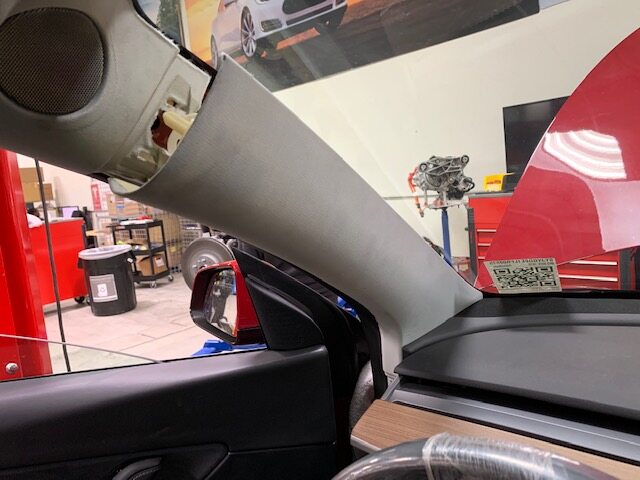

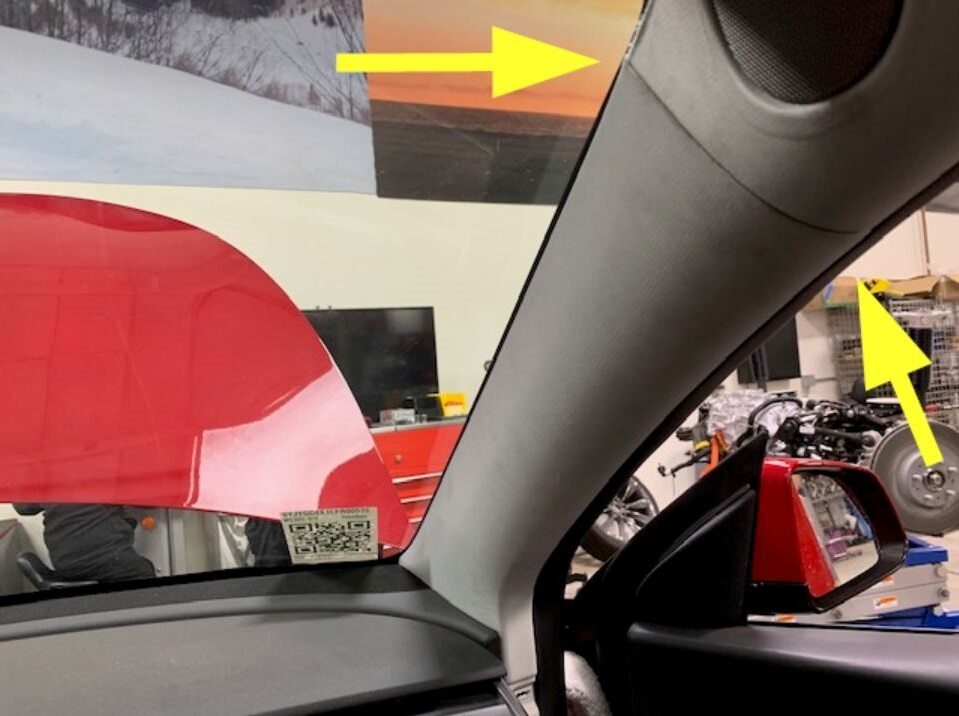

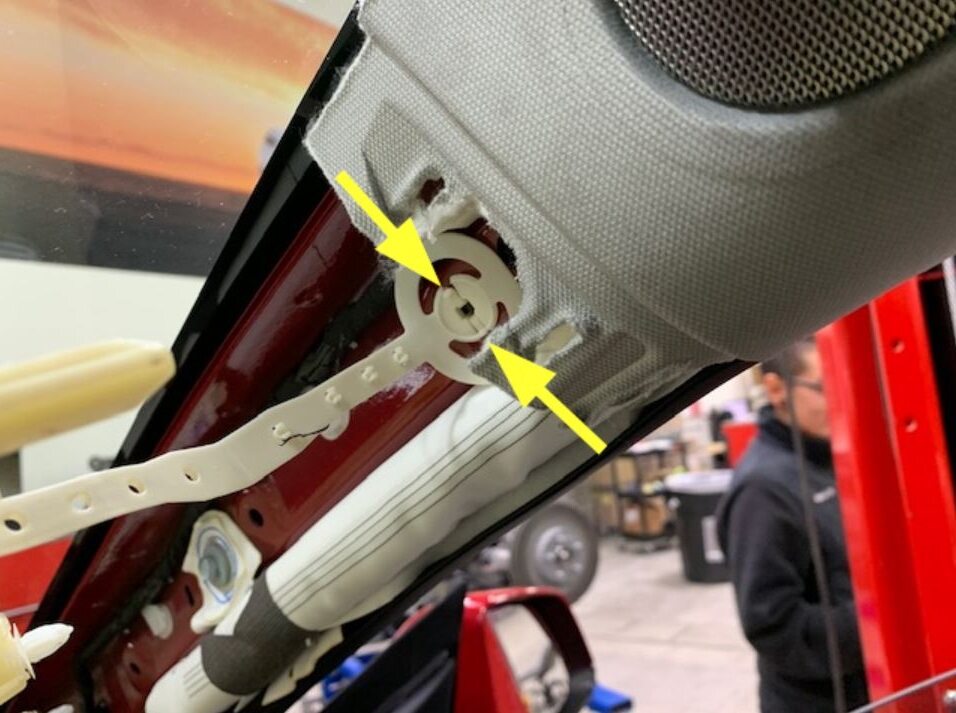

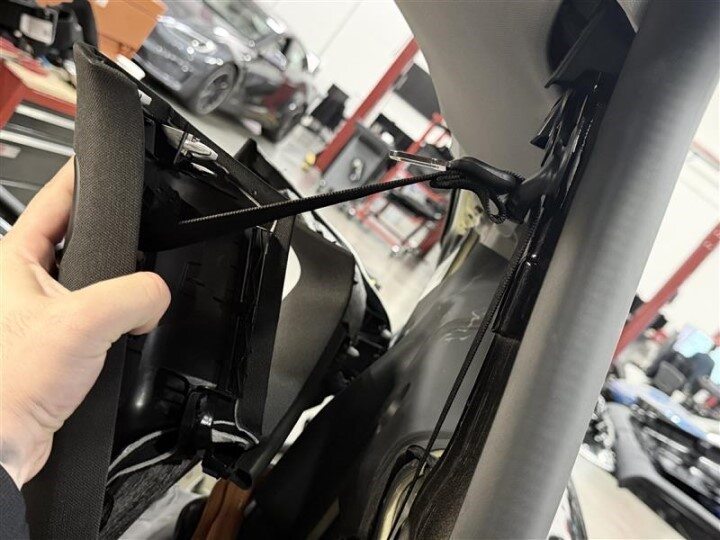

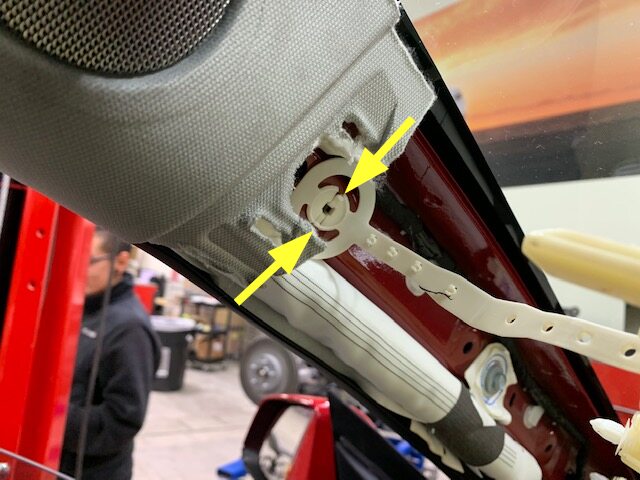

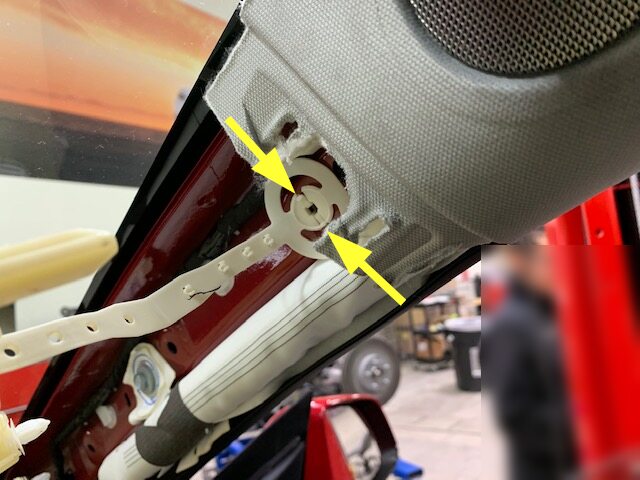

92. Remove LH upper A-pillar trim
    注

    3x clips, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove tether from body side, Then pull upper A-pillar upward to remove

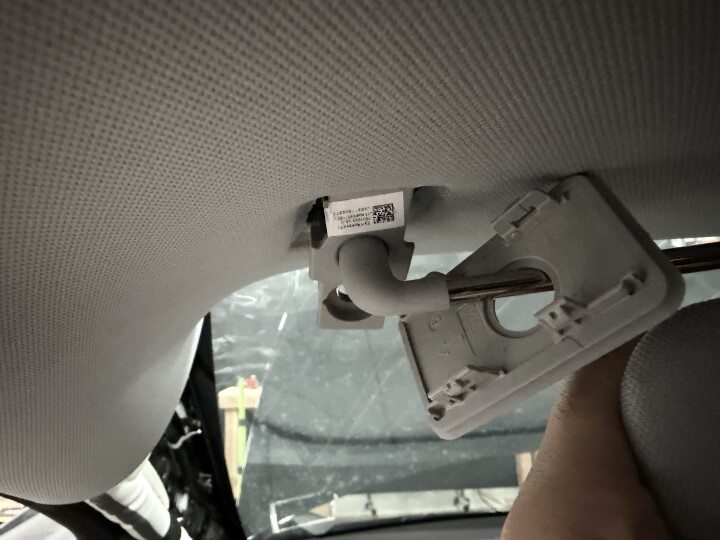

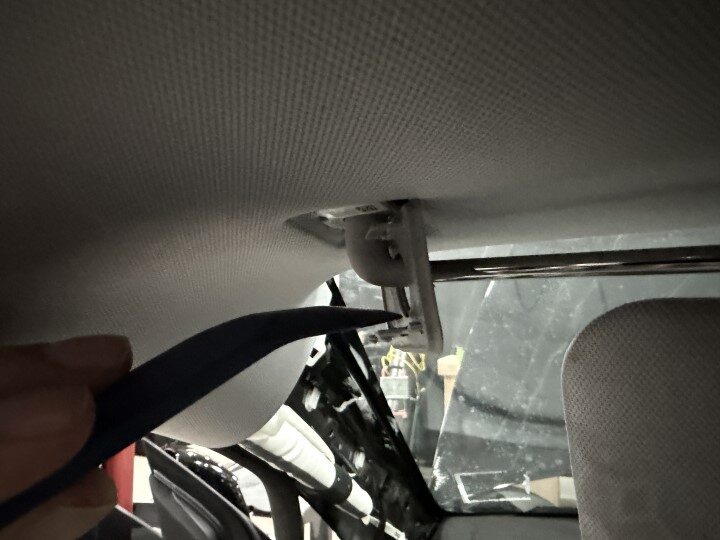

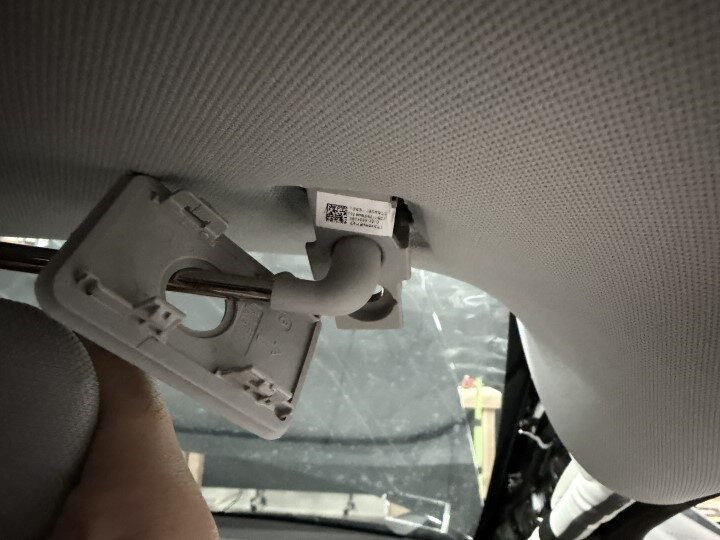

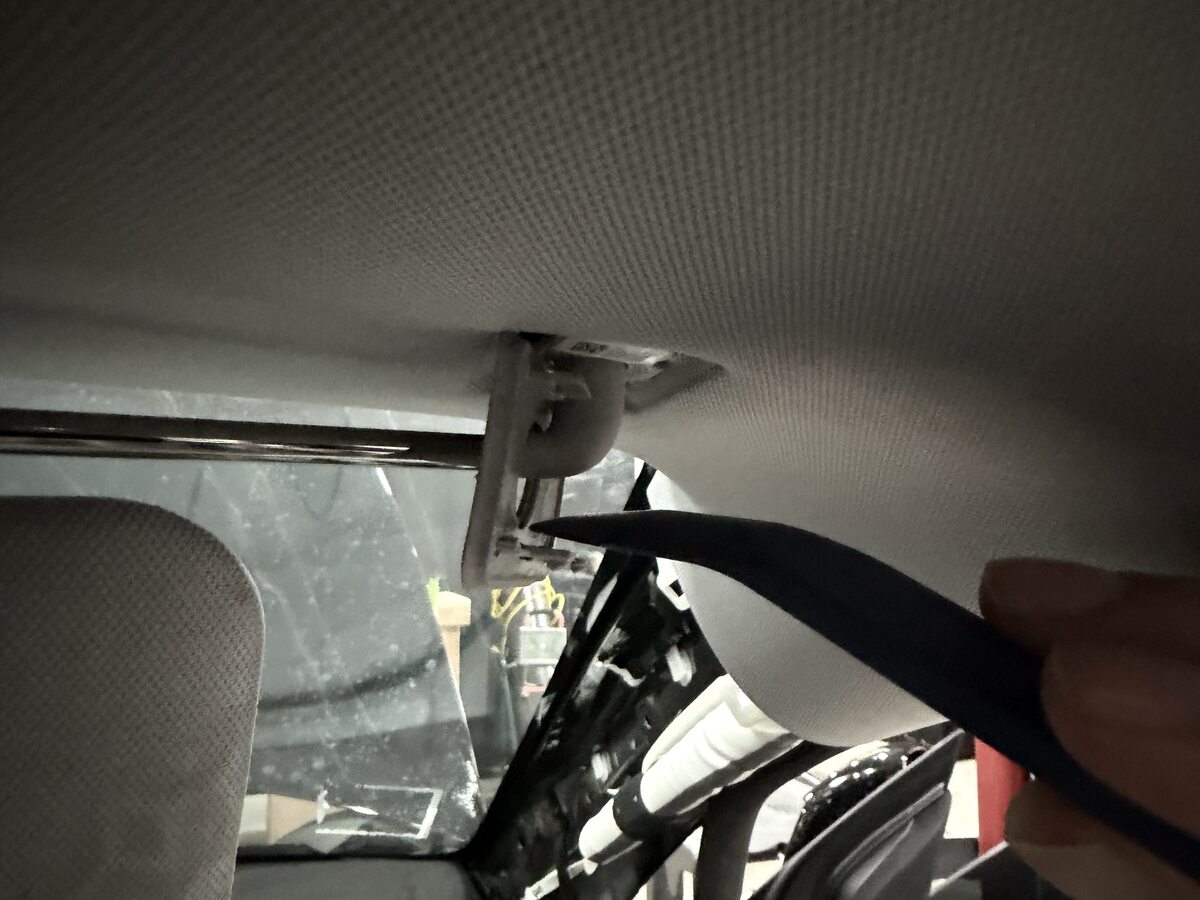

93. Remove LH sun visor bracket cover
    注

    4x clips, Extending the sun visor may allow for extra working room





94. Unfasten LH sun visor
    注

    1x fastener, Torx T25

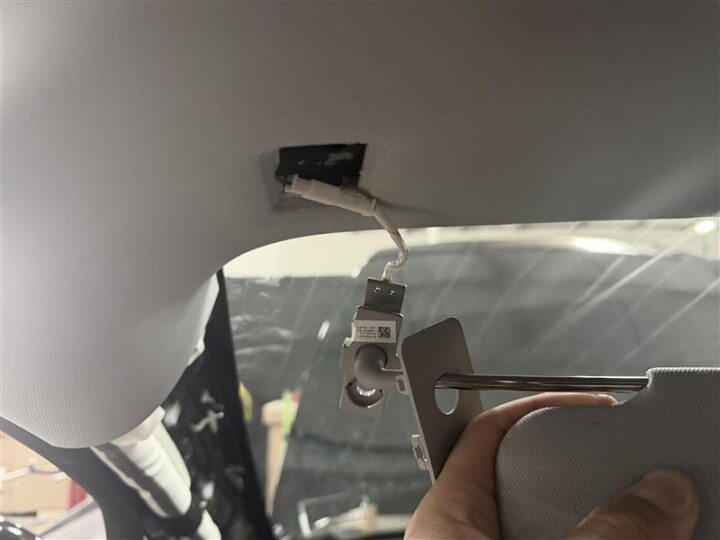

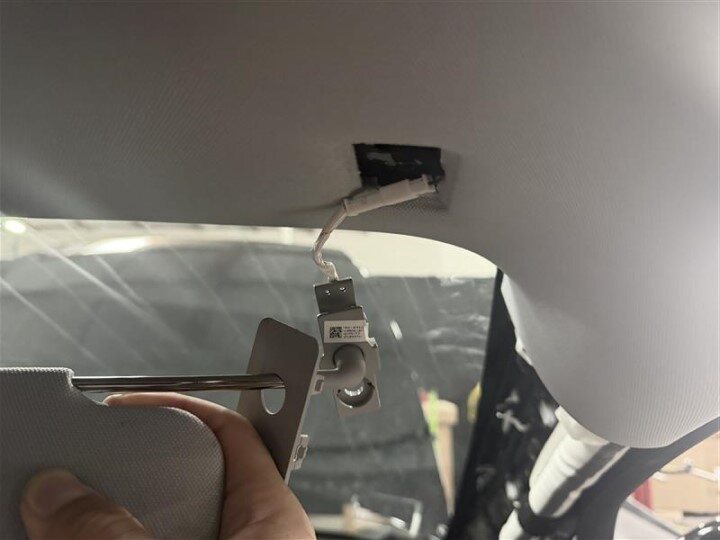

95. Remove LH sun visor from headliner area
    注

    1x connector, Hinge sun visor downward and away from headliner, Disconnect sun visor harness





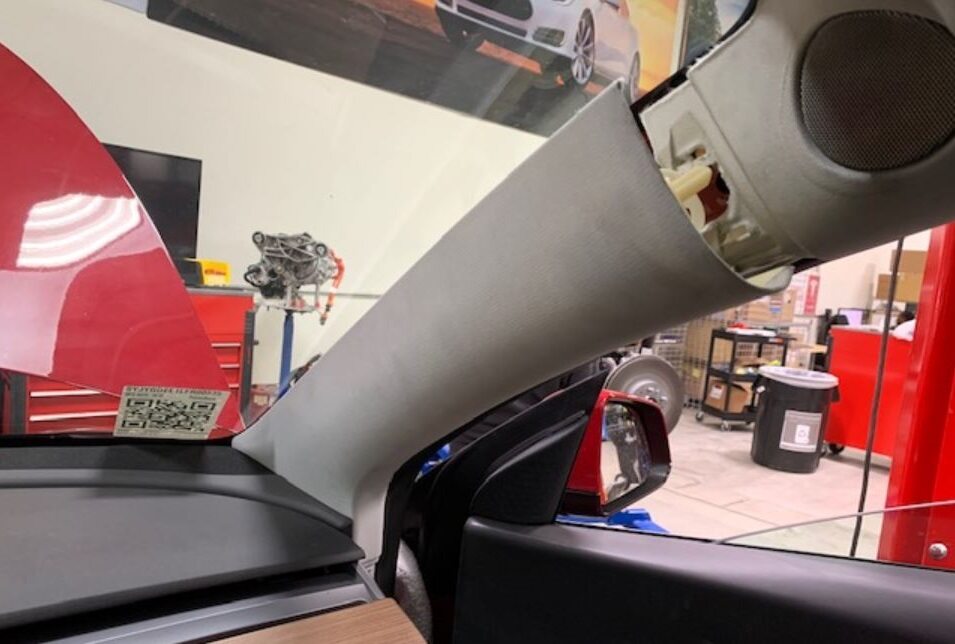

96. Remove RH upper A-pillar trim
    注

    3x clips, Pull inside of the upper portion of upper A-pillar, Remove 3x tether hooks by twisting and pulling away from housing, Then pull upper A-pillar upward to remove









97. Remove RH sun visor bracket cover
    注

    4x clips, Extending the sun visor may allow for extra working room





98. Unfasten RH sun visor
    注

    1x fastener, Torx T25



99. Remove RH sun visor from headliner area
    注

    1x connector, Hinge sun visor downward and away from headliner, Disconnect sun visor harness

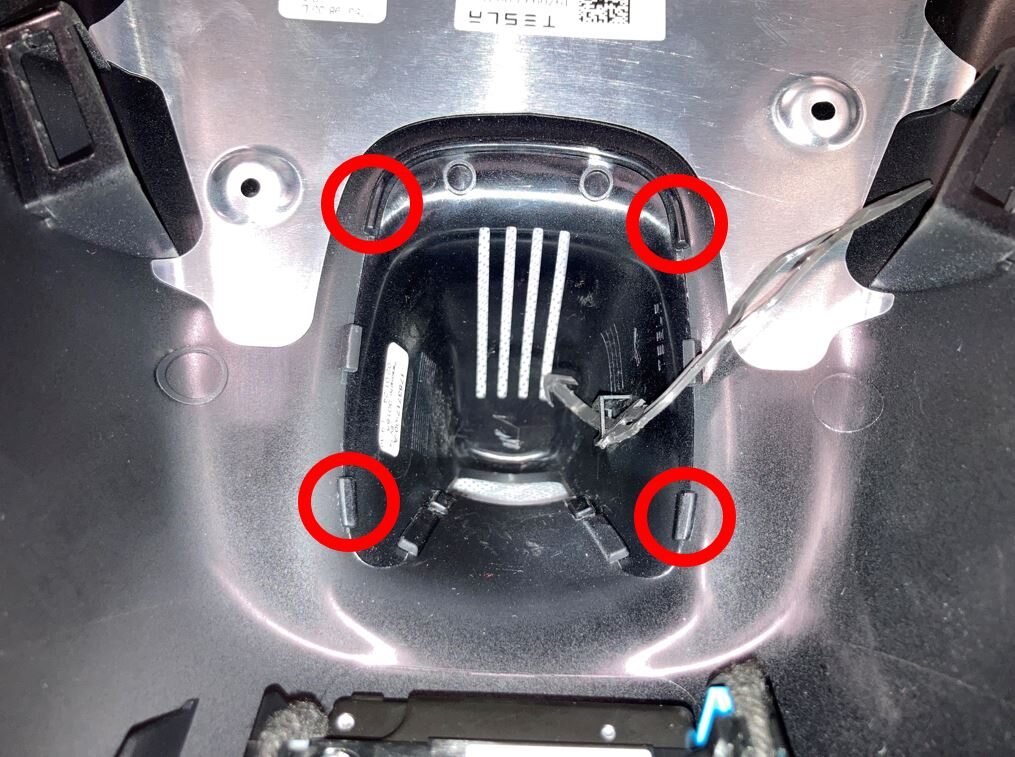

100. Remove lower quad camera cover
     注

     4x tabs, Squeeze on both sides of the cover and pull downward away from mirror





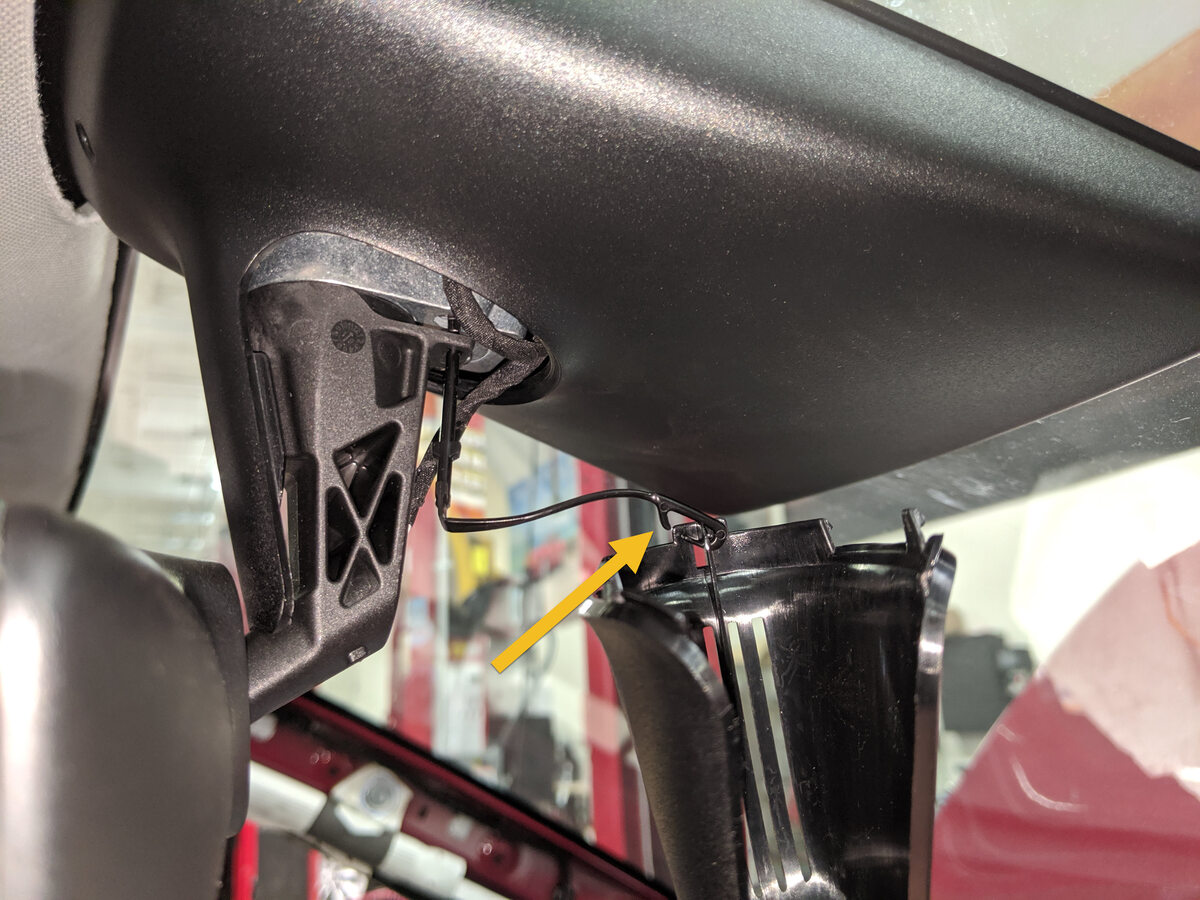

101. Remove tether from lower quad camera cover
     注

     1x hook, Guide hook through anchor on quad cam cover



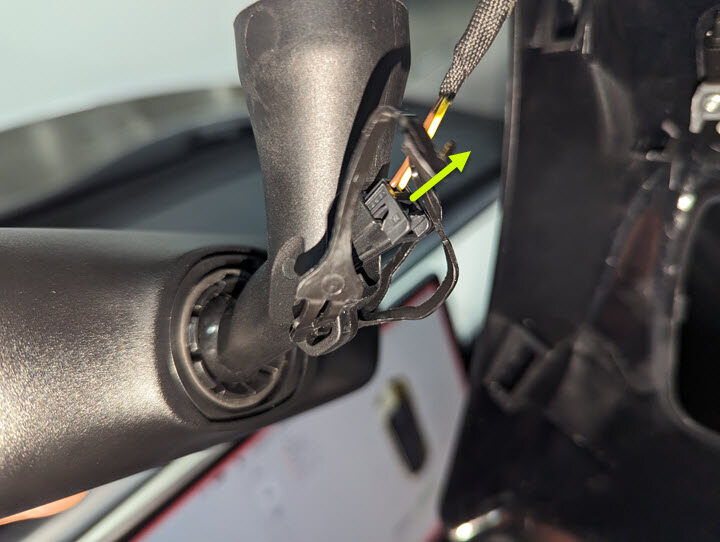

102. Disconnect rear view mirror connector
     注

     1x connector

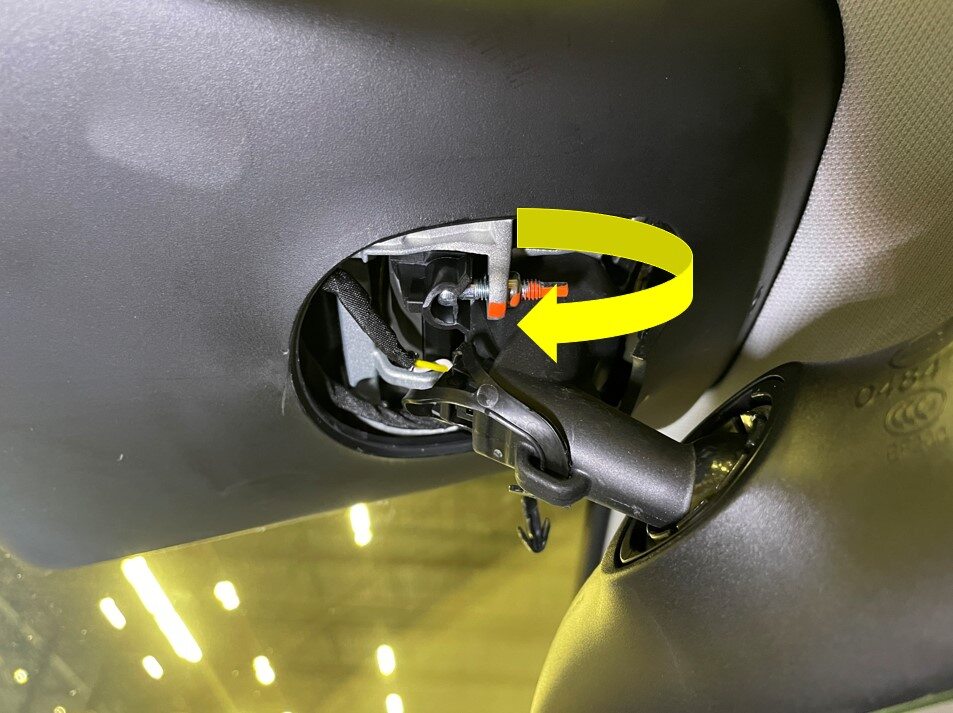

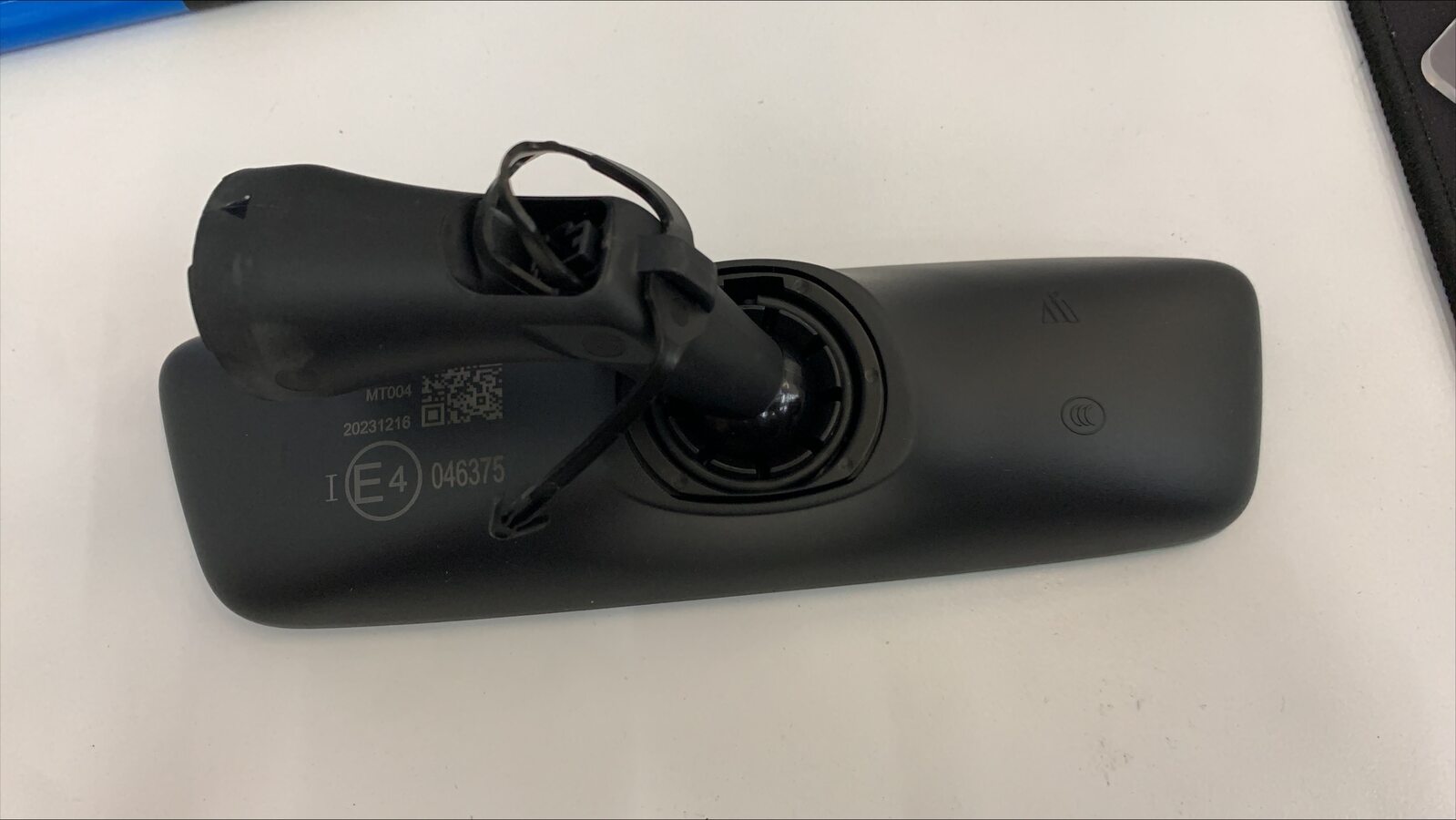

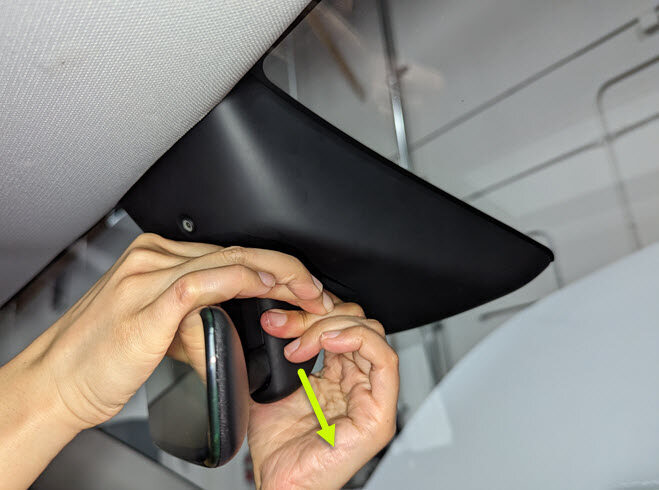

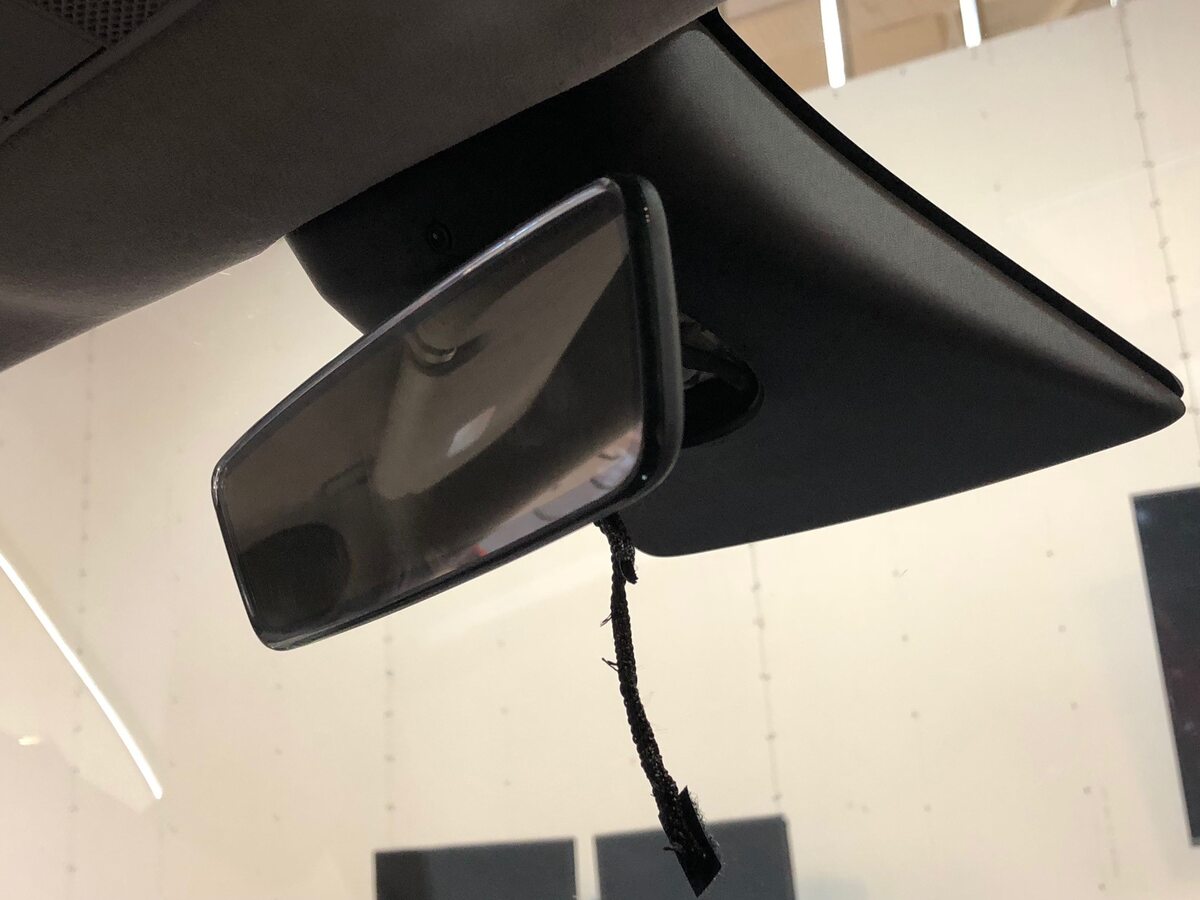

103. Remove rear view mirror
     注

     Turn mirror counterclockwise to remove, Do not twist by holding the mirror itself, ball joint will de-couple, Twist from the stalk connecting the mirror to the mount

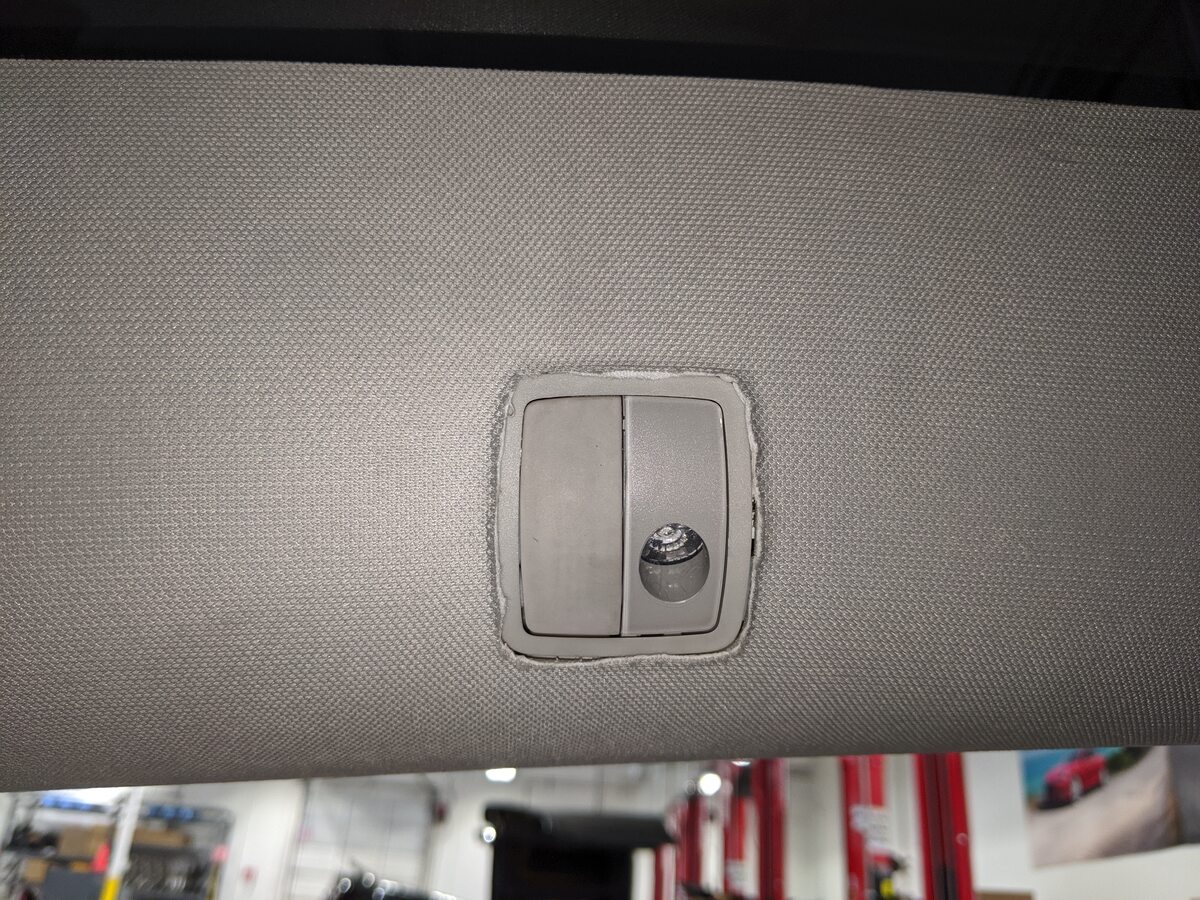

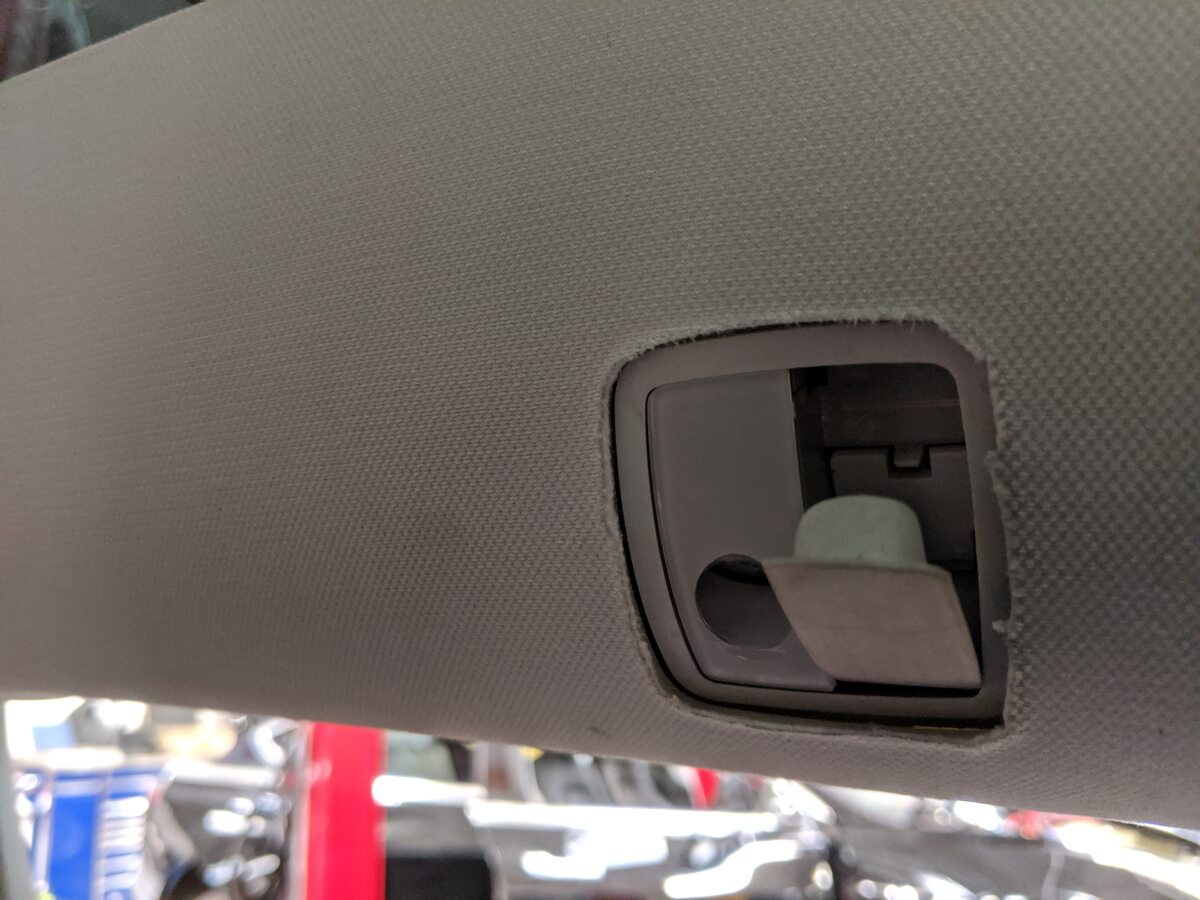

104. Push open LH coat hook





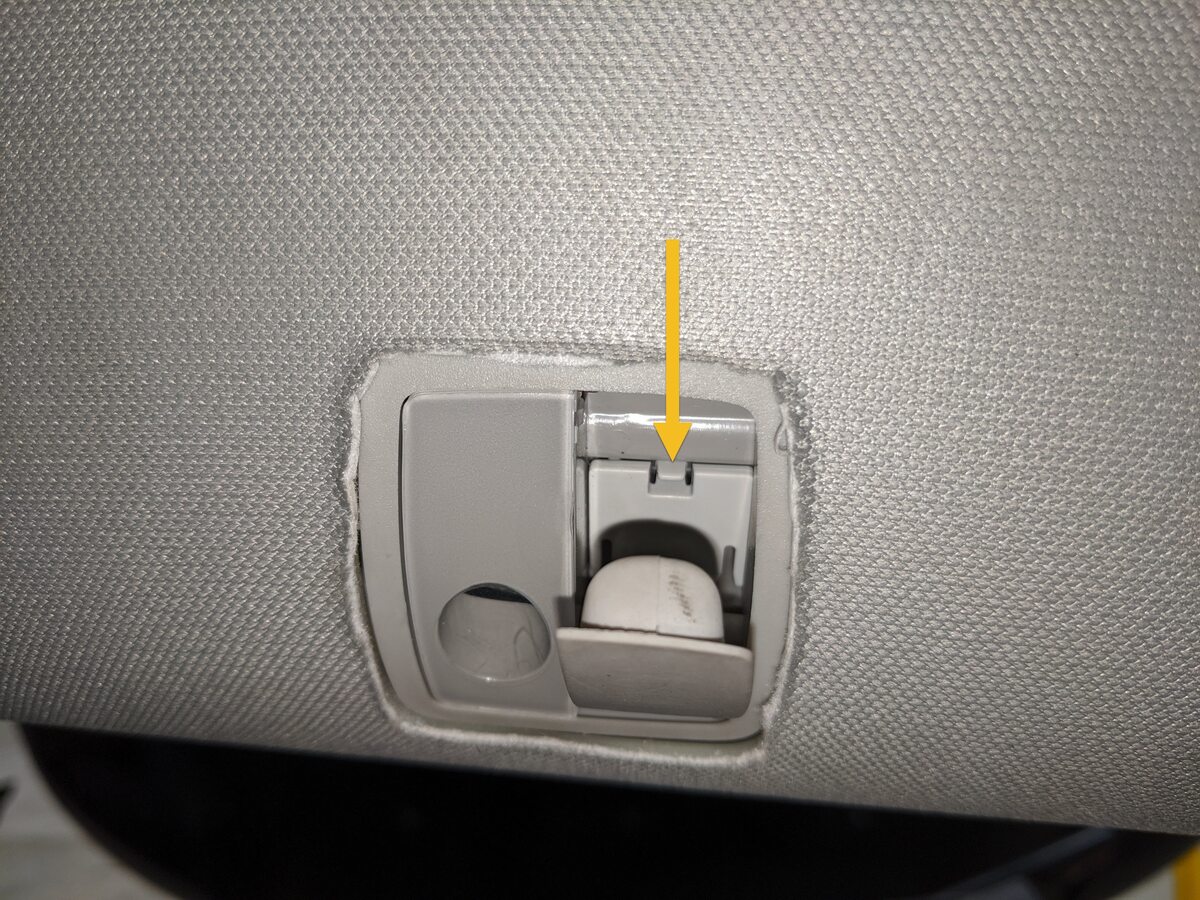

105. Open LH coat hook screw cover
     注

     1x locking tab

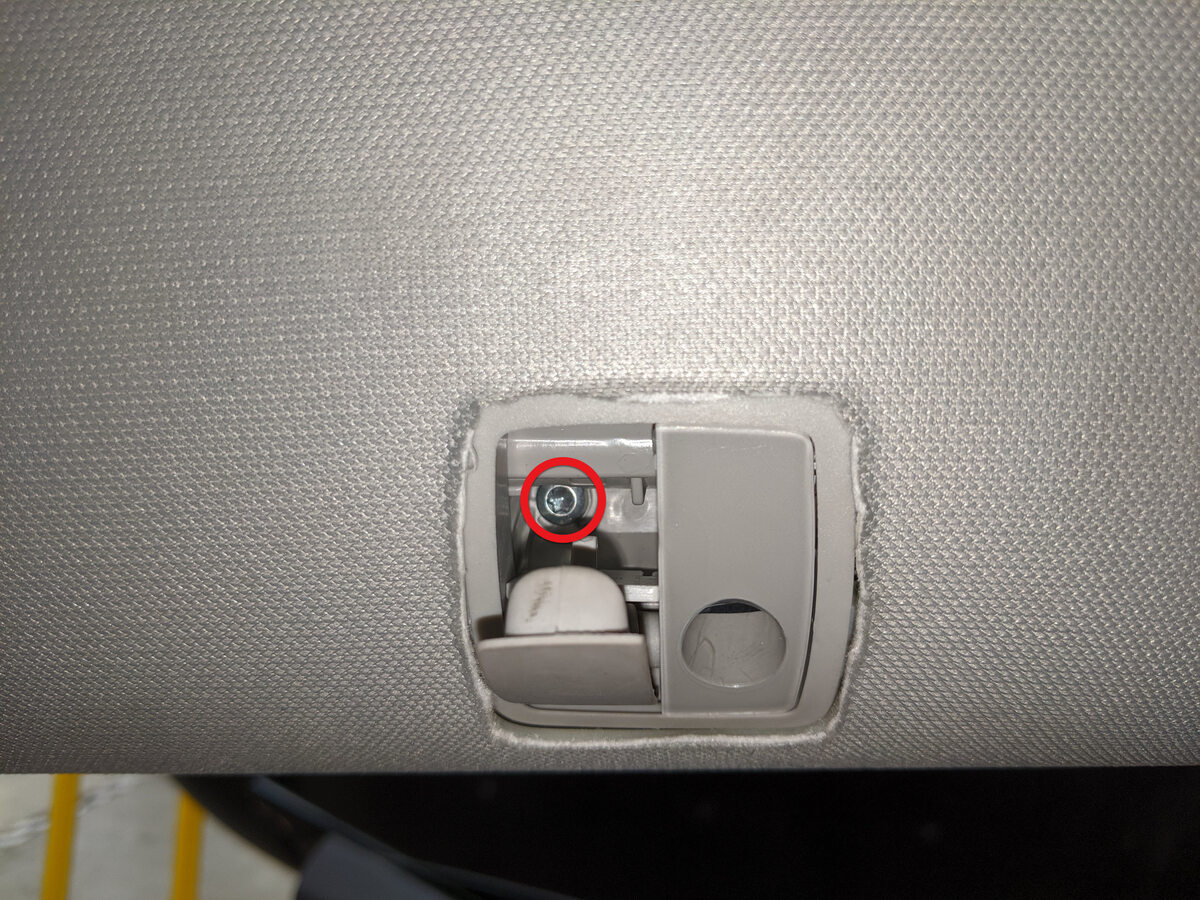

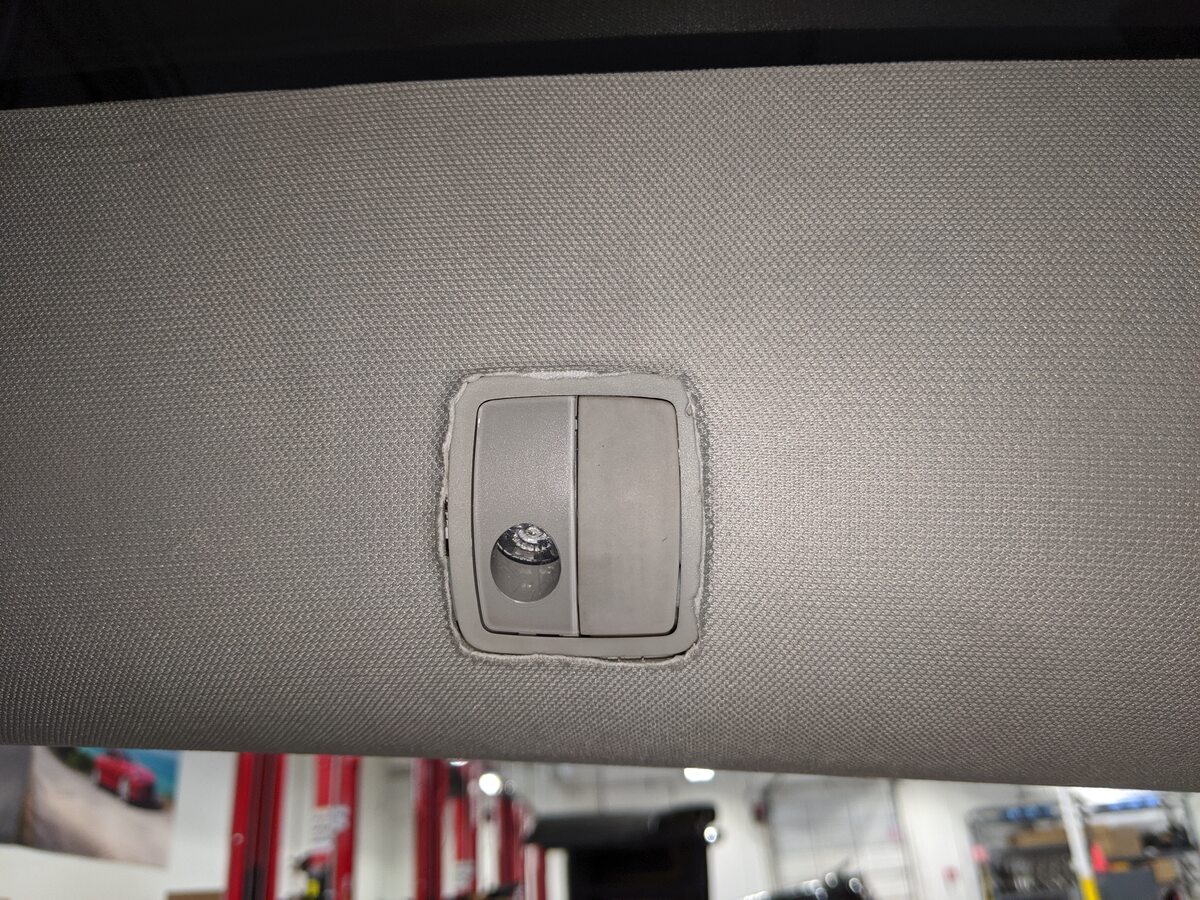

106. Remove LH coat hook screw
     注

     1x screw, T20, 1.0 Nm



107. Push open RH coat hook





108. Open RH coat hook screw cover
     注

     1x locking tab





109. Remove RH coat hook screw
     注

     1x screw, T20, 1.0 Nm

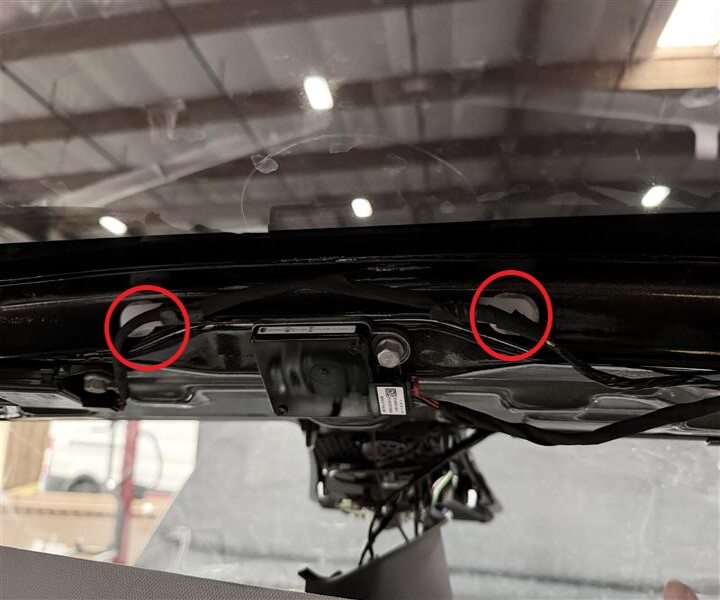

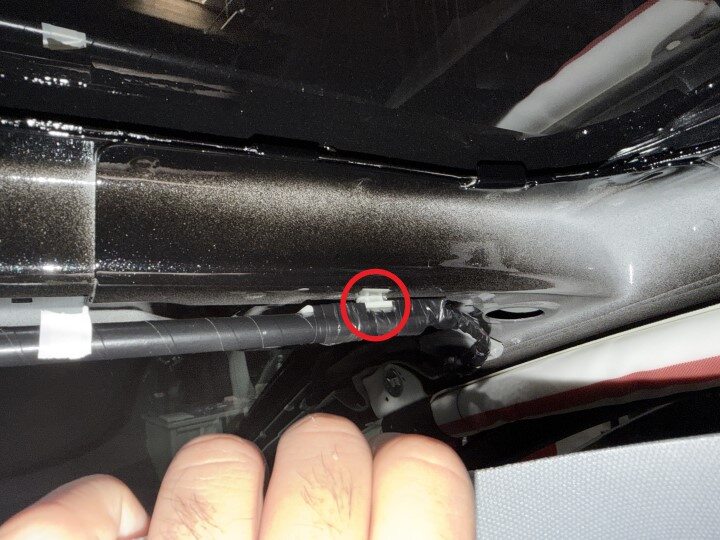

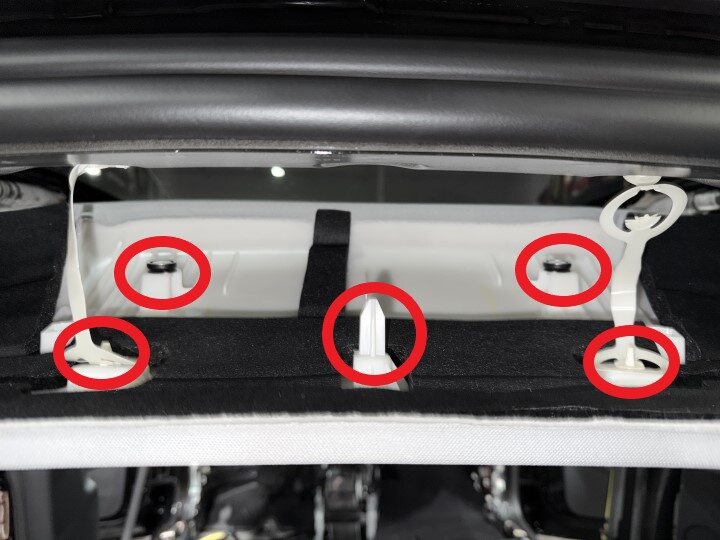

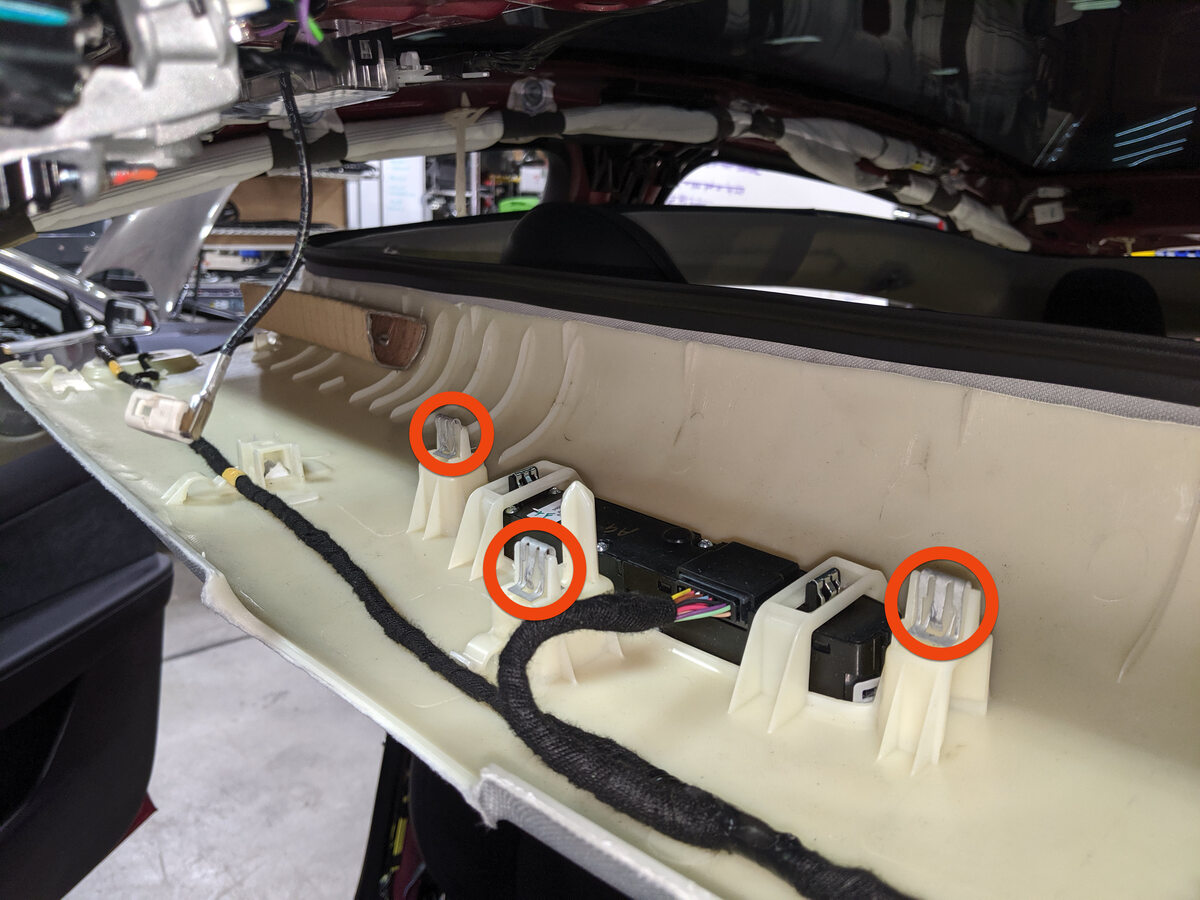

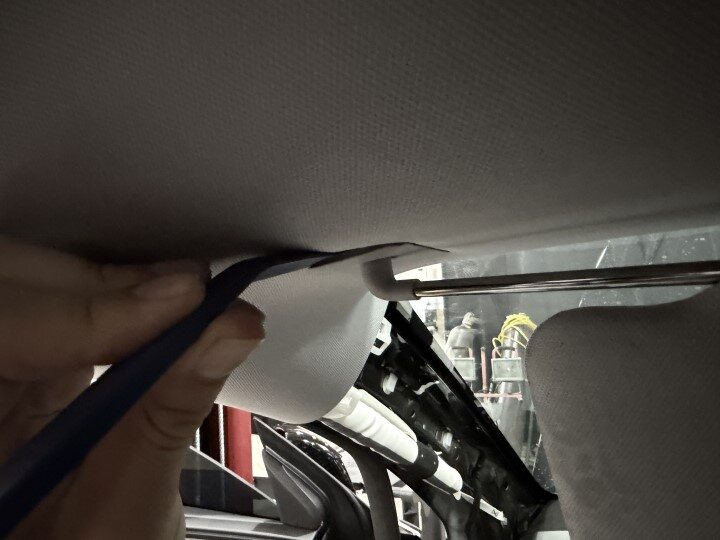

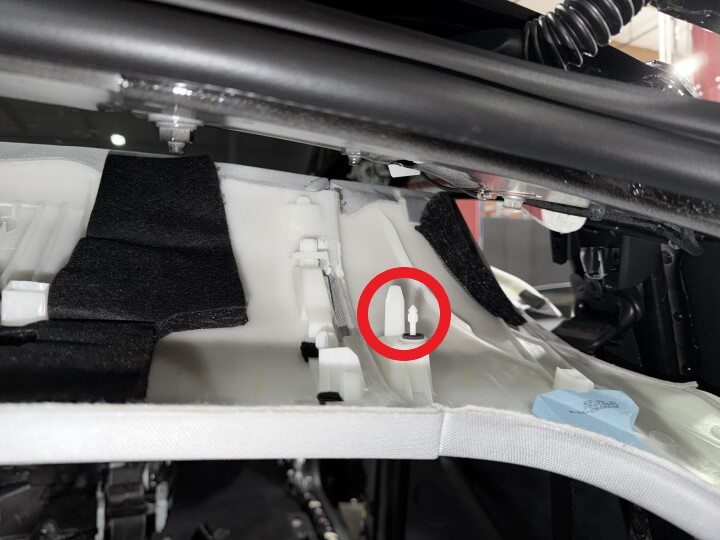

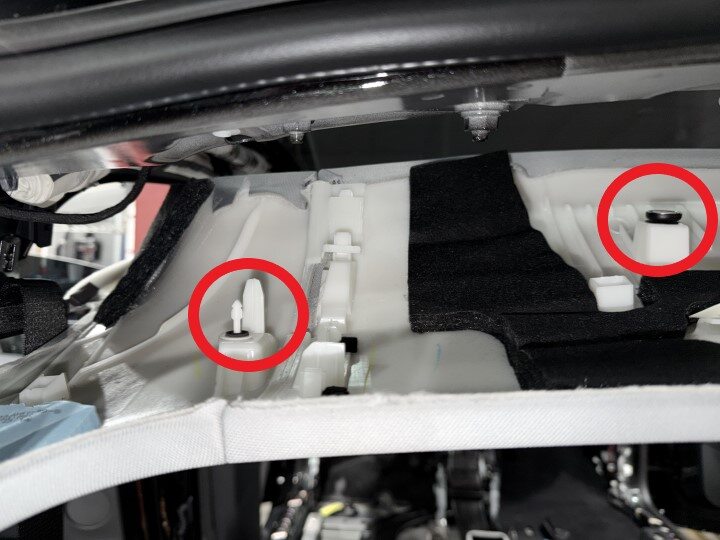

110. Release headliner from body
     注

     3x clips, 3 location pins, 2x magnets, 2x interlocking clips, recommend assistance, Headliner will be partially supported by safety tethers at B-pillars and 2x tether clips at rear corners









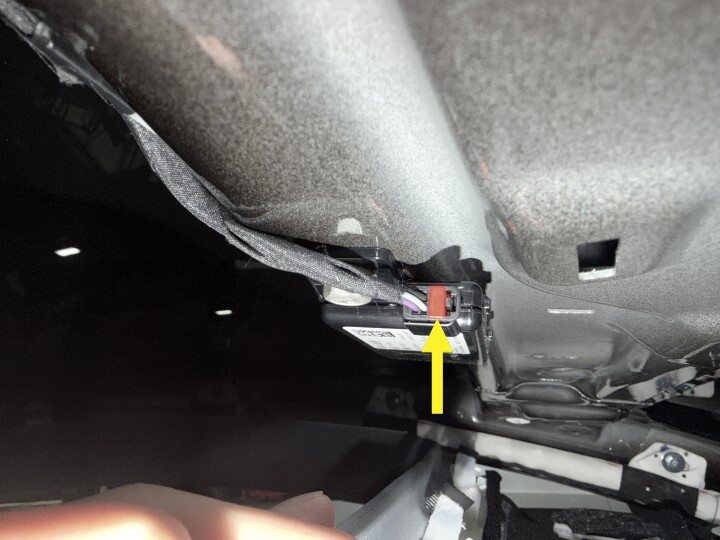

111. Disconnect LH MIMO antenna
     注

     1x connector, Release red locking tab



112. Disconnect RH MIMO antenna
     注

     1x connector, Release red locking tab



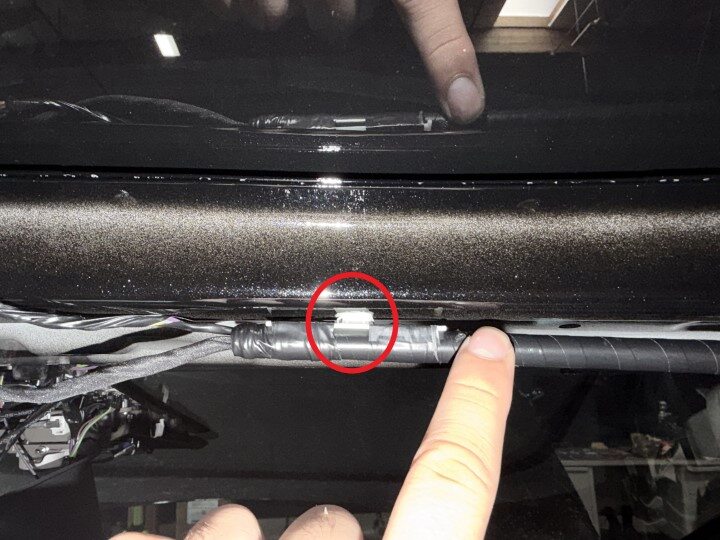

113. Release clips securing MIMO harness
     注

     3x clips













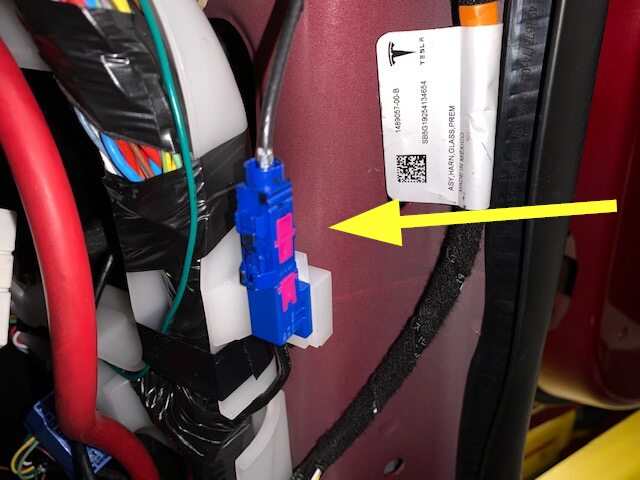

114. Disconnect coax and connectors from harness guide at RH lower A-pillar area
     注

     3x connectors, Disengage red lock tab and press to release



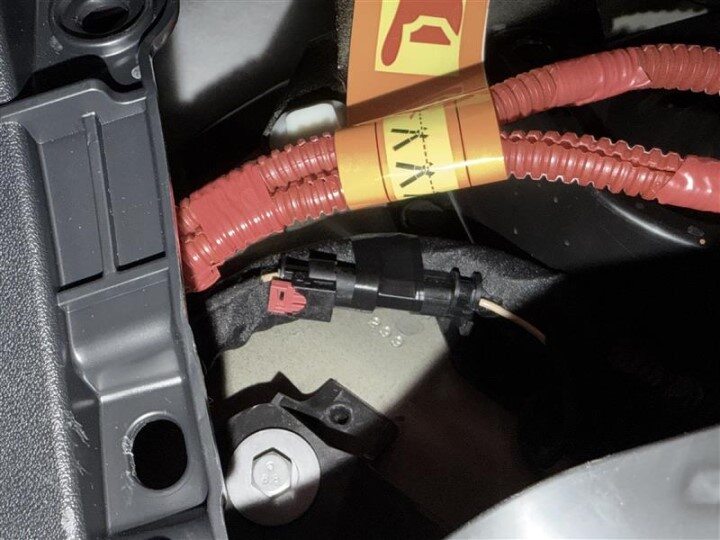

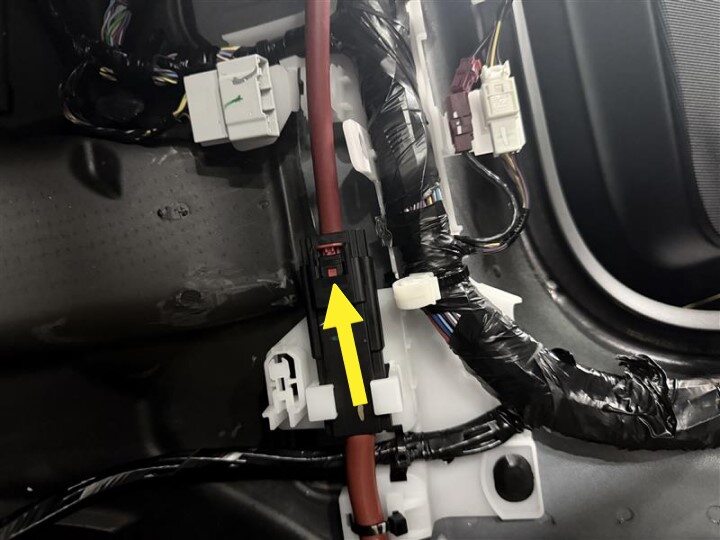

115. Disconnect HV connector from RH body harness assembly
     注

     1x connector, disengage red lock tab

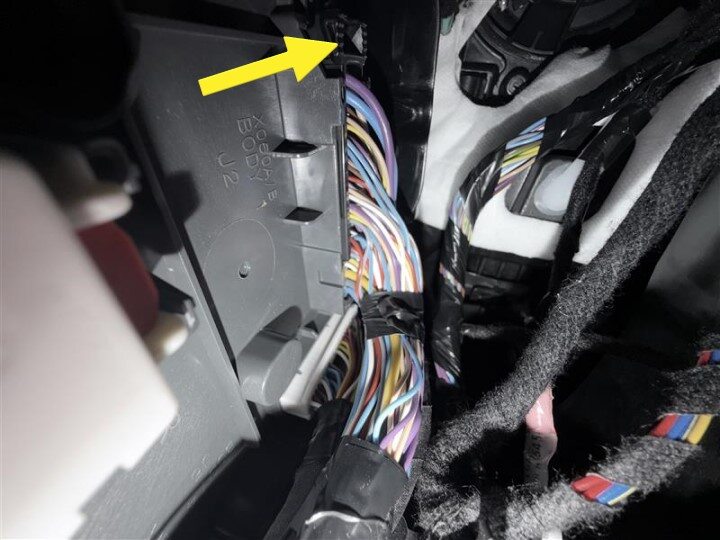

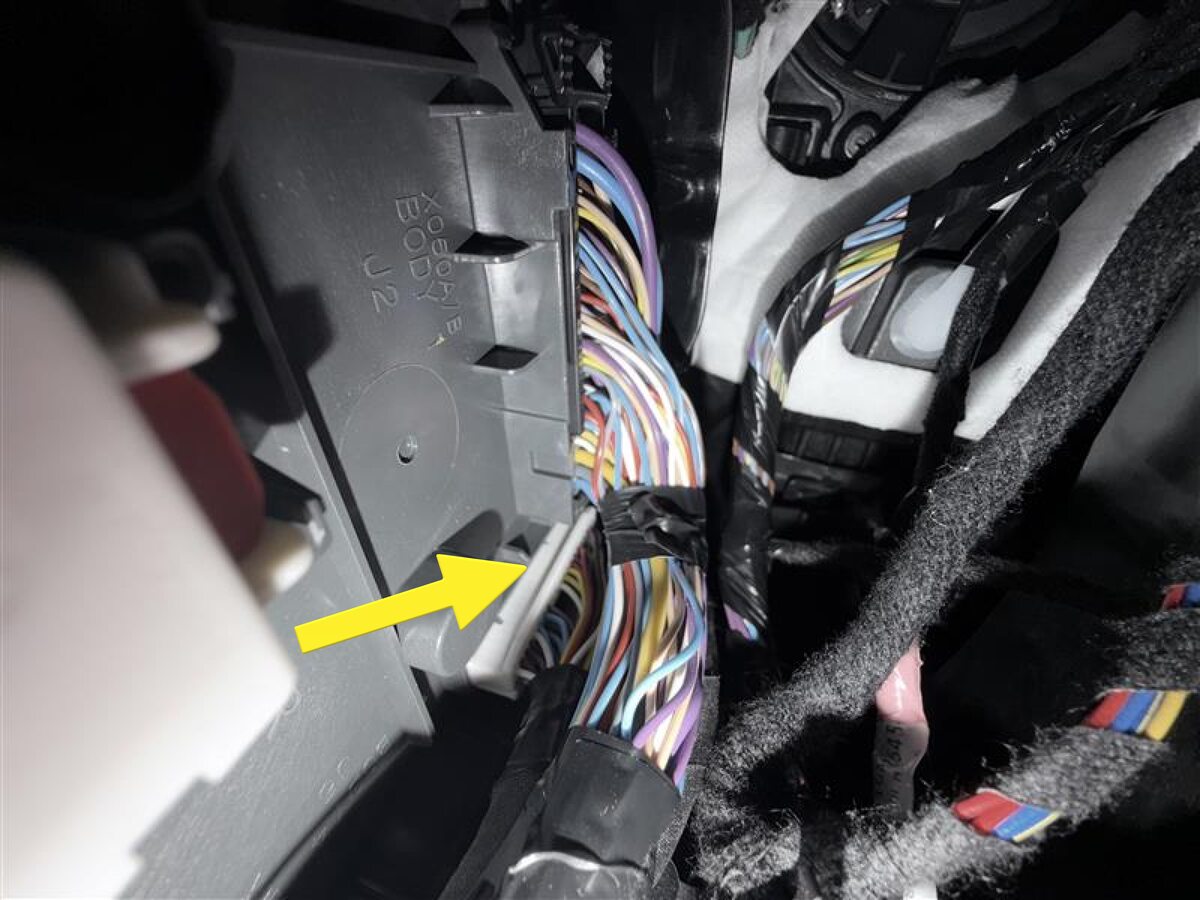

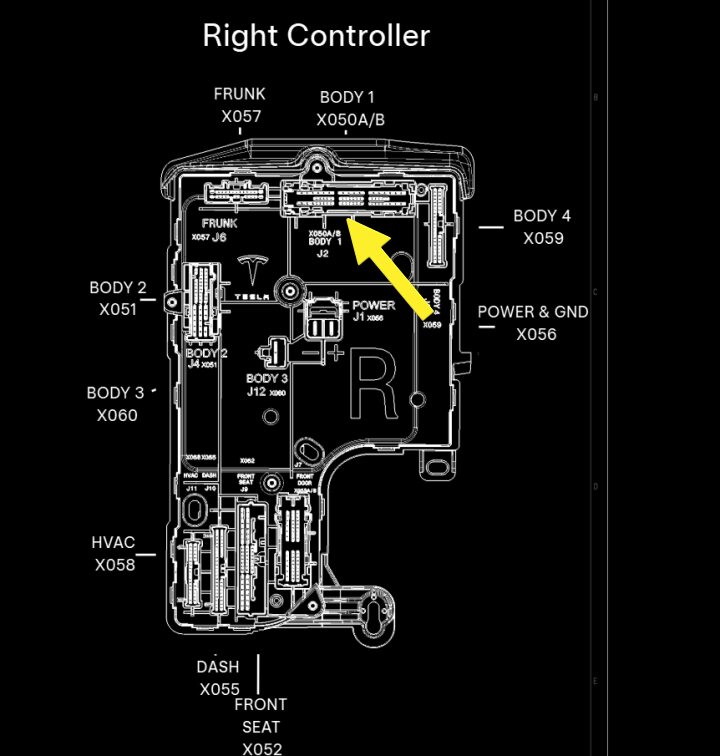

116. Disconnect J2 body connector
     注

     1x connector, Release lock then remove





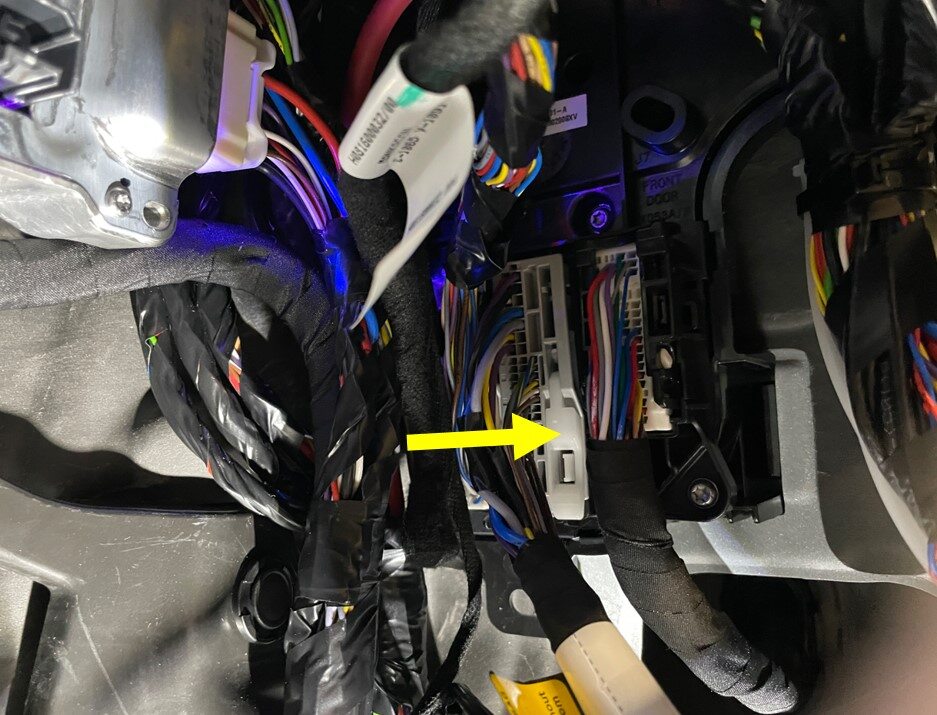

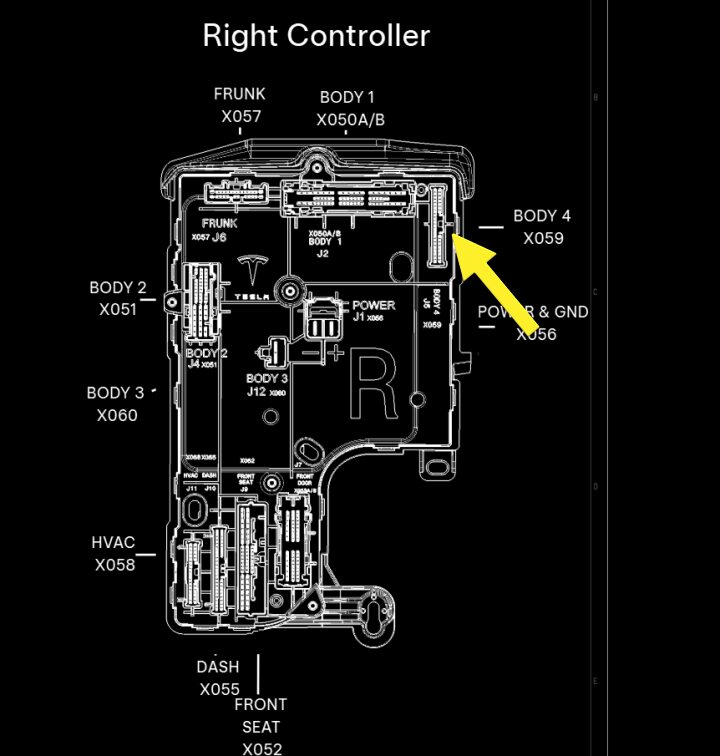

117. Disconnect J5 body 4 connector
     注

     1x connector, Press tab to release

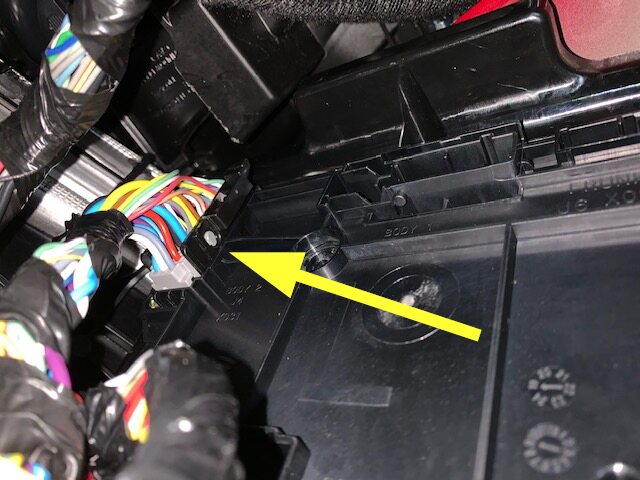

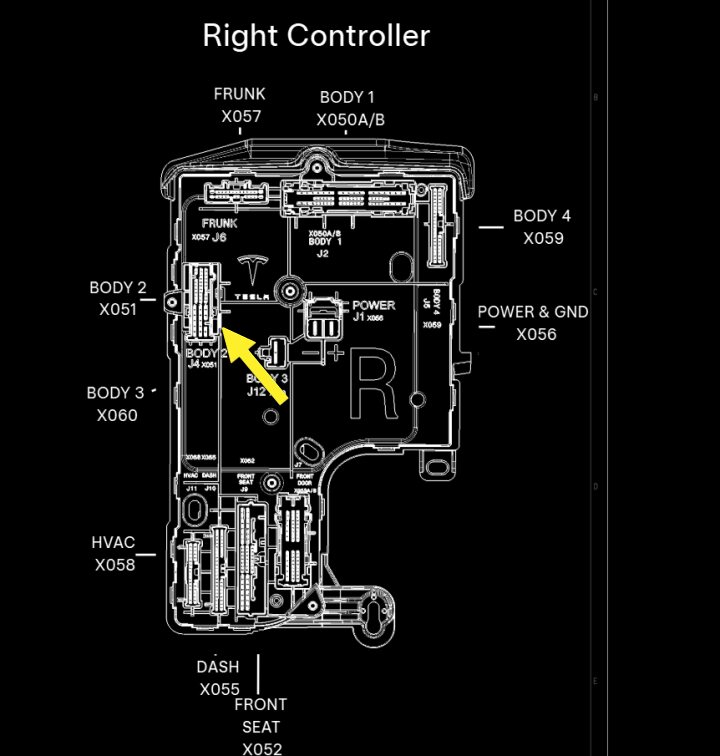

118. Disconnect J4 body connector
     注

     1x connector, Release lock then remove

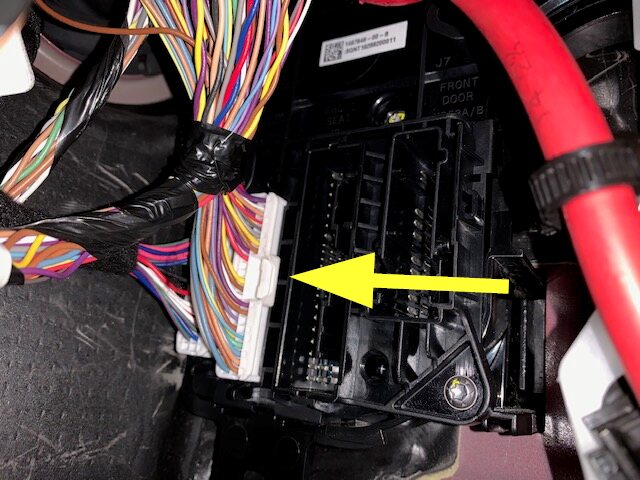

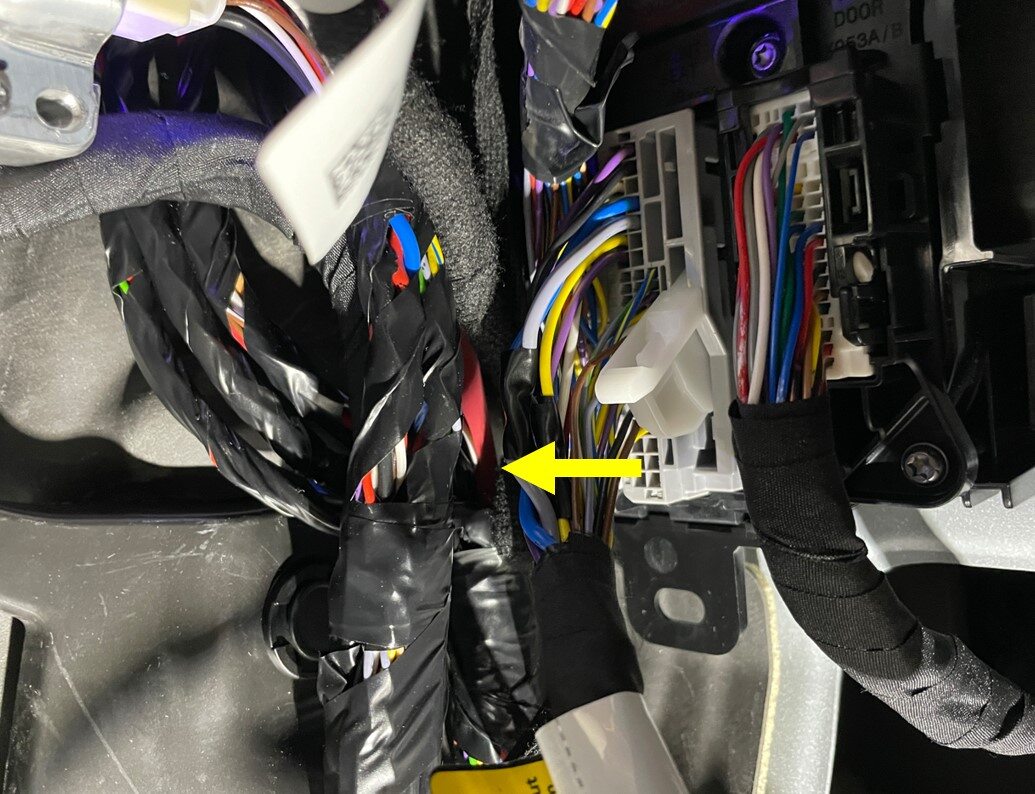

119. Disconnect J7 door connector
     注

     1x connector, Release lock then remove





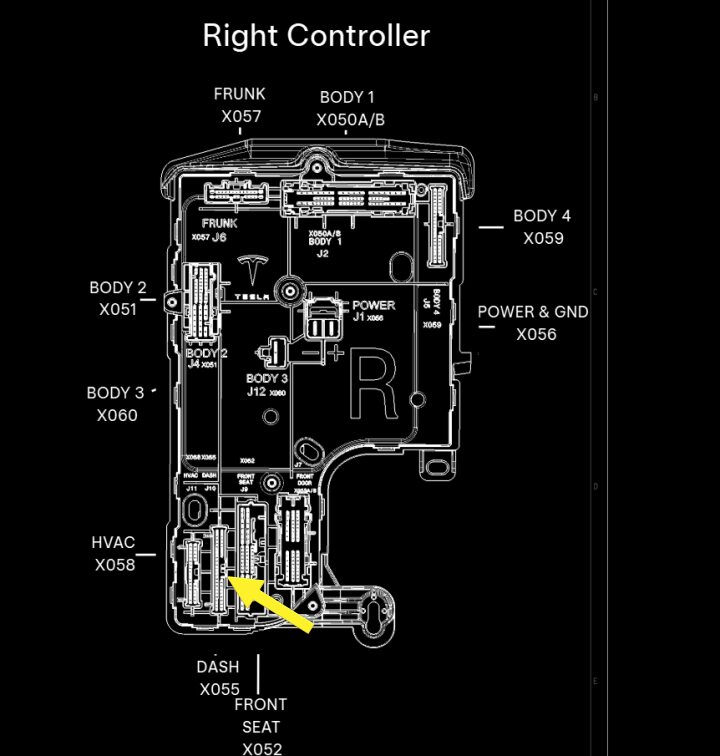

120. Disconnect J10 dash connector
     注

     1x connector





121. Disconnect J11 connector
     注

     1x connector, press tab to release

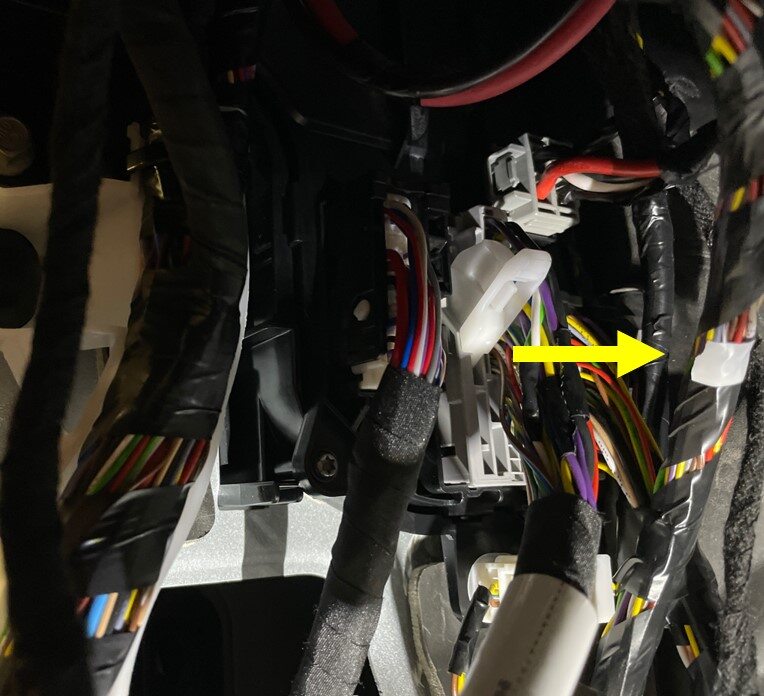

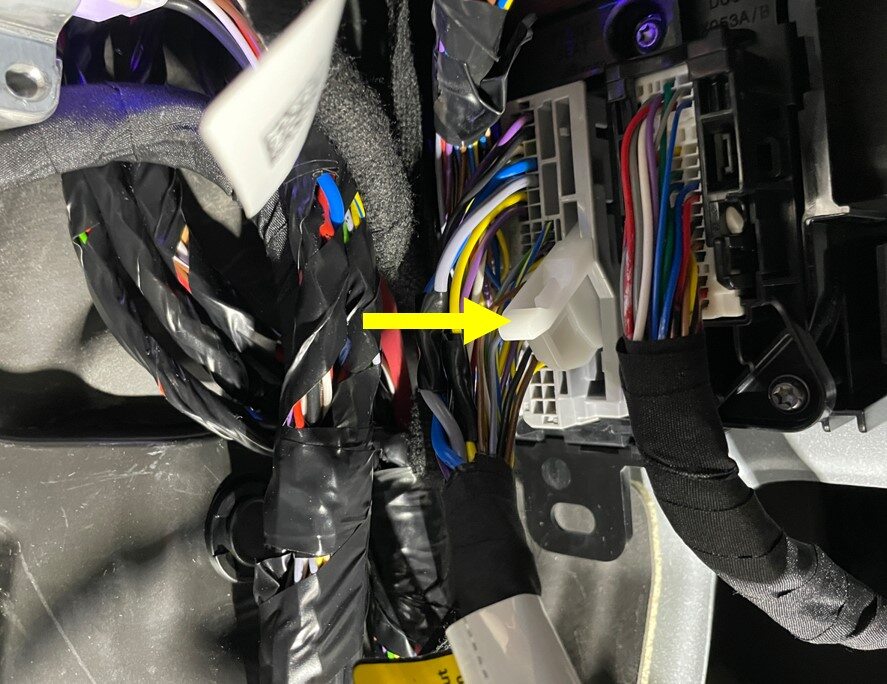

122. Disconnect connector under J10 and J11
     注

     1x connector, Disengage red tab



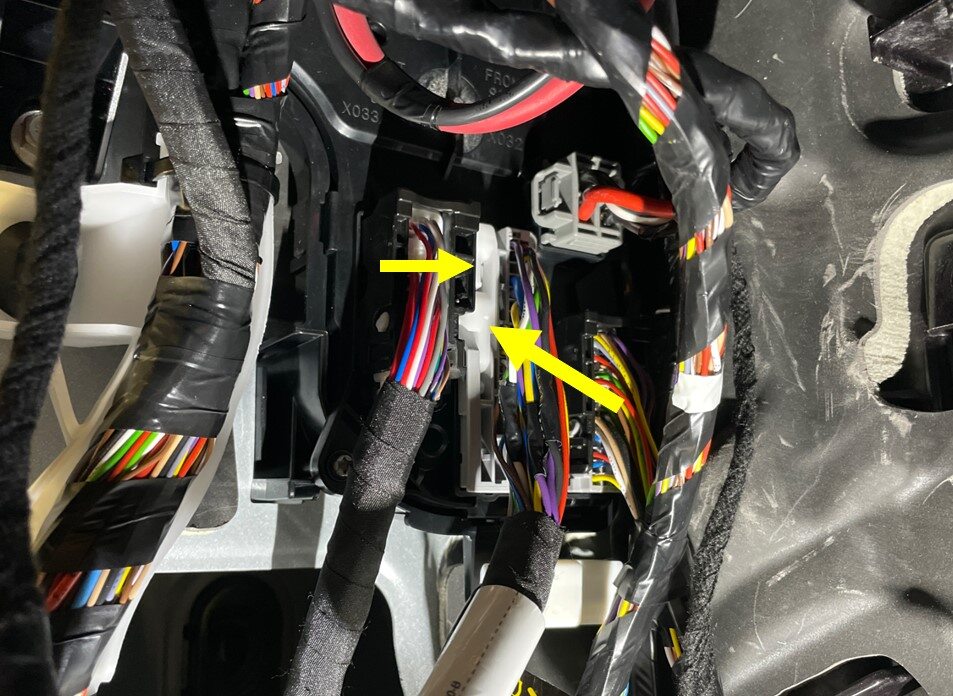

123. Release harness connectors on LH side of car computer
     注

     5x connectors, release locking tab, then press tab to remove connector body



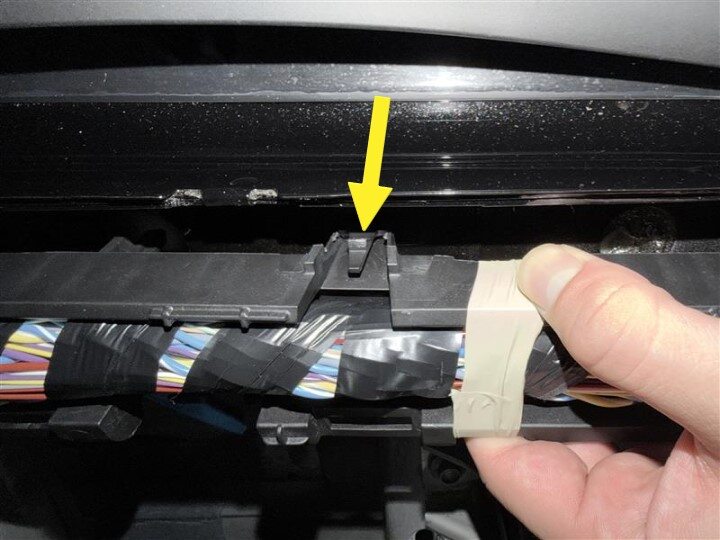

124. Release harness guide clips from RH front cabin for car computer
     注

     2x clips



125. Release connectors from RH side of car computer
     注

     x connectors



126. Disconnect airbag from RH side
     注

     4x fasteners, E10, 1x connector, Pull side tabs simultaneously to avoid damage to connector







127. Remove harness clips from RH A-pillar area
     注

     3x clips



128. Disconnect LH harness from RH body Harness
     注

     2x connectors,1x clip,Release red locking tabs





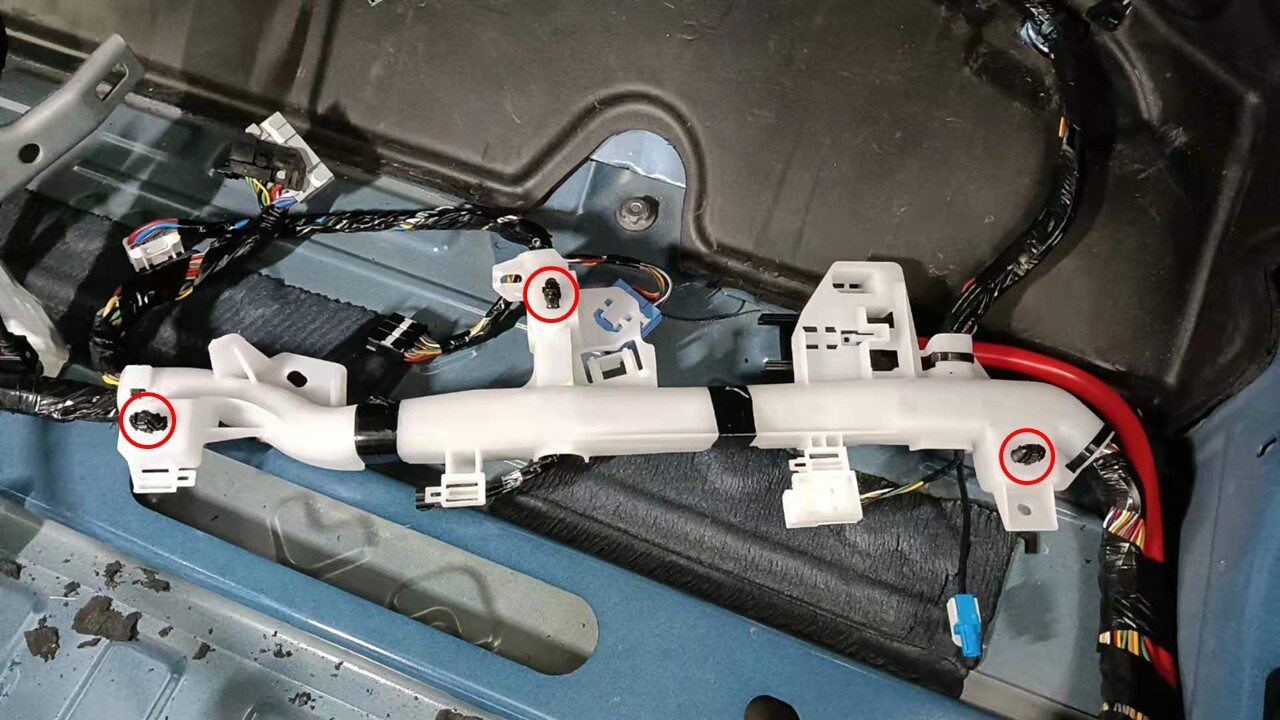

129. Release clips securing for RH body harness from below RH front seat
     注

     3x retainer tabs, Press lateral retainers in with trim tool to avoid damaging assembly when removing, press middle retainer to release fully











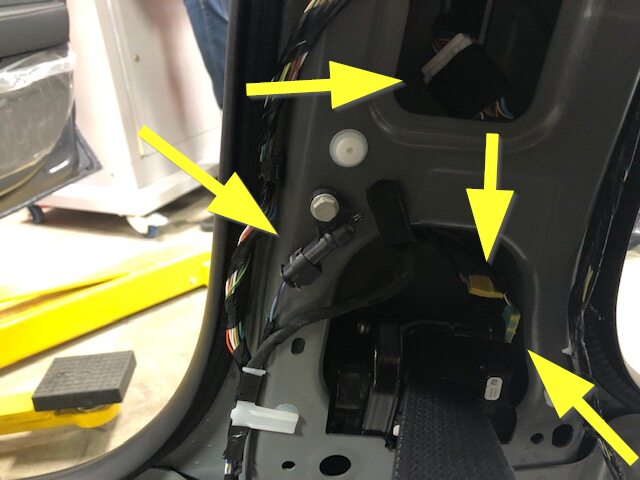

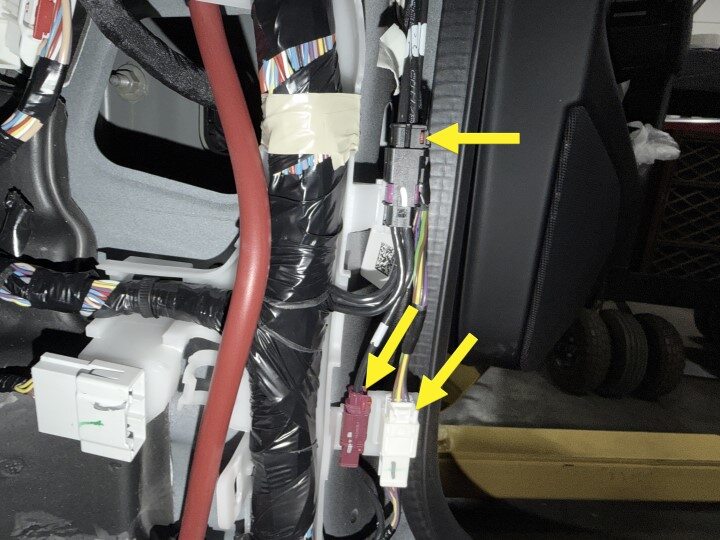

130. Disconnect the RH body harness connectors around lower B-pillar area
     注

     4x connectors, RH rear door harness, acceleration sensor, and RH seat belt, disengage red tabs, pull orange tabs simultaneously to release the airbag connector



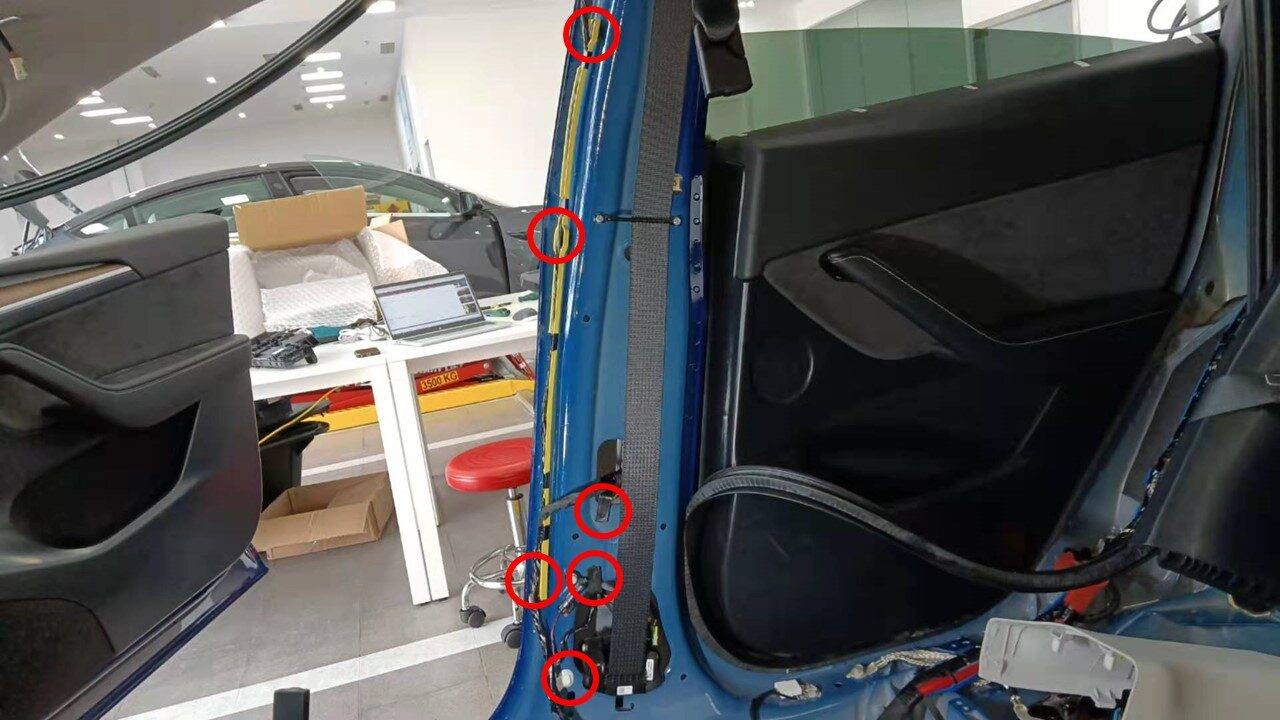

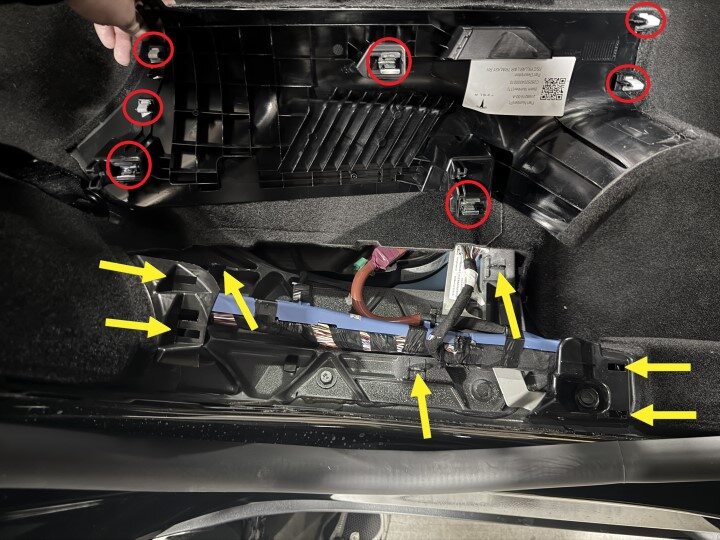

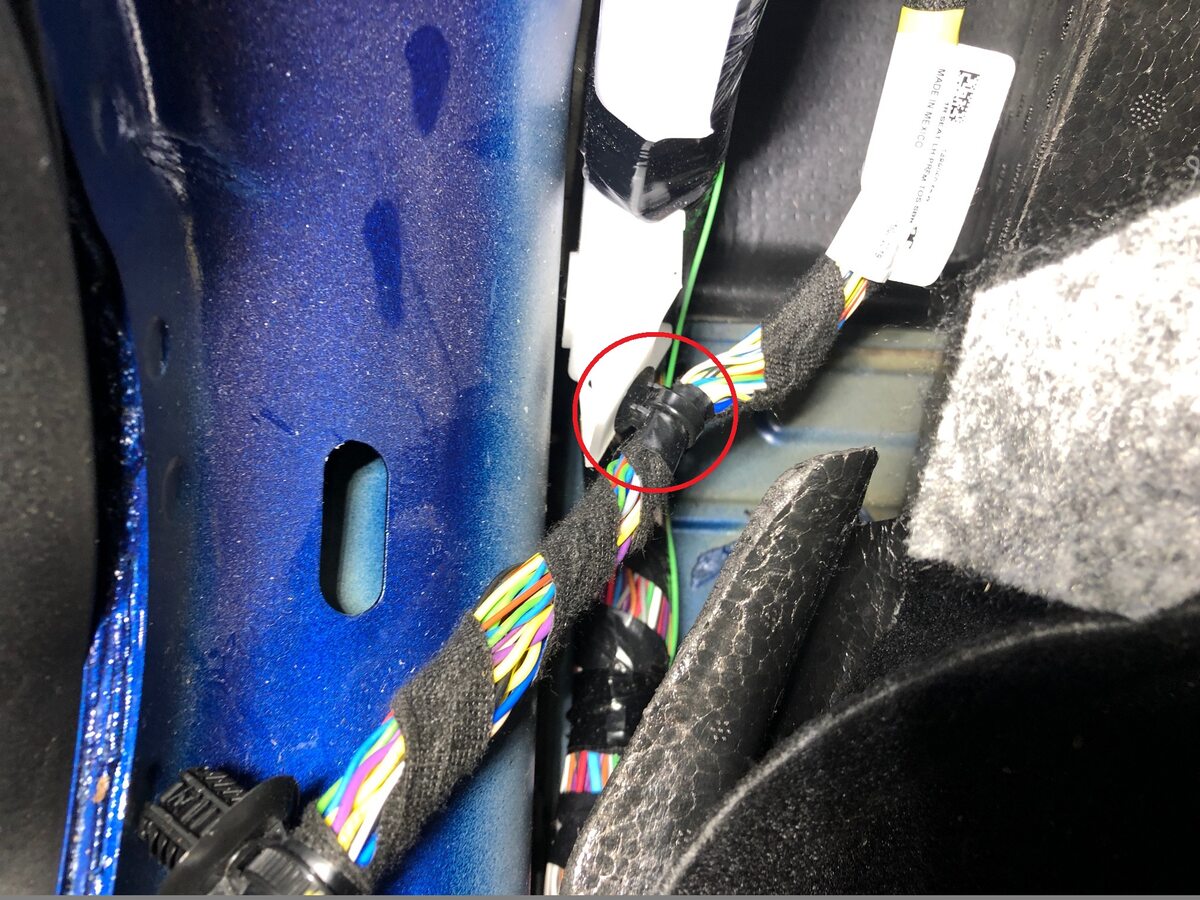

131. Remove the RH body harness clips from B-pillar area
     注

     6x clips



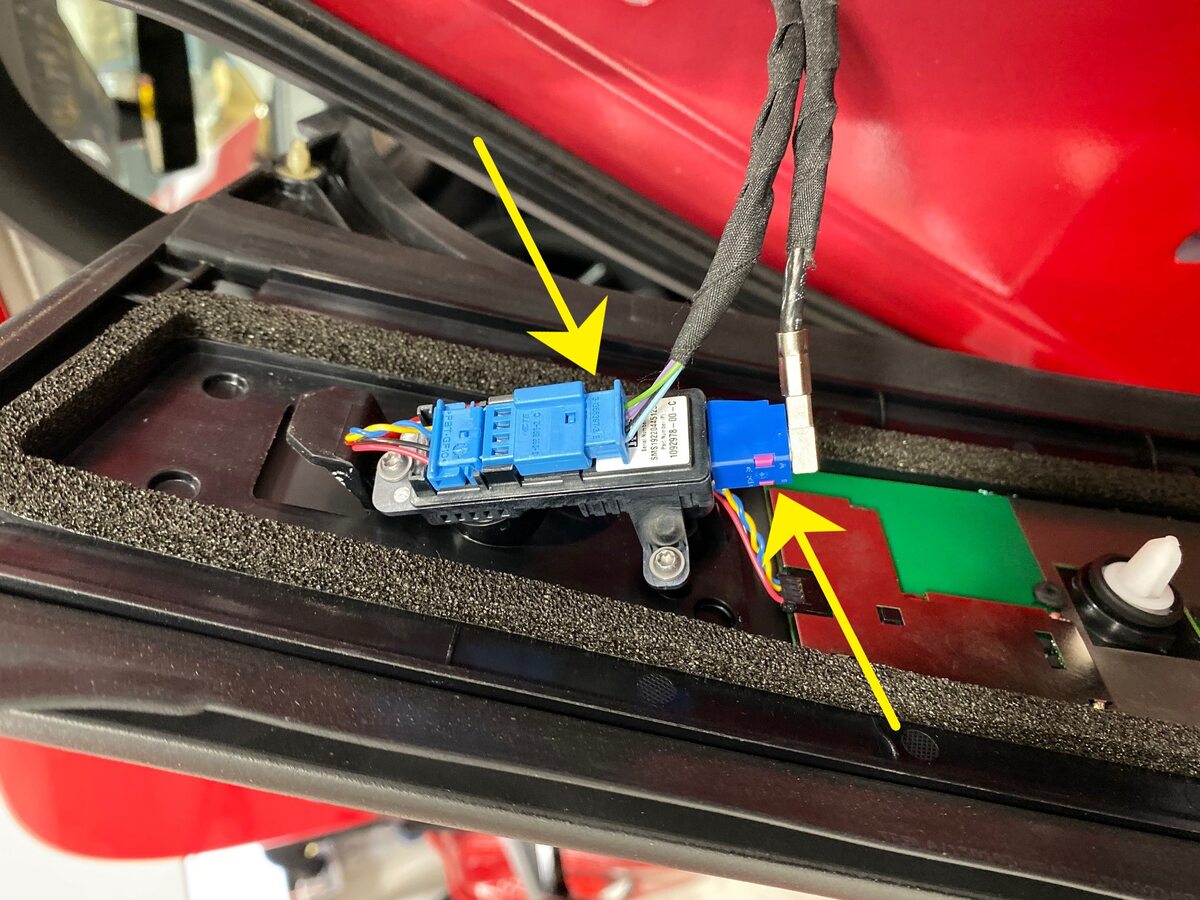

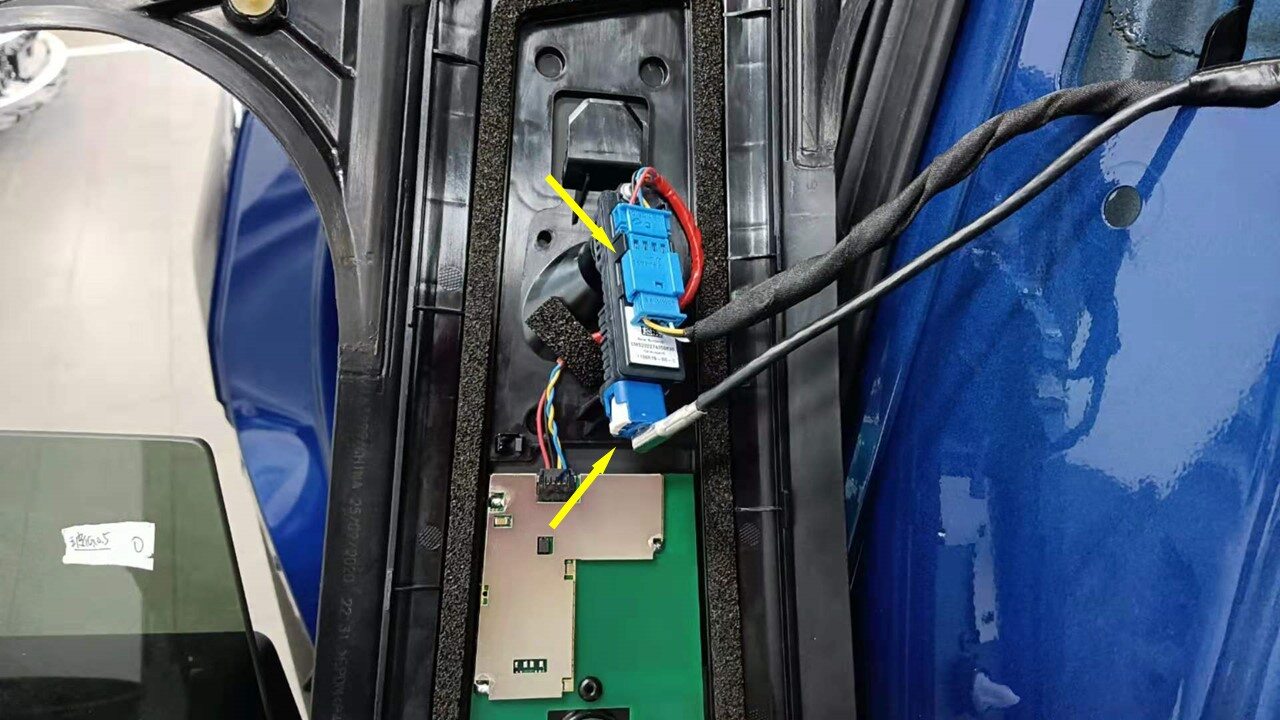

132. Remove LH B-pillar applique from body
     注

     2x clips, 2x connectors, Pull straight outwards to release from B-Pillar, disconnect camera connector then remove from vehicle, Use caution not to damage the connectors





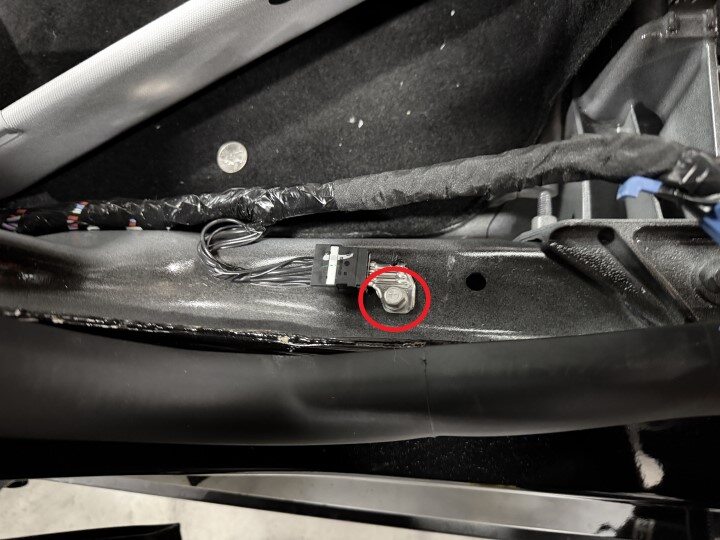

133. Remove the RH body harness ground strap around lower B-pillar
     注

     1x bolt, 10mm, 10 Nm



134. Disconnect HVC logic connector and install logic cap
     注

     1x connector, 1x cap, Release locking tab then push the handle downward to release connector





135. Remove positive 12V output cover from PCS cable
     注

     1x cover



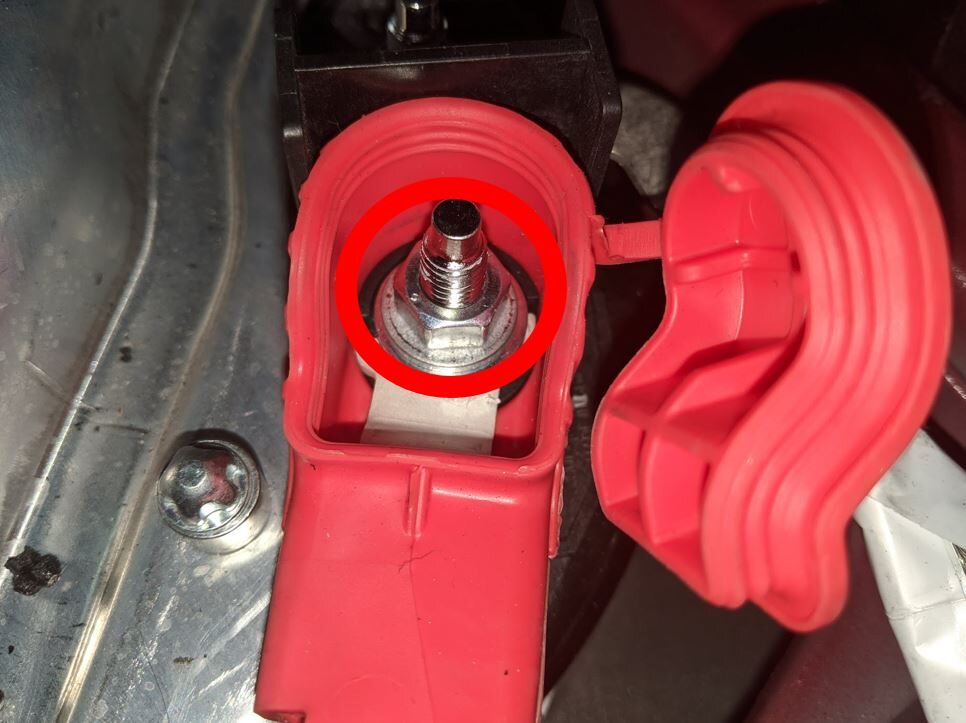

136. Release positive 12V output from PCS cable and move cable aside
     注

     1x nut, 13mm, 15 Nm, Discard nut after removal

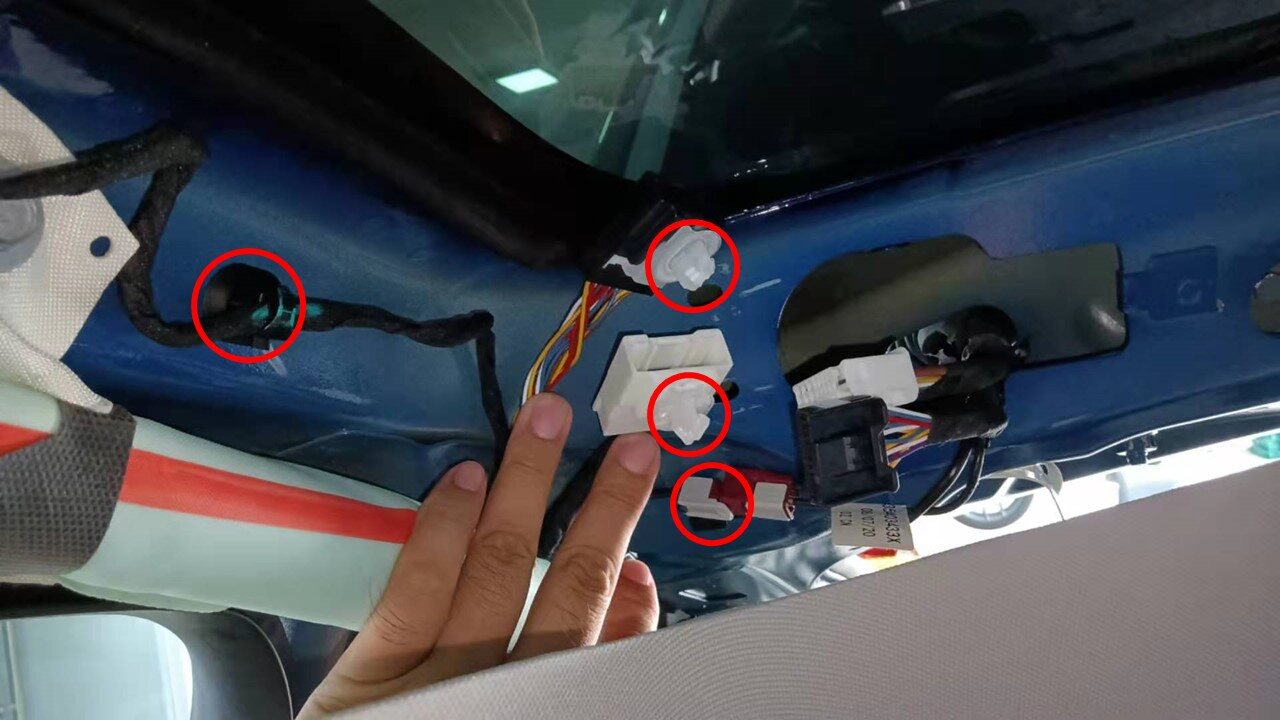

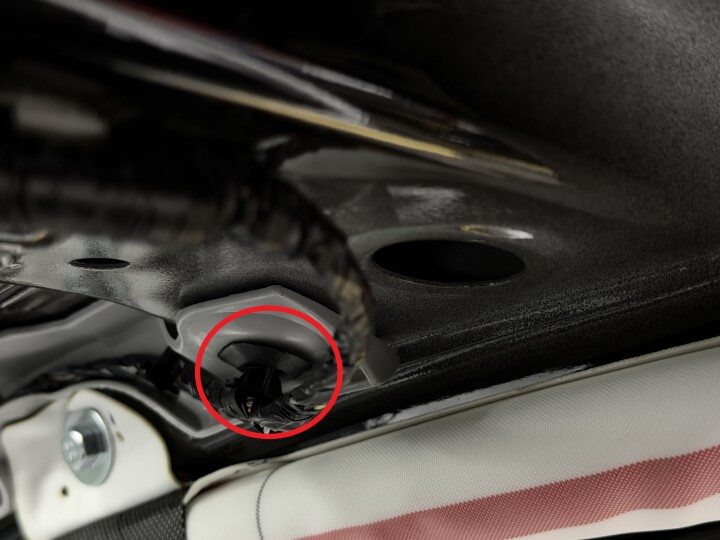

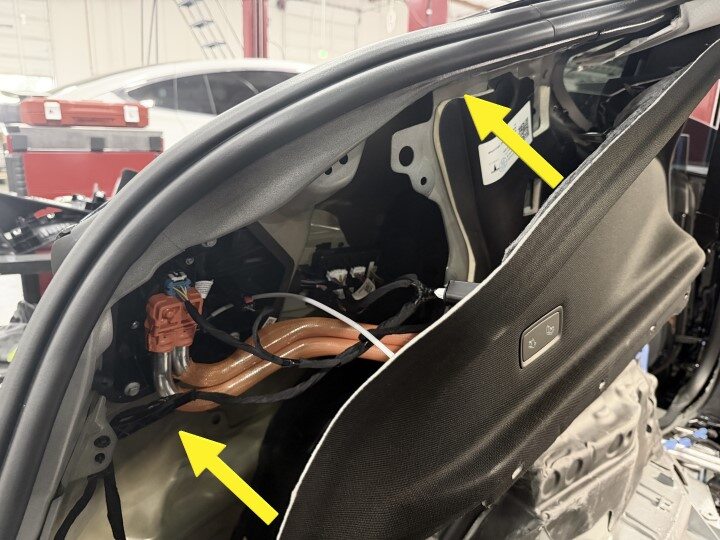

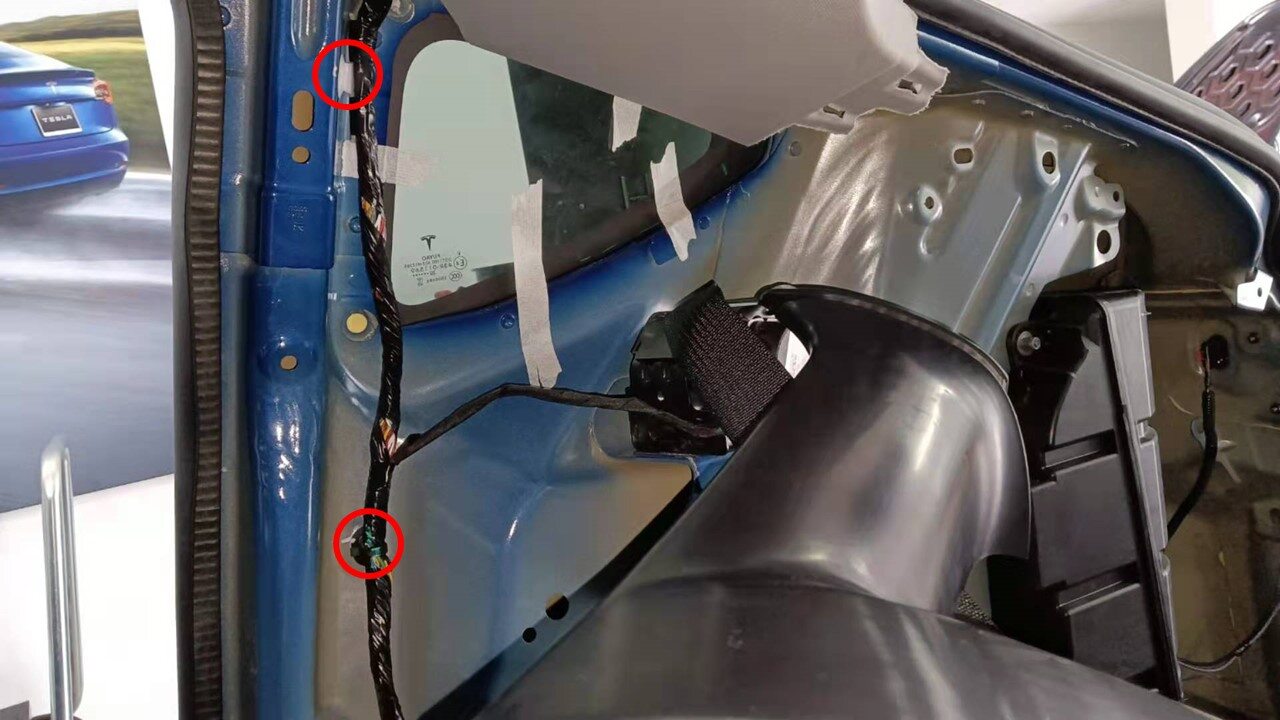

137. Remove the RH body harness clips around the upper C-pillar area
     注

     5x clips











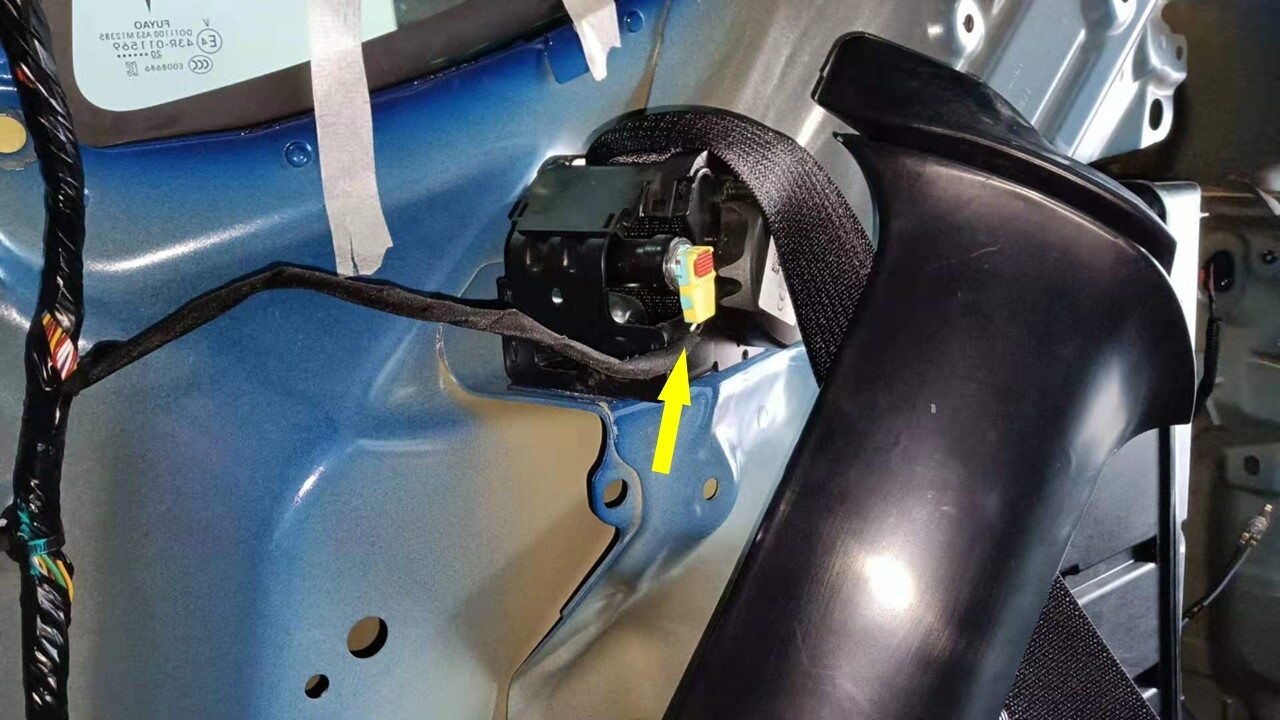

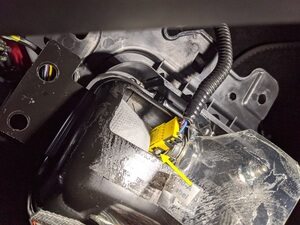

138. Disconnect RH 2nd row retractor connector
     注

     1x connector, pull orange tabs simultaneously to release the connector



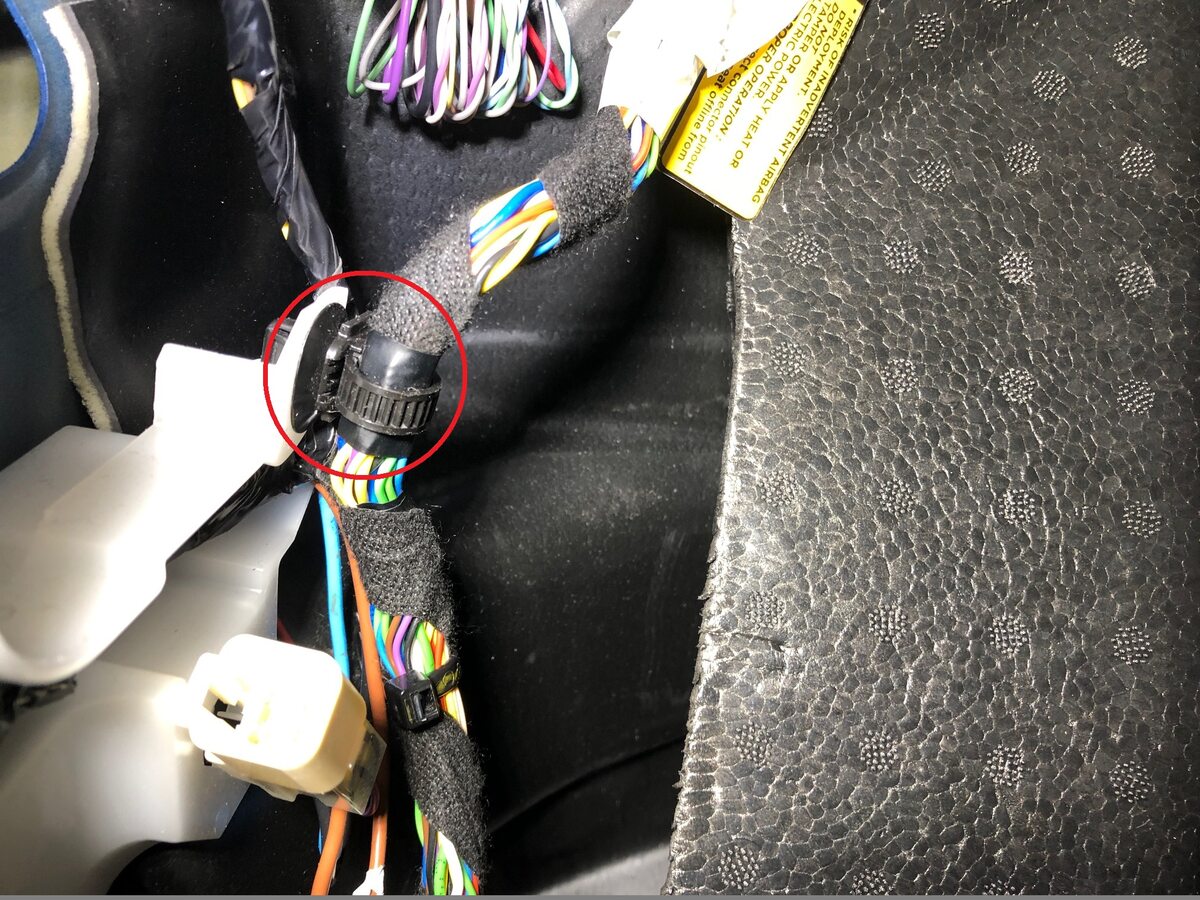

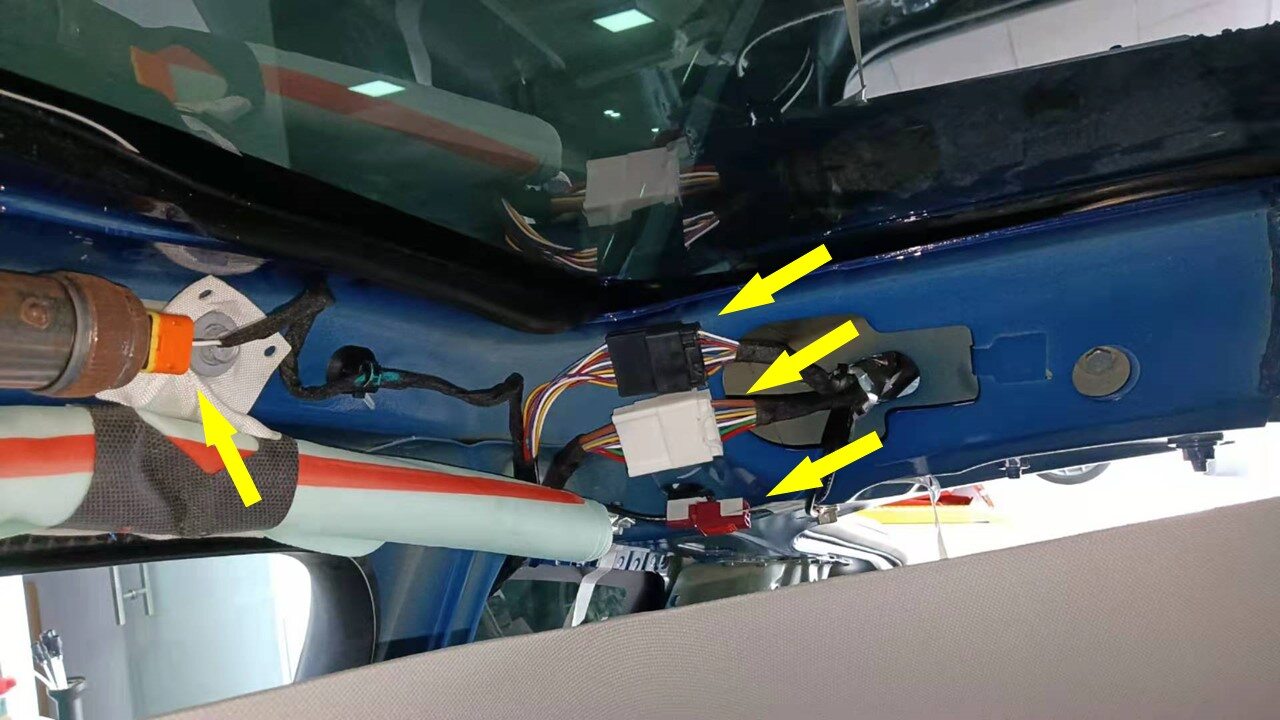

139. Disconnect the RH body harness connectors around upper C-pillar area
     注

     4x connectors,4x clips, For airbag pull orange tabs simultaneously to release the connector.





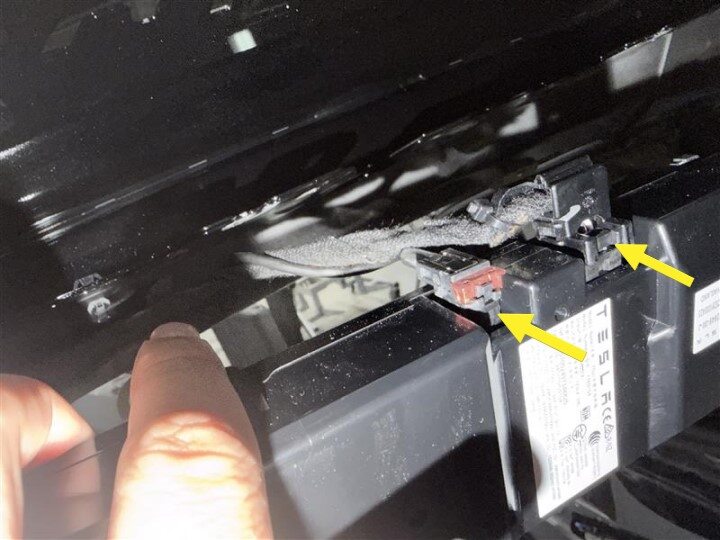

140. Disconnect harness from rear TCU
     注

     2x connectors, 2x fasteners, 13mm, unlock tabs before disengaging





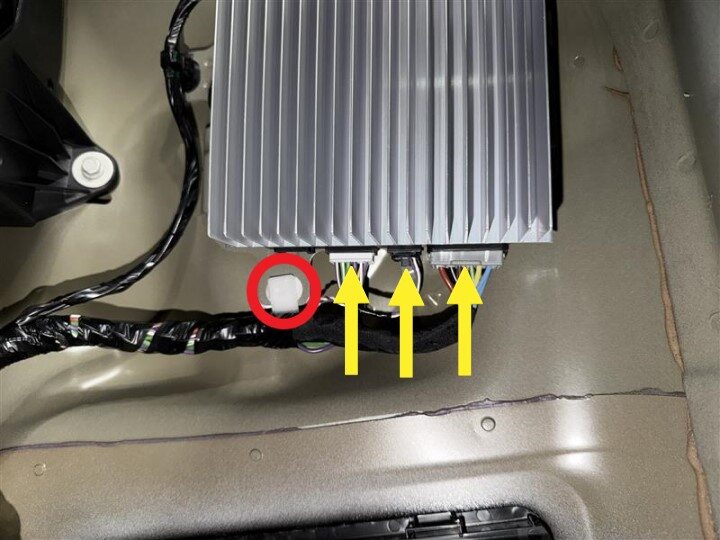

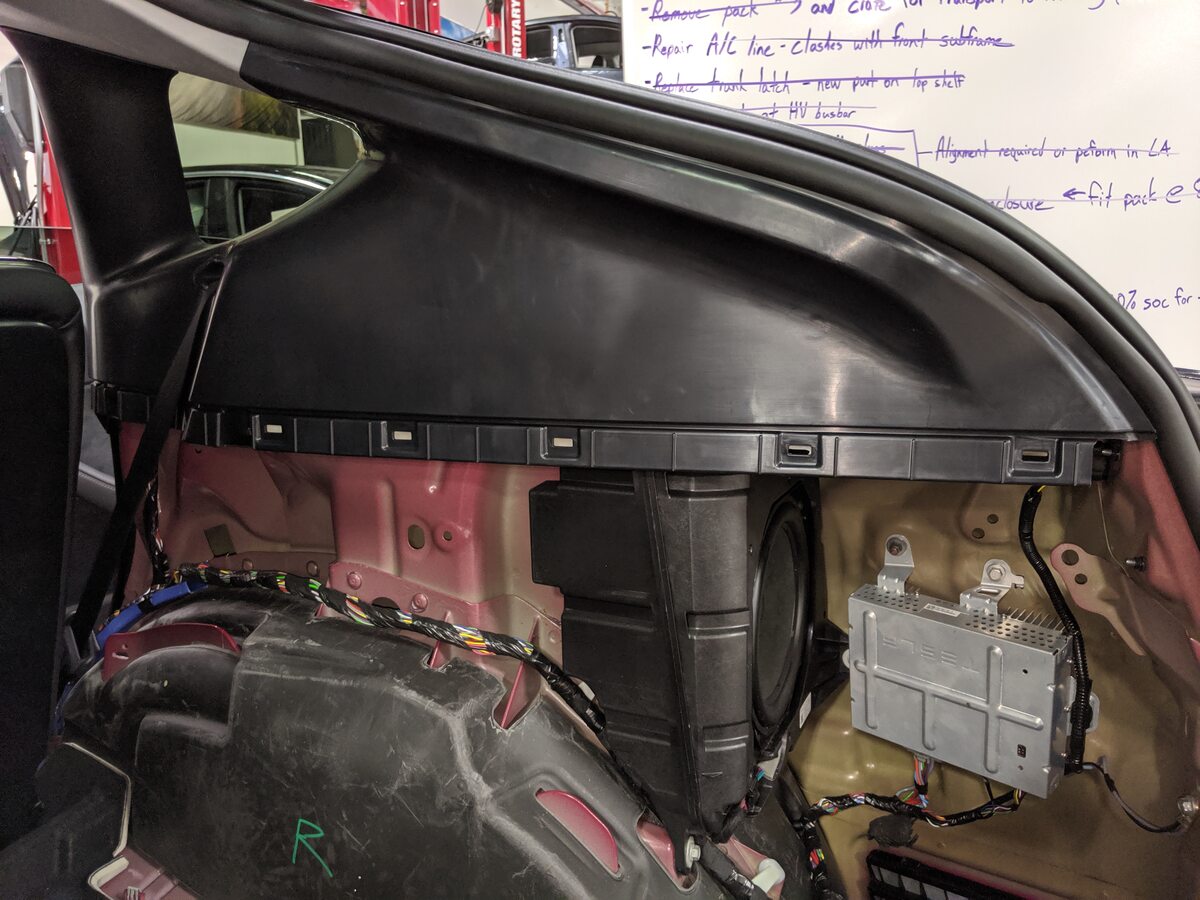

141. Disconnect audio amplifier
     注

     3x connectors, 1x clip



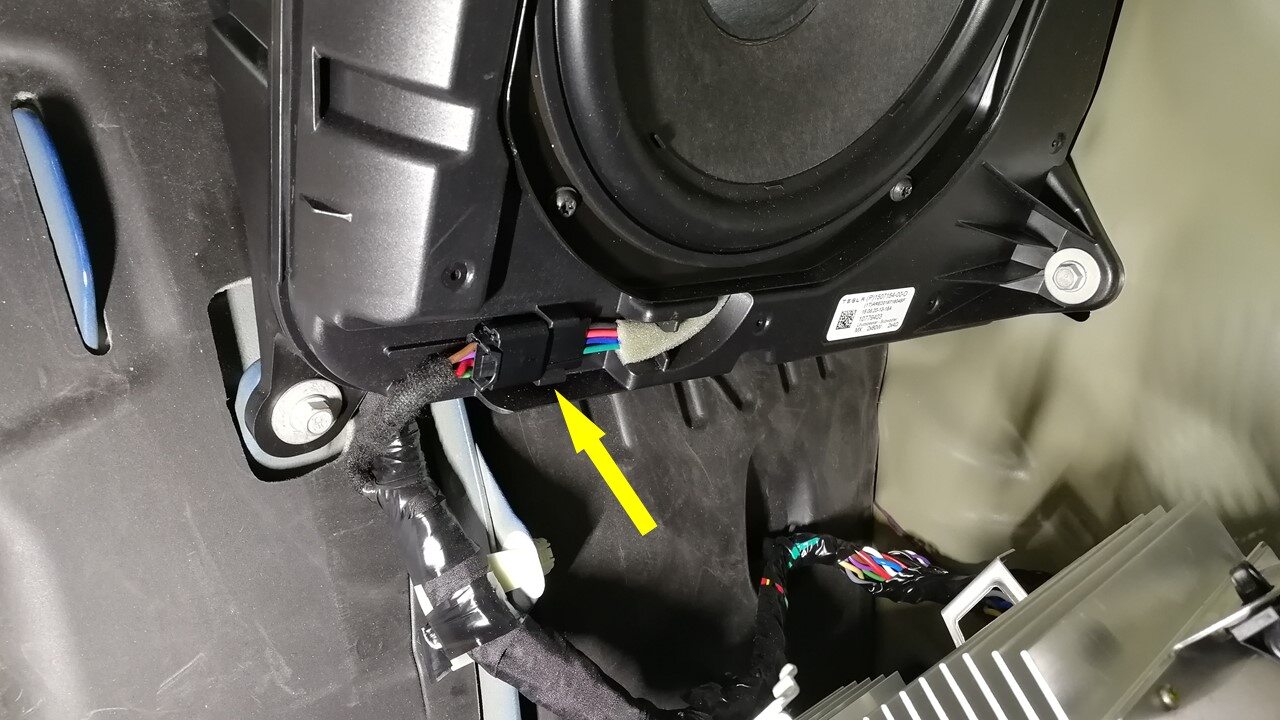

142. Disconnect subwoofer assembly
     注

     1x connector



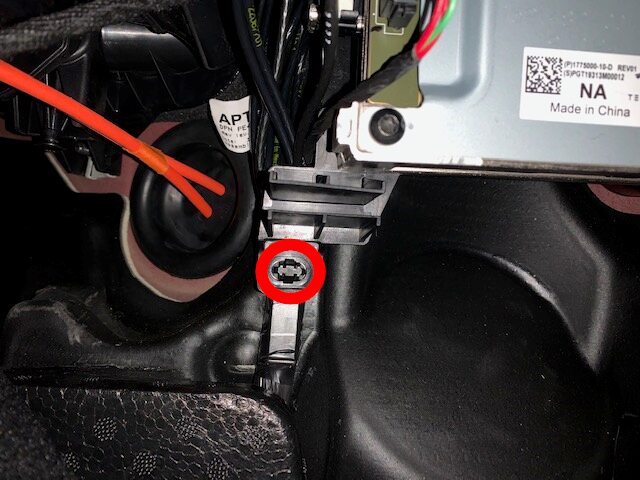

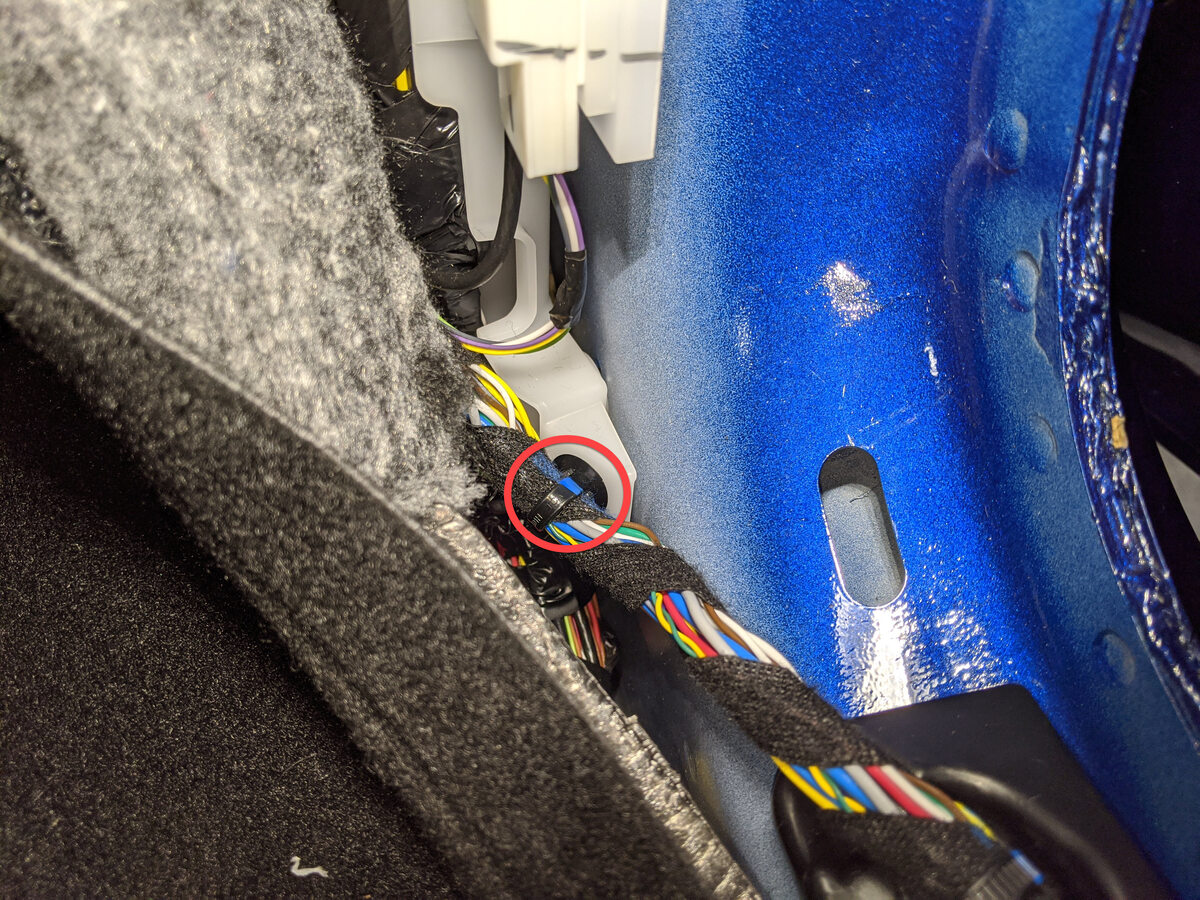

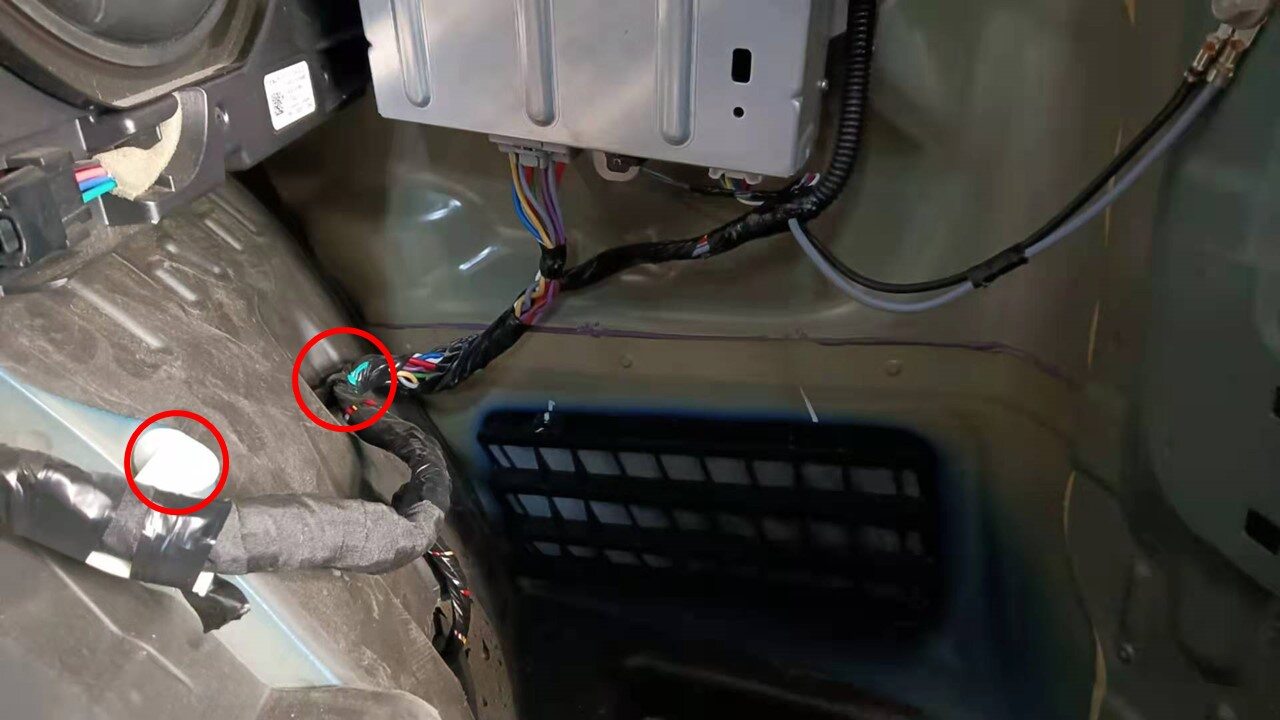

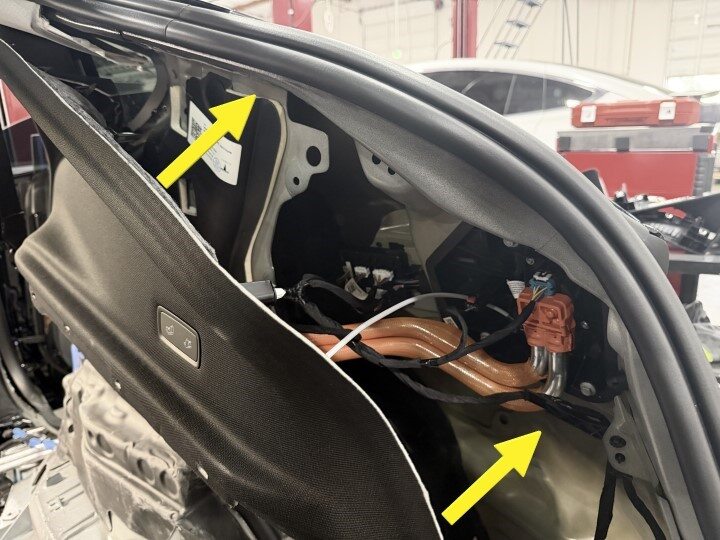

143. Release clips securing RH body harness from RH side trunk bulkhead
     注

     2x clips

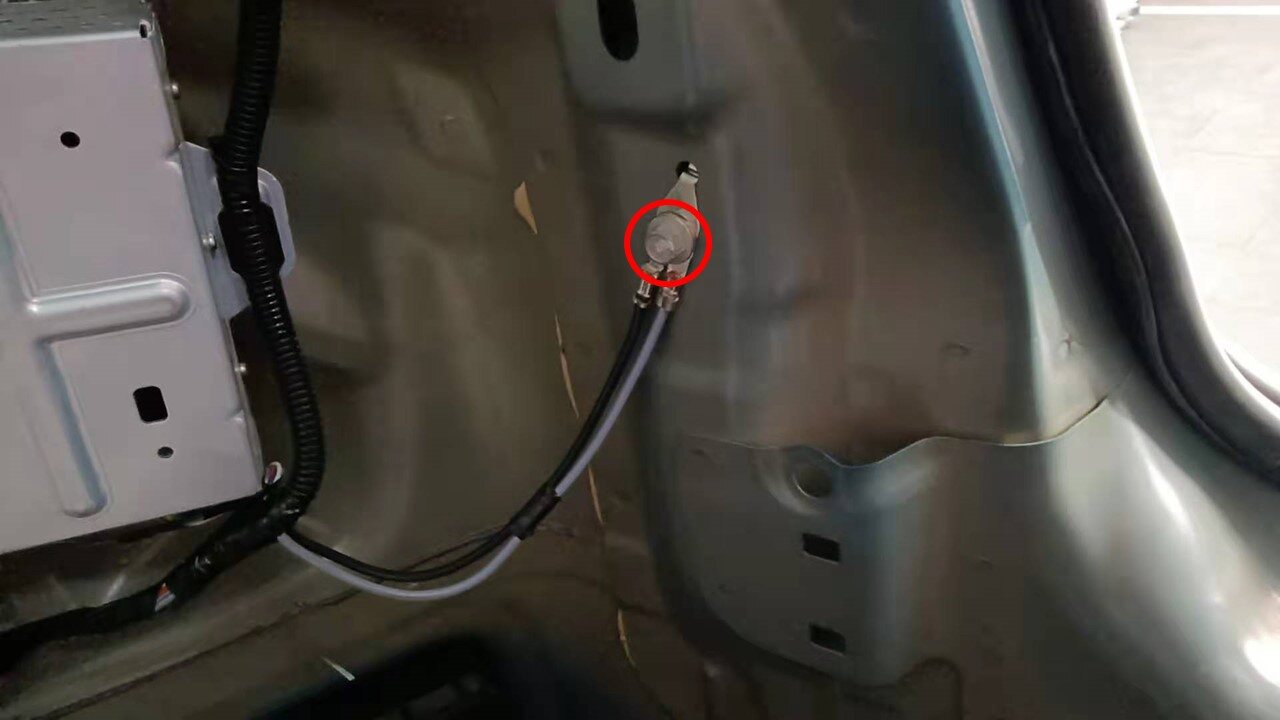

144. Remove the RH body harness ground strap
     注

     1x bolt, 10mm, 10 Nm



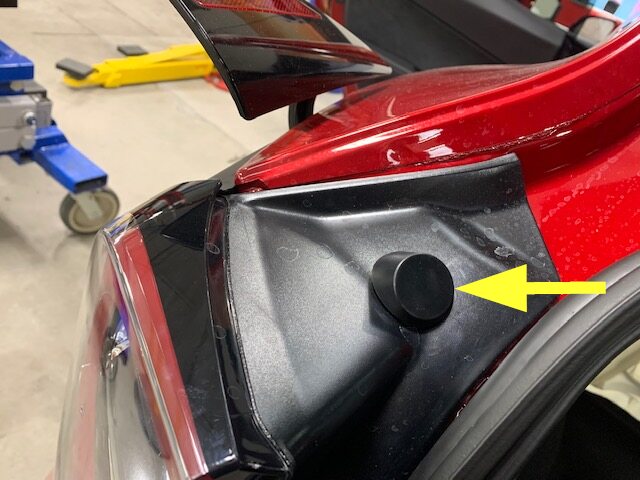

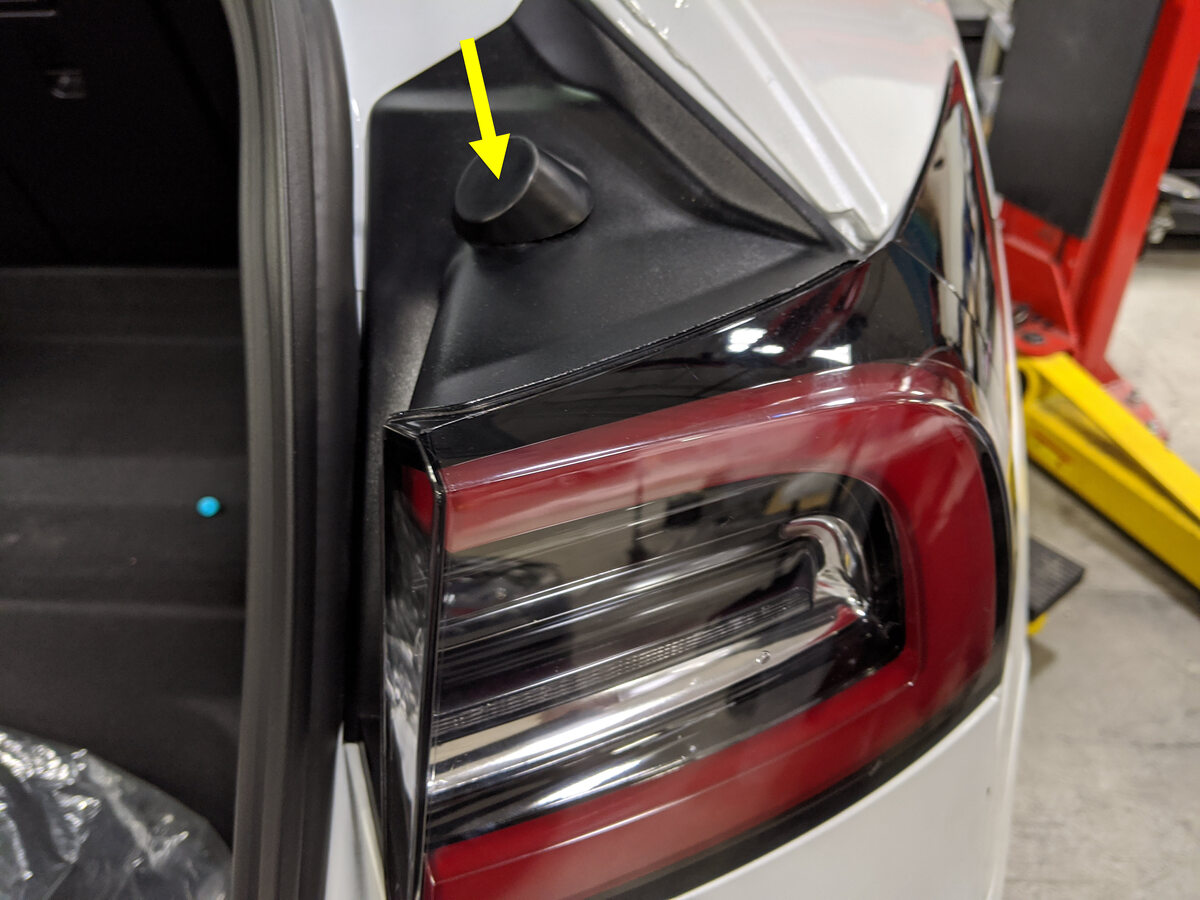

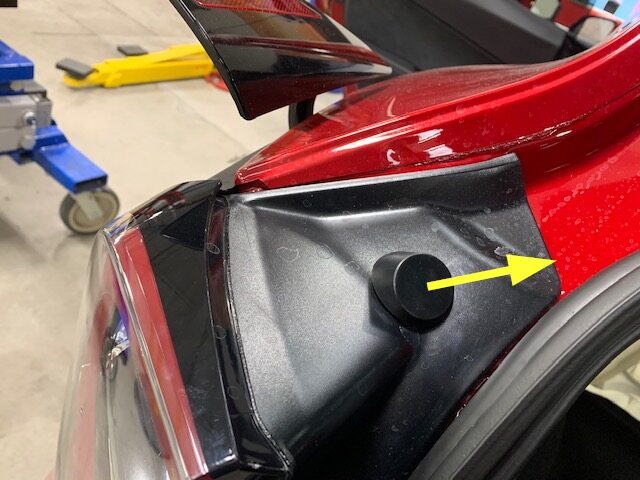

145. Remove LH liftgate stop
     注

     1x liftgate stop, Pull up to remove

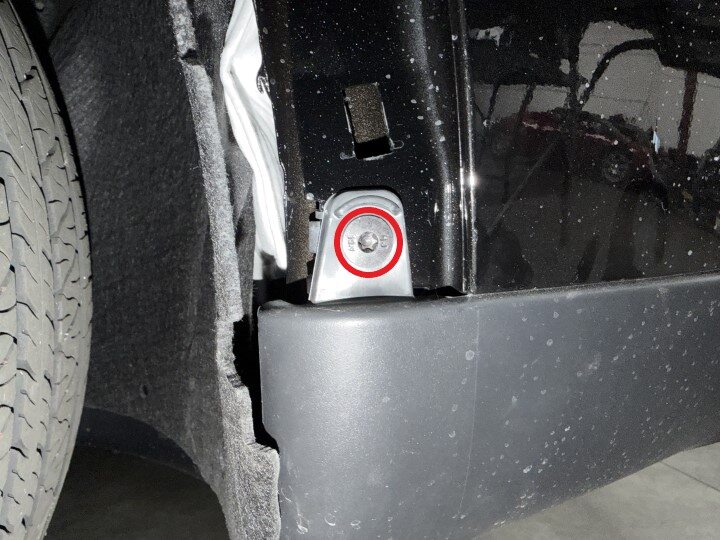

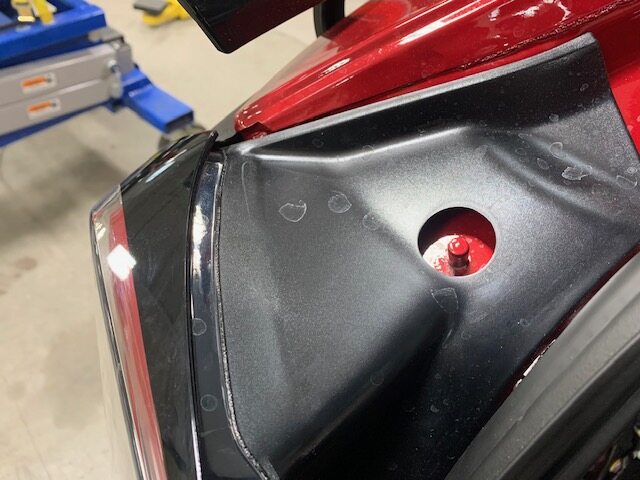

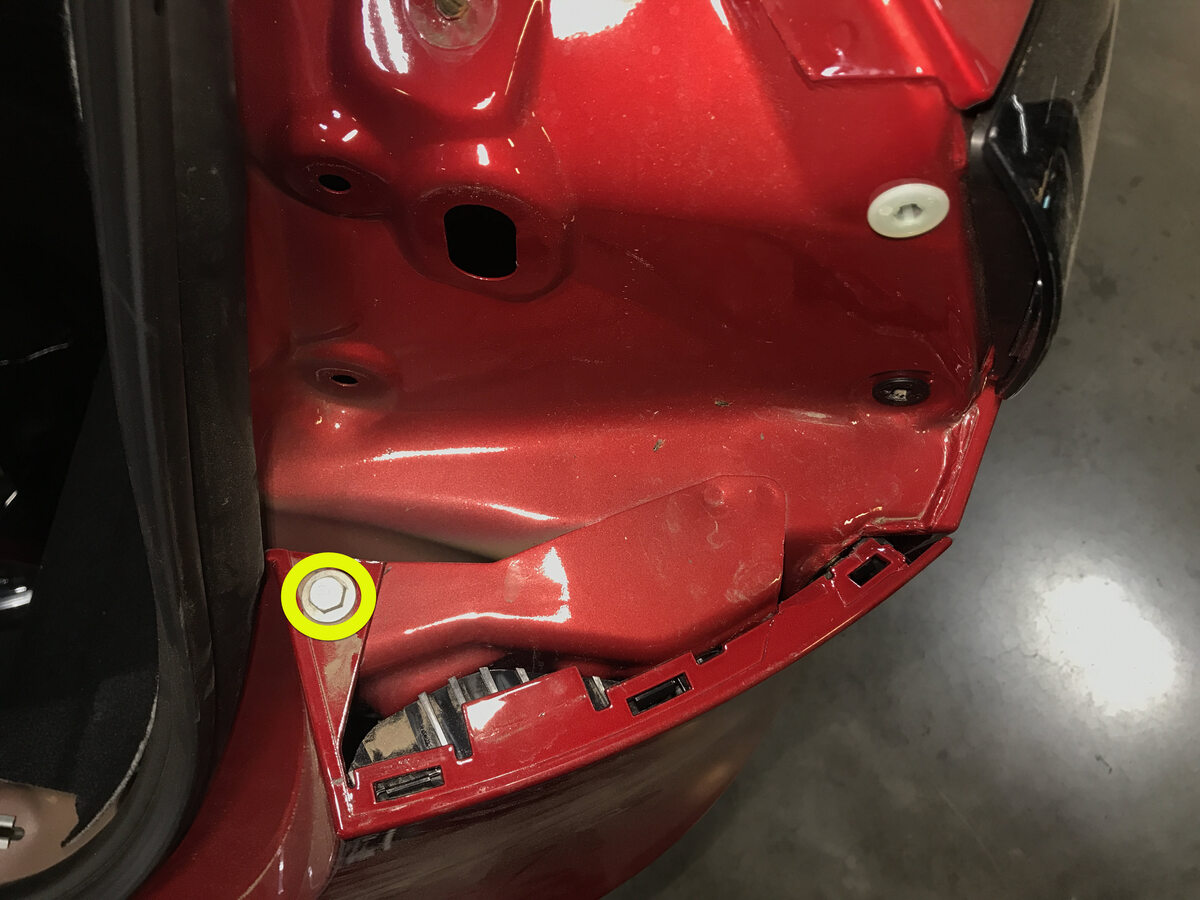

146. Remove bolt securing LH corner of rear fascia to body
     注

     1x bolt, 10mm, 4 Nm



147. Remove RH liftgate stop
     注

     1x liftgate stop, Pull up to remove



148. Remove bolt securing RH corner of rear fascia to body
     注

     1x bolt, 10mm, 4 Nm



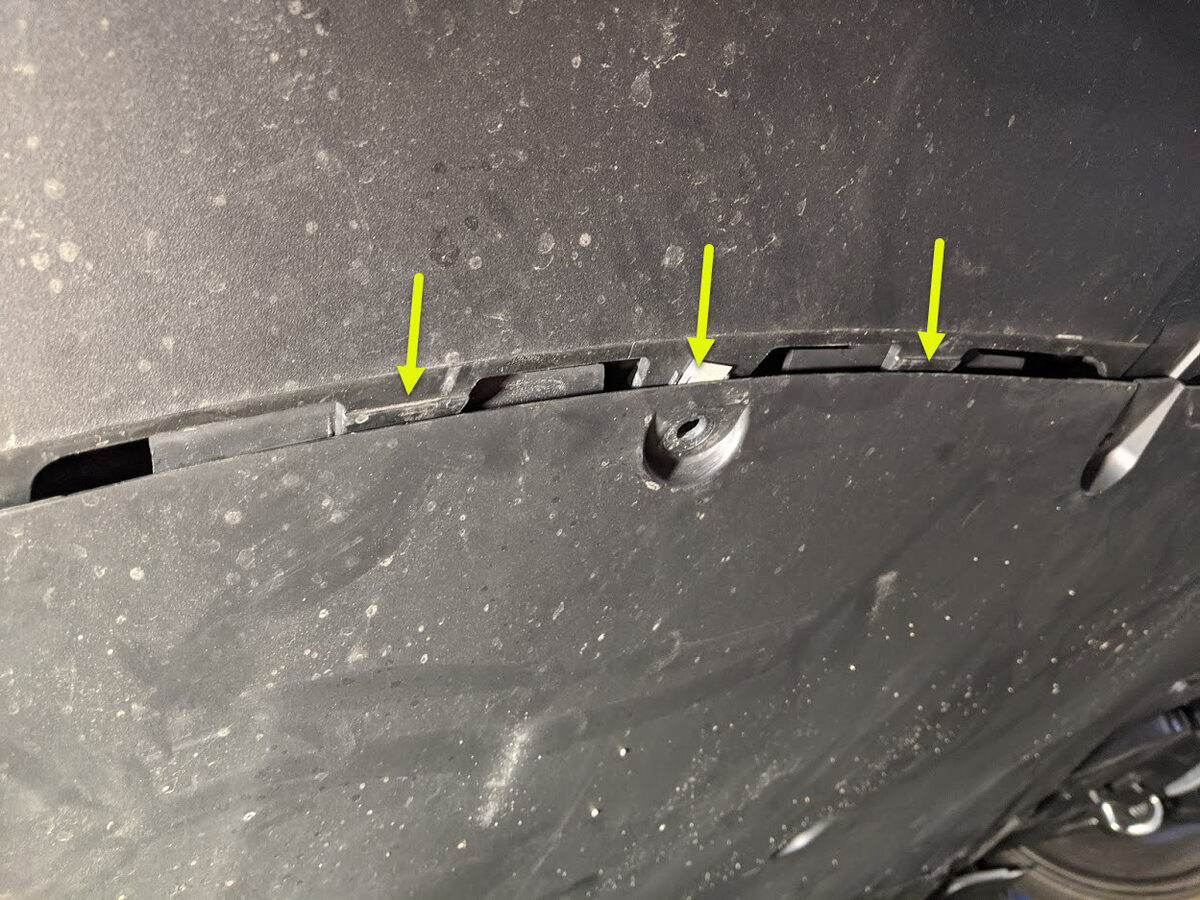

149. Release rear diffuser from vehicle
     注

     6x clips, 6x bolts, 2x fasteners, 8mm, 10mm, Torx T20, 4 Nm









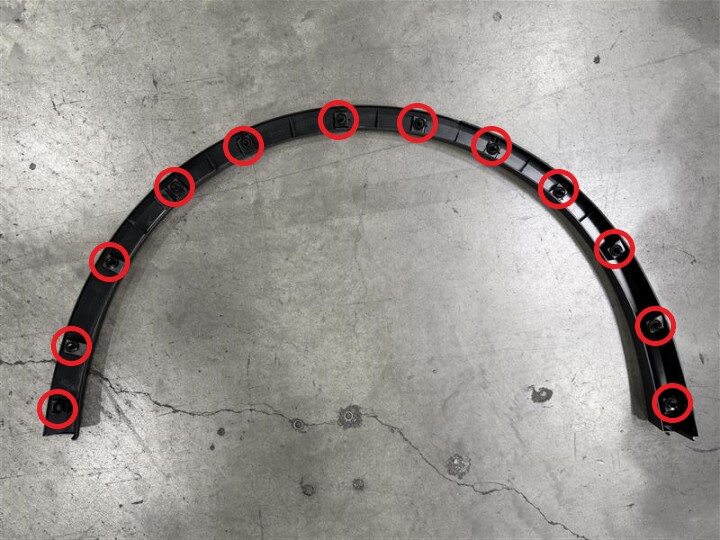

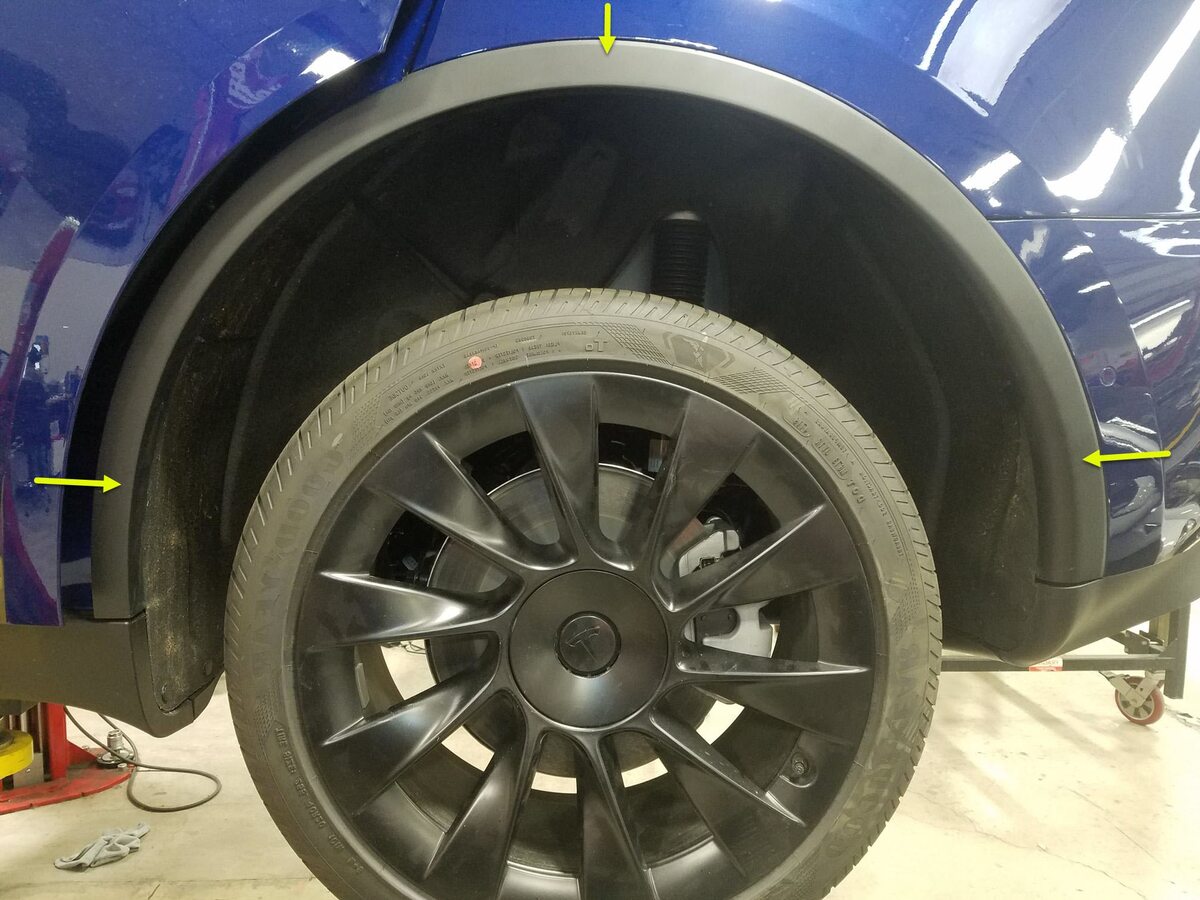

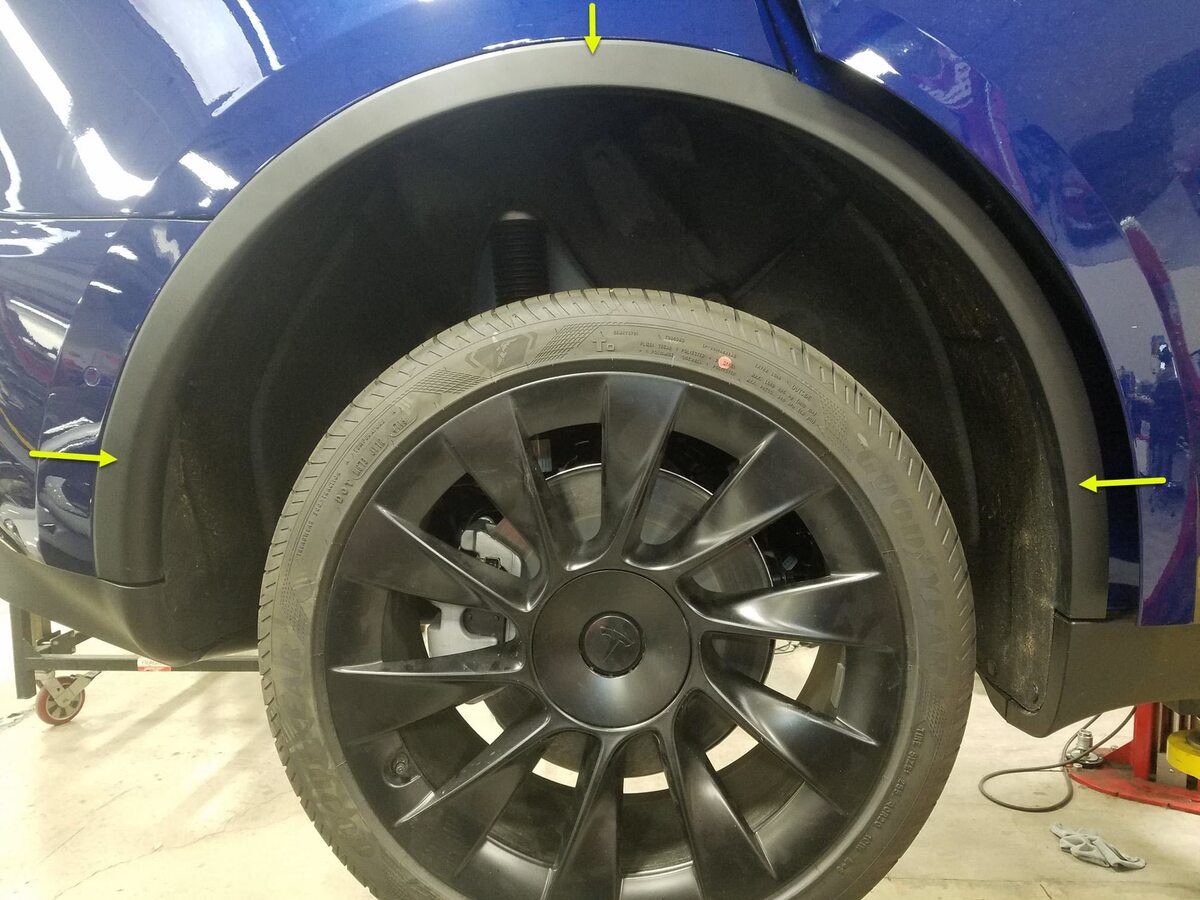

150. Remove LH rear fender garnish from vehicle
     注

     12x clips, Release from center of garnish and work your way outward towards both ends

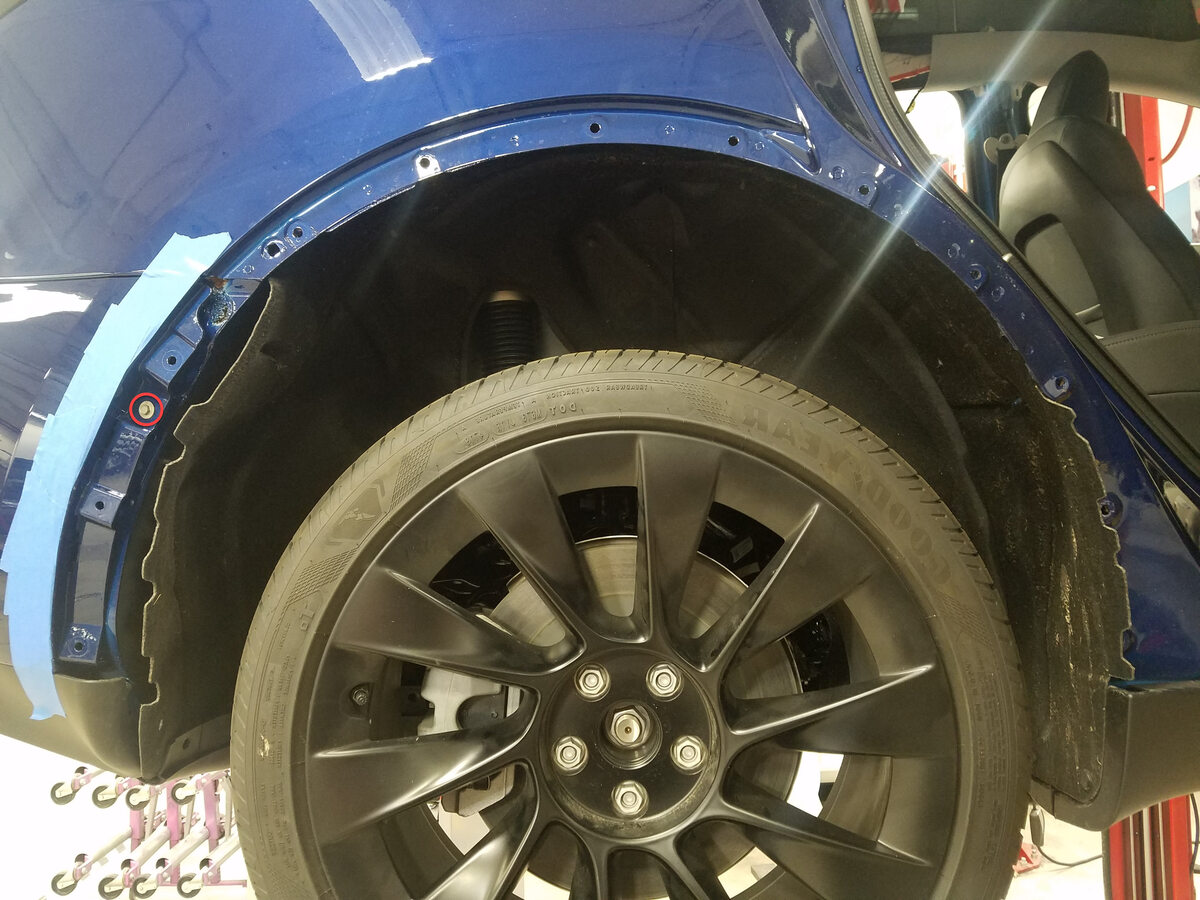

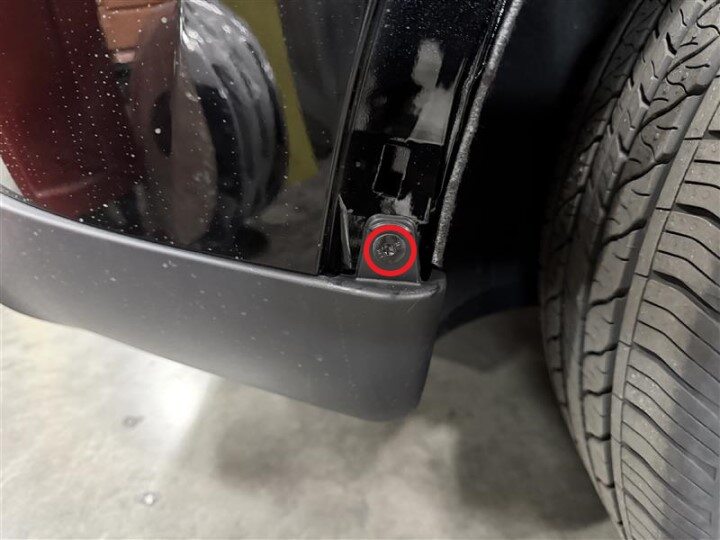

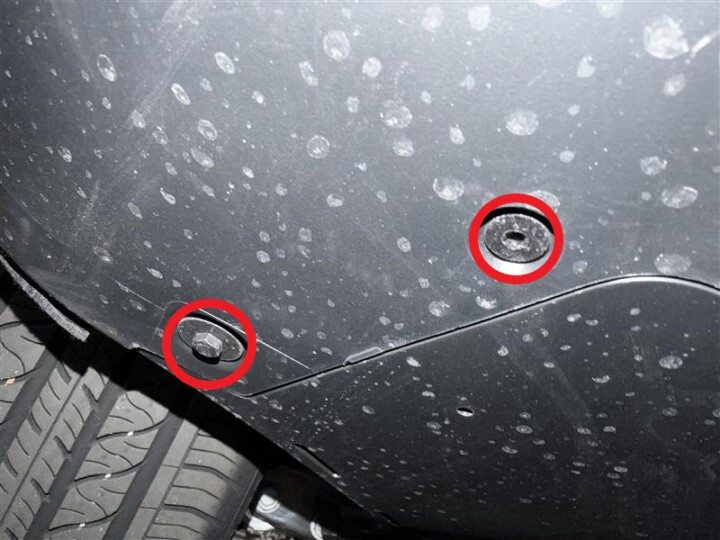

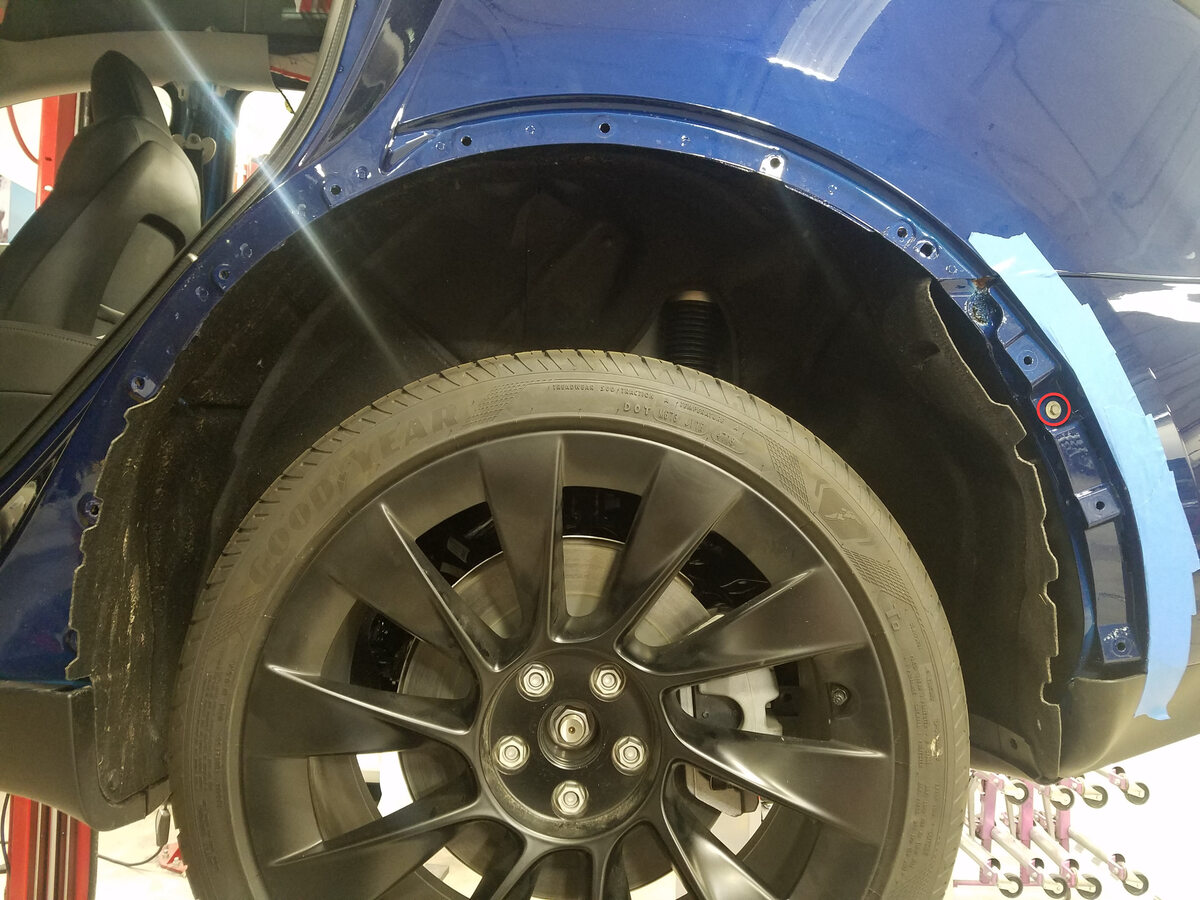

151. Remove bolts securing LH rear fascia to body
     注

     2x bolts, 8mm, 10mm, 4 Nm





152. Remove RH rear fender garnish from vehicle
     注

     14x clips,





153. Remove bolts securing RH rear fascia to body
     注

     2x bolts, 8mm, 10mm, 4 Nm





154. Remove Fasteners securing rear diffuser to body
     注

     2x fasteners, Torx T20

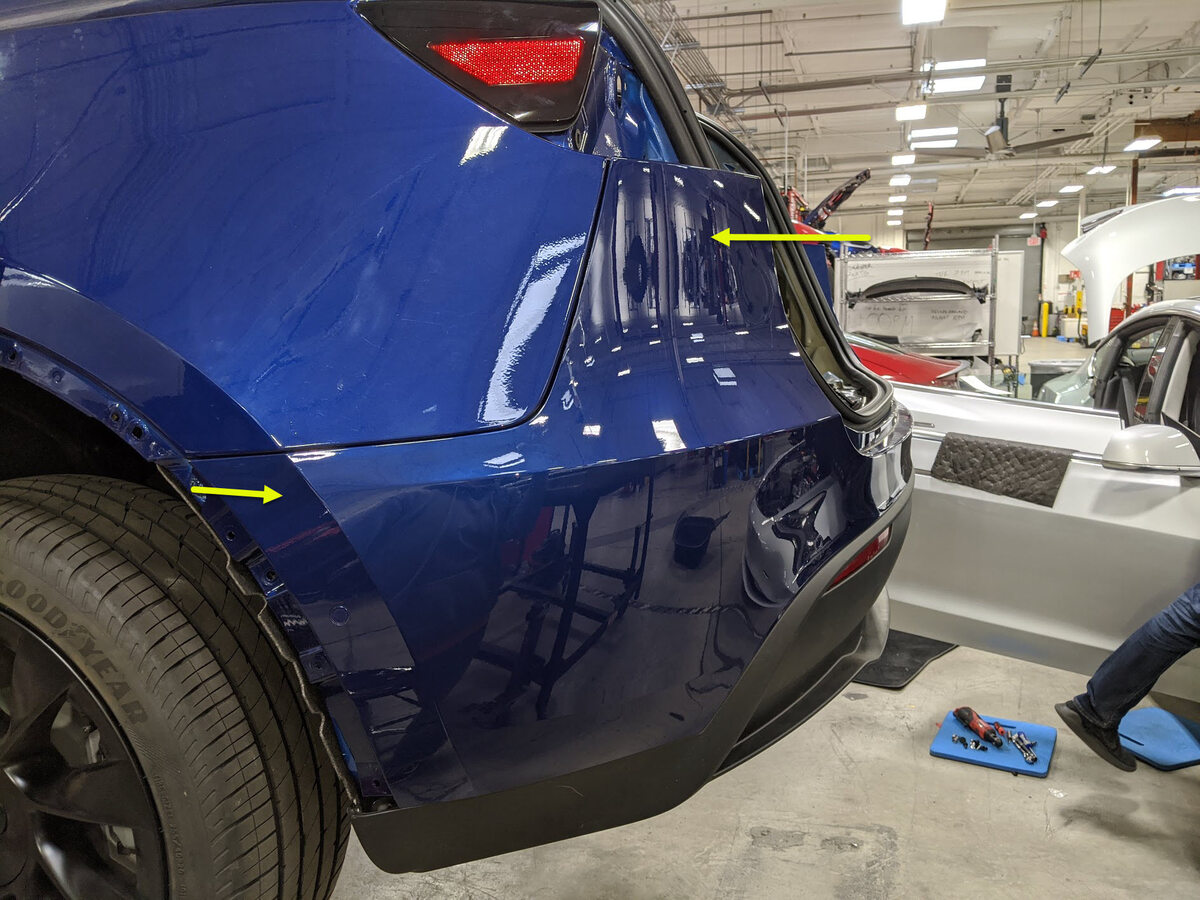

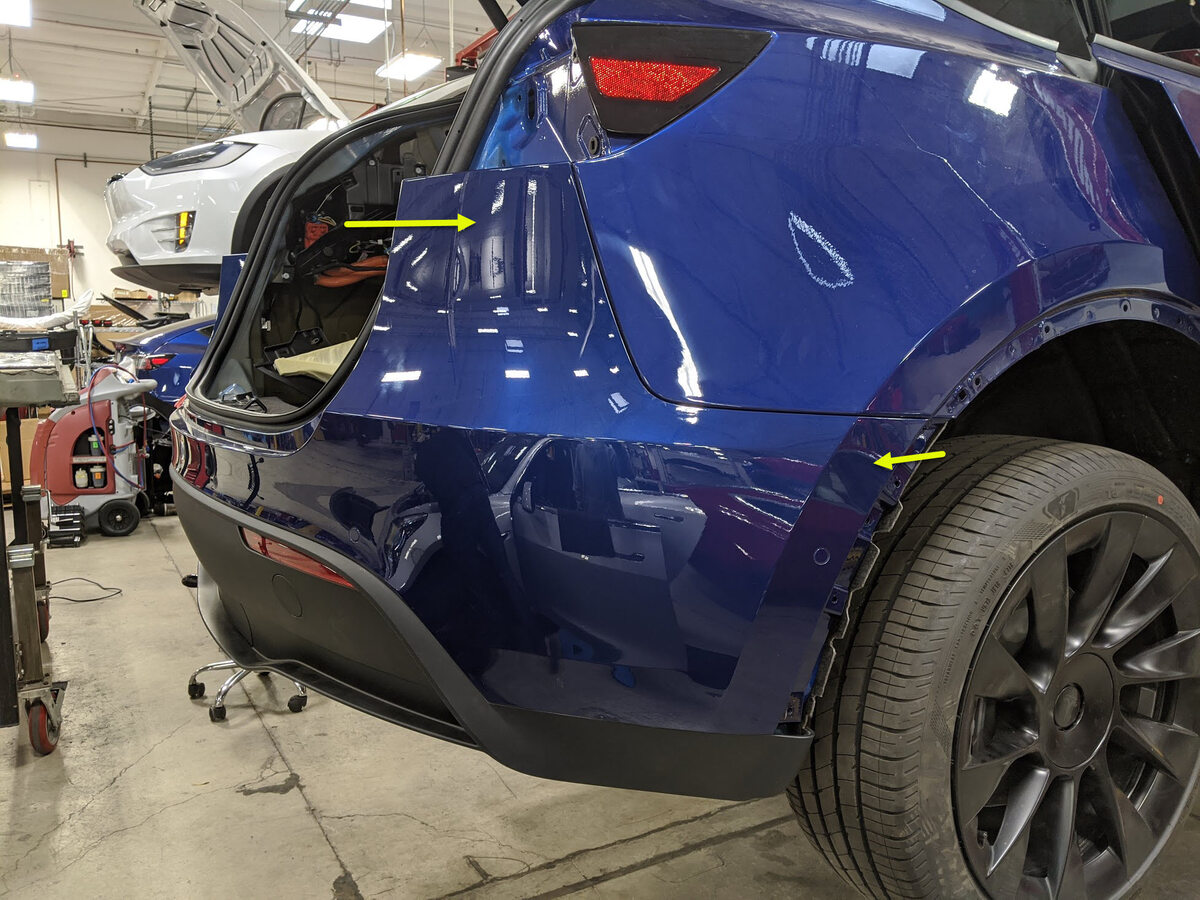

155. Release rear fascia from body
     注

     Pull fascia away from vehicle to release fully





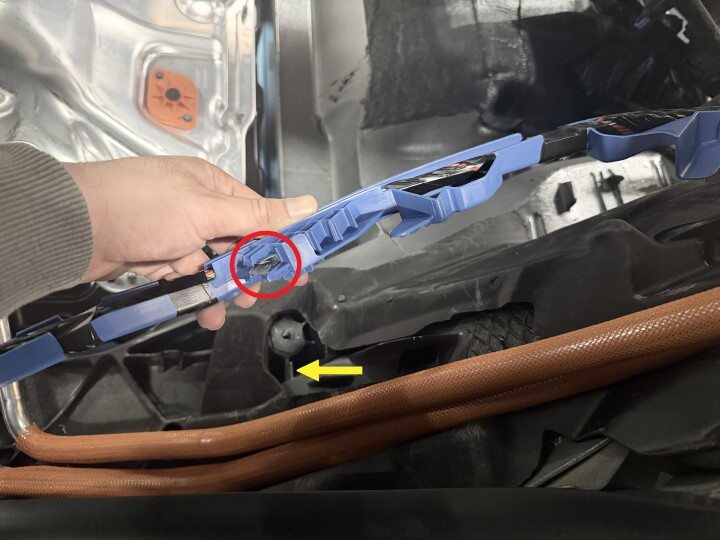

156. Remove rear body harness from rear fascia center bracket
     注

     1x clips, 1x connector



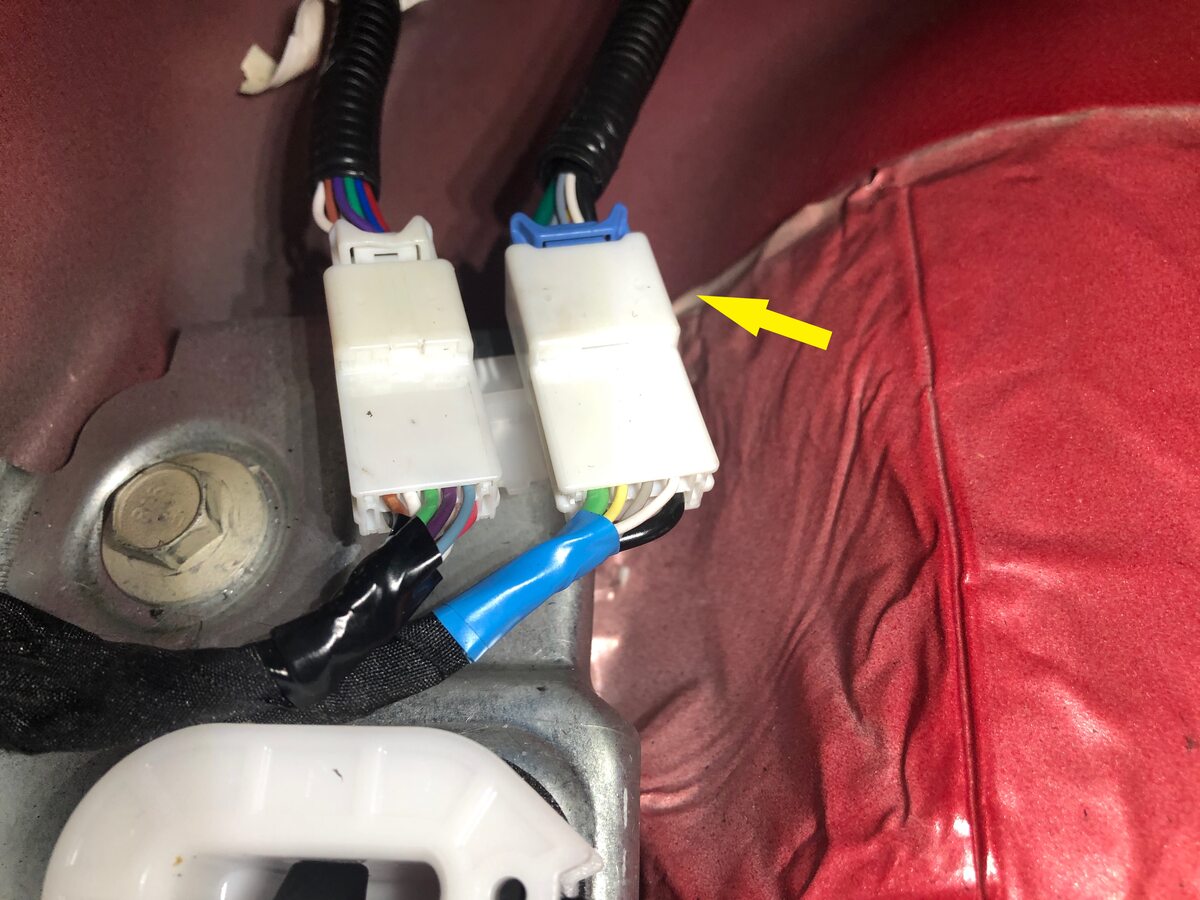

157. Disconnect and disengage connectors under rear of vehicle.
     注

     2x connectors



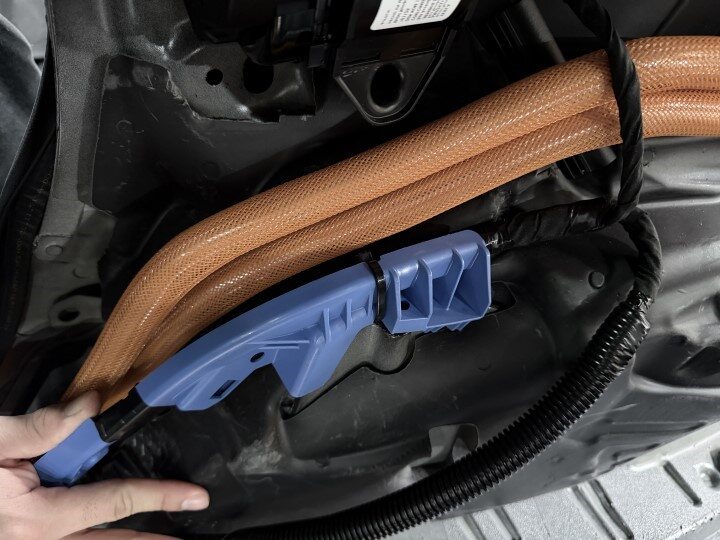

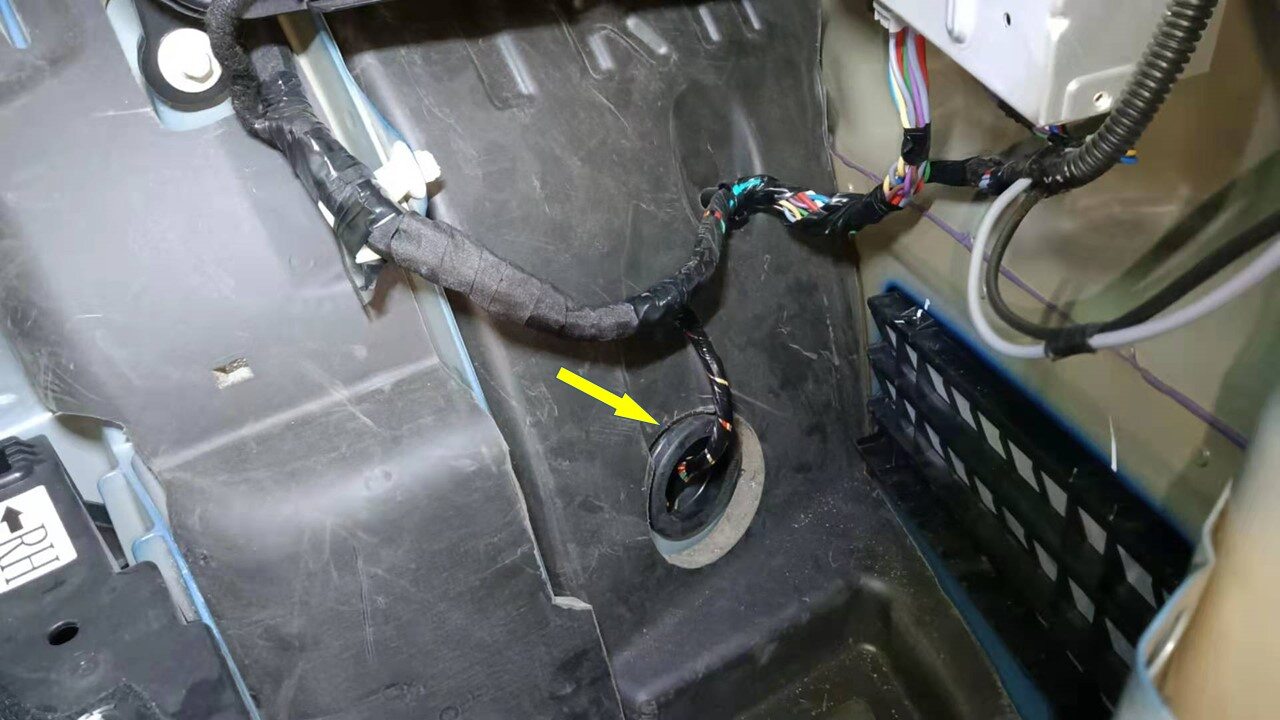

158. Push grommet through RH side trunk bulkhead and feed harness through
     注

     1x grommet

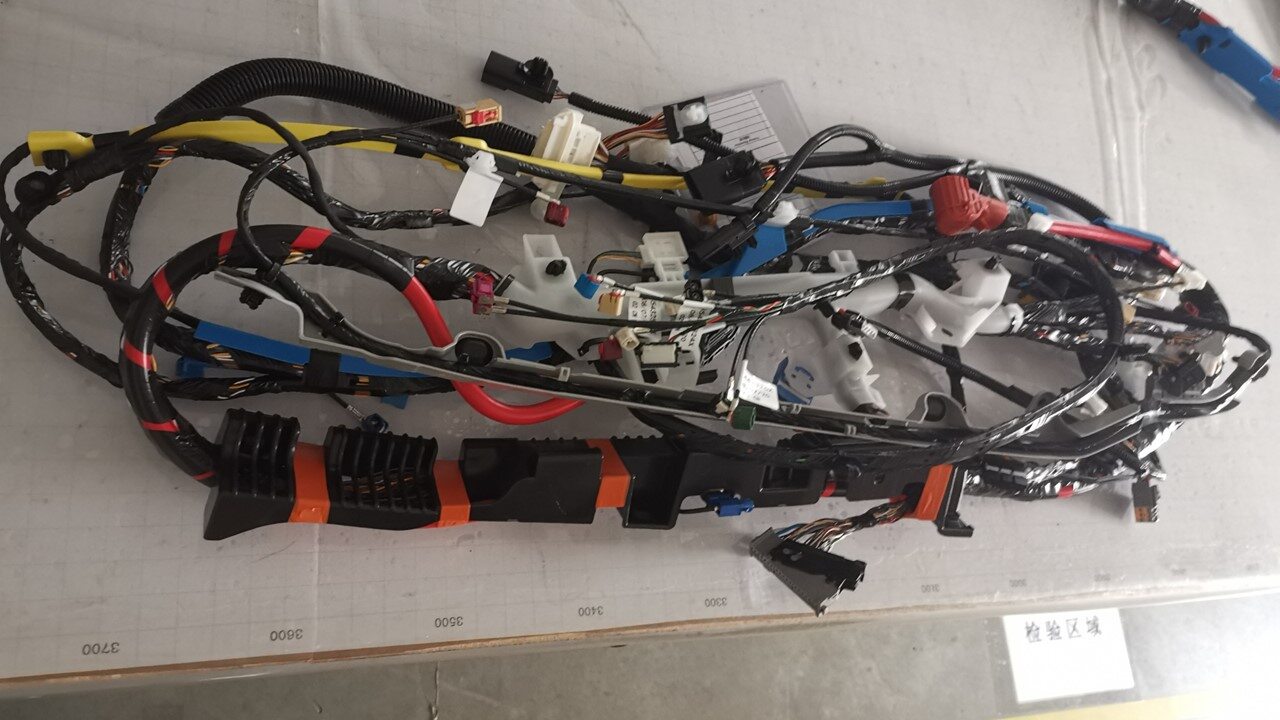

159. Remove the RH body harness from vehicle



160. Position the RH body harness to vehicle for installation



161. Install grommet to RH side trunk bulkhead
     注

     1x grommet



162. Connect the RH body harness from rear subframe and RH rear EPB connector
     注

     2x connectors



163. Connect and install rear fascia onto vehicle
     注

     1x connector, Engage red locking tab, Recommend assistance, Verify lower portion aligns with rear diffuser.











164. Install fasteners securing rear diffuser to body
     注

     2x fasteners, Torx T20





165. Install bolt securing RH rear fascia to body
     注

     1x bolt, 8mm, 4 Nm





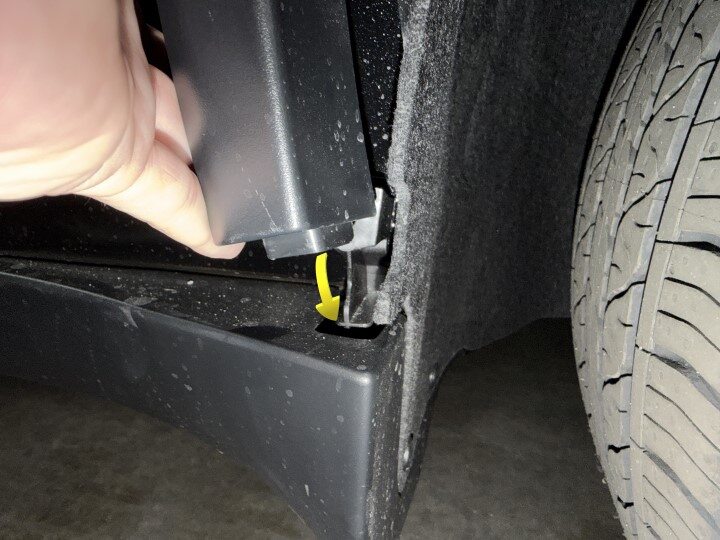

166. Install RH rear fender garnish
     注

     12x clips, Install end of garnish into rocker panel, push all tclips in







167. Install bolt securing LH rear fascia to body
     注

     1x bolt, 8mm, 4 Nm





168. Install LH rear fender garnish
     注

     12x clips, Install end of garnish into rocker panel, push clips in







169. Apply Loctite 222 onto rear diffuser bolts and secure rear fascia to rear diffuser
     注

     6x bolts, 10mm, 8mm, 4 Nm









170. Install bolt securing RH corner of rear fascia
     注

     1x bolt, 10mm, 4 Nm



171. Install RH liftgate stop
     注

     1x liftgate stop, Align tab and push down to secure



172. Install bolt securing LH corner of rear fascia
     注

     1x bolt, 10mm, 4 Nm



173. Install LH liftgate stop
     注

     1x liftgate stop, Align tab and push down to secure



174. Connect subwoofer assembly



175. Connect audio amplifier
     注

     3x connectors, 1x clip



176. Install the RH body harness ground strap
     注

     1x bolt, 10mm, 10 Nm



177. Install securing clips RH body harness on RH side trunk bulkhead
     注

     2x clips



178. Connect LH harness to rear TCU
     注

     2x connectors, 2x fasteners, 13mm, Lock tabs once engaged





179. Install the RH body harness connectors around upper C-pillar area
     注

     4x connectors,4x clips





180. Install RH 2nd row retractor connector
     注

     1x connector, 2 stage locking connector, Engage the red locking tab when the connector is fully seated



181. Install the RH body harness clips around the upper C-pillar area
     注

     5x clips





182. Install positive 12V output to PCS
     注

     1x nut, 13mm, 9 Nm, Install new nut, Mark the nut after torque, Make sure rubber boot is not pinched between cable terminal and pass through



183. Install positive 12V output cover
     注

     1x cover



184. Remove logic cap and connect HVC logic connector
     注

     1x connector, 1x cap, Align connector then pull the handle to locking position get connector fully seated





185. Install the RH body harness ground strap around lower B-pillar
     注

     1x bolt, 10mm, 10 Nm



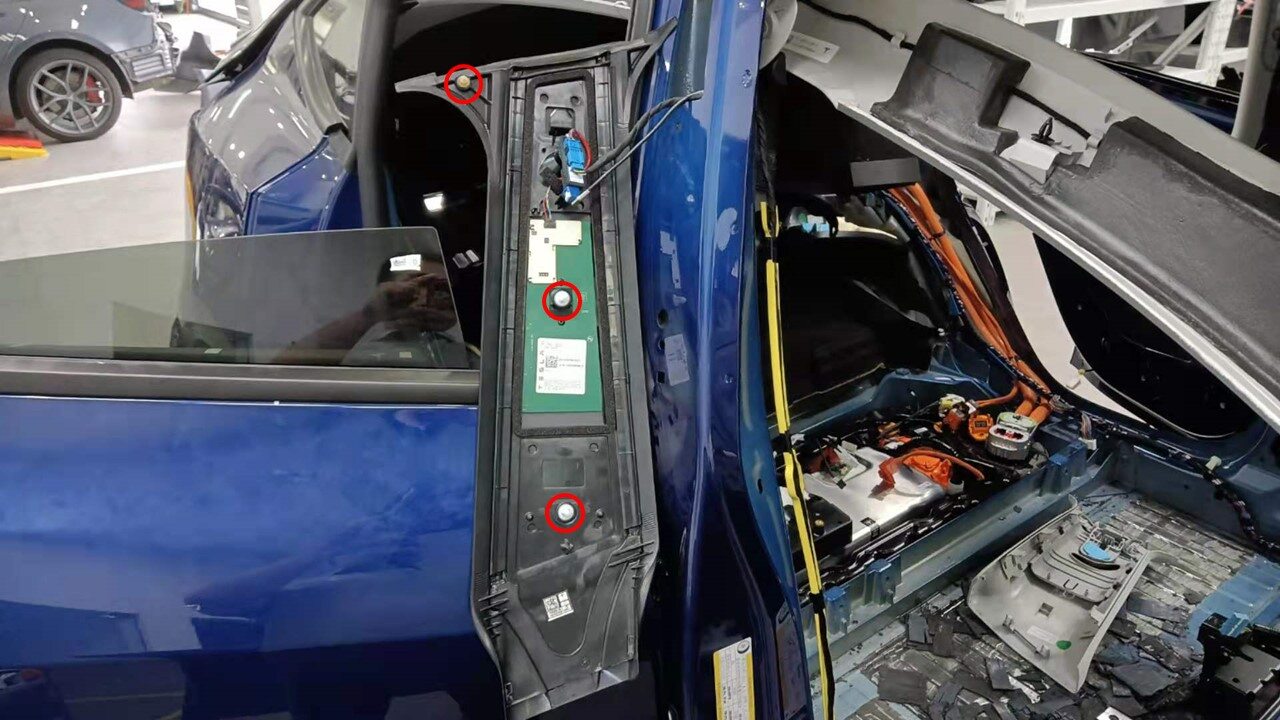

186. Connect camera connector then install RH B-pillar applique to vehicle
     注

     2x connectors, 1x fir tree clip, 2x clips, Align B-Pillar applique into position and secure clips into body, Use caution not to damage the connectors





187. Install the RH body harness clips from B-pillar area
     注

     6x clips



188. Connect the RH body harness connectors around lower B-pillar area
     注

     4x connectors



189. Install securing clips RH body Harness below RH front seat
     注

     3x clips







190. Connect LH harness to RH body Harness
     注

     2x connector,1x clip,Engage locking tabs





191. Install connector from RH side of car computer
     注

     2x connector



192. Install the car computer harness guide clips in the RH front cabin
     注

     2x clips



193. Secure harness guide clip
     注

     1x harness clip



194. Install harness connectors on LH side of car computer
     注

     5x connectors, Engage locking tabs



195. Install clips securing MIMO harness
     注

     8x clips, Maneuver assembly through RH side of dashboard and position onto A-pillar













196. Reconnect HV to RH body harness assembly
     注

     1x connector



197. Connect J11 HVAC connector
     注

     1x connector





198. Connect J10 dash connector
     注

     1x connector





199. Connect J7 door connector
     注

     1x connector, Fully seat connector then engage lock





200. Secure connector undre j10 and j11 to RH controller
     注

     Secure red tab



201. Connect J5 body connector
     注

     1x connector, Fully seat connector then engage lock





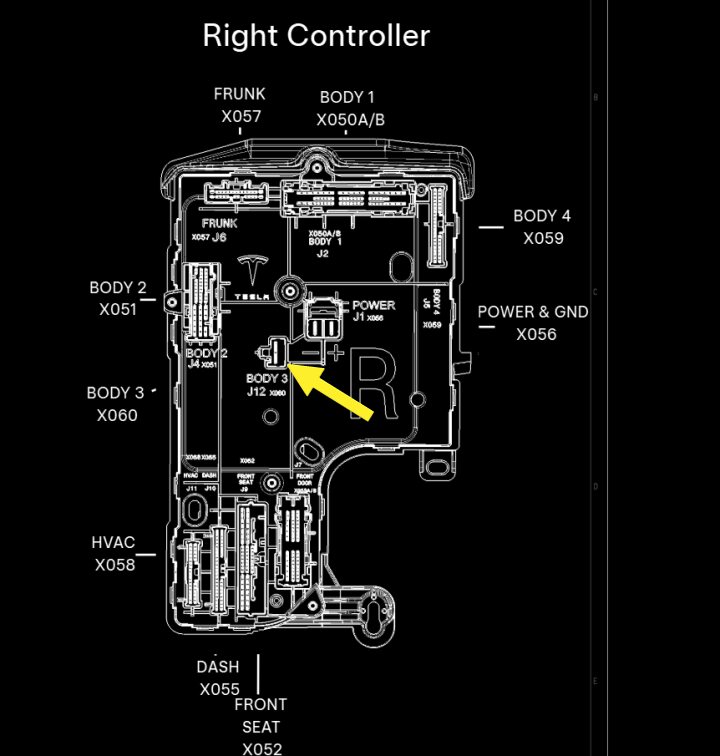

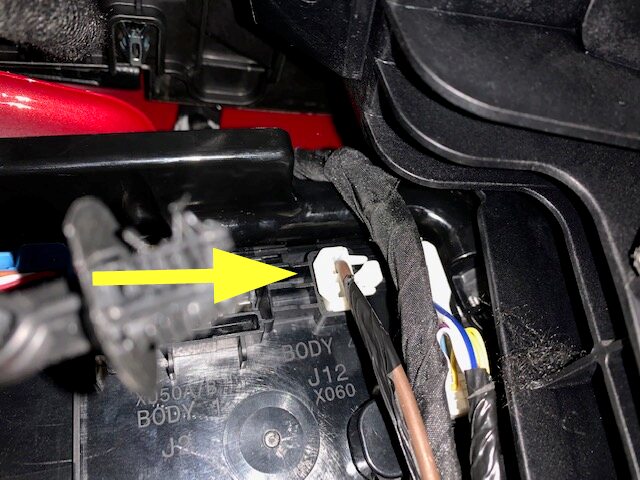

202. Connect J12 body connector
     注

     1x connector





203. Connect J4 body connector
     注

     1x connector, Fully seat connector then engage lock





204. Connect J2 body connector
     注

     1x connector, Fully seat connector then engage lock





205. Connect blue coax connector to body harness guide side
     注

     1x connector



206. Connect purple coax connector and beauty cover body harness guide side
     注

     3x connectors, Engage red tabs



207. Install airbag
     注

     1x Connector, 4x fasteners, E10







208. Install harness clips from RH A-pillar area
     注

     3x clips



209. Connect RH MIMO antenna
     注

     1x connector, Engage locking tabs



210. Connect LH MIMO antenna
     注

     1x connector, Engage locking tabs



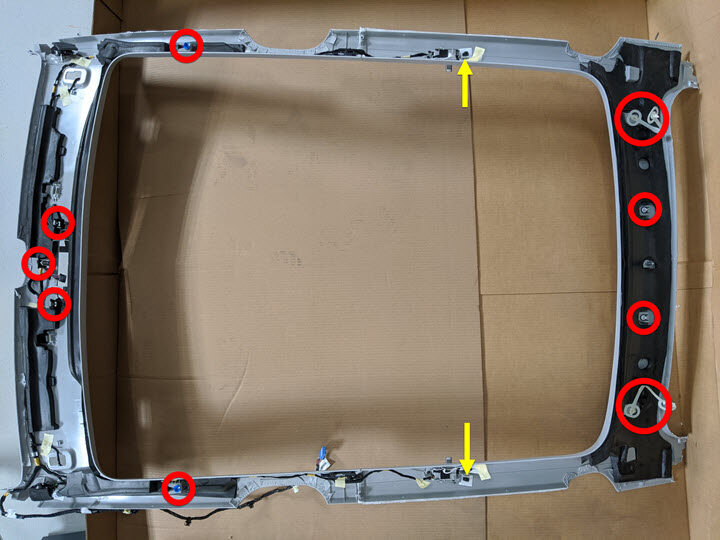

211. Install headliner to body
     注

     11x clips, Recommend assistance, Seat 2x clips at coat hooks when replacing headliner, Reseat primary seal at doors and liftgate to headliner





212. Install RH sun visor fastener
     注

     1x screw, T25, 3.5 Nm



213. Install RH sun visor bracket cover
     注

     4x clips





214. Install RH upper A-pillar trim
     注

     3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim

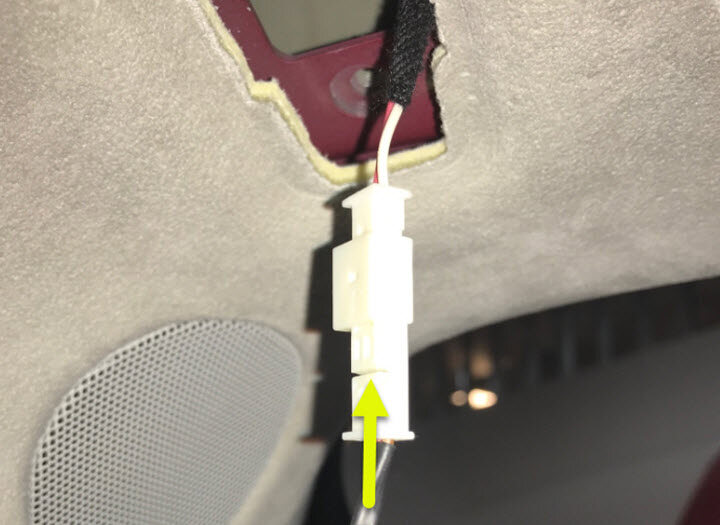

215. Connect LH sunvisor connector
     注

     1x connector





216. Install LH sun visor into headliner area
     注

     Fold sun visor to the closed and folded down position but do not latch in place





217. Install LH sun visor fastener
     注

     1x screw, T25, 3.5 Nm



218. Install LH sun visor bracket cover
     注

     4x clips





219. Install LH upper A-pillar trim
     注

     3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim









220. Install LH coat hook screw
     注

     1x screw, T20, 1.0 Nm



221. Close LH coat hook screw cover
     注

     1x locking tab



222. Push LH coat hook closed



223. Install RH coat hook screw
     注

     1x screw, T20, 1.0 Nm



224. Close RH coat hook screw cover
     注

     1x locking tab



225. Push RH coat hook closed





226. reconnect 3rd row seat recliner connector and install LH upper C-pillar trim
     注

     4x clips, 2x tabs, 1x Connector, 1x Emergency release, Guide front upper corner groove under headliner, Insert guide tab to headliner behind quarter glass, Seat trunk seal to edge of trim













227. Install LH 7s trunk side trim
     注

     7x tabs, 4x clips, 1x location pin, 1x connector, Ensure to seat trunk seal to edge of trim











228. Install LH trunk pocket bracket
     注

     2x retainer clips, 4x alignment tabs





229. Install LH load floor bracket
     注

     6x clips





230. Install RH upper C-pillar trim
     注

     2x tabs, 4x clips, 1x connector, Seat trunk seal to edge of trim













231. Install RH trunk side trim
     注

     7x tabs, 4x clips, 1x location pin, Ensure to seat trunk seal to edge of trim











232. Install RH trunk pocket bracket
     注

     1x push clip, 5x alignment tabs





233. Install RH load floor bracket
     注

     6x tabs, Confirm each installation with push-pull test





234. Install rear load floor



235. Install trunk sill trim
     注

     4x clips, Seat seal around edge of trim









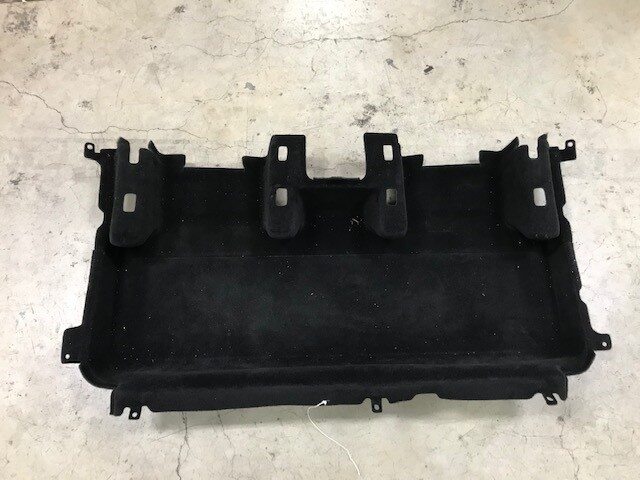

236. Install rear main cabin carpet to vehicle
     注

     Position rear main carpet to floorboard and slide forward, Ensure rear main carpet tucks beneath front main carpet and air duct











237. Install rear floormat



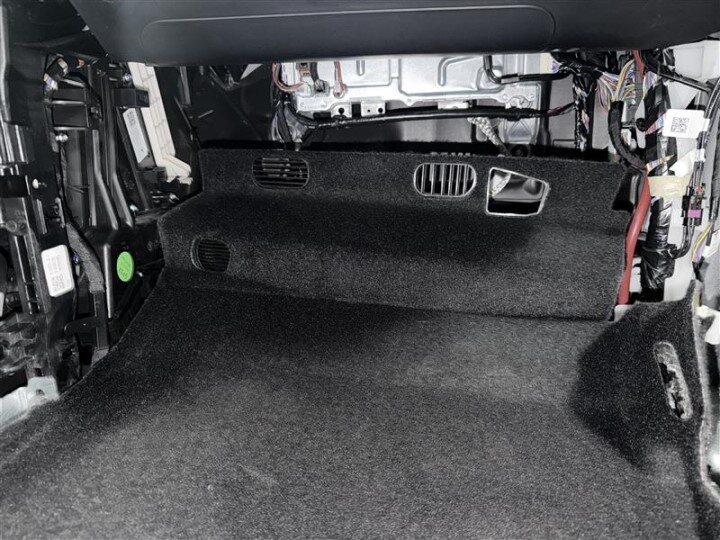

238. Install RH front cabin carpet
     注

     1x connector,





239. Install clips securing RH front cabin carpet to vehicle
     注

     2x push clips



240. Install 2nd row 60 seat assembly
     注

     Recommend assistance







241. Connect 2nd row 60 seat connector
     注

     1x connector, Newer models may have red locking tab





242. Install fasteners securing 60 seat frame to body
     注

     5x patch bolts, 11mm, 37 Nm, Install new patch bolts, bottom seat bolts located in rear









243. Secure cabin carpet to 60 seat
     注

     Strap velcro on





244. Move 2nd row 60 seatback to vertical position
     注

     Remove seat back protection if necessary



245. Install 60 seat outboard track cover
     注

     1x clip







246. Install 40 seat into vehicle
     注

     Recommend assistance, Do not support 40 seat by cushion pan, Support 40 seat by podium





247. Connect 2nd row 40 seat connector
     注

     1x connector, Newer models may have red locking tab





248. Install bolts securing 40 seat podium to vehicle hand tight
     注

     2x patch bolts, 11mm, 37 Nm, Install new bolts, Torque at later step



249. Move 40 seat forward using towel bar
     注

     With one hand on towel bar pull up and slide the seat forward with your other hand



250. Install bolts securing 40 seat inner and outer tracks to vehicle
     注

     2x patch bolts, 11mm, 37 Nm, Install new bolts



251. Move 40 seat to original position



252. Torque bolts securing 40 seat podium to vehicle
     注

     2x patch bolts, 11mm, 37 Nm



253. Install cabin carpet to 40 seat



254. Install center track cover to 2nd row seats
     注

     2x clip, Slide cover straight on to clip to 2nd row seat tracks







255. Install 40 seat outboard track cover
     注

     1x clip

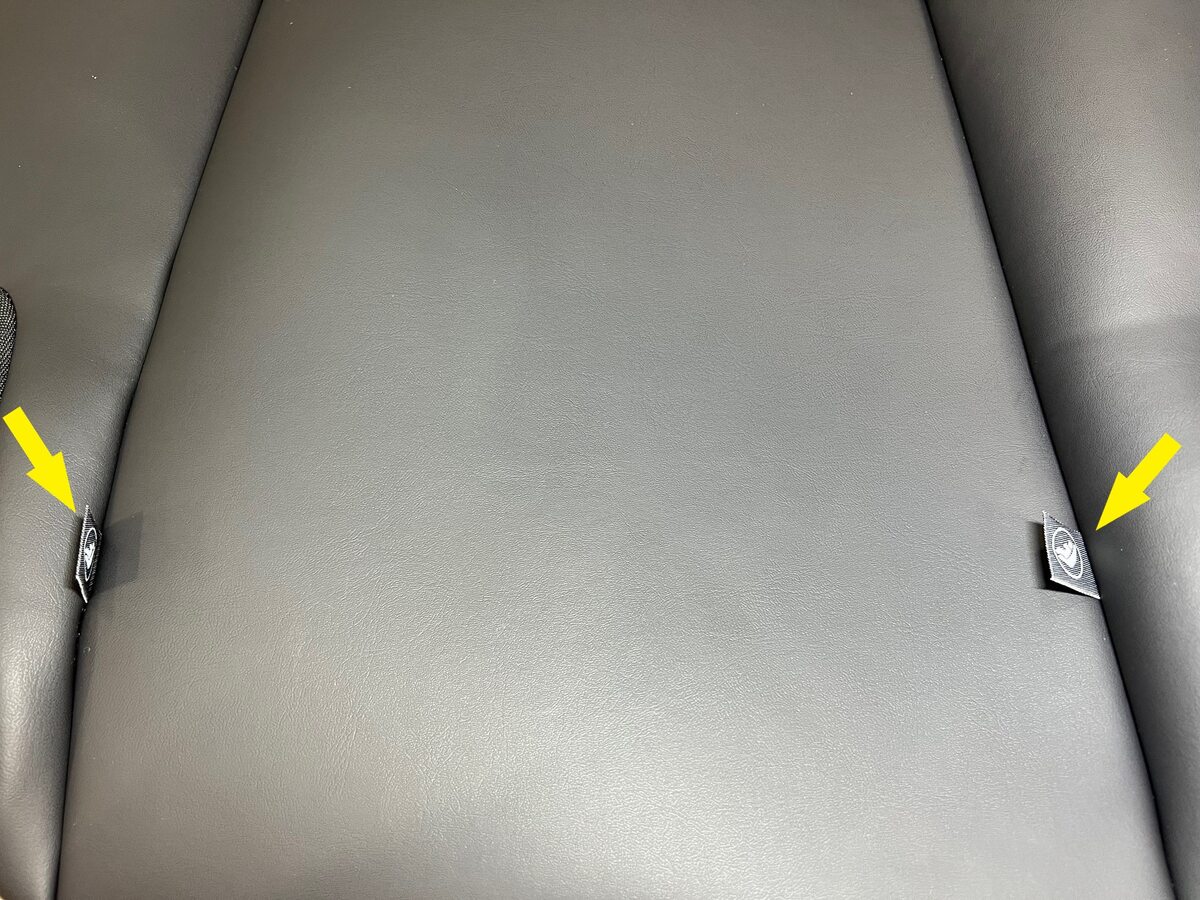

256. Install 3rd row seat cushion and connect harness
     注

     1x connector, Secure 3rd row seat cushion into RH and LH latches





257. Install RH upper B-pillar assembly
     注

     4x tabs, 5x retainer tabs, Lower seat belt slider to align with B pillar panel, Insert top portion of upper B pillar under headliner to align clips, Spread bottom of trim assembly to properly seat upper B pillar, ensure seal correctly overlaps trim







258. Install RH lower B-pillar assembly
     注

     7x clips, 2x tabs, Align the bottom guide tab to its slot then press the bottom clips, Work your way to top clips

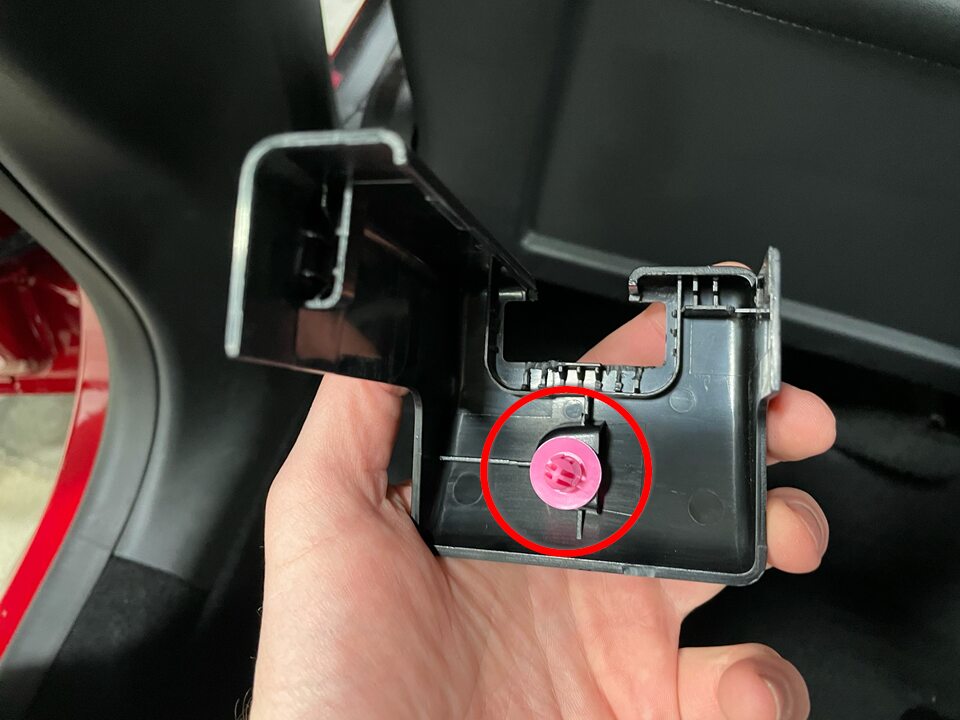

259. Install clip securing RH lower B-pillar to body
     注

     1x push clip, Clip goes through B-pillar and rear cabin carpet



260. Install RH lower C-pillar trim
     注

     4x tabs, 3x clips, Secure door seal as needed









261. Install LH upper B pillar assembly
     注

     4x tabs, 5x retainer tabs, Lower seat belt slider to align with B pillar panel, Insert top portion of upper B pillar under headliner to align clips, Spread bottom of trim assembly to properly seat upper B pillar, ensure seal correctly overlaps trim







262. Install LH lower B pillar assembly
     注

     7x clips, 2x tabs, Align the bottom guide tab to its slot then press the bottom clips, Work your way to top clips







263. Install clip securing LH lower B pillar to body
     注

     1x push clip, Clip secures lower B pillar and rear cabin carpet to body



264. Install LH lower C-pillar trim
     注

     4x tabs, 3x clips, Secure door seal as needed









265. Install center console onto vehicle
     注

     Recommend assistance, Tilt front of console downward, Slide assembly towards front of vehicle and tilt rear of console down into position



266. Connect harness at right front of center console
     注

     1x USB connector



267. Connect harness to rear of center console
     注

     1x connector





268. Install RH front exterior hardware to center console
     注

     2x bolts, 10mm, 7 Nm, The relatively newer vehicles are equipped with a T30 bolt.





269. Install RH console side panel carpet
     注

     2x covers,



270. Install LH console side panel carpet
     注

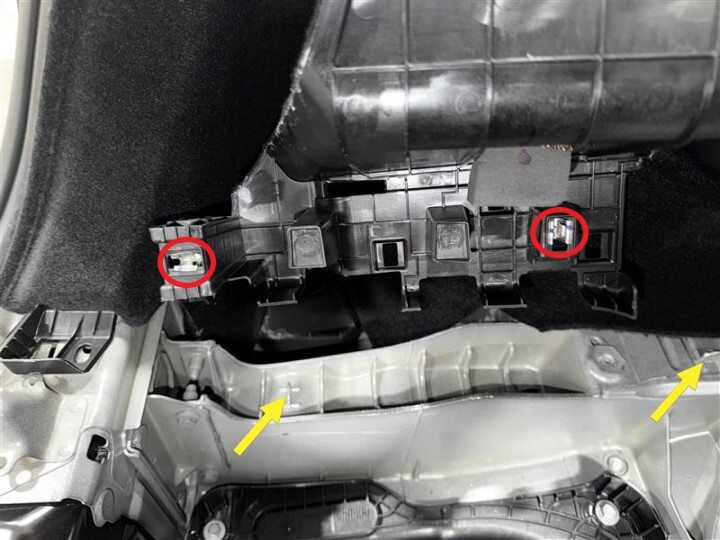

     10x clips, 1x guide pin, Position side panel and align the locator, then the rear locator, Push side panel towards console to install



271. Install console lower rear panel
     注

     5x clips







272. Install LH front seat into vehicle
     注

     Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim, Gateway configuration update for cfg_frontSeattype is needed when replacing from 7654322-XX-E to 7654322-XX-F or newer 1st Row LHD LH Seat Assembly with 1st Row Mini-Tilt Motor Assembly

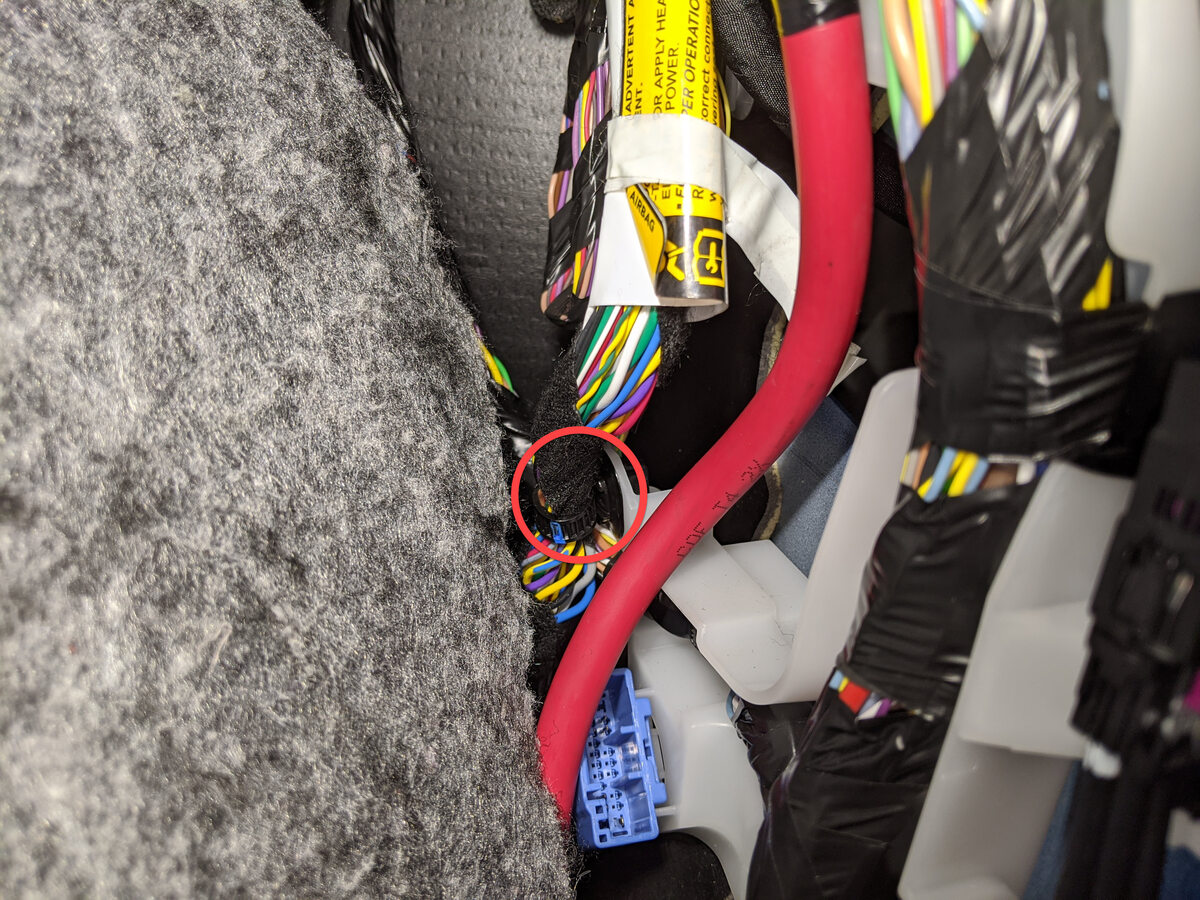

273. Secure LH front seat harness under LH front cabin carpet



274. Install LH front seat harness along LH front sill panel harness bracket
     注

     5x clips



275. Install LH front seat harness clips onto LH footwell support bracket
     注

     2x retaining clips





276. Connect LH front seat harness to VC left
     注

     1x electrical connector, Ensure the connector and lock are fully engaged, Perform pull push pull test to ensure the connector and connector lock are seated





277. Install LH lower A pillar trim
     注

     6x clips, 2 locating pins, Align front locating pin first



278. Install clip securing LH lower A pillar trim
     注

     1x push clip



279. Install LH mid A pillar assembly
     注

     1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Pull seal over trim



280. Reseat LH front door seal along lower A pillar trim



281. Install RH front seat into vehicle
     注

     Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim, Gateway configuration update for cfg_frontSeattype is needed when replacing from 7654324-XX-C to 7654324-XX-F or newer 1st Row LHD RH Seat Assembly with 1st Row Mini-Tilt Motor Assembly





282. Secure RH front seat harness under RH front cabin carpet



283. Install RH front seat harness along plastic guide
     注

     5x clips



284. Install RH front seat harness onto RH footwell support bracket
     注

     2x retaining clips





285. Connect RH front seat harness to VC right
     注

     1x connector, Ensure the connector and lock are fully engaged, Perform pull push pull test to ensure the connector and connector lock are seated





286. Install RH lower A pillar trim
     注

     6x clips, 2x locating pins, Align front locating pin first



287. Install clip securing RH lower A pillar trim
     注

     1x push clip



288. Install RH mid A pillar assembly
     注

     1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Make sure the seal seat on top of the trim



289. Reseat RH front door seal along lower A pillar trim



290. Connect first responder loop and battery
     注

     2x connectors, engage locking tabs, Connect FRL first before connecting 12V to avoid damage to car computer





291. Install rear apron
     注

     14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips





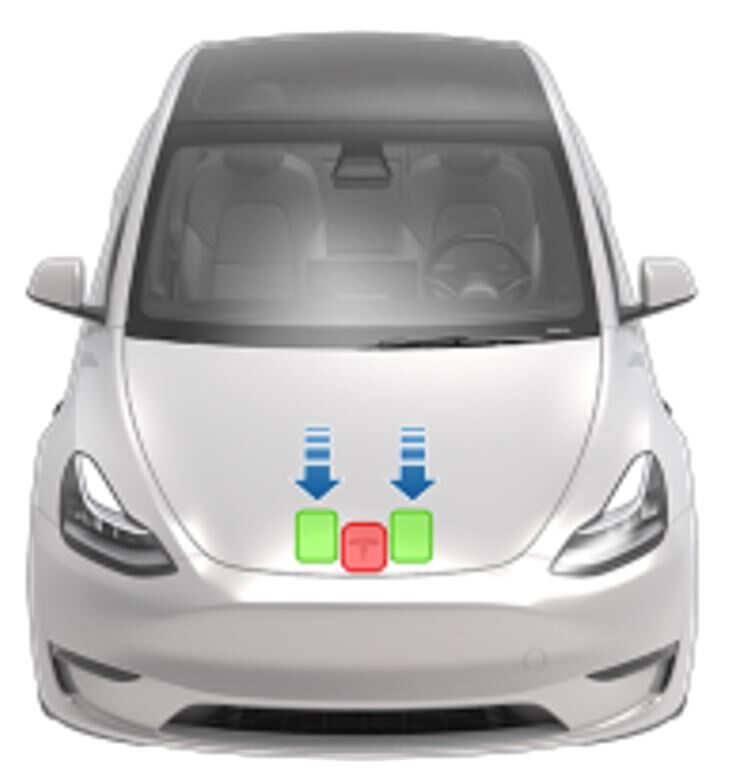

292. Close hood





293. Move LH front seat backward



294. Install LH front seat front fasteners
     注

     2x patch bolts, TP45, 33.5 Nm, Install new patch bolts



295. Move LH front seat forward



296. Install LH front seat belt retractor to quick fix
     注

     Slide the linkage into quick fix, an audible click will be heard, Verify there are no twists in the webbing from the upper trim to quick fix, Perform a firm pull test to confirm pretensioner is engaged



297. Install LH front seat rear fasteners
     注

     2x patch bolts, TP45, 33.5 Nm, Install new patch bolts



298. Move LH front seat to original position



299. Move RH front seat backward



300. Install RH front seat front fasteners
     注

     2x patch bolts, TP45, 33.5 Nm, Install new patch bolts



301. Move RH front seat forward



302. Install RH front seat belt retractor to pretensioner
     注

     Slide the linkage onto the pretensioner cable, an audible click will be heardVerify there are no twists in the webbing from the upper trim to the pretensionerperform a firm pull test to confirm pretensioner is engaged



303. Install RH front seat rear fasteners
     注

     2x patch bolts, TP45, 33.5 Nm, Install new patch bolts



304. Move RH front seat to original position



305. Close liftgate







306. Raise all four windows



307. Close all four doors
     注

     If LV is powered up, Unlatch rear doors before closing
