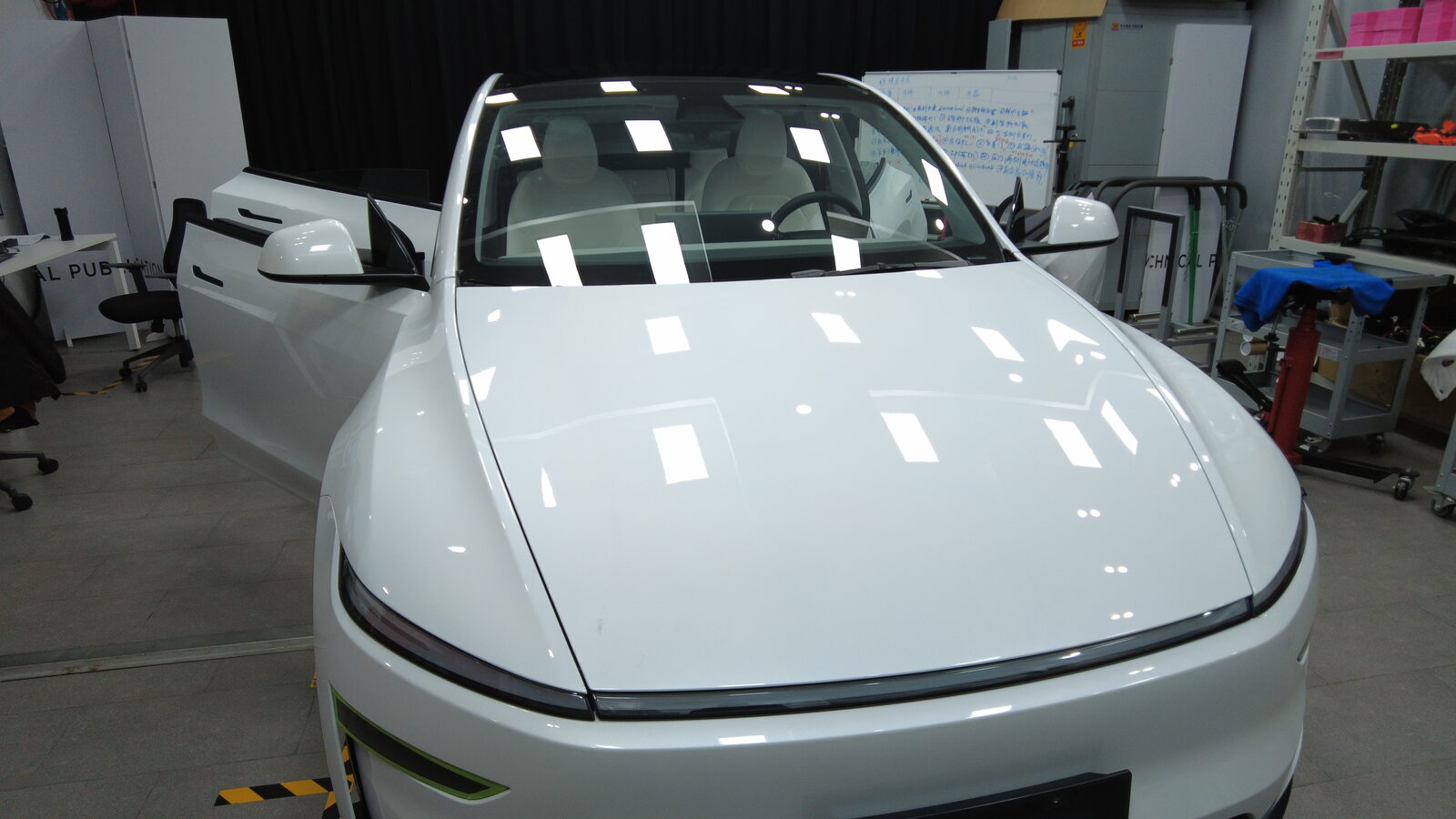

1. Open all four doors

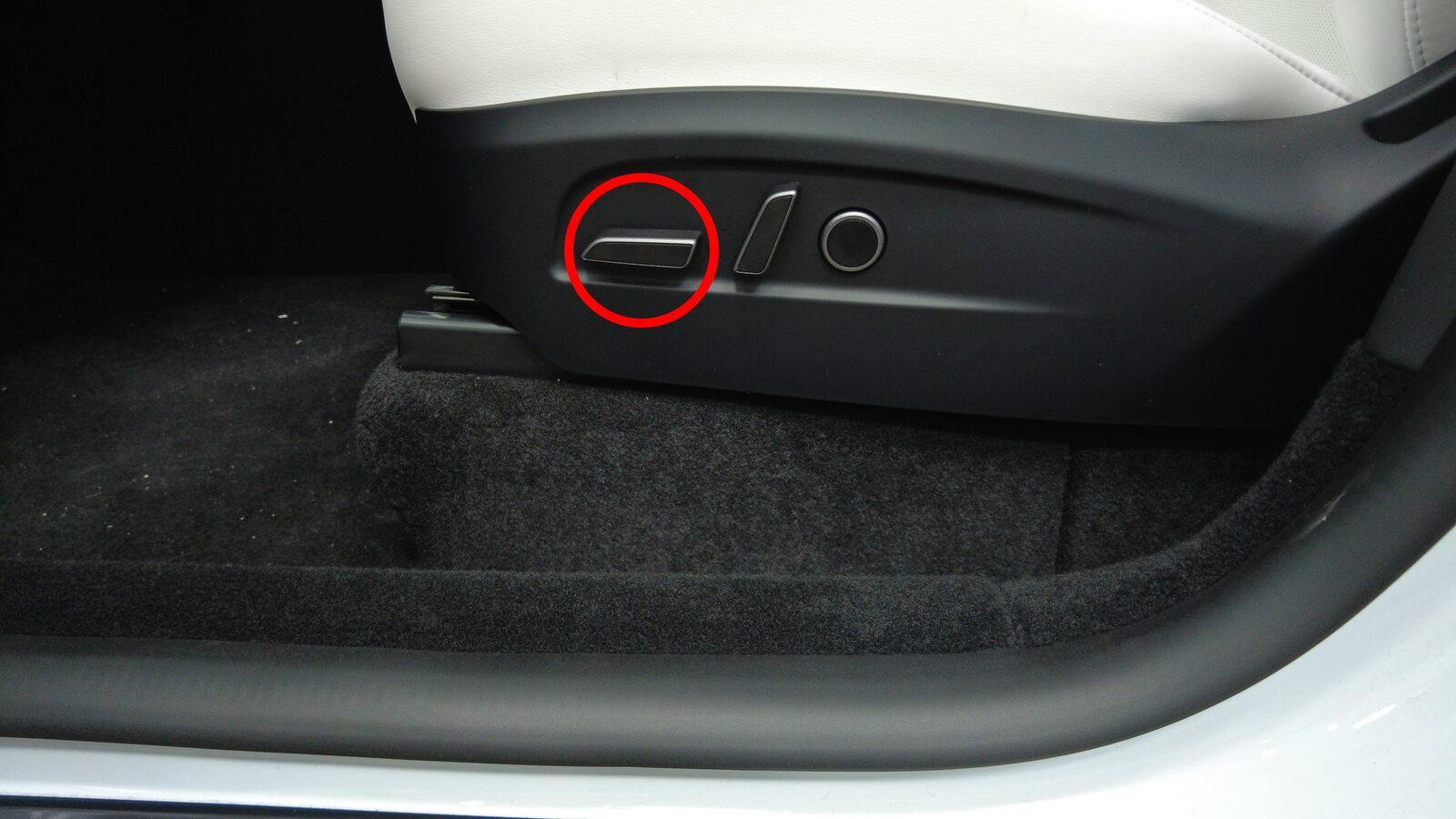

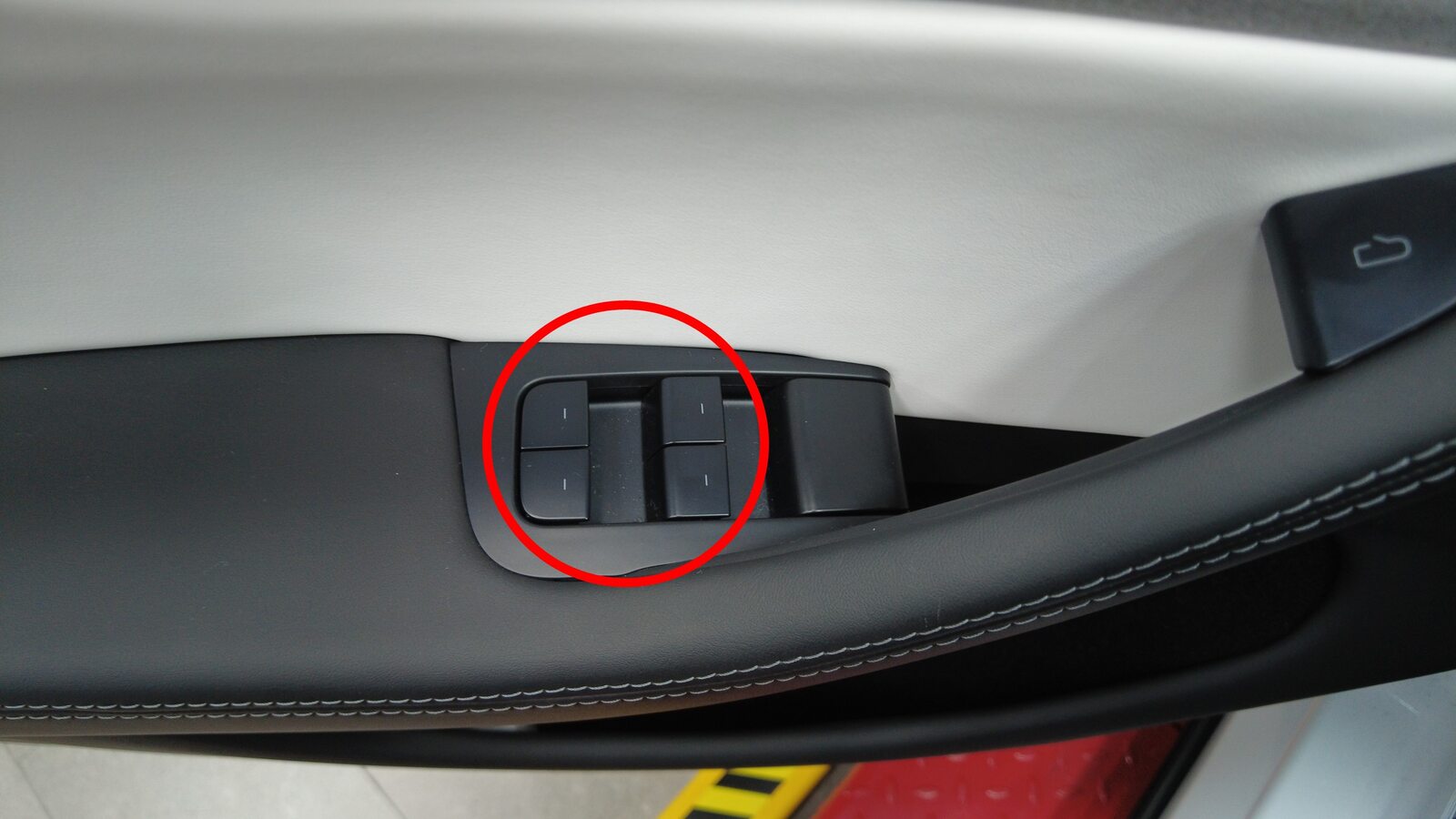

2. Lower all four windows

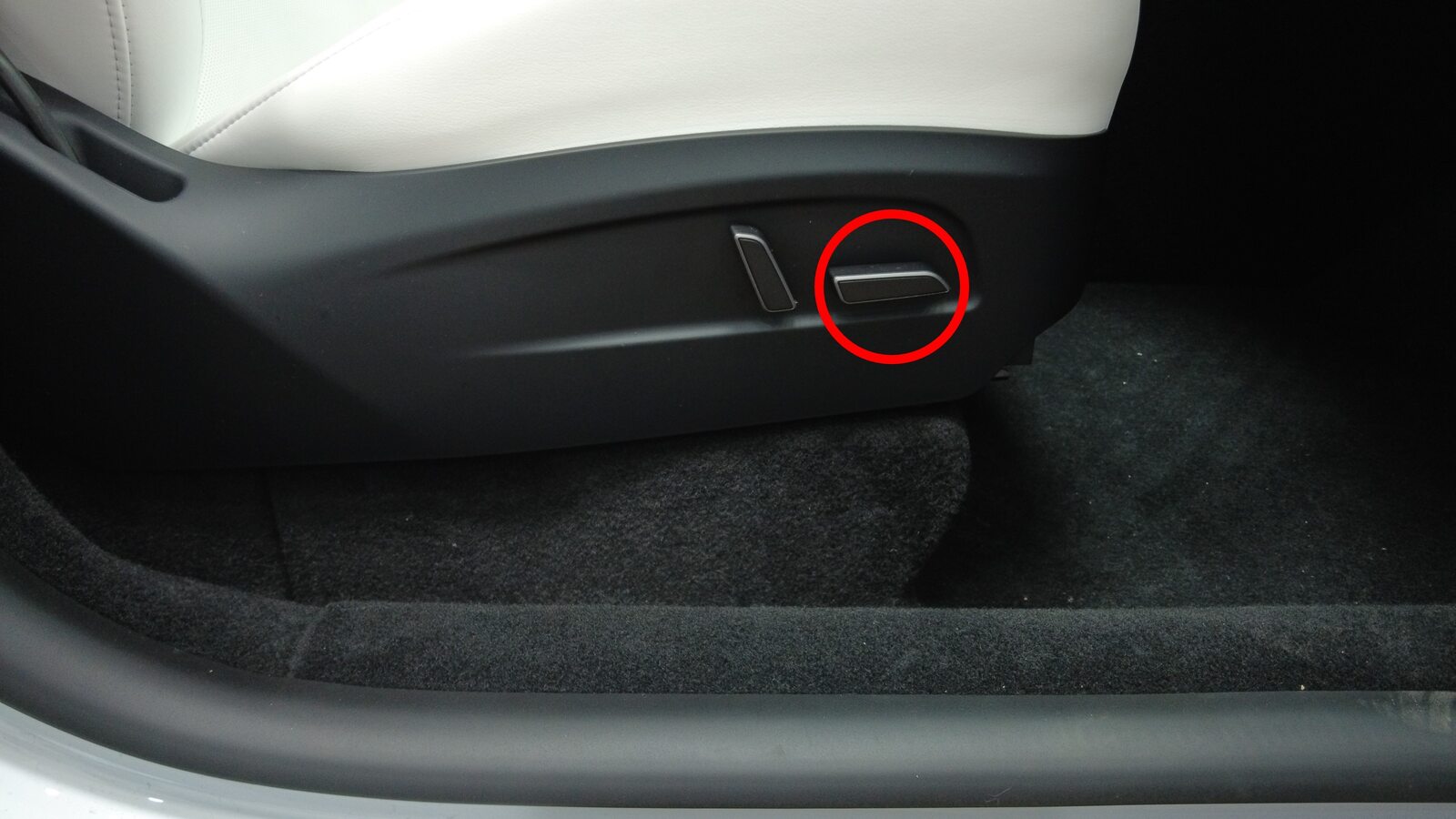

3. Move LH front seat forward
   注

   Adjust seat back if needed to avoid contacting headliner



4. Move RH front seat forward
   注

   Adjust seatback if needed to avoid contacting headliner

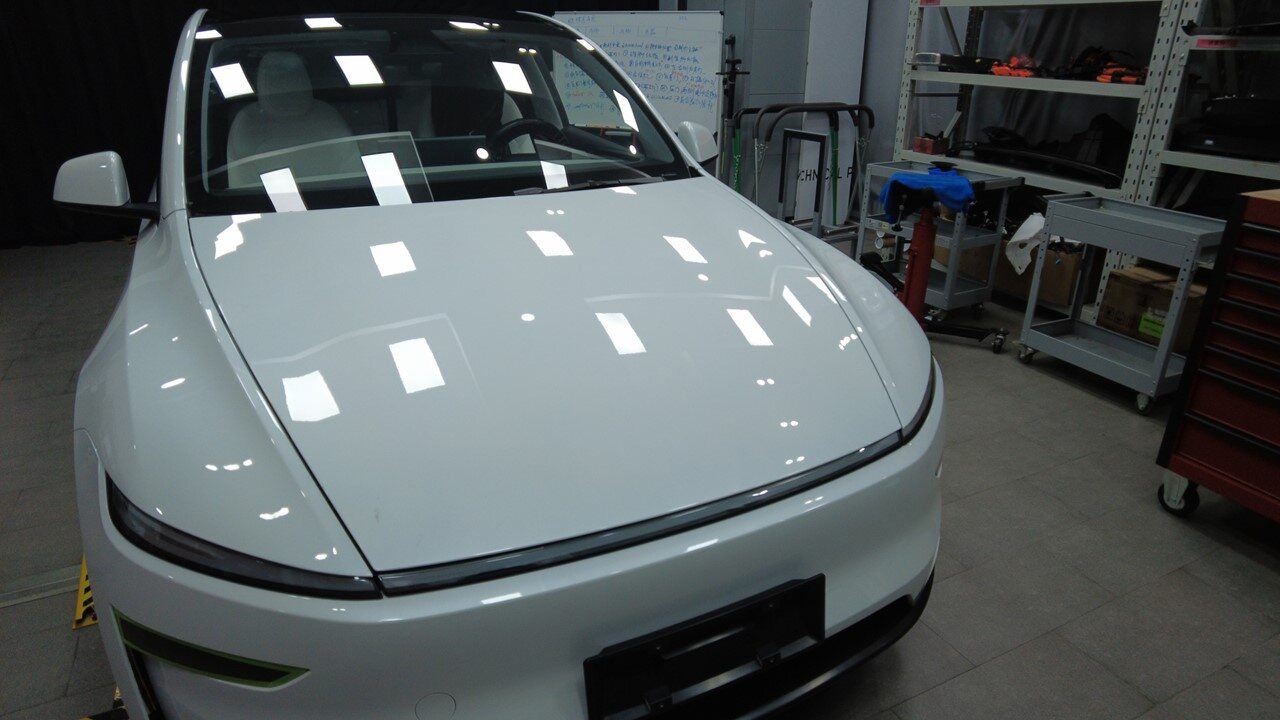

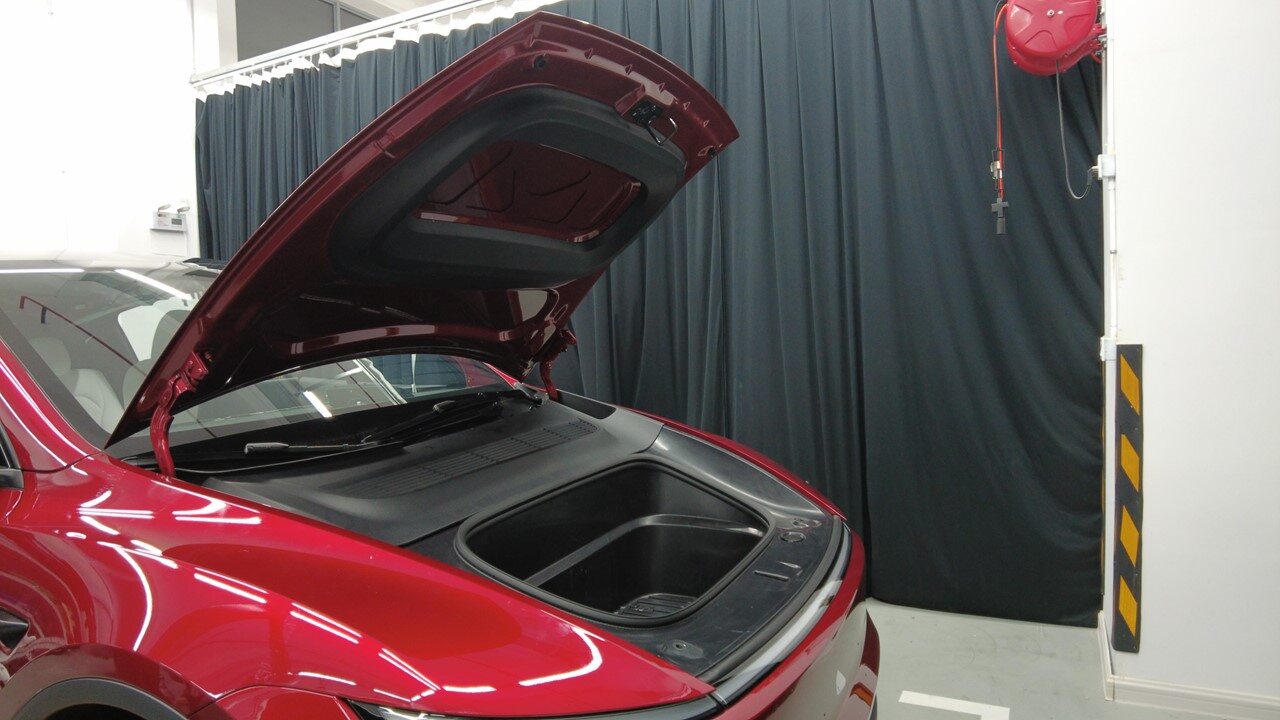

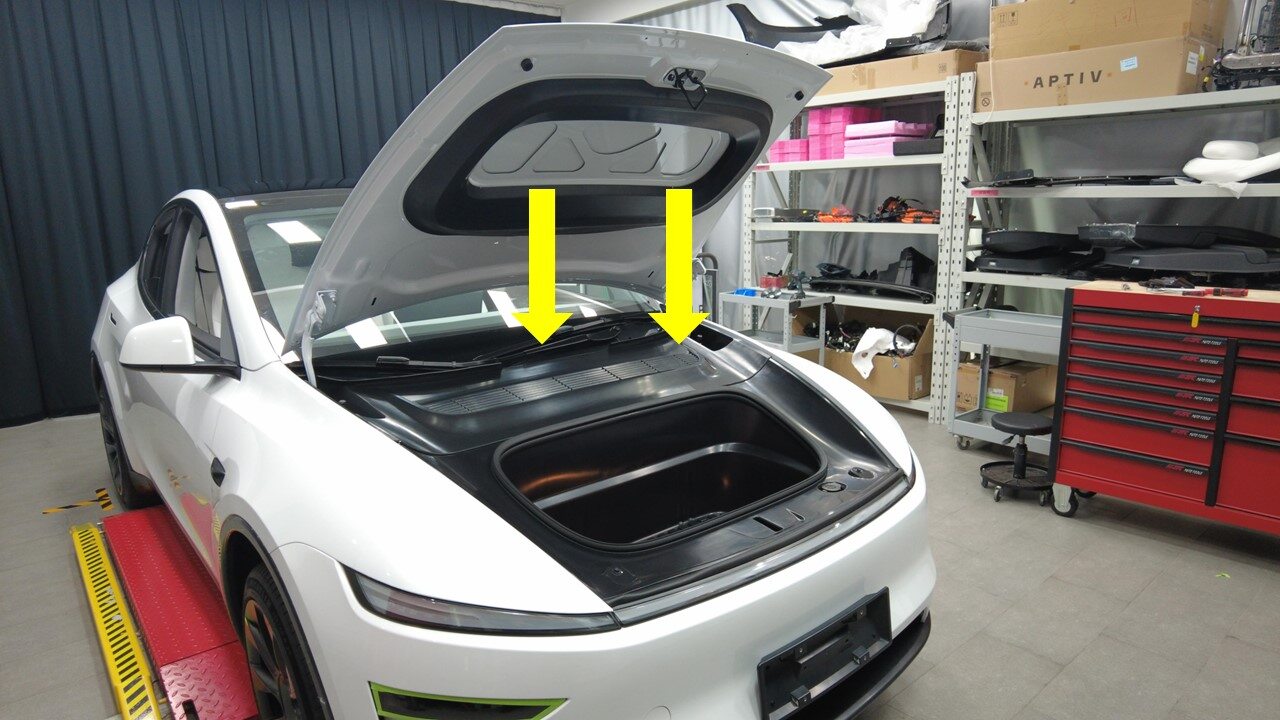

5. Open hood

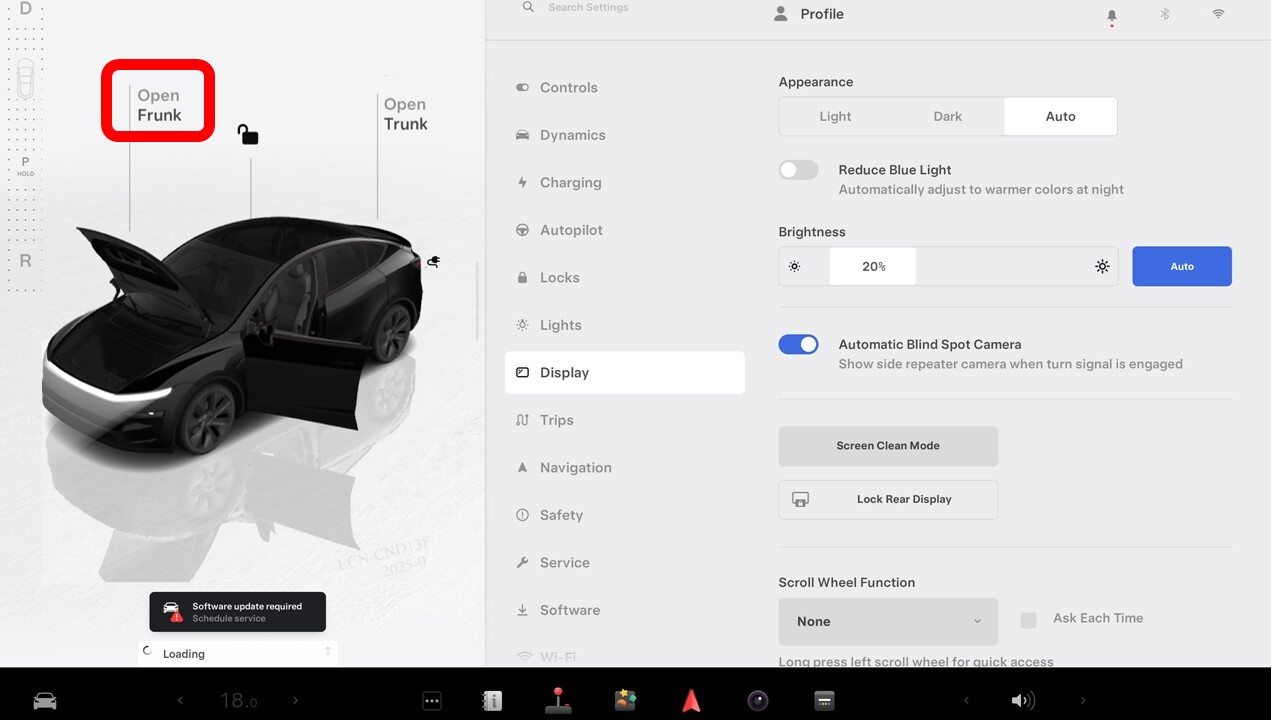

6. Power off vehicle from center display
   注

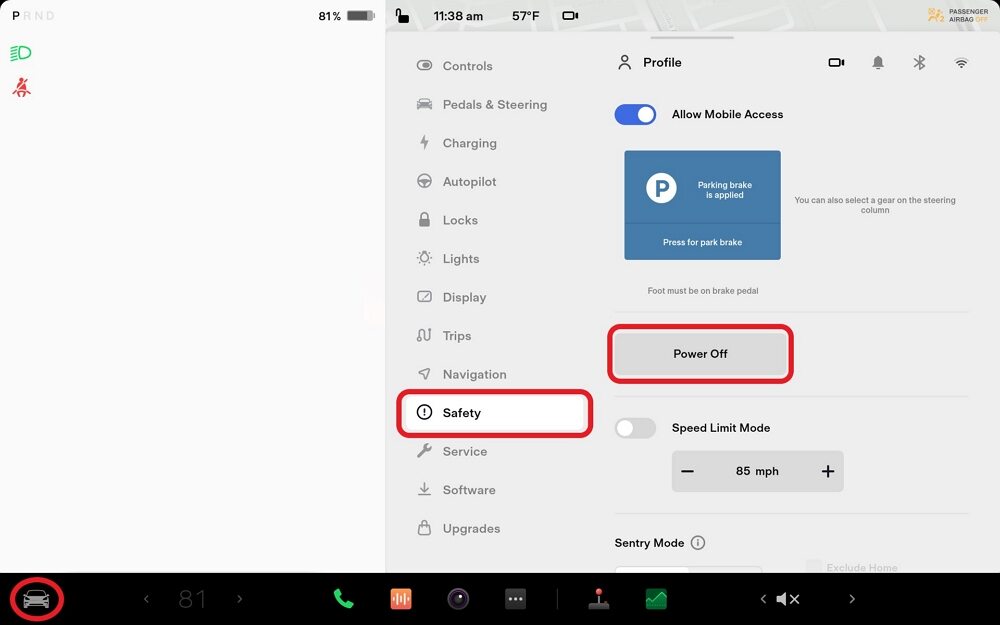

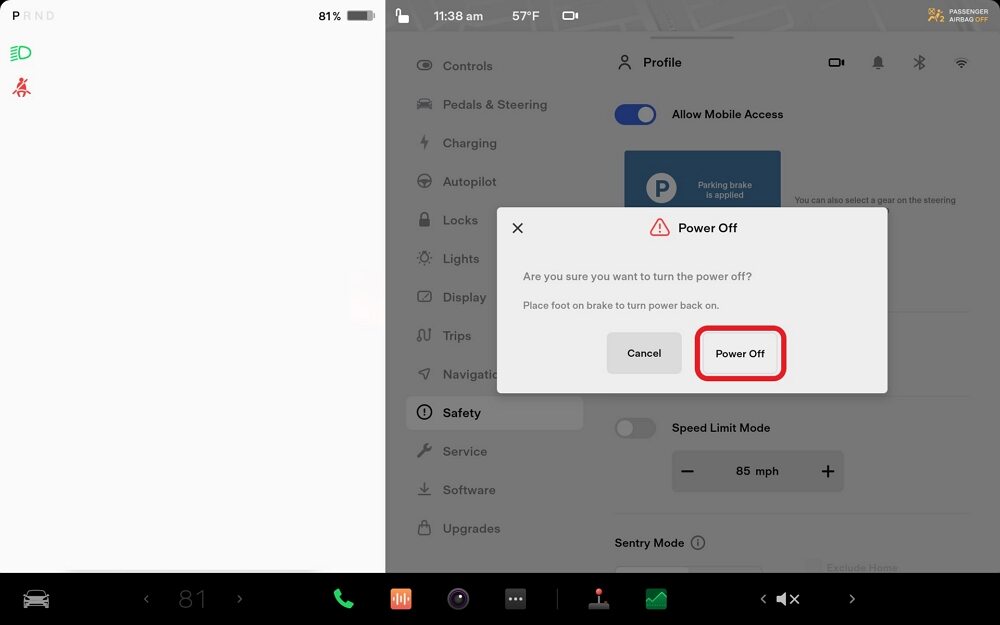

   Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

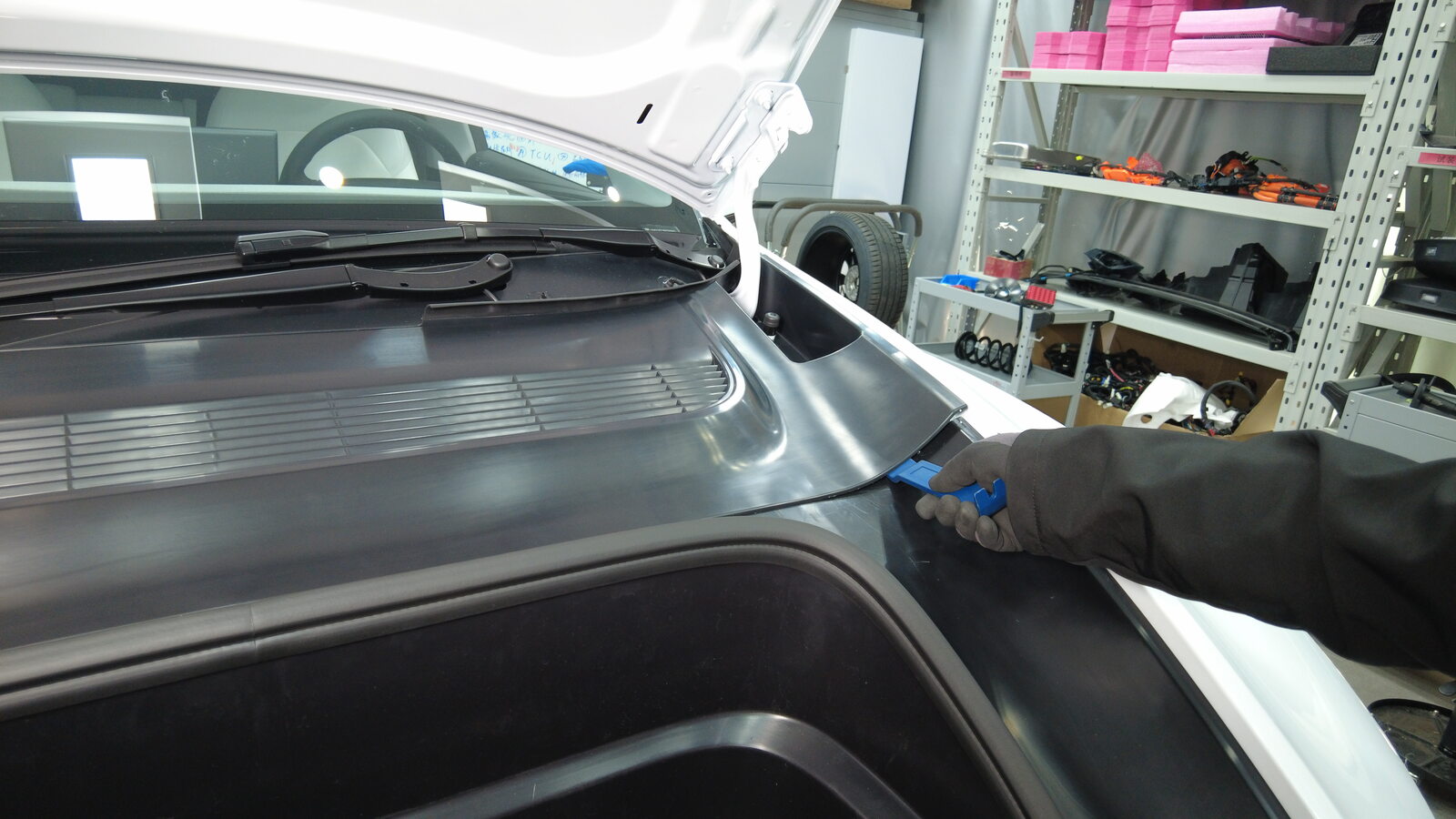

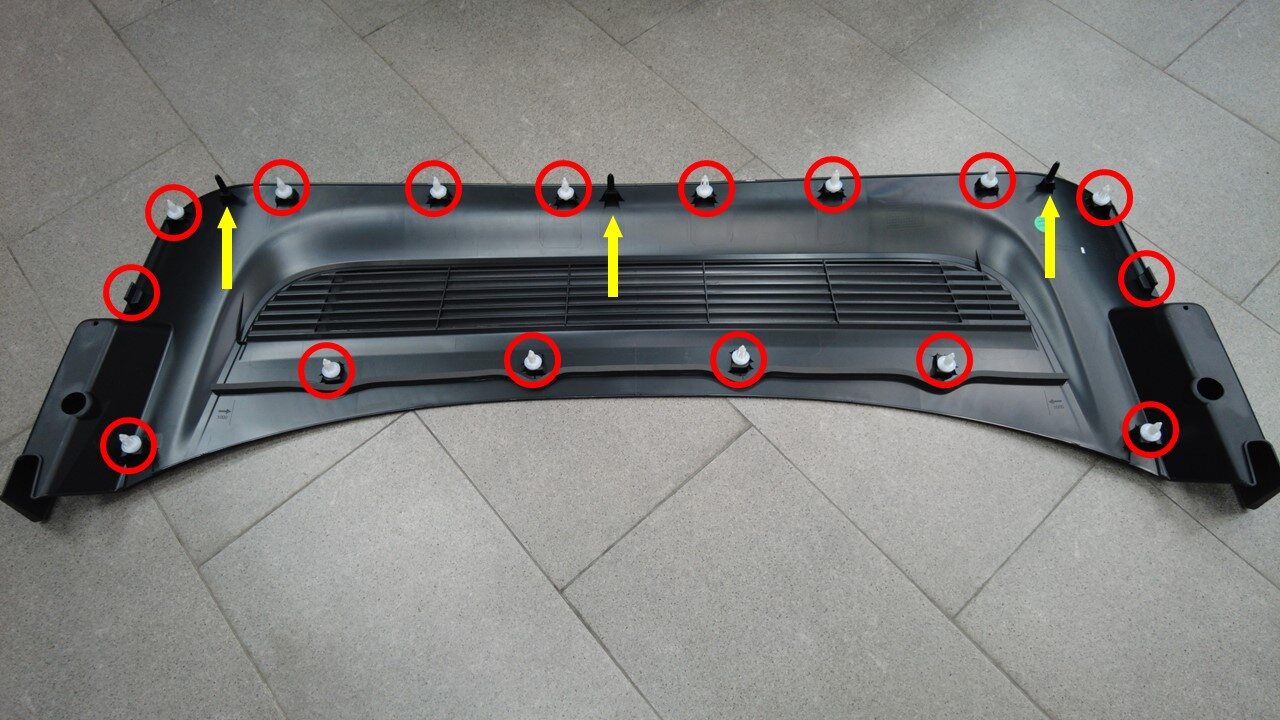

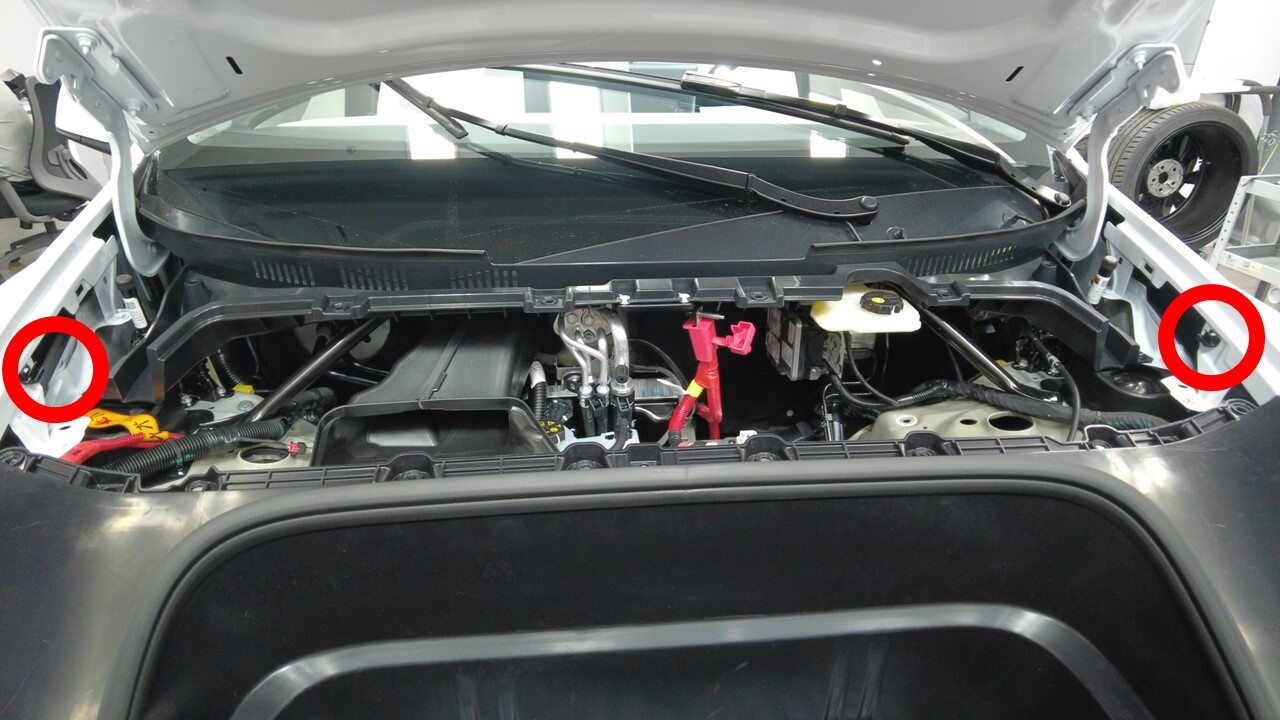

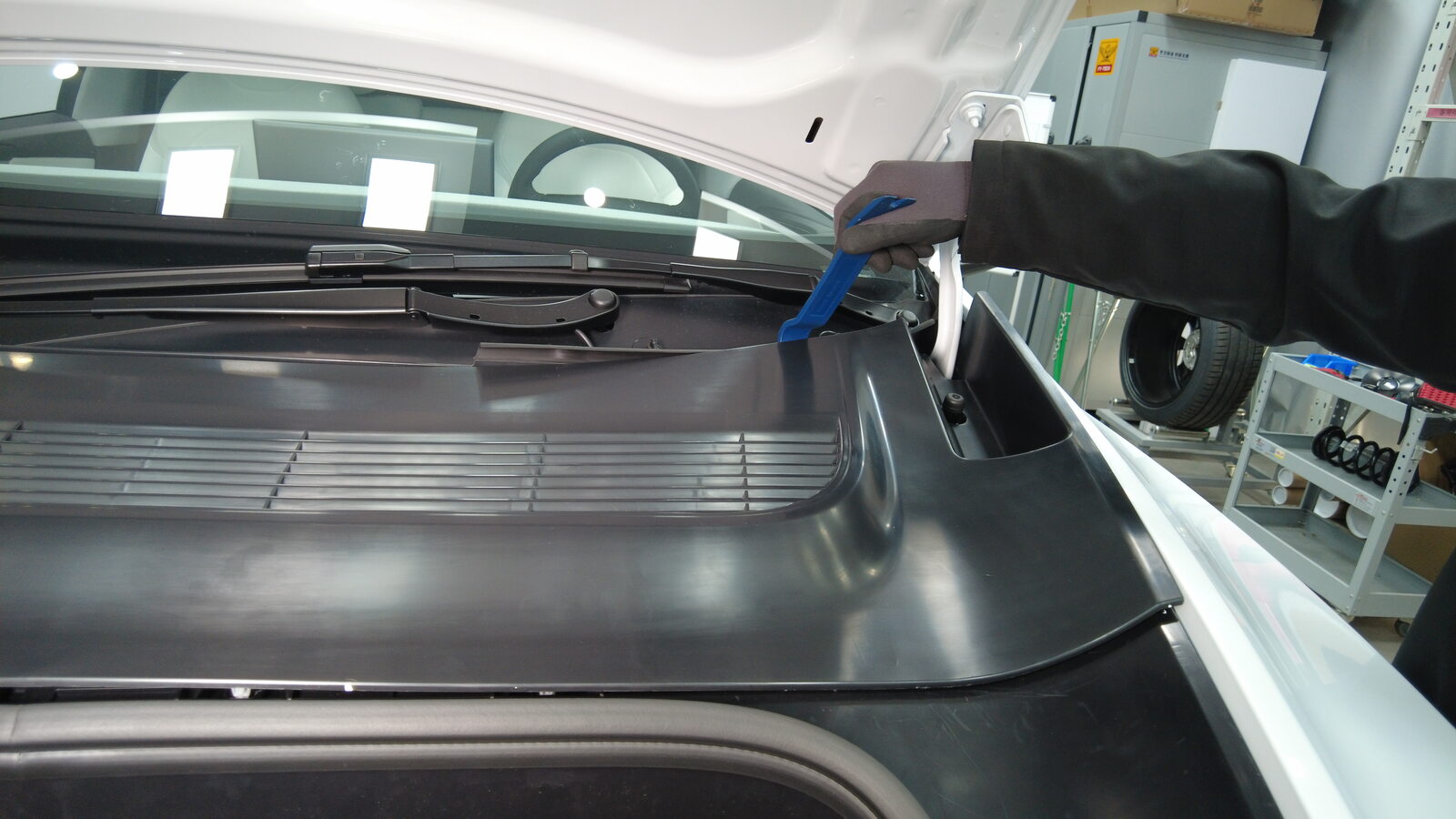

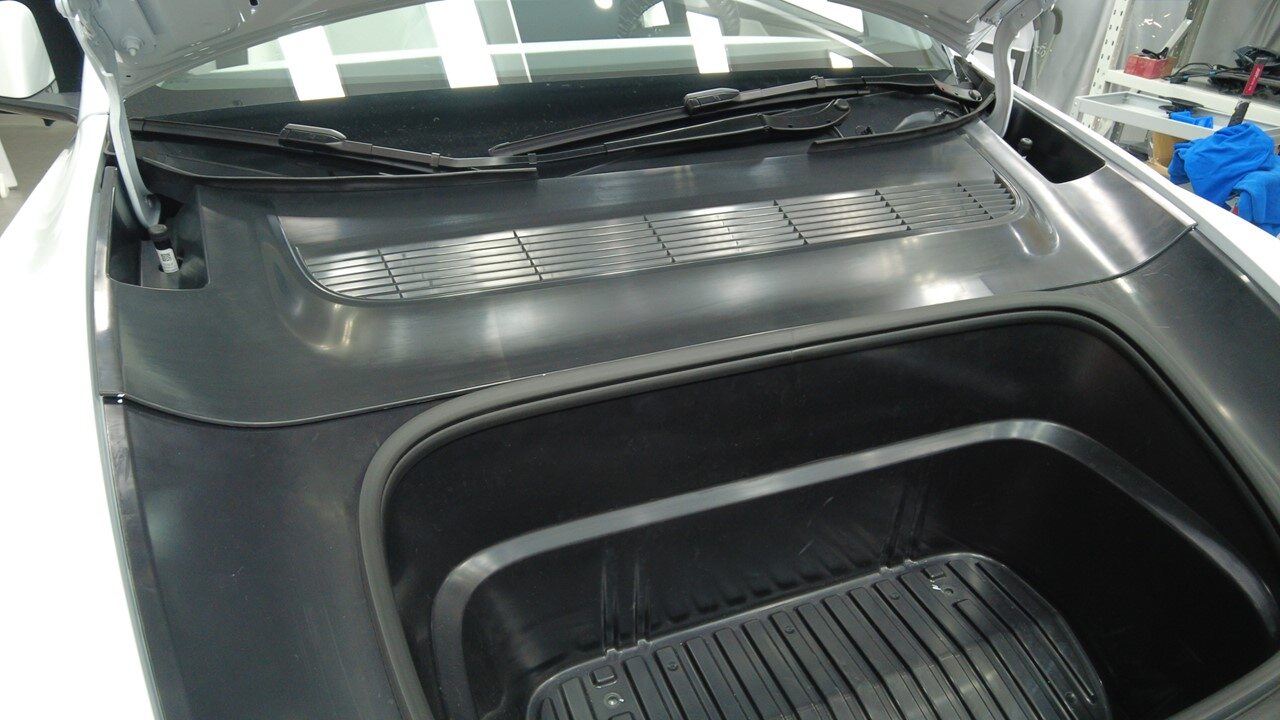

7. Remove rear apron
   注

   16x trim clips, 3x datums, 2x clips









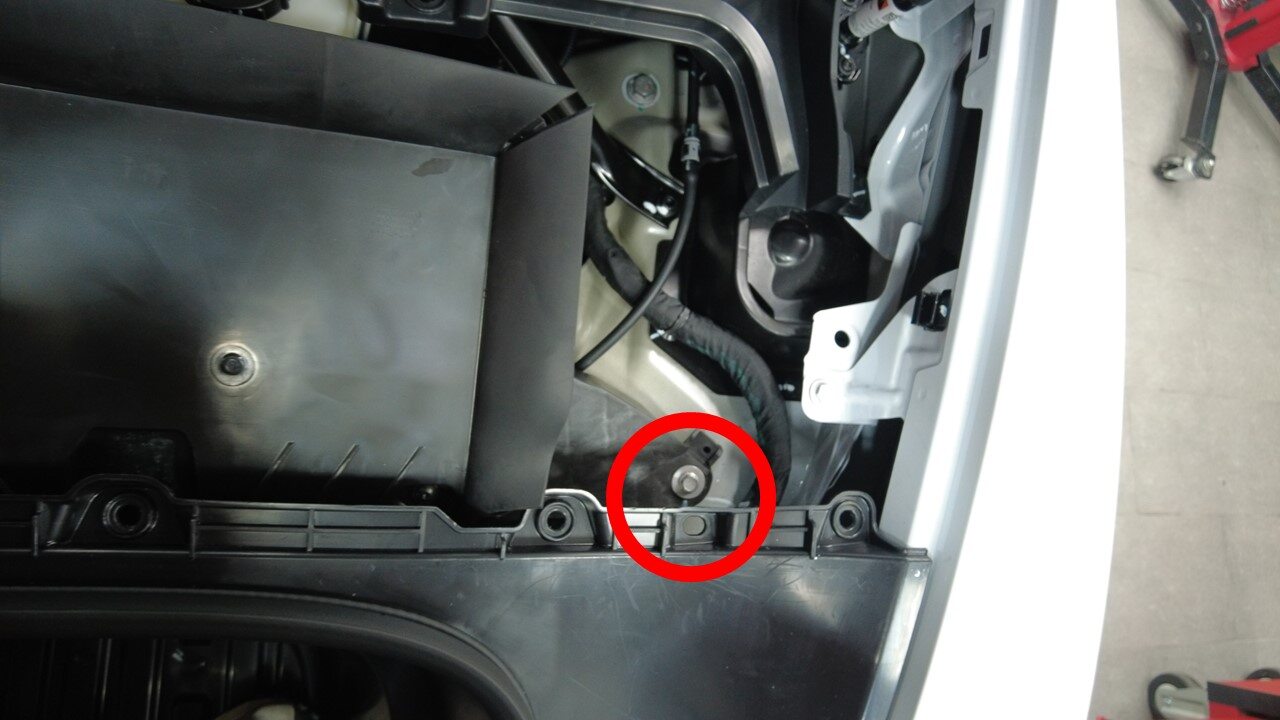

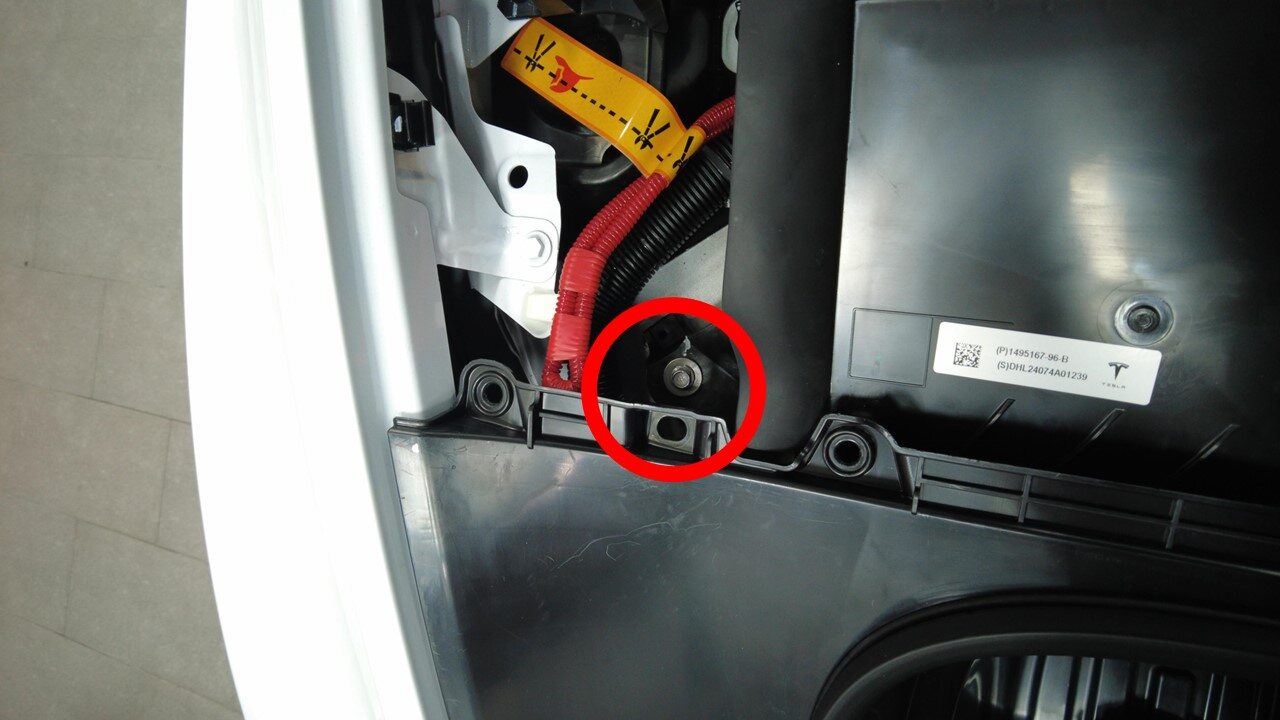

8. Remove HEPA filter assembly

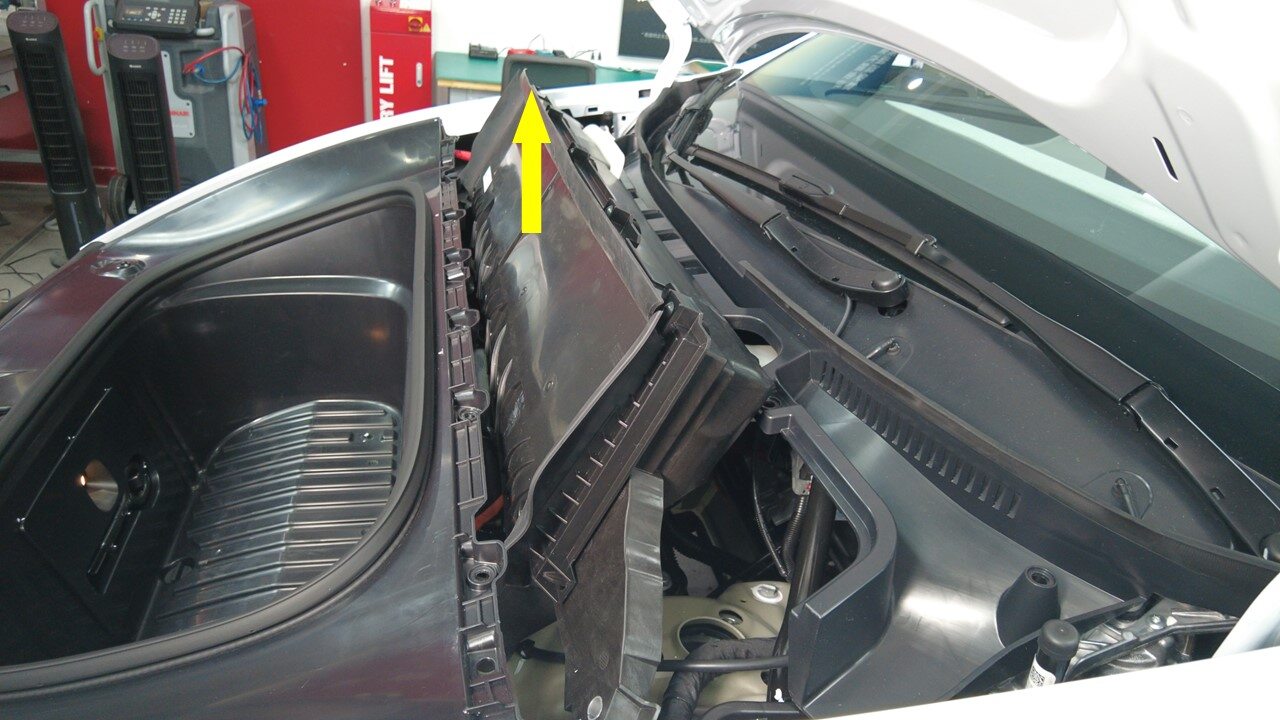

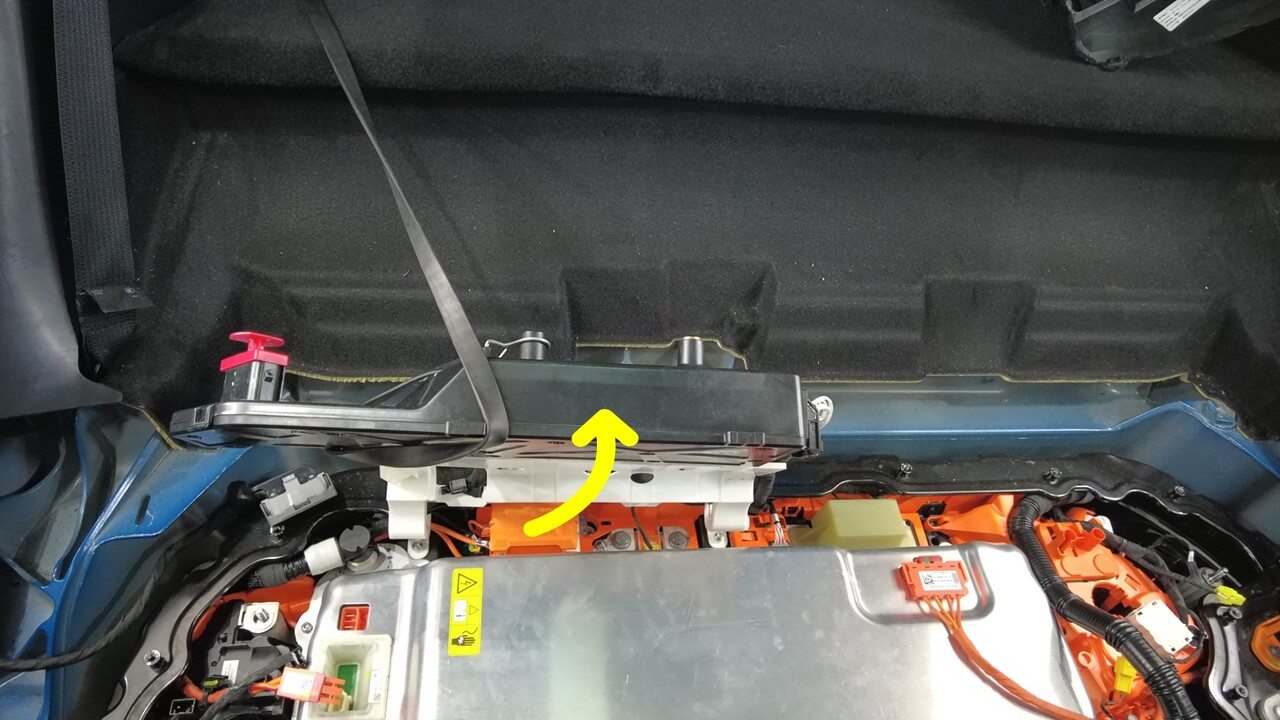

   注

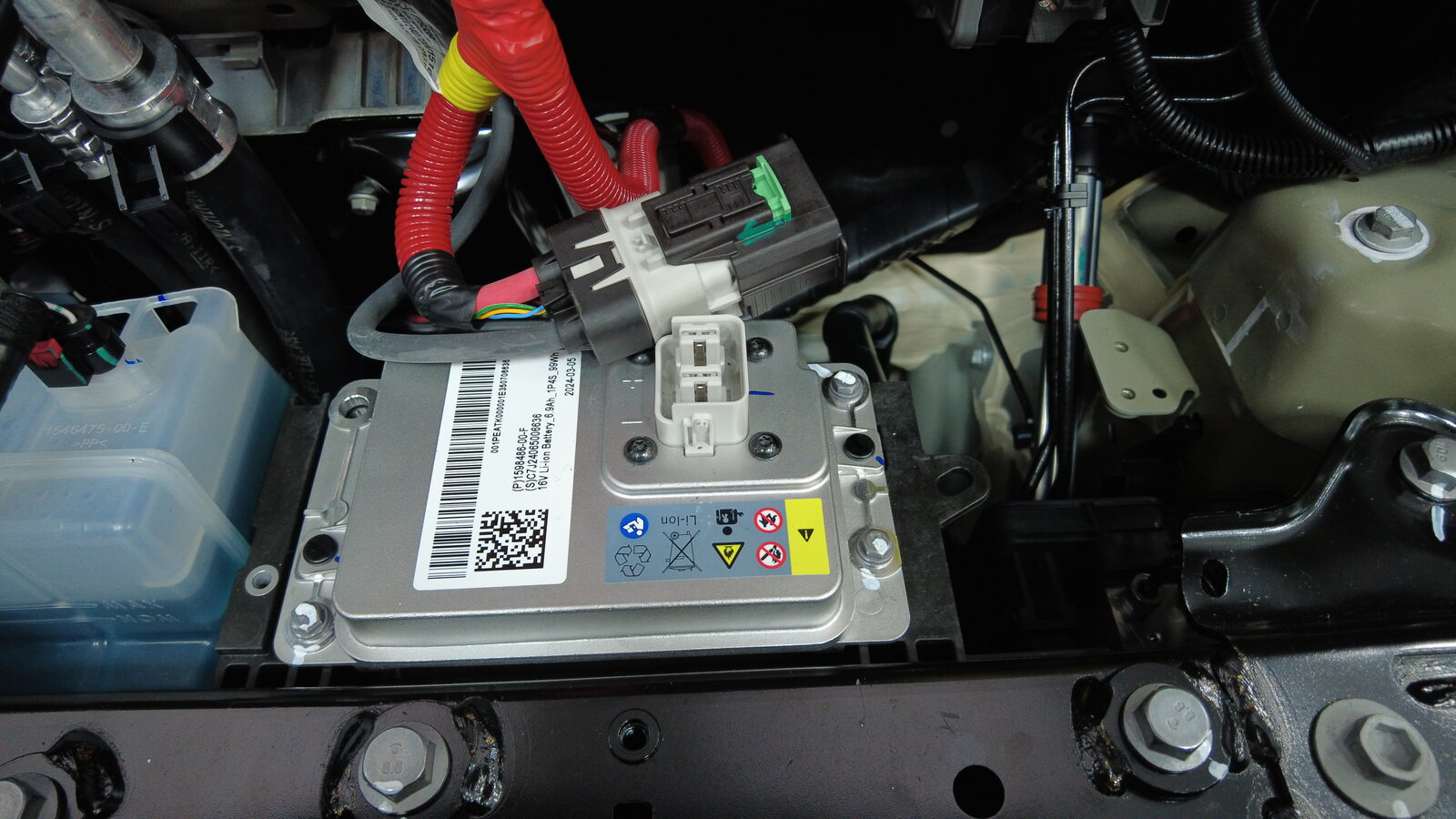

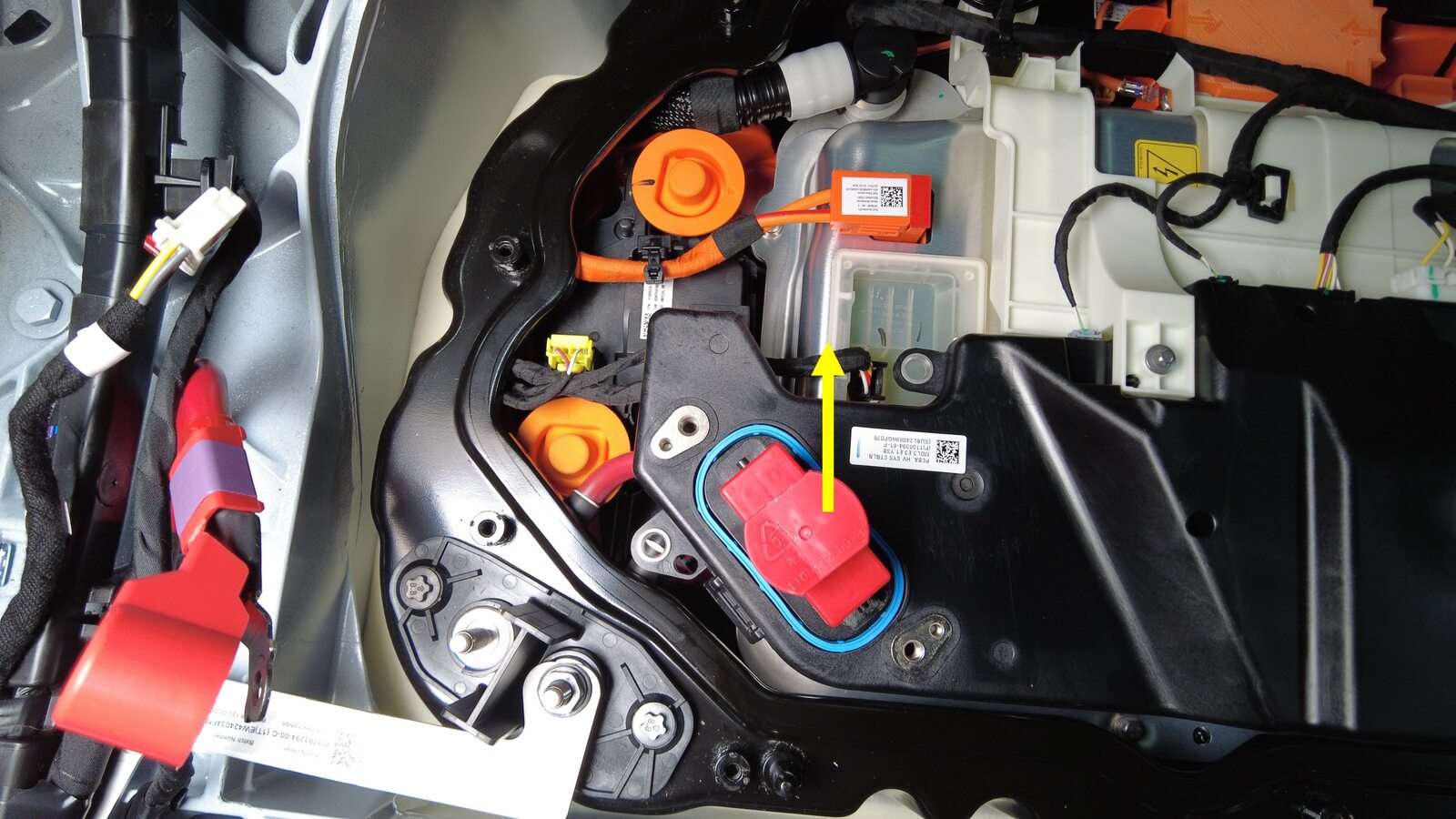

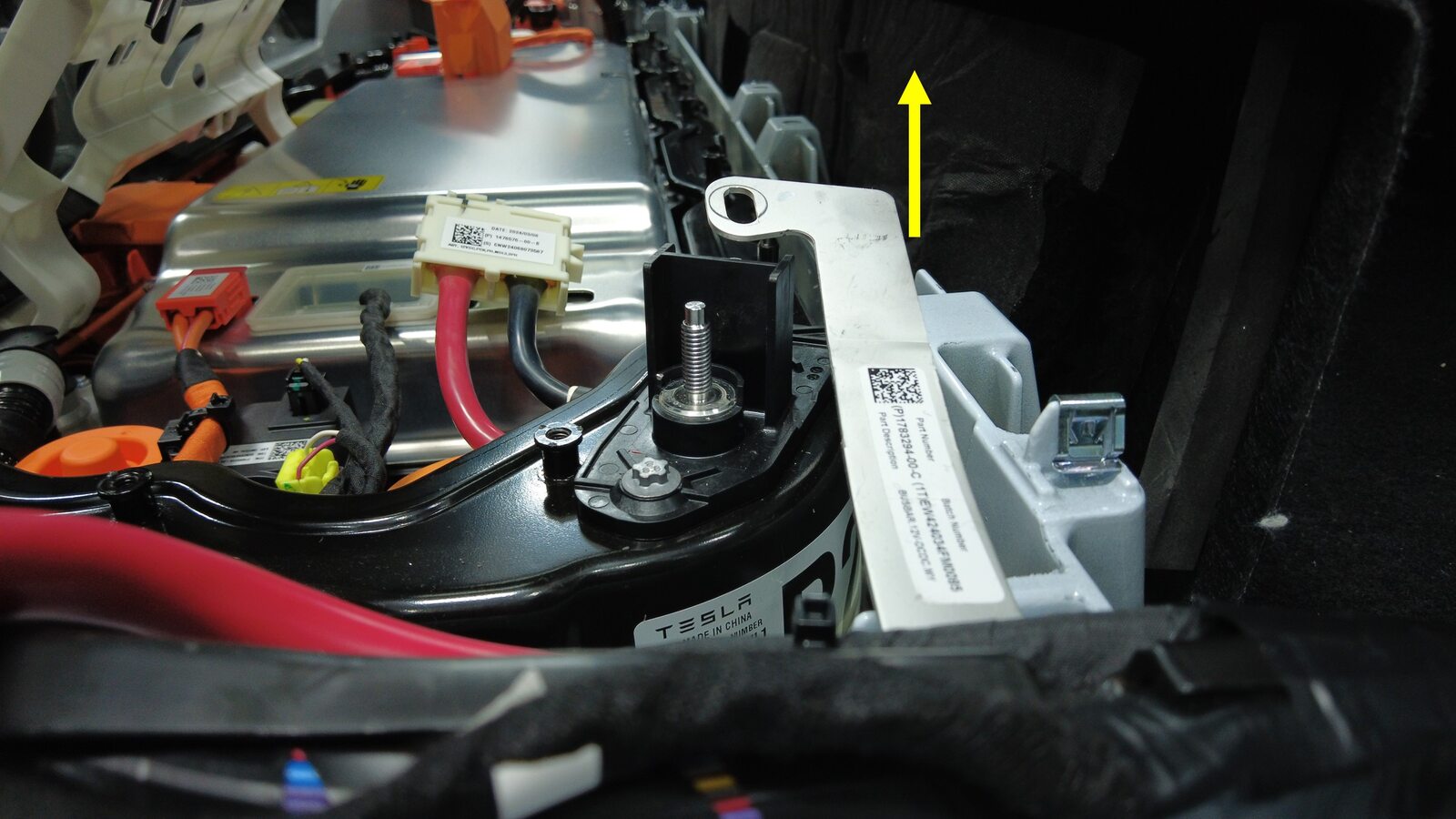

   2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly

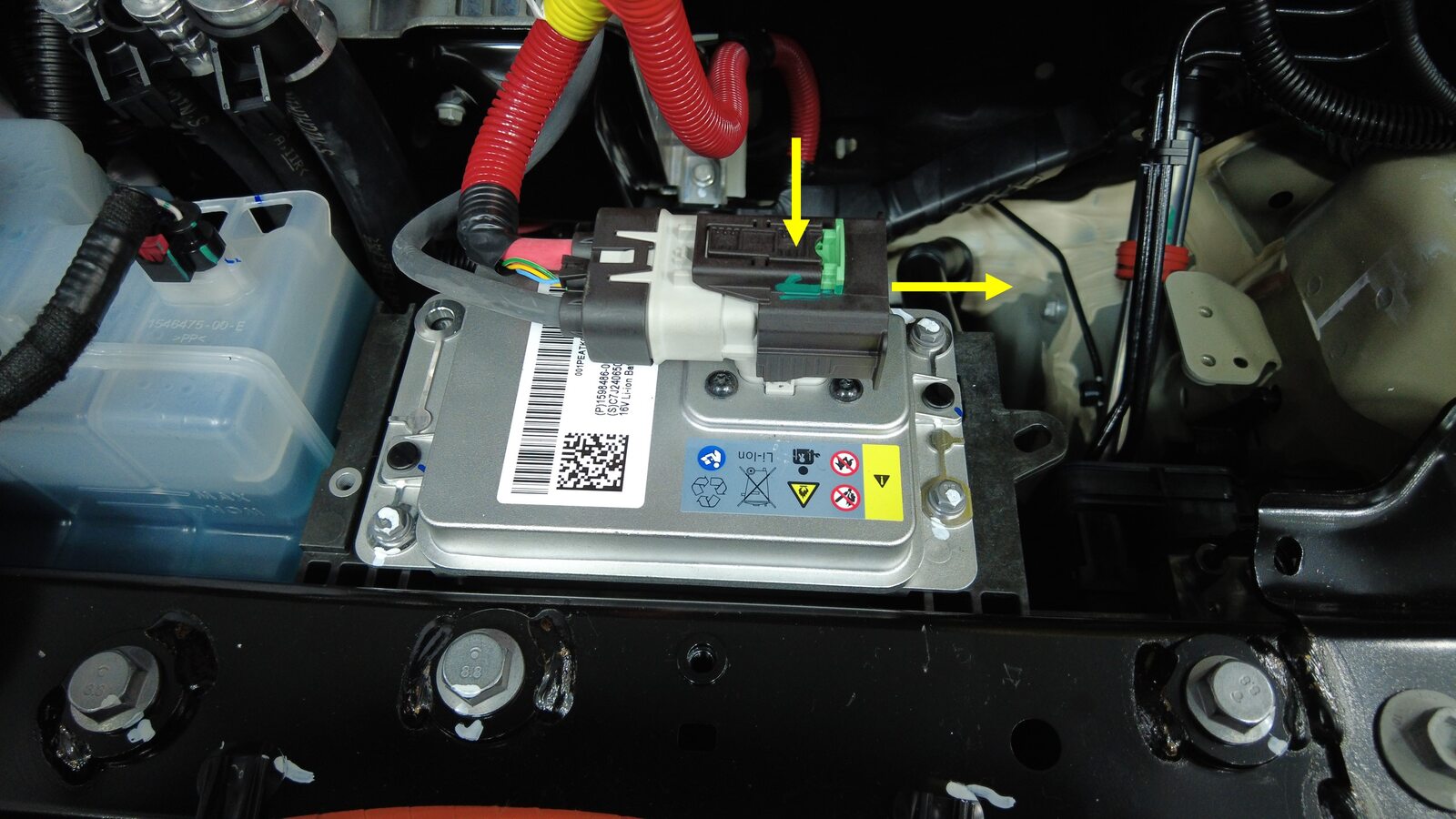

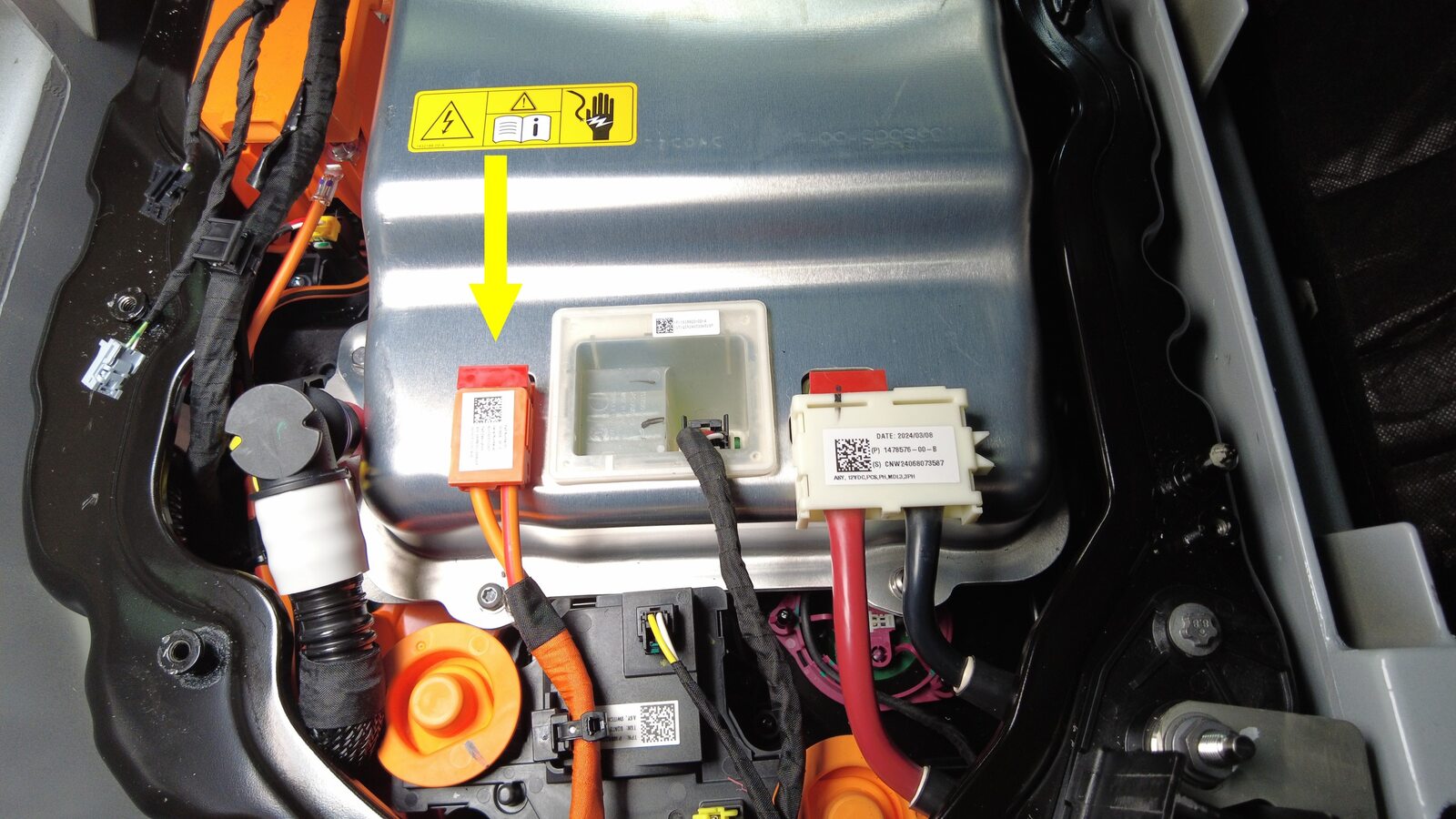

9. Disconnect LV battery and first responder loop
   注

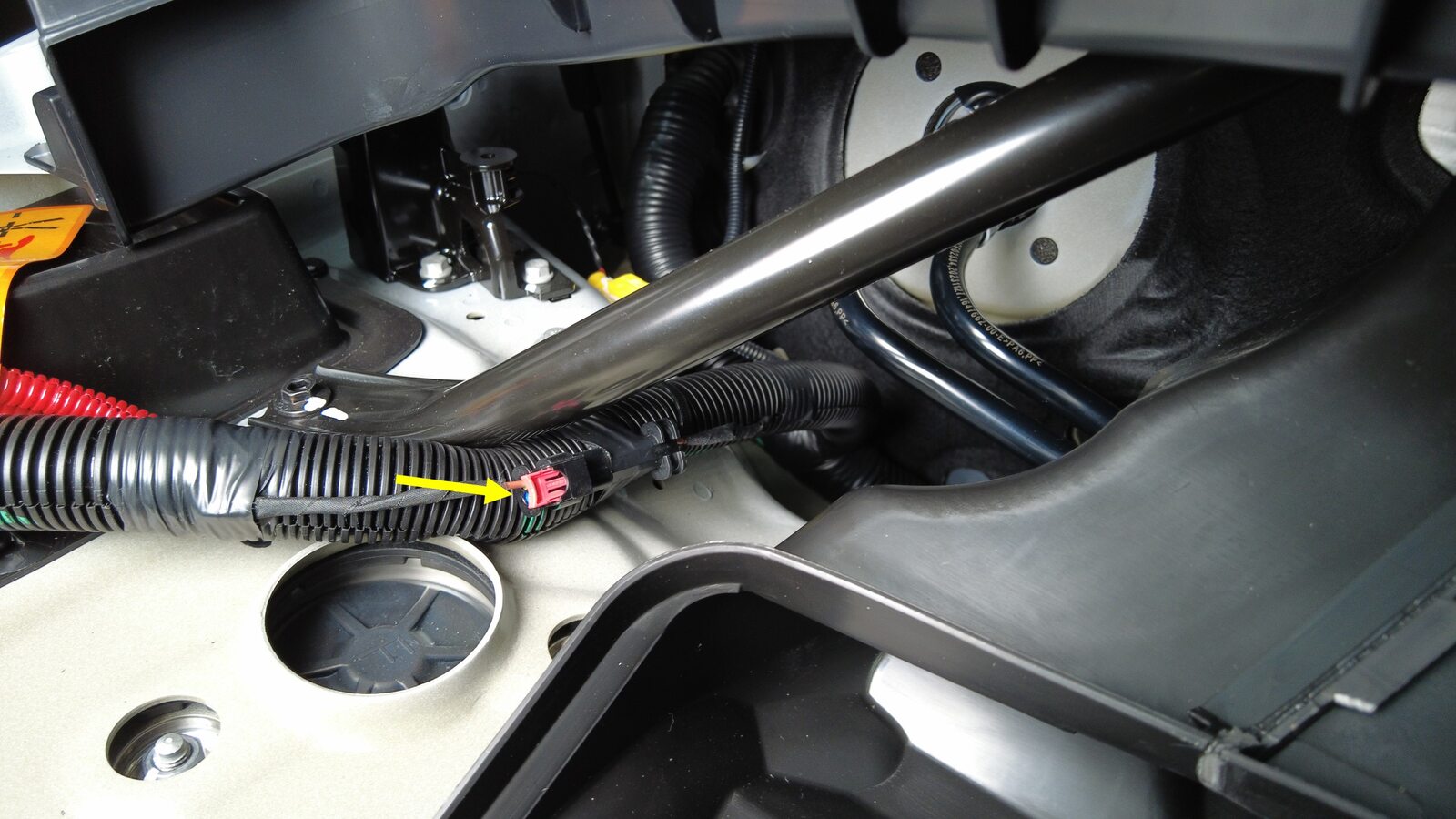

   2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

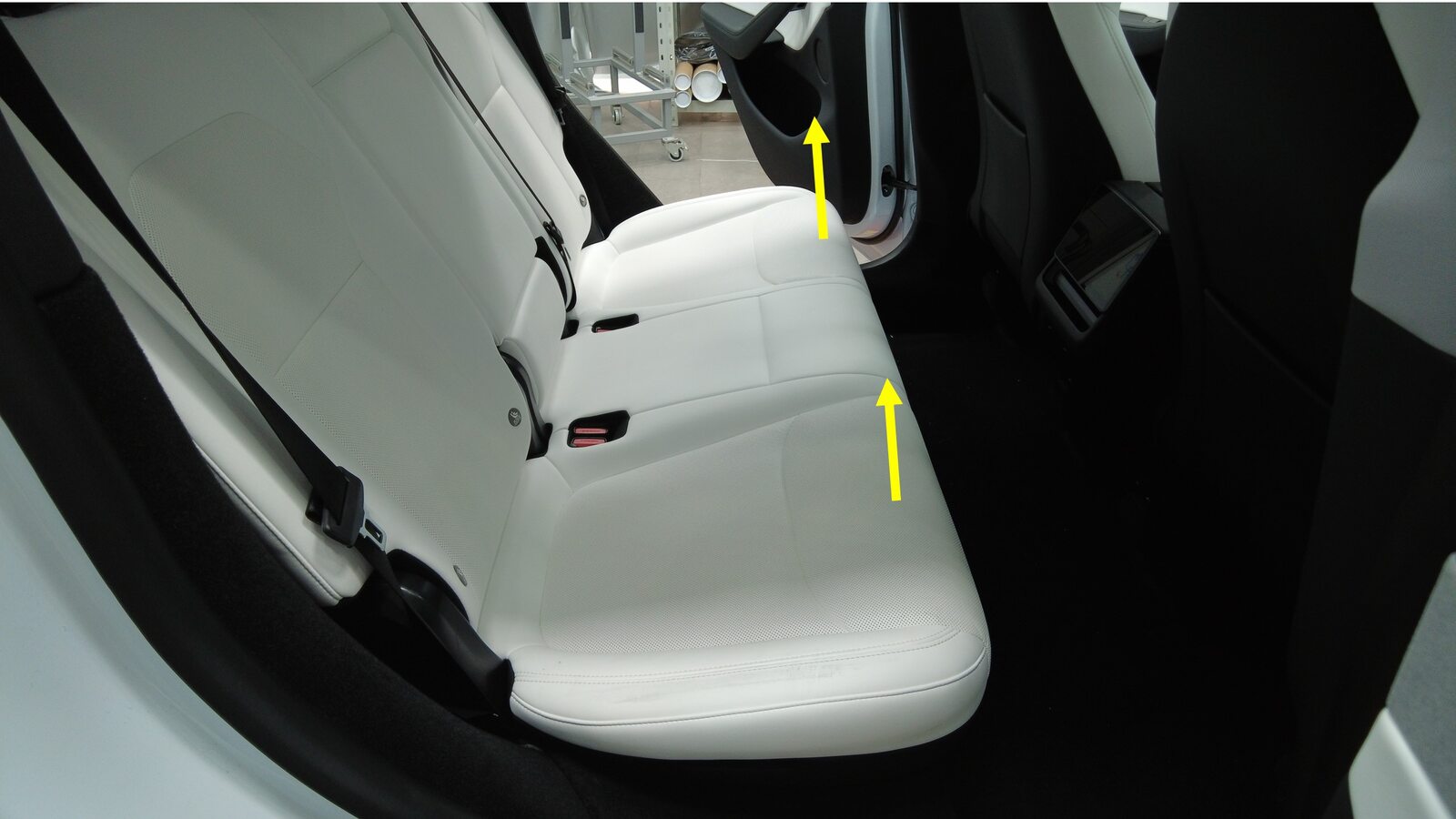

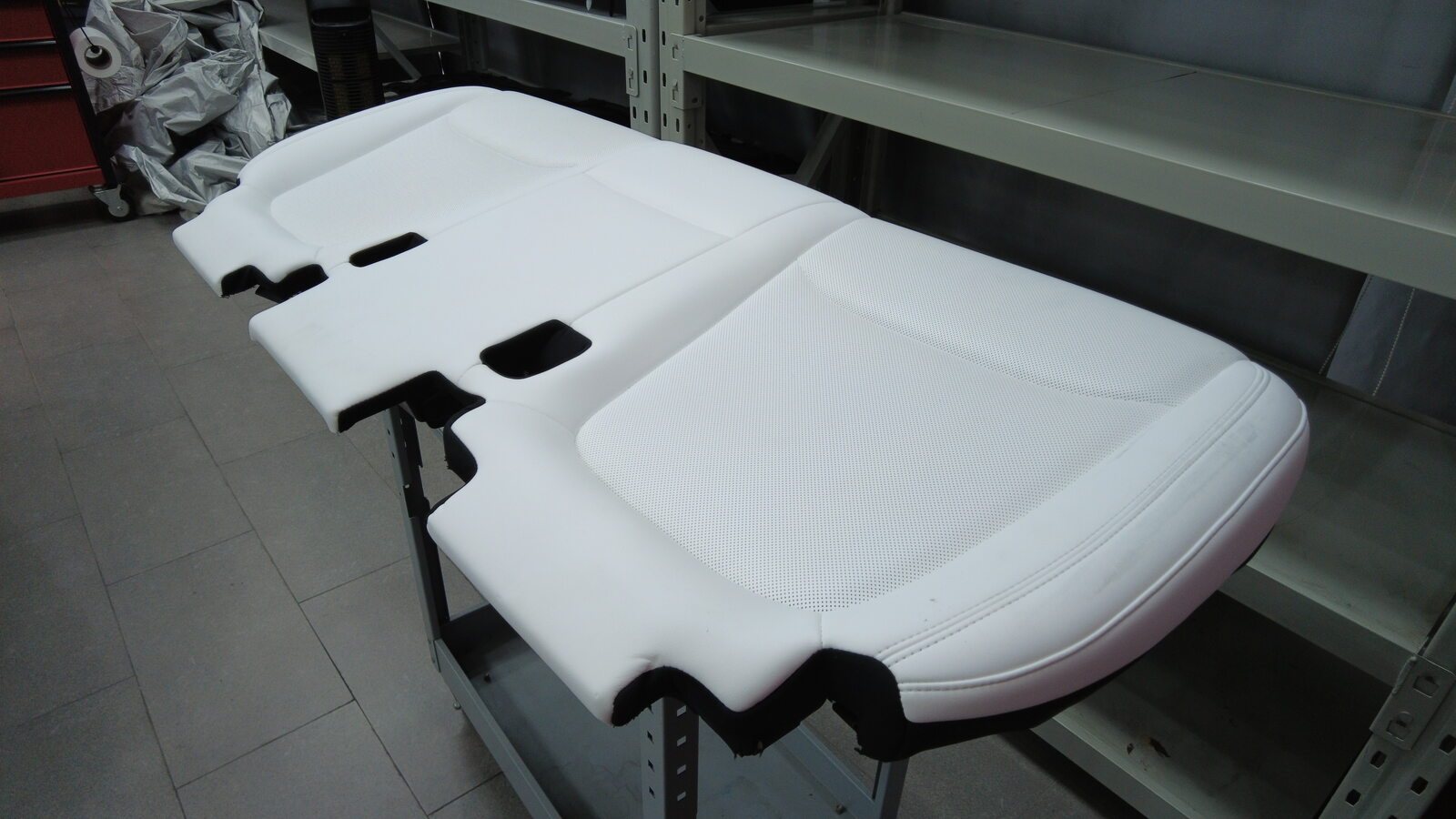

10. Remove 2nd row seat cushion
    注

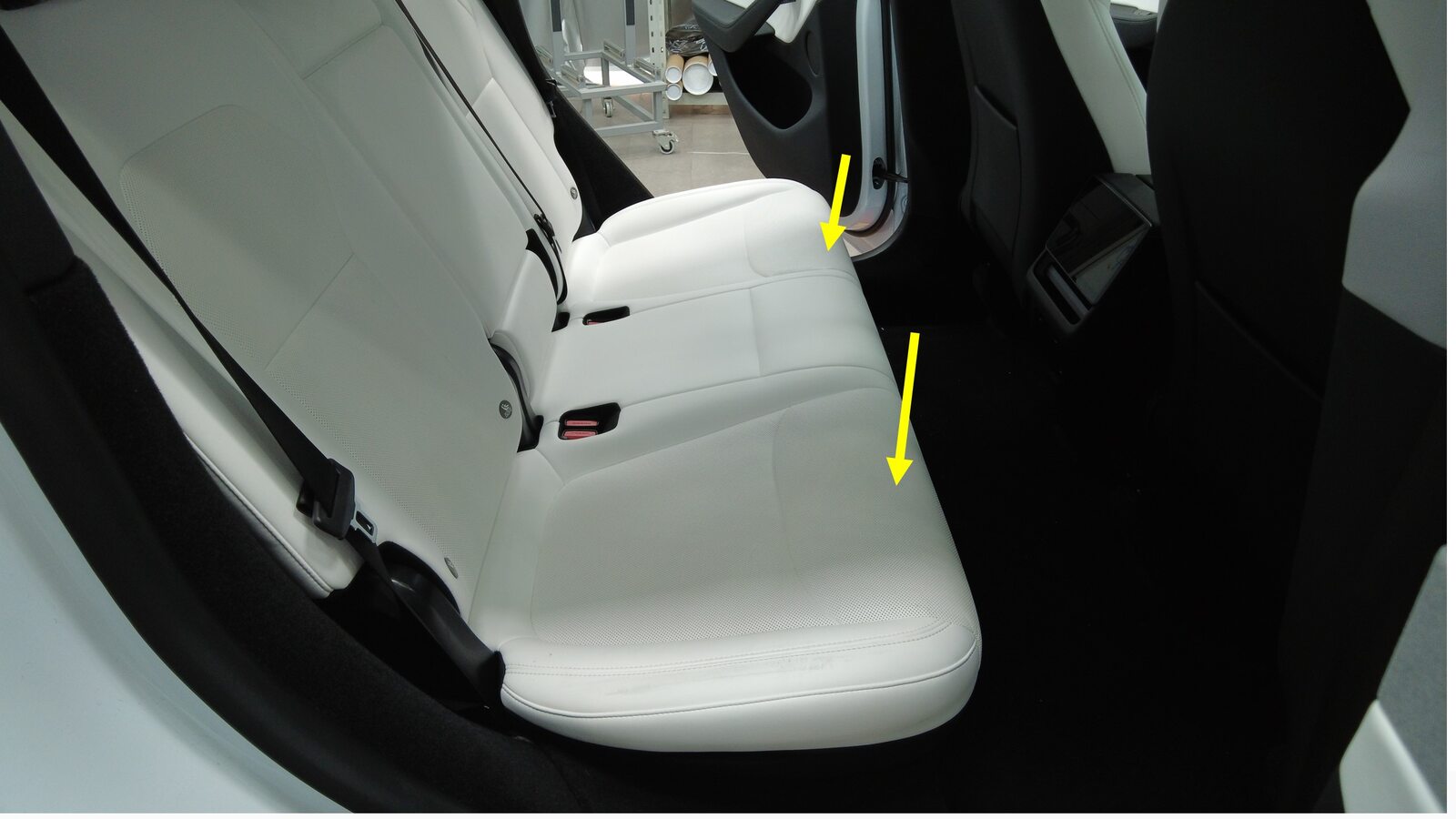

    1x connector, Lift front edge of seat cushion upward to release foam from frame, Adjust the backrest to the appropriate position as needed







11. Remove all items from pockets and ensure not wearing metal items

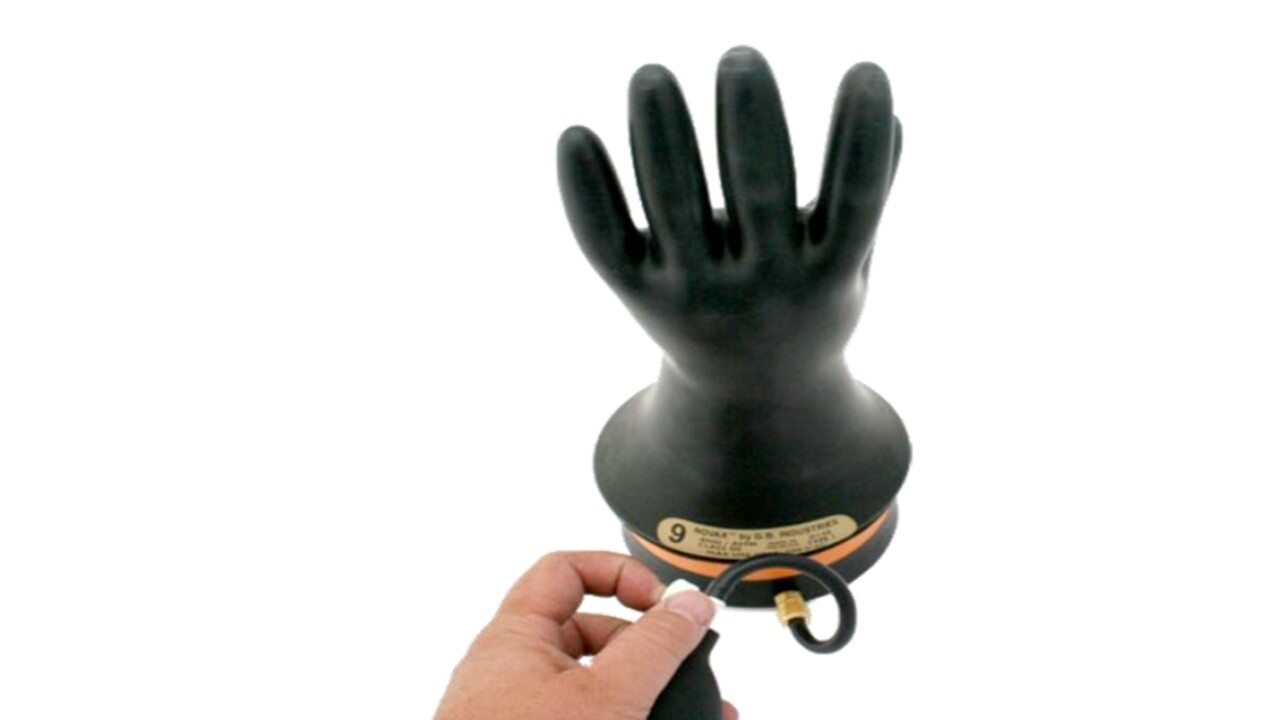

12. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC

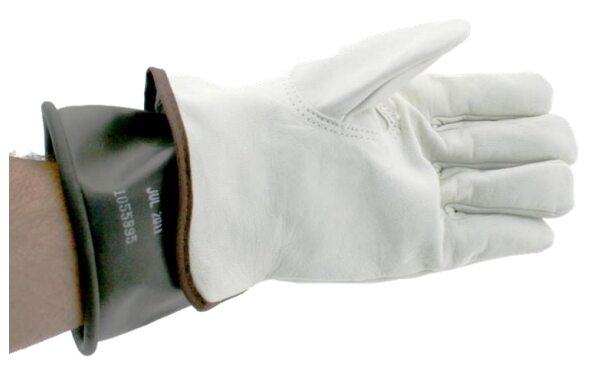

13. Put on HV insulating gloves and leather over gloves

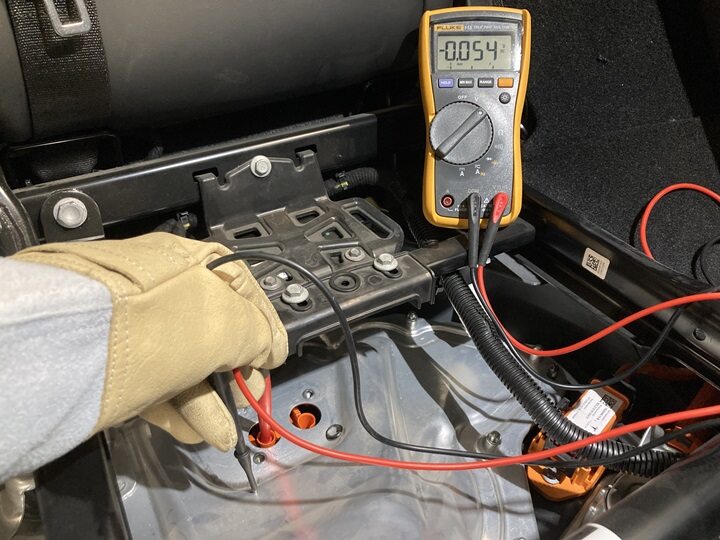

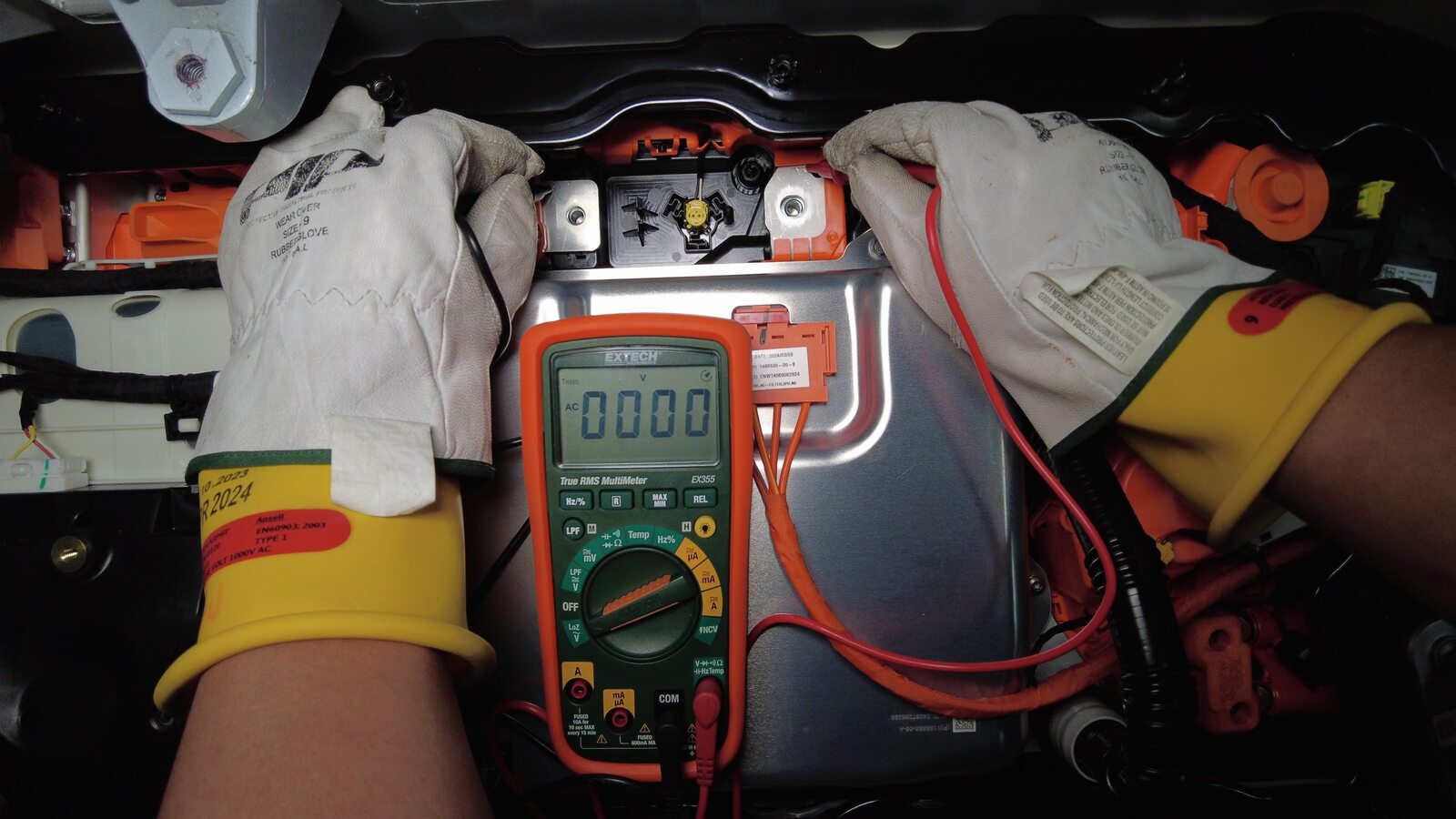

14. Verify operation of multimeter
    注

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing the 16v battery

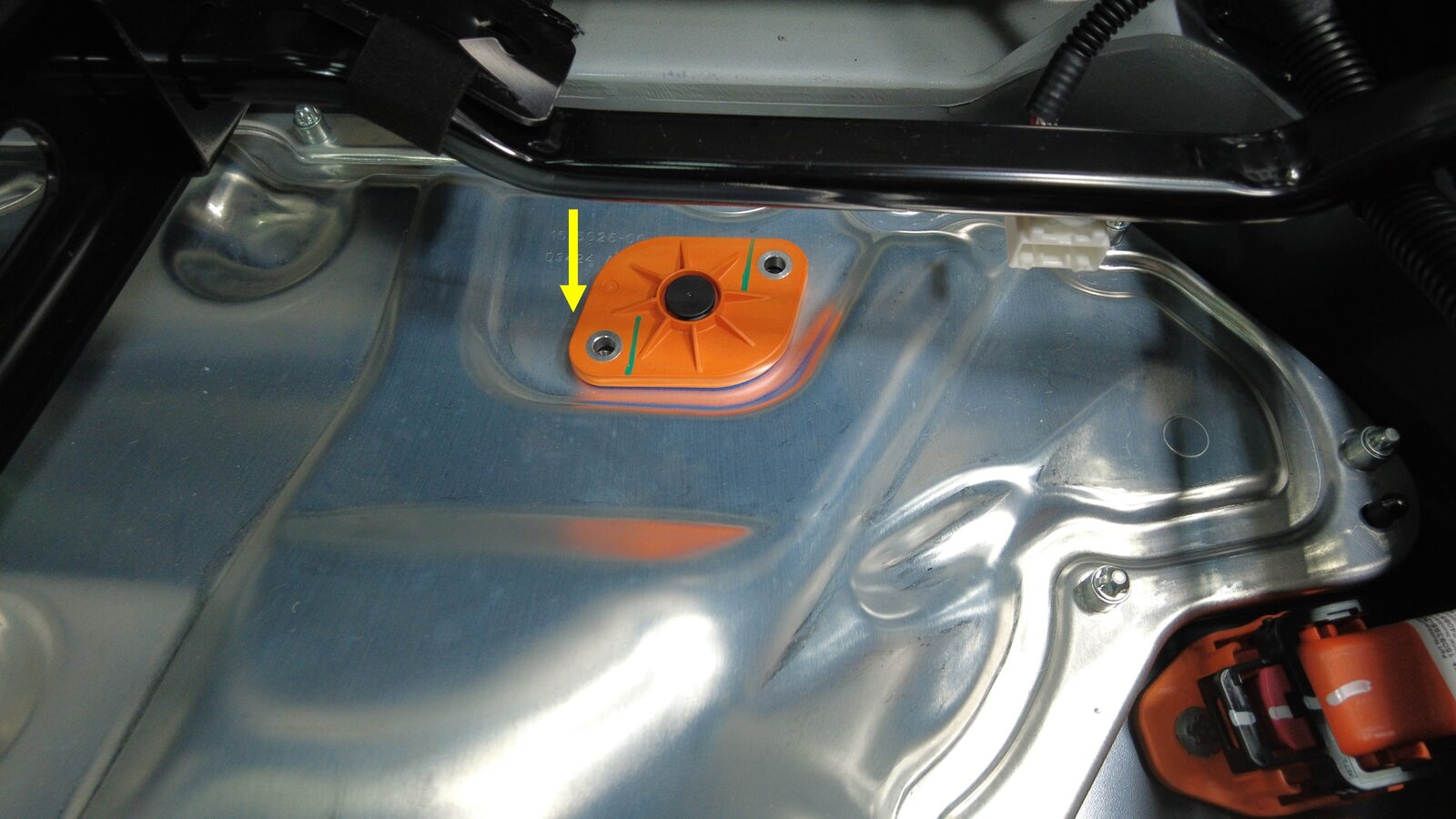

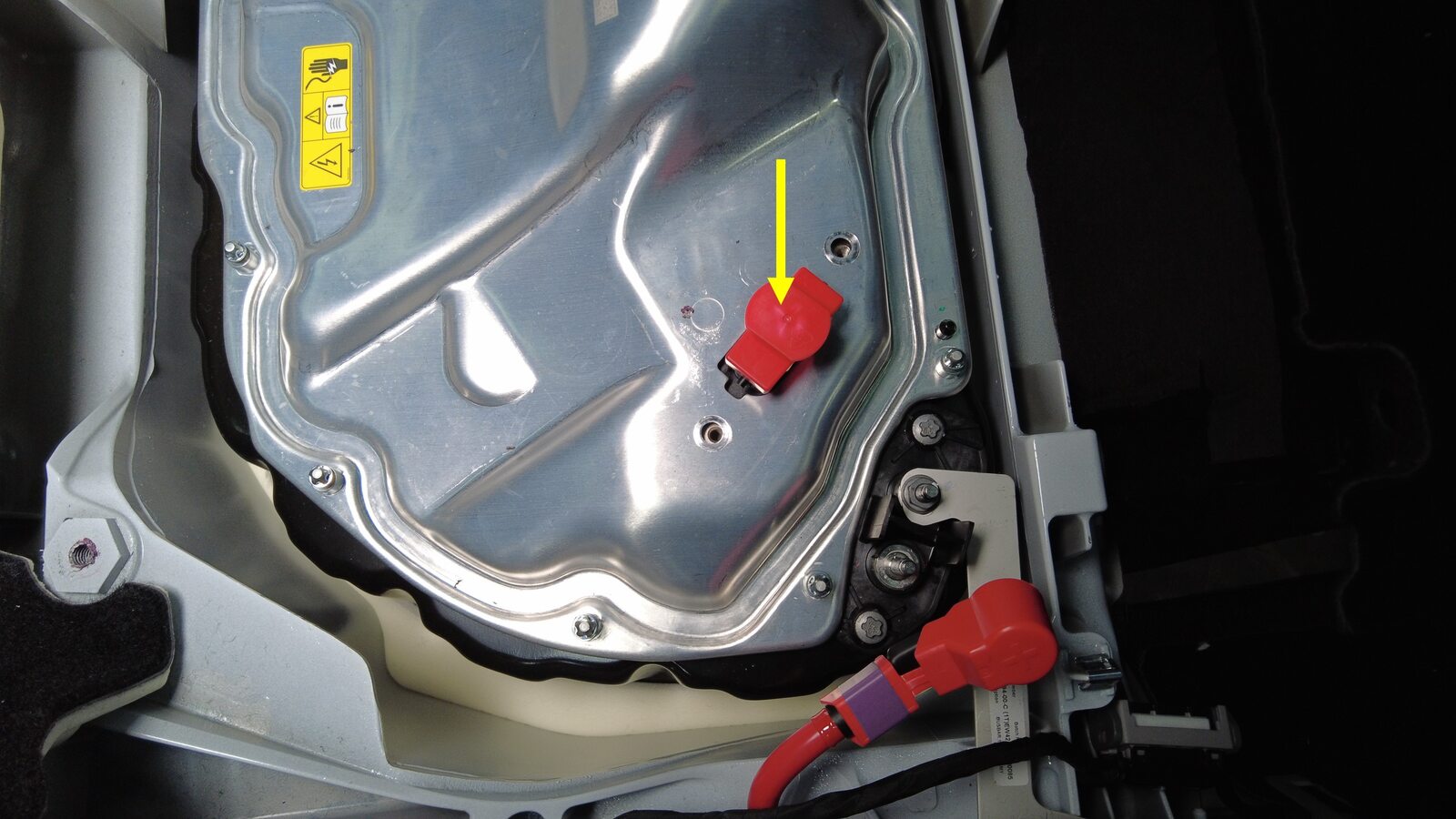

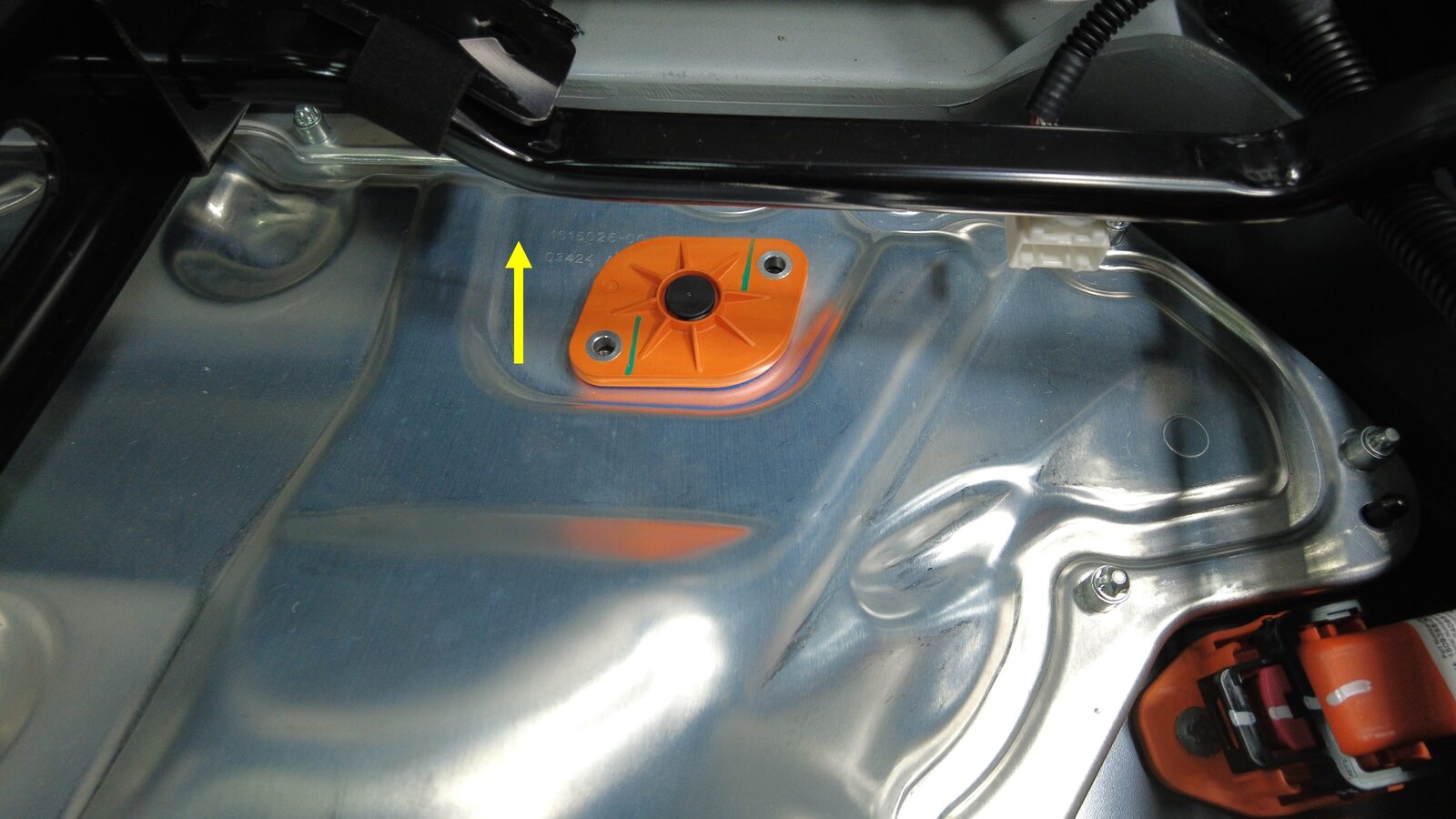

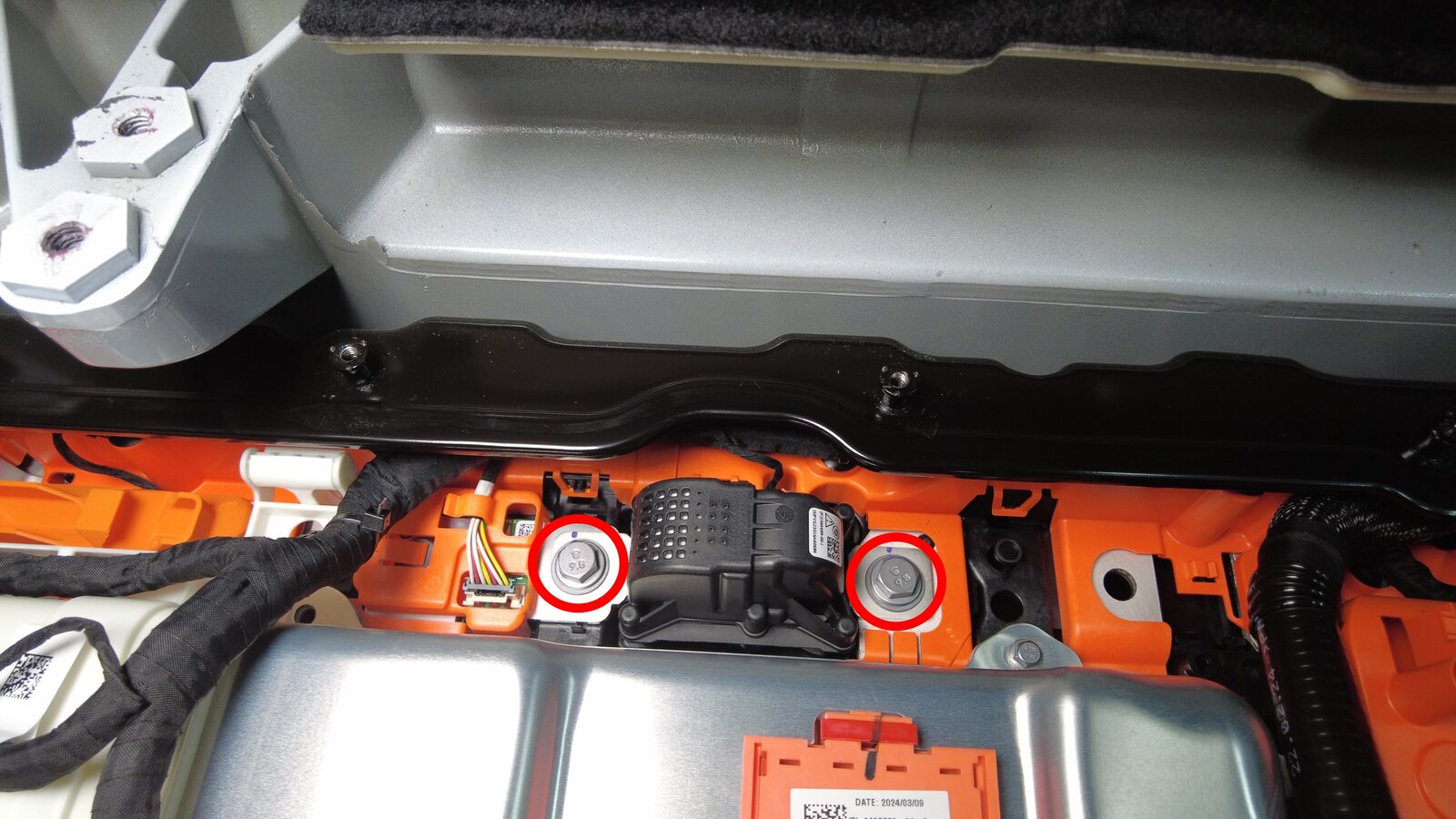

15. Remove bolts securing ancillary bay probe lid cover to ancillary bay cover
    注

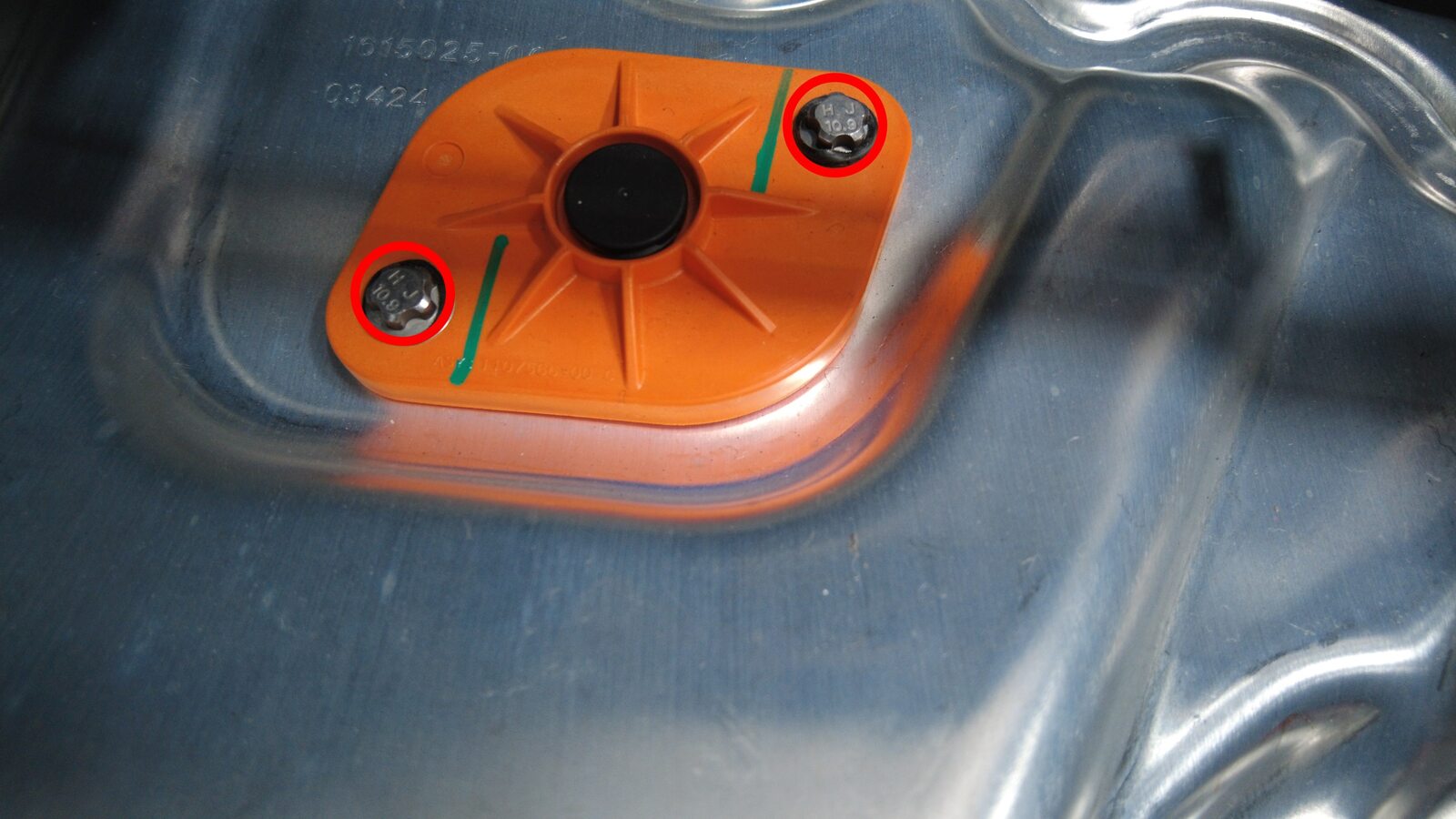

    2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal



16. Remove ancillary bay probe lid cover from ancillary bay cover

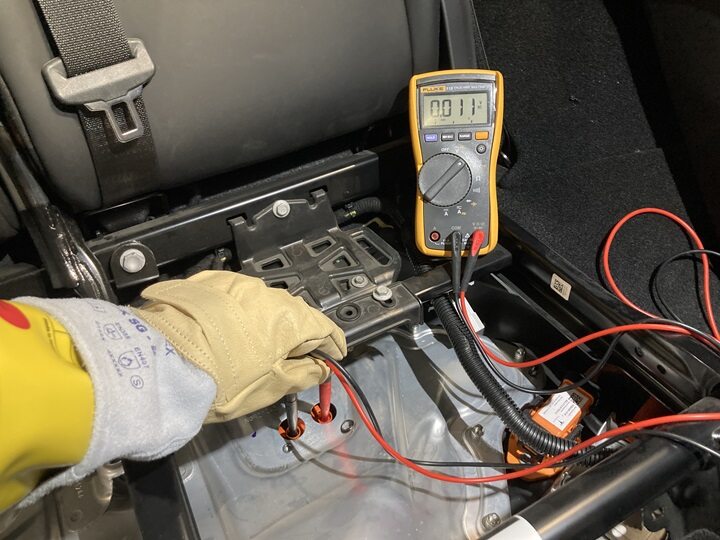

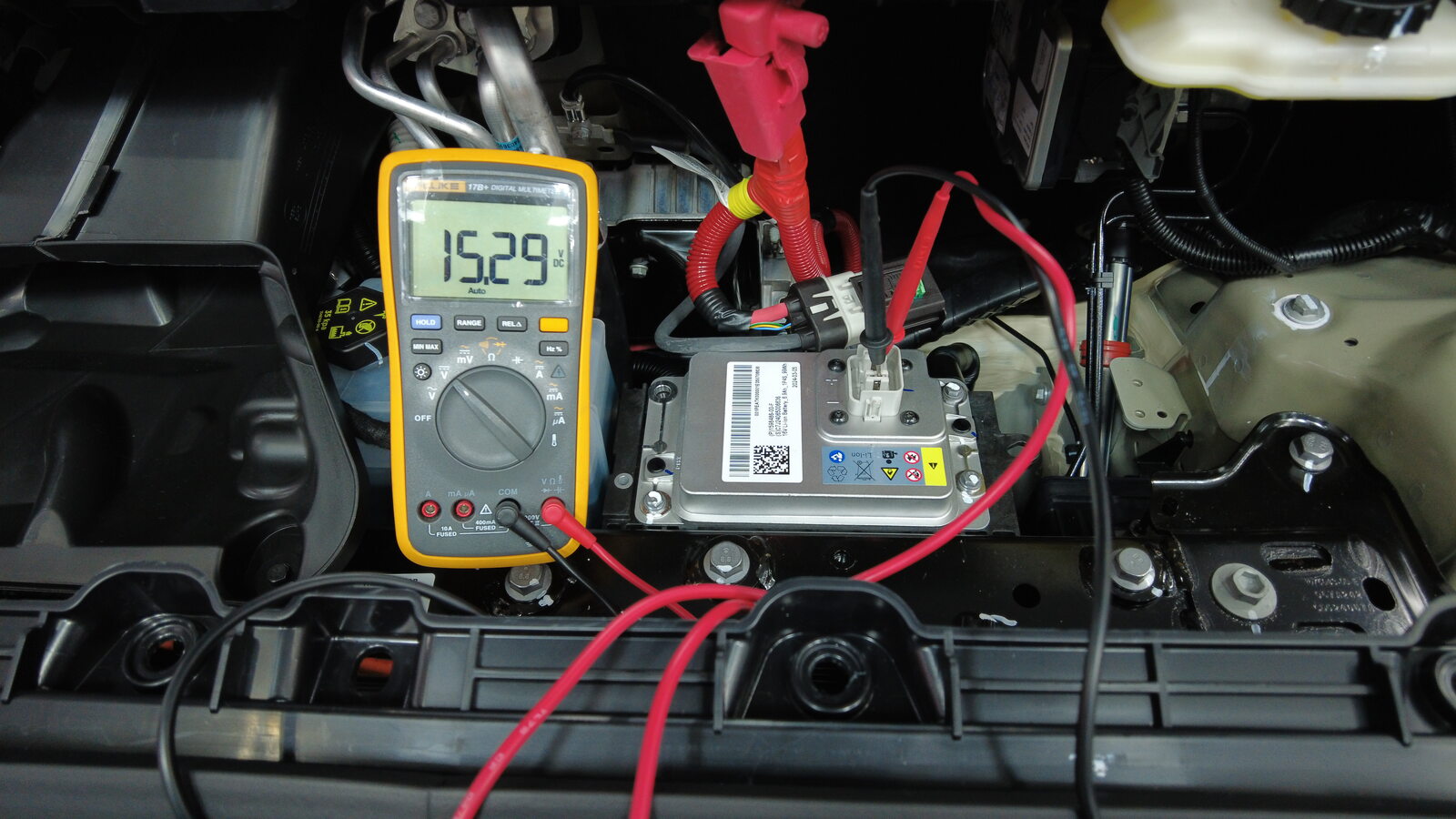

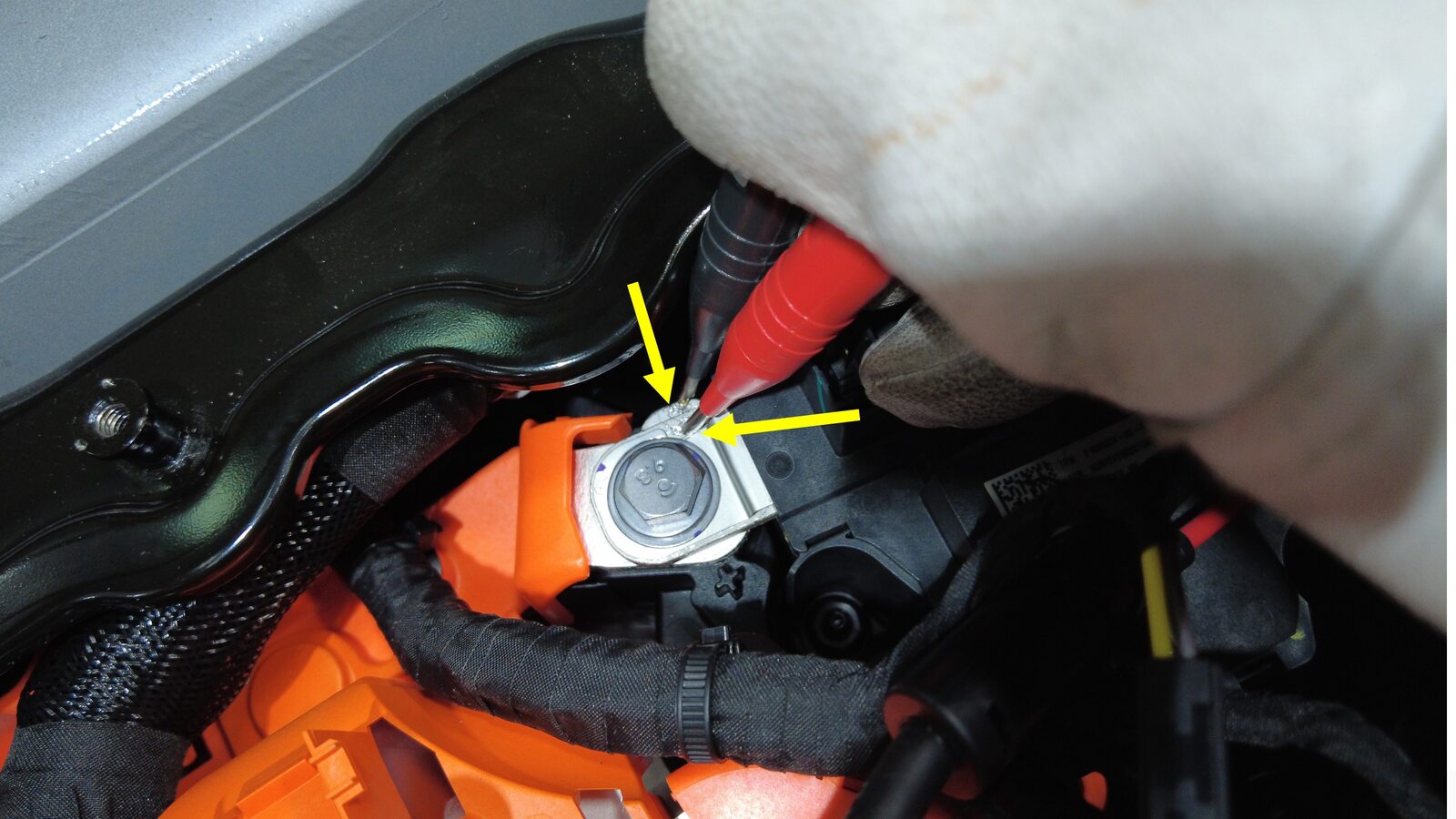

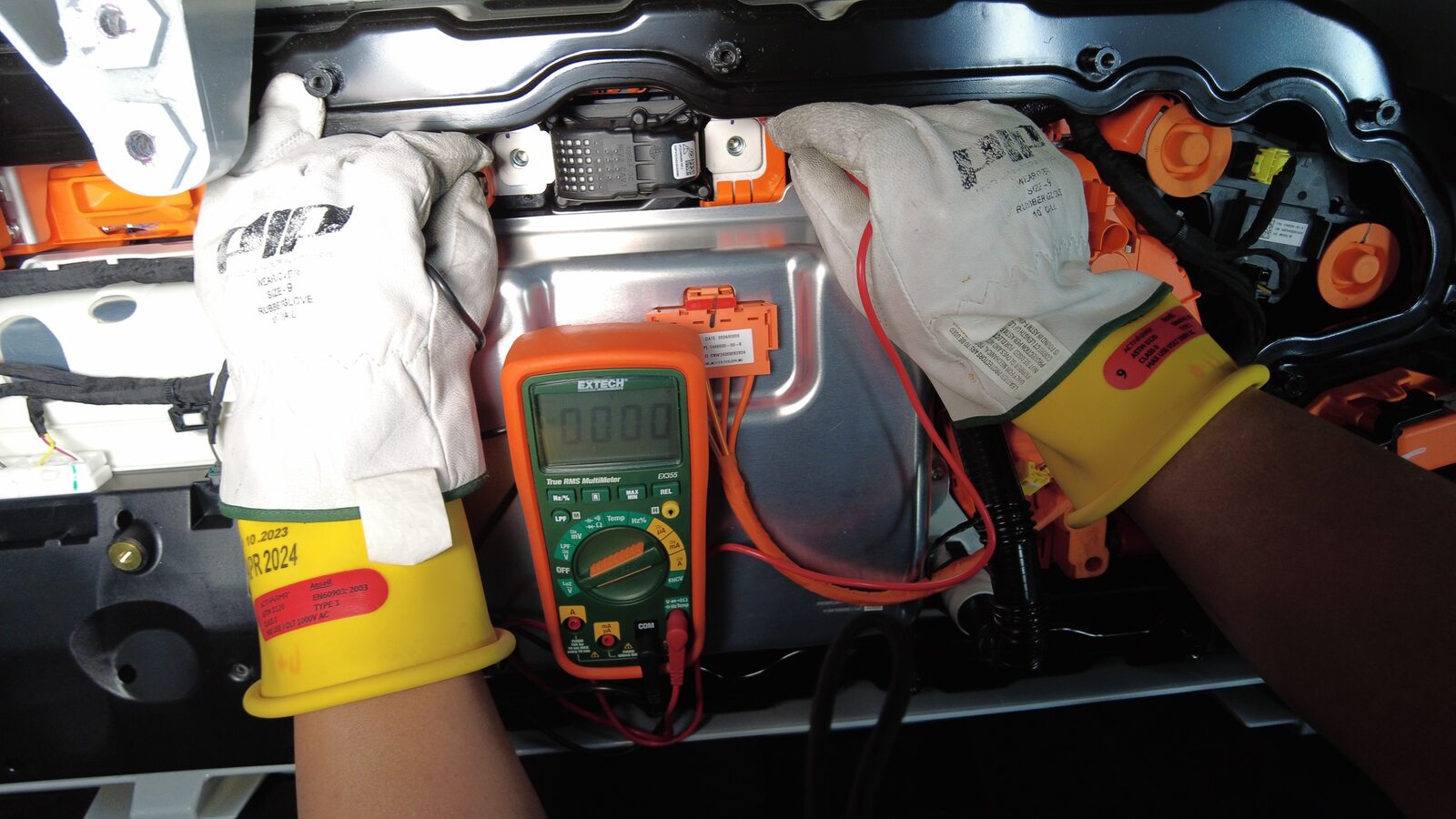

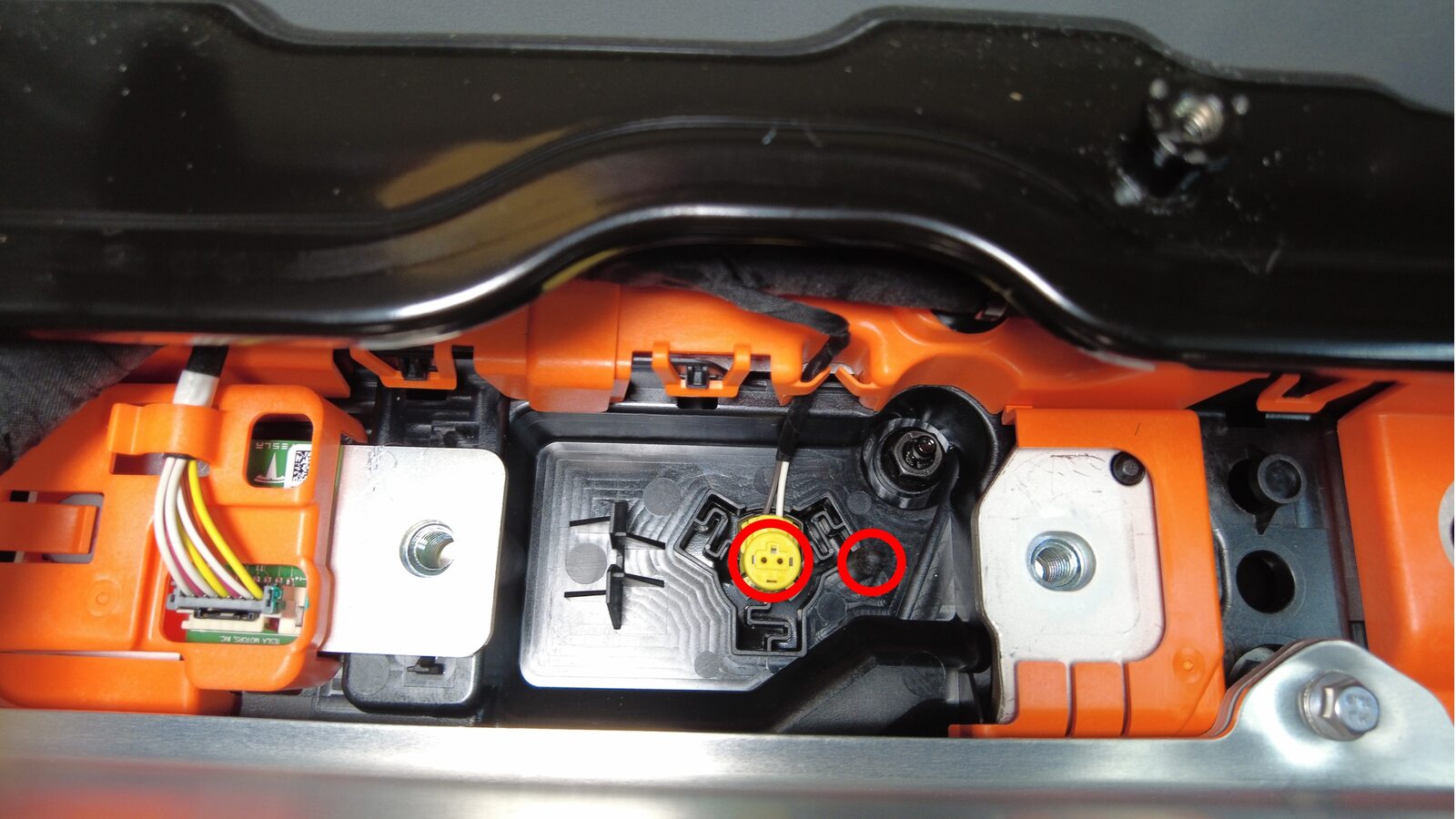

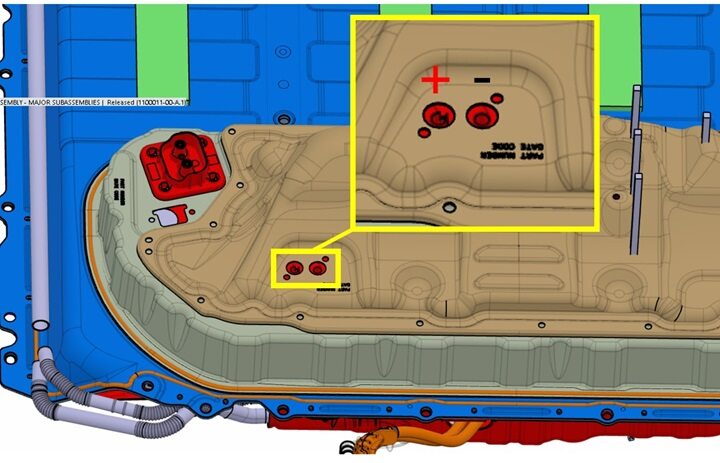

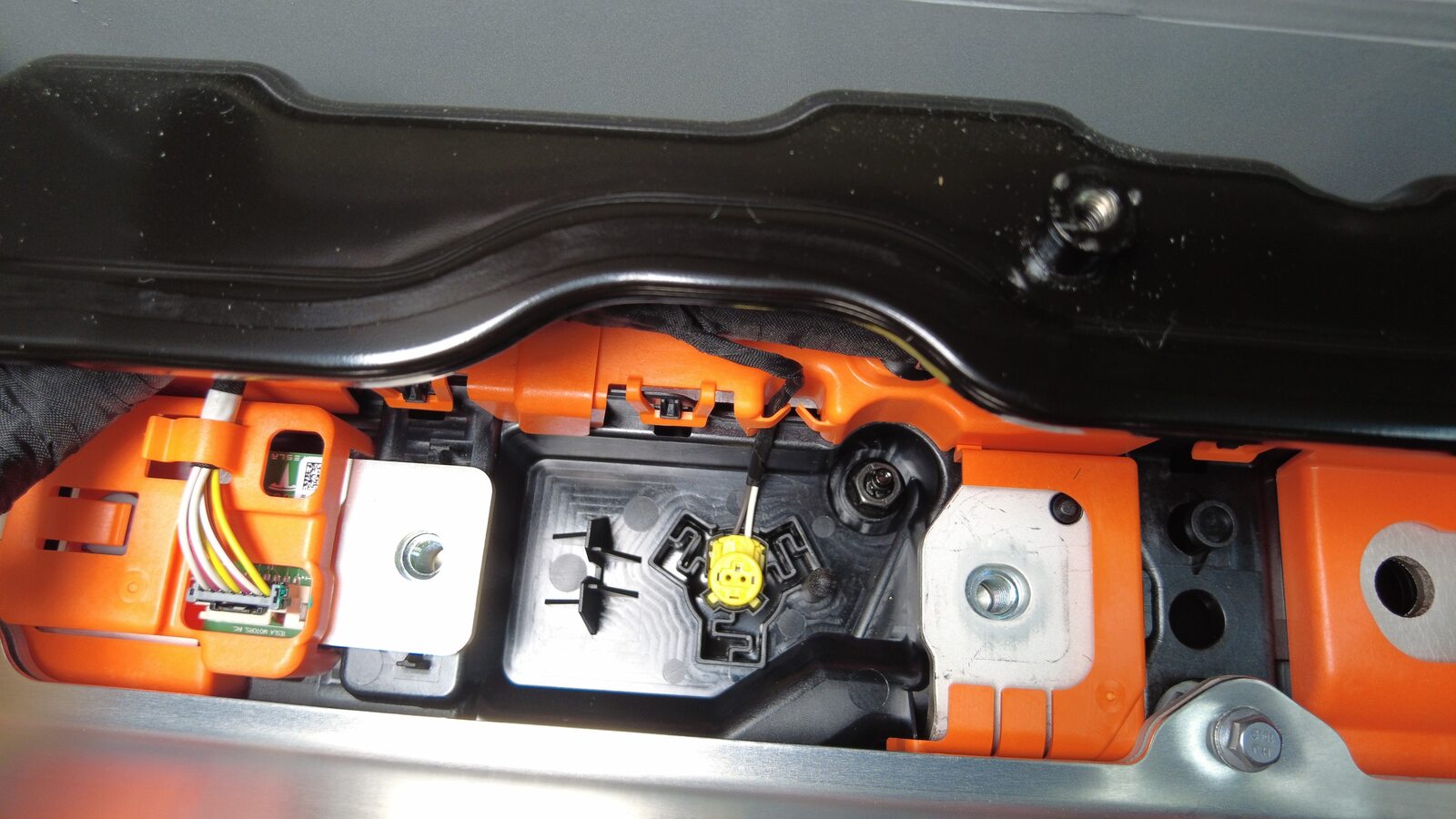

17. Verify no high voltage
    注

    Make sure to wear PPE (HV gloves, Safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

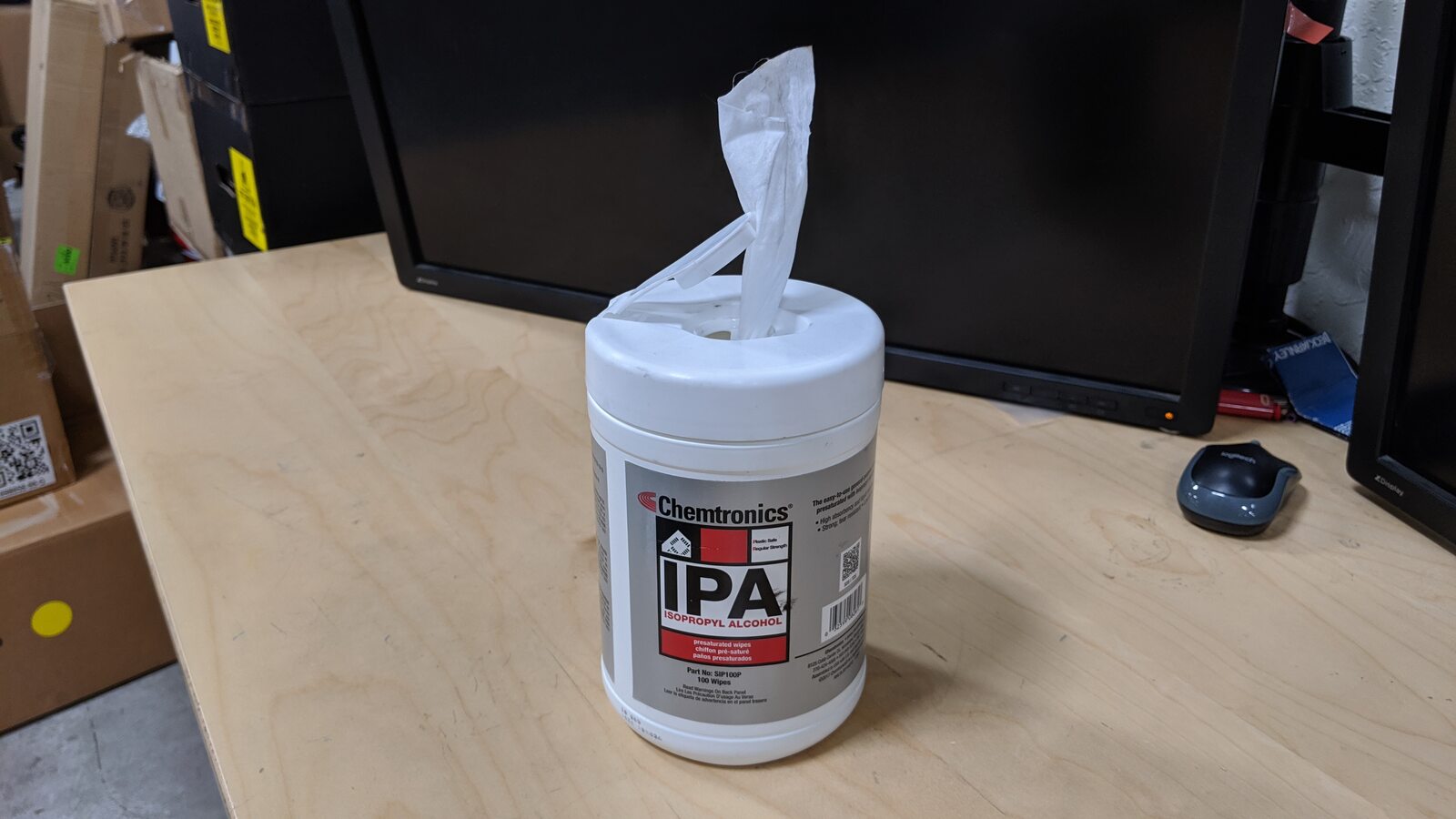

18. Wipe ancillary bay cover with IPA to clean surface
    注

    Allow to 1 minute dry time

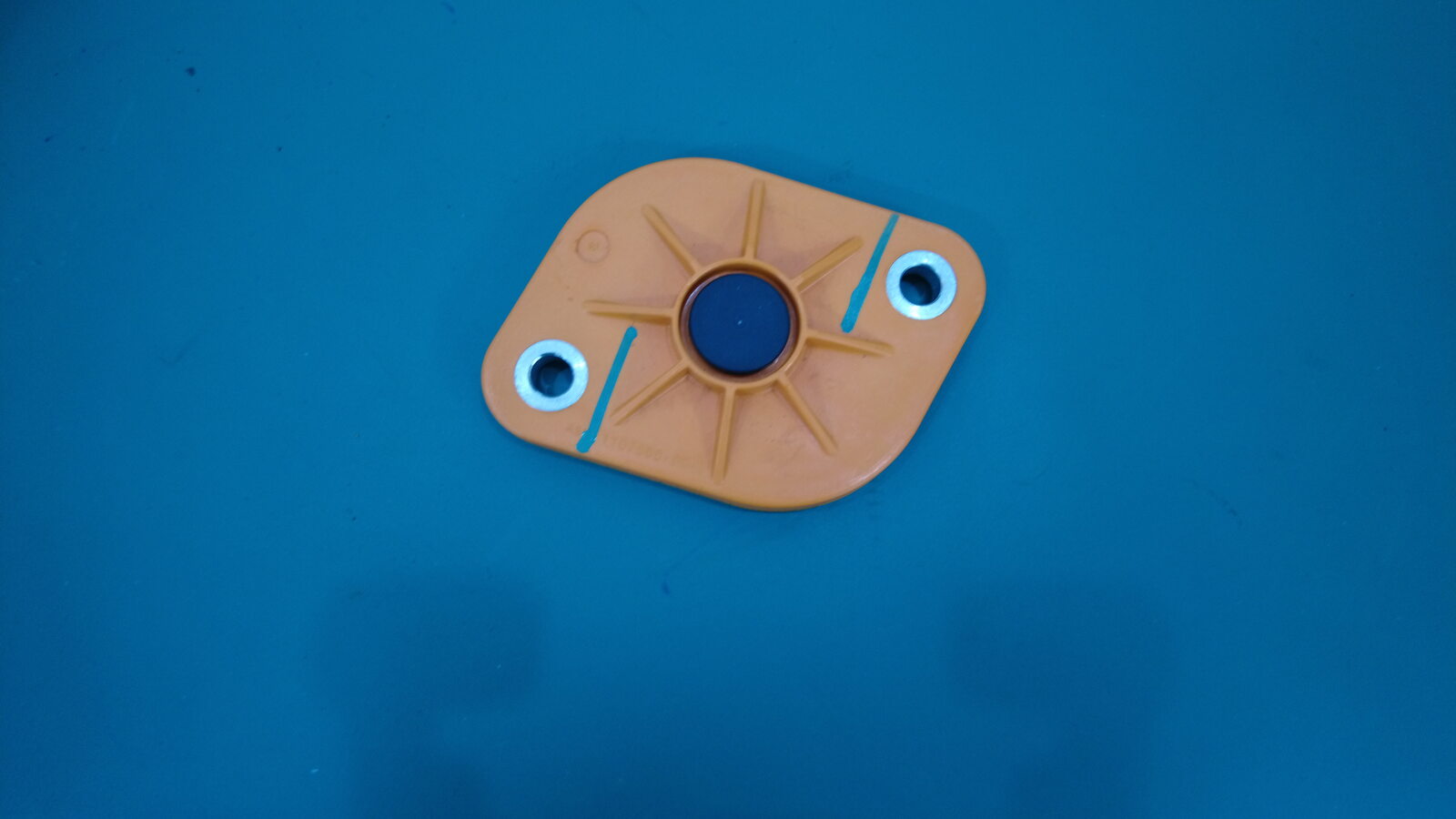

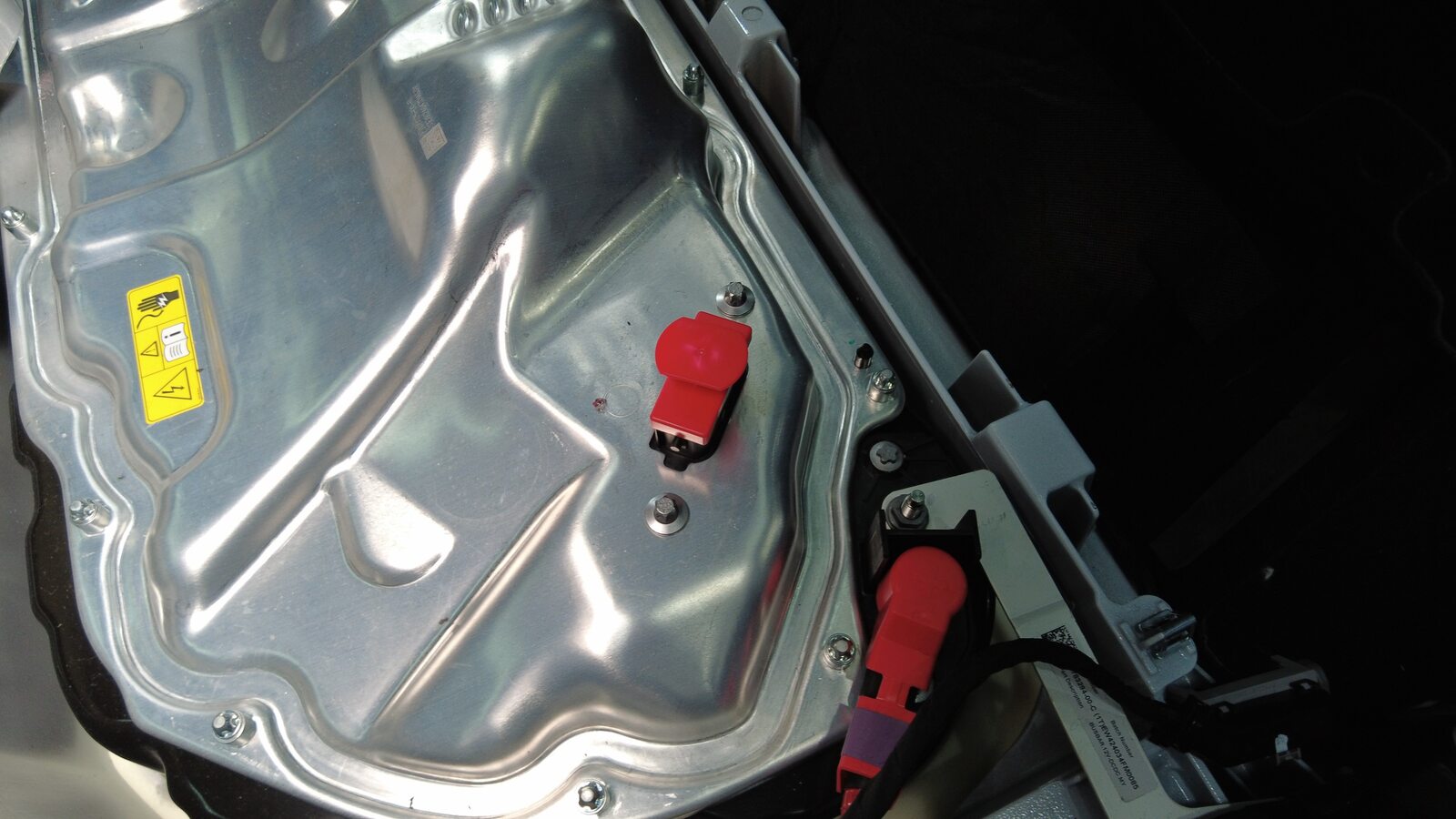

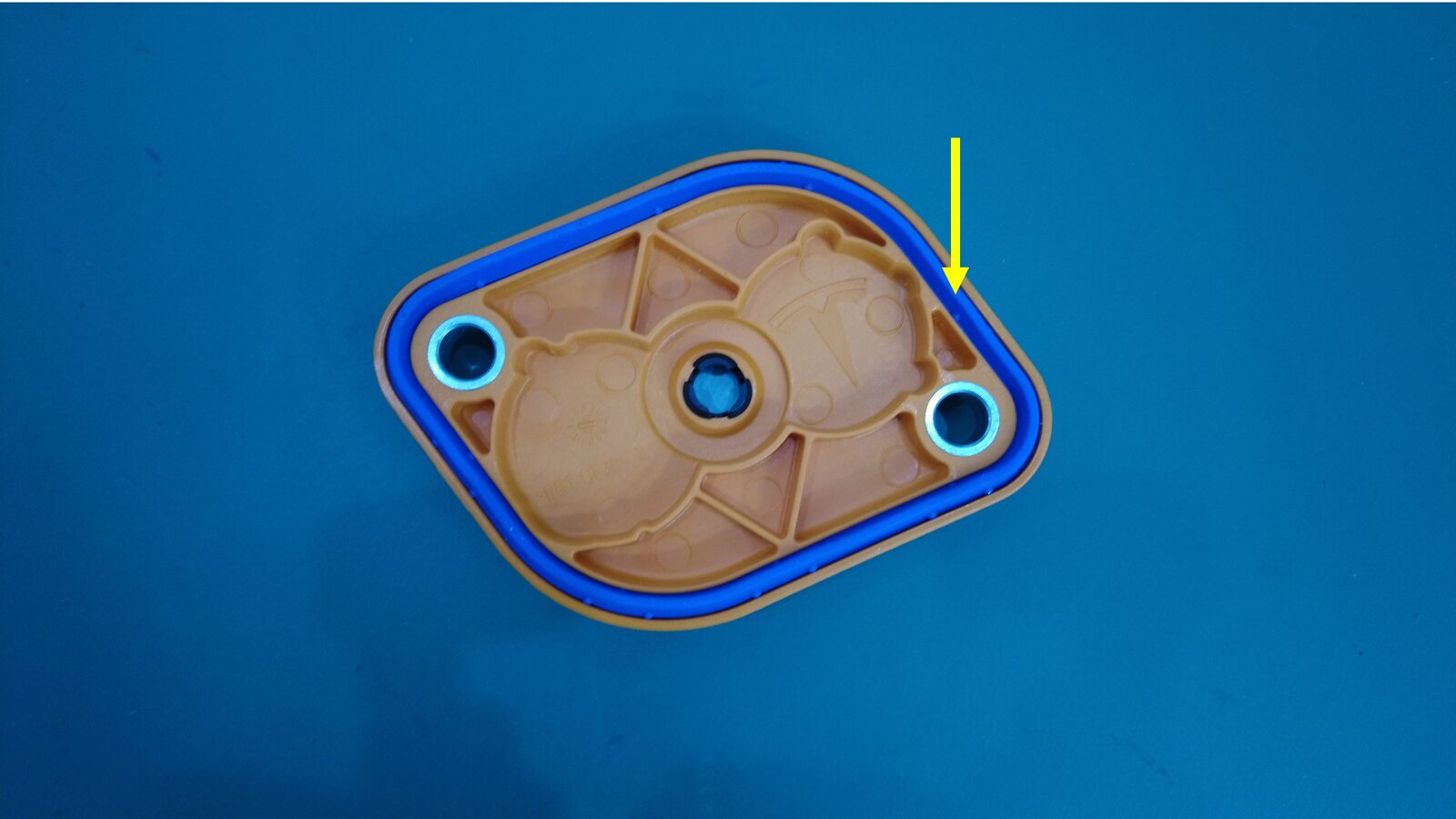

19. Inspect ancillary bay probe lid cover gasket then position onto ancillary bay cover
    注

    Confirm no visual damage present, Wipe ancillary bay with IPA to clean surface, Allow to 1 minute dry time





20. Install bolts securing ancillary bay probe lid cover to ancillary bay cover
    注

    2x bolts, EP10 5-Lobe, 6 Nm, Install new bolts



21. Remove leather over gloves and HV insulating gloves



22. Remove clips securing rear main cabin carpet to vehicle
    注

    3x push clips

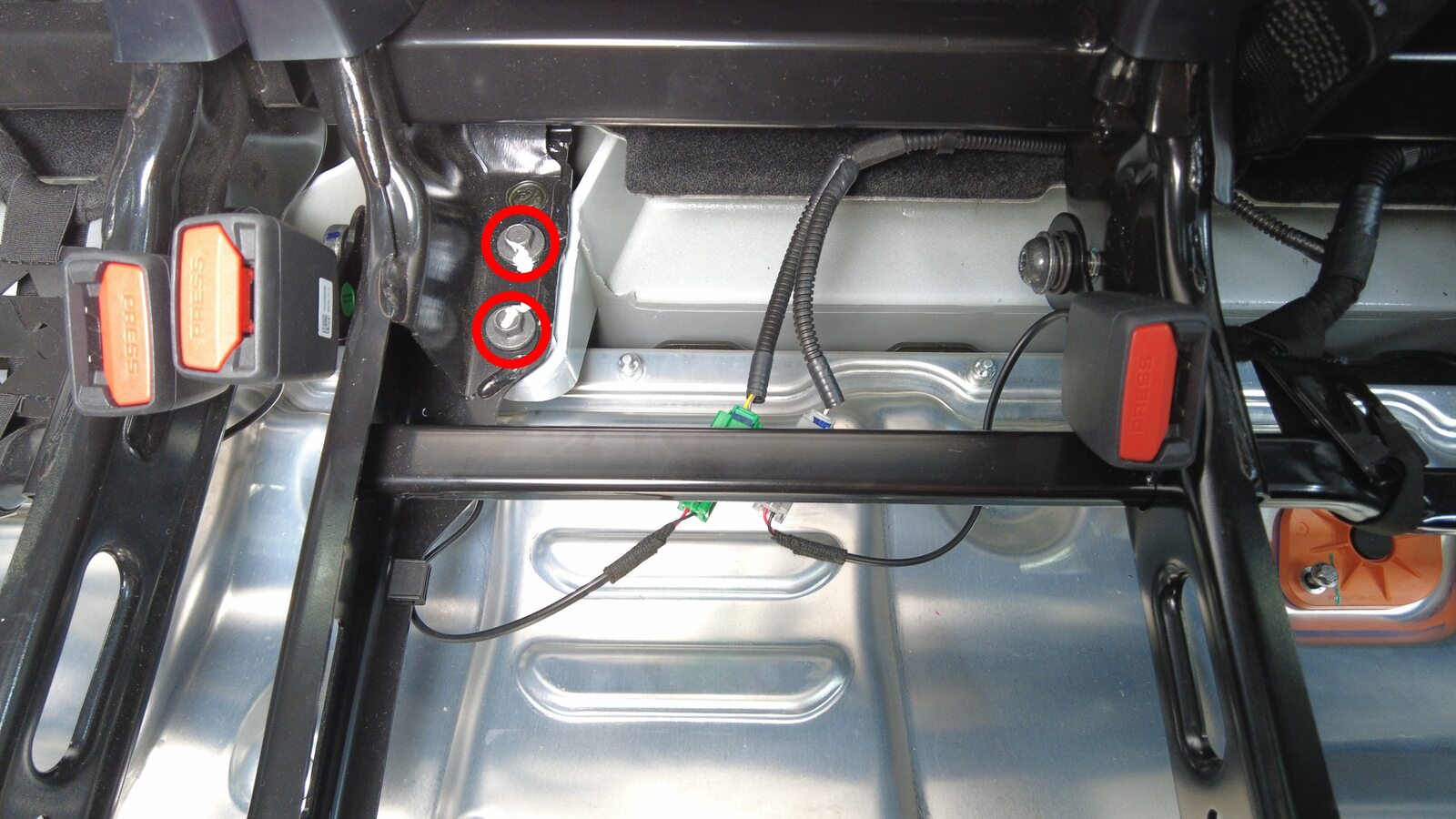

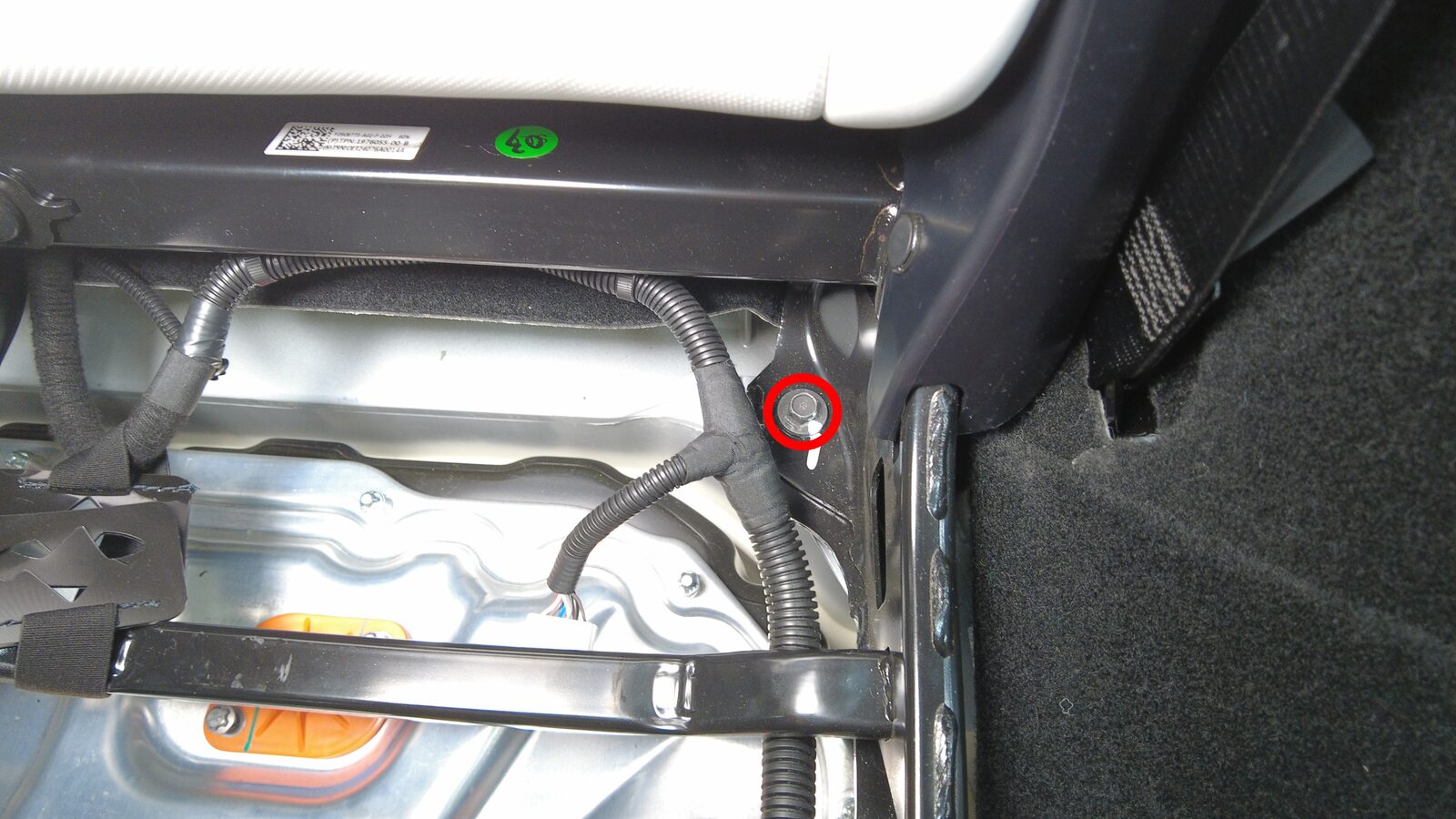

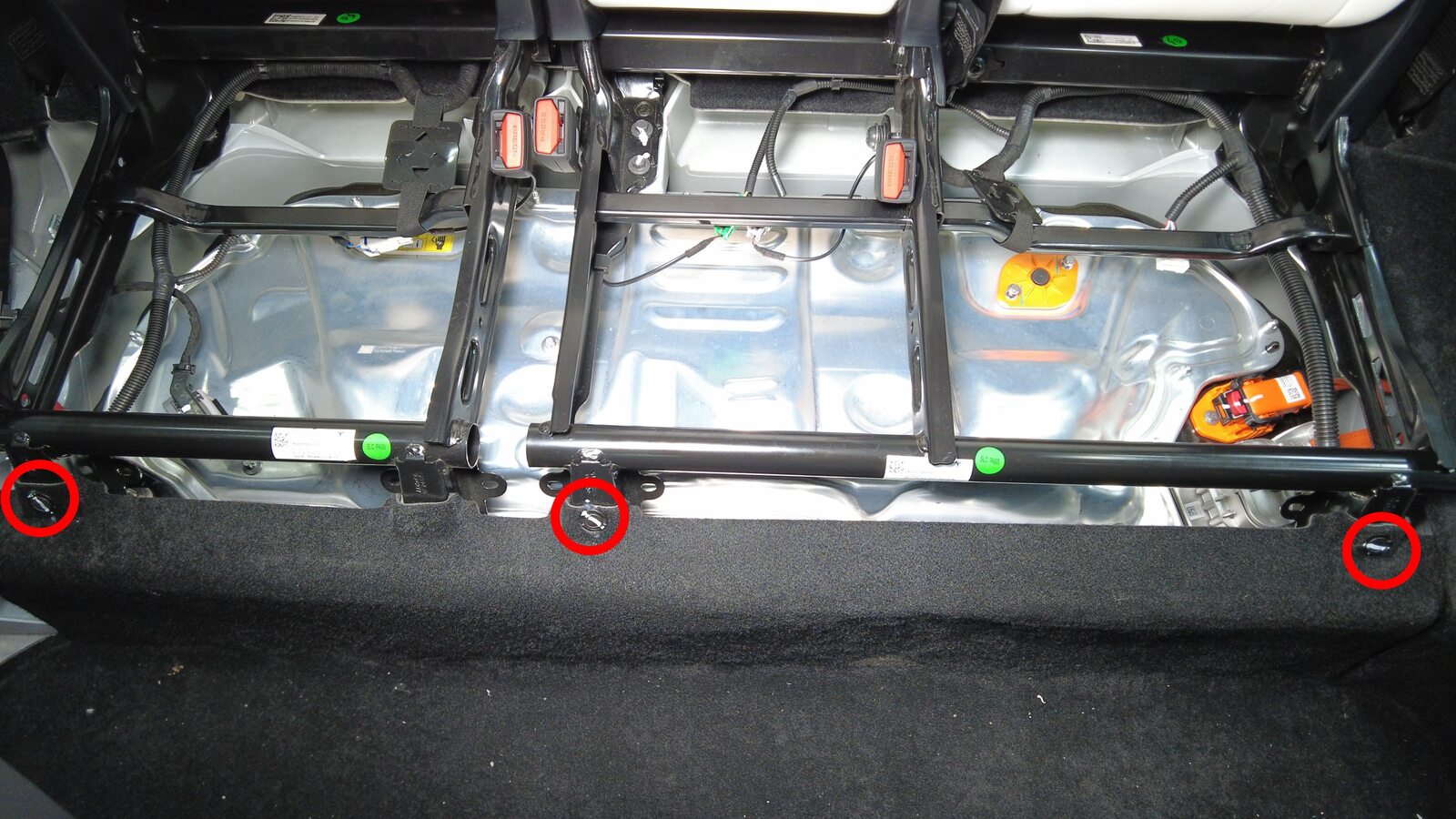

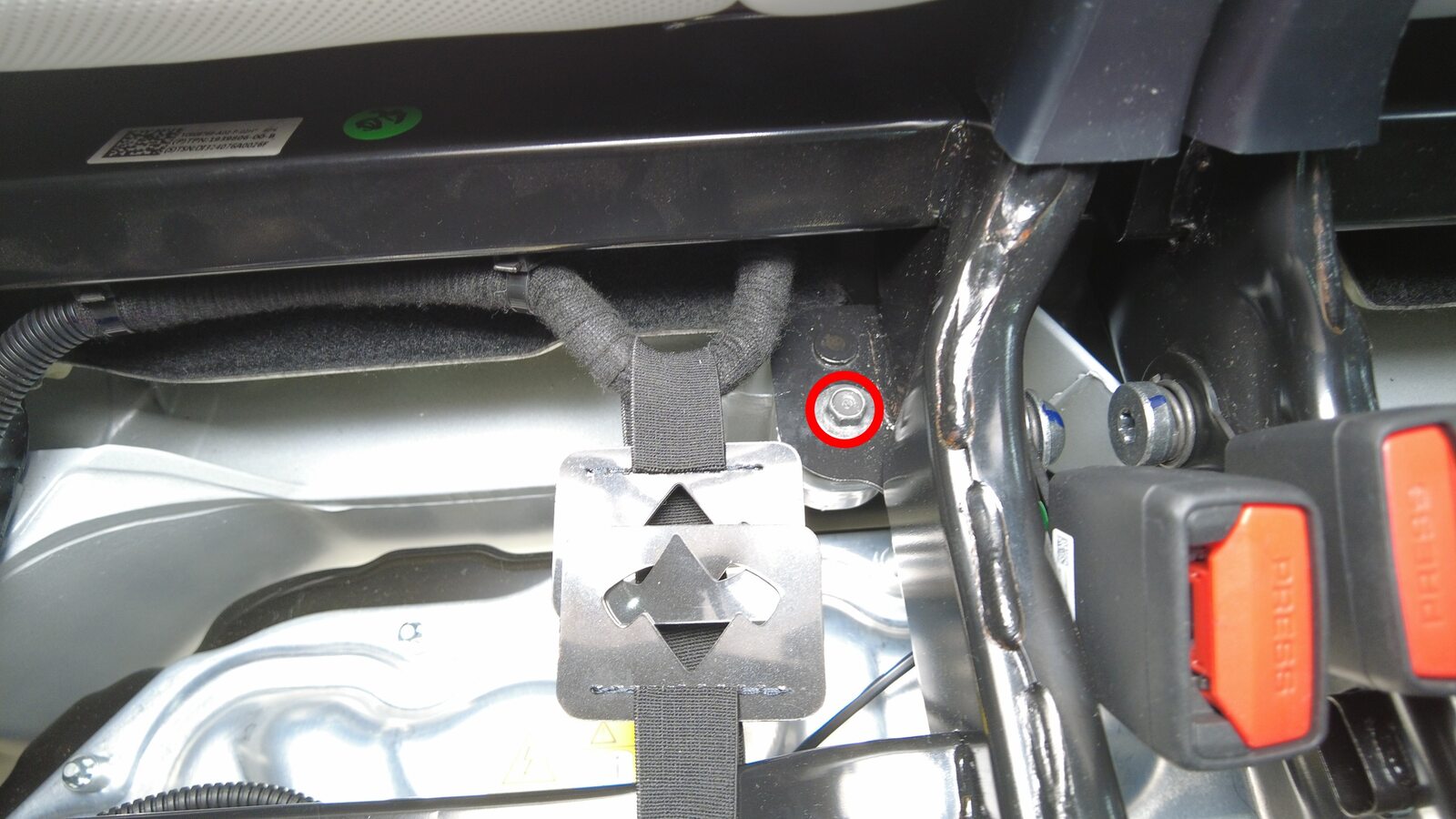

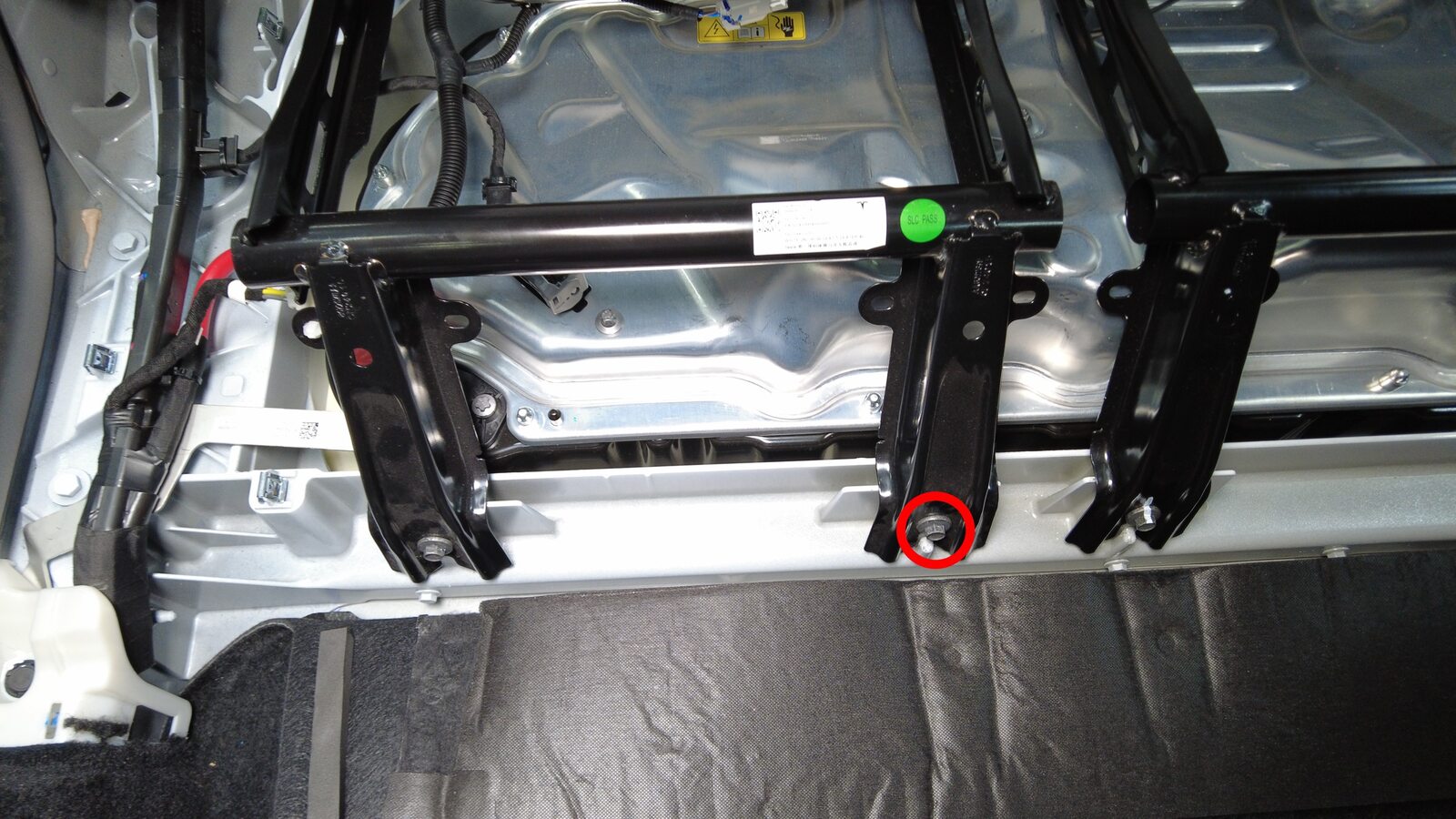

23. Remove fasteners securing 2nd row 40 seat frame to body
    注

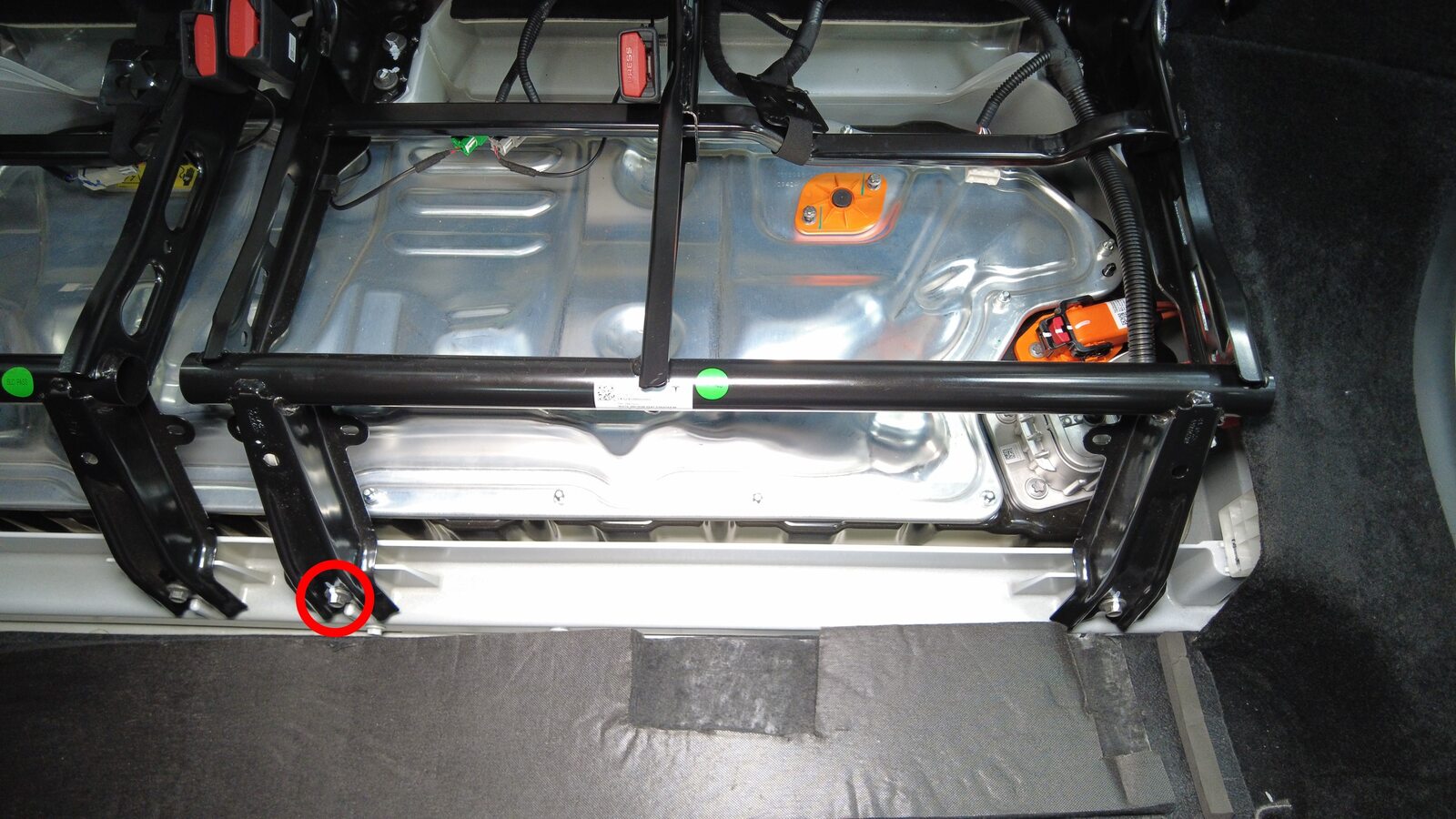

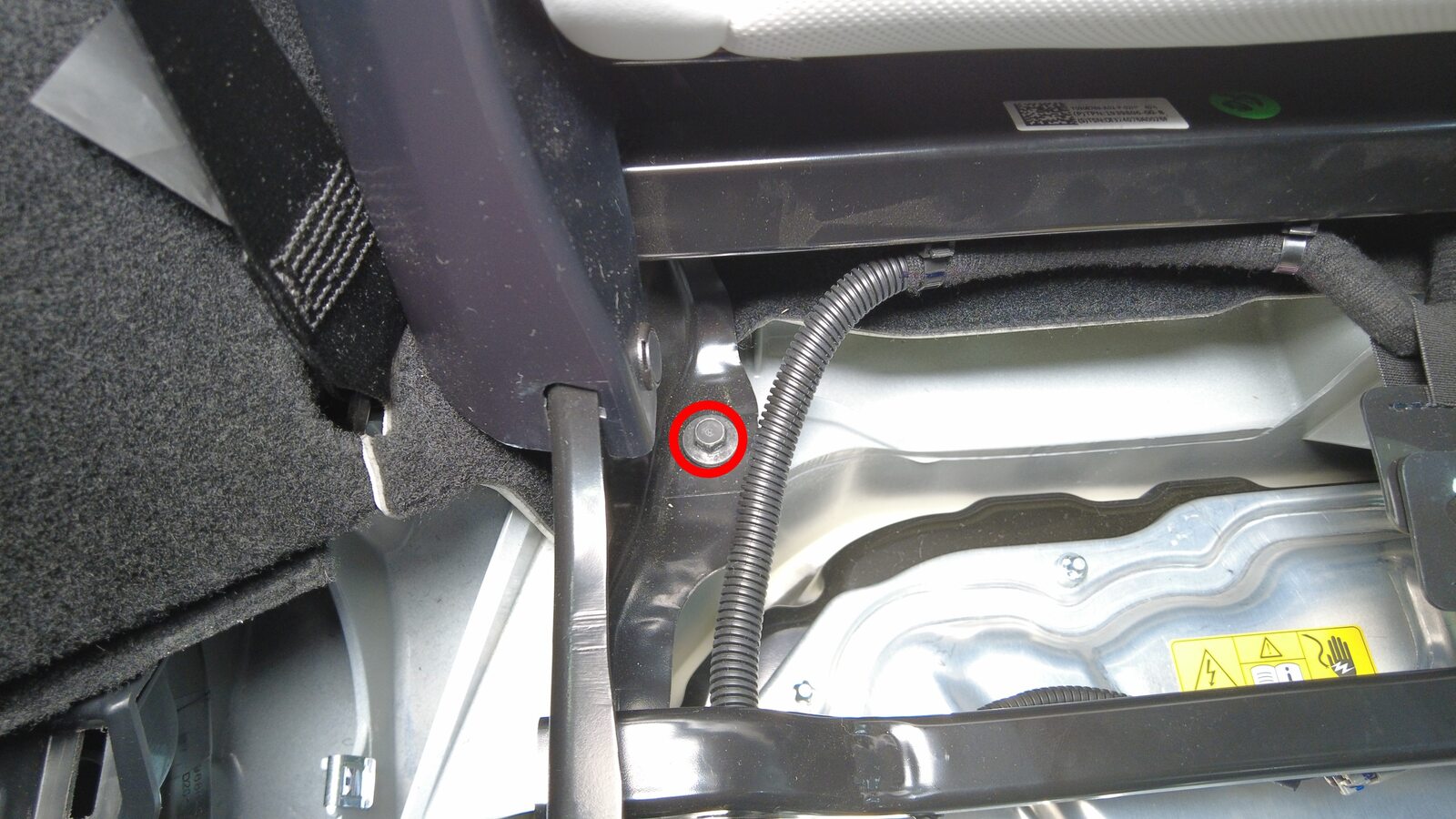

    4x bolts, 11mm, 37 Nm, Bottom seat bolts located behind main carpet, Discard after removal

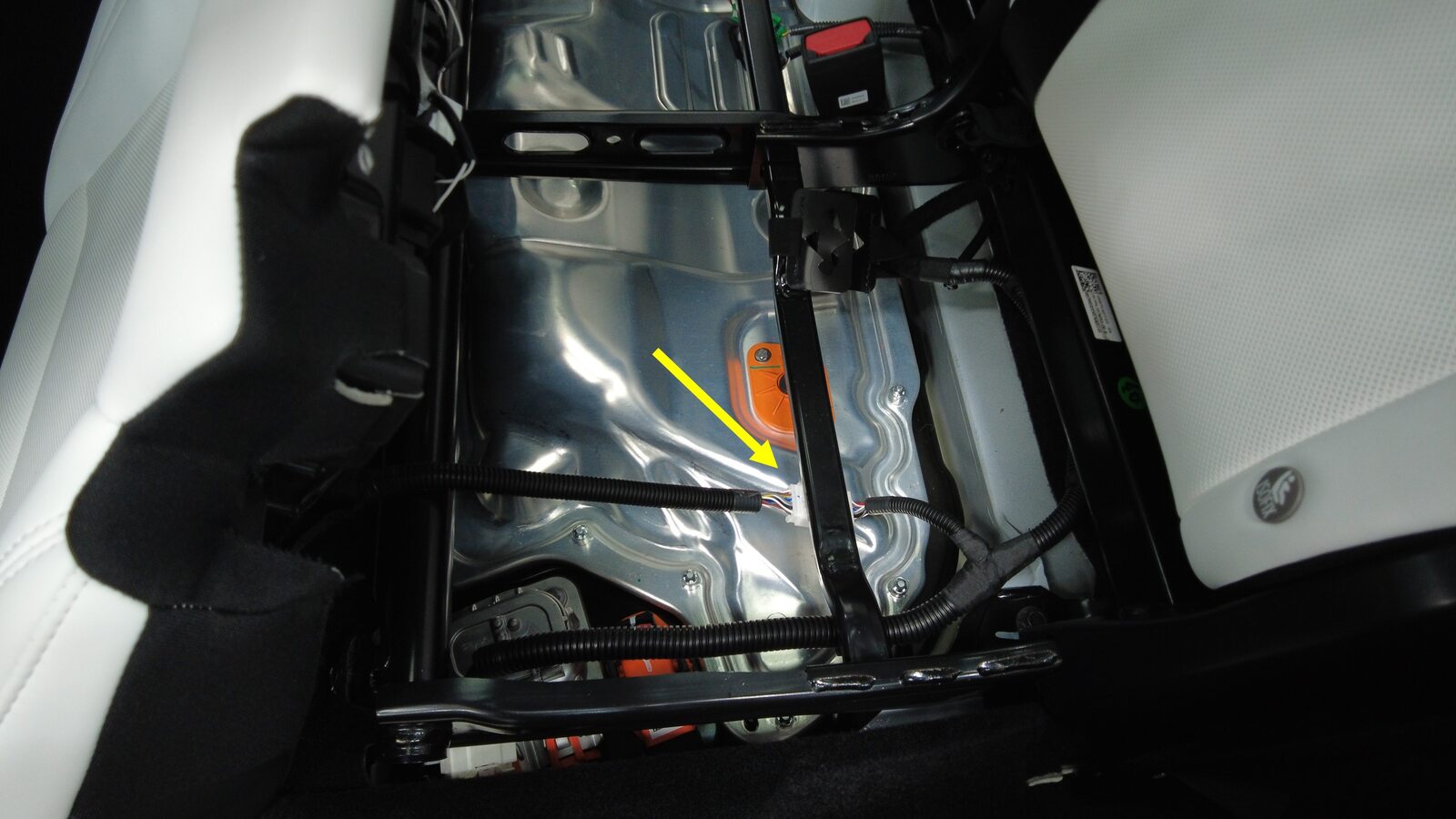

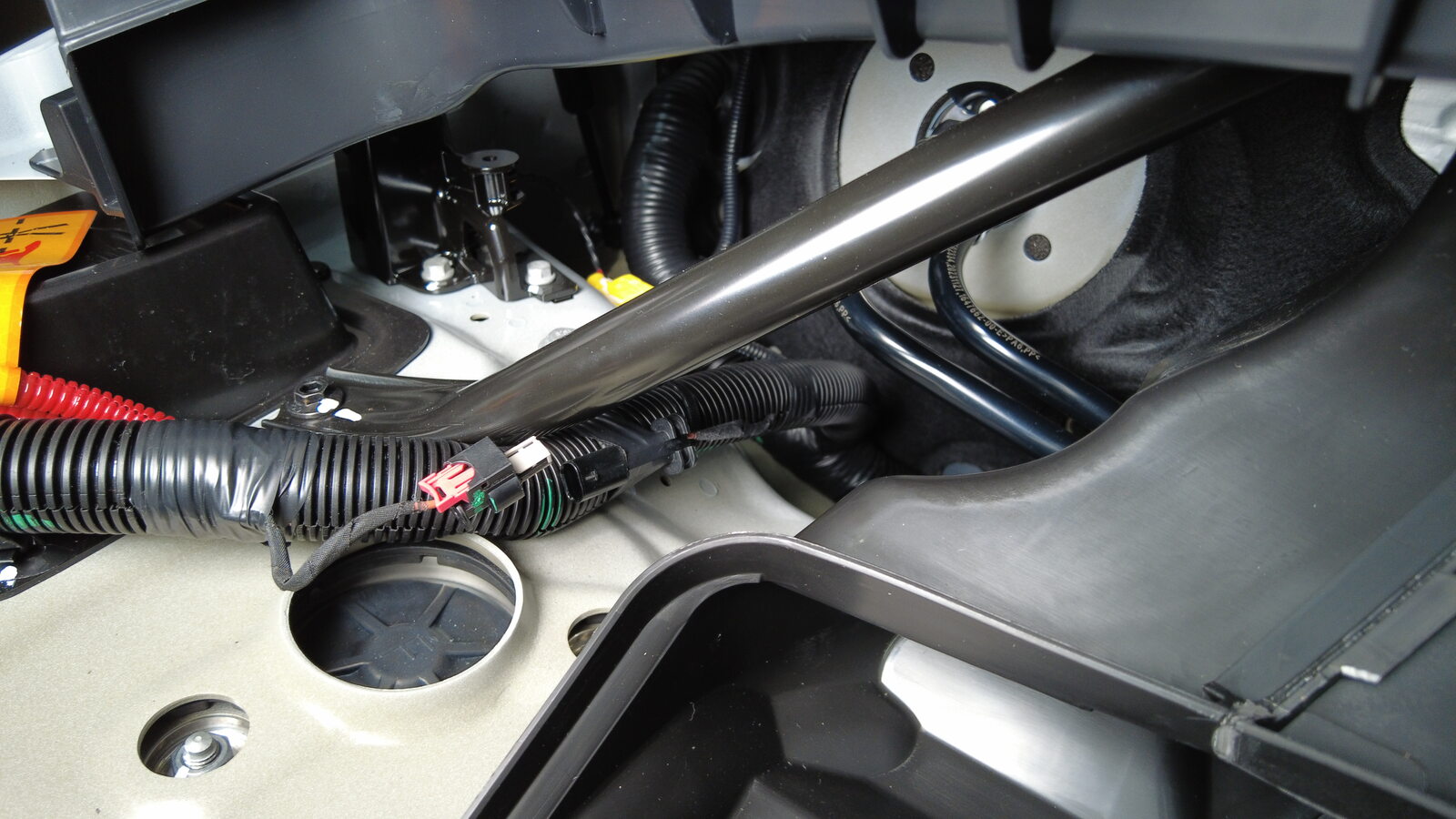

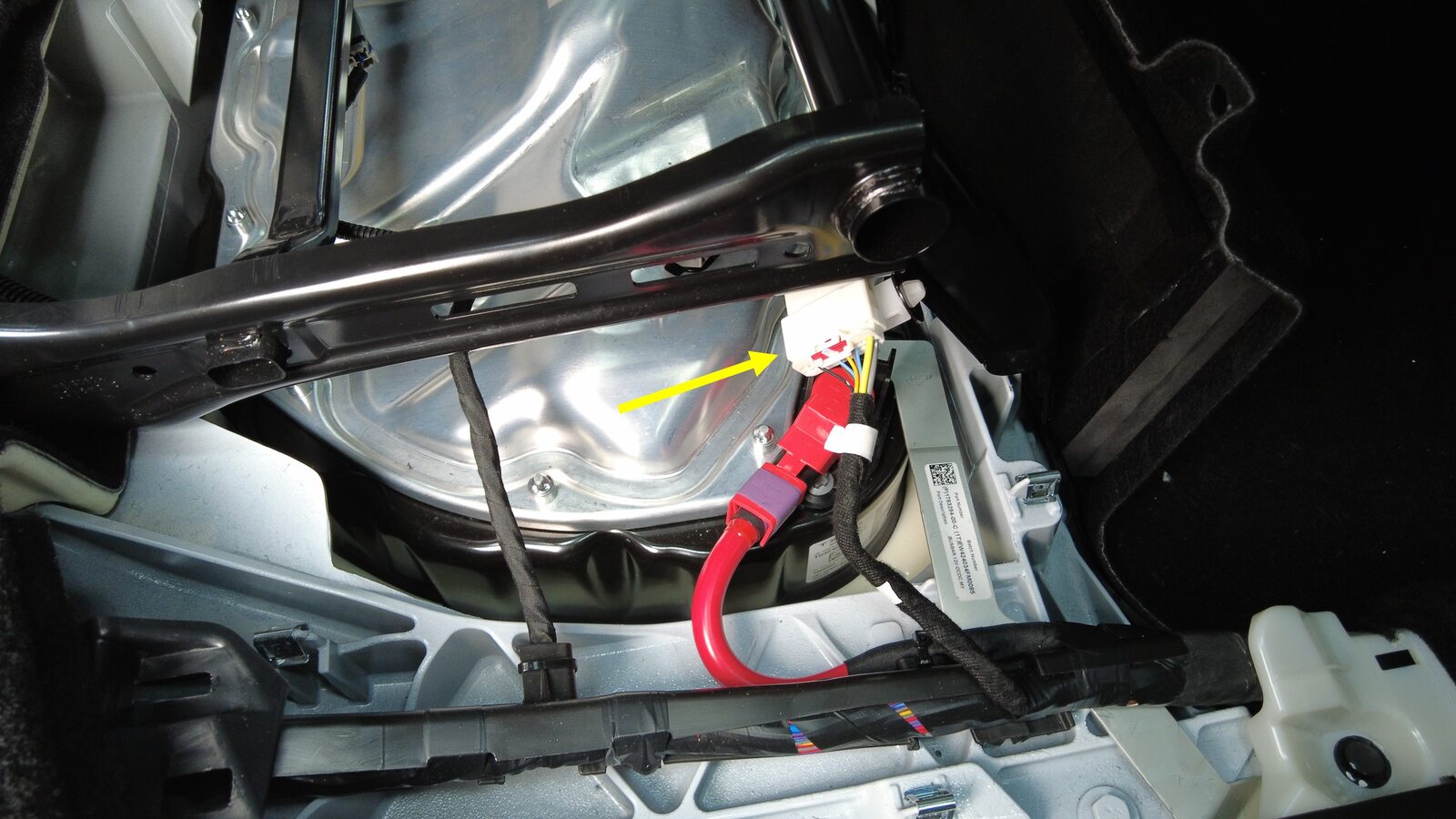

24. Disconnect 2nd row 40 seat connector
    注

    1x connector, Disengage the tab

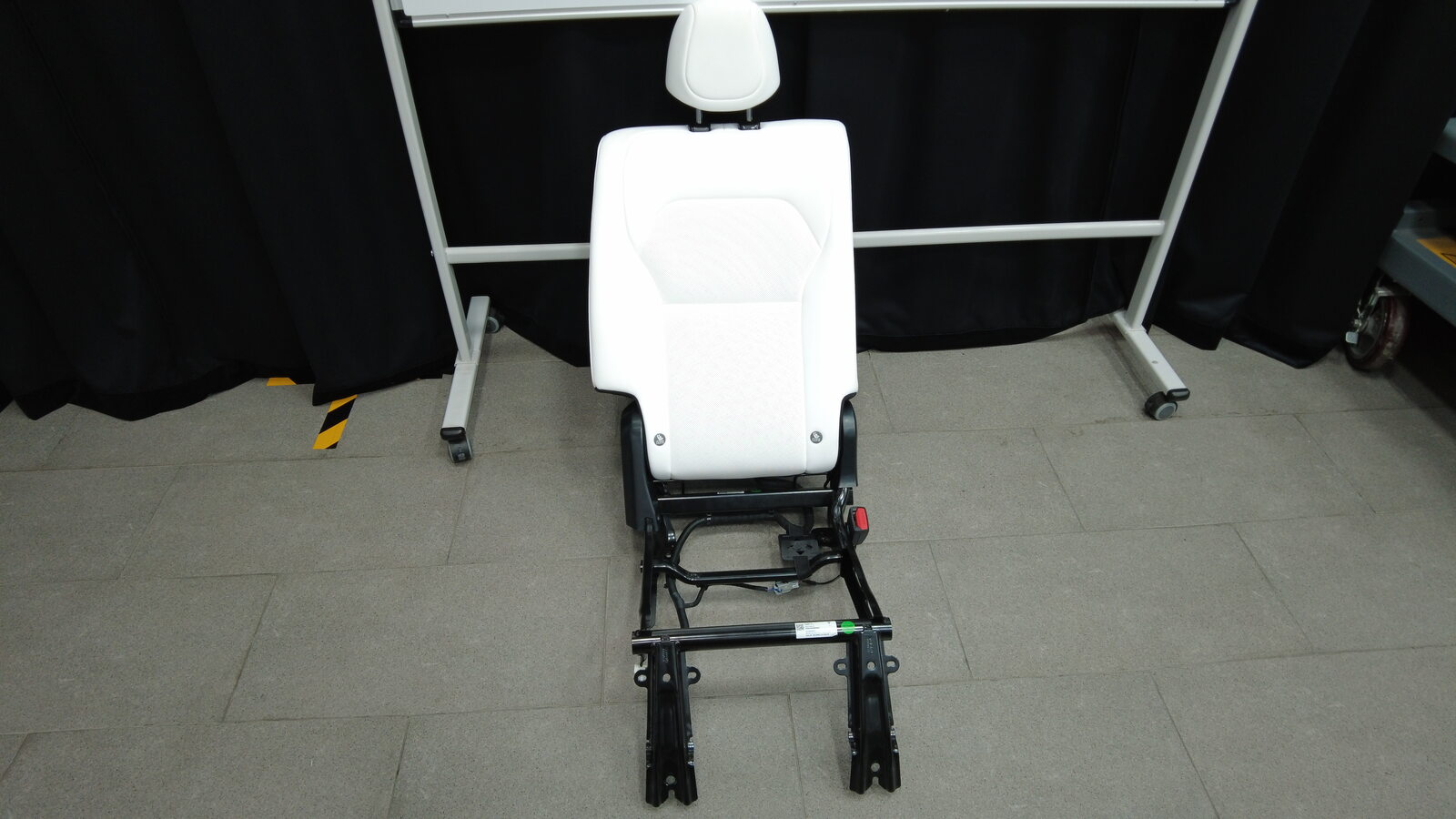

25. Remove 2nd row 40 seat assembly from vehicle
    注

    Recommend assistance

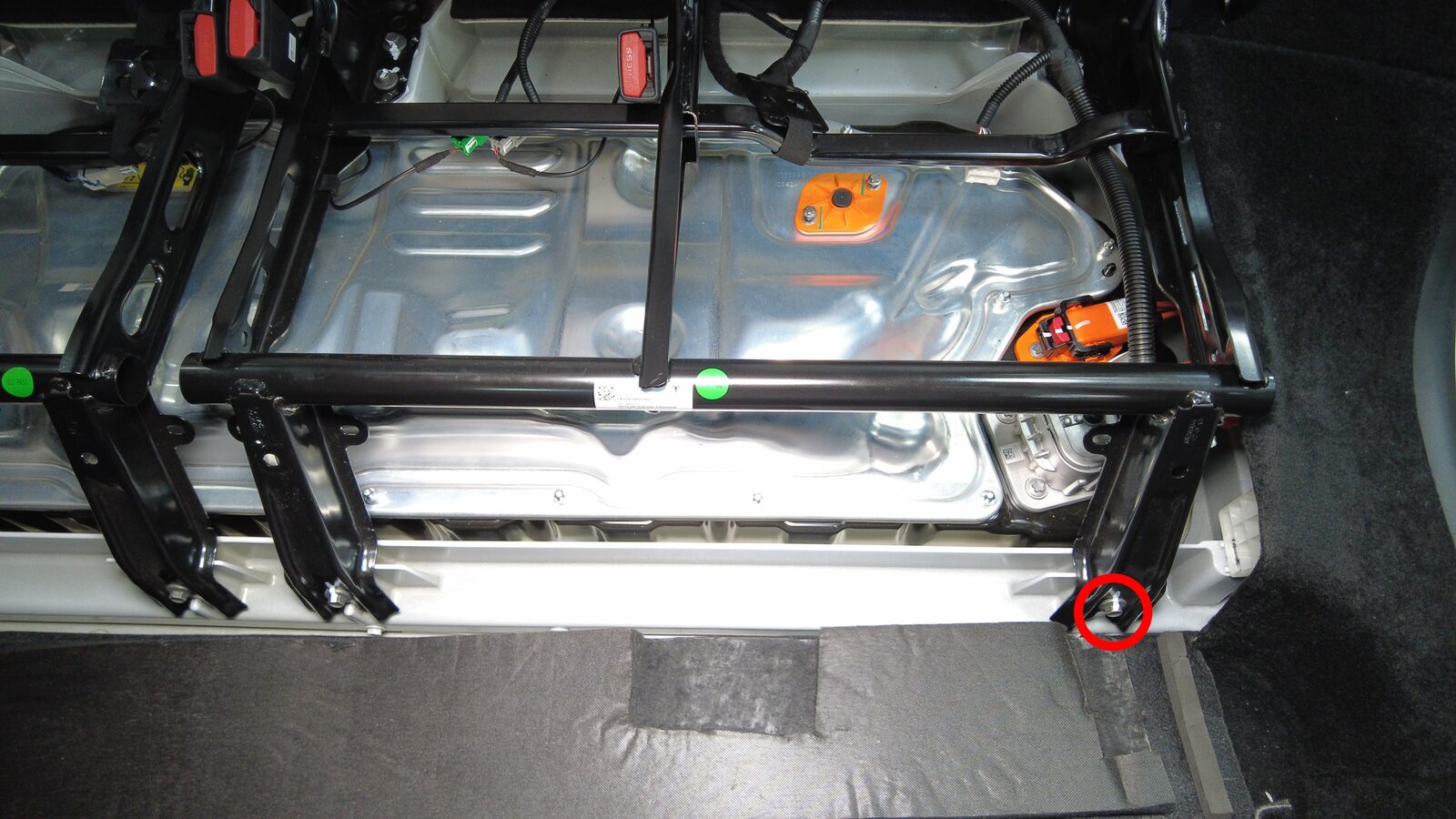

26. Remove fasteners securing 2nd row 60 seat frame to body
    注

    5x bolts, 11mm, 37 Nm, Bottom seat bolts located behind main carpet, Discard after removal







27. Disconnect 2nd row 60 seat connector
    注

    1x connector, Disengage locking tab



28. Remove 2nd row 60 seat assembly from vehicle
    注

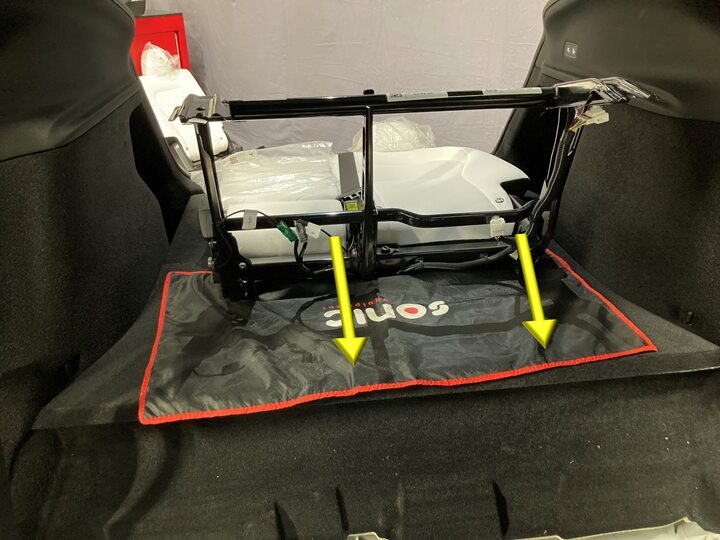

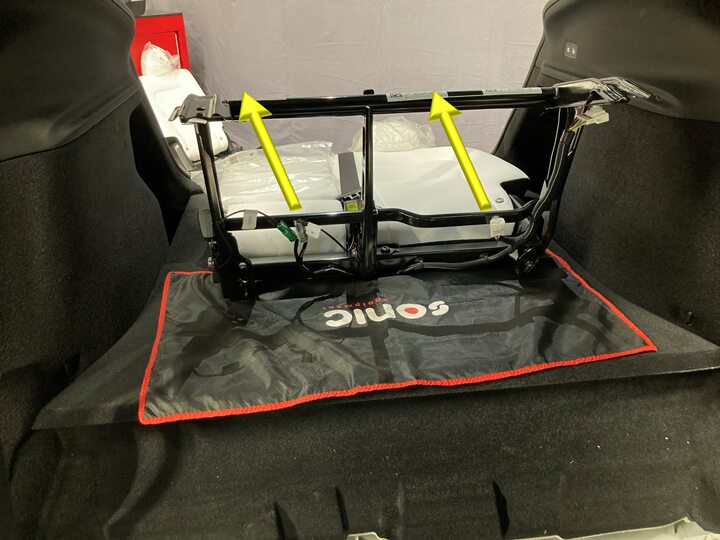

    Set 60 seat assembly onto rear load floor, Then remove the seat assembly from the rear side of the vehicle, Use fender cover to avoid damaging trims, Recommend assistance

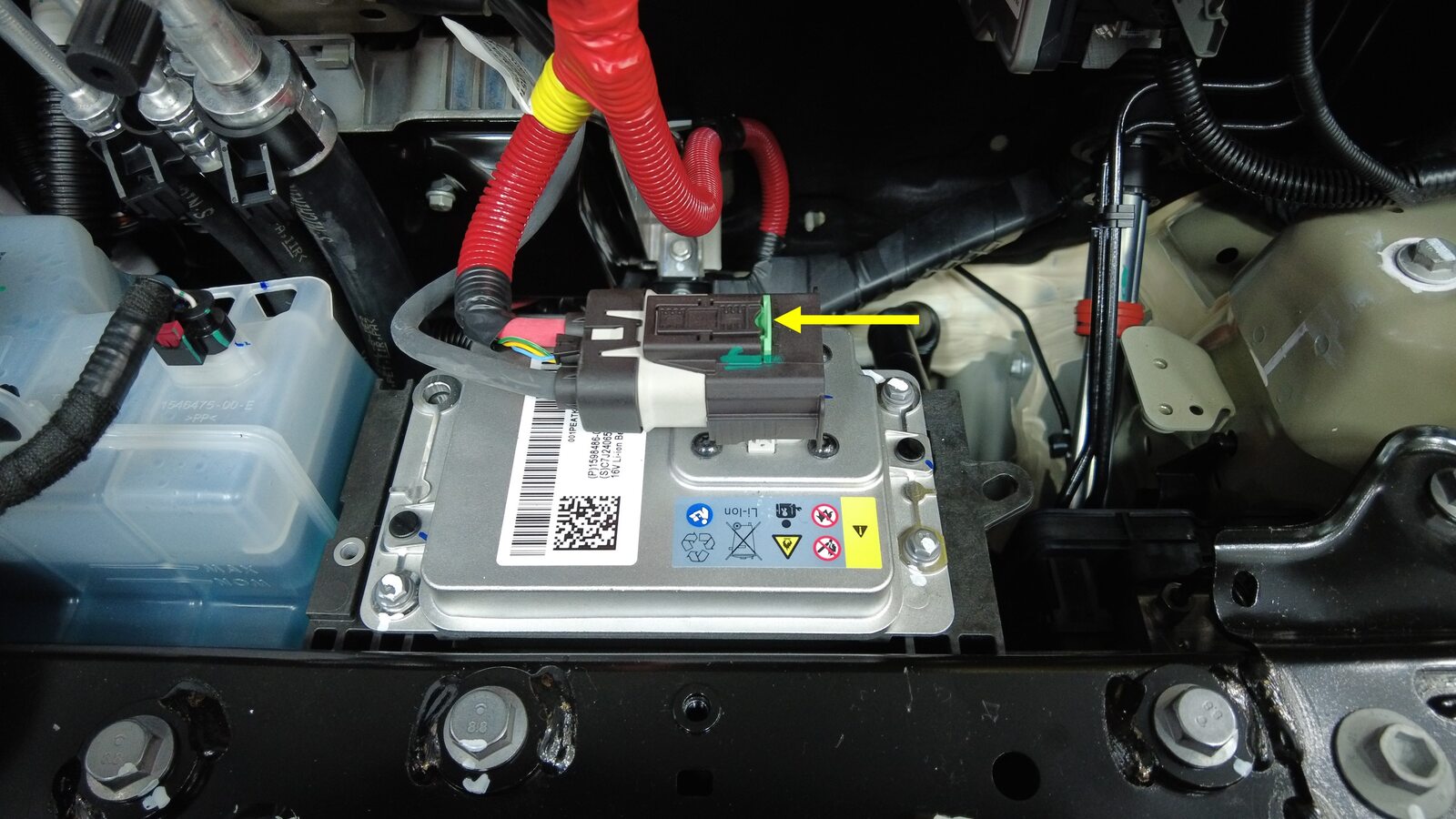

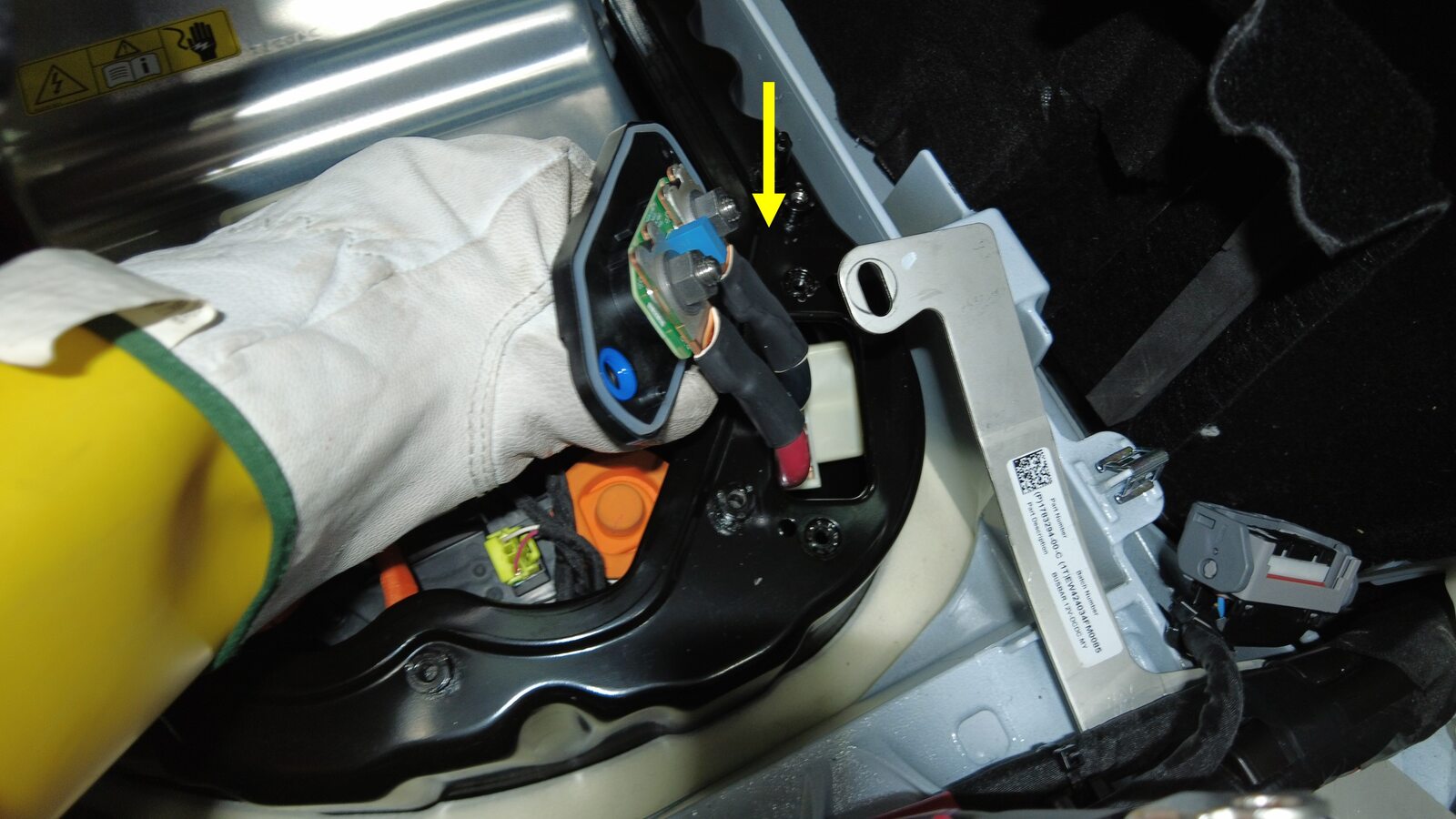

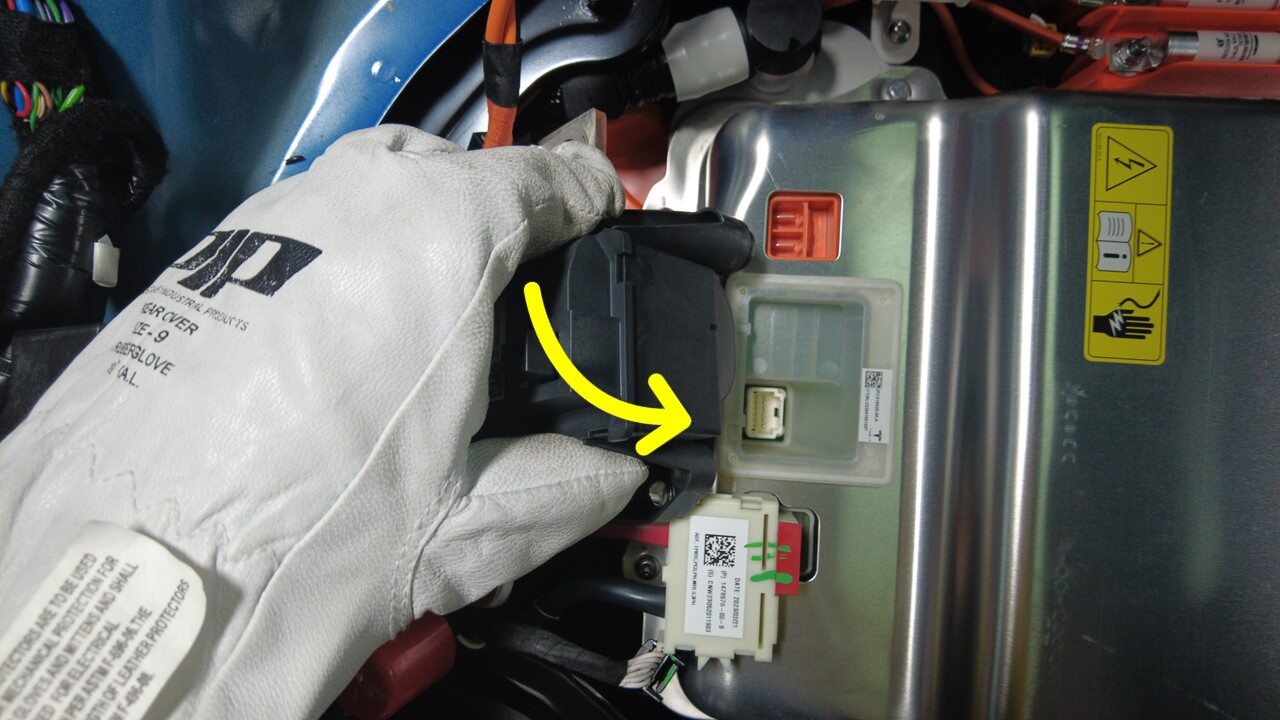

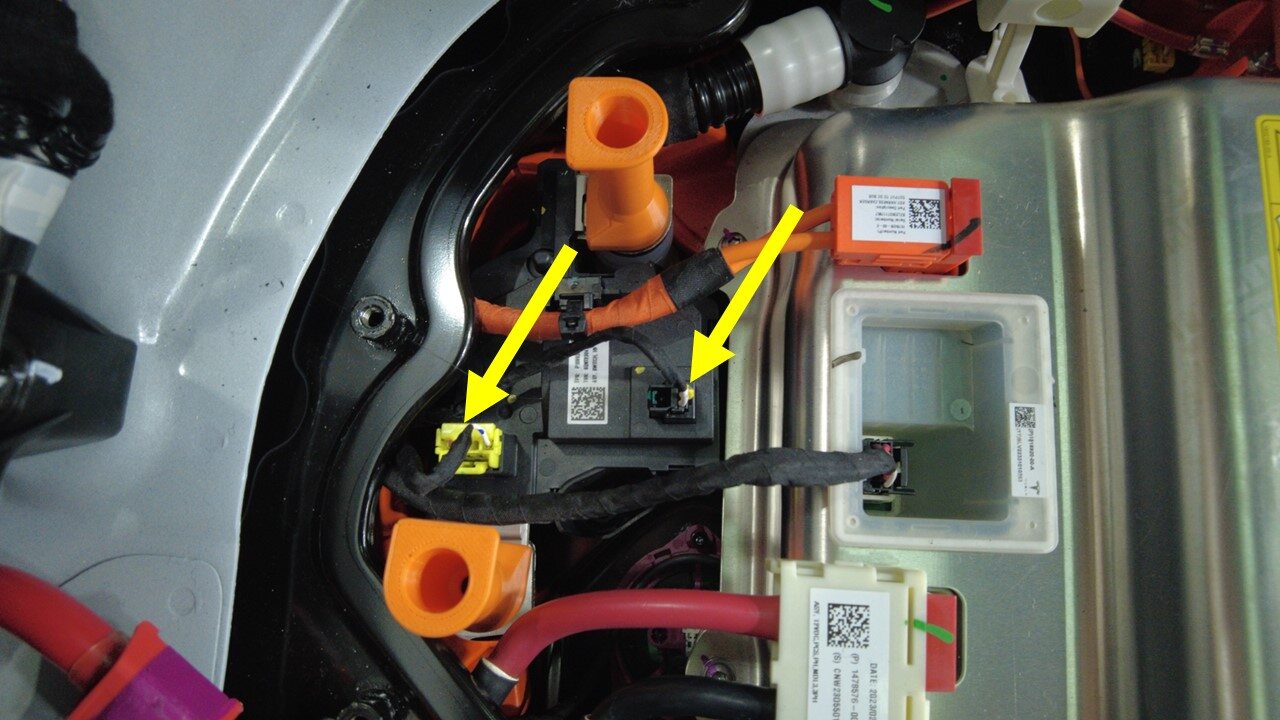

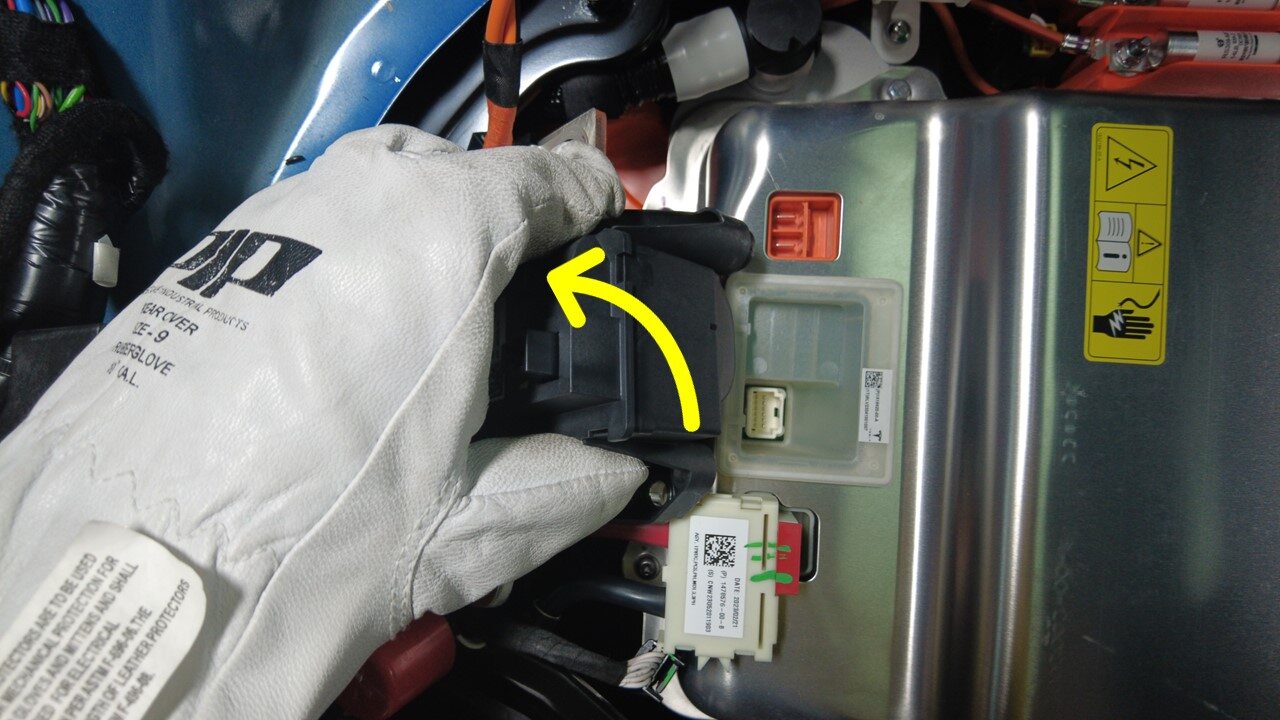

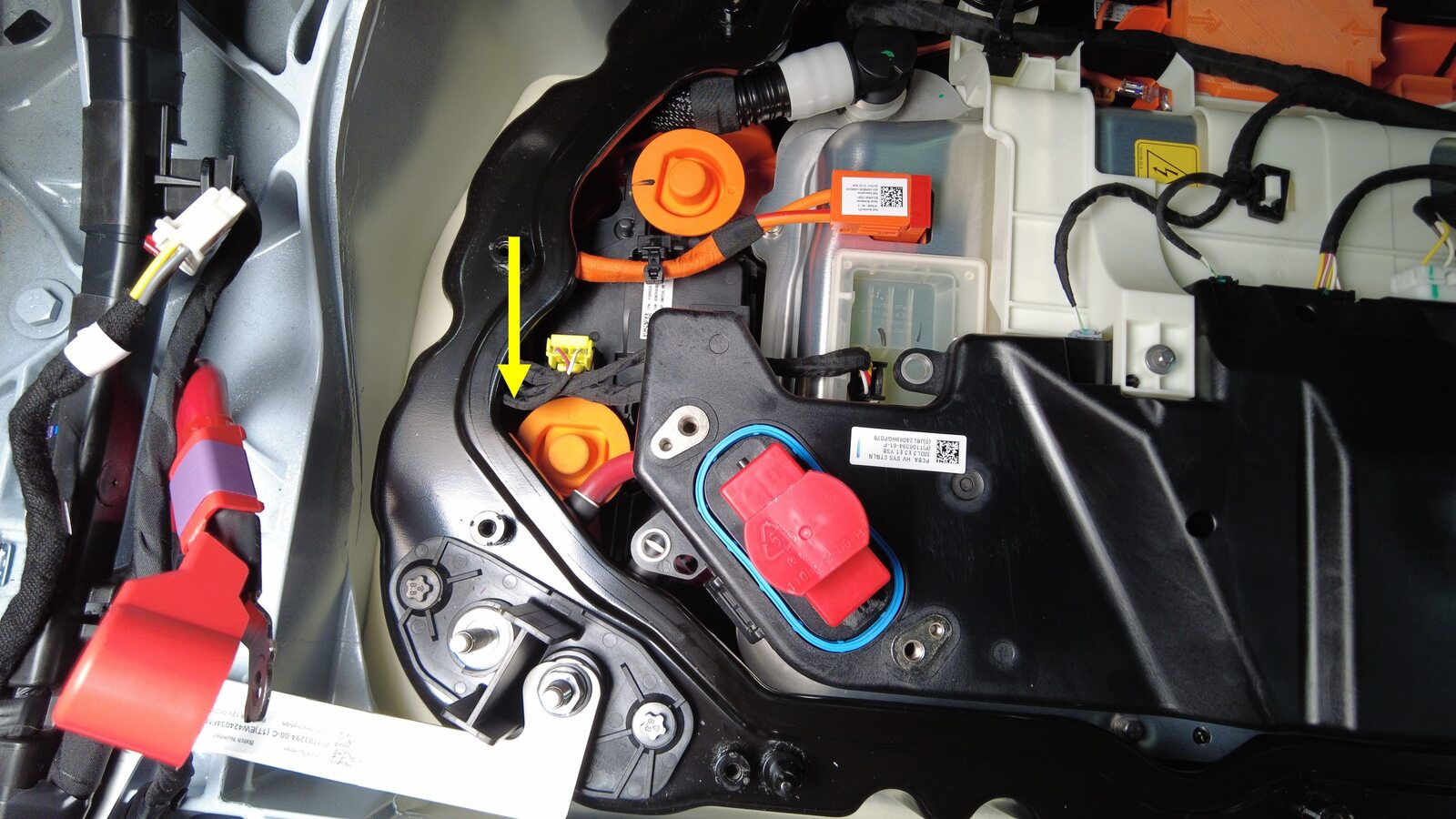

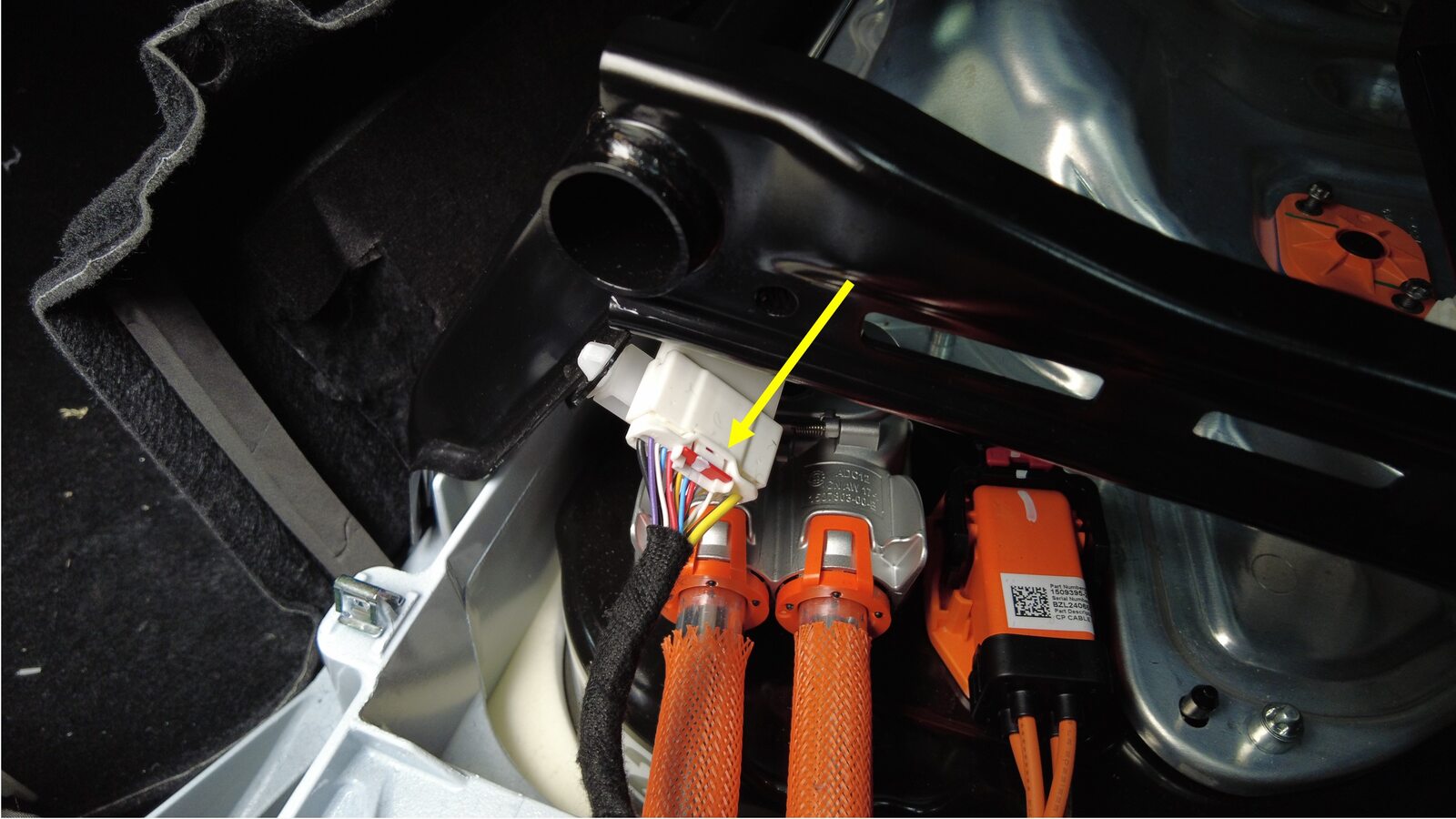

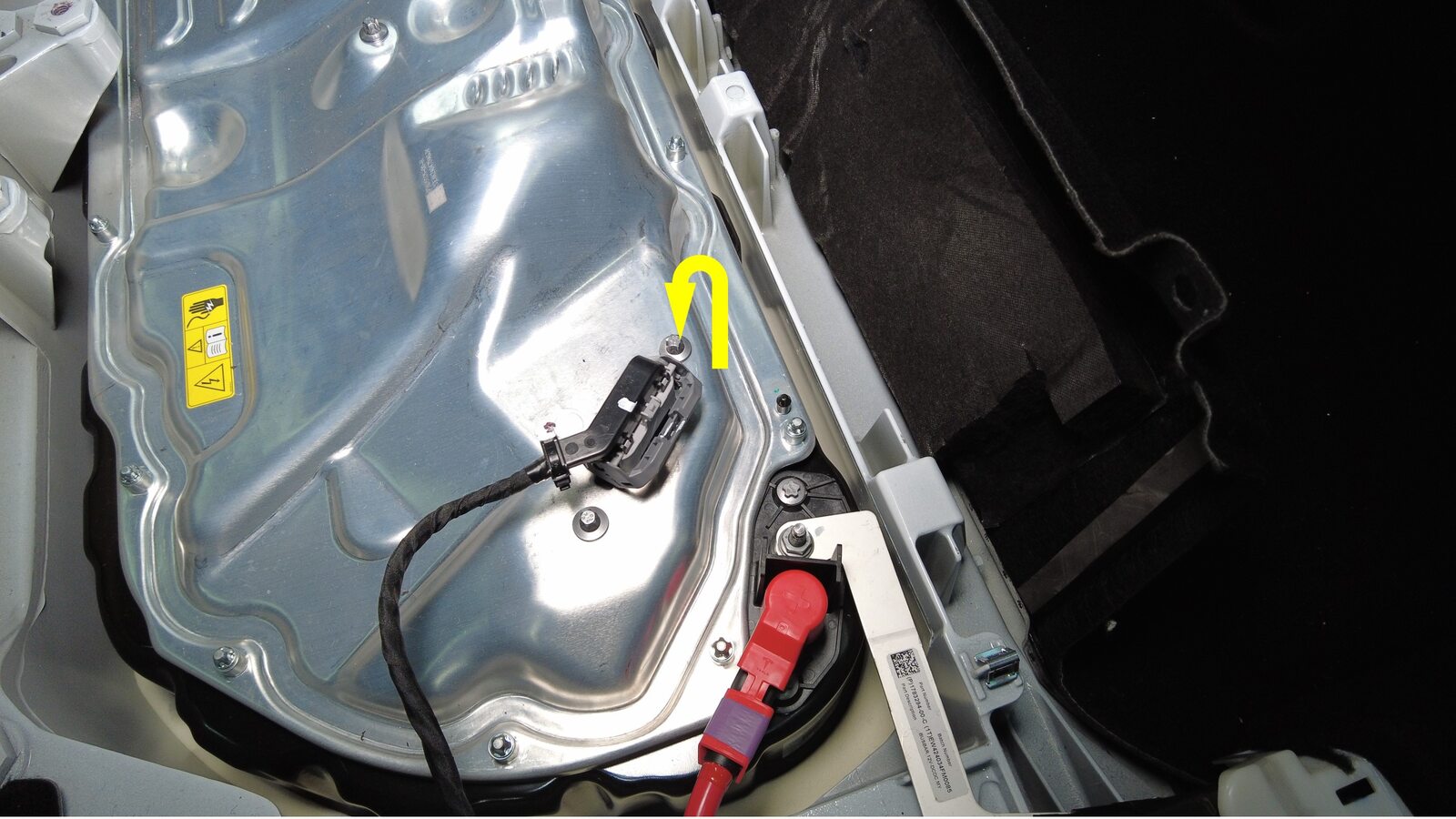

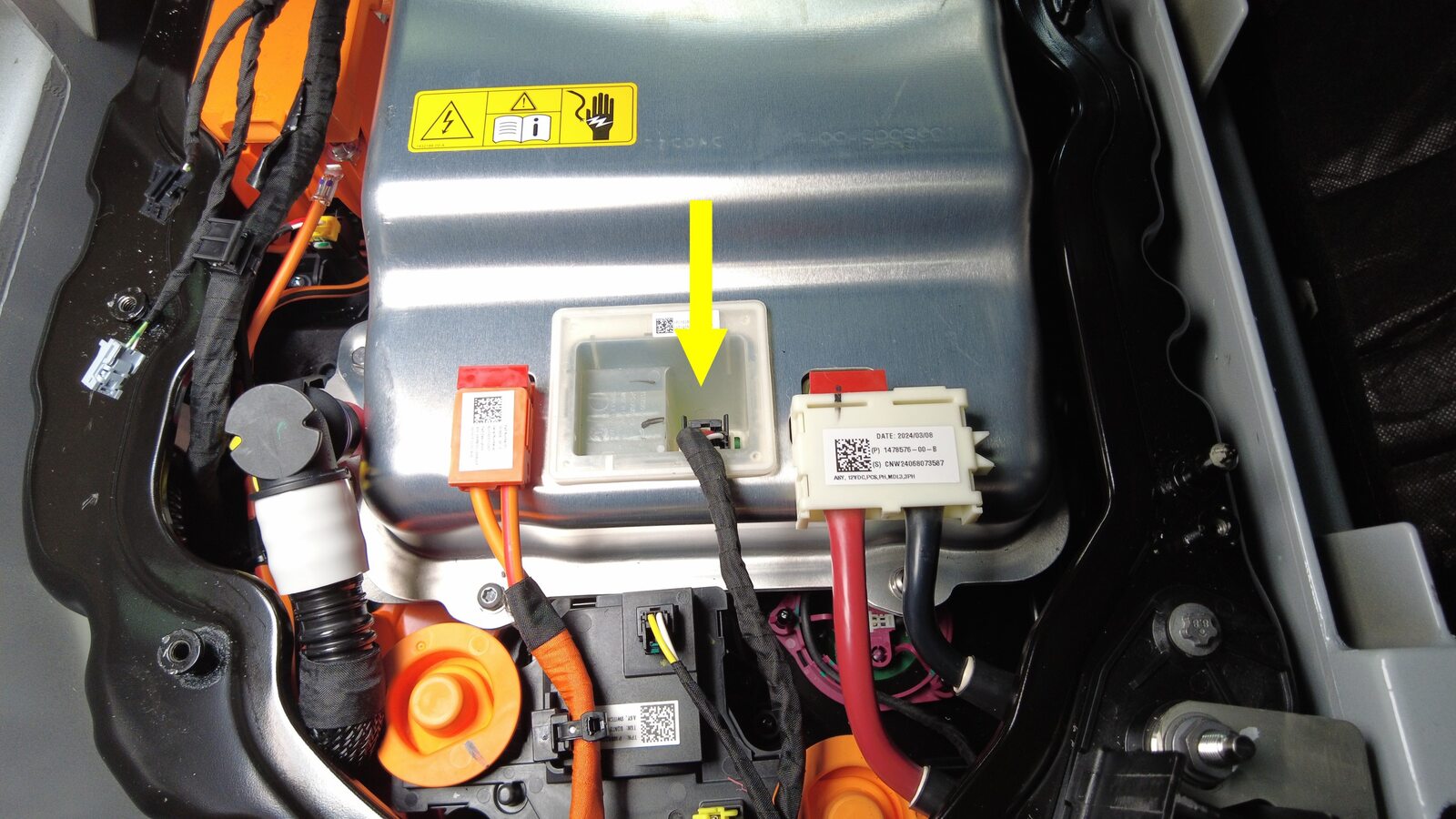

29. Disconnect HVC logic connector and install logic cap
    注

    1x connector, 1x cap, Release locking tab then push the handle downward to release connector

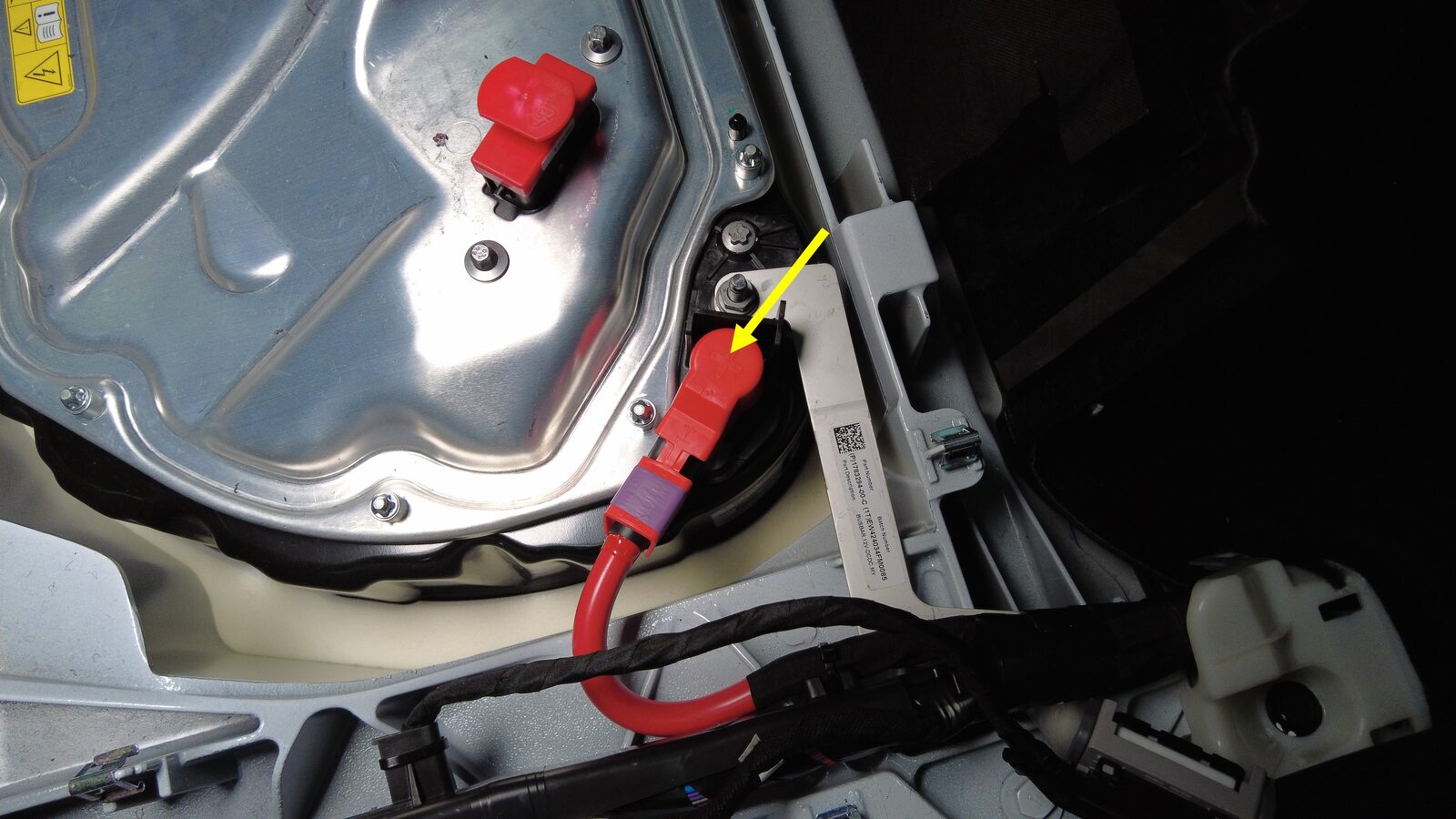

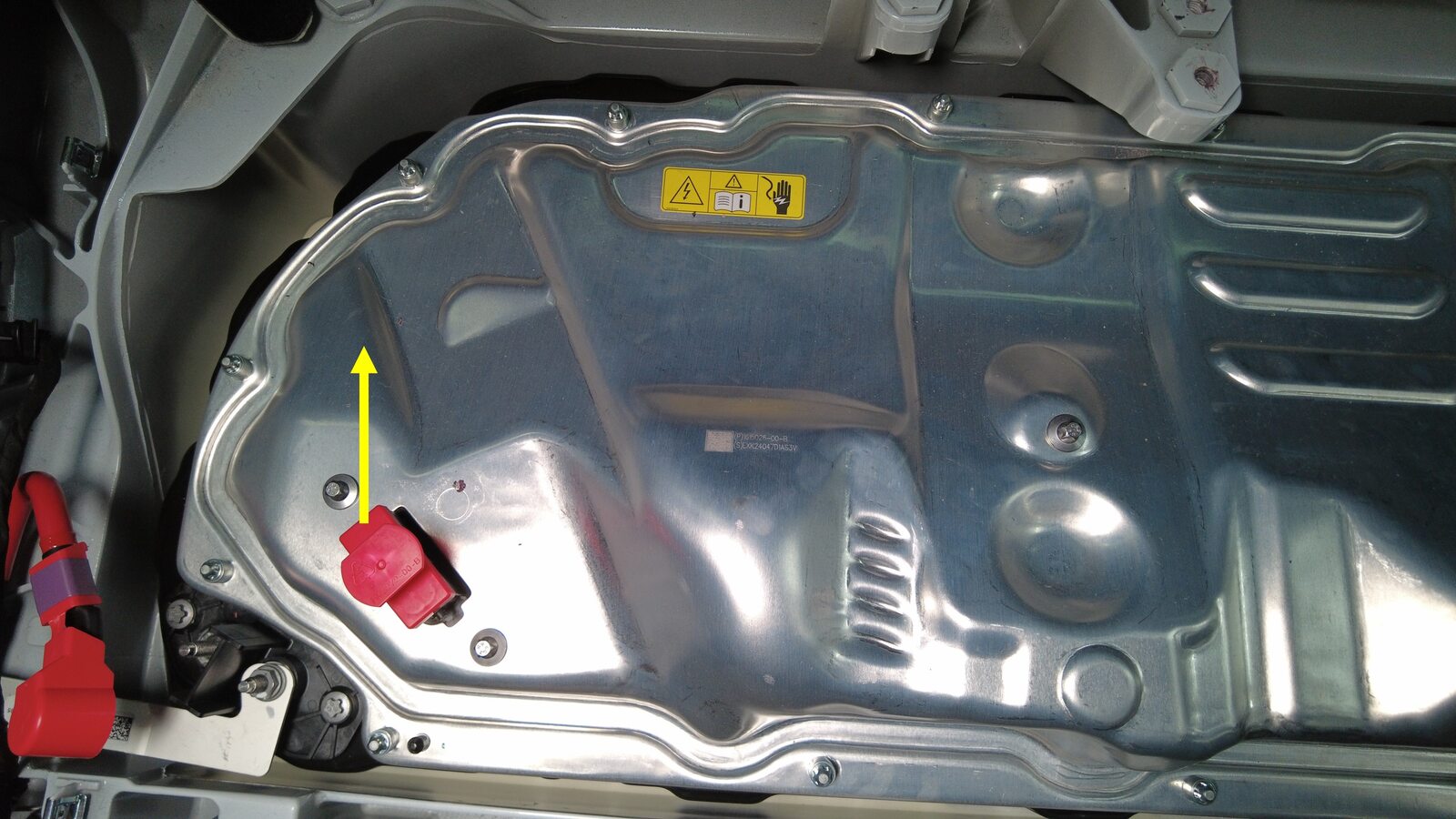

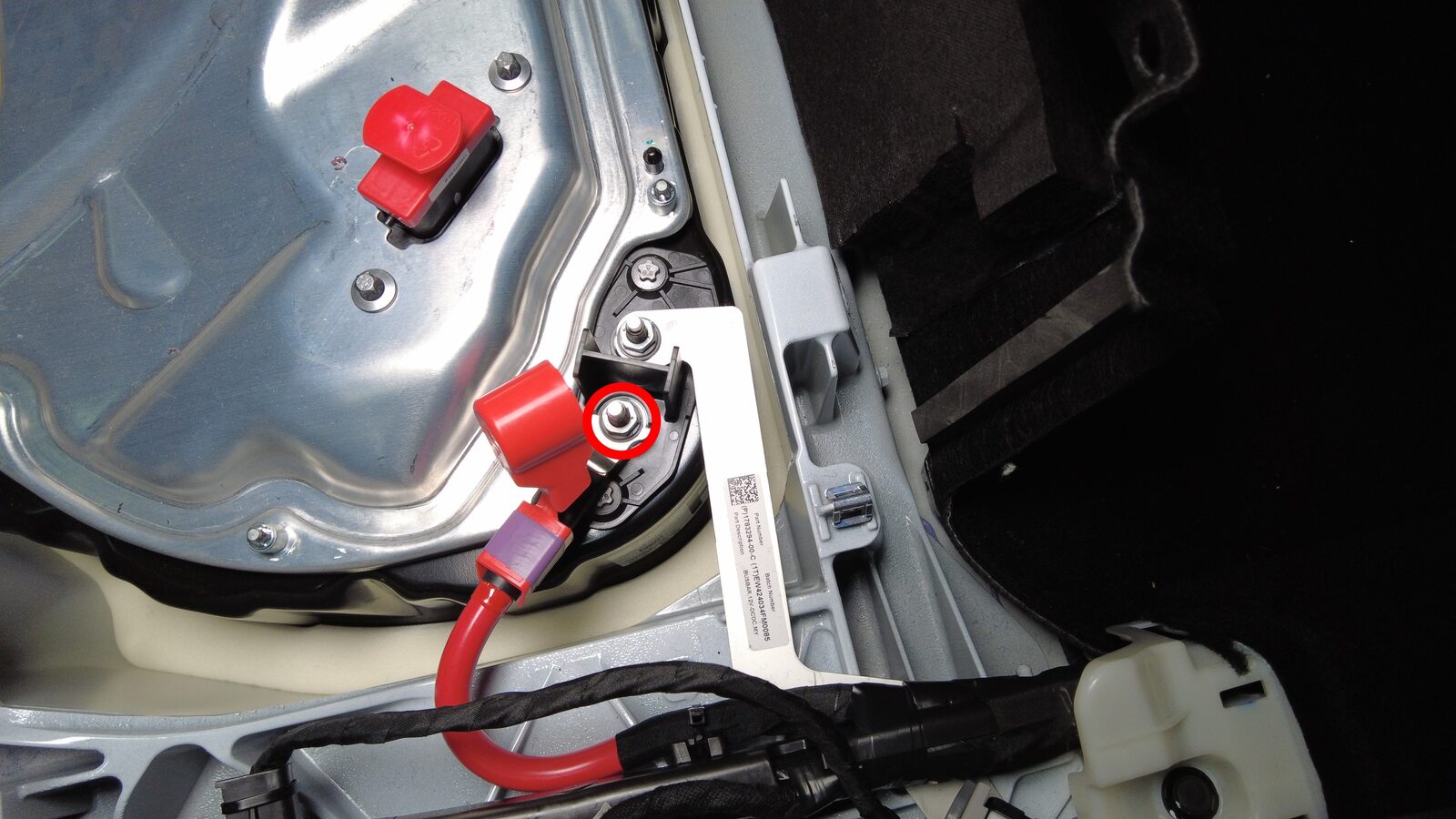

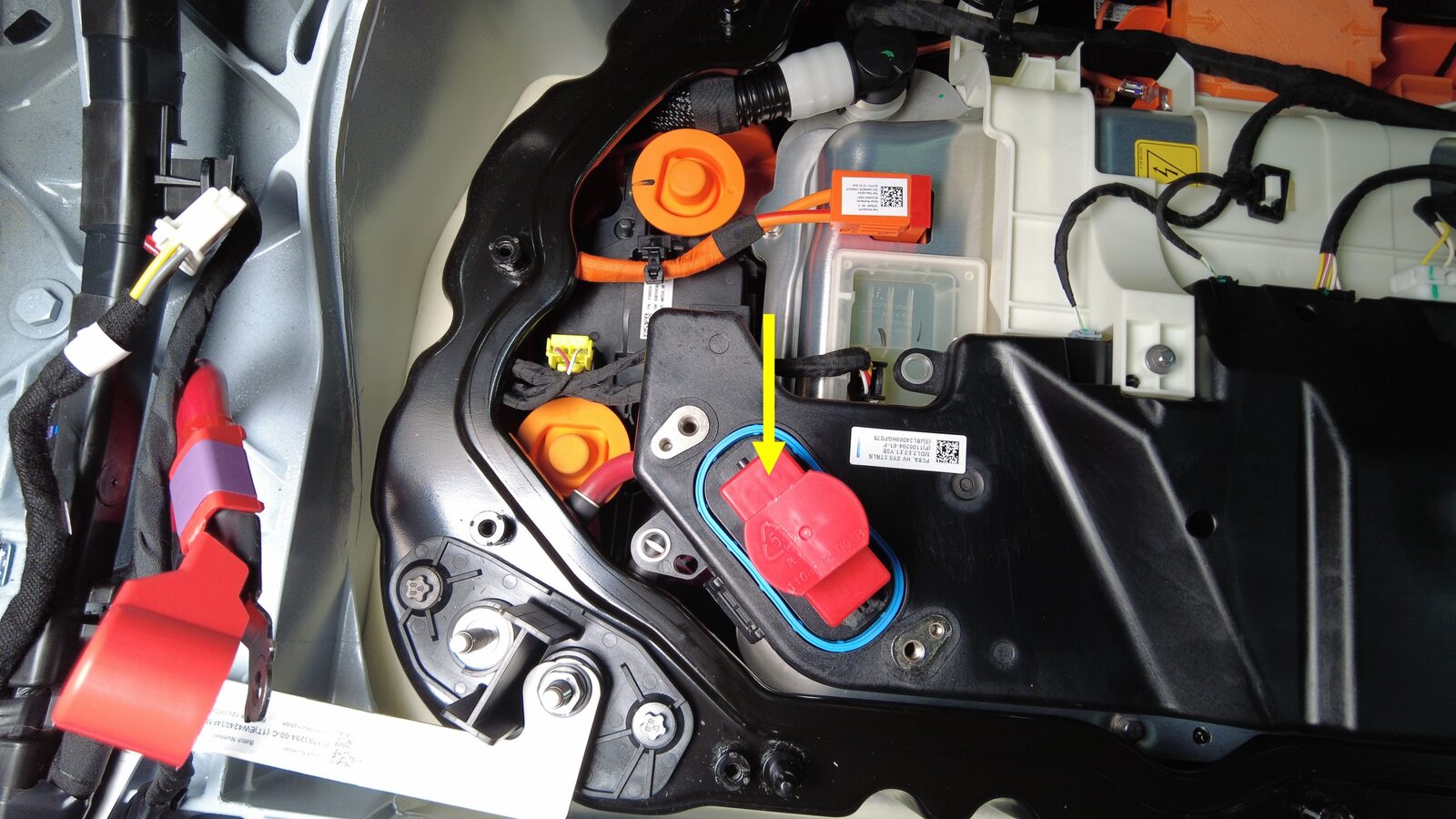

30. Release positive LV output cover from PCS cable
    注

    1x cover





31. Remove PCS cable from LV passthrough output
    注

    1x nut, 13mm, 9 Nm, Discard nut after removal

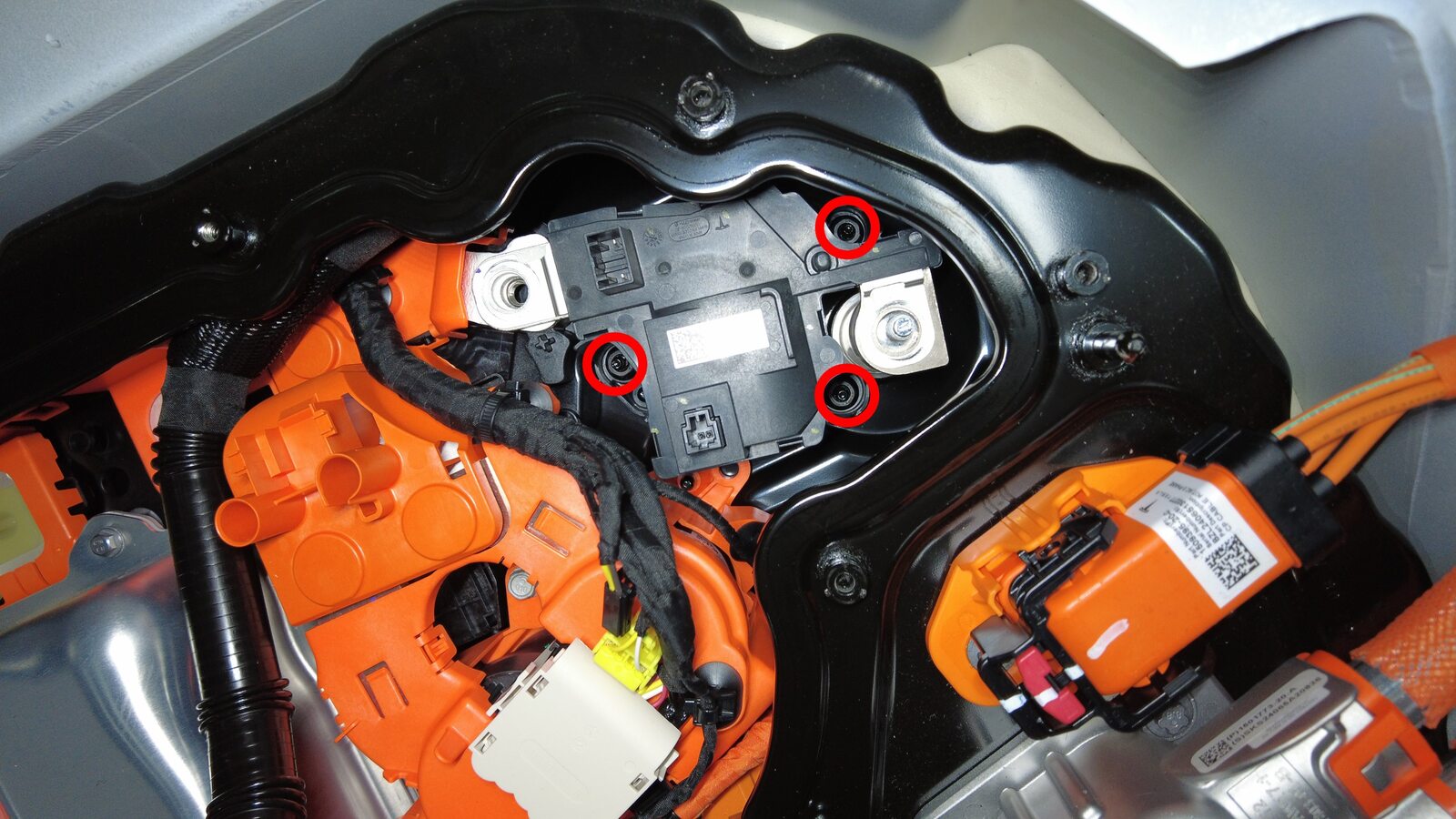

32. Remove bolts securing ancillary bay cover to HVC
    注

    3x bolts, E10, 5 Nm + 30 degrees

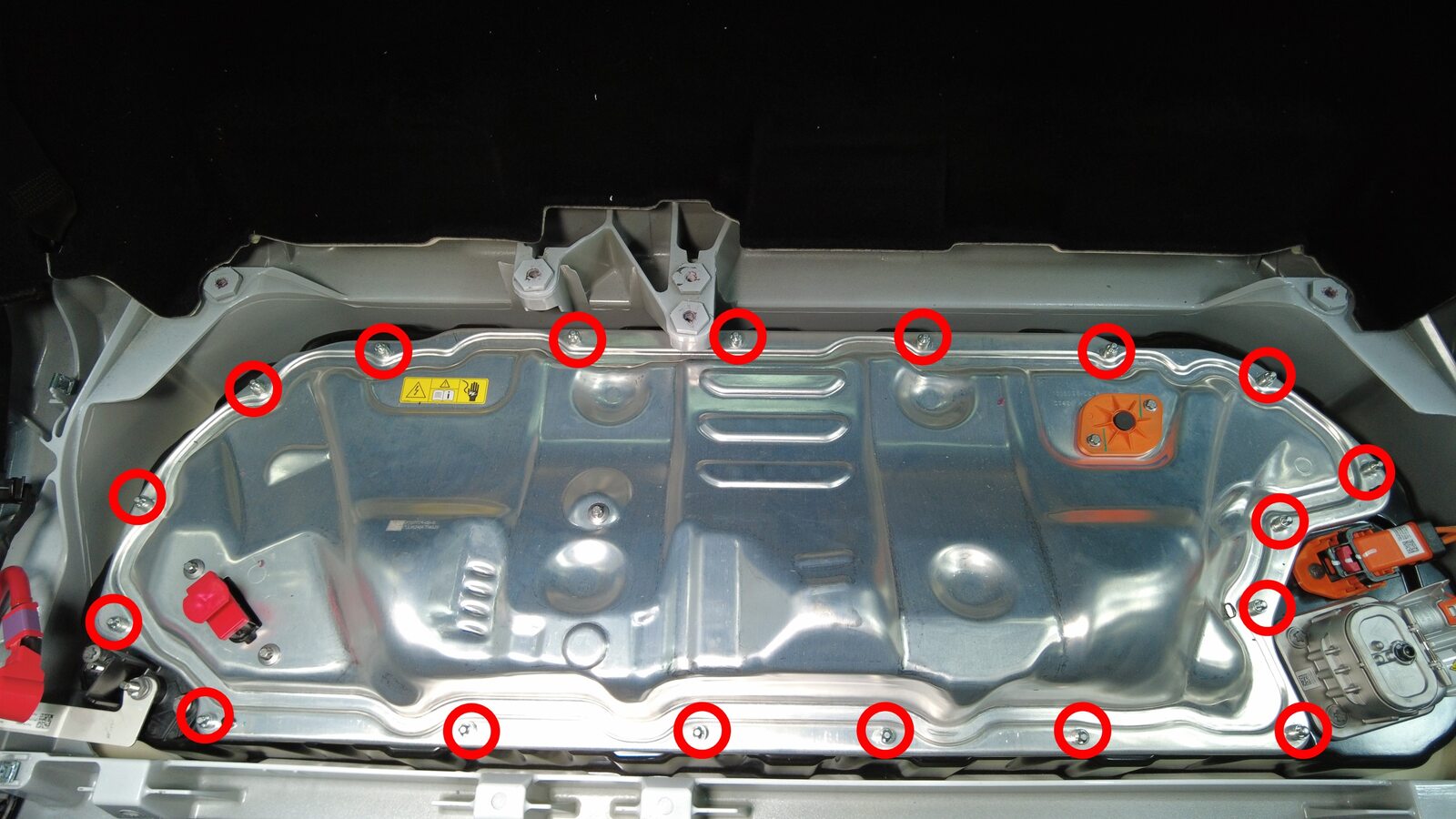

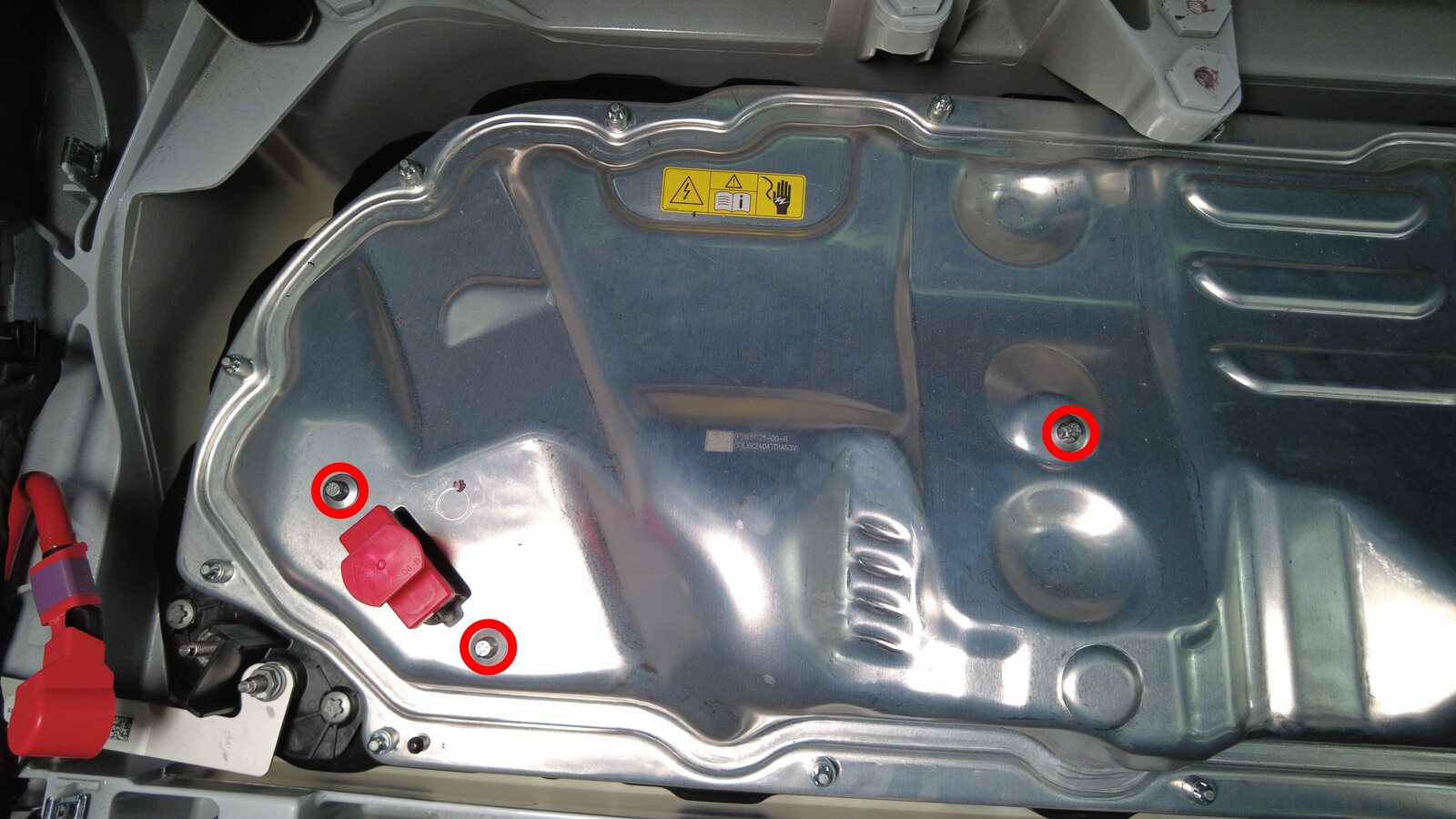

33. Remove bolts securing ancillary bay cover to HV battery
    注

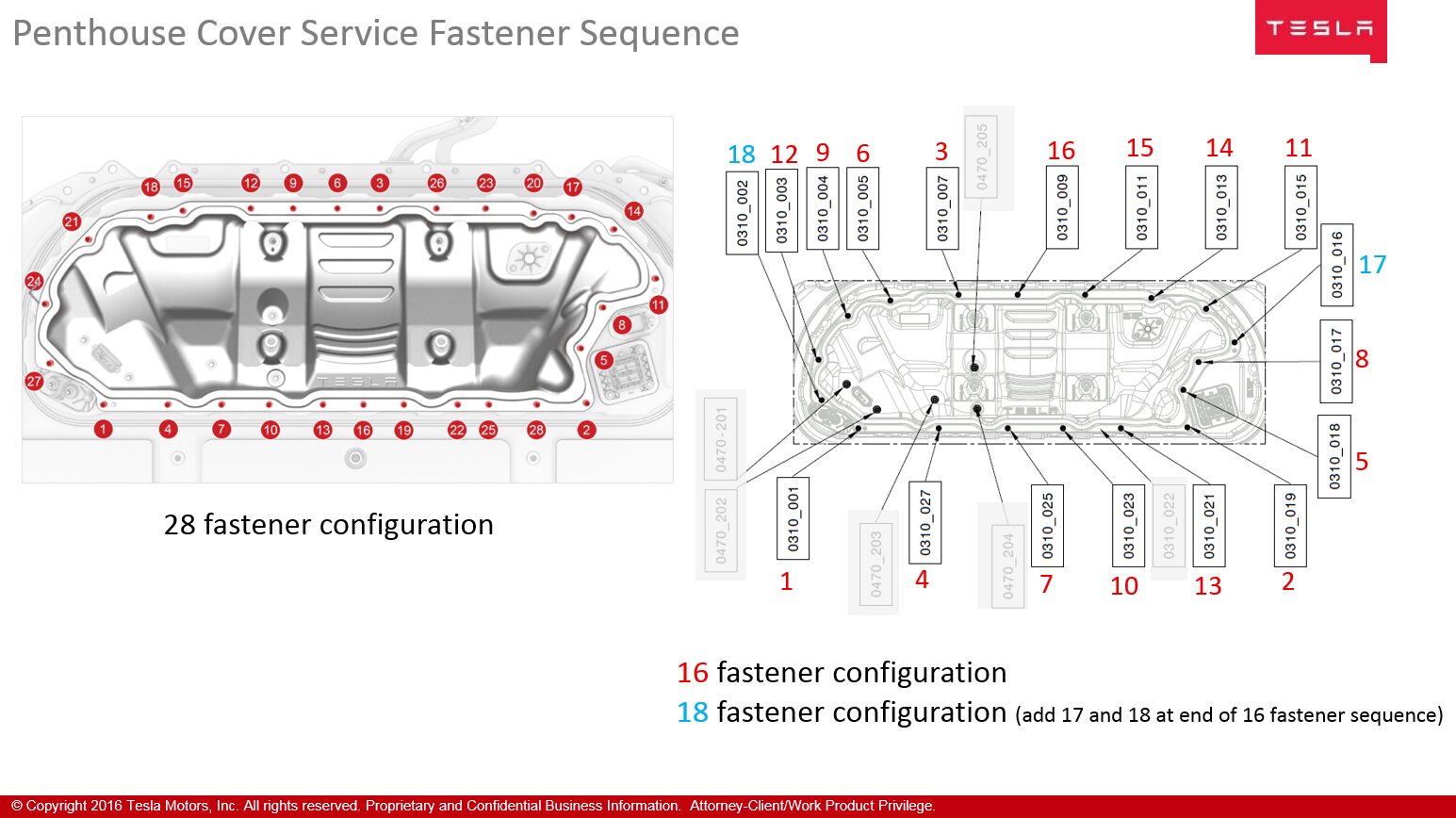

    18x bolts, E10 5-Lobe, 8 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the ancillary bay cover





34. Remove HVC logic cap
    注

    1x logic cap



35. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC



36. Put on HV insulating gloves and leather over gloves

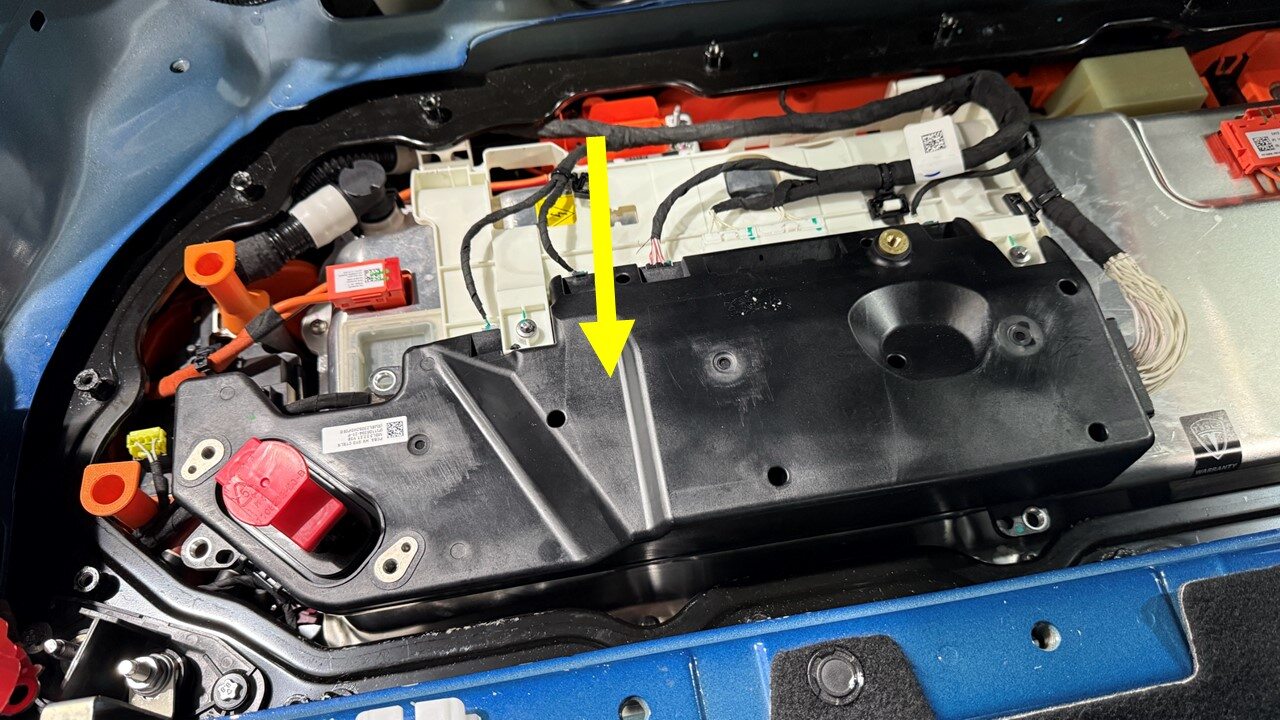

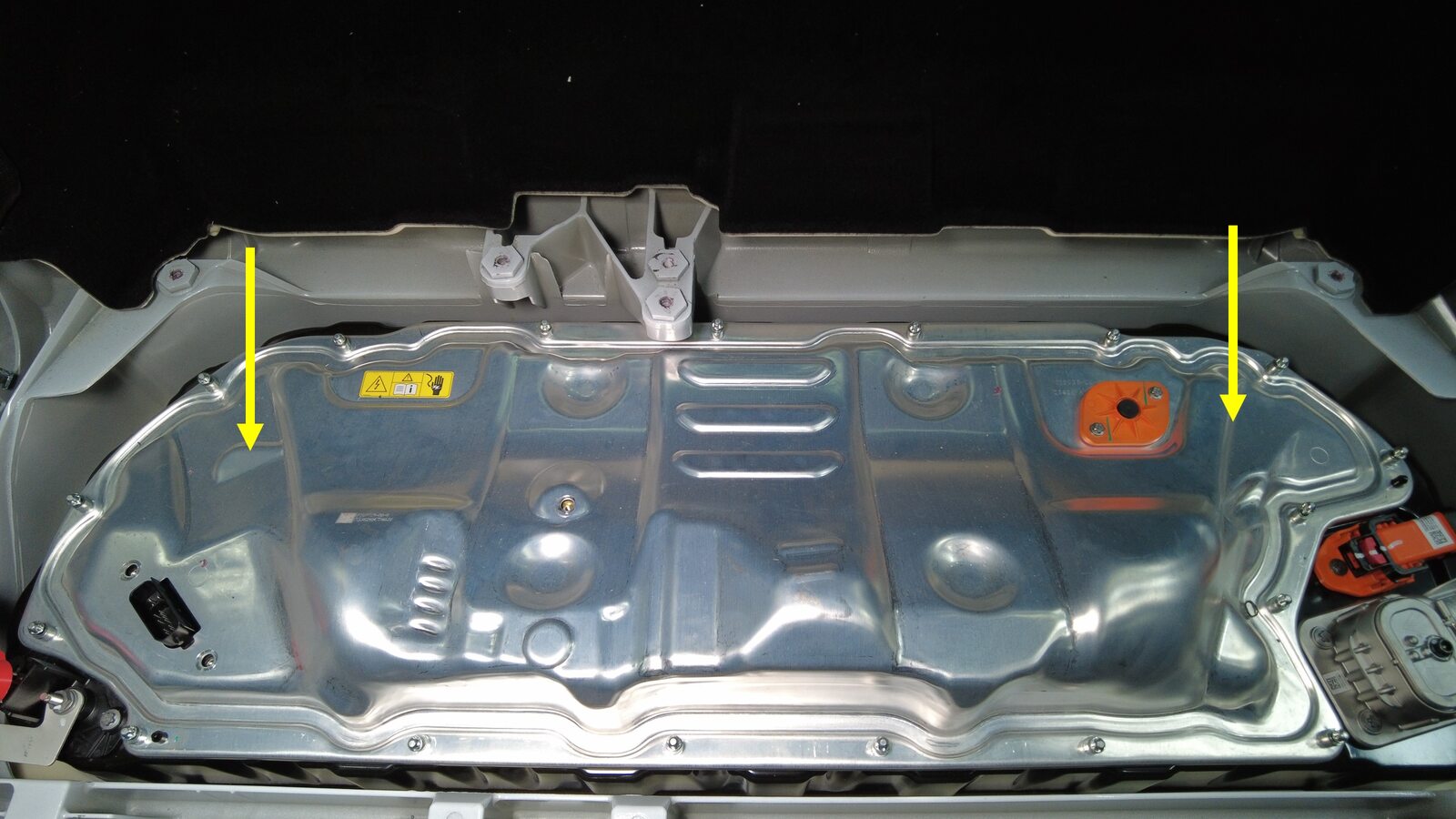

37. Remove ancillary bay cover from HV battery





38. Install HVC logic cap
    注

    1x logic cap



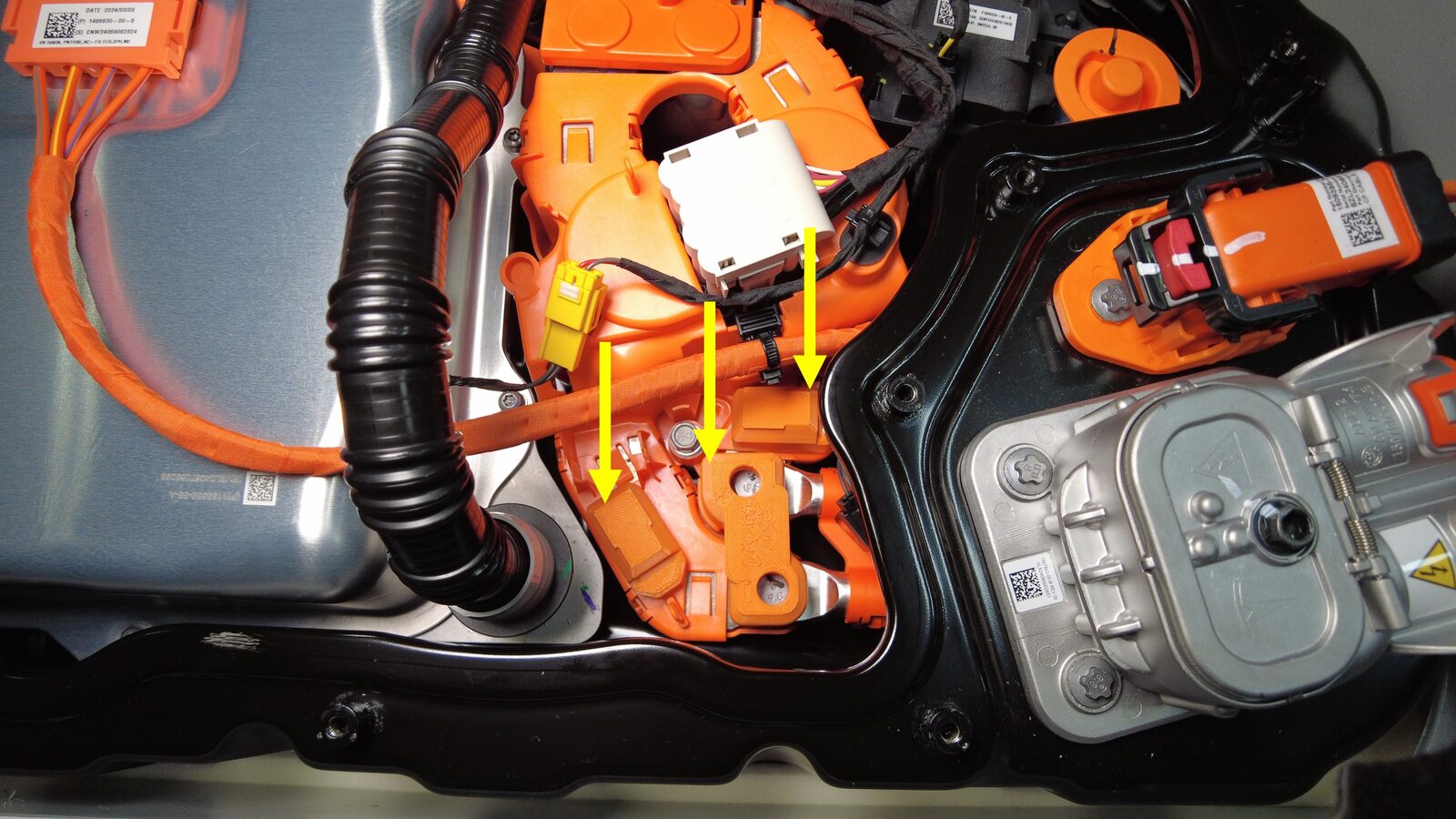

39. Inspect ancillary bay for any missing insulators
    注

    Install service insulator kit before continuing to next step

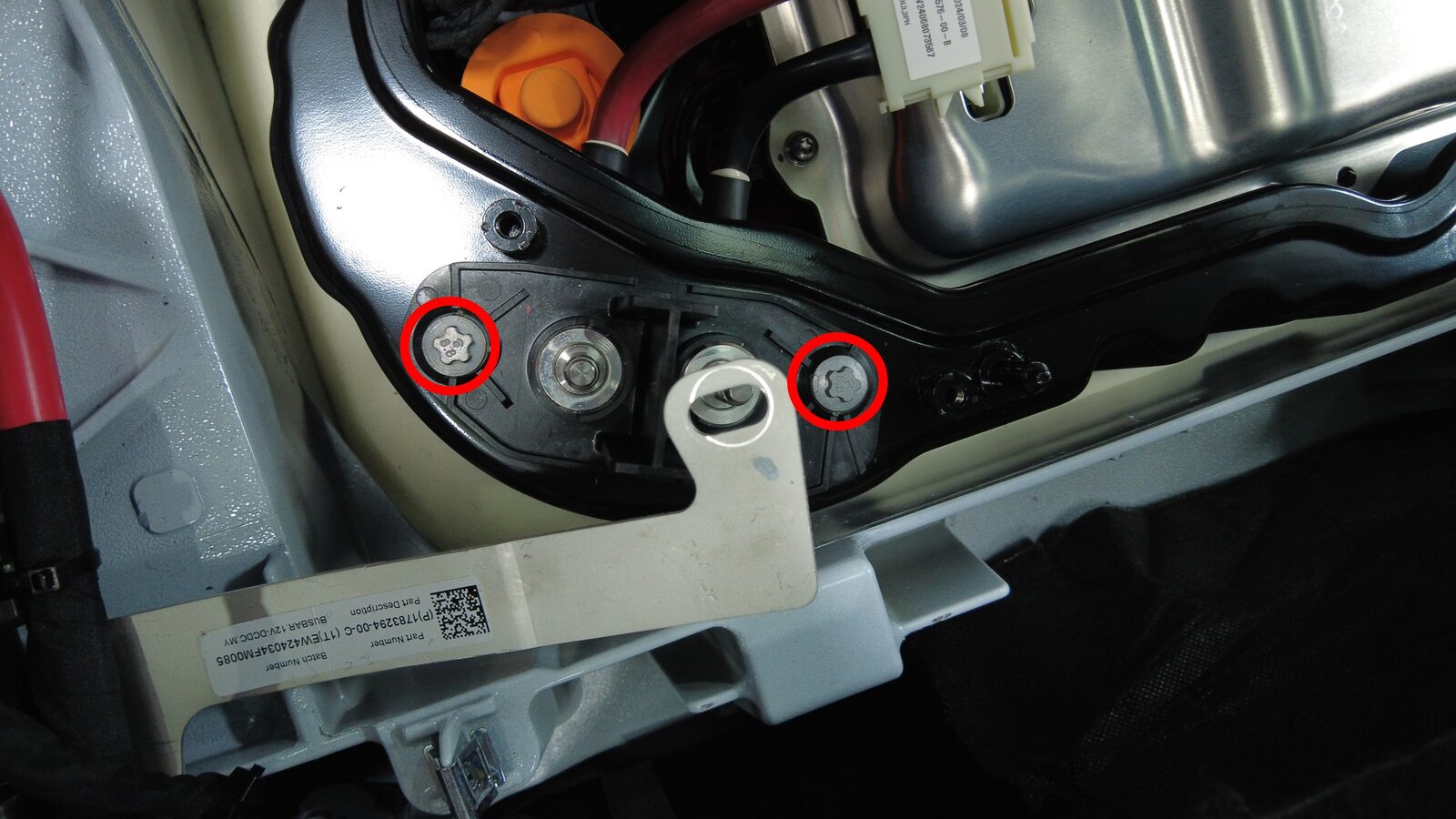

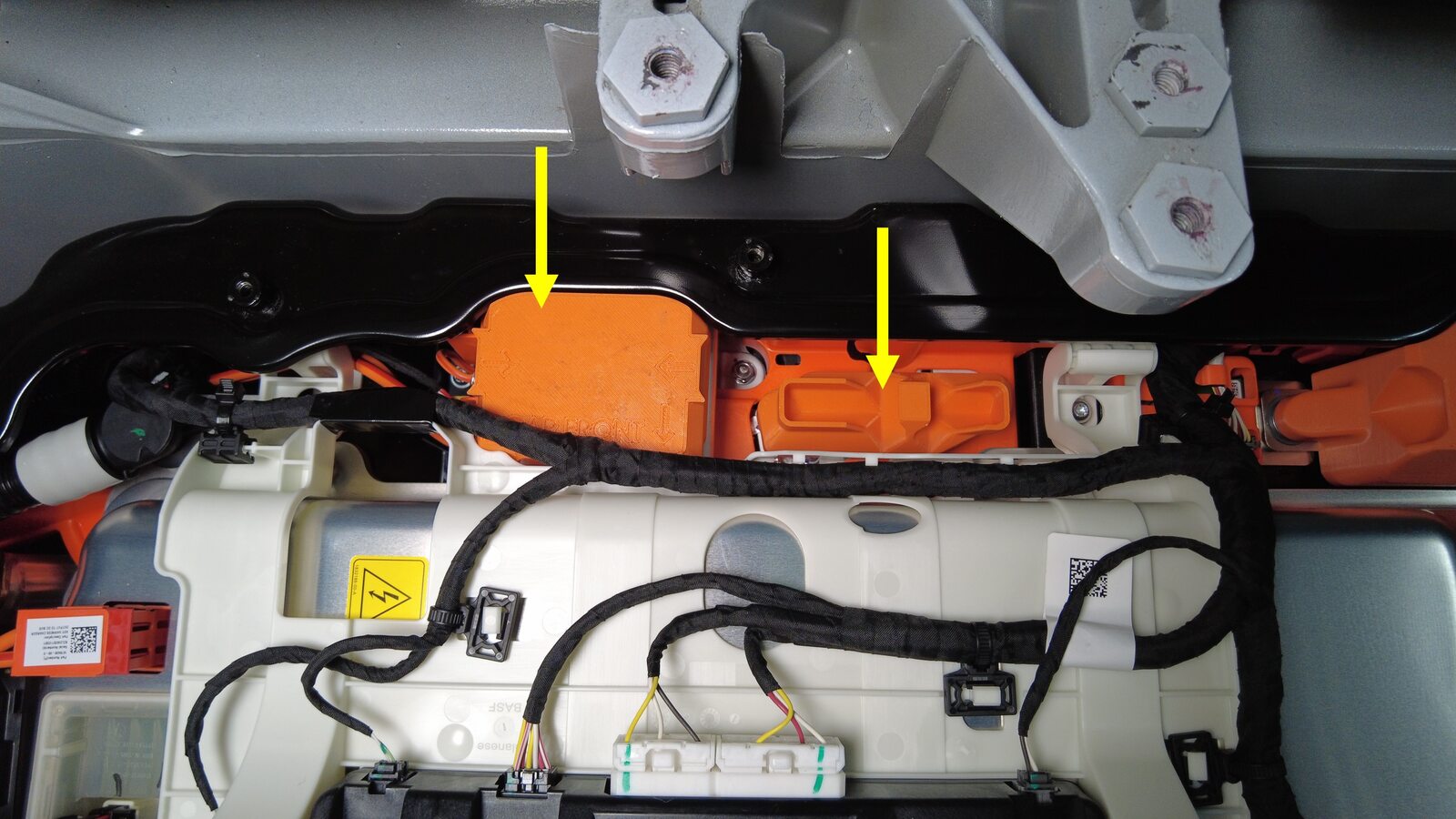

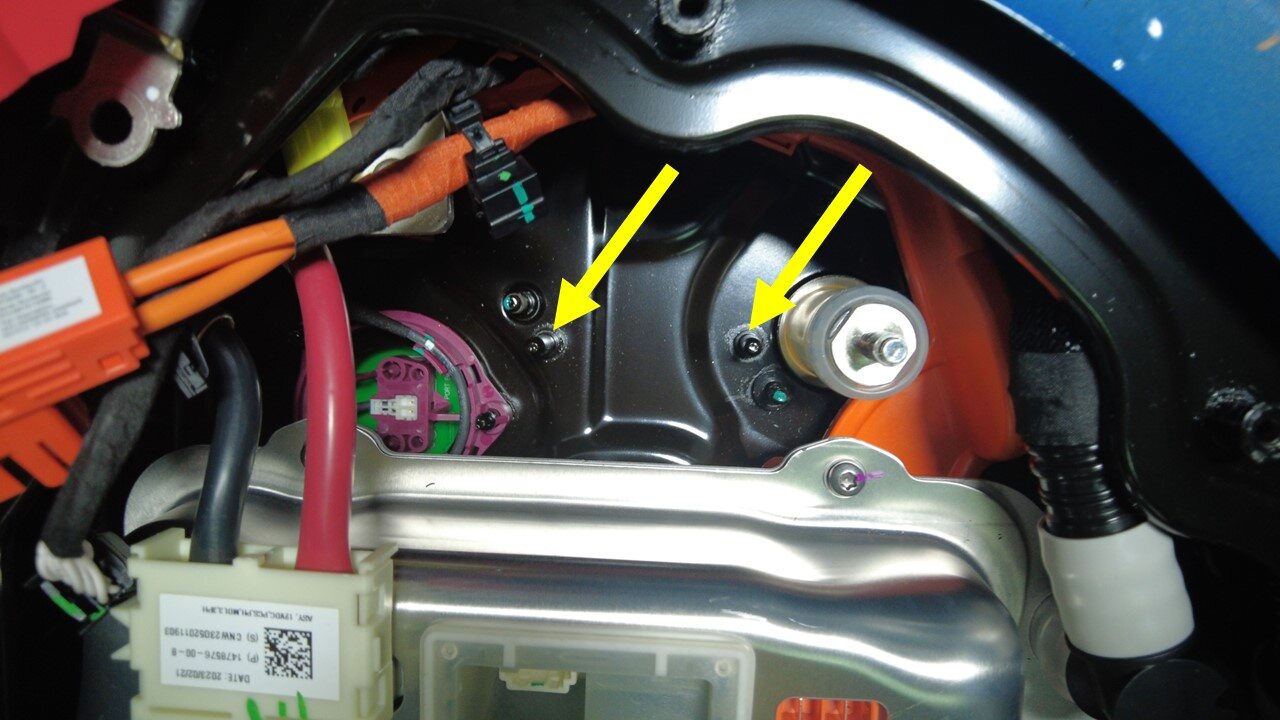

40. Remove bolts securing pyro disconnect to ancillary bay
    注

    1x insulator, 2x patch bolts, 13mm, 9 Nm, Discard after removal

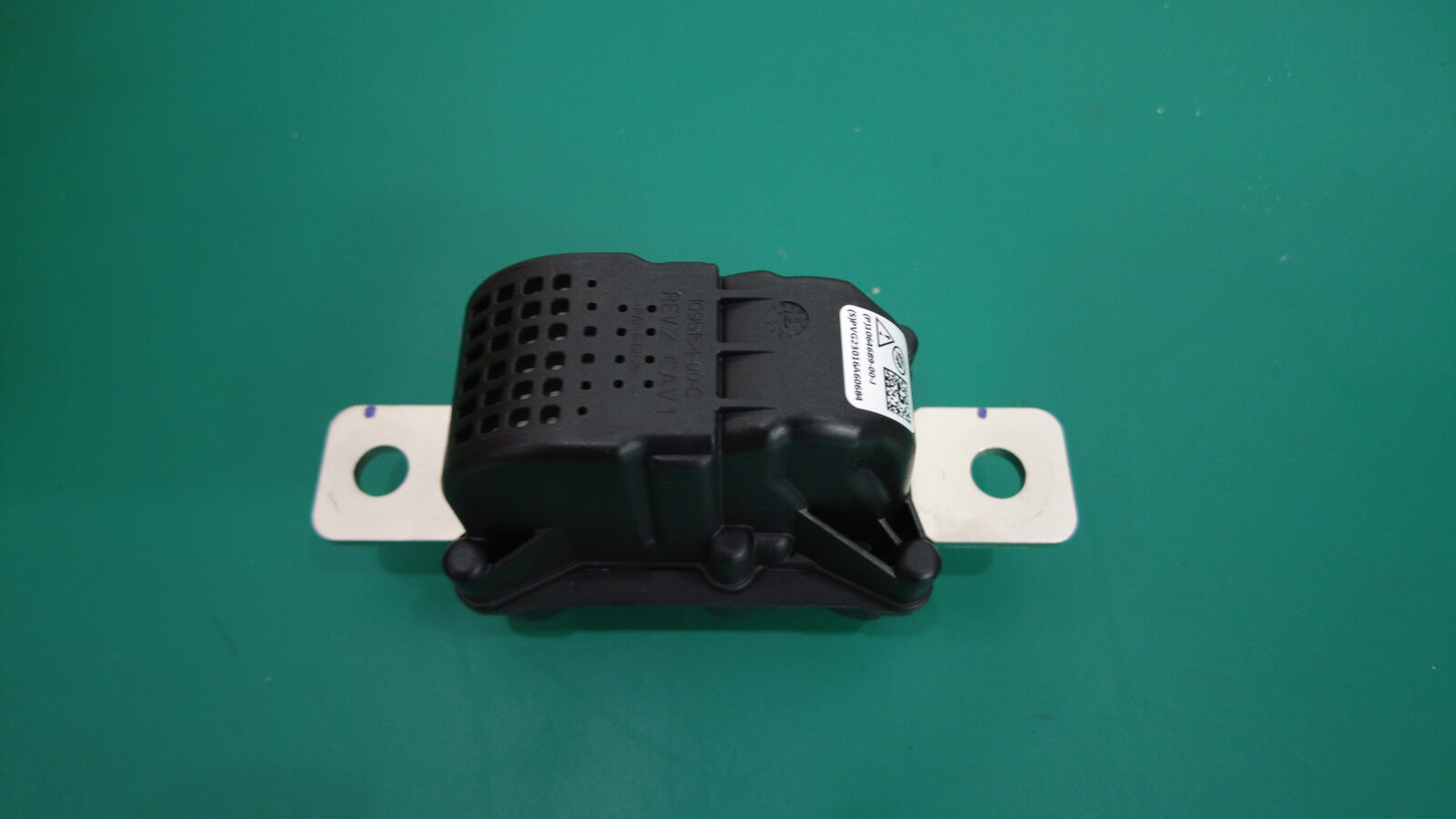

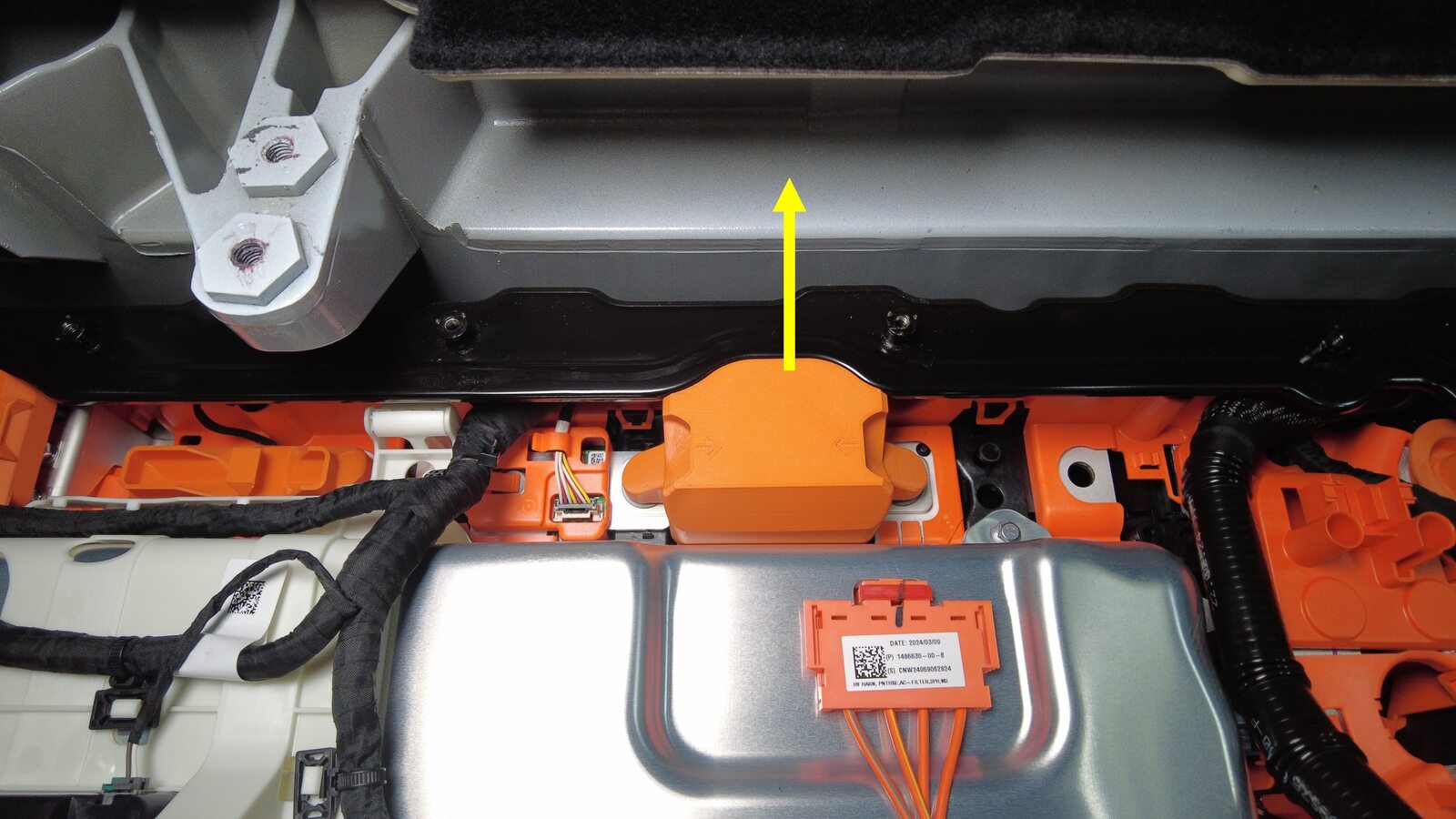

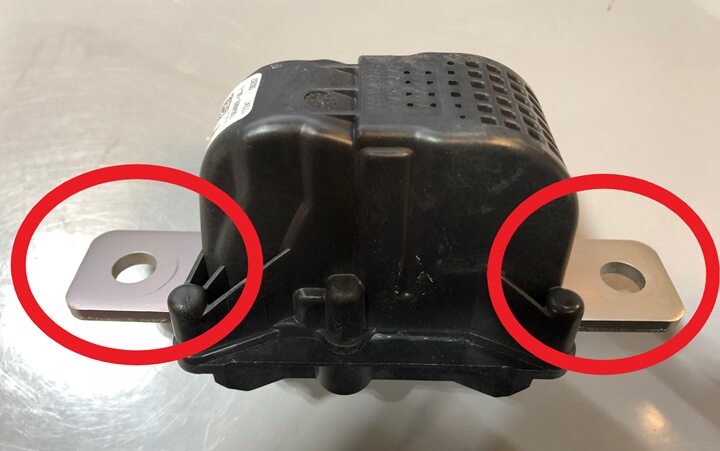

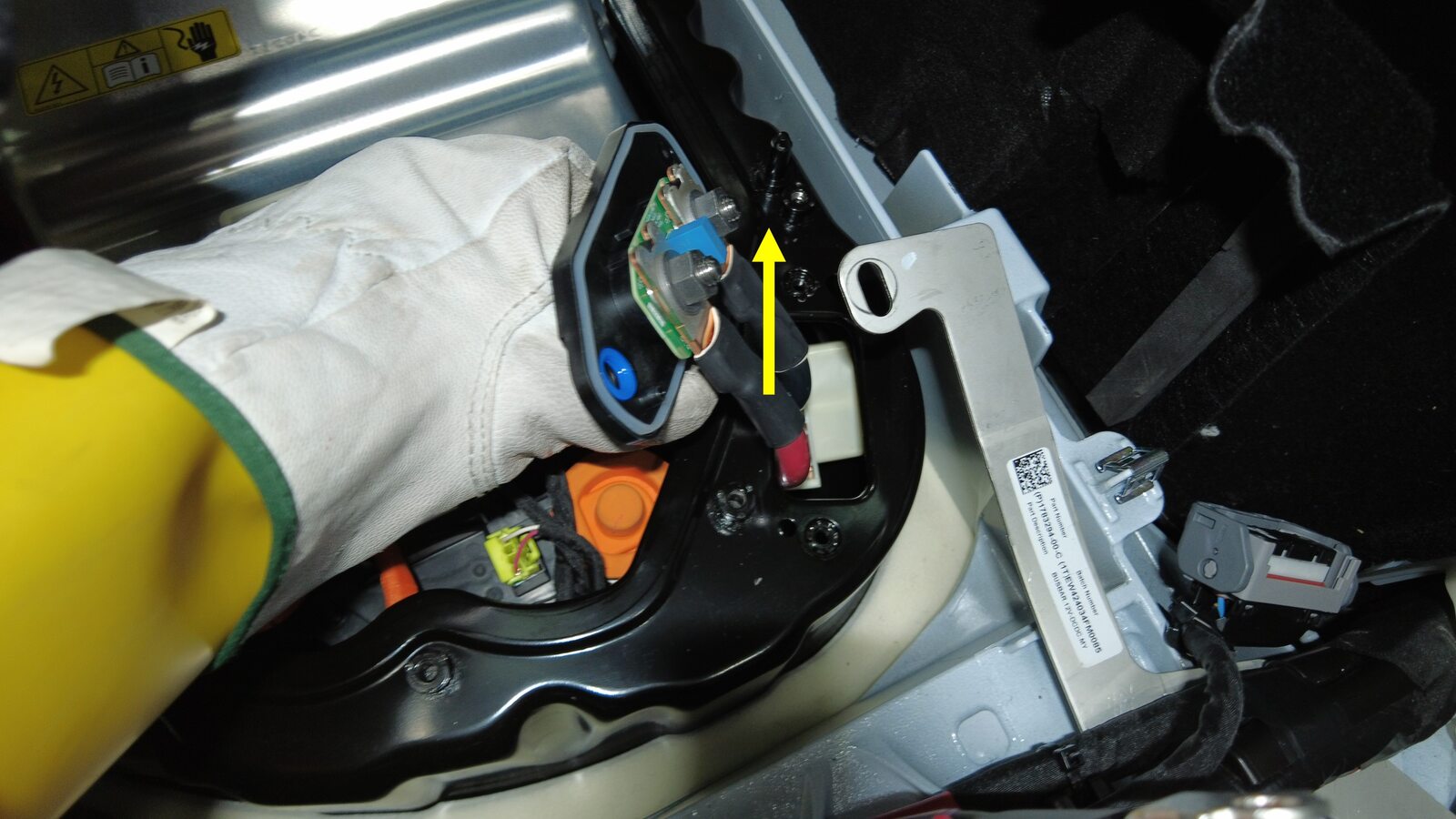

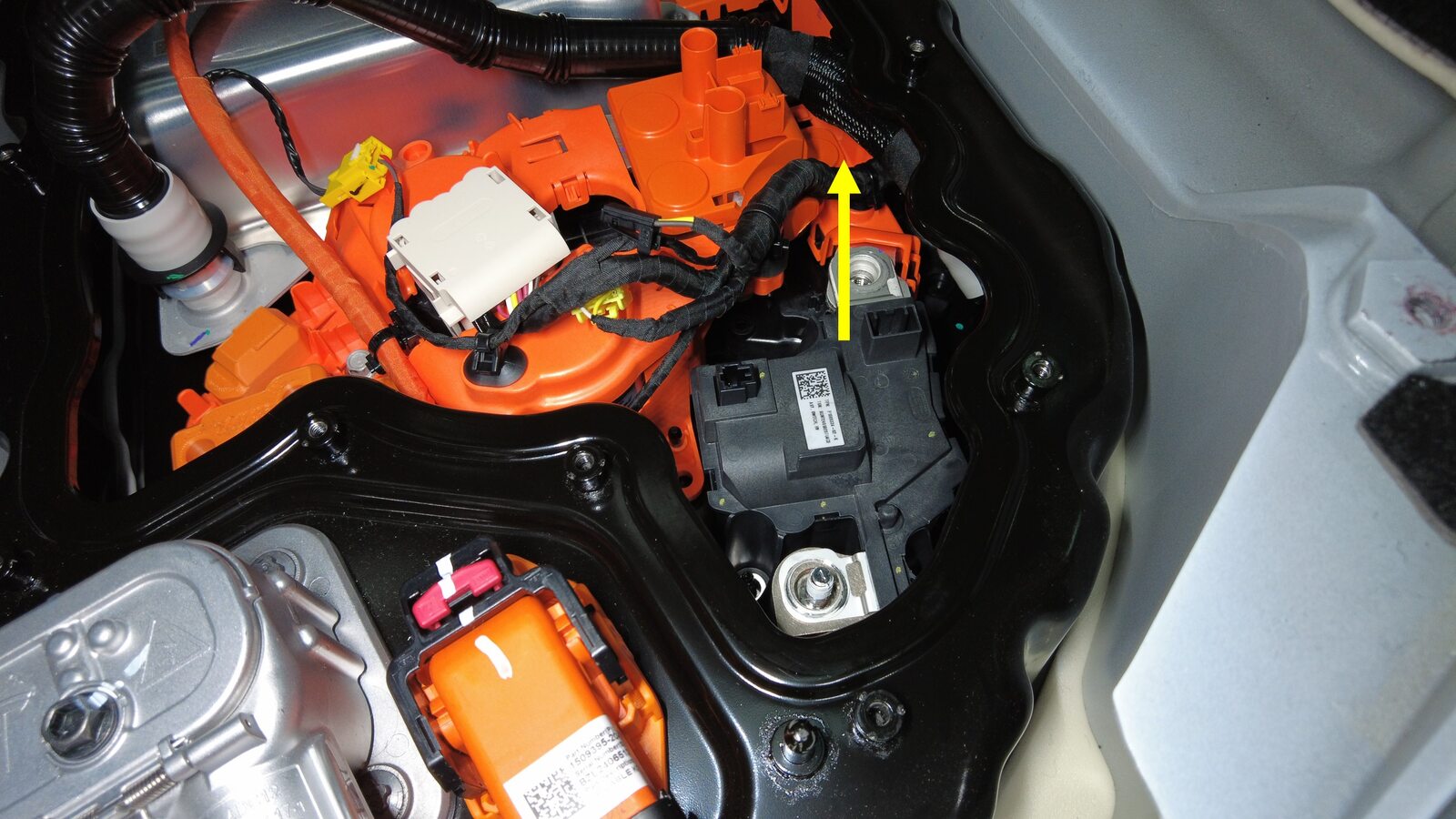

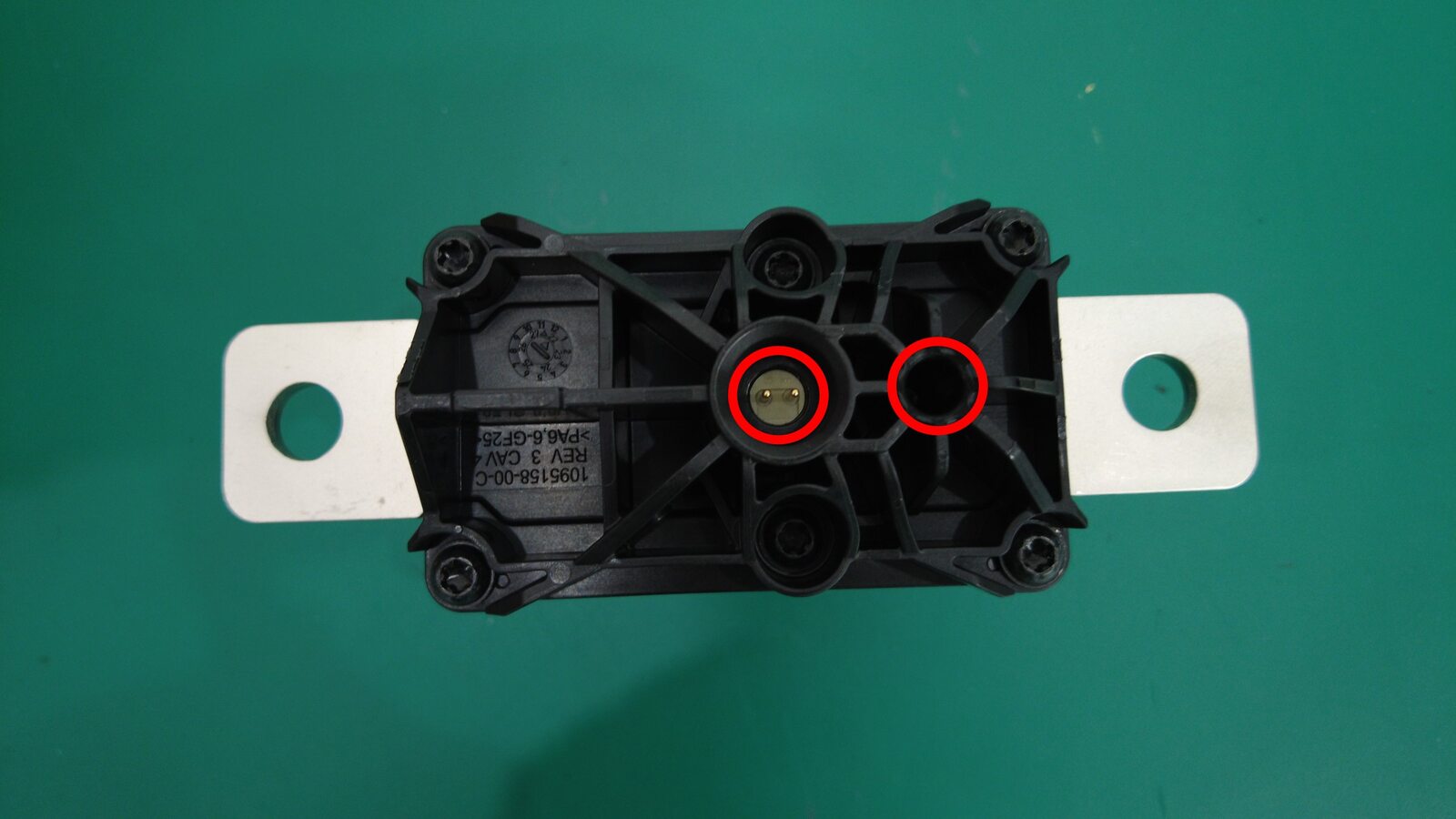

41. Remove pyro disconnect from ancillary bay
    注

    1x connector, From the bottom, Lift pyro disconnect straight up and out of the ancillary bay





42. Install pyro disconnect dummy



43. Lift HV Controller up
    注

    Hold HVC assembly and tray in upward positition with rubber bungee



44. Disconnect PCS to DC bus HV connector
    注

    1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward



45. Disconnect PCS logic connector from PCS
    注

    1x connector



46. Disconnect PCS LV connector from PCS
    注

    1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward



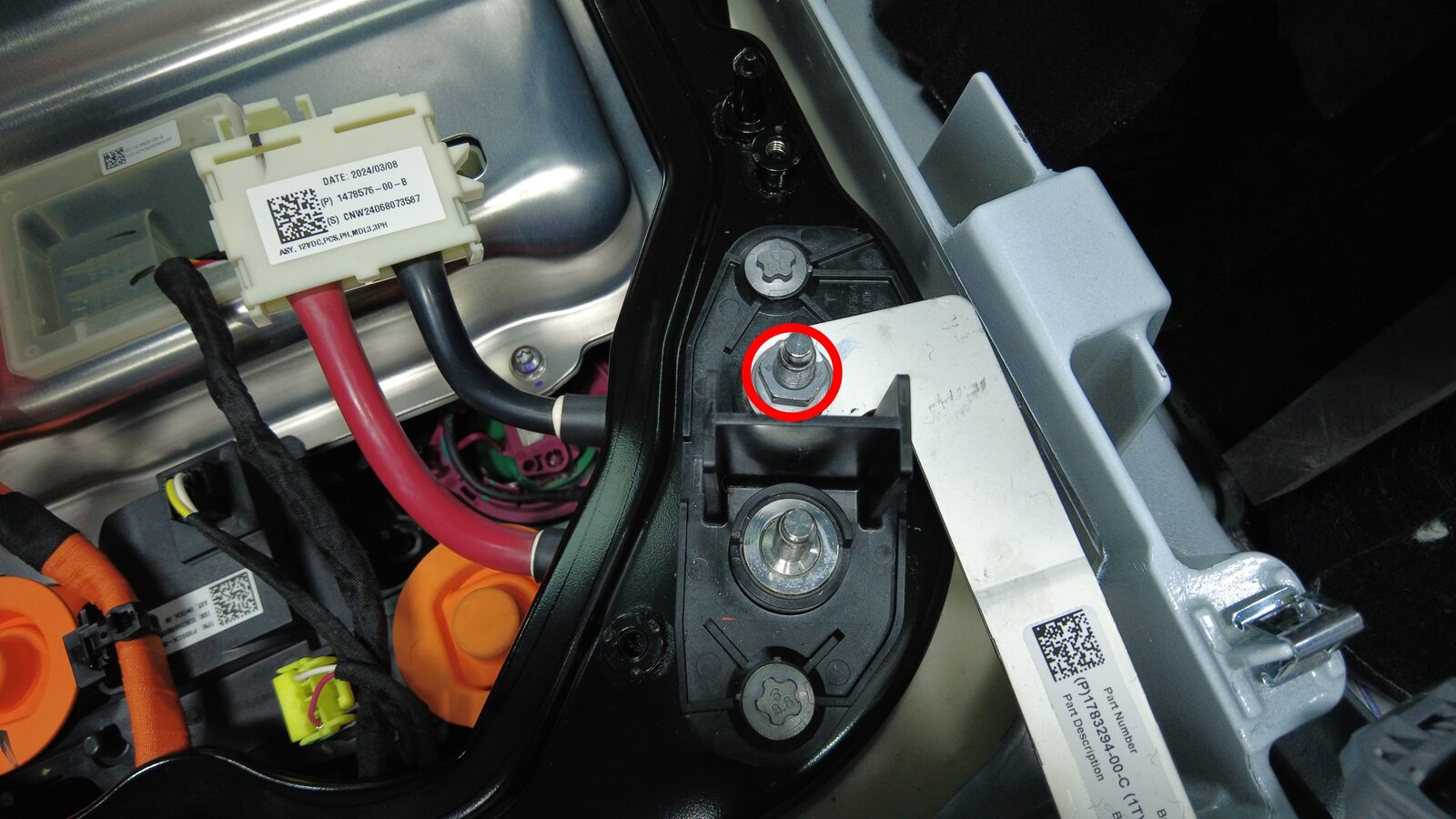

47. Remove nut securing DCDC ground busbar to HV battery
    注

    1x nut, 13mm, 9 Nm, Discard nut after removal



48. Gently lift the DCDC ground busbar upwards



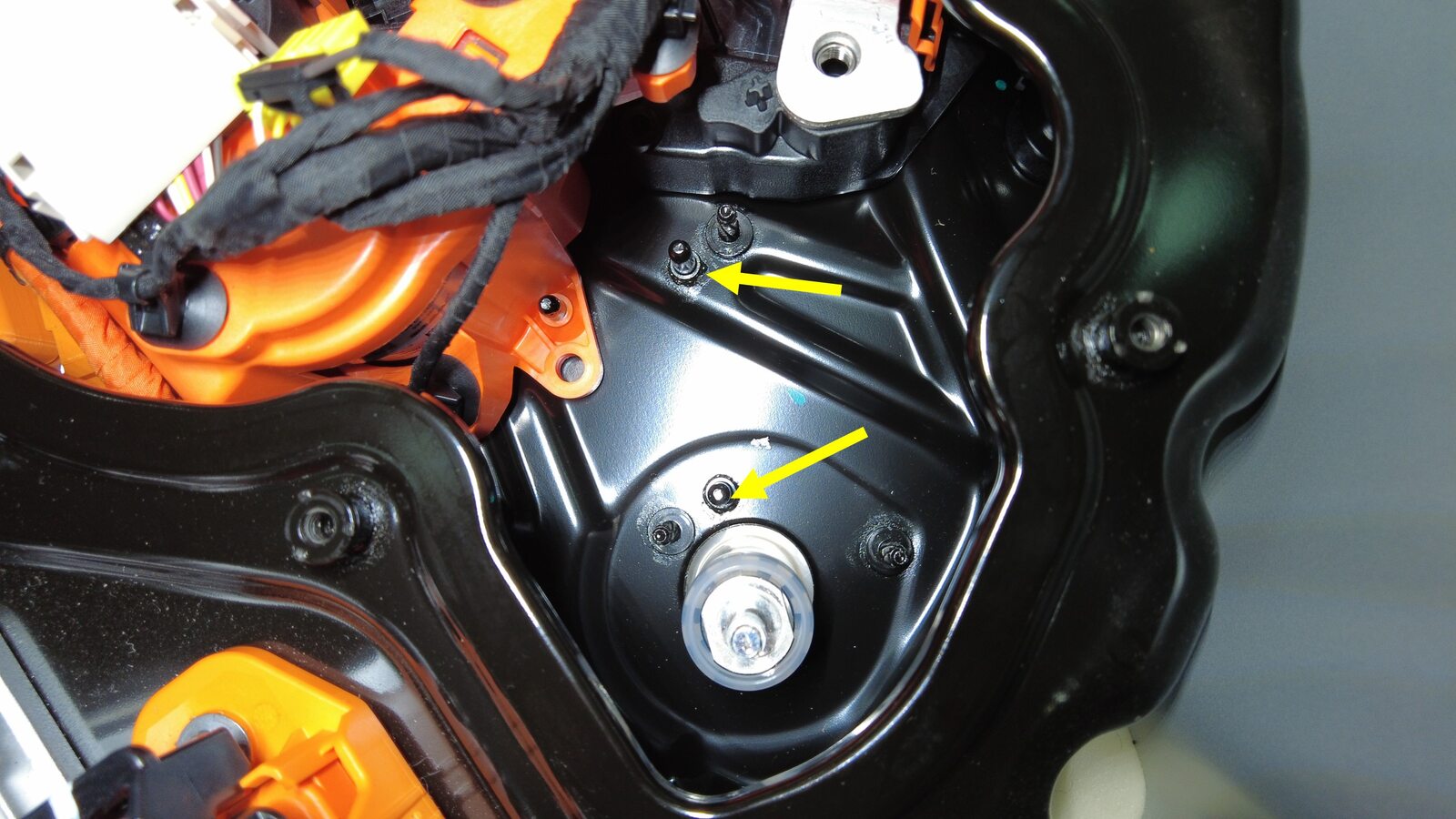

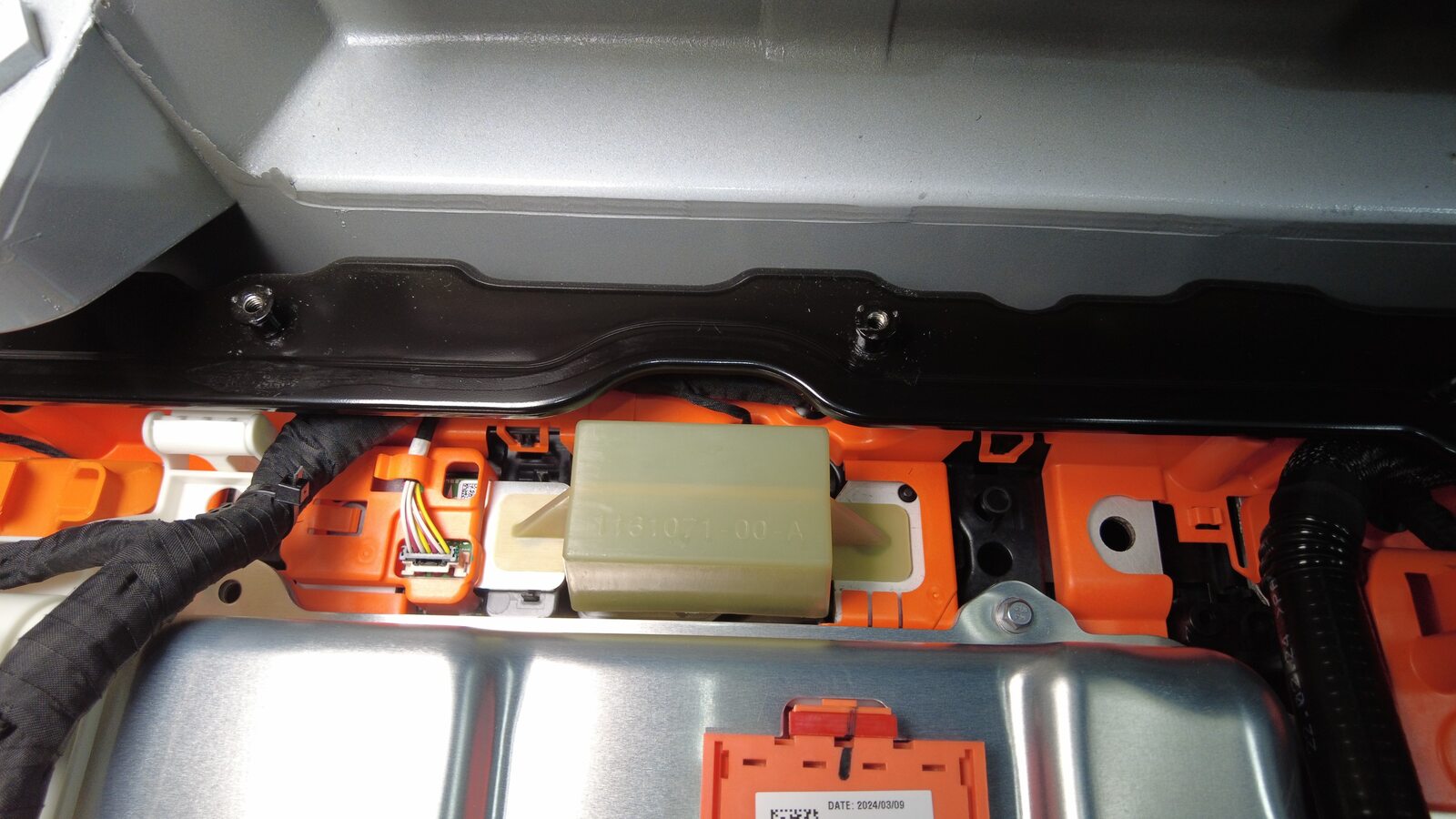

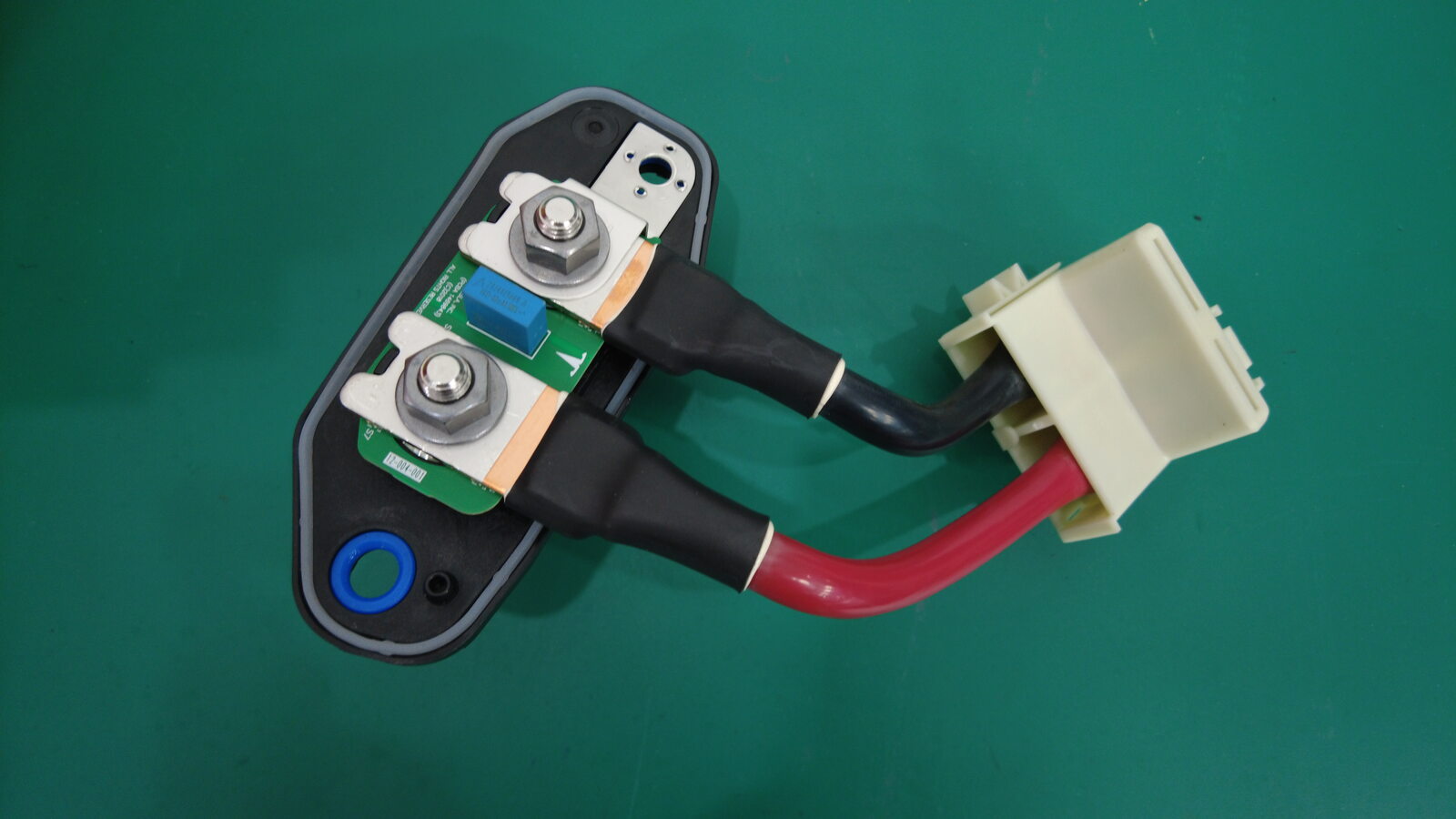

49. Remove bolts securing DCDC pass through to ancillary bay
    注

    2x bolts, E10 5-Lobe, 10 Nm



50. Remove DCDC pass through from ancillary bay
    注

    Attention: To avoid metal damage to the cable insulation layer





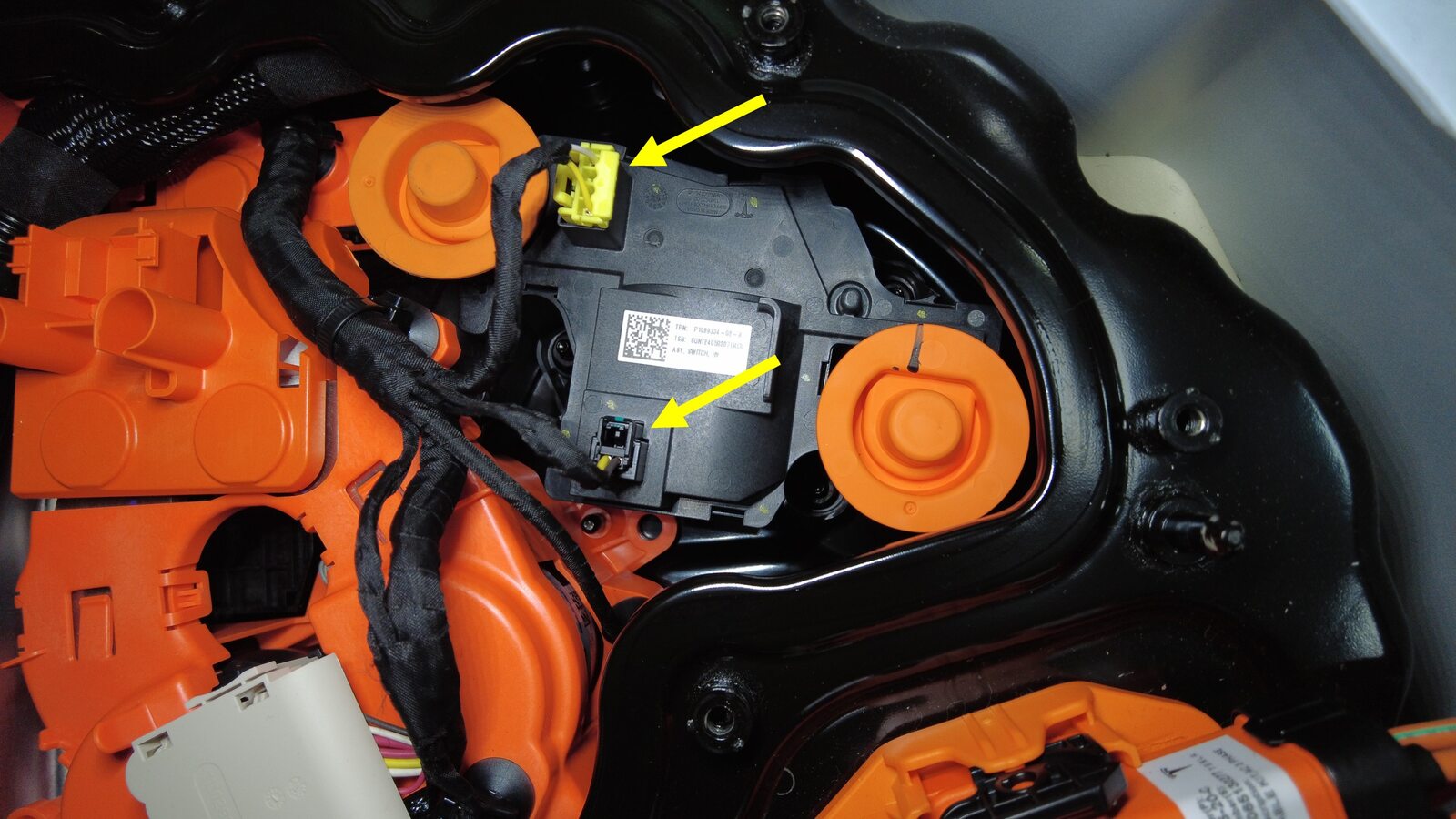

51. Disconnect ancillary bay harness connectors from positive pack contactor
    注

    2x connectors



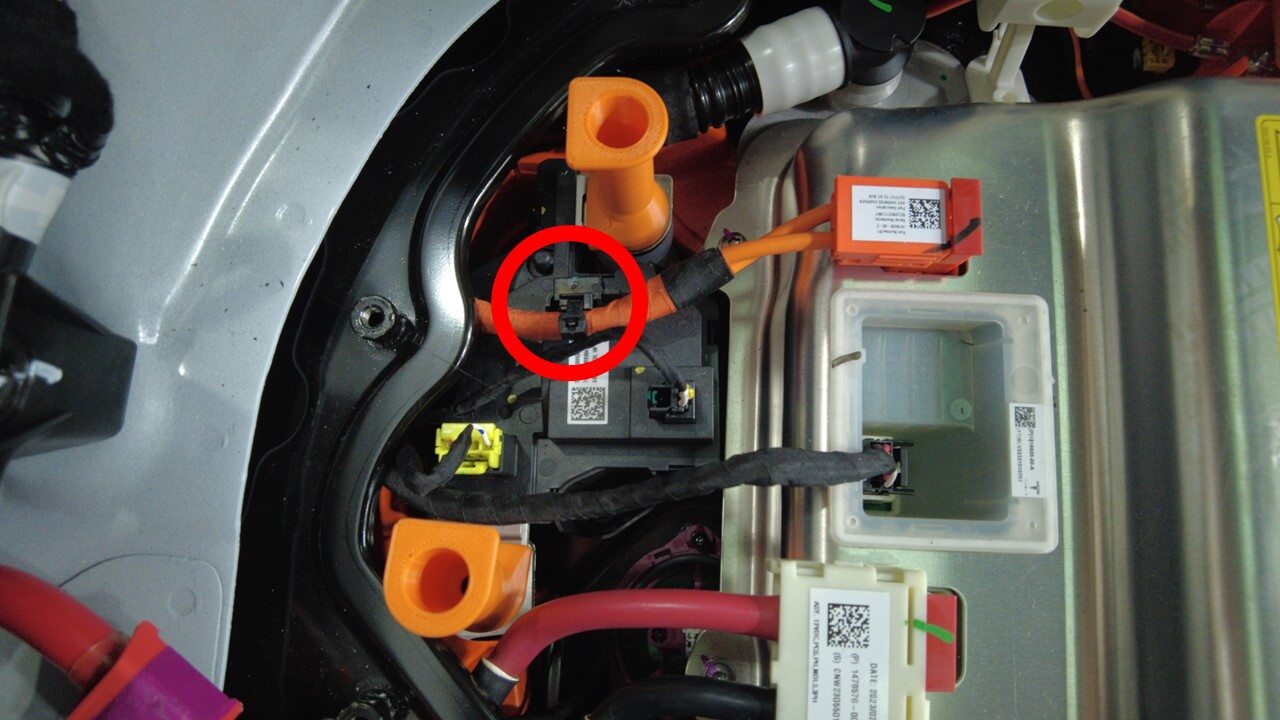

52. Remove HV PCS to DC Bus harness clip from positive pack contactor
    注

    1x clip



53. Remove HV joint insulators from positive HV switch
    注

    2x insulators



54. Remove bolt securing positive pack contactor to positive busbar
    注

    1x patch bolt, 13mm, 9 Nm, Discard after removal

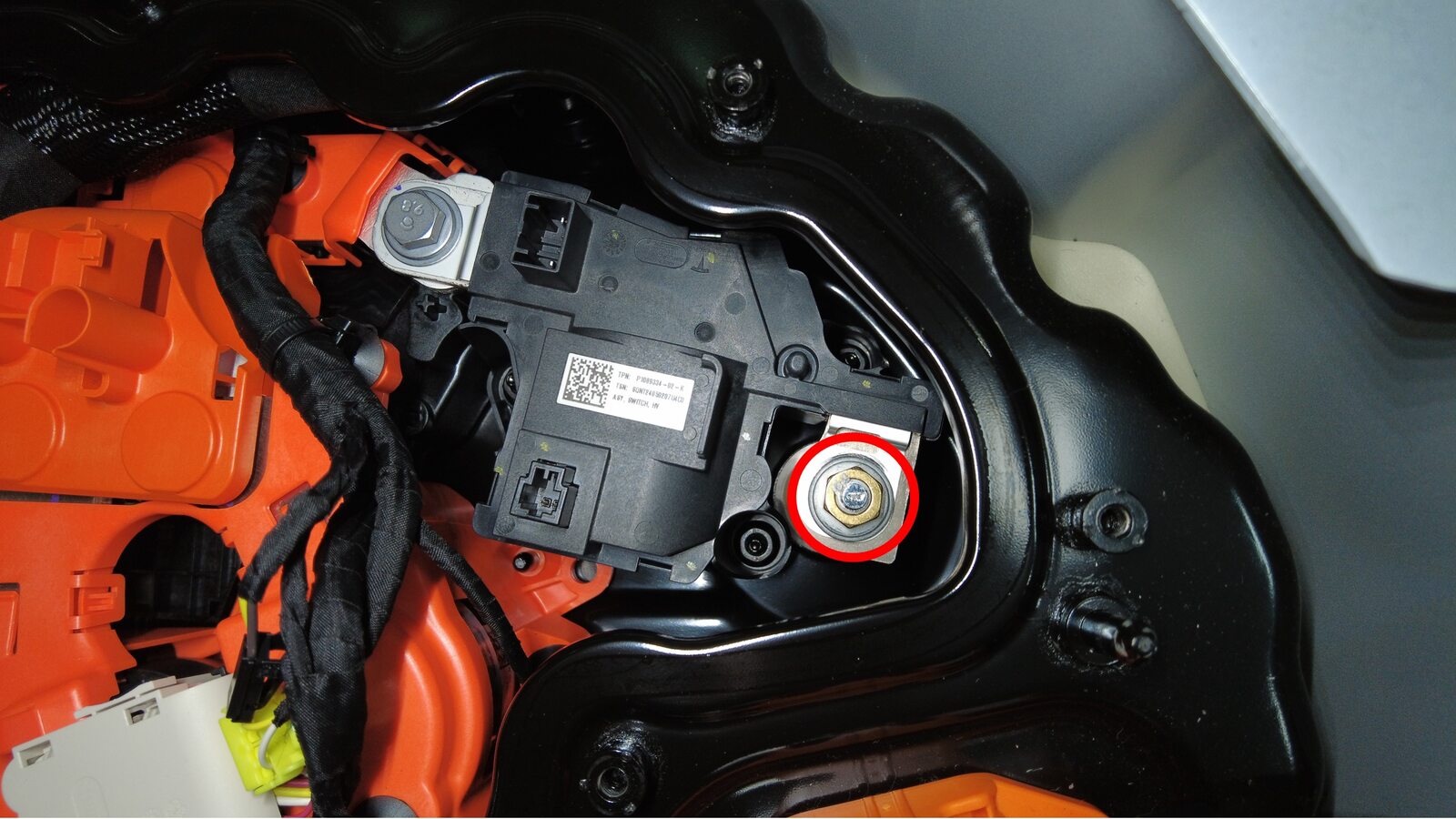

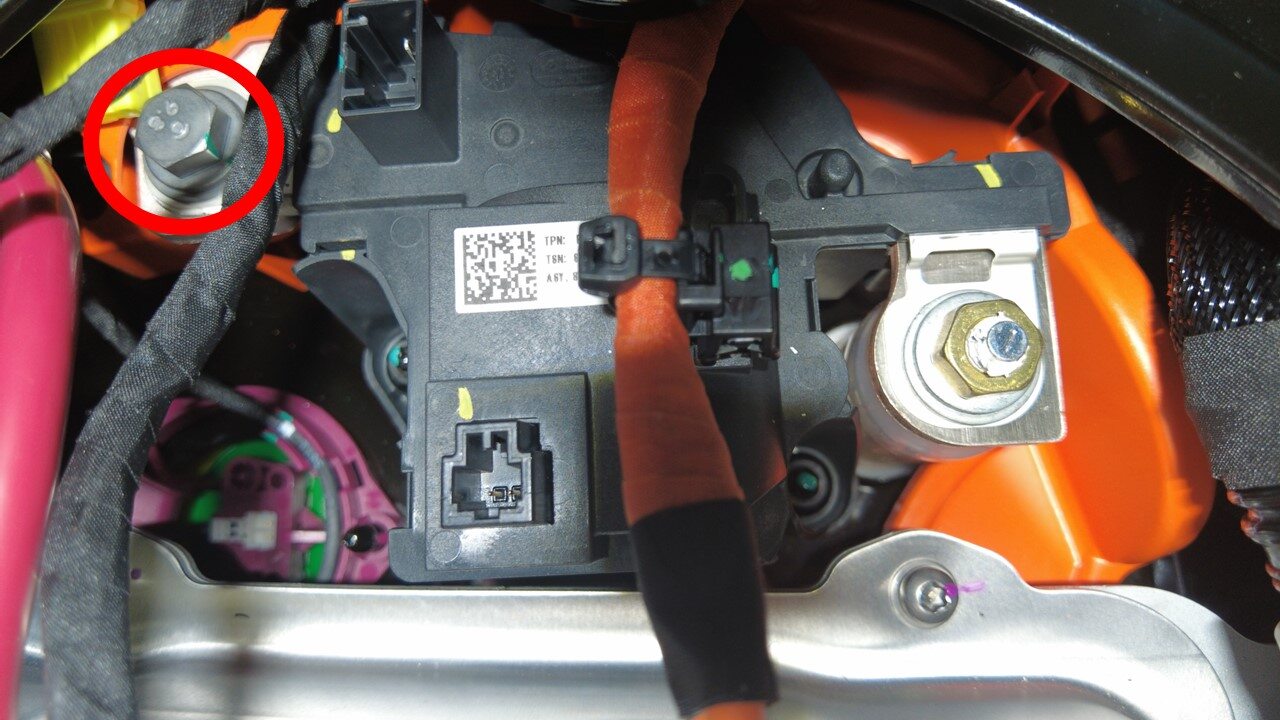

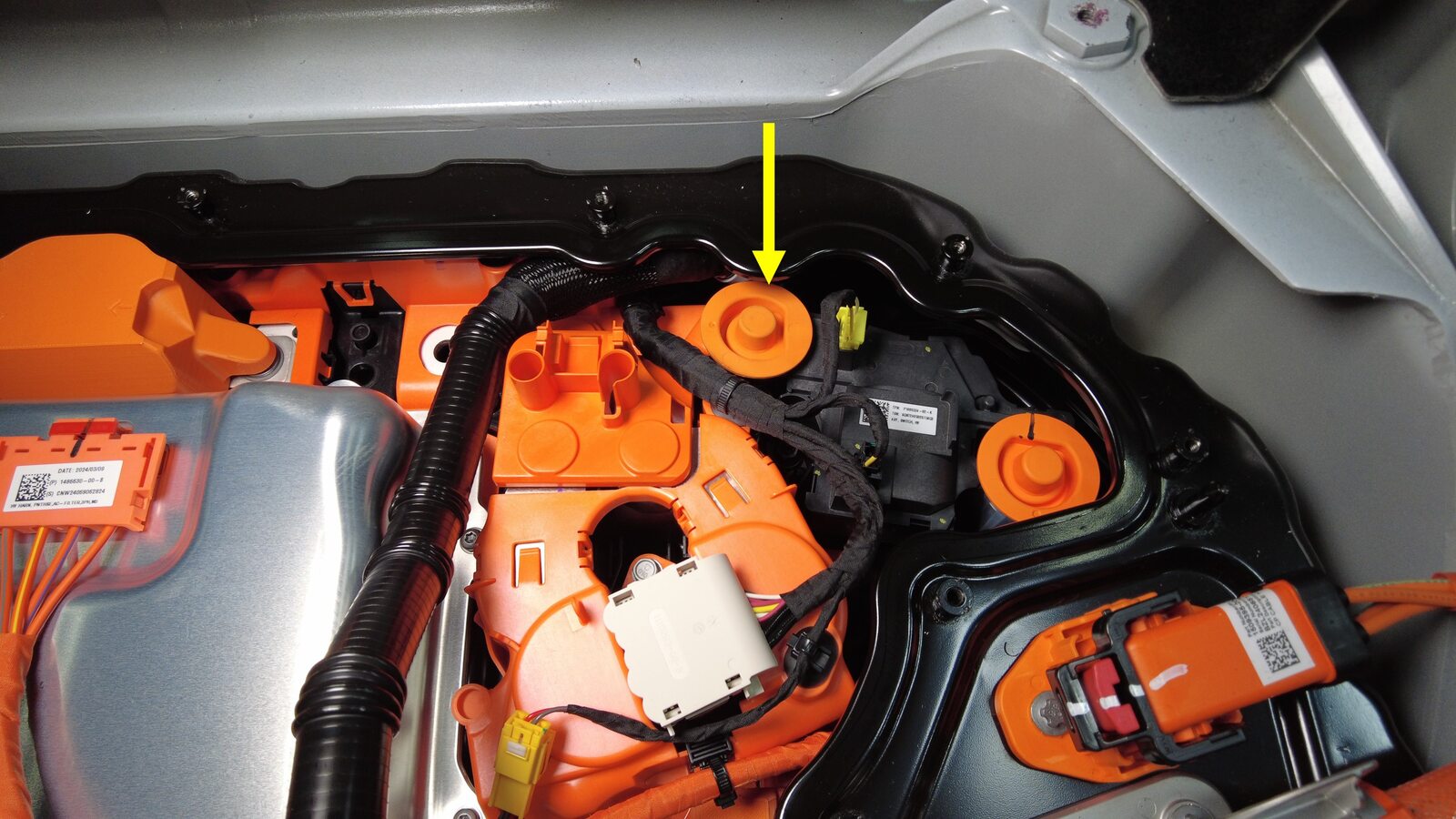

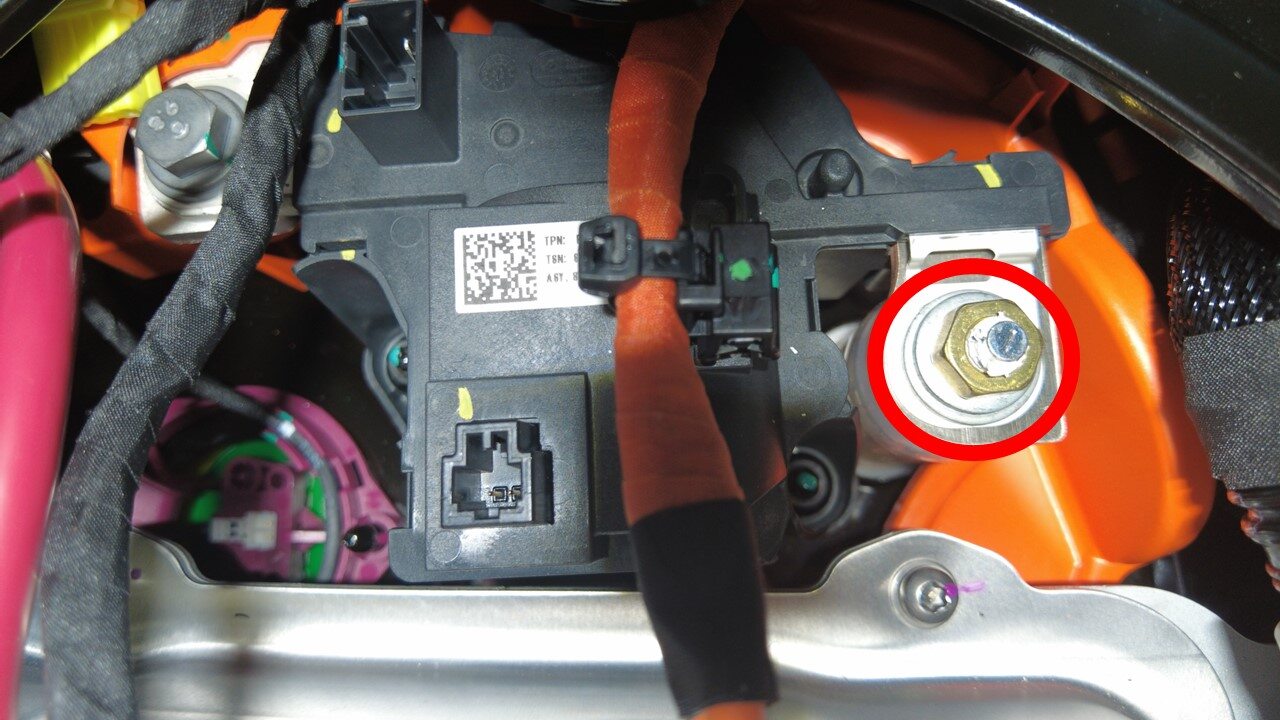

55. Remove nut securing positive pack contactor to module 4 rear terminal
    注

    1x patch nut, 13mm, 9 Nm, Discard after removal



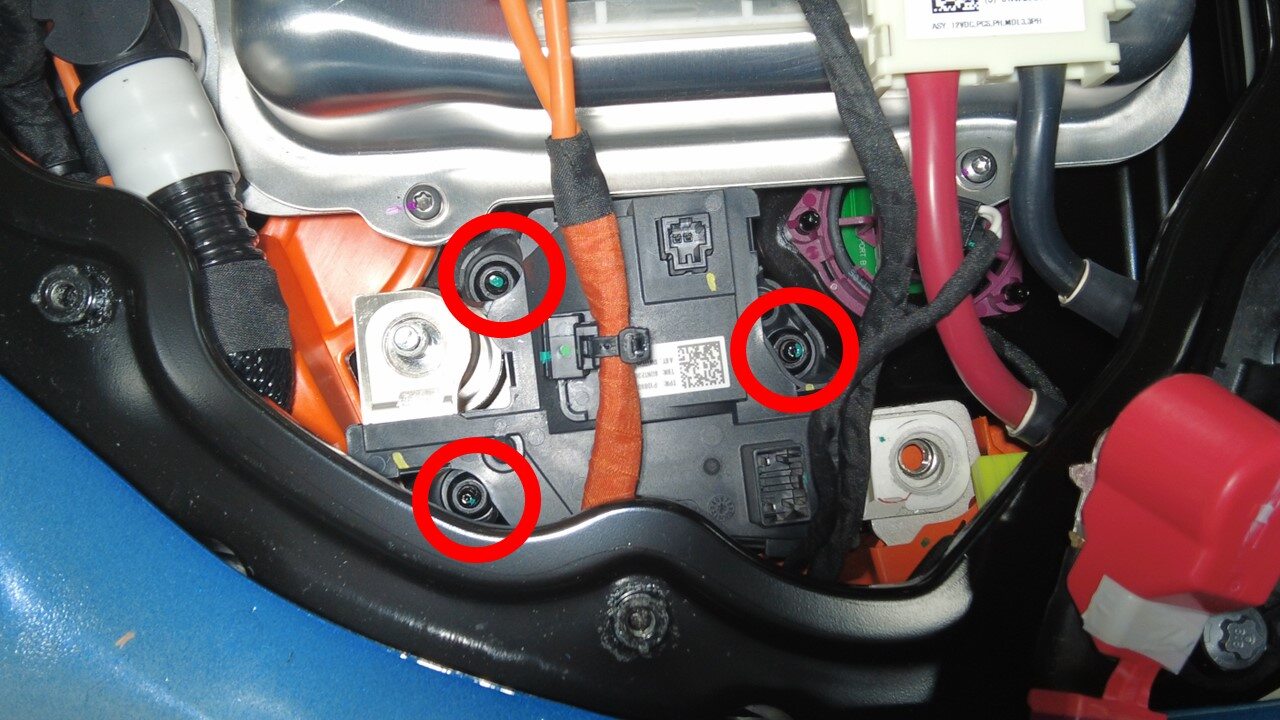

56. Remove nuts securing positive pack contactor to ancillary bay
    注

    3x nuts, 10mm, 8 Nm, Use insulated magnet to retrieve the nuts after removal, The number of nuts on newer vehicles may vary

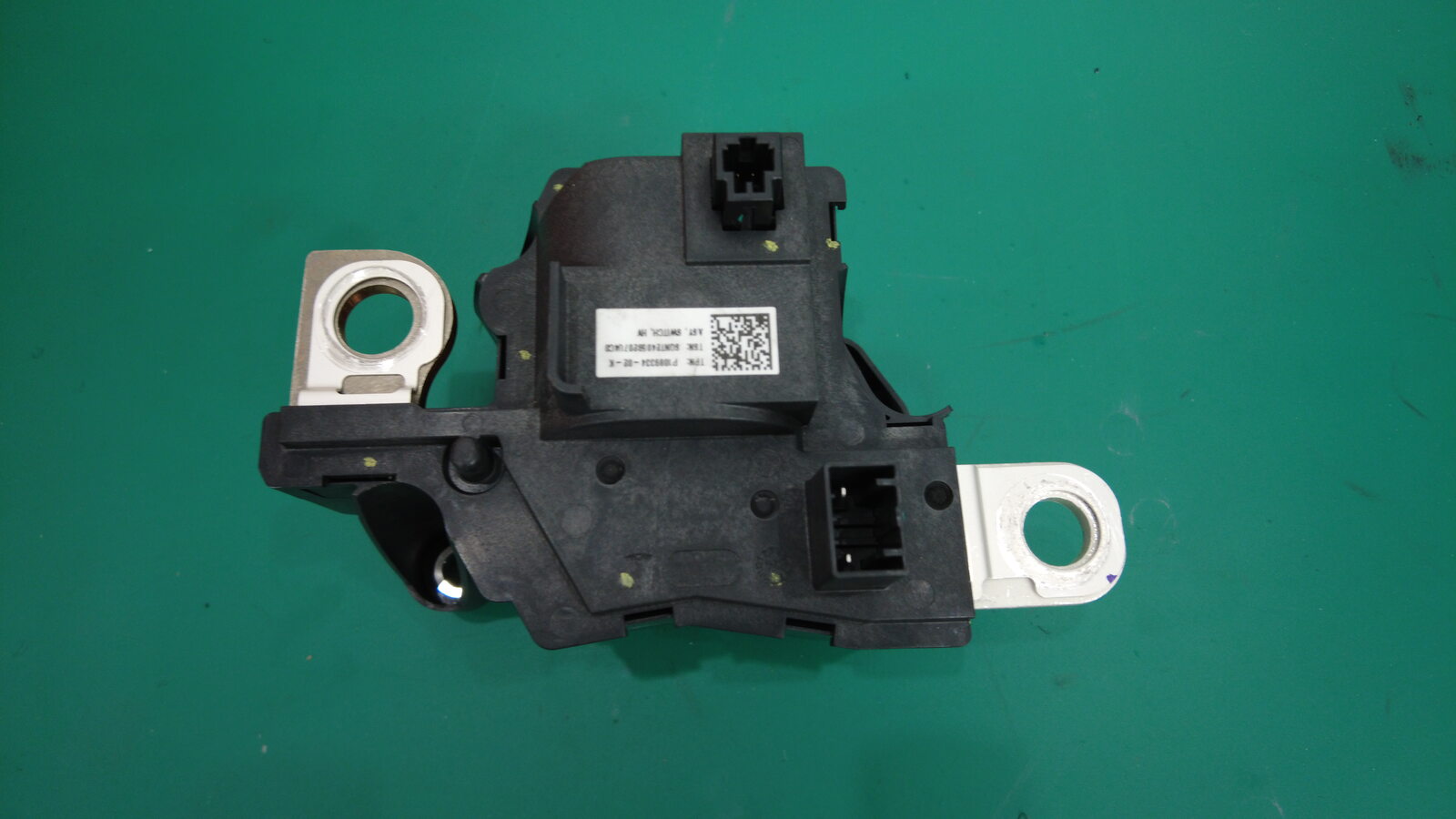

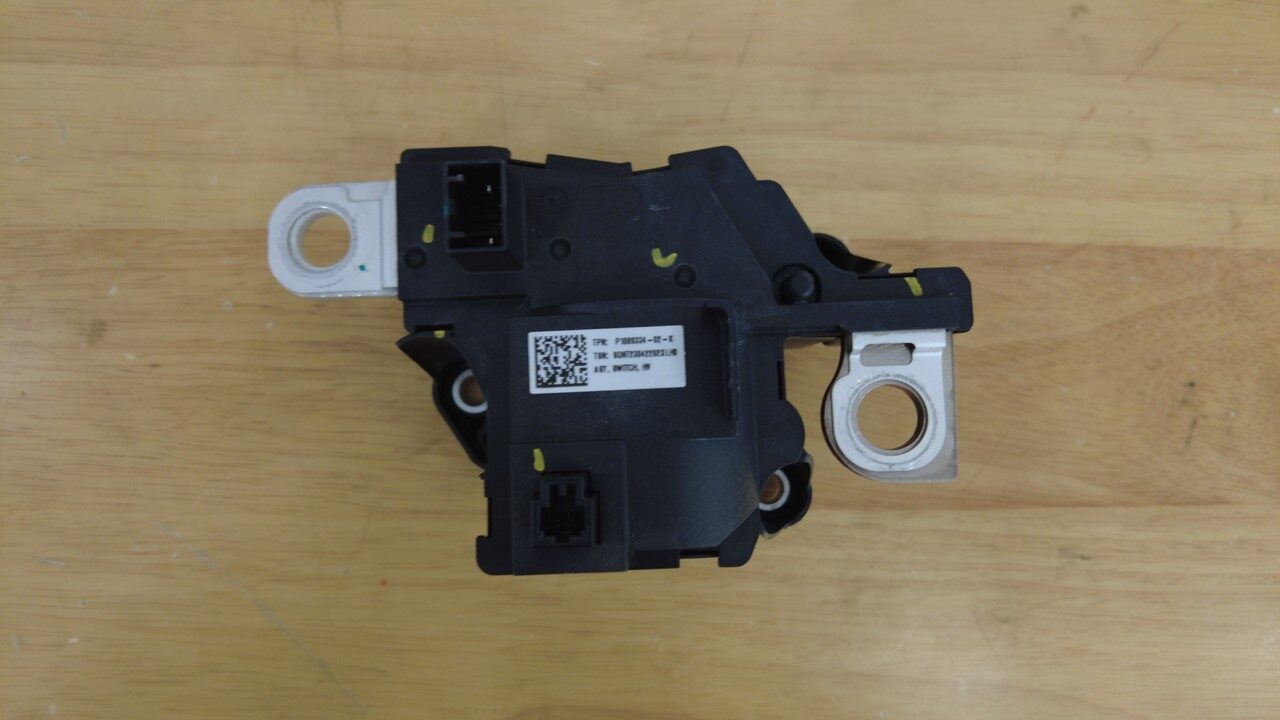

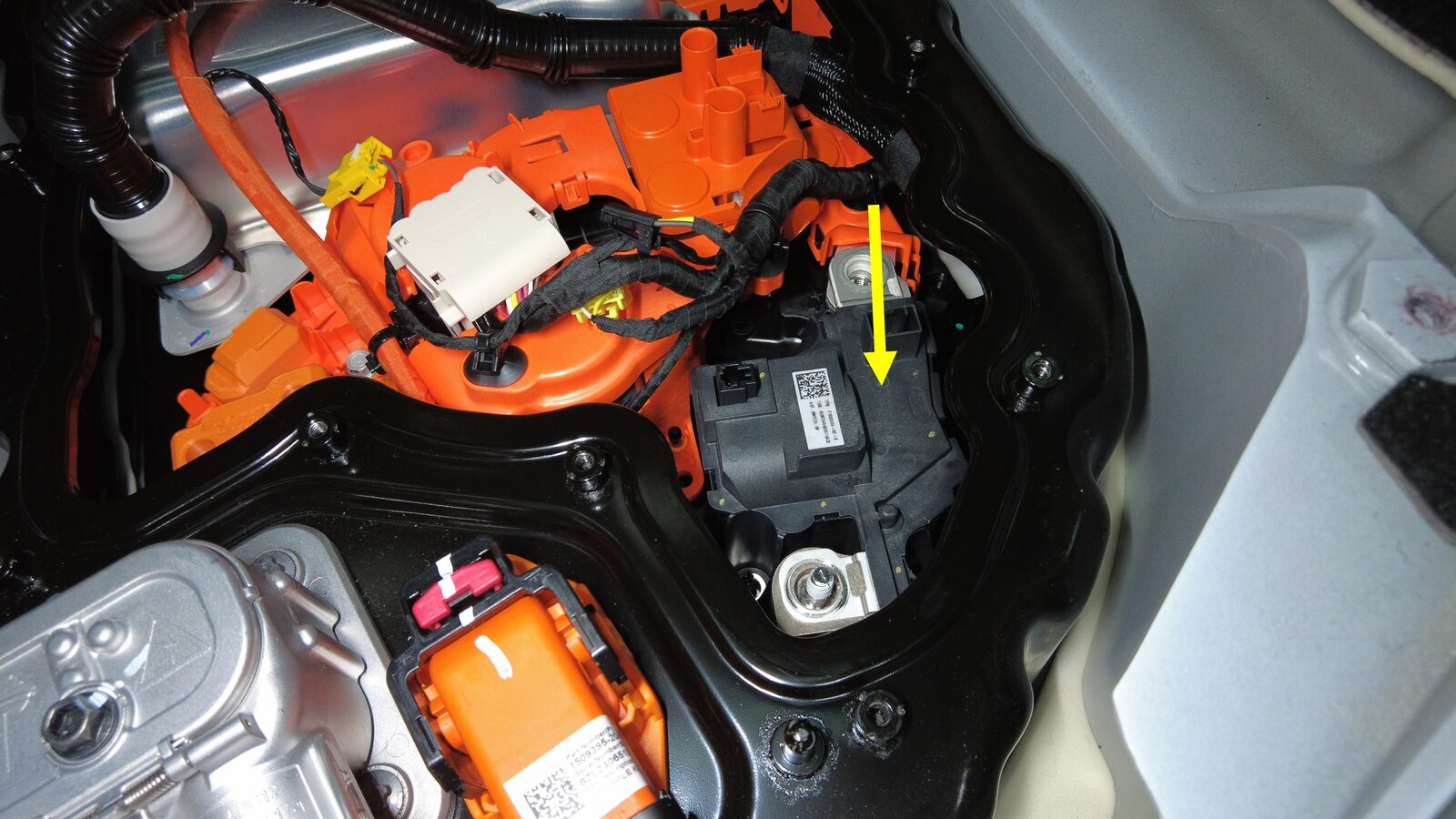

57. Remove positive pack contactor from ancillary bay
    注

    2x guide pins







58. Position positive pack contactor to ancillary bay for installation
    注

    2x guide pins







59. Install nuts securing positive pack contactor to ancillary bay
    注

    3x nuts, 10mm, 8 Nm, Use insulated magnet as needed to position nuts onto studs, The number of nuts on newer vehicles may vary



60. Install bolt securing positive pack contactor to positive busbar
    注

    1x patch bolt, 13mm. 9 Nm, Install new patch bolt, Mark after torque



61. Install nut securing positive pack contactor to HV battery tall terminal to module 4 rear terminal
    注

    1x patch nut, 13mm, 9 Nm, Install new patch nut, Mark after torque



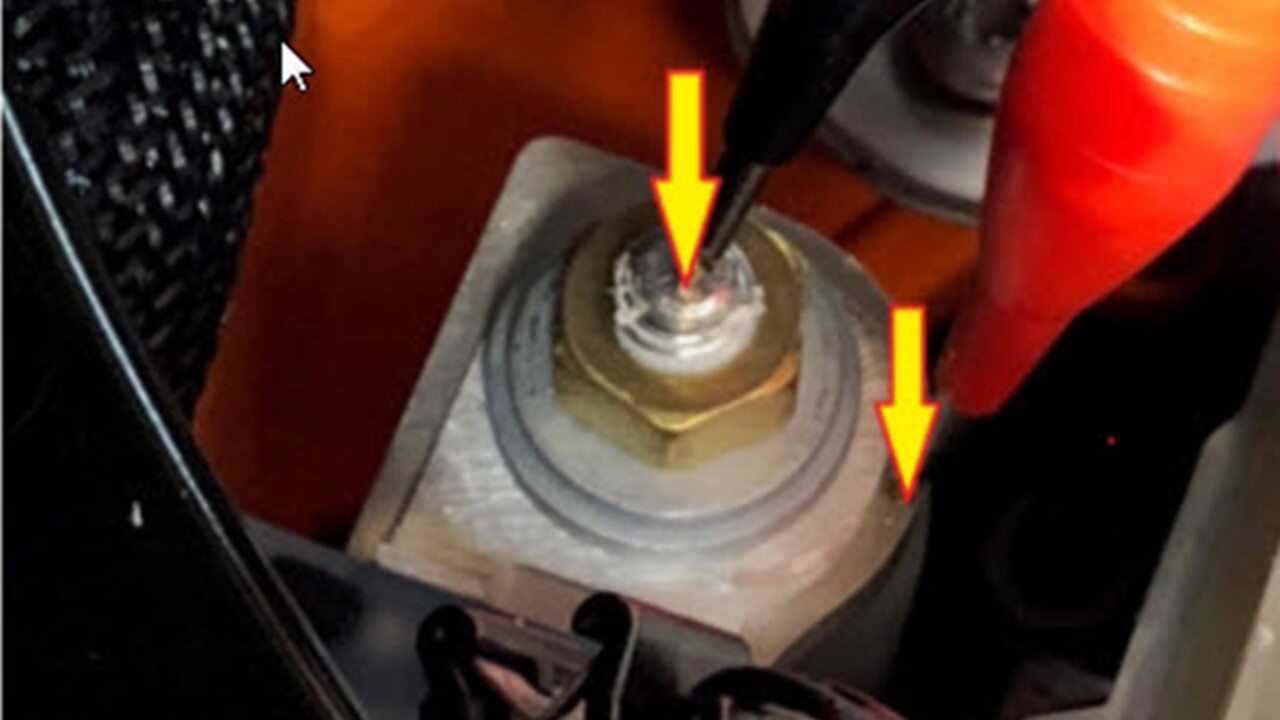

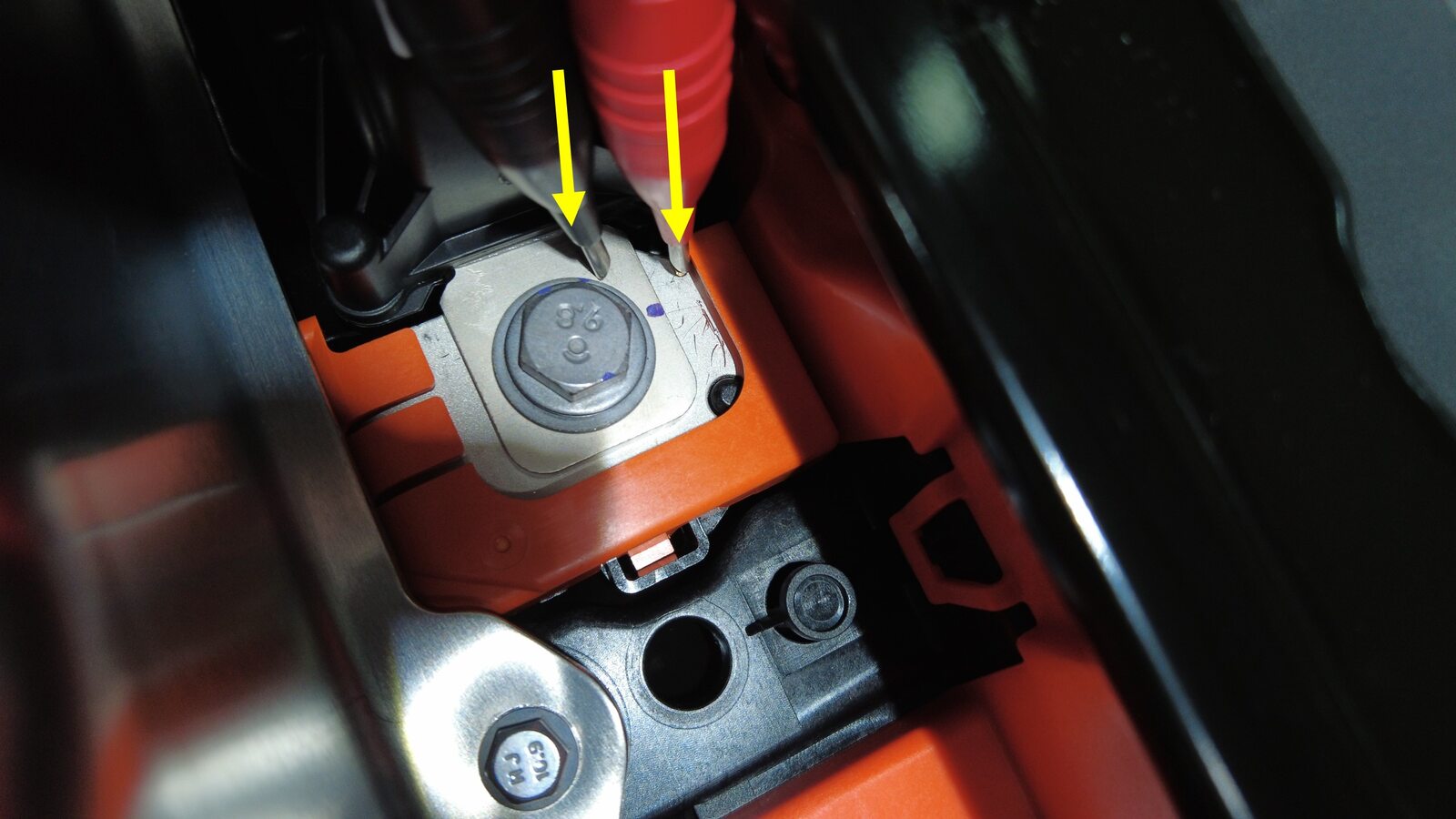

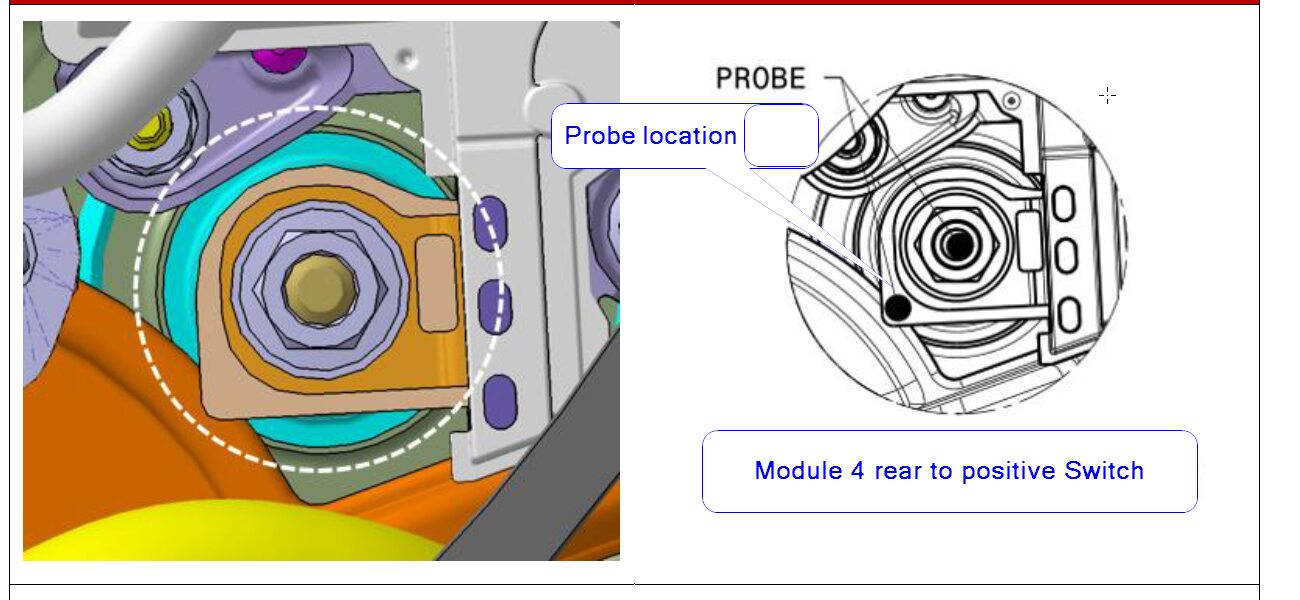

62. Measure resistance from HV joint between HV battery positive contactor and center of HV battery positive terminal
    注

    1x HV joint, 110μΩ or less





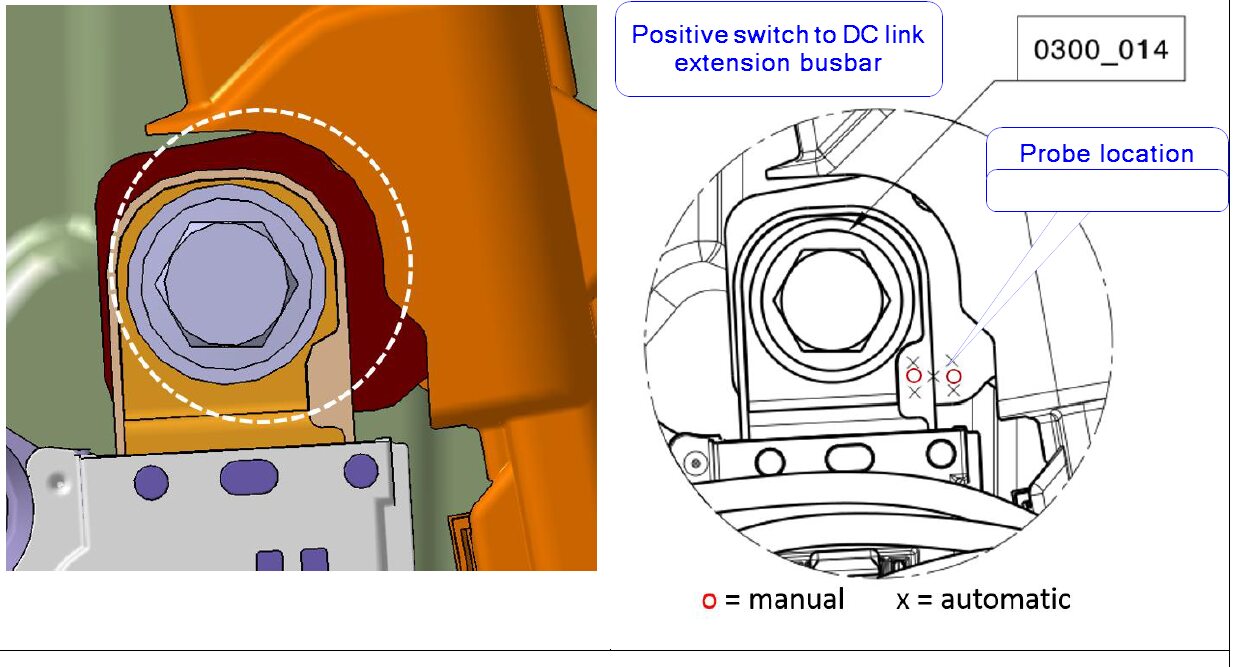

63. Perform Hioki impedance test at HV joint of positive pack contactor to DC link busbar
    注

    1x HV joint, The acceptable resistance is between 0.020 mΩ (20 μΩ) and 0.060 mΩ (60 μΩ), If the resistance is greater than 0.060 mΩ (60 μΩ), stop work and escalate a Toolbox session. If the resistance is less than 0.020 mΩ (20 μΩ), reposition the probes and measure again.





64. Install HV joint insulators onto positive pack contactor
    注

    2x insulators



65. Install ancillary bay harness clip to positive pack contactor
    注

    1x clip



66. Connect ancillary bay harness connectors to positive pack contactor
    注

    2x connectors



67. Position DCDC pass through to ancillary bay for installation
    注

    Attention: To avoid metal damage to the cable insulation layer





68. Install bolts securing DCDC pass through to ancillary bay
    注

    2x bolts, E10 5-Lobe, 10 Nm, Mark the bolts after torque



69. Install DCDC ground busbar to HV battery
    注

    Gently press down



70. Install nut securing DCDC ground busbar to HV battery
    注

    1x nut, 13mm, 9 Nm, Install new nut



71. Connect PCS LV connector to PCS
    注

    1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated



72. Connect PCS logic connector to PCS
    注

    1x connector



73. Connect PCS to DC bus HV connector
    注

    1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated



74. Lower HV Controller back into place
    注

    Remove bungee and slowly lower controller



75. Disconnect ancillary bay harness connectors from negative pack contactor
    注

    2x connectors



76. Remove HV joint insulators from negative pack contactor
    注

    2x insulators



77. Remove bolt securing negative pack contactor to DC link busbar joint
    注

    1x patch bolt, 13mm, 9 Nm, Discard after removal



78. Remove nut securing negative pack contactor to HV battery tall silicon terminal
    注

    1x patch nut, 13mm, 9 Nm, Discard after removal



79. Remove nuts securing negative pack contactor to ancillary bay
    注

    3x nuts, 10mm, 8 Nm, Use insulated magnet to retrieve the nuts after removal, The number of nuts on newer vehicles may vary



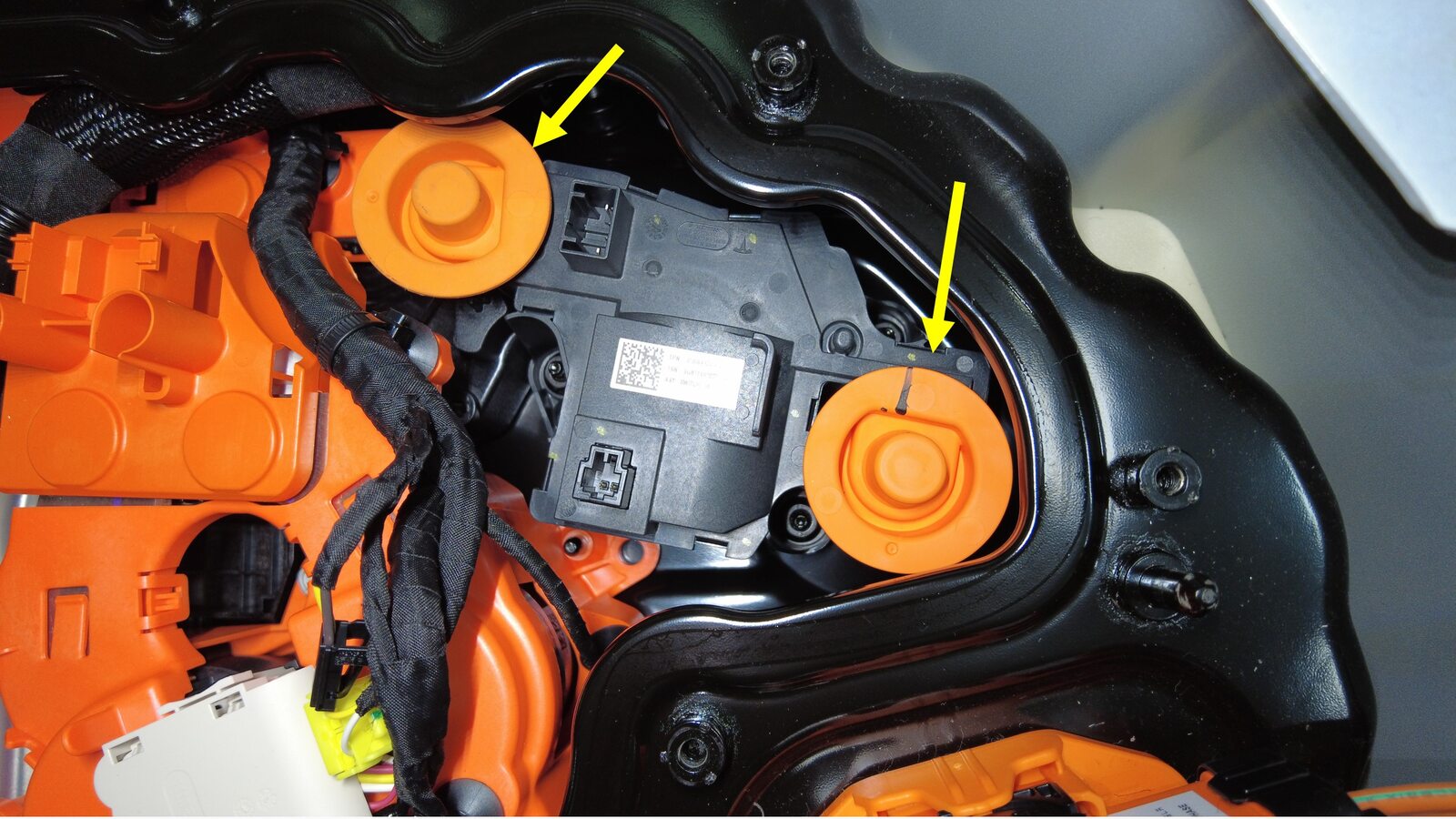

80. Remove negative pack contactor from ancillary bay
    注

    2x guide pins







81. Position negative pack contactor to ancillary bay for installation
    注

    2x guide pins







82. Install nuts securing negative pack contactor to ancillary bay
    注

    3x nuts, 10mm, 8 Nm, Use insulated magnet as needed to position nuts onto studs



83. Install nut securing negative pack contactor to HV battery tall terminal
    注

    1x patch nut, 13mm, 9 Nm, Install new patch nut, Mark after torque



84. Install bolt securing negative pack contactor to DC link busbar joint
    注

    1x patch bolt, 13mm, 9 Nm, Install new patch bolt, Mark after torque



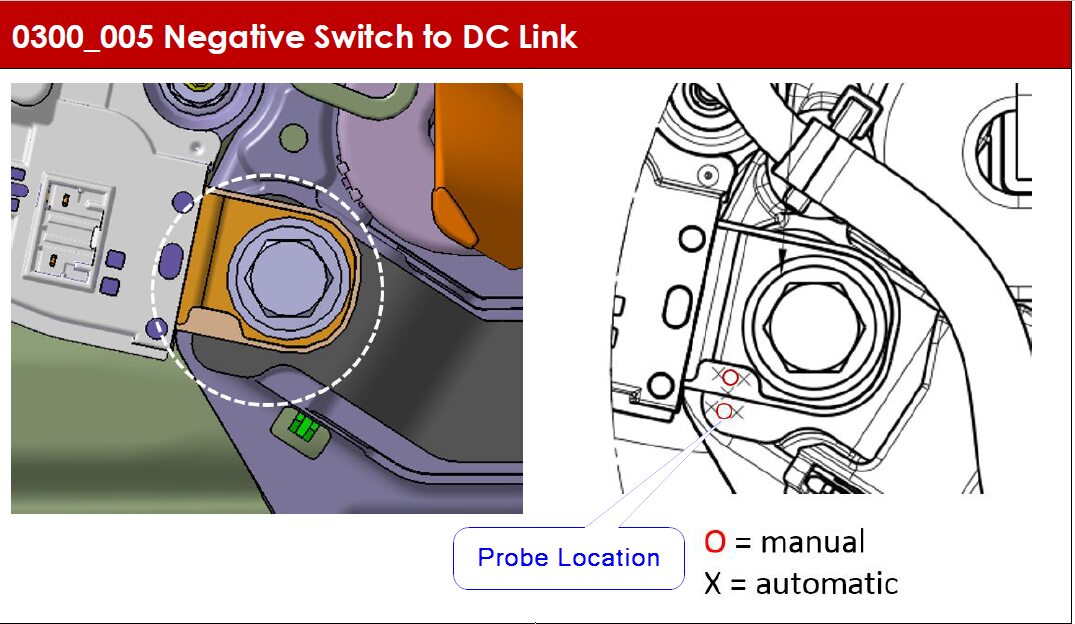

85. Perform Hioki impedance test at HV joint of negative pack contactor to negative DC link busbar
    注

    1x HV joint, The acceptable resistance is between 0.020 mΩ (20 μΩ) and 0.060 mΩ (60 μΩ), If the resistance is greater than 0.060 mΩ (60 μΩ), stop work and escalate a Toolbox session. If the resistance is less than 0.020 mΩ (20 μΩ), reposition the probes and measure again.





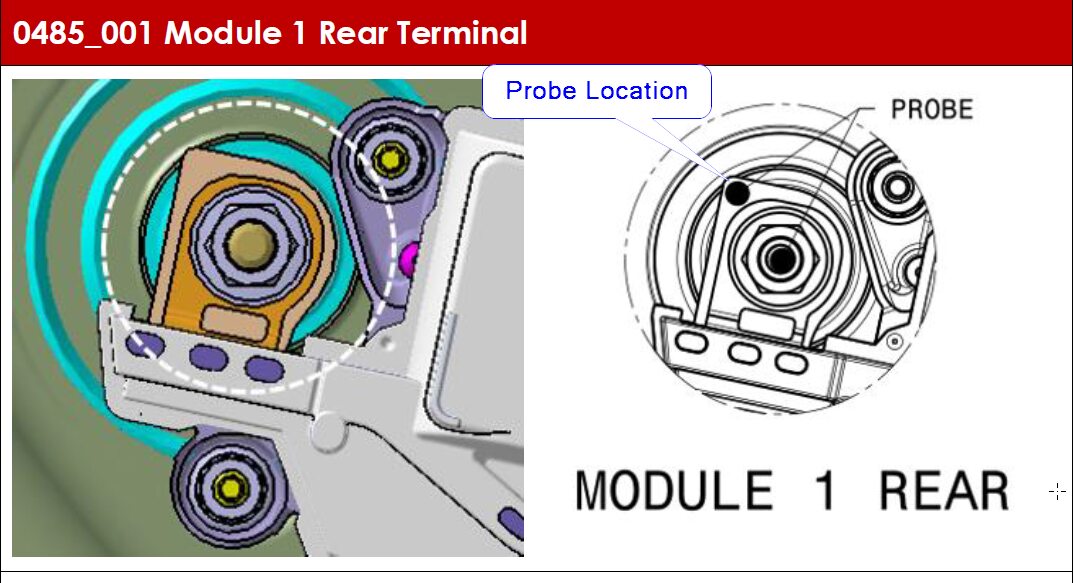

86. Perform Hioki impedance test at negative pack contactor to module 1 rear terminal
    注

    1x HV joint, 110μΩ or less





87. Install HV joint insulators to negative pack contactor
    注

    2x insulators



88. Connect ancillary bay harness connectors to negative pack contactor
    注

    2x connectors



89. Remove pyro disconnect dummy



90. Clean mating surface of pyro
    注

    Allow to 1 minute dry time, Use an IPA wipe to clean the HV mating surfaces of the shunt, Busbar, And the pyrotechnic battery disconnect

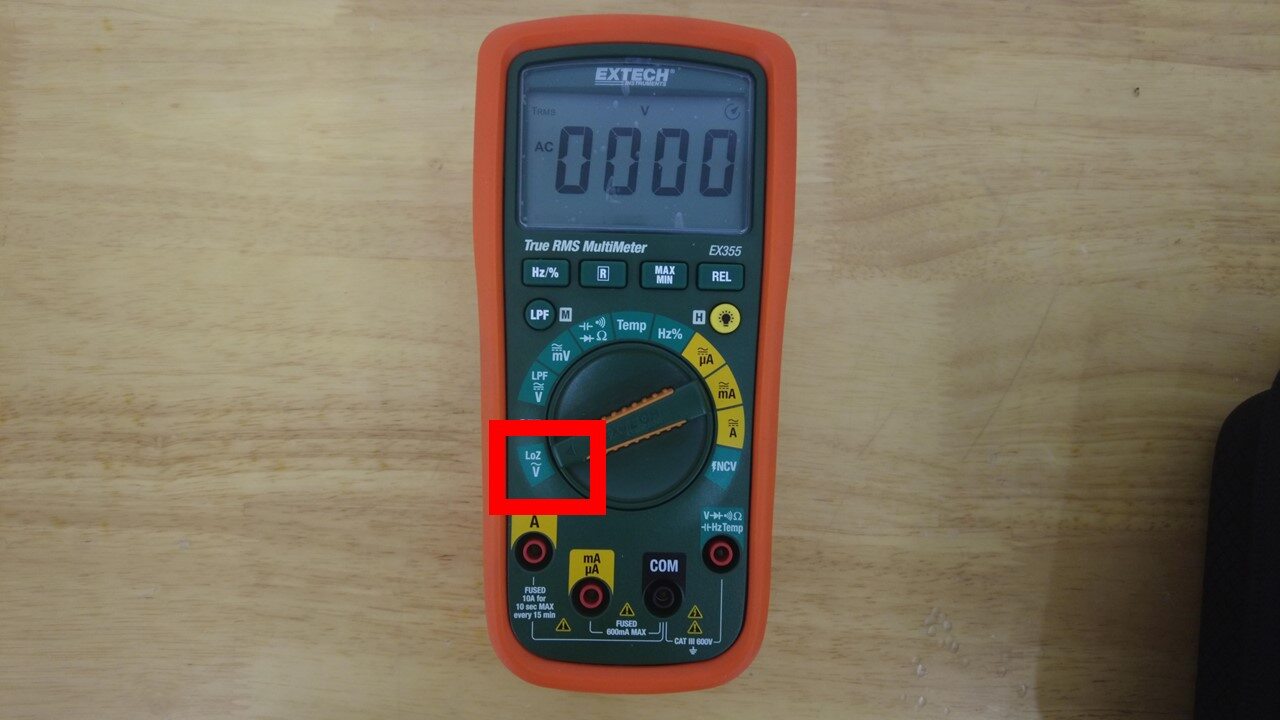

91. Set multimeter to "LoZ" (low impedance) mode

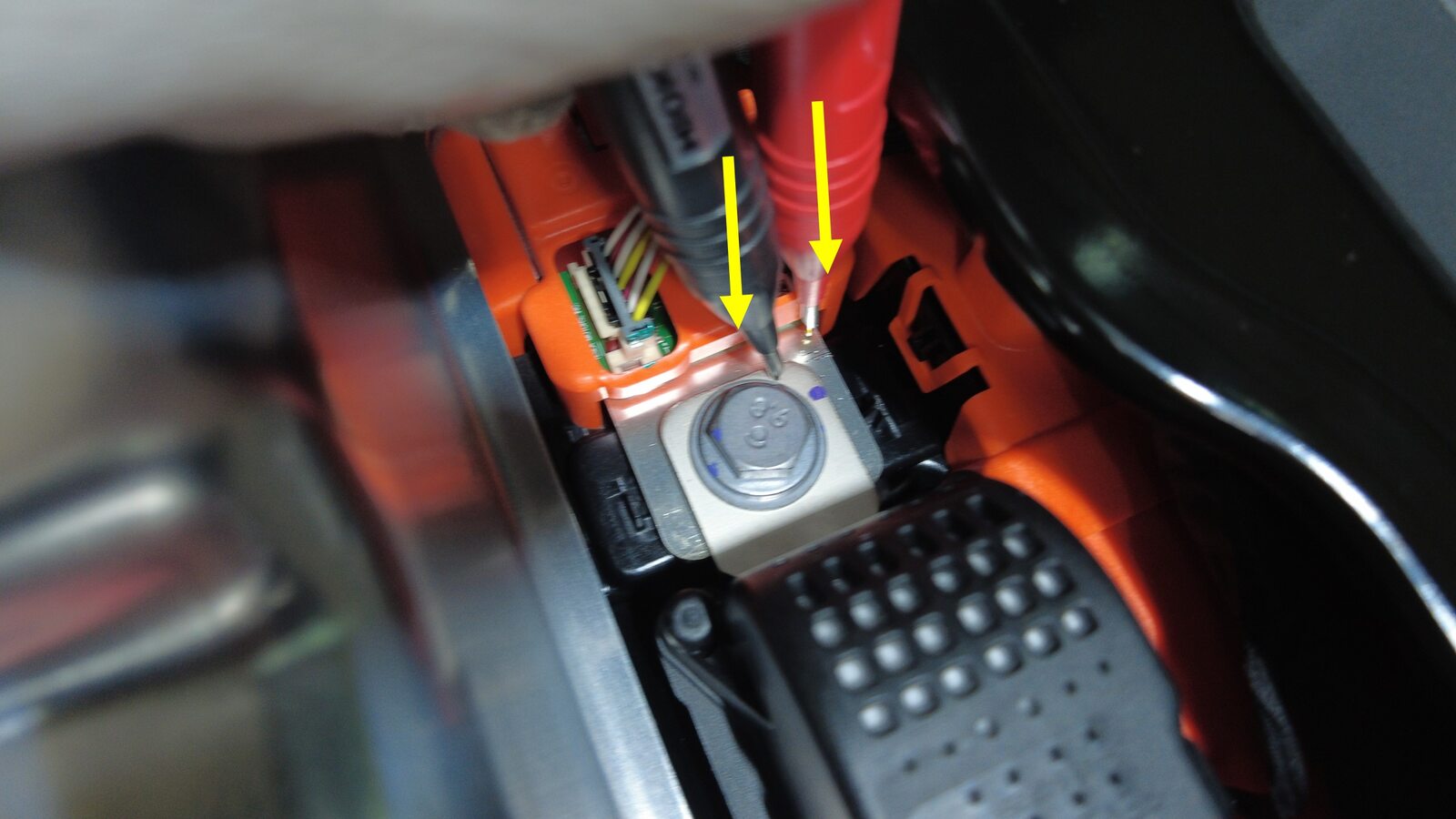

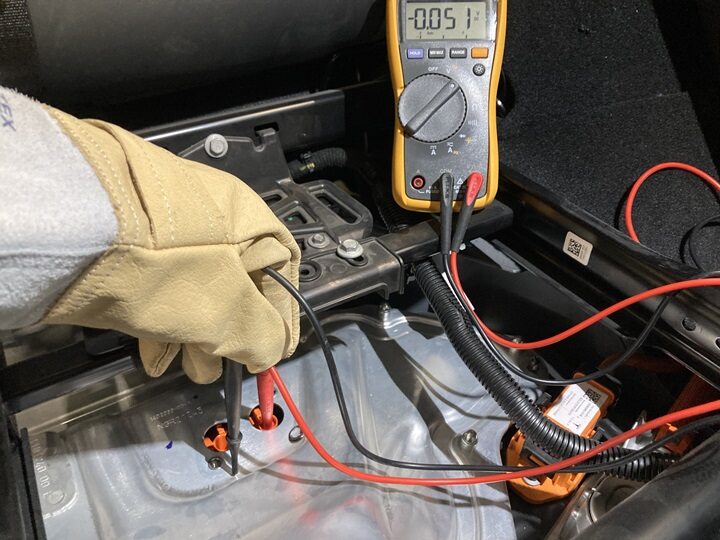

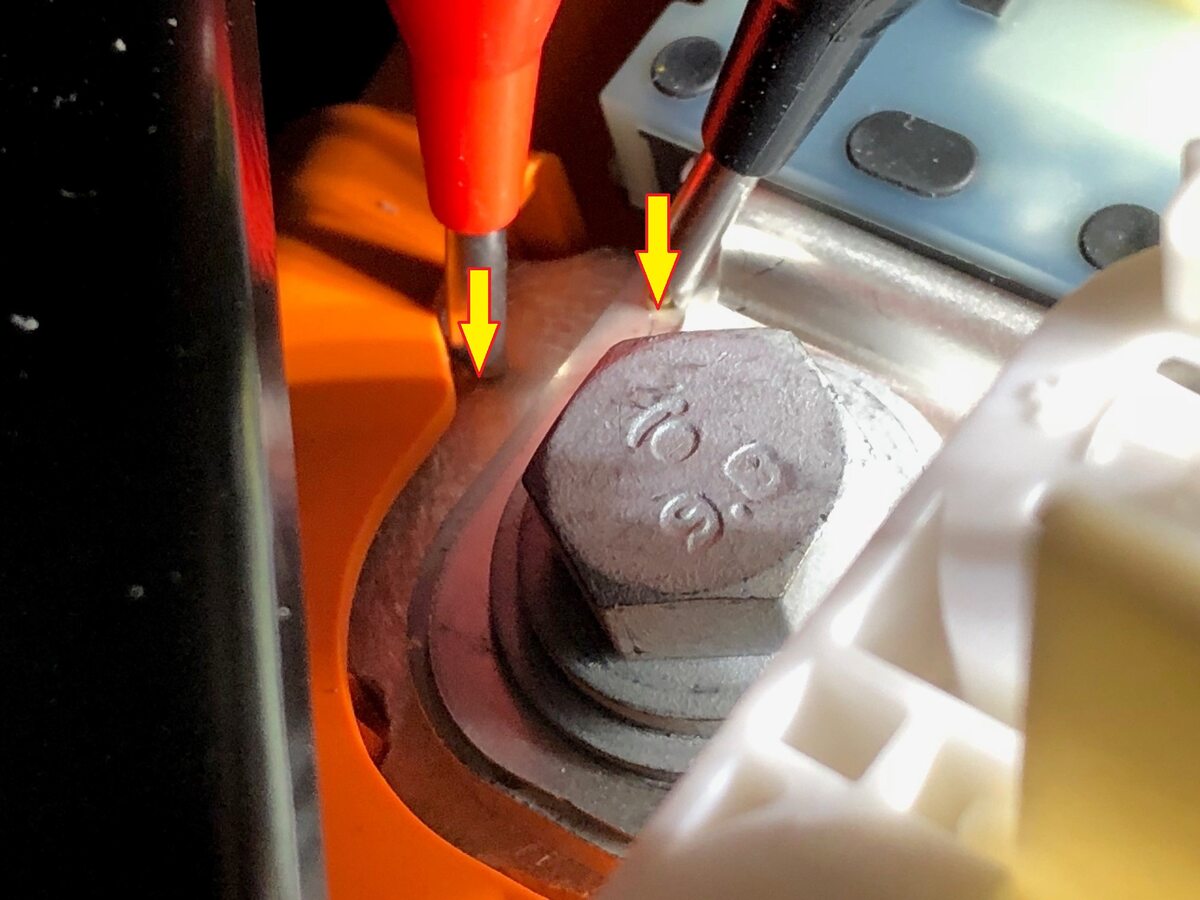

92. Measure voltage between busbar and shunt
    注

    Measure the voltage between the busbar (left) and shunt (right) for at least 10 seconds, so as to balance the voltage across the pyrotechnic battery disconnect mount points, Note: The voltage displayed on the multimeter is not as important as balancing the mount points





93. Position pyro disconnect to ancillary bay for installation
    注

    1x connector, While still measuring the voltage, Have an assistant position the pyrotechnic battery disconnect into the HV battery for installation. Make sure to align the pins of the connector with the new pyrotechnic battery disconnect, And then press the pyrotechnic battery disconnect down onto the busbars, The pyro disconnect can only be installed one way









94. Install bolts securing pyro disconnect to ancillary bay
    注

    2x patch bolts, 13mm, 9 Nm, Install new patch bolt, Mark with paint pen

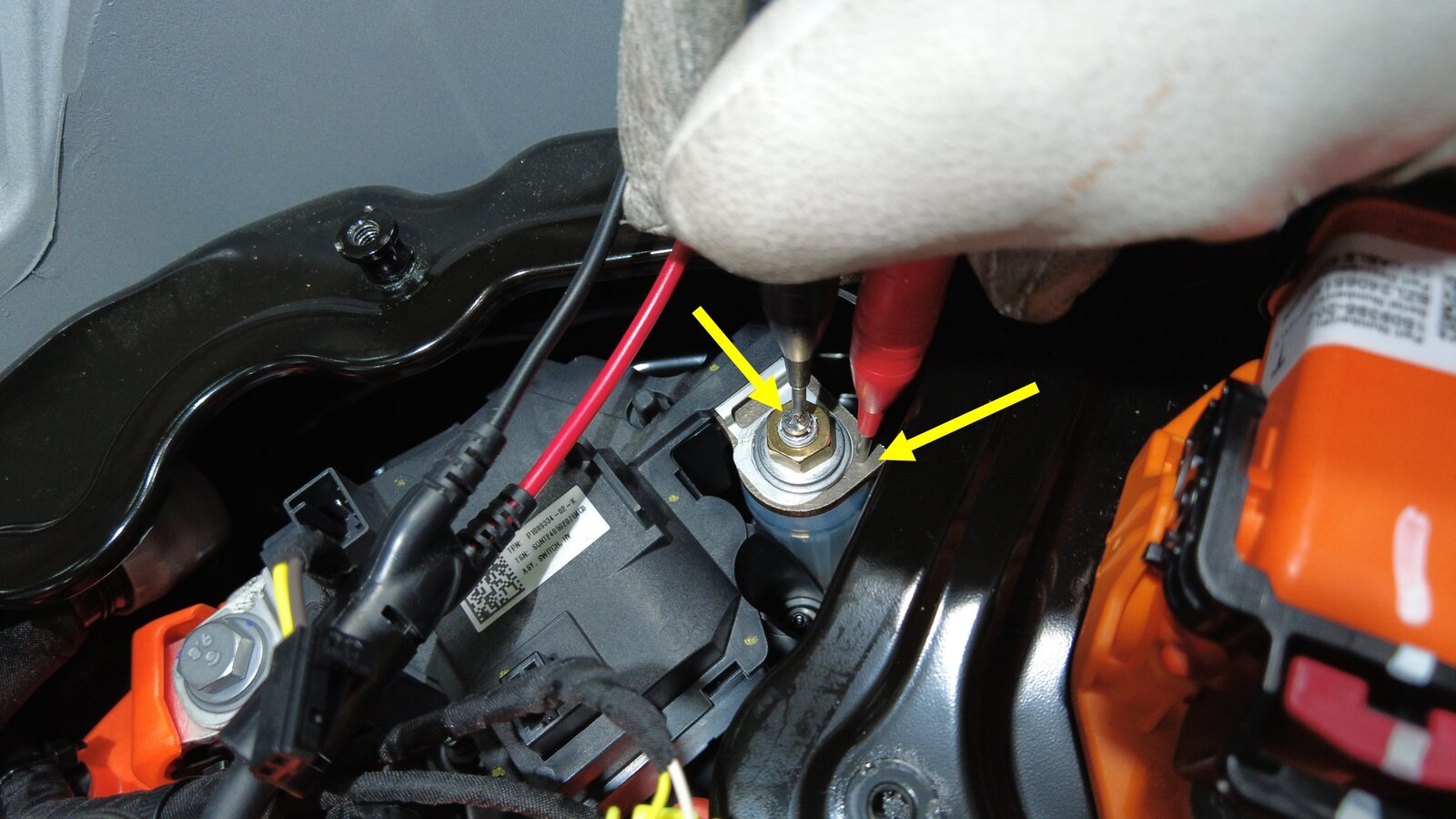

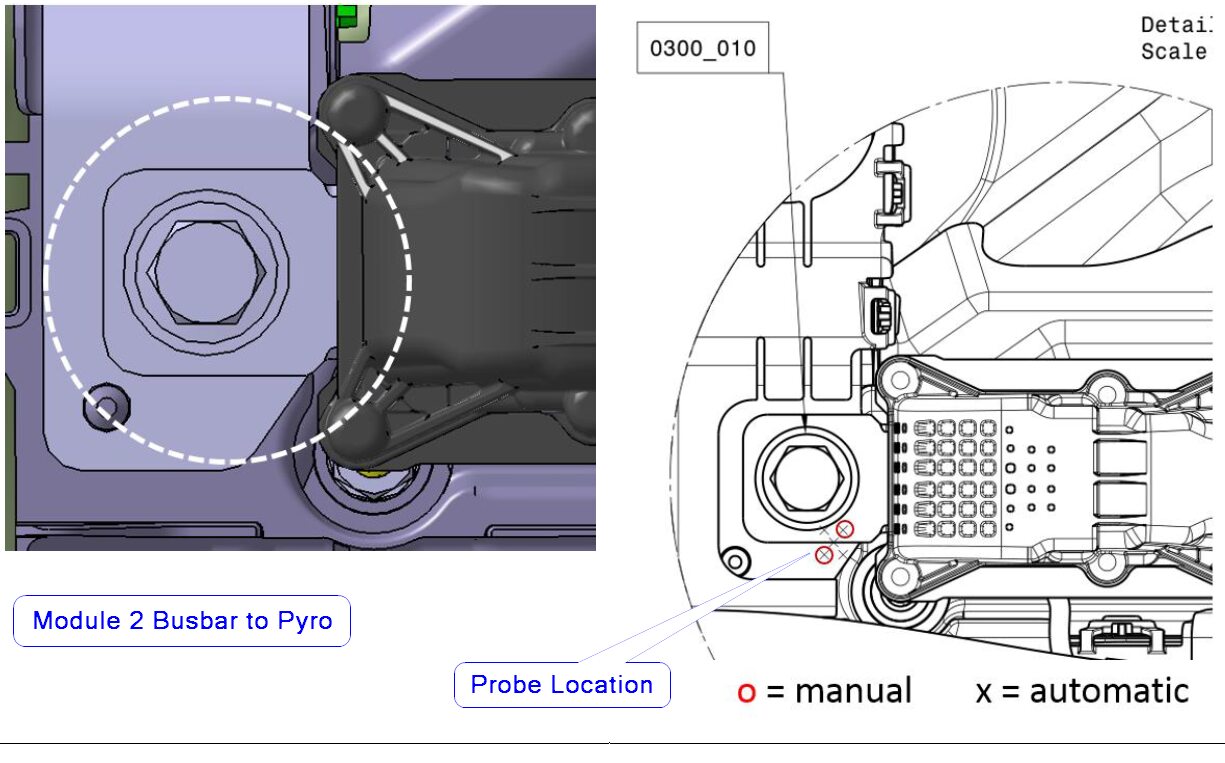

95. Measure resistance from module 2 busbar to pyro disconnect
    注

    1x HV joint, 60μΩ or less, Perform zero adjust to Hioki meter prior to testing





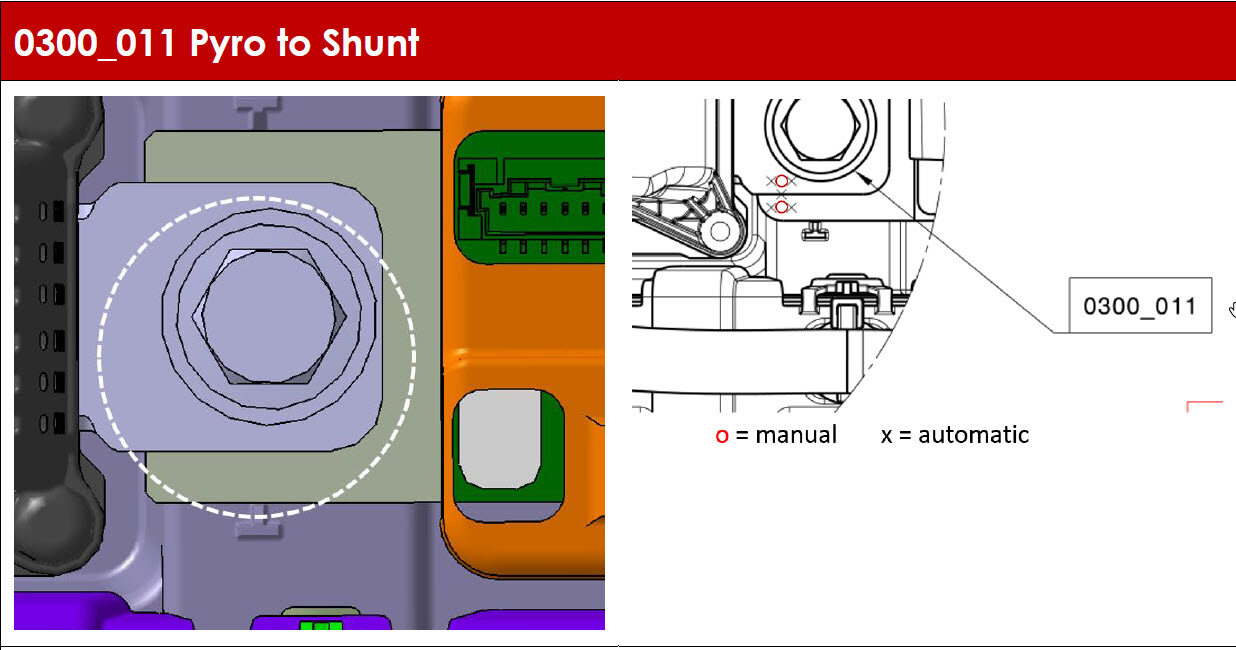

96. Measure resistance from pyro disconnect to shunt
    注

    1x HV joint, 45μΩ or less, Perform zero adjust to Hioki meter prior to testing





97. Remove service insulator kit









98. Remove HVC logic cap
    注

    1x logic cap

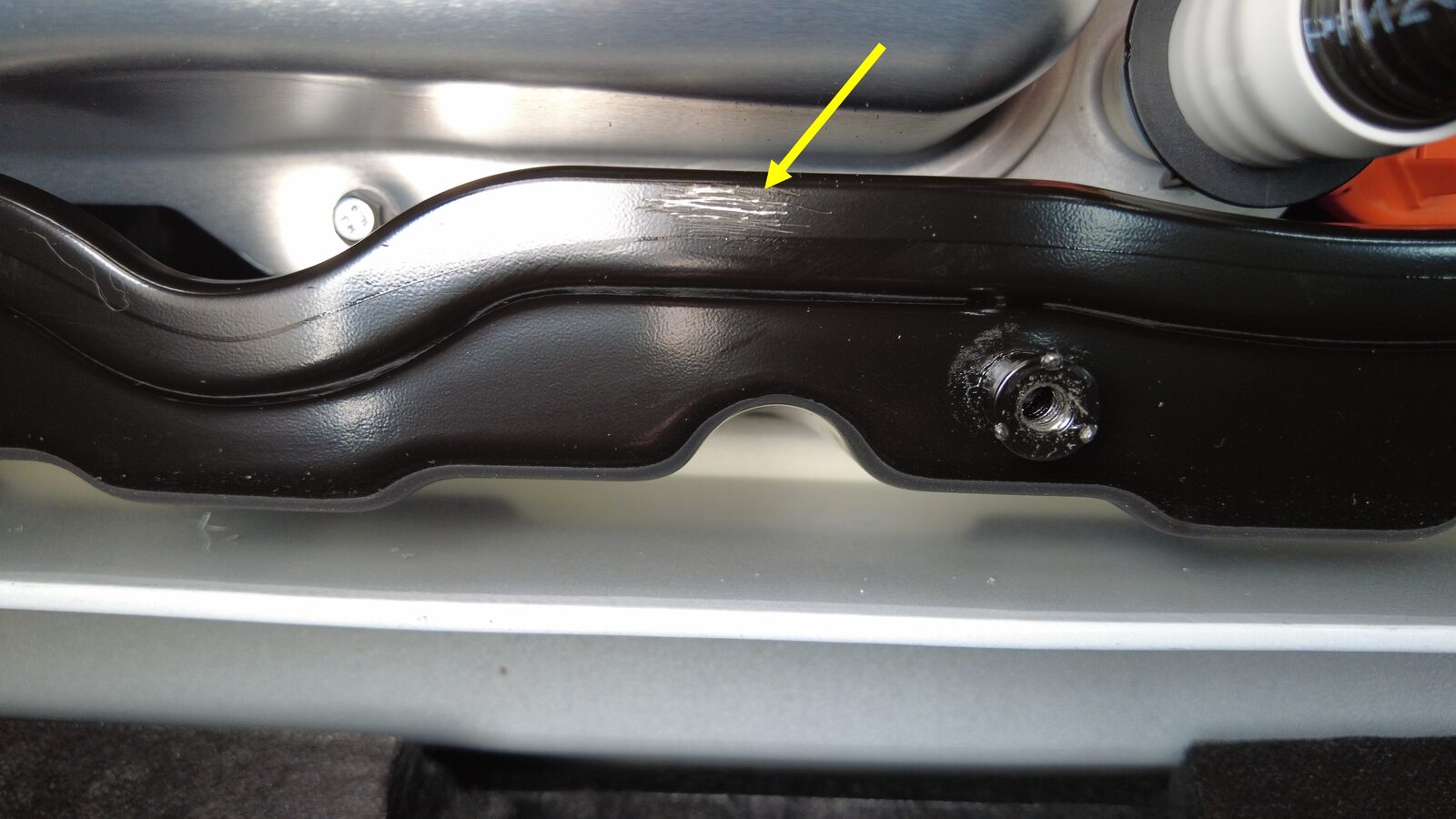

99. Inspect ancillary bay walls for damage
    注

    Any dent or depression in the sealing surface that causes it to not be flat will result in a leak, Any paint that comes off the ancillary bay wall, Whether or not it sticks to the seal, Will require enclosure leak test when reassembled, It can still be reused

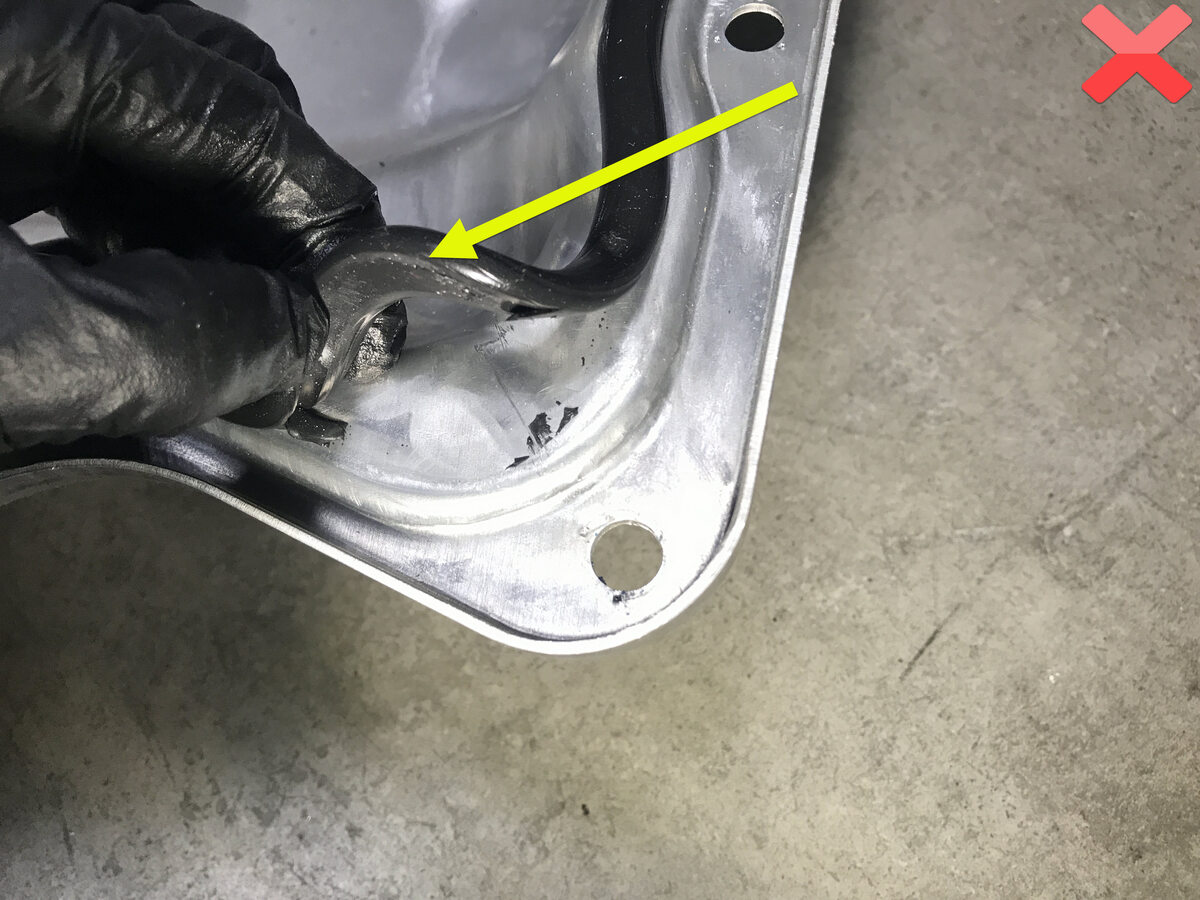

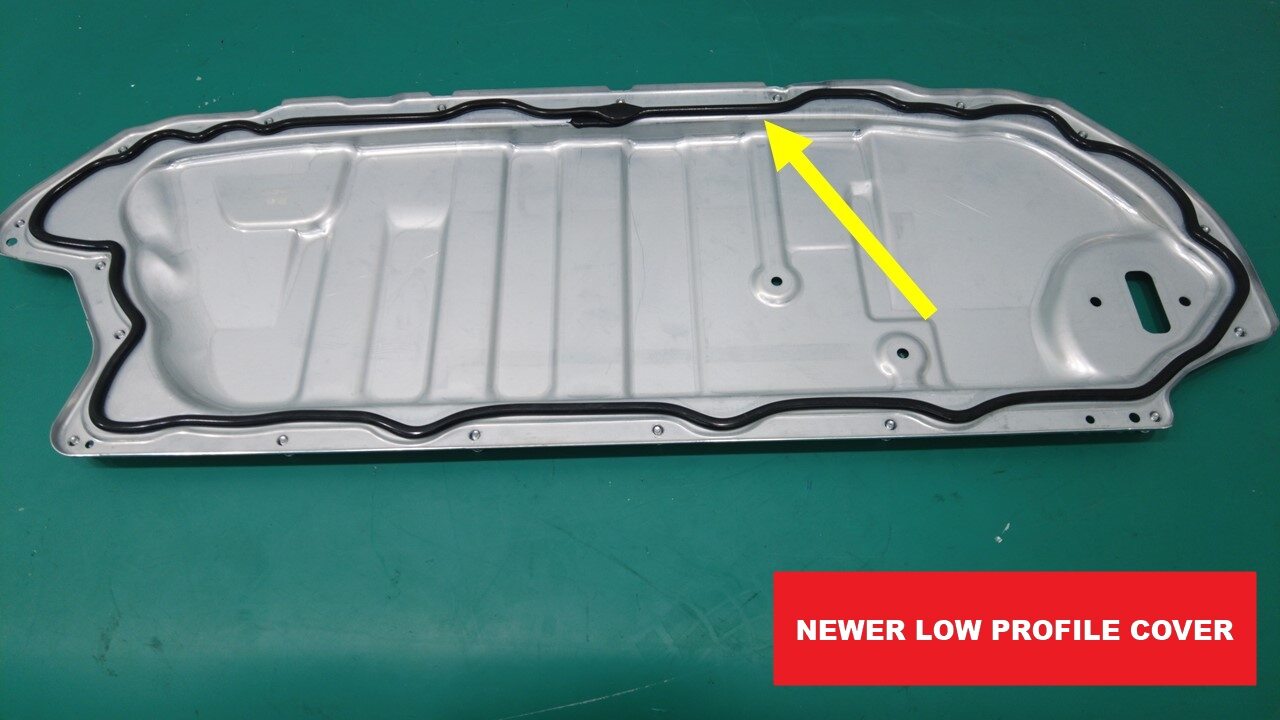

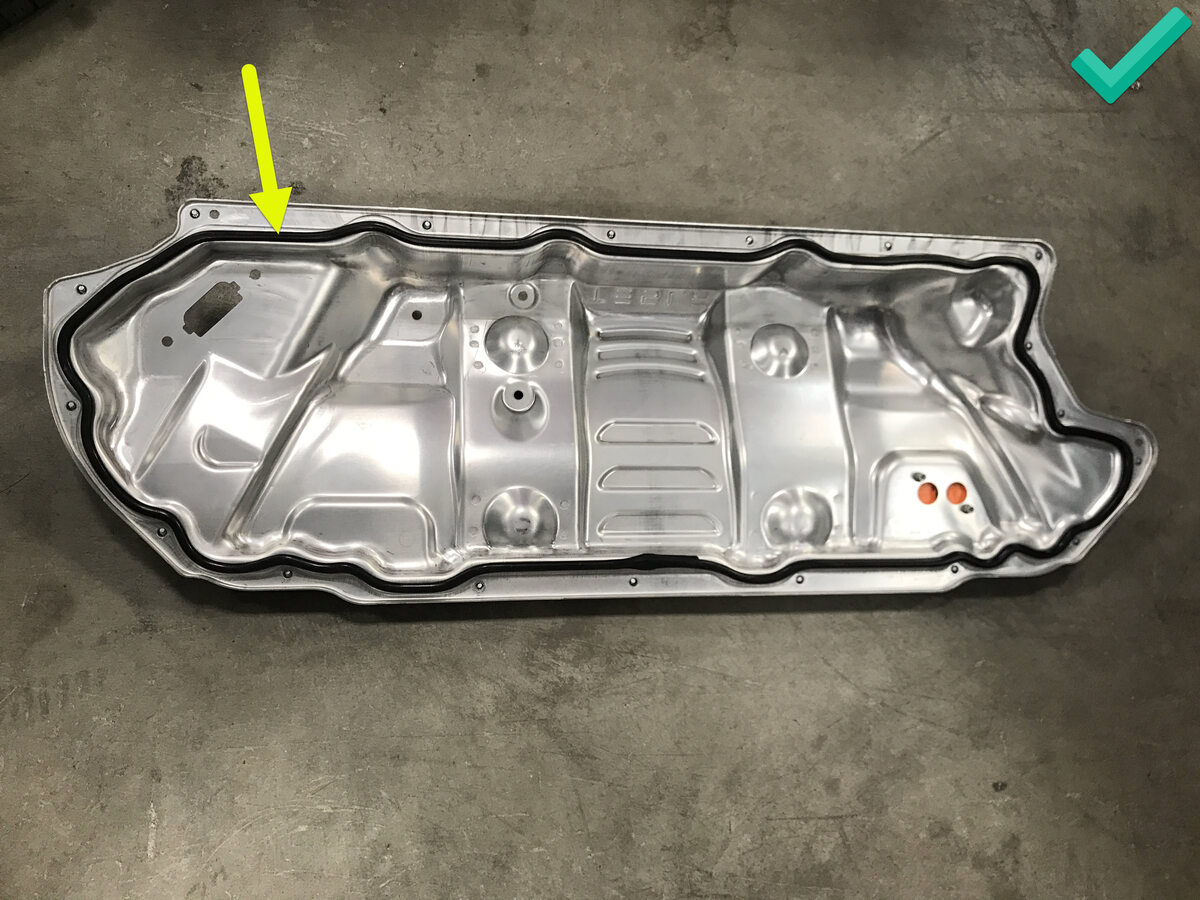

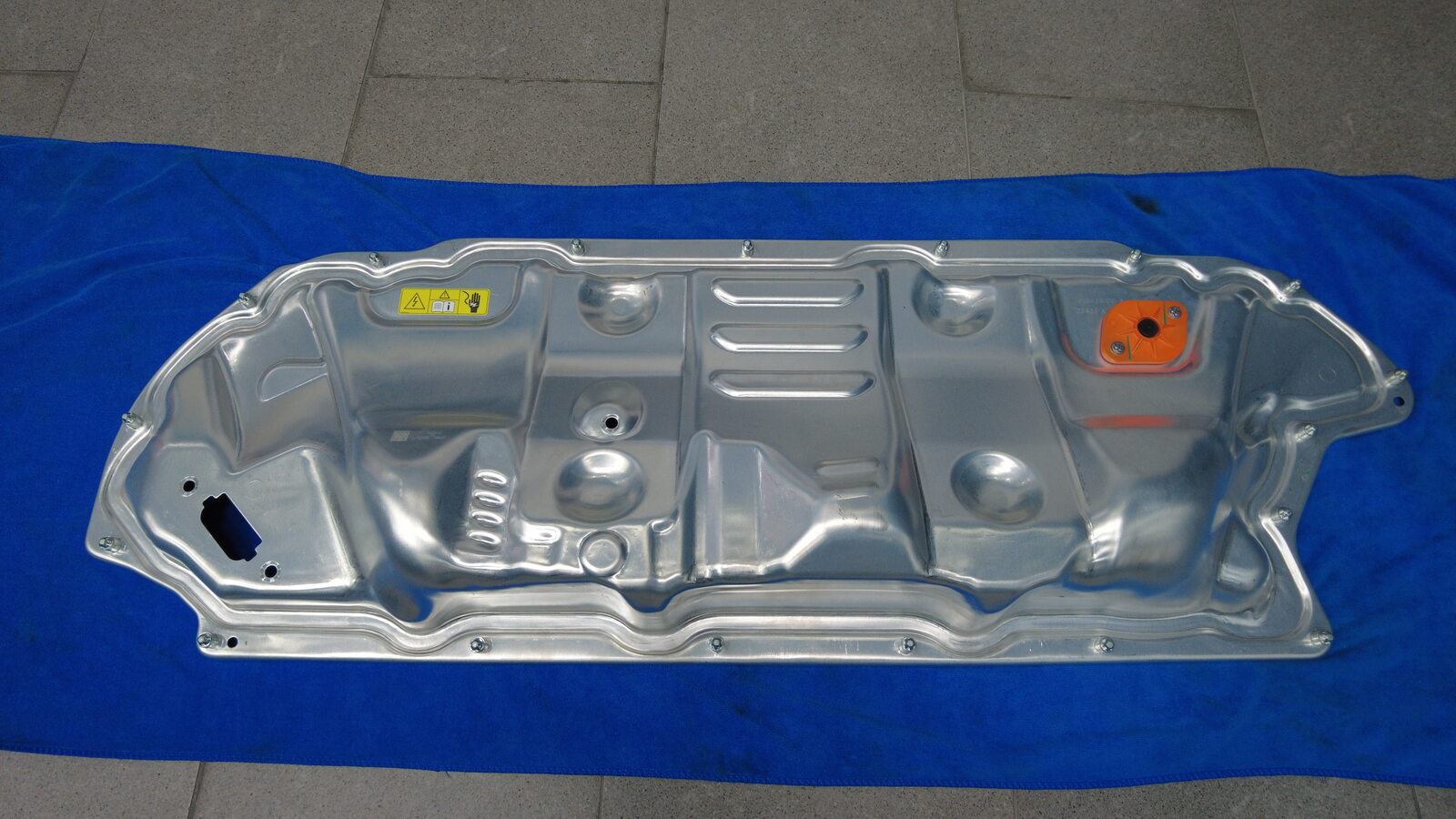

100. Inspect ancillary bay cover seal to confirm it has no visual damage
     注

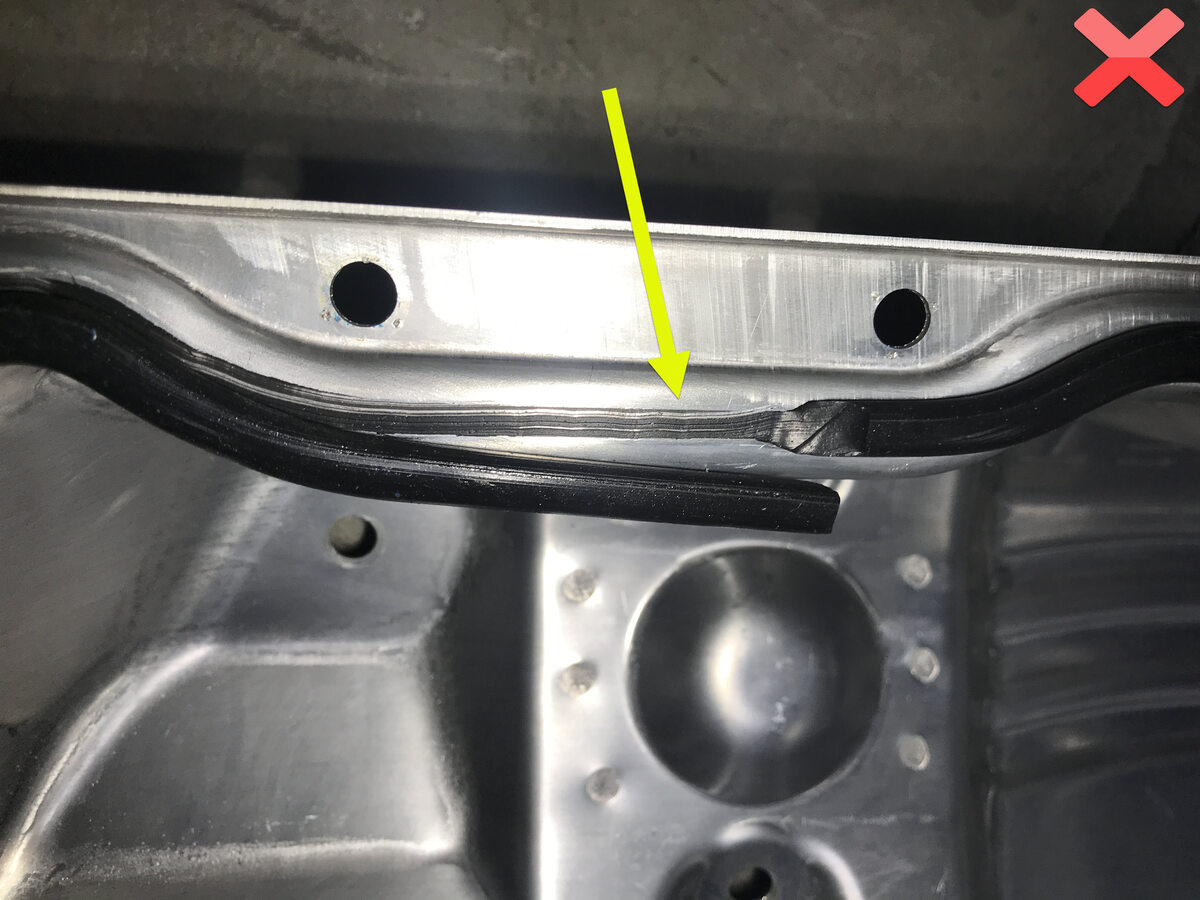

     Image up close for clarity, Delaminated and torn seals cannot be reused











101. Wipe ancillary bay cover with IPA to clean surface
     注

     Allow to 1 minute dry time



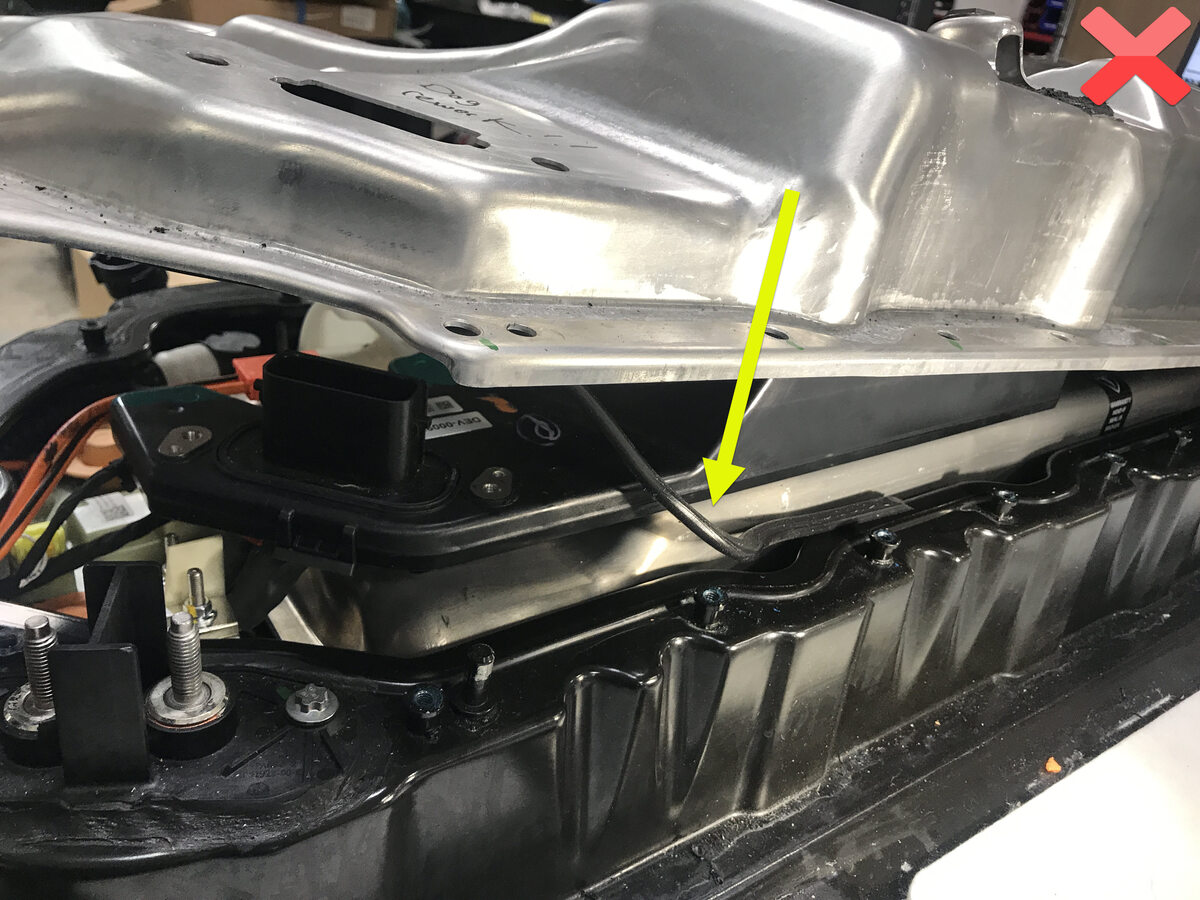

102. Position ancillary bay cover to HV battery for installation
     注

     Ensure all accessible insulators are present, Wearing Electrical Protective Gloves is not necessary once all HV components are covered.





103. Remove leather over gloves and HV insulating gloves



104. Install HVC logic cap
     注

     1x logic cap



105. Install bolts securing ancillary bay cover to HV battery
     注

     18x bolts, EP10 5-Lobe, 8 Nm, Fasteners are captive, Follow torque sequence per image





106. Install bolts securing ancillary bay cover to HVC
     注

     3x bolts, E10, 5 Nm + 30 degrees



107. Install positive LV output from PCS cable and torque nut securing it
     注

     1x nut, 13mm, 9 Nm, Install new nut, Mark the nut after torque



108. Install positive LV output cover to PCS cable
     注

     1x cover



109. Remove logic cap and connect HVC logic connector
     注

     1x connector, 1x logic cap, Align connector then pull the handle to locking position get connector fully seated





110. Position 2nd row 40 seat assembly into vehicle
     注

     Recommend assistance



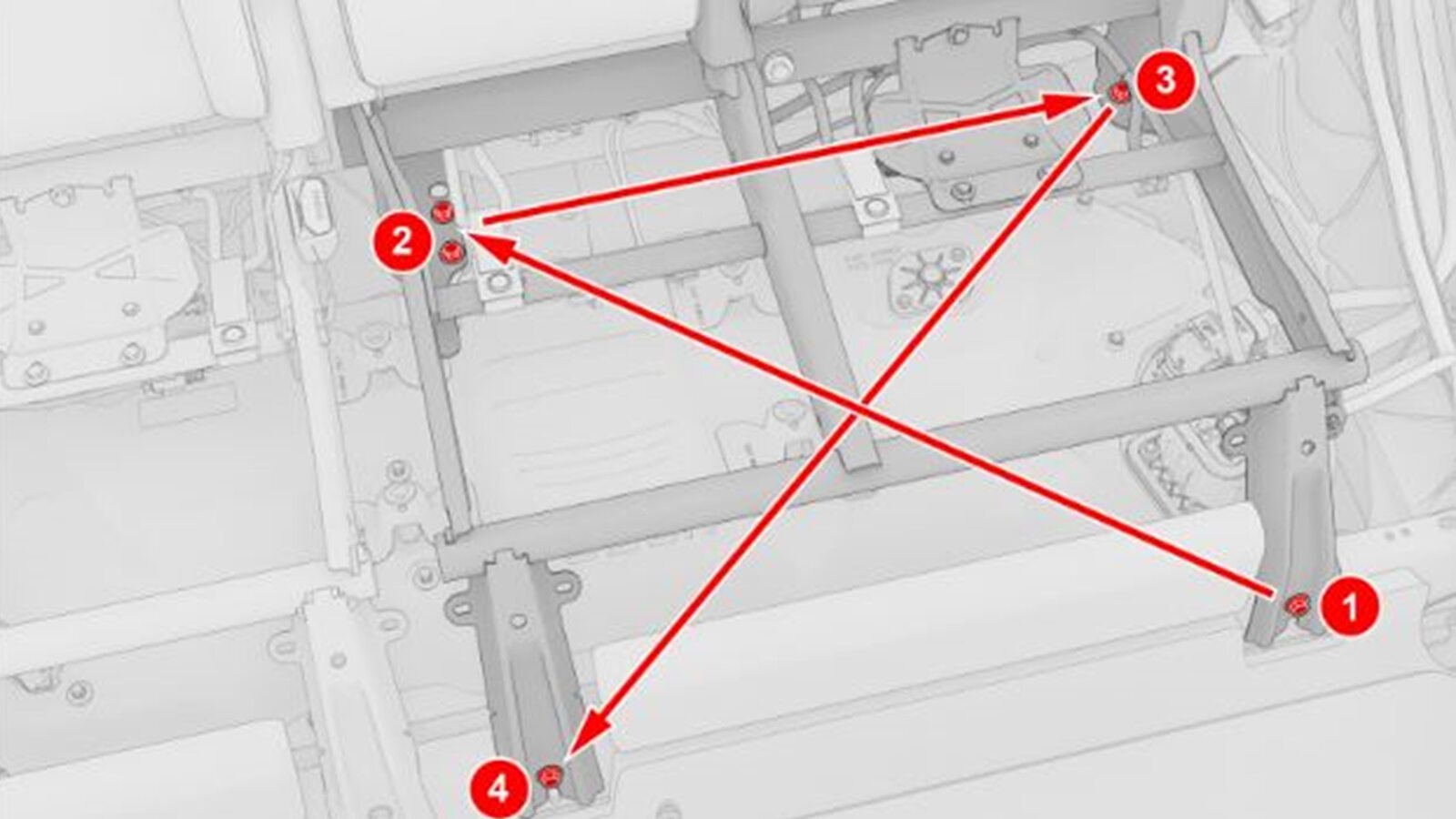

111. Install 2nd row 40 seat frame to vehicle
     注

     4x bolts, 11mm, 37 Nm, Install new bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Inboard rear -> Outboard rear -> Inboard front











112. Connect 2nd row 40 seat connector
     注

     1x connector, Engage the tab



113. Position 2nd row 60 seat assembly
     注

     Set 60 seat assembly onto rear load floor through the rear side of the vehicle, Then install the seat assembly onto body, Use fender cover to avoid damaging trims, Recommend assistance







114. Install 2nd row 60 seat frame to body
     注

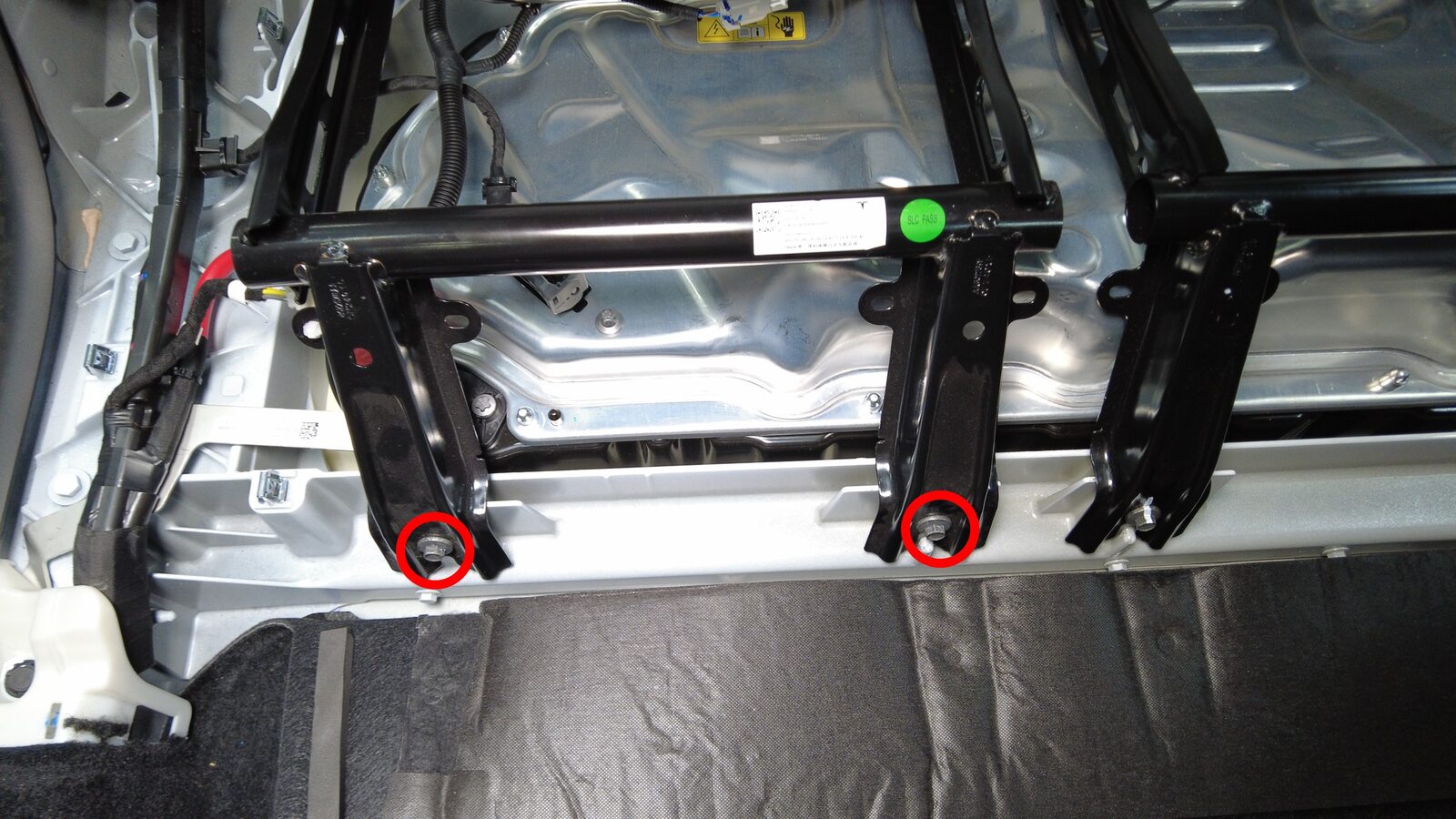

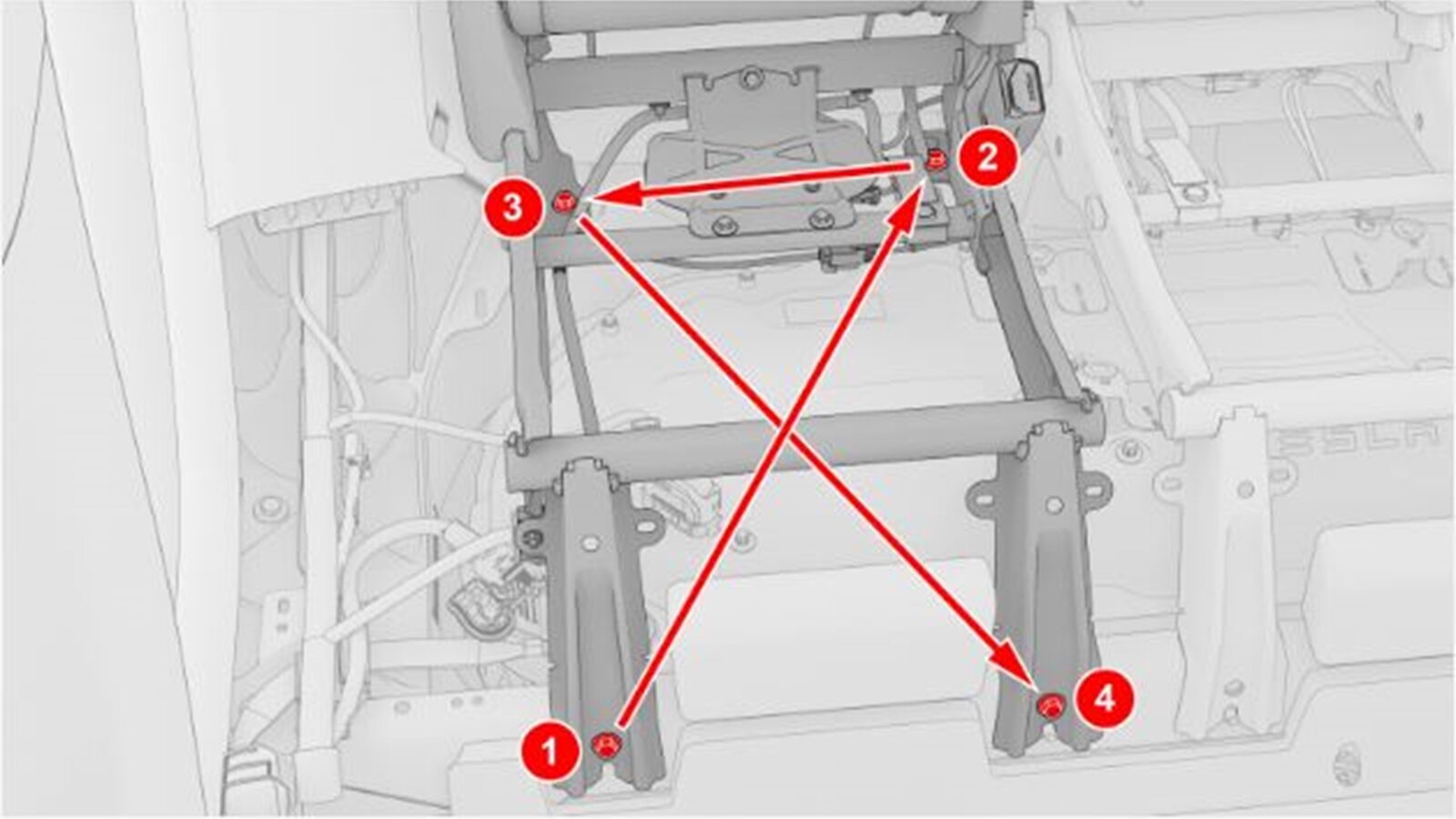

     5x bolts, 11mm, 37 Nm, Install new bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front











115. Connect 2nd row 60 seat connector
     注

     1x connector, Engage the tab



116. Install clips securing rear main cabin carpet to vehicle
     注

     3x push clips

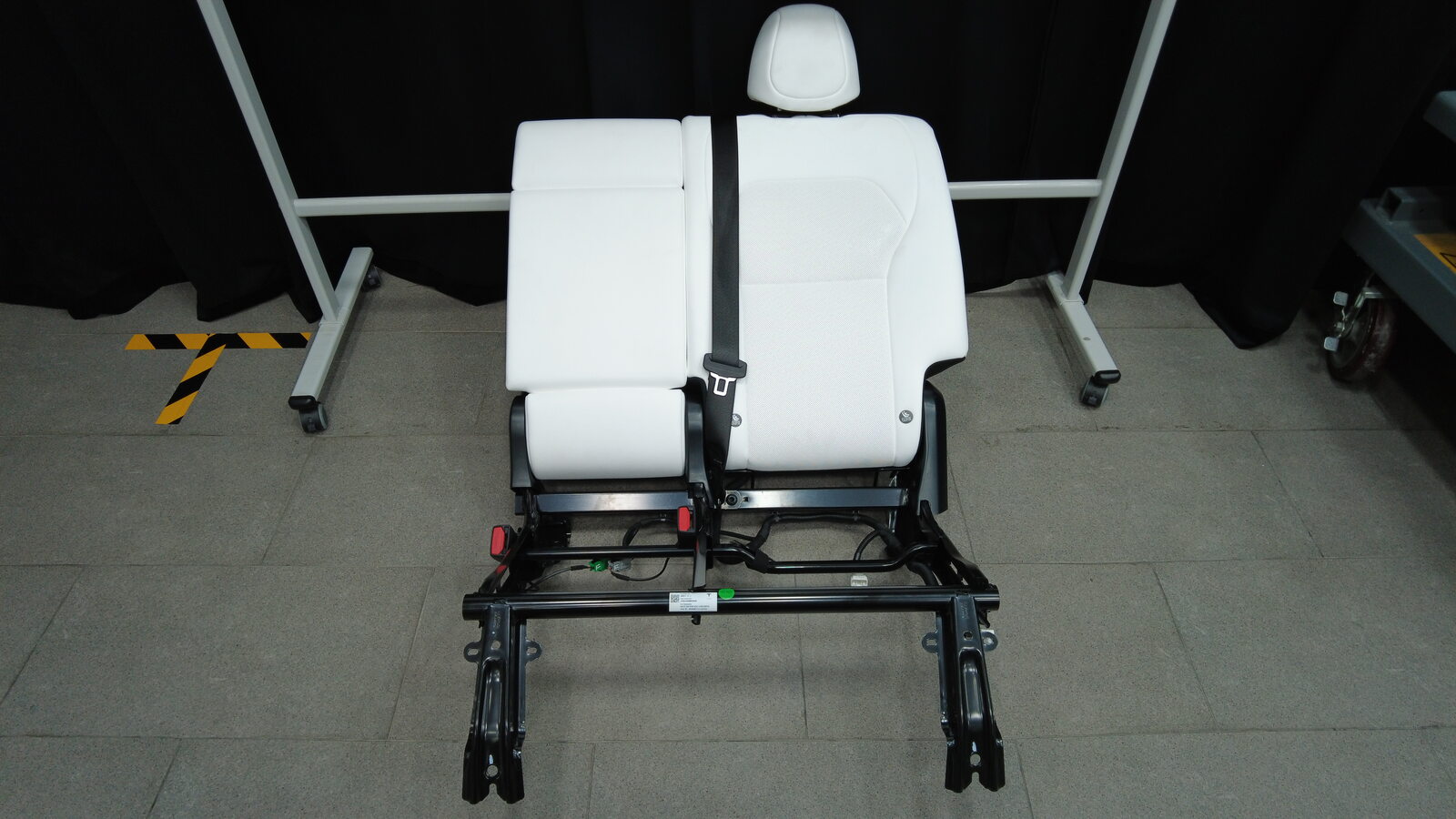

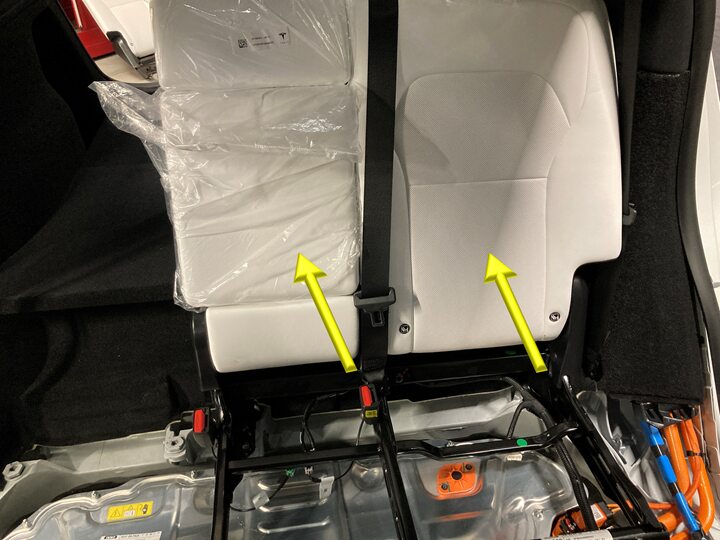

117. Install 2nd row seat cushion
     注

     1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test, And ensure the buckles get stuck under the 2nd row cushion





118. Connect first responder loop and LV battery
     注

     2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated











119. Install HEPA filter assembly
     注

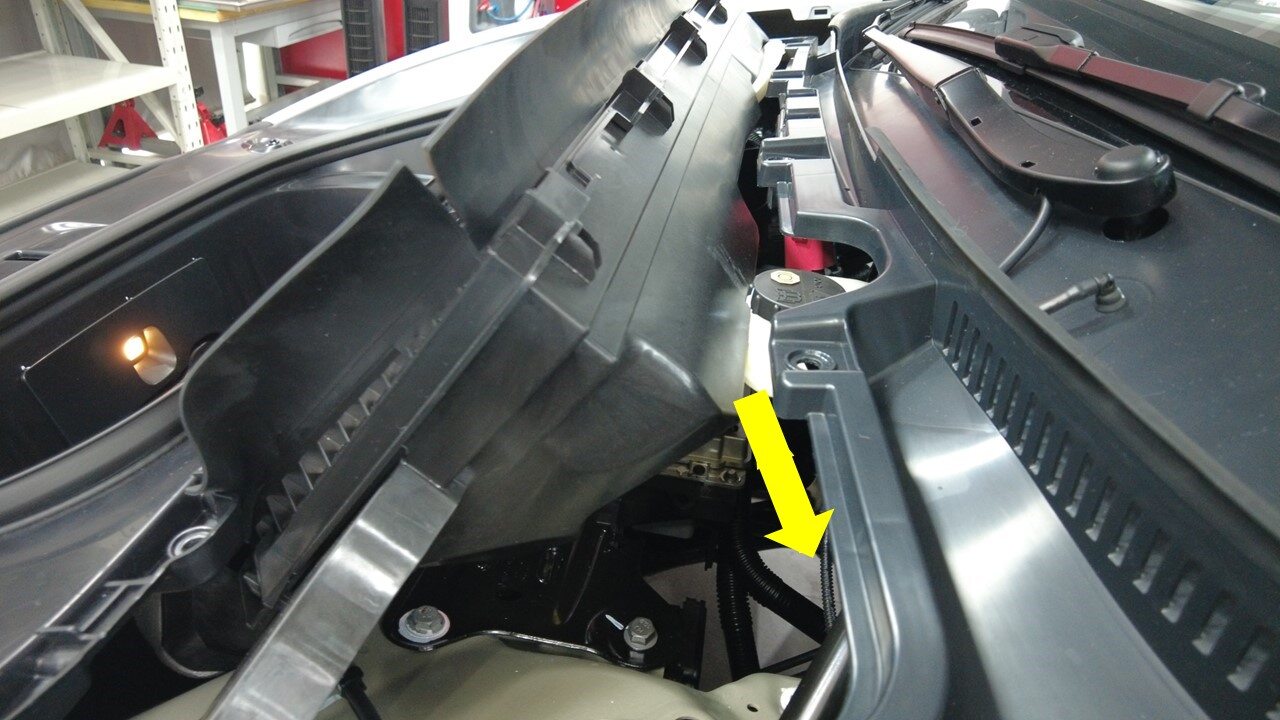

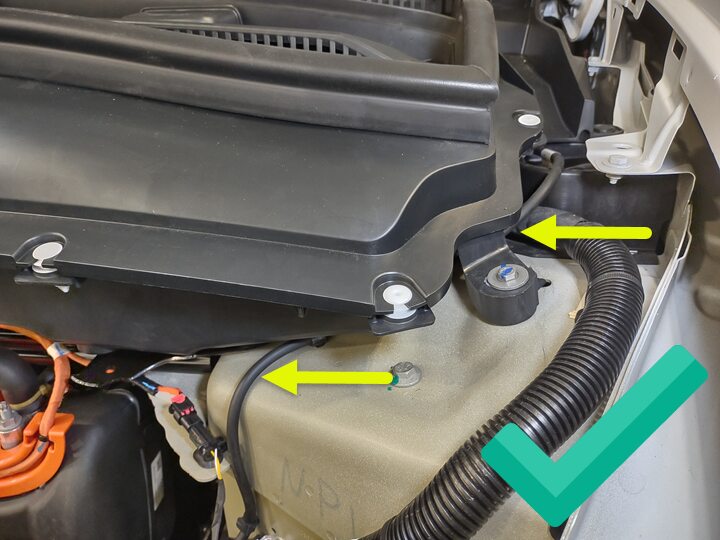

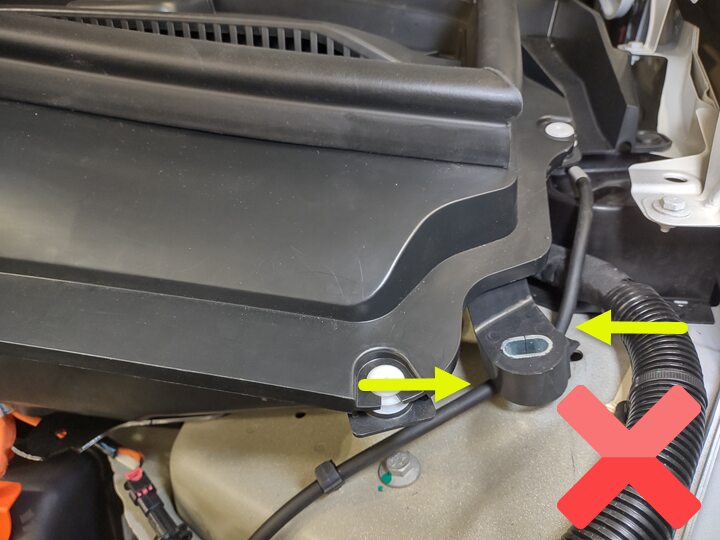

     2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Do not pinch washer hose inbetween HEPA filter assembly and body













120. Install rear apron
     注

     16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron







121. Close hood





122. Move RH front seat to original position



123. Move LH front seat to original position



124. Raise all four window



125. Close all four doors
     注

     Unlatch doors before closing if necessary
