校正代码 33100101402 33100101401 1.44 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

1. Raise and support vehicle
   注

   Ensure vehicle is not charging, Remove charging cable if it's plugged in

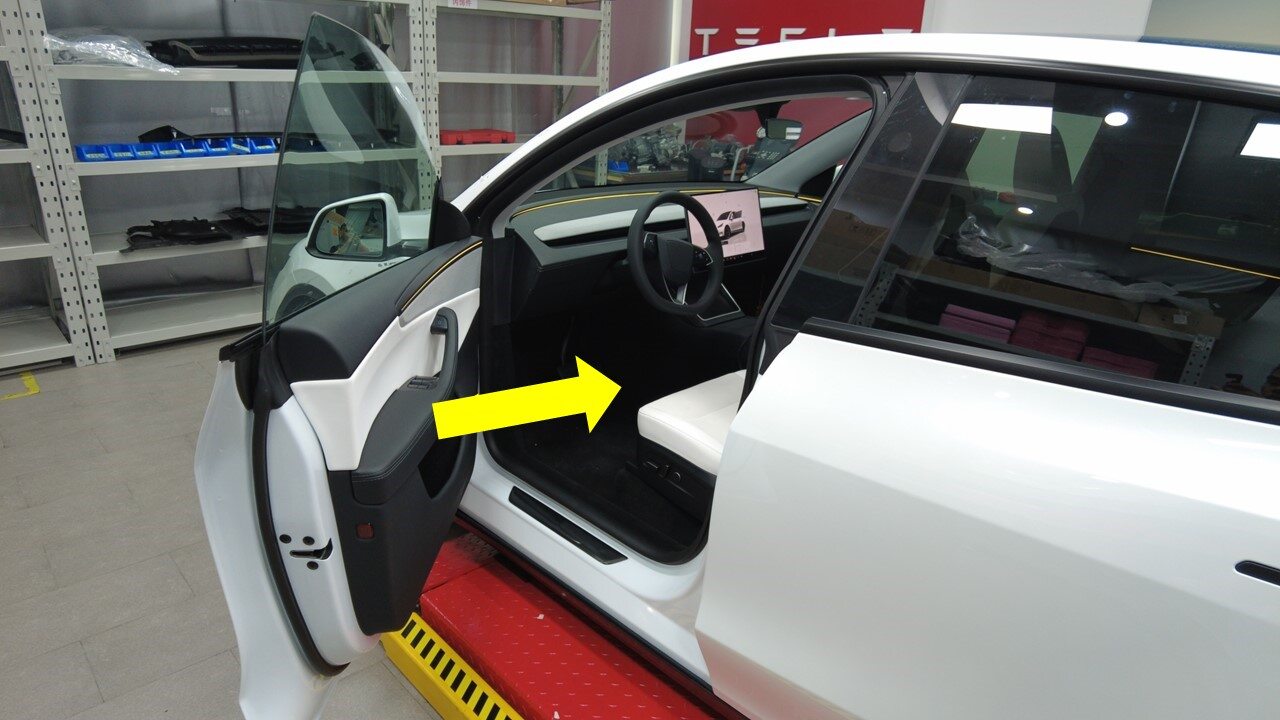

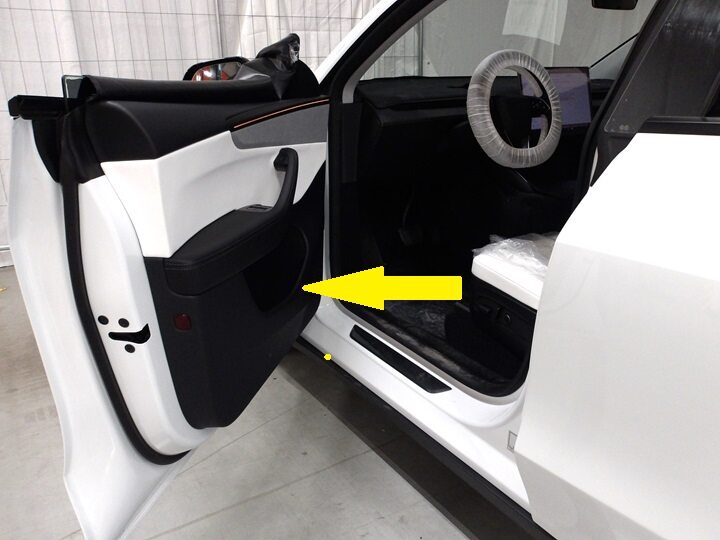

2. Open LH front door

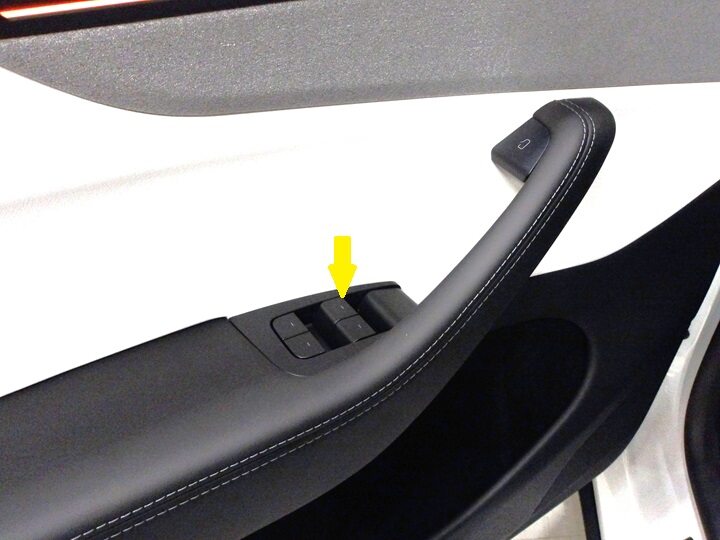

3. Lower LH front window

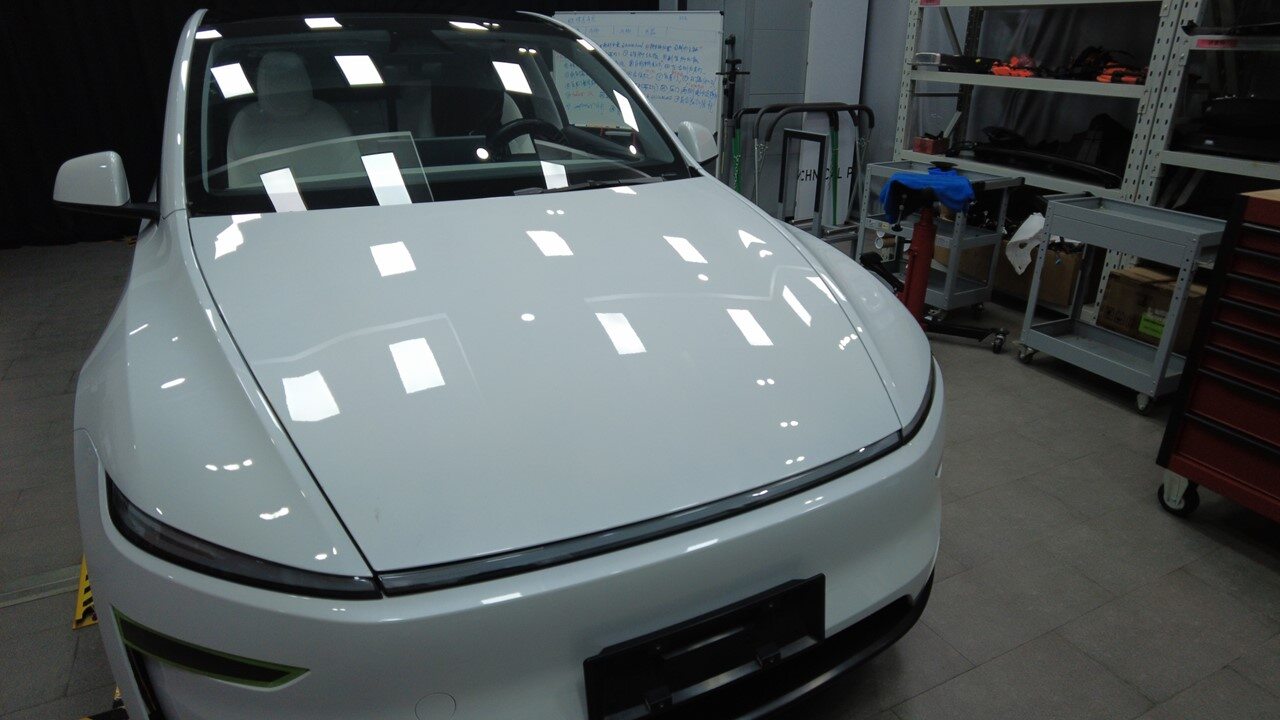

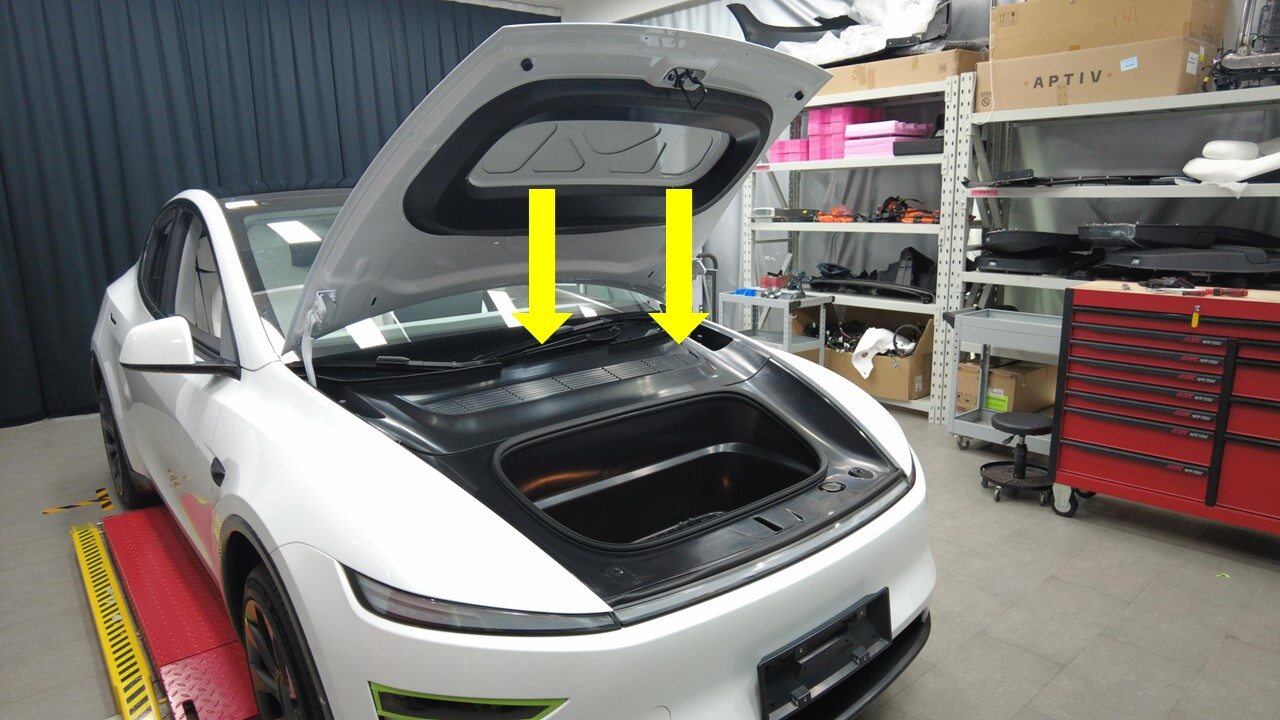

4. Open hood

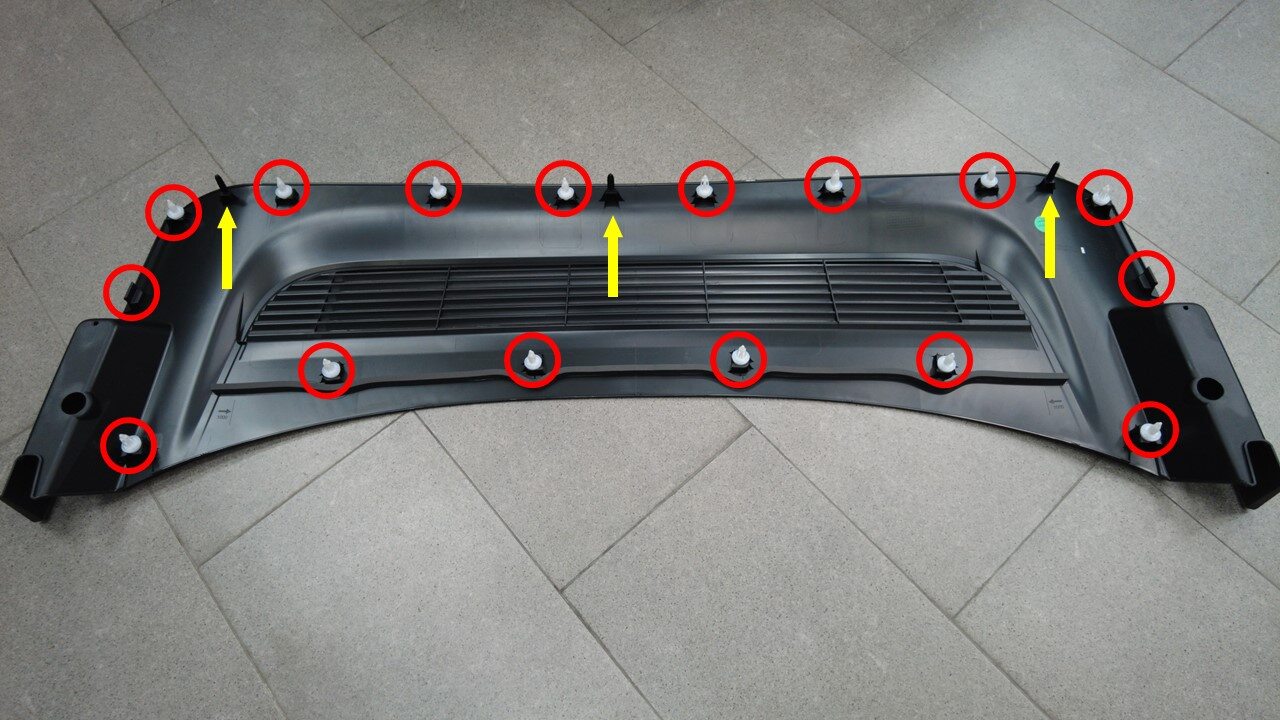

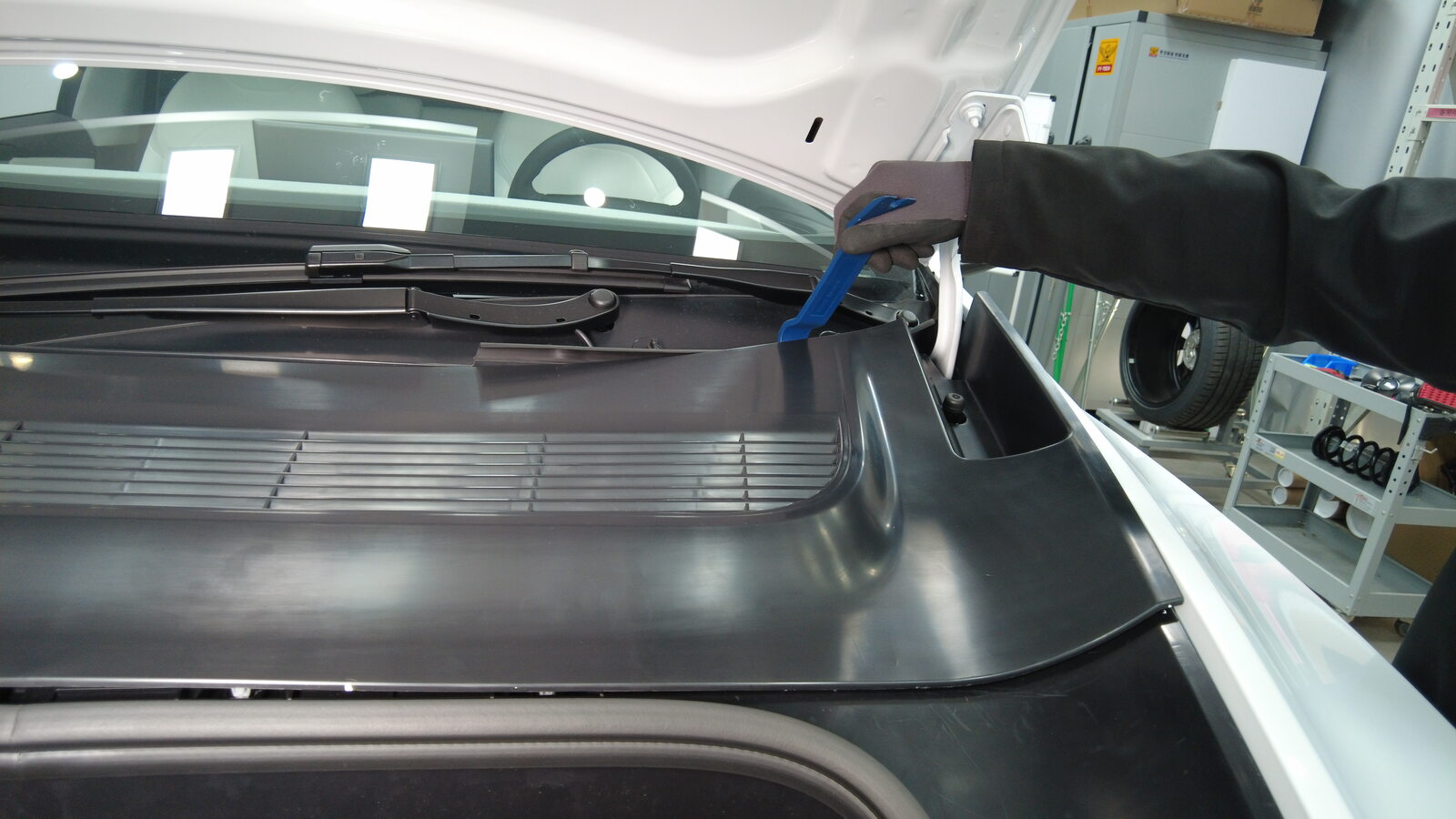

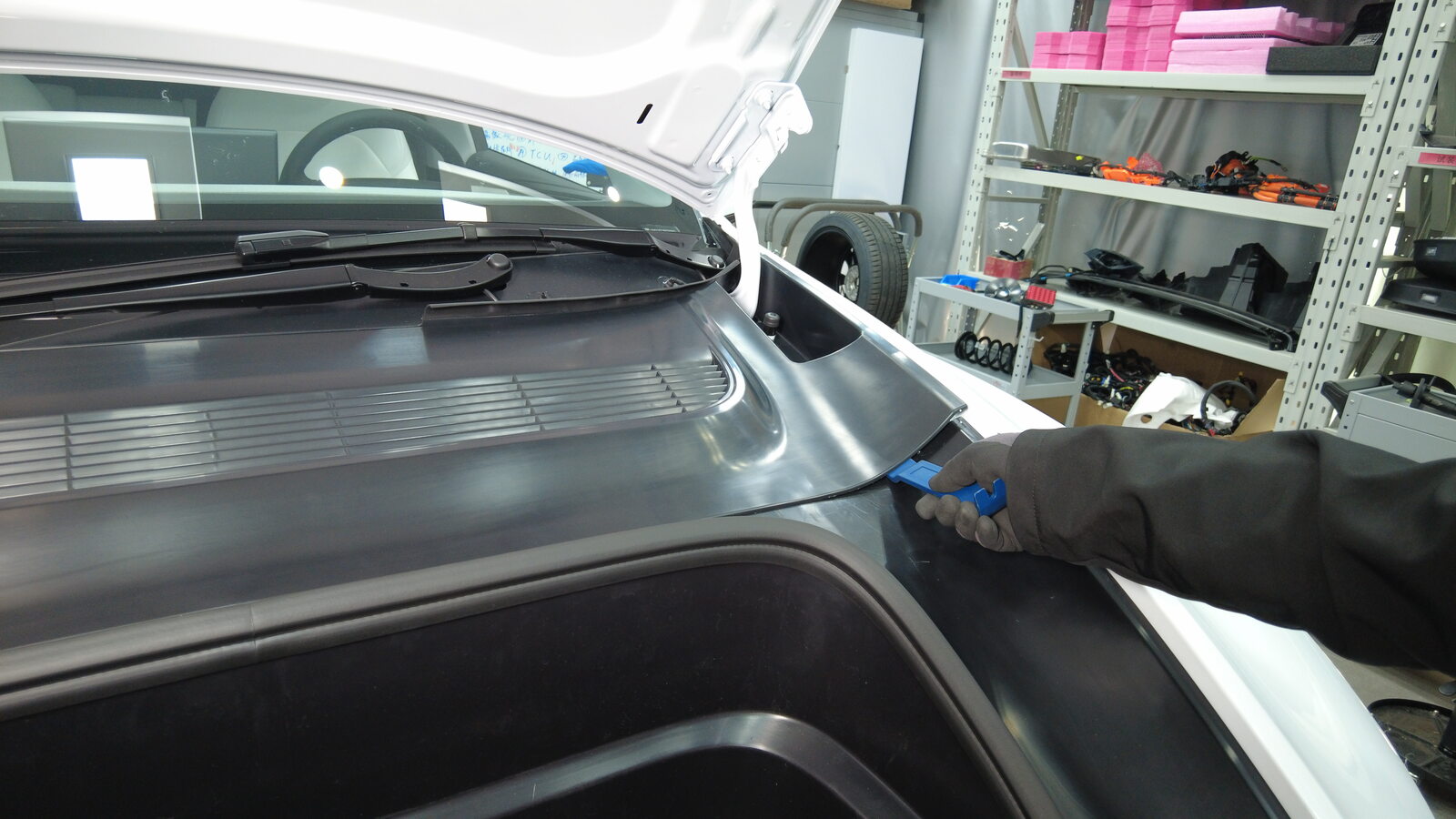

5. Remove rear apron
   注

   16x trim clips, 3x datums, 2x clips









6. Remove HEPA filter assembly
   注

   2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly

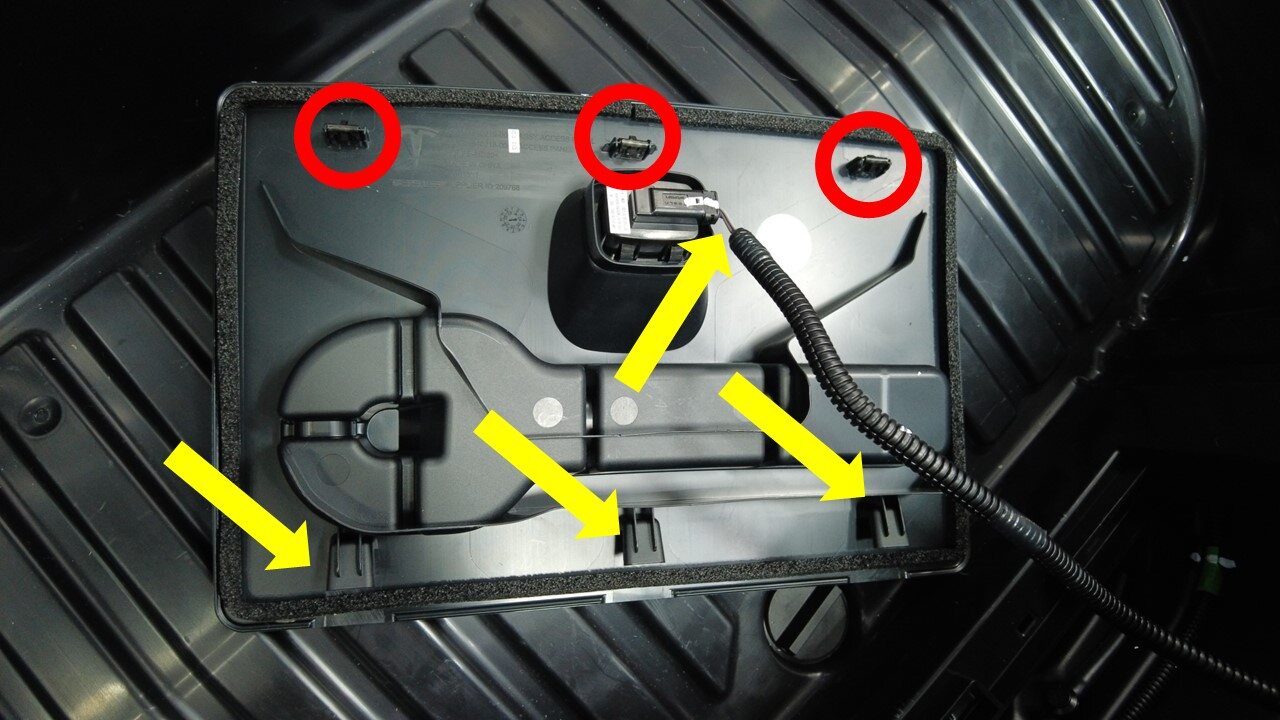

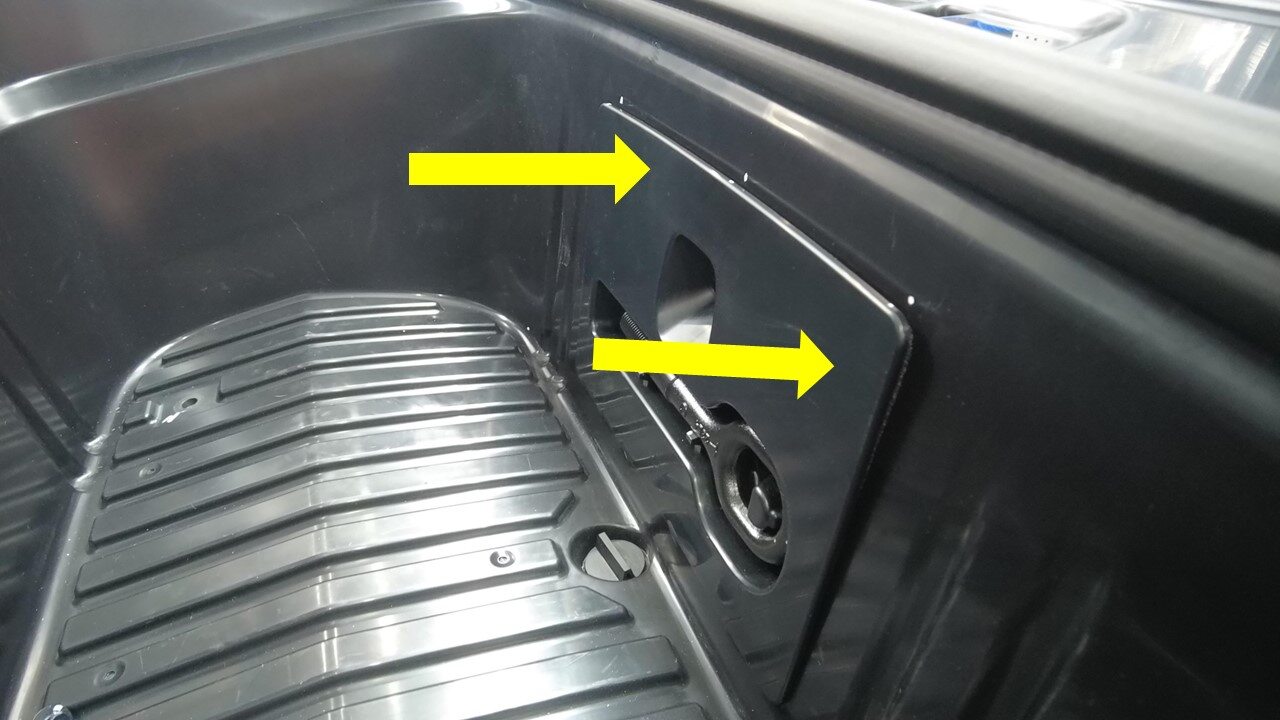

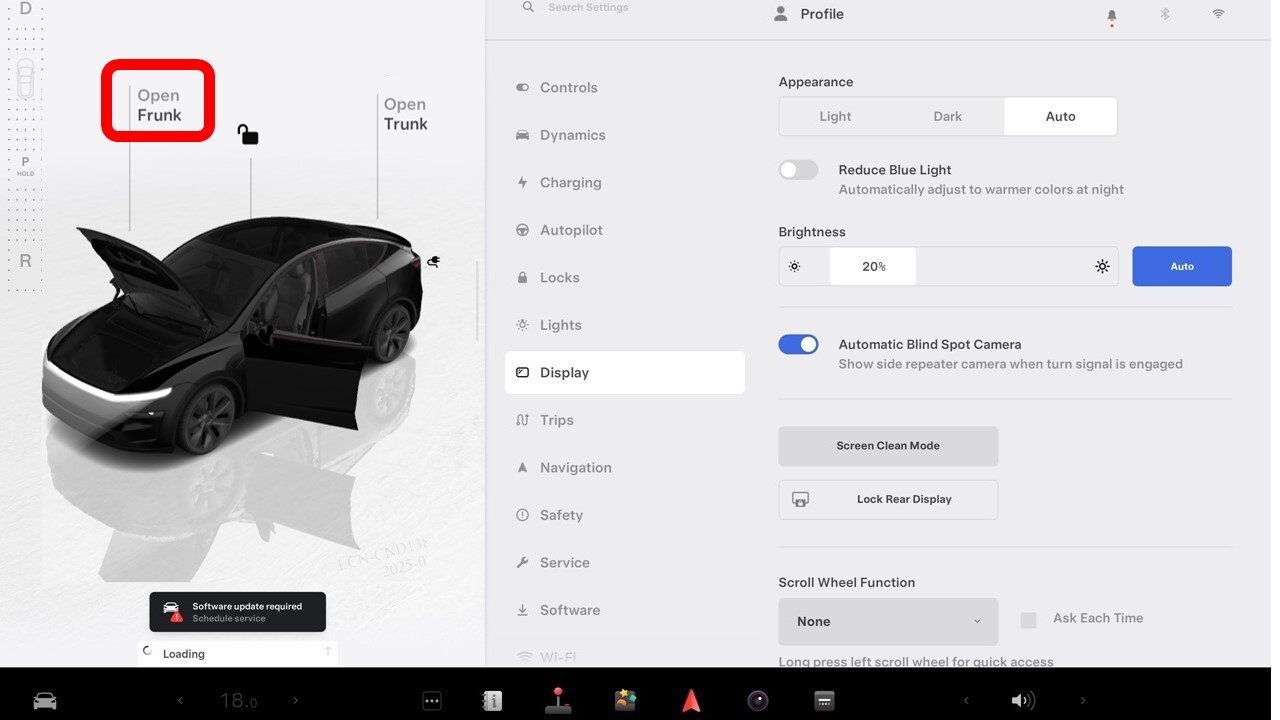

7. Remove frunk access panel
   注

   3x clips, 3x tabs, 1x connector

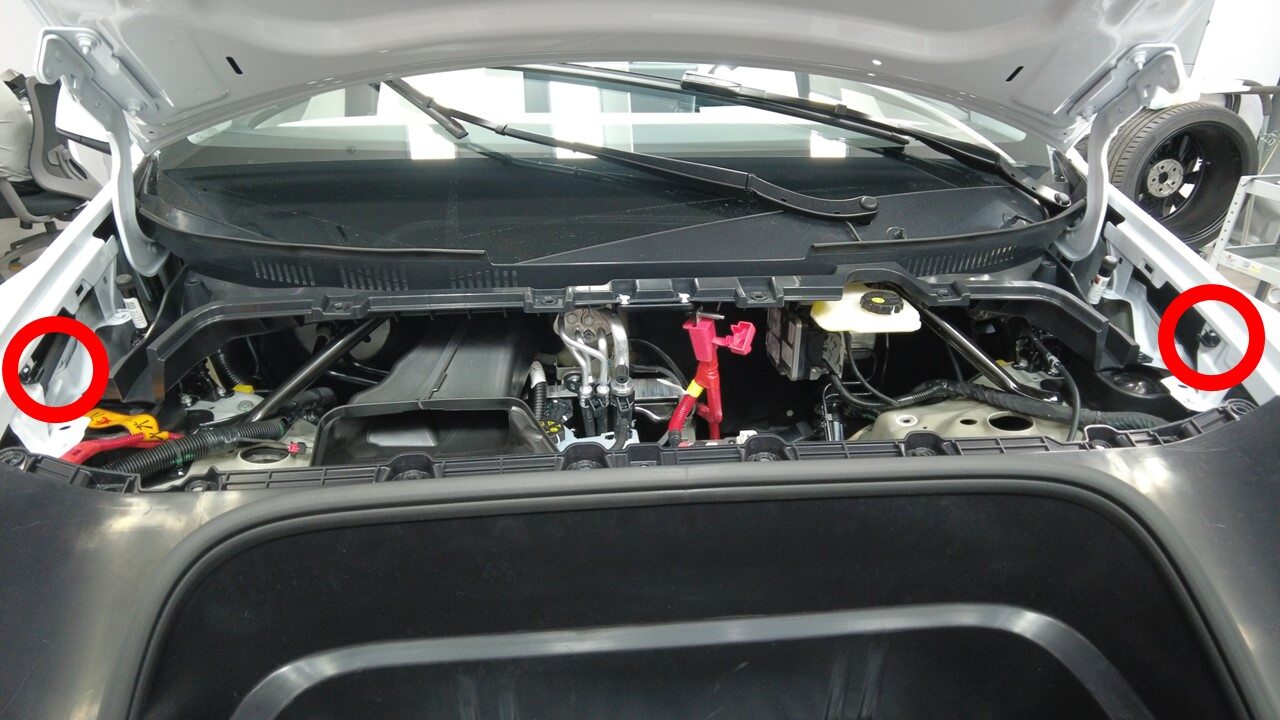

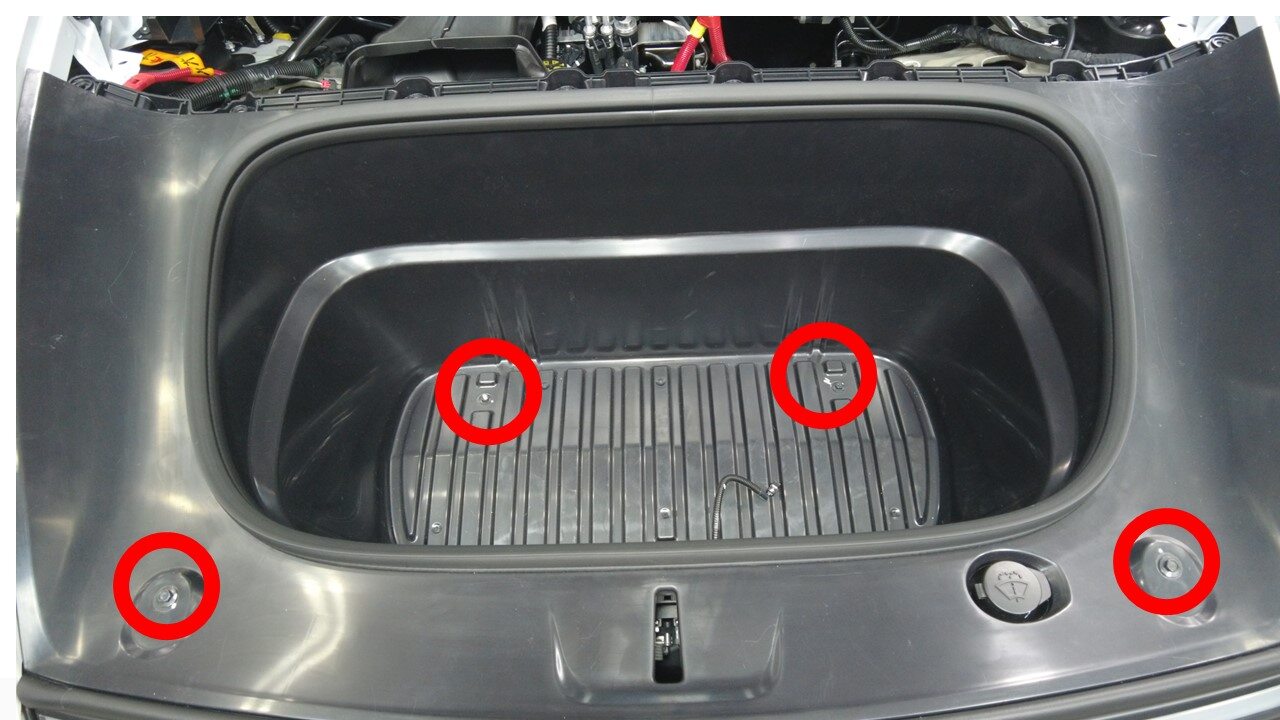

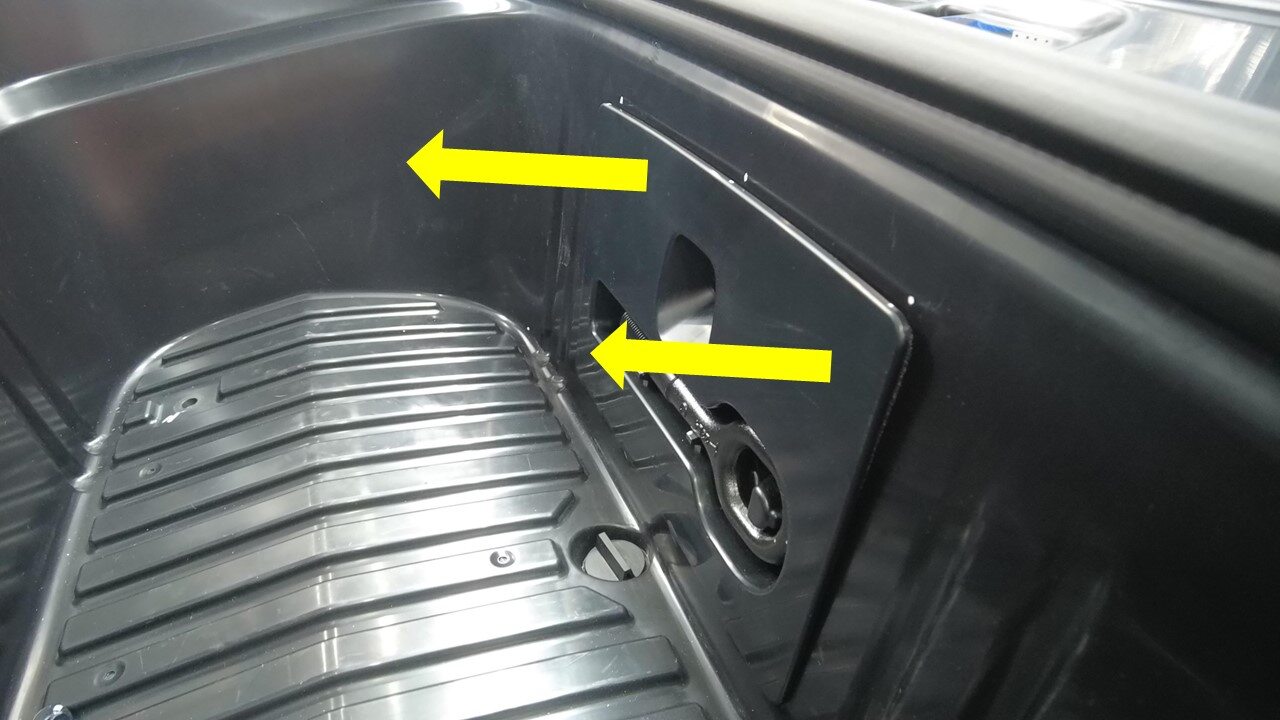

8. Remove bolts securing frunk to vehicle
   注

   4x bolts, 10mm, 5 Nm

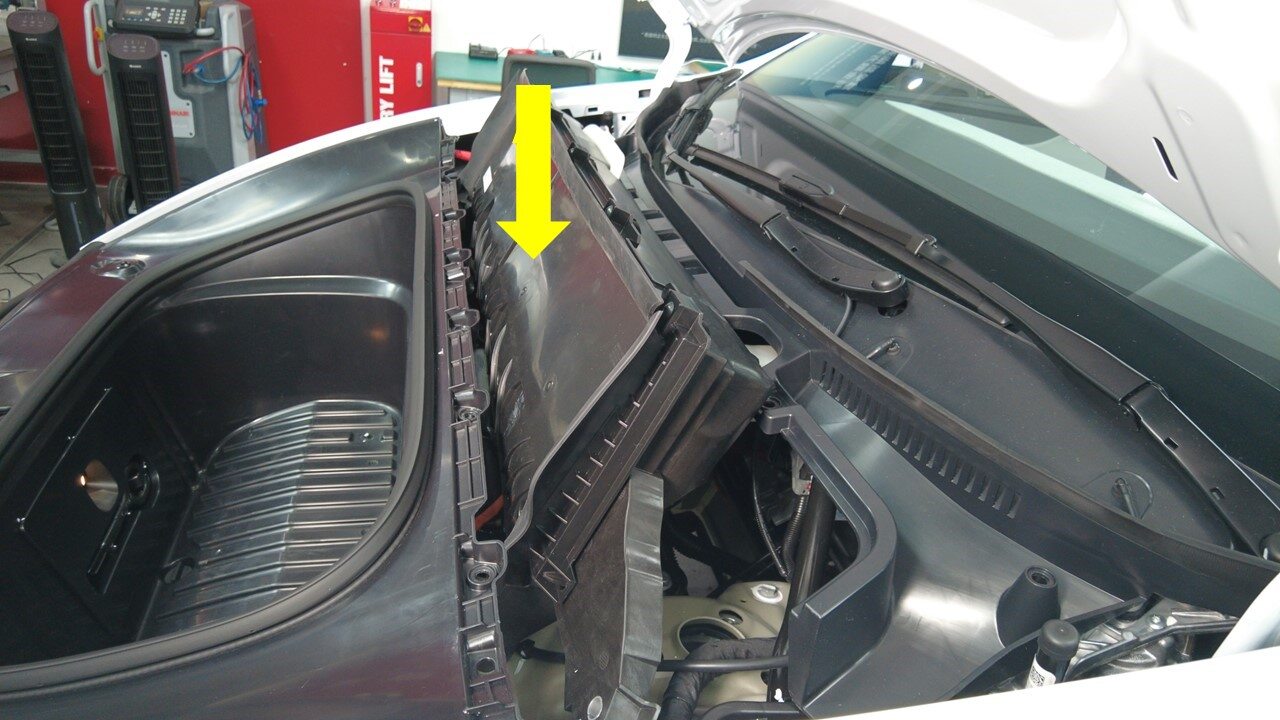

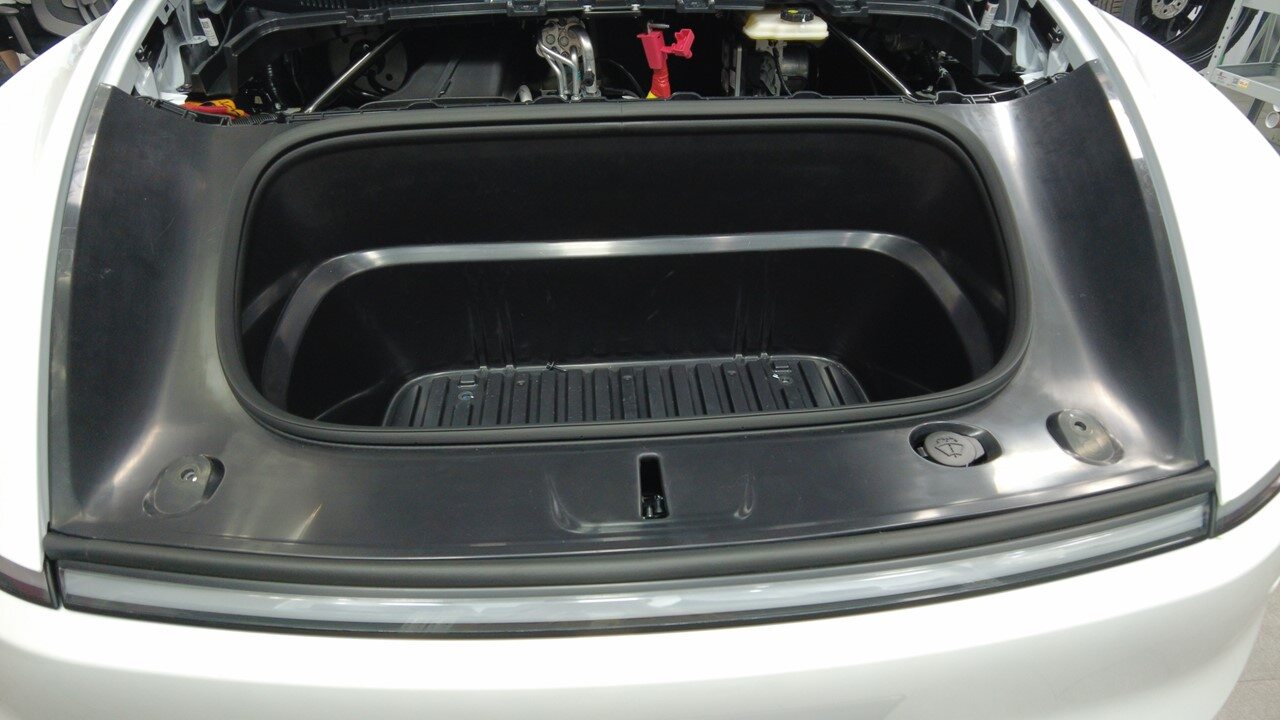

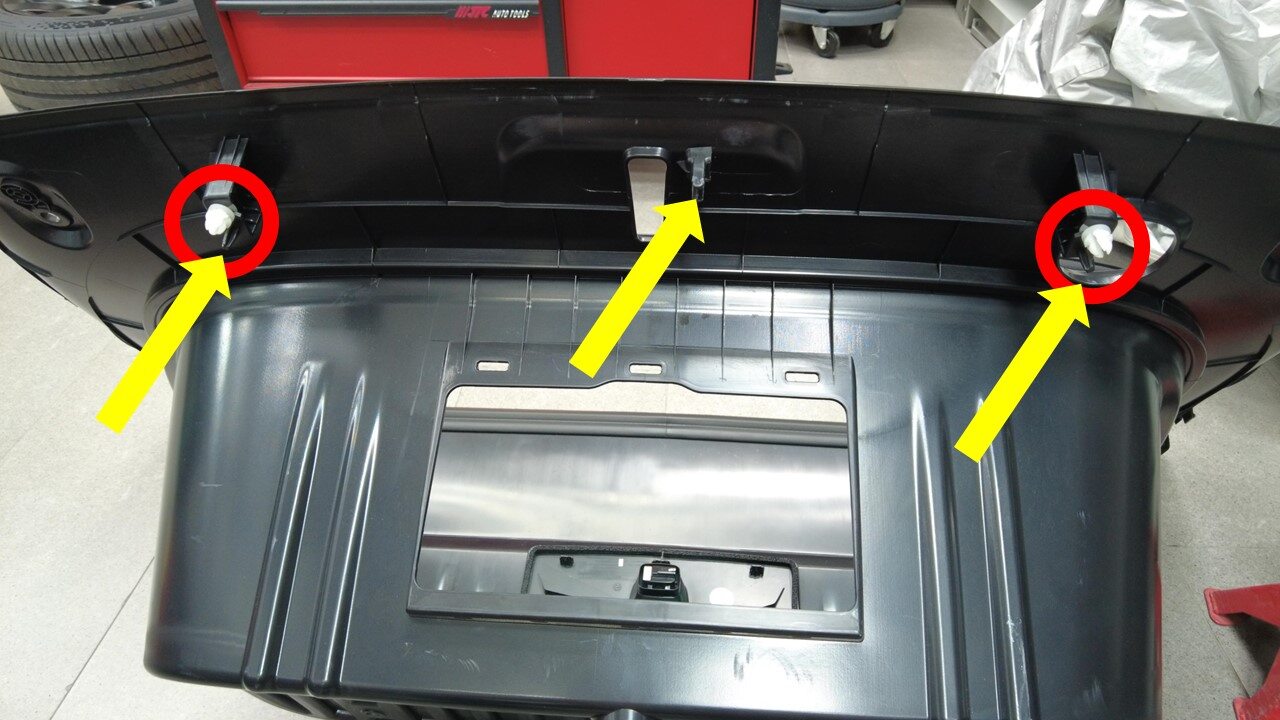

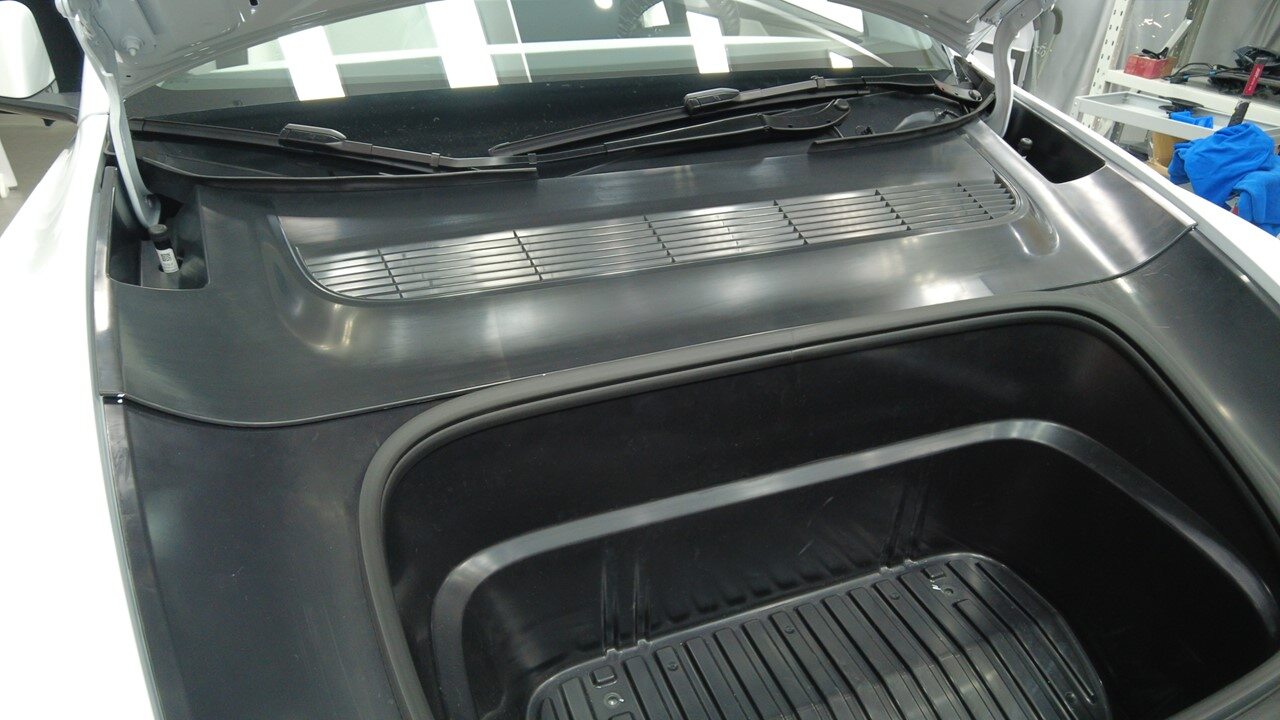

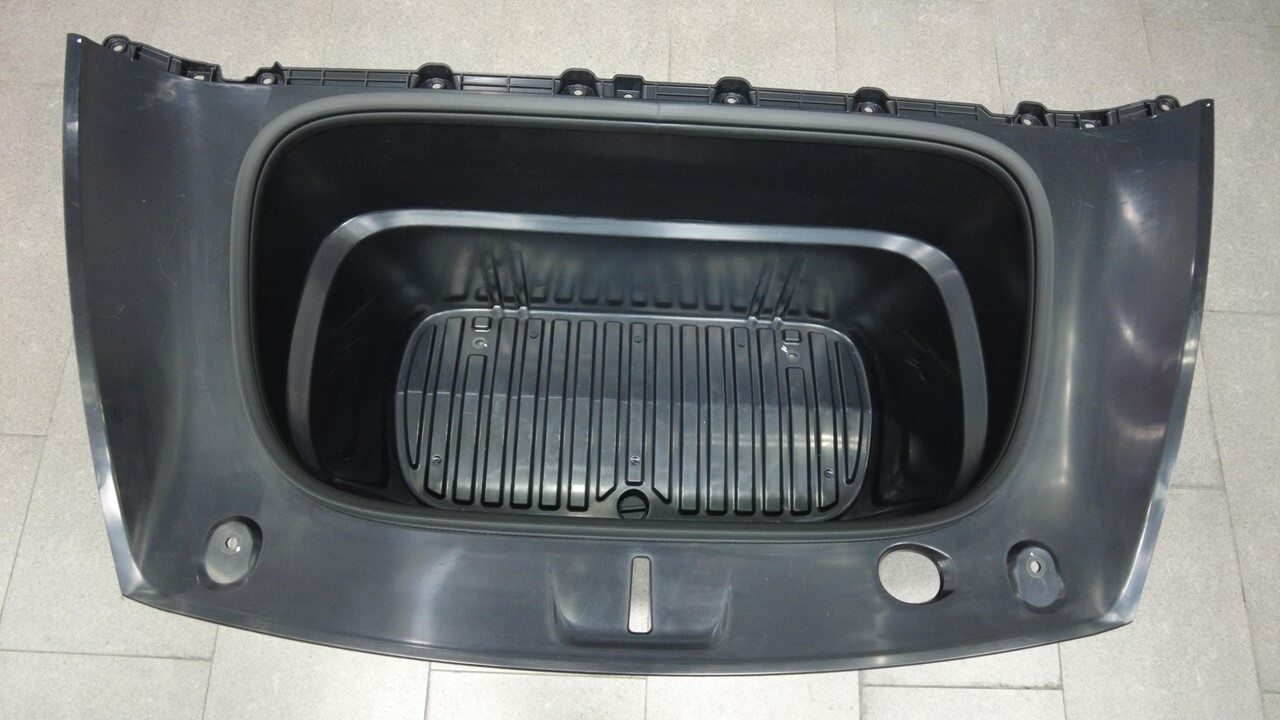

9. Remove frunk from vehicle

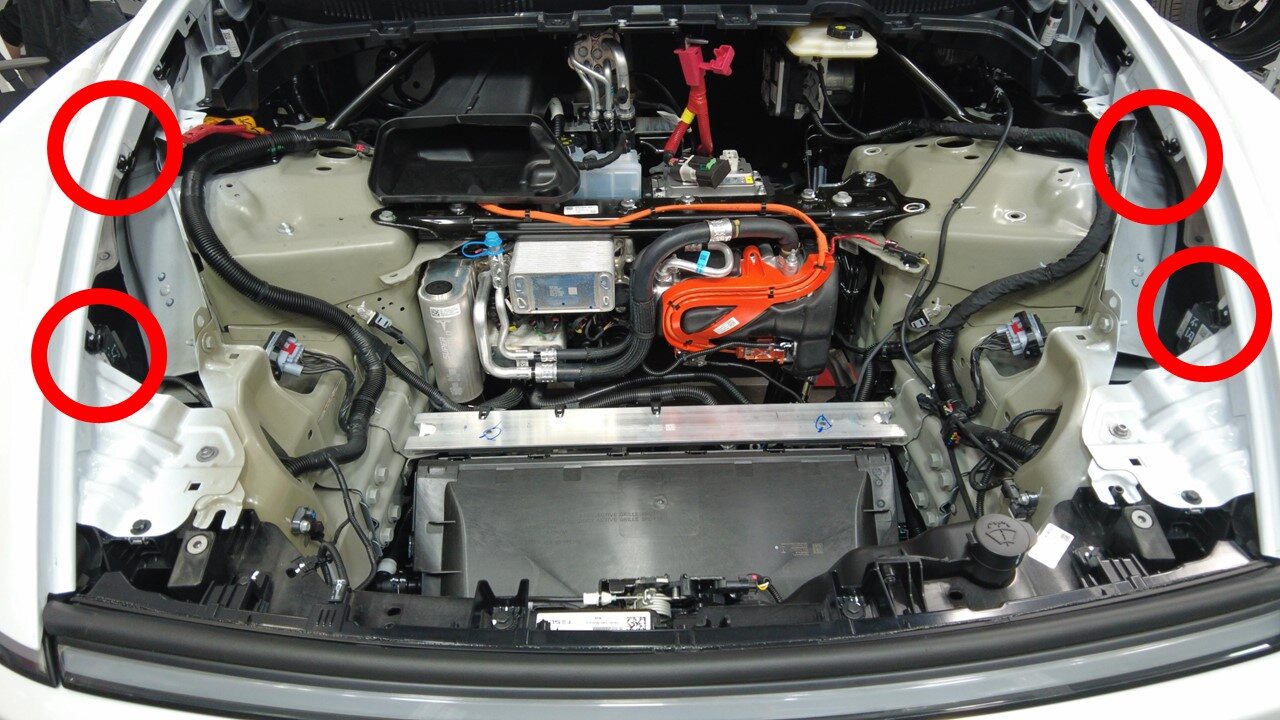

   注

   4x clips, 3x tabs, 2x trim clips, Replace any clips if broken or missing

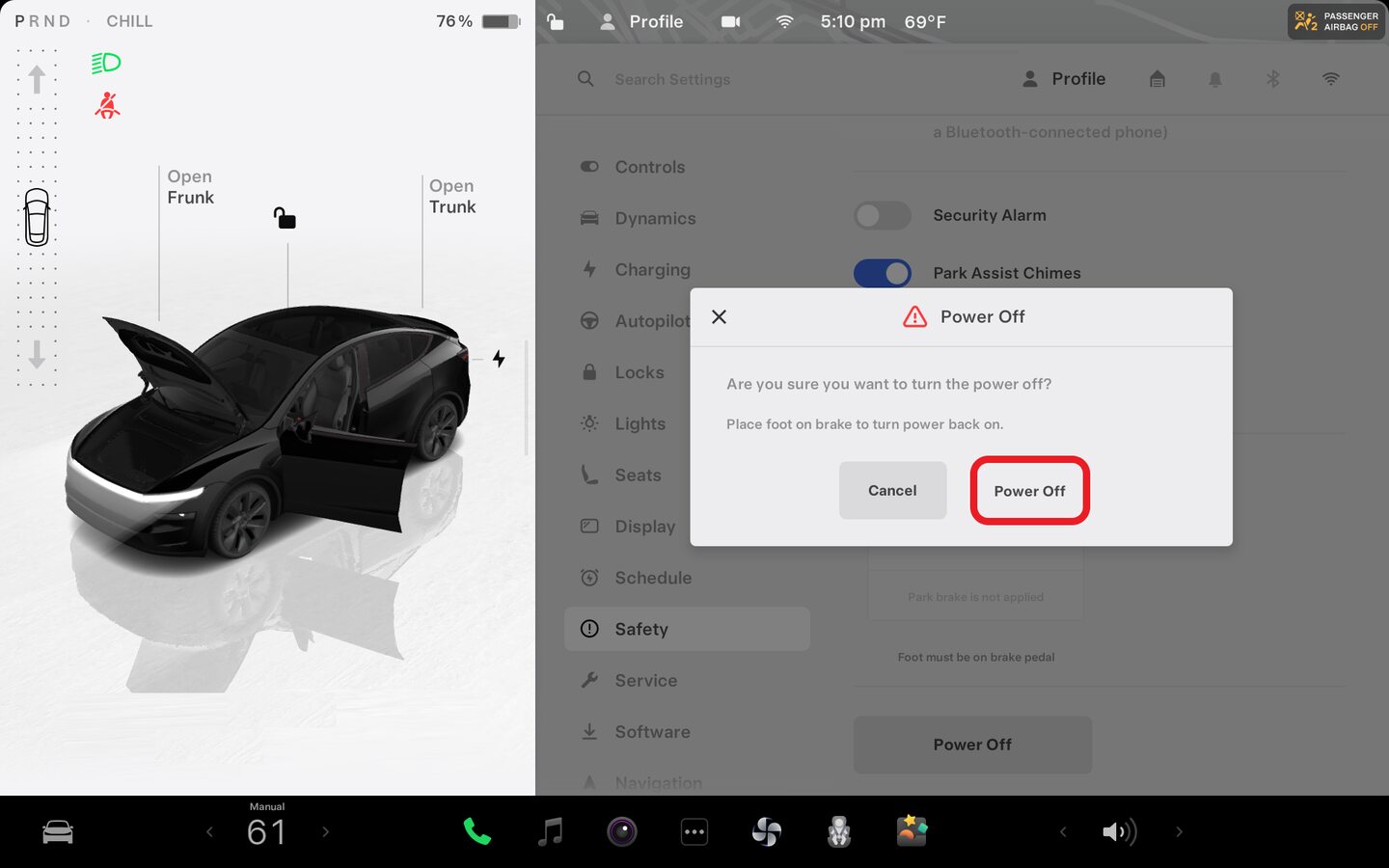

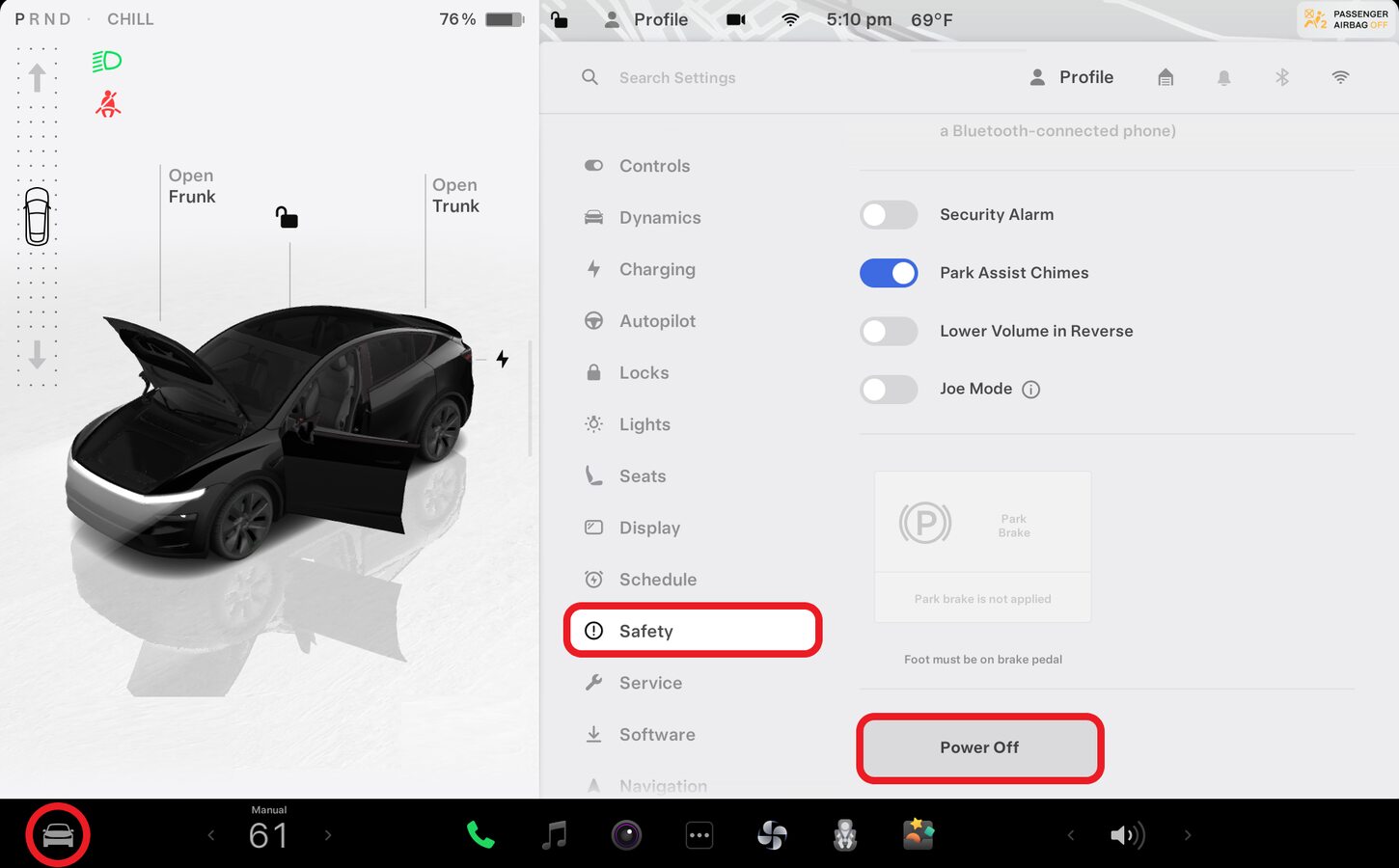

10. Power off vehicle from center display
    注

    Via Controls > Safety > Power off, Select "Power Off" button at warning dialogue box

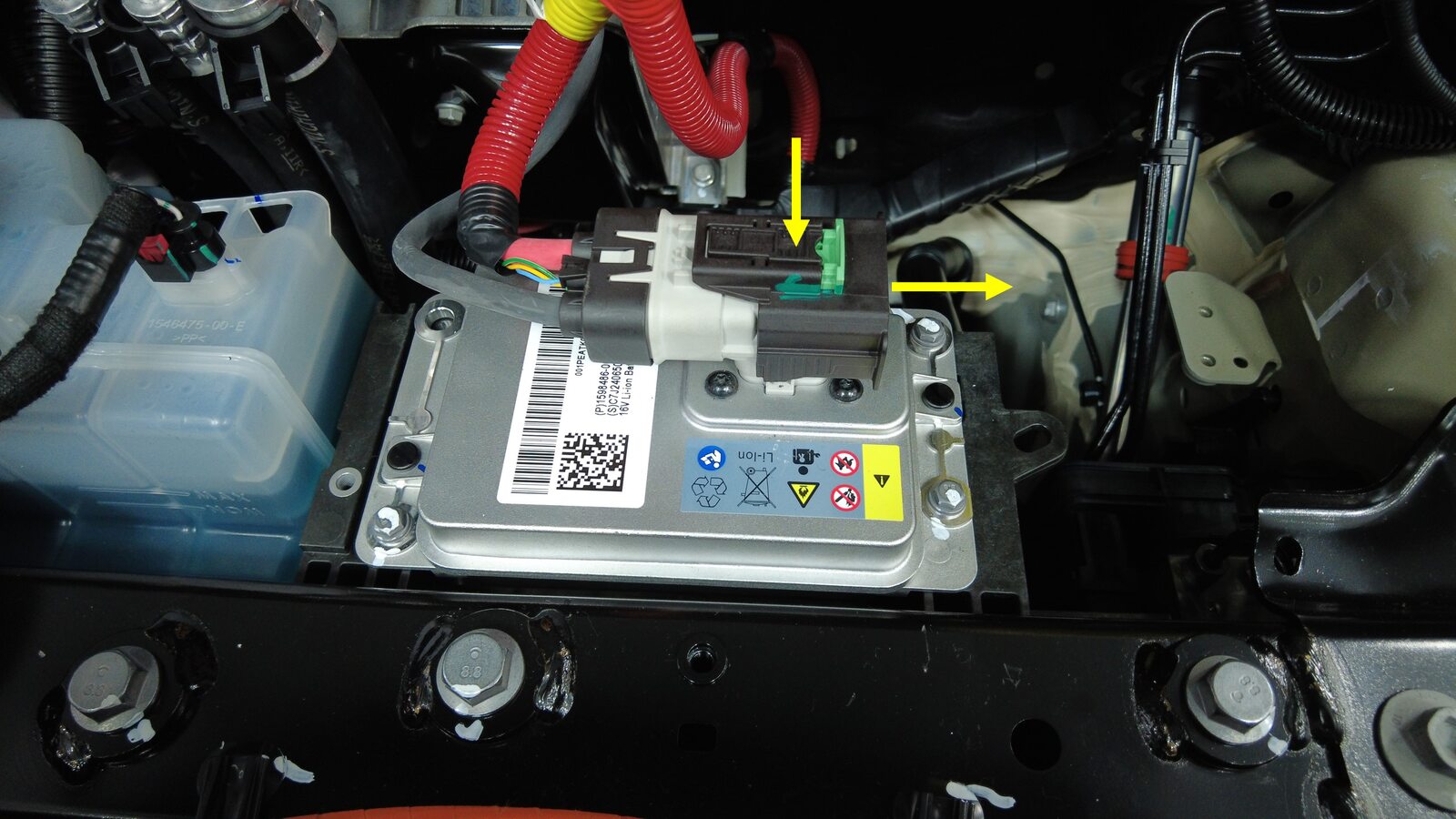

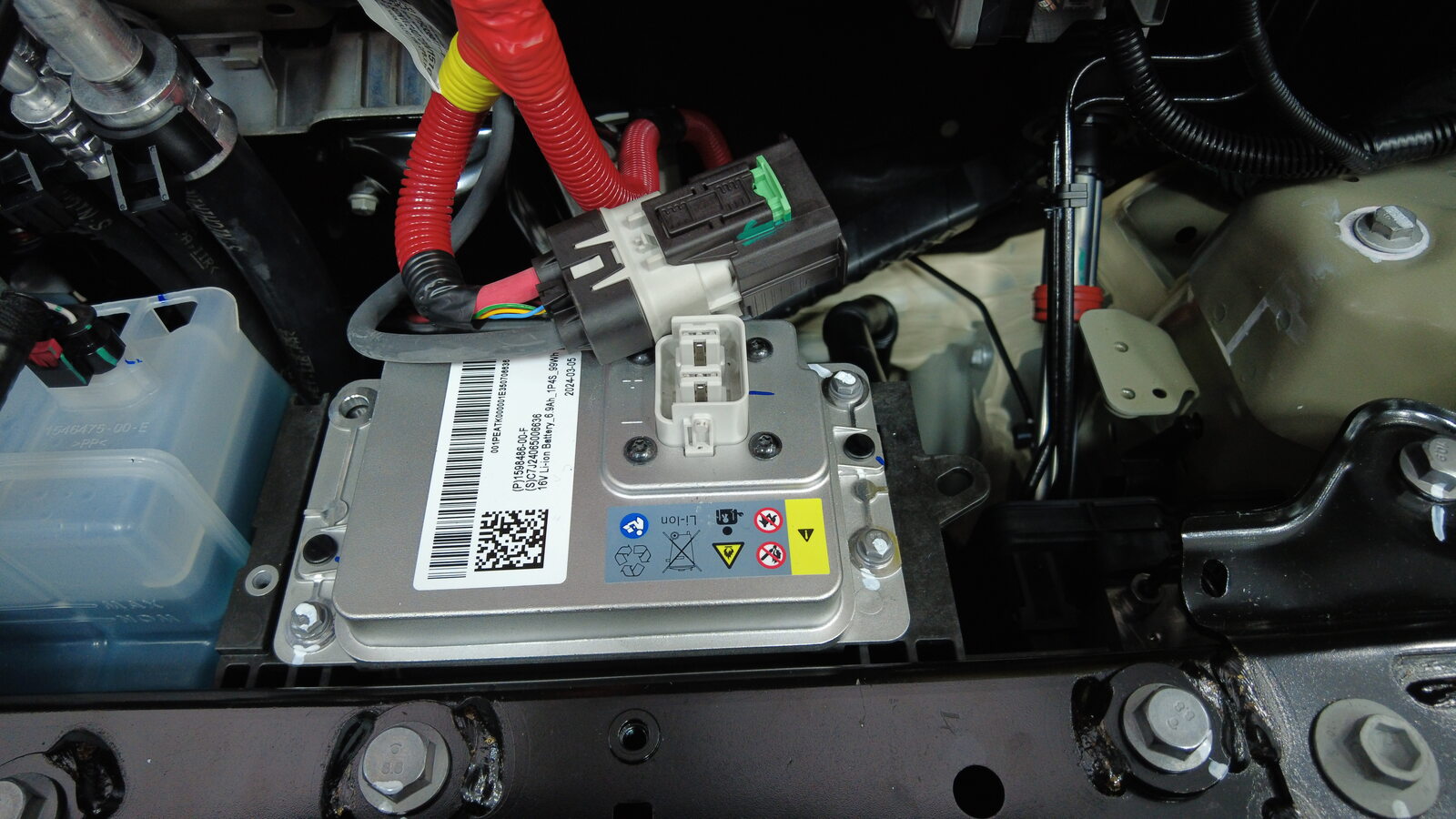

11. Disconnect LV battery and first responder loop
    注

    2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

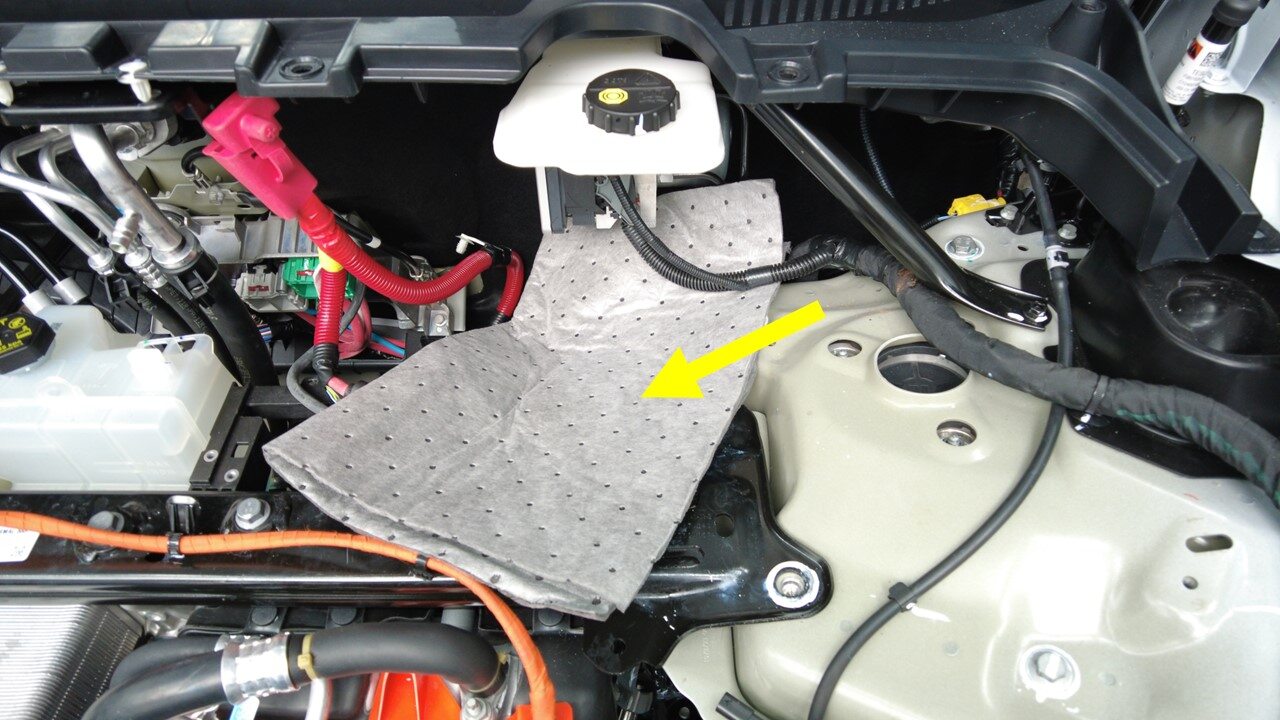

12. Place absorbent material underneath brake lines and brake fluid reservoir to catch any fluid lost

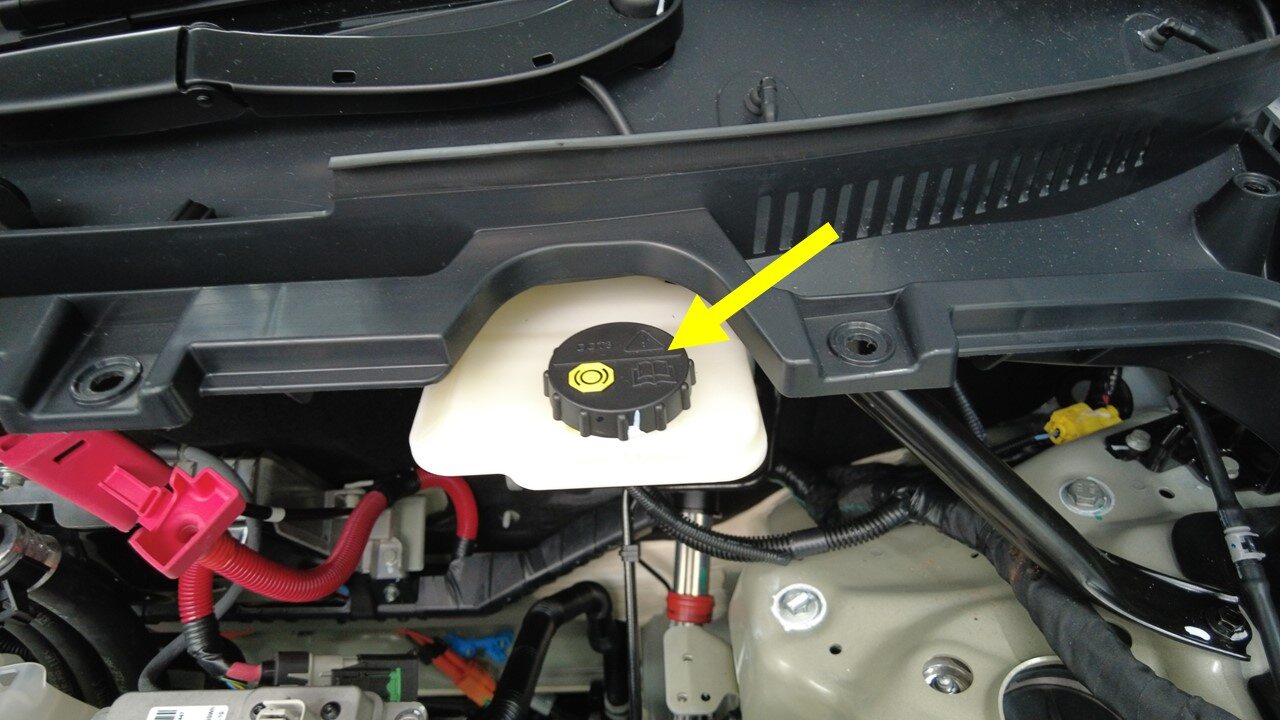

13. Clean area around brake fluid reservoir and remove brake reservoir cap

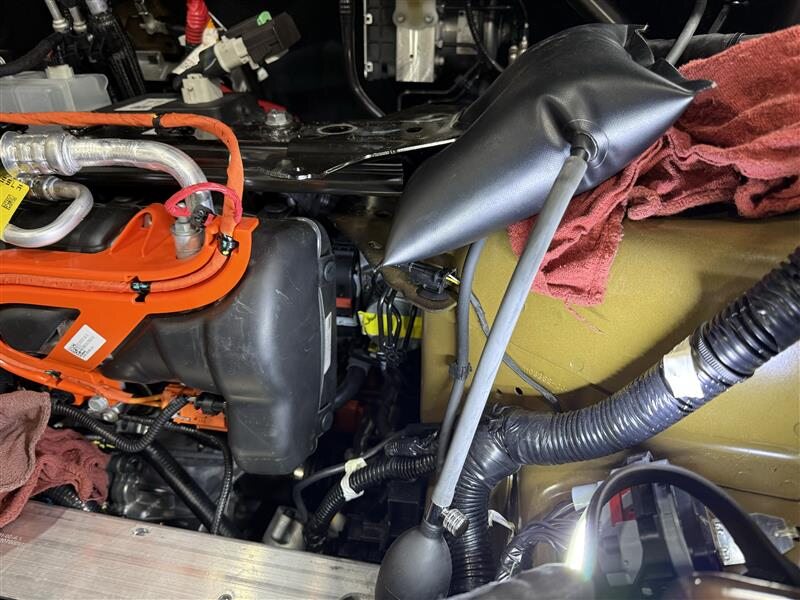

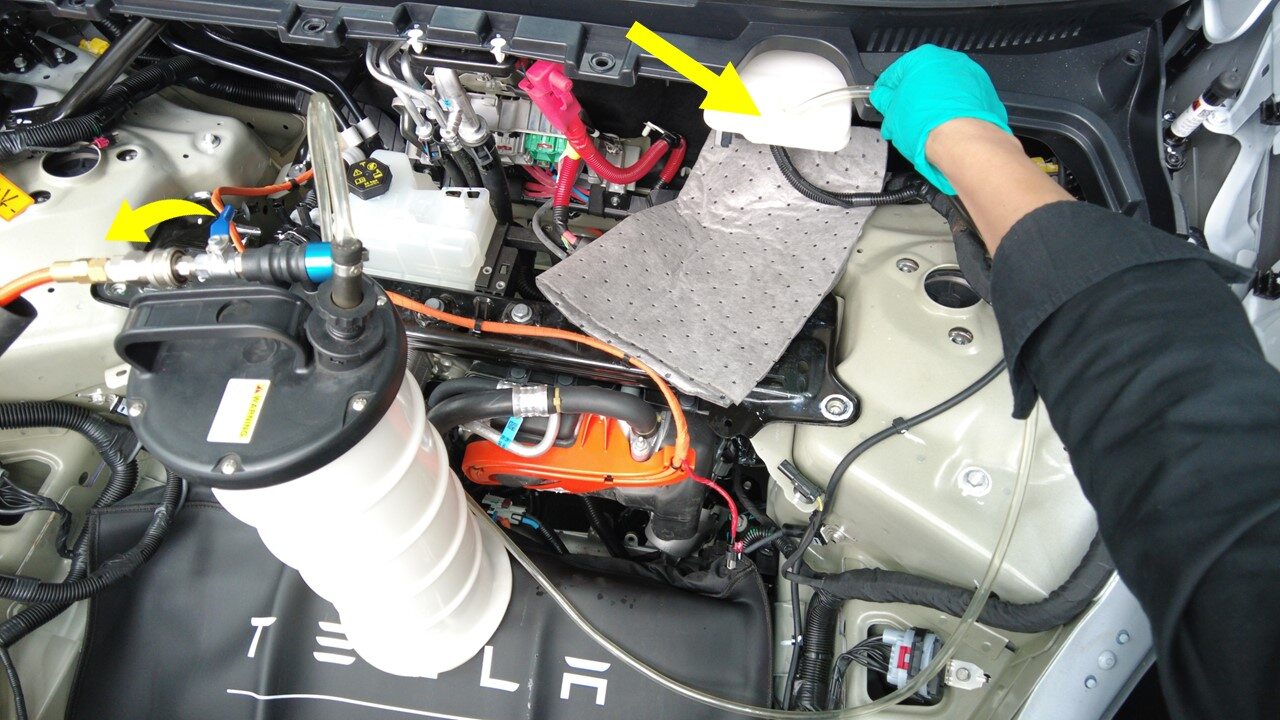

14. Remove brake fluid from brake reservoir
    注

    Install absorbent cloth or rag underneath brake fluid reservoir

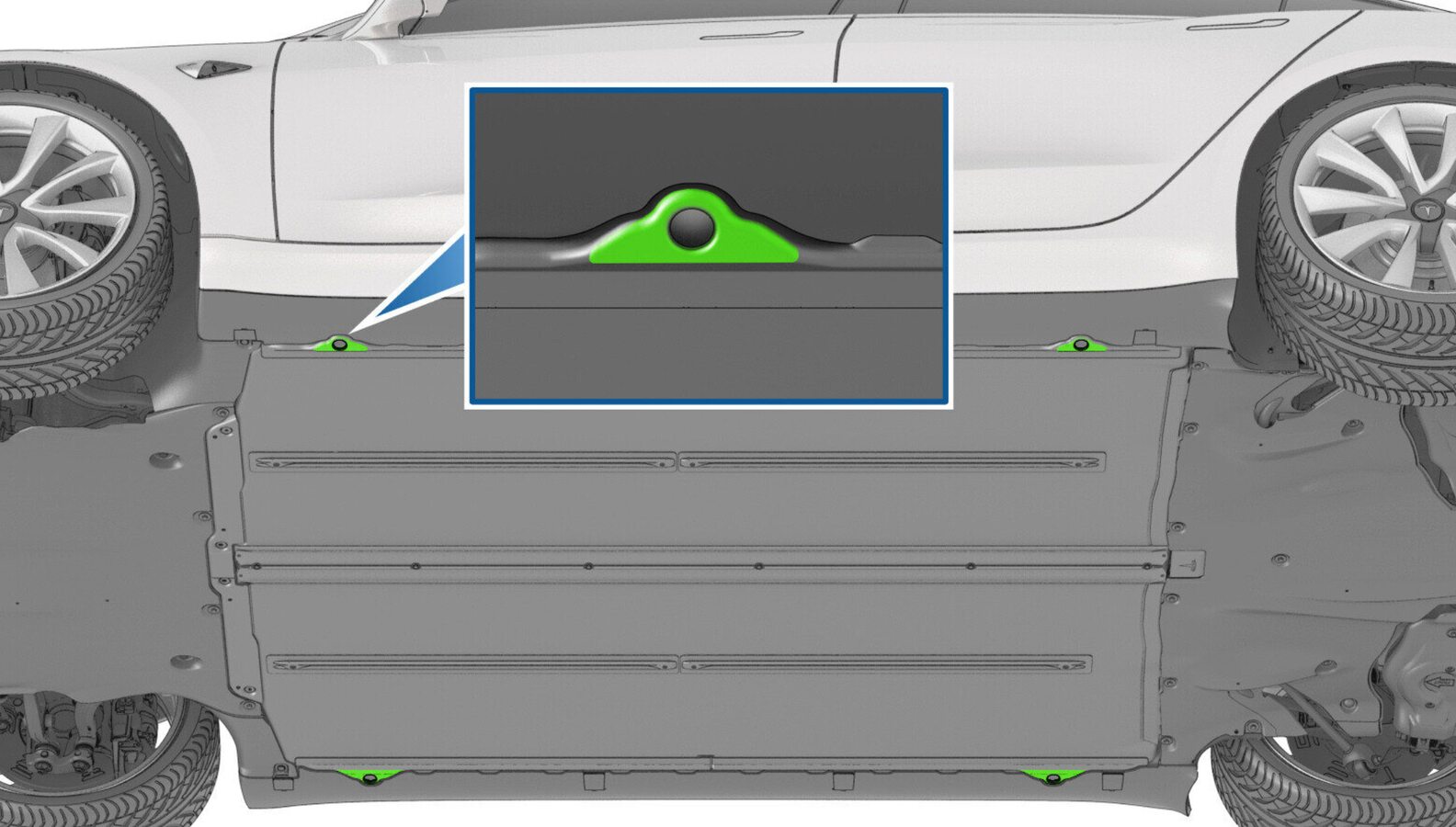

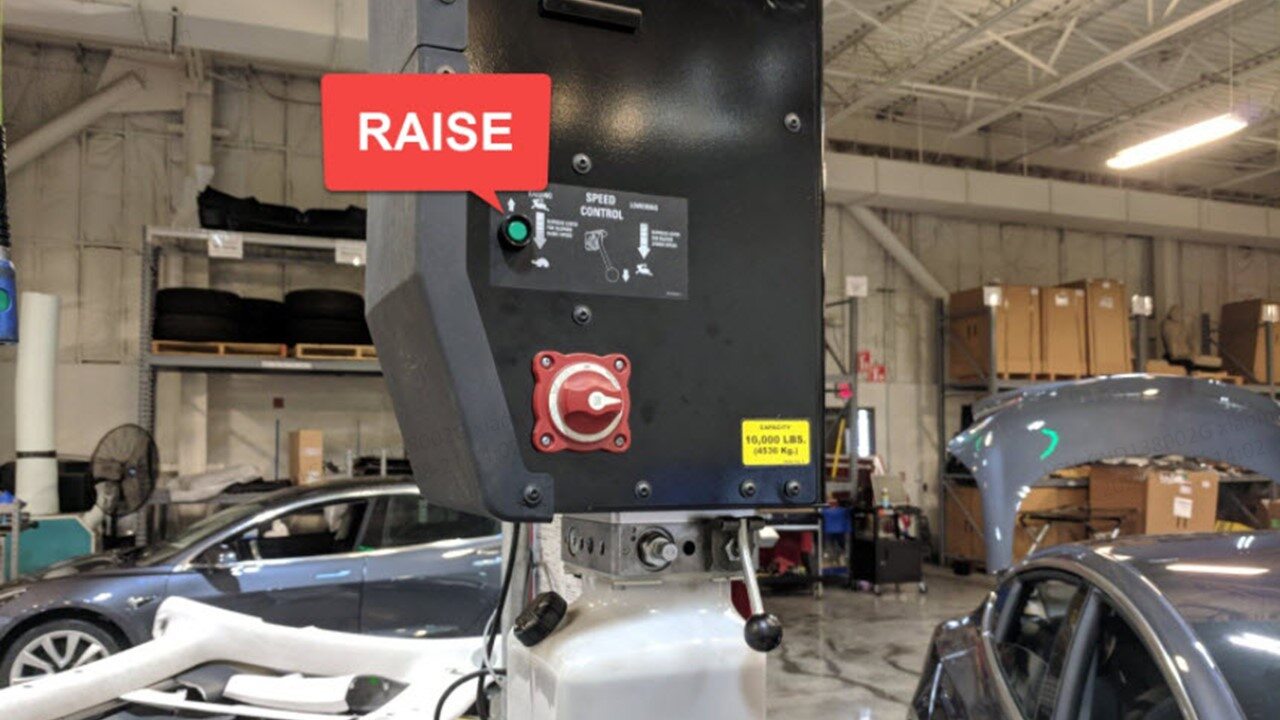

15. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, Otherwise vehicle may tilt to side

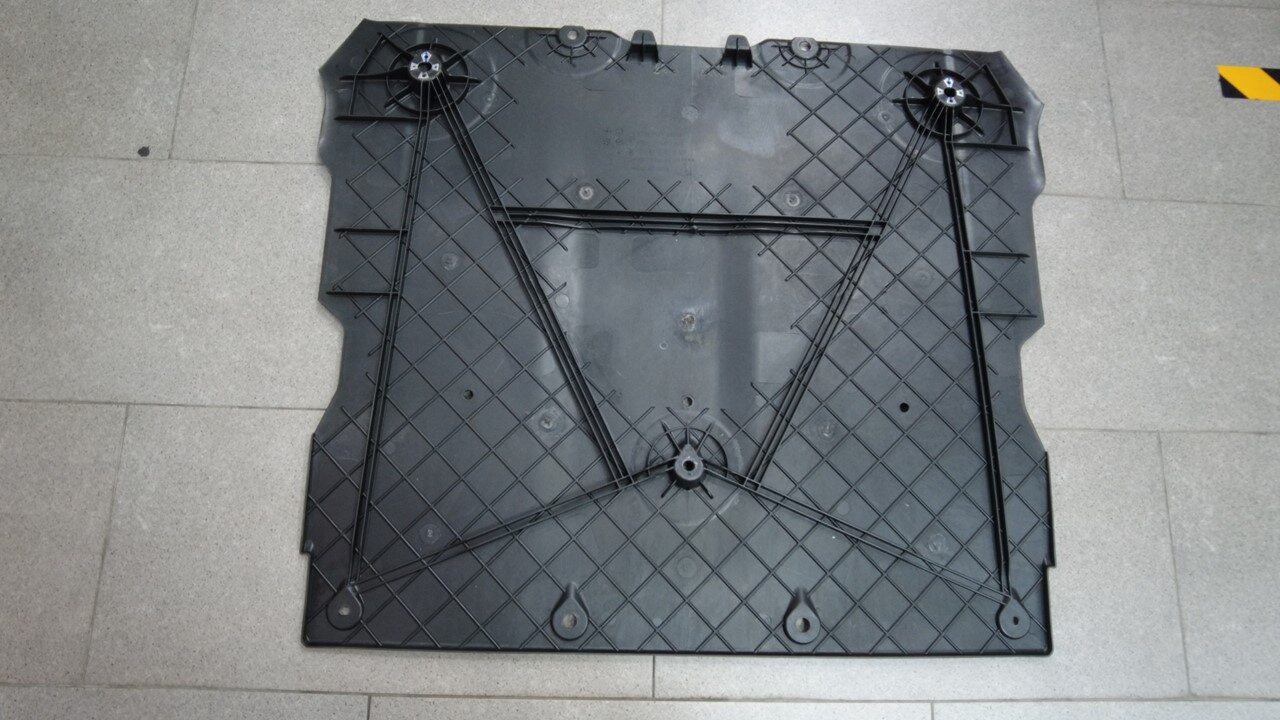

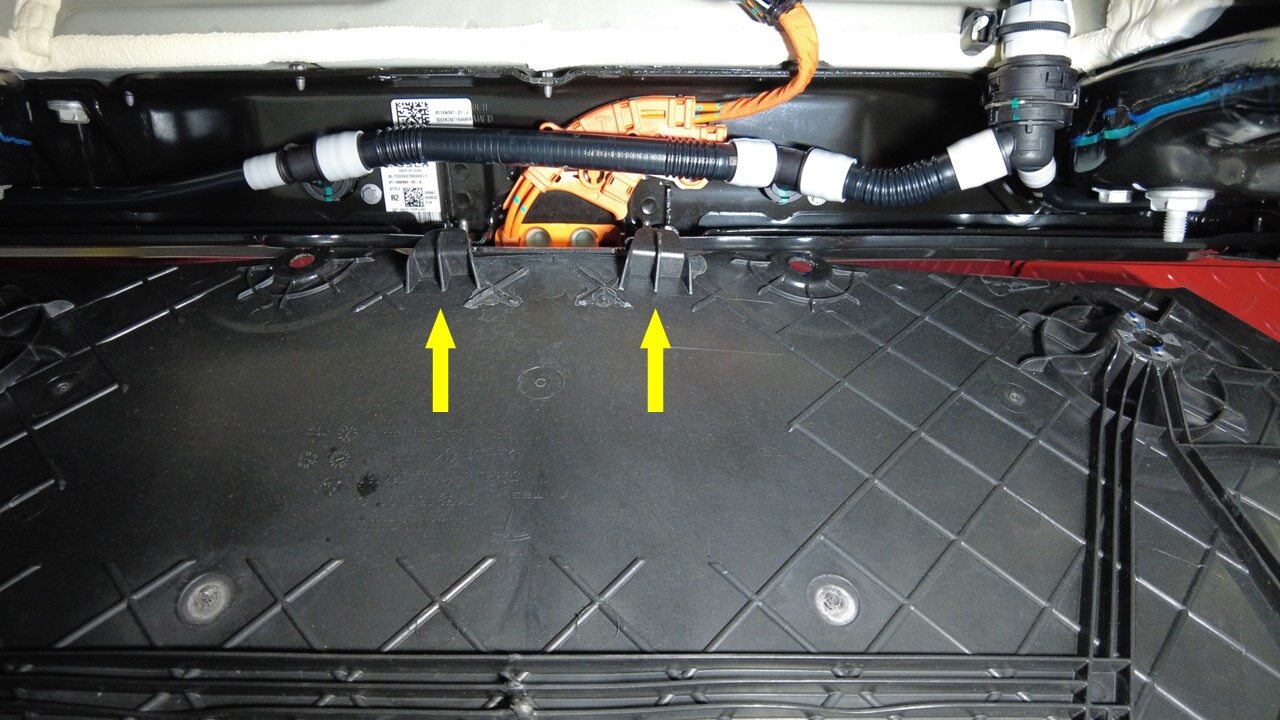

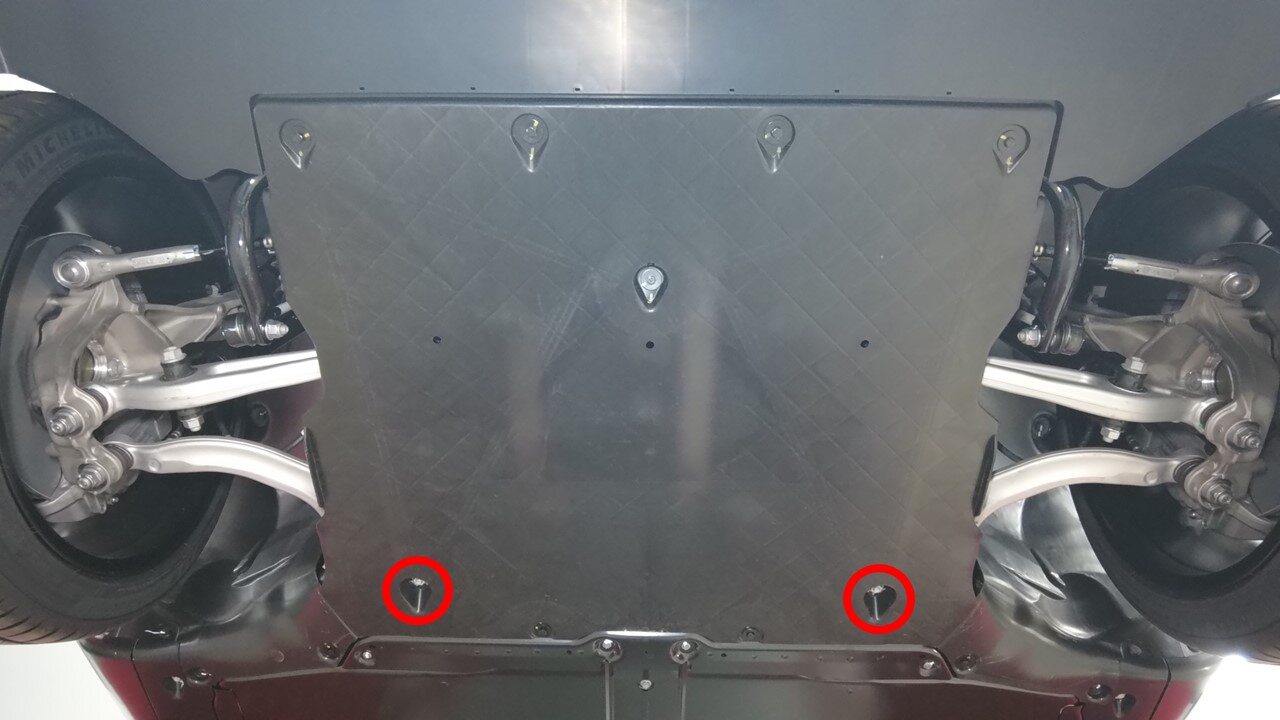

16. Remove front aero shield
    注

    2x nuts, 15mm, 8 Nm

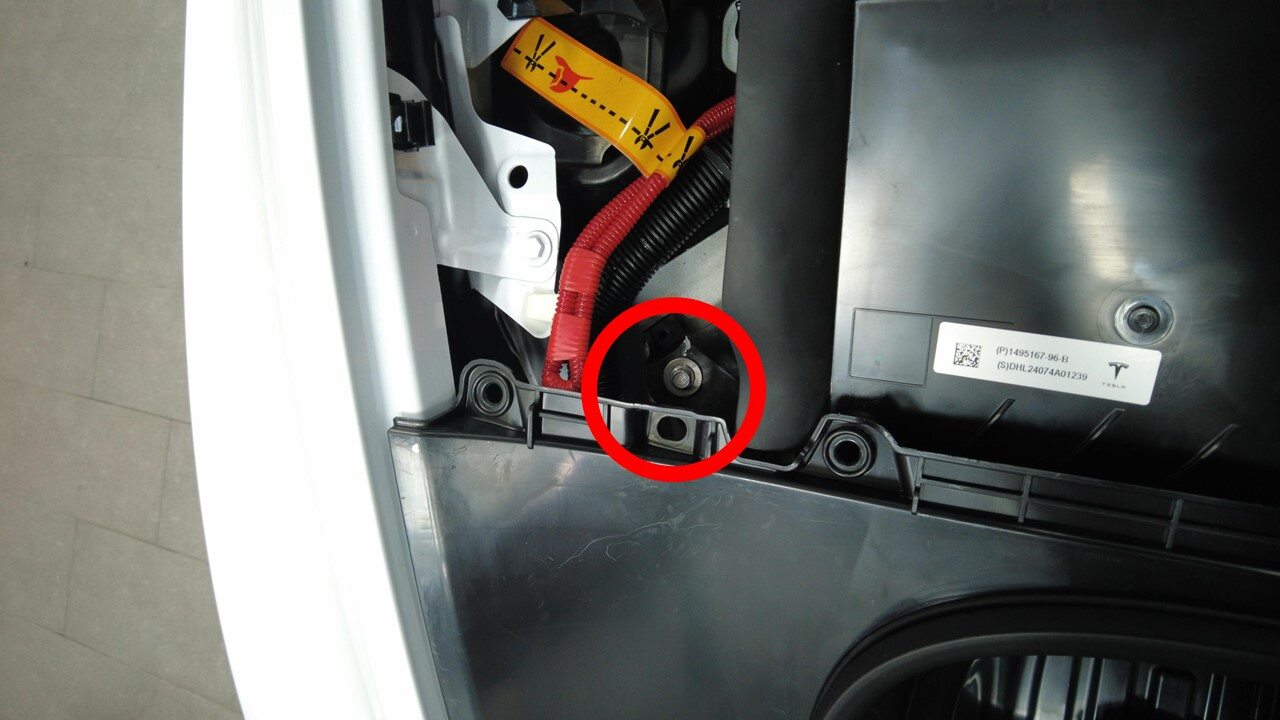

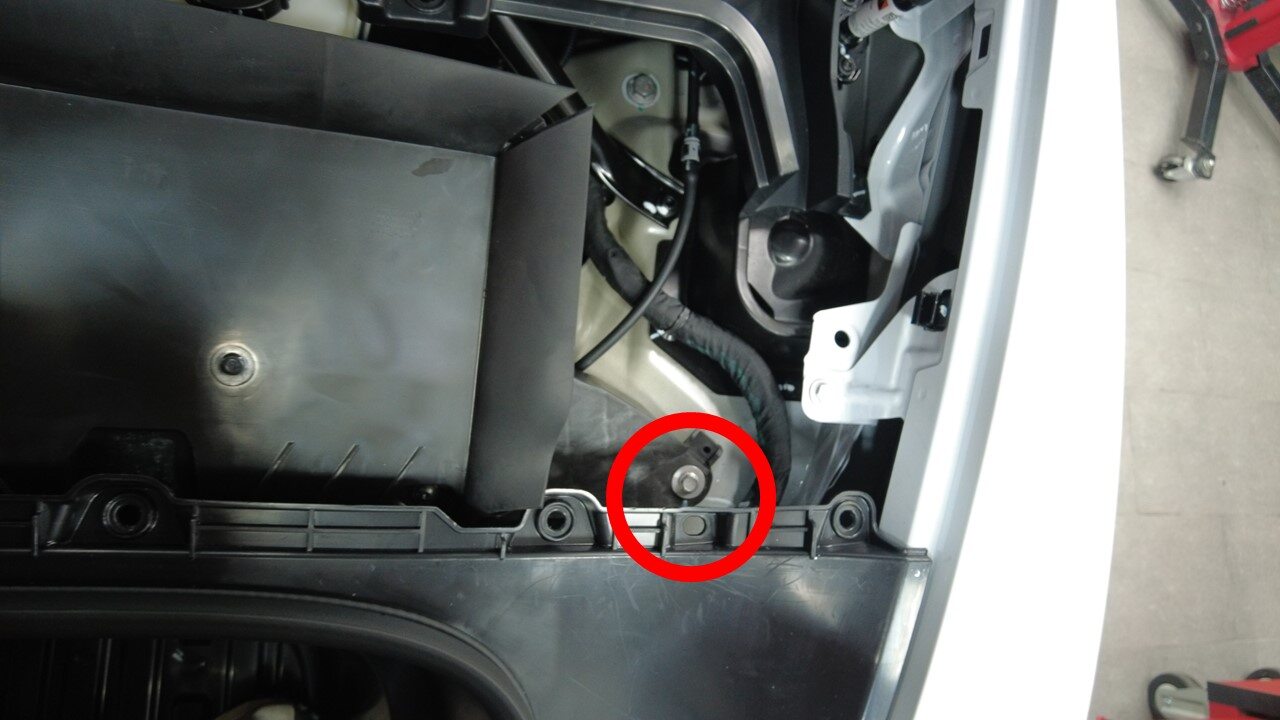

17. Remove RCU lower fastener
    注

    1x bolt, 10mm, 10 Nm

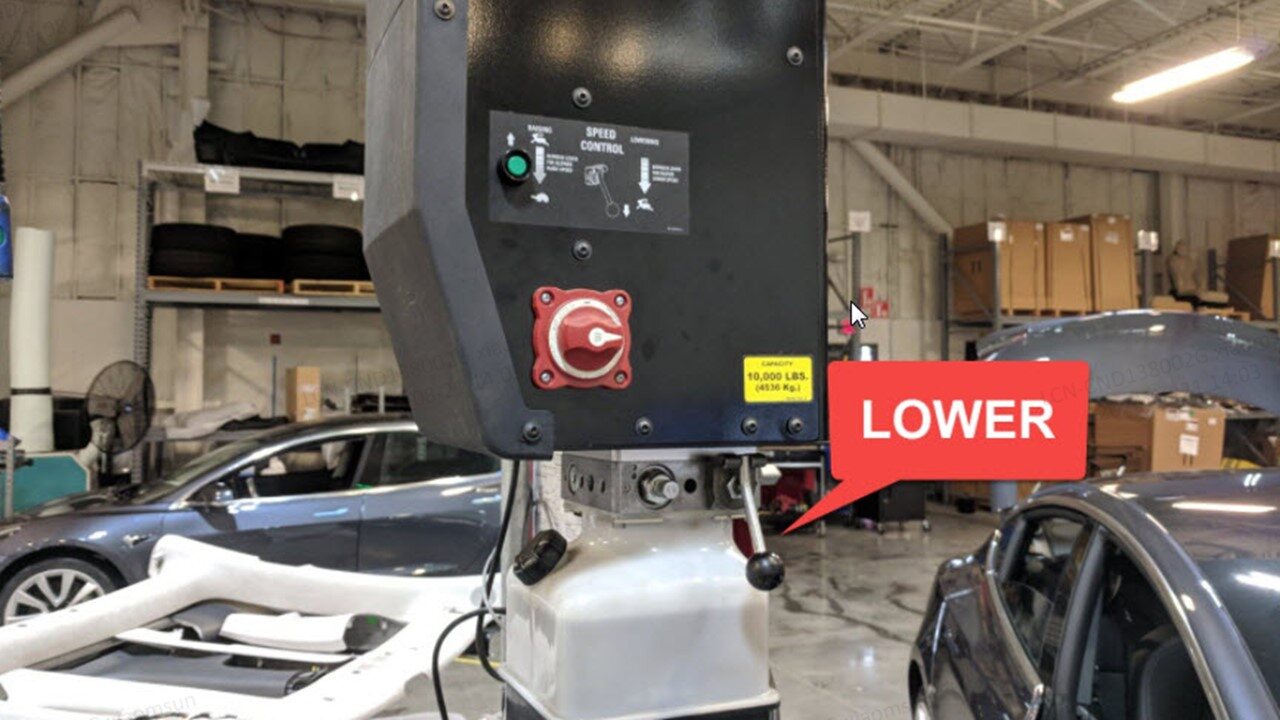

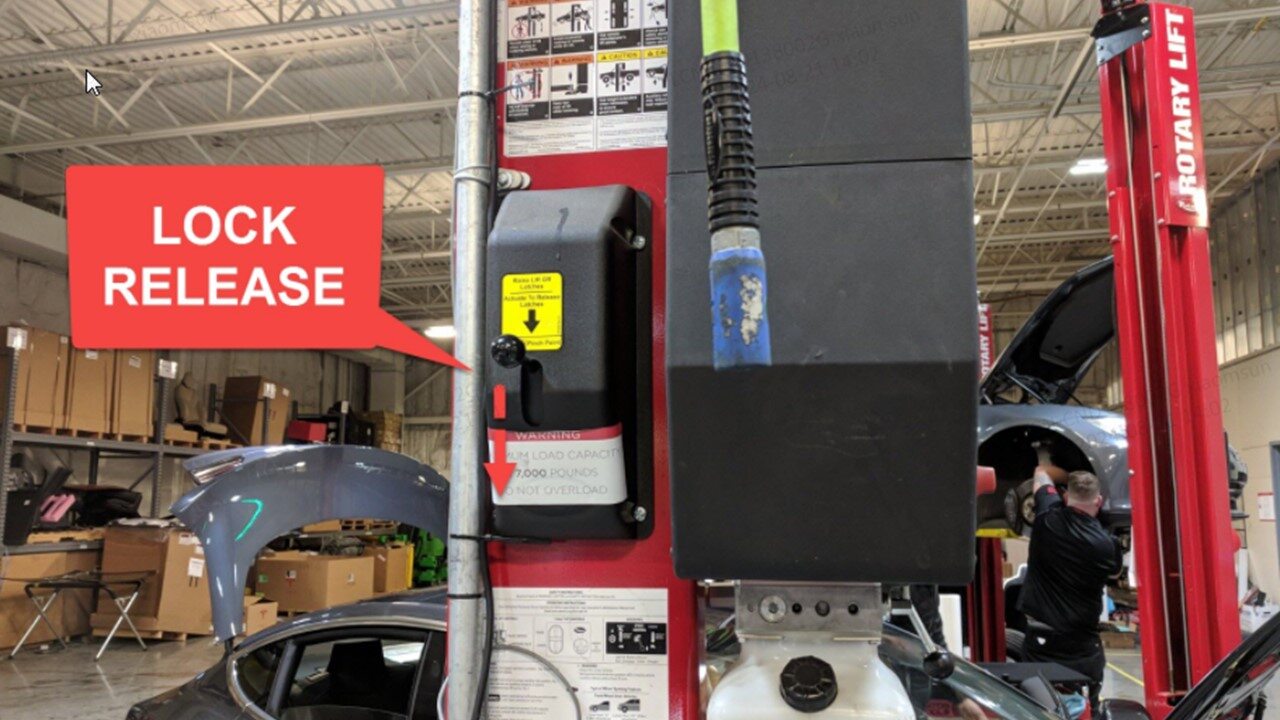

18. Lower vehicle until tires are touching ground
    注

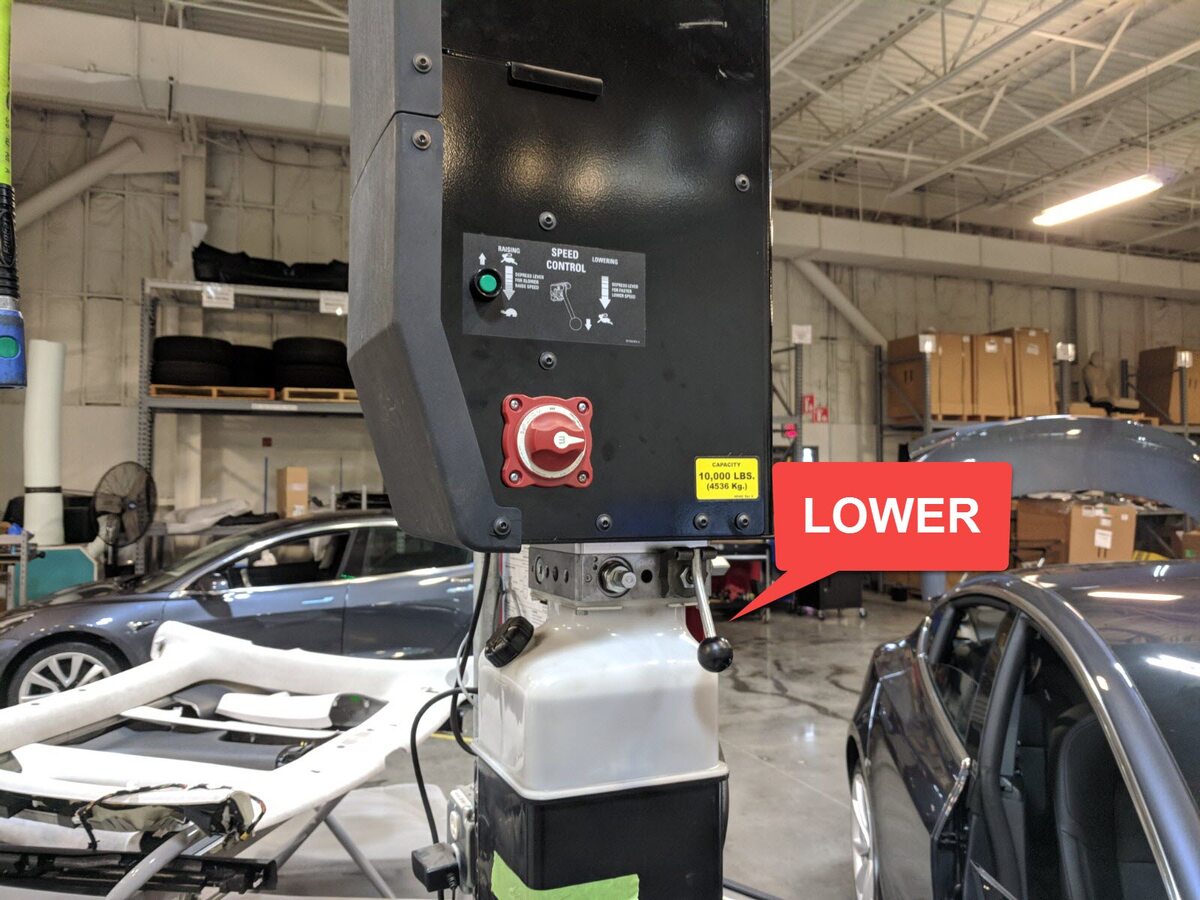

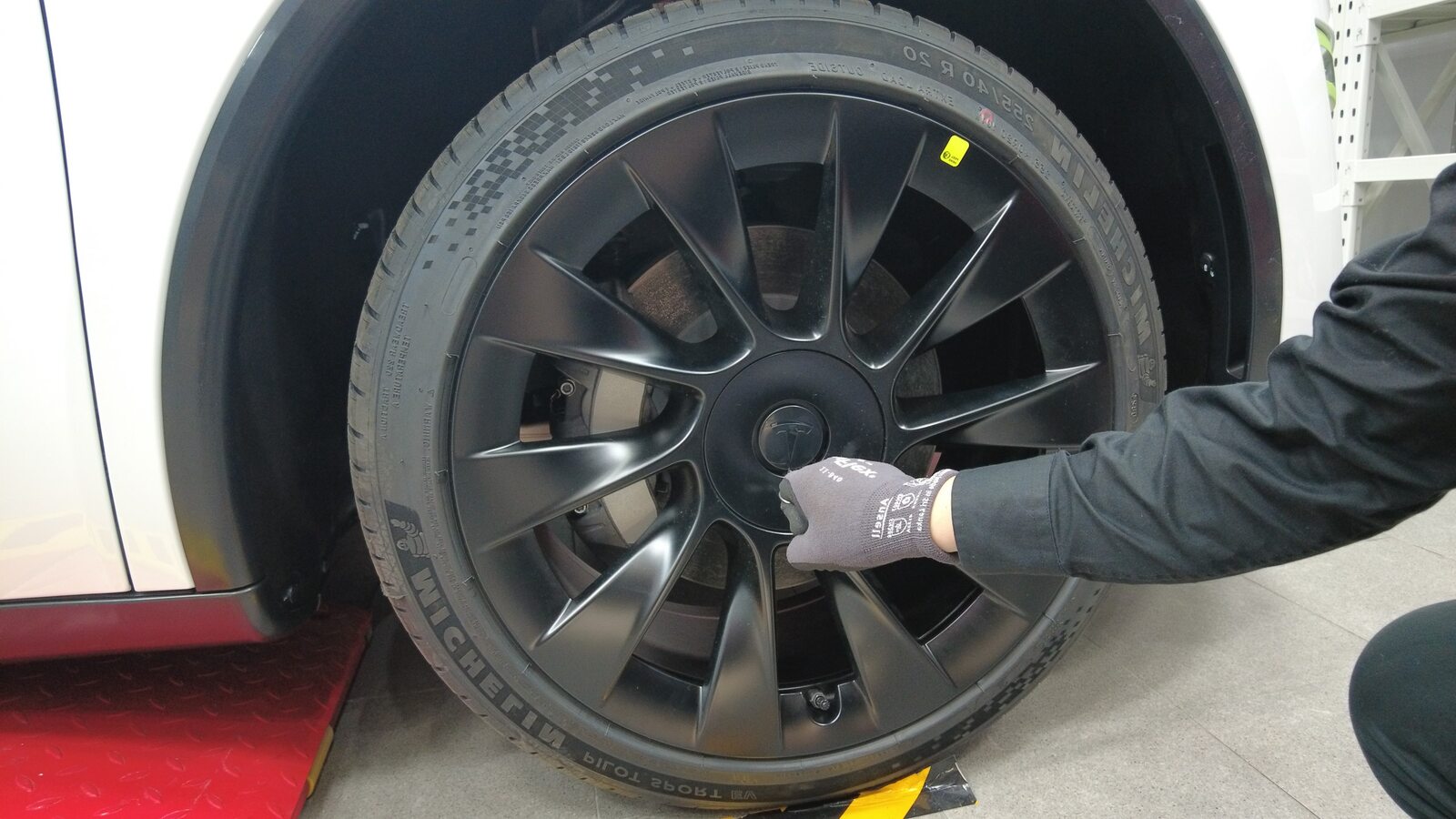

    Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered

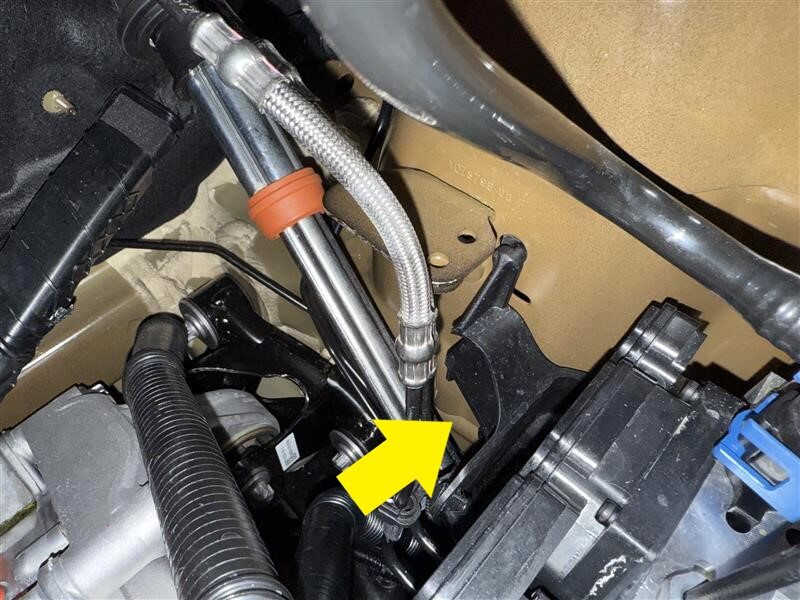

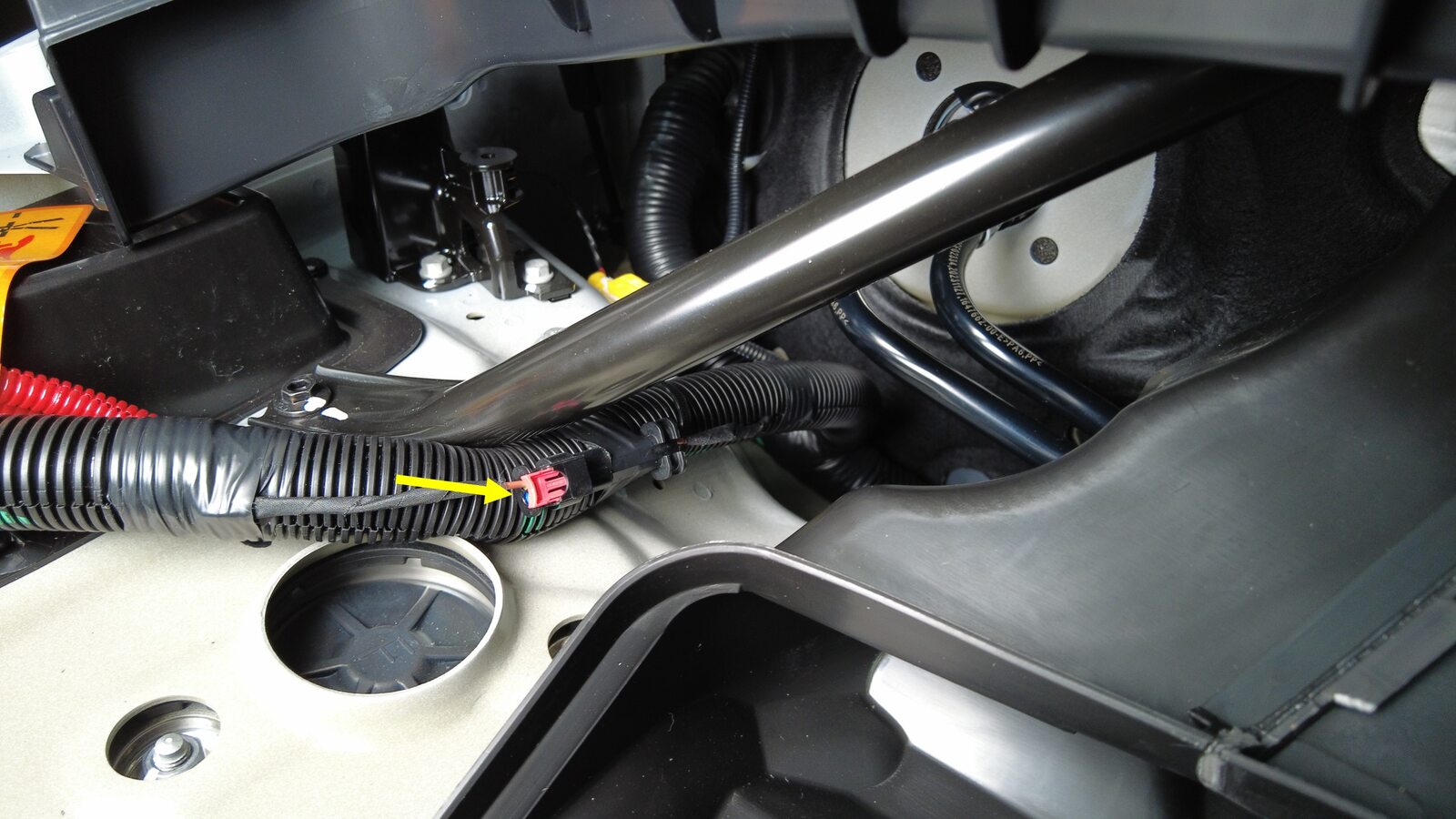

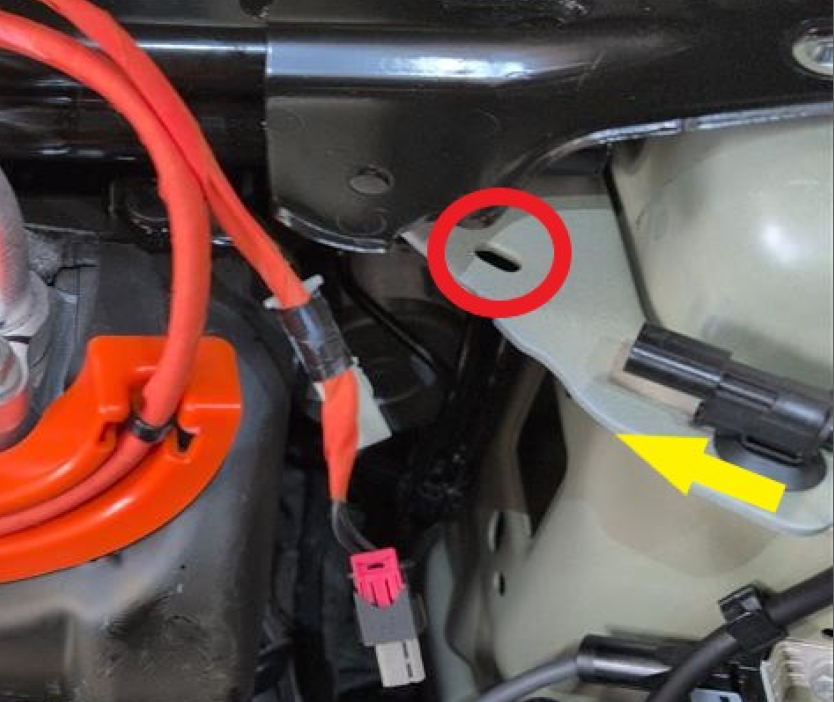

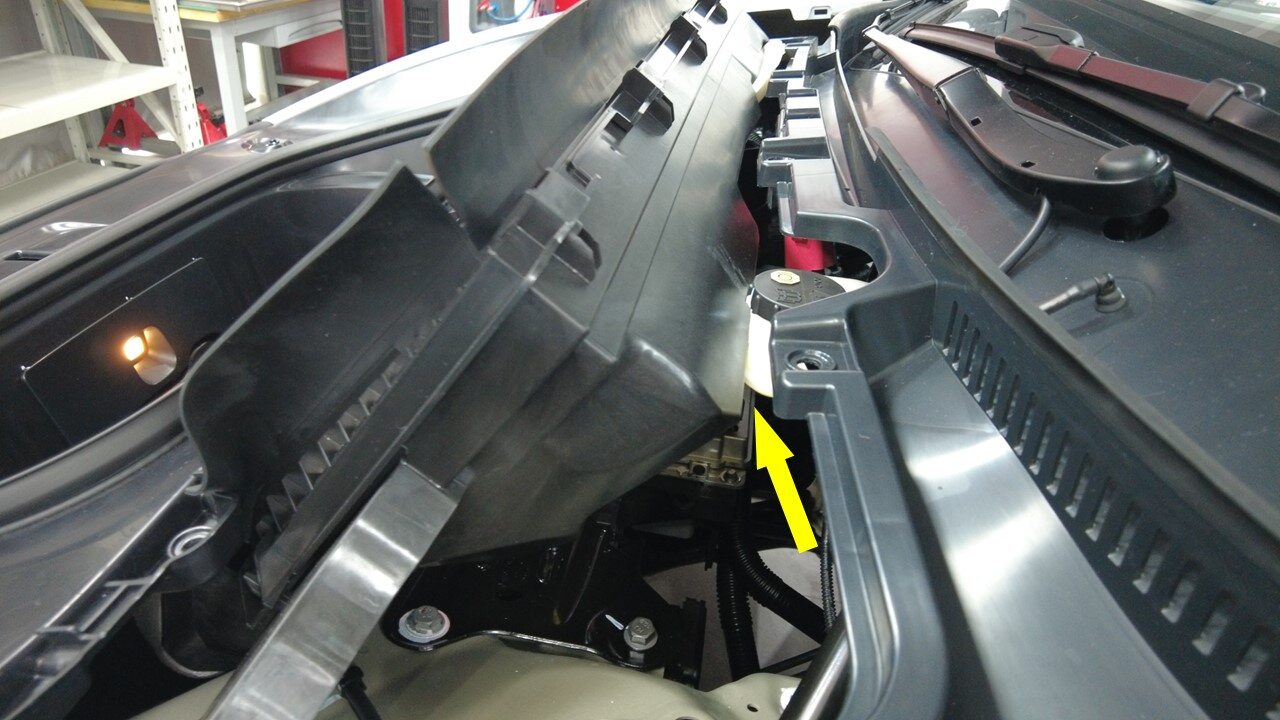

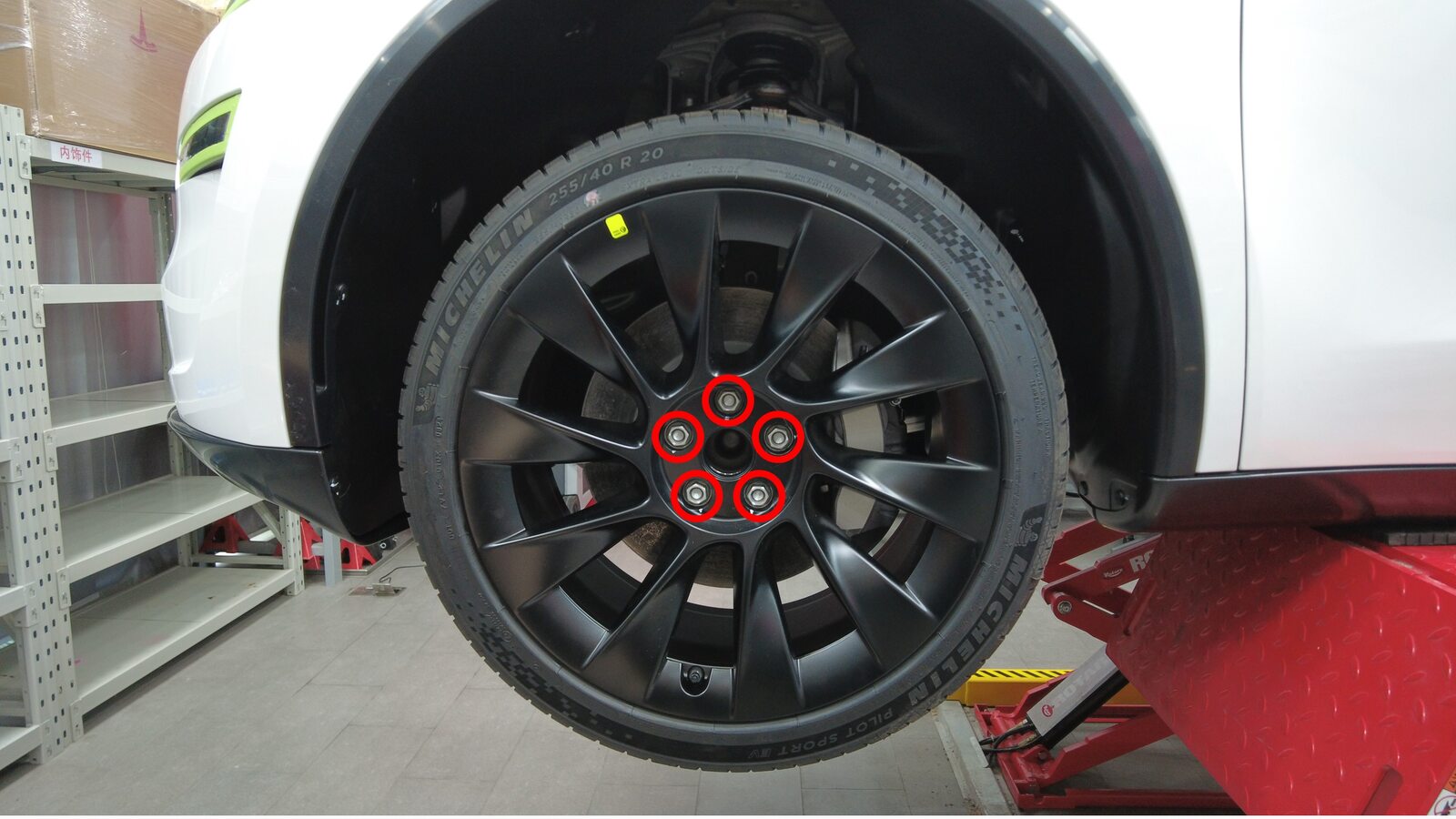

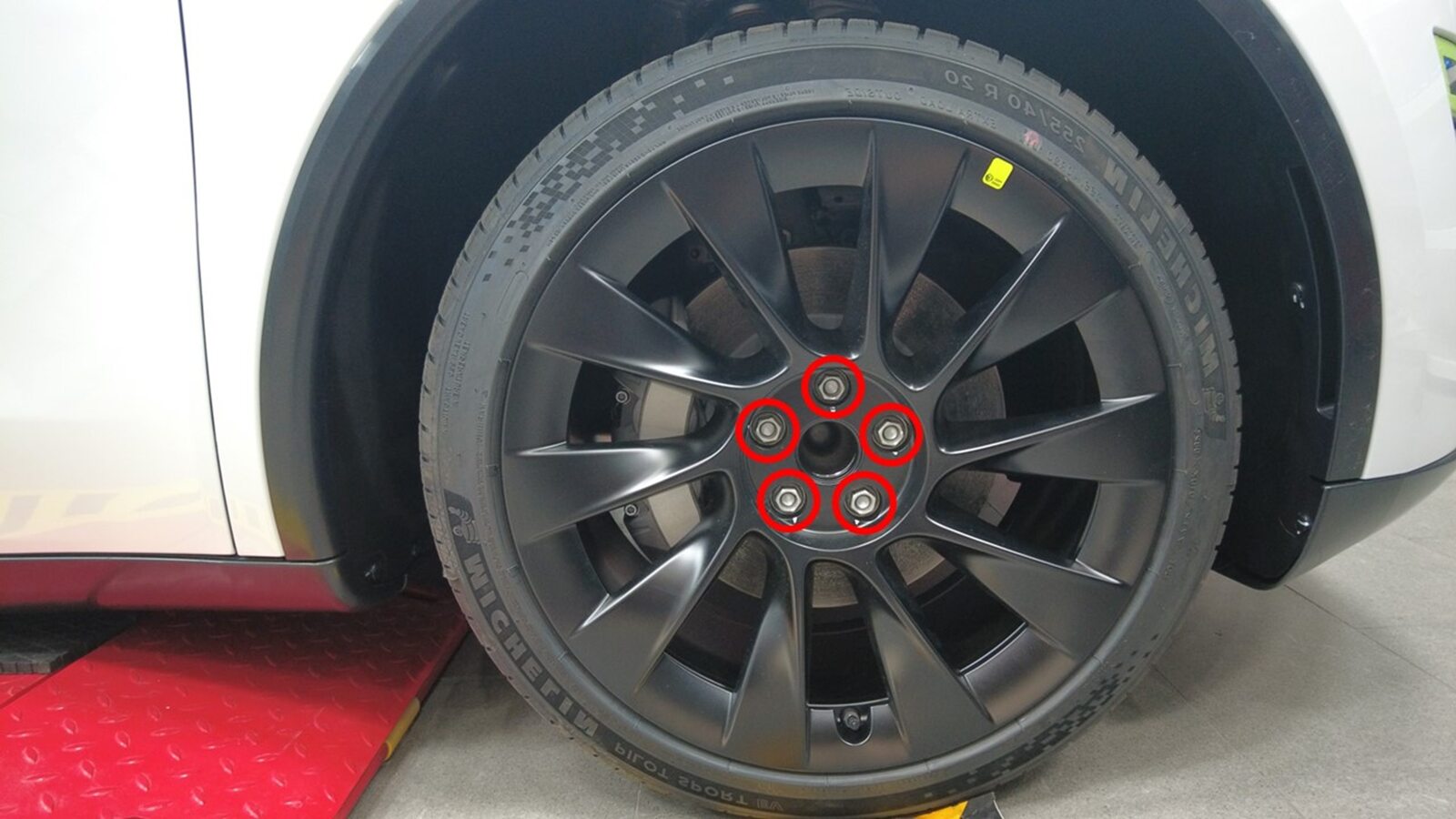

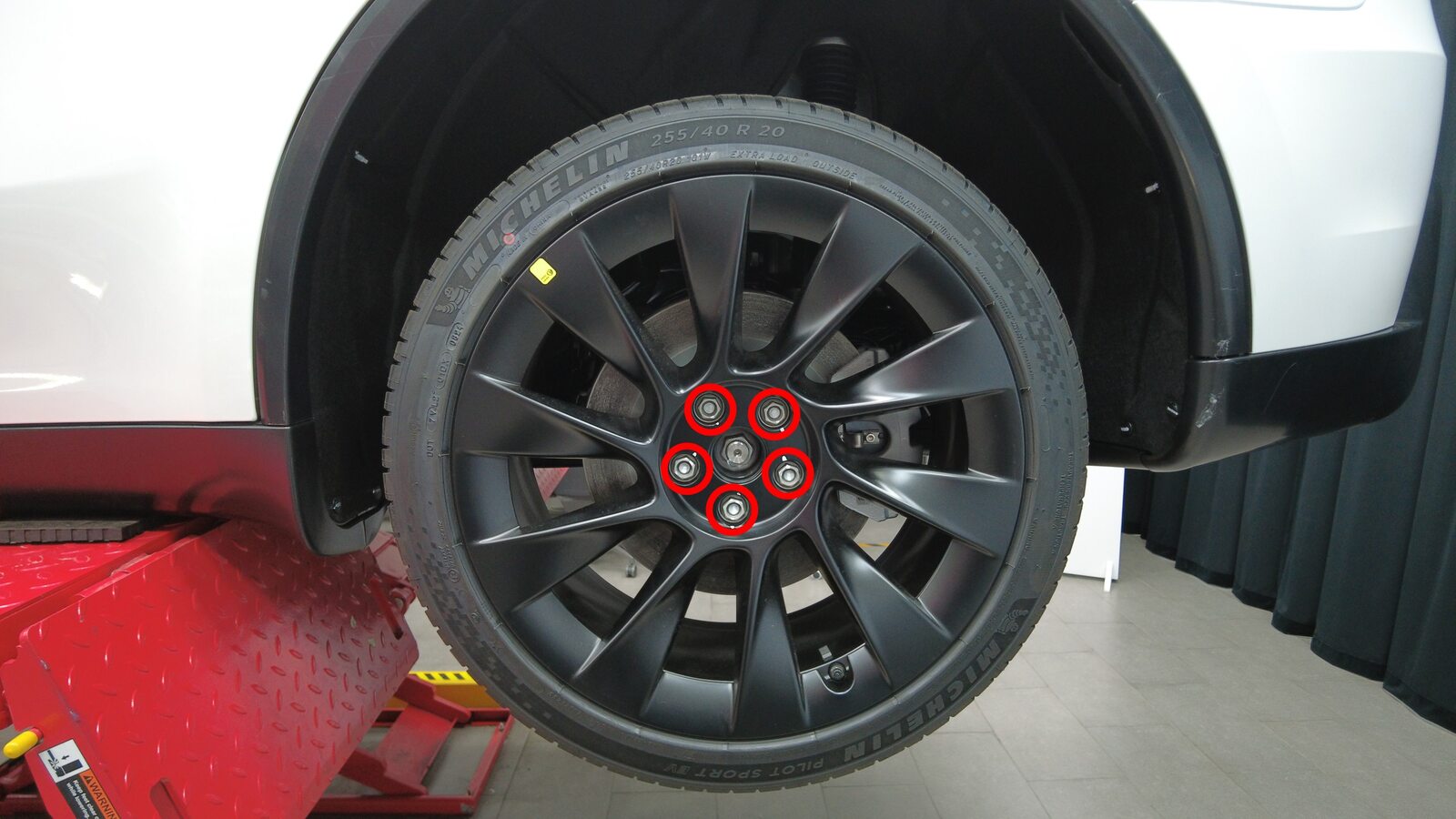

19. Disconnect the HVIL connector from the LH shock tower, and then release the shock tower fir tree clip for that harness branch.

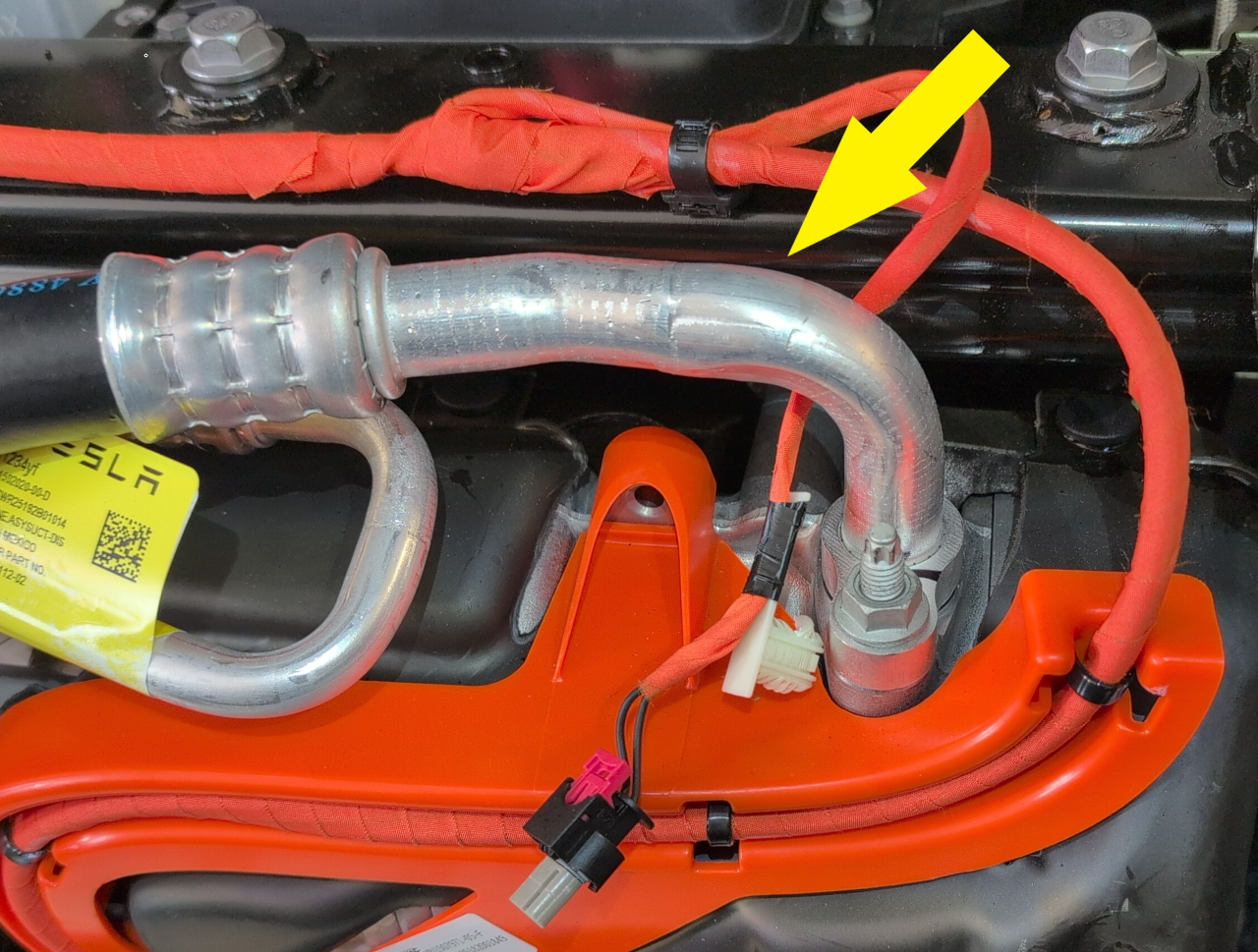

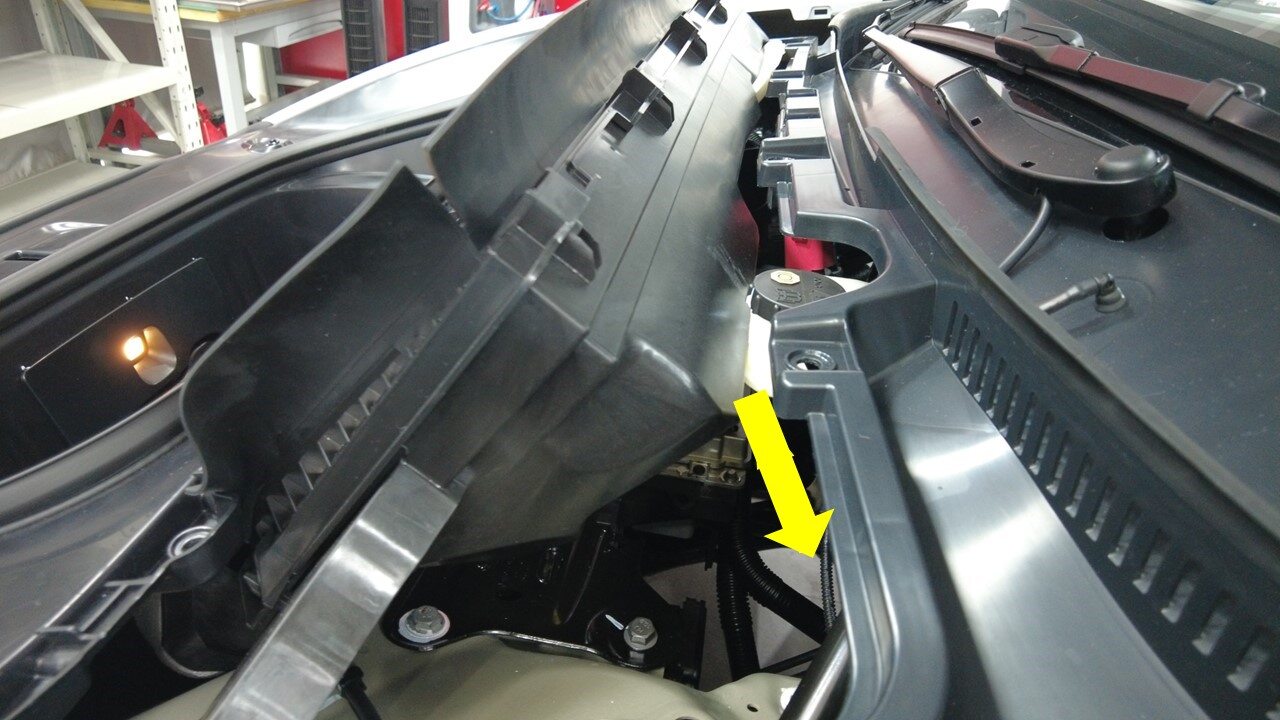

20. Tuck the HVIL harness branch between the A/C compressor pipes, as pictured.

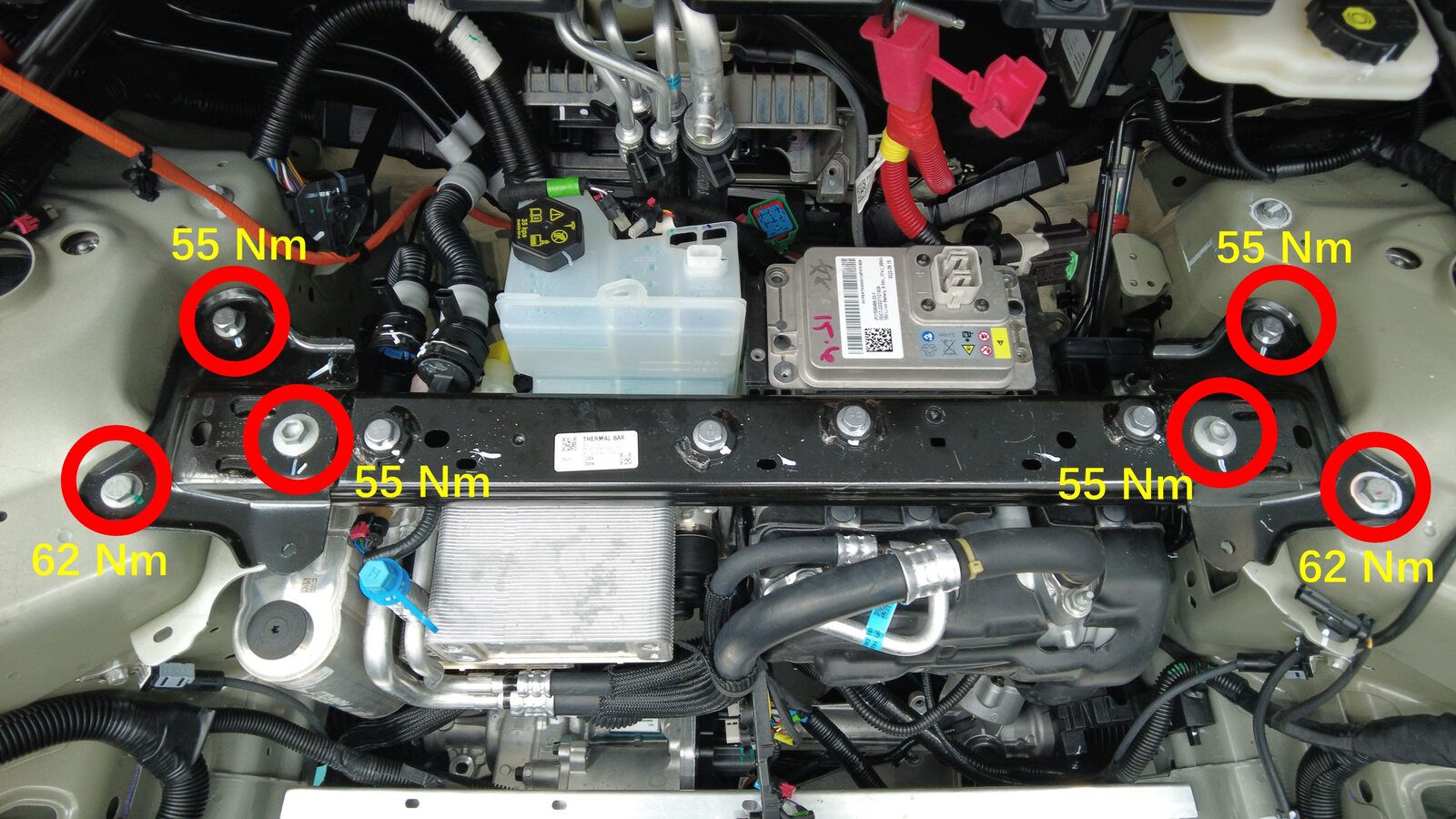

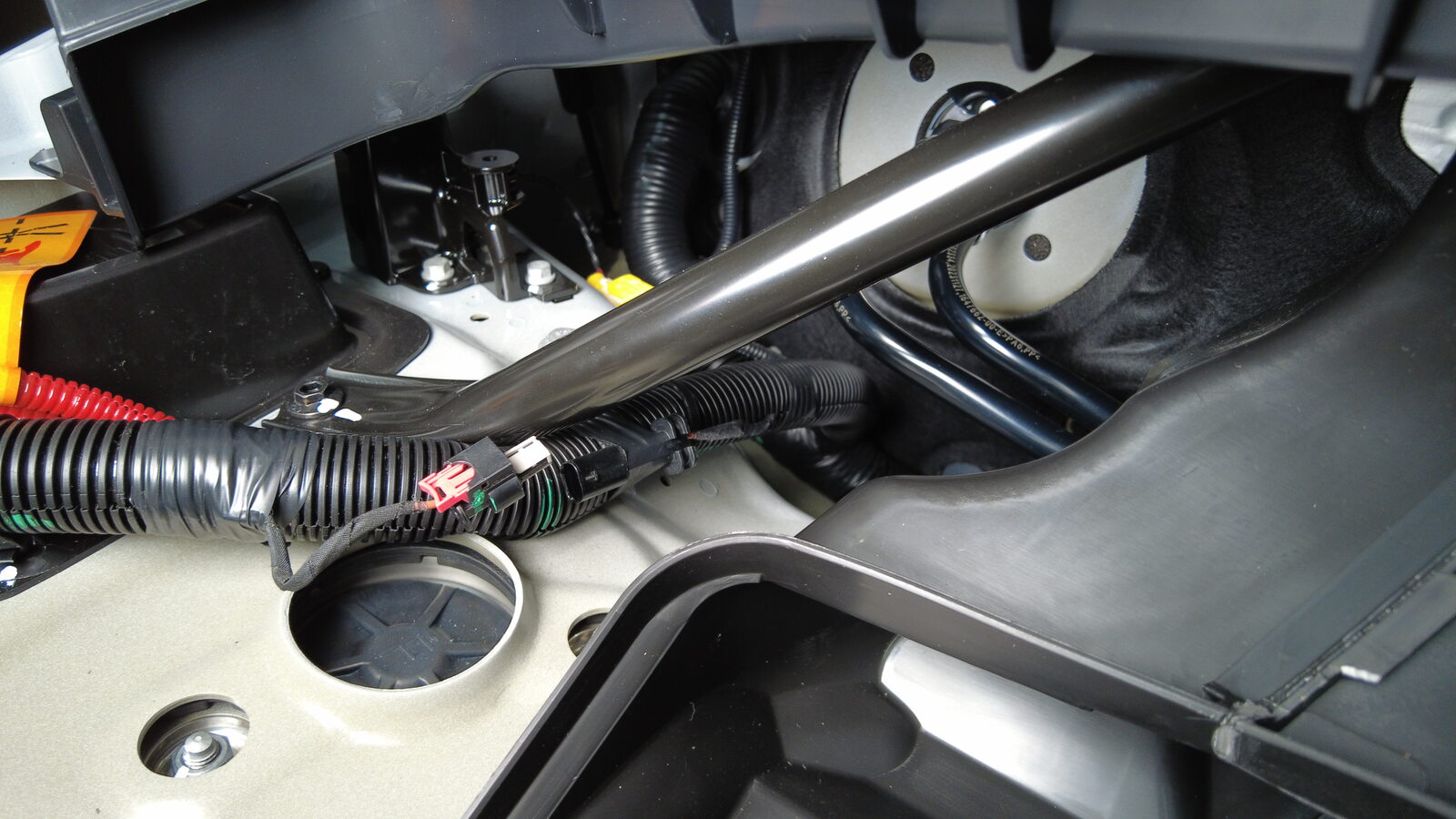

21. Remove bolts securing shock tower brace to shock tower
    注

    4x bolts, 15mm, 55 Nm, 2x bolts, 62 Nm, See image for torque location

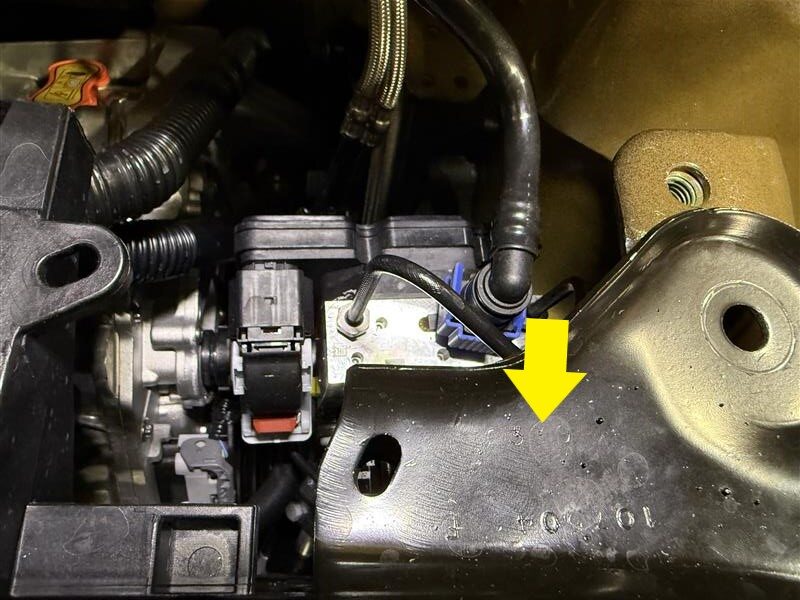

22. Support the LH side of the shock tower brace
    注

    1x airbag, Use assistance if needed



23. Place an absorbent mat under the RCU to catch any brake fluid spills when the brake lines are released in the following steps.

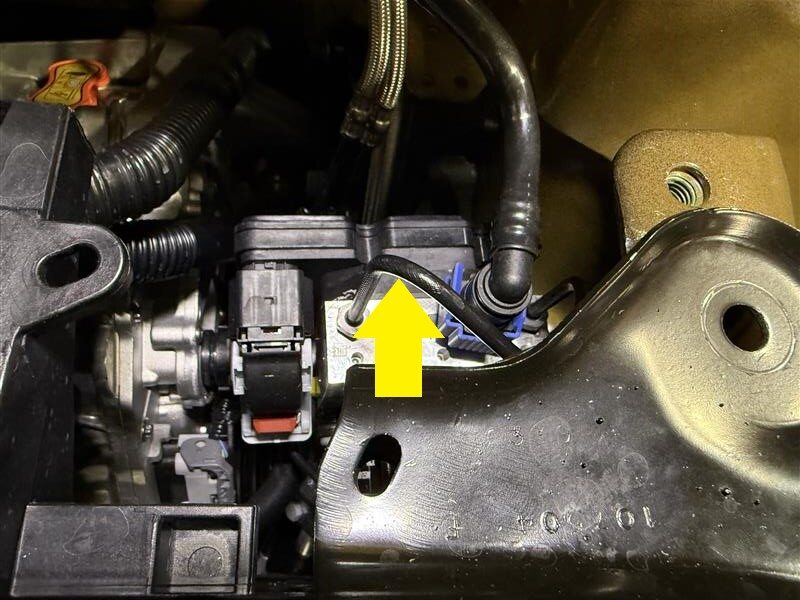

24. Release brake fluid reservoir return line
    注

    1x locking clip, depress the two sides and pull upwards, there will be minimal excess brake fluid that will be released

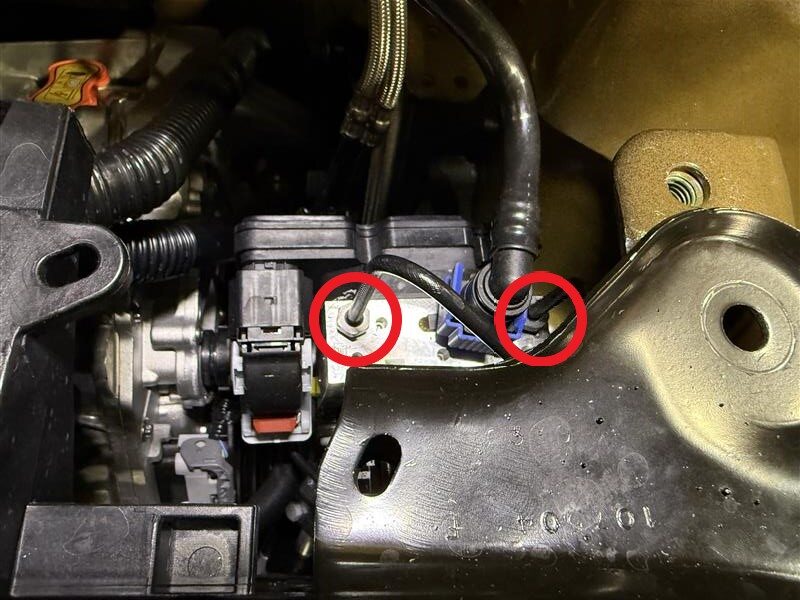

25. Release master cylinder secondary pipe from RCU
    注

    1x nut, 12mm, 16 Nm



26. Remove master cylinder primary pine from RCU
    注

    1x nut, 12mm, 16 Nm



27. Remove brake lines to front calipers
    注

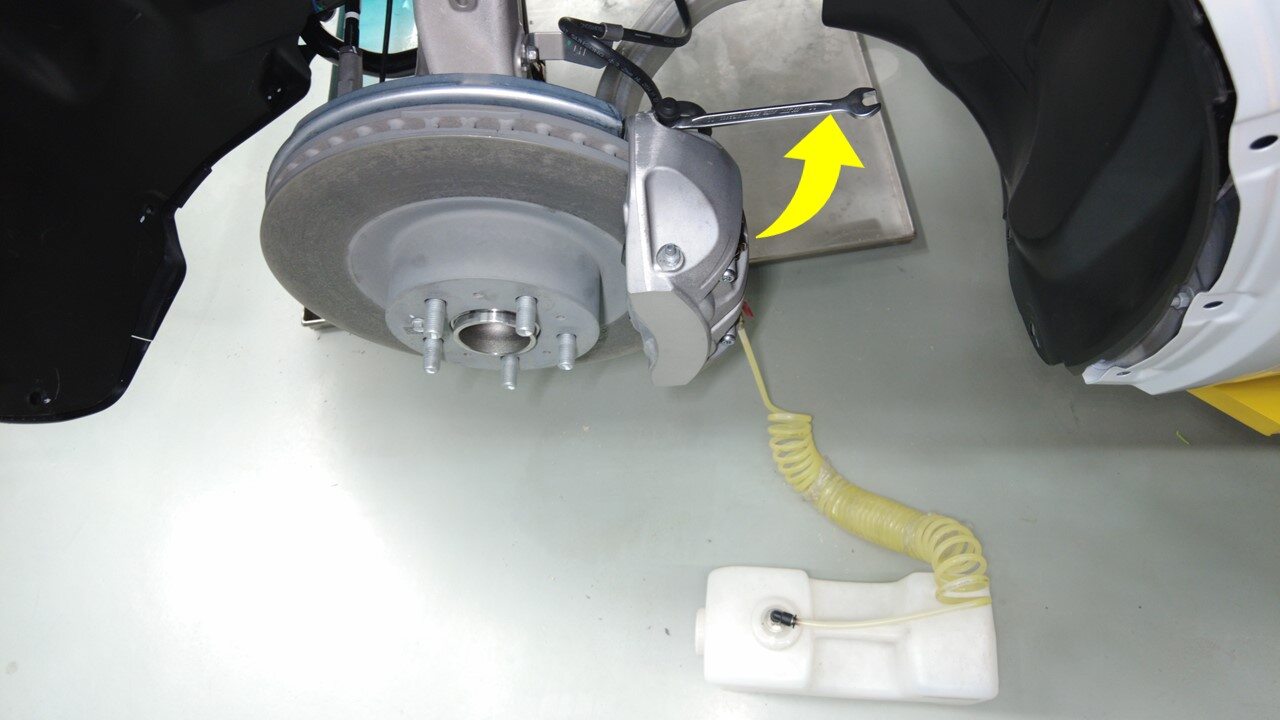

    2x nuts, 12mm, 16 Nm

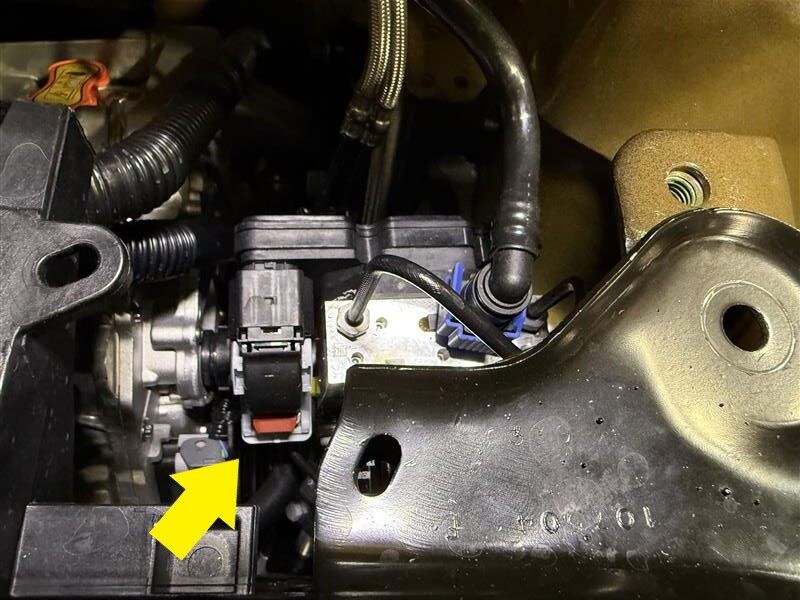

28. Disconnect RCU ecu
    注

    1x locking tab, 1x lever, lift locking tab up and lever down

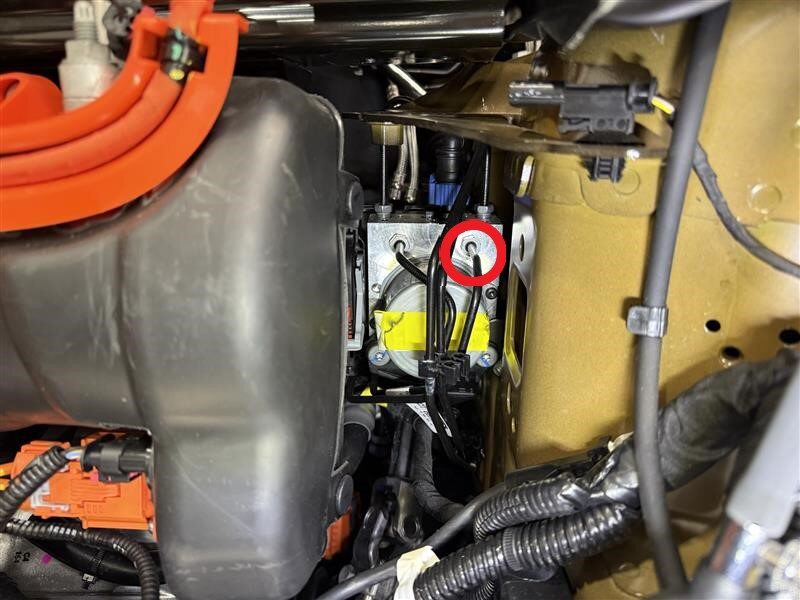

29. Remove upper fastener from RCU
    注

    1x bolt, 10mm, 10 Nm

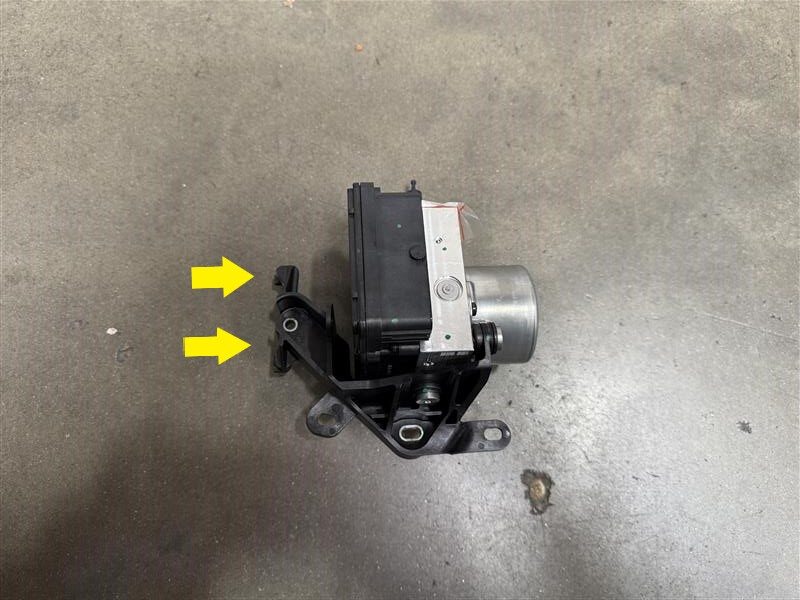

30. Remove RCU
    注

    2x guide datums



31. Install RCU
    注

    2x guide datums, hand start the upper 10mm to hold in position





32. Secure upper fastener to RCU
    注

    1x bolt, 10 mm, 10 Nm



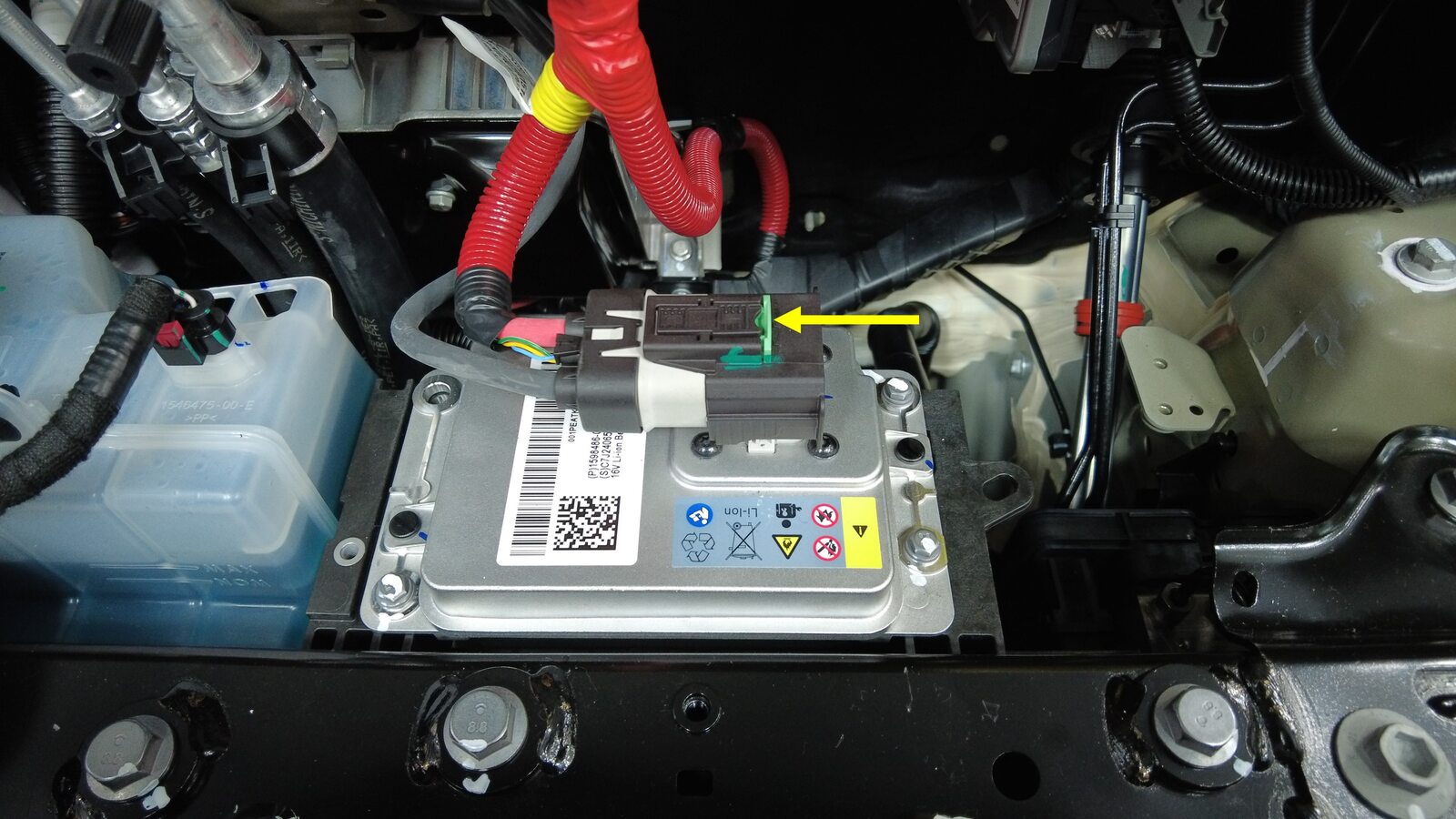

33. Connect RCU ecu
    注

    Fully mount connector and lift lever up to secure, 1x locking tab



34. Install master cylinder pipe to RCU
    注

    1x nut, 12mm, 16 Nm



35. Install secondary cylinder pipe to RCU
    注

    1x nut, 12mm, 16 Nm



36. Install front caliper brake lines to RCU
    注

    2x nuts, 12mm, 16 Nm, Hand start first to prevent cross threading



37. Install brake fluid reservoir return line
    注

    1x locking tab, perform a push pull test to ensure it is fully engaged



38. Loosely Install bolts securing shock tower brace to shock tower

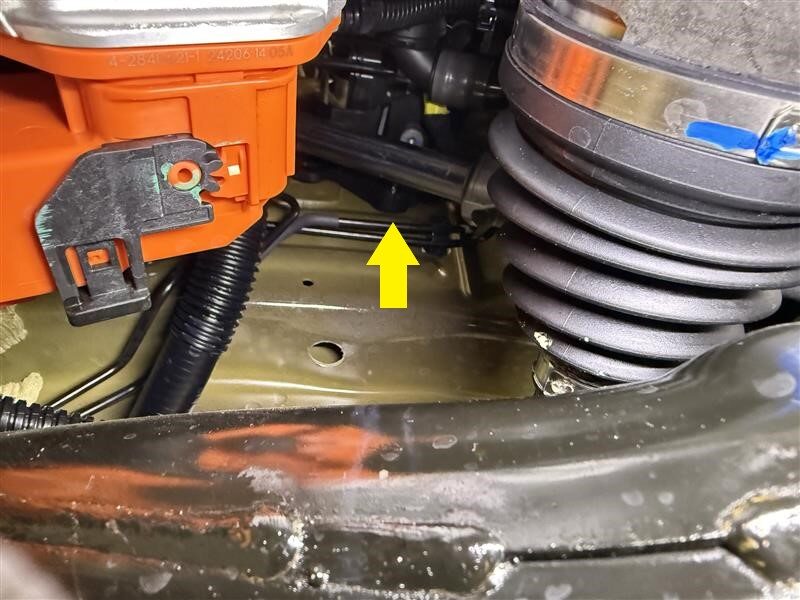

    注

    4x bolts, 15mm, 55 Nm, 2x bolts, 62 Nm, See image for torque location



39. Torque bolts securing shock tower brace to shock tower
    注

    4x bolts, 15mm, 55 Nm, 2x bolts, 62 Nm, See image for torque location



40. Connect first responder loop and LV battery
    注

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated

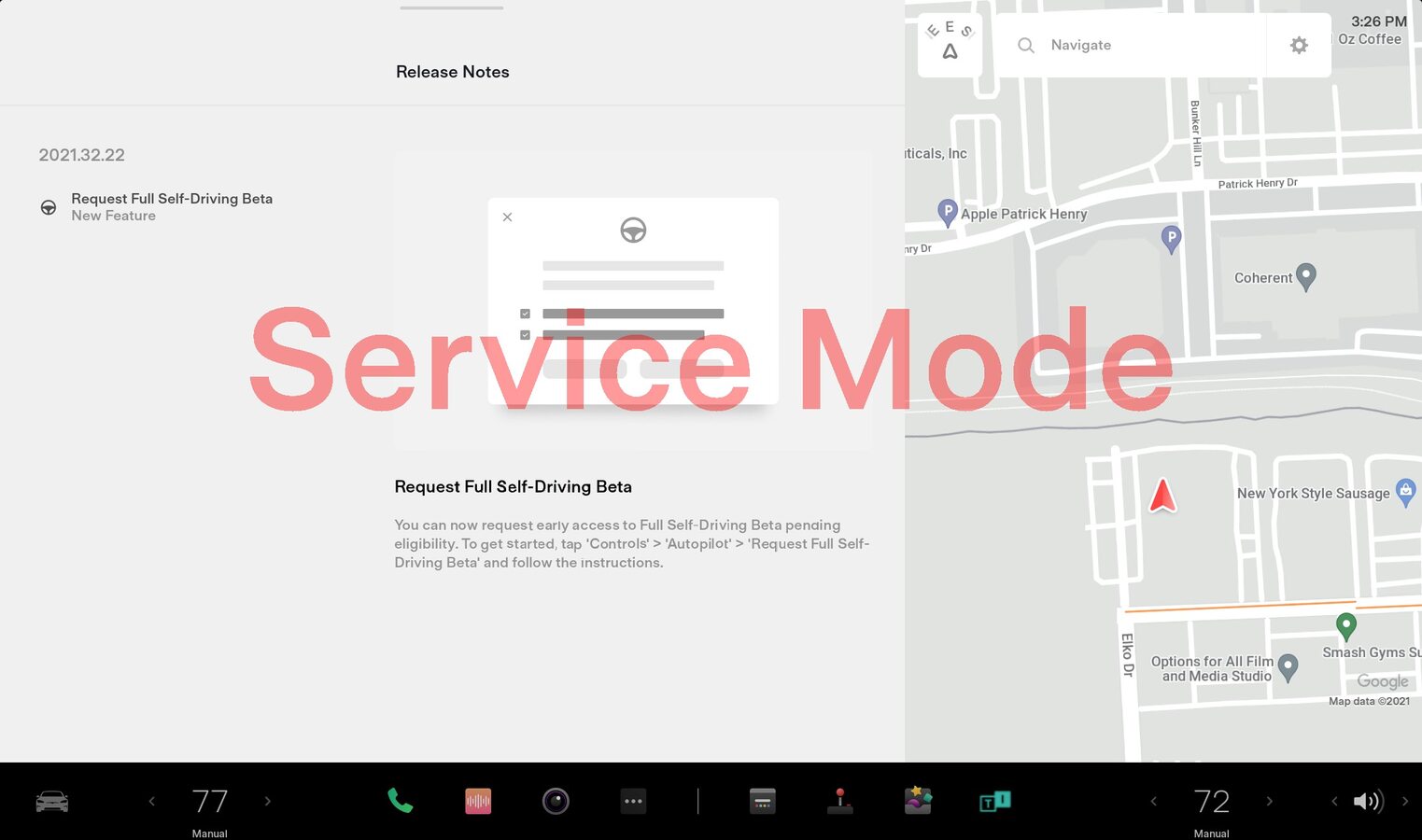

41. 运行 ODIN 例行程序 PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)
42. 运行 ODIN 例行程序 UPDATE_CAN-REDEPLOYvia Service Mode Plus:
    • Drive Inverter Replacement ➜ Drive Inverter DIRE1L Replacement ➜ CAN Redeploy

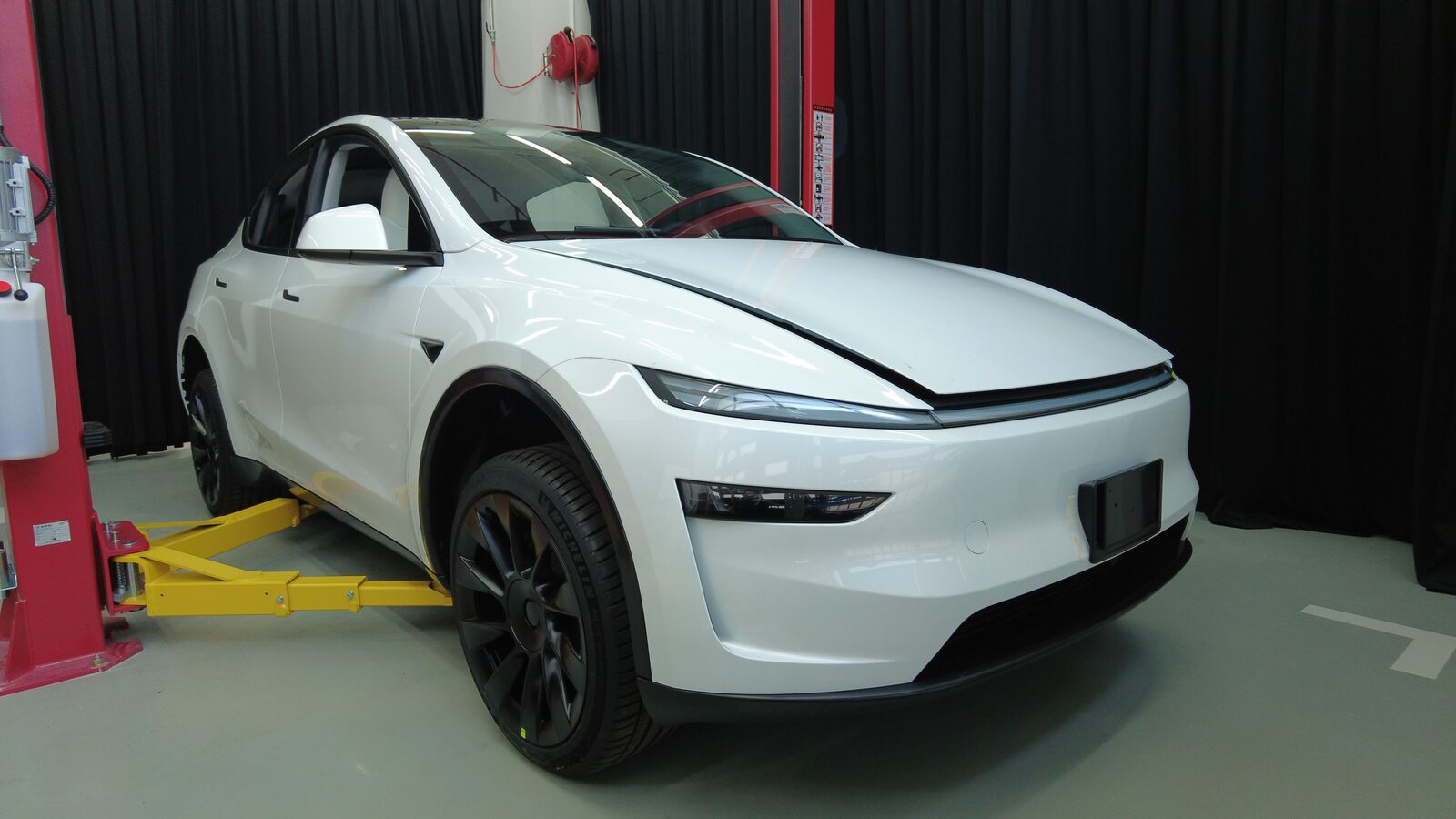

    • Drive Inverter Replacement ➜ Drive Inverter DIRE1R Replacement ➜ CAN Redeploy
    • Drive Inverter Replacement ➜ Drive Inverter DIRE2 Replacement ➜ CAN Redeploy
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ CAN Redeploy
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ CAN Redeploy
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ CAN Redeploy
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ CAN Redeploy
    • Drive Unit ➜ Front Drive Unit Replacement ➜ CAN Redeploy
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ CAN Redeploy
    • Thermal ➜ HVAC ➜ CAN Redeploy
    • chassis ➜ DPB Post Replacement ➜ CAN Redeploy
    • chassis ➜ ESP Post Replacement ➜ CAN Redeploy
    • chassis ➜ IDB Post Replacement ➜ CAN Redeploy
    • chassis ➜ RCU Post Replacement ➜ CAN Redeploy
    • chassis ➜ ESP Replacement Panel ➜ CAN Redeploy
    • chassis ➜ IBST Replacement Panel ➜ CAN Redeploy
    via Toolbox:(link)
43. Once firmware redeploy is complete, Verify on center display release notes are present
    注

    If the redeploy fails you may receive an error message on UI



44. Raise and support vehicle
    注

    Ensure vehicle is not charging, Remove charging cable if it's plugged in

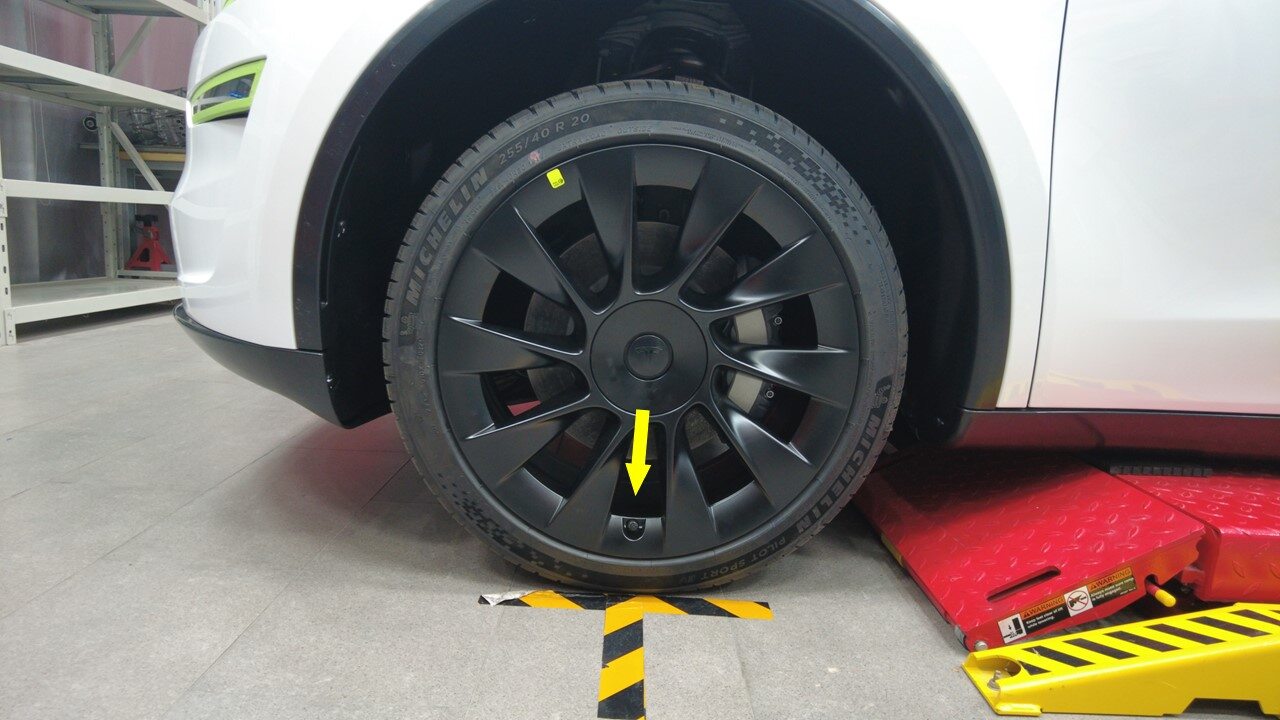

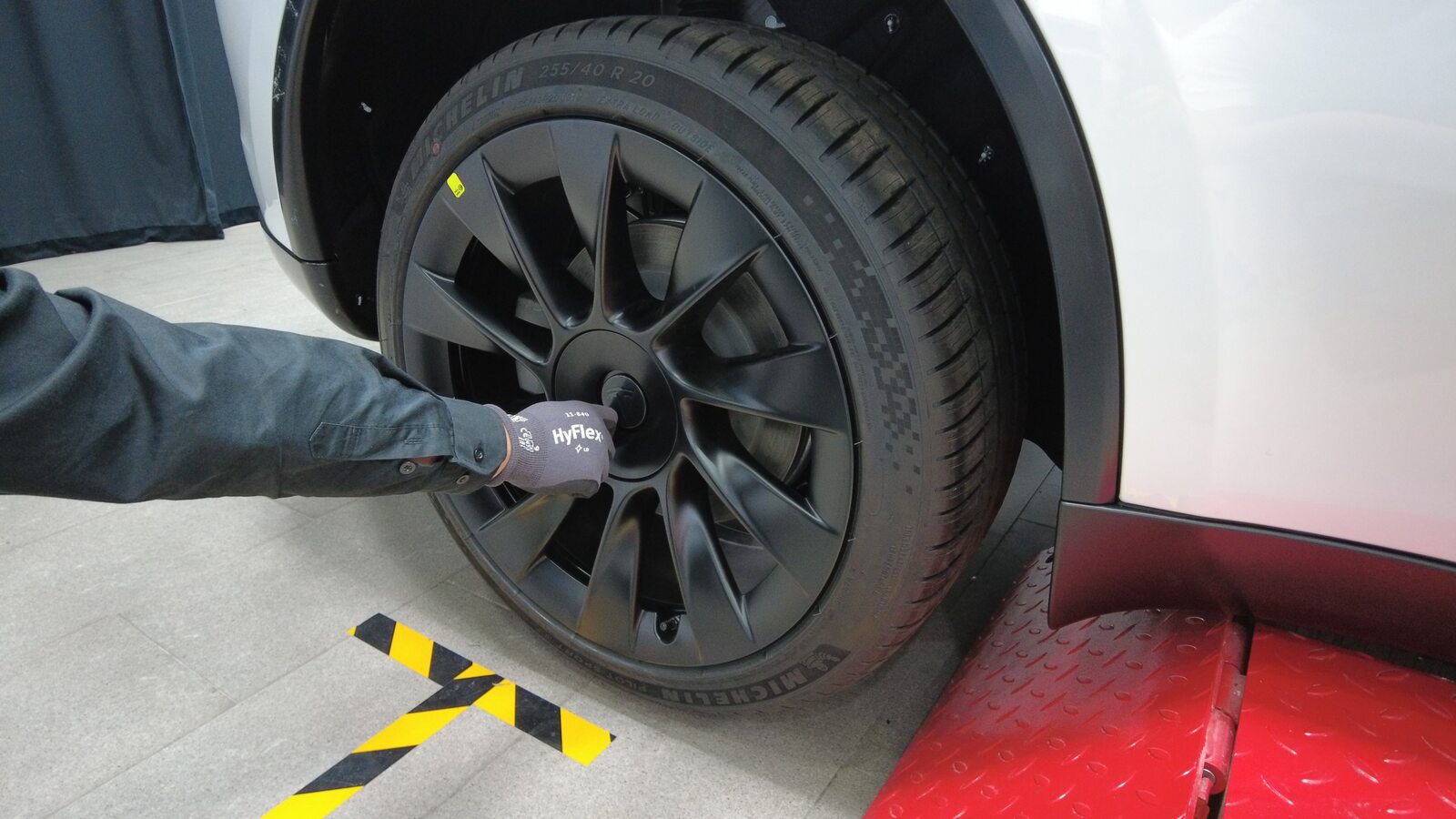

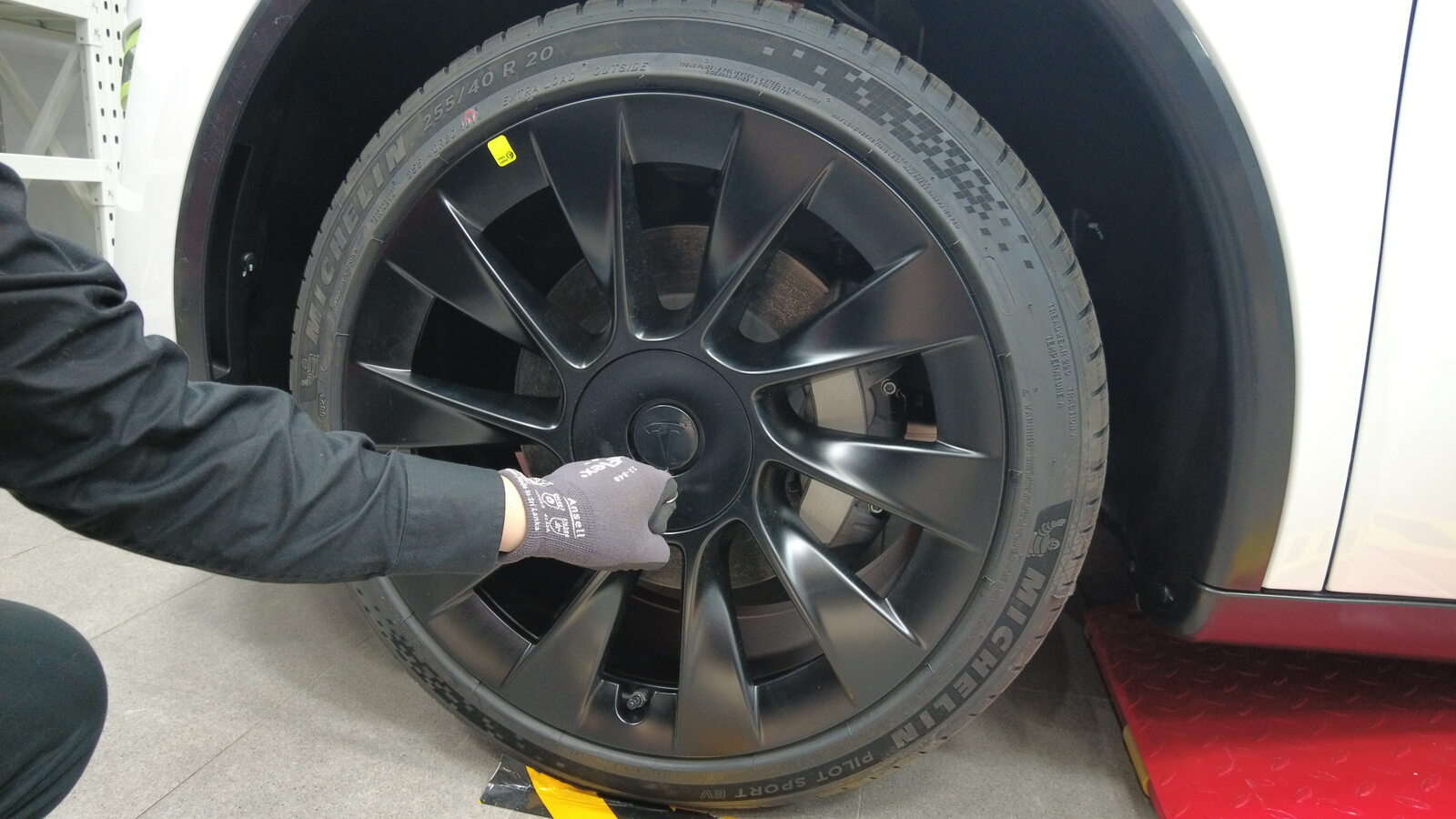

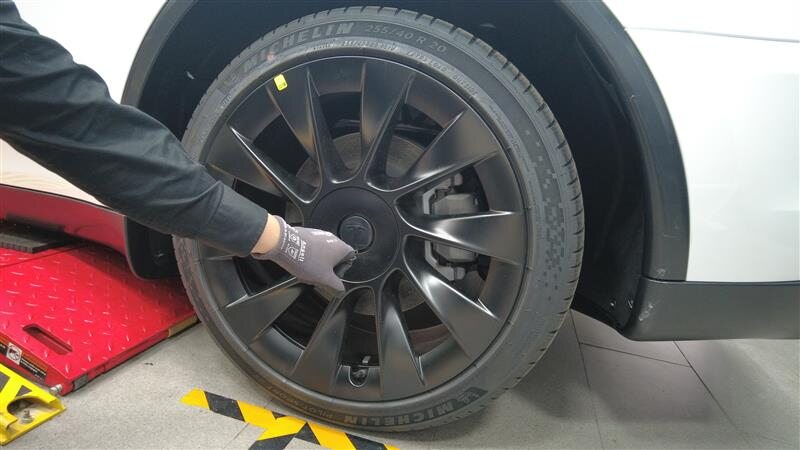

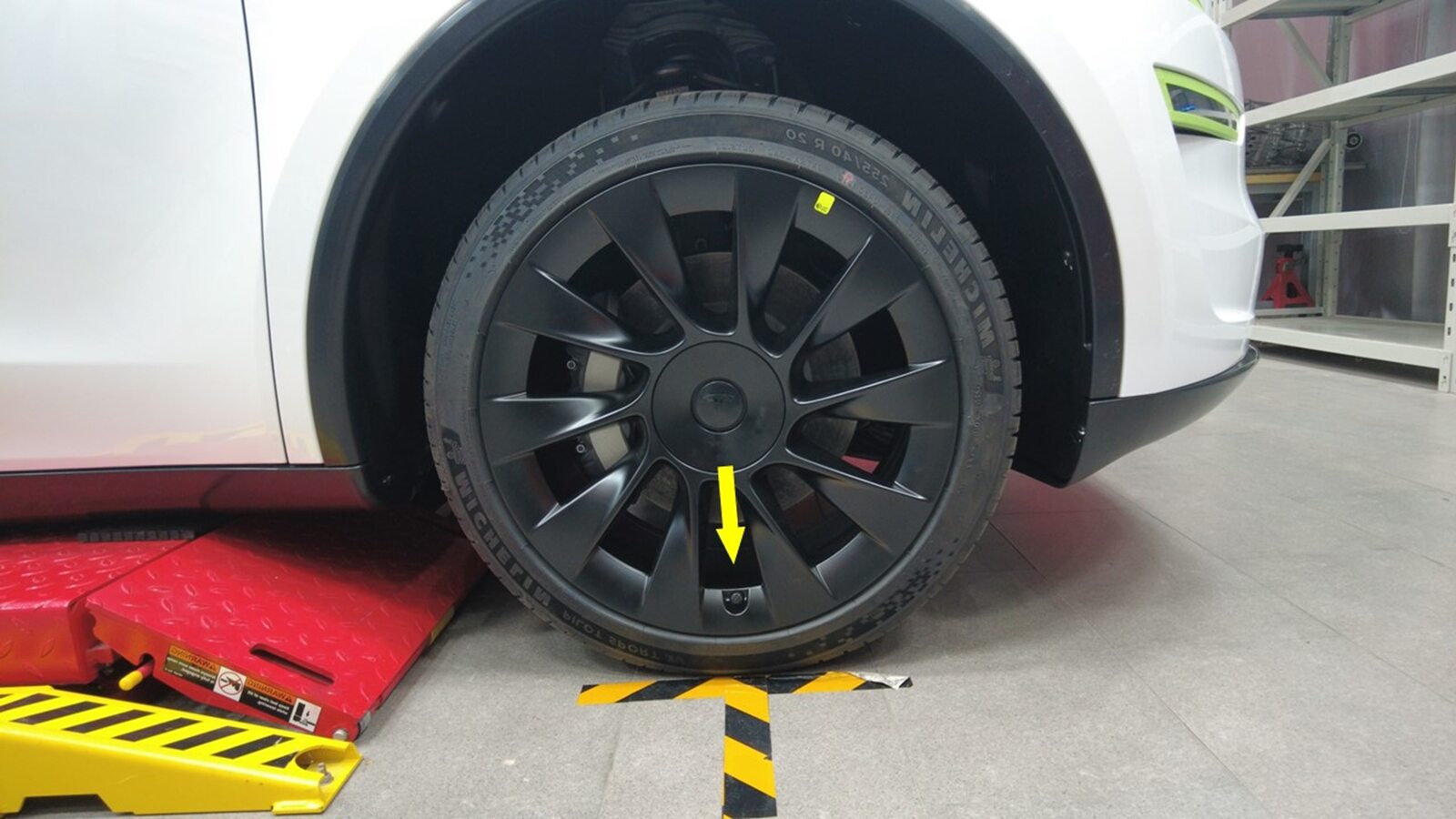

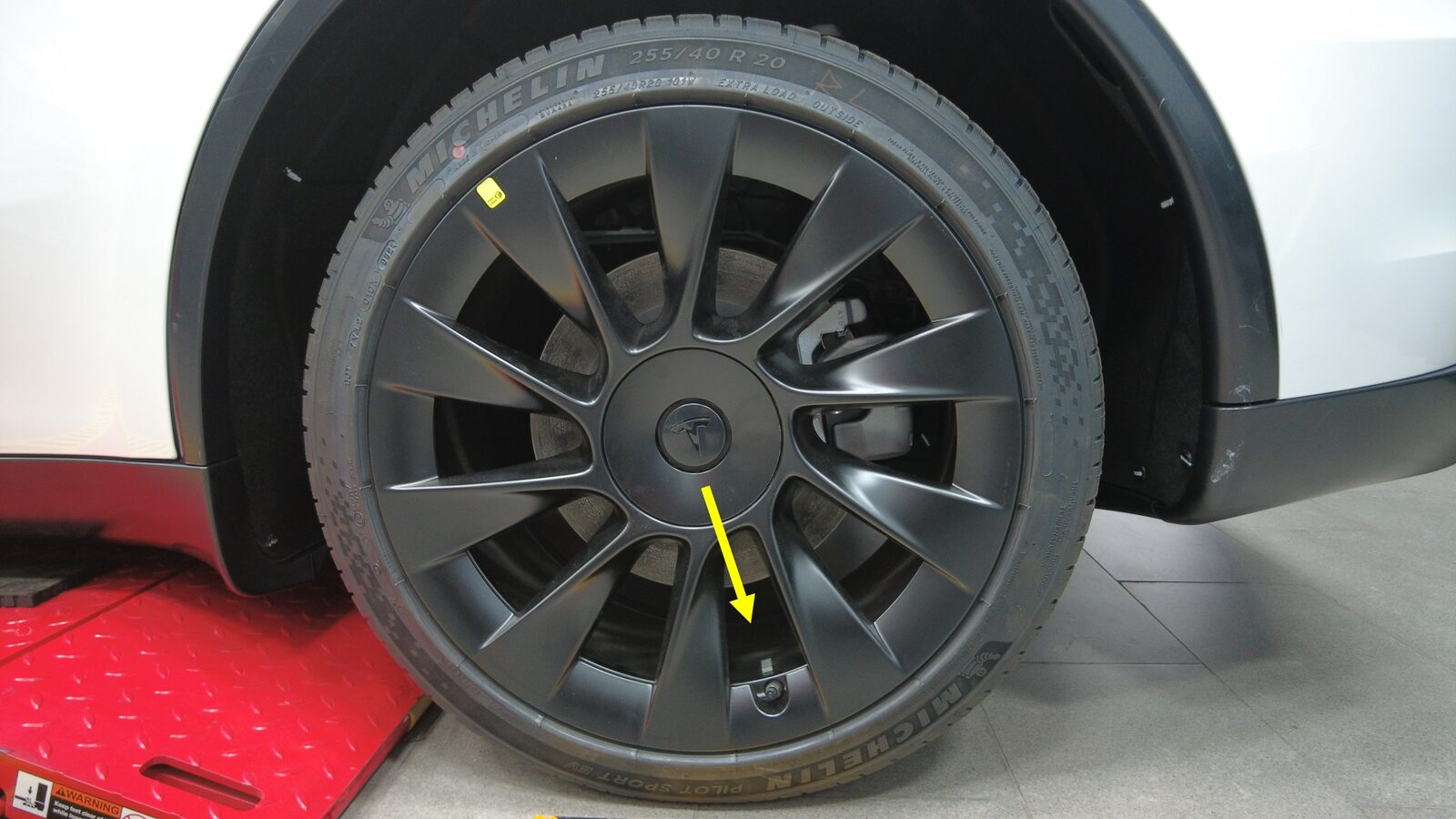

45. Remove LH front wheel cap
    注

    1x cap, Use tool to gently pull the center wheel cap to release the clips, Wheels may be equipped with different caps

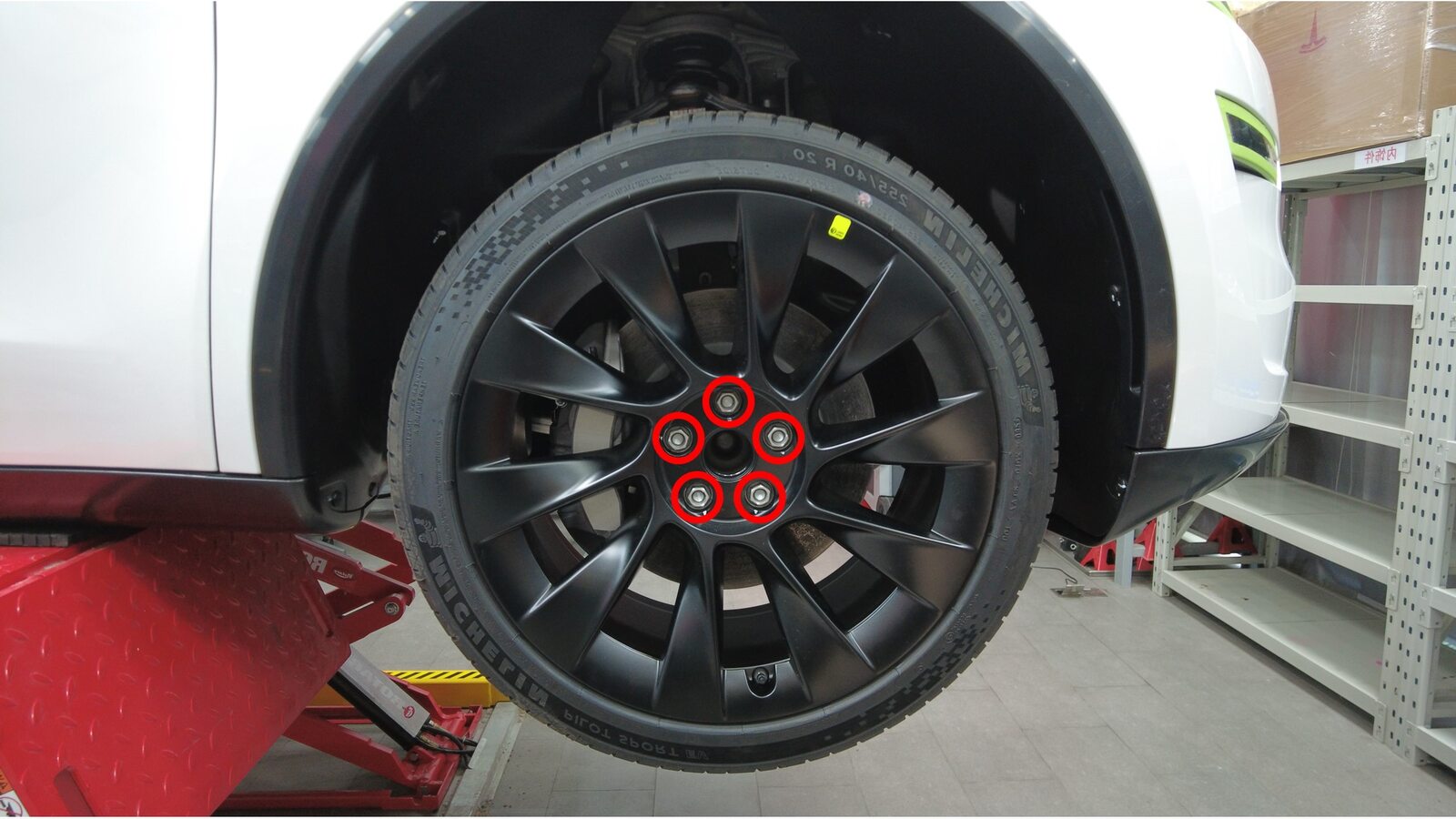

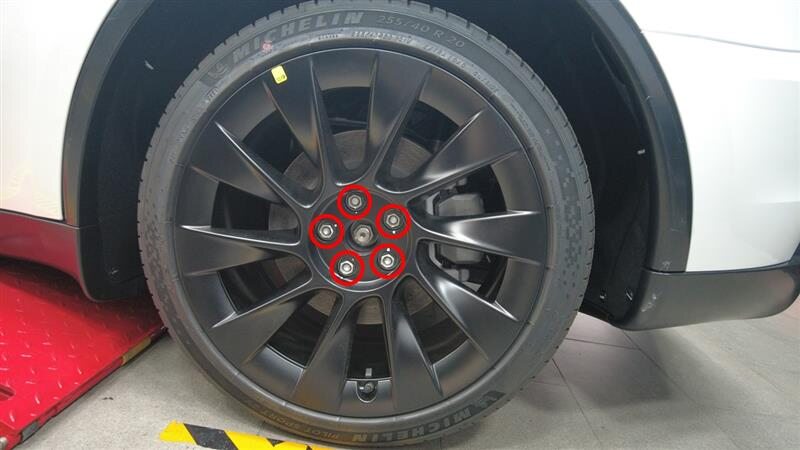

46. Loosen LH front wheel nuts
    注

    5x nuts, 21mm, 175 Nm



47. Remove RH front wheel cap
    注

    1x cap, Use tool to gently pull the center wheel cap to release the clips, Wheels may be equipped with different caps



48. Loosen RH front wheel nuts
    注

    5x nuts, 21mm, 175 Nm



49. Remove LH rear wheel cap
    注

    1x cap, Use tool to gently pull center wheel cap to release clips, Wheels may be equipped with different caps



50. Loosen LH rear wheel nuts
    注

    5x nuts, 21mm, 175 Nm



51. Remove RH rear wheel cap
    注

    1x cap, Use tool to gently pull center wheel cap to release clips, Wheels may be equipped with different caps



52. Loosen RH rear wheel nuts
    注

    5x nuts, 21mm, 175 Nm



53. Raise vehicle partially and lower lift onto locks
    注

    Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side





54. Remove LH front wheel
    注

    5x nuts, 21mm, 175 Nm



55. Remove RH front wheel
    注

    5x nuts, 21mm, 175 Nm



56. Remove LH rear wheel
    注

    5x nuts, 21mm, 175 Nm



57. Remove RH rear wheel
    注

    5x nuts, 21mm, 175 Nm



58. Lower vehicle partially and set onto locks
    注

    Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height







59. 运行 ODIN 例行程序 PROC_ICE_X_ENTER-SERVICE-MODE-PLUSvia Toolbox:(link)

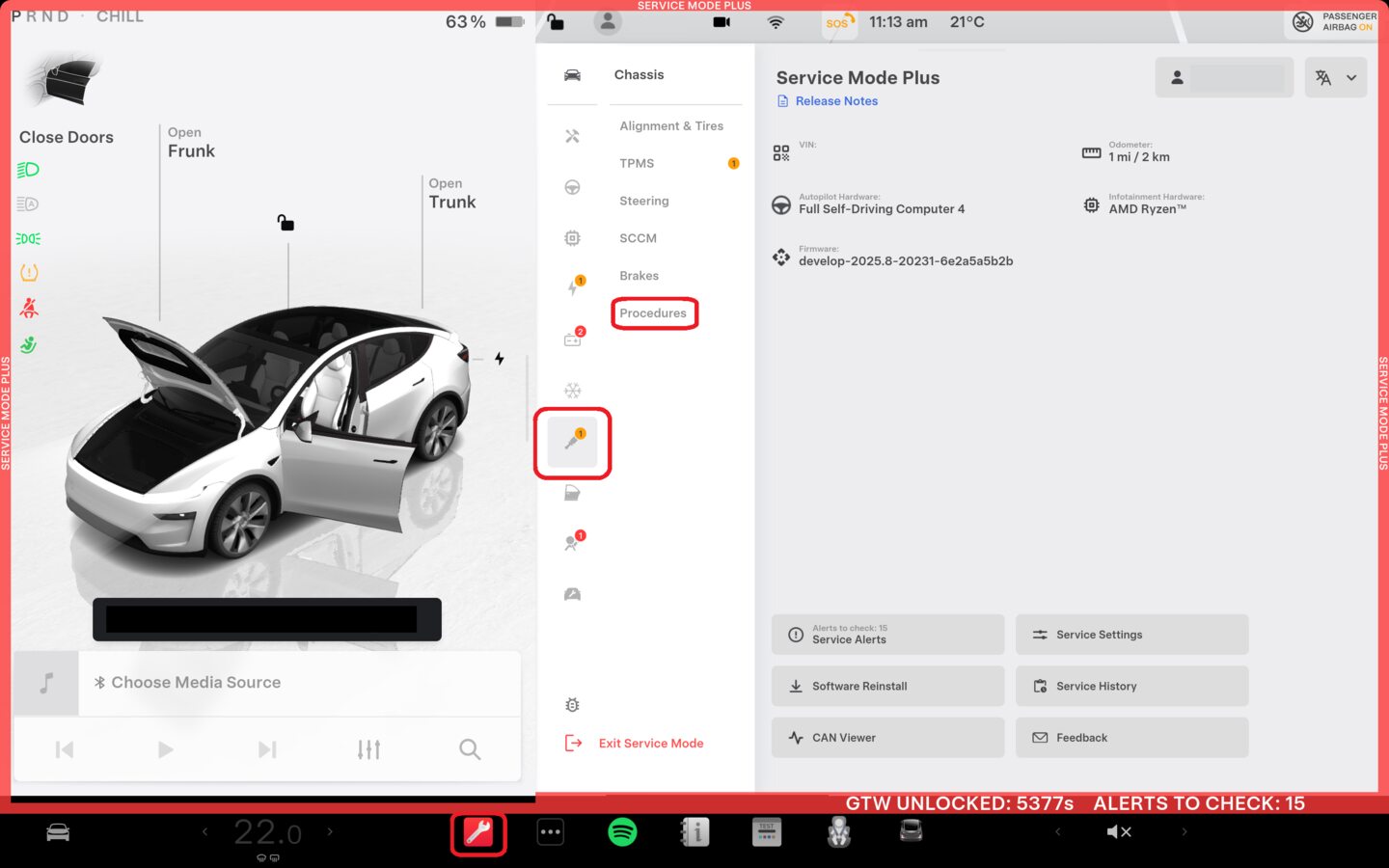

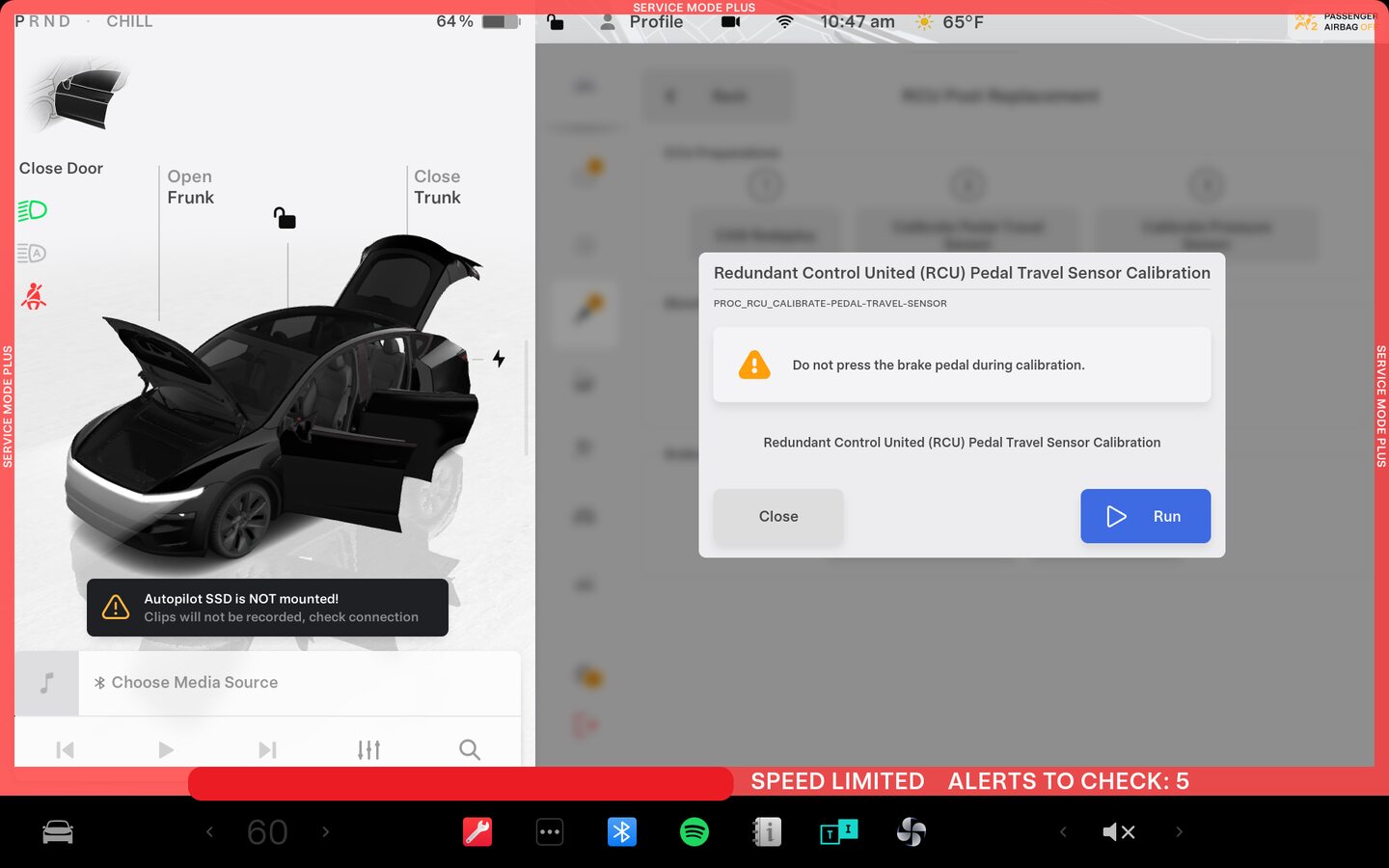

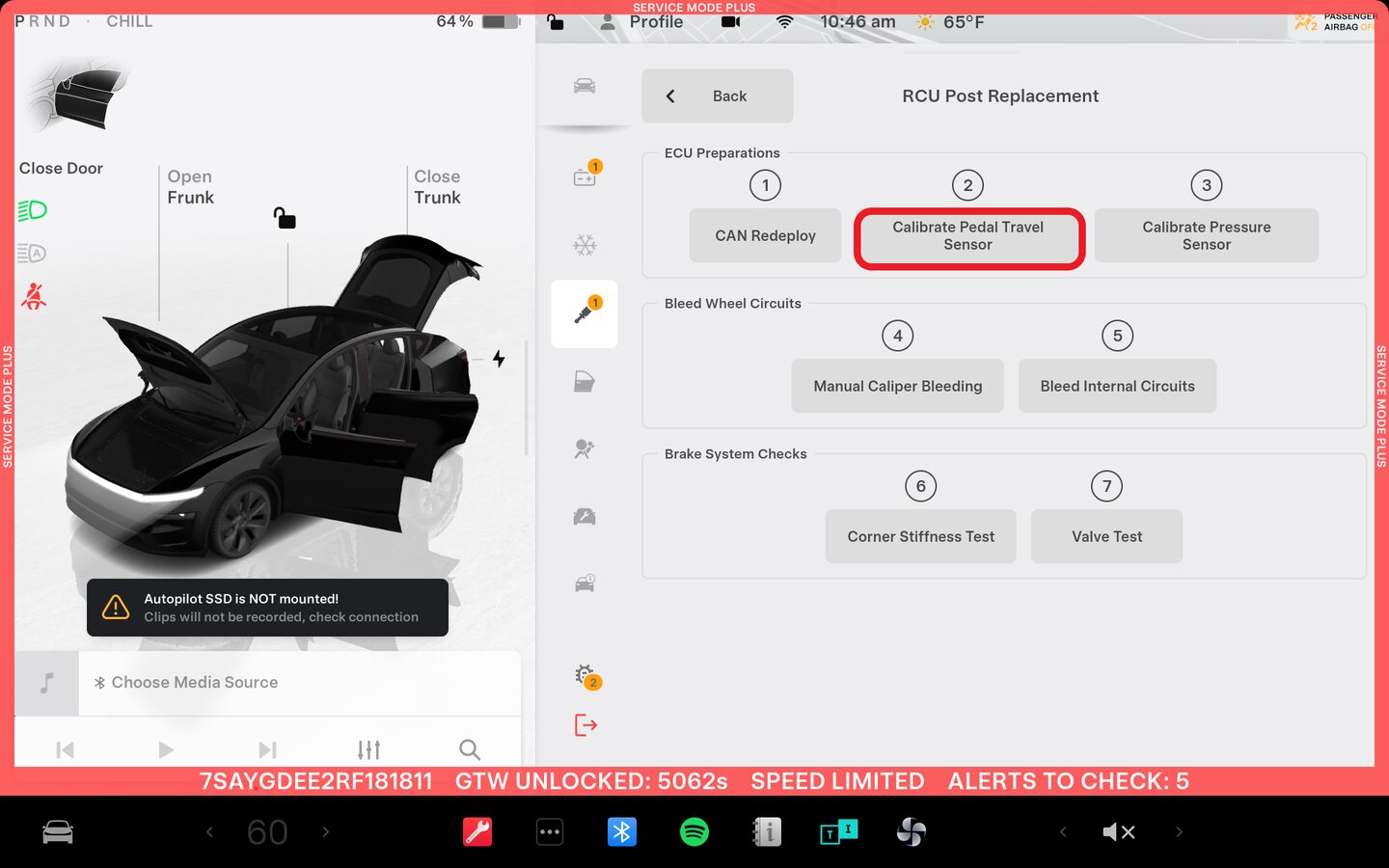

60. Run RCU Calibrate Pedal Travel Sensor
    注

    Select Chassis > Procedures > RCU Post Replacement > Pedal Travel Sensor, click Run, follow on screen instructions to press/release brake pedal, close once routine is succeeded,

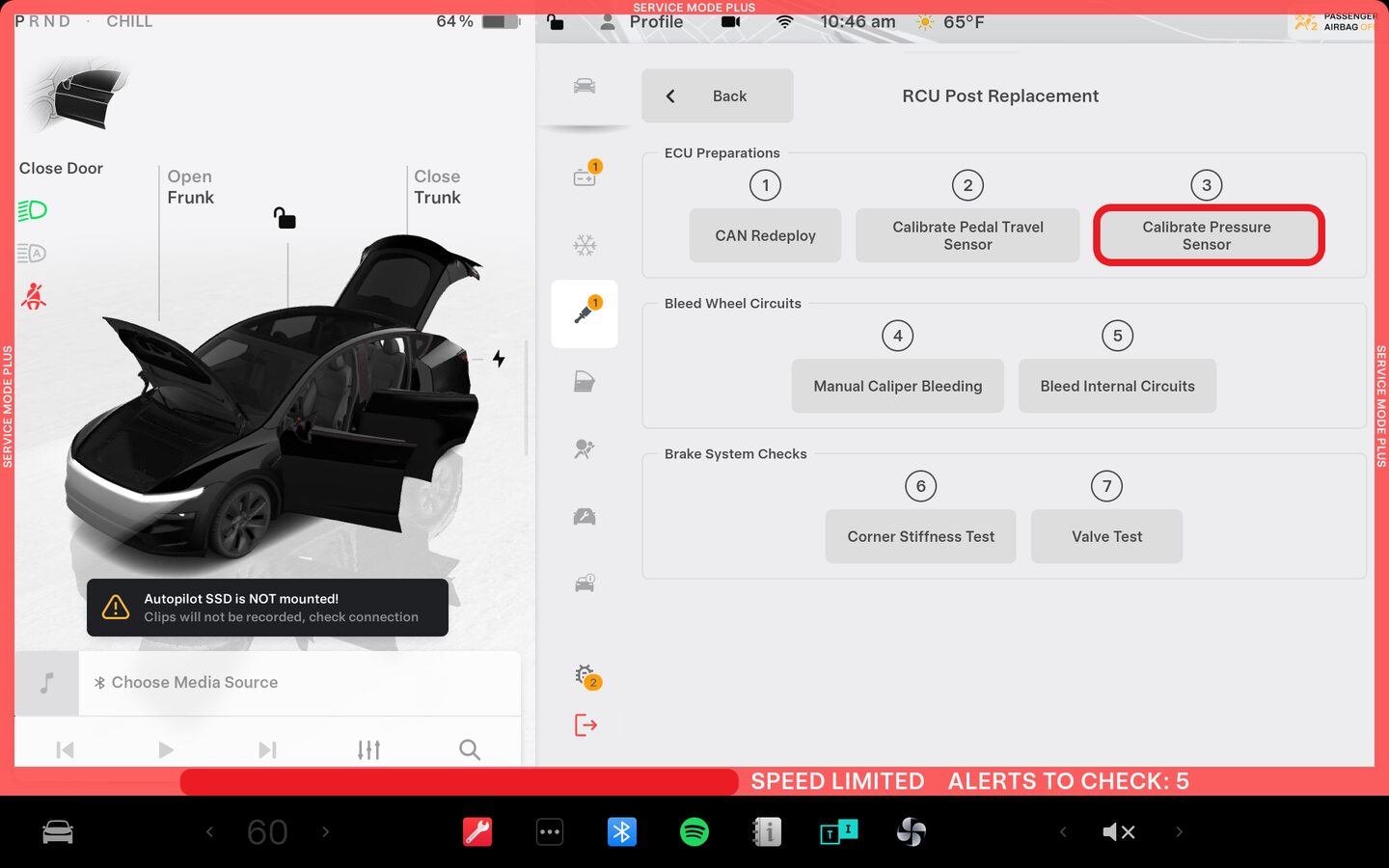

61. Run RCU Calibrate Pressure Sensor
    注

    Select Chassis > Procedures > RCU Post Replacement > RCU Calibrate Pressure Sensor, click Run,

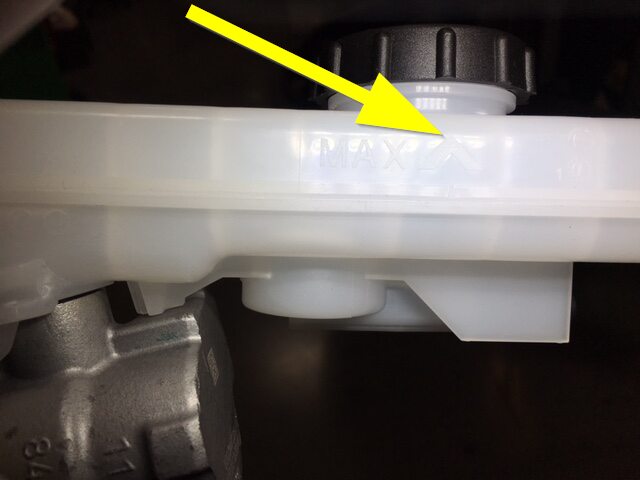

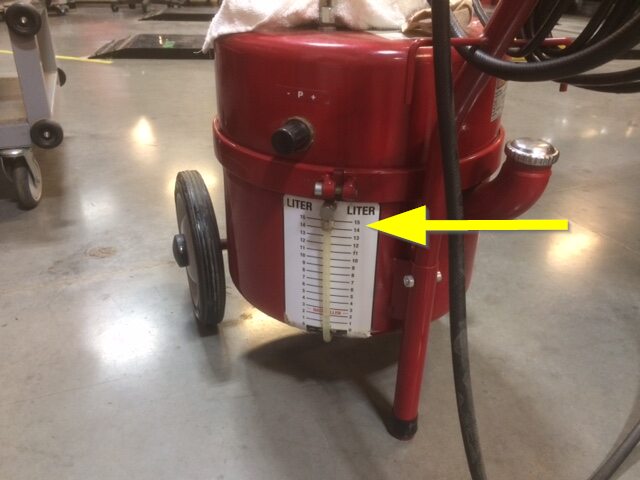

62. Fill brake bleeder reservoir to full level



63. Top off brake fluid reservoir
    注

    Top off brake fluid as needed

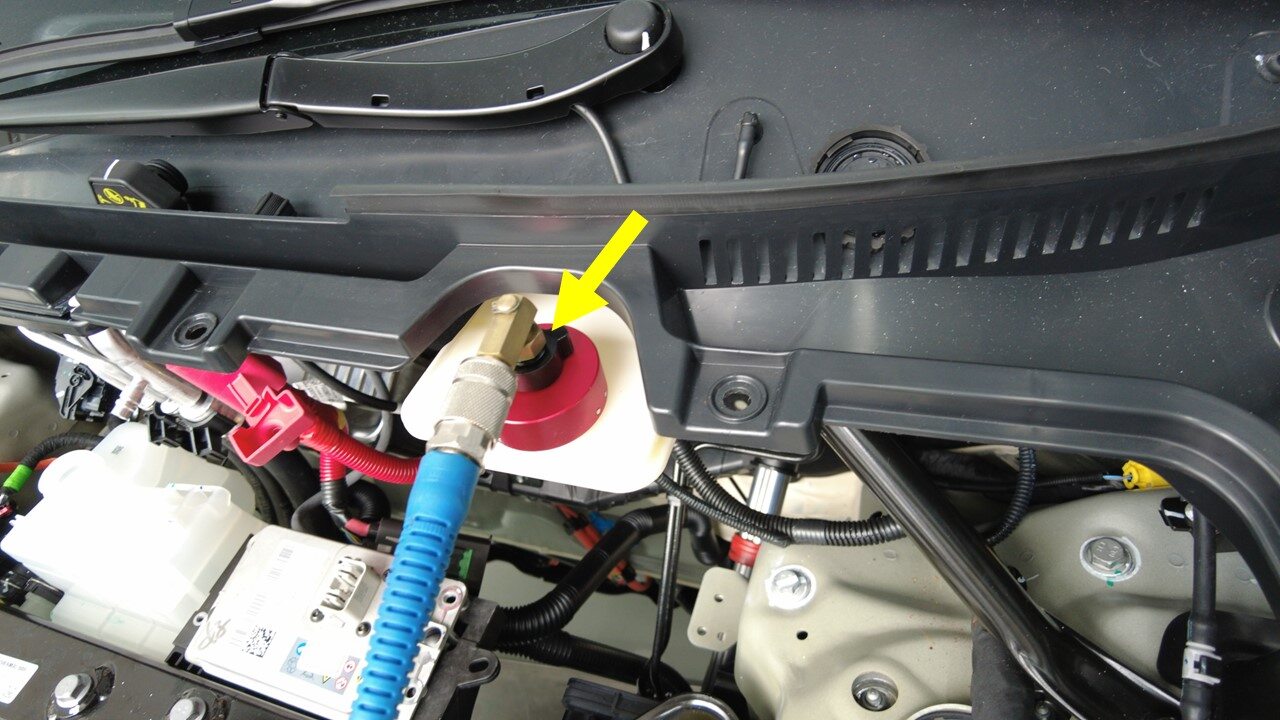

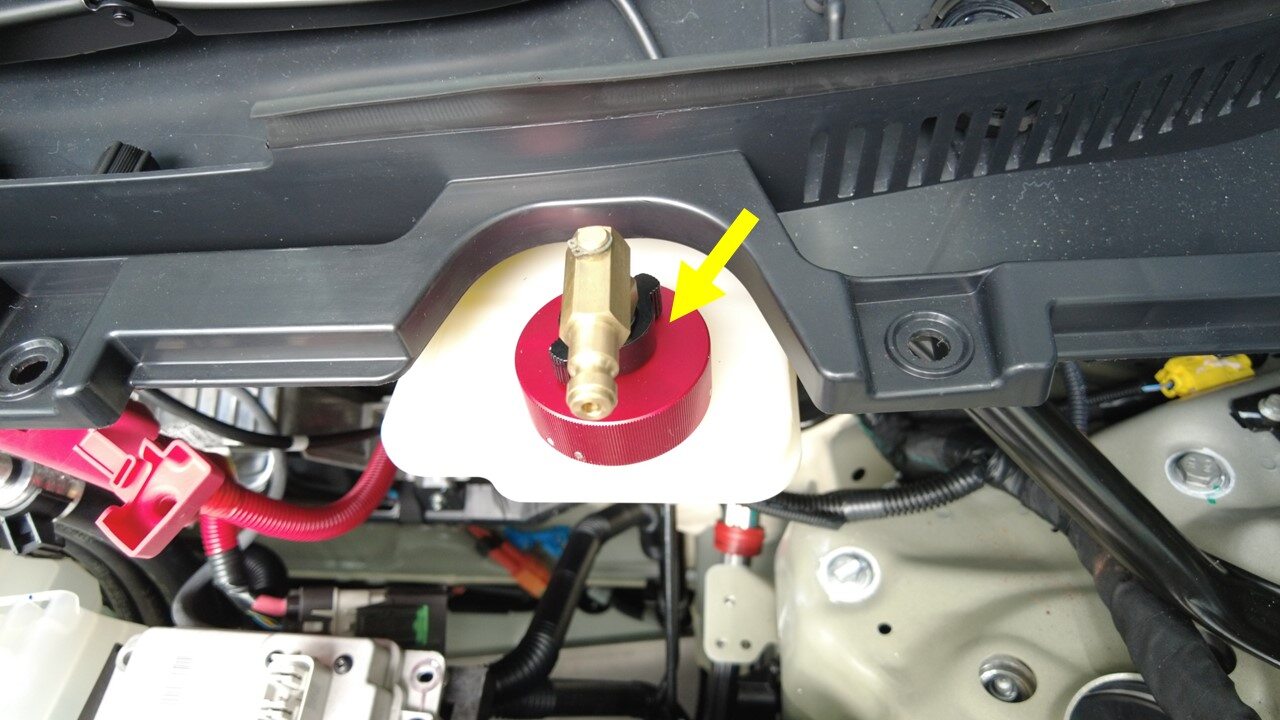

64. Install pressure bleeder adapter onto reservoir

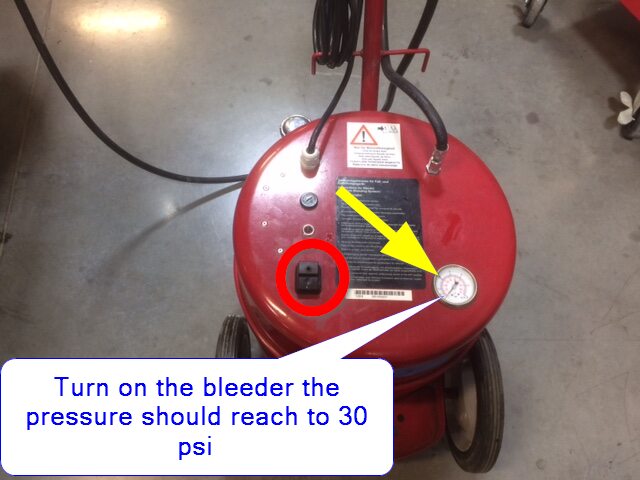

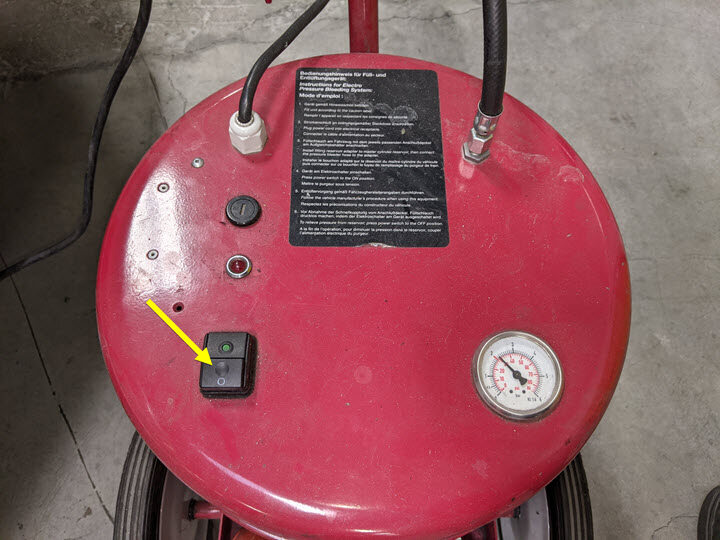

65. Setup brake bleeder
    注

    Connect power supply to bleeder and turn on the power to set pressure to 30 psi, Attach the brake reservoir hose to the brake adapter at this time

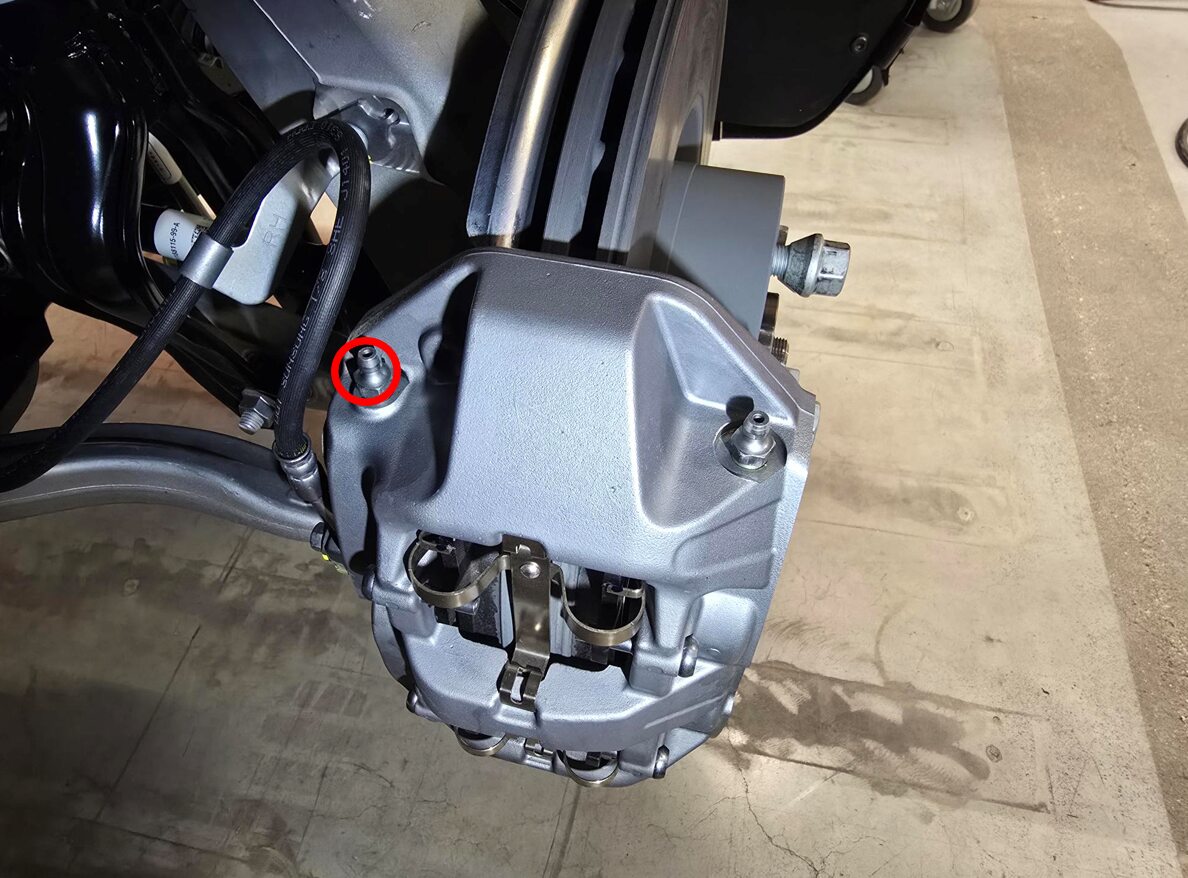

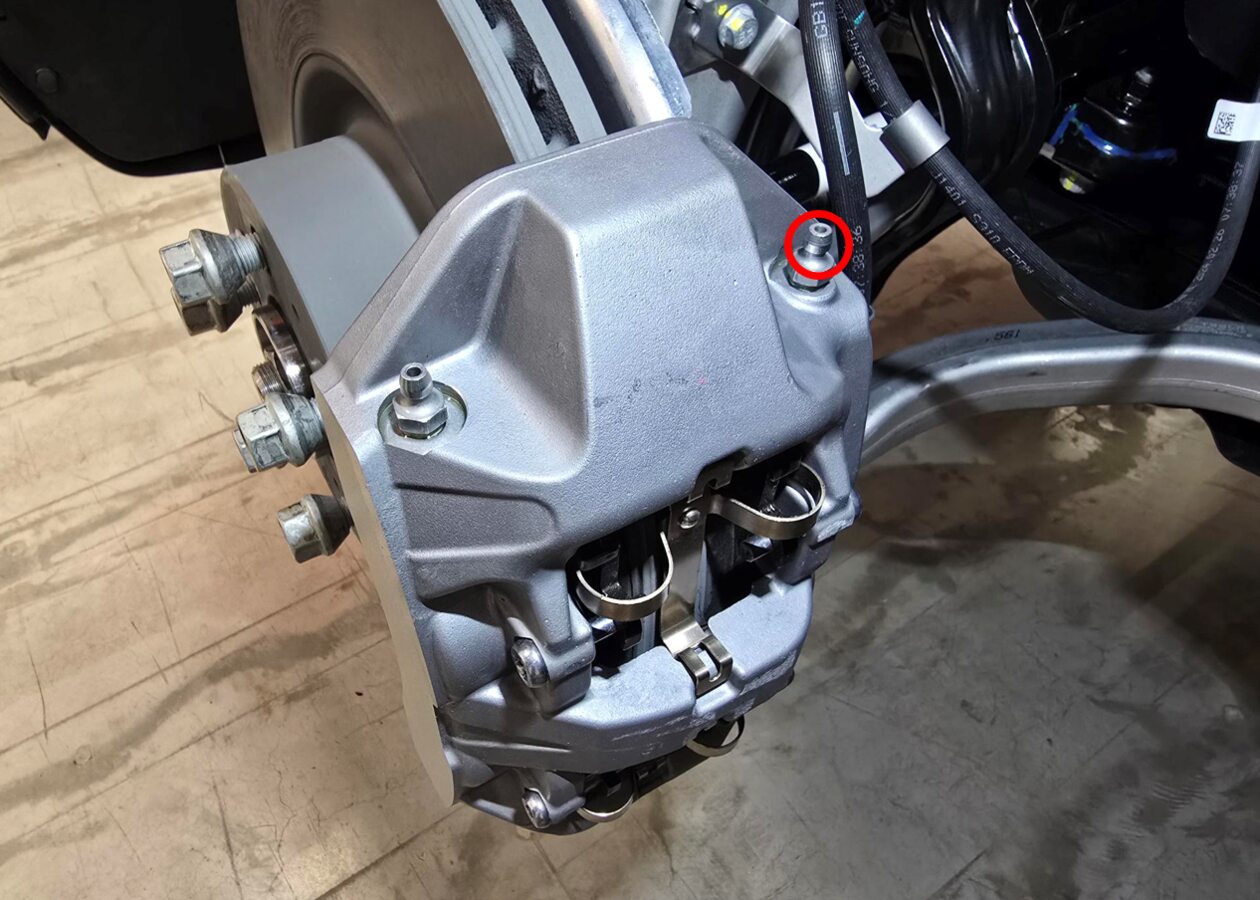

66. Remove LH front caliper inner bleed valve cover then install fluid catcher
    注

    1x cover

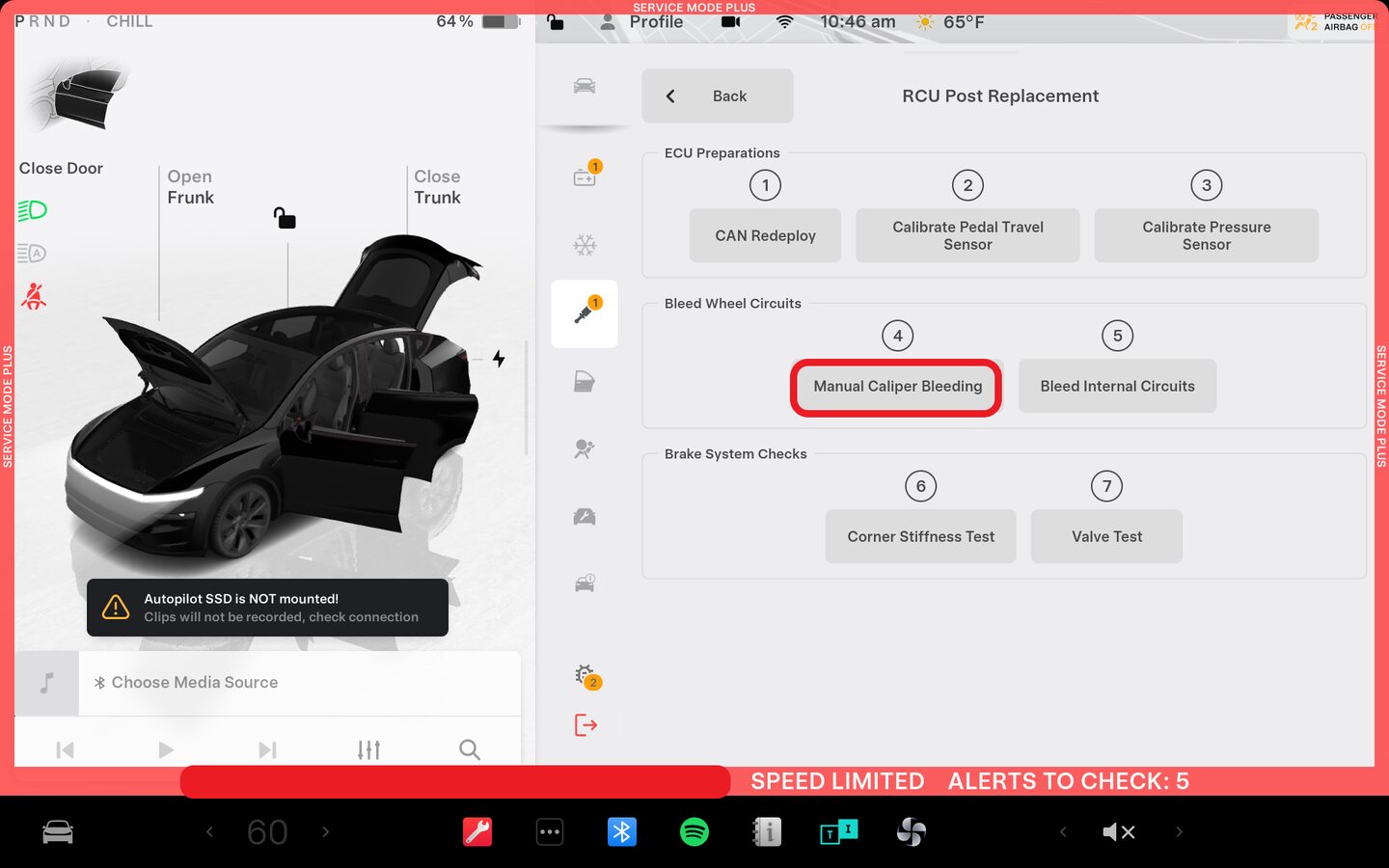

67. PLACEHOLDER, Run Manual Caliper Bleed
    注

    Select Chassis > Procedures > RCU Post Replacement >Manual Caliper Bleed



68. 运行 ODIN 例行程序

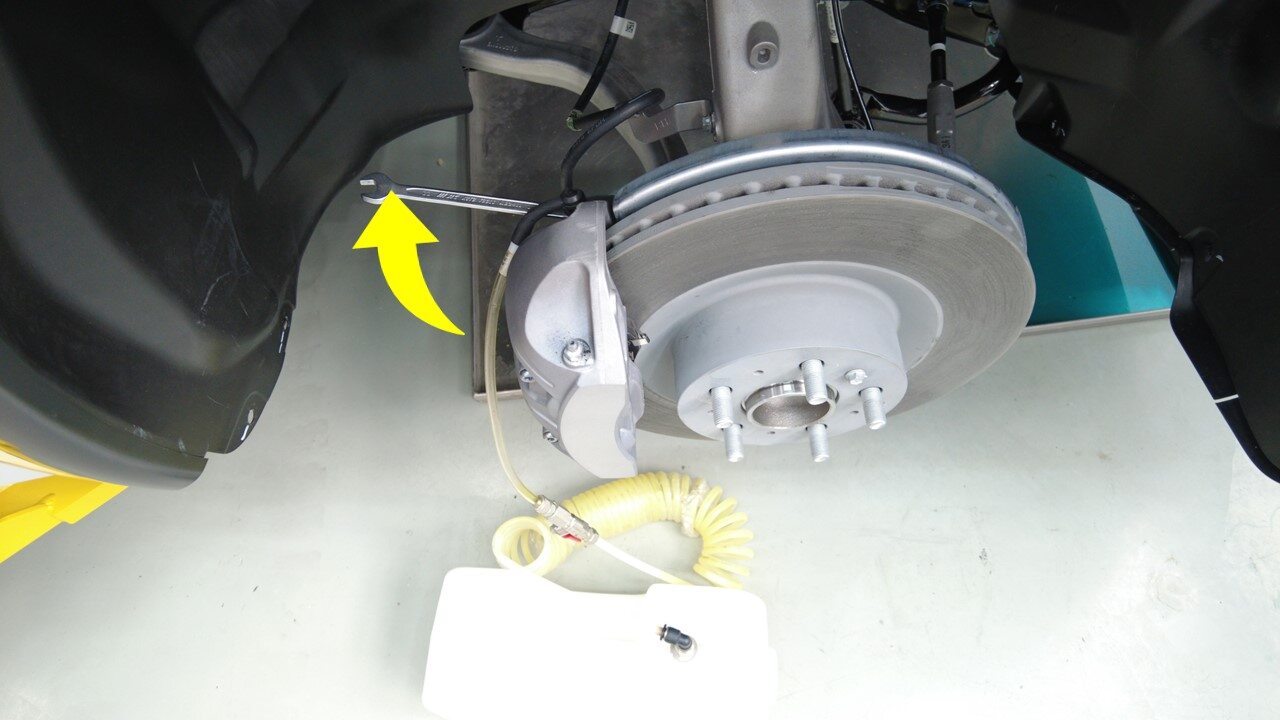

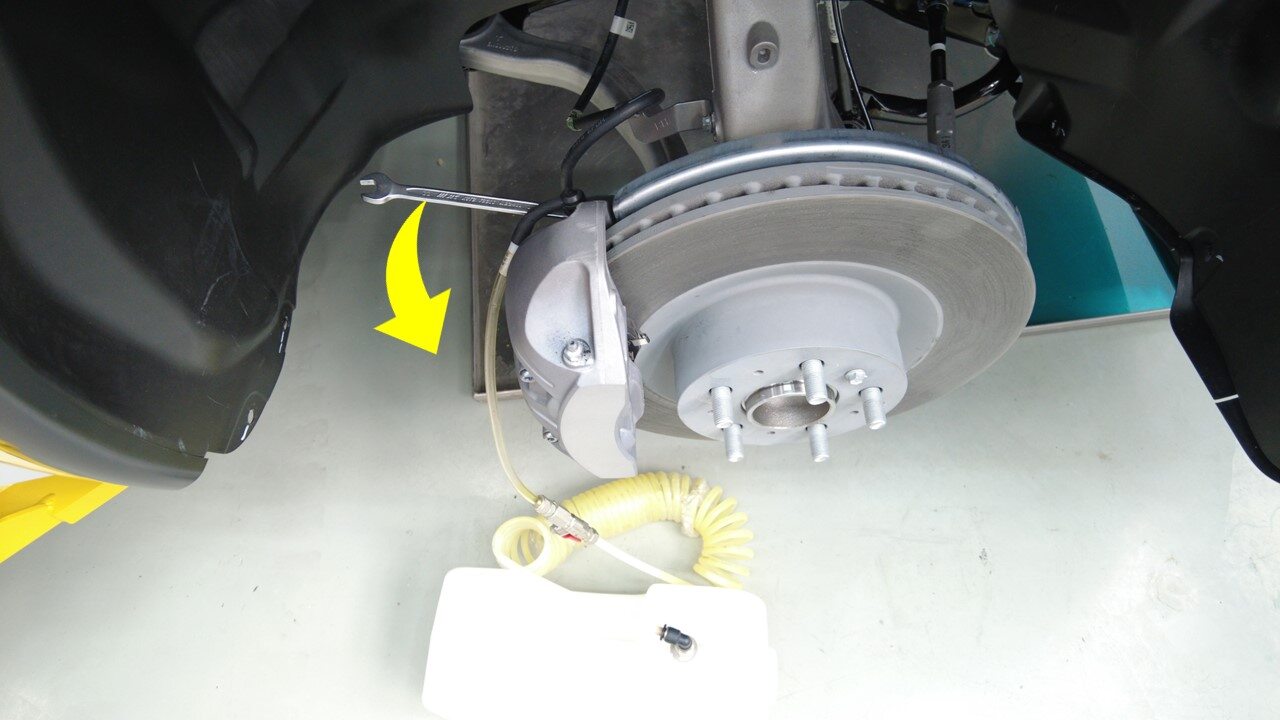

69. When the routine finishes, torque the LH front caliper bleed valve, and then remove fluid catcher.
    注

    1x bleed valve, 11mm, 18.5 Nm, 1x cover, Install cover when torqued





70. Remove RH front caliper inner bleed valve cover then install fluid catcher
    注

    1x cover





71. 运行 ODIN 例行程序
72. When the routine finishes, torque the RH front caliper bleed valve, and then remove fluid catcher.
    注

    1x bleed valve, 11mm, 18.5 Nm, 1x cover, Install cover when torqued





73. Turn off and remove pressure brake bleeder kit from vehicle





74. Check brake fluid level
    注

    Top off if necessary

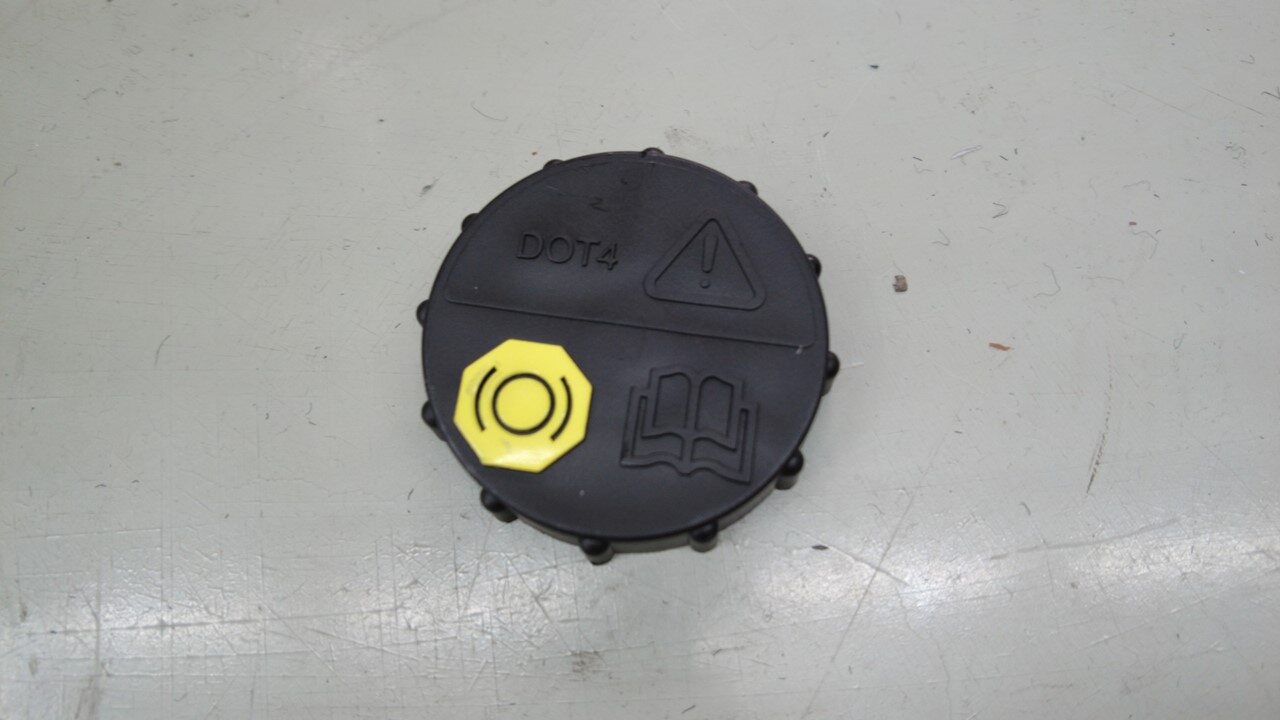

75. Install service brake reservoir cap





76. Remove absorbent material from underneath brake booster assembly and reservoir area

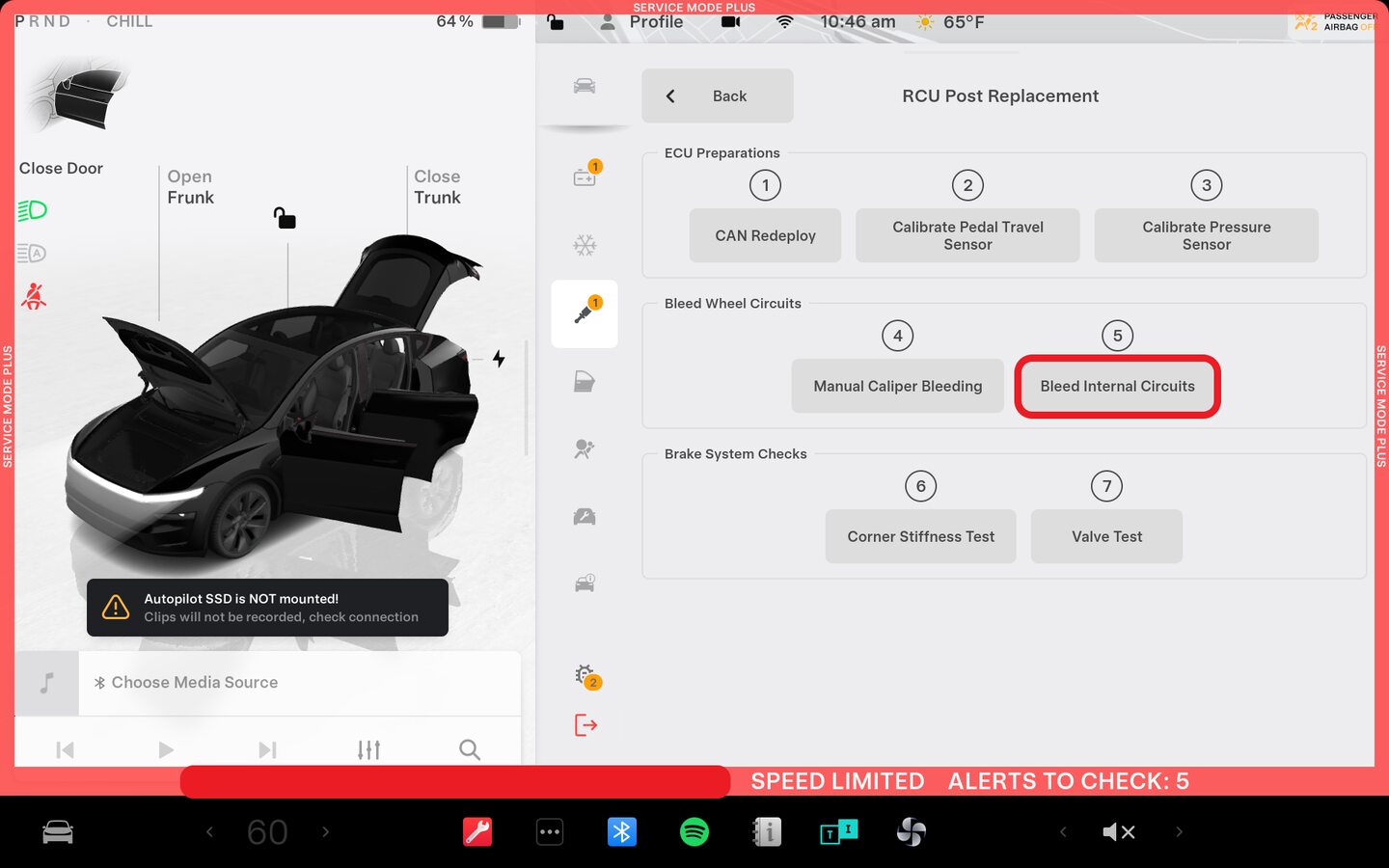

77. Bleed Internal Circuits
    注

    Select Chassis > Procedures > RCU Post Replacement > Bleed Internal Circuit-s

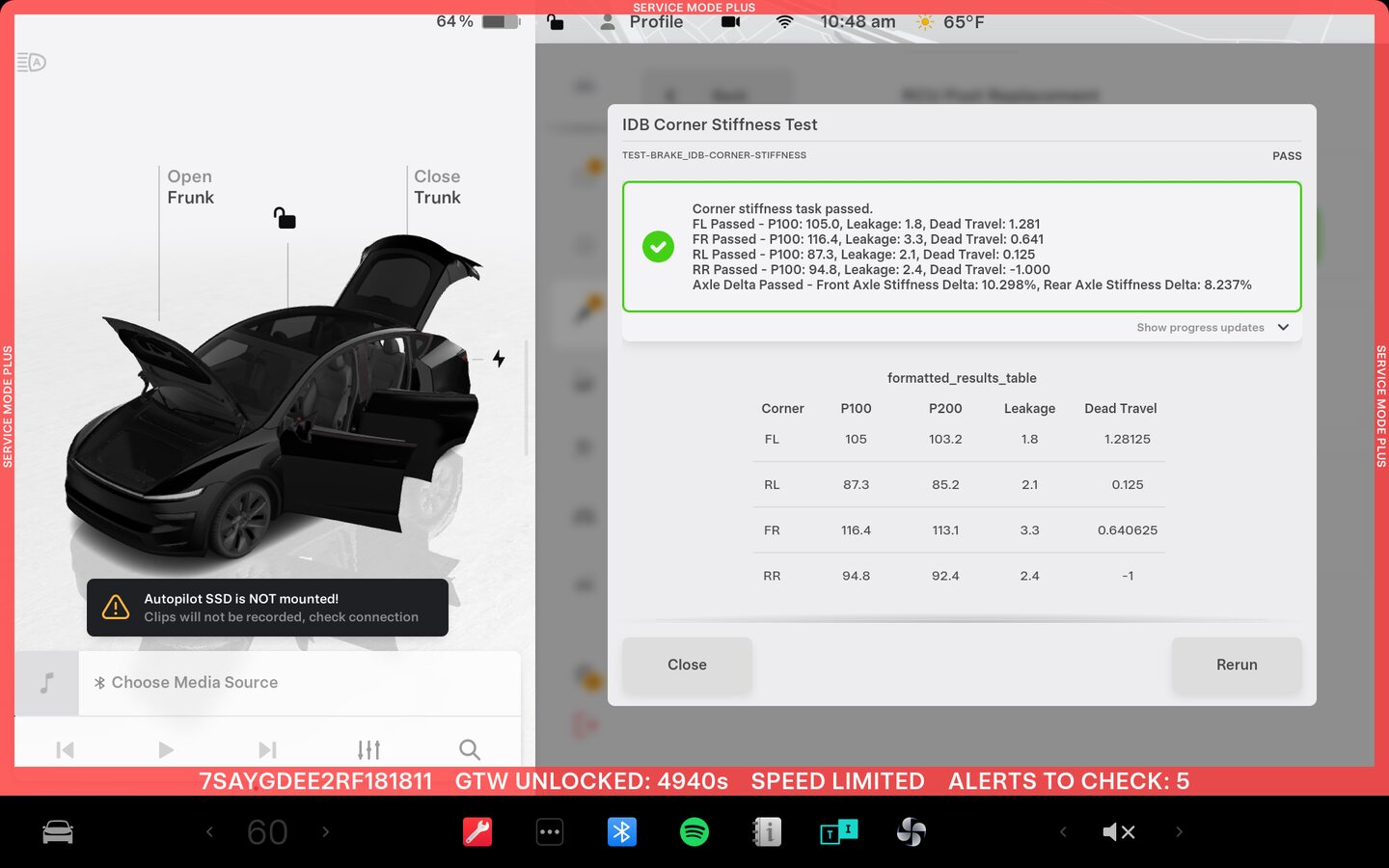

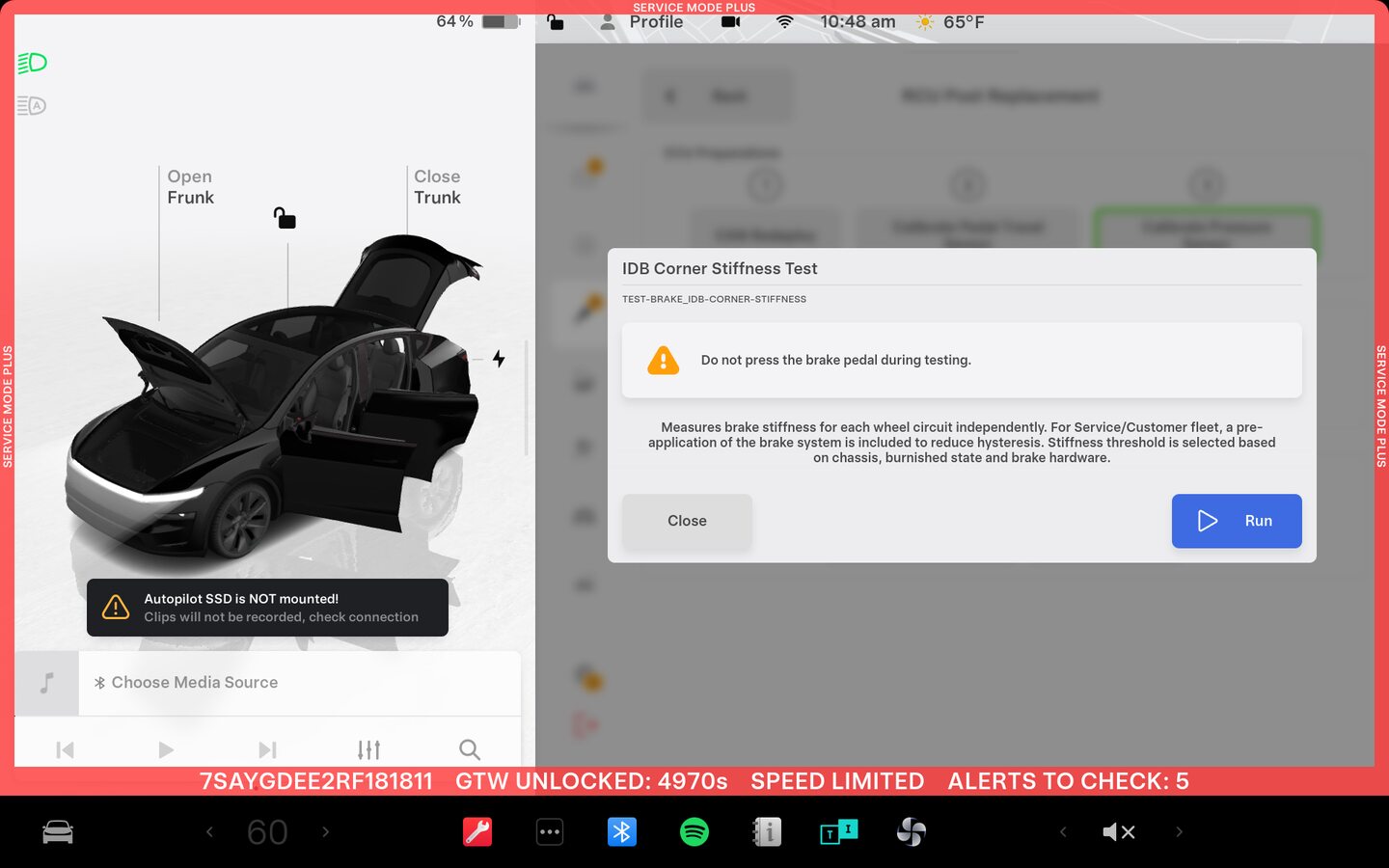

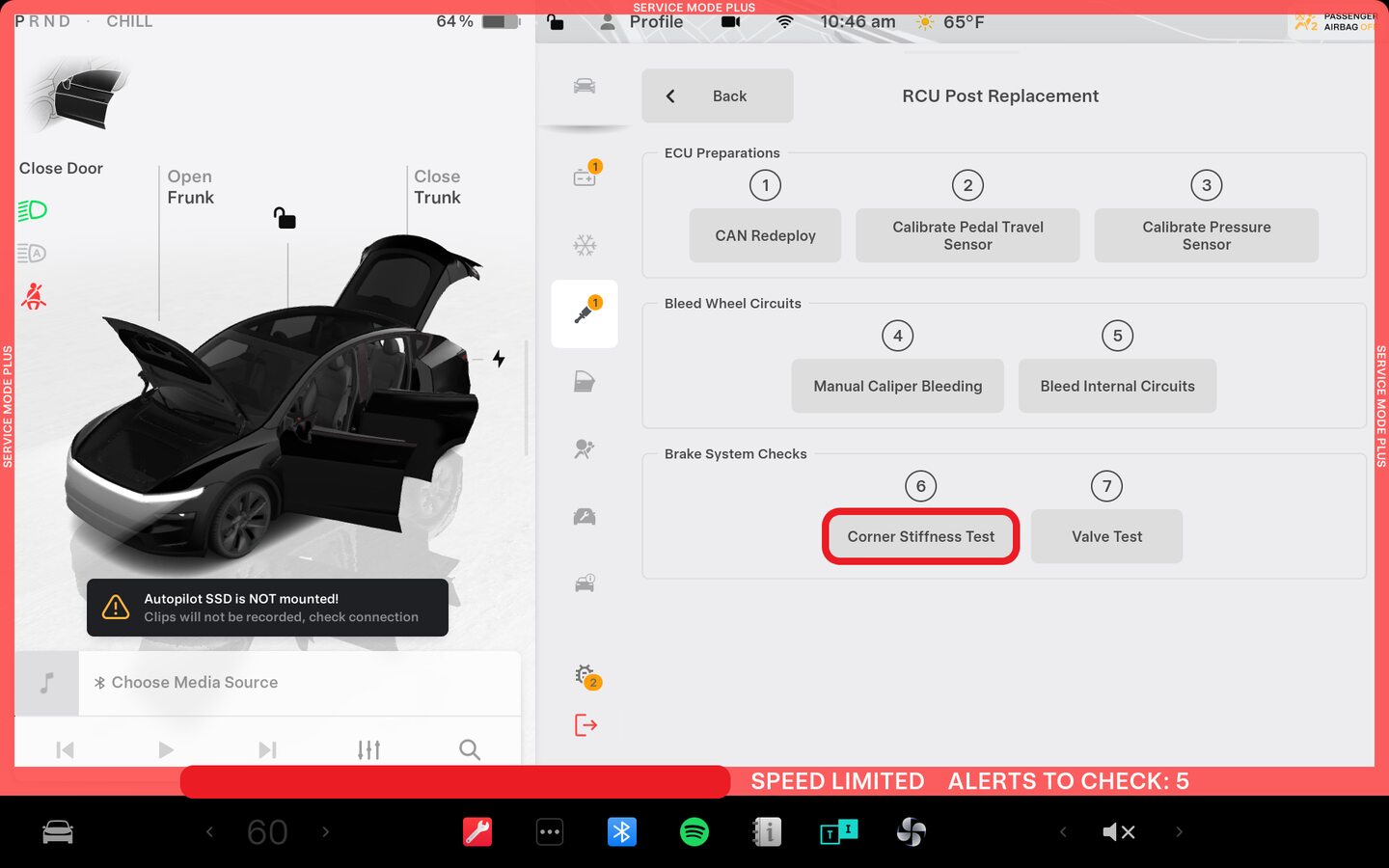

78. Perform RCU Corner Stiffness Test
    注

    Select Chassis > Procedures > RCU Post Replacement > Corner Stiffness Test, click Run, follow on screen instructions

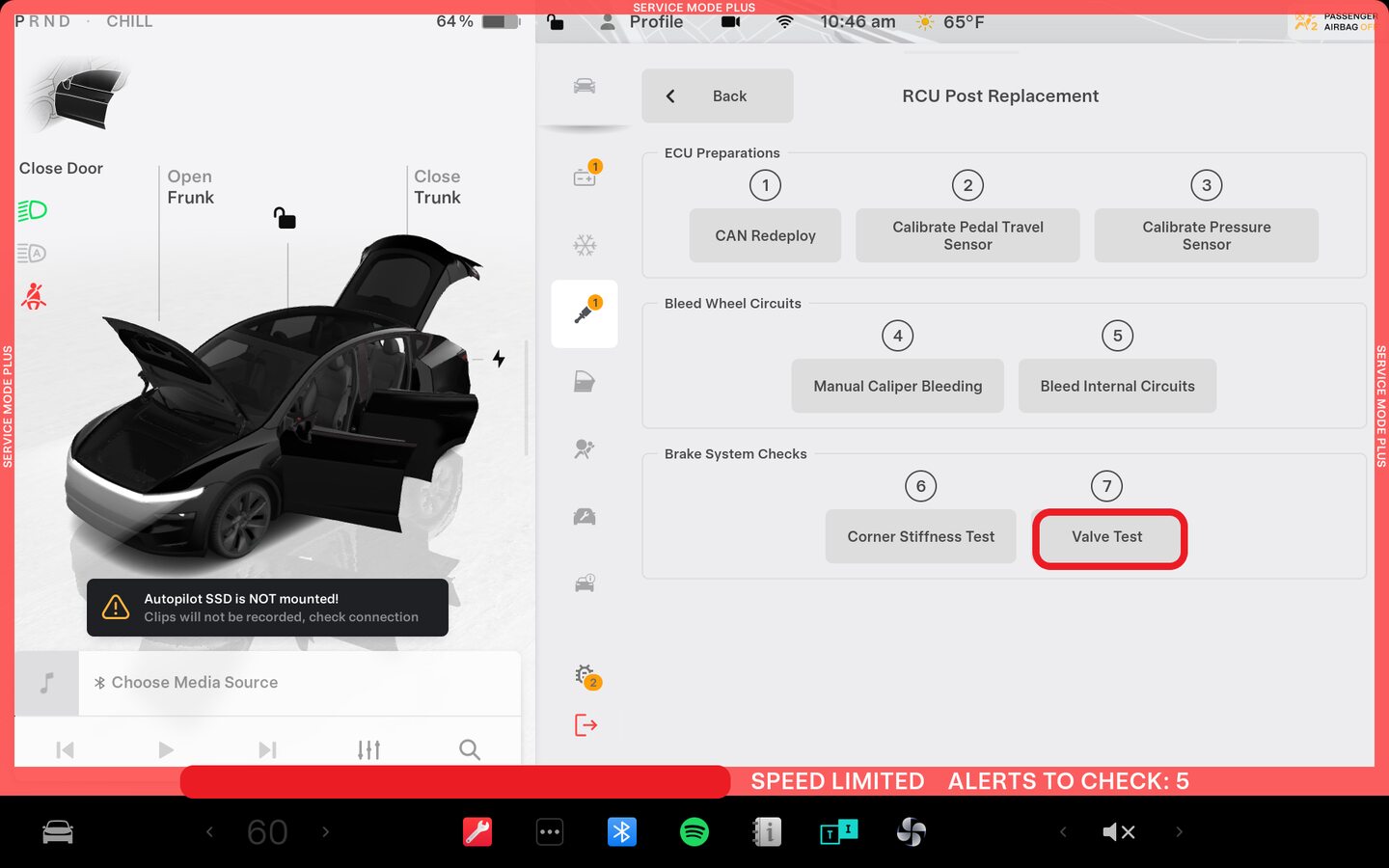

79. Perform RCU Valve Test
    注

    Select Chassis > Procedures > RCU Post Replacement > Valve Test, click Run, follow on screen instructions

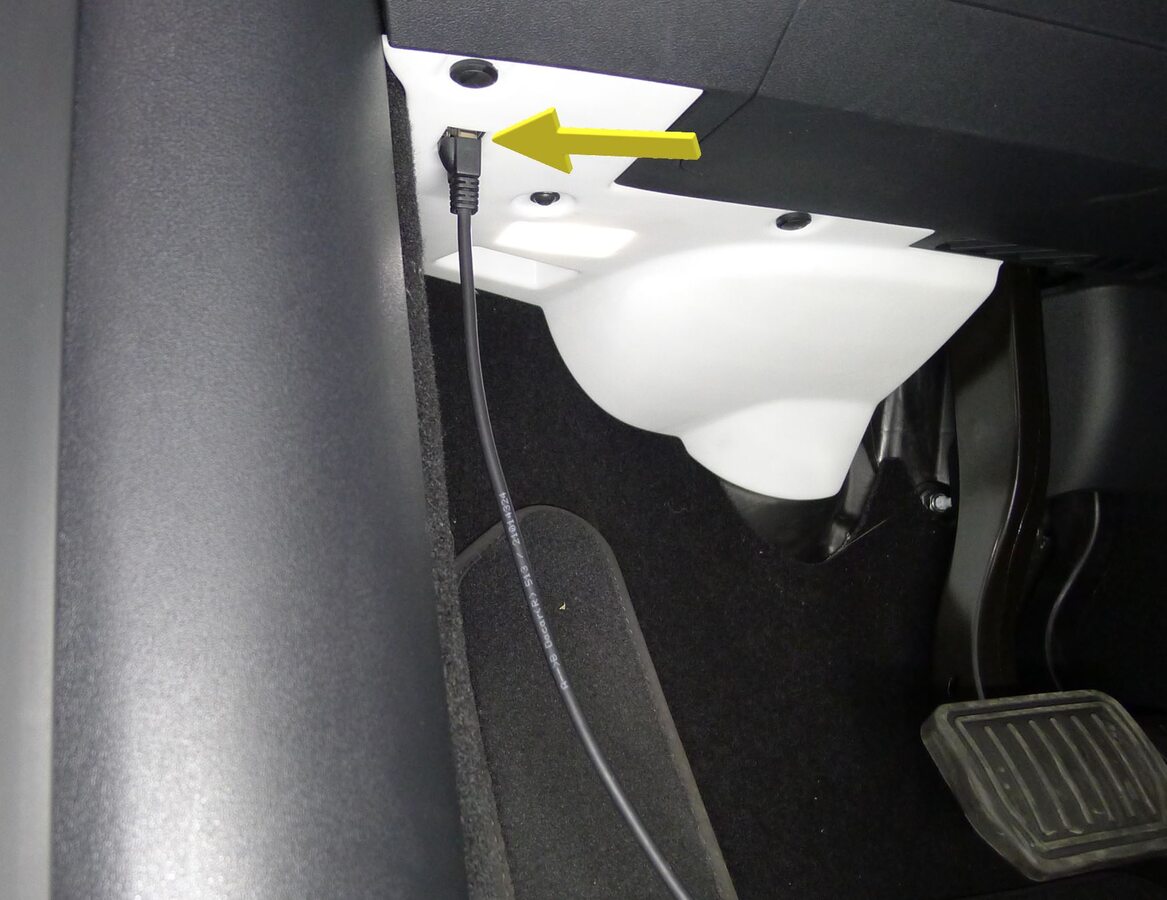

80. Disconnect Toolbox from vehicle and remove laptop and Diagnostics Adapter Ethernet Harness
    注

    If RJ45 ethernet diagnostic connector present media converter box not required disconnect directly from laptop using an RJ45 Ethernet cable or from OBDII connection



81. 运行 ODIN 例行程序 PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
82. Pump brake pedal a few times to ensure brake pedal feels normal



83. Raise vehicle partially and lower lift onto locks
    注

    Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side





84. Install LH front wheel
    注

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



85. Install LH rear wheel
    注

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



86. Install RH front wheel
    注

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



87. Install RH rear wheel
    注

    5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool



88. Lower vehicle until tires are touching ground
    注

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered







89. Torque LH front wheel nuts
    注

    5x nuts, 21mm, 175 Nm



90. Install LH front wheel cap
    注

    1x cap, Align valve stem with wheel cap cavity, Wheels may be equipped with different caps



91. Torque RH front wheel nuts
    注

    5x nuts, 21mm, 175 Nm



92. Install RH front wheel cap
    注

    1x cap, Align valve stem with wheel cap cavity, Wheels may be equipped with different caps



93. Torque LH rear wheel nuts
    注

    5x nuts, 21mm, 175 Nm



94. Install LH rear wheel cap
    注

    1x cap, Align valve stem with wheel cap cavity, Wheels may be equipped with different caps



95. Torque RH rear wheel nuts
    注

    5x nuts, 21mm, 175 Nm



96. Install RH rear wheel cap
    注

    1x cap, Align valve stem with wheel cap cavity, Wheels may be equipped with different caps



97. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of locks on both sides before lowering, Otherwise vehicle may tilt to side





98. Install RCU lower fastener
    注

    1x bolt, 10mm, 10 Nm

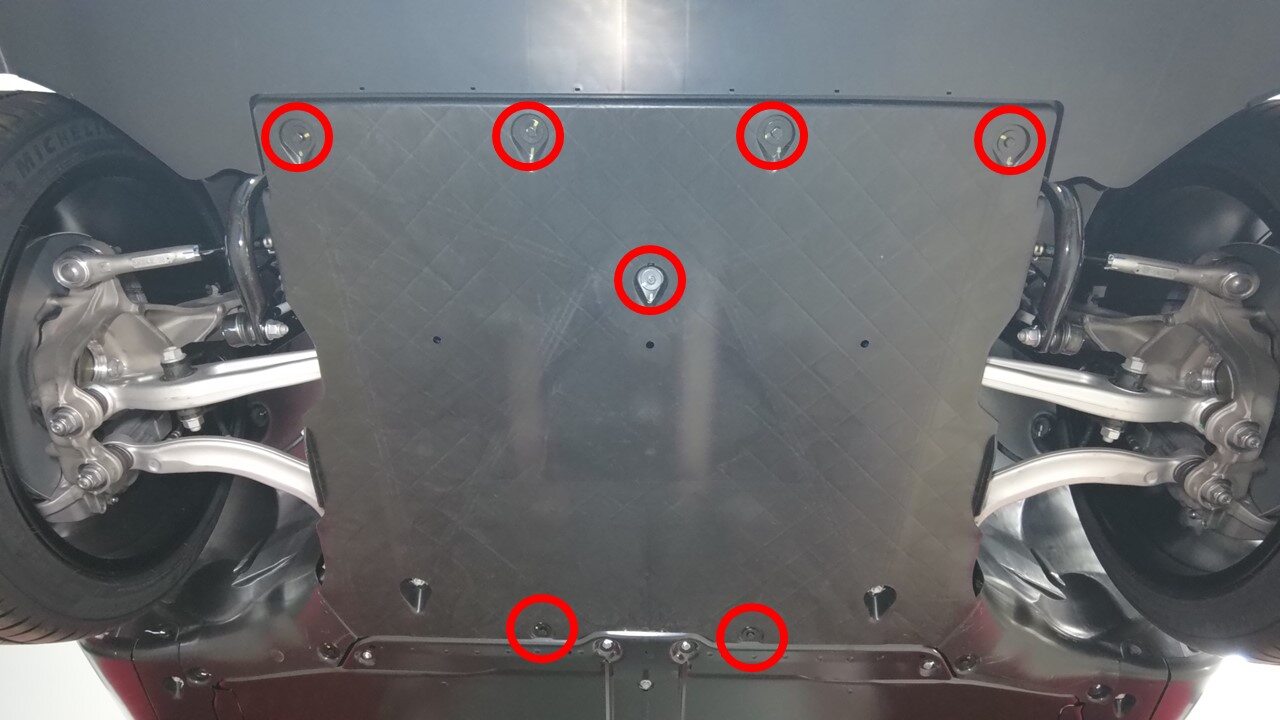

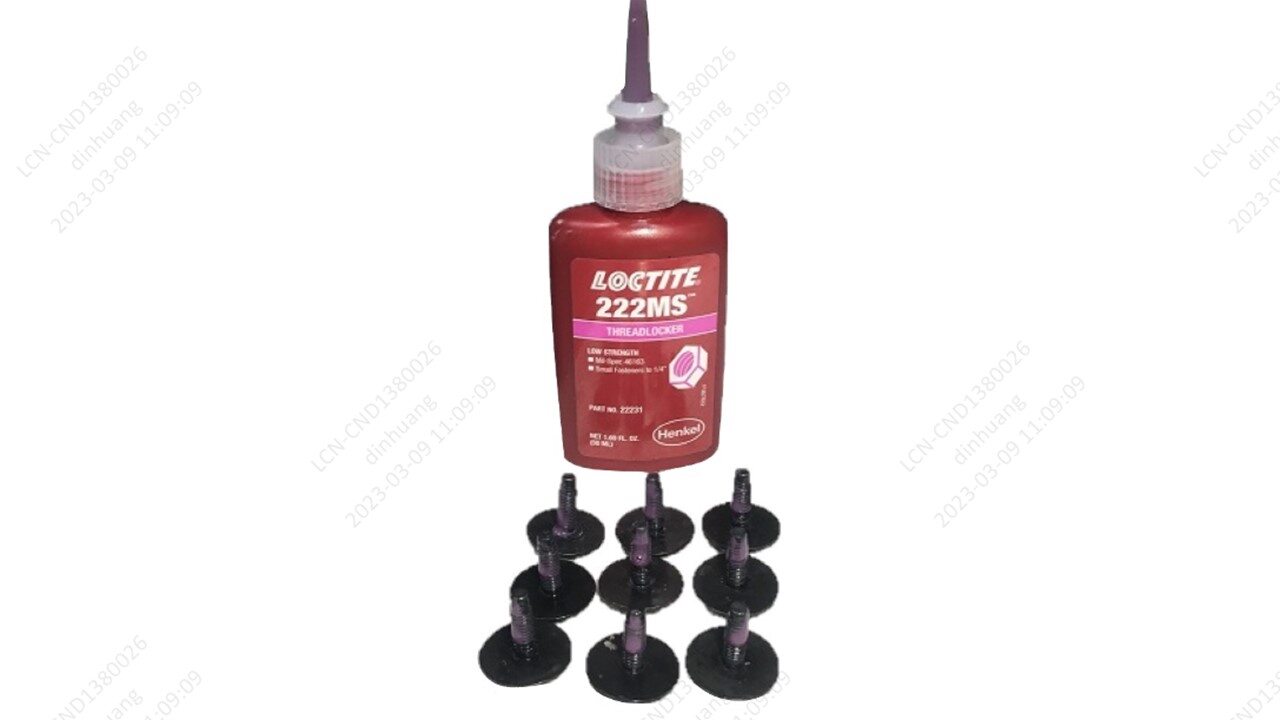

99. Install front aero shield onto vehicle
    注

    7x bolts, 10mm, 5 Nm, Apply Loctite 222 onto front aero shield bolts and install fasteners to front aero shield





100. Lower vehicle fully
     注

     Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered

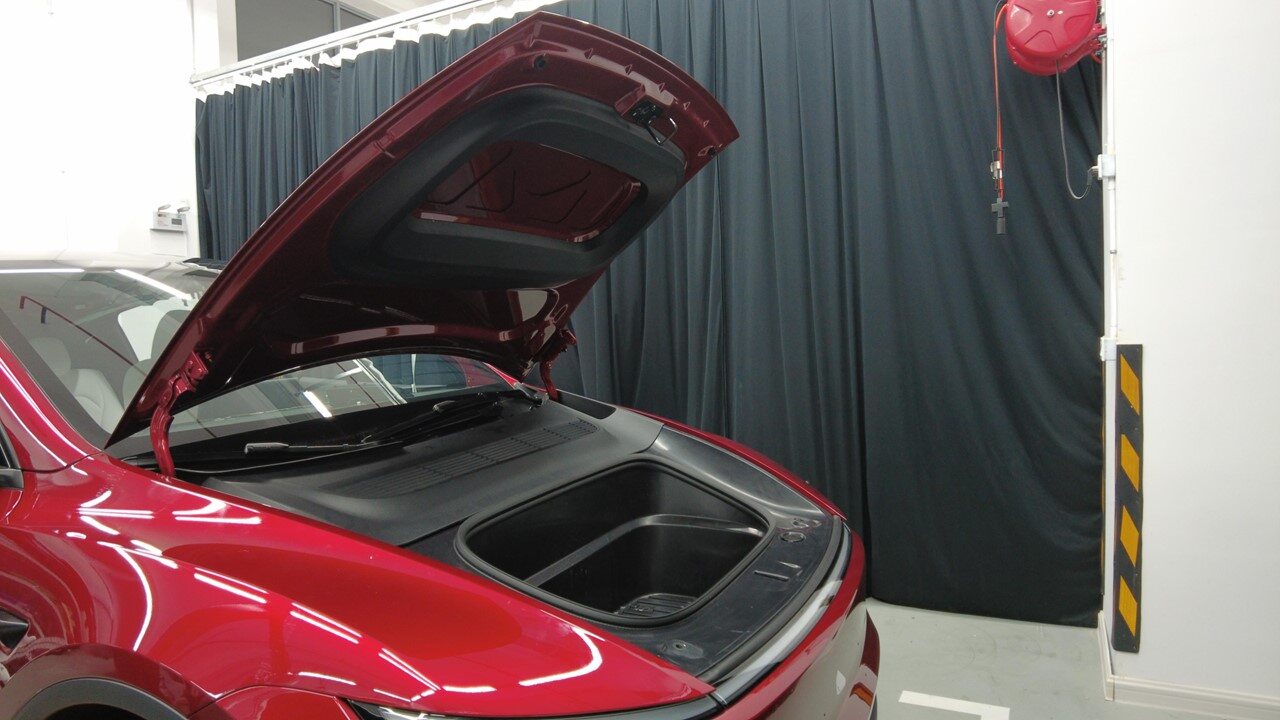

101. Install frunk to vehicle
     注

     4x clips, 3x tabs, 2x trim clips, Replace any clips if broken or missing









102. Install bolts securing frunk to vehicle
     注

     4x bolts, 10mm, 5 Nm



103. Install frunk access panel
     注

     3x clips, 3x tabs, 1x connector





104. Install HEPA filter assembly
     注

     2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct









105. Install rear apron
     注

     16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron







106. Close hood

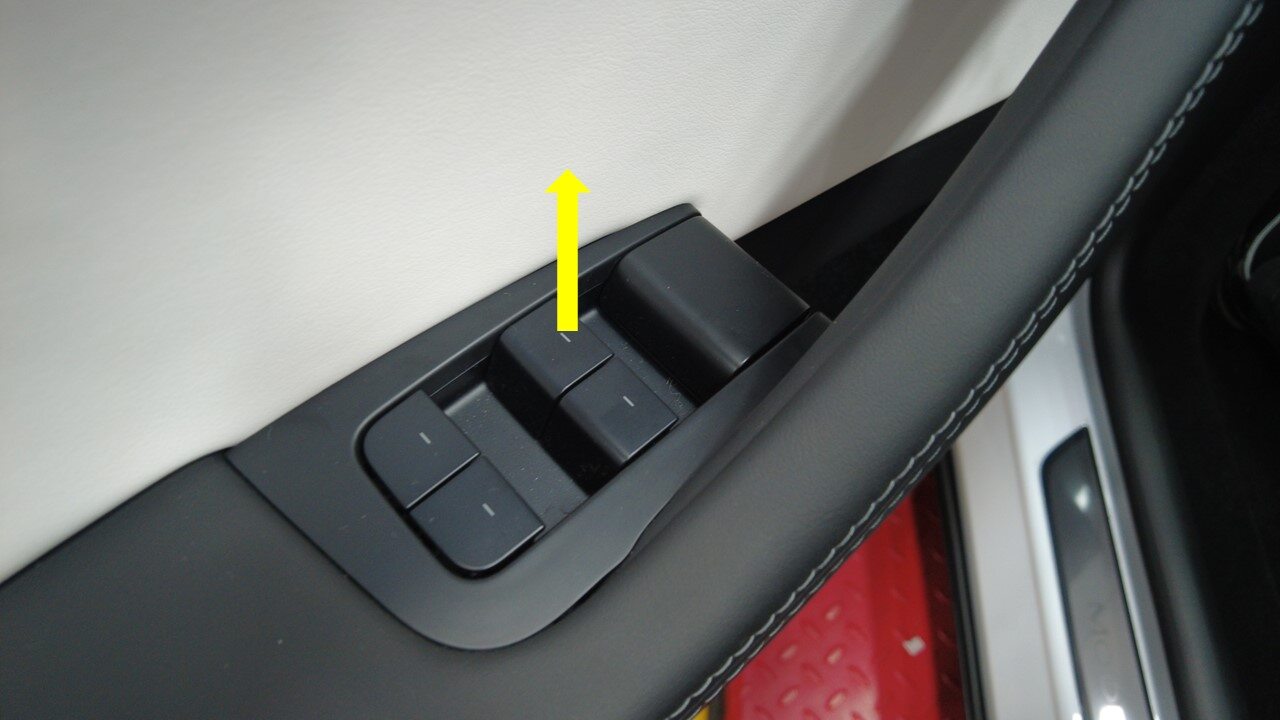

107. Raise LH front window



108. Close LH front door



109. Remove vehicle from lift
     注

     Lower rack arms fully and remove from under vehicle



110. Perform a road test
     注

     Ensure proper brake pedal feel and performance Add correction code 00040100 as needed
