2026-08-09

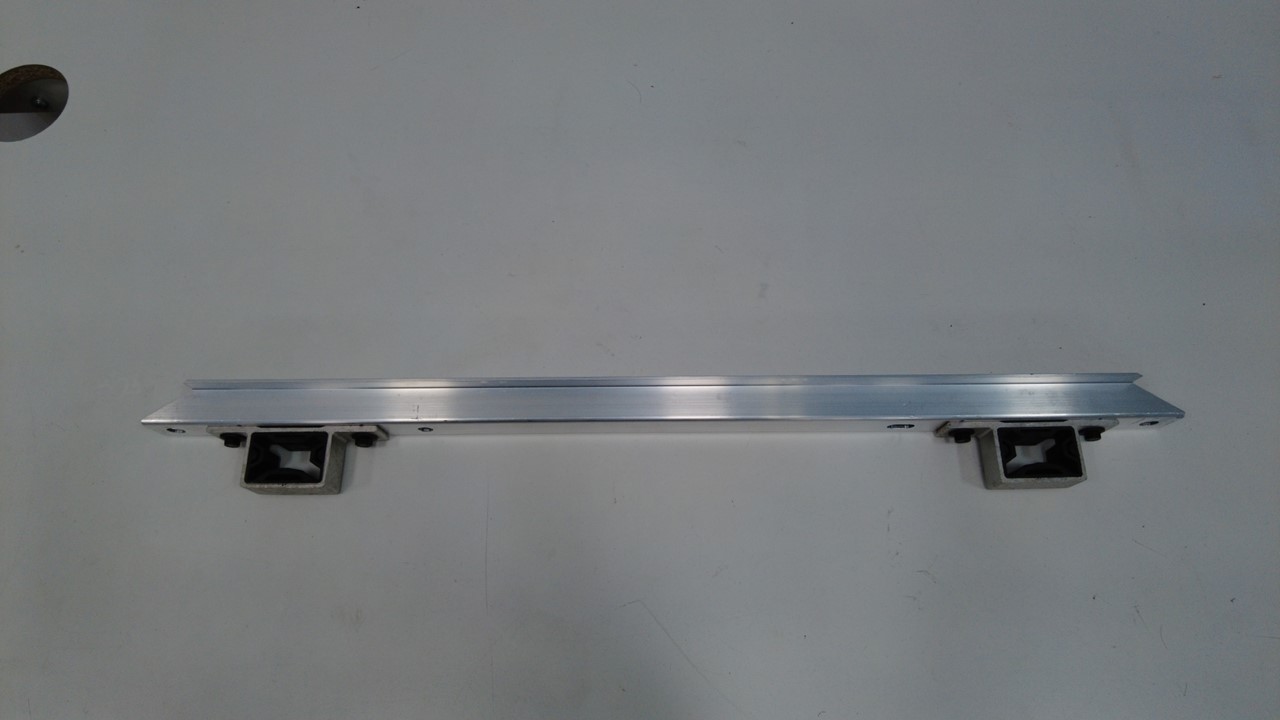

加固支架 - 前备箱储物单元(拆卸和更换)
校正代码
15244674 0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See for safe and healthy working
practices.

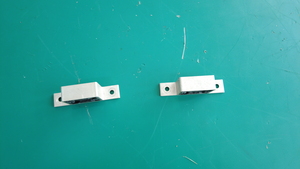

- 2024 年 4 月 19 日:添加了“将冷却风扇模块隔离支架从旧的前备箱加固总成上拆下,然后安装到新的前备箱加固总成上”的步骤。
扭矩规格
| 描述 | 扭矩值 | 推荐工具 | 重复使用/更换 | 备注 |
|---|---|---|---|---|

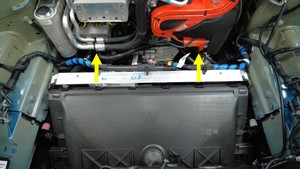

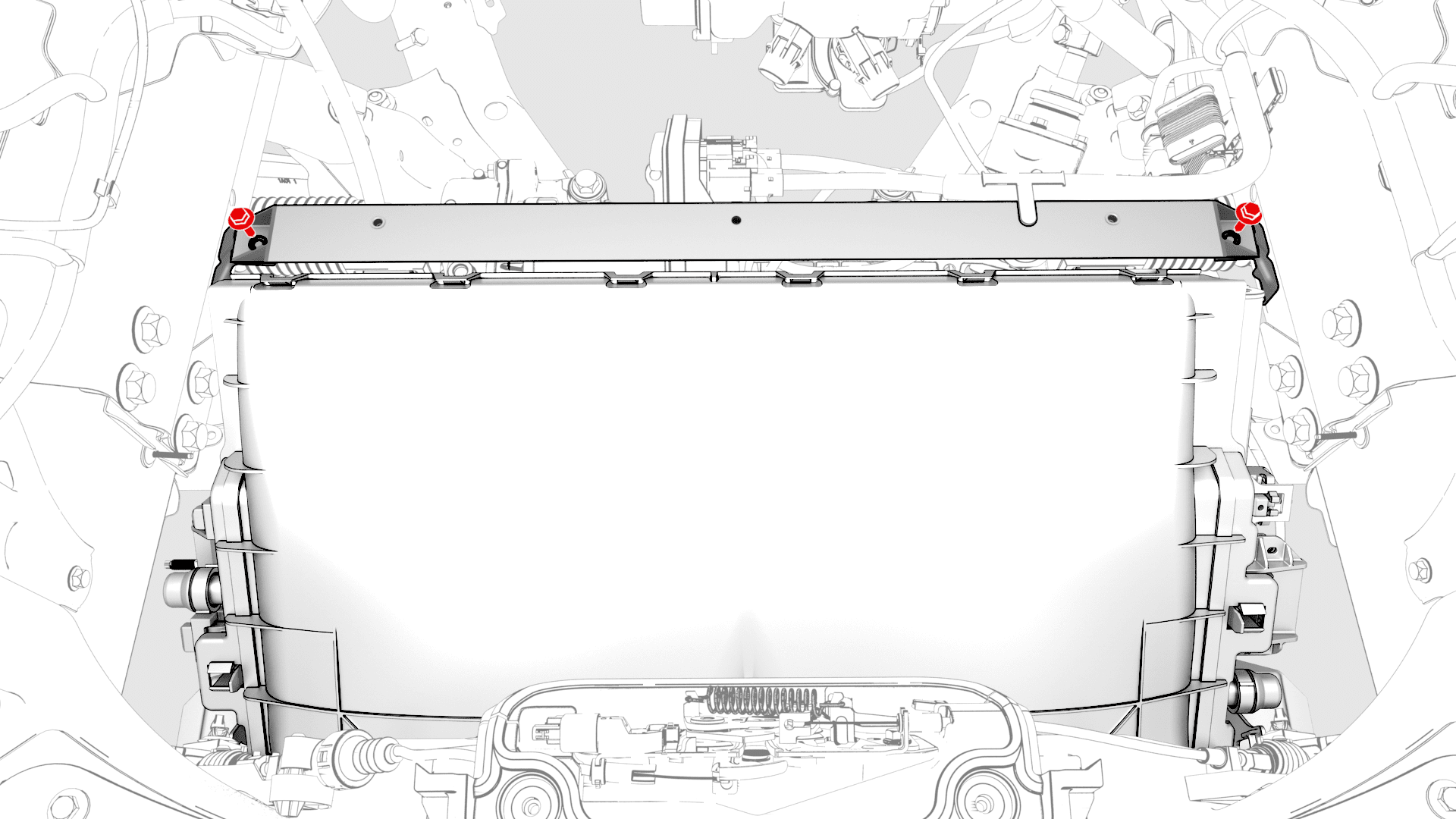

| 用于固定前备箱加固支架的螺栓(2 个) |
![]() 16 Nm (11.8 lbs-ft) |
|
重复使用 | |
| 将冷却风扇模块隔离支架固定到前备箱加固总成的螺栓(4 个) |
![]() 6 Nm (4.4 lbs-ft) |
|
重复使用 |
