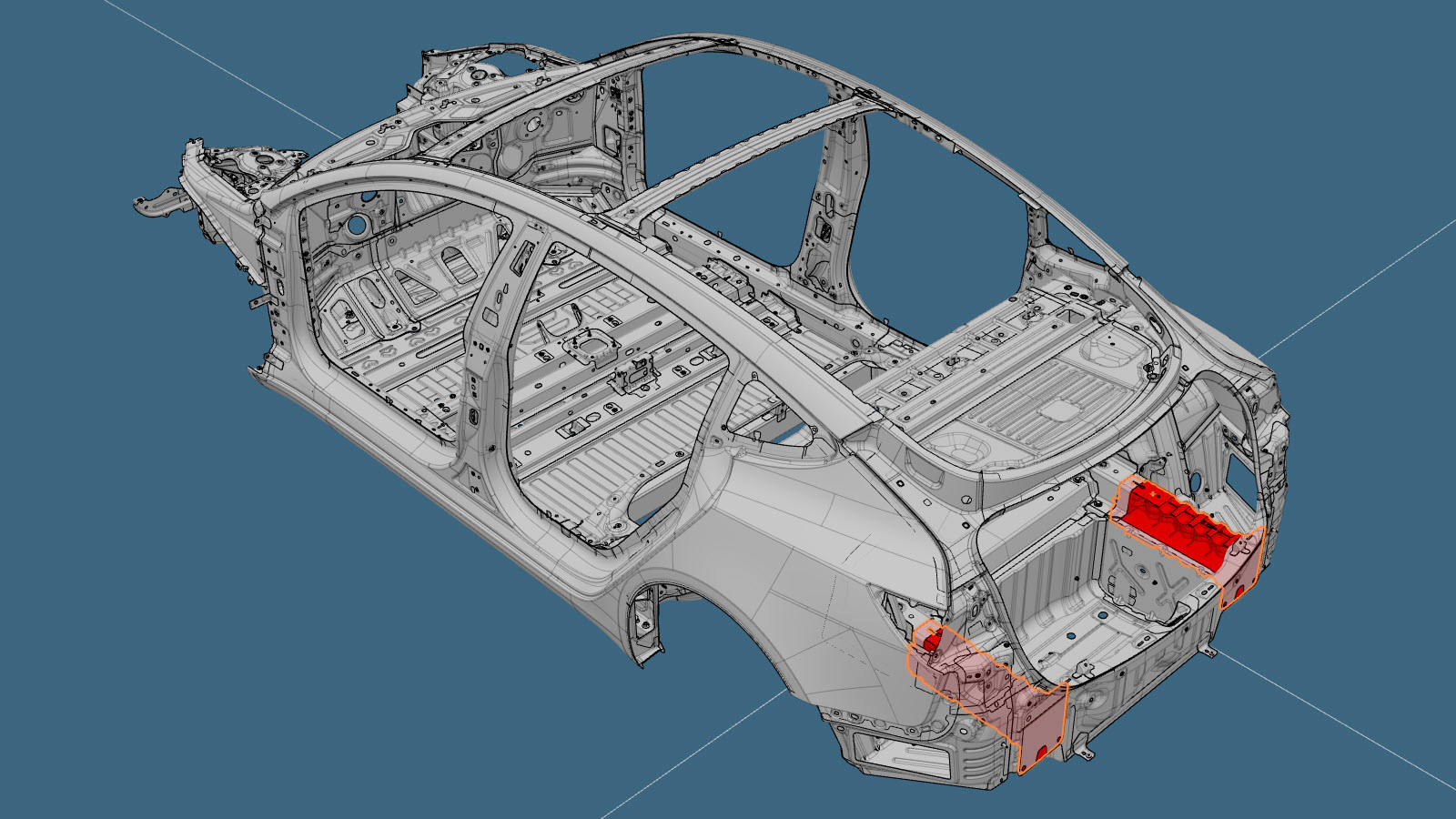

车架后纵梁总成

Parts List

Quantity Description Image / Notes

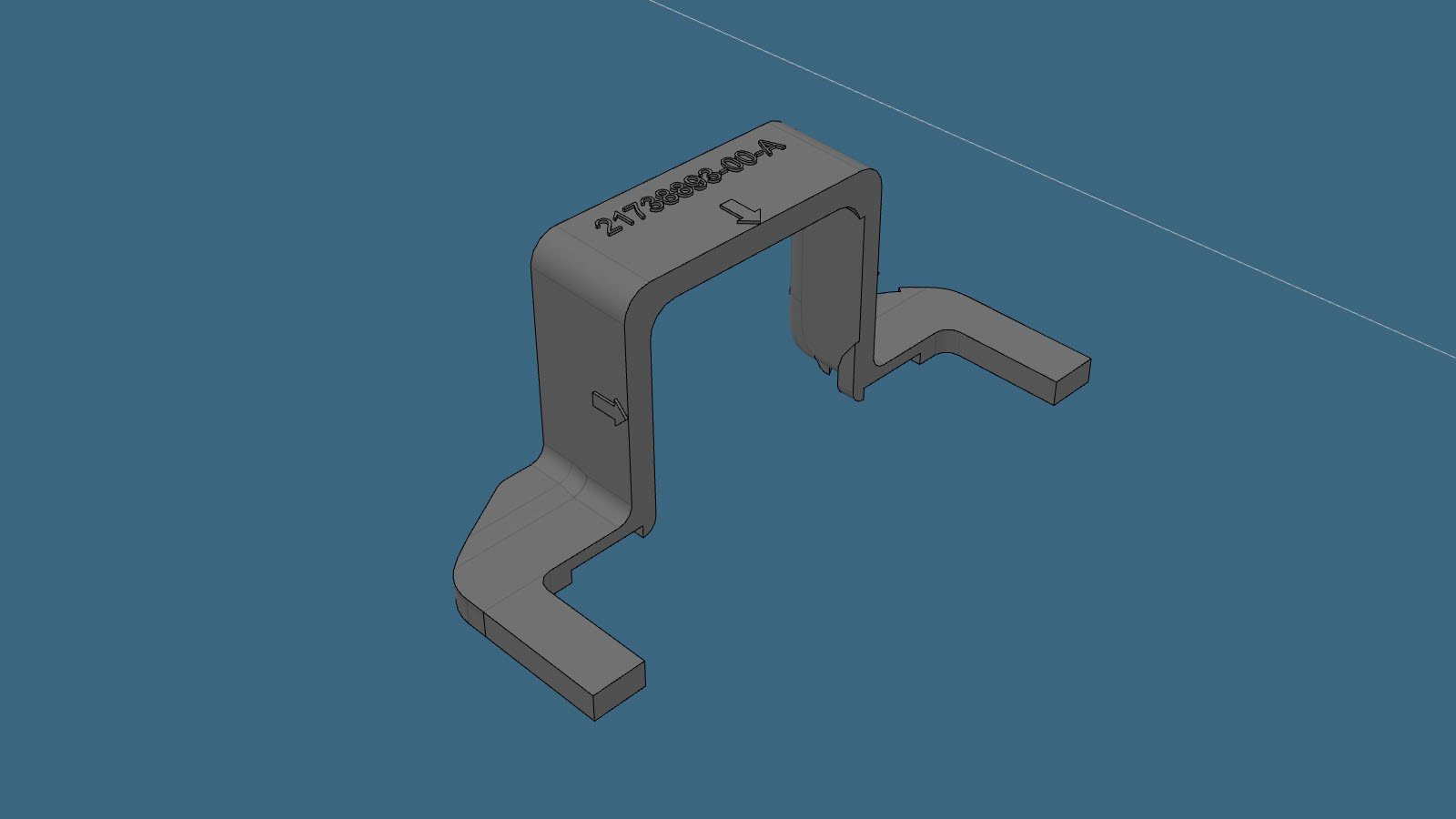

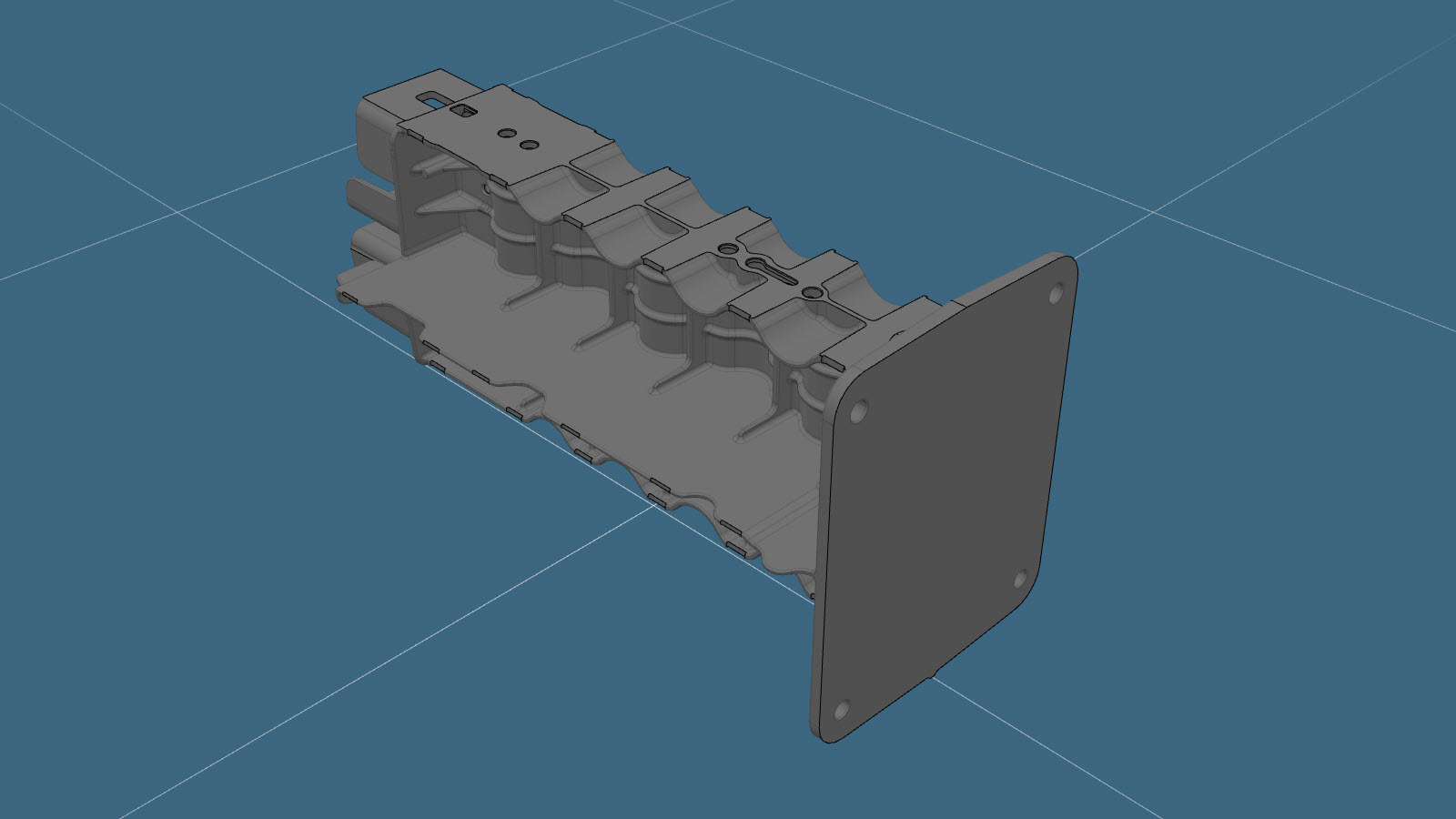

1 ASSEMBLY - REAR RAIL UPPER(后纵梁上部总成)
1 PANEL - REAR RAIL LOWER REINFORCEMENT(后纵梁底部加固板)
1 RAIL-REAR LOWER(后纵梁底部)
1 ASSEMBLY - REAR RAIL GLOVE - LOWER(后纵梁手套箱 - 下部)

此组件适合于左侧和右侧纵梁。

1 BRACKET - REAR RAIL TO BUMPER PLATE(后车架纵梁端板)
42 High Strength Structural Rivet, 6.5 mm
1 Structural Bulb Rivet, 6.5 mm
12 Structural Rivet, 6.5 mm Medium
8 Bolt ,M6 1.0x12 Tesla 零件号 1008770-00-A。
8 Nut ,M6 1.0x14 Tesla 零件号 1016227-00-A。
2 螺栓,六角头,M8 1.25x23.5 Tesla 零件号 1063260-00-C。

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. 拆卸后车身面板
  2. 拆卸后纵梁至下部围板加长件
  3. 拆卸行李箱底板总成(整体)
  4. Cut the original component at the indicated locations.

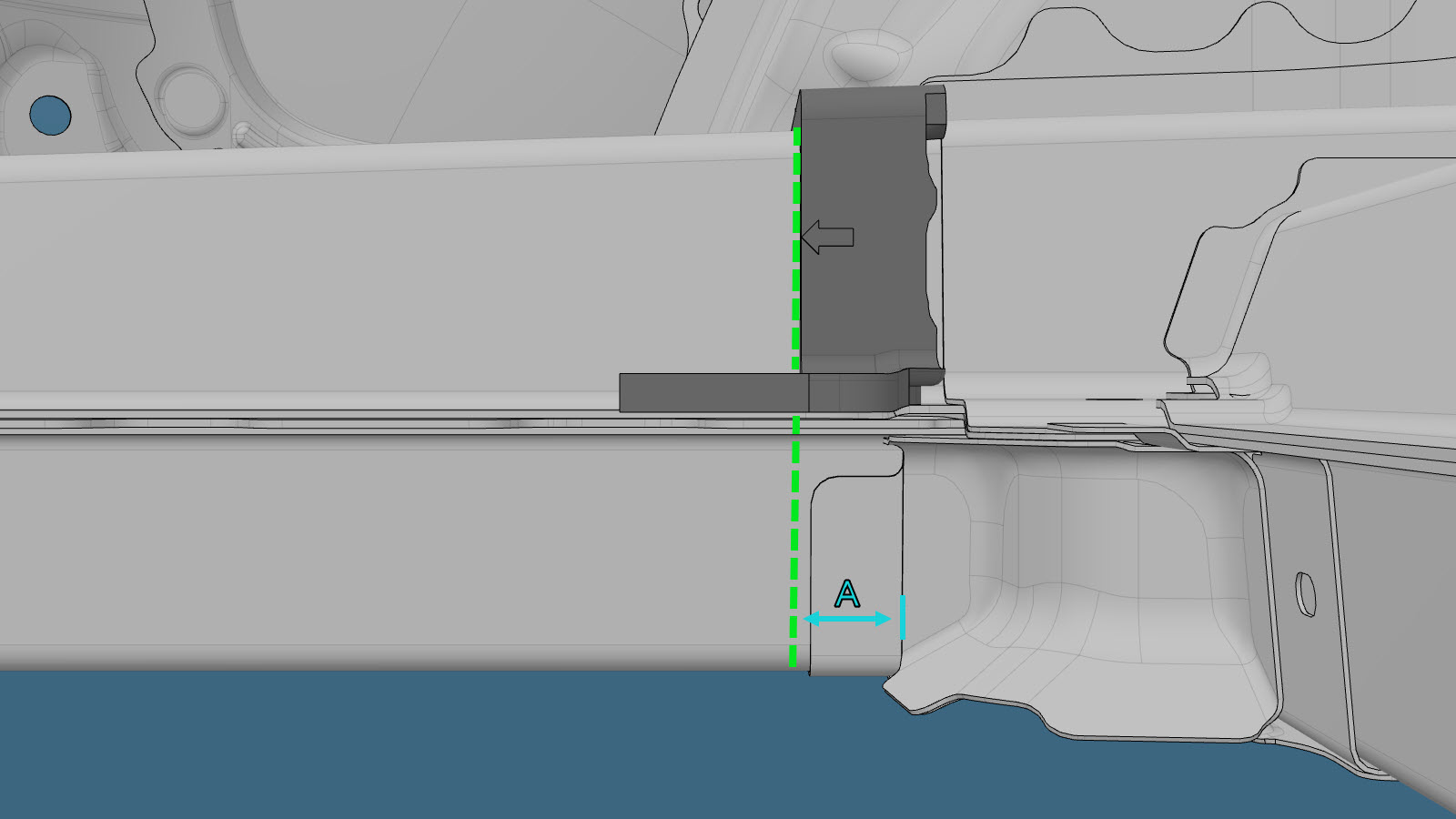

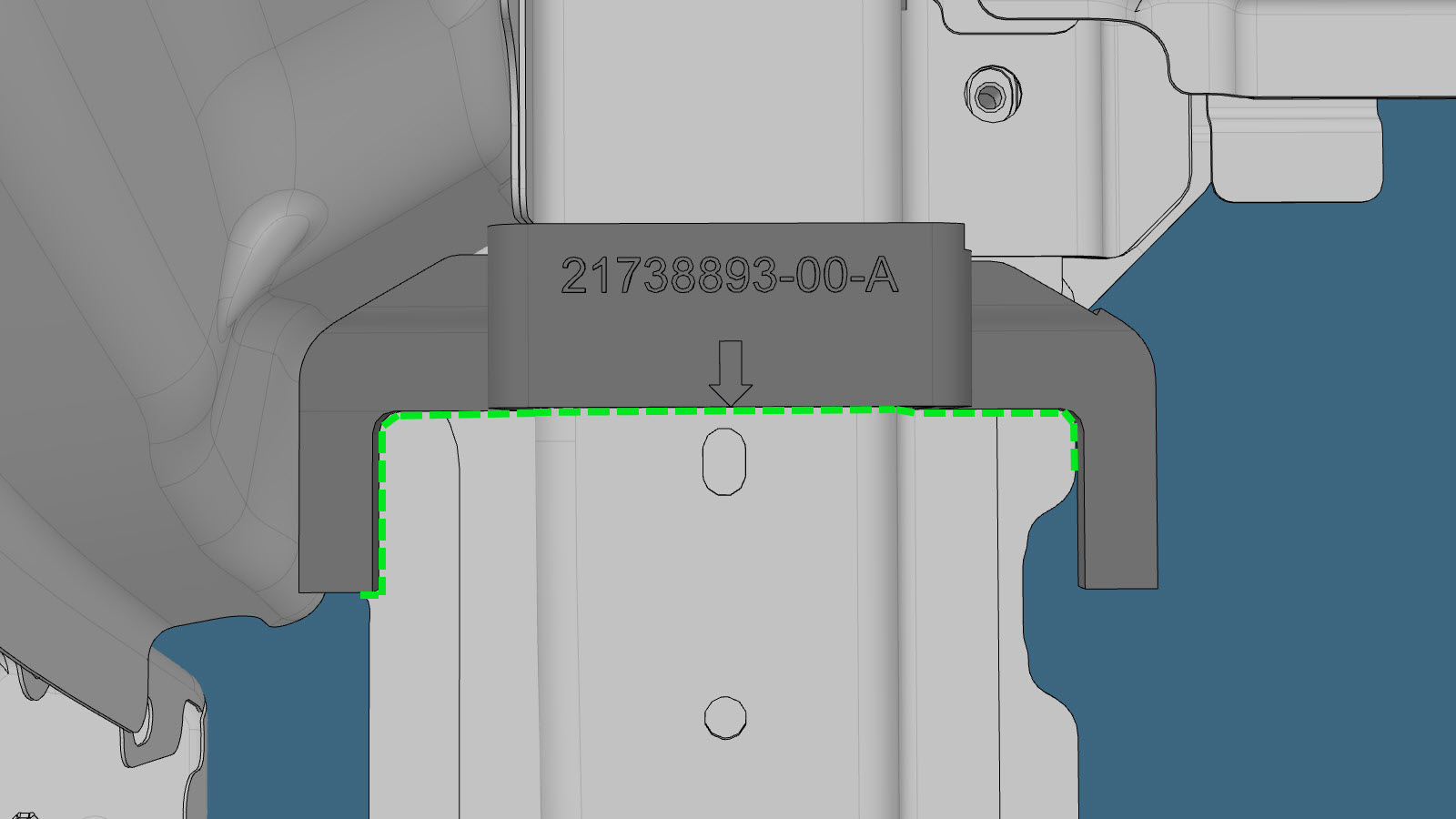

    Cut Line

  5. Remove the original component.
    or Bolts
    Informational PurposesAn informational icon, calling your attention
    拆卸并弃置螺栓。

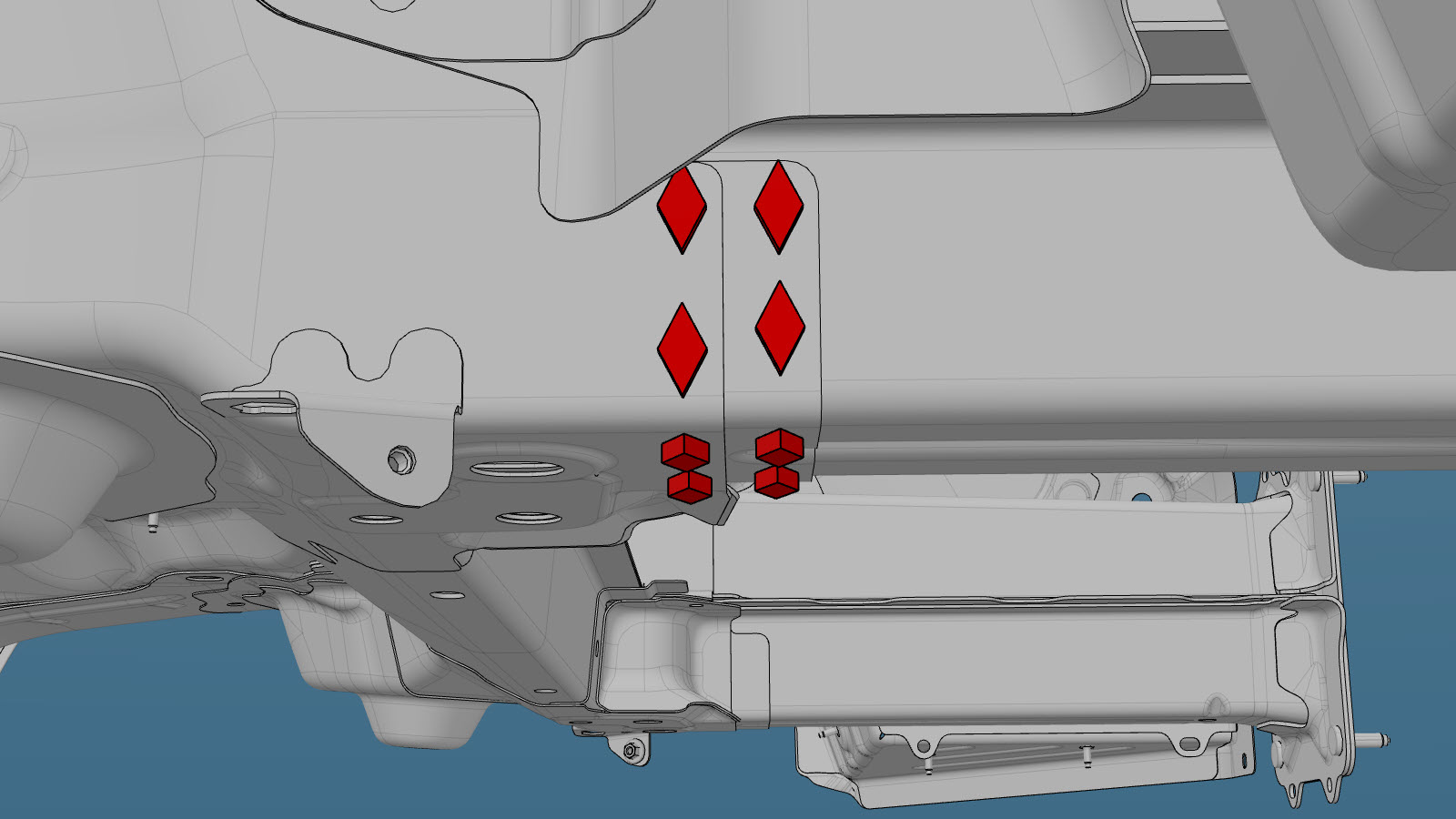

    or Factory SPRs
    Informational PurposesAn informational icon, calling your attention
    必须拆下车架纵梁内侧加固板(红色突出显示),以便为其他原厂 SPR 留出操作空间。
    Informational PurposesAn informational icon, calling your attention

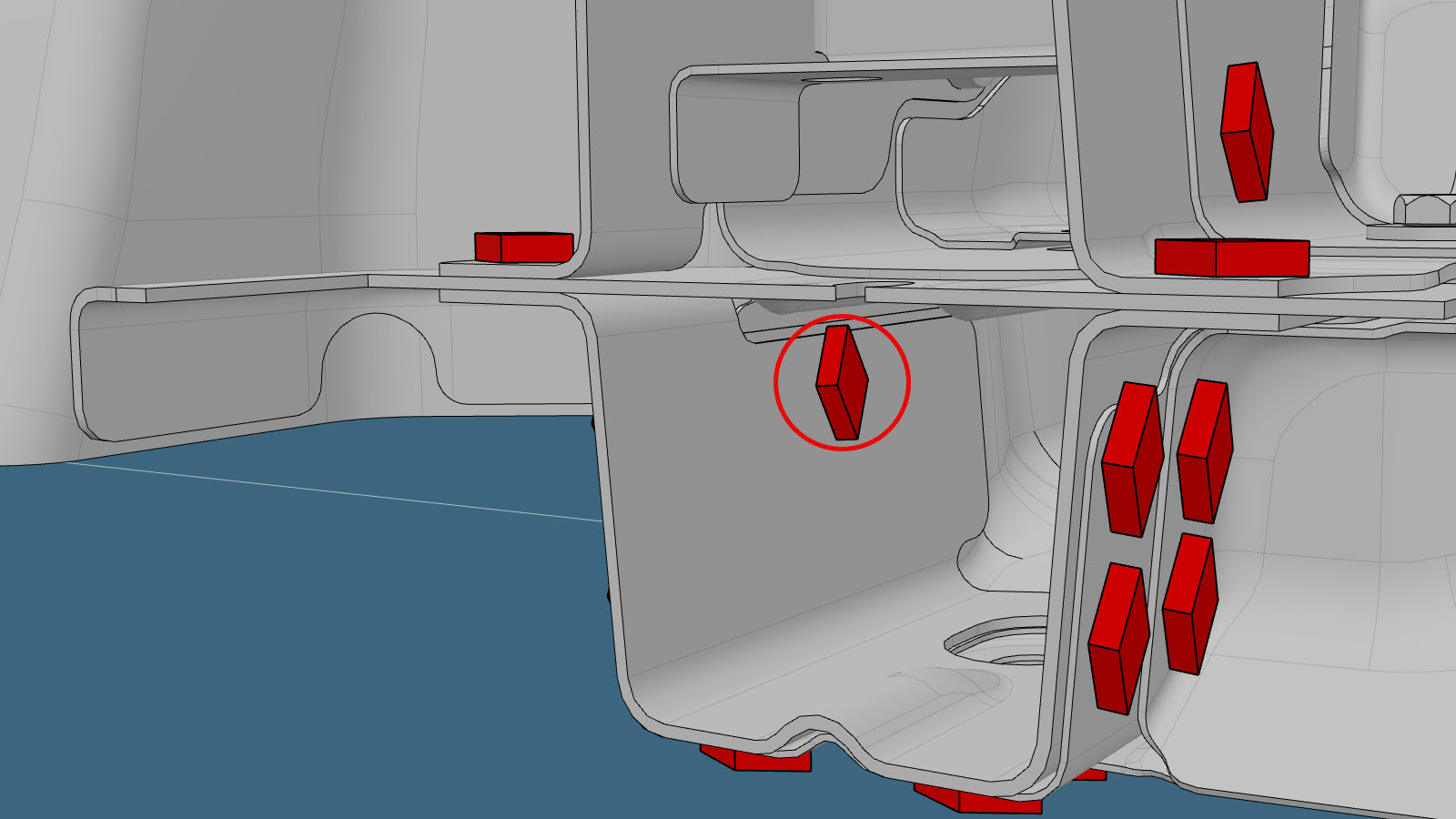

    红圈标注的原厂 SPR 隐藏在横梁后侧,必须使用带式打磨机从车架纵梁内侧进行打磨。打磨 SPR 时,不要将 SPR 完全从接头中敲出,保持与内侧隔板的一些机械连接。安装后纵梁上部时,不得更换这些铆钉。

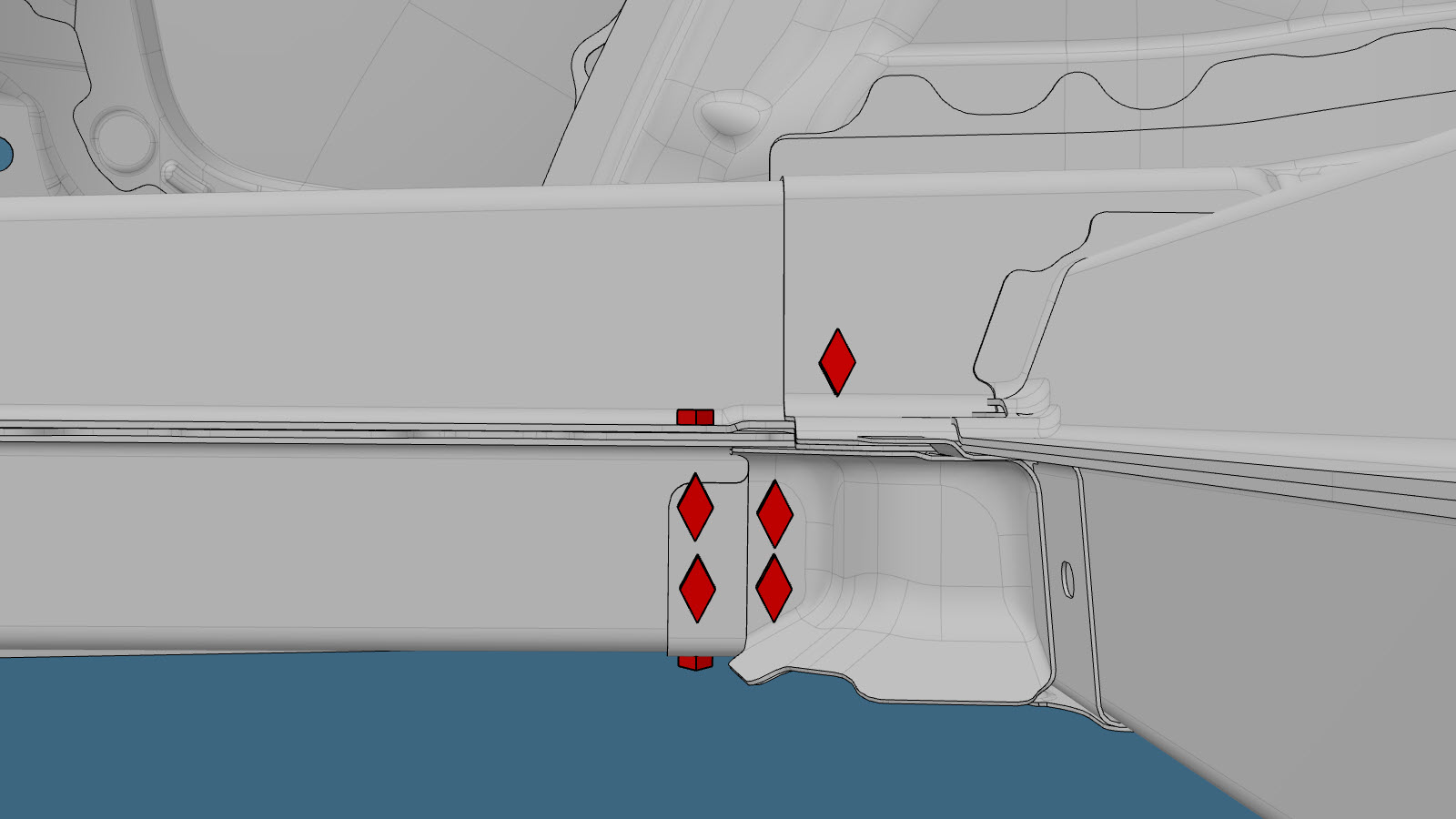

    or Factory Spot Welds

  6. 拆下从后节点突出的后纵梁底部总成的剩余部分。
    Informational PurposesAn informational icon, calling your attention
    保留后纵梁底部总成的其余部分,以便在后续步骤中用作模板。
  7. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    将前一步中拆下的原始后纵梁底部加固板的剩余部分作为模板,标记新组件的螺栓孔。
    Informational PurposesAn informational icon, calling your attention

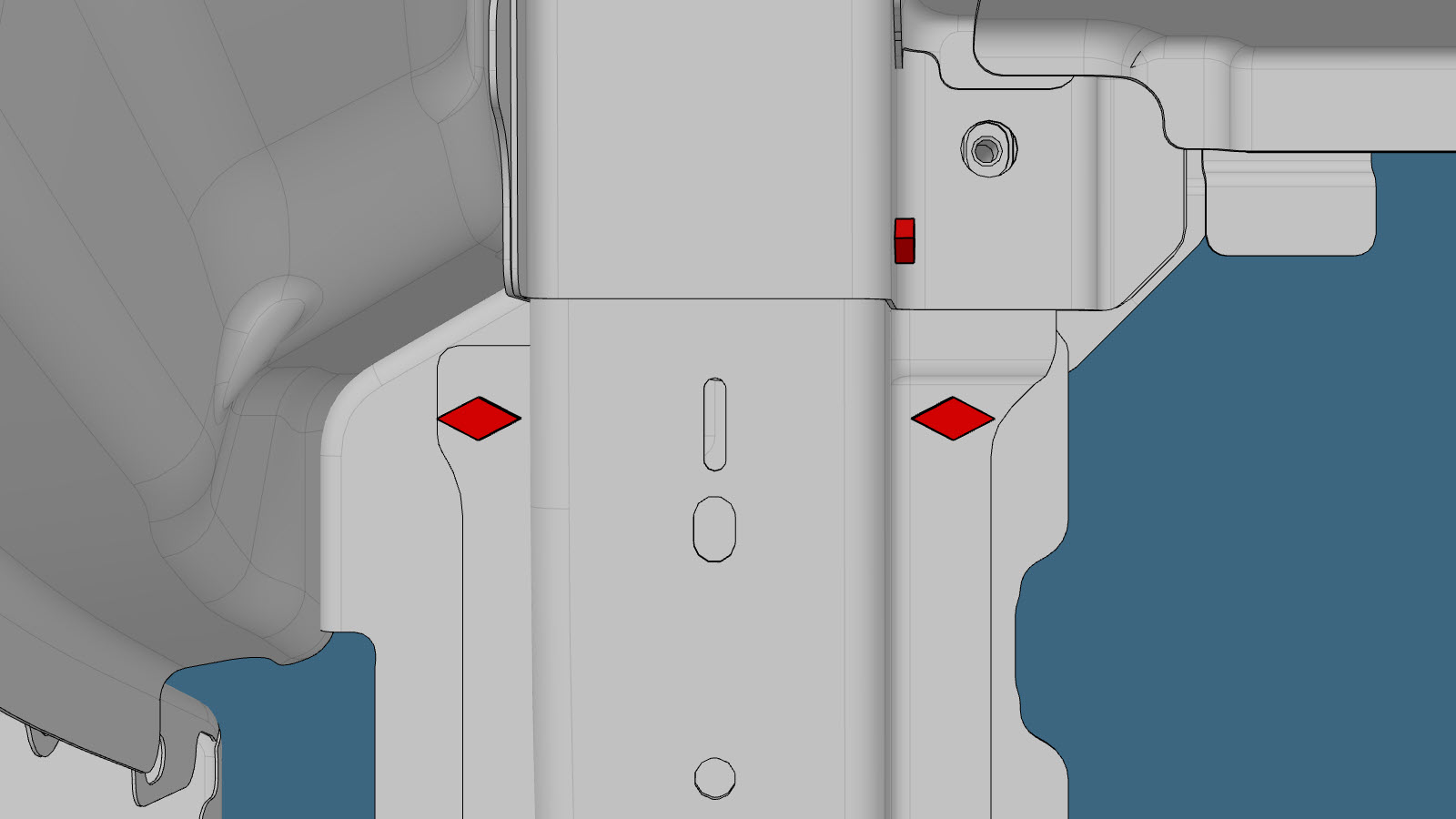

    A red X indicates a location where a factory-installed fastener is not being replaced.

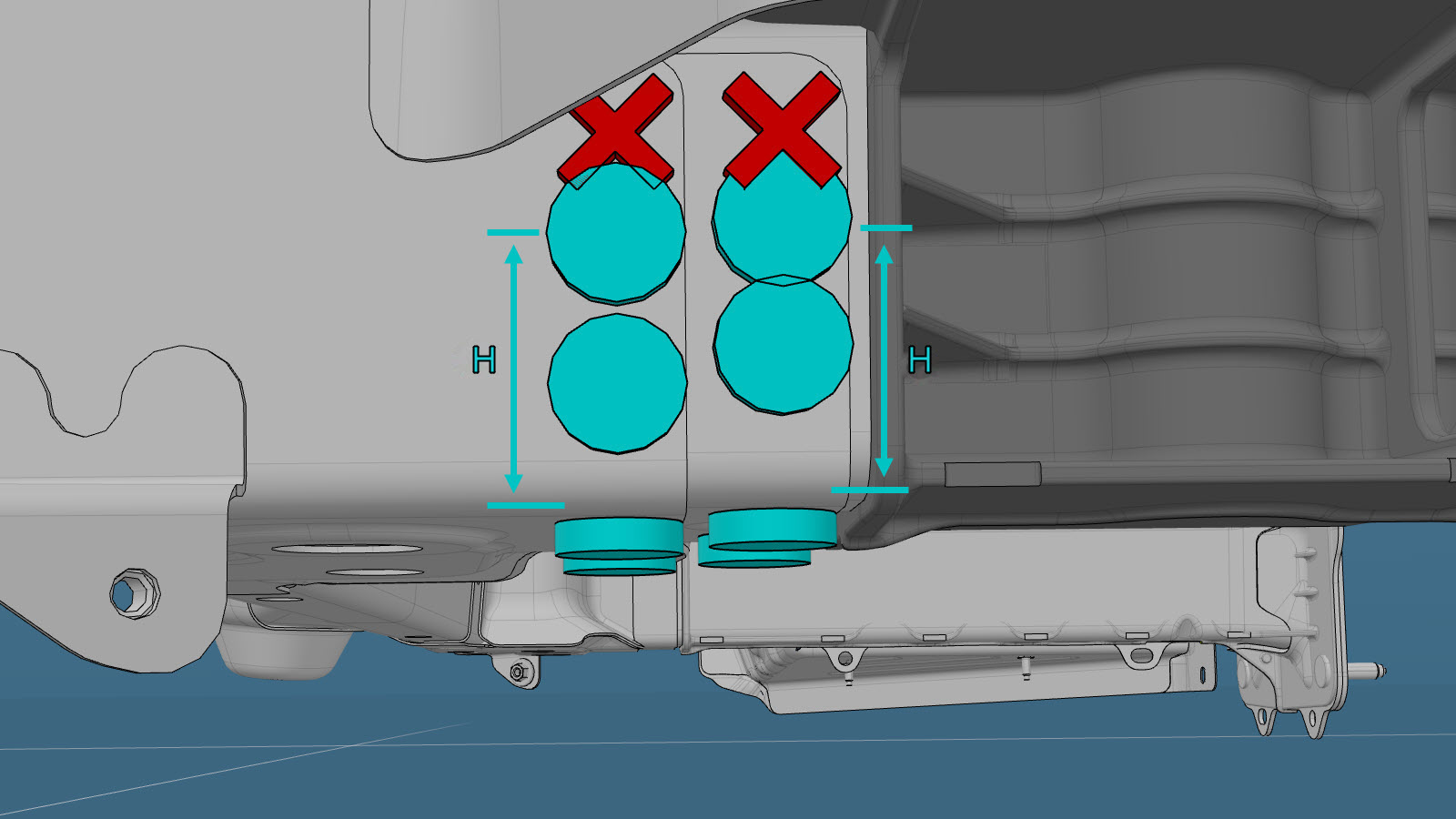

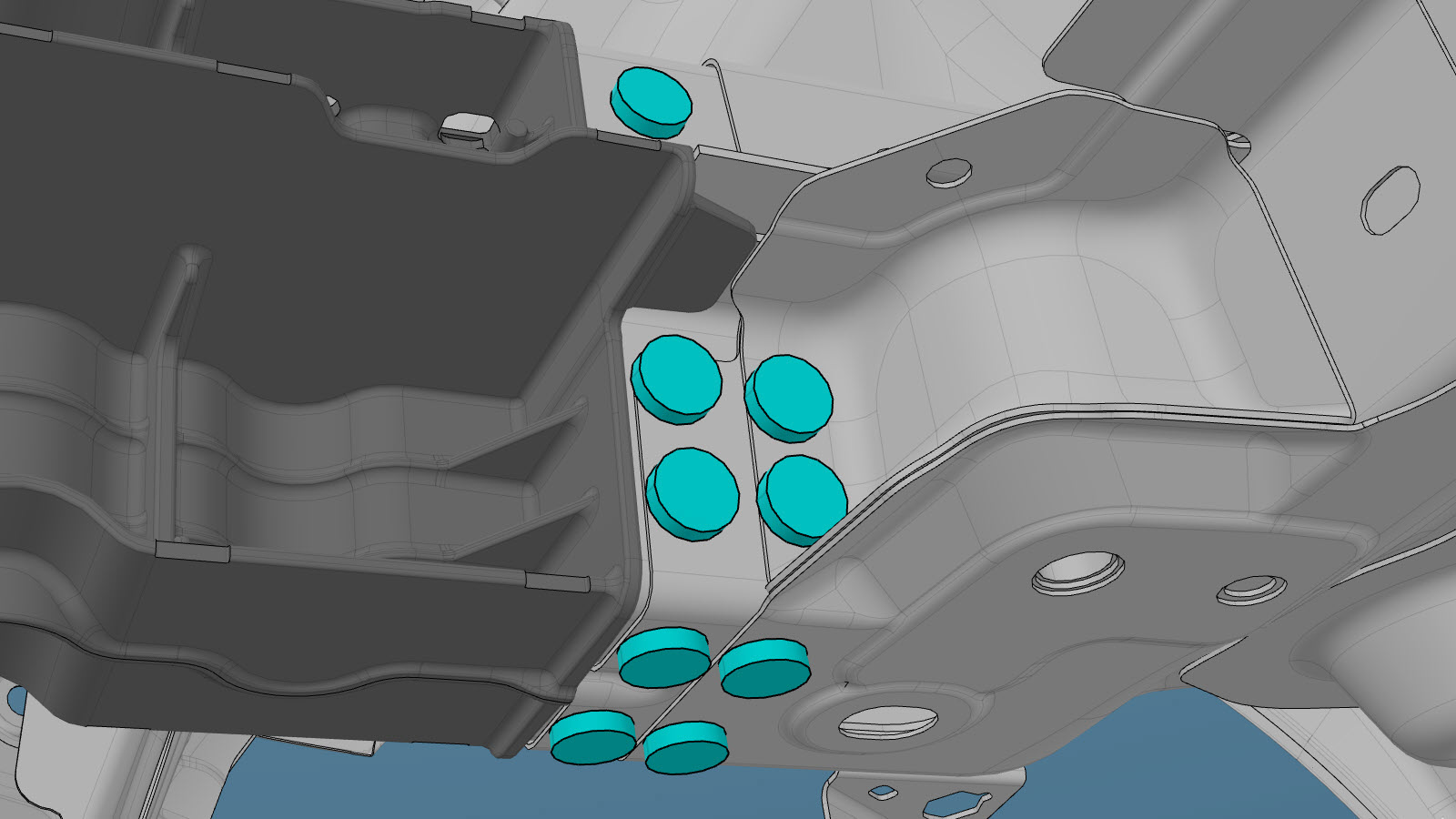

    or High Strength Structural Rivets, 6.5 mm

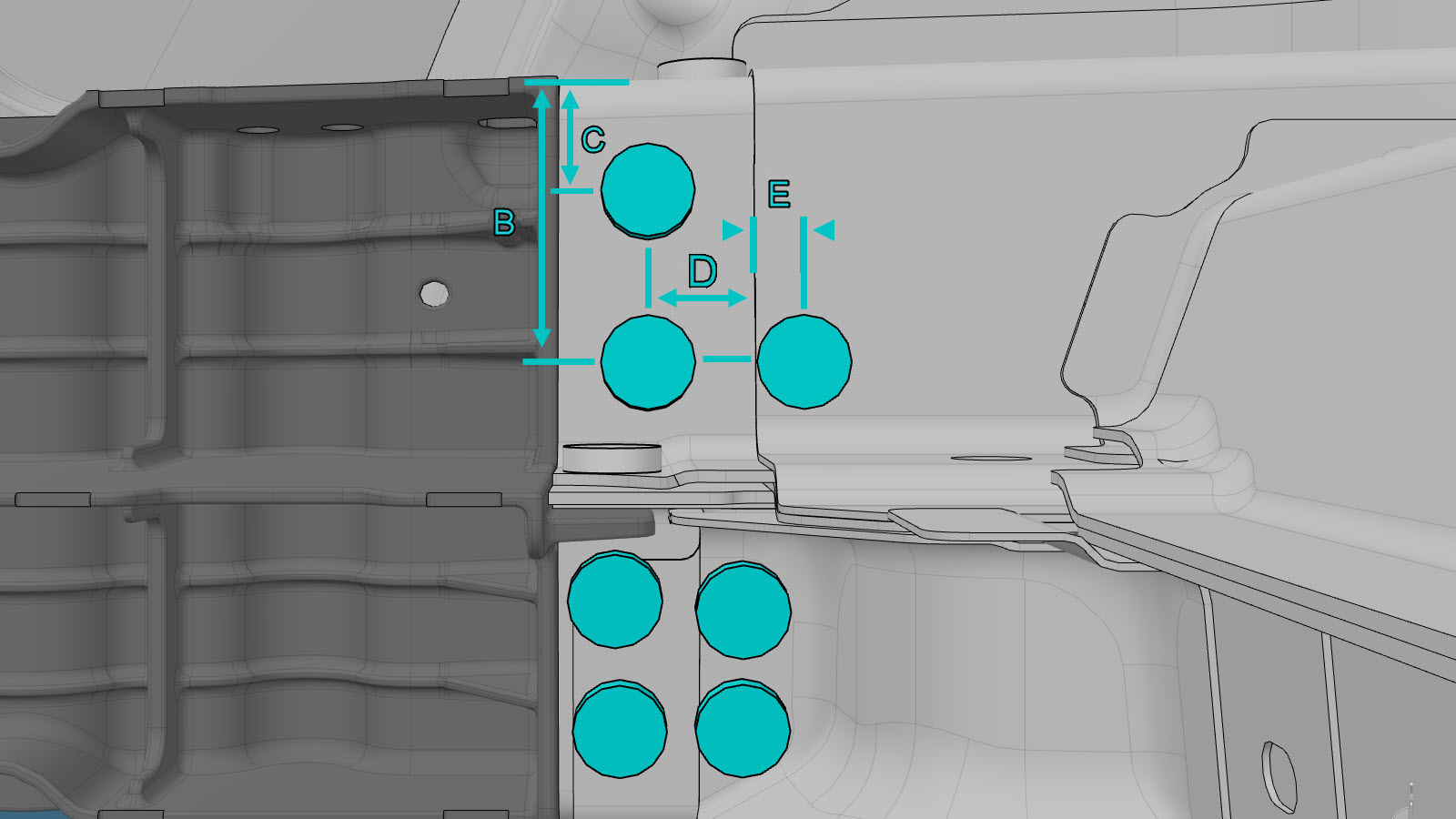

    • A = 40 毫米。
    • B = 26 毫米。
    • C = 64 毫米。
    • D = 147 毫米。
    • E = 46 毫米。
    • H = 38 毫米。
    • I = 10 毫米。
    • J = 36 毫米。
    • K = 31 毫米。

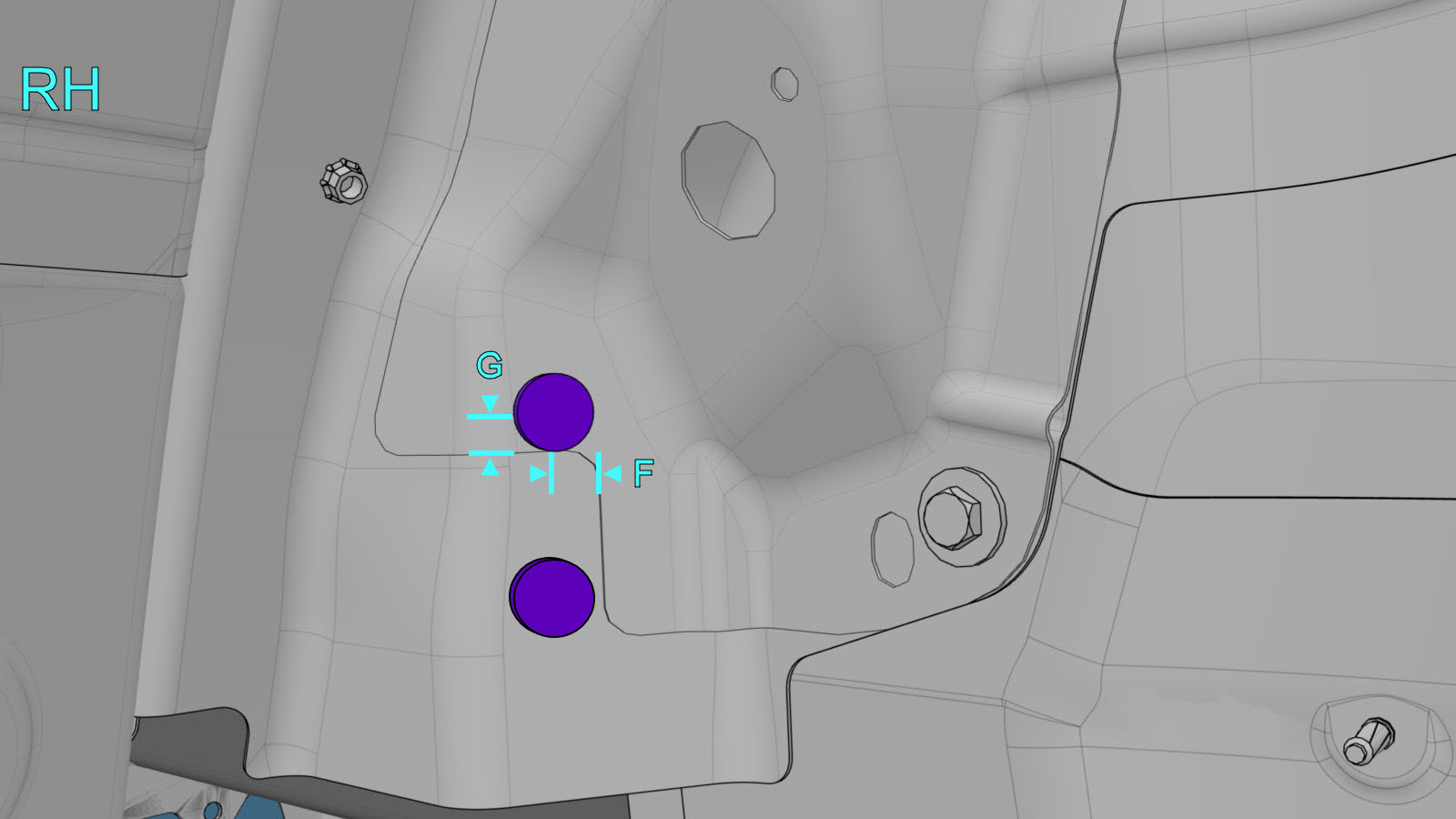

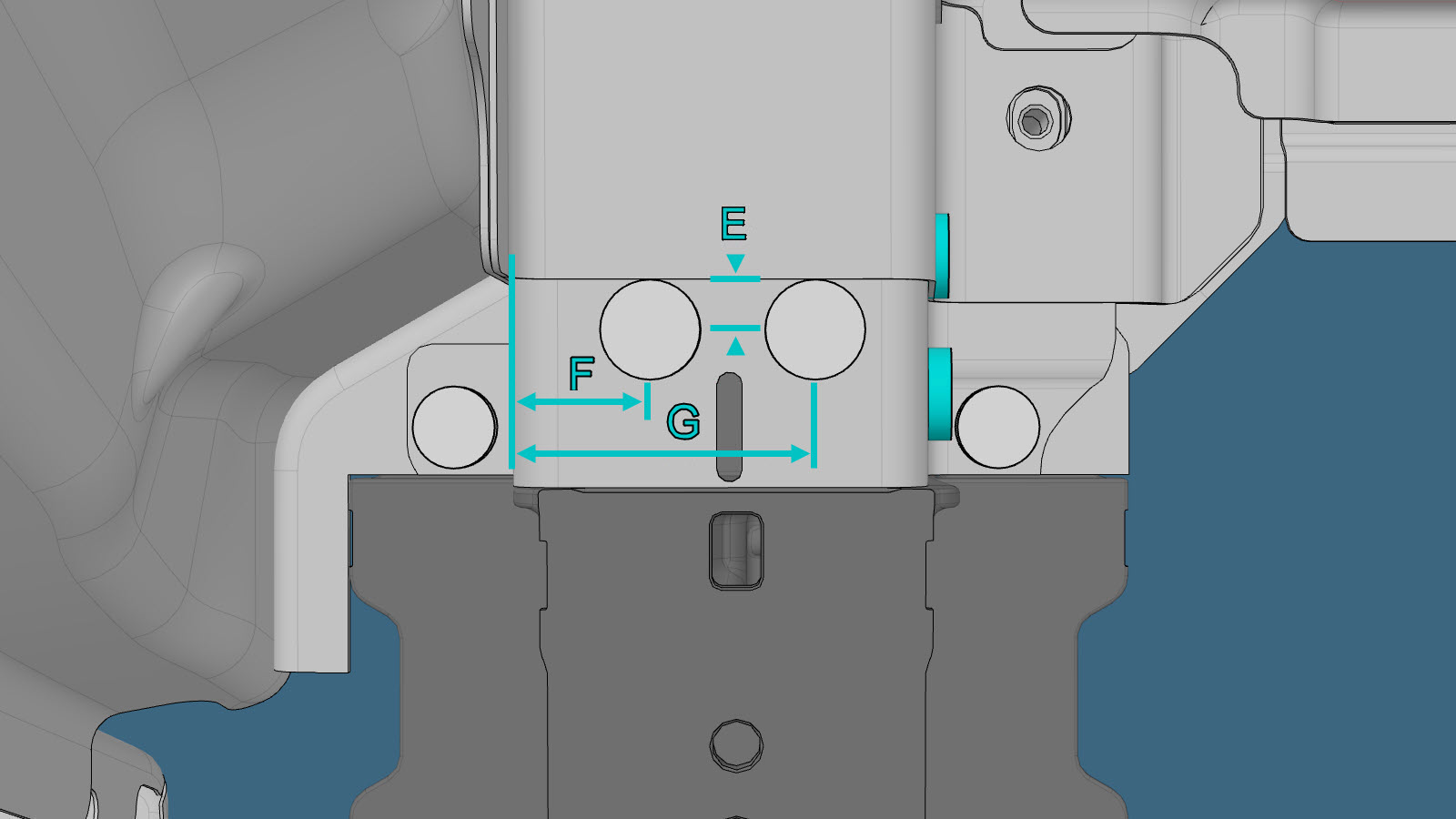

    or Structural Bulb Rivets, 6.5 mm
    • F = 12 毫米。
    • G = 10 毫米。

    or Structural Rivets, 6.5 mm Medium

    or Bolts

    Nut

  8. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  9. Install the new component or components.
    Informational PurposesAn informational icon, calling your attention
    将新后纵梁底部加固板放置入位,然后安装新螺栓(Tesla 零件号 1008770-00-A)和螺母(Tesla 零件号 1016227-00-A),并拧至 13 Nm。
    Informational PurposesAn informational icon, calling your attention
    安装后纵梁上部总成和后纵梁底部总成时,可将结构型灯笼铆钉安装在两个总成的法兰中,以便将两者固定在一起。以交替的形式安装结构型灯笼铆钉:一颗在后纵梁上部总成的下方,然后一颗在后纵梁底部总成的上方。
    Informational PurposesAn informational icon, calling your attention
    将新螺栓和螺母临时安装在尚未用于车架工作台装置螺栓的孔中,但此时不要拧紧。

    将六角头螺栓(Tesla 零件号 1063260-00-C)拧至 24 Nm。

  10. 安装行李箱底板总成(整体)
  11. 安装新后纵梁至下部围板加长板
  12. 安装新后车身面板
  13. Perform any necessary post-repair operations.
