连杆 - 柔性 - 下 - 前 - 左（拆卸和更换） ((拆卸和更换))
校正代码
31013602
0.36
注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。
注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。
注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。注意：请参阅查看安全健康的作业规程。
- 2026-09-07: Adjusted the torquing sequence of the link-to-knuckle nut to ensure stress relief.
- 2024-01-15: Expanded the installation section since the fasteners' installation order is different from the removal order.
扭矩规格
| 描述 | 扭矩值 | 推荐工具 | 重复使用/更换 | 备注 |
|---|---|---|---|---|
| Nut that attaches the front LH lower compliance link to the knuckle |
 180 Nm (132.7 lbs-ft) |
|
更换 | 1109263-00-B |
| Bolt and nut that attach the link to the front subframe |
115 Nm (84.8 lbs-ft) |
|
重复使用 |
拆卸
- Remove the LH front wheel. See 轮毂总成（拆卸和安装）.
- Remove the front aero shield panel. See 面板 - 流线型护板 - 前（拆卸和更换）.
-

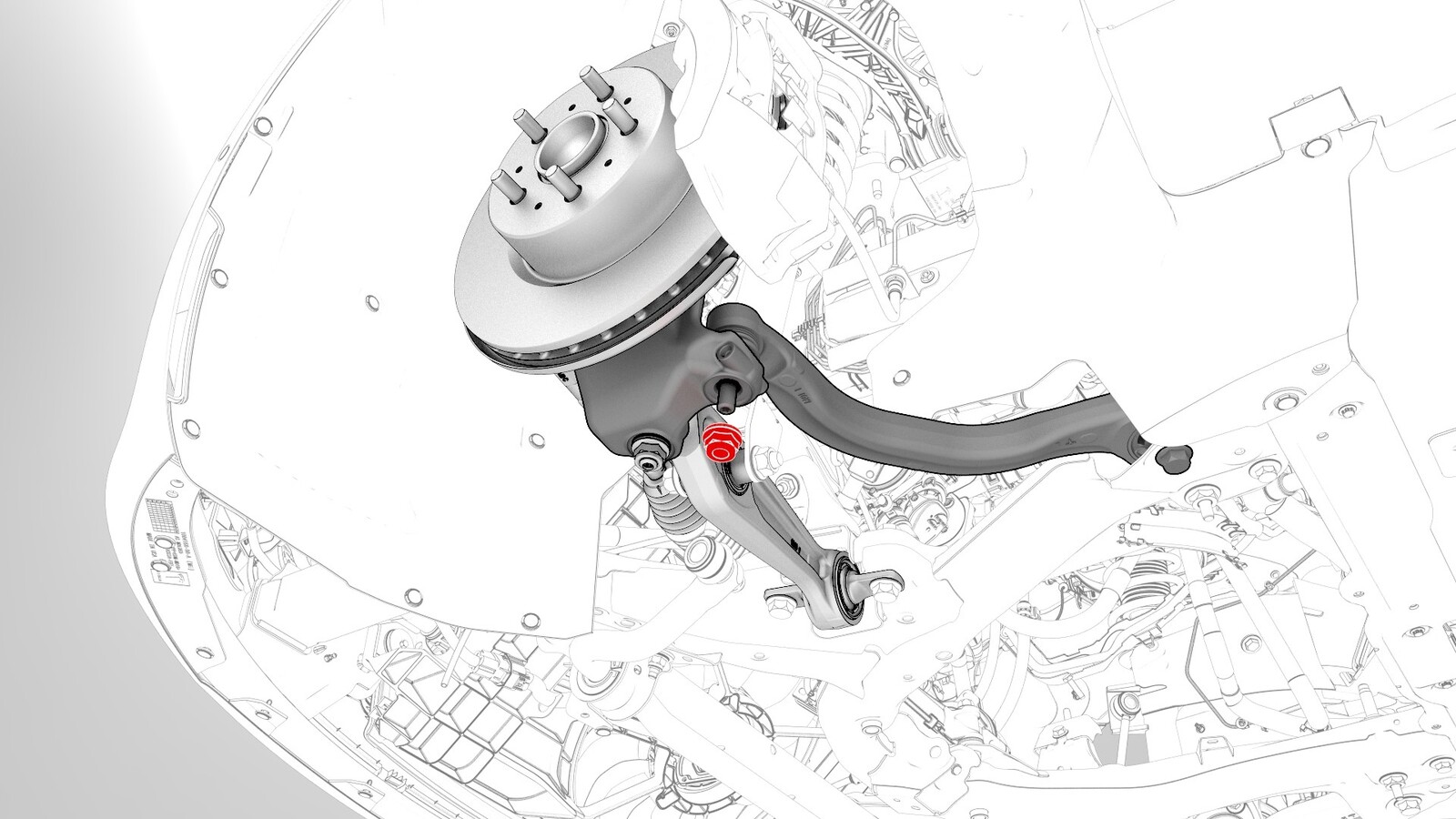

Remove and discard the nut
that attaches the front LH lower compliance link to the knuckle.
Tip推荐使用以下工具
- Torx T45 socket
- 22 毫米套筒
-

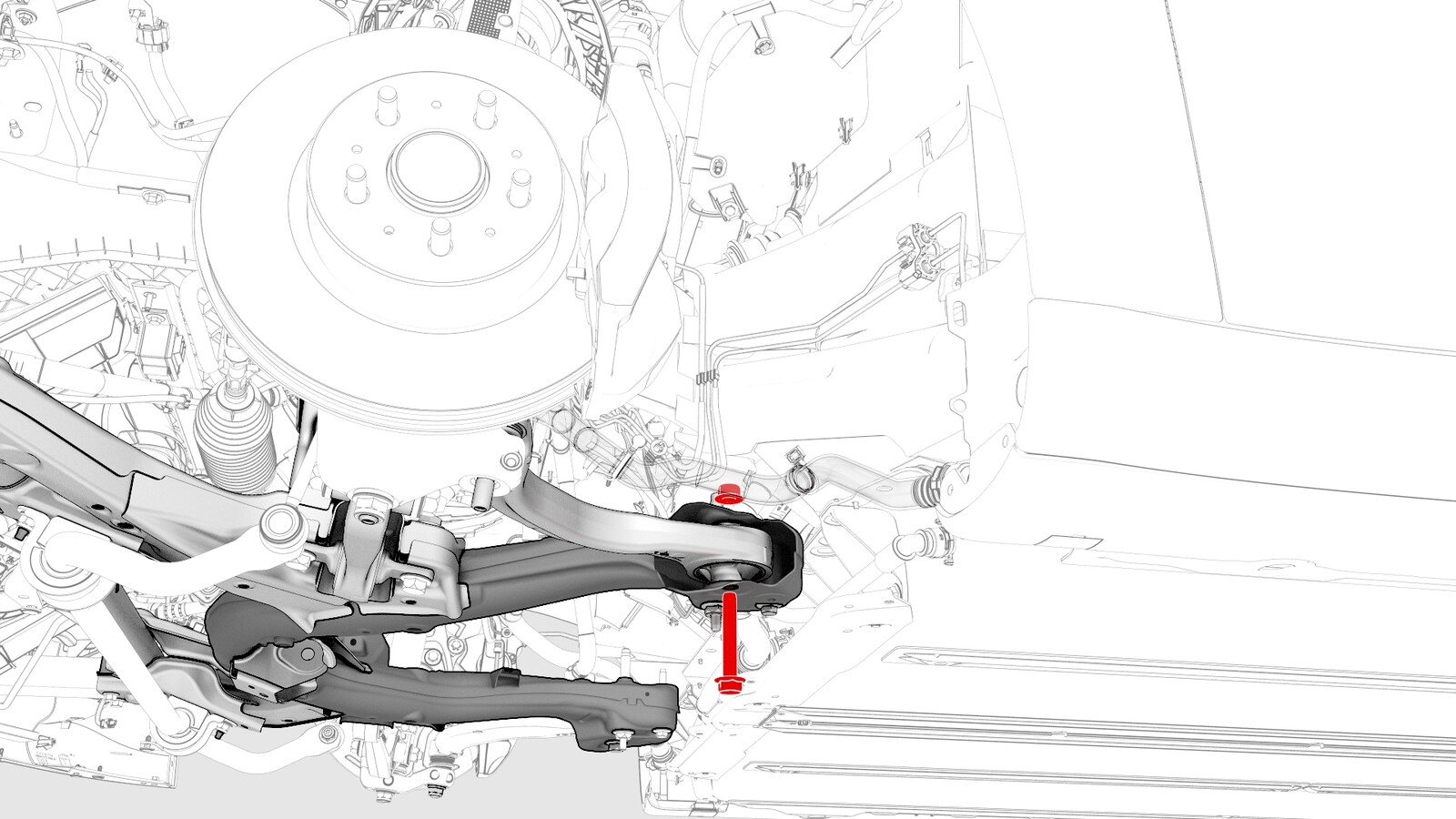

Remove the bolt and nut that
attach the link to the front subframe, and then remove the link from the
subframe and knuckle.
Tip推荐使用以下工具
- Combination Wrench 12pt 21mm
安装
- Install the LH front lower compliance link to the front subframe.
-
Hand-tighten the bolt and nut that attach the link to the front
subframe.
-
Hand-tighten a new nut to
attach the front LH lower compliance link to the knuckle.
NoteCounter hold the nut with a T45 socket.
-
Torque the bolt and nut that
attach the link to the front subframe.115 Nm (84.8 lbs-ft)NoteMark with a paint pen.Tip推荐使用以下工具
- Combination Wrench 12pt 21mm
-
Torque the nut that attaches the front LH lower compliance link to the
knuckle.180 Nm (132.7 lbs-ft)NoteCounter hold the nut with a T45 socket. Mark with a paint pen.Tip推荐使用以下工具
- Torx T45 socket
- 22 毫米套筒
- Install the front aero shield panel. See 面板 - 流线型护板 - 前（拆卸和更换）.
- Install the LH front wheel. See 轮毂总成（拆卸和安装）.
