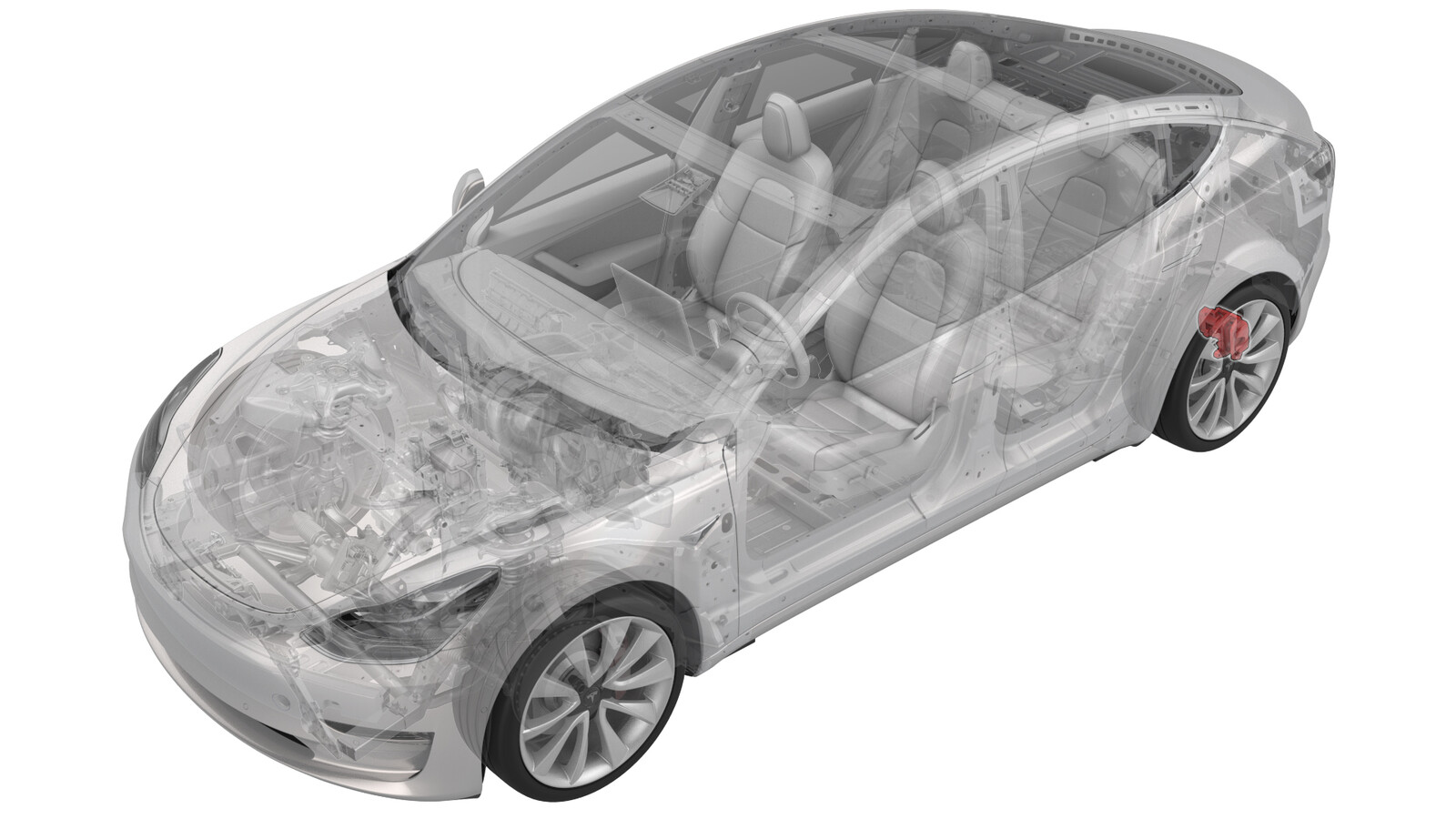

制动卡钳 - 后 - 左侧(拆卸和更换)

校正代码 33010502 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See for safe and healthy working practices.

  • 2026-02-19: 添加了一个警告。
  • 2025-05-22: 删除了不必要的步骤。
  • 2024 年 5 月 28 日:更新了电子驻车制动 (EPB) 维护模式参考。
  • 2023 年 6 月 23 日:删除了更新 epbxHwType 配置的步骤。
  • 2023 年 3 月 28 日:添加了更新 epbxHwType 配置的步骤。
设备:
  • 1134520-00-A 电子驻车制动 (EPB) 手动释放套件
  • 1129348-00-A XP-10 电源,XP-10
警告
Upon installation, make sure that the flexible brake hose is not twisted and can bend forward. The flexible brake hose must not make contact with the wheel arch liner when the vehicle is lowered.
注
本程序适用于高性能版和非高性能版后制动器。
警告
Brake fluid dissolves paint. Have clean towels and plenty of water standing by to wash spilled brake fluid off painted surfaces.
注
根据当地的环境法规处理使用过的制动液。
注

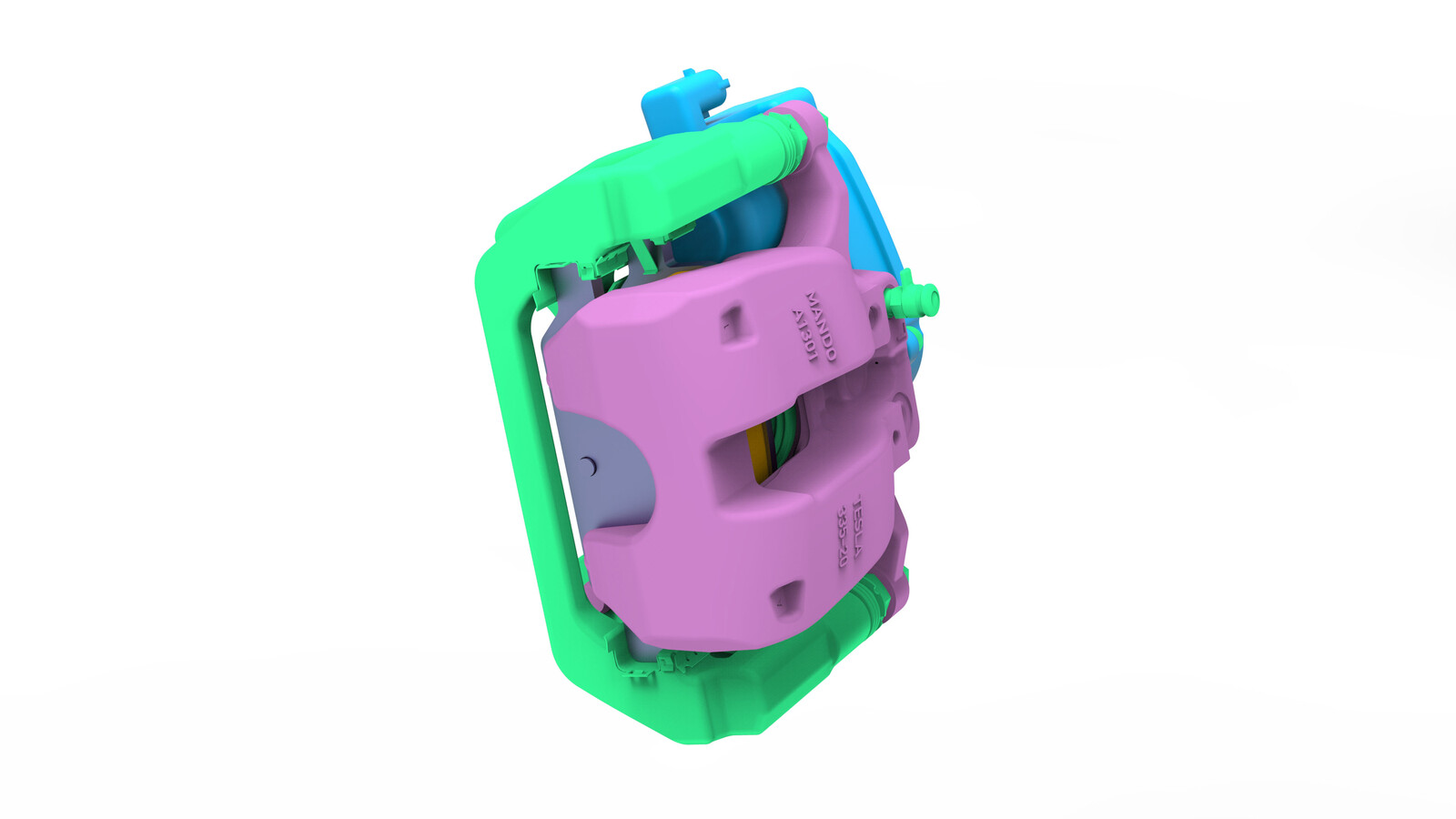

此程序同时适用于 Model 3 基础版和运动版制动钳。

扭矩规格

表 1. Torque Specifications: Brake Caliper - Rear
描述 扭矩值 重复使用/更换 备注

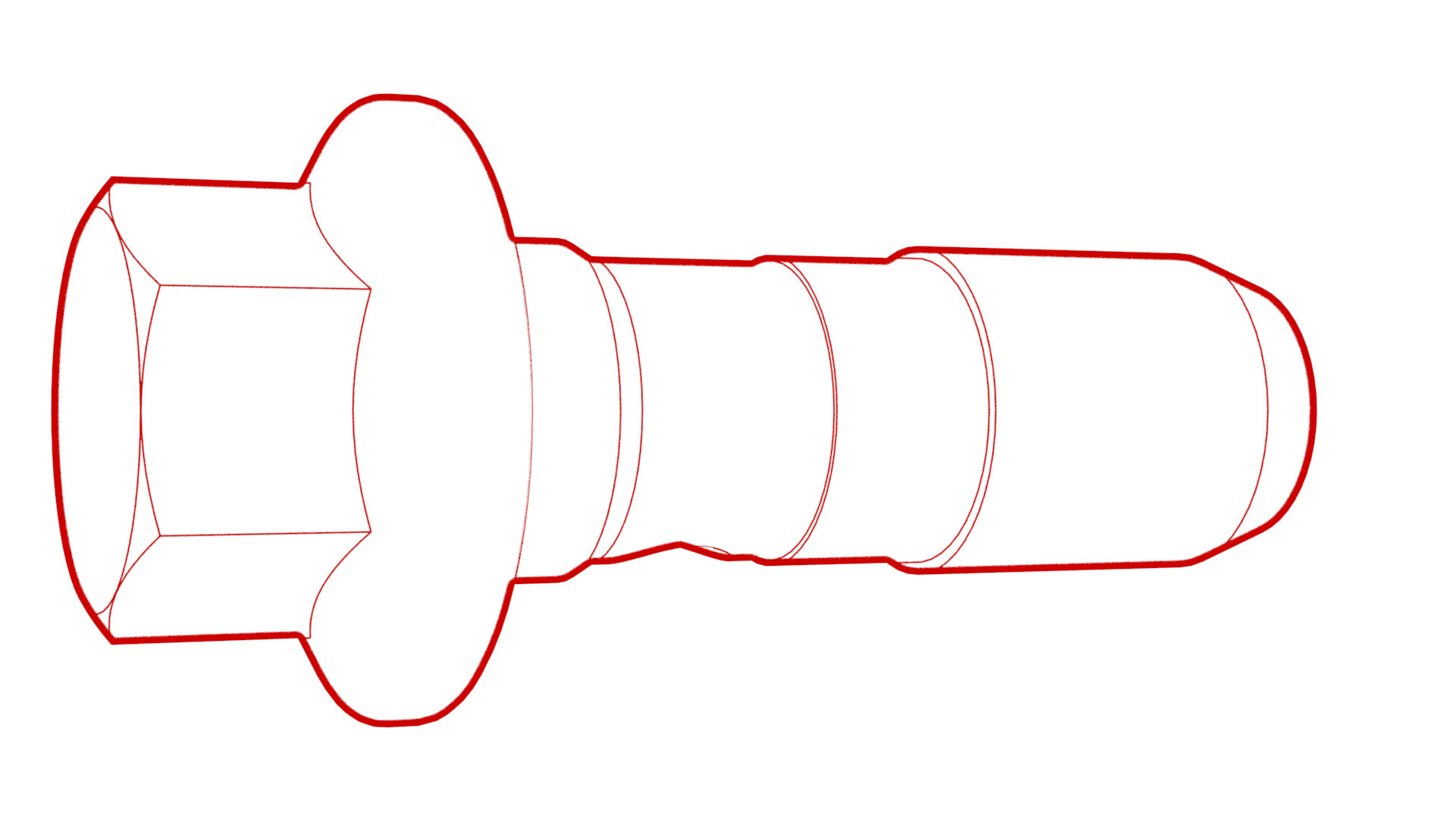

LH rear brake caliper bracket to the knuckle
83 Nm (61.2 lbs-ft)
更换 1088969-00-B
Brake hose to the LH rear brake caliper
42 Nm (31.0 lbs-ft)
更换 1044731-00-D

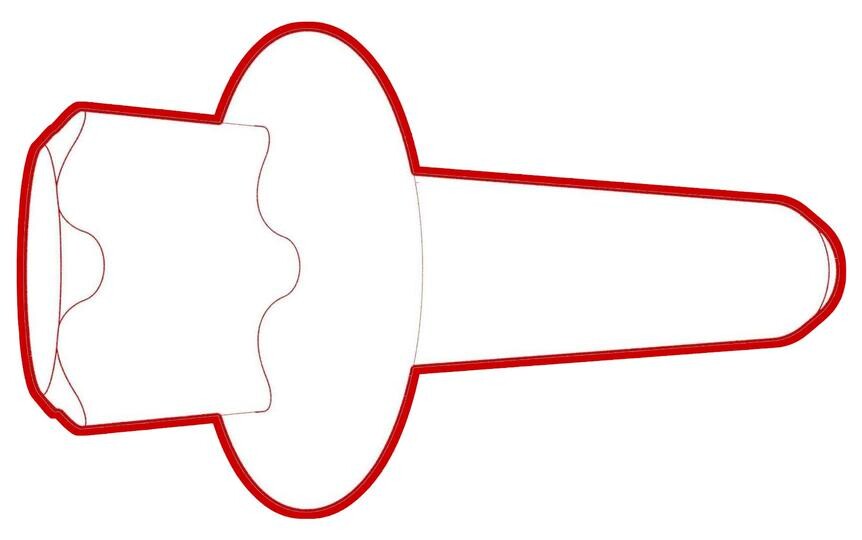

LH rear brake caliper electrical harness clips
5 Nm (3.7 lbs-ft)
重复使用

拆卸

  1. 举升并支撑车辆请参阅 举升车辆 - 双柱举升机。
  2. Place the vehicle into EPB Service Mode. See 驻车制动 - 钳 - 后 - 左侧(释放).
  3. 拆下左侧后车轮。请参阅 轮毂(拆卸和安装)。

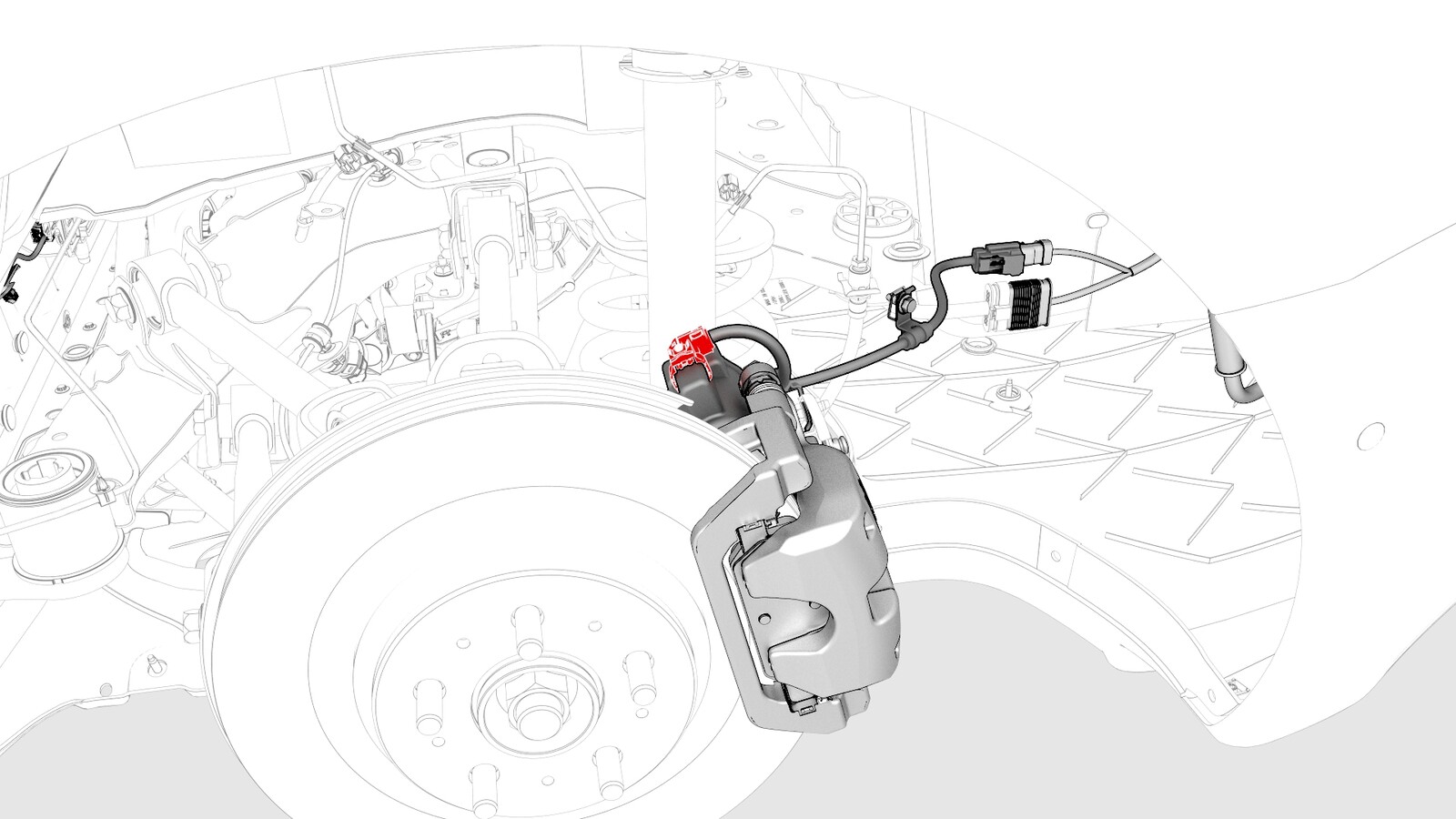

  4. 断开电气连接器与左侧后制动钳的连接。
  5. 拆下将电气线束支架固定到左侧后制动钳的螺栓。
  6. 在左侧后制动钳区域下方放置放油盘。
  7. 拆下左侧后震动软管。请参阅 。

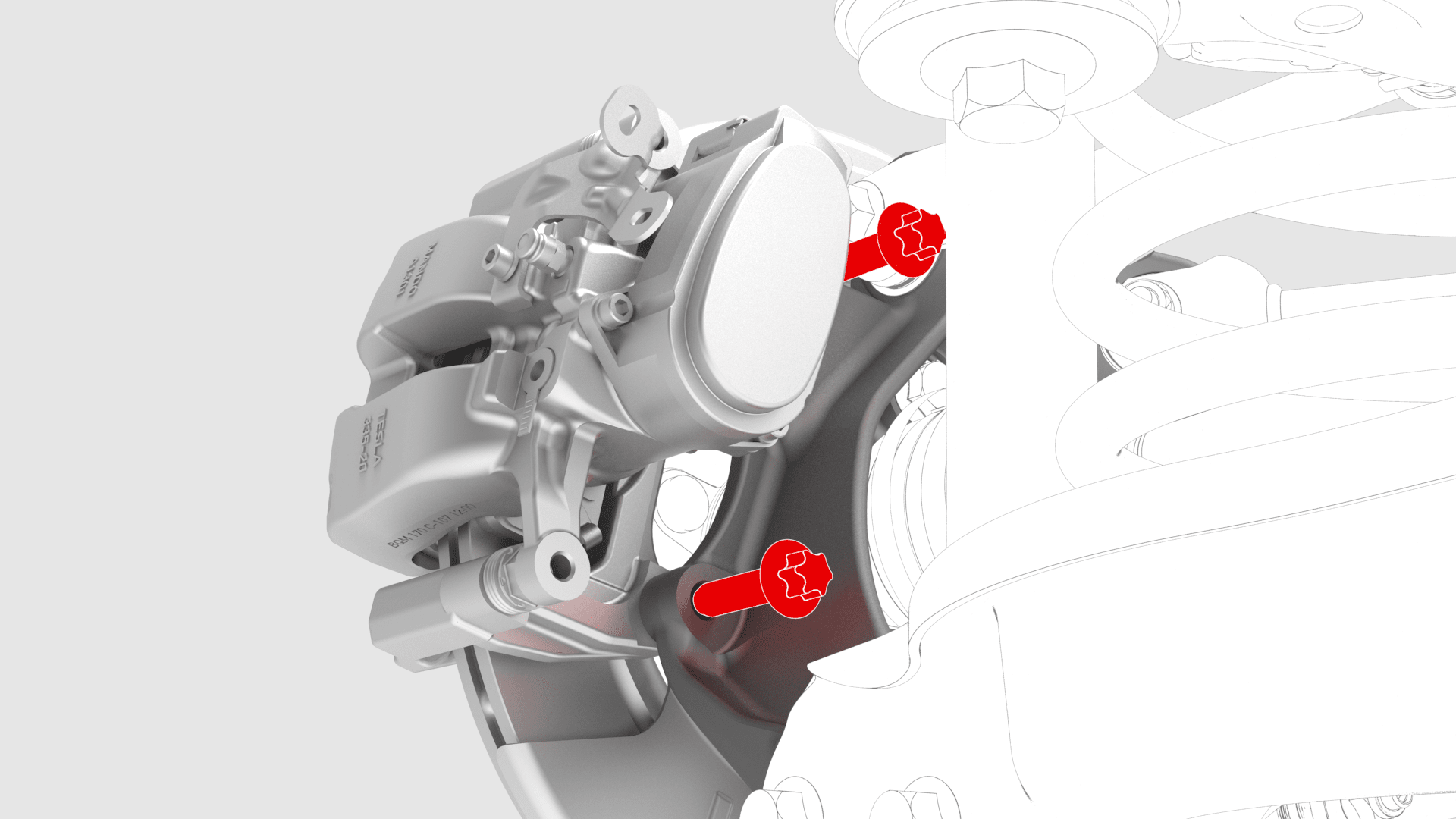

  8. 拆下并弃用将左侧后制动钳支架固定到转向节的螺栓,然后从车上拆下该制动钳。

安装

  1. 如已安装,请将制动片从后制动钳中拆下。

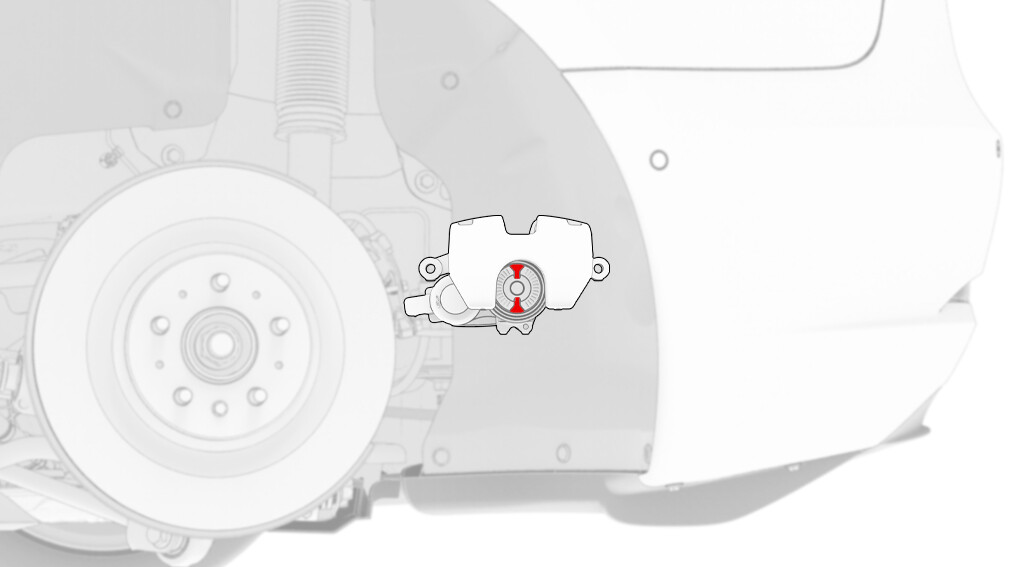

  2. 使用尖嘴钳确保后制动钳活塞装配面凹槽位于 12 点钟和 6 点钟方向。
  3. 将制动片安装到后制动钳上。
  4. 将左后制动钳安装到左后转向节上,然后安装新的螺栓,将制动钳固定到转向节。
    83 Nm (61.2 lbs-ft)
  5. 安装新的左侧后震动软管。请参阅 。
  6. 取走车辆底部的机油排放容器。
  7. 将电气连接器连接到左侧后制动钳。
  8. 安装左后制动钳电气线束夹。
    5 Nm (3.7 lbs-ft)
  9. 降低车辆。
  10. 移走轮挡,然后将车辆换入“驻车”挡。
  11. Reinstall the vehicle firmware. See .
  12. 为左侧后制动钳执行排放程序。请参阅 制动液排放 - 单个制动钳。
  13. 安装左侧后车轮。请参阅 轮毂(拆卸和安装)。
  14. 进行车辆道路测试,期间在防抱死制动系统启用的情况下多次停车,确保制动踏板触感及性能正常。
