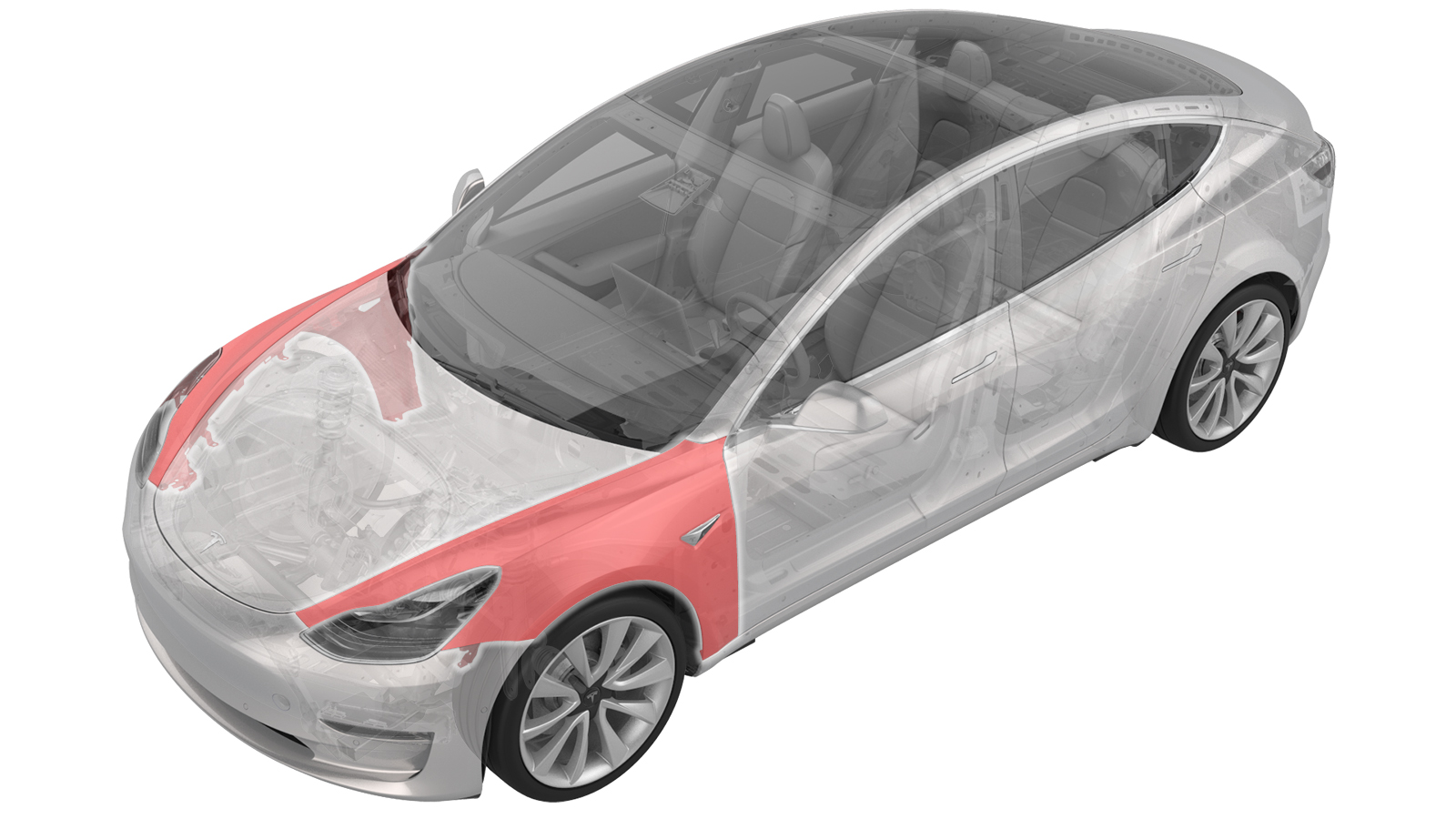

挡泥板总成 - 前 - 左侧(拆卸和安装)
校正代码
101030010.90
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See for safe and healthy working
practices.
拆卸
- Raise and support the vehicle. See 举升车辆 - 双柱举升机.
- Remove the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
- Remove the cabin intake duct. See 槽 - 上部 - 驾驶室进气(拆卸和更换).
- Remove the hood latch cover. See 盖板 - 前备箱盖闩锁(拆卸和更换).
- Remove the underhood storage unit. See .
- Remove the LH shock tower cover. See 盖板 - 减震塔 - 左侧(拆卸和更换).
- Remove the front wheels. See 轮毂(拆卸和安装).
- Remove the front aero shield panel. See 面板 - 流线型护板 - 前(拆卸和更换).
- Remove the front fascia. See 饰板 - 前(拆卸和安装).
- Remove the LH headlight. See .
-

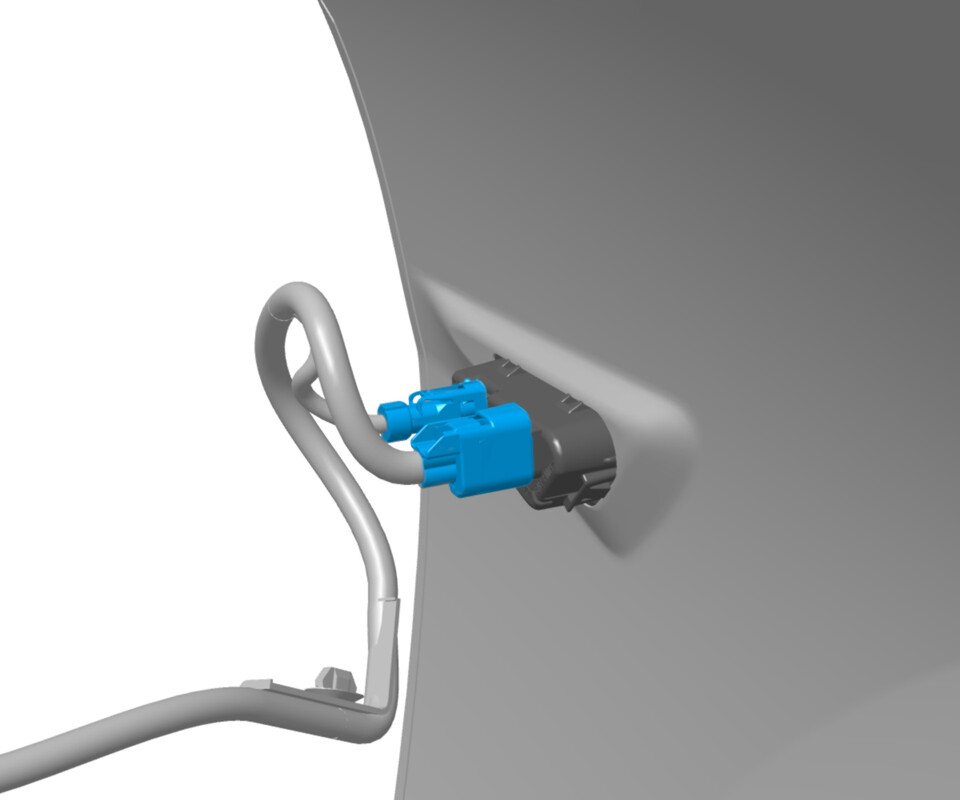

Disconnect the electrical
connectors (2x) from the front side repeater light.
-

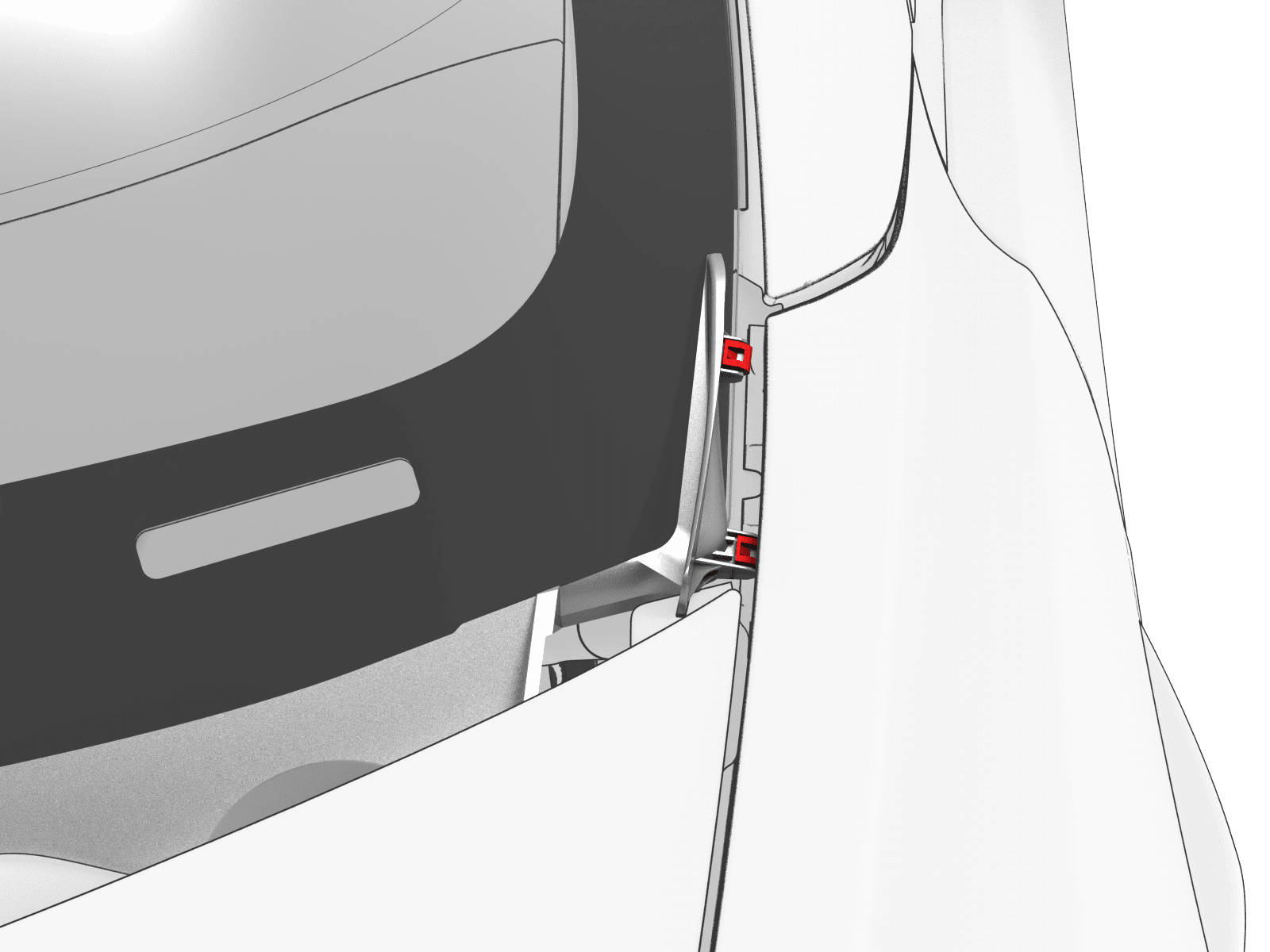

Release the two leftmost
clips on the cowl screen panel from the LH front fender bracket.
-

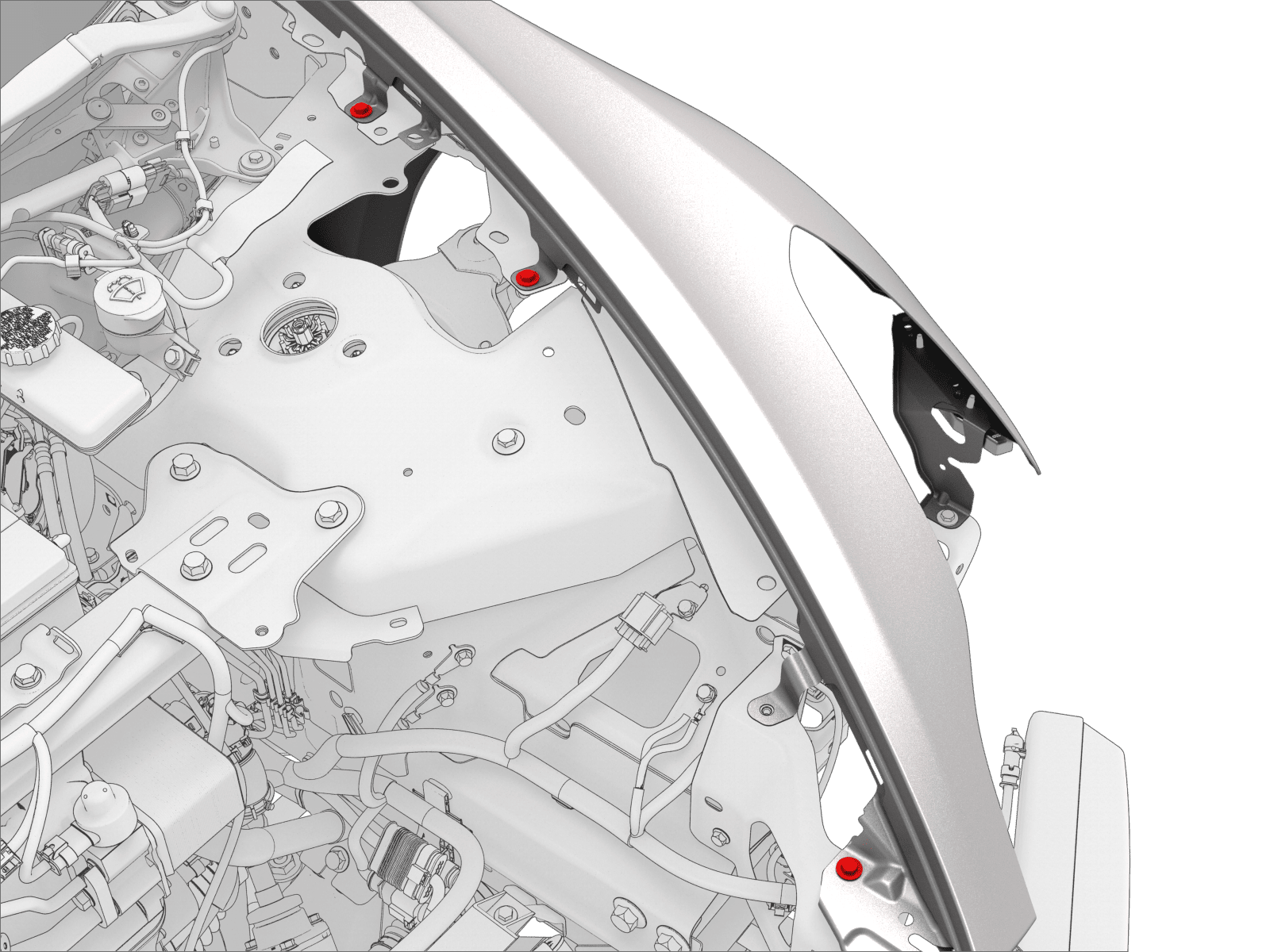

Remove the bolts that attach
the upper LH front fender to the vehicle.
-

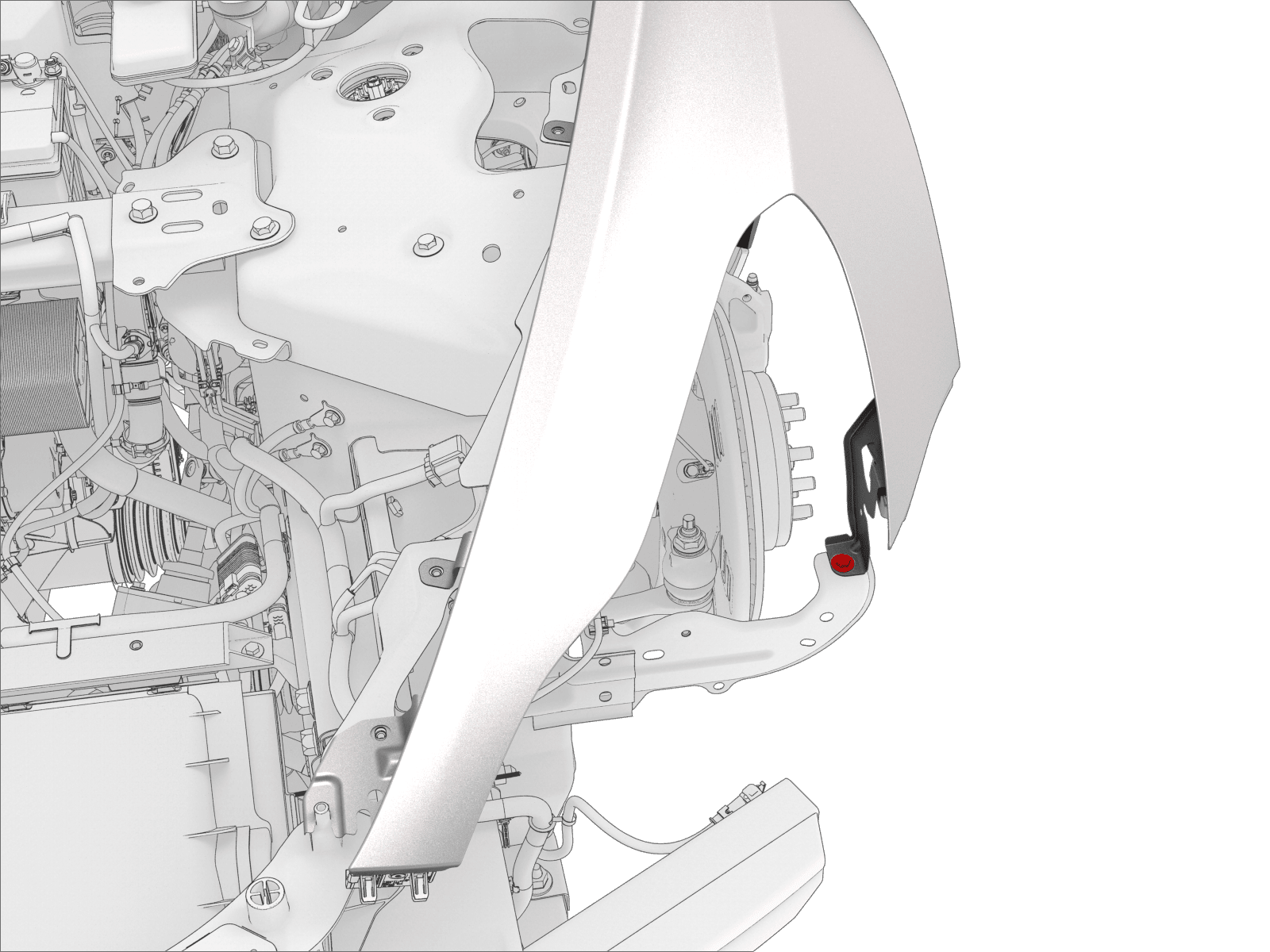

Remove the bolt that
attaches the lower LH front fender to the vehicle.
-

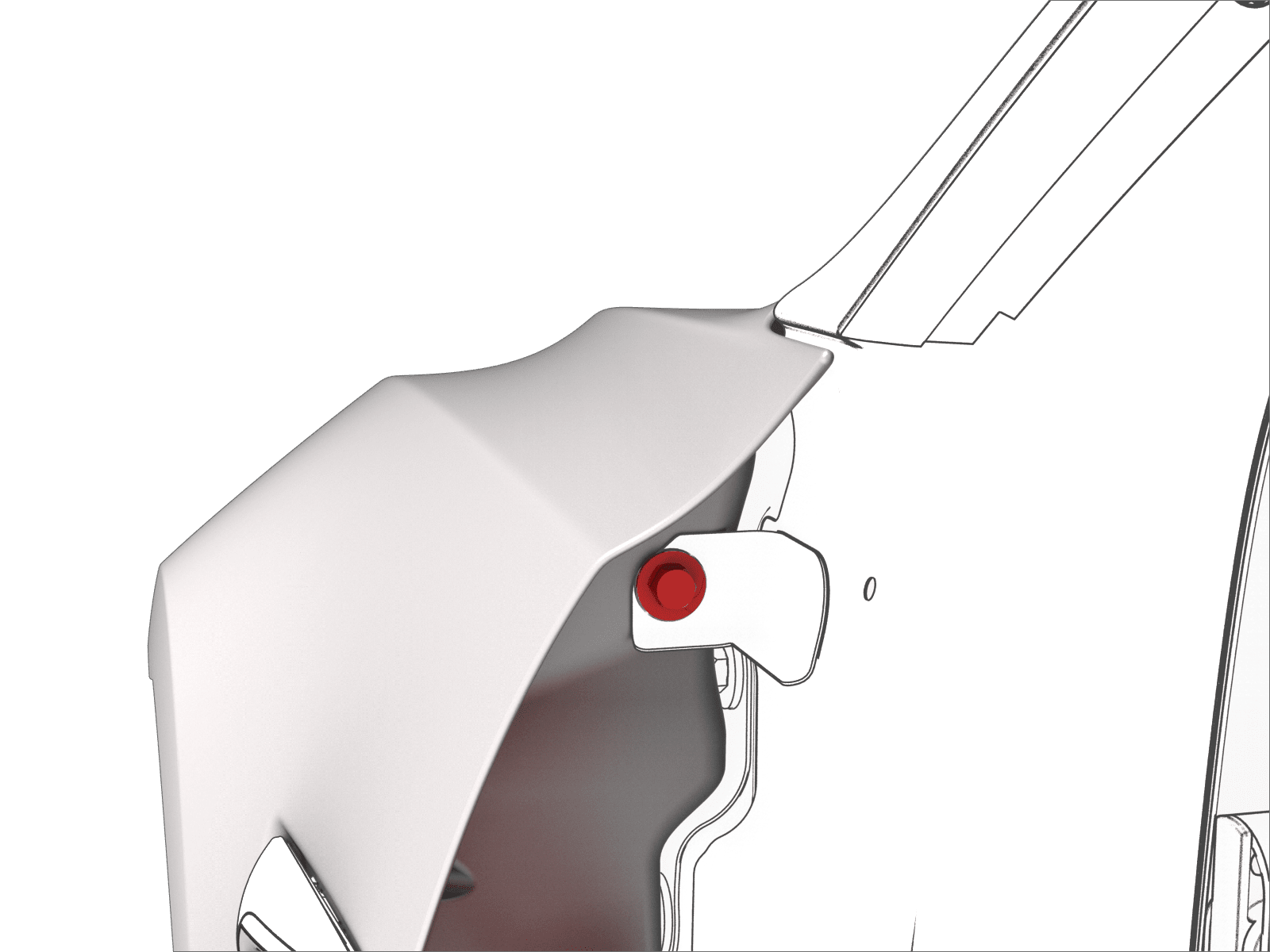

Remove the bolt that
attaches the rear LH front fender to the vehicle.
-

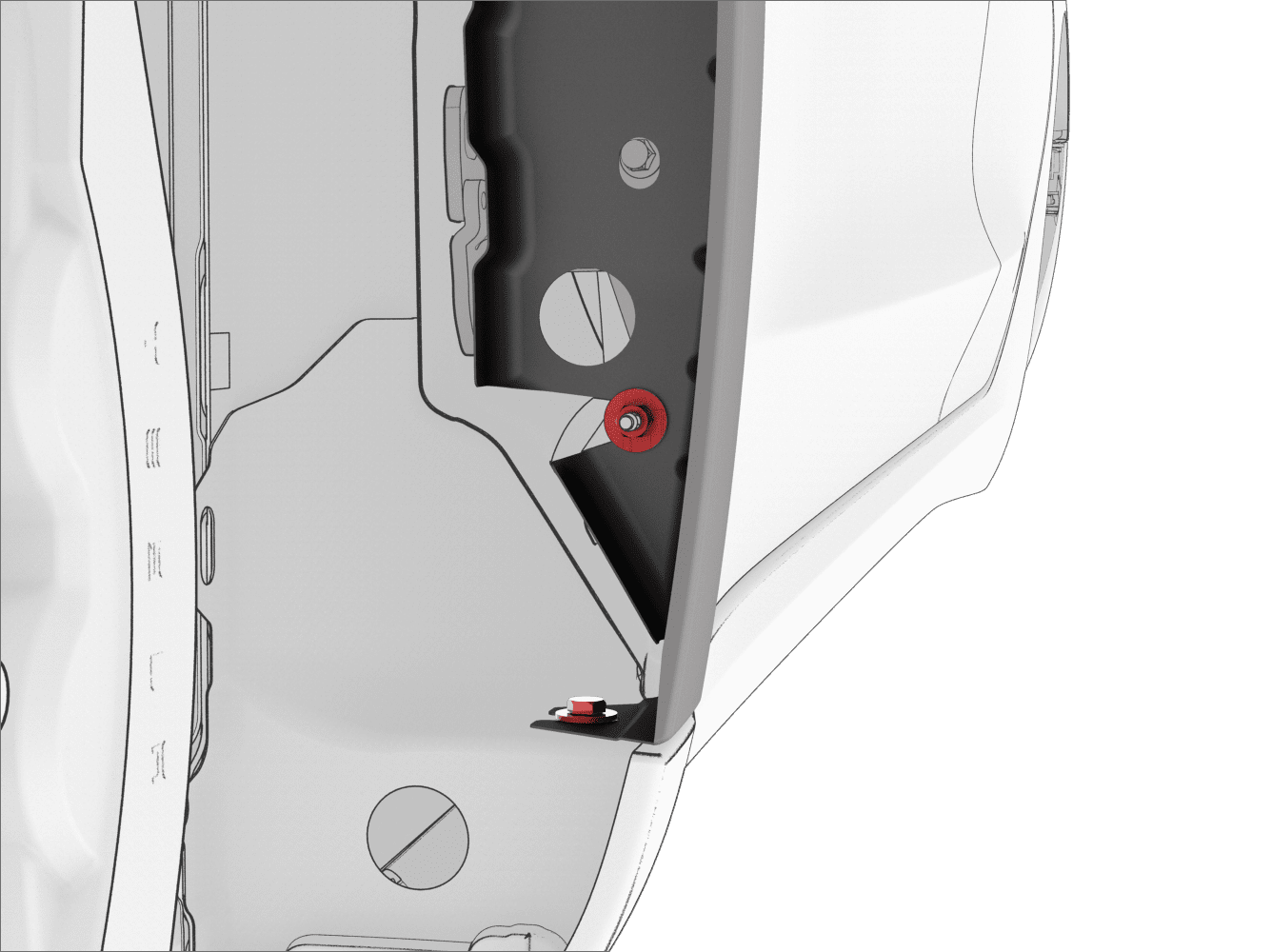

Remove the bolt and nut that
attach the lower LH front fender to the vehicle.
-

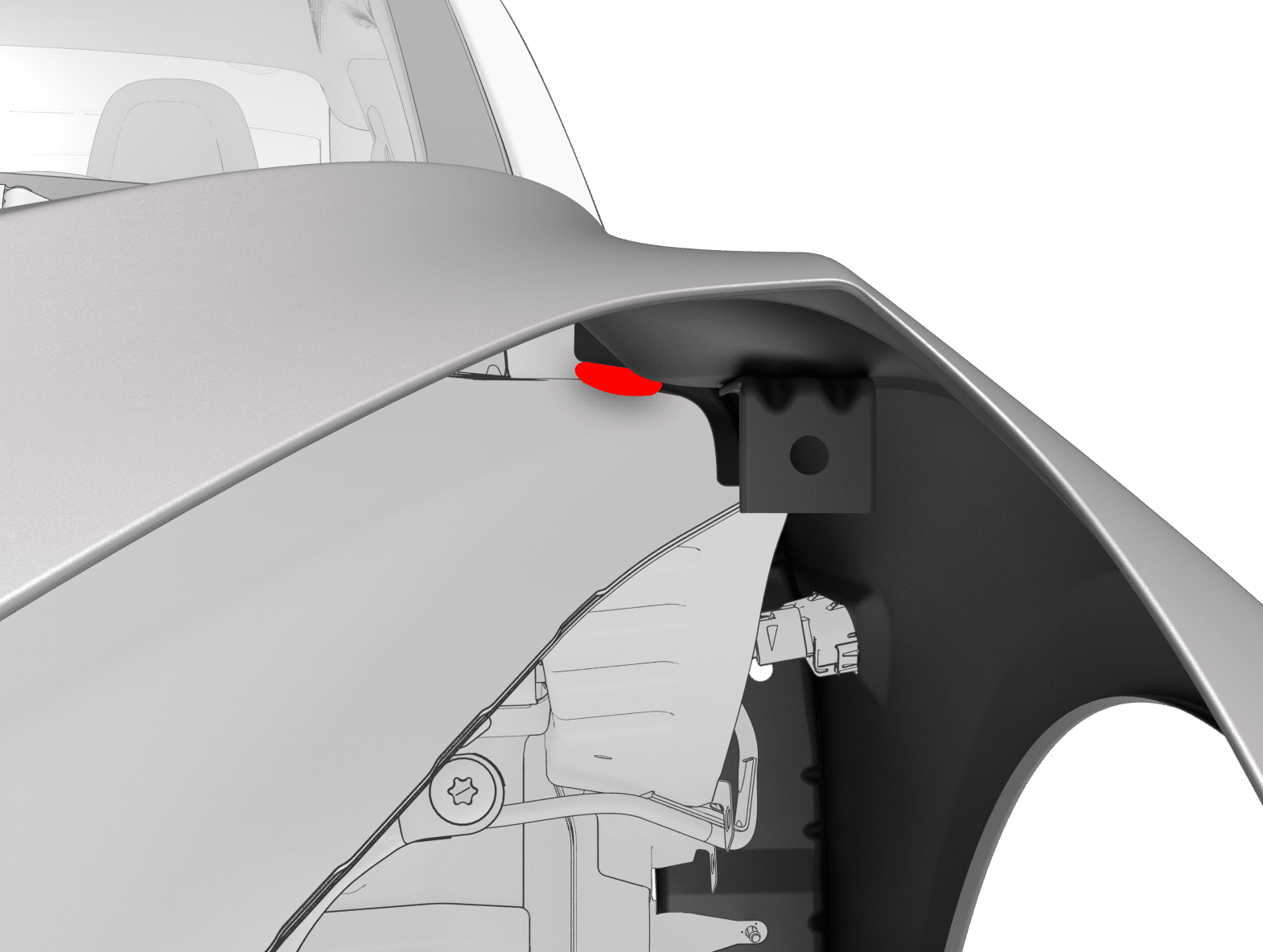

Inspect the area between the
upper LH front fender and the vehicle body for foam sealant. If present,
carefully cut the sealant with a blade, and then separate the upper fender
from the body with a plastic trim tool.
-

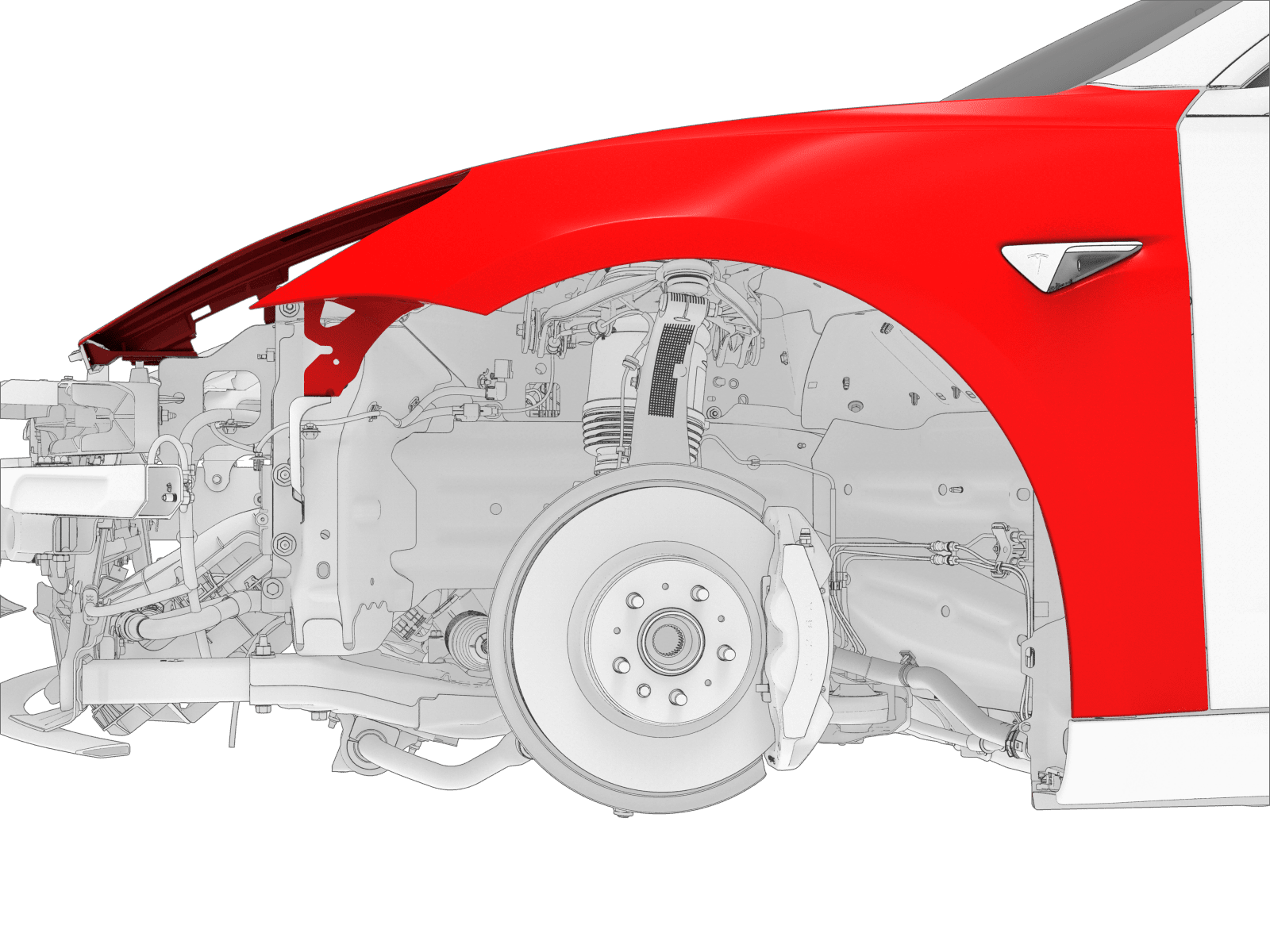

Remove the LH front fender
from the vehicle.
-
Use a flat scraper blade and
isopropyl alcohol (IPA) to remove the foam sealant from the LH outer shotgun
panel. Any remaining sealant should be flush with the shotgun panel.
- Apply primer to the LH outer shotgun panel, completely covering the previous foam application area.
安装
- Load urethane into a caulking gun, and then cut an opening that is 3.5 mm wide and 1.5 mm tall.
-

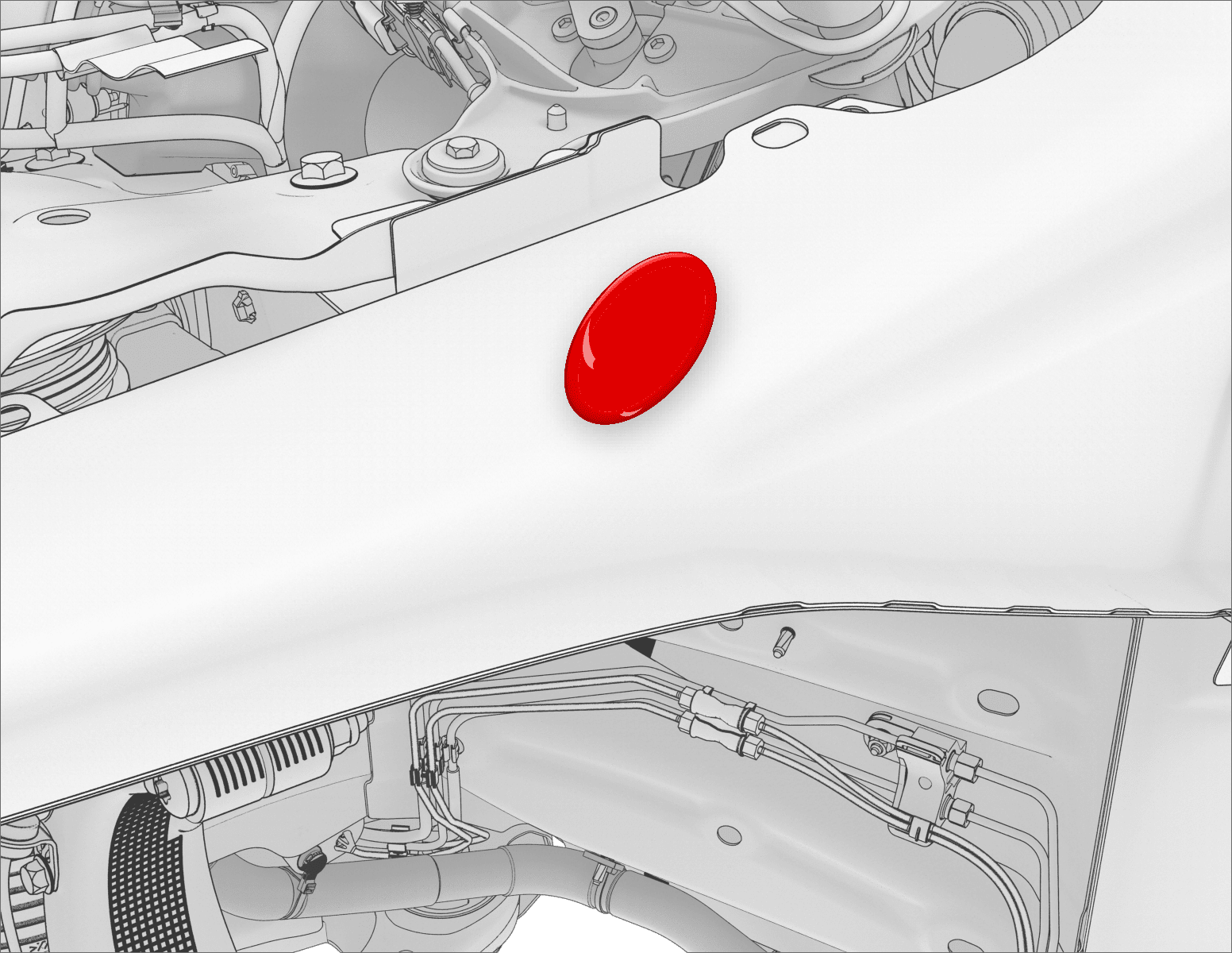

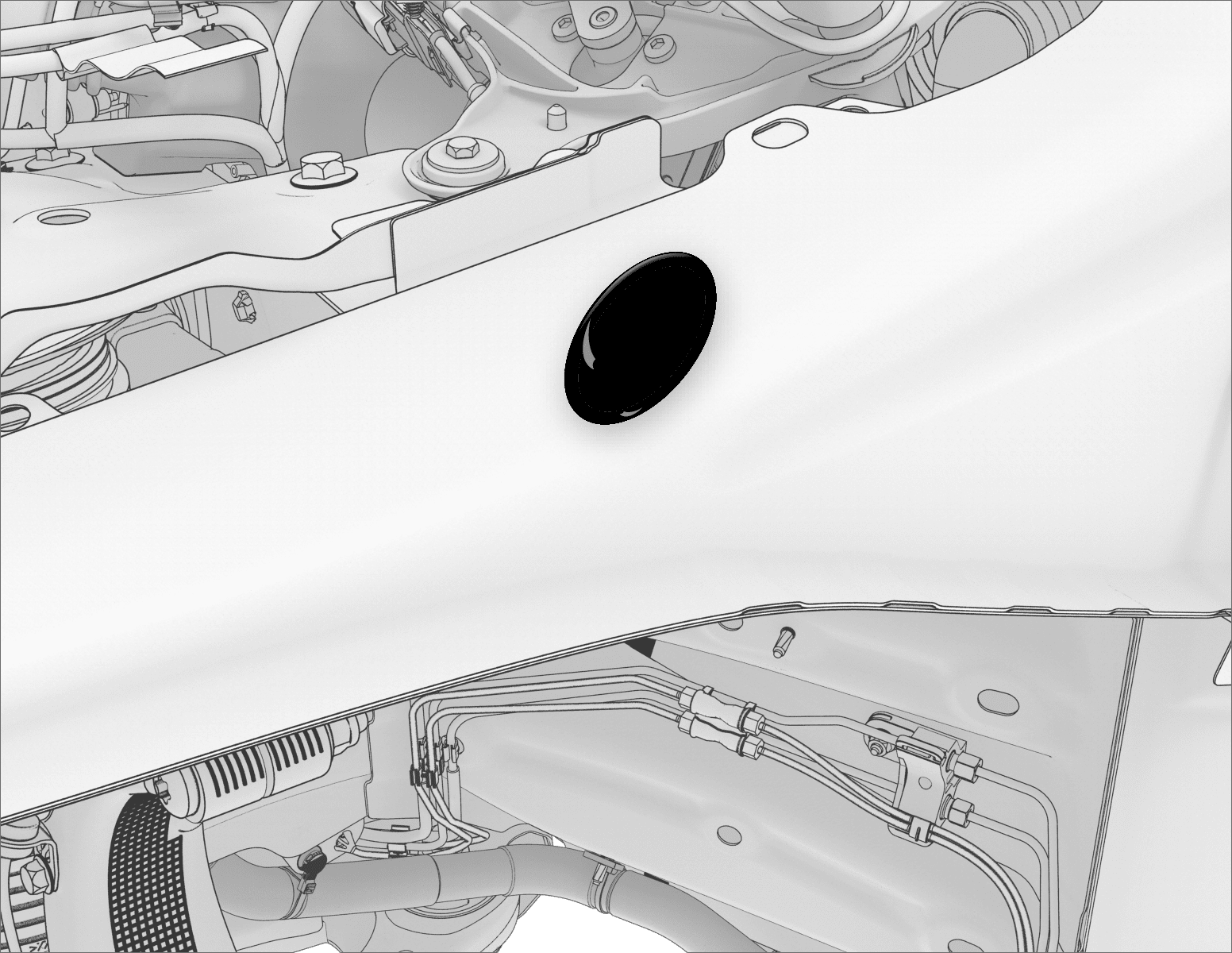

Apply a dollop of urethane
on top of the primed surface of the LH outer shotgun panel.
-
Position the LH front fender
on the vehicle.
-

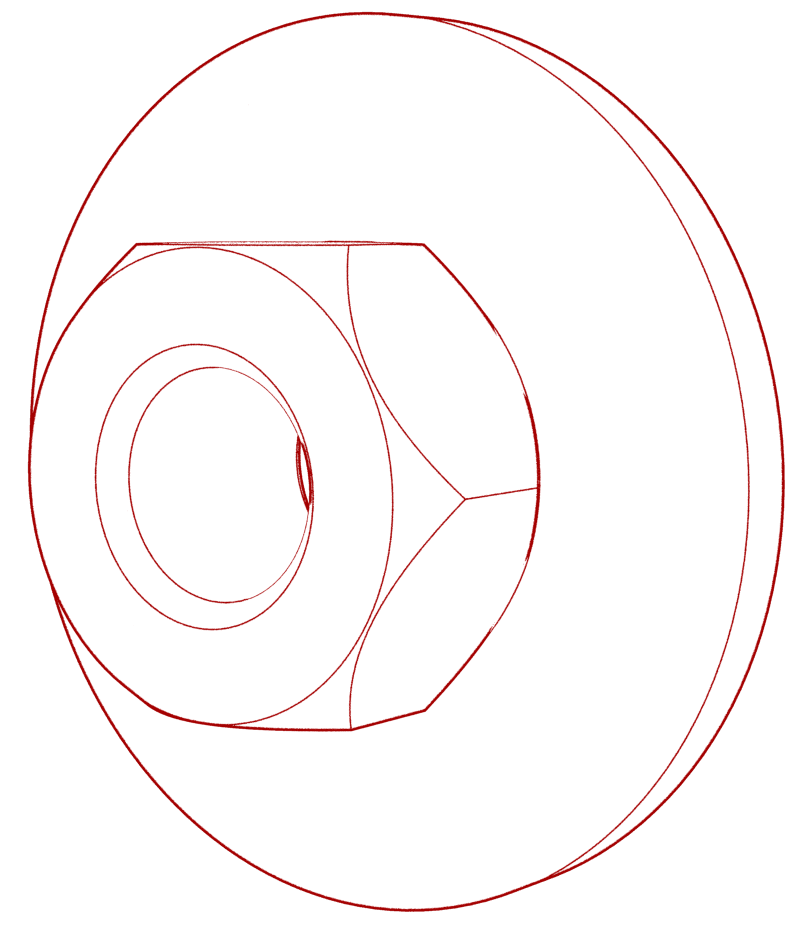

Install the bolt and nut
that attach the lower LH front fender to the vehicle.
9.8 Nm (7.2 lbs-ft)
9.8 Nm (7.2 lbs-ft) -

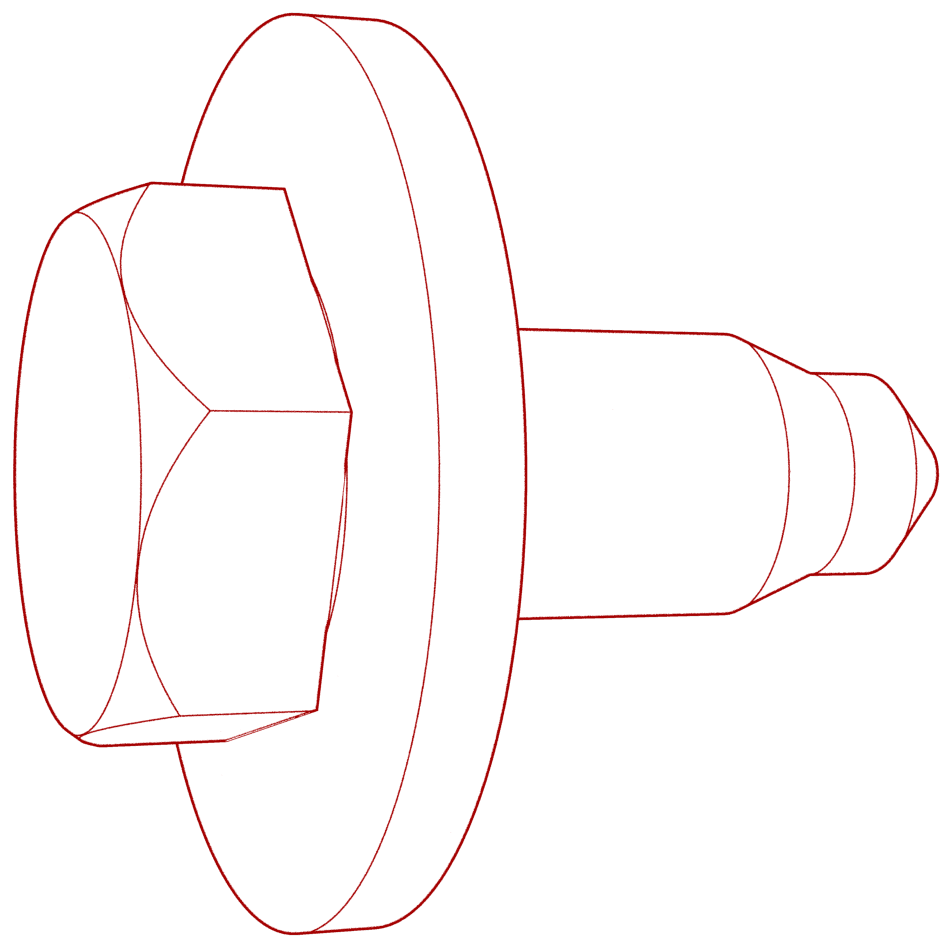

Install the bolt that
attaches the rear LH front fender to the vehicle.
9.8 Nm (7.2 lbs-ft) -
Install the bolt that
attaches the lower LH front fender to the vehicle.
9.8 Nm (7.2 lbs-ft) -
Install the bolts that
attach the upper LH front fender to the vehicle.
9.8 Nm (7.2 lbs-ft) -
Install the cowl screen
panel clips (2x) on the LH front fender bracket.
-
Connect the electrical connectors (2x) to the front side repeater
light.
- Install the LH headlight. See .
- Install the front fascia. See 饰板 - 前(拆卸和安装).
- Install the front aero shield panel. See 面板 - 流线型护板 - 前(拆卸和更换).
- Install the front wheels. See 轮毂(拆卸和安装).
- Install the LH shock tower cover. See 盖板 - 减震塔 - 左侧(拆卸和更换).
-

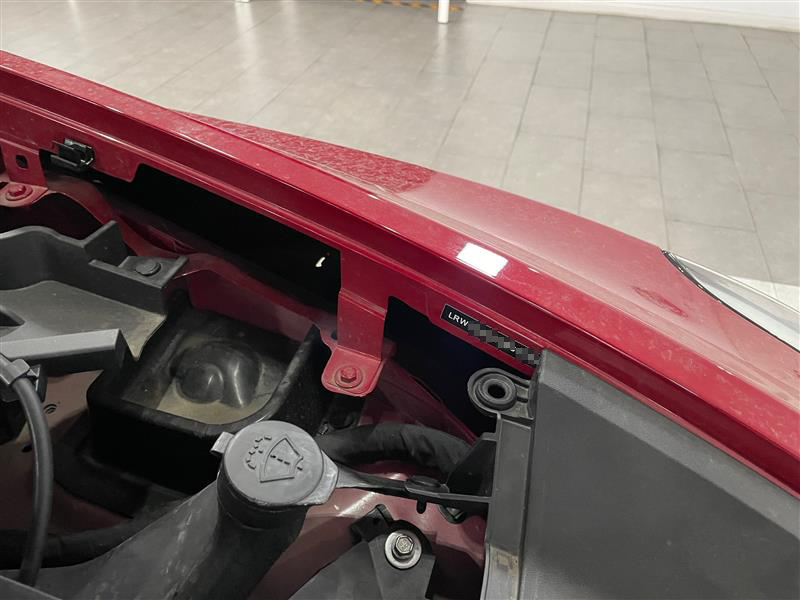

For China, Japan and Korea
only: Install a new motor ID label on the fender.
- Install the underhood storage unit. See .
- Install the hood latch cover. See 盖板 - 前备箱盖闩锁(拆卸和更换).
- Install the cabin intake duct. See 槽 - 上部 - 驾驶室进气(拆卸和更换).
- Install the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
- Remove the vehicle from the lift.
