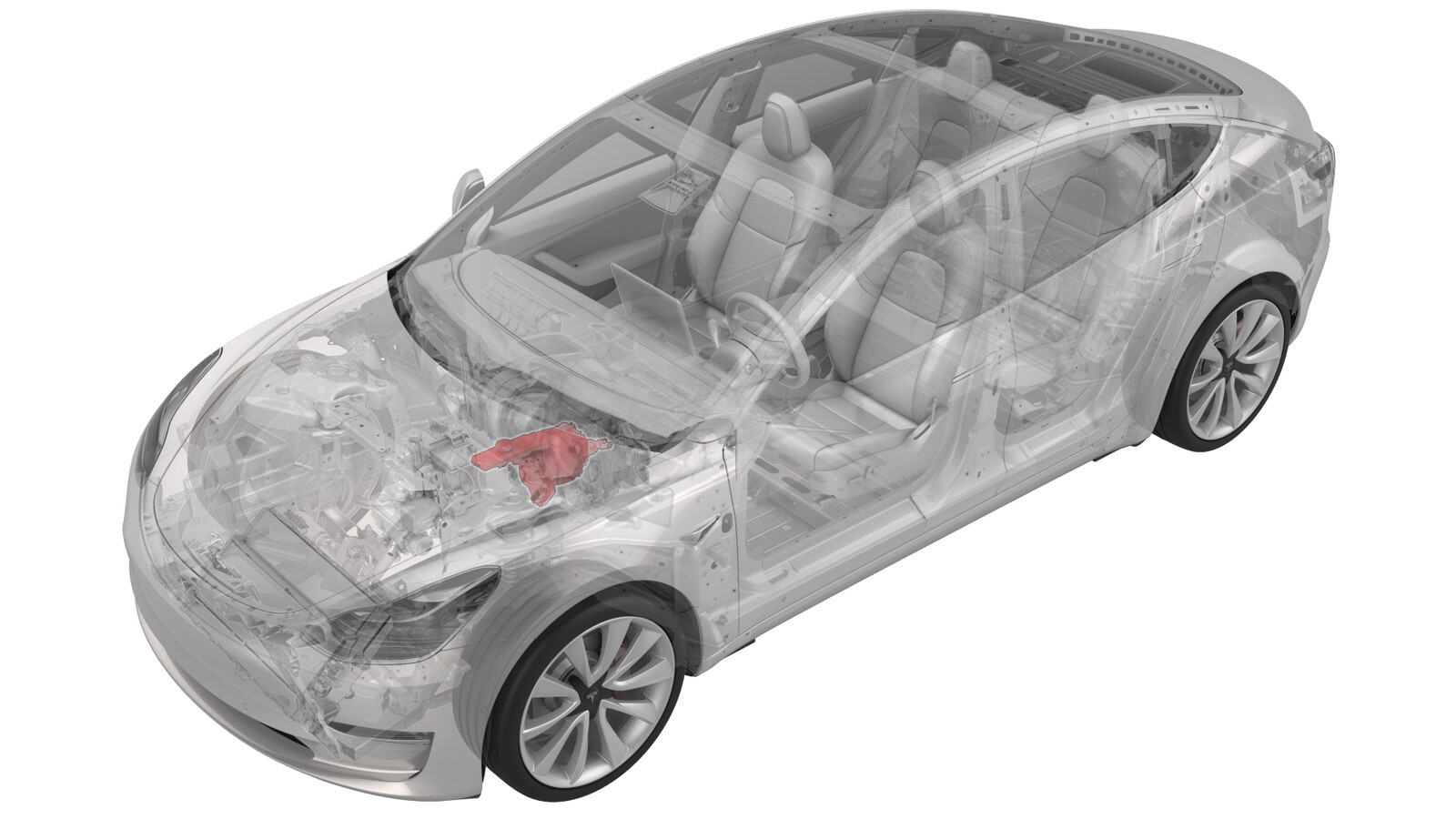

Booster - Brake - Electromechanical (Heat Pump) (LHD) (Remove and Replace)

校正代码 33201202 1.95 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See for safe and healthy working practices.

Equipment:
  • 1079041-00-A Flare nut crowfoot set
  • 1134520-00-A 电子驻车制动 (EPB) 手动释放套件
  • 1129348-00-A XP-10 电源,XP-10

拆卸

  1. CAUTION

    Brake fluid dissolves paint. Have clean towels and plenty of water standing by to wash spilled brake fluid off painted surfaces.

    Note

    根据当地的环境法规处理使用过的制动液。

  2. Open all four doors.
  3. Lower all four windows.
  4. Move LH front seat backward.
  5. Remove the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
  6. Remove the cabin intake duct. See 槽 - 上部 - 驾驶室进气(拆卸和更换).
  7. Remove the underhood storage unit. See #GUID-4FBD5199-27DF-4D9D-A193-1901CE127862.
  8. Remove the LH and RH wiper arms. See #GUID-40F2AE79-B55A-4796-B733-9622D9A5F73B.
  9. Remove the LH and RH shock tower covers. See 盖板 - 减震塔 - 左侧(拆卸和更换).
  10. Remove the cowl screen panel. See 面板 - 前围篦板(拆卸和更换).
  11. Disconnect 12V power. See 12V/低压电源(断开和连接).
  12. Remove the 12V auxiliary battery. See #GUID-A457202A-D5B8-4DAD-A374-C91A41A7B4F5.
  13. Remove the front body controller module. See 模块 - 车身控制器 - 前(带加热泵款)(拆卸和更换)
  14. Remove the wiper motor. See 雨刮器模块(拆卸和更换).

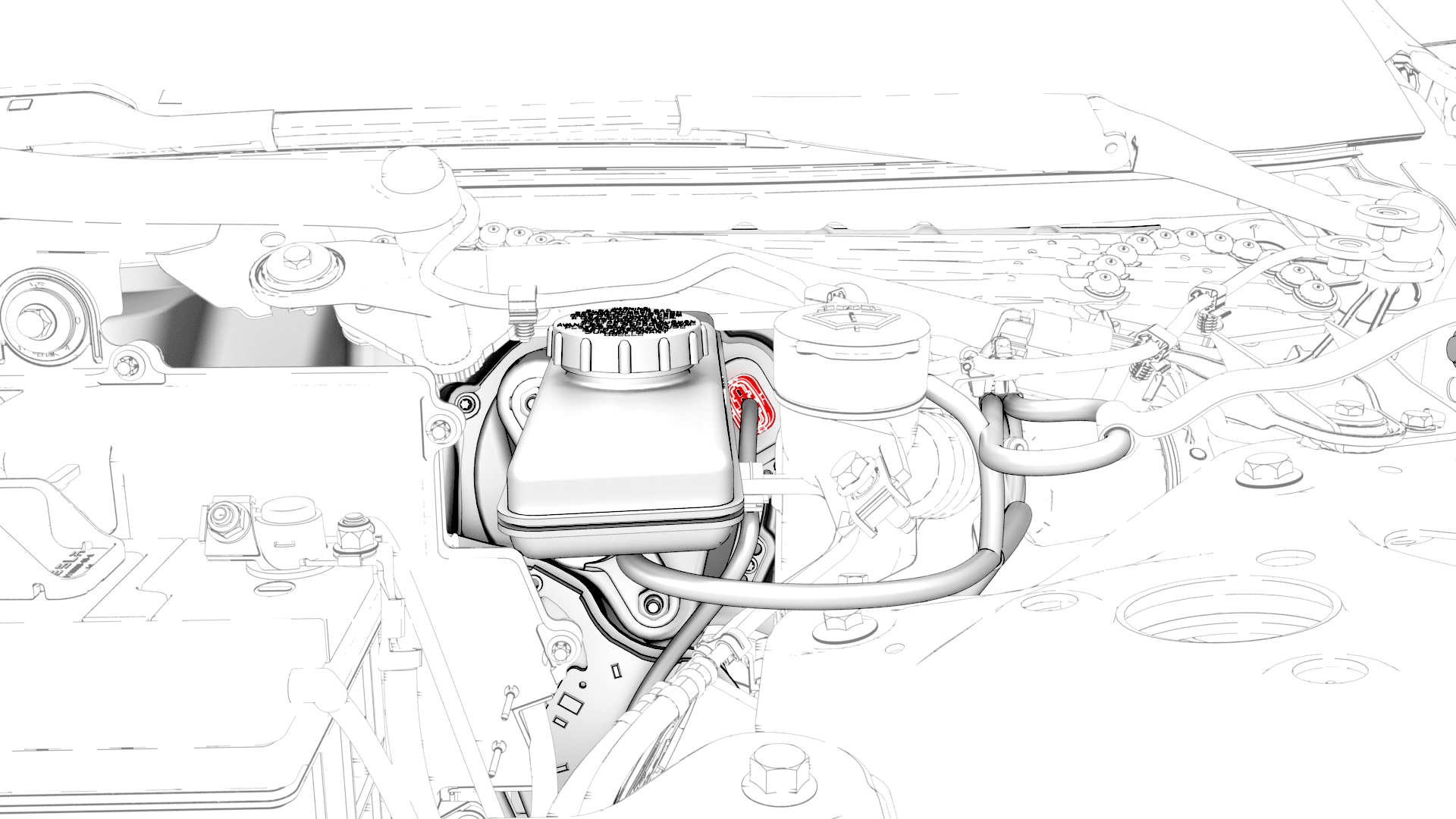

  15. Disconnect the electrical harness from the brake fluid reservoir connector.

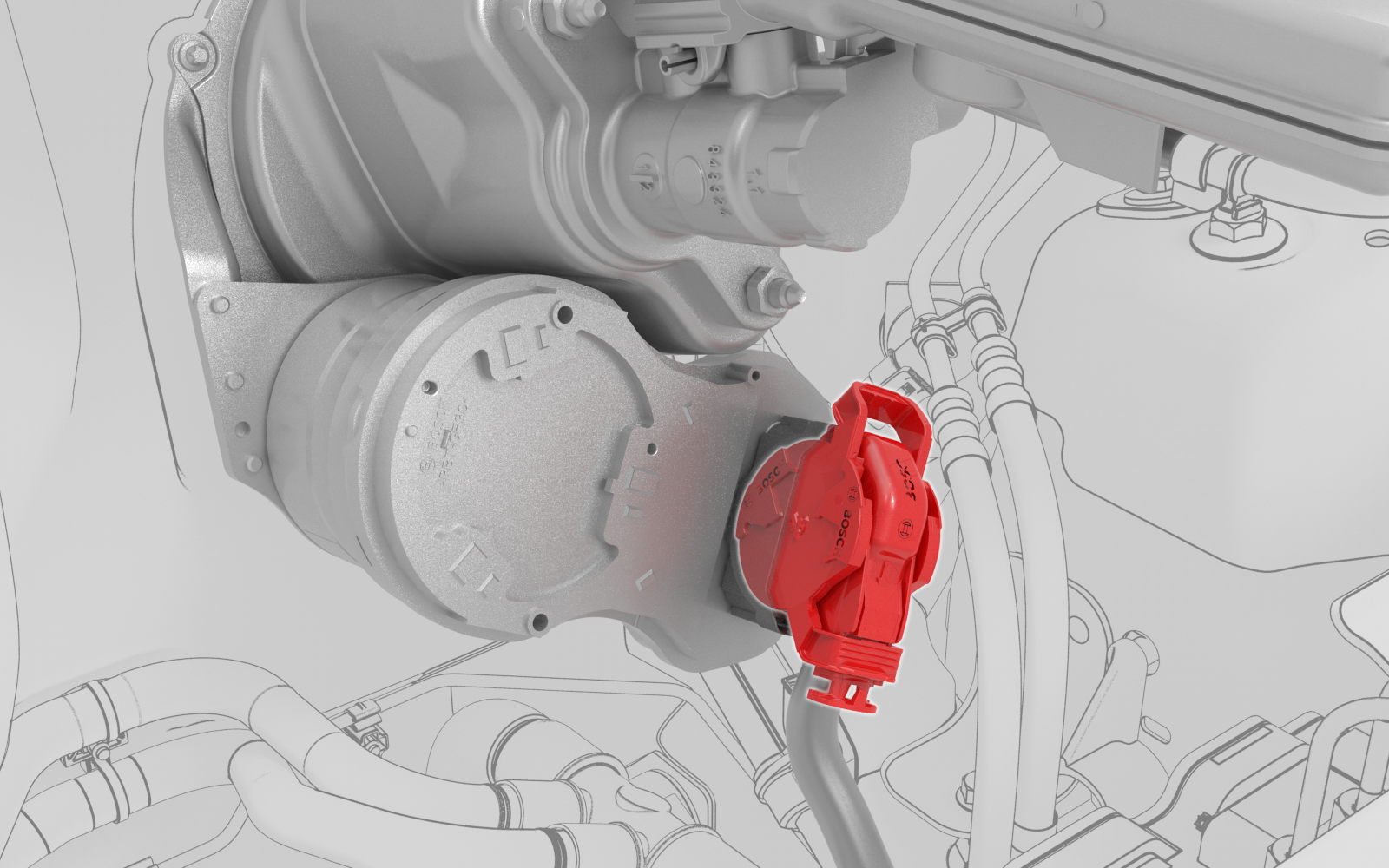

  16. Disconnect the harness connectors (x2) from the brake booster assembly.
  17. Place absorbent material under the reservoir and booster.
  18. Using a brake fluid syringe, remove fluid from the reservoir.

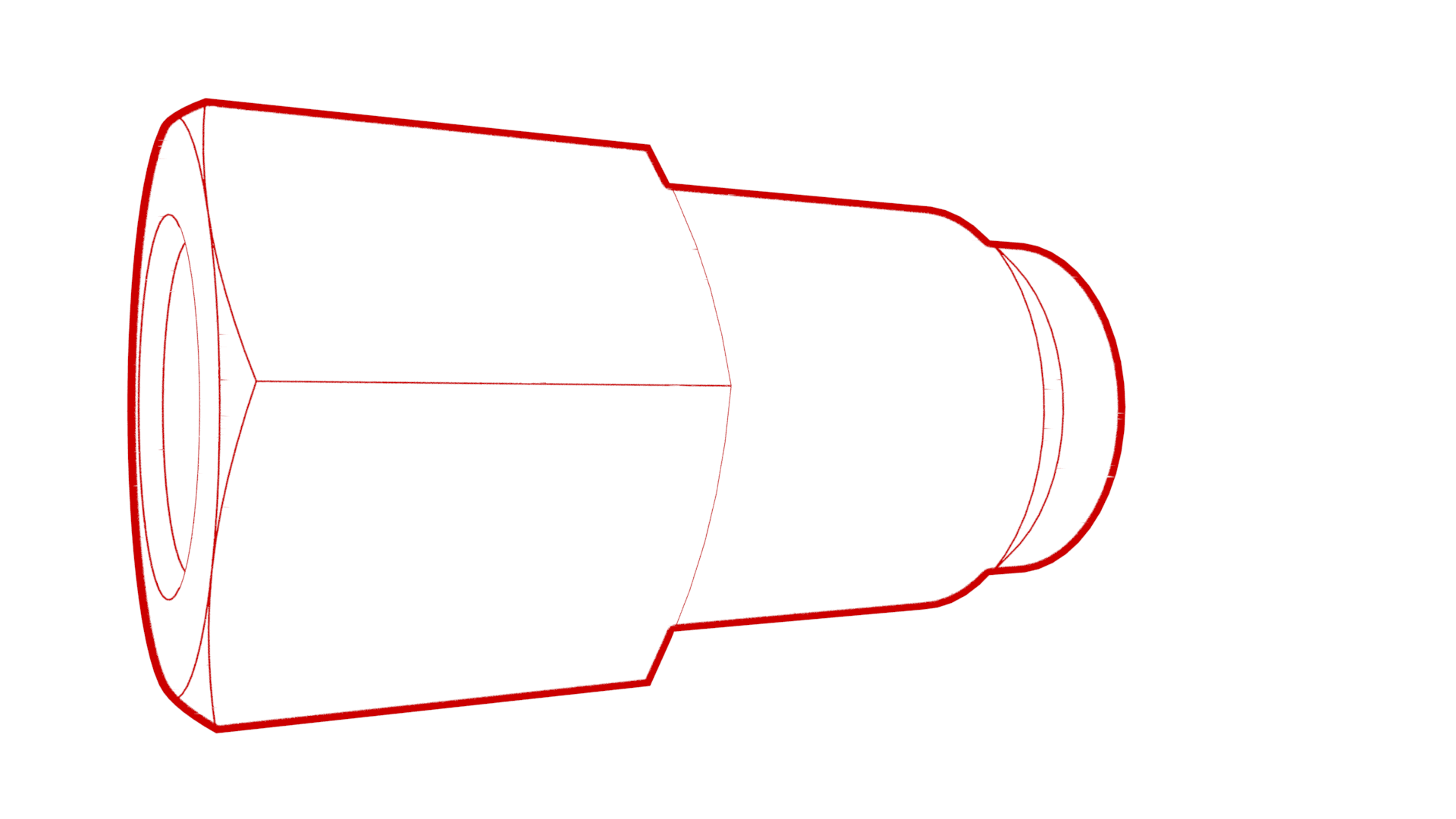

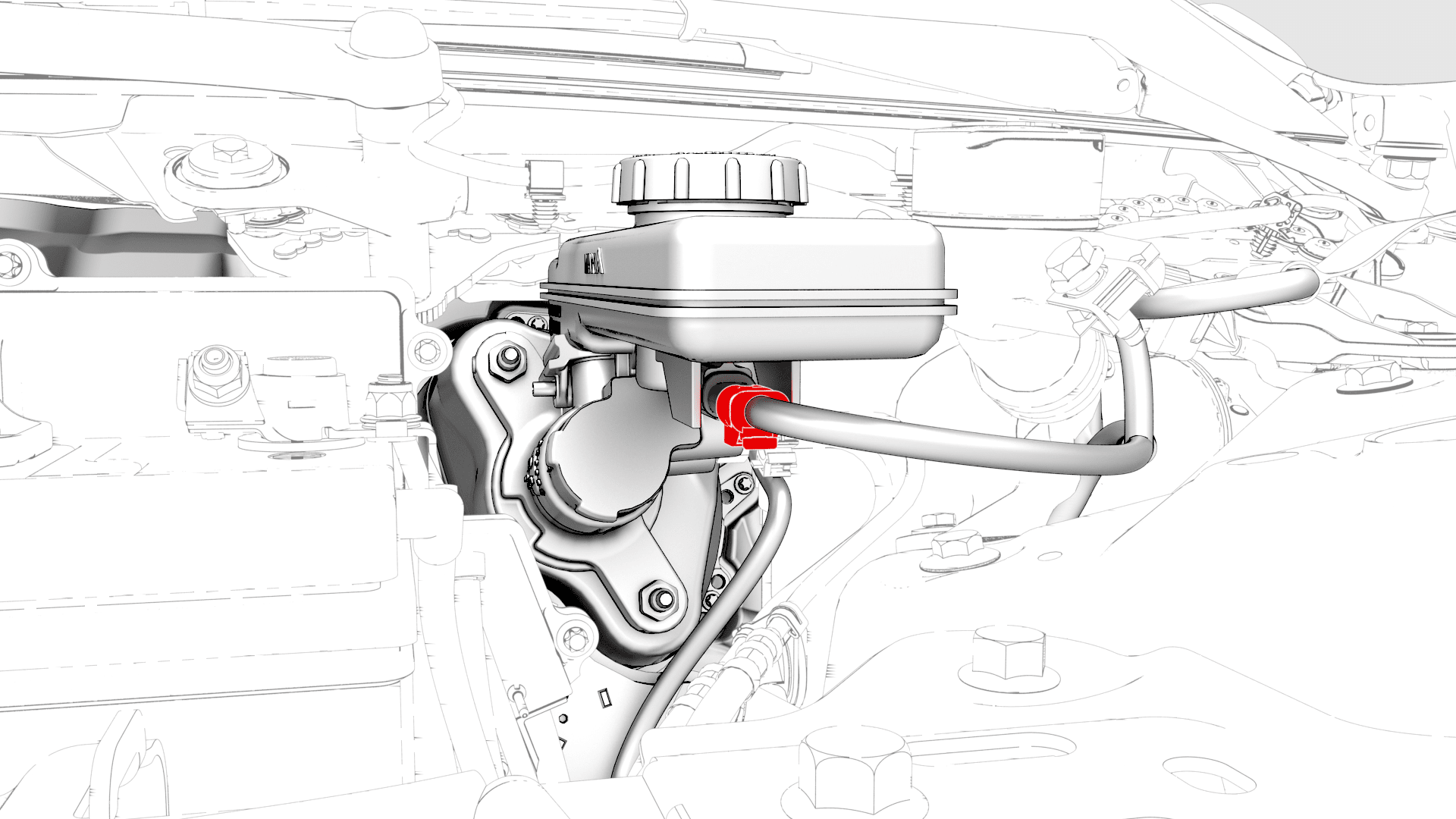

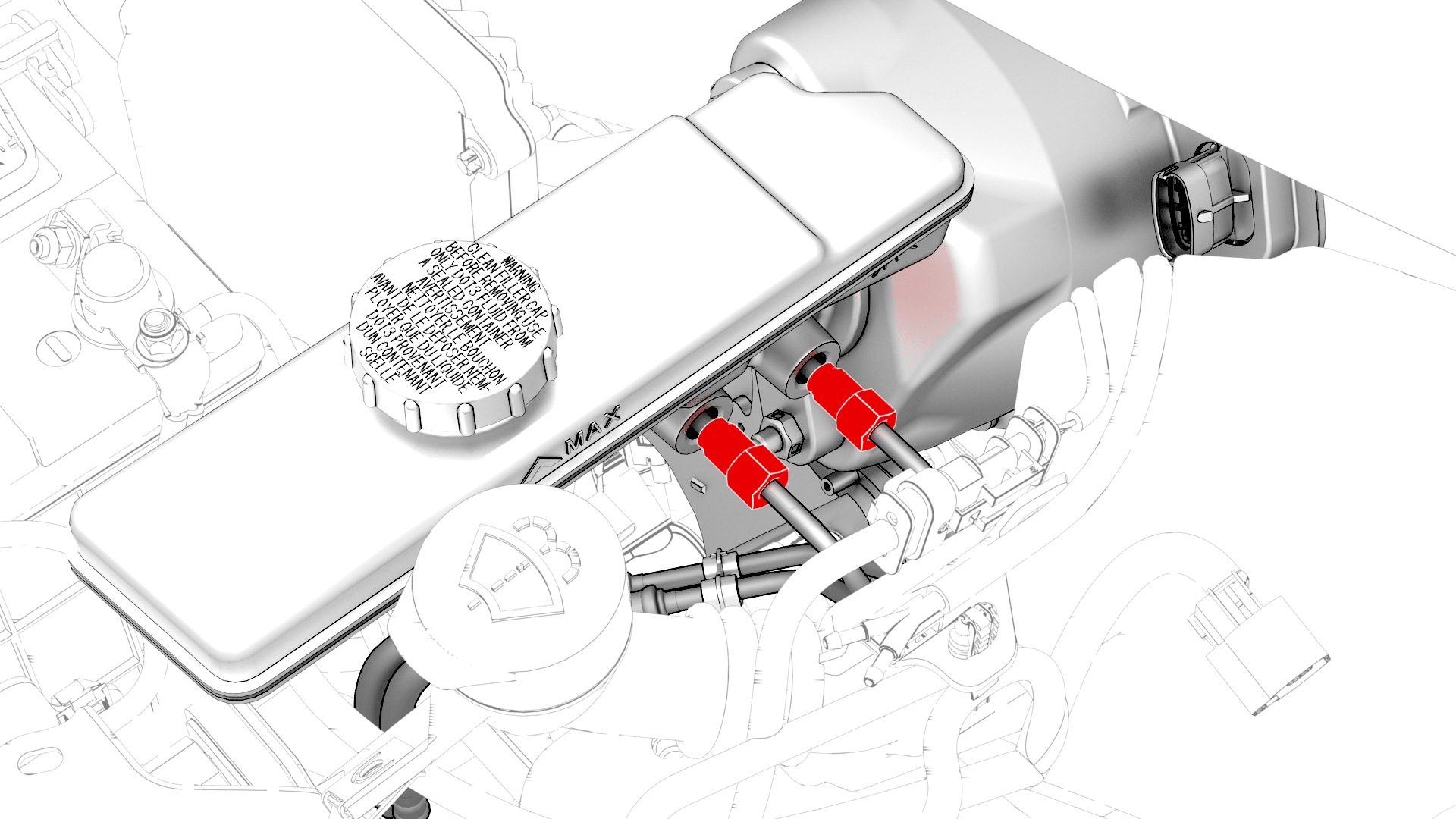

  19. Loosen the nuts that attach the brake lines to the booster, and then slide the nuts back on the brake lines.
    16 Nm (11.8 lbs-ft)
  20. Remove the driver footwell cover. See 盖板 - 脚部空间 - 驾驶位(拆卸和更换).
  21. Remove the driver knee airbag. See #GUID-8E1590E5-0A0D-4E40-A119-BB20C6C07C71.
  22. Remove the brake switch. See #GUID-DE004FA8-A2D6-4E84-B56B-E8CF8BD20DB5.
    CAUTION
    如果制动开关在拆卸期间损坏,请更换此开关。

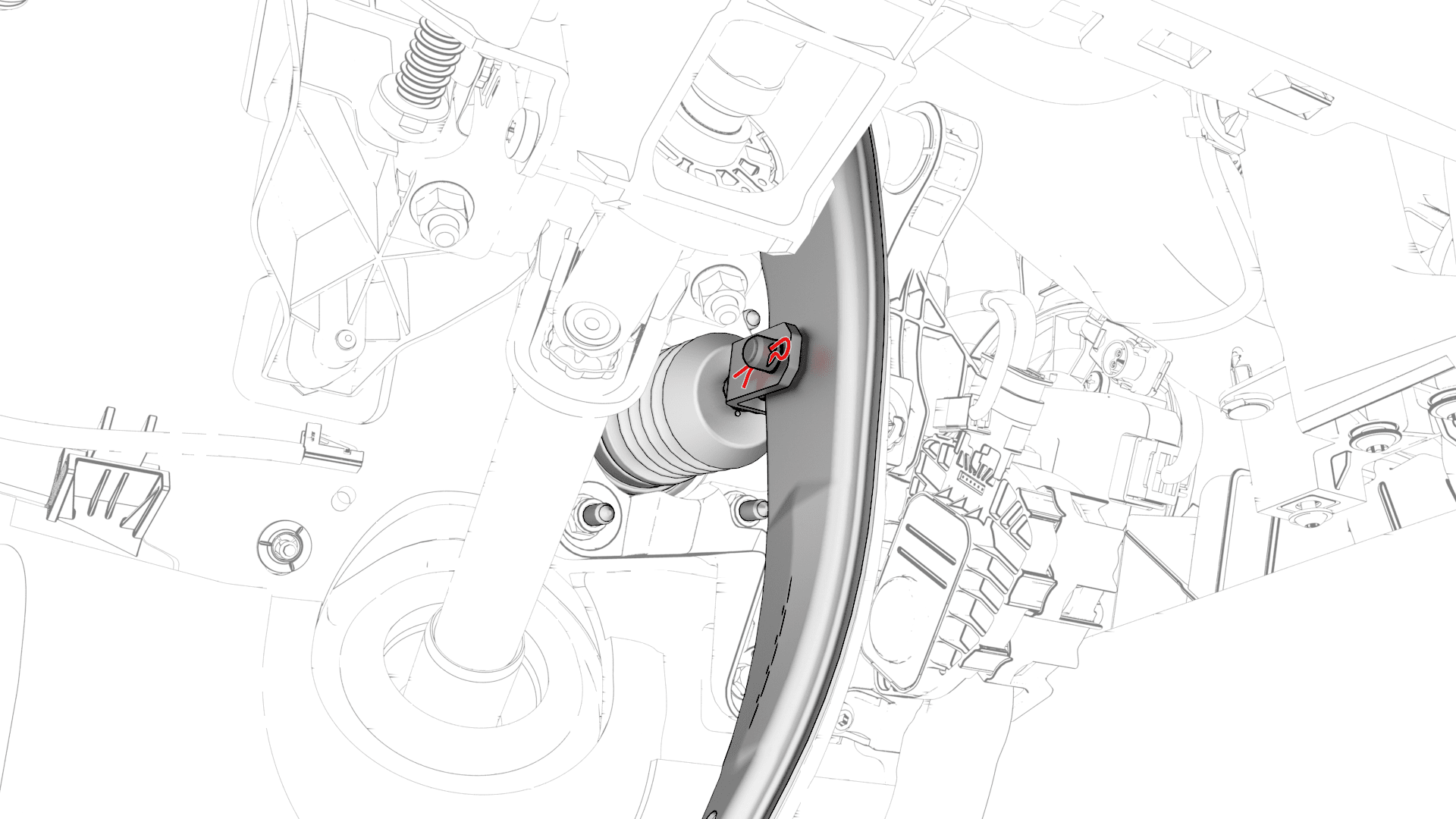

  23. Remove the cotter clip from the clevis pin on the brake pedal assembly.
  24. Remove the clevis pin from the brake pedal assembly.

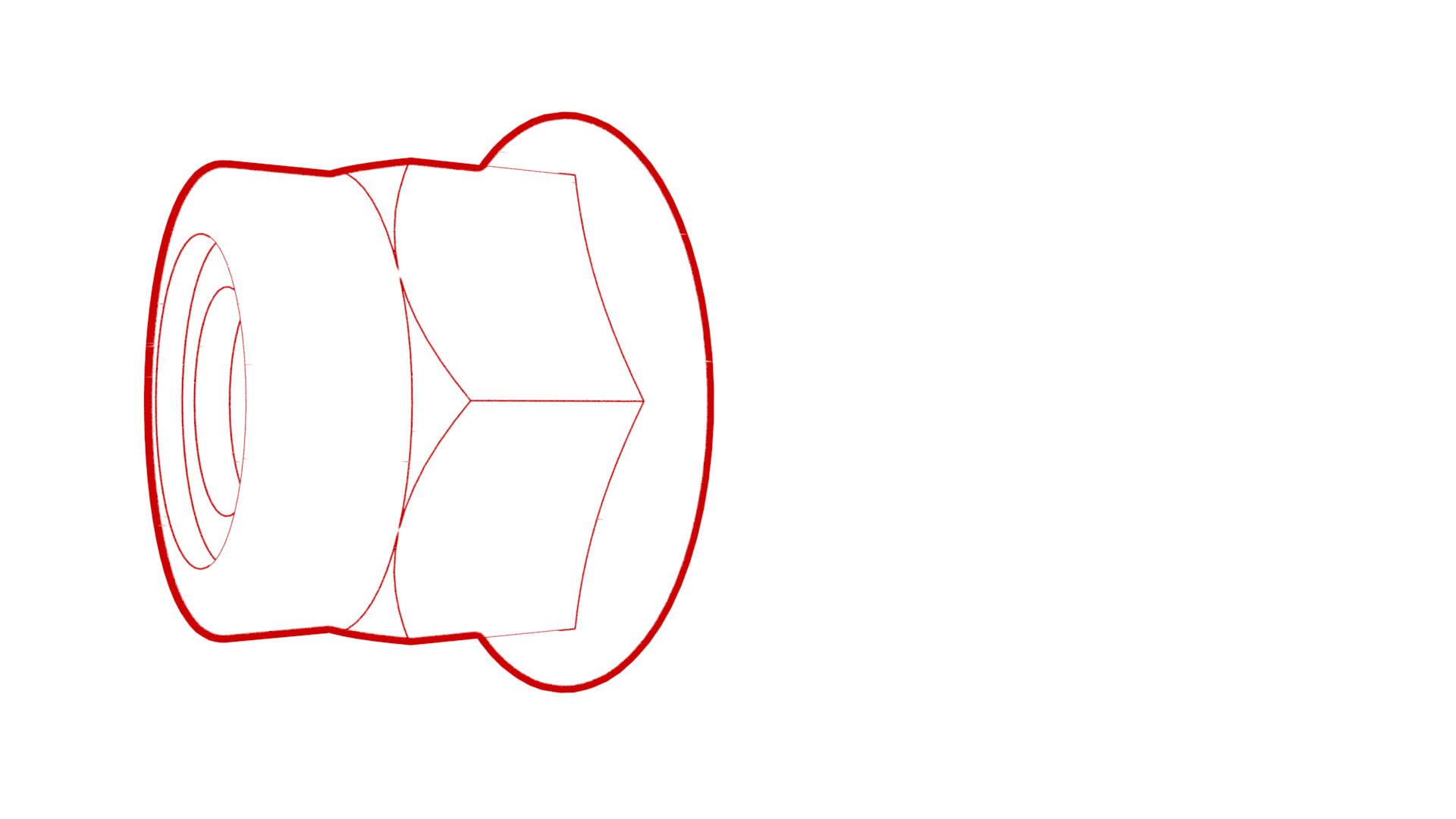

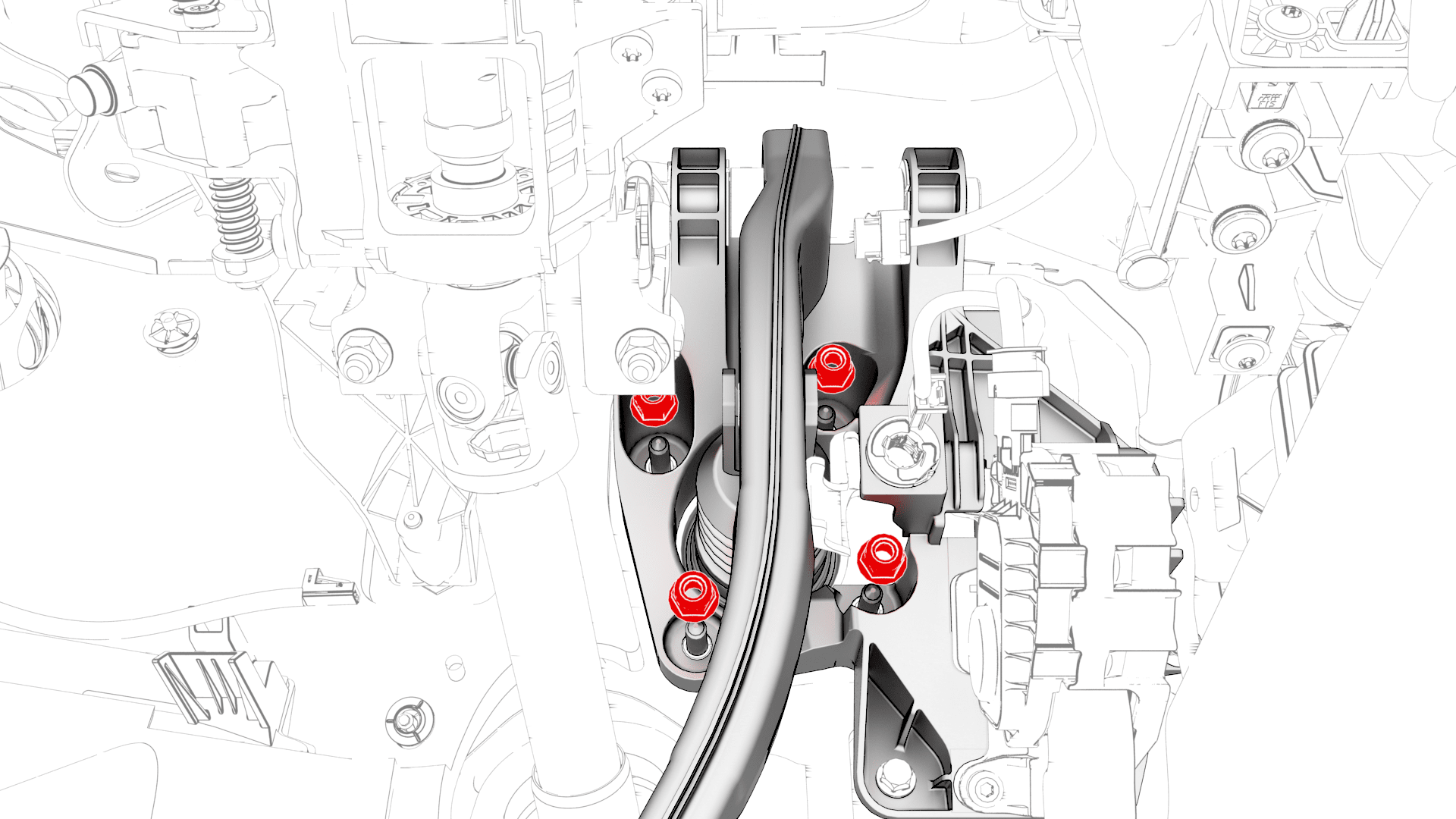

  25. Remove and discard the nuts (x4) that attach the brake booster to the bulkhead.
    16.5 Nm (12.2 lbs-ft)

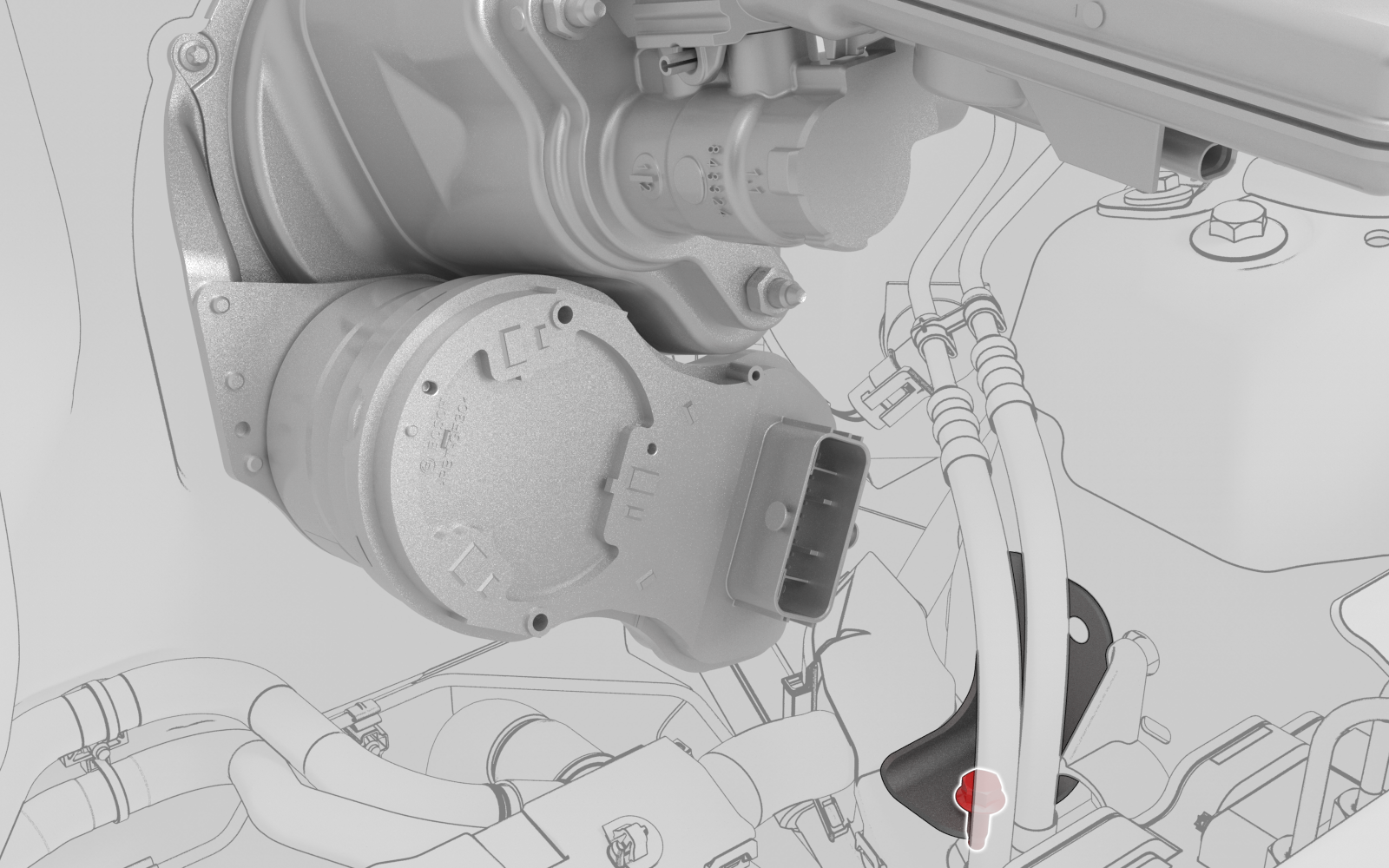

  26. Remove the LH bolt securing front harness bracket from the vehicle.
    9 Nm (6.6 lbs-ft)
    Note
    Make sure the harness bracket is able to move in a wide range, and the bracket and ibooster are not obstructed.

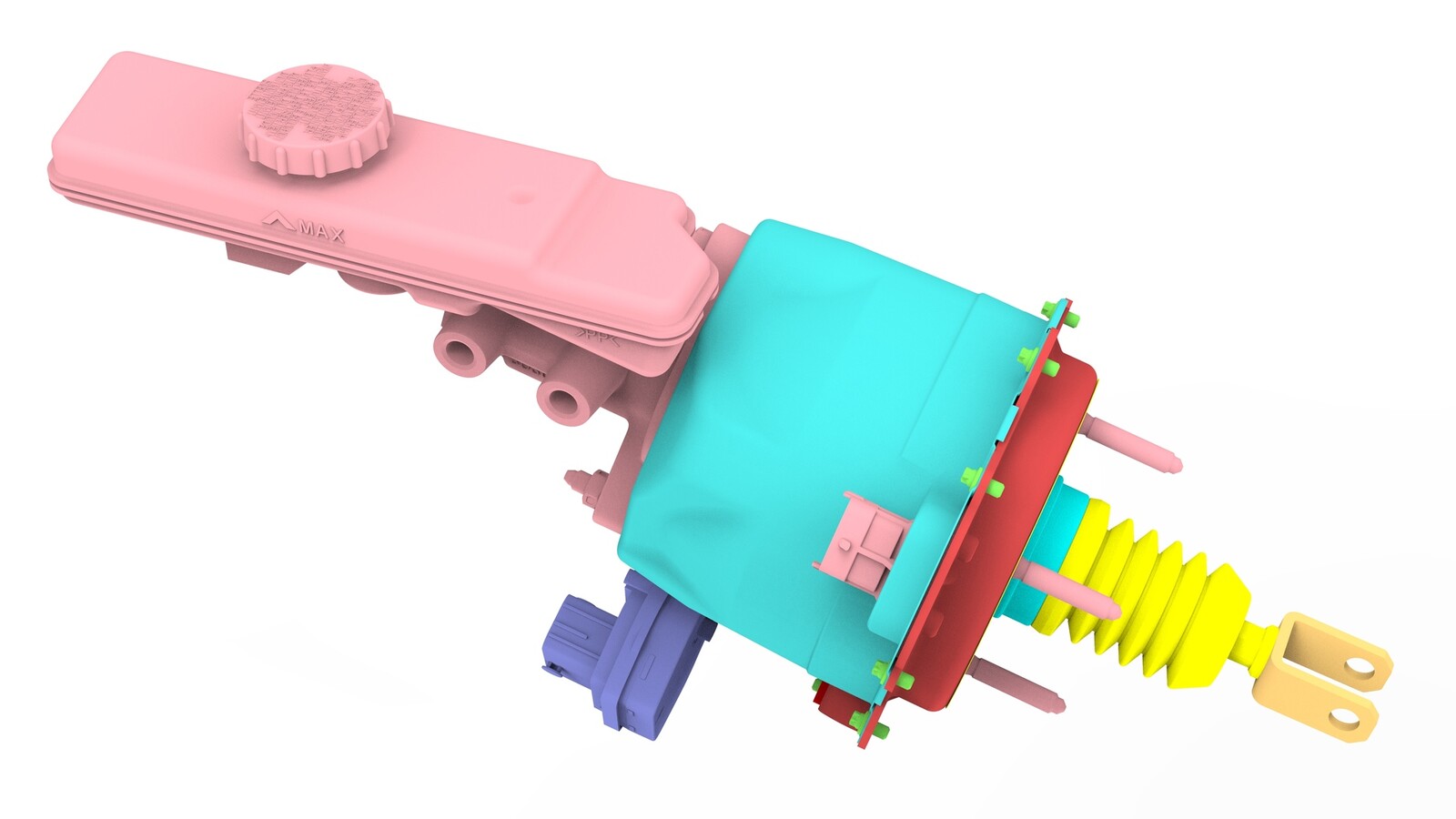

  27. Remove the brake booster assembly from the vehicle.
    CAUTION
    只能通过主外壳拿取机电制动助力器。切勿使用推杆、储罐或连接器来举升或操纵机电制动助力器。

安装

  1. Position the brake booster on the vehicle, and then install the new nuts (x4) that attach the booster to the bulkhead.
    16.5 Nm (12.2 lbs-ft)
    CAUTION
    只能通过主外壳拿取机电制动助力器。切勿使用推杆、储罐或连接器来举升或操纵机电制动助力器。
  2. Align the brake pedal with the brake booster rod, and then install the clevis pin to the brake pedal assembly.
  3. Install the cotter clip to the clevis pin on the brake pedal assembly.
  4. Install the brake switch. See #GUID-DE004FA8-A2D6-4E84-B56B-E8CF8BD20DB5.
  5. Install the driver knee airbag. See .
  6. Install the driver footwell cover. See 盖板 - 脚部空间 - 驾驶位(拆卸和更换).
  7. Install the nuts that attach the brake lines to the booster.
    16 Nm (11.8 lbs-ft)
  8. Clean the area around the brake fluid reservoir and then remove the cap.
  9. Fill the brake fluid reservoir to the "MAX" level.
    CAUTION
    Make sure not to get any brake fluid on any painted surface. Clean residual brake fluid with a shop towel.
  10. Remove the absorbent material from underneath the brake booster and reservoir area.
  11. Connect the electrical harness connectors (x2) to the electromechanical brake booster connector.
  12. Connect the electrical harness to the brake fluid reservoir connector.
  13. Install the LH bolt securing the front harness bracket of the vehicle.
    9 Nm (6.6 lbs-ft)
  14. Install the wiper motor. See 雨刮器模块(拆卸和更换).
  15. Install the front body controller module. See 模块 - 车身控制器 - 前(带加热泵款)(拆卸和更换).
  16. Install the 12V Battery. See #GUID-A457202A-D5B8-4DAD-A374-C91A41A7B4F5.
  17. Install the cowl screen panel. See 面板 - 前围篦板(拆卸和更换).
  18. Install the LH and RH shock tower covers. See 盖板 - 减震塔 - 左侧(拆卸和更换).
  19. Install the LH and RH wiper arms. See #GUID-40F2AE79-B55A-4796-B733-9622D9A5F73B.
  20. Install the underhood storage unit. See #GUID-4FBD5199-27DF-4D9D-A193-1901CE127862.
  21. Install the cabin intake duct. See 槽 - 上部 - 驾驶室进气(拆卸和更换).
  22. Reconnect 12V power. See 12V/低压电源(断开和连接).
  23. Reinstall the vehicle firmware. See .
  24. Bleed the braking system. See #GUID-35E8034B-CCEE-4045-9C21-67717AD2EE38.
  25. Install the cabin intake duct. See 槽 - 上部 - 驾驶室进气(拆卸和更换).
  26. Install the rear underhood apron. See 前备箱挡板 - 后部(拆卸和更换).
  27. Open all four doors.
  28. Move LH front seat to original position.
  29. Raise all windows.
  30. Remove lift arms from below vehicle.
  31. Close all four doors.
  32. Perform a road test using a series of panic stops to make sure there is proper pedal feel and brake performance.
