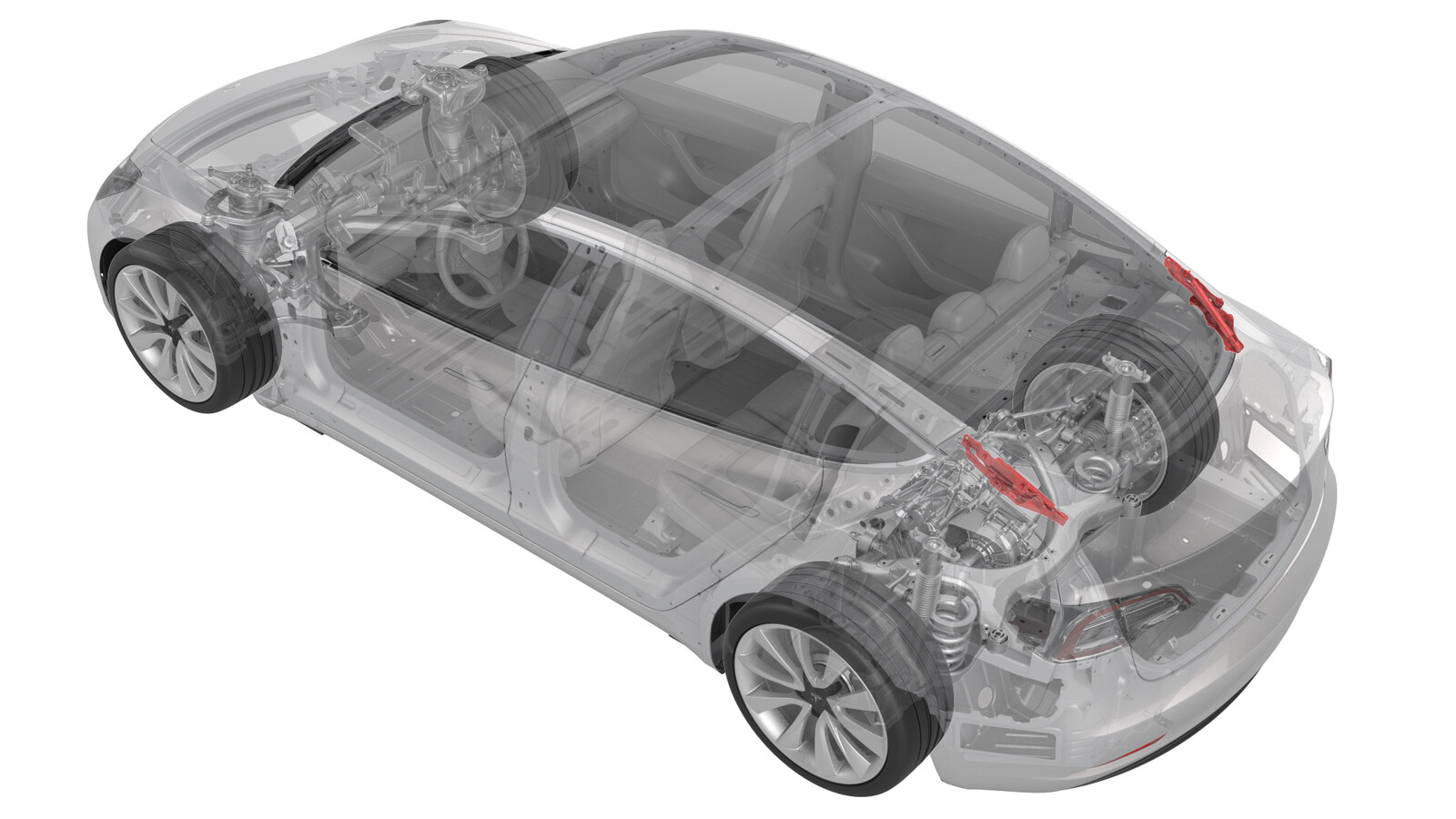

铰链 - 后备箱 - LH(拆卸和更换)
校正代码
11335802
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See for safe and healthy working
practices.
拆卸
- Remove the trunk assembly. See 后备箱(拆卸和安装).
- Remove the LH side trunk trim. See 饰板 - 侧边 - 后备箱 - 左侧(拆卸和更换).
- Use masking tape to mark the position of the trunk hinge on the body.
- Remove the LH trunk gas strut. See 气动支撑杆 - 后备箱 - 左侧(拆卸和更换).
-

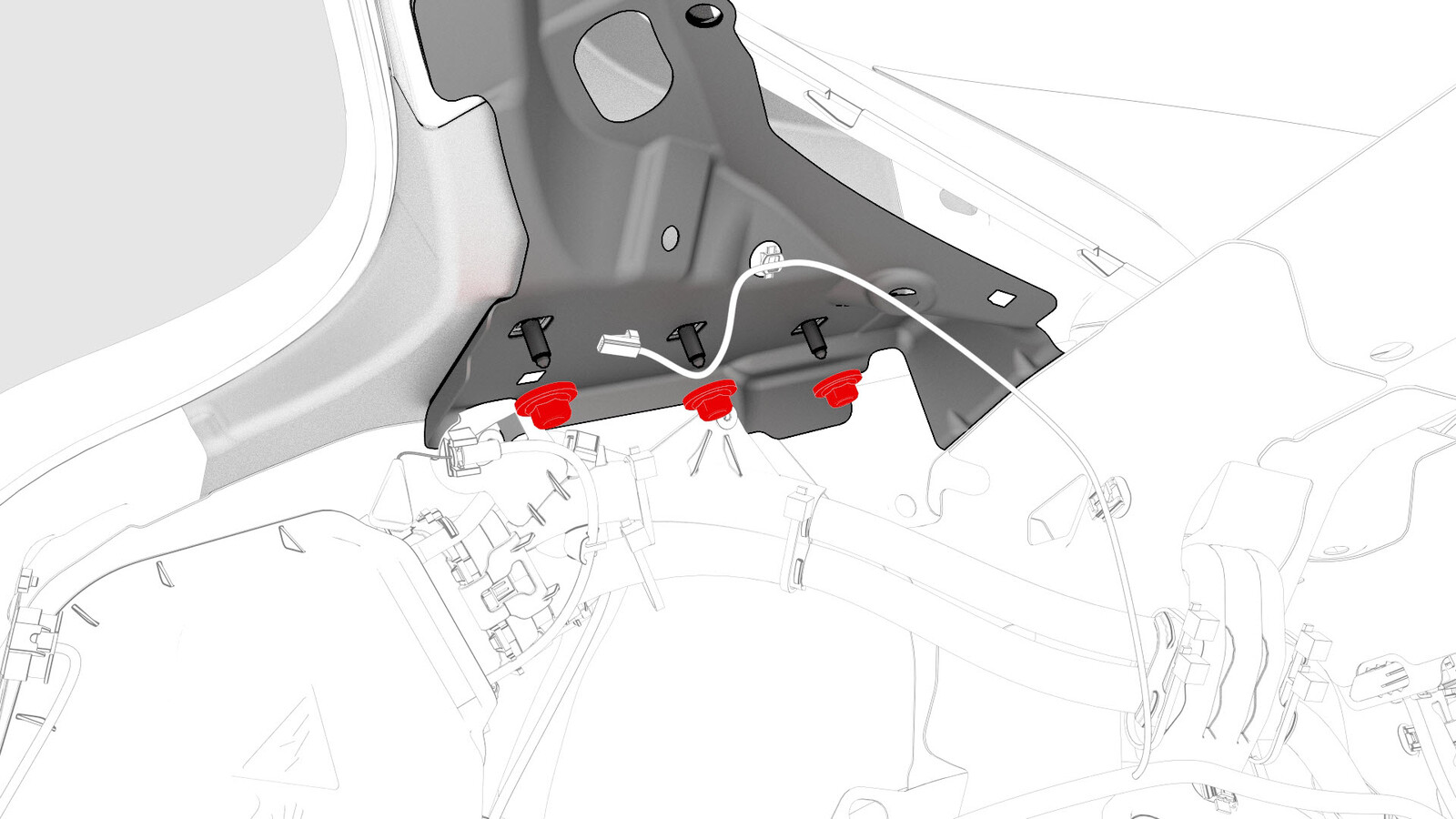

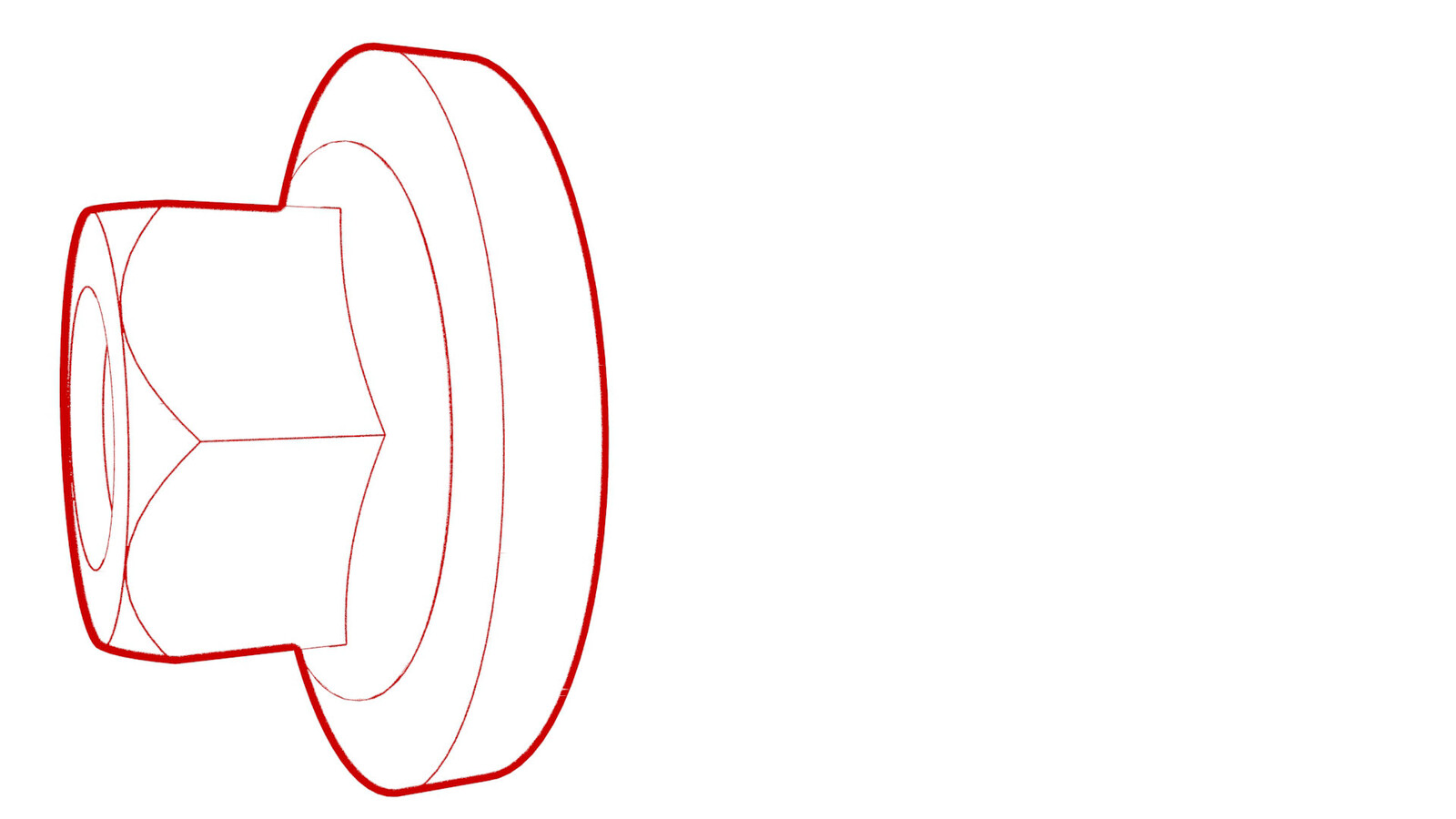

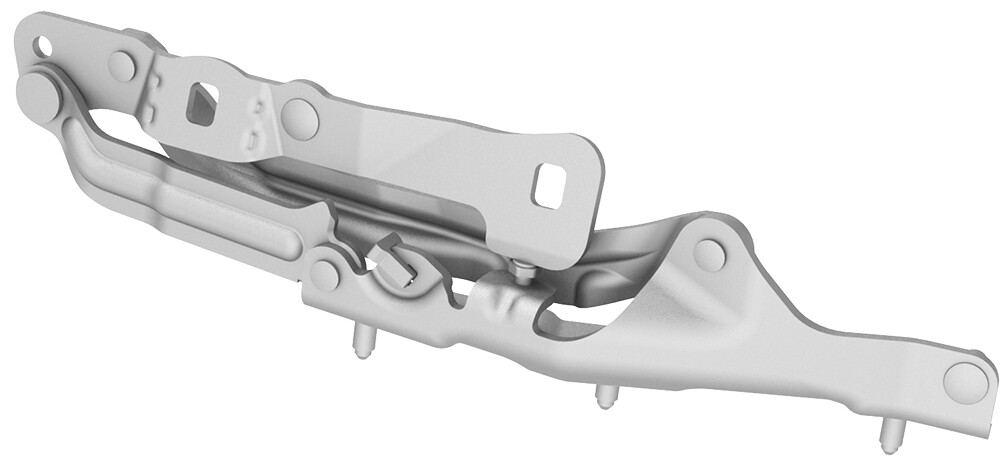

Remove the nuts that attach
the LH trunk hinge to the body, and remove the hinge from the vehicle.
24 Nm (17.7 lbs-ft)
安装
安装程序与拆卸程序相反。
