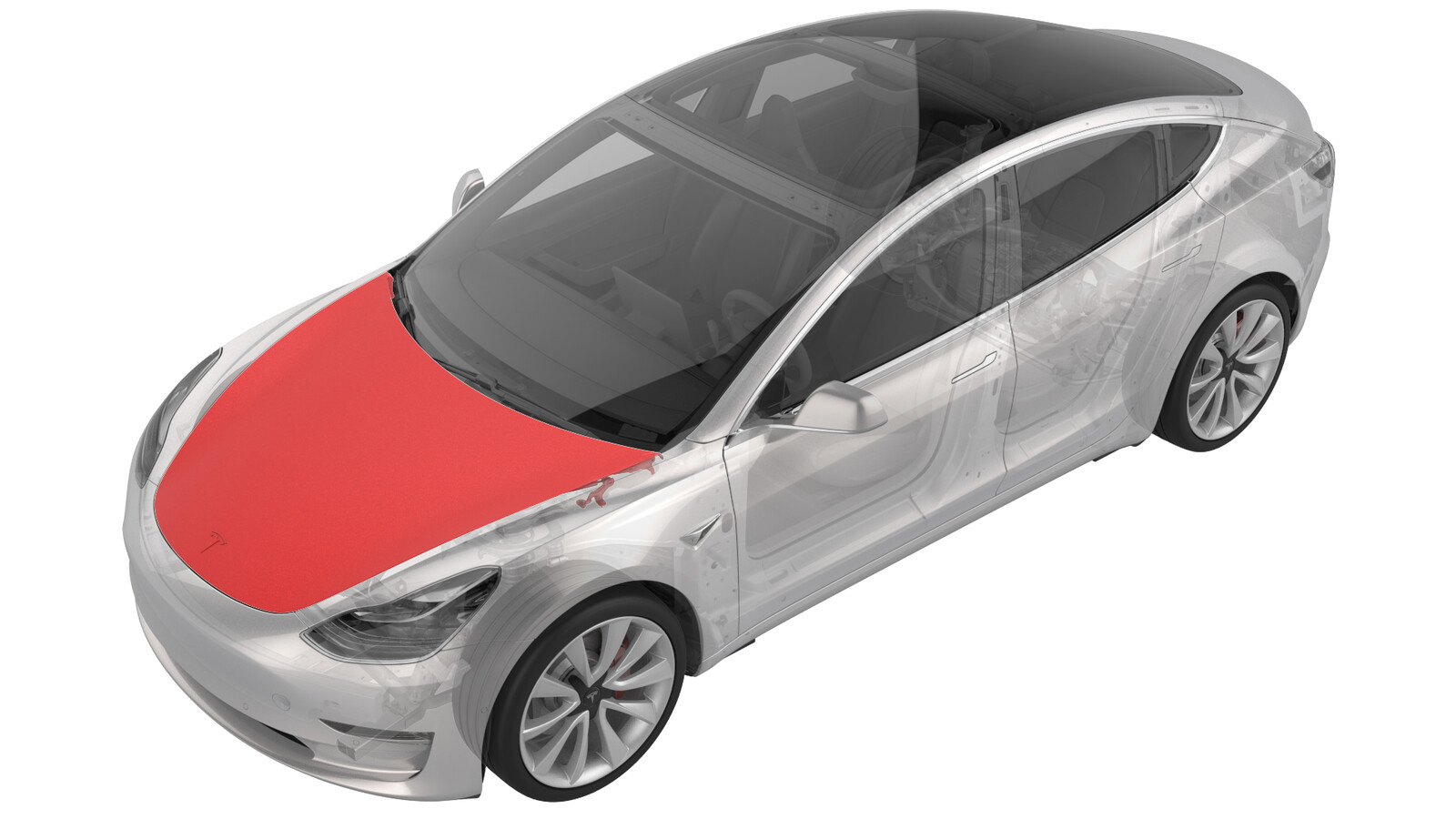

前备箱盖(拆卸和安装)
校正代码
10100301 0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See for safe and healthy working
practices.
拆卸
- 拆下前备箱盖 LH 和 RH 气压支撑杆。请参阅气动支撑杆 - 前备箱盖 - 左侧(拆卸和更换)。
- 使用胶带在前备箱盖上标记前备箱盖 LH 和 RH 铰链的支座位置。
-

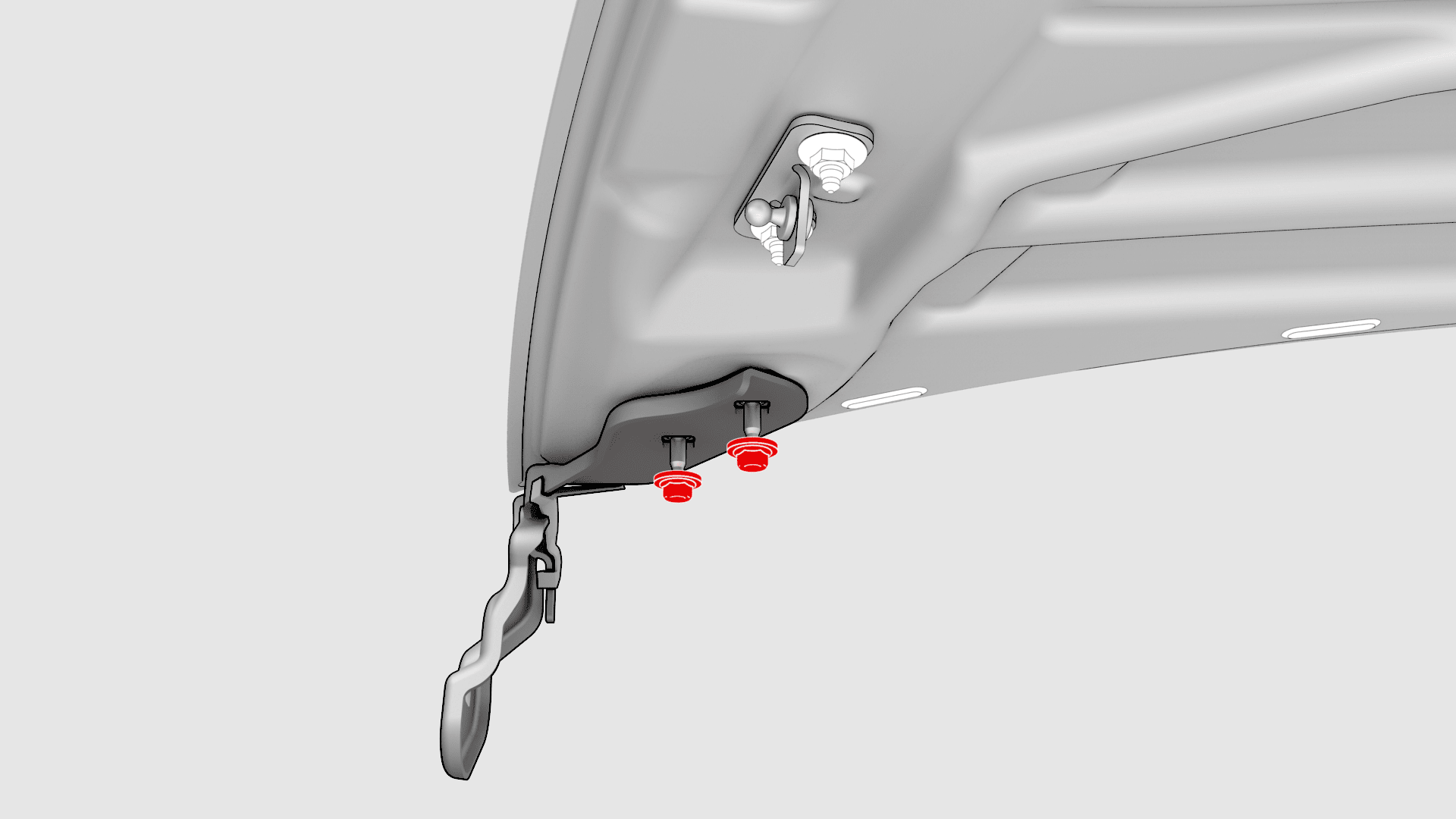

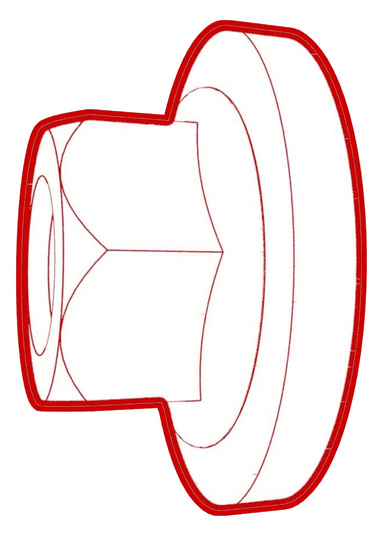

在助手的帮助下,拆下将前备箱盖总成固定到前备箱盖 LH 和 RH 铰链的螺母。
-

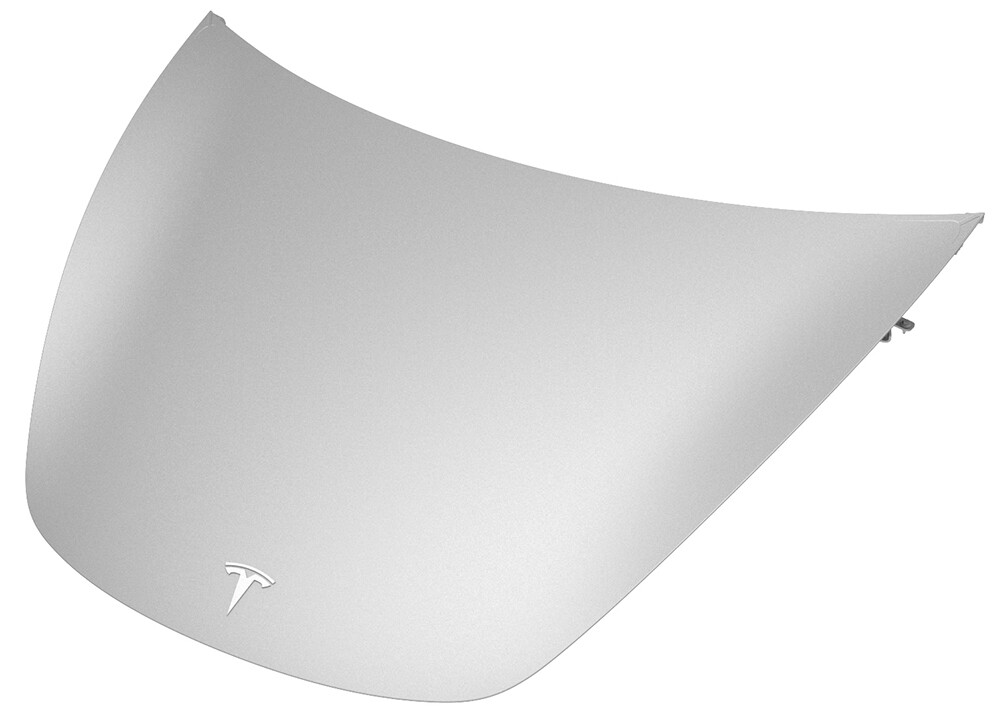

在助手的帮助下,从车上拆下前备箱盖总成,然后将其放置在有垫板的平面上。
