X962M

Tesla Part Number
2032477-00-A
Connector
AMP 2403197-1
Color
NA

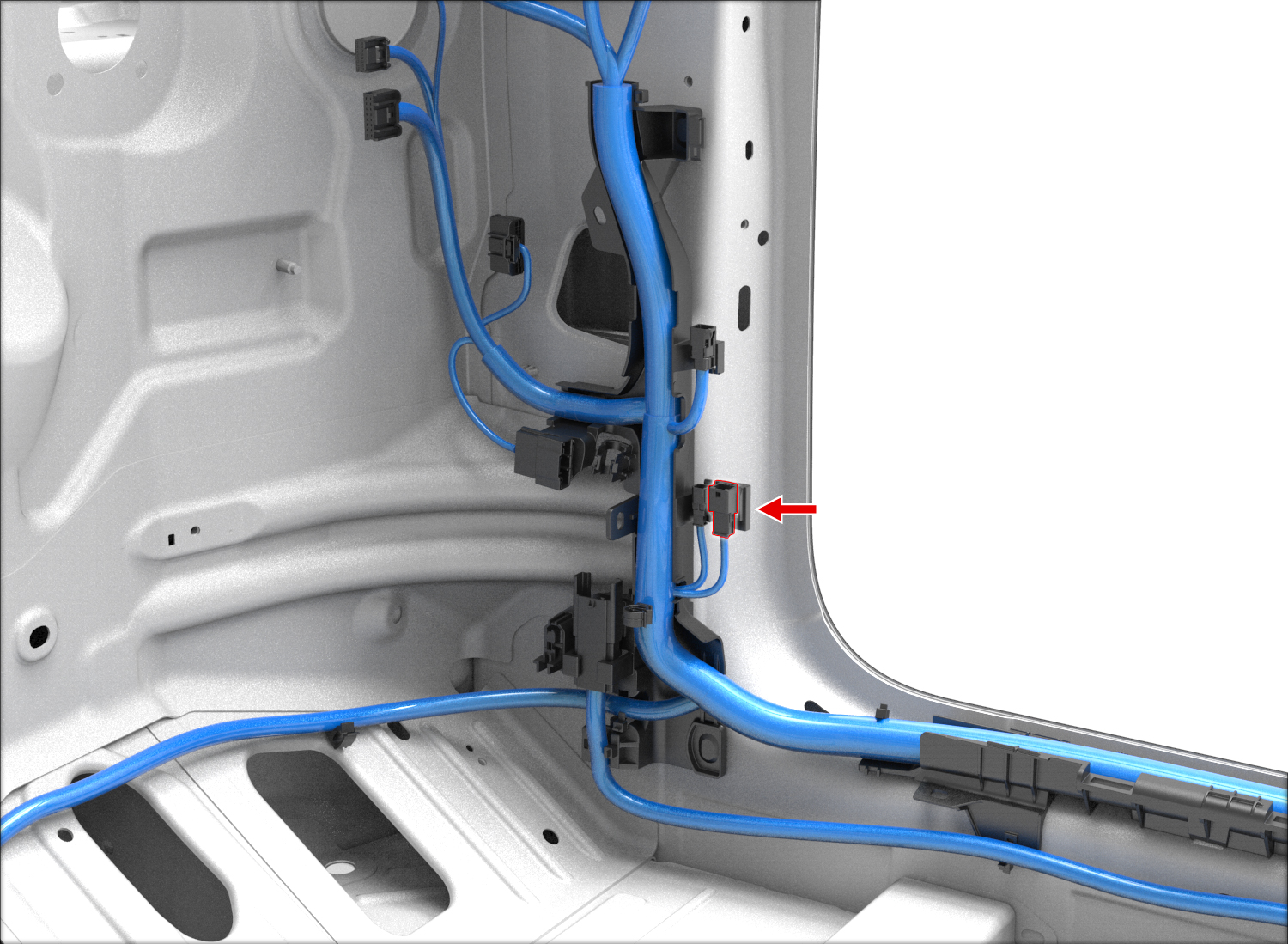

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2385474-10.63x0.63MBN0.35X05017
2AMP2385474-10.63x0.63MYE0.35X05126
3AMP2385474-10.63x0.63MVT0.35X05919
4AMP2385474-10.63x0.63MBK0.35G03215
5AMP2385474-10.63x0.63MVT0.35X0517
6AMP2385474-10.63x0.63MGN0.35X0518
7AMP2385474-10.63x0.63MBN0.35X05016
8unused
