X212

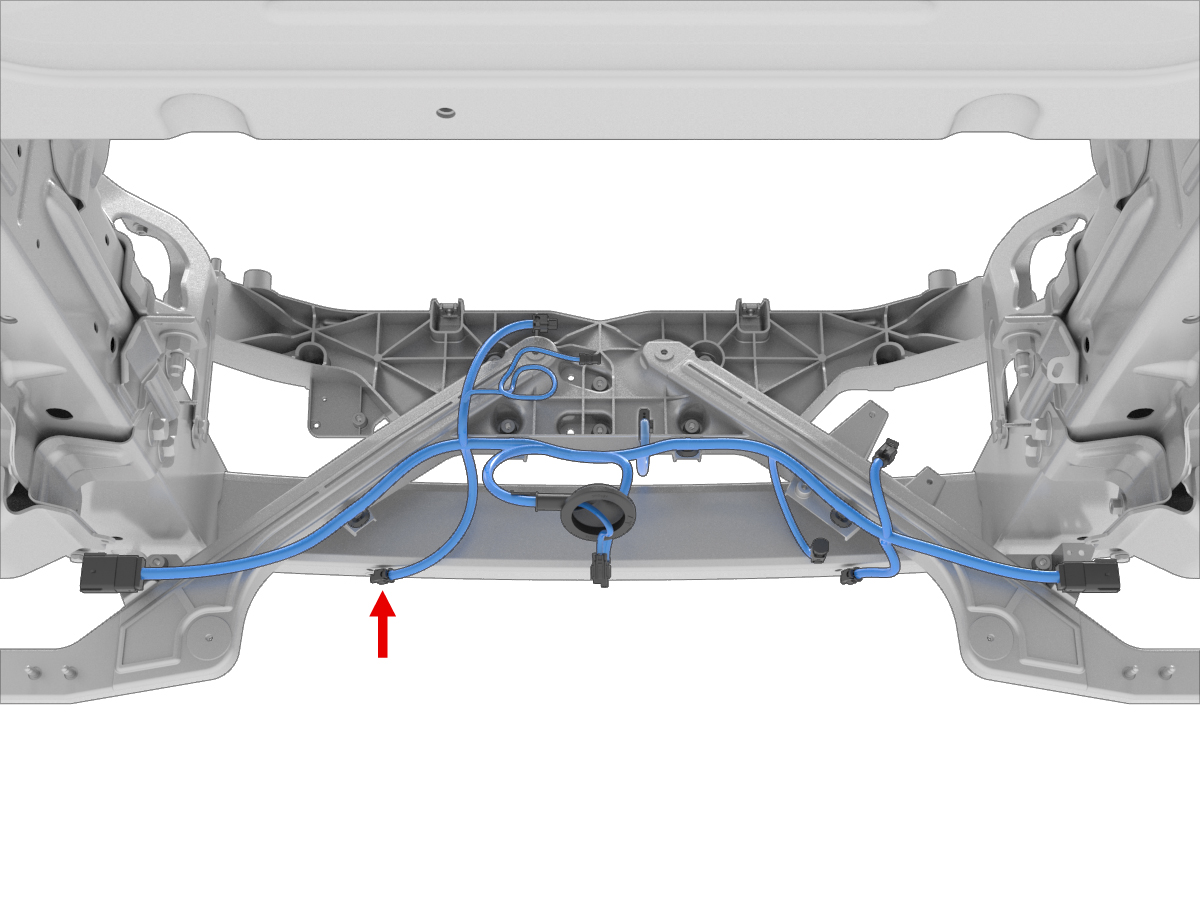

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13959118 | 1.2x0.6FS | WH | 0.35 | DELPHI | 13887349 | X905M | 5 |
| 2 | DELPHI | 13959118 | 1.2x0.6FS | RD | 0.35 | DELPHI | 13887349 | X905M | 6 |
