X924M

Tesla Part Number

1848859-00-C

Connector

KSE K30M31221

Color

WH

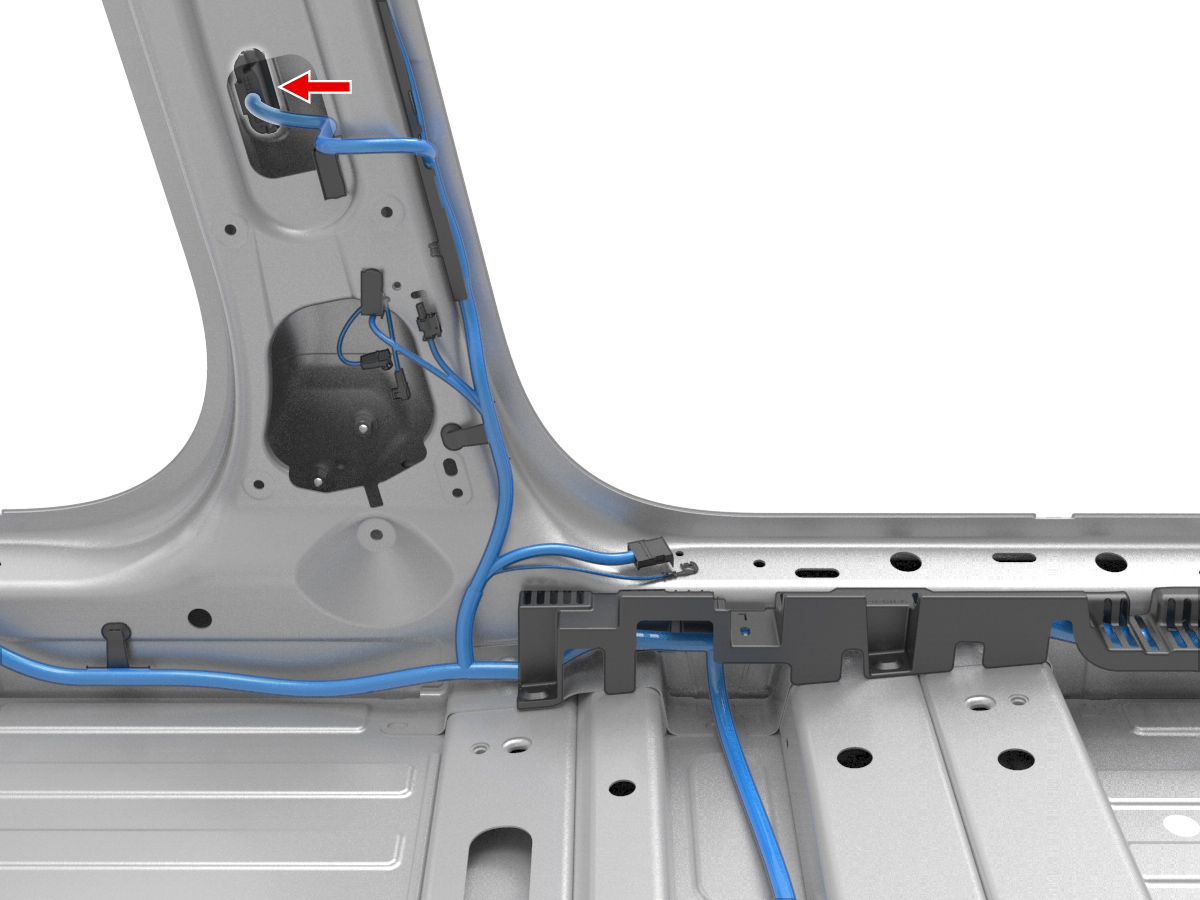

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7114-5748-02	1.5x0.64M	WH	1.50			X031	15
2	YAZAKI	7114-5748-02	1.5x0.64M	GN	1.50			X031	1
3	YAZAKI	7114-4729-02	0.64x0.64M	RD	0.35			X031	7
4	YAZAKI	7114-4729-02	0.64x0.64M	BU	0.35			X031	8
5	YAZAKI	7114-4729-02	0.64x0.64M	GY	0.35			X030A	17
6	YAZAKI	7114-4729-02	0.64x0.64M	WH	0.35			X030A	18
7	YAZAKI	7114-4729-02	0.64x0.64M	RD	0.35			X031	24
8	YAZAKI	7114-4729-02	0.64x0.64M	VT	0.35			X030A	13
9	YAZAKI	7114-4729-02	0.64x0.64M	WH	0.35			X031	19
10	YAZAKI	7114-4729-02	0.64x0.64M	GY	0.35			X031	4
11	YAZAKI	7114-5746-02	1.5x0.64M	GN	0.35			X030A	8
12	YAZAKI	7114-5746-02	1.5x0.64M	YE	0.35			X039	4
13	YAZAKI	7114-5746-02	1.5x0.64M	GY	0.35			X030A	11
14	unused
15	YAZAKI	7114-5746-02	1.5x0.64M	BN	0.50			X031	20
16	unused
17	YAZAKI	7114-4729-02	0.64x0.64M	WH	0.35			X039	31
18	YAZAKI	7114-4729-02	0.64x0.64M	VT	0.35			X201	43
19	YAZAKI	7114-4729-02	0.64x0.64M	BN	0.35			X201	44
20	YAZAKI	7114-4729-02	0.64x0.64M	BU	0.35			X030A	22
21	YAZAKI	7114-4729-02	0.64x0.64M	TN	0.35			X030A	14
22	YAZAKI	7114-4729-02	0.64x0.64M	VT	0.35			X030A	23
23	YAZAKI	7114-5746-02	1.5x0.64M	WH	0.35			X031	23
24	YAZAKI	7114-5746-02	1.5x0.64M	RD	0.50			X935F	10
25	YAZAKI	7114-5746-02	1.5x0.64M	BK	0.50			X935F	11
