X464

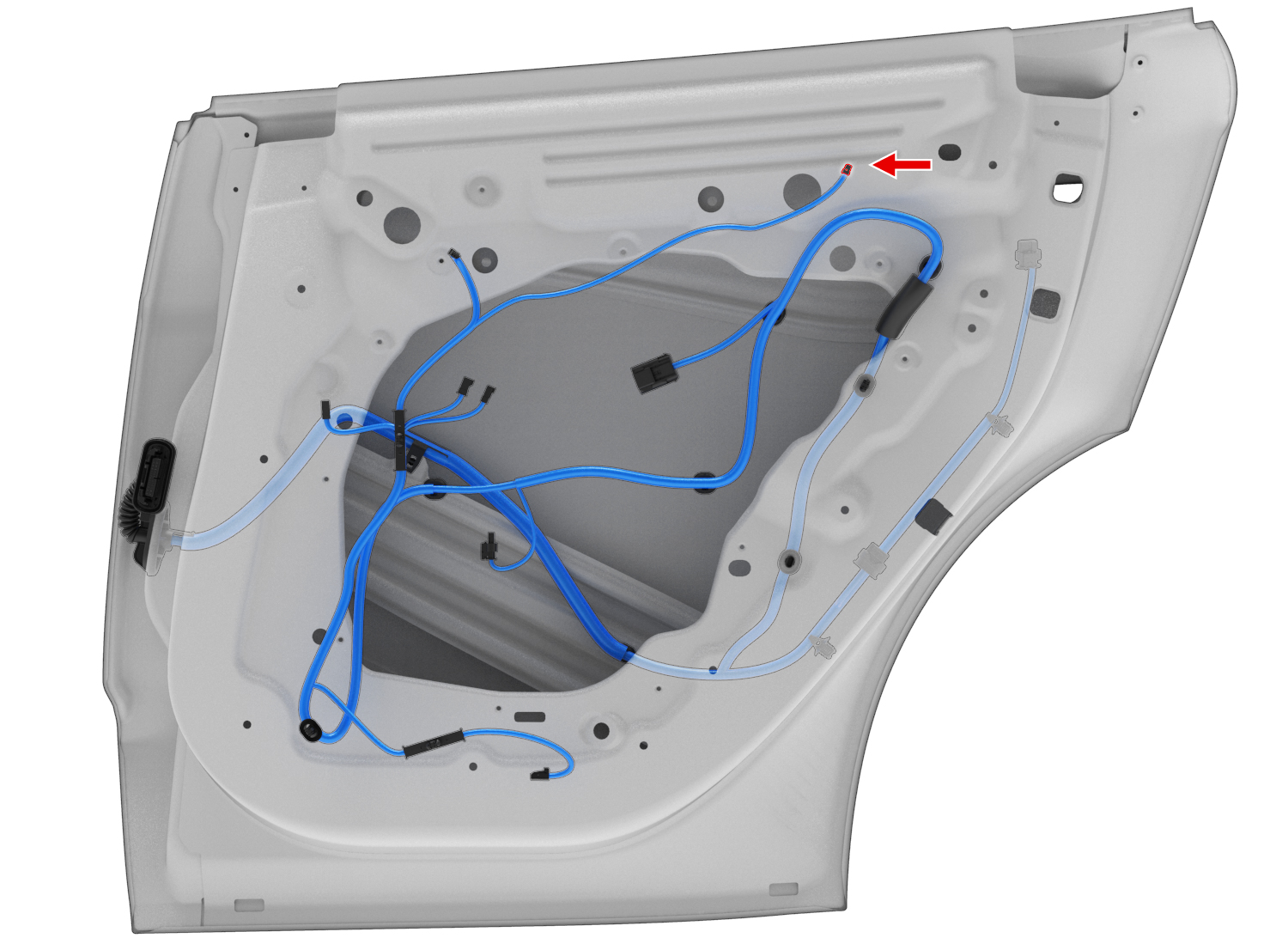

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 560124-0101 | 0.5F | WH | 0.35 | X926F | 17 | ||
| 2 | unused | ||||||||
| 3 | MOLEX | 560124-0101 | 0.5F | GN | 0.35 | X926F | 11 | ||
| 4 | MOLEX | 560124-0101 | 0.5F | BN | 0.35 | ||||
