X956M

Tesla Part Number
2002673-00-A
Connector
AMP 2403198-1
Color
NA

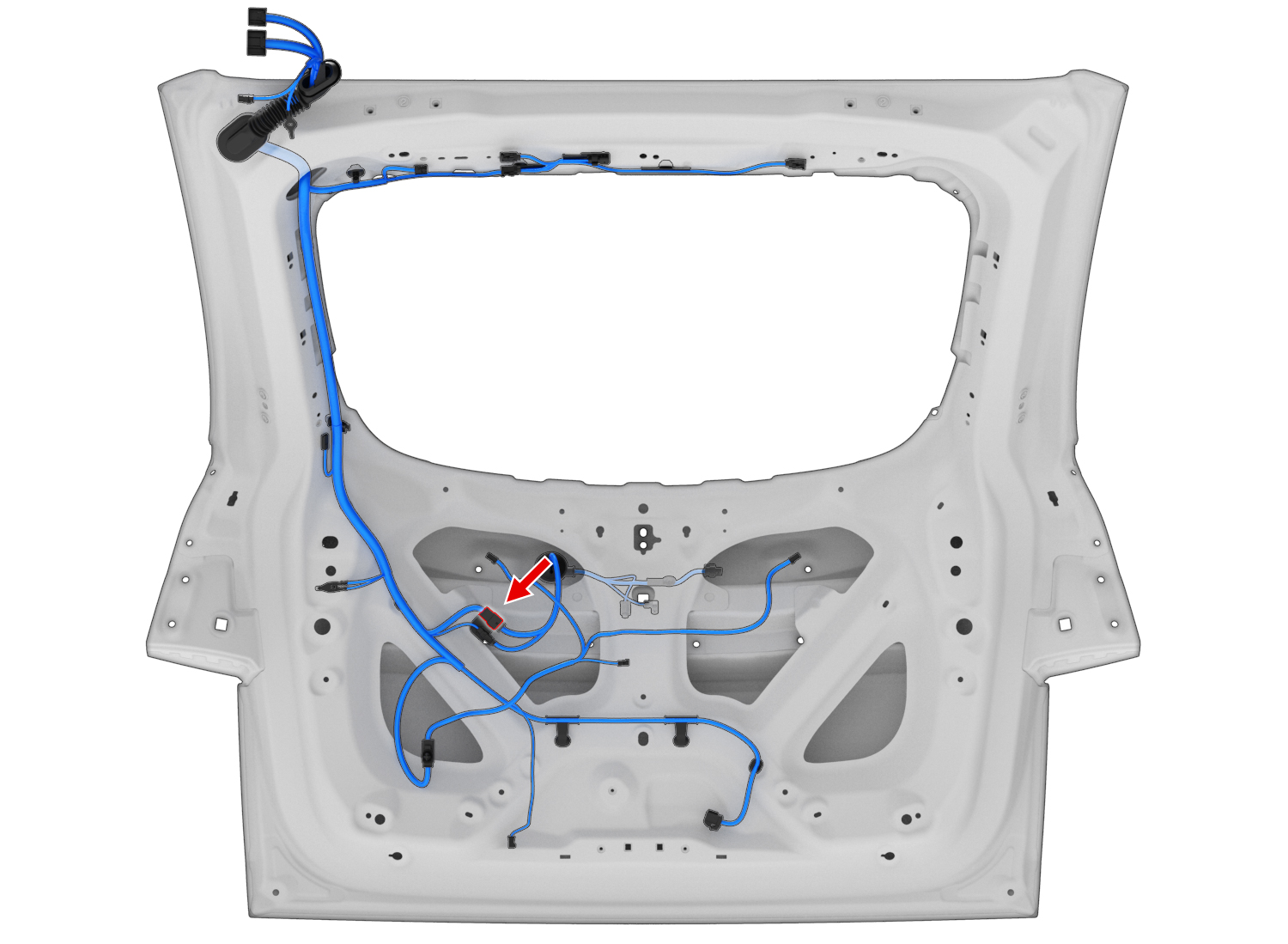

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2385474-20.63x0.63MBK0.50
2AMP2385474-10.63x0.63MGY0.35X954F3
3AMP2385474-10.63x0.63MRD0.35X954F9
4AMP2385474-10.63x0.63MYE0.35X954F15
5AMP2385474-10.63x0.63MVT0.35X954F13
6AMP2385474-10.63x0.63MRD0.35X954F14
7AMP2385474-10.63x0.63MBU0.35X954F11
8AMP2385474-10.63x0.63MYE0.35X954F4
9AMP2385474-20.63x0.63MBK0.50
10unused
11unused
12unused
