X952M

Tesla Part Number

1029115-00-B

Connector

MOLEX 33482-8601

Color

BK

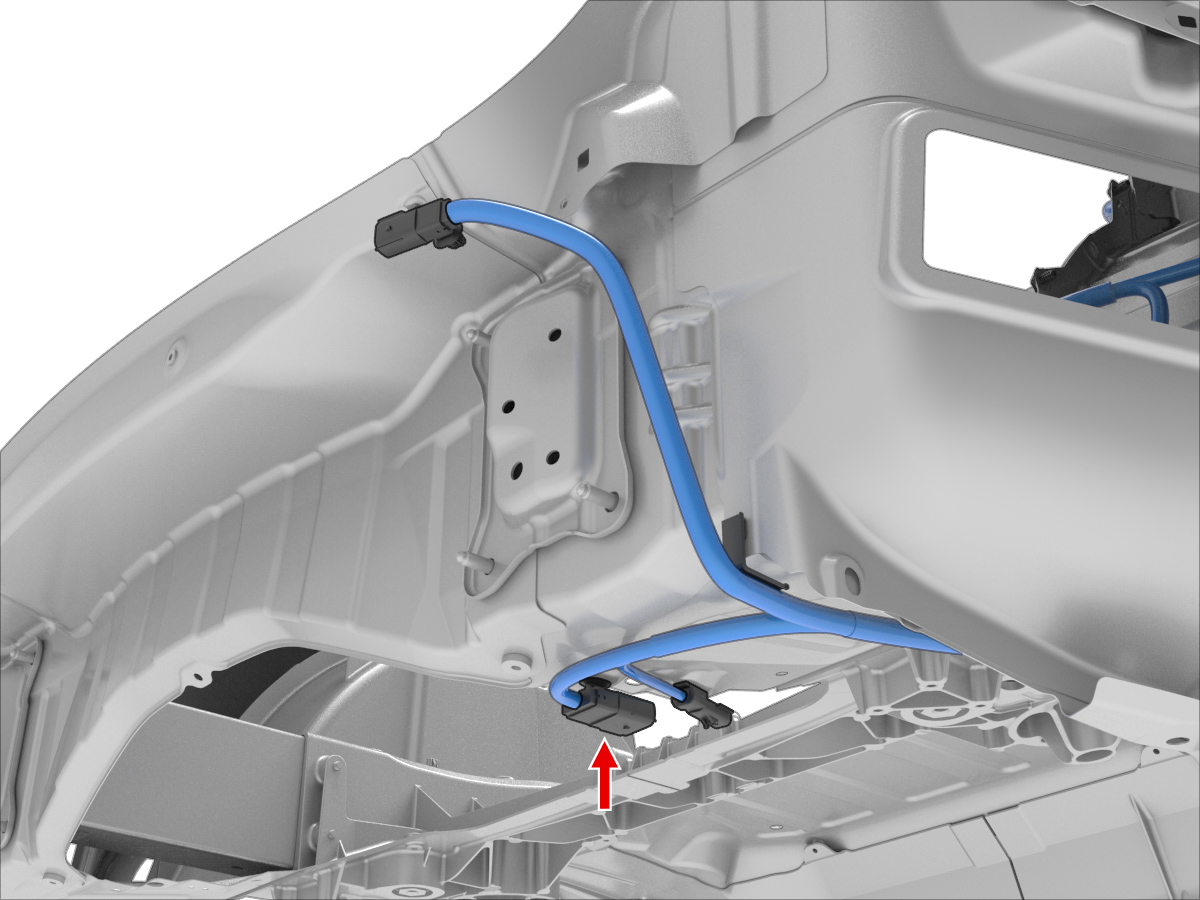

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X908F	20
3	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X908F	21
4	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X908F	4
5	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X908F	5
6	MOLEX	33000-0004	1.5x0.8M	BU/WH	0.35	TESLA	MAT-120-240	X050	58
7	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X050	57
8	MOLEX	33000-0001	1.5x0.8M	BK	1.50	TESLA	MAT-120-240	G042	12
9
10
11	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X050	60
12	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X050	59
13
14	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	G042	5
15	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X935M	48
16	MOLEX	33000-0001	1.5x0.8M	RD	1.50	TESLA	MAT-120-240	X051	3
