X949F

Tesla Part Number

1067989-01-A

Connector

MOLEX 33472-1607

Color

GY

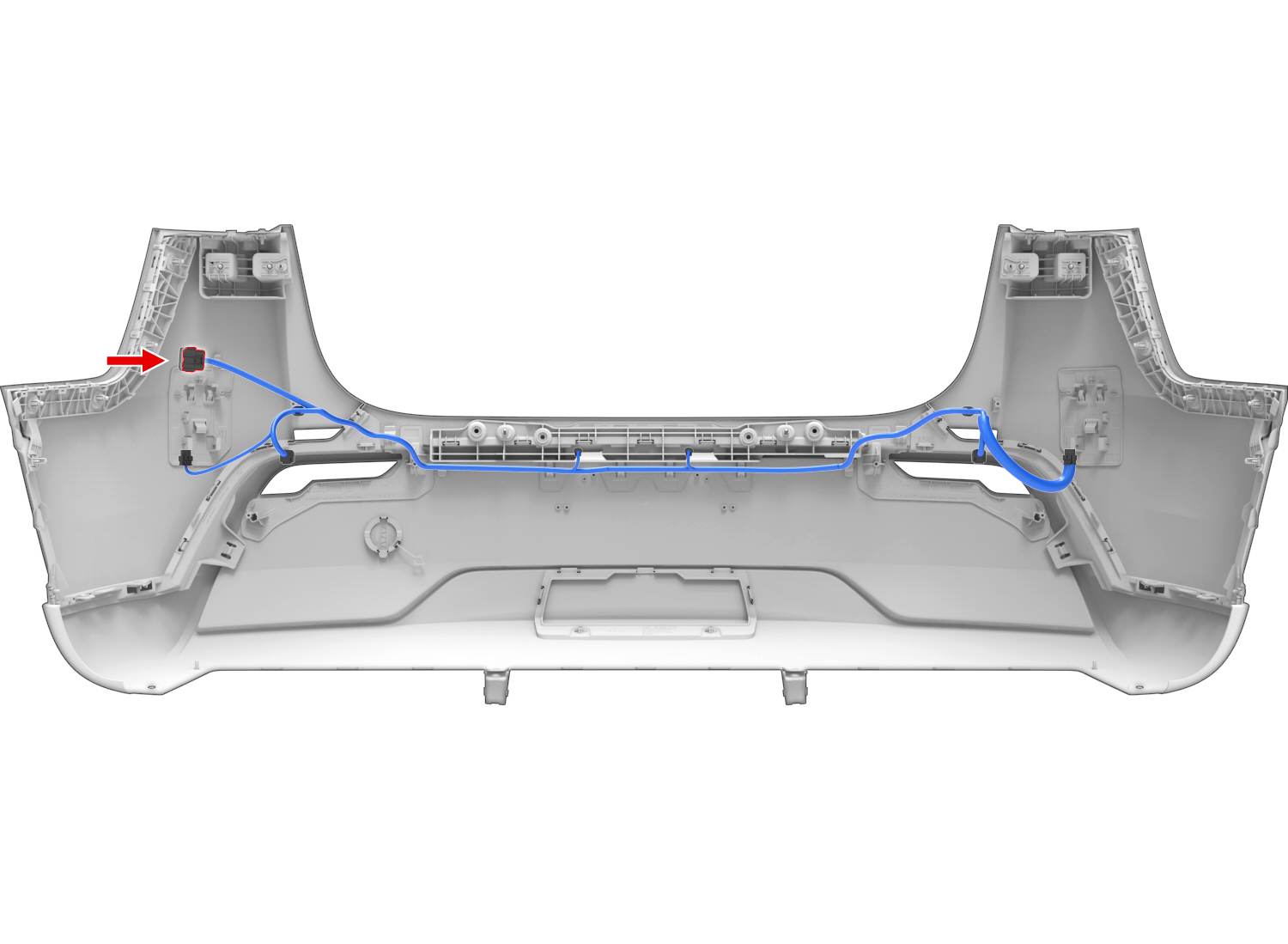

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X495	2
2	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X495	1
3	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X264	4
4	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X265	6
5
6	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X497	4
7	MOLEX	33012-3002	1.5x0.8F	BK	0.75	TESLA	MAT-120-240
8	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240
9	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X265	2
10	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X265	4
11	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X495	4
12	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X265	1
13
14	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X497	2
15	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X497	1
16	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X264	2
